Description of New and Amended Clades of the Genus Photobacterium

by
Alejandro M. Labella
1,
M. Dolores Castro
1,
Manuel Manchado
2 and
Juan J. Borrego
1,*
1
Department of Microbiology, Faculty of Sciences, Universidad de Malaga, 29071 Malaga, Spain
2
Puerto de Santa María, Junta de Andalucía, IFAPA Centro El Toruño, 11500 Cadiz, Spain
*
Author to whom correspondence should be addressed.
Microorganisms 2018, 6(1), 24; https://doi.org/10.3390/microorganisms6010024
Submission received: 15 January 2018 / Revised: 5 March 2018 / Accepted: 7 March 2018 / Published: 12 March 2018
(This article belongs to the Special Issue Marine Vibrios and Photobacteria: Taxonomy, Ecology and Pathogenesis)
Browse Figures
Versions Notes

Abstract

:
Phylogenetic relationships between species in the genus Photobacterium have been poorly studied despite pathogenic and ecological relevance of some of its members. This is the first phylogenetic study that includes new species of Photobacterium (validated or not) that have not been included in any of the previously described clades, using 16S rRNA sequences and multilocus sequence analysis (MLSA) in concatenated sequences of gyrB, gapA, topA, ftsZ and mreB housekeeping genes. Sequence analysis has been implemented using Maximum-parsimony (MP), Neighbour-joining (NJ) and Maximum likelihood (ML) treeing methods and the predicted evolutionary relationship between the Photobacterium clades was established on the basis of bootstrap values of >75% for 16S rRNA sequences and MLSA. We have grouped 22 species of the genus Photobacterium into the following 5 clades: Phosphoreum (comprises P. aquimaris, “P. carnosum,” P. iliopiscarium, P. kishitanii, P. phosphoreum, “P. piscicola” and “P. toruni”); clade Profundum (composed of P. aestuarii, P. alginatilyticum, P. frigidiphilum, P. indicum, P. jeanii, P. lipolyticum, “P. marinum,” and P. profundum); clade Damselae (two subspecies of P. damselae, damselae and piscicida); and two new clades: clade Ganghwense (includes P. aphoticum, P. aquae, P. galatheae, P. ganghwense, P. halotolerans, P. panuliri and P. proteolyticum); and clade Leiognathi (composed by P. angustum, P. leiognathi subsp. leiognathi and “P. leiognathi subsp. mandapamensis”). Two additional clades, Rosenbergii and Swingsii, were formed using a phylogenetic method based on 16S rRNA gene, although they are not confirmed by any MLSA methods. Only P. aplysiae could not be included in none of the established clade, constituting an orphan clade.

1. Introduction

The family Vibrionaceae (Gammaproteobacteria) is a diverse group of Gram-negative bacteria that includes following genera: Vibrio, Photobacterium, Aliivibrio, Catenococcus, Echinomonas, Enterovibrio, Grimontia and Salinivibrio [1,2]. According to divergence in the 16S rRNA gene sequence and phenotypic characteristics, the genus Photobacterium nowadays comprises more than 28 validated species [3], which are widespread both in the marine environment (seawater, sediments and marine animals) and in saline lakes [4]. Some species are bioluminescent and form specific bioluminescent mutualisms with marine fish [5]. In addition, several strains have been reported to be pathogenic for both poikilothermic and homeothermic animals and are capable of producing important disease outbreaks with a high economic impact [4,6].
Photobacterium species display varied phenotypic, physiological and ecological characteristics, although all of them are chemoorganotrophs, possess Q-8 as the predominant respiratory lipoquinone and present C16:1 and C16:0 as their major fatty acids. Recently, this genus has been revised on the basis of its taxonomic, ecological and pathogenic characteristics [4]. The type species of the genus, Photobacterium phosphoreum, was included in the Approved Lists of Bacterial Names [7] together with P. angustum, P. (Aliivibrio) fischeri and P. leiognathi. P. damselae [8] was formed as a new combination for former Vibrio damsela and Pasteurella piscicida. This species is the only one for which subspecies have been proposed so far with the publication of P. damselae subsp. piscicida [9]. Moreover, P. damselae subsp. damselae is an earlier heterotypic synonym of P. histaminum [10]. In the last two decades, the number of descriptions has intensified with the proposal of 24 novel species and two new combinations with valid names (Table 1).
Multilocus sequence analysis (MLSA) of genes coding for housekeeping proteins is particularly useful for epidemiological studies, for resolving taxonomic ambiguity and for establishing relationships between taxa [11,12]. In addition, MLSA has been used to examine evolutionary relationships within the Aliivibrio, Photobacterium and Vibrio genera and to establish new clades within genus Aliivibrio [2,13]. Zeigler [14] pointed out the criteria that genes selected as phylogenetic markers should fulfil: (i) They must be widely distributed among genomes; (ii) they must be present as a single copy within a genome; (iii) the gene sequence must be long enough to contain sufficient information (between 900 and 2250 nucleotides); and (iv) the sequences must predict whole-genome relationships with acceptable precision and accuracy that correlate well with the 16S rRNA data and with whole-genome similarities measured by DNA-DNA hybridization.
In the case of Photobacterium genus, MLSA has been applied in the study of the intragenic relationships of its species into clades using different housekeeping genes. On the basis of 16S rRNA gene sequence, several authors established 3 clades: Clade 1 grouped P. phosphoreum and the bioluminescent species P. angustum, P. aquimaris, P. iliopiscarium and P. kishitanii; clade 2 was constituted by P. aplysiae, P. frigidiphilum, P. indicum, P. lipolyticum and P. profundum; and, in clade 3 are included P. ganghwense, P. halotolerans, P. lutimaris and P. rosenbergii. The inclusion of P. leiognathi and P. damselae was uncertain and therefore, they were not included in any clade [15,16,17,18]. Moreover, Urbanczyk et al. [19] using the lux operon gene sequences and MLSA analysis, proposed two well-supported clades into genus Photobacterium: clade 1 that included the luminous and symbiotic species of Photobacterium, such as P. angustum, P. aquimaris, P. kishitanii, P. leiognathi, P. mandapamensis and P. phosphoreum and the non-luminous species, P. iliospicarium. Clade 2 grouped most non-luminous species of the genus, such as P. lipolyticum, P. profundum, P. frigidiphilum, P. indicum, P. damselae, P. jeanii, P. ganghwense, P. halotolerans, P. gaetbulicola, P. lutimaris and P. rosenbergii. The inclusion of P. aplysiae in the established clades was uncertain. More recently, Sawabe et al. [20] revised the Vibrio clades by MLSA using 9 housekeeping genes (16S rRNA gene, gapA, gyrB, ftsZ, mreB, pyrH, recA, rpoA and topA) and proposed 8 new clades, four of each included species of genus Photobacterium: clade Damselae with two subspecies of P. damselae; clade Phosphoreum with four species: P. angustum, P. iliospicarium, P. leiognathi and P. phosphoreum; clade Profundum that included the species: P. lipolyticum, P. profundum and P. indicum; and clade Rosenbergii containing only two species: P. lutimaris and P. rosenbergii.
However, since 2010, a total of 17 new species belonging to Photobacterium genus have been described, such as P. gaetbulicola [21], P. jeanii [22], P. aphoticum [23], P. atrarenae [24], P. swingsii [25], P. marinum [26], P. aestuarii [27], P. aquae [28], P. panuliri [29], P. piscicola [30], P. sanctipauli [31], P. galathea [32], P. sanguinicancri [33], P. proteolyticum [34], P. alginatilyticum [35], P. toruni [36] and P. carnosum [37]. Until to date, these newly described species are not included in any of the described clades.
Therefore, the aim of this study is to elucidate the phylogenetic relationship of 53 strains belonging to all species reported in genus Photobacterium, to validate current reported clades and the clustering of newly described species by using of the 16S rRNA gene sequence and MLSA analysis using 5 housekeeping genes (gyrB, gapA, topA, ftsZ and mreB).

2. Materials and Methods

2.1. Strains and Culture Conditions

A total of 53 Photobacterium strains, including type strains and environmental isolates were analysed. Fourteen strains presumptively belonging to the genus Photobacterium were isolated from captive fish with signs of disease [38,39]. Strains were routinely cultured on Tryptic soy agar or broth (TSA or TSB) (Difco) supplemented with 1.5% (w/v) NaCl (TSAs or TSBs, respectively) and incubated at 22 °C for 2 to 5 d. Stock cultures were stored at −80 °C in TSBs with 15% (v/v) glycerol.

2.2. Phenotypic Characterization

Phenotypic characterization of the 18 Photobacterium strains isolated from diseased fish was performed as described previously [40]. Briefly, the following tests were performed: motility and cell morphology, catalase and oxidase activities, oxidation/fermentation test, Voges-Proskauer, utilization of citrate, arginine dihydrolase, lysine- and ornithine decarboxylation, nitrate reduction, indole and H2S production, sensitivity to vibriostatic agent pteridine (0/129, 150 μg), and urease, beta-galactosidase, amylase, alginase, gelatinase, lipase and haemolysin production. The strains were grown on TSB to determine salt tolerance between 0.5% and 10% NaCl and grow at different temperatures: 4, 20, 30, 35 and 40 °C. Acids production was investigated on the following substrates: d-mannitol, d-sorbitol, l-rhamnose, sucrose, melibiose, l-arabinose, myo-inositol, d-xylose, d-ribose, d-fructose, d-cellobiose, d-glucose, d-galactose, d-mannose, lactose, maltose, d-trehalose and d-raffinose. Further characterization and confirmation was achieved using API 20E and API 20NE microplates (bioMerieux, Madrid, Spain). The utilization of different substrates as sole carbon and energy sources was determined using Biolog GN2 microplates (Biolog Inc., Hayward, CA, USA).

2.3. DNA Extraction and PCR Amplification

Bacterial genomic DNA was extracted according to methodology described previously [38]. Six genes were studied: gyrB (DNA gyrase B subunit), gapA (glyceraldehyde-3-phosphate dehydrogenase A), topA (DNA topoisomerase I), ftsZ (GTP-binding tubulin-like cell division protein), mreB (cell wall structural complex MreBCD) and 16S rRNA. PCR primers used for amplification and sequencing of these genes are listed in Supplementary Table S1. PCR amplification was carried out in a 25-μL reaction mixture containing 5 pmol of each primer, 200 μM of each dNTP, 1× PCR buffer (Promega), 2 mM MgCl2, 1.5 U BioTaq polymerase (Bioline, London, UK) and 1 μL of bacterial template DNA. PCR amplifications were performed using a Mastercycler thermocycler (Eppendorf, Hamburg, Germany). The conditions for 16S rRNA gene amplification were 1 min at 95 °C, 30 cycles of 1 min at 95 °C, 1 min at 50 °C and 1 min 30 s at 72 °C and a final step of 5 min at 72 °C. For gapA, ftsZ and gyrB gene amplifications, the thermal program consisted of 2 min at 95 °C, 30 cycles of 1 min at 95 °C, 1 min at 50 °C and 10 min at 72 °C and a final step of 5 min at 72 °C. For mreB gene amplification, the thermal program consisted of 2 min at 95 °C, 30 cycles of 1 min at 95 °C, 1 min at 55 °C and 5 min at 72 °C and a final step of 5 min at 72 °C. Finally, for topA gene amplification, the thermal program consisted of 2 min at 95 °C, 30 cycles of 1 min at 95 °C, 1 min at 60 °C and 5 min at 72 °C and a final step of 5 min at 72 °C. Amplified products were visualized by agarose gel electrophoresis (1.2%) with ethidium bromide staining. Purified PCR amplicons were sequenced using a Bigdye Terminator v.3.1 kit (Applied Biosystems, Foster City, CA, USA) in a 377 DNA sequencer (Applied Biosystems) and Seqman v5.53 (DNASTAR, Thermo Fisher Scientific, Madrid, Spain). GenBank accession numbers of gene sequences used in this study are listed in Figure 1 and Supplementary Table S2.

2.4. Phylogenetic Data Analysis

The sequences of 16S rRNA (n = 53) and the gyrB, gapA, topA, ftsZ, mreB genes (n = 47) for MLSA of all strains of Photobacterium tested were aligned using MUSCLE software [41]. For MLSA analysis individual genes were aligned and then concatenated using FaBox software [42]. Sequence sizes (nucleotide number) of each of the five housekeeping genes analysed in this study were 2421, 774, 2653, 1143 and 1044 nt for gyrB, gapA, topA, ftsZ, mreB genes, respectively.
Recombination events in sequence alignments were analysed using the Recombination Detection Program Beta v4.95 (RDP4) [43], following the methods previously described [44,45]. Phylogenetic analysis was performed using the program MEGA6 [46]. Maximum-parsimony (MP) analysis was performed for all gene fragments and the tree was obtained using the Subtree-Pruning-Regrafting (SPR) algorithm [47]. For comparative purpose, phylogenetic analyses using Neighbour-joining (NJ) and Maximum likelihood (ML) treeing methods were carried out using, in both cases, the Jukes-Cantor model [48]. In all cases, gaps and missing data treatment was accomplished using complete deletion strategy. Bootstrap analyses were performed using 1000 replications and a bootstrap of ≥75% was used to provide the confidence estimation for clades in the phylogenetic tree.

3. Results and Discussion

3.1. Phenotypic Characterization

Phenotypic characterization of the 18 Photobacterium strains isolated from diseased fish is shown in Supplementary Table S3. According to the biochemical and physiological profiles, 15 strains belong to P. damselae subsp. damselae and 3 strains were classified as P. damselae subsp. piscicida. The intraspecific variation among two subspecies was obtained for the following features: motility; nitrate reduction; acids from: sucrose, melibiose, d-cellobiose, maltose and d-trehalose; and for the utilization as unique carbon and energy source of the following substrates: glycogen, tween-40, N-acetyl-d-galactosamine, β-methyl-d-glucoside, d-raffinose, d-sorbitol, succinic acid, d-l-lactic acid, bromosuccinic acid, succinamic acid, l-alanyl glycine, l-asparagine, l-aspartic acid, l-glutamic acid, l-serine, glycerol and α-d-glucose 1-phosphate. On the other hand, the intraspecific variation among P. damselae subsp. damselae strains was recorded for the following characteristics: lysine decarboxylase, acetoine production, amylase, gelatinase, lipase and haemolysin production; whilst, for P. damselae subsp. piscicida strains the intraspecific variation was obtained for acetoine production, amylase and acids from l-arabinose (Supplementary Table S3). The profiles of API 20E for P. damselae subsp. damselae were 2014144, 2015144, 6014144 and 6015144, while for P. damselae subsp. piscicida were 2004024, 2004025 and 2005025. In the case of API 20NE, the profiles for P. damselae subsp. damselae strains were 5342334 and 5342344 and for P. damselae subsp. piscicida strains the profile was unique 4142344. As it can be seen, the phenotypic patterns are very variable among the strains of the same subspecies and therefore, they are not adequate to apply for evolutionary or phylogenetic studies.

3.2. Phylogenetic Studies of the Photobacterium Genus

The results of the phylogenetic analysis performed on the 16S rRNA gene sequences are shown in Figure 1 and Supplementary Figures S1 and S2. All strains identified as either P. damselae subsp. damselae or P. damselae subsp. piscicida cluster in a single, tightly packed group with 97.0% bootstrap support for MP, with 95.0% for NJ and ML treeing methods (Figure 1, Supplementary Figures S1 and S2, respectively). No internal boundaries appeared between both subspecies, since their sequences display almost no variation and form a tight monophyletic branch constituting a homogeneous group. For a more robust phylogenetic analysis, a MLSA approach using set of five housekeeping genes was performed, which have been proven to be useful for taxonomic and phylogenetic studies of the Vibrionaceae family [20,49,50,51,52]. MLSA using MP grouped 17 from 18 strains of P. damselae with a bootstrap value of 99% (Figure 2), constituting the clade Damselae. This result is confirmed by the use of NJ and ML treeing methods, including all the 18 strains of P. damselae, both with a bootstrap value of 94% (Supplementary Figures S3 and S4).
The position of other Photobacterium species studied on the basis of 16S rRNA and MLSA was always external to the Damselae clade, constituting five additional clades that include all the other 21 Photobacterium from 30 described species (Figure 2). Clade Ganghwense, a new proposed clade, includes six species: P. aphoticum, P. aquae, P. galatheae, P. ganghwense, P. halotolerans and P. proteolyticum on the basis of the MLSA approach at a bootstrap value of 86% (Figure 2). In addition, P. panuliri may be included in this clade on the 16S rRNA gene sequence at bootstrap values of 88, 86 and 88% for MP, NJ and ML treeing methods (Figure 1, Supplementary Figures S1 and S2). This clade grouped species that possessed <5% GC (mol %) (48.6 ± 3.4%) [15,16,23,28,29]. This result is consistent with that obtained by Lucena et al. [23], who reported that P. aphoticum presented a close relationship with P. halotolerans and P. ganghwense and with the results of Liu et al. [28] who found that P. aquae and P. aphoticum had higher 96% 16S rRNA sequence similarity. On the other hand, Rivas et al. [16] found that P. halotolerans presented a close relationship with P. ganghwense and Gomez-Gil et al. [25] established a clade formed by P. ganghwense, P. halotolerans, P. aphoticum, P. panuliri and P. aquae but P. galatheae formed an orphan clade. However, the later species was closely related to P. halotolerans according to the results of Machado et al. [32].
Clade Phosphoreum that consisted of eight species: P. aquimaris, “P. carnosum,” P. frigidiphilum, P. iliopiscarium, P. kishitanii, P. phosphoreum, “P. piscicola” and “P. toruni” (Figure 2). These species possess a DNA-DNA hybridization percentage higher than 20% (from 24.0% to 84.0%) and a GC (mol %) difference lower than 5% of (40.9 ± 1.95%) [12,17,27,31,51,52]. Previously, Park et al. [15] included in the clade Phosphoreum the species P. phosphoreum, P. angustum and P. iliopiscarium, excluding to P. leiognathi subsp. leiognathi (orphan clade), although the later species was included in this clade by other authors [16,17]. Later, Yoshizawa et al. [18], in the description of P. aquimaris performed two phylogenetic analyses based on 16S rRNA and luxA genes, revealing the closest phylogenetic relationship with P. phosphoreum, P. iliopiscarium and P. kishitanii and a more distant relationship with P. angustum and P. leiognathi subsp. leiognathi. However, the results obtained in the present study are not coherent with those obtained by Sawabe et al. [20], who using 9 housekeeping genes established the clade Phosphoreum with the species: P. phosphoreum, P. angustum, P. iliopiscarium and P. leiognathi.
Clade Leiognathi, is a new proposed clade, consists of two subspecies: P. leiognathi subsp. leiognathi and P. leiognathi subsp. mandapamensis and P. angustum according to the MLSA at a bootstrap value of 75% (Figure 2). This result is similar to those reported by other authors [5,18].
Clade Profundum comprises five species: P. indicum, P. jeanii, P. lipolyticum, P. marinum and P. profundum according to the MLSA approach with a bootstrap value of 100% (Figure 2). This clade grouped species other species such as P. aestuarii, P. alginatilyticum and P. frigidiphilum according to the results obtained using the 16S rRNA gene sequence (Figure 1), at a bootstrap value of 75% for any methods used (MP, NJ or ML). The species grouped in this clade shared a percentage DNA-DNA hybridization higher than 12% (from 12.0% to 15.0%) and possessed a difference in the GC (mol %) lower than 5% (43 ± 2.05%) [27,35,53,54,55,56]. This result agrees with that obtained by several authors, using 16S rRNA gene sequence or analysis of concatenated housekeeping genes [52,53,54,57]. Sawabe et al. [20] described the clade Profundum including P. profundum, P. indicum and P. lipolyticum and Urbanczyk et al. [52] included in this group, in addition, the species P. frigidiphilum and P. aplysiae.
The inclusion of P. frigidiphilum into the clade Profundum (16S rRNA gene sequence analysis) or into the clade Phosphoreum (MLSA analysis) is uncertain, although this species has been related to P. indicum (clade Profundum) by several authors [15,16,17,52]. The unexpected close proximity of P. frigidiphilum to P. kishitanii in the concatenated tree (Figure 2), which is due to the higher similarity shared in the housekeeping genes (98.0% gyrB, 99.3% mreB, 99.5% topA, 100% gapA and 100% ftsZ) than observed for the 16S rRNA gene sequences (97.1%). In future studies with P. frigidiphilum should be considered a reassessment of the sequences available.
On the basis of the 16S rRNA gene sequence analysis, four species: “P. atrarenae,” P. gaetbulicola, P. lutimaris and P. rosenbergii clustered on the basis of 16S rRNA gene sequences at a bootstrap of 82% (Figure 1) constituting the clade Rosenbergii. However, applying the MLSA approach these species and P. sanctipauli formed paraphyletic branches and they could not be included in a clade (Figure 2 and Supplementary Figures S3 and S4), except in the case of the use of NJ methods that grouped P. lutimaris and P. rosenbergii in a cluster with a bootstrap value of 96% (Supplementary Figure S3), result similar to that reported by other authors [20]. These species shared >20% DNA-DNA hybridization (from 21.5% to 22%) and possessed <5% GC (mol %) (49.7 ± 3.9%) [17,21,24,49]. Results that are partially similar to those reported by several authors [24,52], who reported that the highest degree of similarity of P. atrarenae was with P. rosenbergii and P. gaetbulicola.
The species: P. sanguinicancri and P. swingsii on the basis of exclusively of 16S rRNA gene sequence possess a bootstrap value of 80% (Figure 1), presenting <5% GC (mol %) (45.2 ± 2.26%) [25,33], which could constitute a new clade named Swingsii. Phylogenetic analysis of 16S rRNA gene sequence revealed that P. sanguinicancri is closely related to P. swingsii [33]. However, this inclusion of these two species in a clade in the MLSA approaches has been accomplished at bootstrap values <75% (Figure 2, Supplementary Figures S3 and S4) and this not confirmed the proposed of this clade.
Only the inclusion of P. aplysiae is uncertain and constitutes the unique orphan clade. Several authors, on the basis of 16S rRNA gene sequence, revealed that P. aplysiae was closely related to P. alginatilyticum [35,37] and to P. swingsii [25], although these results are not based on MLSA analyses, and, therefore, it is necessary to include more strains in further phylogenetic studies to elucidate the inclusion of P. aplysiae in any clade.

3.3. Intra- and Interspecies Nucleotide Sequences Variation

The mean intra- and interspecies nucleotide sequence similarities for the different genes tested are shown in Table 2. The intraspecies gene similarities in the Damselae clade are high with six genes tested (>83%), regarding the geographical location and isolation host. For the other clades established in the present study, the intraspecies gene similarities were variable, with values between 44.0% and 99.9% for clade Phosphoreum; between 79.4% and 98.4% for clade Profundum; between 12.0% and 97.8% for clade Ganghwense; and between 15.8% and 99.2% for clade Leiognathi.
The interspecies gene similarities are also shown in Table 2. Clade Damselae shares high mean similarities with clade Phosphoreum for 16S rRNA (97.0%) and gapA (87.8%) genes. High mean similarity percentage between clades Damselae and Profundum was obtained for the genes: 16S rRNA gene (96.3%), gapA (86.1%), ftsZ (82.3%) and mreB (84.9%). Clade Damselae shares a high mean similarity with clade Ganghwense only for 16S rRNA gene (96.3%). Finally, the new described clade Leiognathi shares a high mean similarity with clade Damselae for 16S rRNA gene (96.9%) and the genes gapA (87.4%) and mreB (84.4%).
Clade Phosphoreum shares high mean similarities with clade Profundum for 16S rRNA gene (97.6%) and for the gapA and gyrB genes (91.0% and 77.7%, respectively). With the clade Ganghwense high mean similarities was only recorded for 16S rRNA gene (97.1%), whilst with clade Leiognathi, clade Phosphoreum shares high mean similarities for the genes 16S rRNA gene (98.3%), gapA (90.3%) and gyrB (80.2%).
Clade Profundum shares high mean similarities with clade Ganghwense was only found for 16S rRNA gene (96.2%). In the case of the clade Leiognathi, clade Profundum shows high mean similarities for the genes 16S rRNA (97.1%), gapA (90.9%) and mreB (86.5%). Finally, clades Ganghwense and Leiognathi shares high mean similarities only for the gene 16S rRNA (97.3%).

4. Conclusions

The MLSA has showed to be a robust technique suitable for elucidating phylogenetic relationships among P. damselae strains and between P. damselae and other species of the Photobacterium genus and hence, its use is necessary for taxonomy of this microbial group. By using this assay 22 from 31 of the described until now species of Photobacterium have been adequately discriminated and 5 clades have been proposed on the basis of MLSA approach. Two additional clades, Rosenbergii and Swingsii, were formed using the 16S rRNA gene as phylogenetic approach, although they are not confirmed by any MLSA methods. Thus, only P. aplysiae is not included in any cluster and it constitutes an orphan clade. All the new recently described species (validated or not) have also been clustered in the defined and proposed clades.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/6/1/24/s1, Figure S1: Neighbor-joining phylogenetic tree based on 16S rRNA gene sequences, Figure S2: Maximum likelihood phylogenetic tree based on 16S rRNA gene sequences, Figure S3: Neighbor-joining phylogenetic tree based on based on 5 concatenated genes (gyrB, gapA, topA, ftsZ, and mreB), Figure S4: Maximum likelihood phylogenetic tree based on based on 5 concatenated genes (gyrB, gapA, topA, ftsZ, and mreB), Table S1: Primers used for the amplification of the housekeeping genes, Table S2: GenBank accession numbers of gene sequences used in this study, Table S3: Intraspecific phenotypic variation among the Photobacterium damselae strains.
Supplementary File 1

Acknowledgments

The authors wish to thank D. R. Arahal from Departamento de Microbiología y Ecología de la Universitat de Valencia, Spain, for this excellent revision and criticism of the manuscript.

Author Contributions

Manuel Manchado and Alejandro M. Labella isolated the strains from diseased fish; M. Dolores Castro and Juan J. Borrego designed and performed the experiments; Alejandro M. Labella performed the data analysis and Juan J. Borrego performed the paper writing and the editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Farmer, J.J.; Janda, J.M. Family I. Vibrionaceae. In Bergey’s Manual of Systematic Bacteriology, 2nd ed.; The Proteobacteria Part B the Gammaproteobacteria; Brenner, D.L., Krieg, N.R., Staley, J.T., Eds.; Springer: New York, NY, USA, 2005; Volume 2, pp. 491–494. [Google Scholar]
  2. Urbanczyk, H.; Ast, J.C.; Higgins, M.J.; Carson, J.; Dunlap, P.V. Reclassification of Vibrio fischeri, Vibrio logei, Vibrio salmonicida and Vibrio wodanis as Aliivibrio fischeri gen. nov., comb. nov., Aliivibrio logei comb. nov., Aliivibrio salmonicida comb. nov. and Aliivibrio wodanis comb. nov. Int. J. Syst. Evol. Microbiol. 2007, 57, 2823–2829. [Google Scholar] [CrossRef] [PubMed]
  3. LPSN–List of Prokaryotic Names with Standing in Nomenclature. Genus Photobacterium. Available online: http://www.bacterio.net/p/photobacterium.html (accessed on 5 February 2018).
  4. Labella, A.M.; Arahal, D.R.; Castro, D.; Lemos, M.L.; Borrego, J.J. Revisiting the genus Photobacterium: Taxonomy, ecology and pathogenesis. Int. Microbiol. 2017, 20, 1–10. [Google Scholar] [PubMed]
  5. Ast, J.C.; Dunlap, P.V. Phylogenetic analysis of the lux operon distinguishes two evolutionarily distinct clades of Photobacterium leiognathi. Arch. Microbiol. 2004, 181, 352–361. [Google Scholar] [CrossRef] [PubMed]
  6. Rivas, A.J.; Lemos, M.L.; Osorio, C.R. Photobacterium damselae subsp. damselae, a bacterium pathogenic for marine animals and humans. Front. Microbiol. 2013, 4, 283. [Google Scholar] [CrossRef] [PubMed]
  7. Skerman, V.B.D.; McGowan, V.; Sneath, P.H.A. Approved lists of bacterial names. Int. J. Syst. Bacteriol. 1980, 30, 225–420. [Google Scholar] [CrossRef]
  8. Smith, S.K.; Sutton, D.C.; Fuerst, J.A.; Reichelt, J.L. Evaluation of the genus Listonella and reassignment of Listonella damsela (Love et al.) MacDonell and Colwell to the genus Photobacterium as Photobacterium damsela comb. nov. with an emended description. Int. J. Syst. Bacteriol. 1991, 41, 529–534. [Google Scholar] [CrossRef] [PubMed]
  9. Gauthier, G.; Lafay, B.; Ruimy, R.; Breittmayer, V.; Nicolas, J.L.; Gauthier, M.; Christen, R. Small-subunit rRNA sequences and whole DNA relatedness concur for the reassignment of Pasteurella piscicida (Snieszko et al.) Janssen and Surgalla to the genus Photobacterium as Photobacterium damsela subsp. piscicida comb. nov. Int. J. Syst. Bacteriol. 1995, 45, 139–144. [Google Scholar] [CrossRef] [PubMed]
  10. Kimura, B.; Hokimoto, S.; Takahashi, H.; Fujii, T. Photobacterium histaminum Okuzumi et al. 1994 is a later subjective synonym of Photobacterium damselae subsp. damselae (Love et al. 1981) Smith et al. 1991. Int. J. Syst. Evol. Microbiol. 2000, 50, 1339–1342. [Google Scholar]
  11. Stackebrandt, E.; Frederiksen, W.; Garrity, G.M.; Grimont, P.A.D.; Kampfer, P.; Maiden, M.C.J.; Nesme, X.; Rossello-Mora, R.; Swings, J.; Truper, H.G.; et al. Report of the ad hoc committee for the re-evaluation of the species definition in bacteriology. Int. J. Syst. Evol. Microbiol. 2002, 52, 1043–1047. [Google Scholar] [PubMed]
  12. Maiden, M.C.J. Multilocus sequence typing of bacteria. Annu. Rev. Microbiol. 2006, 60, 561–588. [Google Scholar] [CrossRef] [PubMed]
  13. Ast, J.C.; Urbanczyk, H.; Dunlap, P.V. Multi-gene analysis reveals previously unrecognized phylogenetic diversity in Aliivibrio. Syst. Appl. Microbiol. 2009, 32, 379–386. [Google Scholar] [CrossRef] [PubMed]
  14. Zeigler, D.R. Gene sequences useful for predicting relatedness of whole genomes in bacteria. Int. J. Syst. Evol. Microbiol. 2003, 53, 1893–1900. [Google Scholar] [CrossRef] [PubMed]
  15. Park, Y.D.; Baik, K.S.; Seong, C.N.; Bae, K.S.; Kim, S.; Chun, J. Photobacterium ganghwense sp. nov., a halophilic bacterium isolated from sea water. Int. J. Syst. Evol. Microbiol. 2006, 56, 745–749. [Google Scholar] [CrossRef] [PubMed]
  16. Rivas, R.; García-Fraile, P.; Mateos, P.F.; Martínez-Molina, E.; Velásquez, E. Photobacterium halotolerans sp. nov., isolated from Lake Martel in Spain. Int. J. Syst. Evol. Microbiol. 2006, 56, 1067–1071. [Google Scholar] [CrossRef] [PubMed]
  17. Jung, S.Y.; Jung, Y.T.; Oh, T.K.; Yoon, J.H. Photobacterium lutimaris sp. nov., isolated from a tidal flat sediment in Korea. Int. J. Syst. Evol. Microbiol. 2007, 57, 332–336. [Google Scholar] [CrossRef] [PubMed]
  18. Yoshizawa, S.; Wada, M.; Kita-Tsukamoto, K.; Yokota, A.; Kogure, K. Photobacterium aquimaris sp. nov., a luminous marine bacterium isolated from seawater. Int. J. Syst. Evol. Microbiol. 2009, 59, 1438–1442. [Google Scholar] [CrossRef] [PubMed]
  19. Urbanczyk, H.; Ogura, Y.; Hendry, T.A.; Gould, A.L.; Kiwaki, N.; Atkinson, J.T.; Hayashi, T.; Dunlap, P.V. Genome sequence of Photobacterium mandapamensis strain svers.1.1, the bioluminescent symbiont of the cardinal fish Siphamia versicolor. J. Bacteriol. 2011, 193, 3144–3145. [Google Scholar] [CrossRef] [PubMed]
  20. Sawabe, T.; Ogura, Y.; Matsumura, Y.; Feng, G.; Rohul Amin, A.K.M.; Mino, S.; Nakagawa, S.; Sawabe, T.; Kumar, R.; Fukui, Y.; et al. Updating the Vibrio clades defined by multilocus sequence phylogeny: Proposal of eight new clades and the description of Vibrio tritonius sp. nov. Front. Microbiol. 2013, 4, 414. [Google Scholar] [CrossRef] [PubMed]
  21. Kim, Y.-O.; Kim, K.-K.; Park, S.; Kang, S.-J.; Lee, J.-H.; Lee, S.-J.; Oh, T.-K.; Yoon, J.-H. Photobacterium gaetbulicola sp. nov., a lipolytic bacterium isolated from a tidal flat sediment. Int. J. Syst. Evol. Microbiol. 2010, 60, 2587–2591. [Google Scholar] [CrossRef] [PubMed]
  22. Chimetto, L.A.; Cleenwerck, I.; Thompson, C.C.; Brocchi, M.; Willems, A.; De Vos, P.; Thompson, F.L. Photobacterium jeanii sp. nov., isolated from corals and zoanthids. Int. J. Syst. Evol. Microbiol. 2010, 60, 2843–2848. [Google Scholar] [CrossRef] [PubMed]
  23. Lucena, T.; Rovira, M.A.; Pascual, J.; Garay, E.; Macian, M.C.; Arahal, D.R.; Pujalte, M.J. Photobacterium aphoticum sp. nov., isolated from coastal water. Int. J. Syst. Evol. Microbiol. 2011, 61, 1579–1584. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, B.-C.; Poo, H.; Kim, M.N.; Lee, K.H.; Lee, J.; Rhee, M.-S.; Shin, K.-S. Photobacterium atrarenae sp. nov. a novel bacterium isolated from sea sand. Curr. Microbiol. 2011, 63, 433–438. [Google Scholar] [CrossRef] [PubMed]
  25. Gomez-Gil, B.; Roque, A.; Rotllant, G.; Peinado, L.; Romalde, J.L.; Doce, A.; Cabanillas-Beltran, H.; Chimetto, L.; Thompson, F.L. Photobacterium swingsii sp. nov. isolated from marine organisms. Int. J. Syst. Evol. Microbiol. 2011, 61, 315–319. [Google Scholar] [CrossRef] [PubMed]
  26. Srinivas, T.N.R.; Vijaya Bhaskar, Y.; Bhumika, V.; Anil Kumar, P. Photobacterium marinum sp. nov., a marine bacterium isolated from a sediment sample from Palk Bay, India. Syst. Appl. Microbiol. 2013, 36, 160–165. [Google Scholar] [CrossRef] [PubMed]
  27. Lo, N.; Jin, H.M.; Jeon, C.O. Photobacterium aestuarii sp. nov., a marine bacterium isolated from a tidal flat. Int. J. Syst. Evol. Microbiol. 2014, 64, 625–630. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, Y.; Liu, L.-Z.; Song, L.; Zhou, Y.-G.; Qi, F.-J.; Liu, Z.-P. Photobacterium aquae sp. nov., isolated from a recirculating mariculture system. Int. J. Syst. Evol. Microbiol. 2014, 64, 475–480. [Google Scholar] [CrossRef] [PubMed]
  29. Deep, K.; Poddar, A.; Das, S.K. Photobacterium panuliri sp. nov., an alkalitolerant marine bacterium isolated from eggs of spiny lobster, Panulirus penicillatus from Andaman Sea. Curr. Microbiol. 2014, 69, 660–668. [Google Scholar] [CrossRef] [PubMed]
  30. Figge, M.J.; Cleenwerck, I.; Van Uijenc, A.; De Vosb, P.; Huys, G.; Robertson, L. Photobacterium piscicola sp. nov., isolated from marine fish and spoiled packed cod. Syst. Appl. Microbiol. 2014, 37, 329–335. [Google Scholar] [CrossRef] [PubMed]
  31. Moreira, A.P.B.; Duytschaever, G.; Chimetto Tonon, L.A.; Froes, A.M.; De Oliveira, M.L.; Amado-Filho, G.M.; Francini-Filho, R.B.; De Vos, P.; Swings, J.; Thompson, C.C.; et al. Photobacterium sanctipauli sp. nov. isolated from bleached Madracis decactis (Scleractinia) in the St Peter & St Paul Archipelago, Mid-Atlantic Ridge, Brazil. PeerJ 2014, 2, e427. [Google Scholar] [PubMed]
  32. Machado, H.; Giubergia, S.; Mateiu, R.V.; Gram, L. Photobacterium galatheae sp. nov., a bioactive bacterium isolated from a mussel in the Solomon Sea. Int. J. Syst. Evol. Microbiol. 2015, 65, 4503–4507. [Google Scholar] [CrossRef] [PubMed]
  33. Gomez-Gil, B.; Roque, A.; Rotllant, G.; Romalde, J.L.; Doce, A.; Eggermont, M.; Defoirdt, T. Photobacterium sanguinicancri sp. nov. isolated from marine animals. Antonie Van Leeuwenhoek 2016, 109, 817–825. [Google Scholar] [CrossRef] [PubMed]
  34. Li, Y.; Zhou, M.; Wang, F.; Wang, E.T.; Du, Z.; Wu, C.; Zhang, Z.; Liu, W.; Xie, Z. Photobacterium proteolyticum sp. nov., a protease-producing bacterium isolated from ocean sediments of Laizhou Bay. Int. J. Syst. Evol. Microbiol. 2017, 67, 1835–1840. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, X.; Wang, Y.; Yang, X.; Sun, H.; Li, B.; Zhang, X.-H. Photobacterium alginatilyticum sp. nov., a marine bacterium isolated from bottom seawater. Int. J. Syst. Evol. Microbiol. 2017, 67, 1912–1917. [Google Scholar] [CrossRef] [PubMed]
  36. Labella, A.M.; Arahal, D.R.; Lucena, T.; Manchado, M.; Castro, D.; Borrego, J.J. Photobacterium toruni sp. nov., a bacterium isolated from diseased farmed fish. Int. J. Syst. Evol. Microbiol. 2017, 67, 4518–4525. [Google Scholar] [CrossRef] [PubMed]
  37. Hilgarth, M.; Fuertes, S.; Ehrmann, M.; Vogel, R.F. Photobacterium carnosum sp. nov., isolated from spoiled modified atmosphere packaged poultry meat. Syst. Appl. Microbiol. 2018, 41, 44–50. [Google Scholar] [CrossRef] [PubMed]
  38. Labella, A.; Vida, M.; Alonso, M.C.; Infante, C.; Cardenas, S.; Lopez-Romalde, S.; Manchado, M.; Borrego, J.J. First isolation of Photobacterium damselae ssp. damselae from cultured redbanded seabream, Pagrus auriga Valenciennes, in Spain. J. Fish Dis. 2006, 29, 175–179. [Google Scholar] [CrossRef] [PubMed]
  39. Labella, A.; Manchado, M.; Alonso, M.C.; Castro, D.; Romalde, J.L.; Borrego, J.J. Molecular intraspecific characterization of Photobacterium damselae ssp. damselae strains affecting cultured marine fish. J. Appl. Microbiol. 2010, 108, 2122–2132. [Google Scholar] [PubMed]
  40. Labella, A.; Berbel, C.; Manchado, M.; Castro, D.; Borrego, J.J. Photobacterium damselae subsp. damselae, an emerging pathogen affecting new cultured marine fish species in Southern Spain. In Recent Advances in Fish Farms; Aral, F., Doggu, Z., Eds.; InTech: Rijeka, Croatia, 2011; pp. 135–152. [Google Scholar]
  41. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  42. Villesen, P. FaBox: An online toolbox for fasta sequences. Mol. Ecol. Notes 2007, 7, 965–968. [Google Scholar] [CrossRef]
  43. Martin, D.; Rybicki, E. RDP: Detection of recombination amongst aligned sequences. Bioinformatics 2000, 16, 562–563. [Google Scholar] [CrossRef] [PubMed]
  44. Woegerbaue, M.; Kuffner, M.; Domingues, S.; Nielsen, K.M. Involvement of aph(3’)-IIa in the formation of mosaic aminoglycoside resistance genes in natural environments. Front. Microbiol. 2015, 6, 1–12. [Google Scholar]
  45. James, D.; Sanderson, D.; Varga, A.; Sheveleva, A.; Chirkov, S. Genome sequence analysis of new isolates of the Winona strain of Plum pox virus and the first definitive evidence of intrastrain recombination events. Phytopathology 2016, 106, 407–416. [Google Scholar] [CrossRef] [PubMed]
  46. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  47. Nei, M.; Kumar, S. Molecular Evolution and Phylogenetics; Oxford University Press: New York, NY, USA, 2000. [Google Scholar]
  48. Jukes, T.H.; Cantor, C.R. Evolution of Protein Molecules. In Mammalian Protein Metabolism; Munro, H.N., Ed.; Academic Press: New York, NY, USA, 1969; pp. 21–132. [Google Scholar]
  49. Thompson, F.L.; Thompson, C.C.; Naser, S.; Hoste, B.; Vandemeulebroecke, K.; Munn, C.; Bourne, D.; Swings, J. Photobacterium rosenbergii sp. nov. and Enterovibrio coralii sp. nov., vibrios associated with coral bleaching. Int. J. Syst. Evol. Microbiol. 2005, 55, 913–917. [Google Scholar] [CrossRef] [PubMed]
  50. Sawabe, T.; Kita-Tsukamoto, K.; Thompson, F.L. Inferring the evolutionary history of vibrios by means of multilocus sequence analysis. J. Bacteriol. 2007, 189, 7932–7936. [Google Scholar] [CrossRef] [PubMed]
  51. Pascual, J.; Macian, M.C.; Arahal, D.R.; Garay, E.; Pujalte, M.J. Multilocus sequence analysis of the central clade of the genus Vibrio by using the 16S rRNA, recA, pyrH, rpoD, gyrB, rctB and toxR genes. Int. J. Syst. Evol. Microbiol. 2010, 60, 154–165. [Google Scholar] [CrossRef] [PubMed]
  52. Urbanczyk, H.; Ast, J.C.; Dunlap, P.V. Phylogeny, genomics and symbiosis of Photobacterium. FEMS Microbiol. Rev. 2011, 35, 324–342. [Google Scholar] [CrossRef] [PubMed]
  53. Thyssen, A.; Ollevier, F. Genus II. Photobacterium. In Bergey’s Manual of Systematic Bacteriology, 2nd ed.; The Proteobacteria, Part B The Gammaproteobacteria; Brenner, D.L., Krieg, N.R., Staley, J.T., Eds.; Springer: New York, NY, USA, 2005; Volume 2, pp. 546–562. [Google Scholar]
  54. Seo, H.J.; Bae, S.S.; Lee, J.H.; Kim, S.J. Photobacterium frigidiphilum sp. nov., a psychrophilic, lipolytic bacterium isolated from deep-sea sediments of Edison Seamount. Int. J. Syst. Evol. Microbiol. 2005, 55, 1661–1666. [Google Scholar] [CrossRef] [PubMed]
  55. Nogi, Y.; Masui, N.; Kato, C. Photobacterium profundum sp. nov., a new, moderately barophilic bacterial species isolated from a deep-sea sediment. Extremophiles 1998, 2, 1–7. [Google Scholar] [CrossRef] [PubMed]
  56. Yoon, J.H.; Lee, J.K.; Kim, Y.O.; Oh, T.K. Photobacterium lipolyticum sp. nov., a bacterium with lipolytic activity isolated from the Yellow Sea in Korea. Int. J. Syst. Evol. Microbiol. 2005, 55, 335–339. [Google Scholar] [CrossRef] [PubMed]
  57. Ast, J.C.; Cleenwerck, I.; Engelbeen, K.; Urbanczyk, H.; Thompson, F.L.; De Vos, P.; Dunlap, P.V. Photobacterium kishitanii sp. nov., a luminous marine bacterium symbiotic with deep-sea fishes. Int. J. Syst. Evol. Microbiol. 2007, 57, 2073–2078. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 06 00024 g001 550

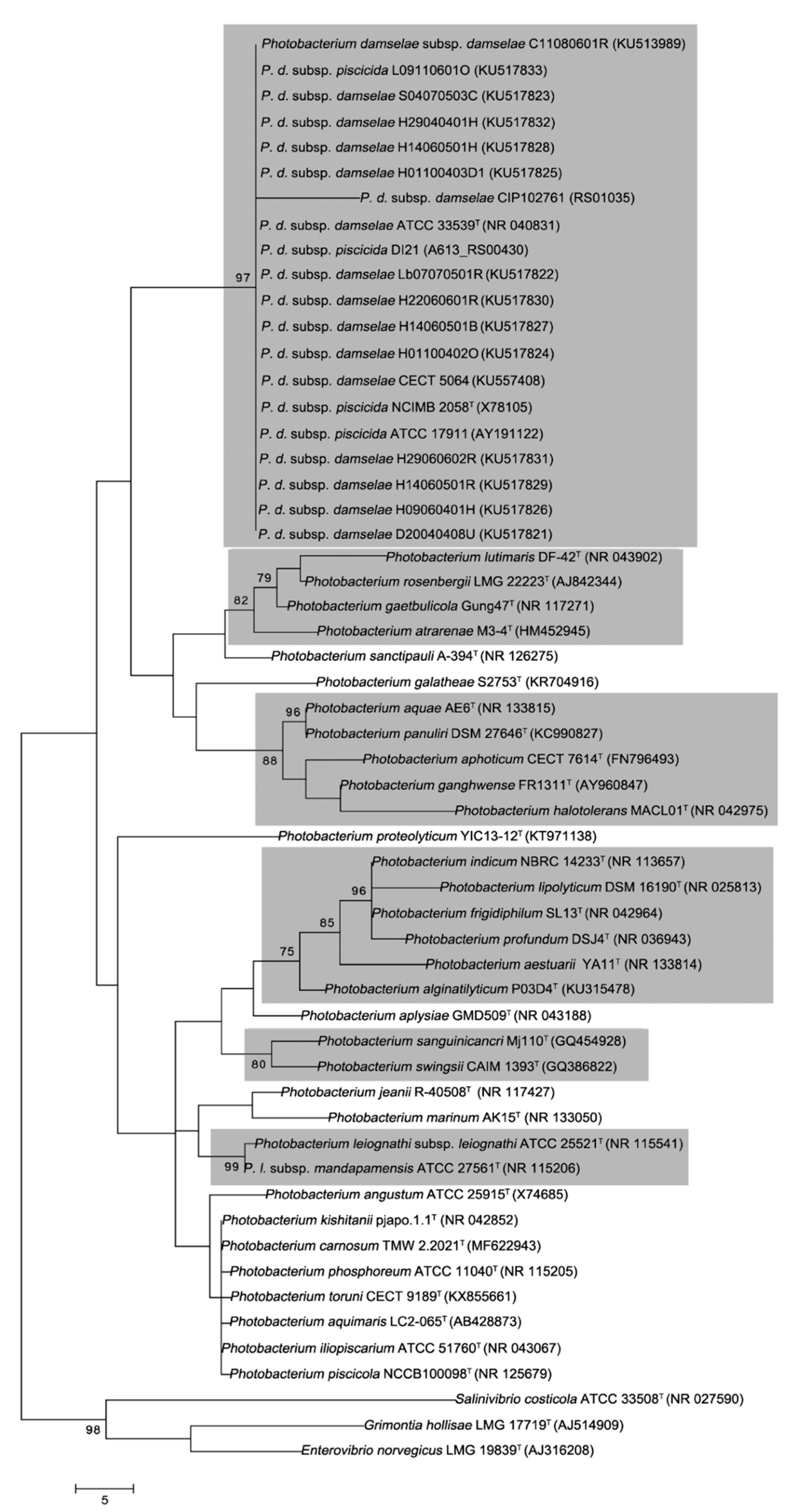

Figure 1. Maximum Parsimony phylogenetic tree based on 16S rRNA gene sequences of environmental and type strains of Photobacterium species. Grimontia hollisae, Enterovibrio norvegicus and Salinivibrio costicola type strain sequences have been added as outgroup. Sequence accession numbers are given in parentheses. Bootstrap values greater than 75% confidences are shown at branching points (percentage of 1000 resamplings). Bar indicates number of substitutions per position. Shaded gray delimited the clades defined.
Figure 1. Maximum Parsimony phylogenetic tree based on 16S rRNA gene sequences of environmental and type strains of Photobacterium species. Grimontia hollisae, Enterovibrio norvegicus and Salinivibrio costicola type strain sequences have been added as outgroup. Sequence accession numbers are given in parentheses. Bootstrap values greater than 75% confidences are shown at branching points (percentage of 1000 resamplings). Bar indicates number of substitutions per position. Shaded gray delimited the clades defined.
Microorganisms 06 00024 g001
Microorganisms 06 00024 g002 550

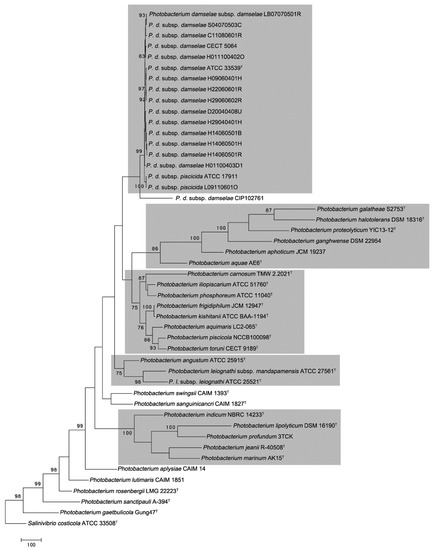

Figure 2. Maximum Parsimony phylogenetic tree based on 5 concatenated genes (gyrB, gapA, topA, ftsZ, and mreB) of environmental and type strains of Photobacterium species. Salinivibrio costicola was included as outgroup. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. Bootstrap values greater than 75 % confidences are shown at branching points (percentage of 1,000 resamplings). Shaded gray delimited the clades defined.
Figure 2. Maximum Parsimony phylogenetic tree based on 5 concatenated genes (gyrB, gapA, topA, ftsZ, and mreB) of environmental and type strains of Photobacterium species. Salinivibrio costicola was included as outgroup. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. Bootstrap values greater than 75 % confidences are shown at branching points (percentage of 1,000 resamplings). Shaded gray delimited the clades defined.
Microorganisms 06 00024 g002
Table
Table 1. List of Photobacterium species including the habitats and geographic sources of isolation.
Table 1. List of Photobacterium species including the habitats and geographic sources of isolation.
SpeciesHabitatsGeographic Sources
P. aestuariiTidal flat sedimentYeongam Bay (R. Korea)
P. alginatilyticumBottom seawaterEast China Sea
P. angustumSeawaterNorth Pacific Ocean (20°30′ N 157°30′ E)
P. aphoticumSeawaterMalvarrosa beach, Valencia (Spain)
P. aplysiaeEggs of sea hare (Aplysia kurodai)Mogiyeo (R. Korea)
P. aquaeMalabar grouper (Epinephelus malabaricus) in mariculture systemTianjin (China)
P. aquimarisSeawaterSagami Bay (Japan)
P. carnosumPackaged poultry meatGermany
P. damselaeDamselfish (Chromis punctipinnis) skin ulcer a, white perch (Roccus americanus) California, Chesapeake Bay (USA)
P. frigidiphilumDeep-sea sediments (1450 m)Edison Seamount (western Pacific Ocean)
P. gaetbulicolaTidal flatGung harbour (R. Korea)
P. galatheaeMusselSolomon Sea (Solomon Islands)
P. ganghwenseSeawaterGanghwa Island (R. Korea)
P. halotoleransWater from a subterranean saline lake Lake Martel, Mallorca (Spain)
P. iliopiscariumIntestines of fish (herring, coal fish, cod and salmon) living in cold seawaterNorway
P. indicumMarine mud (400 m depth)Indian Ocean
P. jeaniiHealthy corals (Palythoa caribaeorum, Phyllogorgia dilatata and Merulina ampliata)Brazil and Australia
P. kishitaniiLight organs and skin of several marine fish speciesJapan, Cape Verde, Hawaii, Florida, South Africa
P. leiognathiLight organ of teleostean fish (Leiognathus)Gulf of Thailand (Thailand)
P. lipolyticumIntertidal sedimentYellow Sea (R. Korea)
P. lutimarisTidal flat sedimentSaemankum (R. Korea)
P. panuliriEggs of spiny lobster (Panulirus penicillatus)Andaman Sea (India)
P. phosphoreumSkin of marine animals, intestines of marine fish, luminous organs, seawaterHawaii (USA), Japan and other locations
P. piscicolaSkin and intestine of marine fish, spoiled packed codNorth Sea (The Netherlands), Denmark, Aberdeen Bay (UK)
P. profundumDeep-sea sediment (5110 m)Ryukyu Trench (24°15.23′ N 126°47.30′ E)
P. proteolyticumOcean sedimentLaizhou Bay (China)
P. rosenbergiiTissue and water extracts of coral speciesMagnetic Island (Australia)
P. sanctipauliCoral (Madracis decactis)St. Peter & St. Paul Archipelago (Brazil)
P. sanguinicancriCrab (Maja brachydactyla) haemolymph, mussels (Mytilus edulis)Spain, Netherlands
P. swingsiiPacific oysters (Crassostrea gigas), crab (Maja brachydactyla) haemolymphMexico, Spain
P. toruniDiseased redbanded seabream (Pagrus auriga)Spain
a Additional strains have been isolated from human puncture wound, diseased shark, diseased turtle, diseased fish, aquarium seawater and fish surface.
Table
Table 2. Mean sequence similarities (%) between Photobacterium clades. D: Clade Damselae. (18 strains), Ph: Clade Phosphoreum (8 strains), P: Clade Profundum (5 strains), G: Clade Ganghwense (6 strains) and L: Clade Leiognathi (3 strains).
Table 2. Mean sequence similarities (%) between Photobacterium clades. D: Clade Damselae. (18 strains), Ph: Clade Phosphoreum (8 strains), P: Clade Profundum (5 strains), G: Clade Ganghwense (6 strains) and L: Clade Leiognathi (3 strains).
GenesDPhPGL
16S rRNA
D99.6
Ph97.099.9
P96.397.698.4
G96.397.196.297.8
L96.998.397.197.399.2
gyrB
D83.2
Ph70.791.7
P68.577.781.0
G65.973.872.779.1
L69.380.270.673.687.5
gapA
D91.4
Ph87.898.1
P86.191.088.4
GNANANA75.0
L87.490.390.9NA96.9
topA
D84.5
Ph72.089.1
P69.960.979.4
GNANANA70.5
L40.245.946.7NA15.8
ftsZ
D99.4
Ph52.644.0
P82.352.980.1
G2.514.04.915.2
L58.144.058.512.038.8
mreB
D98.2
Ph47.0NA
P84.943.283.3
G25.120.522.9NA
L84.443.186.522.190.5
NA: Not available.

Share and Cite

MDPI and ACS Style

Labella, A.M.; Castro, M.D.; Manchado, M.; Borrego, J.J. Description of New and Amended Clades of the Genus Photobacterium. Microorganisms 2018, 6, 24. https://doi.org/10.3390/microorganisms6010024

AMA Style

Labella AM, Castro MD, Manchado M, Borrego JJ. Description of New and Amended Clades of the Genus Photobacterium. Microorganisms. 2018; 6(1):24. https://doi.org/10.3390/microorganisms6010024

Chicago/Turabian Style

Labella, Alejandro M., M. Dolores Castro, Manuel Manchado, and Juan J. Borrego. 2018. "Description of New and Amended Clades of the Genus Photobacterium" Microorganisms 6, no. 1: 24. https://doi.org/10.3390/microorganisms6010024

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
