Evaluation of Anti-Wear Properties of Metalworking Fluids Enhanced with Halloysite Nanotubes

Featured Application

nanoparticle additives for improving tribological properties of metalworking cutting fluids, enhancing tool life and surface finish in machining processes.

Abstract

The study of nanoparticles as additives for metalworking fluids (MWFs) with applications in the metal removal processes, or machining, has received increasing attention due to the possible enhancements on tribological properties. In this study, low-cost and environmentally friendly nanoparticle additives of halloysite clay nanotubes (HNTs) were dispersed in metalworking fluids utilized for milling processes. Concentrations of 0.01, 0.05, 0.10 wt. % were incorporated into a mineral oil (MO) and a semi-synthetic fluid (SF) by ultrasonication. The anti-wear properties of metalworking nanofluids were characterized with a T-05 block-on-ring tribotester at a contact pressure of 0.5 GPa. Surface roughness of worn block materials was obtained with an optical 3D surface measurement system. Results showed that at a concentration of 0.10 wt. % HNTs block mass loss was lowered by 24% for the MO + HNTs nanofluids. For the SF + HNTs, a reduction of 63% and 32% in wear mass loss and coefficient of friction (COF), respectively, were found at the same concentration. The tribological enhancing mechanism for the applied contact pressure was proposed to be due to a reduction of the area of contact and nanoparticle sliding between surfaces with no HNT deposition, evidenced by energy dispersive spectrometry (EDS). Furthermore, surface roughness studies of worn blocks showed smoother surfaces with lower groove density with the addition of nanoparticle additives. The results of this study demonstrate that HNTs can improve the lubricity of metalworking cutting fluids used for machining processes, enhancing tool life and providing better surface finish of products.

1. Introduction

Metalworking fluids (MWFs) are used in metal removal processes such as cutting, milling, and grinding to reduce friction between the tool and the workpiece, increase tool life by reducing wear, and improve surface finish [1,2,3,4]. MWFs with nanoparticle additives have been widely investigated for the purpose of reducing the mechanical friction and wear between components obtaining very promising results [5,6,7,8,9,10,11,12,13,14]. For example, the wear scar diameters (WSDs) of a synthetic fluid and base oil for machining applications were lowered by 10% and 86%, respectively, with 0.01 wt. % CuO nanoparticles [10]. Similarly, Mosleh et al. [15] dispersed MoS₂, WS₂, and hexagonal boron nitride (hBN) nanoparticles in MWFs obtaining wear reductions of up to 66%. This was attributed to nanoparticles filling surface valleys and the shearing of trapped nanoparticles at the interface of contacting surfaces. Another study by Mosleh et al. [12] found that nanoparticles also deagglomerate metallic transfer films further reducing friction and wear. Zhang et al. [16] dispersed CaCO₃ nanoparticles in a poly-alpha-olefin (PAO) base oil improving load-carrying capacity, and reducing friction and wear. Significant friction reductions in boundary and mixed lubrication regimes were obtained by Kalin et al. [17] through the formation of a protective film by dispersing MoS₂ nanotubes into PAO. Moreover, Wu et al. [5] achieved reductions in friction and wear by CuO, TiO₂, and nano-diamond nanoparticles due to a rolling effect provided by their spherical shape.

The addition of nanoparticles to MWFs has also demonstrated improvements in tool life and surface finish of products. Exfoliated graphene nanoparticles added to a vegetable oil reduced edge chipping of cutting tool edges in ball milling experiments [18]. A cutting fluid with dispersed CuO nanoparticles developed by Vázquez et al. [11] was employed in a Computer Numerical Control (CNC) gear generator obtaining an improvement on the surface finish of workpieces of ~52%. Nanoparticles of SiO₂ blended into a mineral oil investigated for plain bearings by Sia et al. [19,20] reduced friction temperatures by acting as rolling and sliding particles between surfaces. Furthermore, a nanolubricant containing MoS₂ nanoparticles for end-milling of AL6061-T6 developed by Rahmati et al. [21] improved the quality of the machined surfaces by the rolling, mending, and polishing tribological mechanisms provided by MoS₂ in the tool-workpiece interface.

Halloysite nanotubes (HNTs), with a molecular formula of Al₂Si₂O₅(OH)₄·nH₂O, are hollow clay multiwalled tubular nanoparticles with lengths of 50–5000 nm, diameters of 20–200 nm, and inner lumen of 10–70 nm that naturally form in the Earth [22,23,24]; however, their dimensions may vary depending on the deposit [25]. These nanoparticles have negatively charged SiO₂ groups on the outside of the layers and positively charged Al(OH)₃ on the inner lumen [26,27,28]. HNTs are non-toxic even at high concentrations, and are much less expensive compared to other tubular-like nanoparticles such as carbon nanotubes (CNTs) [22]. Due to these characteristics they have been studied for diverse applications, such as for preparing colloids with biopolymers providing tunable properties [29], for drug transport and delivery [28], as nanocontainers of additives for paper preservation [30], for obtaining inorganic reverse micelles for the entrapment of antibacterial agents [31], and for capturing hydrocarbon and aromatic oils [32].

Recently, our group demonstrated that HNTs dispersed in metal-forming lubricants tested under extreme pressure conditions are able to increase the load-carrying capacity, scuffing load, and seizure load (load for lubricant film breakdown) under contacts pressures of 3.5–3.9 GPa [33]. At this high contact pressure the tribological enhancing mechanism of HNTs was due to a possible exfoliation of their outer sheets and deposition on the surfaces.

In this work, two MWFs commonly used in the metal-mechanic industry, a semi-synthetic fluid (SF) and a mineral oil (MO), were reinforced with varying concentrations of HNTs and tested under a contact pressure of 0.5 GPa (lower than our previous work). The tribological properties of coefficient of friction (COF) and wear mass loss of nanofluids were determined with a block-on-ring test performed at room temperature. Surface roughness of tested materials was characterized after the test to study the influence of these nanoparticles on the surface finish of blocks. The proposed tribological enhancing mechanism of this study was determined by energy dispersive spectrometry (EDS).

2. Materials and Methods

2.1. Materials

Nanofluids were prepared by adding HNTs (purchased from Sigma-Aldrich, St. Louis, MO, USA) in concentrations of 0.01, 0.05, and 0.10 wt. % within a MO and a SF. These concentrations were selected based on a previous study by our group [33]. Figure 1a shows a micrograph with the morphology on HNTs obtained by scanning electron microscopy (SEM). Dimension measurements of HNTs obtained by SEM are observed in Figure 1b. Elemental analysis of HNTs in Figure 1c shows Al, Si, and O in concentrations of 26%, 26%, and 43%, respectively. Also,

Table 1. Material properties.

Materials	Properties
Metalworking fluids	Density (15 °C)	Viscosity (40 °C)
Semi-synthetic fluid (SF)	0.970 g/cm3	75.0 mm2/s
Mineral oil (MO)	0.871 g/cm3	33.2 mm2/s
Nanoparticle
Halloysite clay nanotubes (HNTs)	Morphology: tubular; diameter: 28.5–135 nm × length: 1–3 μm
Test blocks
AISI 1018	Dimensions: 6.35 × 10 × 15.75 mm, 71 HRB, Ra = 0.45 μm Chemical composition: 0.14–0.20% C, 0.60–0.90% Mn, <0.04% P, 0.05% S, Fe Balance
Test rings
AISI D2	Diameter: 35 mm, 58 HRC, Ra = 0.65 μm Chemical composition: 1.5511.5% Cr, 0.90% Mo, 0.80% V, Fe Balance

presents the properties of nanoparticles and MWFs. Nanoparticles were dispersed in both MWFs using an Ultra Turraz T10 homogenizer for 5 min at room temperature (25 °C), followed by 5 min of ultrasonication with a Cole-Parmer 750-watt ultrasonic homogenizer.

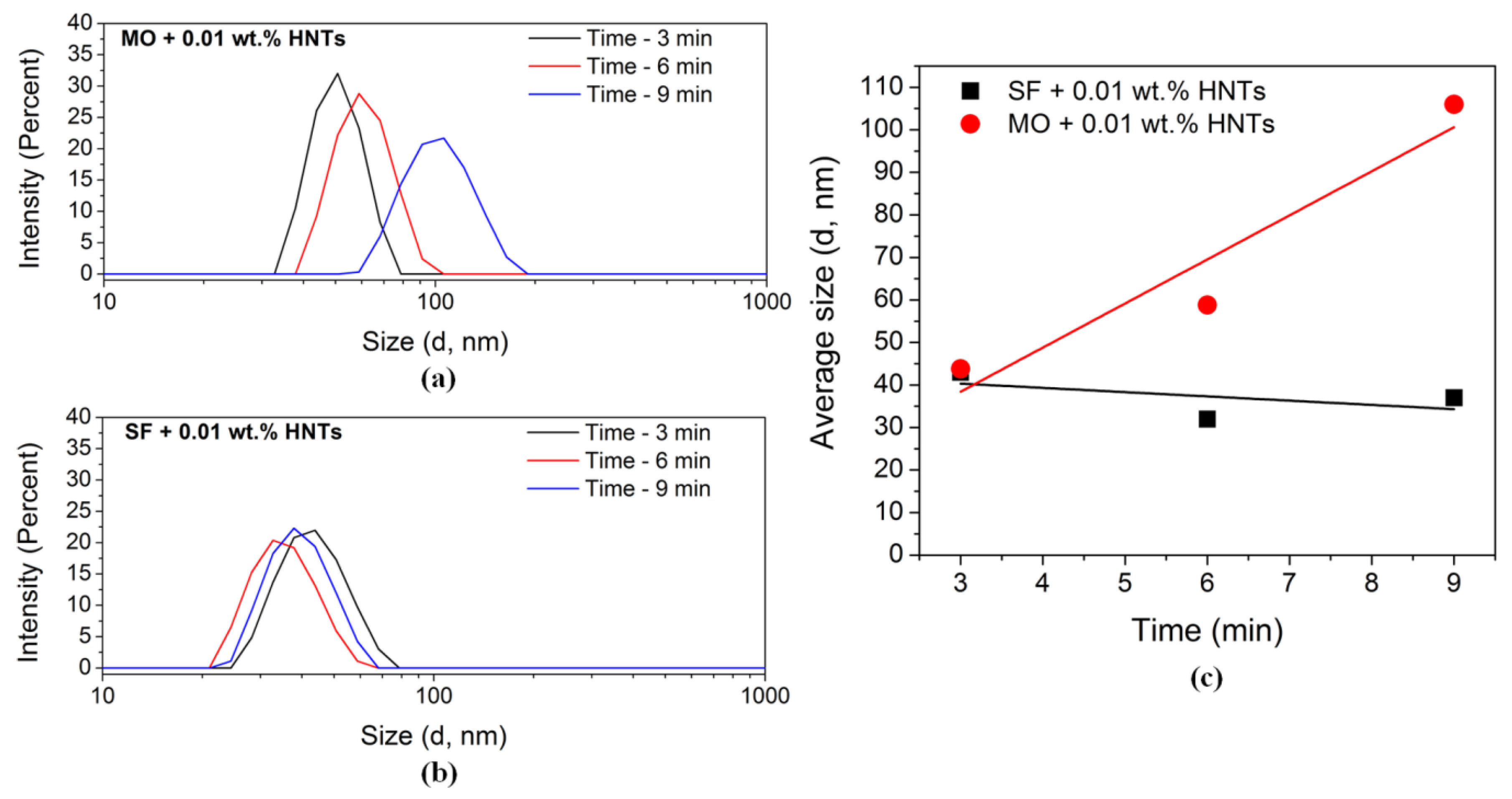

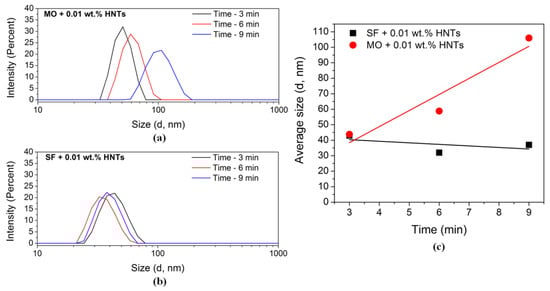

Figure 2 shows the hydrodynamic diameter size distribution of HNTs over time for MO and SF nanofluids, where measurements were taken after following the dispersion method. These tests were performed with a Malvern Zetasizer Nano ZS using dynamic light scattering after 3, 6, and 9 min. In Figure 2a the HNTs hydrodynamic diameter size distribution increases rapidly with time for MO nanofluids, suggesting lower stability in this fluid, likely due to its lower viscosity (33.2 mm²/s) compared to SF (75.0 mm²/s). For SF nanofluids the size distribution remains stable with very similar curves (Figure 2b). Figure 2c shows a plot of the average HNTs hydrodynamic diameter size over time, indicating the lower stability in MO.

2.2. Tribological Tests

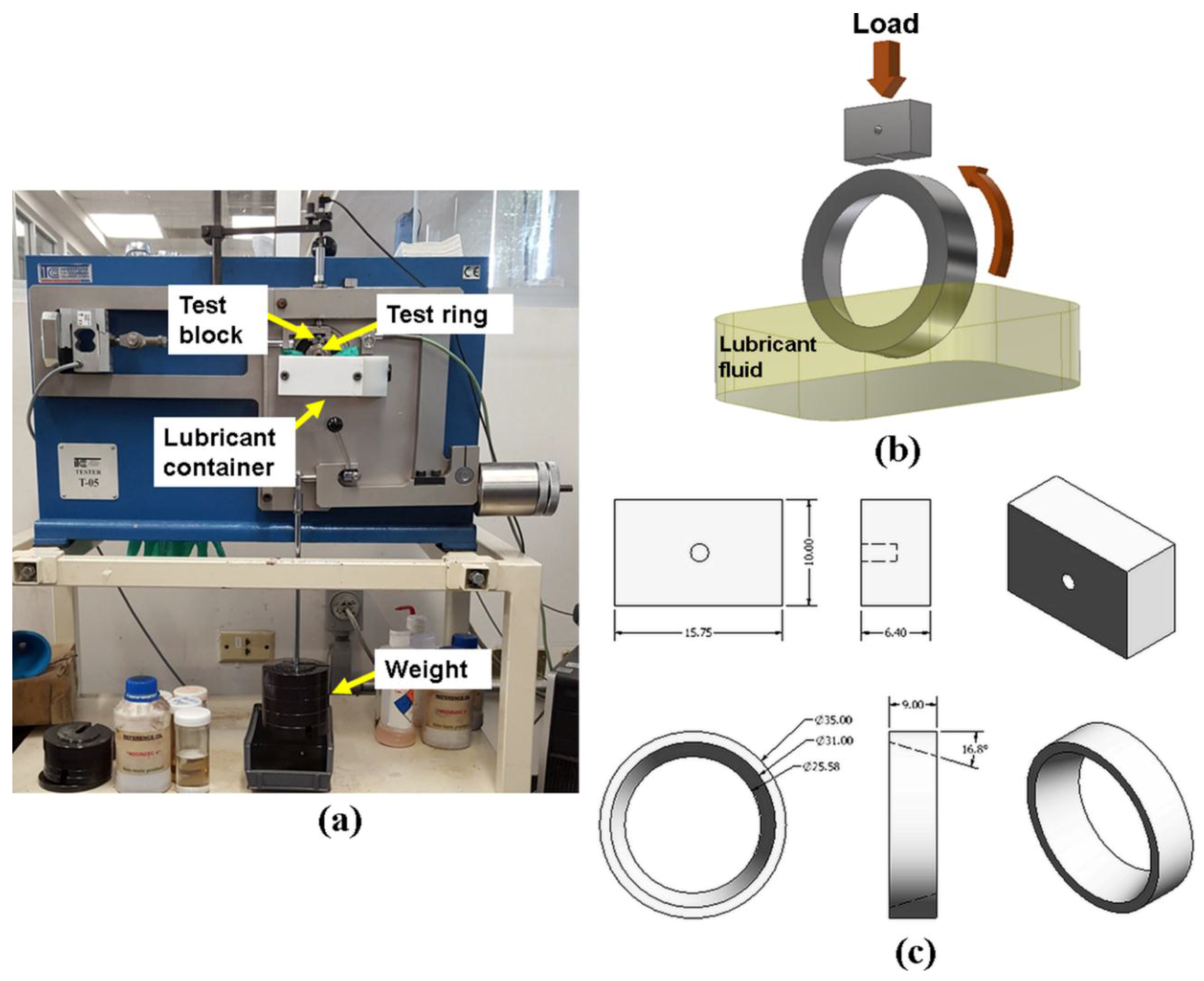

Tribological characterization of nanofluids was performed with a T-05 block-on-ring tribotester shown in Figure 3a, according to ASTM G77. The schematic of the block-on-ring configuration used for this study indicating the direction of the applied load is shown in Figure 3b. Figure 3c shows the dimensions of test block and ring samples.

In this test a normal load is applied to the system (Figure 3b), where the test block is locked into position and the ring rotates with a selected speed and load. Approximately 50 mL of nanofluids are placed in the lubricant container so the materials are lubricated during testing. The block and ring materials were an AISI 1018 steel and an AISI D2 steel, respectively (Table 1). Testing was done at room temperature (25 °C) under the following parameters: a normal load of 750 N (contact pressure of ~0.5 GPa), 200 rpm, and a duration of the run of 3600 s. Five tests were performed for each nanofluid; after each test wear mass loss of blocks was recorded and COF was obtained.

2.3. Surface Characterization

Surface roughness characteristics of average roughness (R_a), root-mean-square roughness (R_q), and mean roughness depth (R_z) were characterized with an Alicona IF-EdgeMaster optical 3D surface measurement system (Alicona Imaging GmbH, Raaba/Graz, Austria). A Tescan Vega3 SB Scanning Electron Microscope (SEM) equipped with EDS (Tescan, Brno—Kohoutovice, Czech Republic) was used to identify the tribological mechanism provided by HNTs.

3. Results and Discussion

3.1. Tribological Results

Block mass loss presented in Figure 4 was quantified by weighting each block before and after every test. In general, the SF + HNT nanofluids exhibited the best tribological behavior with much lower wear mass loss compared to MO + HNT nanofluids. This was likely due to the higher viscosity of SF compared to MO (75.0 mm²/s vs. 33.2 mm²/s) that was able to provide a better lubricant film and nanoparticle stability, as shown in Figure 2. For MO + HNT nanofluids the lowest wear mass loss was 8.05 mg for MO + 0.10 wt. % HNTs, giving an enhancement of 24% compared to the unfilled MO. For SF + HNT nanofluids improvements of 6%, 36%, and 63% were found for 0.01, 0.05, and 0.1 wt. % HNTs, respectively. Only 2.5 mg of mass loss was obtained for SF + 0.1 wt. % HNTs compared to 6.9 mg for the unfilled SF. It is also observed that the standard deviation of the wear mass results diminishes with increasing nanoparticle concentration, thus increasing nanolubricant reliability.

Measurements of COF over the duration of the run are presented in Figure 5. These were calculated by taking the friction force measured through a load cell and dividing it by the applied load of 750 N. For SF nanofluids (Figure 5b) the improvements are significantly larger than the ones obtained with MO. Figure 5a also shows that HNTs slightly decreased COF over time with 0.05 wt. % and 0.10 wt. % HNTs in MO due to a polishing effect provided by nanoparticles that reduced the amount of asperities and metal-metal contact. The slight variations (peaks and valleys) over time found for Figure 5b may be due to the presence of wear debris that affected the measurement.

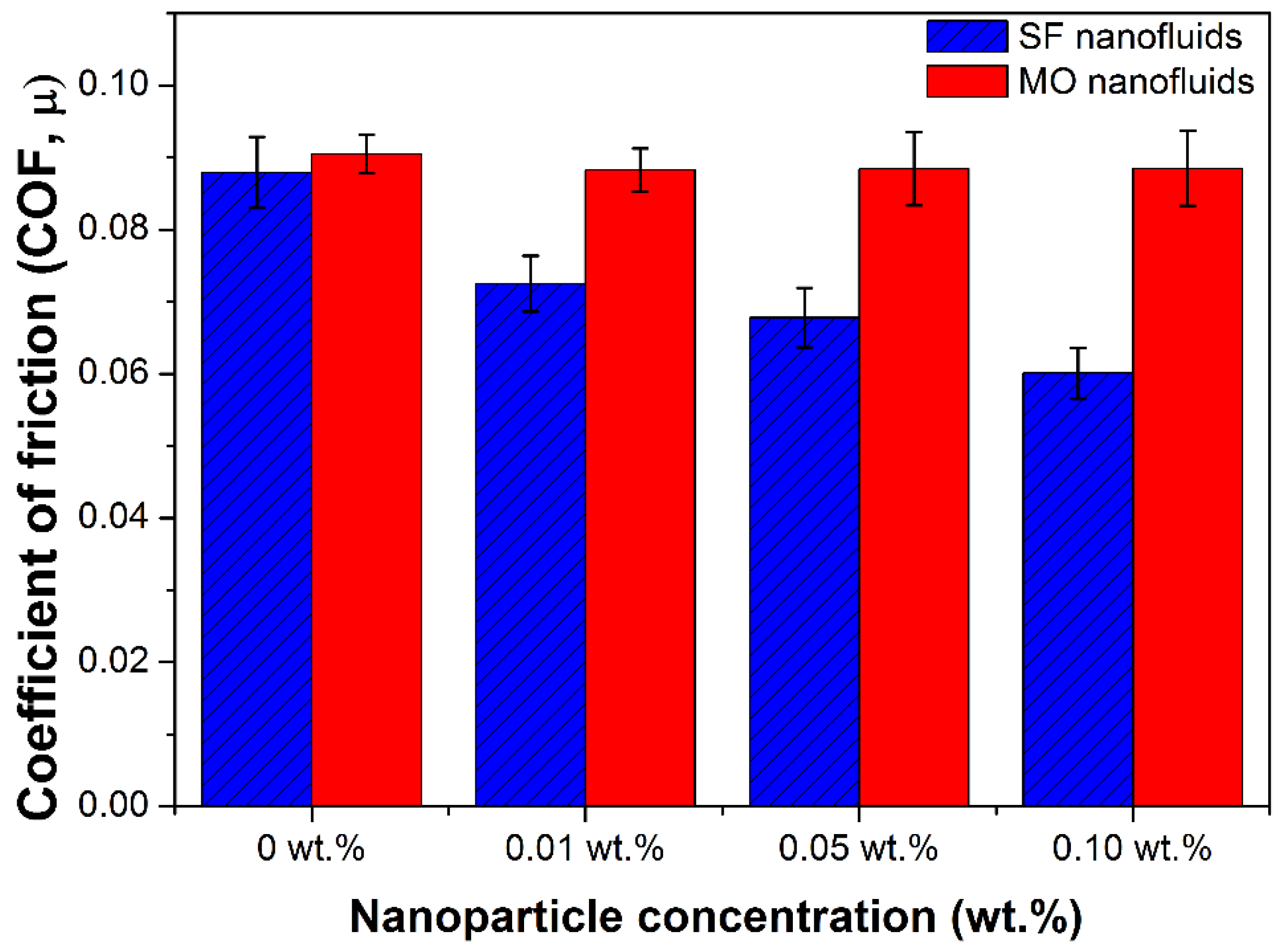

For the average COF measurements in the steady state (Figure 6) SF + HNTs nanofluids exhibited lower values compared to MO nanofluids, consistent with wear mass loss results. Here, it is evident that HNTs showed no major improvements in COF when added to MO. Nanofluids of SF + HNTs showed a clear tendency to reduce COF with increasing HNTs concentration. A COF of 0.088 was found for unfilled SF, whereas SF + 0.1 wt. % HNTs exhibited a COF of 0.06, representing a reduction of 32%.

3.2. Surface Analysis

Micrographs of worn surfaces of tested blocks with MO + HNT and SF + HNT suspensions are shown in Figure 7 and Figure 8, respectively. The worn block in Figure 7a with MO shows pitting throughout the sample. Fewer regions with pitting are found for Figure 7b with MO + 0.01 wt. % HNTs. Pitting wear is further reduced with higher nanoparticle content on the worn surfaces observed in Figure 7c,d with 0.05 wt. % and 0.10 wt. % HNTs.

Figure 8 with SF nanofluids presents overall smoother surfaces compared to MO nanofluids (Figure 7). Figure 8a (unfilled SF) shows very few regions with pitting and shallow furrows. Lower groove density with increasing HNT concentration is evident in Figure 8b–d, with a very smooth surface found with 0.10 wt. % HNTs.

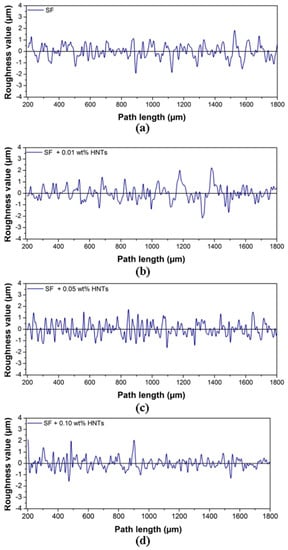

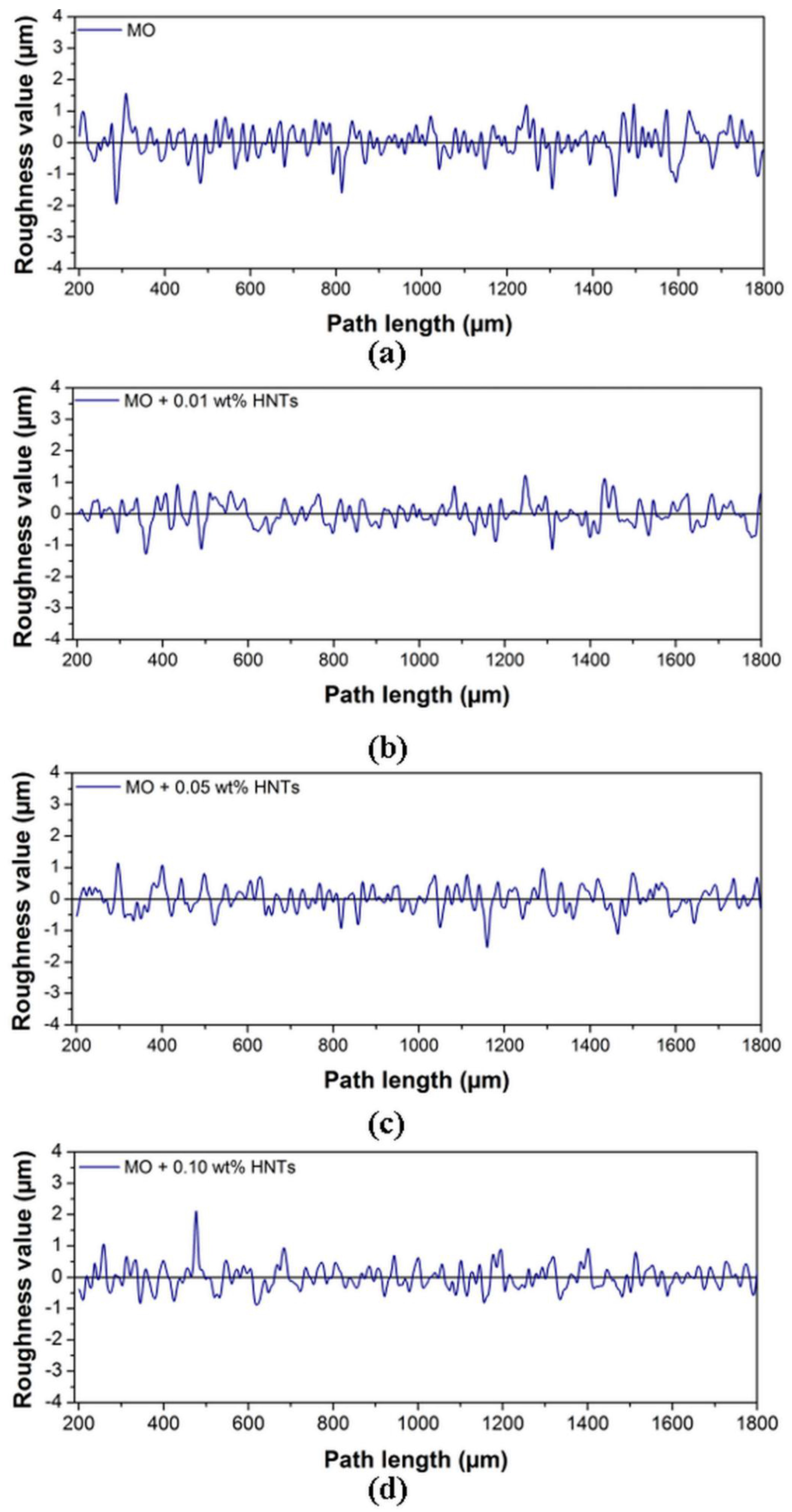

Surface roughness profiles of worn blocks shown in Figure 7 and Figure 8 taken perpendicularly to the sliding direction of the test are depicted in Figure 9 and Figure 10, respectively.

Table 2. Comparison of surface roughness characteristics of block materials.

	Average Roughness, Ra (µm)	Root Mean Square, Rq (µm)	Mean Roughness Depth, Rz (µm)
MO	0.53	0.80	4.47
MO + 0.01 wt. %	0.44	0.58	2.92
MO + 0.05 wt. %	0.37	0.52	3.15
MO + 0.10 wt. %	0.34	0.46	2.75
SF	0.53	0.68	3.29
SF + 0.01 wt. %	0.47	0.63	2.83
SF + 0.05 wt. %	0.42	0.61	2.94
SF + 0.10 wt. %	0.35	0.46	2.48

presents surface roughness parameters of Ra, Rq, and Rz characterized by an optical measurement system. For both MO and SF, the nanofluids roughness parameter values were very similar, and decreased with increasing HNT concentration. Reductions in R_a by 36% and 34% were obtained for MO and SF nanofluids, respectively, at 0.10 wt. % HNTs. Lower R_a values achieved with HNTs were due to a higher amount of removed material during the wear testing that provided a polishing effect, as observed in Figure 7 and Figure 8. Similar results have been found by Sia et al. [20] with nanoparticles effectively reducing the R_a of surfaces through metal removal.

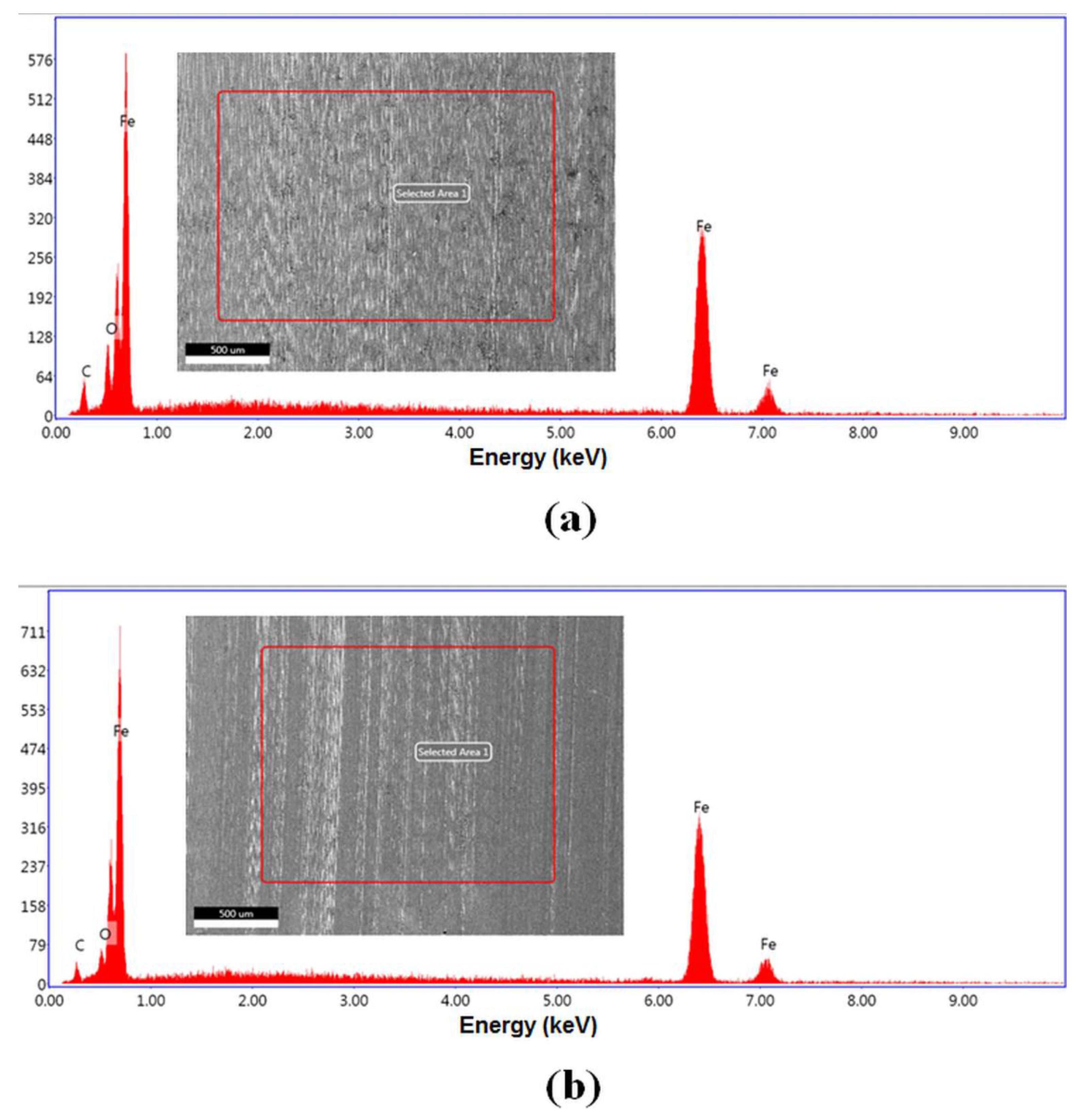

Elemental analysis performed by EDS on the worn blocks tested with MO + 0.10 wt. % HNTs and SF + 0.10 wt. % HNTs can be observed in Figure 11a,b, respectively. No Al and/or Si elements were detected on the surface, suggesting that at the contact pressure of this test of 0.5 GPa there was no HNT deposition and formation of a protective film. Furthermore, nanoparticles were too large to fill valleys or grooves of surfaces and provide a mending tribological mechanism.

This is in contrast to previously reported results by our group [33], where at 3.5–3.9 GPa (in a four-ball extreme pressure test) Al and Si groups were found on the surface, likely due to HNT exfoliation due to the compression forces. As explained by Lecouvet et al. [34], HNTs are hard aluminosilicates with interlayer water molecules where weak Van der Waals forces and H-bonds are present, and shearing occurs due to the slip motion between these layers, particularly for larger nanoparticle diameters (>120 nm). A similar behavior has also been reported experimentally by Lahouij et al. [35] for inorganic fullerene-like (IF)-MoS₂ nanoparticles. At contact pressures of 1 GPa exfoliation of outer fullerene sheets was found to be the predominant mechanism, and at lower pressures (0.1 GPa) a rolling/sliding mechanism was observed. It is explained that under compression forces the IF nanoparticles gradually deform and start to exfoliate, which is enhanced by the large number of defects in the layers.

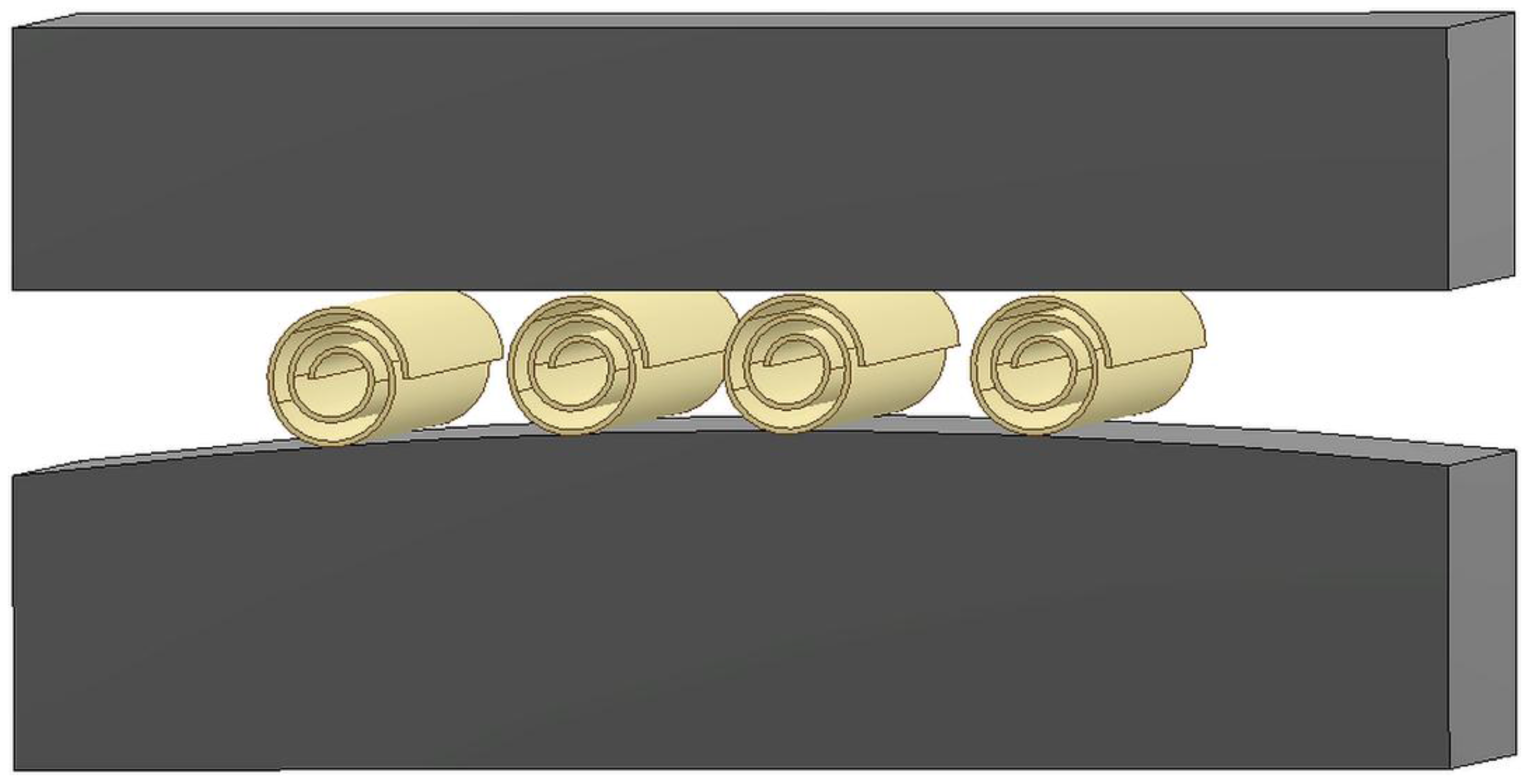

It is then proposed that the enhancement in tribological properties provided by HNTs can be attributed to a third body mechanism, where nanoparticles separate surfaces reducing the real area of contact and reducing wear, as proposed by Ghaednia et al. [36], and their possible sliding between surfaces. The schematic of the anti-wear mechanism provided by HNTs is shown in Figure 12. As observed in Figure 4 and Figure 5, increasing HNTs concentration resulted in lower wear mass loss due to more nanoparticles on the wear zone that were able to reduce the area of contact and decreased friction and wear. For MO nanofluids the lower stability of HNTs shown in Figure 2 likely caused more precipitation, thus fewer nanoparticles were able to separate surfaces explaining their poorer performance compared to SF nanofluids.

Overall, the significant difference in performance per concentration between the nanofluids of MO and SF are due to the different anti-wear characteristics of each base fluid, and physical properties such as fluid viscosity. The results shown in this study suggest that eco-friendly HNTs have a positive effect improving tribological properties of MWFs. Surface roughness and wear mass loss may be lowered due to a reduction of the contact area between surfaces by HNTs, thus extending tool life, reducing material costs, and improving the surface finish of products.

4. Conclusions

In this work, two MWFs filled with low concentrations of HNT additives were prepared and their anti-wear tribological properties were characterized with a T-05 block-on-ring tribotester. Nanoparticle additives effectively reduced wear mass loss for both MO and SF nanofluids, with improvements of up to 64%. Surface roughness of blocks and COF were also lowered. At the contact pressure of the test of 0.5 GPa HNTs showed no exfoliation, thus the enhancement in anti-wear properties is attributed to a reduction of contact area.
