Methods for Determination of the Degree of Iron Oxidation in LiFePO₄

Abstract

The disposal of LiFePO₄ (LFP) cathode material through oxidation in an air atmosphere is explained by its high chemical activity and high surface area (especially for nanoparticles). In this article, new methods for the determination of the degree of iron oxidation in LFP (oxidation degree) are taken into consideration, specifically those which do not require complicated hardware support. The proposed methods are based on electrochemical oxidation (coulometric method) and chemical oxidation (chemical oxidation in alkaline and acidic solutions). As an arbitration method for analyzing the iron state, the method of Mössbauer spectroscopy (being the most proven and reliable method) was chosen. With respect to the proposed methods for determination of the oxidation degree, the most reliable and quick approach is the titrimetric method (oxidation in an acidic medium), which is in good correlation with Mossbauer spectroscopy. The coulometric method is also able to determine the material oxidation degree (with some approximation), but it requires a number of conditions in order to eliminate errors.

1. Introduction

Lithium ion batteries are suitable power sources for newly developed mobile devices (cellphones, laptops, cameras, etc.) because of their superior electrochemical characteristics in comparison with classical batteries (Ni-Cd, Ni-MH). Lithium ion batteries possess high energy density, improved life cycling performance, and higher working potential.

Cathode materials are one of the key components of Li-ion batteries, and can determine capacity and power performance. Olivine-type lithium iron phosphate material is a very promising cathode material for lithium-ion batteries due to its high theoretical capacity (170 mAh/g) and it has an average charge/discharge voltage of 3.4 V [1]. In addition, the material is quite cheap and it is environmentally friendly, with good thermal and cycling stability. The main disadvantages are low electronic and ionic conductivity because of the slow rate of lithium ion diffusion through the material’s solid structure [2].

In general, the following reaction (1) describes the LiFePO₄ cathode material’s behavior in a lithium-ion battery:

$${\mathrm{LiFePO}}_4-{xe}^{-}\rightleftarrows \left(1-x\right){\mathrm{LiFePO}}_4+x{\mathrm{FePO}}_4+x{\mathrm{Li}}^{+}$$

(1)

This process in the forward direction can be carried out chemically in solution, using the Ox-Red reaction. In this case, the chemical reaction of LiFePO₄ oxidation can proceed either through a solid-phase mechanism (1) or with the dissolution of LiFePO₄ crystals. Dissolution occurs in acidic aqueous solutions (pH < 4), presumably due to the replacement of lithium ions in LiFePO₄ with hydrogen ions to form a soluble hydrogen phosphate. In particular, the ability of LiFePO₄ dissolution in acidic media helps to determine the mass fraction of carbon [3]. Usually, for the dissolution of lithium iron phosphate, a mixture of sulfuric (50%) and hydrochloric (50%) acids (1:1) is used while heating and stirring the solution. Under these conditions, insoluble carbon remains as a precipitate which can be filtered out, dried, and gravimetrically determined.

The dissolution of LiFePO₄ in an acidic medium can be used to create an easy and fast method for determining the degree of oxidation of this material ($w\left({\mathrm{Fe}}^{3+}\right)=\frac{m\left({\mathrm{Fe}}^{3+}\right)}{m\left({\mathrm{Fe}}^{2+}\right)})$. Determination of the degree of oxidation of LiFePO₄ cathode material is an urgent task, because this material is fairly active and can be easily oxidized from the surface during storage in an oxygen atmosphere. In addition, there are a number of synthesis methods where trivalent iron compounds are used as precursors [4,5], whereas in certain synthesis conditions, the presence of Li⁺ and PO₄³⁻ ions should lead to LiFePO₄ formation. Controlling the iron oxidation state during synthesis is very important, because if Fe³⁺ ions remain into the compound, they will decrease the mass of the active material (LiFePO₄) and will prevent reversible interaction/deintercalation of lithium ions during battery cycling. For example, even in the hydrothermal synthesis method [6] where the divalent iron precursor (FeSO₄) is used, in the absence of a reducing agent (ascorbic acid), LiFePO₄ with a Fe³⁺ impurity is obtained. The obtained LiFePO₄ is significantly lower in electrochemical characteristics with respect to LiFePO₄ obtained by the same method in the presence of an inert atmosphere or reducing agent.

In a neutral or alkaline medium, this material is insoluble. Using the chemical reaction of oxidation in a non-acidic medium, it is possible to determine the kinetic parameters of reaction (1), such as activation energy and diffusion coefficient [7]. Moreover, the obtained transport parameters will characterize the cathode material itself directly, and not the total characteristics of the composite electrode (binder, electroconductive additive, active material). Such transport parameters (summary) are obtained through different electrochemical methods (GITT, PITT, EIS) [8,9]. Any suitable oxidizing agents in various media can carry out oxidative delithiation of LiFePO₄. For example, the chemical oxidation of LiFePO₄ in organic media was investigated using oxidants such as 10-methylphenothiazine (MPT) [10] or nitronium tetrafluoroborate (NO₂BF₄) in acetonitrile [11]. The use of organic solvents most often requires the use of an inert atmosphere and a complete lack of water, as seen in the previously mentioned works [10,11]. In organic media, the diffusion restrictions in solution are more substantial due to their increased viscosity. Since LiFePO₄ is stable in aqueous media, chemical delithiation is most convenient in them. In [12] chemical delithiation was realized using hydrogen peroxide as an oxidizer in a weak acidic medium, thus permitting the determination of the kinetic parameters of the delithiation process.

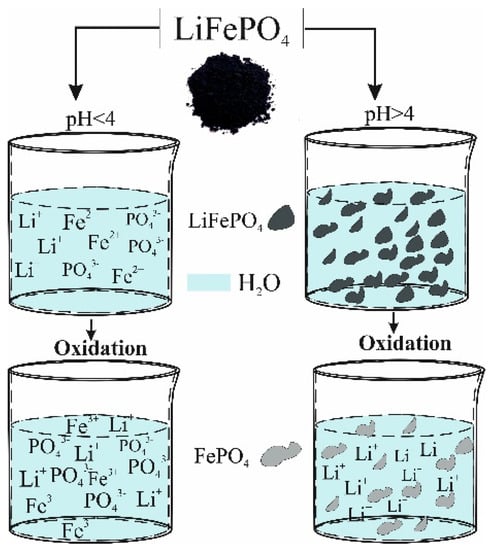

In this article, the oxidation degree of the lithium iron phosphate was determined using chemical oxidation in aqueous solutions with pH < 4 and pH > 4, respectively, (Figure 1).

2. Materials and Methods

Firstly, FePO₄∙2H₂O, as the main precursor for LiFePO₄ synthesis, was prepared. FeCl₃∙6H₂O (Sigma Aldrich 98% Laborpharma LTD Almaty, Kazakhstan), (NH₄)₂HPO₄∙12H₂O (Sigma Aldrich ≥ 99.0%) and CH₃COONa∙3H₂O (≥99.0%) solutions in a stoichiometric ratio were mixed together slowly dropwise and then stirred for several hours. Then, the sample was collected by filtration, washed several times with deionized water, and dried at 100 °C in air atmosphere for 12 h.

LiFePO₄/C was synthesized by the carbothermal reduction method from the following agents: LiAc∙2H₂O (Sigma Aldrich ≥ 99.0%), and as-synthesized FePO₄∙2H₂O and stearic acid (Sigma Aldrich 98%) as the reducing agent and carbon source, respectively [5]. Stearic acid (15% by weight of FePO₄∙2H₂O) was dissolved through stirring in 100 mL of ethanol at 60 °C. After complete dissolution, LiAc∙2H₂O and FePO₄∙2H₂O (1:1 molar ratio) were added. The resulting mixture was heated at 90 °C to evaporate the solvent until a slurry was formed, which was dried in an oven at 100 °C in an air atmosphere for 12 h. The resulting mixture (powder) was calcined at 600 °C for 6 h in an argon atmosphere.

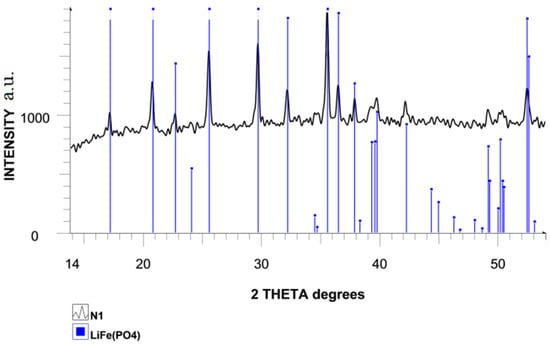

X-ray diffraction (XRD) analysis of the synthesized sample was carried out on a DRON-3M diffractometer. Sampling modes were as follows: the voltage on the X-ray tube was 30 kV, the tube current was 30 mA, the pitch of the goniometer was 0.05° 2θ, and the time of the intensity measurement at the point was 1.0 s. Figure 2 shows the X-ray powder diffraction spectrum recorded under Bragg–Brentano geometry in diffraction angle ranging from 10° to 70° of the synthesized LiFePO₄ powder sample. All diffraction peaks are indexed to an orthorhombic crystal structure with the Pnma space group. The estimated lattice parameters are a = 10.412 Å, b = 6.011 Å, c = 4.696 Å and V = 291.4 ų, which are close to the corresponding constants of JCPDS (PDF No. 83-2092) data (

Table 1. The lattice parameter values of the LiFePO₄/C sample and standard data.

Sample	Lattice Parameters
	a, Å	b, Å	c, Å	V, Å3
LiFePO4	10.412	6.011	4.696	293.9
№ 83-2092	10.33	6.01	4.69	291

) [13,14].

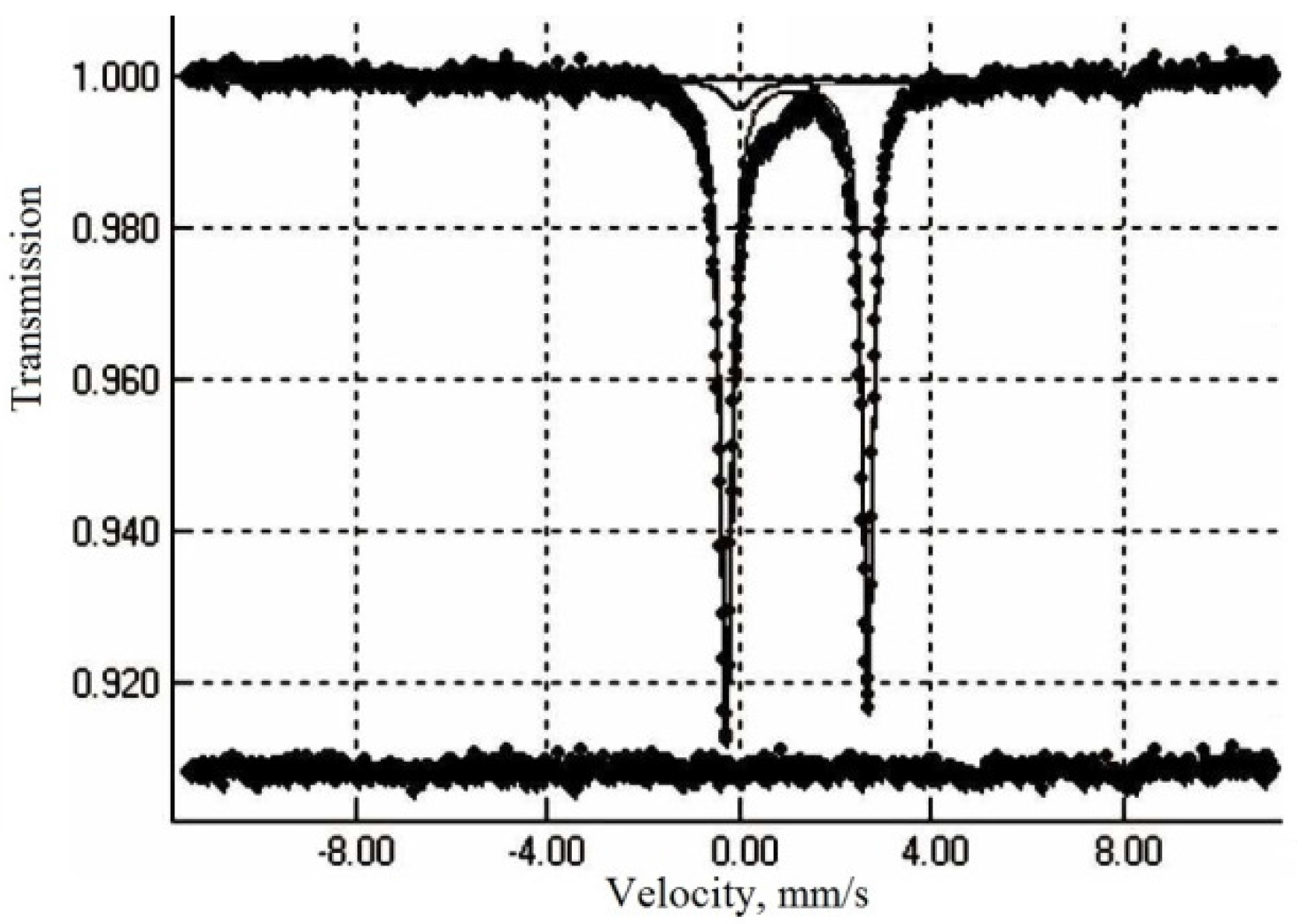

The Mössbauer spectrum of the sample was obtained on a MS 1104Em spectrometer. The source was cobalt 57 in the chromium matrix, with an activity of 100 mCi (the temperature of the spectroscopy was 293 K). Mössbauer spectroscopy is very sensitive in terms of characterizing atoms with different valence states, as it provides a direct scrutiny of atomic information. Therefore, Mössbauer spectroscopy measurement was carried out to analyze the existence of Fe³⁺-containing species. Figure 3 shows the Mössbauer spectroscopy of the as-prepared LiFePO₄/C. One symmetric doublet is dominant, with an isomer shift (IS) of 1.22 mm/s and quadrupole splitting (QS) of 2.94 mm/s, which is typical for octahedral Fe²⁺ in LiFePO₄—92% [15]. Another minor doublet was observed, which can be attributed to Fe³⁺ with a typical IS value (0.32 mm/s) and QS of 0.86 mm/s—8%.

The carbon content of the obtained synthesized LiFePO₄/C (LFP/C) was determined using the gravimetric method, by dissolving a known mass of LFP/C in concentrated sulfuric acid, followed by carbon extraction from the sample. The results of the analysis showed the presence of 4% carbon.

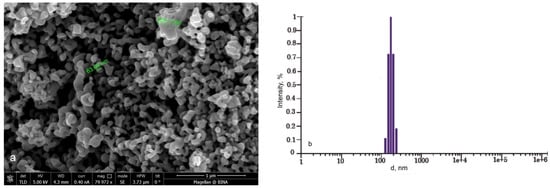

The fractional composition of synthesized LiFePO₄/C was determined using a Photocor Compact (Photocor) particle size analyzer. The sample is characterized by a narrow size distribution interval with an average particle diameter of 175 nm (Figure 4b). Figure 4a shows the High Resolution Scanning Electron Microscopy (HRSEM) image of nano-crystalline LiFePO₄/C powder. A branch-like morphology with continuous contacts between the particles was observed. The grain sizes vary from 100 nm to 200 nm with similar pore size.

Electrochemical tests were carried out in 2032 coin-type cell, with a lithium anode, synthesized LFP/C as part of the cathode, and Celgard 2400 as the membrane. The cathode was prepared by mixing LiFePO₄/C with Super P conductive carbon and polyvinylidene fluoride PVDF in weight ratio of 80:10:10. The cell was assembled in a glove box in argon atmosphere. The electrolyte was a standard solution of 1 M LiPF₆ in ethylene carbonate:dimethyl carbonate EC:DMC (1:1). After assembly, the cell was aged for 12 h to impregnate the membrane material and electrodes with electrolytes.

3. Results and Discussion

The instrumental methods used to determine the oxidation degree of the LiFePO₄ cathode material, such as Mössbauer spectroscopy and XRD, are reliable methods, but require adequate hardware and skills. In case of lacking the necessary equipment or in case of an express analysis of the oxidation degree of synthesized material, one may try to use a number of non-traditional methods.

3.1. Coulometric Method

Theoretically, the oxidation degree can be determined coulometrically using the galvanostatic mode, knowing the exact mass of the active material and the mass of all additives (PVDF, carbon). The oxidation degree in this case will be the ratio between the practically obtained capacity (calculated for the active material) and the theoretical capacity (170 mAh/g), assuming a 100% yield for material conversion. However, strict intra-diffusion limitations associated with low ionic conductivity of this material make this approach difficult to apply because of low-current necessity and uncertainty associated with an a priori lack of confidence in the 100% conversion during delithiation/lithiation. In our case, the charge and discharge capacities of the synthesized material reach values of 154.1 and 152.7 mAh/g, respectively, at a current rate of 0.1 C (Figure 5a). Using the above-mentioned formula for the degree of oxidation, a conversion percentage of 90.6% was calculated. This value is close enough to the value determined by Mossbauer spectroscopy (92%). However, one cannot be sure that there is 100% yield of active material at such low currents, and the remaining ≈ 10% of the inactive material should be ferric compound impurities. At higher currents (>1C), the practical capacity of this material is significantly lower (1 C-145.5; 2 C-132.3; 5 C-113.1; 10 C-91.2; 20 C-65.0) (Figure 5b). This is connected with the aforementioned diffusion limitations. Therefore, the coulometric method for determination of the degree of oxidation of the material can be applied only at low current densities.

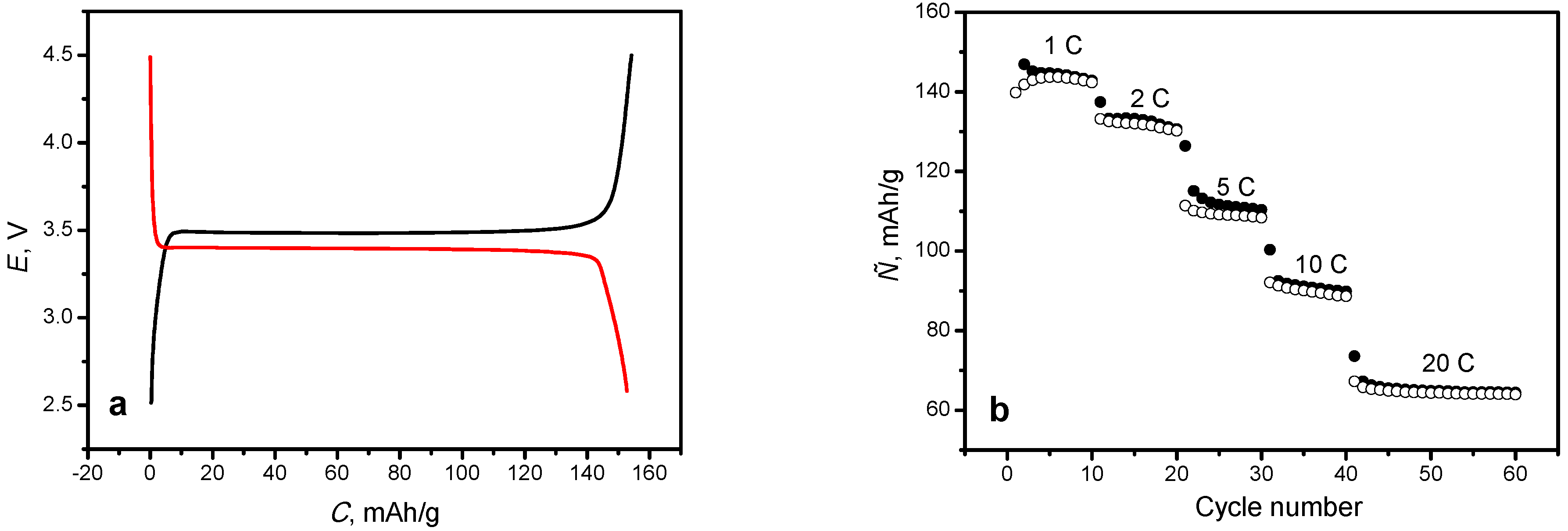

Synthesized LiFePO₄/C is a good cathode material capable of operating even at high currents. The material was cycled for 20 times at 20C without severe degradation and an average charge/discharge capacity of 65.0 mAh/g was measured (Figure 5b). This material’s performance is strictly related to its branched structure and low particle size (Figure 4a,b). It is well-known that the uniform particle size distribution leads to the uniform depth of charge/discharge of each particle, which increase the material’s cycling life and enhance the global battery performance.

3.2. Chemical Oxidation in Alkaline Solution

By using the chemical delithiation reaction in an alkaline aqueous medium, it is also possible to determine the oxidation degree of the material by establishing the consumed amount of oxidant or obtained oxidation product (lithium cation). Hydrogen peroxide was chosen as the oxidizing agent, because it does not form insoluble compounds during its reduction and is stable in alkaline medium over time.

The reaction of complete oxidation (chemical delithiation) without the material dissolution can be expressed by the following Equation (2):

$$2{\mathrm{LiFePO}}_4+{\mathrm{H}}_2{\mathrm{O}}_2\to 2{\mathrm{FePO}}_4+2{\mathrm{Li}}^{+}+2{\mathrm{OH}}^{-}$$

(2)

By determining the precise amount of extracted (deintercalated) lithium in the liquid phase upon the complete oxidation process, the oxidation degree can be assessed by ($w\left(\mathrm{Ox}\right)= \frac{m\left({\mathrm{Li}}_{\mathrm{aq}}^{+}\right)}{m\left({\mathrm{Li}}_{\mathrm{LiFePO}4}^{+}\right)})$.

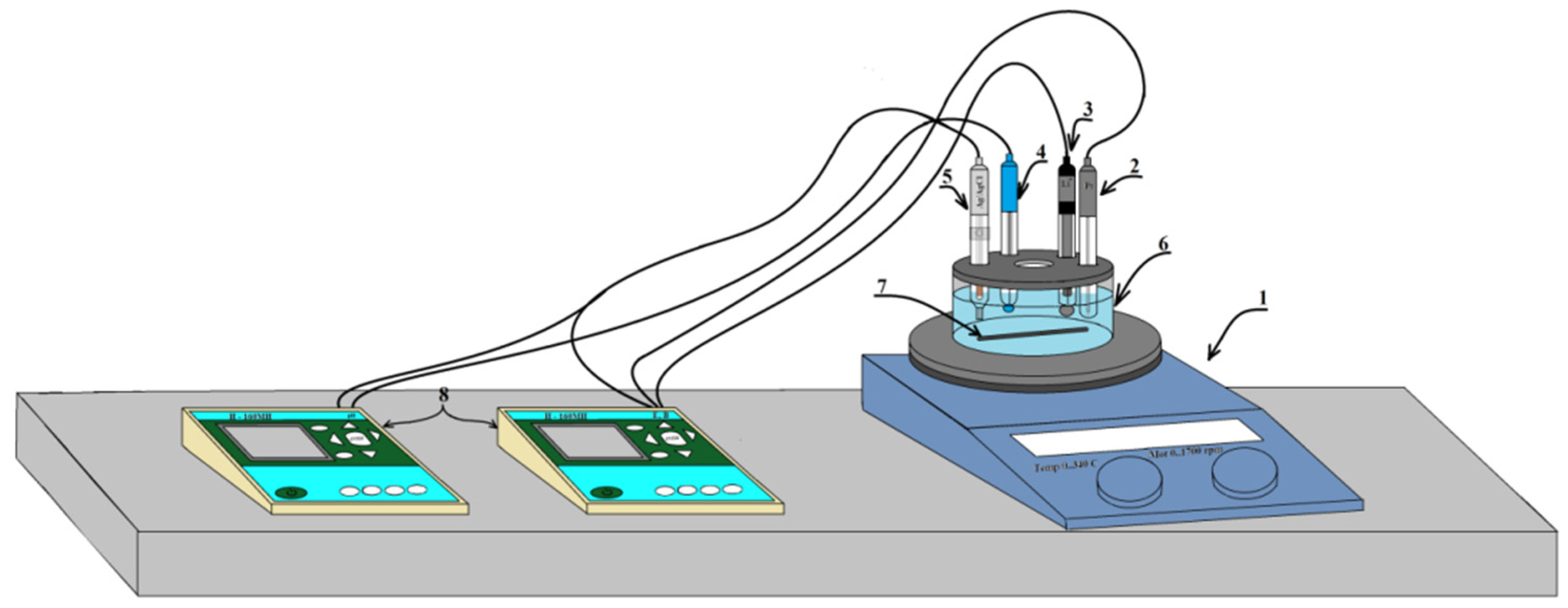

To carry out the chemical oxidation of LiFePO₄, a covered glass cell was used. A platinum and a pH glass electrode (relative to the silver-chloride reference electrode) were installed to measure the Ox-Red potential and the pH of the solution, respectively. The lithium concentration in the solution was determined using a lithium-selective electrode; the response time was three seconds. All measurements were carried out using a universal ionometer I-160 MI with automatic data recording (Figure 6).

LiFePO₄/C powder of known mass was added to the alkalized solution (V = 100 mL) of hydrogen peroxide. The amount of hydrogen peroxide was 100 times higher relatively to LFP/C. To alkalize the solution to a pH equal to 10, several drops of concentrated NH₄OH solution were added. The oxidation process was carried out with constant mixing to distribute the powder evenly throughout the entire solution volume.

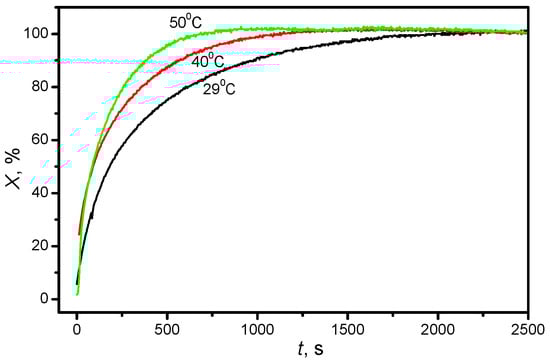

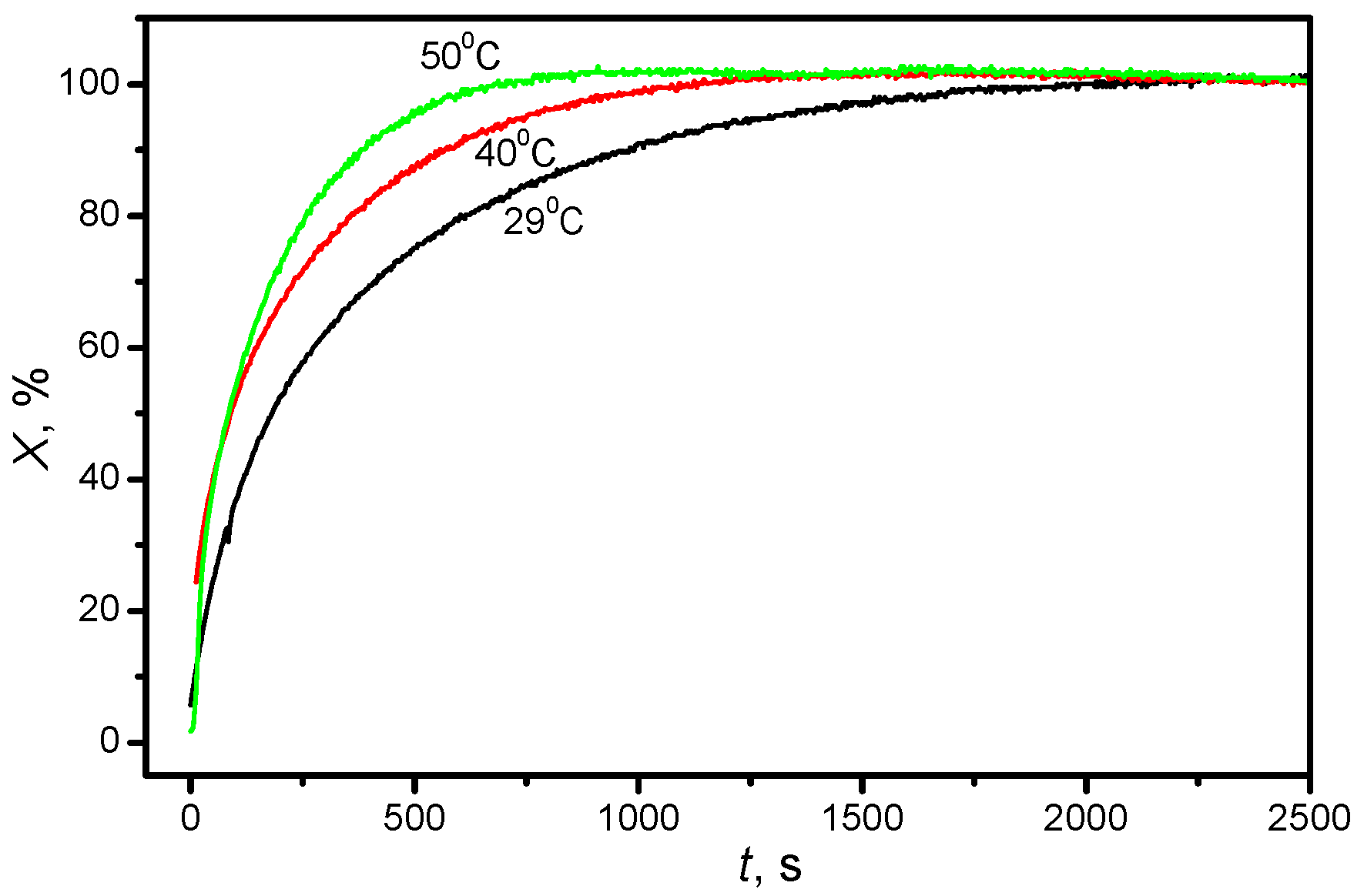

Figure 7 shows the degree of delithiation dependence versus time at different temperatures. The chemical oxidation process is fully realized at all temperatures and the delithiation degree is close to 100% (29 °C–2000 s, 40 °C–1300 s, 50 °C–800 s). Despite that, in our case, the delithiation degree equals 99.8%, which is much higher than the value determined by Mössbauer spectroscopy. According to the results of Mössbauer spectroscopy, the oxidation percentage of LiFePO₄/C should not be higher than 92%. However, in this case we measured the total amount of lithium that can be extracted from 92% LiFePO₄ and from 8% impurities (since the Li:Fe ratio was 1:1 in the synthesis). Unlike the coulometric method, chemical oxidation in alkaline solution provides mistaken results. Probably, the results were influenced by the indirect determination of divalent iron ions, along with the lithium ions from the solution.

Chemical oxidation without material dissolution can serve as a method for determining the transport parameters of the chemical delithiation process, such as diffusion coefficient and activation energy [11,12,13].

3.3. Chemical Oxidation in Acidic Medium

Unlike alkaline solutions, LiFePO₄ dissolves into Li⁺, Fe²⁺, and PO₄³⁻ ions in strong acidic medium. This is very convenient for determining the degree of oxidation of the material, because chemical oxidation in acidic solution allows a homogenous oxidation reaction of Fe²⁺ to Fe³⁺.

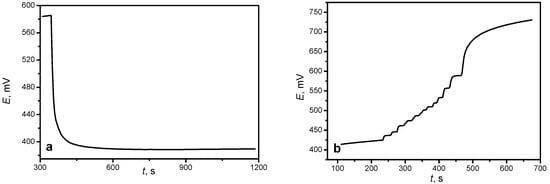

In this paper, the oxidation in an acid medium was used to determine the degree of oxidation of the synthesized material. The degree of oxidation of of LiFePO₄ was determined by Ox-Red titration with potassium dichromate of a dissolved sample in an acidic medium. The known mass of LiFePO₄/C was added to a 50-mL volume of sulfuric acid solution (50%) with stirring, and after complete dissolution, the resulting solution was titrated with 0.05 N potassium dichromate solution. The equivalence point was fixed potentiometrically. The setup circuit for the analysis is similar to the previous scheme (Figure 6), but without the usage of a lithium-selective electrode. LiFePO₄/C dissolution in an acidic medium can be observed by the change in the Ox-Red potential of solution when an LFP/C powder sample is added into the solution (Figure 8a). The change in the Ox-Red solution potential is due to the formation of a new Ox-Red pair (Fe³⁺/Fe²⁺). The of Fe³⁺ ions are the result of the powder’s partial oxidation. The complete dissolution of the sample is confirmed by the Ox-Red potential plateau. A suspension of insoluble carbon interferes with the visual determination of the equivalence point during titration with K₂Cr₂O₇, so fixation of the equivalence point was carried out potentiometrically.

When the equivalence point was reached, a sharp jump in the potential was registered due to the formation of a new Ox-Red pair (Cr₂O₇²⁻/Cr³⁺) (Figure 8b). The established Ox-Red potential of the solution increased insignificantly after the jump, followed a plateau, which suggests the complete oxidation reaction.

The oxidation degree of synthesized LiFePO₄/C according to the results of titration in an acidic medium is 91.5%. This value is reproducible and the average error is only 0.2%.

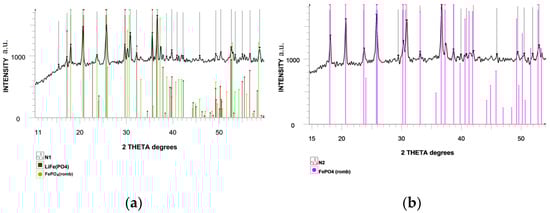

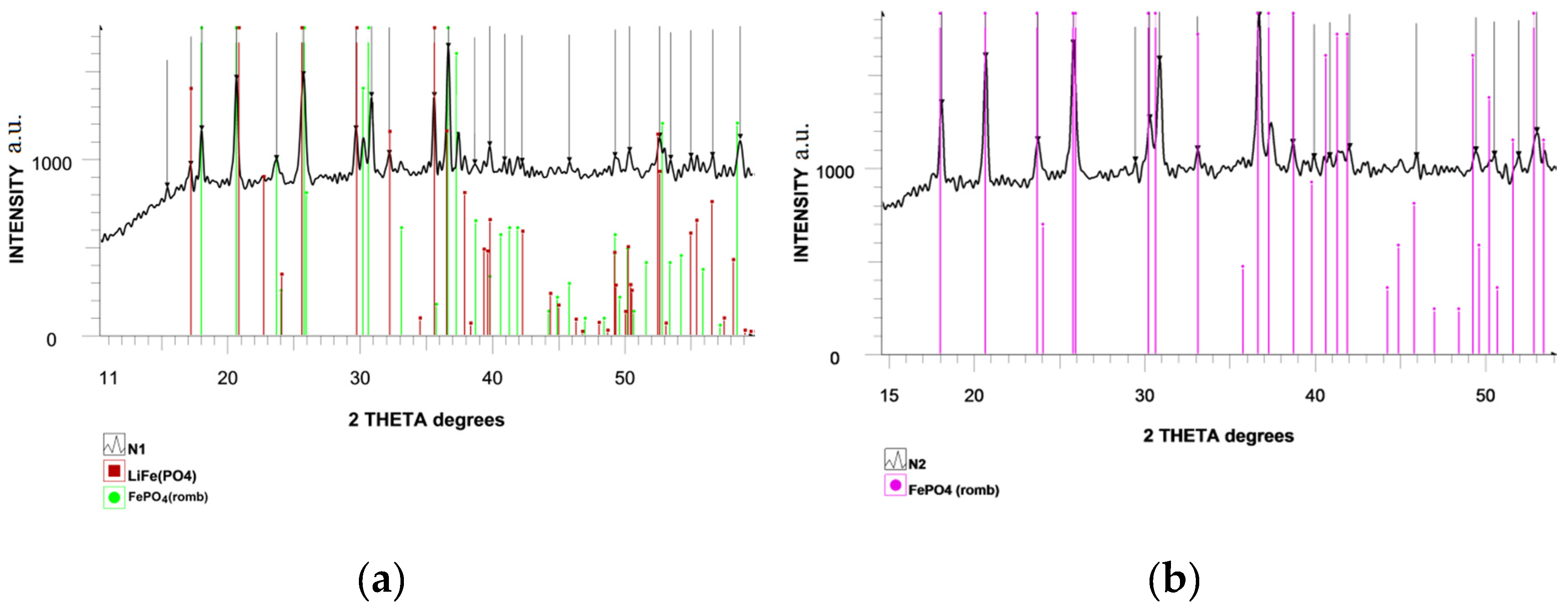

To confirm the efficiency of this method, the synthesized LiFePO₄/C was half oxidized (t = 200 s) and completely oxidized (t = 2000 s), respectively, in alkaline medium by hydrogen peroxide (at room temperature) followed by the filtration and drying of the powder. For the determination of the oxidation degree, the latter obtained samples were analyzed by Mossbauer spectroscopy, XRD, and chemical oxidation method in acidic medium. XRD patterns indicate the presence of two phases (olivine and heterozite) in the case of half-oxidized material (Figure 9a) and only the heterozite phase for completely oxidized material (Figure 9b).

The oxidation degree of half-oxidized and completely oxidized LFP determined by Mössbauer spectroscopy is 45.2% and 100%, respectively. This is in good agreement with the results of the titrimetric method—4.8% and 100%, respectively.

The good correlation between Mössbauer spectroscopy and titrimetric method indicates the validity of the suggested analysis method, but without additional XRD analysis it cannot be affirmed that all titrated Fe²⁺ ions are found only in LiFePO₄. The chemical oxidation method in acidic medium is convenient for application in laboratory studies. Better results can be achieved by optimizing LFP synthesis and improving the determination of the carbon content from the sample.

4. Conclusions

LiFePO₄ was successfully synthesized by the carbothermal method, using as-synthesized FePO₄∙2H₂O and commercial LiAc. The material was characterized by XRD and Mössbauer spectroscopy. The charge and discharge capacity of the synthesized material, at a current rate of 0.1 C, reach values of 154.1 and 152.7 mAh/g, respectively. When the material was tested at higher current rates, the following capacities values (mAh/g) were obtained: 145.5 (1 C), 132.3 (2 C), 113.1 (5 C), 91.2 (10 C) and 65 (20 C), respectively.

A comparative analysis of oxidation degree determination of the synthesized LiFePO₄/C by four different methods (Mössbauer spectroscopy, coulometric, oxidation of the material in an alkaline medium, and oxidation of the material in an acidic medium) has been performed. The simplest and most reliable method for determination of the degree of oxidation of the material is the titrimetric method in an acid medium. The results of titrimetric analysis are in good agreement with the data obtained by Mossbauer spectroscopy. In some cases, there is no need to use sophisticated instrumental methods to determine the oxidation degree of the material. However, XRD analysis clarifies/proves that all the detected divalent iron ions are included in the LFP structure.
