A Comprehensive Real-Time Traffic Map for Geographic Routing in VANETs

Department of Computer Science and Information Engineering, National Chung Cheng University, Chiayi 621, Taiwan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2017, 7(2), 129; https://doi.org/10.3390/app7020129
Submission received: 29 November 2016 / Revised: 16 January 2017 / Accepted: 23 January 2017 / Published: 26 January 2017

Abstract

:
Vehicular Ad Hoc Networks (VANETs) have attracted a lot of attention during the last decade. VANETs can not only improve driving safety, but also convenience, and support most future Intelligent Transportation System (ITS). Due to the highly dynamic network topology of VANETs, many geographic routing protocols have been proposed and use real-time traffic information as an important metric to select a reliable forwarding path. However, most of the existing works do not describe how to gather real-time traffic. They either assume this information is already available, or can query an existing traffic center. Few studies have noticed this issue but the proposed solutions only consider a small region. In this paper, we propose a Comprehensive Real-Time Traffic Map (CRT Map) to collect wide-ranging real-time traffic information with low overhead. In the design of a CRT Map, the concept of Crowdsensing is adopted. Vehicles cooperatively gather traffic information and share it with each other to construct an overview of the whole road network traffic. In addition, we design a CRT Map Based Routing (CBR), which takes into account the connectivity of consecutive roads in routing decisions. Simulation results show that the CBR can achieve a lower end-to-end delay and a higher packet delivery ratio.

1. Introduction

Due to advances in wireless communication technologies, traditional wired data transmissions have been gradually replaced by wireless transmissions. The technologies have been extensively applied to all categories of mobile devices, such as smartphones, tablets, and wearable devices, to better facilitate people’s daily lives [1]. In recent years, vehicles on the move can also enjoy the convenience of wireless communication technologies by assisting each other in message exchange and form an interconnecting network, namely Vehicular Ad Hoc Networks (VANETs) [2]. In a VANET, each vehicle is capable of communicating with nearby vehicles and accessing information provided by the network. With the appropriate application systems, drivers can receive warning messages when approaching an accident site to ensure driving safety. Moreover, real-time traffic information can also be used to avoid traffic jams. Many other applications of VANETs have been developed [3]. In addition, VANETs have been regarded as one of the major technologies to support most future Intelligent Transportation System (ITS) [4].
Communications in VANETs can be classified into two categories [5,6]: Vehicle-to-Infrastructure (V2I) and Vehicle-to-Vehicle (V2V) (Figure 1). In V2I communication, vehicles make connections with infrastructures located at roadsides, namely roadside units (RSUs), to connect to the Internet. The fixed infrastructures act as gateways in data transmission. To provide a large service range, low transmission latency, and high throughput, cellular network (CN) technologies, such as LTE and WAVE, are usually adopted in V2I. Infrastructure deployment costs are the main drawback of V2I. On the other hand, V2V allows vehicles to form a self-organized network without any centralized system and fixed infrastructures. Due to the relative maturity of CN and the lower deployment cost of V2V, this has become a major trend of researching VANETs. Although V2V communications in VANETs are sometimes considered as a subclass of the Mobile Ad Hoc Networks (MANETs), there are many differences between those two network paradigms. First, mobile nodes in VANETs (vehicles) usually move at a higher speed, which results in a highly dynamic topology. Second, the nodes in VANETs are moving on pre-defined roads, rather than the random mobility assumption in MANETs. Besides, VANET nodes are usually assumed to have less limitation on battery and computing power. Those differences cause different network behaviors and characteristics, which make the solutions designed for MANETs not directly applicable to VANETs, e.g., routing protocols.
Routing is a fundamental network function in both MANETs and VANETs. Its object is to relay packets from a source node to a destination node in a multi-hop manner. The early MANETs studies [7,8] focused on the topology-based routing protocols which either proactively or relatively updated information used in routing decisions. When applying the topology-based protocols in VANETs, it has been shown as a high overhead and a low throughput due to the rapid topology change [9]. Numerous studies [10,11,12,13] have proposed geographic routing protocols, known as position-based routing protocols, for VANETs routing. Each vehicle is assumed to be equipped with a positioning device, i.e., GPS (Global Positioning System), to obtain its own geographical location. Periodical beacon messages are broadcasted in a neighborhood to announce vehicles’ identities, locations, speeds, and relevant driving information. Rather than finding an entire delivery path, geographic routing selects the most appropriate next-hop relay node, e.g., the neighbor closest to the destination, and forwards the packets to it.
Many geographic routing protocols [11,12,14] in an urban environment utilize traffic information, i.e., the real-time vehicular densities of roads, and those with higher traffic flow are preferred so as to avoid disconnectivity along the forwarding path as well as high carry delay. Recently, several creative real-time traffic collection systems based on vehicles have been proposed. In studies [15,16], accelerometers in mobile phones of drivers were utilized for motion detection and traffic sensing. In [17], a larger-scale information collection system aimed to reduce the collection, fusion, and dissemination time was proposed. However, most of the existing routing protocols do not describe how to gather real-time traffic. They assume this information is either already available or can be obtained by querying an existing traffic center. Query delay and the infrastructure construction cost are ignored in those works, but some [18,19] do notice this issue. An Infrastructure-Free Traffic Information System (IFTIS) is proposed in [18]. In an IFTIS, a road segment is divided into fixed-size cells, and the group leader of each cell is responsible to calculate the number of vehicles in the cell. The total number of road vehicles is then accumulated by the group leader of the last cell on the road. In [19], a probe message is used to estimate the connectivity of vehicles nearby road segments. A probe message is initiated by a node near an intersection and forwarded in the road segment. If the probe can reach the next intersection, a return message is sent to the original sender, which indicates that this road is traversable. Otherwise, the probe is dropped and the road is disconnected. This information is then used in route selection, which has been shown to improve the network throughput and delivery ratio. However, the aforementioned can accrue an extra message exchange cost and delay. Furthermore, only the traffic density in a small region can be cognizant. A wide-ranging and up-to-date traffic information is still omitted, which may lead to a wrong routing decision.
In this paper, we propose a Comprehensive Real-Time Traffic Map, namely a CRT Map, to collect the wide-ranging real-time traffic information, based on which we then design a geographic routing protocol, called the CRT Map Based Routing (CBR). In the design of a CRT Map, the concept of Crowdsensing [20] is adopted. Vehicles share local views of traffic on individual roads and assist each other in constructing an overview of the whole road network. When driving on each road, a vehicle calculates how many cars it meets and then constructs a local traffic map. Then, local maps of different vehicles are exchanged at intersections and merge into their own maps. Consequently, each vehicle gradually has a much larger view of the entire network. In addition, to prevent out-of-date information, we take the effect of time decay into account when merging traffic maps. A CRT Map is then used in the proposed CBR. It extracts traffic information from a CRT Map and considers the connectivity of consecutive roads to select a reliable path in the routing decision. Compared with existing researches, the proposed solution has no extra delay, since a local CRT Map is maintained. Beacons are utilized in vehicle calculations, and, thus, map exchanges are the only extra cost. Exchange frequency is controllable in our design, which reflects a trade-off between accuracy and overhead. Simulation results show that a CBR can lower the end-to-end delay and increase the packet delivery ratio with a low overhead.
The rest of this paper is organized as follows. In Section 2, the geographic routing protocols in VANETs are surveyed. Section 3 describes the system model, including the environment, assumptions, and the basic framework of the CRT Map. The information exchange mechanism of the CRT Map and the detail design of a CBR are presented in Section 4. In Section 5, we demonstrate the efficiency of the proposed schemes through simulation studies. Section 6 discusses future works and concludes this paper.

2. Related Work

Vehicular ad hoc networks have a typical problem of intermittent connectivity due to the rapidly changing topology. Many studies have proposed different solutions to deal with this problem. In this section, we survey several significant geographic routing protocols in VANETs and then discuss their pros and cons, as listed in Table 1.
In [10], the Greedy Perimeter Stateless Routing (GPSR) proposes an early concept of geographic routing based on the positions of the mobile nodes. Each node obtains its geographic position from a GPS receiver, and is aware of its neighbors’ positions through periodical beacon messages. The GPSR are divided into two phases: greedy forwarding and perimeter forwarding. In greedy forwarding, an intermediate node selects the neighbor closest to the destination as a next-hop relay node and forwards the data packets to it. This process is repeated until the destination is reached. If there is no closer neighbor than itself, greedy forwarding fails, which is defined as a local maximum problem. Then, perimeter forwarding is triggered as a recovery strategy. The right hand rule is used to find a relay node. Greedy forwarding takes place again if a closer node to the destination is found. The GPSR suffers from a long delivery path in perimeter forwarding and thus encounters a high end-to-end delay. Greedy Perimeter Coordinator Routing (GPCR) [11] adopts the same idea of geographic forwarding and proposes to always forward data packets at junctions. A static road map is used by the GPCR to support the idea and offer data packets a better chance to reach their destination faster. A carry and forward strategy is adopted as the recovery strategy. Once a vehicle cannot find a better relay vehicle, it will carry the data pack until it encounters a better one. However, carry delay is much longer than transmission delay. Road (and/or junction) selections in routing decisions thereby become a critical issue.
The improved Greedy Traffic Aware Routing protocol (GyTAR) [21] is an intersection-based geographic routing protocol, which works well in a city environment. It proposed a dynamic junction selection mechanism to support greedy forwarding and to select a more reliable route. GyTAR utilizes IFTIS [18] to estimate the traffic density between two junctions. Vehicles at an intersection forward broadcast a Cell Density Packet (CDP) to collect real-time vehicular density, as shown in Figure 2. In IFTIS, a road segment is divided into fixed-size cells based on the vehicle’s communication range. A cell leader is responsible to calculate the number of vehicles in the cell. A CDP is forwarded to each cell leader to collect the traffic density of the cells. Based on this information, GyTAR can decide which junction has the higher traffic density and the shorter distance to the destination. In GyTAR, the direction of the traffic flow is omitted in the next junction selection.
Improved Greedy Traffic Aware Routing (E-GyTAR) [22], Traffic Flow-Oriented Routing (TFOR) [23], Intersection-based Connectivity Aware Routing (iCAR) [24], Adaptive Routing Protocol based on QoS and vehicular Density (ARP-QD) [25], and Adaptive QoS based Routing for VANETs (AQRV) [26] are based on the same idea of dynamic junction selection as GyTAR. E-GyTAR and TFOR further consider the flow directions of the roads. Selecting a junction with a high density, but in the opposite direction to the destination, might still incur a high delay. In E-GyTAR, data packets are forwarded on the road with a high traffic flow towards the destination. Alternatively, TFOR considers both the directional and the undirectional flow of traffic density. If traffic flow is in the opposite direction but the density is high enough, the junction can still be selected as a candidate. In iCAR, roads with the highest vehicular density are not necessarily be selected as forwarding paths, in order to avoid a high transmission delay due to a high data volume. The next-junction selection is based on the real-time traffic density, the delay information, and the estimated connectivity lifetime of roads. A distributed scheme, namely Road Segment Evaluation (RSE), is proposed to evaluate the suitability of road segments. On the other side, ARP-QD considers QoS requirements of different applications. It balances the path efficiency and path stability by selecting a forwarding path based on hop count and link duration. In AQRV, QoS constraints, in terms of connectivity probability, packet delivery ratio, and delay, should be satisfied in the intersection selections. This problem is modeled as a multi-objective optimization problem and solved by ant colony optimization. When selecting the next intersection, possible intersections are explored by forward ants, and then the routing decision is made based on the corresponding backward ants. However, the above approaches only consider the next junction. If the following road segments do not have sufficient vehicular density to support data forwarding, high latency still cannot be avoided.
Reliable Inter-Vehicular Routing (RIVER) [19] is a geographic routing protocol with a monitoring mechanism to evaluate the reliability of roads. The main monitoring mechanism proposed in this paper includes two parts: active monitoring and passive monitoring. In active traffic monitoring, a probe message is sent along a specific road segment by a vehicle near the edge of the road. If the probe message can reach another edge, a responsive message will return to the source vehicle, which indicates this road has sufficient traffic density. This knowledge is then used in route selection. Another passive traffic monitoring is proposed for knowledge sharing to reduce the overhead. Piggybacks on routing messages, probes, and beacons are suggested. Although vehicles could obtain the wide-ranging knowledge of roads with passive monitoring, knowledge of some roads may still be omitted or outdated.
Hybrid Traffic-Aware Routing (HTAR) [27] proposed a collaboratively real-time traffic information collection and dissemination mechanism. In HTAR, a vehicle at each junction, called a junc-tracker, is selected. A junc-tracker is responsible to periodically collect traffic information of surrounding road segments, calculate their weights based on traffic information, and disseminate the weights to adjacent junc-trackers and vehicles. Road weights are then used in the junction selection. Junction-based Traffic-Aware Routing (JTAR) [28] is based on HTAR and improves the routing path reactively. In HTAR, a complete delivery path is planned. Contrarily, in JTAR, the junc-tracker dynamically recalculates weights at junctions based on the last updated information and packets can then be detoured in the middle of a delivery. However, HTAR and JTAR share the same drawback. Disseminations of traffic information between junc-trackers may cause a large amount of message exchanges.
Below, we discuss issues of existing geographic routing protocols in VANETs, as packets need to be forwarded on a reliable and robust path. Routing protocols prefer to choose a road with a high traffic density. If a packet is transmitted on a road with a sparse density, it is possible not to encounter any appropriate neighbor to forward the packet. The packet will be carried by a vehicle, which results in a serious carry delay. As a result, most existing studies propose to take into account both the traffic density and the distance to the destination in the next junction/road selection. However, most protocols only consider the next road segment. Conditions of the consequent roads are ignored. A road with a high density is not always connected to the destination or other high traffic roads. Examples are shown in Figure 3. In Figure 3a, a packet may be moving away from the receiver, because the routing protocol chooses the road with the highest traffic density but does not consider if the selected road is connected to the destination or not. This situation is similar to the local maximum problem, but at the junction level. Another situation in Figure 3b shows a road with the highest traffic density does not always connect to another road with a high density. As a result, the second best choice, the down direction, is in fact the best choice. On the contrary, in some works, such as HTAR, a complete delivery path is planned. However, the planned path cannot adapt to the highly dynamic traffic, especially in a long delivery path. Therefore, the proposed solution is still based on a dynamic junction selection. When selecting the next road segment, we consider not only the road, but also its following roads.

3. System Model

3.1. Environment and Assumption

In this section, we describe the environment and assumptions made in this work. There are n vehicles in the network and each one has a unique Veh. ID, i.e., a vehicle set V = { v 1 ,   v 2 , , v n } . Moreover, there are x road segments in the network and each one has a unique Road ID, i.e., a road set R = { r 1 ,   r 2 , , r x } . Load length and the number of lanes of a road r i are denoted as L i and L A i , respectively. We make the following assumptions in this paper. Firstly, there are no roadside units (RSUs) in the network. Hence, V2V communications are the only data dissemination mechanism. Secondly, a multifunctional on-board unit (OBU) with IEEE 802.11p functionality is equipped by each vehicle. The OBU also has a GPS receiver and a digital map which allows a vehicle to be continually aware of its own geographic position and surrounding street organization. Thirdly, a source vehicle that initiates a data packet is assumed to be aware of the destination vehicle’s position. The location management issue is out of the scope of this paper and can be supported by Location Services [29]. Finally, periodical beacon messages broadcasted by vehicles comprise of their current driving information, including Veh. ID, position, direction, and Road ID.

3.2. CRT Map Framework

In this section, we describe the basic format and operations of the proposed CRT Map. Each vehicle v i maintains a local map, denoted as m i . Hence there are n maps, M = { m 1 ,   m 2 , , m n } , in the network, each of which represents a different view of the traffic information of each vehicle. Since there are x road segments, each m i comprises x records, denoted as R T j i , 1 j x , which is a real-time traffic record of each road segment r j . Each record has two fields, i.e., R T j i = { D j i ,   T j i } , where T j i is the timestamp of when this record is made or updated, and D j i is the traffic density of r j , i.e., D j i = ( #   of vehicle of   r j ) / ( L j × L A j ) . When vehicles are moving on roads, they overhear other vehicles’ beacons and calculate how many cars on each road. Together with the load length and lane number, extracted from the digital map, traffic density of each road can be derived.
Next, we describe how to merge two traffic density records. Initially, historical traffic statistics are loaded as the default traffic density of roads. Thus, the initial traffic information is different to the real-time traffic density. There are two possible timings for a record R T j i to be updated. One is when v i receives another vehicle’s map in which contains a record with regard to r j , and the other is when vehicle v i actually drives through road r j . Here we describe the details of the first case. The latter case can be similarly completed. Since traffic is continuously changing over time, we should take the time decay effect into account. The value of a record should be inversely proportional to its grade of freshness, i.e., the elapsed time since the last update. Let T ^ denote the present time and then define Δ T j i = T ^ T j i as a freshness of R T j i . The weight of R T j i , W j i is defined as
W j i = { 1 1 + Δ T j i ,   Δ T j i T t h 1 1 + T t h ,   Δ T j i > T t h
where T t h is a threshold used to set a basic weight value. The purpose is to prevent any record from being omitted and make each record count. When merging R T j i and R T j k for the same road r j , different weights are set according to their freshness. Then, the new traffic density, denoted as D , can be derived by
D j i = D j k = ( D j i × W j i ) + ( D j k × W j k ) ( W j i + W j k )
Then, T j i and T j k are updated to T ^ . In the case where v i actually drives through r j , we can simply treat the new observation of traffic density of r j as R T j k . To merge multiple records in the meantime is straightforward. The denominator in Equation (2) becomes the summation of all weights, and the numerator is the summation of all densities after weighting. Finally, we define each record as a reliability which will be used in the routing decision. Here we also take the time decay effect into consideration. A record that has not been updated for a long time has less reliability. The reliability P j i of R T j i is defined as P j i = 1 ln Δ T j i .

4. The Proposed Solutions

In this section, details of the proposed CRT Map and the CBR are presented. We first describe how each vehicle collects real-time traffic information of nearby roads with low overheads. Vehicles then use inter-vehicle communication to exchange and share their traffic information. Finally, how vehicles utilize the CRT Map for the delivery of data packets are described.

4.1. CRT Map Construction and Message Exchanges

A novel mechanism to collect and share traffic information with a low overhead is proposed in this section. It is different from some other geographic routing protocols, such as GyTAR and TFOR, adopting the infrastructure free traffic information system (IFTIS) to calculate traffic density. The basic idea of the proposed mechanism is, if you want to know information of a certain place, the best way is to ask a person who has just come from that place. The information is the most updated and the cost is the lowest. A vehicle driving on a road segment observes how many cars are on the same road. As soon as the vehicle reaches an edge of the road, traffic density is then derived. This information is then shared at junctions. We describe the details as follows. A flowchart of CRT Map construction and message exchanges for each vehicle is shown in Figure 4.

4.1.1. Traffic Density Collection

Vehicles periodically broadcast beacon messages comprised of their current driving information. Each vehicle is aware of other vehicles’ existence via the received beacon messages. The beacon message is with a Veh. ID field, so beacons from different sources can be distinguished. A vehicle should be able to encounter all the vehicles driving in the opposite direction on the same road and receive their beacons, regardless of any collisions and/or losses of said beacons. However, for vehicles moving in the same direction, many of them may be invisible due to the limitation of the communication range. To deal with this issue, we let the vehicle, which is about to leave a road, announce a list of Veh. IDs that it has encountered approaching from the opposite direction. With this list, a newcomer, who just enters this road, is aware of vehicles in the same direction. Using this list as a base and attaching vehicles it encounters, the number of vehicles and the traffic density of this road can be derived. Subsequently, the traffic density of this road is merged with the existing record in its CRT Map by Equations (1) and (2).

4.1.2. Information Exchange and Share

To speed up the information distribution, vehicles exchange their own maps with each other at intersections. Each vehicle v i maintains a counter C V i to control the exchange frequency and cost. The counter can be dissimilar on different vehicles dependent on the vehicle’s route-demand frequency. C V i is then decreased by one per junction. Once C V i is down to zero at a junction, v i initiates a three-way exchange process at this junction. It is possible that there is already an exchange process taking place at this junction, thus, v i simply joins the existing process. A request is broadcasted to require all vehicles at the junction to reply to their maps. A random back-off mechanism can be adopted to avoid collisions of responses. After a period of waiting time, v i merges all received maps by Equations (1) and (2). Finally, v i broadcasts the merged CRT Map to vehicles, and then they directly replace their maps with the merged one if they have joined in the exchange process. It is possible that a vehicle arrived at the junctions too late to join, but overhears the merged map. The vehicle can still take advantage of the result by merging it with its own map. When the exchange process is completed, C V i is reset.

4.2. CRT Map Based Routing

In this section, we describe how to make routing decisions based on the CRT Map. Each vehicle is aware of not only street organizations, provided by the traditional digital road map, but also the real-time traffic density information. Once a relaying vehicle reaches an intersection, it chooses a connected road segment and forwards the delivery packet on it until the next intersection. The process is repeated until the packet reaches its destination. Here we design an evaluation function Score( ), to give each connected road segment a score and select the one with the highest score to forward packets. In the evaluation of a connected road segment, r c , we consider not only its traffic density and distance to the destination, but also the following road segments. We make each of the road segments contribute to the final score of r c , based on their traffic densities, reliability of traffic density, road lengths, and distances to the destination. We make a road segment further away from r c to contribute less. It is because the traffic has rapidly changed and may become different when it is actually delivered to the road. Note that, the shortest path from r c to the destination is assumed when evaluating r c . It does not mean that the shortest path is actually the delivery path, but rather a way of evaluation. In addition, all necessary information can be extracted locally from the CRT Map and the digital road map of the relaying vehicle. Hence, a local decision can be made without extra cost and delay. A flowchart of CBR is shown in Figure 5.
Below, we formally define the evaluation function Score( ). Let v i be the relaying vehicle at an intersection and r c is one of the connected road segments of the intersection. When evaluating S c o r e ( r c ) , v i first calculates the shortest path { r c 1 ,   r c 2 , , r c k | r c 1 = r c , r c j R ,   1 j k } , where r c 1 ,   r c 2 , , r c k are the consecutive road segments started at r c and the destination vehicle is located at r c k . The total length of the shortest path started at r c is denoted as P L r c = j = 1 k L c j , then S c o r e ( r c ) is defined as:
S c o r e ( r c ) = j = 1 k ( D c j i × P c j i × L c j P L r c ) × ( l = j + 1 k L c l P L r c )

5. Simulation

In this section, performance of the proposed schemes, CRT Map and CBR, is evaluated through simulation studies. We first compare the proposed CBR with two existing routing protocols, GyTAR [18] and RIVER [16]. End-to-end delay, packet delivery ratio, routing overhead, and average hop count are evaluated. In end-to-end delay and average hop count, only successfully delivered packets are calculated. In addition, if a packet is carried by a vehicle, the hop count is not increased until the packet is forwarded. In packet delivery ratio, a Time To Live (TTL) is set for each packet. If a packet cannot be delivered to its destination in time, it is dropped. In routing overhead, all necessary control packets, including beacon, traffic collection messages, and information exchange messages, are taken into account. Then, we study the performance of the proposed CRT Map under different parameter settings. We measure the average deviation of the number of vehicles per road segment between the real world and the CRT Map.
A real road map of 3000 m × 3000 m urban scenario, extracted from Taichung City, Taiwan, is adopted in the simulation, as shown in Figure 6. There are 100 to 300 vehicles randomly deployed in the network. SUMO [30] is used to generate mobility model of vehicles. The average moving speed is between 30 and 80 km/h. The transmission range of each vehicle is 250 m with a channel capacity of 2 Mbps. The data packet size is 512 bytes with randomly chosen sources and destinations. Each simulation is run for 150 s and each result is an average of 100 simulations. Furthermore, the confidence intervals with a 95% confidence level are included. The counter CV used to control the exchange frequency of the CRT Map is first set as 1 to evaluate the routing performance, and then varied between 1 and 5 to study its effects.

5.1. CBR Performance

5.1.1. End-to-End Delay

We first study the end-to-end delay at different moving speeds. Figure 7a shows the results of a low vehicular density environment with 100 vehicles, and Figure 7b shows a high density environment with 300 vehicles. As the moving speed increases, the network becomes more dynamic and thus the end-to-end delay is increased. It can be seen that the proposed CRB has a lower delay than other protocols at all relevant speeds. In a low density environment, road segments are likely to be disconnected. The CBR considers consecutive road segments instead of only the subsequent one. With the CRT Map, vehicles have wider-ranging traffic information to choose the more reliable delivery paths. In a high density environment, the network is more connected. GyTAR and RIVER have almost the same delay but the CBR can still outperform them. Similar results can be found in Figure 8, where we evaluate end-to-end delay with different vehicular densities at an average moving speed of 80 km/h. A high speed is chosen to create a high dynamic environment, which can highlight reliability of different routing schemes. Higher vehicular density can lower the delay since packets have less probabilities of being carried than forwarded. The proposed CBR can outperform in all cases.

5.1.2. Packet Delivery Ratio

Next, we study the packet delivery ratio by varying the vehicular moving speeds. As shown in Figure 9, the CBR has a higher success rate for delivering packets to destinations at different speeds. In a high speed environment, network topology is rapidly changed making the delivery ratio decrease, especially for RIVER. In Figure 9b, RIVER has a higher performance than GyTAR when the moving speed is lower. Nonetheless, secondhand information used in RIVER becomes much more unreliable as the moving speed rises. Eventually, GyTAR overtakes RIVER in a highly dynamic environment. The CBR also suffers from the rapidly changed topology in a high moving speed. As the vehicular moving speeds are increased, the speed of the CRT Map update may not catch up with the speed of the network change (This effect will be further discussed later). As a result, the success rate of CBR becomes lower. However, the CBR considers consecutive road segments and recalculates weights at intersections based on the last updated information making the proposed CBR outperform the other two schemes. The packet delivery ratio with all the vehicular densities at an average moving speed of 80 km/h is shown in Figure 10. High vehicular density can increase the success rate since the network becomes more connected. The proposed CBR can outperform in all cases.

5.1.3. Average Hop Count

Average hop count is studied by varying the vehicular moving speeds. As shown in Figure 11, when the moving speed is increased, the hop count becomes lower because the rapidly changed topology makes packets have more chances to be carried. The average hop count of the proposed CBR is higher than the other two schemes. It is because the delivery paths selected by CBR have higher traffic density, and thus increases the forwarded chances. It is worth to compare results in Figure 11 with results discussed above. Although the high moving speeds increase the delivery speeds of carried packets, the network becomes disconnected more frequently. Packets prefer to be forwarded rather than carried since the speed of vehicle moving is not competitive to the speed of packet forwarding. Therefore, the higher hop count of the CBR results a lower end-to-end delay and a higher success rate.

5.1.4. Overhead

In Figure 12, we compare the overheads of three routing protocols by varying the vehicular density from 100 to 300 vehicles. It is easy to image that the overhead increases as the networks density increases since more vehicles are involved. In GyTAR, control packets including beacon messages and CDP packets are taken into account. The CDP packets for collecting traffic density on each road are the major cost. RIVER has the least overhead, since a piggyback is used to disseminate traffic information. Hence, only the beacons are considered. In the proposed CBR, we have beacon messages and data messages in the map exchange process. The result shows that the overhead of the CBR is higher than RIVER but lower than GyTAR. Considering the end-to-end delay and delivery ratio of the CBR discussed above, the extra cost should be acceptable. Although RIVER has the least overhead, its performance is worse than the proposed CBR, especially in a high-speed environment.

5.1.5. Tradeoff between Efficiency and Overhead

In the above simulations, CV is set to 1 for fast information distribution. The results show that CBR can outperform the other two protocols. In Figure 13, we vary the CV value from 1 to 5 and compare the end-to-end delay with the second best protocol, GyTAR. As shown in Figure 13a, in a low density and high speed environment, the network topology is sparse and rapidly changing. CV needs to be set to a small value to speed up the information distribution. Otherwise, the performance of the CBR may be inferior to GyTAR. As the network is dense enough, the message exchange frequency can be lower. Although the topology is still highly dynamic at high speed, but the high vehicular density can cover the effect. The CBR can outperform GyTAR in all CV setting, as shown in Figure 13b. In Figure 14, we compare the overhead with different CV settings. It is easy to image that the routing overhead decreases as the frequency of exchange decreases. In addition, the overhead of the CBR in all settings is lower than GyTAR. We can conclude that, a small CV value needs to be used only in a low density environment. In other cases, vehicles can exchange traffic information less frequently to reduce the overhead.

5.2. CRT Map Performance

In this section, the performance of the proposed CRT Map is studied. First, we intend to comprehend the difference between the traffic densities in the real world and in the CRT Map. By varying the CV, we can measure the average deviation of the number of vehicles per road between the real world and the CRT Map in low and high vehicular density networks. The results are shown in Figure 15a. It is obvious that the deviation increases as the CV increases, especially for a low density network. A small CV means a lower exchange frequency. As a result, the speed of information update does not catch up with the speed of the network change. However, almost all the deviations are lower than 4, which indicates that the proposed CRT Map is a good approximation of the real world. Next, we study the convergence time of the CRT Map. CV is set to 1 and the results are shown in Figure 15b. The deviation decreases to 1 and reaches a balance in about three minutes after the network begins, which indicates that the CRT Map can converge at a fast rate. Besides, the deviation in a high density environment decreases more rapidly than a low density environment since vehicles have more chances to acquire road information from encountered vehicles.

6. Conclusions and Future Works

A novel mechanism to collect and share real-time traffic information, namely a CRT Map, was proposed in this paper. Vehicles cooperate with each other to gather and share their local traffic map thereby constructing an overview of the whole network. Based on the CRT Map, we proposed a geographic routing, called CBR, which considers the traffic density of consecutive road segments in routing decisions. Simulation results show the proposed solution has a better performance than GyTAR and RIVER, in terms of end-to-end delay and packet delivery ratio, with a low overhead.
In this paper, the CRT Map is utilized to support routing in VANETs. However, real-time traffic information is valuable in many applications, such as intelligent traffic management, self-driving cars, emergency dissemination, and so on. We are working on applying a CRT Map to relieve traffic congestion by traffic light control and coordination. Conversely, the CRT Map is designed for general purposes in this paper. Moreover, if it is dedicated to a routing purpose, some aspects can be further optimized. For example, information exchange can be performed on demand, instead of periodically. We are working on improving the message exchange process to reduce the routing overhead. Further results will be reported in our forthcoming papers.

Acknowledgments

This work was supported by the Ministry of Science and Technology under Grant MOST 105-2221-E-194-031, Taiwan.

Author Contributions

Chi-Fu Huang and Yuan-Feng Chan designed the proposed schemes; Ren-Hung Hwang refined the proposed schemes; Chi-Fu Huang conceived and designed the simulations; Yuan-Feng Chan performed the simulations; Chi-Fu Huang and Yuan-Feng Chan analyzed the data; Ren-Hung Hwang verified the analysis; Chi-Fu Huang and Ren-Hung Hwang wrote the paper; and Ren-Hung Hwang refined the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Atzori, L.; Iera, A.; Morabito, G. The Internet of Things: A survey. Comput. Netw. 2010, 54, 2787–2805. [Google Scholar] [CrossRef]
  2. Al-Sultan, S.; Al-Doori, M.M.; Al-Bayatti, A.H.; Zedan, H. A Comprehensive Survey on Vehicular Ad Hoc Network. J. Netw. Comput. Appl. 2014, 37, 380–392. [Google Scholar] [CrossRef]
  3. Englund, C.; Chen, L.; Vinel, A.; Lin, S.Y. Future Applications of VANETs. In Vehicular ad hoc Networks; Campolo, C., Molinaro, A., Scopigno, R., Eds.; Springer International Publishing: Cham, Switzerland, 2015; pp. 525–544. [Google Scholar]
  4. Papadimitratos, P.; Fortelle, A.D.L.; Evensen, K.; Brignolo, R.; Cosenza, S. Vehicular Communication Systems: Enabling Technologies, Applications, and Future Outlook on Intelligent Transportation. IEEE Commun. Mag. 2009, 47, 84–95. [Google Scholar] [CrossRef]
  5. Lu, N.; Zhang, N.; Cheng, N.; Shen, X.; Mark, J.; Bai, F. Vehicles Meet Infrastructure: Toward Capacity-Cost Tradeoffs for Vehicular Access Networks. IEEE Trans. Intell. Trans. Syst. 2013, 14, 1266–1277. [Google Scholar] [CrossRef]
  6. Uhlemann, E. Introducing Connected Vehicles. IEEE Veh. Technol. Mag. 2015, 10, 23–31. [Google Scholar]
  7. Perkins, C.E.; Royer, E.M. Ad-Hoc On-Demand Distance Vector Routing. In Proceedings of the IEEE Workshop on Mobile Computing Systems and Applications (WMCSA), New Orleans, LA, USA, 25–26 February 1999.
  8. Perkins, C.E.; Bhagwat, P. Highly dynamic Destination-Sequenced Distance-Vector routing (DSDV) for Mobile Computers. In Proceedings of the ACM SIGCOMM Conference on Communications Architectures, Protocols and Applications, London, UK, 31 August 31–2 September 1994.
  9. Naumov, V.; Baumann, R.; Gross, T. An Evaluation of Inter-Vehicle Ad Hoc Networks Based on Realistic Vehicular Traces. In Proceedings of the ACM MobiHoc, Florence, Italy, 22–25 May 2006.
  10. Karp, B.; Kung, H.-T. GPSR: Greedy Perimeter Stateless Routing for Wireless Networks. In Proceedings of the ACM MobiCom, Boston, MA, USA, 6–11 August 2000.
  11. Lochert, C.; Mauve, M.; Fussler, H.; Hartenstein, H. Geographic Routing in City Scenarios. ACM Mob. Comput. Commun. Rev. 2005, 9, 69–72. [Google Scholar] [CrossRef]
  12. Jerbi, M.; Senouci, S.-M.; Rasheed, T.; Ghamri-Doudane, Y. Towards Efficient Geographic Routing in Urban Vehicular Networks. IEEE Trans. Veh. Technol. 2009, 58, 5048–5059. [Google Scholar] [CrossRef]
  13. Bilal, S.M.; Bernardos, C.J.; Guerrero, C. Position-based Routing in Vehicular Networks: A Survey. J. Netw. Comput. Appl. 2013, 36, 685–697. [Google Scholar] [CrossRef]
  14. Jerbi, M.; Senouci, S.-M.; Meraihi, R.; Ghamri-Doudane, Y. An Improved Vehicular Ad Hoc Routing Protocol for City Environments. In Proceedings of the IEEE International Conference on Communications (ICC), Washington, DC, USA, 26–30 November 2007.
  15. Lv, M.; Chen, L.; Wu, X.; Chen, G. A Road Congestion Detection System Using Undedicated Mobile Phones. IEEE Trans. Intell. Transp. Syst. 2015, 16, 3060–3072. [Google Scholar] [CrossRef]
  16. Panichpapiboon, S.; Leakkaw, P. Traffic Sensing Through Accelerometers. IEEE Trans. Veh. Technol. 2016, 65, 3559–3567. [Google Scholar] [CrossRef]
  17. Zhang, Q.; Zheng, H.; Lan, J.; An, J.; Peng, H. An Autonomous Information Collection and Dissemination Model for Large-Scale Urban Road Networks. IEEE Trans. Intell. Transp. Syst. 2016, 17, 1085–1095. [Google Scholar] [CrossRef]
  18. Jerbi, M.; Senouci, S.-M.; Rasheed, T.; Ghamri-Doudane, Y. An Infrastructure-Free Traffic Information System for Vehicular Networks. In Proceedings of the IEEE 66th Vehicular Technology Conference (VTC Fall), Baltimore, MD, USA, 30 September–3 October 2007.
  19. Bernsen, J.; Manivannan, D. RIVER: A Reliable Inter-Vehicular Routing Protocol for Vehicular Ad Hoc Networks. Comput. Netw. 2012, 56, 3795–3807. [Google Scholar] [CrossRef]
  20. Ganti, R.K.; Ye, F.; Lei, H. Mobile Crowdsensing: Current State and Future Challenges. IEEE Commun. Mag. 2011, 49, 32–39. [Google Scholar] [CrossRef]
  21. Jerbi, M.; Meraihi, R.; Senouci, S.-M.; Ghamri-Doudane, Y. GyTAR: Improved Greedy Traffic Aware Routing Protocol for Vehicular Ad Hoc Networks in City Environments. In Proceedings of the ACM International Workshop on Vehicular Ad Hoc Networks (VANET), Los Angeles, CA, USA, 29 September 2006.
  22. Bilal, S.; Madani, S.; Khan, I. Enhanced Junction Selection Mechanism for Routing Protocol in VANETs. Int. Arab. J. Inf. Technol. 2011, 8, 422–429. [Google Scholar]
  23. Abbasi, I.A.; Nazir, B.; Abbasi, A.; Bilal, S.M.; Madani, S.A. A Traffic Flow-Oriented Routing Protocol for VANETs. EURASIP J. Wirel. Commun. Netw. 2014. [Google Scholar] [CrossRef]
  24. Alsharif, N.; Cespedes, S.; Shen, X.S. iCAR: Intersection-based Connectivity Aware Routing in Vehicular Ad hoc Networks. In Proceedings of the IEEE International Conference on Communications (ICC), Kunming, China, 21–23 September 2013.
  25. Sun, Y.; Luo, S.; Dai, Q.; Ji, Y. An Adaptive Routing Protocol Based on QoS and Vehicular Density in Urban VANETs. Int. J. Distrib. Sens. Netw. 2015, 11. [Google Scholar] [CrossRef]
  26. Li, G.; Boukhatem, L.; Wu, J. Adaptive Quality of Service based Routing for Vehicular Ad hoc Networks with Ant Colony Optimization. IEEE Trans. Veh. Technol. 2016. [Google Scholar] [CrossRef]
  27. Lee, J.-W.; Lo, C.-C.; Tang, S.-P.; Horng, M.-F.; Kuo, Y.-H. A Hybrid Traffic Geographic Routing with Cooperative Traffic Information Collection Scheme in VANET. In Proceedings of the International Conference on Advanced Communication Technology (ICACT), Gangwon-Do, Korea, 13–16 February 2011.
  28. Lo, C.-C.; Kuo, Y.-H. Junction-Based Traffic-Aware Routing scheme for Vehicular Ad Hoc Networks. In Proceedings of the IEEE 24th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC), London, UK, 8–11 September 2013.
  29. Li, J.; Jannotti, J.; De Cou, D.S.J.; Karg, D.R.; Morris, R. A Scalable Location Service for Geographic Ad Hoc Routing. In Proceedings of the ACM/IEEE MobiCom, Boston, MA, USA, 6–11 August 2000.
  30. SUMO—Simulation of Urban MObility. Available online: http://dlr.de/ts/sumo (accessed on 1 October 2016).

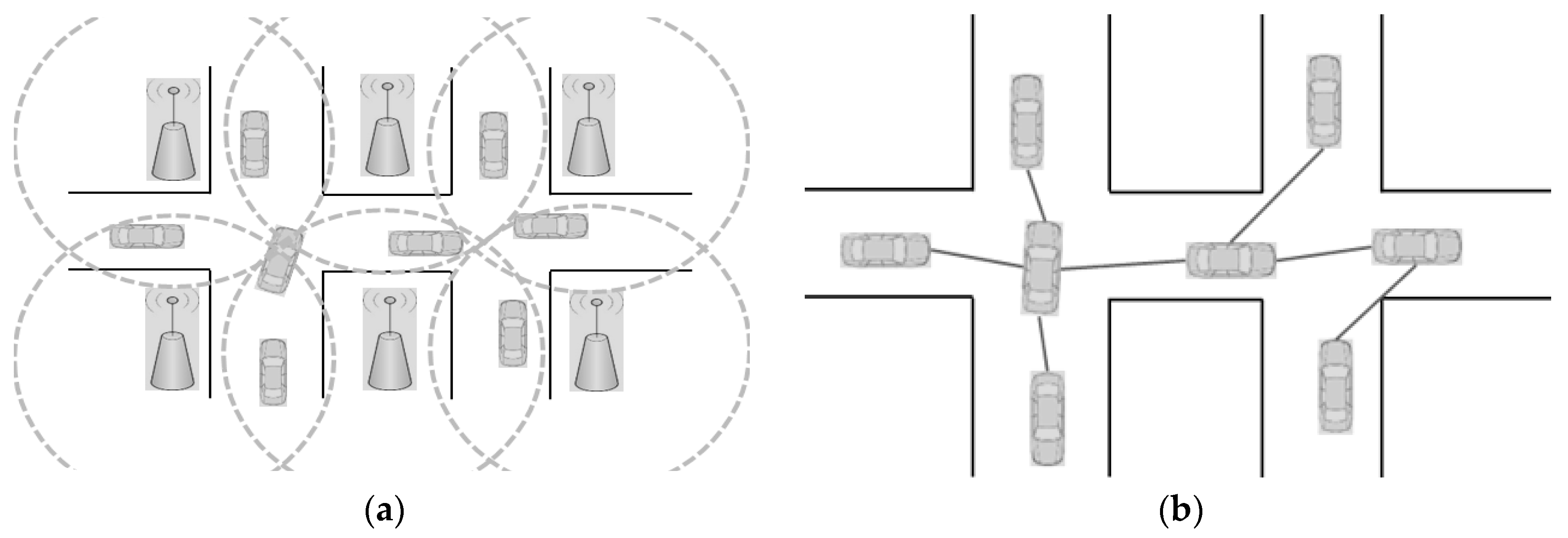

Figure 1. Different communication models in Vehicular Ad Hoc Networks (VANETs): (a) Vehicle-to-Infrastructure (V2I); and (b) Vehicle-to-Vehicle (V2V).
Figure 1. Different communication models in Vehicular Ad Hoc Networks (VANETs): (a) Vehicle-to-Infrastructure (V2I); and (b) Vehicle-to-Vehicle (V2V).
Applsci 07 00129 g001
Figure 2. Infrastructure-Free Traffic Information System (IFTIS) in GyTAR.
Figure 2. Infrastructure-Free Traffic Information System (IFTIS) in GyTAR.
Applsci 07 00129 g002
Figure 3. Issues when only the next road segment is considered where the red dotted lines show the wrong selections and the green dotted line shows the best choice: (a) move to a road away from the receiver; and (b) connect to a sparse road (marked by the question marks, respectively).
Figure 3. Issues when only the next road segment is considered where the red dotted lines show the wrong selections and the green dotted line shows the best choice: (a) move to a road away from the receiver; and (b) connect to a sparse road (marked by the question marks, respectively).
Applsci 07 00129 g003
Figure 4. A flowchart of Comprehensive Real-Time Traffic Map (CRT Map) construction and message exchanges for each vehicle.
Figure 4. A flowchart of Comprehensive Real-Time Traffic Map (CRT Map) construction and message exchanges for each vehicle.
Applsci 07 00129 g004

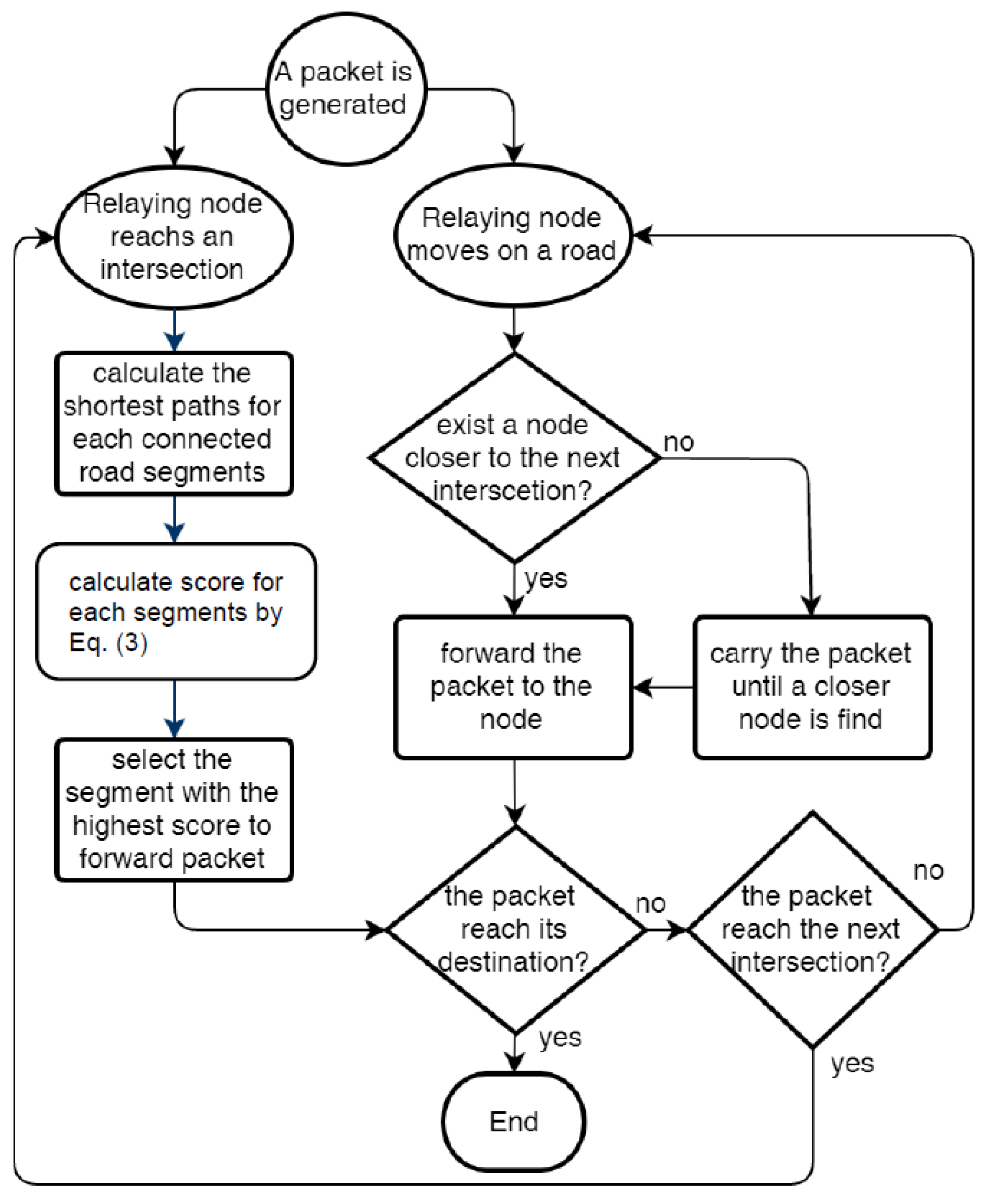

Figure 5. A flowchart of CRT Map Based Routing (CBR).
Figure 5. A flowchart of CRT Map Based Routing (CBR).
Applsci 07 00129 g005

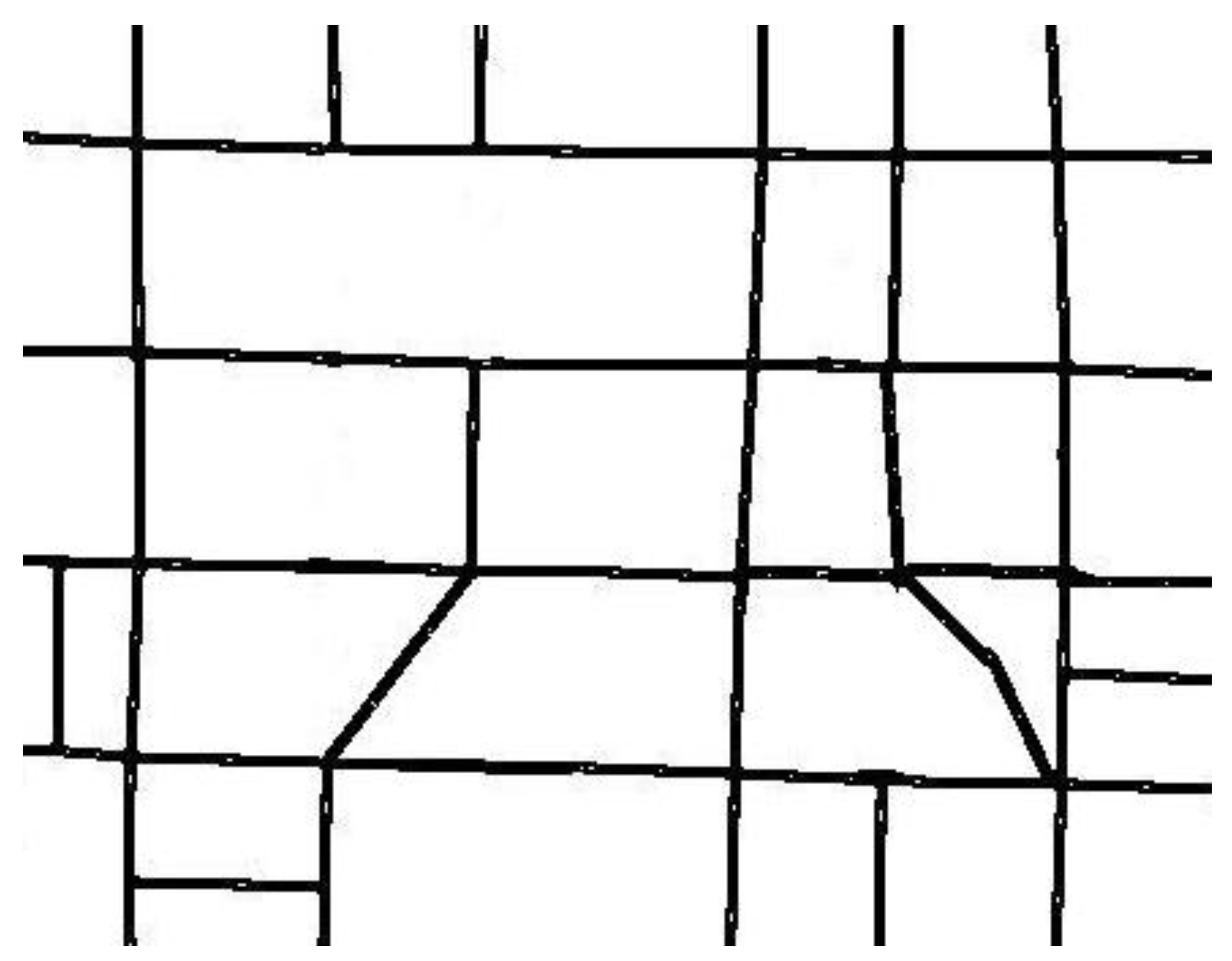

Figure 6. Road map of simulations.
Figure 6. Road map of simulations.
Applsci 07 00129 g006
Figure 7. End-to-end delay vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Figure 7. End-to-end delay vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Applsci 07 00129 g007
Figure 8. End-to-end delay vs. vehicular density.
Figure 8. End-to-end delay vs. vehicular density.
Applsci 07 00129 g008

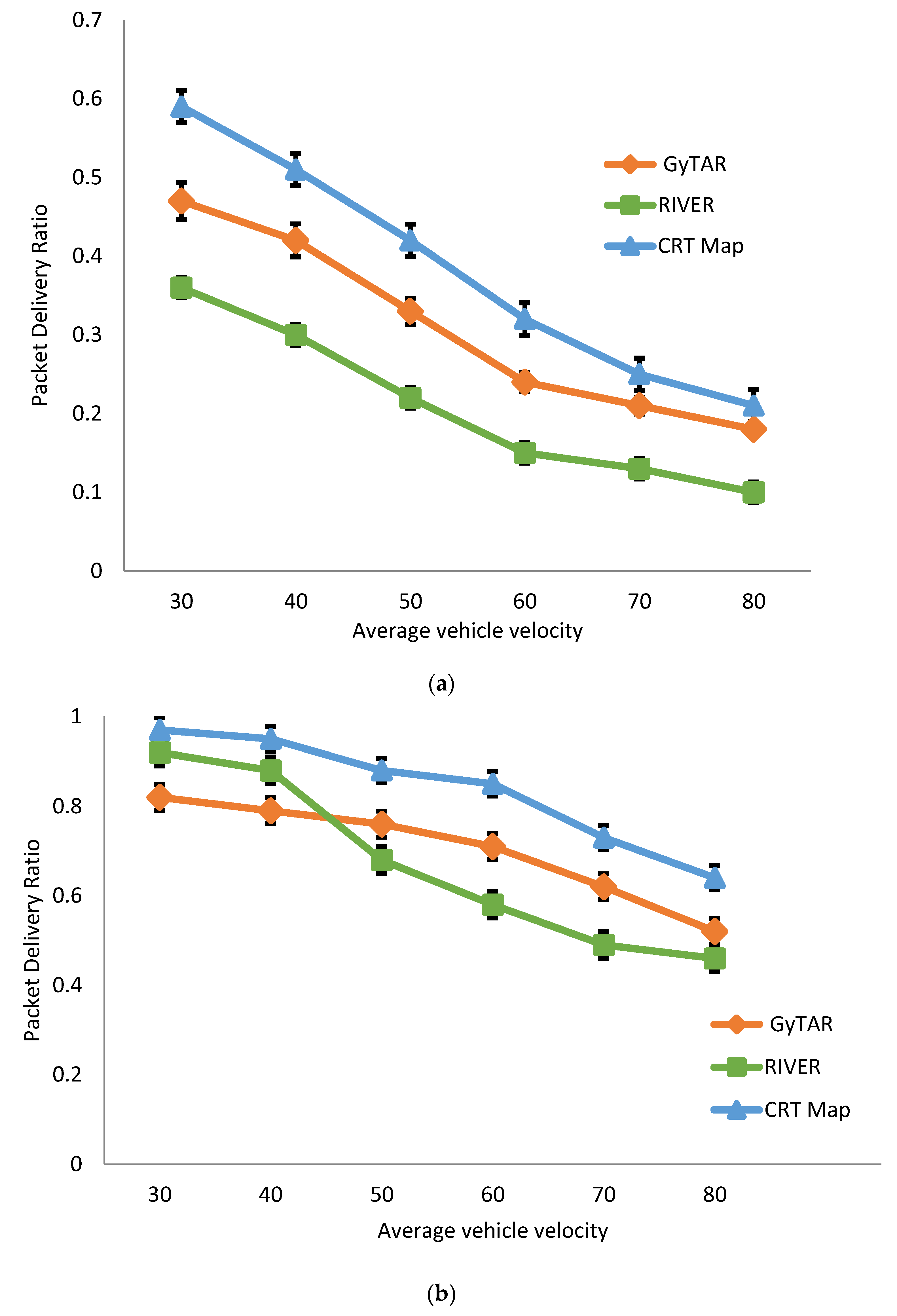

Figure 9. Delivery ratio vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Figure 9. Delivery ratio vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Applsci 07 00129 g009

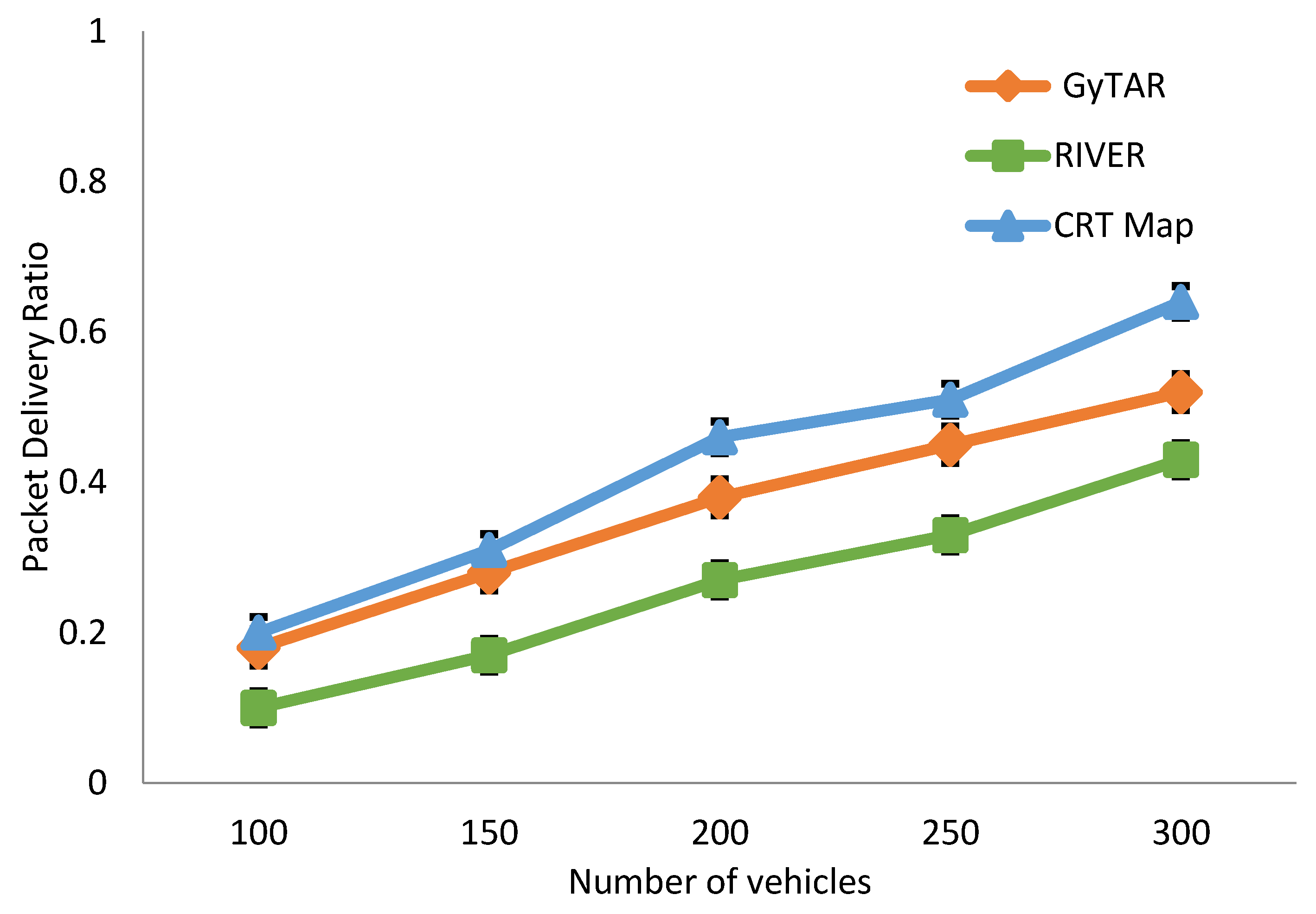

Figure 10. Packet delivery ratio vs. vehicular density.
Figure 10. Packet delivery ratio vs. vehicular density.
Applsci 07 00129 g010

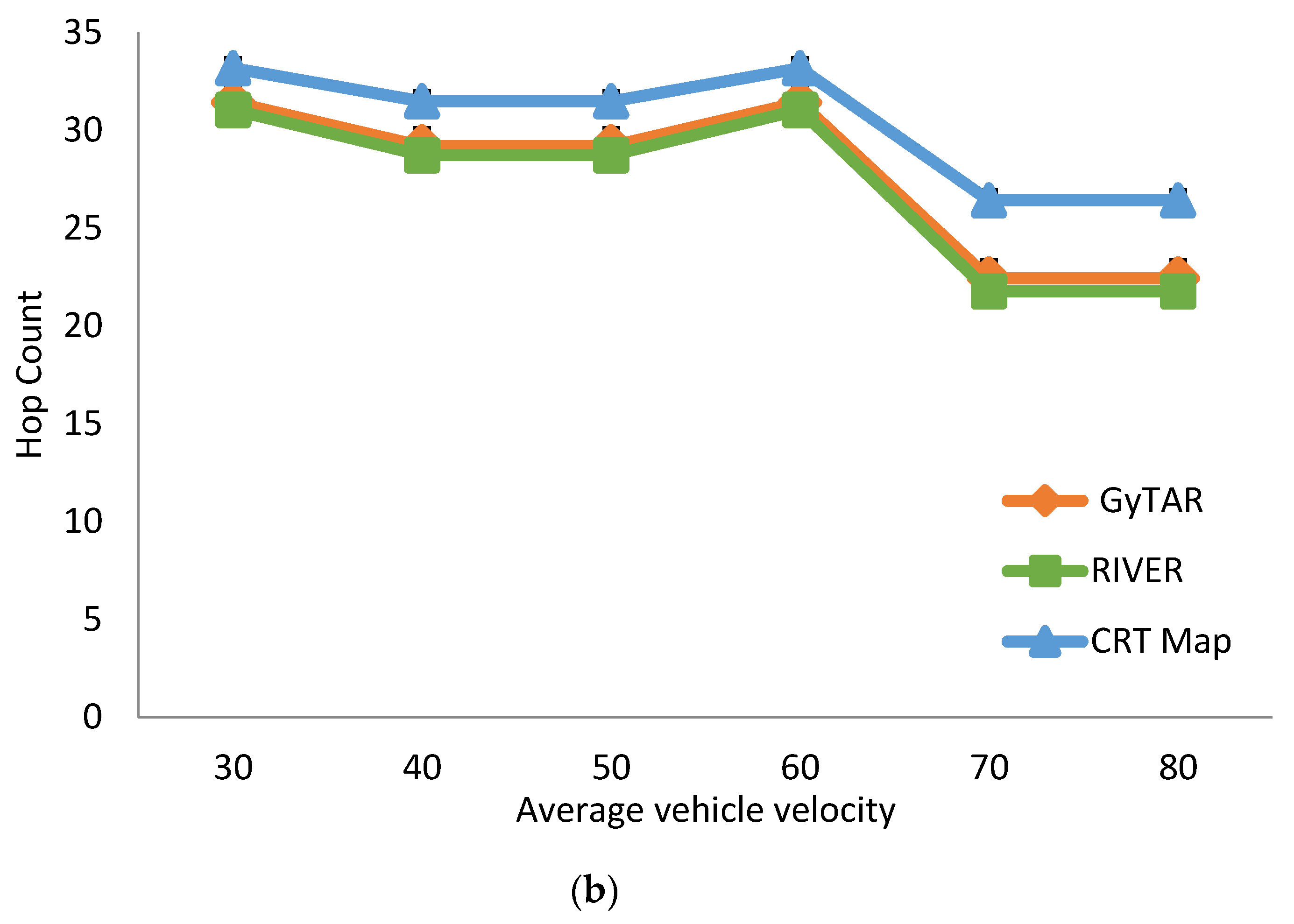

Figure 11. Average hop count vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Figure 11. Average hop count vs. moving speed: (a) 100 vehicles; and (b) 300 vehicles.
Applsci 07 00129 g011aApplsci 07 00129 g011b

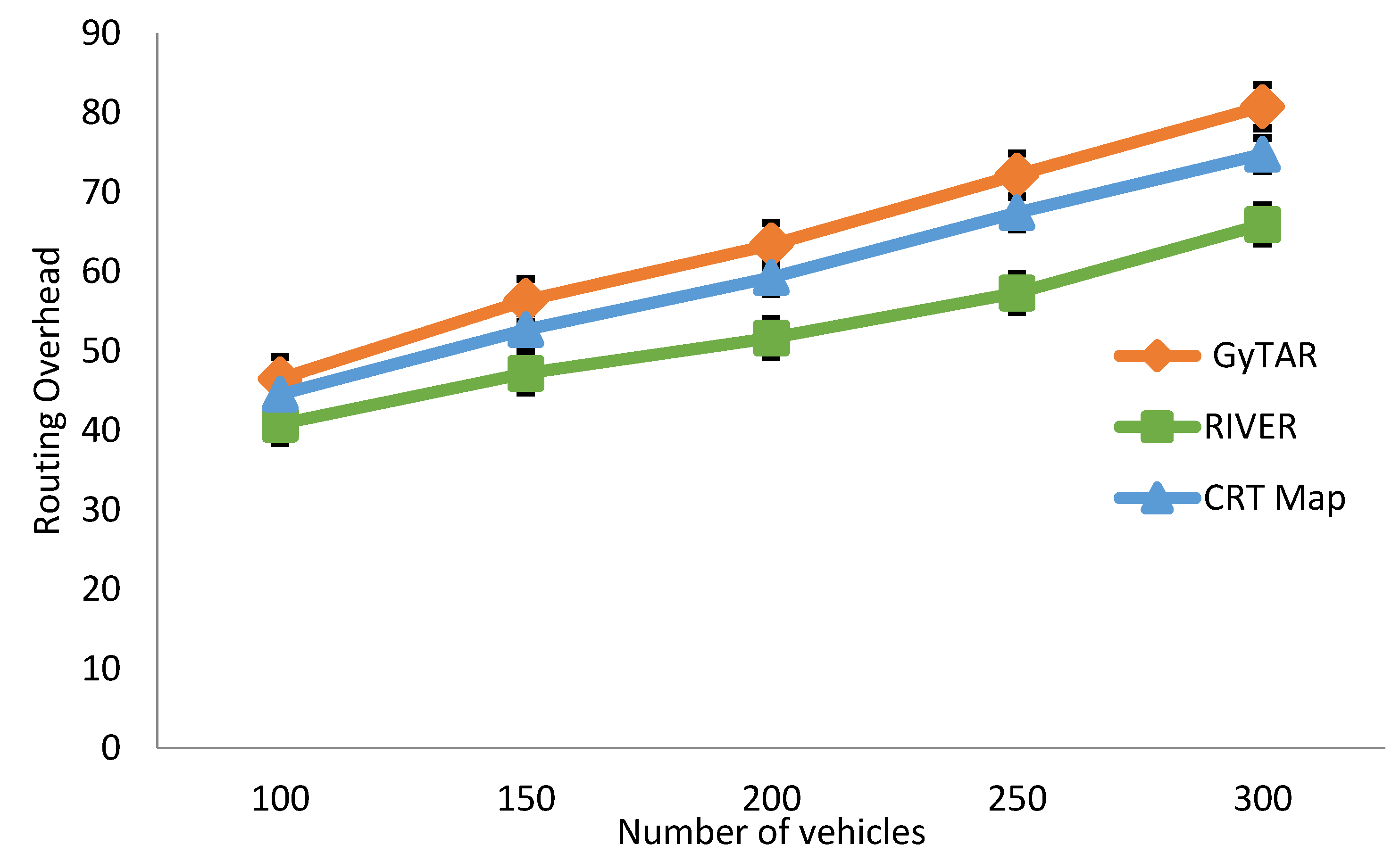

Figure 12. Routing Overhead (per route) vs. Number of vehicles.
Figure 12. Routing Overhead (per route) vs. Number of vehicles.
Applsci 07 00129 g012

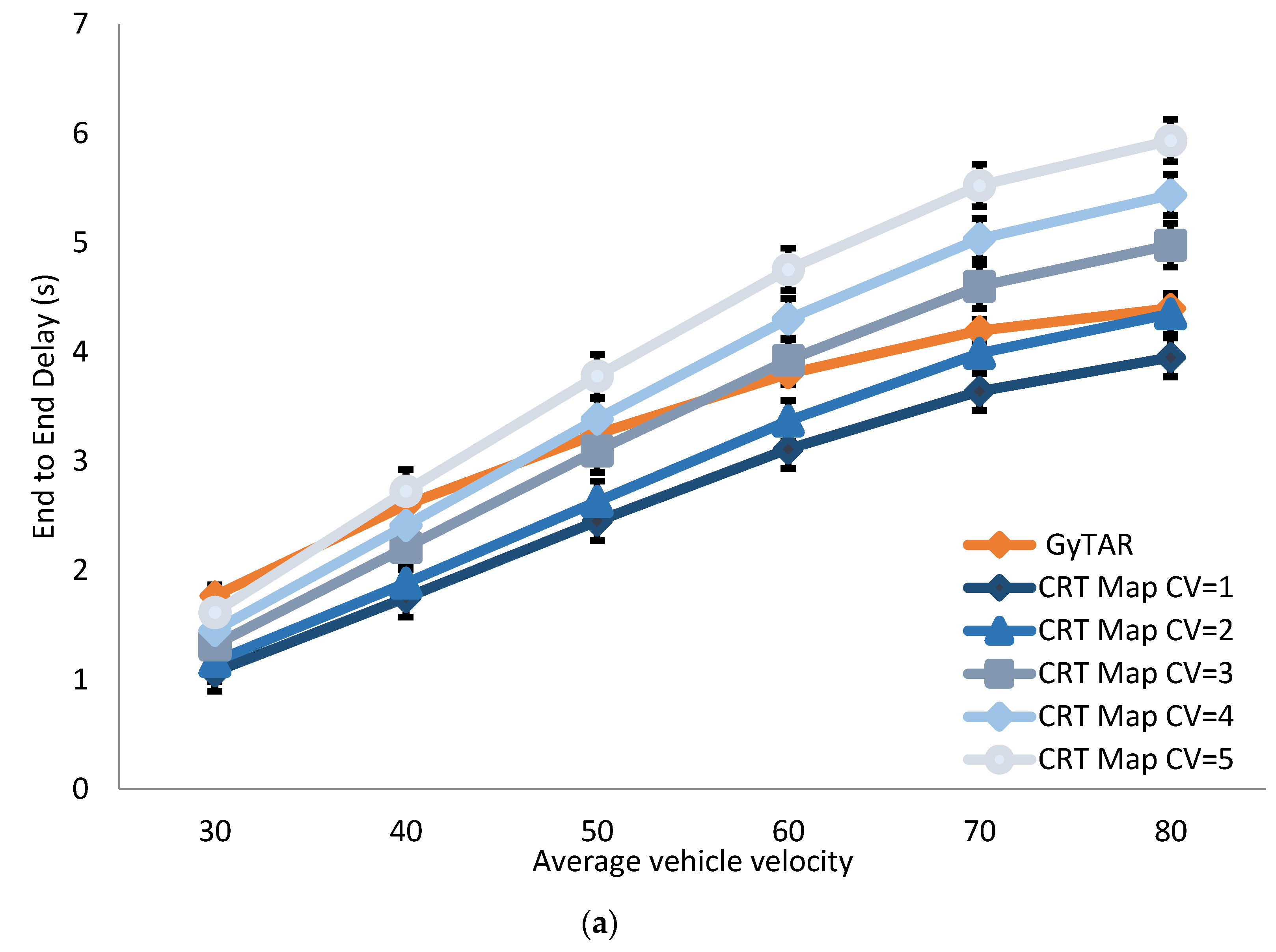

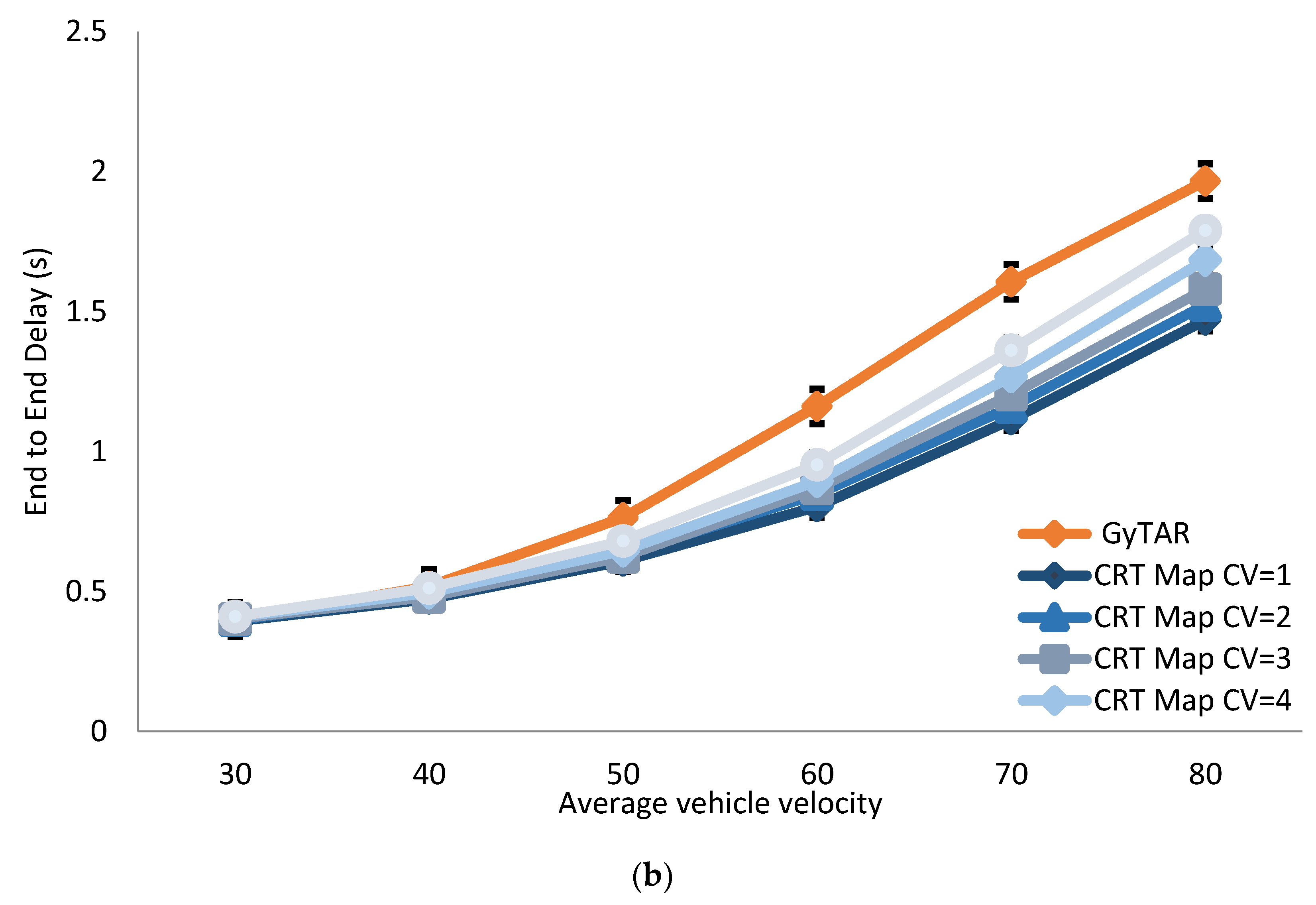

Figure 13. End-to-end delay vs. different value of CV: (a) 100 vehicles; and (b) 300 vehicles.
Figure 13. End-to-end delay vs. different value of CV: (a) 100 vehicles; and (b) 300 vehicles.
Applsci 07 00129 g013aApplsci 07 00129 g013b
Figure 14. Routing Overhead (per route) vs. Number of vehicles.
Figure 14. Routing Overhead (per route) vs. Number of vehicles.
Applsci 07 00129 g014
Figure 15. Deviations of the number of vehicles: (a) in different exchange frequencies; and (b) at different instances of time.
Figure 15. Deviations of the number of vehicles: (a) in different exchange frequencies; and (b) at different instances of time.
Applsci 07 00129 g015
Table 1. Geographic routing protocols, GPSR: Greedy Perimeter Stateless Routing; GPCR: Greedy Perimeter Coordinator Routing; GyTAR: improved Greedy Traffic Aware Routing; E-GyTAR: Enhanced GyTAR; HTAR: Hybrid Traffic-Aware Routing; RIVER: Reliable Inter-Vehicular Routing; JTAR: Junction-based Traffic-Aware Routing; iCAR: Intersection-based Connectivity Aware Routing; TFOR: Traffic Flow-Oriented Routing; ARP-QD: Adaptive Routing Protocol based on QoS and vehicular Density; AQRV: Adaptive QoS based Routing for VANETs.
Table 1. Geographic routing protocols, GPSR: Greedy Perimeter Stateless Routing; GPCR: Greedy Perimeter Coordinator Routing; GyTAR: improved Greedy Traffic Aware Routing; E-GyTAR: Enhanced GyTAR; HTAR: Hybrid Traffic-Aware Routing; RIVER: Reliable Inter-Vehicular Routing; JTAR: Junction-based Traffic-Aware Routing; iCAR: Intersection-based Connectivity Aware Routing; TFOR: Traffic Flow-Oriented Routing; ARP-QD: Adaptive Routing Protocol based on QoS and vehicular Density; AQRV: Adaptive QoS based Routing for VANETs.
YearProtocolScenarioRecovery StrategyDigit Map RequiredTraffic Information System Required
2000GPSRAd HocPerimeterNoNo
2005GPCRCityCarry and ForwardYesNo
2007GyTARCityCarry and ForwardYesYes
2011E-GyTARCityCarry and ForwardYesYes
2011HTARCityCarry and ForwardYesNo
2012RIVERCityCarry and ForwardYesNo
2013JTARCityCarry and ForwardYesNo
2013iCARCityCarry and ForwardYesNo
2014TFORCityCarry and ForwardYesYes
2015ARP-QDCityCarry and ForwardYesYes
2016AQRVCityCarry and ForwardYesNo

Share and Cite

MDPI and ACS Style

Huang, C.-F.; Chan, Y.-F.; Hwang, R.-H. A Comprehensive Real-Time Traffic Map for Geographic Routing in VANETs. Appl. Sci. 2017, 7, 129. https://doi.org/10.3390/app7020129

AMA Style
