Article

Analysis of Nonlinear Vibration in Permanent Magnet Synchronous Motors under Unbalanced Magnetic Pull

School of Mechanical Engineering & Automation, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(1), 113; https://doi.org/10.3390/app8010113
Submission received: 1 December 2017 / Revised: 4 January 2018 / Accepted: 9 January 2018 / Published: 15 January 2018

Abstract

:
The vibration and noise of permanent magnet synchronous motors (PMSM) are mainly caused by unbalanced magnetic pull (UMP). This paper aims to investigate nonlinear vibration in PMSMs. Firstly, the analytical model of the air-gap magnetic field with an eccentric rotor in PMSM is studied, and the analytical model is verified by the finite element method. Then the dynamic model of an offset rotor-bearing system is established, and the gyroscopic effect, nonlinear bearing force and UMP are taken into consideration. Finally, the dynamic characteristics of different static displacement eccentricities, rotor offsets and radial clearances are investigated in both the time domain and the frequency domain. The results show that the amplitudes of dynamic responses increase with the static displacement eccentricity and rotor offset and high integer multiples of rotating frequency appear with the increase of displacement eccentricity. The coupling effects of bearing force, unbalanced mass force and UMP are observed in the frequency domain, and the frequency components in the dynamic responses indicate that the bearings have an effect on the system.

1. Introduction

Permanent magnet synchronous motors (PMSM) have been used in many fields due to their many advantages, such as their fast response, high efficiency, and so on [1]. With their widespread applications, the vibration and failure of motors has been an important issue, and the failures can be divided into mechanical failure and electrical failure [2,3]. In general terms, the electromagnetic forces on the rotor surface are balanced when the air-gap distribution between the rotor and the stator is uniform [4]. However, the rotor is often eccentric with respect to the stator due to manufacturing tolerances, bearing wear and incorrect assembly, which means that the air-gap distribution is not uniform and the electromagnetic forces are imbalanced. Consequently, a net radial force, named unbalanced magnetic pull (UMP), is generated, and the UMP pulls the rotor towards to the stator in the direction of the minimum air-gap. The motion of the rotor can cause some vibrations and stability problems for the motor [5,6], and even cause the motor to fail and affect the normal operation of the entire system.
Generally speaking, the eccentricity between the rotor and stator can be classified into static eccentricity, dynamic eccentricity and a combination of the two [7,8]. With static eccentricity, the axis of the rotor and the stator is misaligned and the rotor rotates about its axis. With dynamic eccentricity, the rotor does not rotate about its own axis. The position of the minimal air-gap is fixed with static eccentricity, while it rotates with the rotor with dynamic eccentricity. The eccentricity is the main cause of UMP, and many researchers have studied UMP for decades. The approaches can be classified into the analytical method and the finite element method. Some researchers use the finite element method to analyze the UMP for its convenience and efficiency, but the analytical method can identify the key factors and reasons in the production of UMP. In the early twentieth century, Behrend [9] assumed that the magnetic flux density was in proportion to the air-gap length and obtained the linear expression of UMP. Then, Covo [10] presented a new improved equation of UMP by considering the effects of magnetic saturation. The linear equation of UMP was often used in engineering and it also solved some practical problems, but the accuracy was not reliable if the eccentricity was large. In the 1960s, Funke [11] put forward the idea that the relationship between the UMP and the eccentricity was nonlinear and studied the influence of UMP on a synchronous machine. Belmans [12] presented the nonlinear analytical expression of UMP by expanding the air-gap permeance as a Fourier series. In recent years, many researchers have adopted the nonlinear analytical method to study the UMP, and the air-gap permeance approach was a commonly used method for calculating the magnetic flux density to obtain UMP. Guo [13] presented an analytical expression of the UMP with any pole-pairs by expanding the air-gap permeance as a Fourier series and studied the effects of the UMP on the vibration of the rotor system. Pennacchi [14,15] described a model based on the actual position of the rotor inside the stator and the model was more general than other models. Im [16] analyzed the dynamic behavior of a brushless direct-current (BLDC) motor when the motor was undergoing a mechanical and electromagnetic interaction due to the air-gap variation between the stator and rotor. Wu [17] studied the circular whirling and stability of a synchronous generator under the UMP and mass eccentric force. Gustavsson [5] presented an analytical model to study the influence of nonlinear magnetic pull on rotor stability for a synchronous hydropower generator. Chen [18] studied the UMP resulting from a non-uniform magnetic field and analyzed the nonlinear phenomenon vibrations for PMSM used in hybrid electric vehicles (HEV). Lundström [19] adopted a balanced Jeffcott rotor model of a hydropower generator and studied the dynamic consequences of UMP due to shape deviations on the rotor and stator. Xiang [20] investigated the nonlinear dynamic behaviors influenced by UMP and analyzed the stiffness characteristics of the rotor system of the PMSM based on a Jeffcott rotor model. Zhang [21] analyzed the dynamic characteristics of a rotor-bearing system considering the rub-impact on the hydraulic generating set under the UMP, and the analysis focused on the effects of the excitation current, eccentricity, and stiffness of shaft.
Almost all the papers mentioned above used a symmetrical Jeffcott rotor as a simplified model to analyze the dynamic characteristics of a PMSM. In many practical applications, the rotor is not always in the middle of the shaft, which means that the gyroscopic effect needs to be taken into consideration. Some researchers have studied the influence of the gyroscopic effect on the rotor system, and the results have showed that the influence cannot be ignored [22,23]. The models adopted in their research were based on the assumption that the supports were rigid. In a PMSM, the supports of the shaft are always elastic due to the influence of the bearings, and it is necessary to take these elastic supports into consideration.
The purpose of this paper is to investigate the nonlinear dynamic characteristics of the rotor-bearing system in a PMSM. In this paper, we consider the influence of UMP and the gyroscopic effect. In Section 2, the radial air-gap flux density of an eccentric rotor is analyzed based on the early research [24,25,26,27]. In Section 3, the dynamic model of the rotor bearing system is presented under the influence of UMP and bearing forces. In Section 4, the nonlinear dynamic characteristics of the system are investigated and the fourth-order Runge–Kutta method is employed to calculate the nonlinear responses. In addition, the effects of the static eccentricity, rotor offset and radial clearance are analyzed in detail. Finally, the conclusions of this study are presented in Section 5.

2. Analysis of the Radial Air-Gap Flux Density in a Permanent Magnet Synchronous Motor (PMSM)

2.1. Radial Air-Gap Flux Density without Eccentricity

In general terms, the air-gap flux density can be obtained by the superposition of a permanent magnet field and an armature interaction field [28]:
B 0 ( α , t ) = B PM ( α , t ) + B arm ( α , t )
where α is the space angle of the rotor, B PM ( α , t ) is the permanent magnet field, and B arm ( α , t ) is the armature interaction field. It is commonly accepted that the radial component of the flux density is the main cause of UMP and the tangential component is negligible [13,14]. Therefore, only the radial component of the air-gap flux density in this study is considered. By considering the effect of stator slotting, the permanent magnet field and the armature interaction field can be expressed as follows [24]:
B PM ( α , t ) = λ ( α ) n = 1 , 3 , 5 B mr cos ( n p α n ω e t )
B arm ( α , t ) = λ ( α ) v = 1 , 2 , 3 B ar cos ( p v α ω e t )
where λ ( α ) is the relative permeance, B mr is the amplitude of the nth permanent magnet field, B ar is the amplitude of the vth armature interaction field, ω e is the electric angular frequency, and p is the number of pole-pairs. For the motors with an integral slot, v = 6k ± 1, and the sign before ω e is a minus when it takes a plus. The relative permeance can be written as [26]:
λ ( α ) = Λ 0 + μ = 1 Λ μ cos μ Z ( α + π / Z )
where Z is the slot number, Λ 0 is the fundamental amplitude of relative permeance, and Λ μ is the harmonic amplitude of relative permeance.
Since the harmonic amplitude of relative permeance is very small and the effect on the rotor surface is negligible [26], the harmonic components can be neglected for the convenience of the latter calculation. Therefore, the radial air-gap flux density of a PMSM without eccentricity can be written as:
B r 0 ( α , t ) = Λ 0 n = 1 , 3 , 5 B mr cos ( n p α n ω e t ) + Λ 0 v = 1 , 2 , 3 B ar cos ( p v α ω e t )

2.2. Correction Factor of Relative Permeance

The air-gap distribution is not uniform when the rotor is eccentric with respect to the stator, and the radial air-gap flux density along the rotor surface is also not uniform. Since the relative permeance is inversely proportional to the air-gap length and the eccentricity can only affect the relative permeance [29], the radial air-gap flux density of a PMSM with eccentricity can be obtained by introducing the correction factor based on the air-gap flux density of a PMSM without eccentricity.
The position of the stator and the rotor for a cross section in PMSM can be shown as in Figure 1, and the air-gap length can be obtained by calculation. C 0 is the geometrical center of the stator, C is the geometrical center of the rotor under static eccentricity, and C r is the geometrical center of the rotor during the rotation. The distance between C 0 and C is r 0 , which is the static eccentricity and r 0 = x 0 2 + y 0 2 . The distance between C r and C is r , which represents the dynamic eccentricity and r = x 2 + y 2 . θ is the position angle of the dynamic eccentricity and cos θ = x / r , sin θ = y / r . The distance between C r and C 0 is e , which represents the composite eccentricity, and β is the position angle at the instant time. R r is the radius of the rotor and R s is the radius of the stator.
In order to calculate the air-gap length, the geometrical relationship between the stator and the rotor needs to be investigated in detail. As Figure 1 shows, A is a point on the stator surface and B is a point on the rotor surface. The composite eccentricity can be written as follows:
e = | C 0 C r | = ( x + x 0 ) 2 + ( y + y 0 ) 2
The air-gap length can be calculated as:
δ ( α , t ) = l AB = l AC r R r
Based on the cosine theorem, the length of AC r can be written as:
l AC r = R s 2 e 2 sin 2 ( α β ) e cos ( α β )
Considering e 2 R s 2 , the length of AC r can be approximately expressed as:
l AC r R s e cos ( α β )
Then the air-gap length can be obtained as follows:
δ ( α , t ) = R s R r e cos ( α β ) = δ 0 e cos ( α β )
where δ 0 is the average air-gap length when the rotor is not eccentric with respect to the stator.
Considering the effect of the thickness of the magnet, the effective air-gap length can be expressed as [26]:
δ = δ 0 + h m / μ r
where h m is the thickness of the magnet, and μ r is the relative recoil permeability of the magnet.
According to Equations (10) and (11), the air-gap length can be written as follows:
δ ( α , t ) = δ e cos ( α β )
where the position angle β can be written as:
β = { arcos ( x + x 0 e ) ( y + y 0 0 ) 2 π arccos ( x + x 0 e ) ( y + y 0 < 0 )
Since the relative permeance is inversely proportional to the air-gap length, the correction factor of the relative permeance ε can be calculated as:
ε = δ δ ( α , t ) = δ δ e cos ( α β ) = 1 1 ε cos ( α β )
where ε is the relative eccentricity, and ε = e / δ .

2.3. Radial Air-Gap Flux Density with Eccentricity

By introducing the correction factor ε , the radial air-gap flux density of PMSM with eccentricity can be obtained according to Equations (5) and (14).
B r ( α , t ) = [ Λ 0 n = 1 , 3 , 5 B mr cos ( n p α n ω e t ) + Λ 0 v = 1 B ar cos ( p v α ω e t ) ] × ε
In order to verify the analytical model of the radial air-gap flux density, the results are compared with the finite element model. Ansoft Maxwell is the leading software for the simulation of electromagnetic fields and it is based on the method of finite elements. The RMxprt module in Ansoft Maxwell includes many kinds of motors and it is very convenient for the calculation of electromagnetic fields. The model of PMSM in this paper was established by the RMxprt module and the main parameters are as shown in Table 1. Figure 2 shows the models for different pole-pair numbers in the finite element method (FEM). Based on the assumption that the static eccentricity is 1 mm and the dynamic eccentricity is ignored, the radial air-gap flux density of PMSM with different pole-pair numbers is calculated by the analytical model and the finite element model, and the results are shown in Figure 3. Figure 3a shows the distribution of the radial air-gap flux density on the rotor surface at a given time, and it is nonuniform due to the eccentricity. It can be seen that the analytical results are basically consistent with the finite element results. There are also some slight differences between the FEM and analytical waveforms at some space positions and the reason for them is the effect of stator slotting in the calculation of FEM. The field distribution in the air-gap will be affected due to the stator slotting [26], however, these differences do not have a great impact on the dynamic model. For convenience of calculation, the effect of stator slotting is ignored in the analytical method. Figure 3b shows the distribution of the radial air-gap flux density at a given point on the rotor surface in the time history. In the time history, the distribution varies periodically with time and the time for the rotor rotates with one pole-pair as one period. Since the rotating frequency is 25 Hz, the period of the field distribution is 0.04 s (p = 1), 0.02 s (p = 2) and 0.01 s (p = 4), respectively. It can also be seen that the analytical results are basically consistent with the finite element results and there are also some slight differences between them due to the effects of stator slotting. Therefore, the analytical model of the radial air-gap flux density is verified and can be used in the following study.

3. Dynamic Model of a Rotor Bearing System

3.1. Unbalanced Magnetic Pull (UMP) Model of Rotor

It is commonly accepted that the tangential component of flux density is negligible. Therefore, the radial Maxwell stress tensor can be expressed as [28]:
σ r ( α , t ) B r 2 ( α , t ) 2 μ 0 = B r 0 2 ( α , t ) ε 2 2 μ 0
The radial Maxwell stress on the rotor surface can be obtained from Equation (16) and the pole-pair number here is one. Figure 4 shows the distribution and spectrum of the stress. It can be seen that the distribution is nonuniform when the eccentricity exists, and this leads to the appearance of UMP. The radial Maxwell stress is periodic in the time domain and the period is half of the radial air-gap flux density due to the square sign of Equation (16). Since the rotating frequency is 25 Hz and the pole-pair number is one, the period of the radial Maxwell stress is 0.02 s. The frequency components of the stress are integer multiples of 50 Hz. According to the working principle of PMSM, the rotating frequency multiplied by the pole-pair number is the power frequency. Thus, the power frequency here is 25 Hz and the frequency components of stress can be seen as the even multiples of power frequency. Actually, the analytic expression of Maxwell stress in the accepted literature [13] indicated that the frequency components of radial Maxwell stress were even multiples of power frequency. Therefore, the results in this study are in agreement with the reference.
Since the radial Maxwell stress is not uniform, the UMP is generated [30]. The UMP in the horizontal and vertical direction can be obtained by integrating the Maxwell stress along the spatial angle:
{ F x UMP = R r L 0 2 π σ r ( α , t ) cos α d α F y UMP = R r L 0 2 π σ r ( α , t ) sin α d α
where R r is the radius of the rotor, and L is the length of the rotor.

3.2. Ball-Bearing Forces

Ball bearings are adopted in this study, and the ball-bearing forces can be obtained as follows [31]:
{ F x = C b j = 1 N b δ j 3 / 2 H ( δ j ) cos θ j F y = C b j = 1 N b δ j 3 / 2 H ( δ j ) sin θ j
where δ j = x cos θ j + y sin θ j γ , θ j = 2 π N b ( j 1 ) + ω b t , j = 1 , , N b , H ( δ j ) = { 1 , δ j > 0 0 , δ j 0 is a heaviside function which shows the contact situation between the balls and outer ring of the bearing, and C b is the Hertzian contact stiffness.

3.3. Equations of Motion

In this paper, the rotor bearing system is established in Figure 5, and the gyroscopic effect, nonlinear ball bearing forces and UMP are taken into consideration. The mass of the shaft is ignored and the parameters involved are expressed in Table 2. Based on Newton’s second law, the equations of motion of the rotor bearing system can be deduced as:
M u ¨ T + ( Ω J + C ) u ˙ T + K u T = F
where u = ( x , θ y , x A , x B , y , θ x , y A , y B ) is the generalized coordinate vector, M = ( M 1 0 0 M 1 ) is the mass matrix, J = ( 0 J 1 J 1 0 ) is the gyroscopic matrix, K = ( K 1 + K b 0 0 K 1 + K b ) is the stiffness matrix and C = ( C 1 0 0 C 1 ) is the damping matrix. M1, J1, K1, Kb and C1 can be expressed as follows:
M 1 = ( m d J d m A m B )    J 1 = ( 0 J p 0 0 ) K 1 = ( K c K c Φ Φ T K c Φ T K c Φ )    K b = ( 0 0 k A k B ) C 1 = ( c 0 c ( a + l ) l a c l 0 c c l c l c ( a + l ) l c l c l 2 + c ( a + l ) 2 l 2 + c b c l 2 + a c ( a + l ) l 2 a c l c l c l 2 + a c ( a + l ) l 2 c l 2 + a 2 c l 2 + c b )
where J p = J d / 2 and J d = m d R 2 / 2 . Φ is the offset matrix which can be obtained by the geometrical relations of the rotor position:
Φ = 1 l ( l a a 1 1 )
Kc is the stiffness matrix when the supports are rigid, and can be obtained by the flexibility matrix method [32]:
K c = { 1 3 E I l ( a 2 ( l a ) 2 a ( l a ) ( l 2 a ) a ( l a ) ( l 2 a ) l 2 3 l a + 3 a 2 ) } 1
The external exciting force vector F of Equation (19) includes the unbalanced mass force, the ball-bearing force and the UMP. Therefore, the vector F can be written as
F = F 1 + F 2 + F 3 F 1 = ( m d e 0 Ω 2 cos Ω t 0 0 0 m d e 0 Ω 2 sin Ω t 0 0 0 ) T F 2 = ( 0 0 F A x F B x 0 0 F A y F B y ) T F 3 = ( F x UMP 0 0 0 F y UMP 0 0 0 ) T

4. Simulation Results and Analysis

Considering the strong nonlinear characteristics of the ball-bearing force and UMP, the numerical simulation is conducted by MATLAB, and the differential equations are solved by the fourth-order Runge–Kutta method. Furthermore, in order to eliminate the influence of the transient responses in the free vibration, the results of former periods are discarded and the last 400 periods are retained for analysis. The specific system parameters used are as follows: md = 25 kg, mA = mB = 4 kg, c = 100 N·s/m, cb = 200 N·s/m, EI = 0.819 × 104 N·m2, kA = kB = 2.5 × 107 N/m, Rr = 0.08 m, L = 0.165 m, l = 0.75 m, e0 = 10−4 m, Ω = 25 Hz, δ’ = 0.012 m. The main parameters of the ball bearings are given in Table 3.

4.1. Effects of Static Displacement Eccentricity

Static displacement eccentricity always exists in rotating machinery due to many factors, such as the manufacturing tolerances and incorrect assembly. This kind of eccentricity can produce the UMP and vibrations. Therefore, it is necessary to study the effects of static displacement eccentricity on dynamic characteristics. The static displacement eccentricity in the x-direction is selected for analysis in this paper.
The rotor shaft orbits and bearing shaft orbits for different eccentricities are as shown in Figure 6. It is noted that the orbits of the rotor and bearings are similar and they are center circles when the static displacement eccentricity is zero. When the eccentricity exists, the orbits become irregular and larger. Since the static displacement eccentricity in the x-direction is selected in this study, the air-gap becomes short in the x-direction and the UMP pulls the rotor moving towards the stator in this direction. As a result, the orbits deviate from the origin with the increase in the eccentricity. From Figure 6b,c, we can see that the effects of the eccentricity on the left bearing are greater than the right due to the offset rotor, and this indicates that the bearing closer to the rotor can be affected more easily. It also can be seen that even a small eccentricity can cause a great variation for the orbits and this can cause vibration and motor noise, and a large eccentricity may produce a rub between the rotor and stator. Therefore, to avoid the appearance of rub, the static displacement eccentricity must to be monitored and controlled as much as possible.
The dynamic responses of the system for different eccentricities are displayed in Figure 7. With the increase of eccentricity, the dynamic responses increase nonlinearly due to the effects of UMP and bearing forces. In Figure 7a, the results show that both the displacement responses (x and y) and angle responses (θx and θy) increase when the eccentricity increases, and this phenomenon indicates that the displacement responses and angle responses are interactive. It can be seen clearly that the change regulations of x and θy are similar, and the change regulations of y and θx are also similar. The results are in agreement with the reference [23]. The reference also indicated that the averages of x and θy within one period deviated from zero and the averages of y and θx within one period remained zero when the eccentricity existed. However, in our investigation, the averages of both the dynamic displacement responses and angle responses within one period are not zero. This indicates that the static displacement eccentricity in the x-direction can also affect the dynamic responses in the y-direction in our model. As Figure 7b shows, the dynamic responses of the bearings are similar in the same direction and the change regulations are similar with the displacement responses of the rotor. It is noted that the dynamic responses of the left bearing are clearly larger than the right when the eccentricity is small. If the eccentricity becomes a little larger, there will be little difference between the left and the right. The main cause of this phenomenon is the bearing forces. When the eccentricity is small, the dynamic responses and the radial deformations of the bearings are small. In this situation, the bearing forces will be very small and the dynamic responses of the bearings are mainly affected by the rotor. Thus, the bearing closer to the rotor will be affected more greatly and the dynamic responses will be larger. However, when the eccentricity becomes large, the bearing forces will be large with the increase of the radial deformation of the bearing. The effect of the bearing forces on the left bearing will gradually become larger and it will slow down the increase of dynamic responses. Through the above analysis, we can see the bearing forces can affect the dynamic responses of the system in some way.
The spectral characteristics of the dynamic responses are as shown in Figure 8. The results of the studied model in reference [13] indicated that the frequency components contained the rotating frequency, the double power frequency and the double power frequency minus the rotating frequency. It is noted that the main frequencies in Figure 8a,b are 0 Hz, 25 Hz and 50 Hz. Since the rotating frequency and power frequency are both 25 Hz in our research, the results can be seen as consistent with the results from reference [13]. The frequency components in Figure 8a also contain the integer multiples of rotating frequency when the eccentricity exists, which means that the eccentricity can produce large dynamic responses and excite high integer multiples of rotating frequency. It is commonly accepted that the varying compliance (VC) vibration from a ball bearing is an inevitable source of excitation to the rotor bearing system [33], and the VC frequency (fvc) can be calculated by BN × Ω, where BN = Ri × Nb/(Ri + Ro) [34]. The value of BN depends on the dimensions of the bearing and is 3.47 in this study. It can be observed that the components of VC frequency minus integral multiples of rotating frequency exist in Figure 8a, which indicates that the bearing forces have an effect on the rotor system. Figure 8b displays the spectra of angle response in the x-direction and also contains the integral multiples of rotating frequency and the combined frequencies. It can be noticed that the frequency components of angle response are more complex than displacement response, which indicates that the eccentricity has a greater effect on the angle response. The combined frequencies fvc − 3Ω, fvc + 3Ω, fvc + 5Ω, fvc + 7Ω and fvc + 9Ω are more obvious than other combined frequencies. From Section 3.1, we can see that the frequency components of radial Maxwell stress are the even multiples of power frequency. Thus, the combined frequencies fvc − 3Ω, fvc + 3Ω, fvc + 5Ω, fvc + 7Ω and fvc + 9Ω can be seen as the combination of VC frequency, rotating frequency and even multiples of power frequency, from which it can be inferred that the coupling effects of bearing forces, unbalanced mass force and UMP obviously exist. Although the amplitudes of these combined frequencies are not large, the coupling interaction can also cause some unwanted vibrations and noises. The spectra of dynamic displacement and angle responses in the y-direction are similar to the spectra in the x-direction and the analysis will no longer be illustrated. The spectra of the dynamic displacement response of the left bearing (xA) are displayed in Figure 8c. It can be noticed that the frequency components of the bearing are more complex when the static displacement eccentricity exists, while the frequency component is Ω when the static displacement eccentricity is zero. The bearing shaft orbit in Figure 6 indicates that the dynamic displacement responses of bearings are small when the eccentricity is zero and the bearing forces cannot be formed in this case. As the eccentricity increases, the dynamic displacement responses of bearings become large and the bearing forces are then formed. Thus, the frequency components become complex due to the effects of the bearing forces. It can be seen that the main frequencies are Ω and 2Ω, which means the vibration of a bearing is largely affected by the rotor. The other frequencies are the combination of VC frequency and rotating frequency due to the coupling effects. The spectra of the dynamic responses show that the coupling effects affect both the bearing and rotor.

4.2. Effects of Rotor Offset

In this section, the effects of different rotor offsets on the dynamic responses are studied. The static displacement eccentricity is ignored and the distance between the rotor and the left bearing A is set to be a = 0.33l, a = 0.34l, a = 0.35l and a = 0.36l, respectively. The rotor shaft orbits and bearing shaft orbits for different rotor offsets are displayed in Figure 9. It can be seen that the orbits are center circles and they get smaller when the distance becomes large. Thus, in order to reduce the vibration, the rotor should be placed in the middle as much as possible. Figure 10 shows that the dynamic responses decrease with the distance and the change regulations in the x-direction and y-direction are similar. It can be inferred that the effects of rotor offset on the dynamic responses of the system are similar in the time domain. In Figure 11, the spectra of dynamic responses (x, θx and xA) for different rotor offsets are displayed. It can be observed that the frequencies are simple when the static eccentricity is ignored. Figure 11a shows the spectra of x and the main frequency is Ω. The combination of VC frequency and rotating frequency can be observed when the rotor offset is a = 0.33l and a = 0.34l, while the combined frequencies disappear when the rotor offset is a = 0.35l and a = 0.36l. The spectra of θx in Figure 11b also show the same regulations and the combined frequencies are more obvious. The combined frequencies fvc + 3Ω, 2fvc + 3Ω, 2fvc + 5Ω and 3fvc + 5Ω can also be seen as the combination of VC frequency, rotating frequency and even multiples of power frequency, which means the coupling effects of bearing forces, unbalanced mass force and UMP also exist when the rotor offset is a = 0.33l and a = 0.34l. As Figure 9 shows, the dynamic responses of the bearings are larger when the rotor offset is a = 0.33l and a = 0.34l, which means the radial deformations of the bearings are larger and the bearing forces will be formed. Thus, the coupling effects of bearing and rotor exist in these two cases, while the bearing forces cannot be formed and the coupling effects do not exist when a = 0.35l and a = 0.36l. It also can be concluded that the coupling effects on the dynamic angle responses are greater than the displacement responses. In Figure 11c, the frequencies of xA are similar to θx and they are more obvious when a = 0.33l and a = 0.34l, which indicates that the coupling effects on the bearings are greater.

4.3. Effects of the Radial Clearance of Bearings

When the other conditions are the same, the shaft orbits for different radial clearances are displayed in Figure 12. It can be noticed that the orbits of the rotor and right bearing get smaller, while the orbits of the left bearing get bigger when the radial clearance is 1 μm, 3 μm, and 5 μm. When the radial clearance increases, the bearing forces become smaller and the bearing closer to the rotor is mainly affected by the rotor, while the bearing farther away from rotor is less affected by the rotor. As a consequence, the dynamic responses of the left bearing get larger due to the large dynamic responses of the rotor, while the dynamic responses of the right bearing get smaller. It can be inferred that the effects of radial clearance on the left and right bearing are different and the effects on the bearing closer to the rotor are greater than the other side. It also can be seen that the orbits are the same when the radial clearance is 5 μm and 10 μm. The reason for that is that the bearing forces cannot be formed when the radial clearance reaches a certain value and the effects of the bearing forces on the system do not exist under this situation.
From the time history of the rotor dynamic responses in Figure 13, we can know that the effects on the dynamic displacement responses and angle responses are similar. The spectra of dynamic responses for different radial clearances are displayed in Figure 14 and the combination of VC frequency and rotating frequency can be observed in Figure 14b,c. The combined frequencies fvc + 3Ω, 2fvc + 3Ω, 2fvc + 5Ω and 3fvc + 5Ω indicate that the coupling effects of bearing forces, unbalanced mass force and UMP exist when the radial clearance is 1 μm and 3 μm, while the coupling effects disappear when the radial clearance is 5 μm and 10 μm. According to the above analysis, the bearing forces cannot be formed when the radial clearance reaches a certain value, and then the coupling effects disappear. It can also be inferred that the coupling effects on the angle responses are greater than the displacement responses and the coupling effects on the bearings are greater since the combined frequencies are more obvious. The combined frequencies are more obvious in the Figure 14c and this means that the coupling effects on the bearings are greater than the rotor.

5. Conclusions

In this paper, the radial air-gap flux density of an eccentric rotor in a PMSM was analyzed and a dynamic model of a rotor bearing system was established when considering the gyroscopic effect, nonlinear bearing forces and UMP. The effects of static eccentricity, rotor offset and radial clearance on the system were analyzed in both the time domain and the frequency domain in detail. The main conclusions of this study can be summarized as follows:
  • The static displacement eccentricity has a great effect on the system and the orbits of the rotor and bearings are center circles when the static displacement eccentricity is zero, while they become irregular and lager when the eccentricity exists. The bearing closer to the rotor can be affected more easily when the rotor is not in the middle of the shaft. The dynamic responses increase nonlinearly with the eccentricity and rotor offset due to the effects of UMP and bearing forces. When the radial clearance increases within a certain range, the dynamic responses of the rotor and the bearing farther away from the rotor decrease, while the dynamic responses of the bearing closer to the rotor increase. When the radial clearance reaches a certain value, the dynamic responses of the system will no longer be changed since the effects of the bearings disappear.
  • The bearings have an effect on the system and the coupling effects of the bearing forces, unbalanced mass force and UMP are discovered in this study. The coupling effects exist when the bearing forces are formed, while the coupling effects disappear when the bearing forces are not formed. The dynamic angle responses are affected more obviously by the coupling effects than the displacement responses in the frequency domain.
  • The main frequencies of dynamic responses are the rotating frequency and the double rotating frequency when the static displacement eccentricity exists and the frequency components of the bearing are more complex, while the main frequency is the rotating frequency when the static eccentricity is zero. Moreover, high integer multiples of rotating frequency can be found with the increase of static displacement eccentricity. The combination of VC frequency and odd multiples of rotating frequency can be observed more obviously than other combined frequencies due to the coupling effects, and the coupling effects on the bearings are greater.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Grant No. 51675091) and the Collaborative Innovation Center of Major Machine Manufacturing in Liaoning, the Major Scientific and Technological Innovation Project of Liaoning Province (Grant No. 201506003).

Author Contributions

Ao Zhang and Yan Bai conceived and designed the study; Ao Zhang and Bo Yang performed the simulation; Ao Zhang wrote the manuscript. He Li reviewed and edited the manuscript. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mehrjou, M.R.; Mariun, N.; Misron, N.; Radzi, M.A.M.; Musa, S. Broken Rotor Bar Detection in LS-PMSM Based on Startup Current Analysis Using Wavelet Entropy Features. Appl. Sci. 2017, 7, 845. [Google Scholar] [CrossRef]
  2. Yang, H.; Chen, Y. Influence of Radial Force Harmonics with Low Mode Number on Electromagnetic Vibration of PMSM. IEEE Trans. Energy Convers. 2014, 29, 38–45. [Google Scholar] [CrossRef]
  3. Kuo, C.; Liu, C.; Chang, H.; Lin, K. Implementation of a Motor Diagnosis System for Rotor Failure Using Genetic Algorithm and Fuzzy Classification. Appl. Sci. 2017, 7, 31. [Google Scholar] [CrossRef]
  4. Pennacchi, P.; Frosini, L. Dynamical Behaviour of a Three-phase Generator due to Unbalanced Magnetic Pull. IEE Proc. Electr. Power Appl. 2005, 152, 1389–1400. [Google Scholar] [CrossRef] [Green Version]
  5. Gustavsson, R.K.; Aidanpaa, J. The Influence of Nonlinear Magnetic Pull on Hydropower Generator Rotors. J. Sound Vib. 2006, 297, 551–562. [Google Scholar] [CrossRef]
  6. Zhu, Z.Q.; Ishak, D.; Howe, D.; Chen, J. Unbalanced Magnetic Forces in Permanent-Magnet Brushless Machines with Diametrically Asymmetric Phase Windings. IEEE Trans. Ind. Appl. 2007, 43, 1544–1553. [Google Scholar] [CrossRef]
  7. Calleecharan, Y.; Aidanpaa, J.O. Stability Analysis of an Hydropower Generator Subjected to Unbalanced Magnetic Pull. IET Sci. Meas. Technol. 2011, 5, 231–243. [Google Scholar] [CrossRef]
  8. Ebrahimi, B.M.; Roshtkhari, M.J.; Faiz, J.; Khatami, S.V. Advanced Eccentricity Fault Recognition in Permanent Magnet Synchronous Motors Using Stator Current Signature Analysis. IEEE Trans. Ind. Electron. 2014, 61, 2041–2052. [Google Scholar] [CrossRef]
  9. Behrend, A.B. On the Mechanical Forces in Dynamos Caused by Magnetic Attraction. Trans. Am. Inst. Electr. Eng. 1900, 17, 613–633. [Google Scholar] [CrossRef]
  10. Covo, C. Unbalanced Magnetic Pull in Induction Motors with Eccentric Rotors. Trans. Am. Inst. Electr. Eng. 1954, 73, 1421–1425. [Google Scholar] [CrossRef]
  11. Funke, H.; Maciosehek, G. Influence of Unbalanced Magnetic Pull on the Running of Synchronous Machine. Electric 1965, 19, 233–238. [Google Scholar]
  12. Belmans, R.; Vandenput, A.; Geysen, W. Calculation of the Flux Density and the Unbalanced Pull in Two Pole Induction Machines. Arch. Elektrotech. 1987, 70, 151–161. [Google Scholar] [CrossRef]
  13. Guo, D.; Chu, F.; Chen, D. The Unbalanced Magnetic Pull and its Effects on Vibration in a Three-Phase Generator with Eccentric Rotor. J. Sound Vib. 2002, 254, 297–312. [Google Scholar] [CrossRef]
  14. Pennacchi, P. Computational Model for Calculating the Dynamical Behaviour of Generators Caused by Unbalanced Magnetic Pull and Experimental Validation. J. Sound Vib. 2008, 312, 332–353. [Google Scholar] [CrossRef] [Green Version]
  15. Pennacchi, P. Nonlinear Effects Due to Electromechanical Interaction in Generators with Smooth Poles. Nonlinear Dyn. 2009, 57, 607–622. [Google Scholar] [CrossRef]
  16. Im, H.; Hong, H.Y.; Chung, J. Dynamic Analysis of a BLDC Motor with Mechanical and Electromagnetic Interaction Due to Air Gap Variation. J. Sound Vib. 2011, 330, 1680–1691. [Google Scholar] [CrossRef]
  17. Wu, B.; Sun, W.; Li, Z.; Li, Z. Circular Whirling and Stability Due to Unbalanced Magnetic Pull and Eccentric Force. J. Sound Vib. 2011, 330, 4949–4954. [Google Scholar] [CrossRef]
  18. Chen, X.; Yuan, S.; Peng, Z. Nonlinear Vibration for PMSM Used in HEV Considering Mechanical and Magnetic Coupling Effects. Nonlinear Dyn. 2015, 80, 541–552. [Google Scholar] [CrossRef]
  19. Lundström, N.L.P.; Aidanpaa, J. Dynamic Consequences of Electromagnetic Pull Due to Deviations in Generator Shape. J. Sound Vib. 2007, 301, 207–225. [Google Scholar] [CrossRef]
  20. Xiang, C.; Liu, F.; Liu, H.; Han, L.; Zhang, X. Nonlinear Dynamic Behaviors of Permanent Magnet Synchronous Motors in Electric Vehicles Caused by Unbalanced Magnetic Pull. J. Sound Vib. 2016, 371, 277–294. [Google Scholar] [CrossRef]
  21. Zhang, L.; Ma, Z.; Song, B. Dynamic Characteristics of a Rub-Impact Rotor-Bearing System for Hydraulic Generating Set Under Unbalanced Magnetic Pull. Arch. Appl. Mech. 2013, 83, 817–830. [Google Scholar] [CrossRef]
  22. Gan, C.; Wang, Y.; Yang, S.; Cao, Y. Nonparametric Modeling and Vibration Analysis of Uncertain Jeffcott Rotor with Disc Offset. Int. J. Mech. Sci. 2014, 78, 126–134. [Google Scholar] [CrossRef]
  23. Xu, X.; Han, Q.; Chu, F. A Four Degrees-Of-Freedom Model for a Misaligned Electrical Rotor. J. Sound Vib. 2015, 358, 356–374. [Google Scholar] [CrossRef]
  24. Zhu, Z.Q.; Howe, D. Instantaneous Magnetic Field Distribution in Brushless Permanent Magnet DC Motors. I. Open-Circuit Field. IEEE Trans. Magn. 1993, 29, 124–135. [Google Scholar] [CrossRef]
  25. Zhu, Z.Q.; Howe, D. Instantaneous Magnetic Field Distribution in Brushless Permanent Magnet DC Motors. II. Armature-Reaction Field. IEEE Trans. Magn. 1993, 29, 136–142. [Google Scholar] [CrossRef]
  26. Zhu, Z.Q.; Howe, D. Instantaneous Magnetic Field Distribution in Brushless Permanent Magnet DC Motors. III. Effect of Stator Slotting. IEEE Trans. Magn. 1993, 29, 143–151. [Google Scholar] [CrossRef]
  27. Zhu, Z.Q.; Howe, D. Instantaneous Magnetic Field Distribution in Permanent Magnet Brushless DC Motors. IV. Magnetic Field on Load. IEEE Trans. Magn. 1993, 29, 152–158. [Google Scholar] [CrossRef]
  28. Ma, C.; Zuo, S. Black-Box Method of Identification and Diagnosis of Abnormal Noise Sources of Permanent Magnet Synchronous Machines for Electric Vehicles. IEEE Trans. Ind. Electron. 2014, 61, 5538–5549. [Google Scholar] [CrossRef]
  29. Sahraoui, M.; Ghoggal, A.; Zouzou, S.E.; Benbouzid, M.E. Dynamic Eccentricity in Squirrel Cage Induction Motors-Simulation and Analytical Study of its Spectral Signatures on Stator Currents. Simul. Model. Pract. Theory 2008, 16, 1503–1513. [Google Scholar] [CrossRef]
  30. Dorrell, D.G. Sources and Characteristics of Unbalanced Magnetic Pull in Three-Phase Cage Induction Motors with Axial-Varying Rotor Eccentricity. IEEE Trans. Ind. Appl. 2011, 47, 12–24. [Google Scholar] [CrossRef]
  31. Hou, L.; Chen, Y.; Cao, Q.; Zhang, Z. Turning Maneuver Caused Response in an Aircraft Rotor-Ball Bearing System. Nonlinear Dyn. 2015, 79, 229–240. [Google Scholar] [CrossRef]
  32. Genta, G. Dynamics of Rotating Systems; Springer: New York, NY, USA, 2005. [Google Scholar]
  33. Zhang, Z.; Chen, Y.; Cao, Q. Bifurcations and Hysteresis of Varying Compliance Vibrations in the Primary Parametric Resonance for a Ball Bearing. J. Sound Vib. 2015, 350, 171–184. [Google Scholar] [CrossRef]
  34. Tiwari, M.; Gupta, K.; Prakash, O. Effect of Radial Internal Clearance of a Ball, Bearing On the Dynamics of a Balanced Horizontal Rotor. J. Sound Vib. 2000, 238, 723–756. [Google Scholar] [CrossRef]

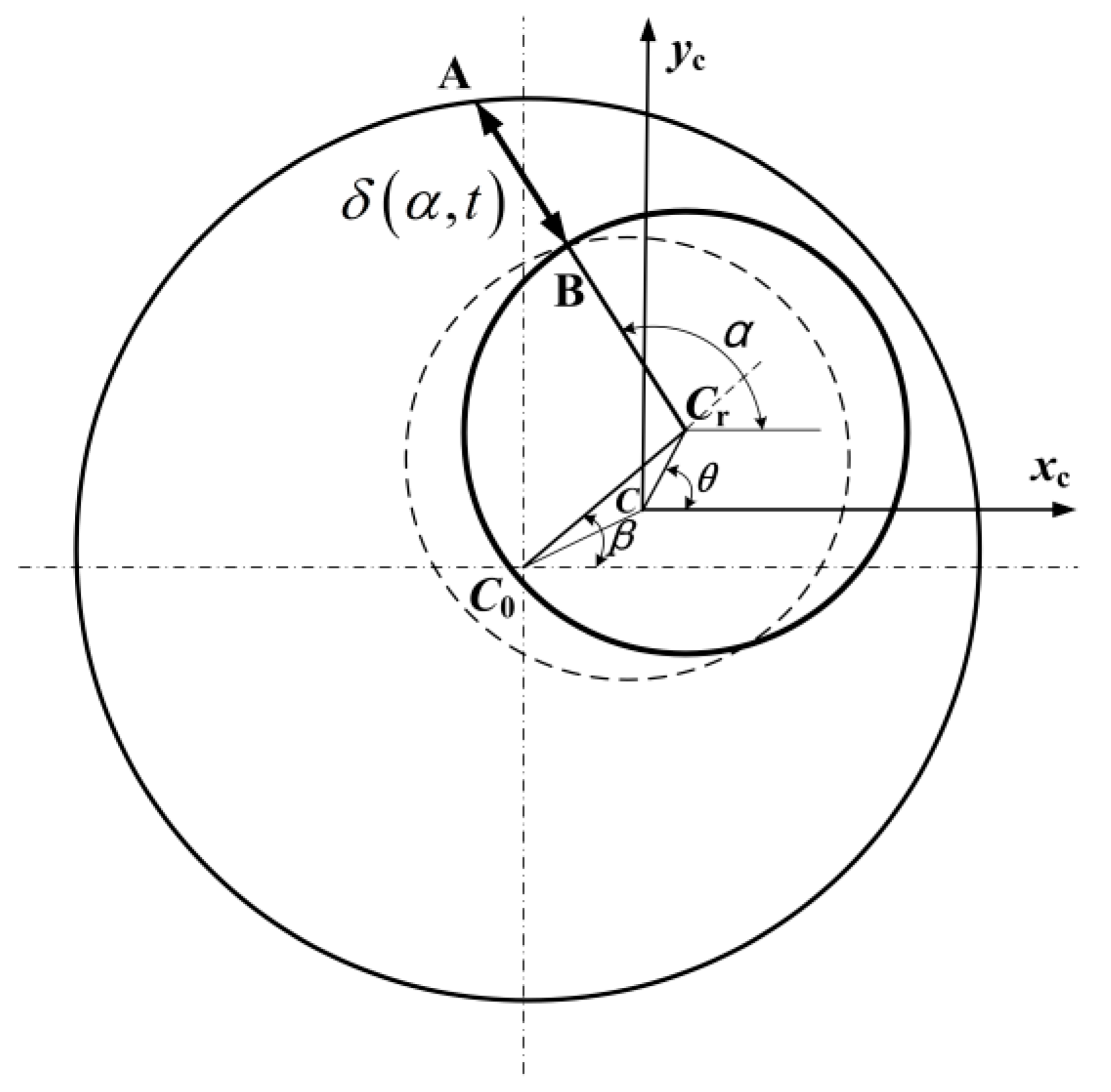

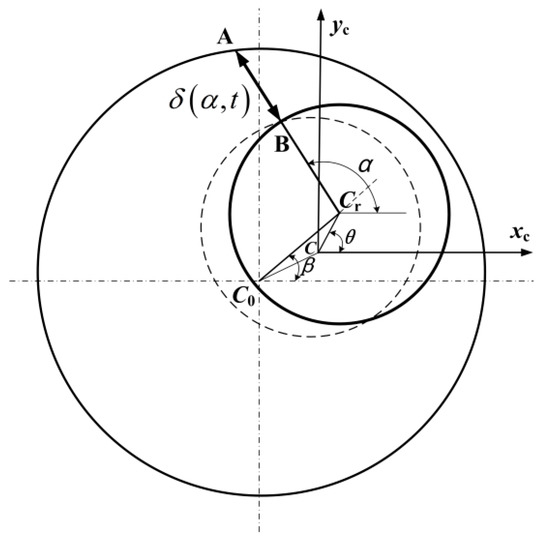

Figure 1. Air-gap for a cross section in a permanent magnet synchronous motor (PMSM).
Figure 1. Air-gap for a cross section in a permanent magnet synchronous motor (PMSM).
Applsci 08 00113 g001

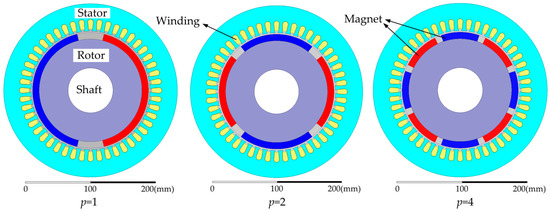

Figure 2. Models of PMSM for different pole-pair numbers.
Figure 2. Models of PMSM for different pole-pair numbers.
Applsci 08 00113 g002

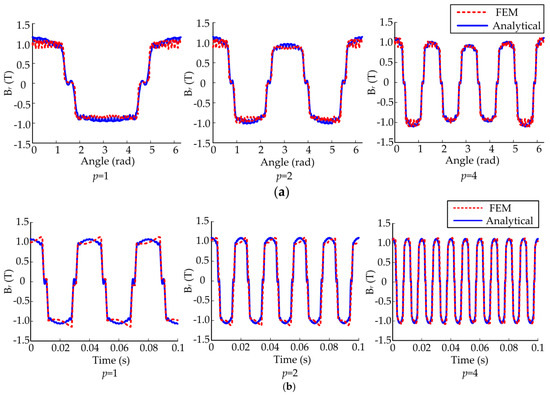

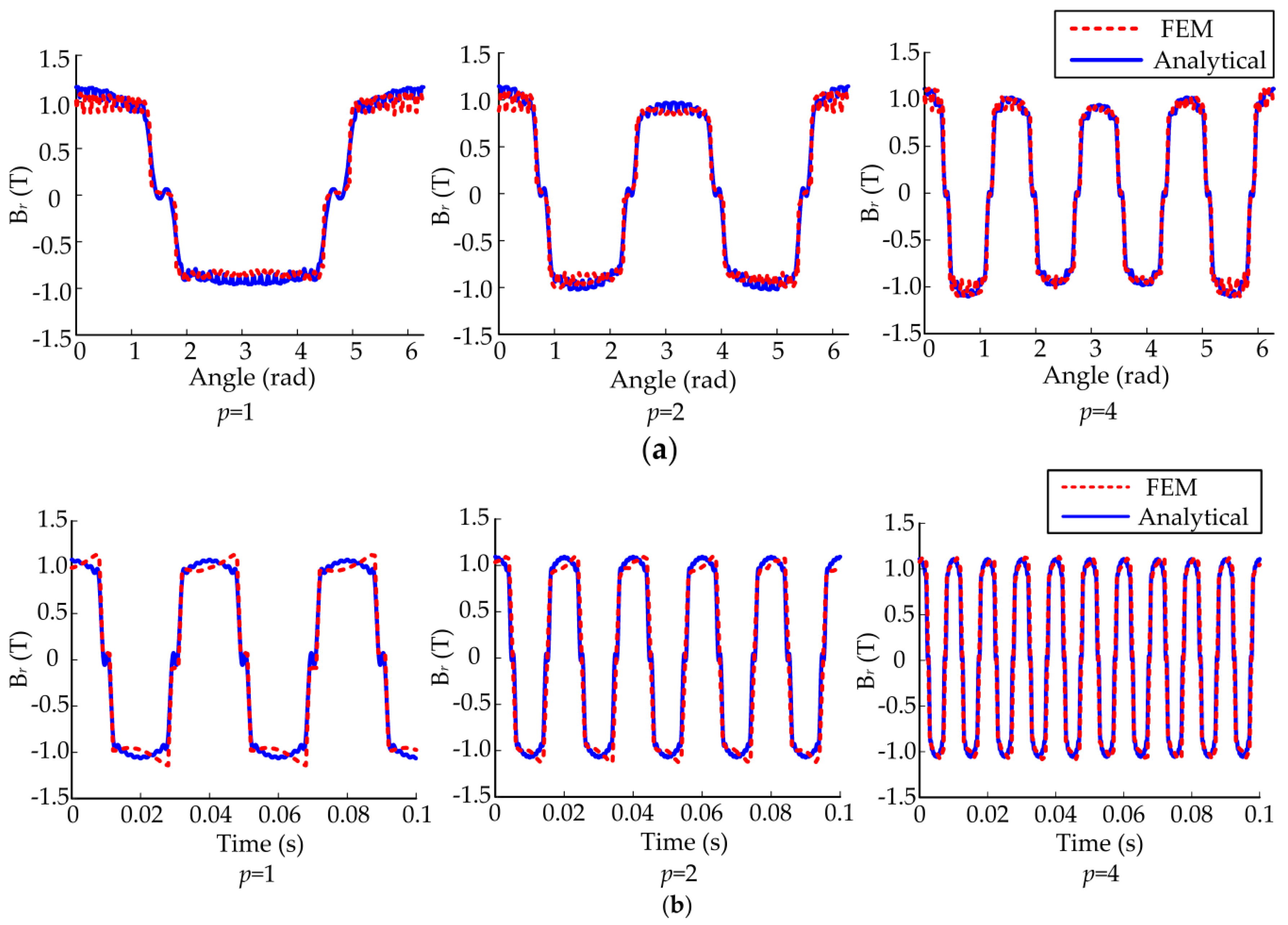

Figure 3. Comparison of field distribution on the rotor surface. (a) Field distribution at a given time; (b) Field distribution at a given point in time history. FEM: finite element method.
Figure 3. Comparison of field distribution on the rotor surface. (a) Field distribution at a given time; (b) Field distribution at a given point in time history. FEM: finite element method.
Applsci 08 00113 g003

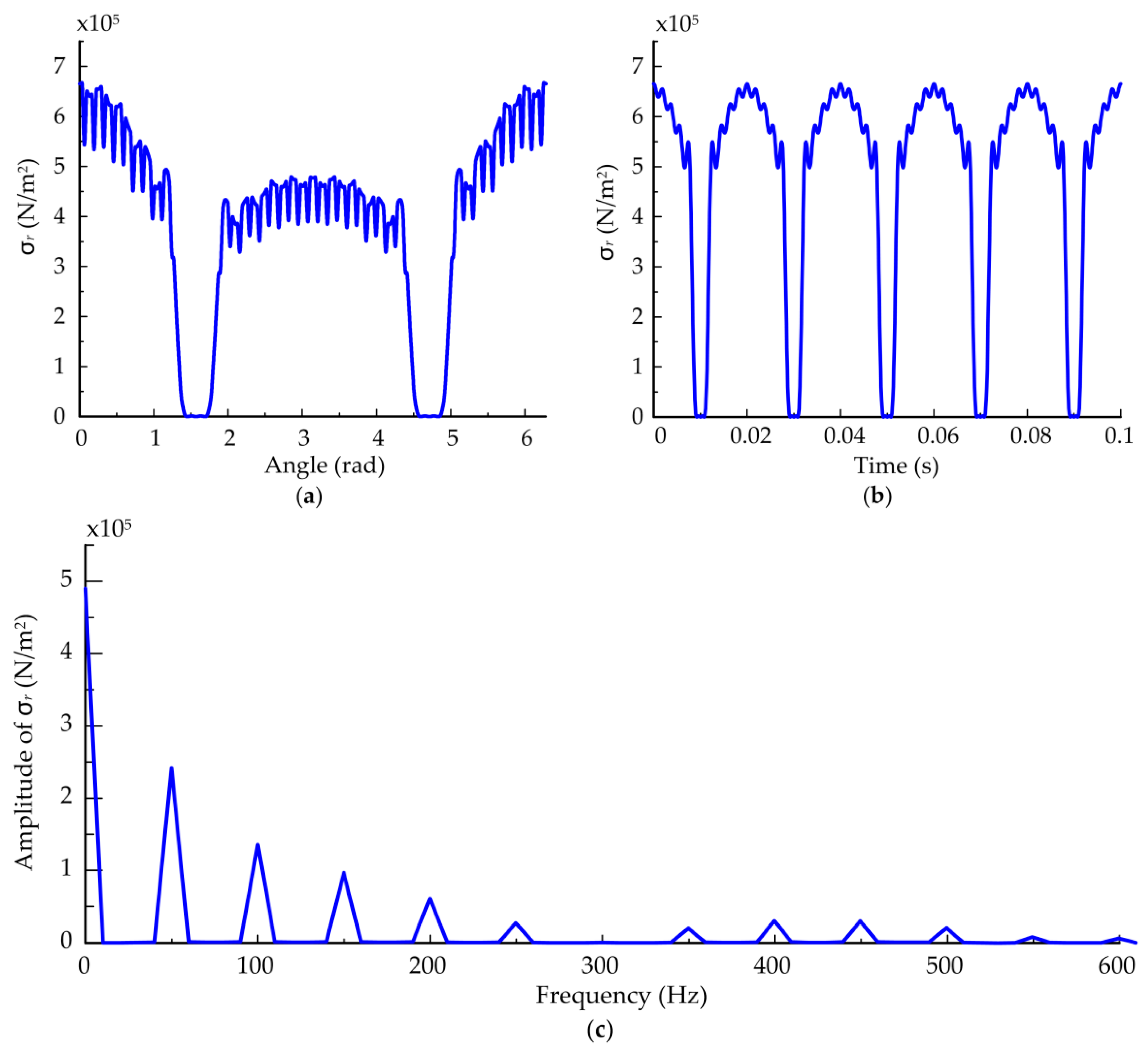

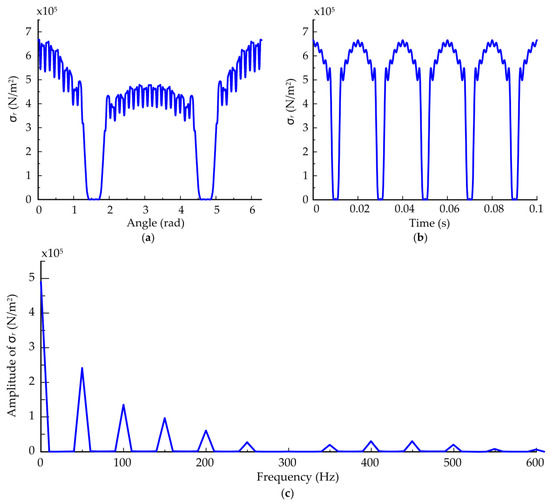

Figure 4. Distribution and spectrum of the radial Maxwell stress. (a) Stress distribution at a given time; (b) Stress distribution at a given point in time history; (c) Spectral characteristics of the stress.
Figure 4. Distribution and spectrum of the radial Maxwell stress. (a) Stress distribution at a given time; (b) Stress distribution at a given point in time history; (c) Spectral characteristics of the stress.
Applsci 08 00113 g004

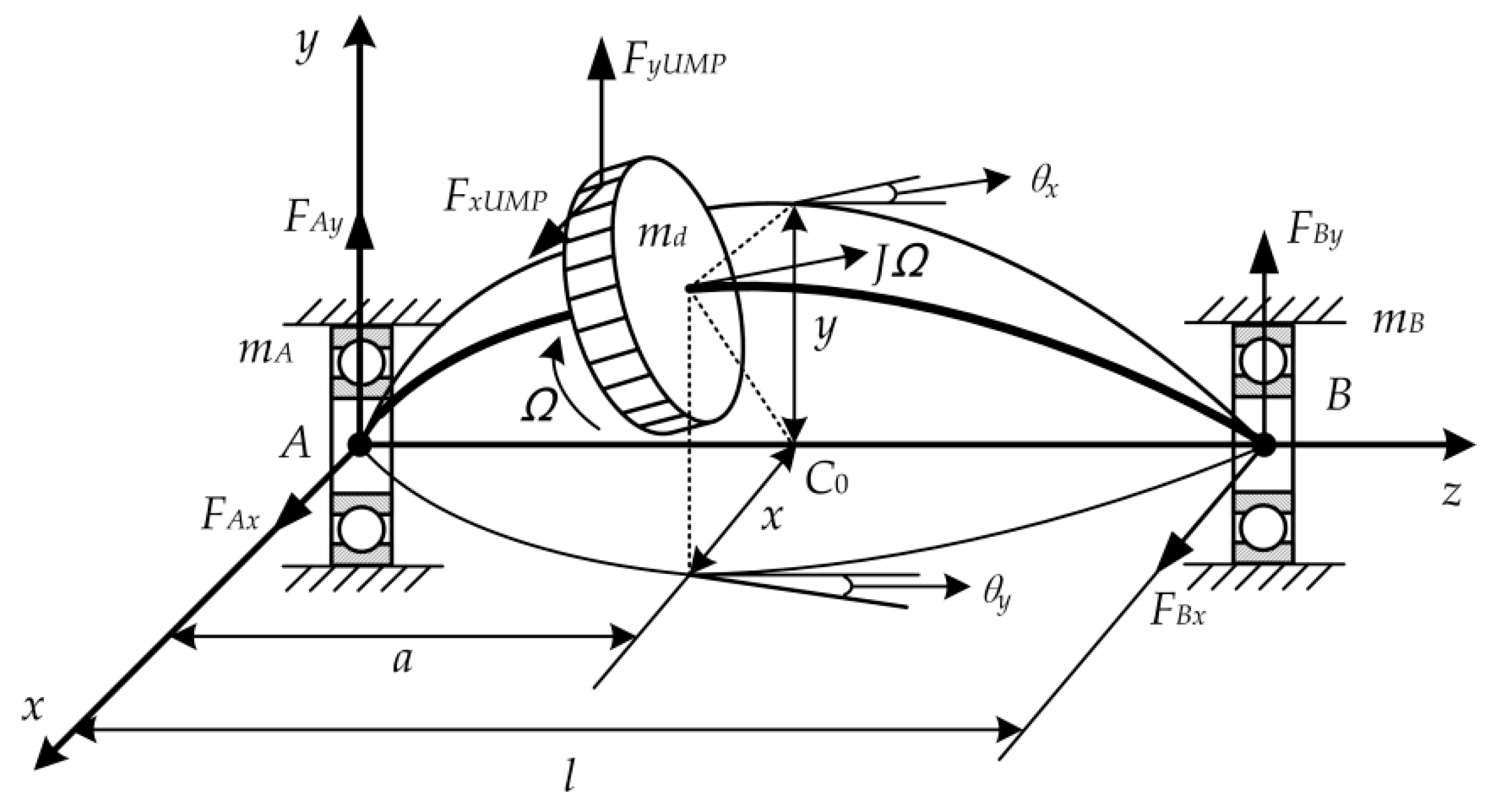

Figure 5. Dynamic model of the rotor bearing system.
Figure 5. Dynamic model of the rotor bearing system.
Applsci 08 00113 g005

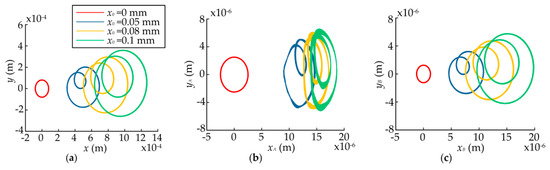

Figure 6. Rotor shaft orbits and bearing shaft orbits for different eccentricities. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Figure 6. Rotor shaft orbits and bearing shaft orbits for different eccentricities. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Applsci 08 00113 g006

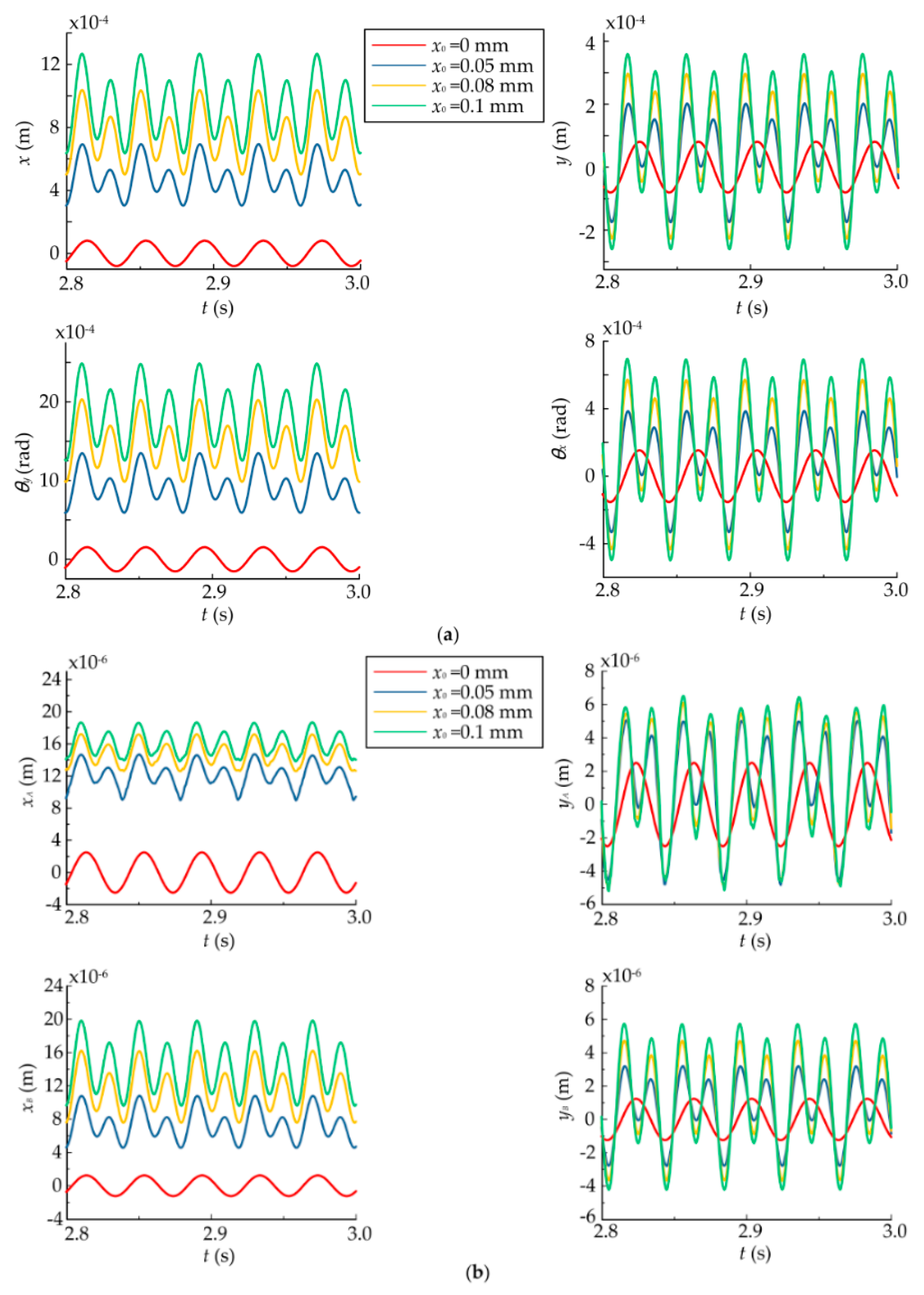

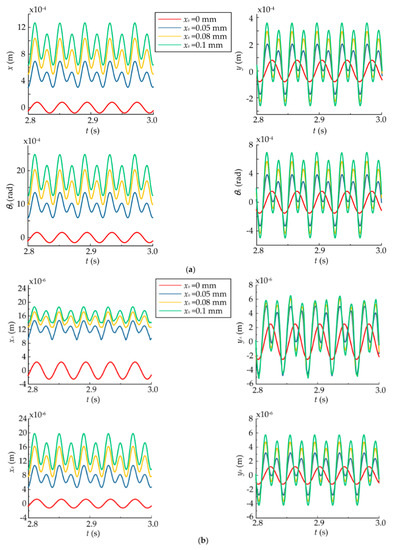

Figure 7. Time history of the dynamic responses for different eccentricities. (a) Time history of rotor dynamic responses; (b) Time history of bearing dynamic responses.
Figure 7. Time history of the dynamic responses for different eccentricities. (a) Time history of rotor dynamic responses; (b) Time history of bearing dynamic responses.
Applsci 08 00113 g007

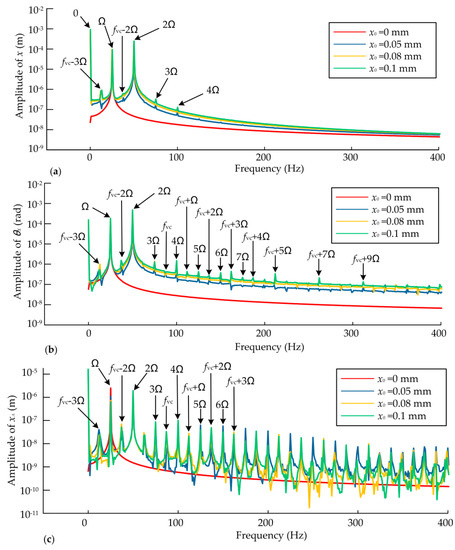

Figure 8. The spectra of dynamic responses for different static displacement eccentricities. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Figure 8. The spectra of dynamic responses for different static displacement eccentricities. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Applsci 08 00113 g008

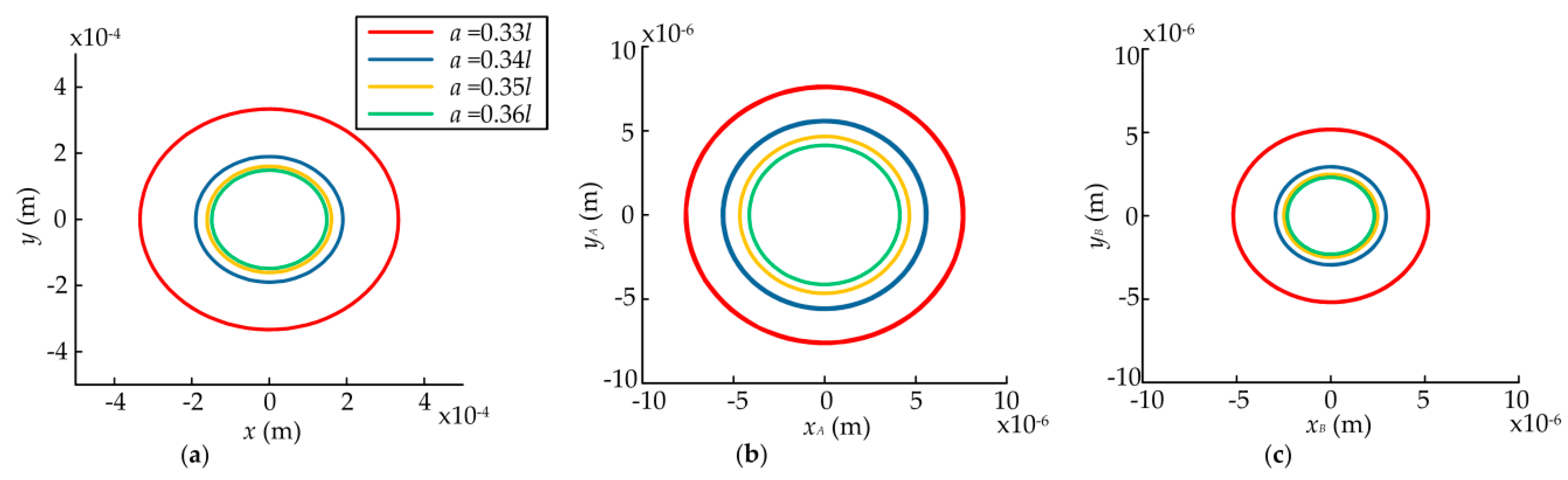

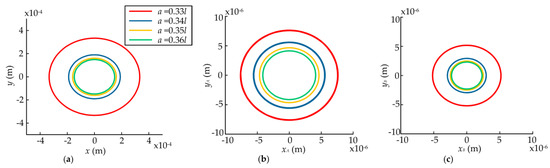

Figure 9. Rotor shaft orbits and bearing shaft orbits for different rotor offsets. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Figure 9. Rotor shaft orbits and bearing shaft orbits for different rotor offsets. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Applsci 08 00113 g009

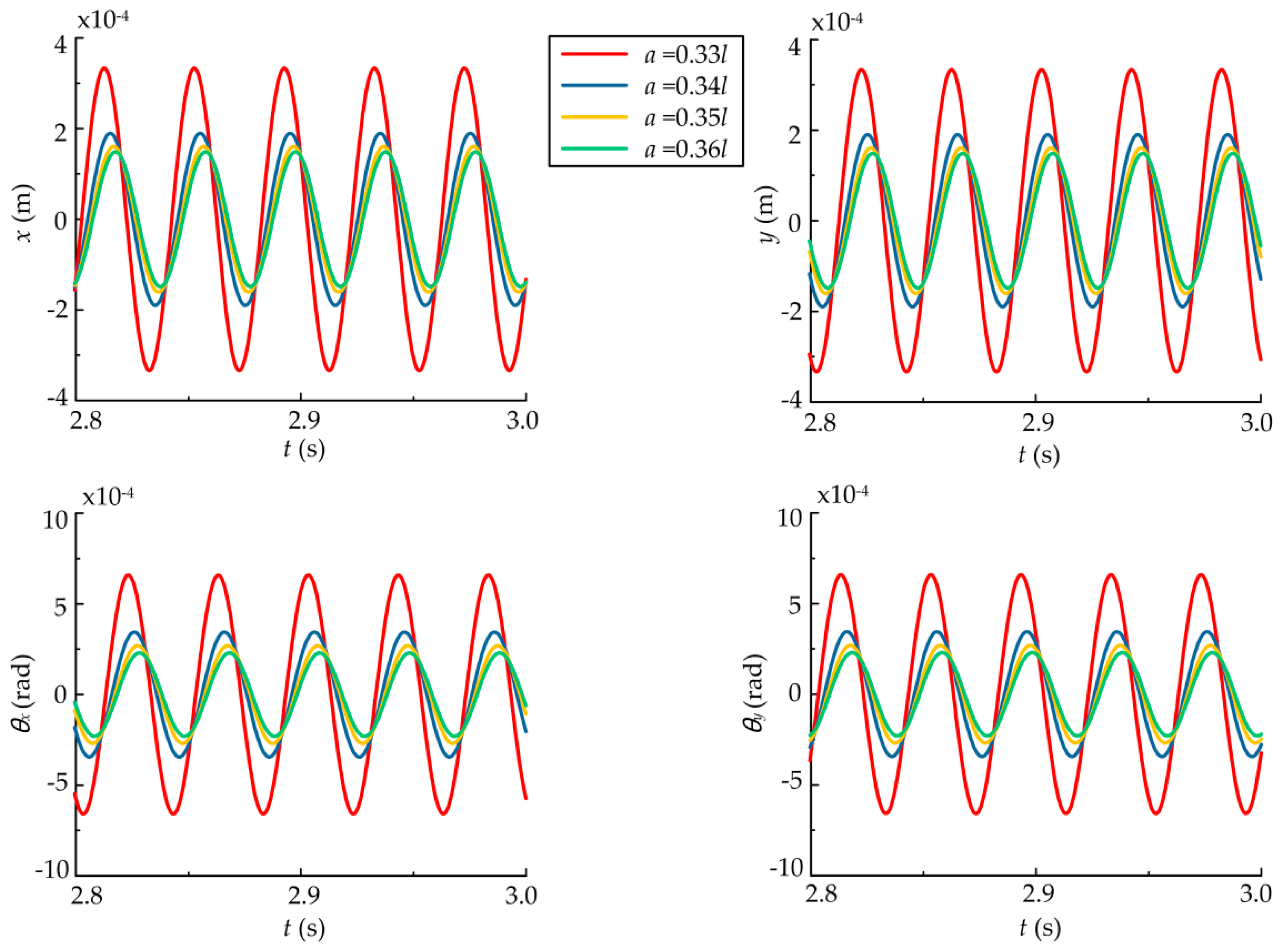

Figure 10. Time history of the dynamic responses for different rotor offsets.
Figure 10. Time history of the dynamic responses for different rotor offsets.
Applsci 08 00113 g010

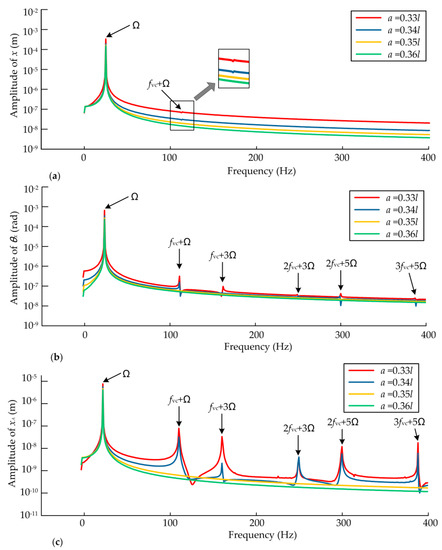

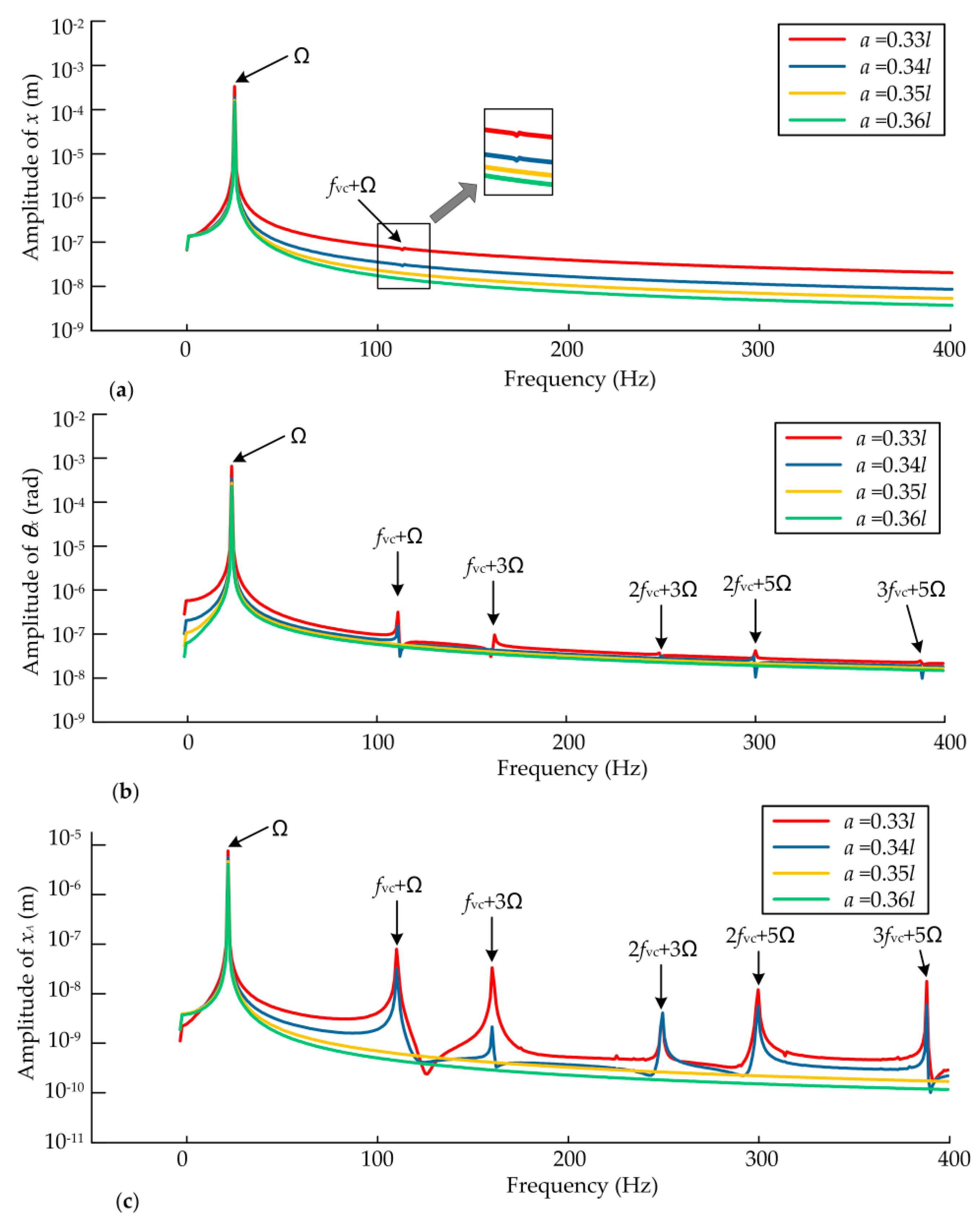

Figure 11. The spectra of dynamic responses for different rotor offsets. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Figure 11. The spectra of dynamic responses for different rotor offsets. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Applsci 08 00113 g011

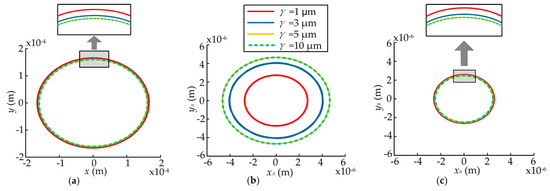

Figure 12. Rotor shaft orbits and bearing shaft orbits for different radial clearances. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Figure 12. Rotor shaft orbits and bearing shaft orbits for different radial clearances. (a) Rotor shaft orbits; (b) Left-bearing shaft orbits; (c) Right-bearing shaft orbits.
Applsci 08 00113 g012

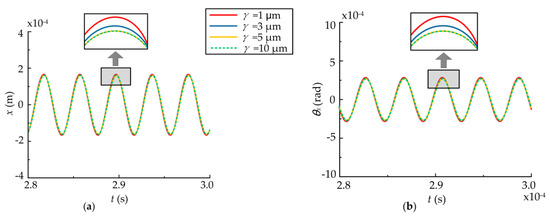

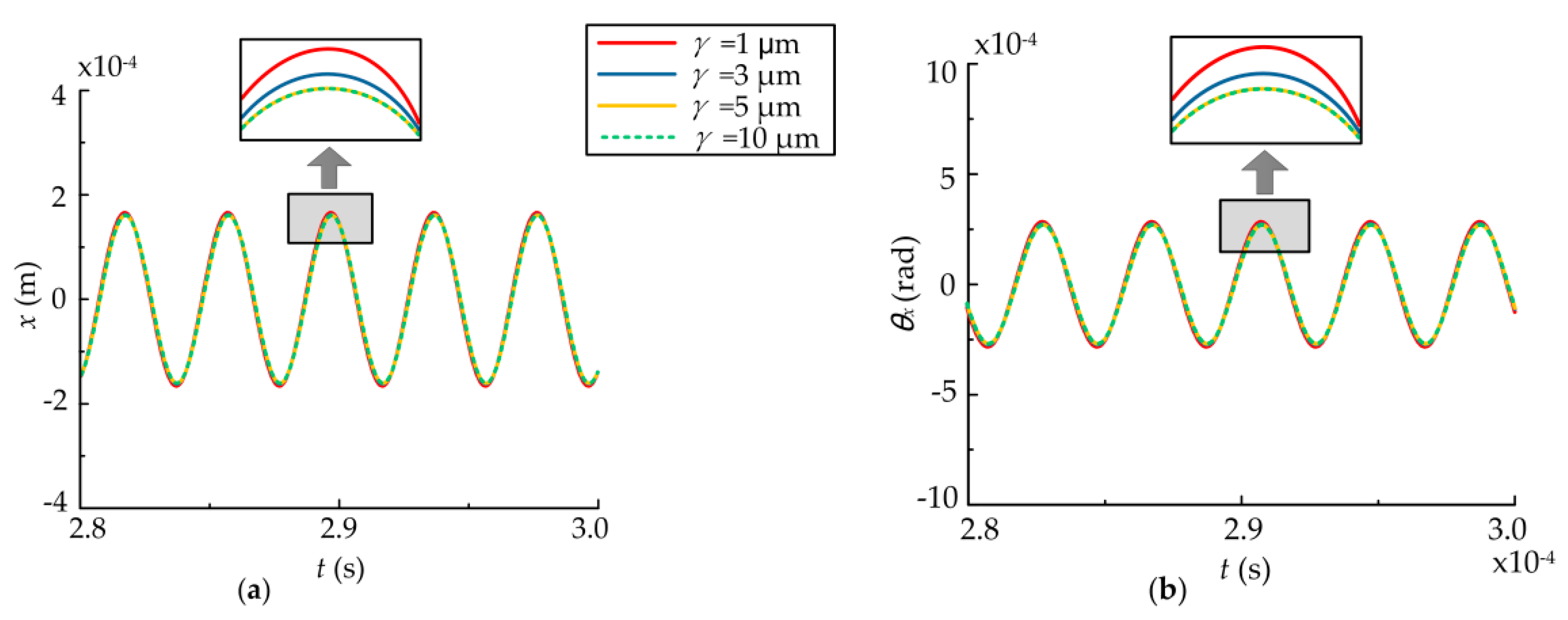

Figure 13. Time history of the dynamic responses for different radial clearances. (a) Time history of x; (b) Time history of θx.
Figure 13. Time history of the dynamic responses for different radial clearances. (a) Time history of x; (b) Time history of θx.
Applsci 08 00113 g013

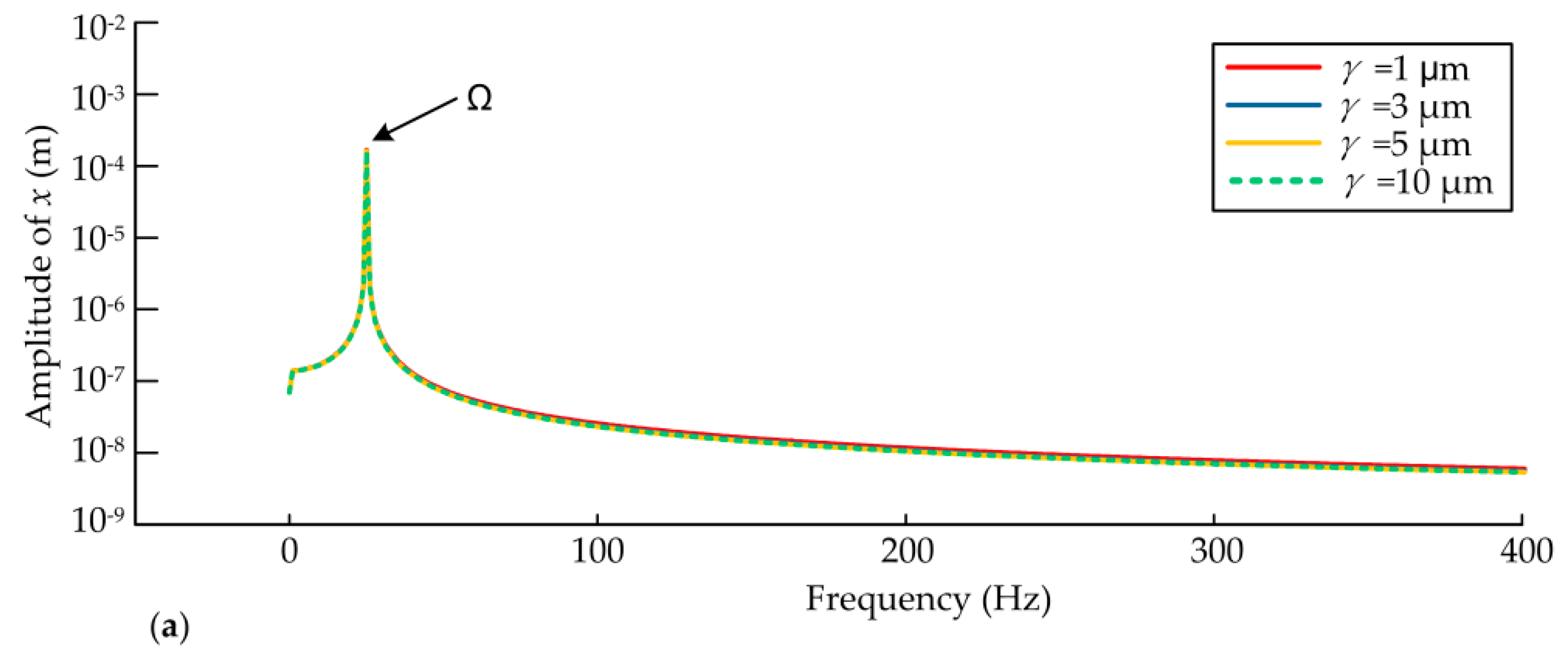

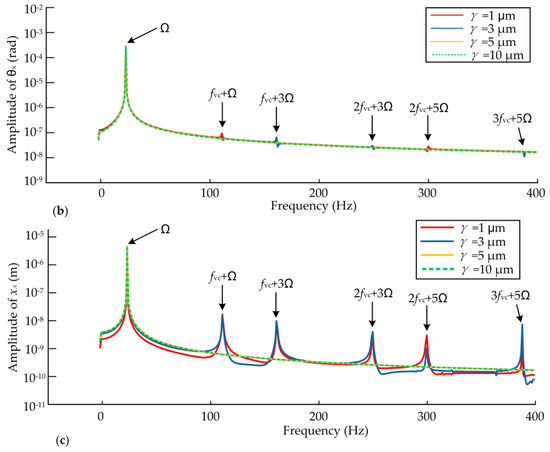

Figure 14. The spectra of dynamic responses for different rotor offsets. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Figure 14. The spectra of dynamic responses for different rotor offsets. (a) The spectra of x; (b) The spectra of θx; (c) The spectra of xA.
Applsci 08 00113 g014aApplsci 08 00113 g014b
Table 1. Main parameters of PMSM.
Table 1. Main parameters of PMSM.
ParameterValue
Outer radius of the rotor core (Rr)80 mm
Inner radius of the stator core (Rs)92.5 mm
Pole-arc/pole-pitch ratio (αp)0.85
Slot-opening (b0)4 mm
Vacuum permeability ( μ 0 )4π × 10−7 H/m
Current amplitude (I)10 A
Slot number (Z)48
Magnet thickness (hm)10 mm
Magnet remanence (Br)1.25 T
Relative recoil permeability ( μ r )1.05
Rotor rotational speed (n)1500 r/min
Length of the stator core165 mm
Outer radius of the stator core135 mm
Steel type of the stator coreDW315_50
Slot type of the stator coreNo. 2
Number of winding layers1
Winding typeWhole-Coiled
Number of parallel branches of stator winding1
Conductors per slot50
Inner radius of the rotor core35 mm
Steel type of the rotor coreDW315_50
Length of the rotor core165 mm
Stacking factor of the rotor core0.95
Table 2. Parameters involved in the system.
Table 2. Parameters involved in the system.
mA, mB, mass of the bearingsmd, mass of the rotor
a, distance between the rotor and the left bearingl, length of the shaft
(x, y), position of rotor in coordinate system(θx, θy), rotational angles of rotor
(xA, yA), position of left bearing in coordinate systeme0, mass eccentricity of the rotor
(xB, yB), position of right bearing in coordinate systemΩ, rotating speed of the rotor
Jd, moment of inertia of rotorJp, polar moment of inertia of rotor
E, Young’s modulus of the shaftI, moment of inertia of shaft
c, damping of rotorcb, damping of bearings
Table 3. Main parameters of the ball bearings.
Table 3. Main parameters of the ball bearings.
ParameterValue
Outer race radius (Ro)63.9 mm
Inner race radius (Ri)40.1 mm
Number of balls (Nb)9
Radial clearance (γ)10 μm
Hertzian contact stiffness (Cb)1.334 × 1010 N/m3/2

Share and Cite

MDPI and ACS Style

Zhang, A.; Bai, Y.; Yang, B.; Li, H. Analysis of Nonlinear Vibration in Permanent Magnet Synchronous Motors under Unbalanced Magnetic Pull. Appl. Sci. 2018, 8, 113. https://doi.org/10.3390/app8010113

AMA Style

Zhang A, Bai Y, Yang B, Li H. Analysis of Nonlinear Vibration in Permanent Magnet Synchronous Motors under Unbalanced Magnetic Pull. Applied Sciences. 2018; 8(1):113. https://doi.org/10.3390/app8010113

Chicago/Turabian Style

Zhang, Ao, Yan Bai, Bo Yang, and He Li. 2018. "Analysis of Nonlinear Vibration in Permanent Magnet Synchronous Motors under Unbalanced Magnetic Pull" Applied Sciences 8, no. 1: 113. https://doi.org/10.3390/app8010113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
