Acoustic Improvement of Stator–Rotor Interaction with Nonuniform Trailing Edge Blowing

1
Fluid and Acoustic Engineering Laboratory, Beihang University, Beijing 100191, China
2
School of Engineering, University of Warwick, Coventry CV4 7AL, UK
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(6), 994; https://doi.org/10.3390/app8060994
Submission received: 16 May 2018 / Revised: 4 June 2018 / Accepted: 16 June 2018 / Published: 19 June 2018
(This article belongs to the Special Issue Active and Passive Noise Control)

Abstract

:
The results of unsteady-flow simulations and experiments are discussed to investigate active noise-reduction effects on the stator–rotor interaction in a single-stage low-speed compressor with nonuniform trailing edge blowing. It is found that for the investigated type of stator–rotor interaction noise, nonuniform trailing edge blowing has beneficial noise-reducing effects. The overall aim is to demonstrate that nonuniform trailing edge blowing can compensate momentum loss and reduce the axial thrust on rotor blades. The results illustrate how nonuniform trailing edge blowing influences the sound pressure level of the blade-passing frequencies and results in active noise reduction effects. The study was conducted using a trailing edge blowing system, a four-hole dynamic flow-field measurement system, and phase lock technology. The results obtained show that nonuniform trailing edge blowing leads to substantial noise-reduction effects, lowering sound levels by more than 10 dB with about 5‰ of inlet mass flow.

1. Introduction

The continued growth of the aviation industry resulted in aviation noise being recognized as a harmful factor in everyday life. The International Civil Aviation Organization (ICAO) and airworthiness agencies of individual countries have issued a number of aircraft airworthiness standards in order to control civil aircraft noise. However, noise is not only an issue in the context of civil aviation. Even for military aircraft, noise reduction is desirable to delay the fatigue of materials and facilitate acoustic stealth. The fan and the compressor are the main sources of noise on an aeroplane. Nevertheless, the noise reduction of compressors is difficult, and has attracted substantial attention due to the complex geometry of the compressors and their multistage structure.
The trailing edge of rotating or stationary blades generates a wake that affects the aerodynamic and acoustic performances of any downstream blades. When a spinning rotor blade sweeps through the viscous vortex wake shed from an upstream stator, it becomes subject to unsteady loads, as illustrated in Figure 1. In an axial engine, auxiliary airflow is commonly used to control flow. Suction and pulsed blowing flow shows a robust ability to delay separation [1]. Tip blowing can control the tip leakage in a high-pressure turbine cascade [2]. However, the blowing flow technology has been adopted mostly for turbine blade cooling [3].
The compressor interstage region or stator/rotor interaction area is the core noise source in a compressor. Nacelles with liners are currently the most widely used noise reduction measures on an aeroplane. However, lined nacelles only reduce noise after it has been generated. Obviously, there exists the alternative solution of lowering compressor noise by suppressing it at the location of the source in the stator–rotor interaction area. One technique to facilitate such noise reduction is trailing edge blowing (TEB), due to its potential to compensate the momentum loss in the wake region.
The novel technology of “trailing edge blowing” for the purpose of improving the flow field emerged at the end of the last century. It was discovered when it was first applied to turbine machinery at the Massachusetts Institute of Technology that it results in greater thrust for engines. Waitz [4] and Sell [5] used TEB to reduce the rotor–stator interaction noise of a turbo fan engine, and they concluded that TEB is the preferable methodology for flow control when compared with boundary-layer suction. Leitch [6] from Virginia Polytechnic and State University continued this work to reduce downstream rotor noise with uniform TEB from the wake of an upstream stator. This was followed up by Brookfield [7,8], who investigated the effects of TEB on turbo fan engine noise, and concluded that it could be effective to uniform rotor wakes. Meanwhile, Thomas [9] used less than 1% mass flow to reduce forward radiated noise by 8~9 dB. Yavbz [10] used TEB for a delta wing to reduce unsteady flow. In 2009, Matjaz [11] illustrated the performance of TEB when applied in different positions on a fan through calculations and experiments. In 2012, Giovanna [12] researched Mach number effects on noise. The above references reveal that TEB was mostly used on turbines with the purpose of making the flow field more uniform, but with rare concurrent acoustic research on stator–rotor interaction. Saunders [13] conducted a series of experiments on a supersonic compressor with 6 dB of noise reduction. Rao [14] continued Leitch’s research in an anechoic chamber of Virginia Tech, and found that the strongest noise reduction of the first four order blade-passing frequency (BPF) was 3–5 dB. Feng [15] used non-inserting microphones for Rao’s experiments. Thereafter, the research team at Virginia Tech [16,17,18,19] studied flow control methods, airfoil design, and acoustic measurement methods, and concluded that TEB has an obvious influence on acoustics and aerodynamics.
In this paper, the effect of nonuniform trailing edge blowing (NTEB) on the acoustic performance in a single-stage low-speed compressor is evaluated. Section 2 illustrates the structure and geometry of the single-stage low-speed compressor. It discusses the positions and sizes of the blowing holes in the stator blade, and also defines the measurement positions within the flow field and the layout of the microphones for forward and backward radiation. In Section 3, the acoustic characteristics of the duct are introduced, and the acoustic modes are presented. Section 4 describes the steady and unsteady numerical simulations. On the basis of the results from these calculations, the axial thrust is analyzed and discussed. In Section 5, the effect of trailing edge blowing is evaluated by means of considering the acoustic characteristics and the sound pressure level with and without NTEB.

2. Geometry and Structure of the Compressor Facilities

Figure 2 illustrates the low-speed axial compressor; its six stator blades and 11 rotor blades were used to evaluate the acoustic characteristics. A total of 16 microphones were used, of which eight were ahead and eight were rear of the compressor. In each case, the microphones were distributed evenly in the circumferential positions. The tip radius was 0.201 m, and the hub radius was 0.110 m in the axial compressor. The fan was driven by a 30-kW frequency conversion motor, and the fan speed could reach maximum rotation rates of 8500 rpm.
In order to investigate the effects of NTEB, the stator blades were rebuilt with blowing holes, as shown in the middle section of Figure 3. In Figure 3, a row of holes with different diameters enabled nonuniform blowing flows. Seven holes in the casing were arranged in the circumferential direction, as shown in the left section of Figure 3. The casing is situated downstream of two adjacent stator blades. The flow field is measured with a four-hole dynamic pressure probe. There are eight successive measurement stations, at intervals of 10 mm, ranging from 120 mm to 190 mm along the radial direction at each position between the stator and the rotor. The phase lock technique has been used for the flow field measurement.

3. Acoustic Propagation Analysis

According to the relevant literature [20], the rotor–stator noise is evaluated by summing up the harmonics of the blade-passing frequency, and can be expressed as:
p ( x , t ) = s = p s B ( x ) · e i s B Ω t
m = s B q V
where p is the stator–rotor interaction noise, x is the observation vector, Ω is the rotor speed, t is the time, m is the azimuthal mode order, B is the number of rotor blades, V is the number of stator blades, s is the order of blade-passing frequency, and q is an arbitrary integer number. The working speed of the rotor is 4500 rpm. There are 11 rotor blades and six stator blades. Therefore, the first BPF’s probable maximum acoustic mode order is −1, and the second BPF’s probable maximum acoustic mode order is −2 or +4, according to Equation (2).
The aerodynamic noise caused by the stator–rotor interaction in the compressor is distributed discretely over the blade-passing frequency, and its harmonics are given by:
f = s B Ω 2 π ( s = 0 , ± 1 , ± 2 )
For a rotor speed of 4500 rpm, the first two orders of the blade-passing frequencies as shown in Figure 4 are calculated to be:
f 1 = 825 H z   f 2 = 1650 H z
Sound can propagate forward and backward when it meets the transport condition [21], which, for the hard wall duct, is given by:
s 2 B 2 Ω 2 c 0 2 β 2 k m , n 2 > 0
On the basis of the propagation condition, sound can propagate in a duct when the sound frequency is higher than the cut-off frequency. The cut-off frequency of a duct can be expressed as:
f c = c k m , n 2 π 1 M u 2
where c is the sound velocity, k is the eigenvalue of Green’s function, and M is the Mach number.
For forward transport in a circular duct, the cut-off frequency of mode (−1, 0) is:
f c = 493 H z f 1
The cut-off frequency of mode (+4, 0) is:
f c = 1421 H z f 1
For backward transport in a circular duct, the cut-off frequency of mode (−1, 0) is:
f c = 351 H z f 1
while the cut-off frequency of mode (+4, 0) is:
f c = 1360 H z f 2
Therefore, sound can be transported forward and backward in the low-speed axial compressor.

4. Simulation Results

In the current paper, we focus on the influence of NTEB on the acoustic characteristics of stator–rotor interaction. On the basis of the compressor geometry and the actual working parameters introduced in Section 2, numerical simulations were conducted to illustrate steady and unsteady conditions. We adopt the NUMECA software to obtain trends and characteristic curves in the range of the working parameters. The axial thrust of the blade surface in the calculation is analyzed in the NUMECA_Fine_Turbo, where the axial thrust is a statistical result of the static pressure of the blade surface and the friction force of the fluid.
The turbulent working variable obeys the transport equation:
ν t + V v ˜ = 1 σ { [ ( v + ( 1 + c b 2 ) v ˜ ) v ˜ ] c b 2 v ˜ Δ v ˜ } + Q
where V is the velocity vector, Q is the source term, and σ , c b 2 are constants.
The source term includes a production term P and a destruction term:
Q = ν ˜ P ( ν ˜ ) ν ˜ D ( ν ˜ )
The axial thrusts of the steady and unsteady time average are shown in Figure 5. The axial thrust in the flow path fluctuated around the time-averaged value. The maximum amplitude fluctuation with and without TEB is about 6.56 N and 2.52 N, respectively. From the two plots in Figure 5, the axial thrust of the downstream rotor with NTEB is 2.3 N lower than without NTEB.
The rotors speed was measured to be 4472.7 rpm when the rotor speed was set at a nominal speed of 4500 rpm. Meanwhile, since the rotor number is approximated as 12 in the simulations, the first-order BPF should be 4472.7/60 × 12 = 894.54 Hz, and some of the BPFs are illustrated in Figure 6. The axial thrust of the rotor blades with NTEB is compared with results without NTEB at the first five BPFs in Figure 6. The figure clearly reveals that the axial thrust of the downstream rotor is significantly reduced, and that the vibration amplitudes have also decreased considerably.
The axial thrusts on the downstream rotor, with and without NTEB and at different blade-passing frequencies, are illustrated in Table 1. Since the periodic flow interaction with the rotor in rotation induces the axial thrust on the rotor blade, the unsteady loads at blade-passing frequencies can be obviously reduced with NTEB. The most significant reduction of the unsteady load resulting from NTEB is 63.83% at the first BPF.

5. Experimental Results

In this section, the experimental results of the acoustics and the flow-field measurements are discussed. The acoustic results are divided into forward and backward noise transmission. In both of these cases, acoustic modes at the first two orders of BPF are presented and analyzed. In the case of the flow field, measurement results for the flow-field pressure distribution at the stator/rotor interaction region are presented for different blowing conditions.

5.1. Flow Field Results

The results presented are for measurement location #1 which is, as indicated in Figure 3, located downstream and in the wake of the stator blade. The speed of the rotor was measured to be 4472.7 rpm (f = 74.55 Hz). The added mass flows of NTEB ranged from 0 m3/h to 6 m3/h. The maximal added mass flow is less than 5 ‰ of the total inlet flow. The data sampling frequency is 20 kHz. A phase-locked averaging technology was adopted for the data processing, which was facilitated through a Hall sensor for phase locking. Since there will be vortices in the wake region, and because the dynamic four-hole probe cannot be used to measure the vortex speed, the dynamic pressure from one hole of the probe is analyzed, and the results are shown in Figure 7.
Figure 7 reveals that the axial pressure adopts negative values in the wake region, which indicates a loss of axial velocity. However, with increasing added mass flow, those negative values have a positive growth. When the added mass flow has its maximum of 6.0 m3/h, the regions displaying negative pressure values are much smaller. In this case, the stator wake is obviously improved. Meanwhile, the period (T = 11) induced by the stator wake and rotor rotation in Figure 7 reflects the number and contours of rotor blades.

5.2. Acoustic Results

5.2.1. Noise Transmission in the Forward Direction

The sound pressure levels (SPL) of the first and second-order BPF of the noise radiated forward are presented in Figure 8. The added mass flows of NTEB ranged, as for Figure 7, between 0 m3/h to 6 m3/h. The maximum acoustic modes of the first and second-order BPF in Figure 4 are discussed in Section 3.
As revealed by Figure 8, the maximum acoustic modes agree with the acoustic theory of stator/rotor interaction, as illustrated in Section 3. The noise reduction of the maximum acoustic modes for the first two BPFs show a decrease of the SPL with increasing added mass flow. The SPL of the first-order BPF is reduced by more than 3.2 dB at 6 m3/h added mass flow for the maximum acoustic mode. Meanwhile, the largest noise reduction is more than 9.2 dB, with 6 m3/h added mass flow at mode (+4) of the second-order BPF. Similar observations are made for the other modes of the first two BPFs. The overall effect of TEB is to establish a trend to reduce noise for any mode at any mass flow rate.

5.2.2. Noise Transmission in the Backward Direction

Figure 9 displays the results corresponding to those in Figure 8, but in this case for backward noise transmission. The noise levels that radiated backwards and forwards were measured simultaneously. The overall trends displayed by the results for the noise that radiated backwards mirrored those for forward radiation, in particular for the second-order BPF. However, noise reductions of the first-order BPF displayed a more complex scenario, where many acoustic modes revealed a decrease of the SPL with NTEB. With the maximum NTEB flow, the SPL reduction is just above 2.3 dB at mode (−1) of the first-order BPF, while the reduction is more than 10 dB at both maximum acoustic modes (−2 and +4) of the second-order BPF.

5.2.3. OASPL Analysis

Section 5.2.1 has shown that NTEB results in beneficial effects of noise reduction on the first and second-order BPF of forward radiation when the SPL was found to be reduced for increasing levels of NTEB mass flow. However, for the first-order BPF of backward radiation in Section 5.2.2, noise-reduction effects were not obvious, and it was even observed that NTEB can have detrimental effects. These trends are the same as those for the overall sound pressure level (OASPL) analysis of the first two orders, as presented in Table 2, where F-OASPL is the overall sound pressure level of forward radiation noise, and B-OASPL is the overall sound pressure level of backward radiation noise. The biggest OASPL reduction was more than 9 dB, which is a little smaller than the SPL reduction of the maximum acoustic mode.
In order to present the NTEB effect on every channel in the compressor duct, the OASPL of every channel is calculated by a linear weighted sum. The OASPL reduction of the whole compressor duct is computed in comparison to the values obtained for measurements with no added mass flow. The data obtained for the forward and backward radiation modes are displayed in Table 3, which is illustrated according to the Parseval theory.
Table 3 reveals that most of the channels displayed a reduction in the OASPL for both the forward and backward cases. While there exists an OASPL increase for some channels, at lower levels of TEB flow, the increments of the increase are closer to zero. Nevertheless, the increase of noise levels at some of the channels for NTEB do have an overall noise reduction, as revealed by the data in the last column of Table 3. The maximum value of noise reduction observed at any of the channels is about 3 dB. Therefore, in summary, NTEB has been shown to have a noise reduction effect on the OASPL in the forward as well as backward radiation modes.

6. Summary and Conclusions

The noise reduction effect on stator–rotor interaction arising from different levels of NTEB mass flow was investigated. Unsteady-flow simulations were conducted to illustrate the mechanism that NTEB can compensate the momentum loss and influence the axial thrust on the rotor blades. Flow field measurement contours obtained within the stator–rotor interaction region revealed that the pressure loss decreases with successively increasing levels of NTEB flow. Acoustic measurements of the sound pressure levels in forward and backward radiation have shown that NTEB leads to a noise reduction by more than 10 dB at the maximum acoustic mode. Forward radiation is always reduced with NTEB; however, in backward radiation, there are some small increases, but overall a reduction.

Author Contributions

W.W. did the measurements, data processing, and contributed to the writing. W.W. and P.J.T. contributed to the revisions and discussions of the contents.

Funding

This research was funded by China Scholarship Council (No. 201809110025).

Acknowledgments

We acknowledge the valuable comments by editors and anonymous reviewers.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wilson, J.; Schatzman, D.; Arad, E. Suction and Pulsed-Blowing Flow Control Applied to an Axisymmetric Body. AIAA J. 2013, 51, 2432–2446. [Google Scholar] [CrossRef]
  2. Volino, R.J. Control of Tip Leakage in a High-Pressure Turbine Cascade Using TipBlowing. J. Turbomach. 2017, 139, 061008. [Google Scholar] [CrossRef]
  3. Khojasteh, A.R.; Wang, S.F.; Peng, D. Structure analysis of adiabatic film cooling effectiveness in the near field of a single inclined jet: Measurement using fast-response pressure-sensitive paint. Int. J. Heat Mass Transf. 2017, 110, 629–642. [Google Scholar] [CrossRef]
  4. Waitz, I.A.; Brookfield, J.M.; Sell, J.; Hayden, B.J. Preliminary Assessment of Wake Management Strategies for Reduction of Turbomachinery Fan Noise. J. Propuls. Power 1996, 12, 958–966. [Google Scholar] [CrossRef]
  5. Sell, J. Cascade Testing to Assess the Effectiveness of Mass Addition/Removal Wake Management Strategies for Reduction of Rotor-Stator Interaction Noise. Ph.D. Thesis, Massachusetts Institute of Technology (MIT), Cambridge, MA, USA, 1996. [Google Scholar]
  6. Leitch, T.A.; Saunders, C.A.; Ng, W.F. Reduction of Unsteady Stator Rotor Interaction Using Trailing Edge Blowing. J. Sound Vib. 2000, V235, 235–245. [Google Scholar] [CrossRef]
  7. Brookfield, J. Turbofan Rotor/Stator Interaction Noise Reduction through Trailing Edge Blowing. Ph.D. Thesis, Massachusetts Institute of Technology (MIT), Cambridge, MA, USA, 1998. [Google Scholar]
  8. Brookfield, J.; Waitz, I.A. Trailing-edge blowing for reduction of turbomachinery fan noise. J. Propuls. Power 2000, 16, 57–64. [Google Scholar] [CrossRef]
  9. Thomas, A.L.; Saunders, C.A.; Ng, W.F. Reduction of unsteady stator/rotor interaction using trailing edge blowing. J. Sound Vib. 2000, 235, 235–245. [Google Scholar]
  10. Yavuz, M.M.; Rockwell, D. Control of flow structure on delta wing with steady trailing-edge blowing. AIAA J. 2006, 3, 493–501. [Google Scholar] [CrossRef]
  11. Matjaz, E.; Brance, S.; Marko, H.; Matevz, D. Numerical and experimental investigation of axial fan with trailing edge self-induced blowing. Forsch. Ingenieurwes 2009, 73, 129–138. [Google Scholar]
  12. Giovanna, B.; Alessandro, A.; Claudio, M.; Luca, C. Experimental investigation of the effects of blowing conditions and Mach number on the unsteady behavior of coolant ejection through a trailing edge cutback. Int. J. Heat Fluid Flow 2012, 37, 37–50. [Google Scholar]
  13. Saunders, C.A. Noise Reduction in an Axisymmetric Supersonic Inlet Using Trailing Edge Blowing. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 1998. [Google Scholar]
  14. Rao, N.M. Reduction of Unsteady Stator–Rotor Interaction by Trailing Edge Blowing Using MEMS Based Microvalves. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 1998. [Google Scholar]
  15. Feng, J.W. Active Control for Reduction of Unsteady Stator-Rotor Interaction in a Turbofan Simulator. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 2000. [Google Scholar]
  16. Bailie, S.T. Effect of Inlet Guide Vane Flow Control on Forced Response of a Transonic Fan. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 2003. [Google Scholar]
  17. Craig, M.E. Trailing Edge Blowing of Model Fan Blades for Wake Management. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 2005. [Google Scholar]
  18. Tweedie, S. Experimental Investigation of Flow Control Techniques to Reduce Hydroacoustic Rotor-Stator Interaction Noise. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 2006. [Google Scholar]
  19. Halasz, C.W. Advanced Trailing Edge Blowing Concepts for Fan Noise Control Experimental Validation. Ph.D. Thesis, Virginia Polytechnic and State University, Blacksburg, VA, USA, 2005. [Google Scholar]
  20. Goldstein, M.V. Aeroacoustics; McGraw-Hill Book: New York, NY, USA, 1976. [Google Scholar]
  21. Sun, X.; Zhou, S. Aeroacoustics; National Defense Industry Press: Beijing, China, 1994. [Google Scholar]

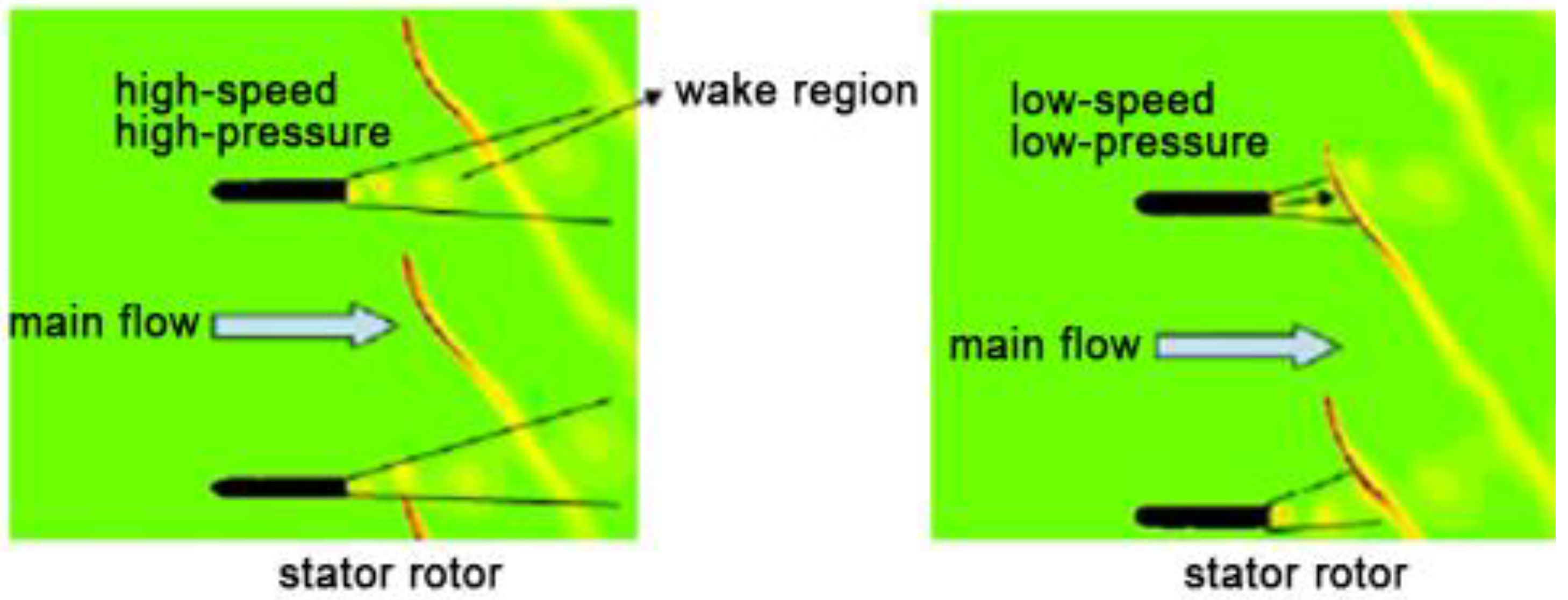

Figure 1. Interaction of rotor with stator blade trailing edge.
Figure 1. Interaction of rotor with stator blade trailing edge.
Applsci 08 00994 g001

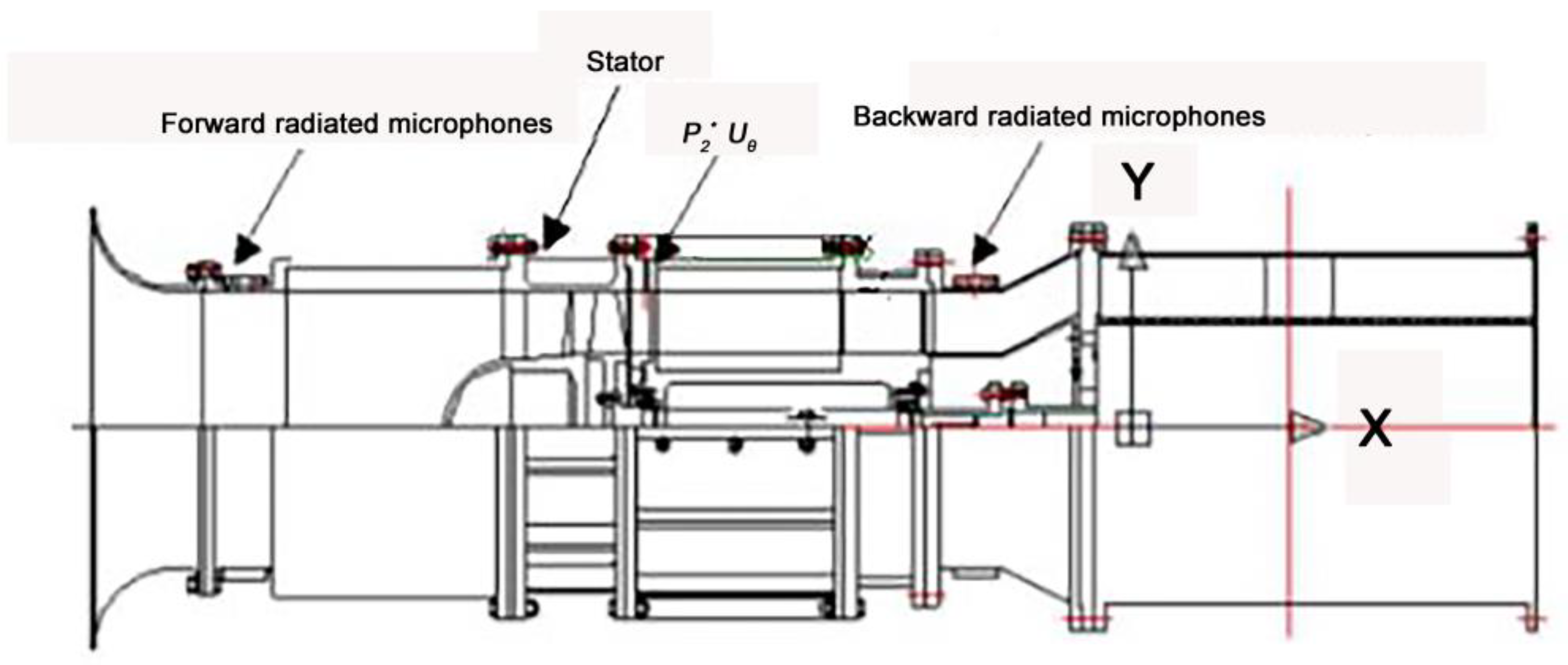

Figure 2. Single-stage low-speed axial compressor.
Figure 2. Single-stage low-speed axial compressor.
Applsci 08 00994 g002

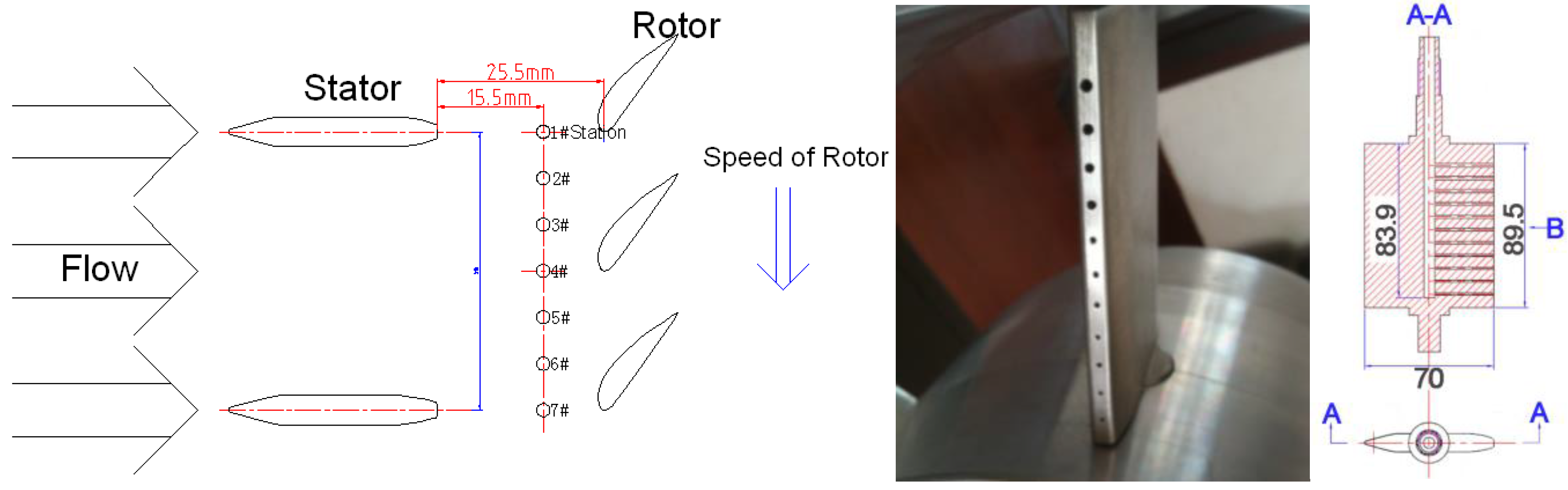

Figure 3. Low-speed axial compressor and blade with holes.
Figure 3. Low-speed axial compressor and blade with holes.
Applsci 08 00994 g003

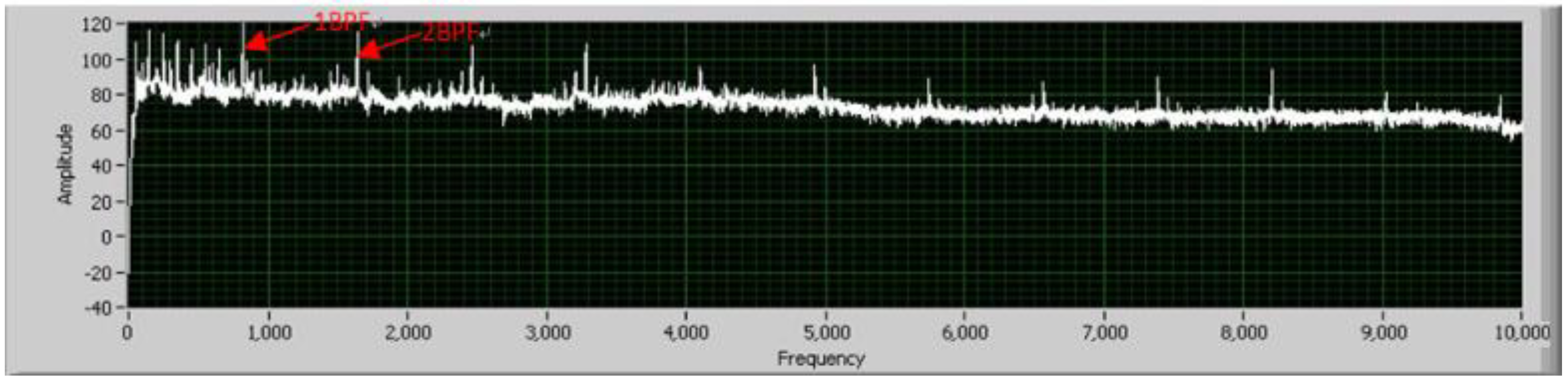

Figure 4. Acoustic frequency spectrum.
Figure 4. Acoustic frequency spectrum.
Applsci 08 00994 g004

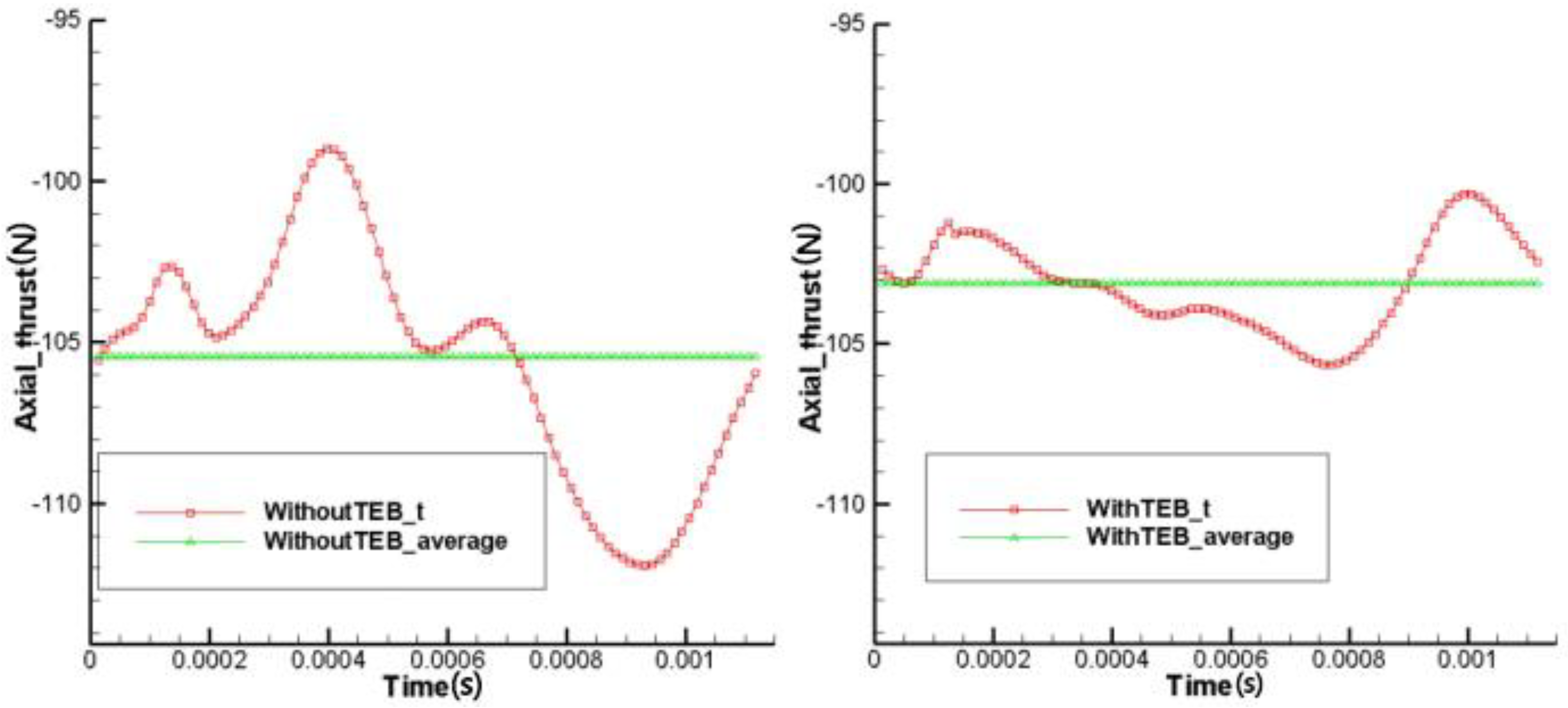

Figure 5. Axial thrust with and without nonuniform trailing edge blowing (NTEB).
Figure 5. Axial thrust with and without nonuniform trailing edge blowing (NTEB).
Applsci 08 00994 g005

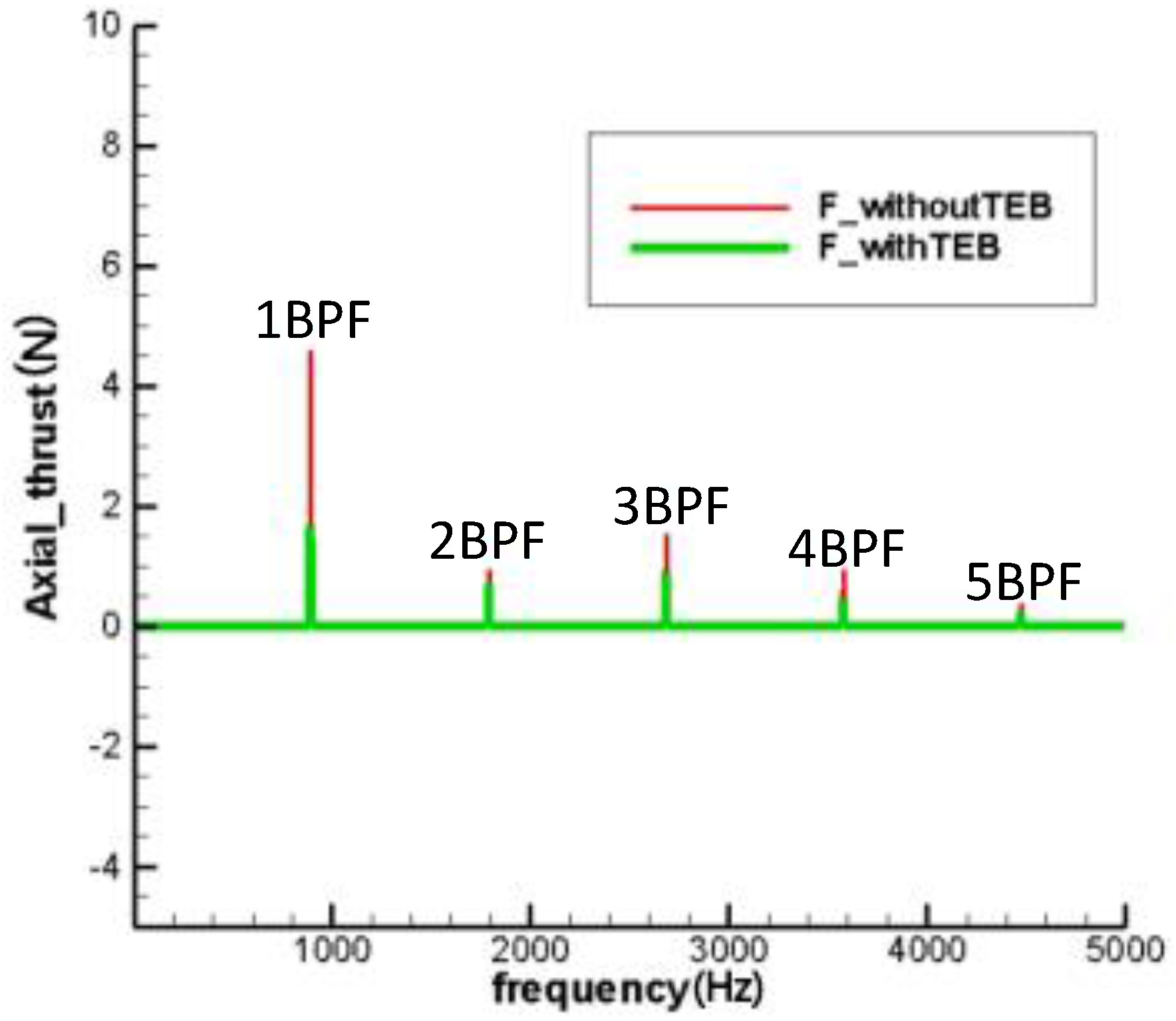

Figure 6. Blade-passing frequencies of axial thrust.
Figure 6. Blade-passing frequencies of axial thrust.
Applsci 08 00994 g006

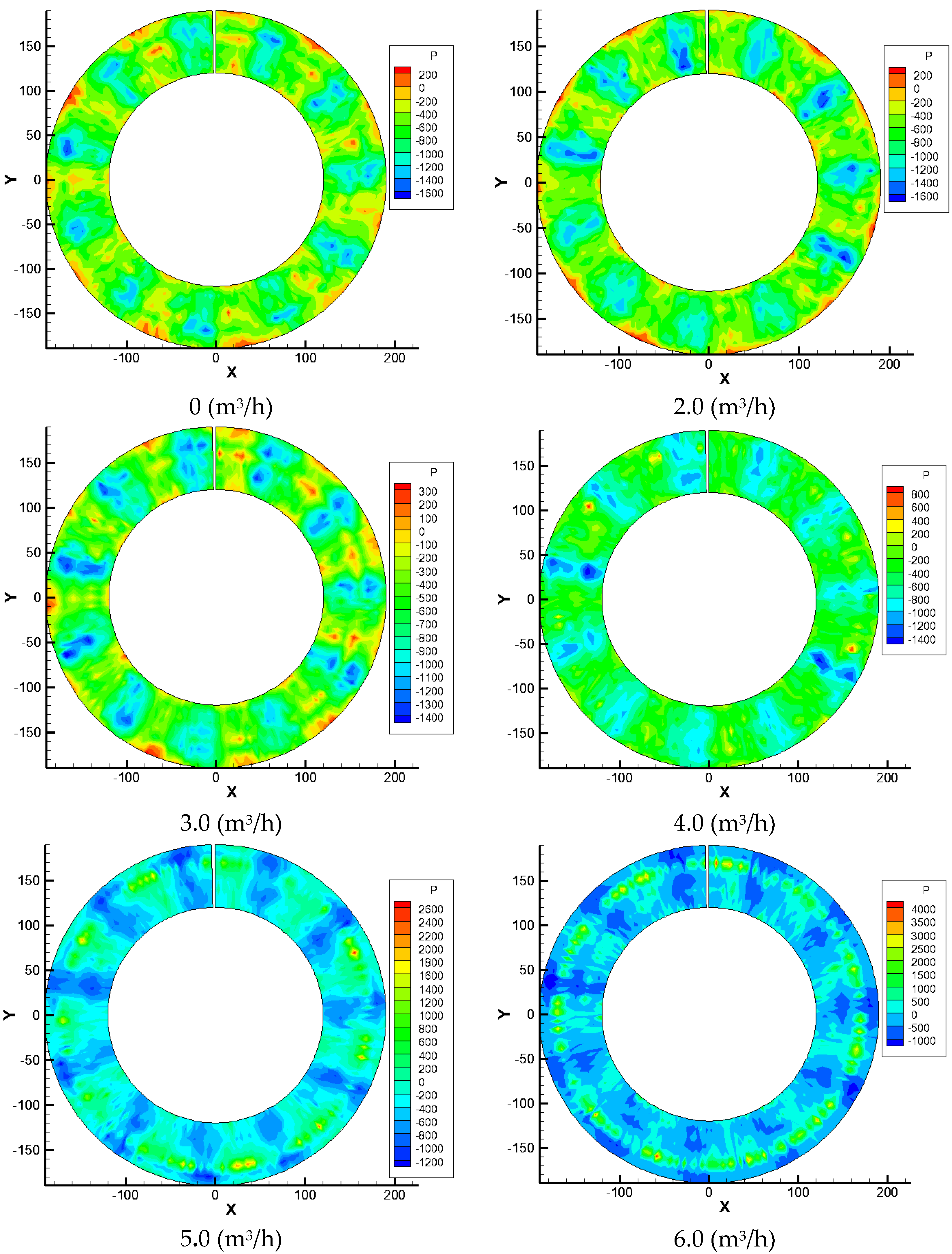

Figure 7. Dynamic pressure for different blowing–flow conditions.
Figure 7. Dynamic pressure for different blowing–flow conditions.
Applsci 08 00994 g007
Figure 8. SPL of the first and second-order BPF.
Figure 8. SPL of the first and second-order BPF.
Applsci 08 00994 g008

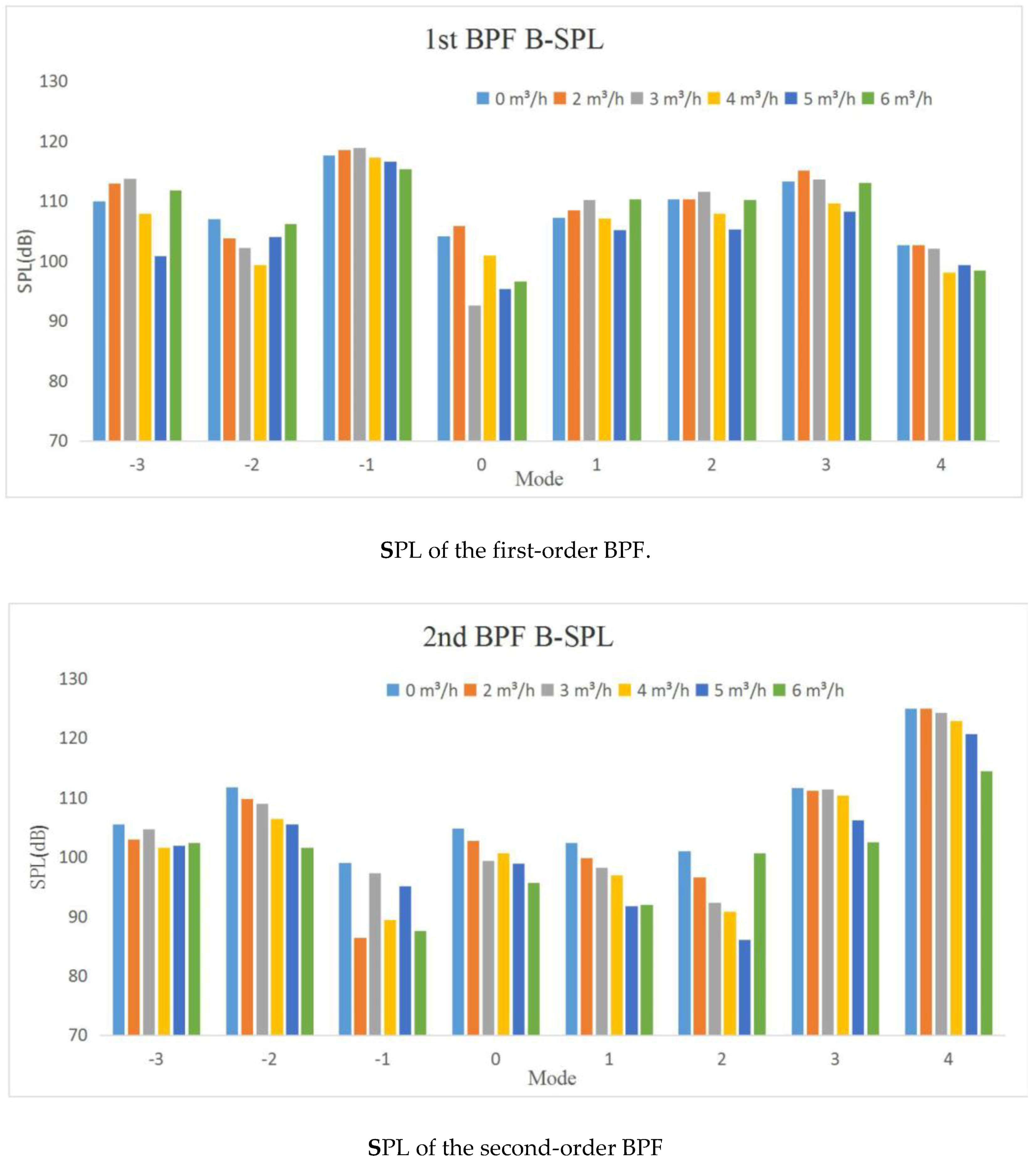

Figure 9. SPL of the first and second-order BPF.
Figure 9. SPL of the first and second-order BPF.
Applsci 08 00994 g009
Table 1. The first five orders of blade-passing frequencies (BPF).
Table 1. The first five orders of blade-passing frequencies (BPF).
BPF Order Frequency1st BPF
(894.54 Hz)
2nd BPF
(1789.08 Hz)
3rd BPF
(2683.62 Hz)
4th BPF
(3578.16 Hz)
5th BPF
(4472.7 Hz)
Without NTEB (N)4.590.951.540.950.37
With NTEB (N)1.660.690.880.440.23
Reduction Ratio63.83%27.37%42.86%53.68%37.83%
Table 2. Overall sound pressure level (OASPL) reduction of the first two orders (dB). F-OASPL: overall sound pressure level of forward radiation noise, B-OASPL: overall sound pressure level of backward radiation noise.
Table 2. Overall sound pressure level (OASPL) reduction of the first two orders (dB). F-OASPL: overall sound pressure level of forward radiation noise, B-OASPL: overall sound pressure level of backward radiation noise.
2 m3/h3 m3/h4 m3/h5 m3/h6 m3/h
F-OASPL1st BPF0.350.781.512.102.45
2nd BPF0.661.282.494.464.60
B-OASPL1st BPF−1.02−0.732.833.650.65
2nd BPF0.921.423.005.059.01
Table 3. OASPL reduction of circumferential channels (dB).
Table 3. OASPL reduction of circumferential channels (dB).
ch1ch2ch3ch4ch5ch6ch7ch8OASPL
F-OASPL2 m3/h0.280.150.16−0.100.430.450.040.150.21
3 m3/h0.430.420.29−0.390.550.460.130.140.27
4 m3/h0.801.511.080.571.441.410.580.510.98
5 m3/h1.162.391.891.042.182.351.030.891.59
6 m3/h1.063.272.360.072.822.530.681.051.68
B-OASPL2 m3/h−0.25−0.06−0.400.220.280.30−0.360.25−0.08
3 m3/h0.570.23−0.11−0.140.510.21−0.440.290.03
4 m3/h1.110.830.470.341.410.920.080.720.60
5 m3/h0.891.170.350.471.861.290.520.700.78
6 m3/h1.131.130.550.423.021.410.110.210.76

Share and Cite

MDPI and ACS Style

Wang, W.; J. Thomas, P. Acoustic Improvement of Stator–Rotor Interaction with Nonuniform Trailing Edge Blowing. Appl. Sci. 2018, 8, 994. https://doi.org/10.3390/app8060994

AMA Style

Wang W, J. Thomas P. Acoustic Improvement of Stator–Rotor Interaction with Nonuniform Trailing Edge Blowing. Applied Sciences. 2018; 8(6):994. https://doi.org/10.3390/app8060994

Chicago/Turabian Style

Wang, Wenjie, and Peter J. Thomas. 2018. "Acoustic Improvement of Stator–Rotor Interaction with Nonuniform Trailing Edge Blowing" Applied Sciences 8, no. 6: 994. https://doi.org/10.3390/app8060994

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
