Effects of ZnO Nanoparticle on the Gas Separation Performance of Polyurethane Mixed Matrix Membrane

by
Banafsheh Soltani
1 and
Morteza Asghari
1,2,*
1
Separation Processes Research Group (SPRG), Department of Chemical Engineering, University of Kashan, Kashan 8731753153, Iran
2
Energy Research Institute, University of Kashan, Ghotb-e-Ravandi Ave., Kashan 8731753153, Iran
*
Author to whom correspondence should be addressed.
Membranes 2017, 7(3), 43; https://doi.org/10.3390/membranes7030043
Submission received: 28 June 2017 / Revised: 26 July 2017 / Accepted: 31 July 2017 / Published: 11 August 2017
Browse Figures
Versions Notes

Abstract

:
Polyurethane (PU)-ZnO mixed matrix membranes (MMM) were fabricated and characterized for gas separation. A thermogravimetric analysis (TGA), a scanning electron microscope (SEM) test and an atomic-force microscopy (AFM) revealed that the physical properties and thermal stability of the membranes were improved through filler loading. Hydrogen Bonding Index, obtained from the Fourier transform infrared spectroscopy (FTIR), demonstrate that the degree of phase separation in PU-ZnO 0.5 wt % MMM was more than the neat PU, while in PU-ZnO 1.0 wt % MMM, the phase mixing had increased. Compared to the neat membrane, the CO2 permeability of the MMMs increased by 31% for PU-ZnO 0.5 wt % MMM and decreased by 34% for 1.0 wt % ZnO MMM. The CO2/CH4 and CO2/N2 selectivities of PU-ZnO 0.5 wt % were 18.75 and 64.75, respectively.

Graphical Abstract

1. Introduction

From an environmental standpoint, CO2 is one of the most significant greenhouse gases and its elimination is necessary, as it is responsible for global climate change [1,2].
The most common approach for CO2 elimination is solvent absorption. High-fixed investment, operating cost, phase distribution, and the mass transfer surface limit are posing impediments to this process [2,3].
Recently, one of the techniques considered to be a suitable alternative for CO2 separation is the execution of the membrane process without the necessity of phase change. This will provide the separation with less energy consumption [4]. Nowadays, membrane processes are one of the most pioneering technologies for gas separation, specifically in the chemical industry, due to its lower processing and initial cost, lower energy consumption, and less space requirements [5,6,7,8]. The use of polymeric membranes in capturing CO2 has drawn the attention of many scientists [9,10,11]. This is due to their high permeability and/or selectivity. Presently, membranologists are trying to develop novel polymer structures to improve the membrane separation properties. However, permeability and selectivity behaviours of the usual polymeric membranes indicate trade-off trends [10]. These years, studies on the structure of the membrane to increase their efficiency continue. Mixed matrix membranes (MMMs) are polymeric membranes filled with (nano)particles uniformly distributed in the polymer matrix to increase the membrane performance. The possibility of using organic or inorganic composite materials has been examined by researchers to improve the properties of the MMMs [12,13,14,15].
Polyurethane (PU) is a polymeric material with a wide range of applications, including adhesive, fibre, foam, thermoplastic elastomer, and coating. Its specific structural properties are affected by its two-phase structure—the hard urethane and the soft polyester or polyether segments. PU hydrogen bonding competes between the two PU segments. The crystallisability of these segments change the structural features of the PU. Nanoparticles’ interaction with these segments change the balance of the hydrogen bonding between the hard (HS) and soft segments (SS). Then, the mixing or separation phase occurs [16,17,18]. The results of the incorporation of phase mixing or separation affect the physical and chemical properties of the PU.
These special properties of the PU produce good permeation properties for the gas separation system, as well as the good physical, mechanical and thermal properties, fatigue life, and abrasion resistance. Thus, the PU membrane has allocated a lot of the gas separation membrane studies in recent years [16,17,18,19,20,21,22,23,24]. Many organic and inorganic materials have been used as fillers to incorporate into the PU membranes [25].
Bistricic et al. studied the PU-nanosilica MMM. They reported that the hydrogen bond formation between the nanosilica and the carbonyl groups in the soft segments of PU improved the rheological, thermal, mechanical and adhesive properties of the PU-nanosilica MMM [16].
In another work, Khosravi et al. examined the role of the silica nanoparticles in the polyether and polyester of the PU MMMs for gas permeation [26]. They reported that the polyether urethane-silica membranes had higher propane permeability and propane/methane selectivity. The propane permeability and propane/methane selectivity of the polyester urethane decreased due to nanosilica loading [26]. Some of the PU MMMs with different nanoparticles for gas separation are shown in Table 1.
Formerly, Iron oxide and ZnO catalysts have been used to sweeten sour gas. The use of metal oxide nanoparticles can greatly increase the absorption processes due to its physical and chemical properties [31]. ZnO could undergo hydrogen bonding with PU. The amines of HS and carbonyls of both HS and SS could be interacted with ZnO and its O–H groups to form hydrogen bonds and affect the PU structure. Therefore, in this study, ZnO nanoparticles were applied to improve the separation performance of PU membranes.
The use of nonporous ZnO nanoparticles as fillers increased the anti-bacterial, mechanical, physical and optical properties of the polymeric composite [25]. Kim et al. added the ZnO nanoparticles to the polyurethane acrylate nanocomposite film to enhance its optical, physical and mechanical properties, and water transport behaviours. However, the thermal stability of the nanocomposite film was observed to be weak [32].
Thus, the gas permeation properties of a tiny amount of ZnO on the PU composite membrane were investigated. As it is observed in Table 1, all the studies on PU MMM have used 5–25% of nanoparticles. In this present study, the effects of the incorporation of a tiny amount of ZnO nanoparticles into the PU MMMs and their gas separation properties were investigated for the first time.
The gas separation properties of PU-ZnO MMMs and the effect of ZnO as a metal oxide on the soft and hard segments of PU were also investigated for the first time. Different amounts of ZnO nanoparticles were added to the PU matrix to study the membranes’ permeability for CO2, CH4, and N2. Moreover, the membrane samples were characterised using precise analysing methods.

2. Experimental

2.1. Materials

Polyester urethane (PU) with the commercial code (Apilon52-A6505) was supplied by API SpA, Neu-Isenburg, Germany. N,N-dimethylformamide (DMF) was purchased from Merck, Darmstadt, Germany. ZnO nanoparticles (purity > 99%; particle size range 20–30 nm) were supplied by Navarrean Nanoproducts Technology (TECNAN, Navarra, Spain). All of the chemicals and materials were used as received.

2.2. Membrane Preparation

The PU and PU-ZnO MMM samples were prepared using solving, casting and solvent evaporating methods.
A sufficient amount of PU was added to the solvent (DMF) and the obtained dope solution (10 wt %) was stirred to get a homogeneous PU solution. The dope solution was then cast on glass plates and the solvents were allowed to evaporate.
In order to allow better evaporation of the solvent from the membranes, the casted films were removed from the glass plates and dried slowly in a vacuum oven. The PU-ZnO membranes were prepared using the same method. The ZnO particles were well dispersed in a mixture of half DMF and 1 wt % of the PU. The target mixture was mixed for about 12 h. Another PU-DMF solution was made and the dope solution, containing ZnO, was added into it. Then, the final mixture was mixed well, sonicated for 20 min, and cast as PU dope.

2.3. Characterization of the Membranes

The IR spectroscopy (Magna IR Spectrometer 550, GMI, Ramsey, MN, USA) was used for monitoring the interaction between the PU and ZnO nanoparticles in the MMMs and confirm the final chemical structures of the membrane samples. The scanning frequency range is 4000–400 cm−1.
The membranes’ morphology and the distribution of ZnO nanoparticles in the MMMs’ structures were investigated using the scanning electron microscopy (SEM) (TESCAN, Brno, Czech Republic). The MMM samples were well-fractured in liquid nitrogen and coated with gold before the cross-sectional scanning.
The surface topography of the control sample (neat PU membrane) and the PU-ZnO membranes was studied using the atomic force microscopy (AFM) (SOLVER, NT-MDT, Moscow, Russia) via non-contact mode.
The thermal degradation analysis of the nanocomposite membranes was done through the thermal gravimeter/differential thermal analyser (TG/DTA) (PYRIS DIAMOND, Perkin Elmer, Waltham, MA, USA). The results were obtained from 25 °C to 600 °C at a heating rate of 10 °C/min.

2.4. Permeation Measurements

The gas permeability performance of the membranes was measured using a constant pressure system. The membrane permeability (P) can be calculated using the Equation (1):
P = Q* × t/(A × (p − p°))
In this equation, the feed pressure (p) varies from 4 to 14 atm, and the permeate pressure (p°) is atmospheric. Equation (1) is normalised with the partial pressure difference (p − p°). The flux (Q) is measured using a bubble flow meter in a steady state flow. The temperature was maintained at 30 °C and t is the membrane thickness, which is measured using the SEM images about 35–38 µm. The membrane effective module area in this work was 27.72 cm2. Moreover, the membrane permeability is expressed in barrers [1,4,18,19,20,29,33].

3. Results and Discussion

3.1. IR Analysis

The chemical properties of the neat PU membrane and the ZnO-filled MMMs are characterised by conducting the IR analysis. The IR results are shown in Figure 1. The PU is naturally hydrogen-bonded and its general structure (–CO–O–R–O–CO–NH–R–) contains both the hard segments (–R–O–CO–NH–R–) and the soft segments (–R–CO–O–R–). The HS of urethane is hydrogen-bonding. The carbonyls of either the HS (i.e., urethane) or the SS (i.e., ester) can form these hydrogen-bonding structures. The phase separation degree determines these two places of the hydrogen bonds in the urethane’s structure. The changes of band intensities in N=H (3300–3500 cm−1) and C=O (1600–1750 cm−1) regions are usually studied using the IR spectra [16]. The hydrogen bonding measurement of the urethanes in the HS and the carbonyl in both the HS and the SS can show the presence of the nanoparticles in the PU matrix as well as the degree of phase mixing or separation. The major IR peaks of the PUs are shown in Table 2.
The hydrogen bonding quantity of the N–H groups can be investigated using the spectrum of the N–H stretching region. The intensive peak at 3330 cm−1 for the PU MMMs shows the intermolecular interactions occurring in the HS between the carbonyl and the amine groups (N–H⋯O=Curethane). The shoulder on 3440 cm−1 shows the vibrations of N–H in the hard segments that can form the hydrogen bond with the carbonyl of the SS(N–H⋯O=Cester) [20,26]. As it is shown in Figure 1a, the intensity of the N–H bonds in the PU-ZnO MMM, containing 0.5 wt % nanoparticles, are lower than the neat PU. This indicates that the N–H⋯O=Cester stretching bond had decreased and some phase separation occurred in the PU membranes with nanocomposite structure. However, according to the measured peaks of the PU-ZnO 1.0 wt % MMM sample, the N–H⋯O=Cester bond intensity is higher than the neat PU. As revealed in IR results, ZnO sits on the SS of PU and the O–H of ZnO tends to absorb the N–H of the HS to form hydrogen bonds. Therefore, by absorbing N–H on the SS, formation of N–H⋯O=Cester bond becomes most possible, so the corresponding intensity increases.
Carbonyl formed different types of hydrogen bonding in the PU and the carbonyl peaks were divided into three regions. The non-hydrogen bonding of the free carbonyls is observed near 1730 cm−1, and the carbonyl with poorly hydrogen bonding are observed at 1710 cm−1, and the hydrogen-bonded carbonyl’s peak of the HS can be observed at 1690 cm−1 [12]. Based on the examination of the carbonyl stretching band for the PU-ZnO MMM in Figure 1b, it appears that the intensity of the free carbonyl band slightly decreases in the PU-ZnO 0.5 wt % MMM, compared to the neat PU membrane. Moreover, the position of carbonyl hydrogen band shifts a little to a lower wave number in the PU-ZnO 0.5 wt % MMM. This can detect more hydrogen bonding between the carbonyl groups and the urethane N–H groups in the HS and a partial phase separation in the PU-ZnO 0.5 wt % MMM. This may be related to the distribution of the ZnO nanoparticles in the PU soft segment [30]. In the PU-ZnO 1.0 wt % MMM, fewer hydrogen bonds were observed in the N–H and the carbonyl groups in the HS. The distribution of ZnO particles in the SS and their interaction with the carbonyl groups in this segment contributed to attracting the N–H groups to the carbonyl in the SS for higher nanoparticle concentration (1.0 wt % ZnO). This indicates the phase mixing in the proposed MMM. The amount of Hydrogen Bonding Index (HBI) and its variations in the PUs are defined as follows:
HBI = AC=O bonded/AC=O free
Here, AC=O bonded and AC=O free are the bonded and free carbonyls absorbance, respectively. The variation of the HBI in the MMMs was investigated with the nanoparticle contents [34]. The HBI results in Table 3 indicated that the HBI increases from 1.089 for the neat PU to 1.377 for the PU-ZnO 0.5 wt % MMM, while it decreases to 0.808 for the PU-ZnO 1.0% wt MMM. Thus, the degree of phase separation for the PU-ZnO 0.5 wt % MMM is higher than that of the neat PU. However, for the PU-ZnO 1.0 wt % MMM, a higher HBI decline was detected in phase mixing compared to that for the neat PU.
Stretching of the O–H band in pure ZnO was observed to be 3500 cm−1. This peak is not detectable in the MMM spectra; however, the peaks observed around 1600 and 1380 cm−1 occurred due to the presence of zinc carboxylate. These two regions were for its asymmetrical and symmetrical stretching, respectively [25].
Due to these observations of the MMMs IR spectra, it could concluded that the ZnO nanoparticles are more distributed in the SS, and the O–H groups of the ZnO nanoparticles interact with the ester and carbonyl groups of the SS. On the basis of the IR results, it is clear that a phase separation can induce the ZnO incorporation into the PU-ZnO 0.5 wt % MMM, while the phase mixing occurs in the HS and the SS for the PU-ZnO 1.0 wt % MMM. Therefore, it can be predicted that the permeability increases for the PU-ZnO 0.5 wt % MMM and decreases for the PU-ZnO 1.0 wt % MMM.

3.2. Morphological and Topographical Features of the ZnO Incorporated PU Membranes

3.2.1. Scanning Electron Microscopy (SEM)

The surface morphology of the PU MMMs can affect the gas separation performance. The SEM images of the ZnO-PU nanocomposite membranes are used to observe the distribution and compatibility of nanoparticles in the polymer matrix. Figure 2 shows the SEM images of the top surface and the cross-section of the PU-ZnO MMM. As observed, the ZnO nanoparticles uniformly dispersed in the polymer matrix.
The cross view of the SEM images for the PU-ZnO membranes, containing 0.5 wt % and 1.0 wt % MMM, are shown in Figure 2a,b. These images illustrate that the ZnO nanoparticles were well dispersed in the PU-ZnO MMM matrix. Moreover, the MMMs were dense due to the absence of pinholes and connected the pores and/or cracks.

3.2.2. Atomic Force Microscopy (AFM)

A surface topography of the PU-ZnO MMM was executed using the AFM analysis. The AFM images of the PU and the PU-ZnO MMM are shown in Figure 3. As observed in these images, the presence of ZnO particles led to a smoother surface, while the neat PU membrane had a rougher surface than the PU-ZnO MMM.
According to the AFM results, it can be concluded that by increasing the ZnO concentration from 0.5 wt % to 1.0 wt % of the polymer, the surface roughness for the neat PU decreased from 12.29 nm to 3.38 nm and 1.15 nm for the PU-ZnO membrane samples, containing 0.5% and 1% nanoparticles, respectively.
The ZnO particle size is in the range of 20–30 nm, almost the same as the distance between the polymeric branches [23,24]. Consequently, the nanoparticles might easily be placed within the polymer matrix without creating more space and decreasing the surface roughness.
In addition, due to the AFM images, good adhesion in nanoparticles and polymers can be observed.

3.3. Thermal Stability of ZnO-Incorporated Membranes

Results of the TGA of the PU-ZnO MMM are shown in Figure 4. Weight loss (WL) in all membrane samples started around 270 °C and finished at 430 °C. It is worth quoting that, at 430 °C, only 3.6 wt % of the pure PU remained. At this temperature, the residual weight percentages 8.1% and 11.1% for the PU-ZnO incorporated with 0.5 wt % and 1.0 wt % MMMs, respectively.
This result is in agreement with the theoretical ZnO weight percentage of the nanocomposite membrane. Moreover, the results indicated that the ZnO-incorporated membrane samples have higher WL rates than that of the PU. The higher thermal conductivity of the ZnO particles causes the proposed higher WL rate. The TGA also indicates that no residual solvent remained in the membrane matrix.
Two different reduction slopes are observed for the neat PU in thermal degradation. The first one is related to the degradation of the HS, while the second one is related to the thermal decomposition of polyester. As shown in Figure 4, the first level of neat PU decomposition starts at 275 °C, and the second level at 345 °C (point A). As observed, this difference disappears for the ZnO-filled PU membranes; hence, the decomposition rate of the SS becomes similar to that of the HS. It could then be concluded (see IR results) that the ZnO-nanofiller would be incorporated in the SS of the polymeric membrane.

3.4. Gas Permeation Properties

The gas permeability of the MMMs is measured, respectively, for N2, CH4, and CO2 as pure gases at six different operating pressures of 4–14 bar and the constant temperature of 30 °C. The CO2, CH4, and N2 permeabilities of the PU-ZnO MMM are shown in Figure 5 and Figure 6 and Table 4. As could be observed in Figure 5, the CO2 permeability is significantly higher than that of CH4 and N2, using both the neat membrane and the MMMs. The higher CO2 permeability, compared to CH4 and N2, occurs due to its polarizability [35], smaller kinetic diameter, and greater condensability (see Table 5) that leads to a stronger interaction with the polar groups of the PU matrix [30,36,37,38].
As could be observed in Figure 5a, the CO2 permeability of the PU-ZnO 0.25 and 0.5 wt % MMM is approximately 12% and 30%, respectively, higher than that of the neat PU membrane. However, it decreases about 34% for the membrane, incorporated with a higher amount of ZnO (1.0 wt %). Moreover, the IR and AFM results confirm these behaviours. As mentioned earlier for the IR section, the phase separation in the soft segments of the PU-ZnO 0.5 wt % MMM led to the higher gas permeation compared to the neat membrane (Figure 7). The lower permeability of the PU-ZnO 1.0 wt % MMM can be explained using the IR results. Due to the presence of 1.0 wt % ZnO, both the phase mixing in the PU segments and free volume reduction of the PU SS can cause the gas molecule diffusion pathway to be more torsional [39] (Figure 7). On the other hand, the smoother surface of the PU-ZnO 1.0 wt % MMM, as mentioned earlier in the AFM section, led to the decrease in the surface interaction of the membrane, and, consequently, lesser gas permeability. This can be explained by observing the similar trends of N2 and CH4 permeation through the PU-ZnO 1.0 wt % MMM.

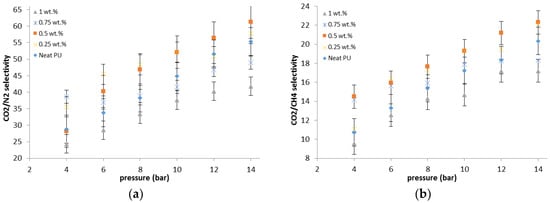

As could be observed in Figure 8, compared to the neat membrane, the CO2/N2 selectivity of the 0.25 wt % and 0.5 wt % MMMs are around 18% higher and the PU-ZnO 1.0 wt % MMMs are about 20% lower than the selectivity of the neat PU. As mentioned earlier, the ZnO nanoparticles interact with the polar groups of the SS of PU during the phase separation and formation in the PU-ZnO ≤ 0.5 wt % MMM. As can be seen in Figure 8, the CO2/N2 and CO2/CH4 selectivity of the PU-ZnO MMM increases with operating pressure. This is due to the higher condensability of CO2 compared to N2 and CH4. Moreover, the selectivity of the PU-ZnO 0.75 wt % and 1.0 wt % MMM is less than that of the PU-ZnO 0.5 wt % MMM. This is due to the PU phase mixing and the rigid structure of the PU-ZnO ≥ 0.5 wt % MMM. The PU-ZnO 0.5 wt % MMM shows the best CO2 permeability of 91.33 barrer and the CO2/CH4 and CO2/N2 selectivity values of 19.76 and 61.75, respectively.

3.4.1. Effects of Nanoparticles on Separation Properties of the Membrane

The gas transport properties of organic-inorganic MMMs mainly depend on the membrane structure. The membrane structure largely depends on the surface contact between the nanoparticles and the polymer [40]. In the MMMs, the nanoparticles usually affect the membranes’ permeability in two major ways. One of them is disrupting the polymer chains, which increases the gas permeability. The other one is creating obstacles in the path of gas penetration that increase the length of the diffusion path and reduce gas permeability [41,42,43].

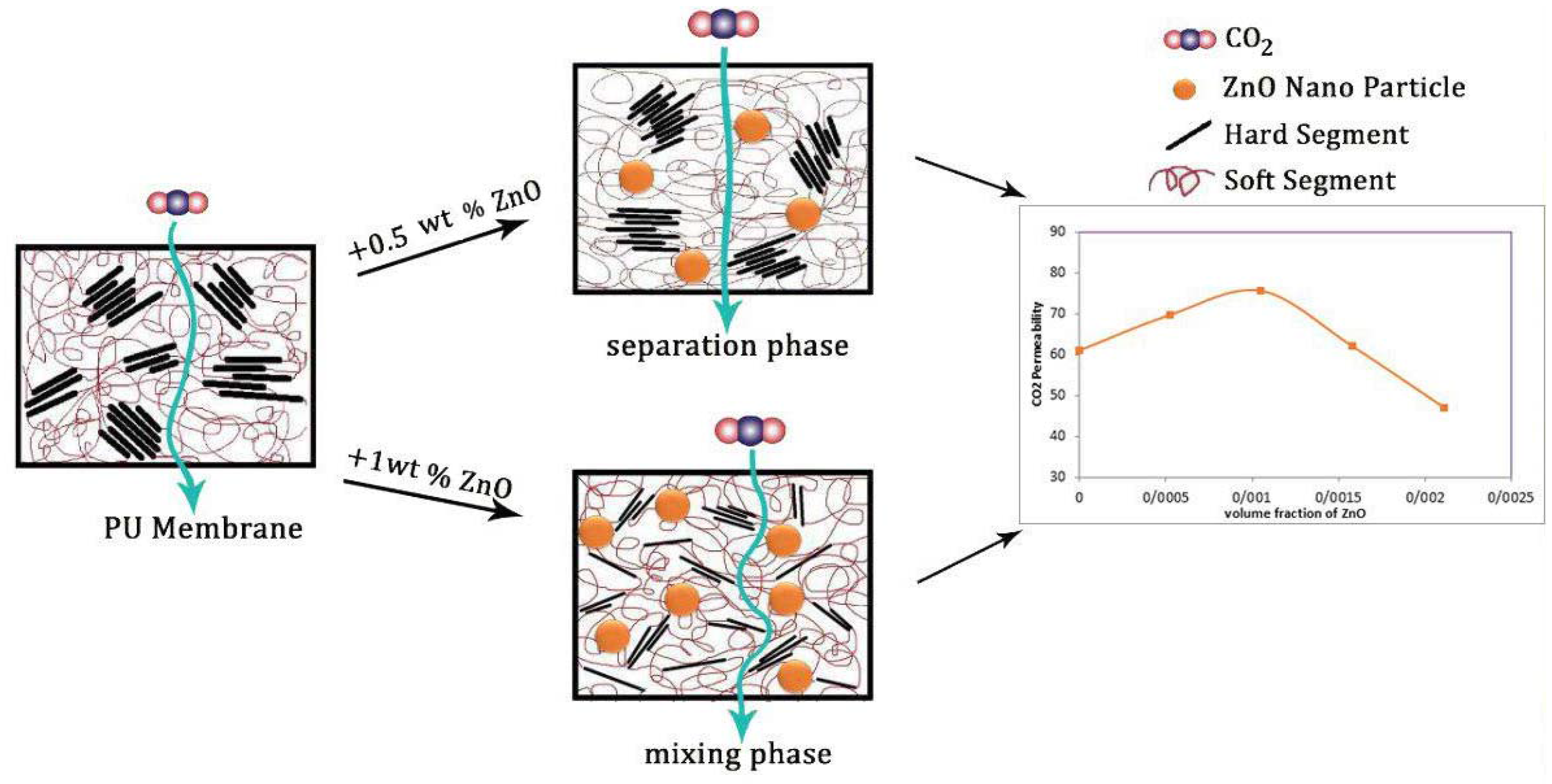

As mentioned earlier, the PU has two segments—soft and hard. It is worth quoting that only the soft segment affects the gas permeation [17,22]. From an entropy point-of-view, the metal oxide nanoparticles tend to be distributed in the HS. However, the IR and TGA results indicate that the nanoparticles were distributed in the SS of the PU polymer. In the proposed membranes, the amounts of ZnO nanoparticles in the polymer are 0.25, 0.50, 0.75, and 1.0 wt %, based on the polymer basis. The applied nanoparticles have a very small size with an average diameter in the range of 20–30 nm, which is almost the same as the distance between the polymer branches. Consequently, the nanoparticles are easily placed within the polymer matrix without creating more space. This proposed criterion of filling the pores of the polymer substrate by nanoparticles can also be confirmed by the AFM results.
According to the IR analysis, the mixing phase of the hard and soft segments occurs for the 1.0 wt % nanoparticle, added into the PU-ZnO membrane. This can be attributed to the dipole interactions of the ZnO nanoparticles with the functional groups of the SS. On the other hand, the interaction of nanoparticles with the PU can be described as follows.
When 0.5 wt % of the ZnO nanoparticle is added to the polymer (i.e., PU), the ZnO nanoparticle can affect the ester section, and, therefore, some links are established among the ZnO nanoparticles and the carbonyl groups. This leads to the phase separation of the SS and the HS. In fact, the nanoparticles occupy carbonyl sections and prevent the conjunction of these segments with the hard segments. Increasing the ZnO concentration up to 1.0% wt and increasing the created dipole moment in the SS provides the stretching for the absorption of amine groups in the HS to the SS of the PU. Therefore, the nanoparticles contribute to the formation of hydrogen bonds between the SS and the HS. Thus, it can be concluded that the addition of ZnO nanoparticles up to 0.5 wt % increase the permeability, while adding ZnO more than 0.5 wt % of the same decreases gas permeability.
By using the PU-ZnO 0.25 wt % and 0.5 wt % MMM, compared to the neat PU membrane, the CO2/N2 selectivity increases up to 18% (Figure 8), while, for the PU-ZnO 1.0 wt % MMM, it decreases about 20%. The CO2/CH4 selectivity is also increased up to 8% for the PU-ZnO 0.25 and 0.5 wt % membrane, while it is reduced by about 15% for the PU-ZnO 1.0 wt % MMM. As mentioned earlier, the gas permeability of the PU-ZnO 1.0 wt % MMM is lower than that of the neat PU.
The gas permeation results showed that both the permeability and selectivity were increased for the PU-ZnO 0.25 wt % and 0.5 wt %, and decreased for the PU-ZnO 1.0 wt % MMM. This can be explained as follows: (i) ZnO affinity to CO2 molecules, (ii) ZnO effect on the SS of the PU, and (iii) the effect of ZnO nanoparticles on the surface roughness of the MMMs. For the PU-ZnO 0.25 wt % and 0.5 wt % MMM, the effect of ZnO on the polymer SS (dipole-dipole interactions and IR results) caused the CO2 molecules to be absorbed more than the N2 and CH4 molecules. Therefore, both permeability and selectivity increased.

3.4.2. The Effect of Pressure on the Membranes

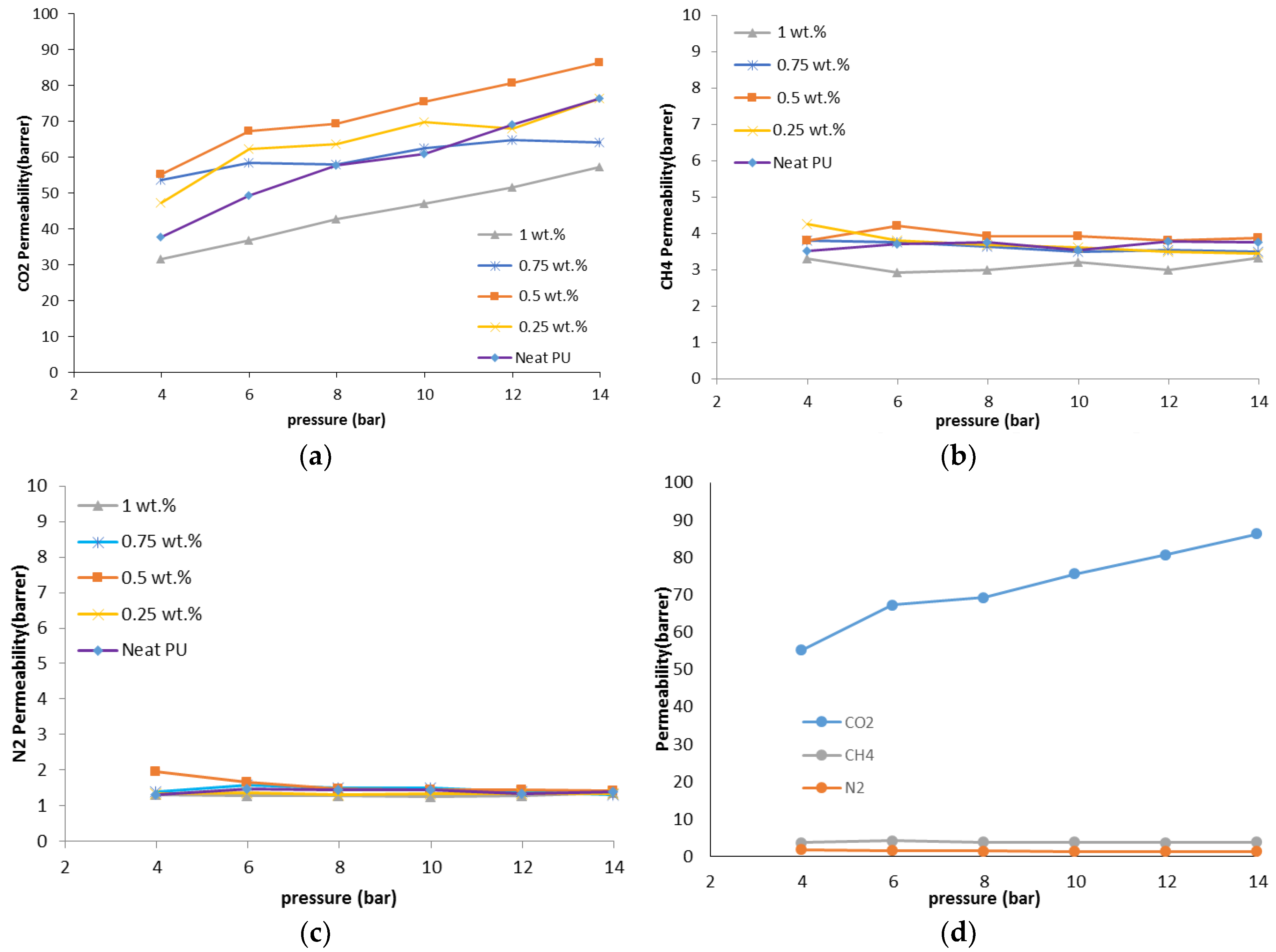

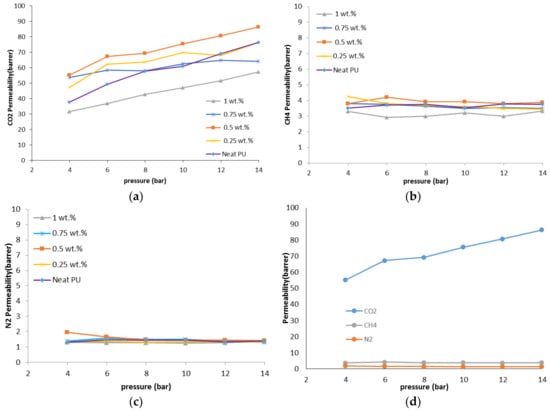

Figure 6 shows the effect of operating pressure on the permeability for the PU-ZnO-MMM. As could be observed, N2 permeability for the proposed PU-ZnO membranes decreases with the increase in the operating pressure. For all of the investigated membranes, CH4 permeability decreases slowly with the increasing operating pressure from 4 to 14 bar. However, CO2 permeability increases, almost linearly, with the increasing pressure in the same range.
These partial declines of the permeability with the operating pressure for N2 and CH4 gases demonstrates that there is no macroscopic porosity in the membrane structure. On the other hand, there is no increase in the permeability for the proposed gases (N2 and CH4), which can confirm the dense structure of the fabricated PU-ZnO MMM. Moreover, higher CO2 permeability at higher pressures can refer to its higher solubility, which is due to more absorption of CO2 molecules in the polymeric network, as well as high compressibility of this gas in the polymer membrane [44].
Moreover, by increasing the operating pressure, CO2 fills the space between the chains of the polymer network. This increases the gap between these bonds, which consequently increases the mobility of the polymeric chain [45], causes the plasticity of the membranes, and also increases the membrane permeability [46,47,48]. All of these facts can be translated to the higher permeability of CO2 with the operating pressure.
On the other hand, a decline in the permeability of N2 and CH4 gases can be explained as follows: an increase in the operating pressure compresses the membrane; hence, the free volume decreases. As the membrane is not porous, higher pressure can decrease the gas permeability. The CH4 molecules have a higher compressibility compared to the N2 molecules. Therefore, more CH4 molecules can be absorbed into the polymer chains than N2 molecules. This can be investigated as the main reason for the decline in nitrogen permeability.
In addition, the permeability equation has two important factors: pressure in the denominator and flux in the numerator. If pressure grows, both of them grow. The increase or decrease of the permeability depend on the contest of growth between these two factors. As it is mentioned earlier, the CO2 molecules affect the polymer structure’s plasticity and increase the flux, but the CH4 or N2 molecules cannot do this; hence, their permeability decreases with the increasing pressure.

3.4.3. Comparing the Performance of Synthesized MMMs and Other PU MMMs

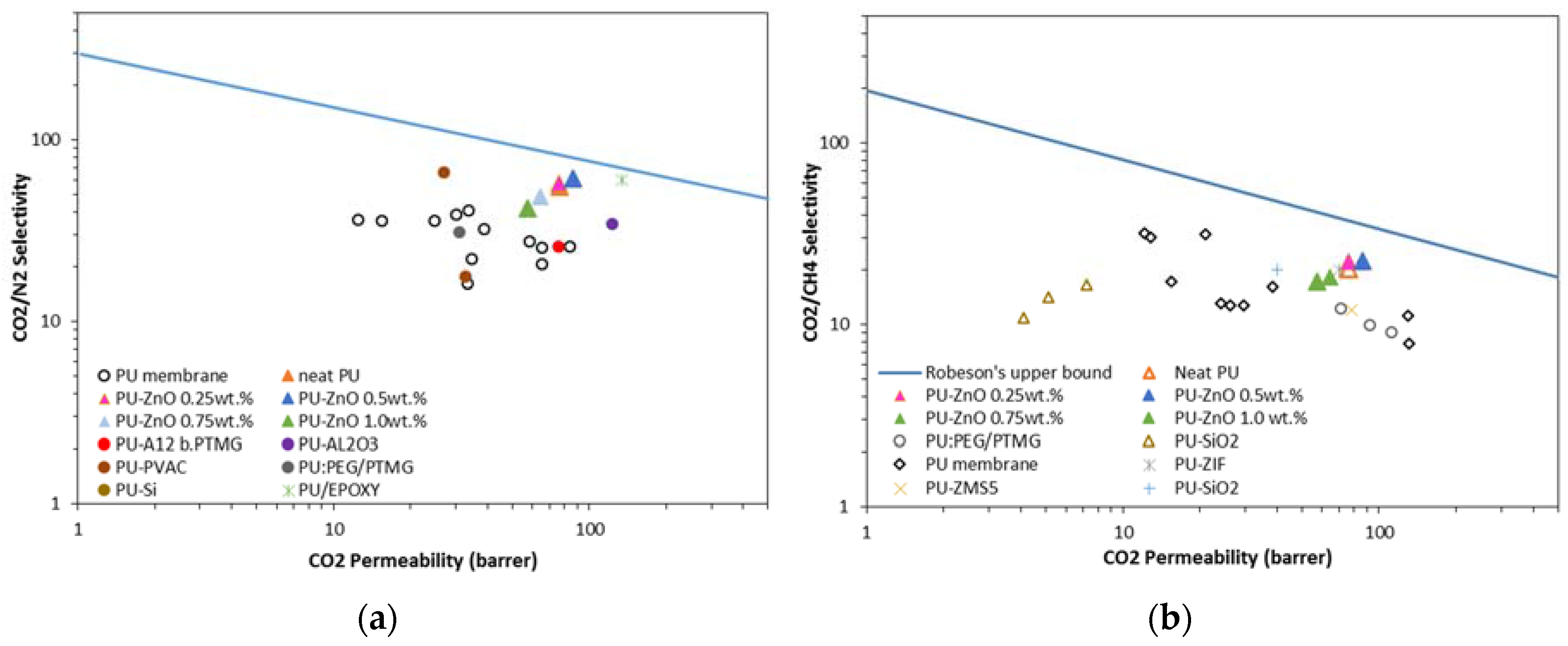

The obtained results for gas separation performance (e.g., permeability and selectivity) of the proposed PU-ZnO MMM are compared with the literature in Robeson’s upper bound limits [49]. The results are shown in Figure 9a,b. As observed, the CO2/N2 separation result for the PU-ZnO MMM approaches the Robeson line. Moreover, the data for PU-ZnO 0.5 wt % MMM is closer to the Robeson line, while the situation for the PU-ZnO 1.0 wt % MMM is farther. Although the permeability and selectivity data of the proposed MMMs do not cross the Robeson boundary, it could be observed that the incorporation of the ZnO nanoparticles into the polymeric matrix improves their performance.
Comparing the results for the CO2/N2 separation, that are shown in Figure 9a, revealed that the MMMs of this work had a higher permeability with good selectivity features compared to the PU membranes, incorporated with other nanoparticles in the literature. Figure 9b shows the CO2/CH4 separation in comparison with the Robeson line. As observed, the synthesized PU-ZnO MMM in this work have higher selectivity and permeability than that of the PU membranes, incorporated with other nanoparticles such as SiO2 [20], Al2O3 [19], ZIF [18], epoxy [17], and ZSM-5 [18]. All of these membranes have the same separation performance compared to the PU-ZnO MMM in this study.

4. Conclusions

The effects of a tiny amount of ZnO nanoparticles on the morphological and gas separation performance of the PU-based MMMs were investigated. The IR results of the neat and MMMs indicated that the incorporation of ZnO up to 0.5 wt % in the PU-ZnO MMM led to a phase separation in the membrane, while in the PU-ZnO 1.0 wt % MMM, it led to a phase mixing. The SEM images proved that the ZnO nanoparticles were dispersed well within the polymeric matrix. On the other hand, the AFM observation of the neat PU showed a rougher surface than that of the PU-ZnO MMM. The TGA indicated that the incorporation of ZnO to the PU had no thermal transience in the PU-ZnO MMM. The TGA results also demonstrated that the ZnO nanoparticles dispersed in the SS of the PU.
The gas permeation results showed that the permeability of N2, CO2, and CH4 through the PU-ZnO 0.5 wt % MMM was higher than that of the neat PU membrane. The CO2 permeability of PU-ZnO 0.5 wt % MMM was approximately 30% higher than that of the neat PU membrane, while it decreased by about 34% for the membrane containing 1% of ZnO nanoparticles.

Supplementary Materials

Supplementary File 1

Acknowledgments

The authors are grateful to the Gas Refining Company of the BidBoland and Energy Research Institute at the University of Kashan for supporting this work.

Author Contributions

Banafsheh Soltani conceived and designed and performed the experiments; Morteza Asghari and Banafsheh Soltani analyzed the data; Banafsheh Soltani and Morteza Asghari wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

PUPolyurethane
MMMMixed matrix membrane
SSSoft segments
HSHard segments
TGAThermogravimetric analysis
AFMAtomic-force microscopy
SEMScanning electron microscope
DMFN,N-dimethylformamide
PPermeabilitybarrers
QFluxcm3/s
AModule areacm2
pPressurebar
tThickness µm
TTemperature°C
(HBI)Hydrogen Bonding Index

References

  1. Azizi, N.; Mohammadi, T.; Behbahani, R.M. Synthesis of a PEBAX-1074/ZnO nanocomposite membrane with improved CO2 separation performance. J. Energy Chem. 2016, 26, 454–465. [Google Scholar] [CrossRef]
  2. Zhao, D.; Ren, J.; Li, H.; Hua, K.; Deng, M. Poly(amide-6-b-ethylene oxide)/SAPO-34 mixed matrix membrane for CO2 separation. J. Energy Chem. 2014, 23, 227–234. [Google Scholar] [CrossRef]
  3. Tang, J.; Sun, W.; Tang, H.; Radosz, M.; Shen, Y. Enhanced CO2 absorption of poly(ionic liquid)s. Macromolecules 2005, 38, 2037–2039. [Google Scholar] [CrossRef]
  4. Qiu, Y.; Ren, J.; Zhao, D.; Li, H.; Deng, M. Poly(amide-6-b-ethylene oxide)/[Bmim][Tf2N] blend membranes for carbon dioxide separation. J. Energy Chem. 2016, 25, 122–130. [Google Scholar] [CrossRef]
  5. Sadeghi, M.; Semsarzadeh, M.A.; Barikani, M.; Chenar, M.P. Gas separation properties of polyether-based polyurethane-silica nanocomposite membranes. J. Membr. Sci. 2011, 376, 188–195. [Google Scholar] [CrossRef]
  6. Hao, L.; Li, P.; Yang, T.; Chung, T.-S. Room temperature ionic liquid/ZIF-8 mixed-matrix membranes for natural gas sweetening and post-combustion CO2 capture. J. Membr. Sci. 2013, 436, 221–231. [Google Scholar] [CrossRef]
  7. Shindo, R.; Kishida, M.; Sawa, H.; Kidesaki, T.; Sato, S.; Kanehashi, S.; Nagai, K. Characterization and gas permeation properties of polyimide/ZSM-5 zeolite composite membranes containing ionic liquid. J. Membr. Sci. 2014, 454, 330–338. [Google Scholar] [CrossRef]
  8. Hassanajili, S.; Masoudi, E.; Karimi, G.; Khademi, M. Mixed matrix membranes based on polyetherurethane and polyesterurethane containing silica nanoparticles for separation of CO2/CH4 gases. Sep. Purif. Technol. 2013, 116, 1–12. [Google Scholar] [CrossRef]
  9. Kasahara, S.; Kamio, E.; Ishigami, T.; Matsuyama, H. Effect of water in ionic liquids on CO2 permeability in amino acid ionic liquid-based facilitated transport membranes. J. Membr. Sci. 2012, 415, 168–175. [Google Scholar] [CrossRef]
  10. Sun, H.; Wang, T.; Xu, Y.; Gao, W.; Li, P.; Niu, Q.J. Fabrication of polyimide and functionalized multi-walled carbon nanotubes mixed matrix membranes by in-situ polymerization for CO2 separation. Sep. Purif. Technol. 2017, 177, 327–336. [Google Scholar] [CrossRef]
  11. Fuoco, A.; Khdhayyer, M.R.; Attfield, M.P.; Esposito, E.; Jansen, J.C.; Budd, P.M. Synthesis and transport properties of novel MOF/PIM-1/MOF sandwich membranes for gas separation. Membranes 2017, 7, 7. [Google Scholar] [CrossRef] [PubMed]
  12. Goodrich, B.F.; de la Fuente, J.C.; Gurkan, B.E.; Lopez, Z.K.; Price, E.A.; Huang, Y.; Brennecke, J.F. Effect of water and temperature on absorption of CO2 by amine-functionalized anion-tethered ionic liquids. J. Phys. Chem. B 2011, 115, 9140–9150. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, H.; Kim, H.-G.; Kim, S.; Kim, S.S. Pdms-silica composite membranes with silane coupling for propylene separation. J. Membr. Sci. 2009, 344, 211–218. [Google Scholar] [CrossRef]
  14. Otvagina, K.V.; Mochalova, A.E.; Sazanova, T.S.; Petukhov, A.N.; Moskvichev, A.A.; Vorotyntsev, A.V.; Afonso, C.A.; Vorotyntsev, I.V. Preparation and characterization of facilitated transport membranes composed of chitosan-styrene and chitosan-acrylonitrile copolymers modified by methylimidazolium based ionic liquids for CO2 separation from CH4 and N2. Membranes 2016, 6, 31. [Google Scholar] [CrossRef] [PubMed]
  15. Perez, E.V.; Karunaweera, C.; Musselman, I.H.; Balkus, K.J.; Ferraris, J.P. Origins and evolution of inorganic-based and MOF-based mixed-matrix membranes for gas separations. Processes 2016, 4, 32. [Google Scholar] [CrossRef]
  16. Bistričić, L.; Baranović, G.; Leskovac, M.; Bajsić, E.G. Hydrogen bonding and mechanical properties of thin films of polyether-based polyurethane-silica nanocomposites. Eur. Polym. J. 2010, 46, 1975–1987. [Google Scholar] [CrossRef]
  17. Isfahani, A.P.; Sadeghi, M.; Dehaghani, A.H.S.; Aravand, M.A. Enhancement of the gas separation properties of polyurethane membrane by epoxy nanoparticles. J. Ind. Eng. Chem. 2016, 44, 67–72. [Google Scholar] [CrossRef]
  18. Amedi, H.R.; Aghajani, M. Gas separation in mixed matrix membranes based on polyurethane containing SiO2, ZSM-5, and ZIF-8 nanoparticles. J. Nat. Gas Sci. Eng. 2016, 35, 695–702. [Google Scholar] [CrossRef]
  19. Ameri, E.; Sadeghi, M.; Zarei, N.; Pournaghshband, A. Enhancement of the gas separation properties of polyurethane membranes by alumina nanoparticles. J. Membr. Sci. 2015, 479, 11–19. [Google Scholar] [CrossRef]
  20. Hassanajili, S.; Khademi, M.; Keshavarz, P. Influence of various types of silica nanoparticles on permeation properties of polyurethane/silica mixed matrix membranes. J. Membr. Sci. 2014, 453, 369–383. [Google Scholar] [CrossRef]
  21. Herrera-Alonso, J.M.; Marand, E.; Little, J.C.; Cox, S.S. Transport properties in polyurethane/clay nanocomposites as barrier materials: Effect of processing conditions. J. Membr. Sci. 2009, 337, 208–214. [Google Scholar] [CrossRef]
  22. Jiang, X.C.; Ding, J.; Kumar, A. Polyurethane-poly(vinylidene fluoride)(PU-PVDF) thin film composite membranes for gas separation. J. Membr. Sci. 2008, 323, 371–378. [Google Scholar] [CrossRef]
  23. Prisacariu, C. Structural studies on polyurethane elastomers. In Polyurethane Elastomers; Springer: Berlin, Germany, 2011; pp. 23–60. [Google Scholar]
  24. O’Sickey, M.J.; Lawrey, B.D.; Wilkes, G.L. Structure-property relationships of poly(urethane-urea)s with ultra-low monol content poly(propylene glycol) soft segments. Part II. Influence of low molecular weight polyol components. Polymer 2002, 43, 7399–7408. [Google Scholar] [CrossRef]
  25. Xiong, G.; Pal, U.; Serrano, J.; Ucer, K.; Williams, R. Photoluminesence and ftir study of ZnO nanoparticles: The impurity and defect perspective. Phys. Status Solidi C 2006, 3, 3577–3581. [Google Scholar] [CrossRef]
  26. Khosravi, A.; Sadeghi, M.; Banadkohi, H.Z.; Talakesh, M.M. Polyurethane-silica nanocomposite membranes for separation of propane/methane and ethane/methane. Ind. Eng. Chem. Res. 2014, 53, 2011–2021. [Google Scholar] [CrossRef]
  27. Tirouni, I.; Sadeghi, M.; Pakizeh, M. Separation of C3H8 and C2H6 from CH4 in polyurethane–zeolite 4 Å and ZSM-5 mixed matrix membranes. Sep. Purif. Technol. 2015, 141, 394–402. [Google Scholar] [CrossRef]
  28. Madhavan, K.; Reddy, B. Structure-gas transport property relationships of poly(dimethylsiloxane-urethane) nanocomposite membranes. J. Membr. Sci. 2009, 342, 291–299. [Google Scholar] [CrossRef]
  29. Chen, Y.; Yan, L.; Yuan, T.; Zhang, Q.; Fan, H. Asymmetric polyurethane membrane with in situ-generated nano-TiO2 as wound dressing. J. Appl. Polym. Sci. 2011, 119, 1532–1541. [Google Scholar] [CrossRef]
  30. Sadeghi, M.; Talakesh, M.M.; Ghalei, B.; Shafiei, M. Preparation, characterization and gas permeation properties of a polycaprolactone based polyurethane-silica nanocomposite membrane. J. Membr. Sci. 2013, 427, 21–29. [Google Scholar] [CrossRef]
  31. Sekhavatjou, M.; Moradi, R.; Hosseini Alhashemi, A.; Taghinia Hejabi, A. A new method for sulfur components removal from sour gas through application of zinc and iron oxides nanoparticles. Int. J. Environ. Res. 2014, 8, 273–278. [Google Scholar]
  32. Kim, D.; Jeon, K.; Lee, Y.; Seo, J.; Seo, K.; Han, H.; Khan, S. Preparation and characterization of UV-cured polyurethane acrylate/ZnO nanocomposite films based on surface modified ZnO. Prog. Org. Coat. 2012, 74, 435–442. [Google Scholar] [CrossRef]
  33. Semsarzadeh, M.A.; Ghalei, B. Characterization and gas permeability of polyurethane and polyvinyl acetate blend membranes with polyethylene oxide-polypropylene oxide block copolymer. J. Membr. Sci. 2012, 401, 97–108. [Google Scholar] [CrossRef]
  34. Seymour, R.; Estes, G.; Cooper, S.L. Infrared studies of segmented polyurethan elastomers. I. Hydrogen bonding. Macromolecules 1970, 3, 579–583. [Google Scholar] [CrossRef]
  35. Aguilar-Armenta, G.; Hernandez-Ramirez, G.; Flores-Loyola, E.; Ugarte-Castaneda, A.; Silva-Gonzalez, R.; Tabares-Munoz, C.; Jimenez-Lopez, A.; Rodriguez-Castellon, E. Adsorption kinetics of CO2, O2, N2, and CH4 in cation-exchanged clinoptilolite. J. Phys. Chem. B 2001, 105, 1313–1319. [Google Scholar] [CrossRef]
  36. Moaddeb, M.; Koros, W.J. Gas transport properties of thin polymeric membranes in the presence of silicon dioxide particles. J. Membr. Sci. 1997, 125, 143–163. [Google Scholar] [CrossRef]
  37. Zhou, H.; Chen, Y.; Fan, H.; Shi, H.; Luo, Z.; Shi, B. The polyurethane/SiO2 nano-hybrid membrane with temperature sensitivity for water vapor permeation. J. Membr. Sci. 2008, 318, 71–78. [Google Scholar] [CrossRef]
  38. Talakesh, M.M.; Sadeghi, M.; Chenar, M.P.; Khosravi, A. Gas separation properties of poly(ethylene glycol)/poly(tetramethylene glycol) based polyurethane membranes. J. Membr. Sci. 2012, 415, 469–477. [Google Scholar] [CrossRef]
  39. Bengtson, G.; Neumann, S.; Filiz, V. Membranes of polymers of intrinsic microporosity (PIM-1) modified by poly(ethylene glycol). Membranes 2017, 7, 28. [Google Scholar] [CrossRef] [PubMed]
  40. Chung, T.-S.; Jiang, L.Y.; Li, Y.; Kulprathipanja, S. Mixed matrix membranes (MMMs) comprising organic polymers with dispersed inorganic fillers for gas separation. Prog. Polym. Sci. 2007, 32, 483–507. [Google Scholar] [CrossRef]
  41. Kim, S.; Chen, L.; Johnson, J.K.; Marand, E. Polysulfone and functionalized carbon nanotube mixed matrix membranes for gas separation: Theory and experiment. J. Membr. Sci. 2007, 294, 147–158. [Google Scholar] [CrossRef]
  42. Semsarzadeh, M.A.; Ghalei, B. Preparation, characterization and gas permeation properties of polyurethane-silica/polyvinyl alcohol mixed matrix membranes. J. Membr. Sci. 2013, 432, 115–125. [Google Scholar] [CrossRef]
  43. Sanip, S.M.; Ismail, A.F.; Goh, P.S.; Soga, T.; Tanemura, M.; Yasuhiko, H. Gas separation properties of functionalized carbon nanotubes mixed matrix membranes. Sep. Purif. Technol. 2011, 78, 208–213. [Google Scholar] [CrossRef]
  44. Merkel, T.; Freeman, B.; Spontak, R.; He, Z.; Pinnau, I.; Meakin, P.; Hill, A. Ultrapermeable, reverse-selective nanocomposite membranes. Science 2002, 296, 519–522. [Google Scholar] [CrossRef] [PubMed]
  45. Li, X.; Jiang, Z.; Wu, Y.; Zhang, H.; Cheng, Y.; Guo, R.; Wu, H. High-performance composite membranes incorporated with carboxylic acid nanogels for CO2 separation. J. Membr. Sci. 2015, 495, 72–80. [Google Scholar] [CrossRef]
  46. Ismail, A.F.; Yaacob, N. Performance of treated and untreated asymmetric polysulfone hollow fiber membrane in series and cascade module configurations for CO2/CH4 gas separation system. J. Membr. Sci. 2006, 275, 151–165. [Google Scholar] [CrossRef] [Green Version]
  47. Sridhar, S.; Suryamurali, R.; Smitha, B.; Aminabhavi, T. Development of crosslinked poly(ether-block-amide) membrane for CO2/CH4 separation. Coll. Surf. A Physicochem. Eng. Asp. 2007, 297, 267–274. [Google Scholar] [CrossRef]
  48. Mousavi, S.A.; Sadeghi, M.; Motamed-Hashemi, M.M.Y.; Chenar, M.P.; Roosta-Azad, R.; Sadeghi, M. Study of gas separation properties of ethylene vinyl acetate (EVA) copolymer membranes prepared via phase inversion method. Sep. Purif. Technol. 2008, 62, 642–647. [Google Scholar] [CrossRef]
  49. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  50. Vakili, E.; Semsarzadeh, M.A.; Ghalei, B.; Khoshbin, M.; Nasiri, H. Characterization and gas permeation properties of synthesized polyurethane-polydimethylsiloxane/polyamide 12-b-polytetramethylene glycol blend membranes. Silicon 2016, 8, 75–85. [Google Scholar] [CrossRef]
  51. Guzmán-Lucero, D.; Palomeque-Santiago, J.F.; Camacho-Zúñiga, C.; Ruiz-Treviño, F.A.; Guzmán, J.; Galicia-Aguilar, A.; Aguilar-Lugo, C. Gas permeation properties of soluble aromatic polyimides based on 4-fluoro-4,4′-diaminotriphenylmethane. Materials 2015, 8, 1951–1965. [Google Scholar] [CrossRef]
  52. Dehghani, M.; Asghari, M.; Mohammadi, A.H.; Mokhtari, M. Molecular simulation and monte carlo study of structural-transport-properties of peba-mfi zeolite mixed matrix membranes for CO2, CH4 and N2 separation. Comput. Chem. Eng. 2017, 103, 12–22. [Google Scholar] [CrossRef]
  53. Alaslai, N.; Ma, X.; Ghanem, B.; Wang, Y.; Alghunaimi, F.; Pinnau, I. Synthesis and characterization of a novel microporous dihydroxyl-functionalized triptycene-diamine-based polyimide for natural gas membrane separation. Macromol. Rapid Commun. 2017. [Google Scholar] [CrossRef] [PubMed]
  54. Lu, S.-C.; Khan, A.L.; Vankelecom, I.F. Polysulfone-ionic liquid based membranes for CO2/N2 separation with tunable porous surface features. J. Membr. Sci. 2016, 518, 10–20. [Google Scholar] [CrossRef]
Membranes 07 00043 g001 550

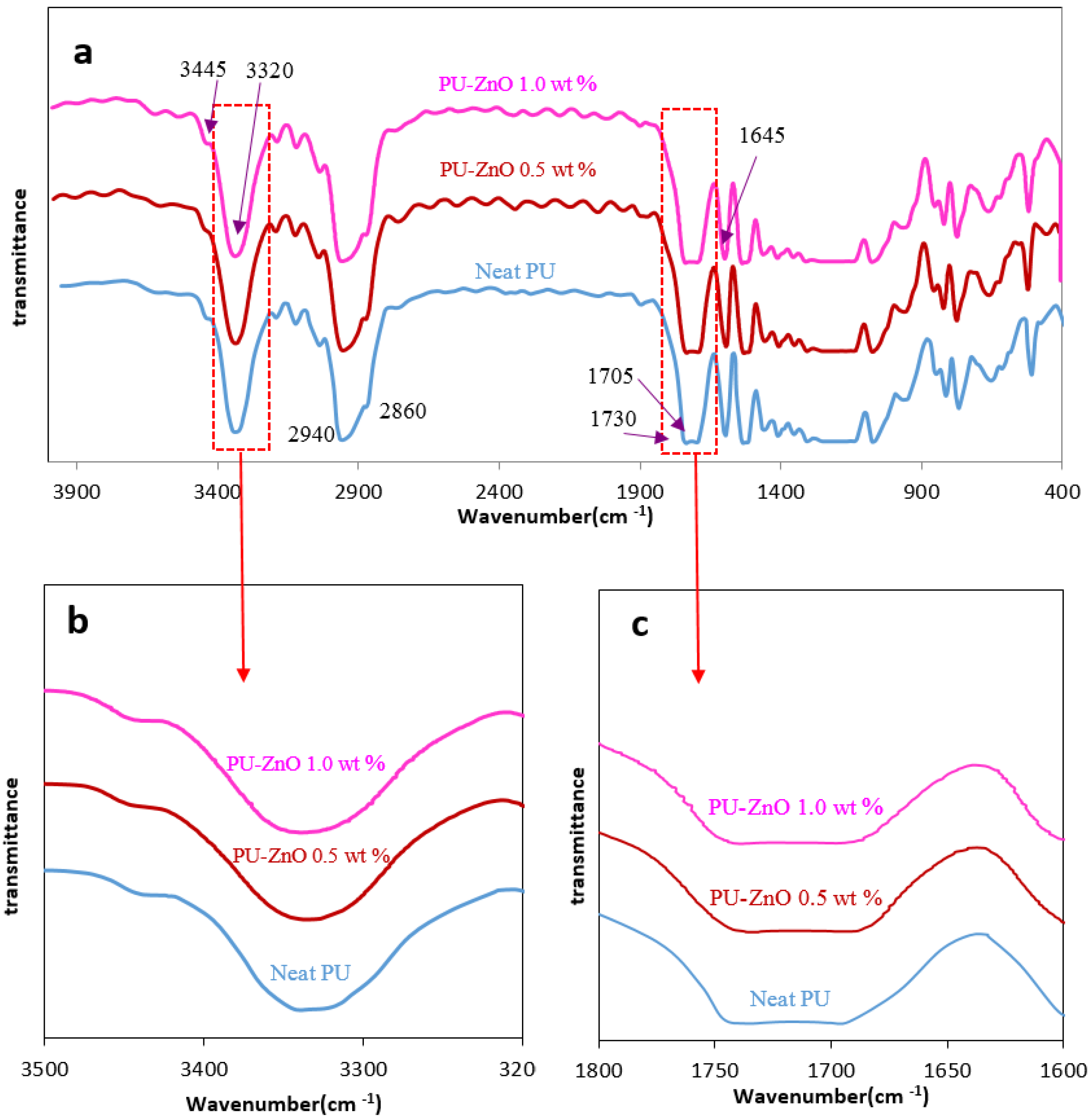

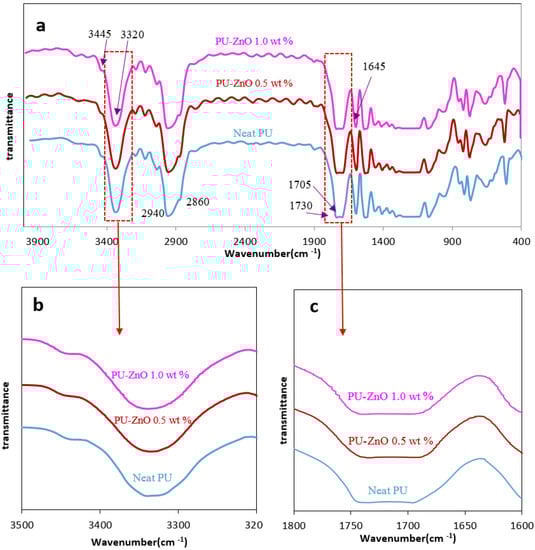

Figure 1. IR analysis (a) IR analysis of PU-ZnO MMMs; (b) NH segment; (c) C=O segment.
Figure 1. IR analysis (a) IR analysis of PU-ZnO MMMs; (b) NH segment; (c) C=O segment.
Membranes 07 00043 g001
Membranes 07 00043 g002 550
Figure 2. SEM surface images of MMMs (a) neat PU; (b) PU-ZnO 0.5 wt %; (c) PU-ZnO 1.0 wt % and cross section; (d) PU-ZnO 0.5 wt %; (e) PU-ZnO 1.0 wt %; (f) PU-ZnO 1.0 wt %.
Figure 2. SEM surface images of MMMs (a) neat PU; (b) PU-ZnO 0.5 wt %; (c) PU-ZnO 1.0 wt % and cross section; (d) PU-ZnO 0.5 wt %; (e) PU-ZnO 1.0 wt %; (f) PU-ZnO 1.0 wt %.
Membranes 07 00043 g002
Membranes 07 00043 g003 550

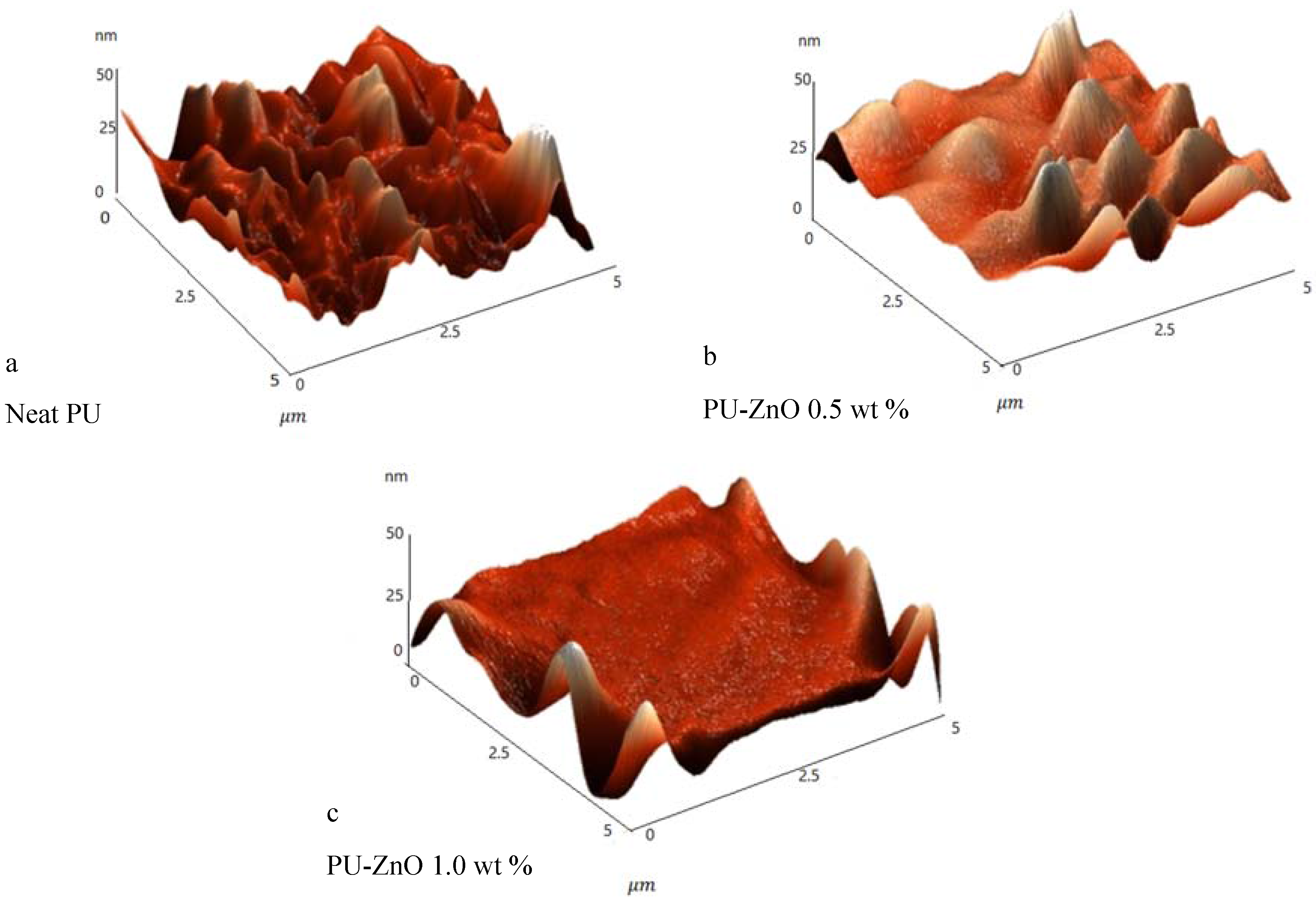

Figure 3. AFM images of the MMMs (a) neat PU; (b) PU-ZnO 0.5 wt %; (c) PU-ZnO 1.0 wt %.
Figure 3. AFM images of the MMMs (a) neat PU; (b) PU-ZnO 0.5 wt %; (c) PU-ZnO 1.0 wt %.
Membranes 07 00043 g003
Membranes 07 00043 g004 550

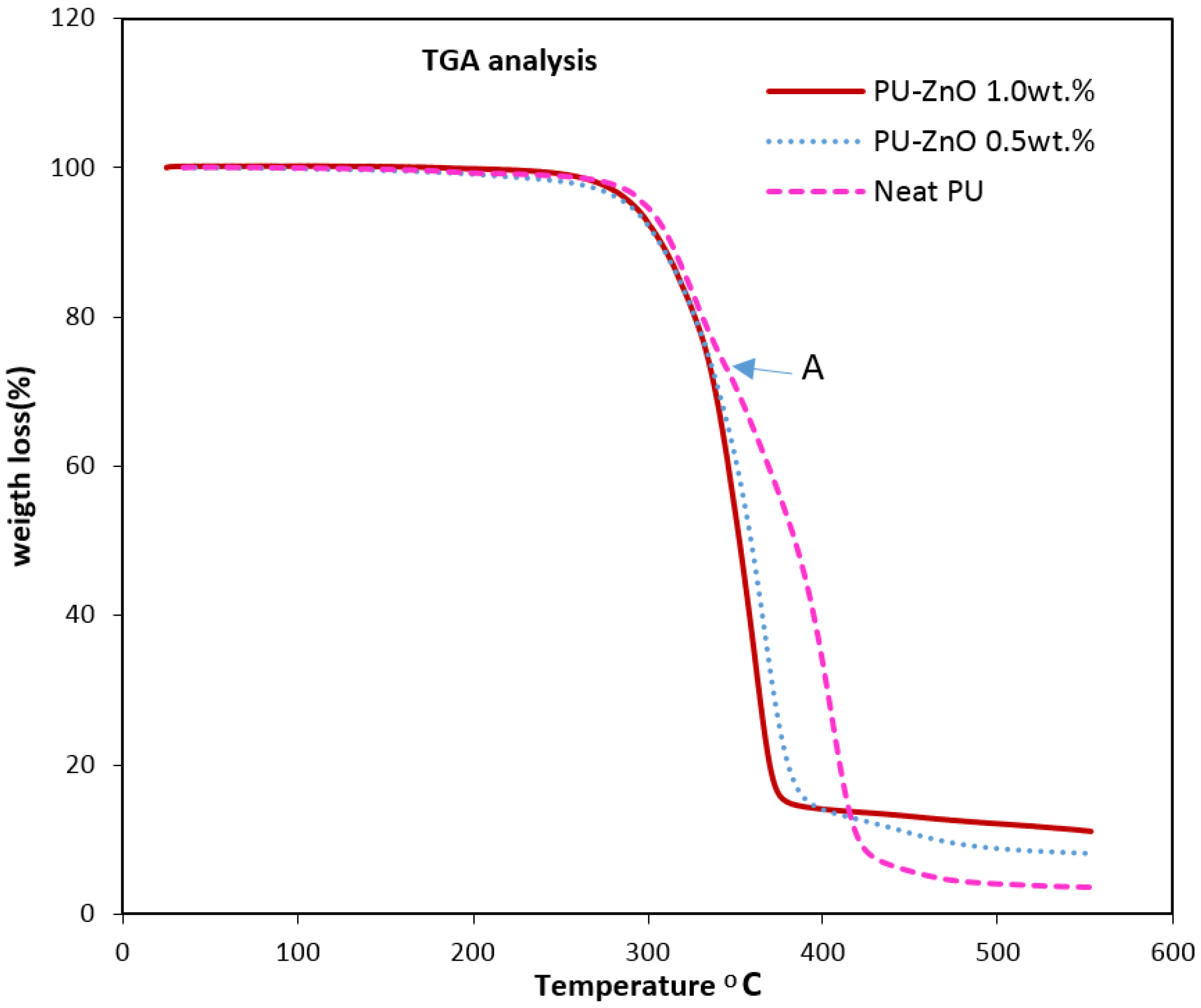

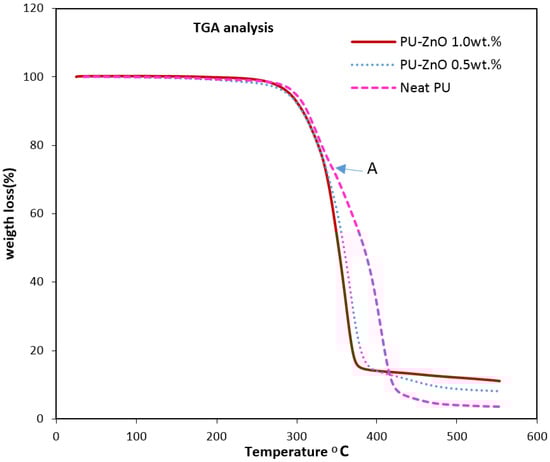

Figure 4. TGA analysis of PU and PU-ZnO MMMs.
Figure 4. TGA analysis of PU and PU-ZnO MMMs.
Membranes 07 00043 g004
Membranes 07 00043 g005a 550Membranes 07 00043 g005b 550

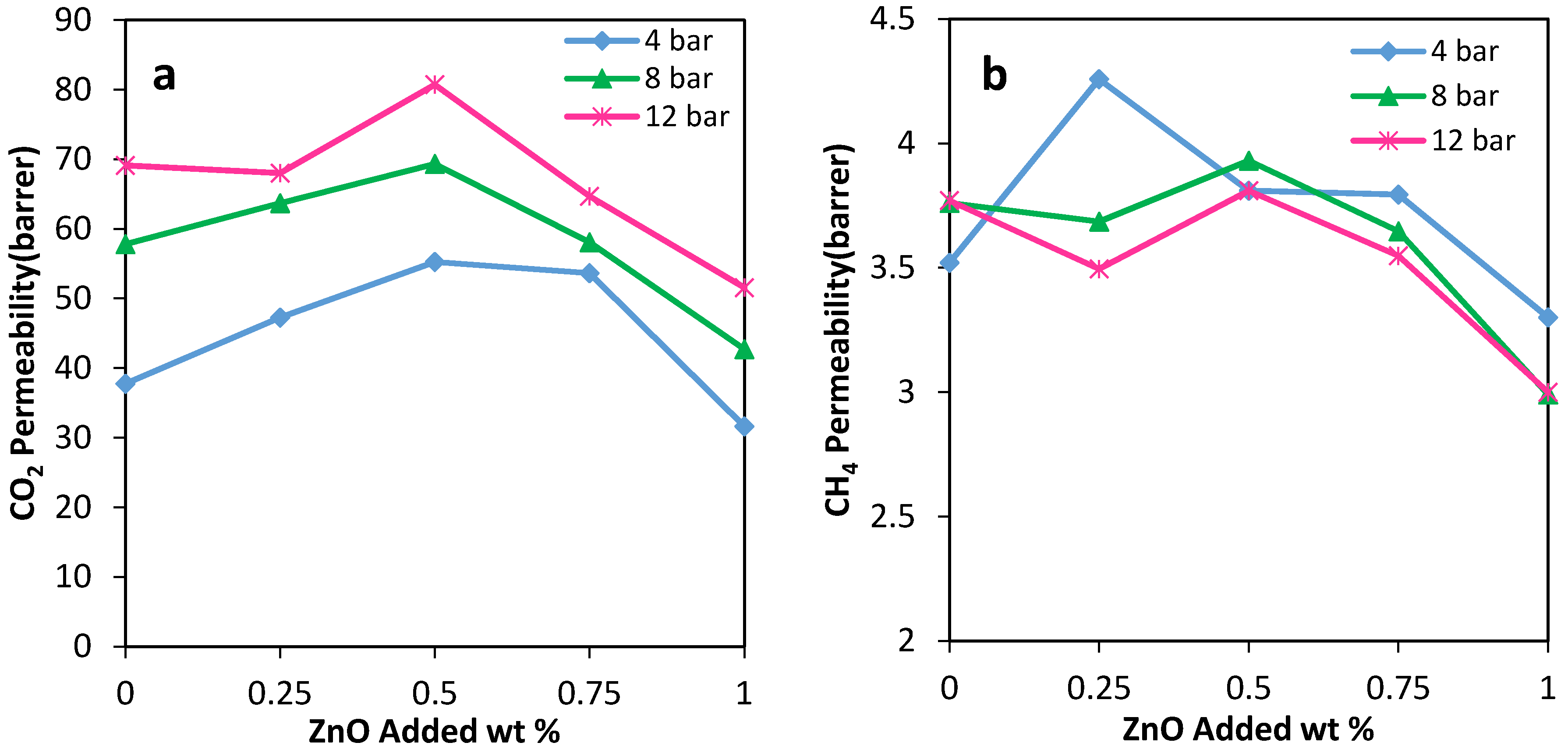

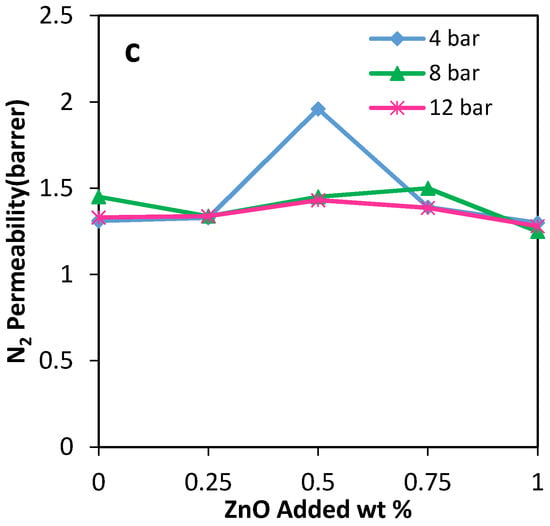

Figure 5. (a) CO2; (b) CH4 and (c) N2 permeabilities through the MMMs vs. ZnO nanoparticles loading in PU.
Figure 5. (a) CO2; (b) CH4 and (c) N2 permeabilities through the MMMs vs. ZnO nanoparticles loading in PU.
Membranes 07 00043 g005aMembranes 07 00043 g005b
Membranes 07 00043 g006 550
Figure 6. (a) CO2; (b) CH4 and (c) N2 permeabilities through the MMMs vs. pressure; (d) pure gas permeabilities of PU-ZnO 0.5 wt %.
Figure 6. (a) CO2; (b) CH4 and (c) N2 permeabilities through the MMMs vs. pressure; (d) pure gas permeabilities of PU-ZnO 0.5 wt %.
Membranes 07 00043 g006
Membranes 07 00043 g007 550
Figure 7. Effect of ZnO nanoparticle on the membrane permeability.
Figure 7. Effect of ZnO nanoparticle on the membrane permeability.
Membranes 07 00043 g007
Membranes 07 00043 g008 550
Figure 8. (a) CO2/N2 and (b) CO2/CH4 selectivities of PU-ZnO MMMs.
Figure 8. (a) CO2/N2 and (b) CO2/CH4 selectivities of PU-ZnO MMMs.
Membranes 07 00043 g008
Membranes 07 00043 g009 550
Figure 9. Comparison of CO2/N2 (a) and CO2/CH4 (b) separation performance of PU-ZnO MMMs in Robeson’s upper bound [19,20,33,38,42,50,51,52,53,54].
Figure 9. Comparison of CO2/N2 (a) and CO2/CH4 (b) separation performance of PU-ZnO MMMs in Robeson’s upper bound [19,20,33,38,42,50,51,52,53,54].
Membranes 07 00043 g009
Table
Table 1. PU MMMs with different nanoparticle for gas separation.
Table 1. PU MMMs with different nanoparticle for gas separation.
Type of PUApplicationNano ParticleNano Particle Content (wt %)Refs
PolyurethaneCH4, C2H6Silica0, 2.6, 6, 11.5[8]
PolyurethaneCH4, C2H6zeolite 4A0, 10, 20[27]
Polyester urethaneCO2, CH4silica-Un5, 10, 15[20]
Polyester urethaneCO2, CH4silica-OS15, 10, 15[20]
Polyester urethaneCO2, CH4silica-PDMS5, 10, 15[20]
PolyurethaneCO2, CH4, O2, N2Alumina0, 10, 20, 30[19]
Polydimethylsiloxane (PDMS)–PUCO2, O2, N2POSS5, 10, 15, 20, 25[28]
PolyurethaneH2, O2, N2TiO225[29]
Polycaprolactone based polyurethaneCO2, CH4, O2, N2silica0, 2.5, 5, 10, 20, 30[30]
PolyurethaneHe, CH4, O2, N2clay10, 20, 30[21]
Table
Table 2. Major infrared bands of PUs.
Table 2. Major infrared bands of PUs.
Wavenumber (cm−1)Assignment
3445N–H stretching (free)
3320–3305N–H stretching (hydrogen bonded)
2940Asymmetric C–H stretching
2860Symmetric C–H stretching
1730C=O stretching (free)
1710–1705C=O stretching (hydrogen bonded—soft segment)
1645–1635C=O stretching (hydrogen bonded—hard segment)
Table
Table 3. Hydrogen bonding index (HBI) amounts of PU MMMs.
Table 3. Hydrogen bonding index (HBI) amounts of PU MMMs.
MembraneNeat PUPU-ZnO 0.5 wt % MMMPU-ZnO 1.0 wt % MMM
HBI1.0891.3770.808
Table
Table 4. Pure gas permeabilities of the MMMs at different pressures.
Table 4. Pure gas permeabilities of the MMMs at different pressures.
SamplePermeability (Barrer)
Thickness t (µm)4 Bar8 Bar12 Bar
PN2PCH4PCO2PN2PCH4PCO2PN2PCH4PCO2
Neat PU35 ± 21.31 ± 0.193.52 ± 0.1337.73 ± 0.101.45 ± 0.173.76 ± 0.1157.79 ± 0.081.33 ± 0.163.77 ± 0.1169.09 ± 0.07
PU-ZnO 0.25 wt %35 ± 21.33 ± 0.264.26 ± 0.1347.25 ± 0.151.32 ± 0.263.69 ± 0.1163.68 ± 0.141.34 ± 0.253.50 ± 0.1067.98 ± 0.13
PU-ZnO 0.50 wt %36 ± 21.96 ± 0.283.81 ± 0.1455.23 ± 0.171.48 ± 0.273.93 ± 0.1269.31 ± 0.161.43 ± 0.243.81 ± 0.1180.72 ± 0.17
PU-ZnO 0.75 wt %38 ± 21.39 ± 0.283.79 ± 0.1453.64 ± 0.171.50 ± 0.263.65 ± 0.1158.07 ± 0.151.39 ± 0.253.55 ± 0.1064.70 ± 0.15
PU-ZnO 1.0 wt %38 ± 21.30 ± 0.283.30 ± 0.1331.64 ± 0.151.28 ± 0.252.99 ± 0.1142.72 ± 0.141.37 ± 0.243.00 ± 0.1051.57 ± 0.14
Table
Table 5. Kinetic diameter and condensability of gases.
Table 5. Kinetic diameter and condensability of gases.
GasKinetic Diameter (Å)Condensability (K)Polarizability (Å)
CO23.301951.9
CH43.801492.6
N23.64711.4

Share and Cite

MDPI and ACS Style

Soltani, B.; Asghari, M. Effects of ZnO Nanoparticle on the Gas Separation Performance of Polyurethane Mixed Matrix Membrane. Membranes 2017, 7, 43. https://doi.org/10.3390/membranes7030043

AMA Style

Soltani B, Asghari M. Effects of ZnO Nanoparticle on the Gas Separation Performance of Polyurethane Mixed Matrix Membrane. Membranes. 2017; 7(3):43. https://doi.org/10.3390/membranes7030043

Chicago/Turabian Style

Soltani, Banafsheh, and Morteza Asghari. 2017. "Effects of ZnO Nanoparticle on the Gas Separation Performance of Polyurethane Mixed Matrix Membrane" Membranes 7, no. 3: 43. https://doi.org/10.3390/membranes7030043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
