A Comparative Study on the Addition Methods of TiO₂ Sintering Aid to the Properties of Porous Alumina Membrane Support

Abstract

TiO₂ is usually used as a sintering aid to lower the sintering temperature of porous alumina membrane support. Two ways of the addition of TiO₂ are chosen: in-situ precipitation and in-situ hydrolysis. The results show that the distribution status of TiO₂ has an important effect on the property of porous alumina membrane support. In in-situ hydrolysis method, the nano-meter scale TiO₂ distributes evenly on the alumina particles’ surface. The bending strength of the support increases sharply and the pore size distribution changes more sharply along with the content of TiO₂ which slightly increases from 0.3 wt.% to 0.4 wt.%. The distribution of the nano-meter scale TiO₂ is not so even added by in-situ precipitation method. Neither the bending strength nor the pore size distribution of the support is worse than that of the support added by in-situ hydrolysis even if the content of TiO₂ is high to 2 wt.%. The permeating flux has a similar tendency. Consequently, the porous alumina membrane support has the porosity of 30.01% and the bending strength of 77.33 MPa after sintering at 1650 °C for 2 h with the optimized TiO₂ content of 0.4 wt.% added by the in-situ hydrolysis method.

1. Introduction

Porous alumina membranes have been widely used in the fields of gas and liquid filtration, purification, separation, thermal insulation and other sides with the advantages of their high porosity, high temperature resistance, good corrosion resistance and high chemical stability [1,2,3,4]. However, porous alumina requires the sintering temperature of above 1700 °C due to its melting point is 2050 °C. Under this condition, the abnormal grain growth of alumina grains results easily in the decrease of the bending strength and the widening of the pore size distribution [5,6,7]. Generally, a suitable porosity (3540%) is preferred to the porous alumina membrane support to balance the high filtration flux and the high bending strength in practical applications. Currently, the mechanical properties of the alumina supports are improved by increasing the sintering temperature, prolonging sintering time, or using sintering aids and so on [8,9]. Under the view of engineering, it has been proved that adding a sintering aid is a simple and feasible way [10,11] which could balance the bending strength and the porosity. TiO₂ is chosen because TiO₂ has similar lattice parameters to Al₂O₃. The solid solution can be easily formed during the sintering process. At the same time, the lattice defects are generated in the solid solution due to the valence difference, which promotes the mass transport and reduces the sintering process. As a result, the required sintering temperature can be reduced if the mechanical strength can be maintained [12,13].

The mixing of Al₂O₃ and a small amount of TiO₂ (<2 wt.%) is not uniform by ball milling, which results in a bad bending strength, porosity and wide pore size distribution [14]. In the present work, the adding of TiO₂ by the in-situ precipitation and the in-situ hydrolysis method were chosen to make the mixing of small amount of TiO₂ (<2 wt.%) with coarse alumina grains (ca. 29 μm). The comparative study was carried out to understand the effect of the TiO₂ distribution on the sintering behavior and the mechanical strength of the porous alumina membrane supports.

2. Materials and Methods

2.1. Samples Preparation

Alumina (α-Al₂O₃) powders (Luoyang, China, Purify ≥99%) were used without further treatment. The median sizes (d₅₀) of the three alumina powders (coarse, medium and fine particles) are 29 μm, 8.2 μm and 1.6 μm, which are denoted as W40, W10 and W1, respectively. The particle size distributions of the three alumina powders are shown in Figure 1.

2.1.1. In-Situ Precipitation Method

The addition process of TiO₂ by in-situ precipitation method was as follows: the three kinds of particle sizes of alumina powders were mixed with a ball mill at 150 rpm for 2 h with weight ratio of 7:2.4:0.6. In the ball milling, the mass ratio of powder/alumina ball/alcohol is 1:1:1.8. The obtained suspension was dried directly in an oven at 70 °C for overnight. Urea was dissolved into water and then mixed and stirring with in Ti(SO₄)₂ solution (0.25 mol/L) at ice-water bathing. The mole ratio of urea/Ti(SO₄)₂ is 2.2:1. The urea-Ti(SO₄)₂ solution mixed and covered just the alumina mixture in the beaker. The beaker was moved directly into oven at 85 °C. Nano-TiO₂ was generated based on the reaction: CO(NH₂)₂ + 3H₂O → 2NH₃·H₂O + CO₂↑, NH₃·H₂O → NH₄⁺ + OH⁻, Ti⁴⁺ + 4OH⁻ → Ti(OH)₄↓, Ti(OH)₄ → TiO₂ + H₂O. After dried directly, the alumina-Ti(OH)₄ precipitation was shaped into the rectangular bars of 30 mm × 9 mm × 5 mm (L × h × w) by dry pressing(12 MPa). Ti(OH)₄ changed into nano TiO₂ during the sintering without mass losses. The bars were finally sintered at 1650 °C for 2 h to form the porous alumina membrane supports. The added Ti(SO₄)₂ is calculated based on the nano TiO₂ in the membrane support whose content is in the range of 0.6–2 wt.%.

2.1.2. In-Situ Hydrolysis Method

The preparation processes were similar with those in the in-situ precipitation method. The difference was that the rectangular alumina bars were firstly shaped and pre-sintered at 1350 °C. The obtained porous bars were fully immersed in the solution of tetrabutyl titanate in alcohol-water (0.7 mol/L) following the drying at 80 °C. The bars were finally re-sintered at 1650 °C for 2 h to form the porous alumina membrane supports. The nano TiO₂ was generated based the reaction that Ti(OC₄H₉)₄ + 4H₂O → Ti(OH)₄ + 4C₄H₉OH, After calcination, Ti(OH)₄ changed into nano TiO₂. The added Ti(OC₄H₉)₄ is calculated based on the nano TiO₂ in the membrane support whose content is in the range of 0.3–0.7 wt.%.

2.2. Characterization

The particles coated by nano TiO₂ were observed using a Transmission Electronic Microscope (TEM, JEOL-2010, Japan Electronics Co., Ltd., Tokyo, Japan). The sample was prepared by mashing the alumina grains coated by nano TiO₂ in the mortar until the grains were suitable for TEM observation.

The pore size distribution and the porosity of the sintered compacts were measured by Mercury Intrusion Porosimetry (Autopore IV9500, Micromeritics Instrument Corporation, Norcross, GA, USA).

The bending strength was measured by the three-point bending method at room temperature using a universal material testing machine (WDW-30, Xi’an Letry Machine Testing Co. Ltd., Xi’an, China), with a span length of 20 mm and loading speed of 0.2 mm/min. Five samples were measured and the data were averaged as the bending strength. The fracture surfaces of the sintered ceramic supports were observed by means of Field Emitting Scanning Electron Microscope (FE-SEM, JSM-6700F, JEOL, Japan Electronics Co., Ltd., Tokyo, Japan).

3. Results and Discussion

3.1. Effect of the Adding Method of TiO₂ on the Bending Strength of Membrane Supports

Figure 2 shows the bending strength of the porous alumina membrane supports with different contents of TiO₂ added by in-situ precipitation and in-situ hydrolysis method. As it can be seen, the bending strength increases firstly and then decreases with the increasing of TiO₂ content. It is verified that the addition of TiO₂ contributes to improve the bending strength of the membrane support no matter the addition method, which is agree with our previous work [14]^. It can be explained that TiO₂ reacts with alumina and forms the solid solution [15]. The fine TiO₂ particles migrate to the alumina neck and the defect in the solid solution promotes the mass transfer to the neck area. The enlarged neck area increases the bending strength of the membrane supports without decreasing the porosity [16,17,18]. However, the support with TiO₂ added by in-situ hydrolysis has a higher bending strength than that obtained by in-situ precipitation despite less TiO₂ content. The difference is explained by the proposal that the uneven distribution of nano TiO₂ in porous alumina support, as shown in Figure 3.

In precipitation process, the reaction 2CO(NH₂)₂ + 6H₂O + Ti⁴⁺ → Ti(OH)₄ + 4NH₄⁺ + 2CO₂↑ is carried quickly out in the solution and the obtained Ti(OH)₄ is in flocculation status. In fact, alumina particles is mixed with the Ti(OH)₄ precipitation. There is no strong interaction between alumina particles and Ti(OH)₄. After calcination, nano TiO₂ is also in less flocculation status and distributes randomly among alumina particles. However, in hydrolysis process, the reaction Ti(OC₄H₉)₄ + 4H₂O → Ti(OH)₄ + 4C₄H₉OH is carried out step by step. The obtained Ti(OH)₄ (sol) is free and tends to be adsorbed on the alumina particles surface. A coating maybe formed.

Figure 4 shows the TEM image of alumina particles surface with 0.4 wt.% TiO₂ added. There is a nano-TiO₂ thin layer with thickness of 50–150 nm covering the alumina particle surface, which is verified by the proposal shown in Figure 3 and is reasonable. Obviously, the hydrolysis process makes nano-TiO₂ distributes more even. It also means that more nano-TiO₂ act as the sintering aid.

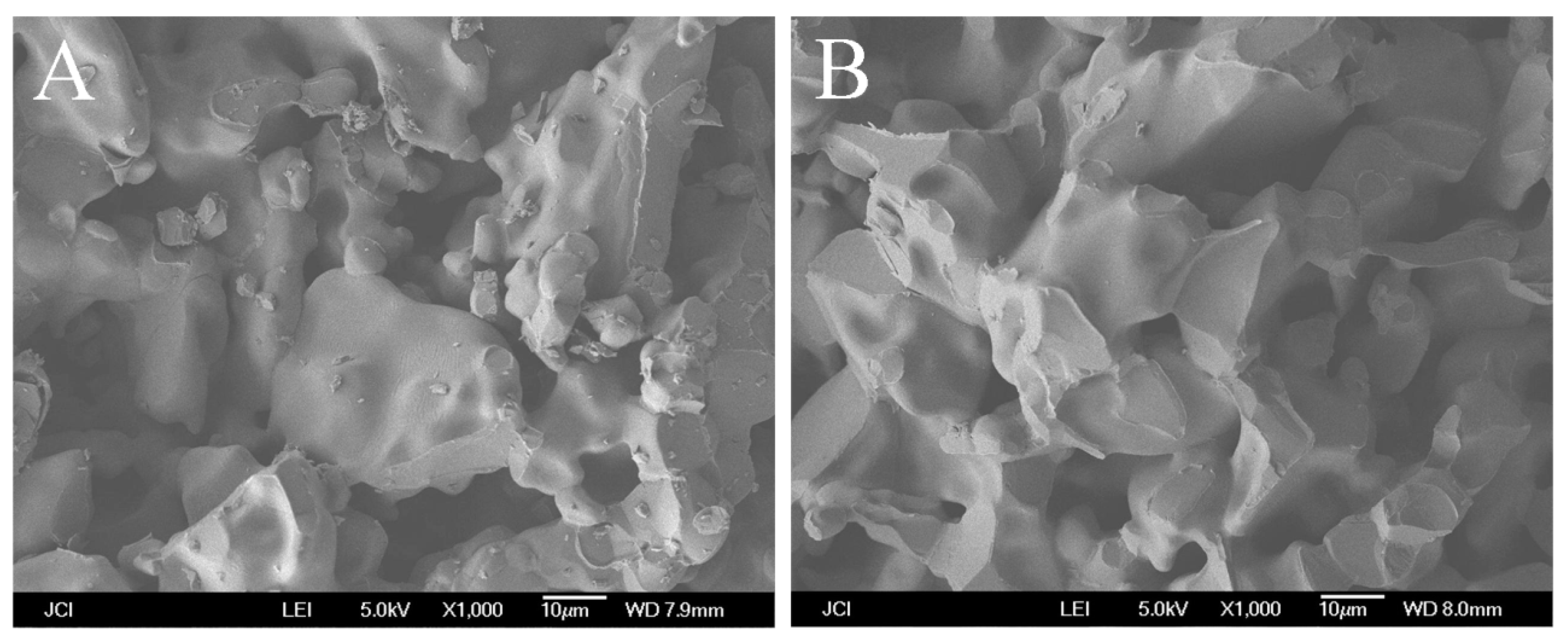

The bending strength is higher for the alumina support with nano-TiO₂ added by the hydrolysis process if the TiO₂ added is the same. Figure 5 shows the SEM images of the support with 0.6 wt.% of TiO₂ added. As shown in Figure 5A, there are still a lot of fine TiO₂ particles remaining over the supports with TiO₂ added by in-situ precipitation method. However, this is not shown in Figure 5B. More importantly, many volcanic ring-like structures can be found in the fractural section. It is the remaining of the enlarged neck area of alumina grains aggregated by TiO₂. The annular structure reflects the neck area, which has an important effect on the bending strength of the porous alumina support. The wider the neck area is, the higher the bending strength of the support.

However, increasing the content of TiO₂ added directly does not contribute to the bending strength of the porous alumina support. Figure 6 shows the SEM image of the supports with 2.0 wt.% TiO₂ added by in-situ precipitation and 0.4 wt.% TiO₂ added by in-situ hydrolysis method.

As shown in Figure 6B, some of TiO₂ grains fill in the interspace among the porous alumina support, which decrease the porosity of the support. The TiO₂ grains undergo the chemical reaction with Al₂O₃ at over 1500 °C but the decomposing again during cooling to ambient temperature. Some of TiO₂ grains locate at the interval among the porous support and separate two alumina particles. The bending strength decreases accordingly because the theoretical strength of TiO₂ is lower than that of Al₂O₃. During the cooling process, the decomposition Al₂TiO₅ will result in the micro-cracks among the alumina particles, which weaken the bending strength of the support. The inter-granular fracture exists in Figure 6A,B, however, the trans-granular fracture exists in Figure 6C,D with TiO₂ added by in-situ hydrolysis, which agree with the reported by P, Monash [19]. Therefore, the distribution of TiO₂ changes the fracture mechanism and has the effect on the bending strength of the support.

3.2. Effect of the Adding Methods of TiO₂ on the Pore Size Distribution

The pore size distribution of the porous membrane support depends on the particles size and the accumulation of the raw powders. For the given raw powders, the pore size distribution changes if the uniformity of the powders accumulation (pore structure for the porous ceramic) is bad. Figure 7 shows the pore size distribution of the supports with 0.6 wt.% TiO₂ added by in-situ precipitation and in-situ hydrolysis. It can be seen that there are the similar pore size distributions no matter the adding methods, which is decided by the particle size of alumina powders. The tiny difference is that the pore size distribution of support with TiO₂ added by in-situ precipitation is relatively wider and the curve shows a double-peak. It is reflected that the pore structure is not even. As discussed above, the uneven pore structure of the porous alumina support originates in the uneven distribution of the nano TiO₂.

Figure 8 shows the pore size distribution of the supports with different contents of TiO₂ added by in-situ hydrolysis. The pore size distributions are close to overlapping. The tiny difference is that the mean pore size increases from 4.167 μm to 4.601 μm with the increase of the TiO₂ content. At the same time, the pore size distributions of the supports changes into narrow. It may be explained by the observation that the increased TiO₂ enlarges the neck area and makes the pore structure sleek. The measured pore sizes change large based on mercury intrusion porosimetry because mercury can be easily intruded.

3.3. Effect of the Adding Methods of TiO₂ on the Permeating Flux

Figure 9 shows the water-permeating flux of the supports with different contents of TiO₂ added by in-situ hydrolysis and in-situ precipitation method. As it can be seen, the water flux of the supports added TiO₂ by in-situ hydrolysis has the linearly relationship with the pressure. The water permeability keeps a constant in rang of 0.10–0.3 MPa. However, the water permeability of the supports added TiO₂ by in-situ precipitation decreases slightly with the trans-membrane pressure. It implies that the support has a high permeating resistance due to the high tortuosity [20], which is also verified by images shown in Figure 5.

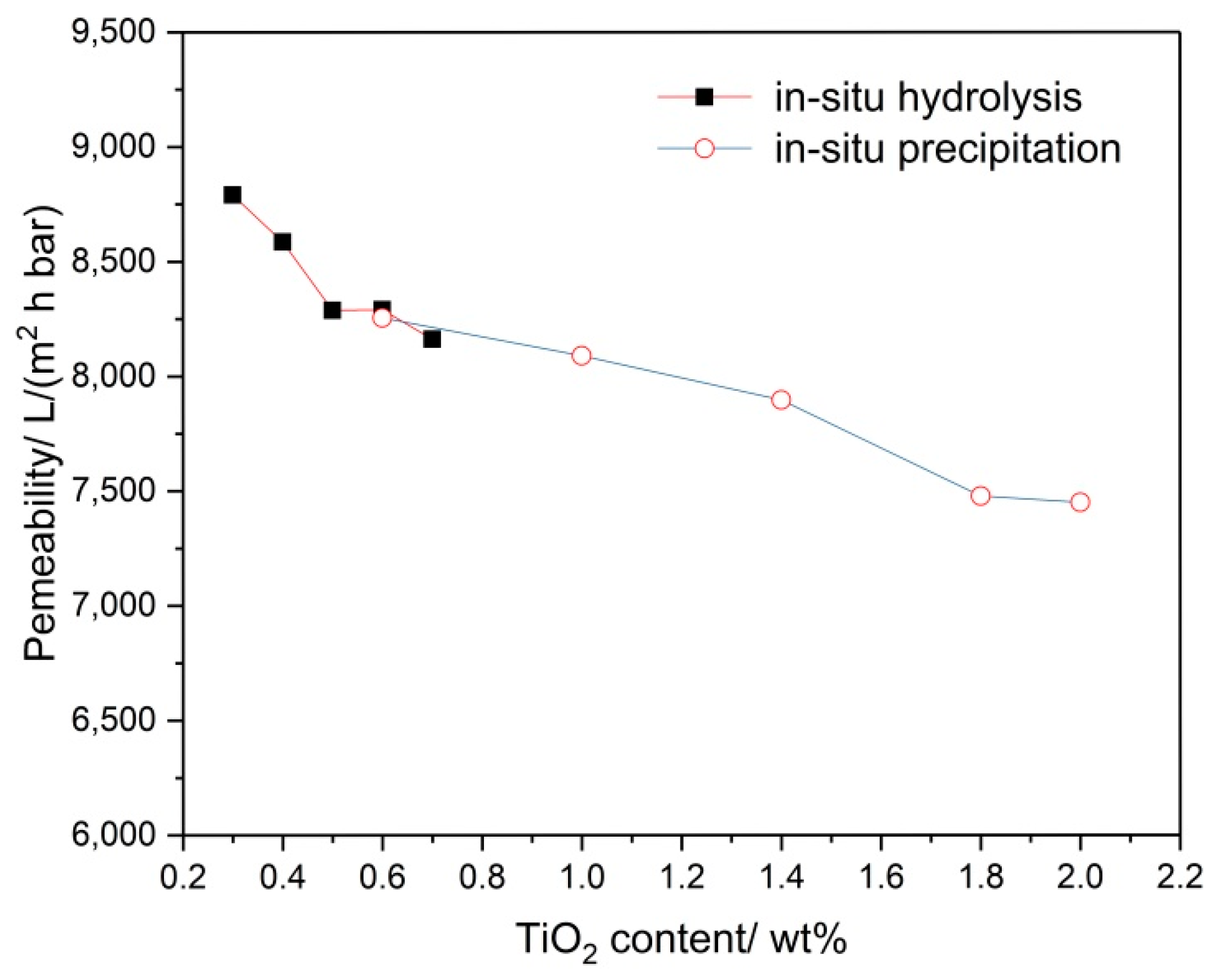

Figure 10 shows the water permeability of the supports with different contents of TiO₂ added. Obviously, the water permeability of the supports decreases with the TiO₂ content. The high TiO₂ content may result in low porosity due to the action of sintering aid although it may not provide the high bending strength. The uneven distribution of the TiO₂ particles increases the tortuosity of the porous support. Both the low porosity and the high tortuosity improve the permeate resistance according to the Hagen Poiseuille equation. Therefore, the TiO₂ added by in-situ hydrolysis maybe the better method to prepare the membrane supports.

4. Conclusions

The effects of the sintering aid TiO₂ added by in-situ precipitation and in-situ hydrolysis on the properties of the porous alumina membrane supports were comparatively investigated. The distribution status of TiO₂ has an important effect on the property of porous alumina membrane support. The distribution of TiO₂ added in-situ hydrolysis method is more even than that by precipitation method due to Ti(OH)₄ (sol) adsorbed on the alumina particles’ surface. The bending strength of the support increase sharply and the pore size distribution changes more sharply along with the content of TiO₂ slightly increasing from 0.3 wt.% to 0.4 wt.%. The porous alumina membrane support has the porosity of 30.01% and the bending strength of 77.33 MPa after sintering at 1650 °C for 2 h with the optimized TiO₂ content of 0.4 wt.% added by the in-situ hydrolysis method. The TiO₂ added by in-situ hydrolysis maybe a better method to prepare the membrane supports.
