Article

Effect of Nanotube Film Thickness on the Performance of Nanotube-Silicon Hybrid Solar Cells

School of Chemical and Physical Sciences and Flinders Centre for Nanoscale Science and Technology, Flinders University, GPO Box 2100, Adelaide 5001, Australia
*
Author to whom correspondence should be addressed.
Nanomaterials 2013, 3(4), 655-673; https://doi.org/10.3390/nano3040655
Submission received: 25 November 2013 / Revised: 11 December 2013 / Accepted: 11 December 2013 / Published: 17 December 2013
(This article belongs to the Special Issue Nanomaterials in Energy Conversion and Storage)

Abstract

:
The results of measurements on solar cells made from randomly aligned thin films of single walled carbon nanotubes (SWCNTs) on n-type monocrystalline silicon are presented. The films are made by vacuum filtration from aqueous TritonX-100 suspensions of large diameter arc-discharge SWCNTs. The dependence of the solar cell performance on the thickness of the SWCNT film is shown in detail, as is the variation in performance due to doping of the SWCNT film with SOCl2.

Graphical Abstract

1. Introduction

There is a clear need to make energy cheap, readily accessible and green, while ensuring its production does not contribute to further climate change. Of all the options available, photovoltaics offer the highest probability of delivering a meaningful and sustainable change in the way society produces its energy. Two key factors in the ongoing technological advancement of photovoltaics are that the average daily global solar irradiance is more than enough to satisfy current and future energy needs and that a move away from the current grid distribution system will see an immediate improvement in energy use efficiency on the order of 25% [1]. This is because, in the current system, about a quarter of all electricity produced is lost in distribution. A system where electricity is created where needed would be far better and photovoltaics offer this opportunity. Other solar solutions such as solar-thermal can be significantly more expensive to implement, both upfront and in the long term, and are subject to the same transmission problems [1]. Meanwhile, many photovoltaic systems suffer critical drawbacks such as the toxicity or scarcity of input materials including Cd, In, Ga and Ru, or by short product lifetimes.
Thus, there is currently great interest in finding alternative materials and/or alternative ways of fabricating the current generation of solar cells. One material with great potential in these areas is carbon, in the form of carbon nanotubes. Carbon is certainly not in limited supply and this material could be made very, very cheap with economies of scale in production. Carbon nanotube-silicon solar cells are a recent photovoltaic system [2,3,4]. A typical device has an architecture similar to that of a single junction monocrystalline n-type silicon solar cell with the exception that the p-type emitter is replaced by a thin film of carbon nanotubes. The exact mechanism of operation of such cells is still under debate, with some reports suggesting a p-n junction-like mechanism and others supporting a Schottky junction mechanism. Confusion may be arising due the diversity and complexity of nanotube films used, as well as the preparation methods and any treatments applied during fabrication. Additionally, single walled carbon nanotubes (SWCNTs) can be either metallic or semiconducting and most reports have used unsorted mixtures. However, huge differences are observed between devices fabricated with nanotubes sorted into highly pure metallic or semiconducting fractions, with or without subsequent chemical doping of the nanotubes and it may be that different mechanisms apply depending on the particular kind of device in question [5].
There has been considerable work already in the field of carbon nanotube-silicon solar cells. Several reports deal in part with the electrical and optical characteristics of the nanotube film [6,7,8,9,10,11,12,13]. The first report of carbon nanotube-silicon solar cells appeared in 2007 with Wei et al. [6] who demonstrated a 1.3% efficient device. In that double walled carbon nanotubes (DWCNTs) were deposited on n-type silicon substrates via H2O expansion and subsequent aqueous film transfer of an as-grown chemical vapor deposition (CVD) film. Jia et al. [14] reported a significant step forward from the 2007 work upon demonstrating a 7.4% efficient DWCNT-silicon device. Subsequently, other groups have used alternative methods to deposit thin films of SWCNTs onto n-type silicon. Li et al. [7,8,9] reported a SWCNT-silicon solar cell employing a SWCNT film spray coated using an airbrushing technique from a dimethylformamide (DMF) suspension. Final devices were found to afford an efficiency of 1.3%. Li et al. [7] also investigated SWCNT film post-treatment methods in order to increase device efficiency. Hall Effect measurements showed that post-treatment of the SWCNT film with thionyl chloride (SOCl2) leads to increases in carrier density and effective mobility.
Jia et al. [9] used the SWCNT deposition method of Wu et al. [15], which employs vacuum filtration onto mixed cellulose ester (MCE) films with subsequent removal of the MCE by dissolving in acetone. The MCE deposition method was used for SWCNTs and multiwalled carbon nanotubes MWCNTs but aqueous film transfer of a self-assembled film (as per their prior work) [6,14] was used for DWCNTs. It was found that SWCNT films outperform MWCNTs only when the density is low, which is interpreted as indicating that optical transmittance is the most important variable in comparing SWCNTs and MWCNTs. The authors also correlate a figure of merit (FM) for transparent, conductive films with the power conversion efficiency (PCE) of carbon nanotube-silicon solar cells such that FM = T550 (%)/Rsheet (Ω·sq−1) where T550 is the optical transmittance for λ = 550 nm and Rsheet is the sheet resistance. It was found that the FM is proportional to PCE such that increasing film transparency or decreasing sheet resistance yields higher PCE. Optical transparency is increased for thinner films whereas the sheet resistance is decreased for thicker films. Thus at some point there must be a trade-off between these two variables with the optimal thickness likely constrained by the optimization of other cell parameters. The effect of nanotube film thickness has also been investigated by Castrucci et al. [16] who similarly found that the density of the nanotube film (number of nanotube-silicon junctions) is a vital parameter in optimizing performance.
Wadhwa et al. [17] report a novel method of improving SWCNT-silicon solar cells through electronic junction control of a SWCNT-silicon device by the use of a gate potential applied to the junction via the ionic liquid electrolyte 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide (EMI-BTI). The device exhibited a PCE of 8.5%, which was dynamically and reversibly adjusted to between 4% and 11% by electronic gating. The mechanism of action of the electronic junction control is explained by considering the gate-induced modulation of the SWCNT Fermi level and the gate-modulated enhancement or suppression of the interface dipole at the junction. Wadhwa et al. [18] extend previously reported work by engineering a grid pattern in the SWCNT layer through oxygen plasma etching. A modest improvement in PCE from ~11% to ~12% is observed via this strategy.
Jia et al. [19] achieved a much higher PCE of 13.8% by in situ doping of the SWCNT film with 0.5 M HNO3 although, as shown in the later work of Jung [20], this may have been partly due to lensing by the acid droplet. The untreated device exhibited a PCE of 6.2% and the improvement was due to an increase in short circuit current density (Jsc) from 27 mA·cm−2 to 36 mA·cm−2 coupled with an increase in the fill factor (FF) from 0.47 to 0.72. Even after drying of the acid solution, the cell maintained a higher PCE than the original. In another work by Jia et al. [21], encapsulation of the active area by the insulating polymer polydimethylsiloxane (PDMS) was shown to increase PCE whilst providing greatly improved device stability. Additionally, it was shown that the formation of a thin SiOx layer in between the SWCNTs and the underlying silicon leads to gains in open circuit voltage (Voc).
It is clear that carbon nanotube films function, at least, as transparent conducting front electrodes. Carbon nanotube films have been used similarly in amorphous silicon solar cells [11,22], heterojunction solar cells of quantum dots and silicon [23,24], on silicon nanowires with [25] and without [26,27] photoactive polymers, as well as enhancing the performance of “standard” p-n junction silicon solar cells [28]. Photovoltaic output from SWCNT-silicon cells can be improved by the addition of graphene “patches” to the nanotube film [29] and by flowing gasses over the surface of the nanotube film, an effect that has been used to fabricate gas sensors [30]. A recent development is the use of highly aligned SWCNT films [20,31]. Devices made with such films show good performance, likely due to the greatly improved electrical characteristics of aligned SWCNT films. In the work by Shi et al. [32], the use of a TiO2 antireflection layer has been reported to yield SWCNT-silicon solar cells with a PCE of 15% which puts them into the same region of PCE as many commercial solar panels.
Because of the large variety of SWCNT films reported in the literature, the methods of their preparation, deposition and treatment, as well as physical, electrical and optical characteristics, it can sometimes be difficult to ensure the validity of comparisons between different devices. The work in this paper uses a vacuum filtration method throughout to maintain test consistency and allow less ambiguous comparison between results. As in other reports, the performance of SWCNT-silicon solar cells fabricated with such films will be shown to depend very strongly on the optical density and conductivity of the film. In the simplest sense, the best films are those with both the highest transmittance and lowest resistance however there is often a trade-off needed in the assessment of film quality.

2. Results and Discussion

Vacuum filtration films of SWCNTs were used to fabricate solar cells and also deposited on glass to allow optical characterization and measurement of the sheet resistance. Additionally, nine different optical densities of film were made by using varying volumes of SWCNT suspension. Each complete solar cell was made in duplicate and solar cell parameters are averaged from both devices with the standard deviation displayed by error bars in the plotted data.

2.1. SWCNT Film Thickness

The ultraviolet-visible-near-infrared (UV-vis-NIR) optical absorption spectrum of an as prepared film of arc-discharge SWCNTs is shown in Figure 1. The low energy of the S11 transition (~0.7 eV) is consistent with large diameter SWCNTs and the broadness of the absorption features is indicative of both the polychirality of the material and the bundled state of the dispersion [33]. Following treatment with 2% HCl (used in lieu of hydrofluoric acid (HF) for the optical measurement of films on glass—see experimental method) the S11 absorption peak is slightly suppressed. This is expected due to mild p-type doping of the SWCNTs by transfer of charge during protonation by the acid. Following treatment with SOCl2 there is complete bleaching of the S11 absorption and a substantial decrease in the intensity of S22, but an overall absorption increase for λ < 1100 nm. Bleaching of S11 is consistent with electron transfer from the top of the SWCNT valance band to the organic oxidizer as previously observed [34,35]. The origin of the increase in the lower λ region is unknown and it was not always observed, but was always removed by the second acid treatment and may have been due to incomplete removal of SOCl2 decomposition products. Importantly, there was no return of S11 after the second acid treatment.

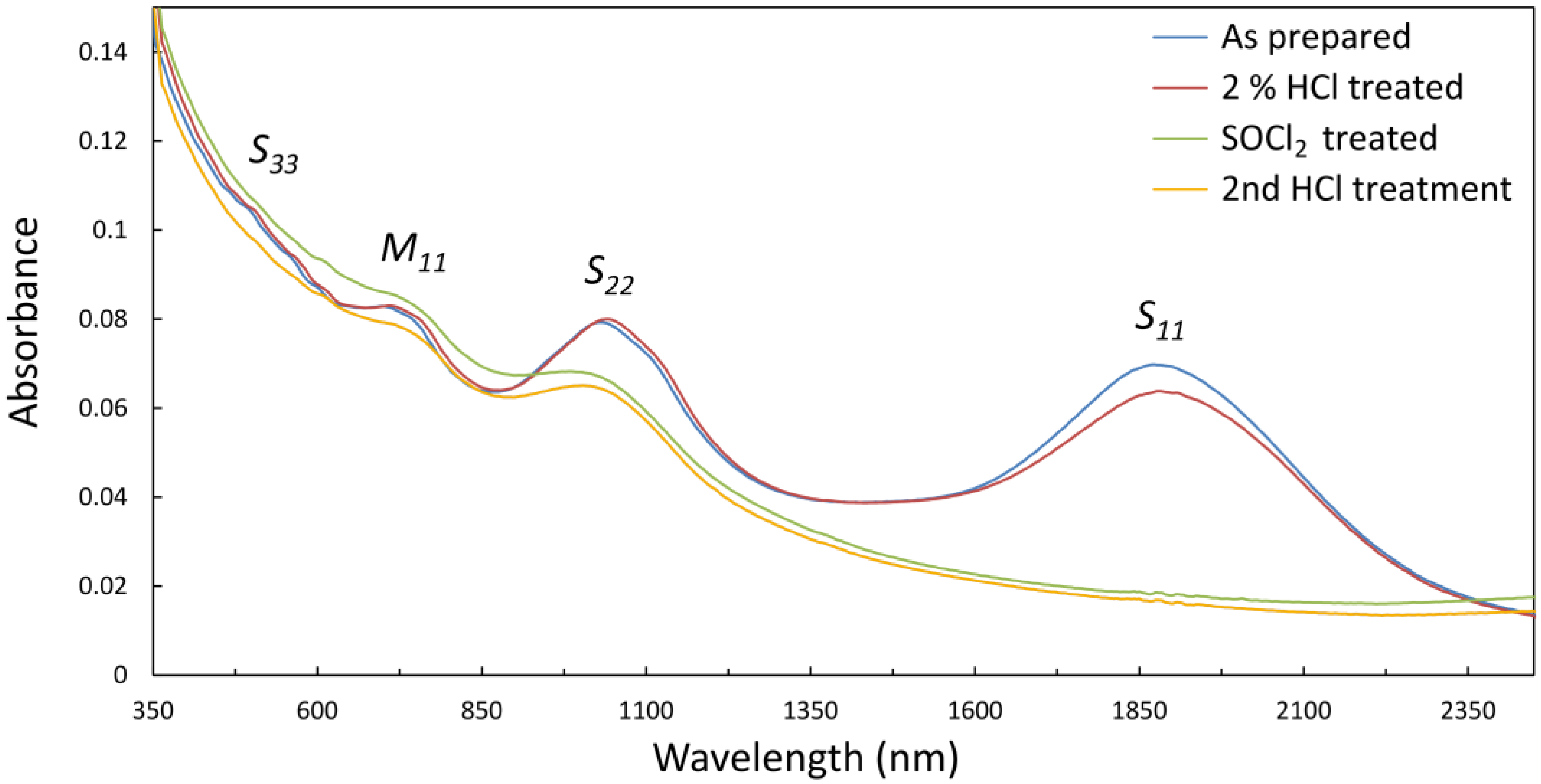

Figure 1. UV-vis-NIR spectra of thin vacuum filtration films of single walled carbon nanotubes (SWCNTs) on glass, made from aqueous TritonX-100 suspensions of large diameter arc-discharge material.
Figure 1. UV-vis-NIR spectra of thin vacuum filtration films of single walled carbon nanotubes (SWCNTs) on glass, made from aqueous TritonX-100 suspensions of large diameter arc-discharge material.
Nanomaterials 03 00655 g001
The linear relationship between absorbance and volume of SWCNT suspension shown in Figure 2a is expected from Beer’s law where the absorbance A is proportional to N, the number of absorbing units [36]. Although there is a logarithmic relationship between absorbance and transmittance, Tav is in the range of relative linearity (99% > T > 40%) with N. The very small difference between average absorbance before and after the various treatments is an indicator of the efficacy of the averaging process in removing the effect of the absorption peaks.
In Figure 2b, the plot of sheet resistance, Rsheet, versus film thickness (expressed here as Tav) shows the same apparent exponential increase seen as in prior reports [8,37]. Rsheet is composed of two regions of resistance: one (Rjunction) where conductance is limited by the number of tube-tube junctions and their contact resistance, and the other (Rtube) limited by the concentration of carriers and their mobility, such that; Rsheet = Rjunction + Rtube. The Rtube term dominates for the thicker films, which are more metal-like, whilst Rjunction dominates for the sparsest films in which transport is governed by percolation theory [37,38,39,40]. The point Tth is the threshold of transmittance/thickness/density at which the conductance of the film switches from being dominated by percolation to a more bulk metallic behavior. Tth is a figure of merit for these films, with higher values indicating a better electrode film, and its effect will be clearly seen in the solar cell performance measurements that follow. Rth is Rsheet at Tth and clearly, the lower Rth is the better. Even though the acid treatment had little effect on the optical absorbance, Tth increased markedly from ~65% to ~85% when the SWCNT films on glass were exposed briefly to 2% HCl, and this was coupled with an order of magnitude decrease in Rth. This initial improvement is likely due to removal of residual surfactant molecules by the acid. Another big increase in Tth up to 90%–95% is observed following the SOCl2 treatment, as well as large reductions in Rsheet in the range 45%–85%. However no further improvements are seen following a second 2% HCl treatment, indicating that any improvements observed in solar cell devices from the second HF treatment are due to the effect it has on the silicon.

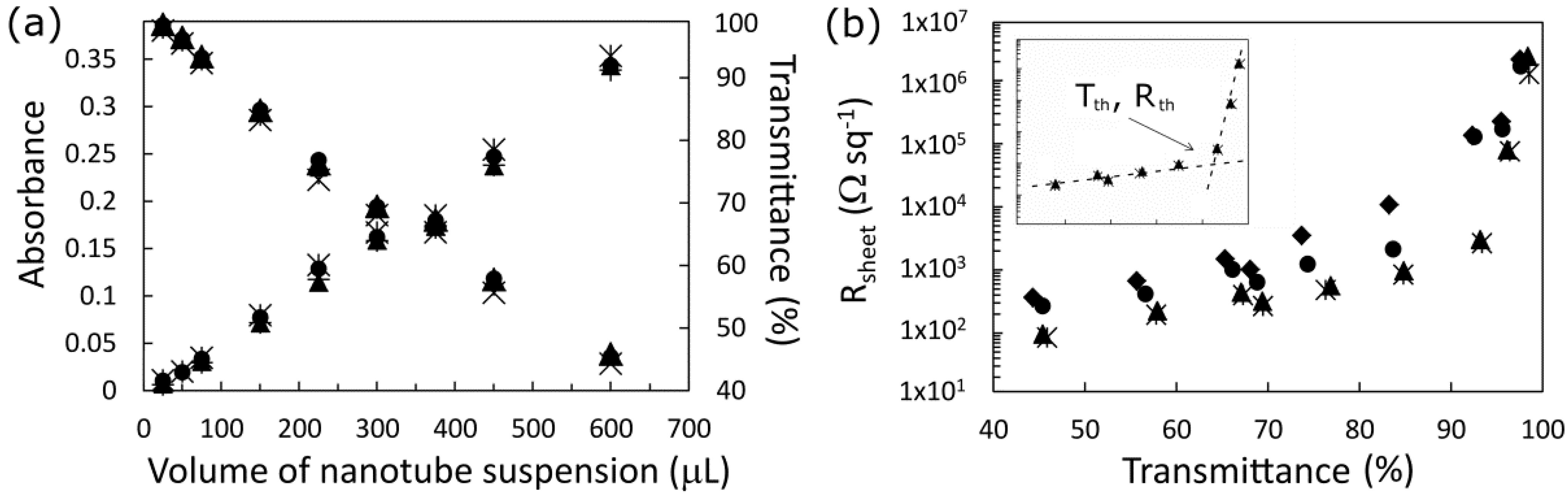

Figure 2. (a) Dependence of the SWCNT films’ average optical depth on the volume of SWCNT suspension used per square centimeter of filtration membrane. The different symbols represent different treatments and show very that there is very little effect on the baseline visible absorption; (b) Variation of the sheet resistance with film transmission for as prepared (♦), HCl treated (●), SOCl2 treated (■) and HCl retreated (▲) devices. Inset shows the two regions of differing resistance for the doped films and the threshold transmittance (Tth) and corresponding sheet resistance (Rth).
Figure 2. (a) Dependence of the SWCNT films’ average optical depth on the volume of SWCNT suspension used per square centimeter of filtration membrane. The different symbols represent different treatments and show very that there is very little effect on the baseline visible absorption; (b) Variation of the sheet resistance with film transmission for as prepared (♦), HCl treated (●), SOCl2 treated (■) and HCl retreated (▲) devices. Inset shows the two regions of differing resistance for the doped films and the threshold transmittance (Tth) and corresponding sheet resistance (Rth).
Nanomaterials 03 00655 g002

2.2. As-Prepared Solar Cells

A typical JV curve for a single-walled carbon nanotube-silicon hybrid solar cell is shown in Figure 3.

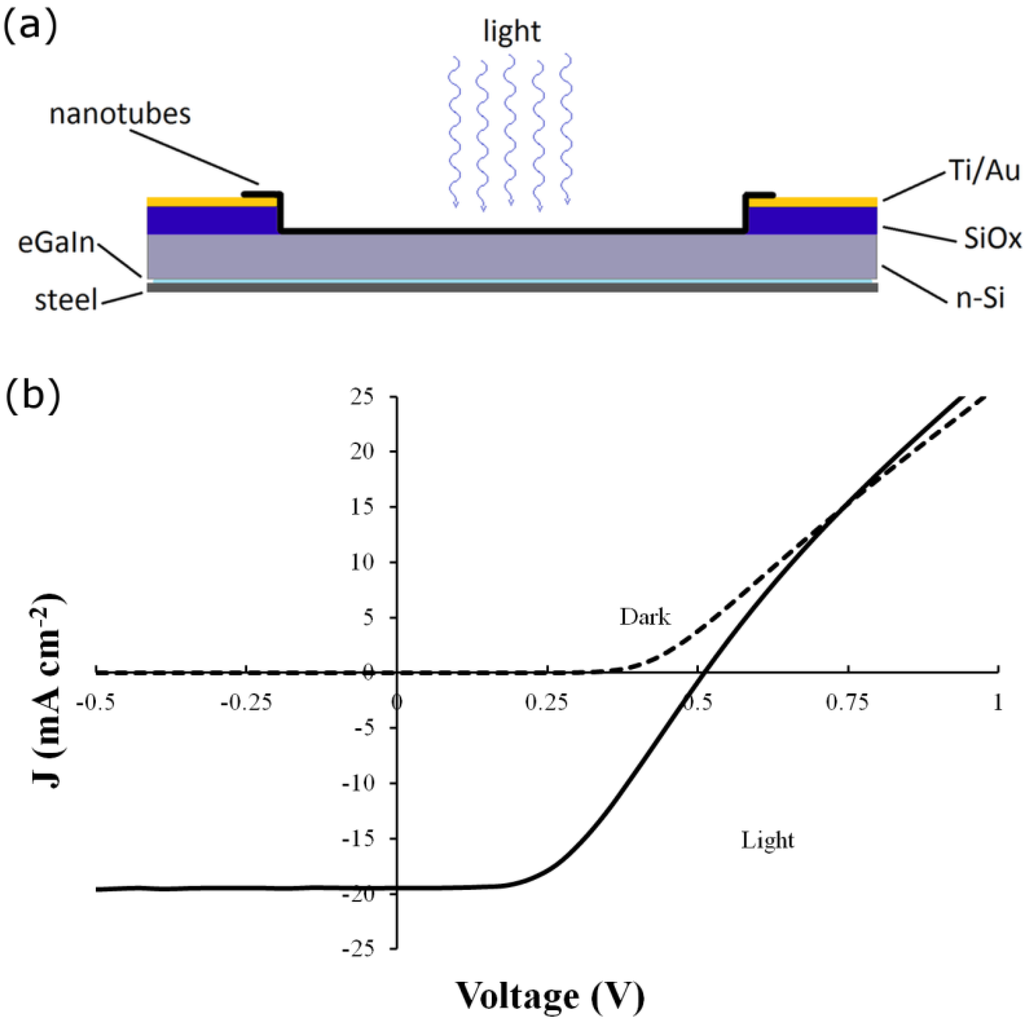

Figure 3. (a) Device schematic; (b) JV curve of a typical SWCNT-Si solar cell.
Figure 3. (a) Device schematic; (b) JV curve of a typical SWCNT-Si solar cell.
Nanomaterials 03 00655 g003
The light and dark current-voltage characteristics of the as-prepared devices were measured as a function of the optical density, or thickness, of the SWCNT film and are summarized in Figure 4. The peak in short circuit current density, Jsc, around Tav~60%–70%, occurs due to a balancing of the decrease in the photon flux, Jph, penetrating through to the silicon for the thicker films with Tav < 65%, and the steep exponential rise in Rsheet above Tth. In fact, the same pattern of variation seen in Rsheet is exactly replicated here in the plot of series resistance, Rs, for films with Tav > 75%. The open circuit voltage, Voc, is remarkably consistent across the thickness range until the thinnest film with Tav = 97%. There is a clear but modest decrease in FFs towards thinner films. There is also a noticeable U-shape observed in the plot of the shunt resistance, Rshunt. This can be easily explained for Tav > 75% as it exactly mirrors the pattern of variation evident in Rsheet, Rs and PCE, and thus may be similarly due to increasingly limited percolation pathways. For Tav < 75% the cause of the increase in Rshunt is less obvious, but could be due to a better depletion region set up in the silicon as a result of the higher total carrier concentration in the thicker films. Li [8] and Kozawa [12] observed a peak in the performance of their SWCNT-silicon solar cells at ~60% film transmittance, likely related to Tth. However, in other work performance kept increasing for increased transmittance up to the maximum used in that experiment (90.4%) [10] likely indicating that Tth > 90.5% for those films. The reverse saturation current density, J0, is good (low) for the thickest films at ~10−8 A·cm−2 but is also clearly dependent on the SWCNT film thickness.
Overall efficiency shows the same two distinct regions as seen in Rsheet, Jsc, Rs and part of Rshunt, and strongly implicates the poor sheet resistance of the SWCNT films as the major limiting factor underlying the poor performance of all the devices measured (<2%). When considering that Rs of these devices was, at best, 1 kΩ, and that the typical area normalized series resistance of commercial cells can range from 0.5 to 2 Ω·cm2, that is not really surprising.

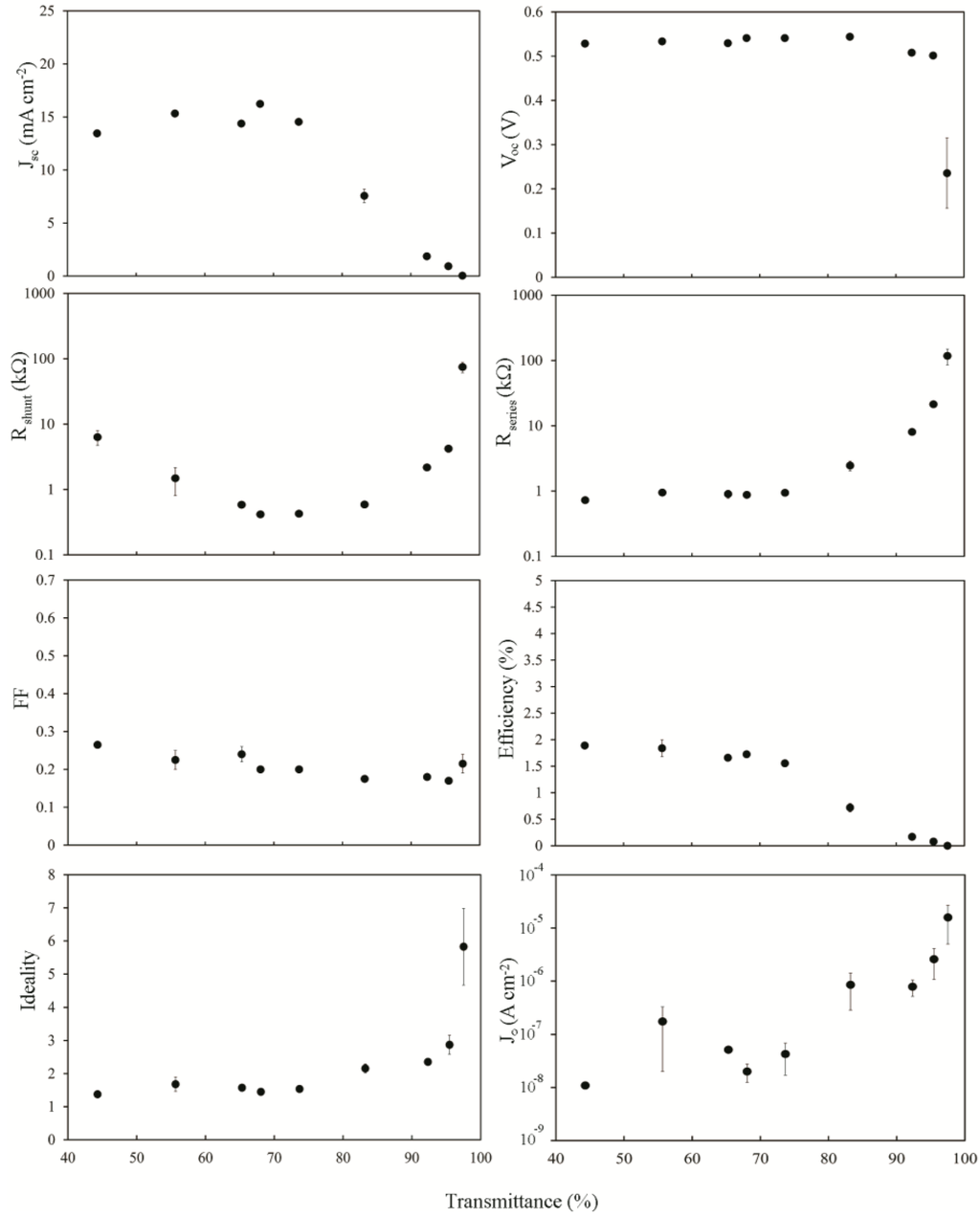

Figure 4. Solar cell parameters extracted from as-prepared SWCNT-Si devices with varying SWCNT film thickness.
Figure 4. Solar cell parameters extracted from as-prepared SWCNT-Si devices with varying SWCNT film thickness.
Nanomaterials 03 00655 g004

2.3. The Effect of HF Treatment

The purpose of the HF treatment is to remove the relatively thick oxide present on the silicon surface between the silicon and the SWCNTs. This oxide would have likely been thickened somewhat during the wet and hot film deposition process. Measurements were not taken immediately following the HF treatment due to the observation of unpredictable and random results with large variations in output, sometimes even between consecutive measurements of the same device. Unlike the perfect silicon hydride that can be formed on an uncovered surface, the presence of the SWCNTs on these surfaces likely contributes to the formation of dangling bonds and trap states during the HF treatment. Measurements were observed to stabilize after an hour in air at room temperature (not long enough for the formation of an intermediate oxide >1 nm).
Immediately apparent when comparing Figure 4 and Figure 5 is that Jsc is almost entirely unchanged, consistent with Jsc being dependent primarily on Jph, which is not changed significantly by brief exposure to mild acid, and on the shape of Rs. Importantly, Voc now shows a definite dependence on the SWCNT film thickness and has been reduced by >10% in all cases. The fill factor has been improved; doubling for thicker films, whilst also now showing a stronger dependence on the film thickness than before. Improvements in FFs give an increase in the highest PCE from 1.8% to 2.5%, although other factors combine to decrease PCE much faster with reducing film thickness. The effect of lower Rsheet, particularly in the range of 60% < Tav < 90%, is seen in the plot of Rs however there is little change to Rshunt or J0.

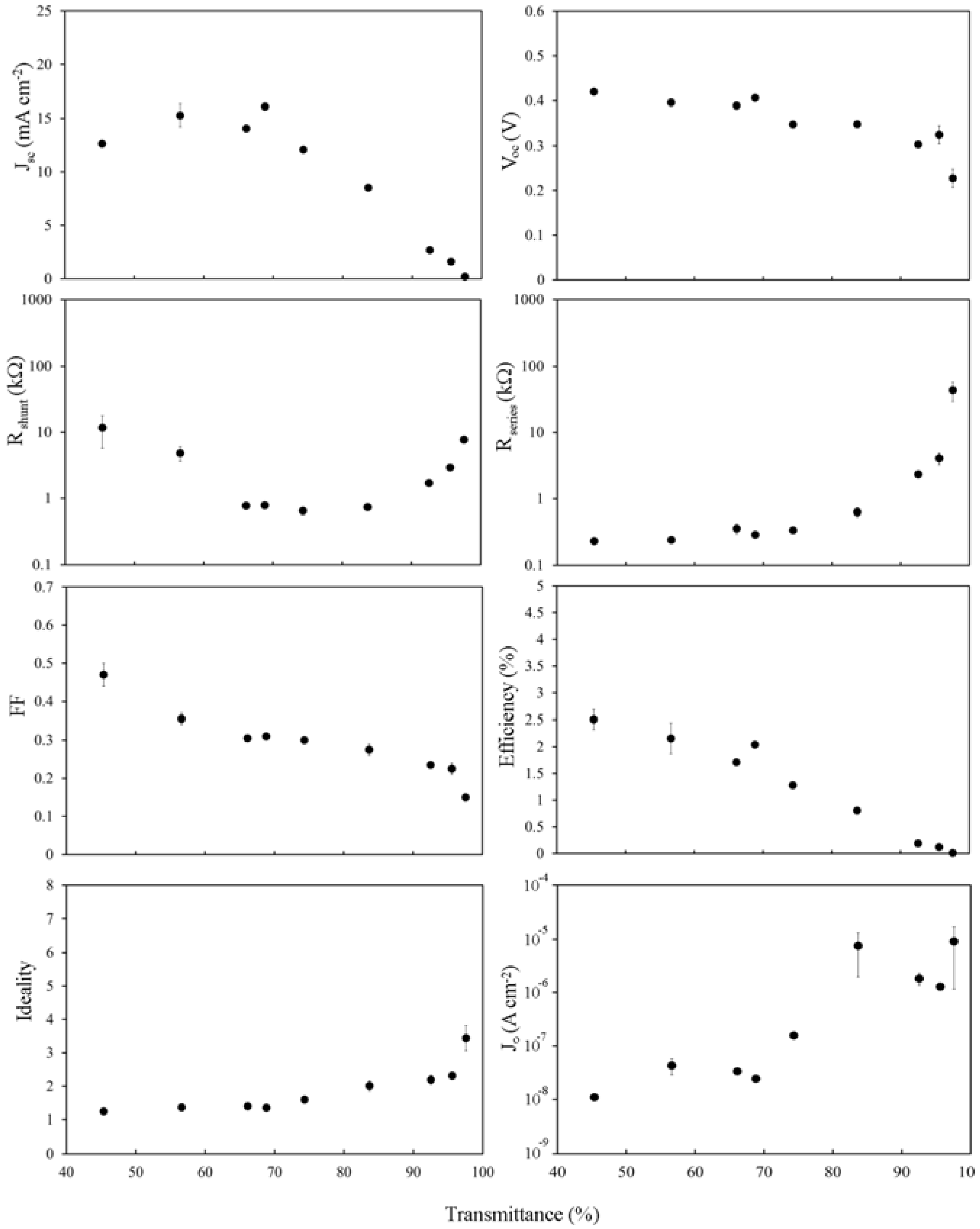

Figure 5. Solar cell parameters extracted from HF treated SWCNT-Si devices with varying SWCNT film thickness, 1 h after treatment.
Figure 5. Solar cell parameters extracted from HF treated SWCNT-Si devices with varying SWCNT film thickness, 1 h after treatment.
Nanomaterials 03 00655 g005
Overall, it appears that the rapid increase in Rsheet above Tth dominates all measures of the device IV characteristics for Tav > 70%, and this occurs via its effect on Rs. Such strong dependence supports the hypothesis that, in these devices, the role of the SWCNT film is as a transparent, conducting front electrode that must also (clearly) establish an inversion layer/depletion region in the underlying silicon.

2.4. The Effect of SOCl2 Treatment

A common method to reversibly improve the electrical properties of SWCNT films is to expose them to the powerful organic oxidizer, SOCl2 [35,41,42,43,44,45,46]. This has the effect of hole doping the SWCNTs via the electron withdrawing nature of the decomposition reaction:
2SOCl2 + 4e- → S + SO2 + 4Cl-
Performance gains via SOCl2 treatment of SWCNT-silicon solar cells have been reported previously [6,7]. The effect of SOCl2 on SWCNTs has been relatively well-studied [11,26,27,28,29] and is similar to HNO3 doping [19,47]. SOCl2 has been shown to be a very good p-type dopant for SWCNTs that increases conductivity in the SWCNTs by shifting the Fermi level into the valance band (as evidenced in this study by the bleaching of S11 absorption), and in the films by reducing barriers at the tube-tube junctions [44,47]. After SOCl2 treatment, the conduction mechanism of the SWCNT films switches from variable range hopping/thermionic emission over tube-tube barriers to tunneling through them [8,44].
The Jsc peak in Figure 6 has shifted to higher transmittance (~65% to ~80%) in line with the change observed in Tth (Figure 2b) as well as the magnitude of Jsc at each film thickness increasing to ~125% of the undoped value. The insensitivity of Voc to film thickness (except for the 98% film) has returned to exactly as it was before the HF treatment whilst the fill factors have maintained or improved upon their overall gains compared to the as prepared case. There has been a dramatic change in the behavior of Rshunt, with two distinct regions now separated by a sharp break at ~80%, but J0 and the ideality remain the same.
The increases in Jsc and Voc, as well as modest improvement in FF and Rs, coupled with the large improvement of Rshunt for 55% < Tav < 80%, lead to significant PCE gains of up to 350% of the undoped values (for Tav~75%) and the pattern of variation in PCE is now clearly due to limited Rs.

2.5. The Effect of a Second HF Treatment, with 1 h or 4 h Oxide

Following the SOCl2 treatment, a second brief HF treatment improves the fill factor (Figure 7), particularly for the thinner films, and this is likely due to lower Rs. Voc has been reduced by ~10% but is now reasonably high even for the device with the 98% film. Jsc and J0 are unchanged but the ideality is modestly improved in line with Rs for the thinner films. Rshunt is markedly improved in the devices with the thicker films but unchanged for Tav > 80%. It has been shown that the effect of acid doping on the conductance of SWCNT films sensitively depends on the film thickness [48] and a similar phenomenon exists here. The threshold at which Rs begins to increase rapidly has not increased as much as for Rsheet, and did not for the SOCl2 case either, but this is consistent with a model in which the percolation factor (Rjunction) contributing to Rs has an additional term that Rsheet does not, representing the dependence on the number of the SWCNT-silicon junctions.

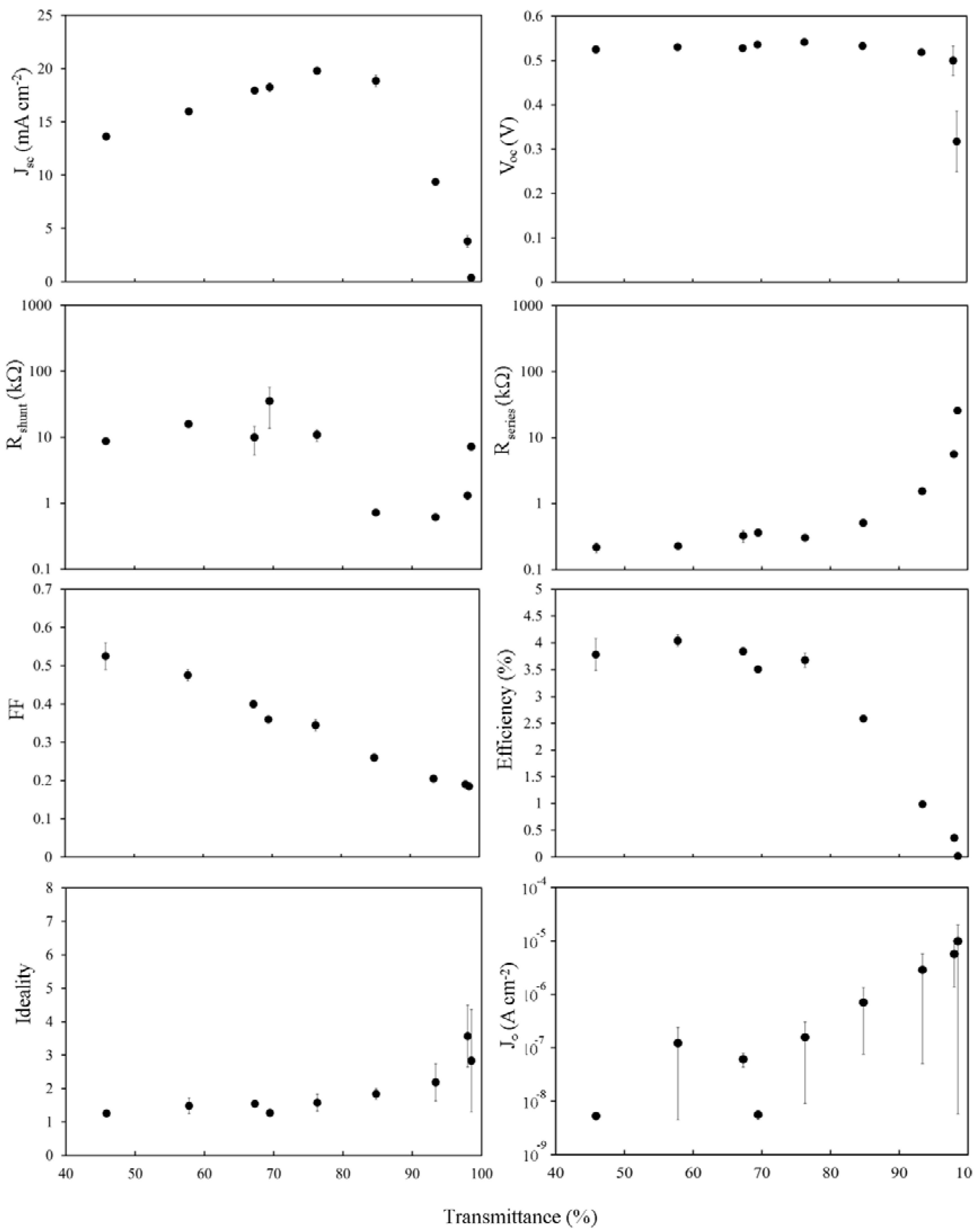

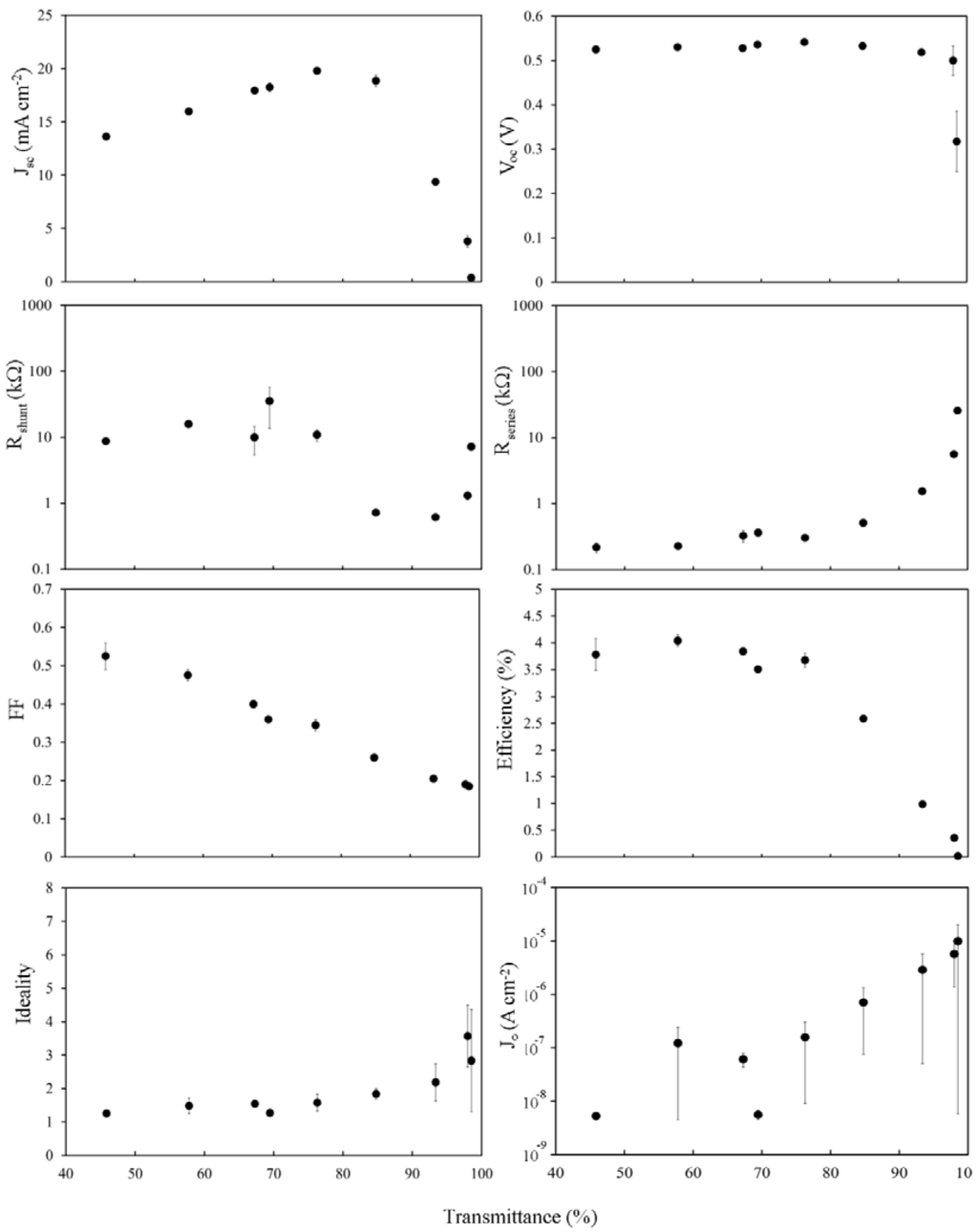

Figure 6. Solar cell parameters extracted from SOCl2 treated SWCNT-Si devices with varying SWCNT film thickness.
Figure 6. Solar cell parameters extracted from SOCl2 treated SWCNT-Si devices with varying SWCNT film thickness.
Nanomaterials 03 00655 g006
The PCE of these particular devices remained relatively unchanged by the second HF treatment but it was often observed that this step was critical in attaining the best performance from devices following the SOCl2 treatment. A third HF treatment immediately following the second had no noticeable effect however, after multiple consecutive HF treatments, there comes a point where the undercutting of the oxide underneath the front gold electrode causes collapse of this onto the silicon and results in a very noticeable drop in performance. If left for several weeks, the performance of all devices returned to about the same as the as prepared state.

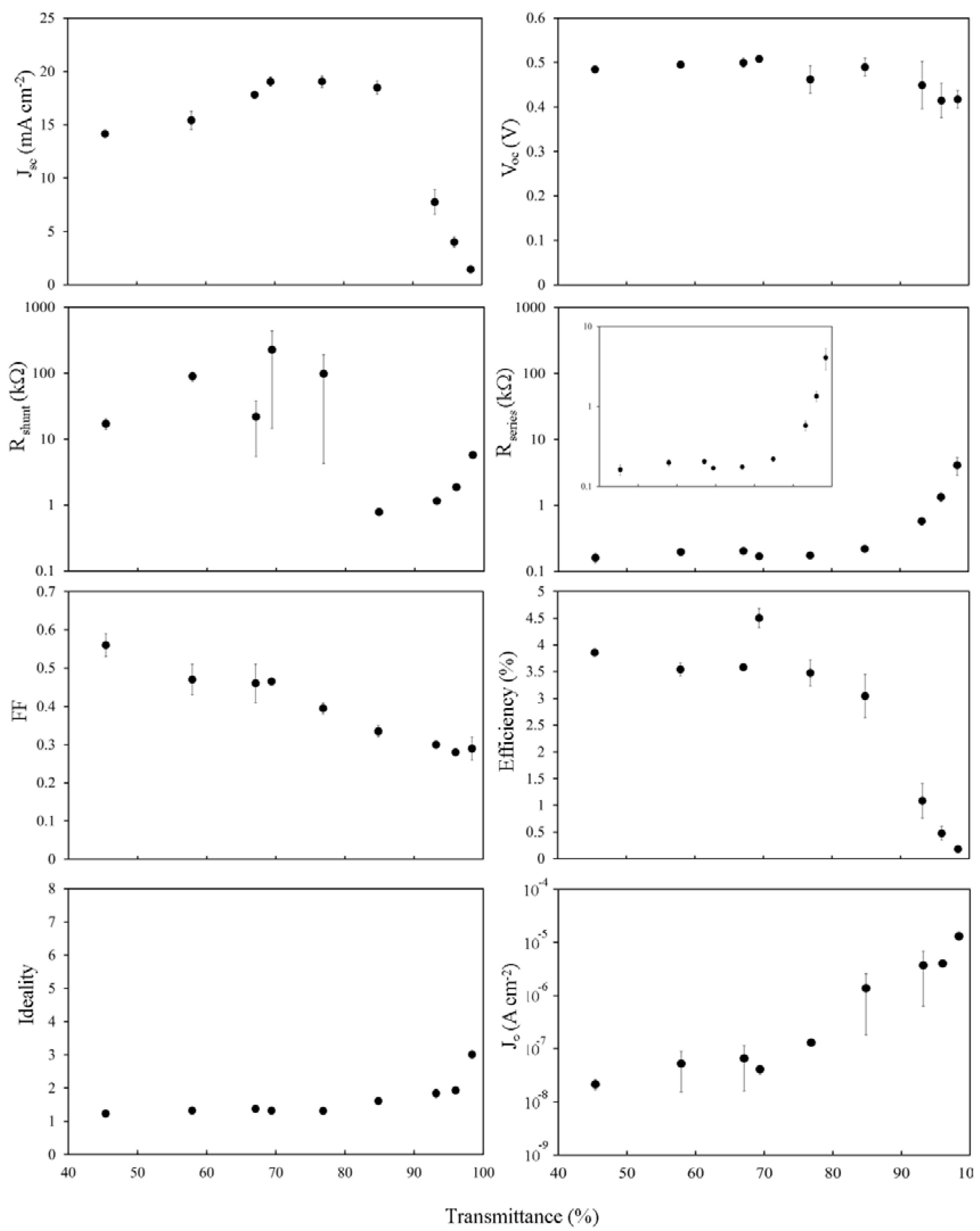

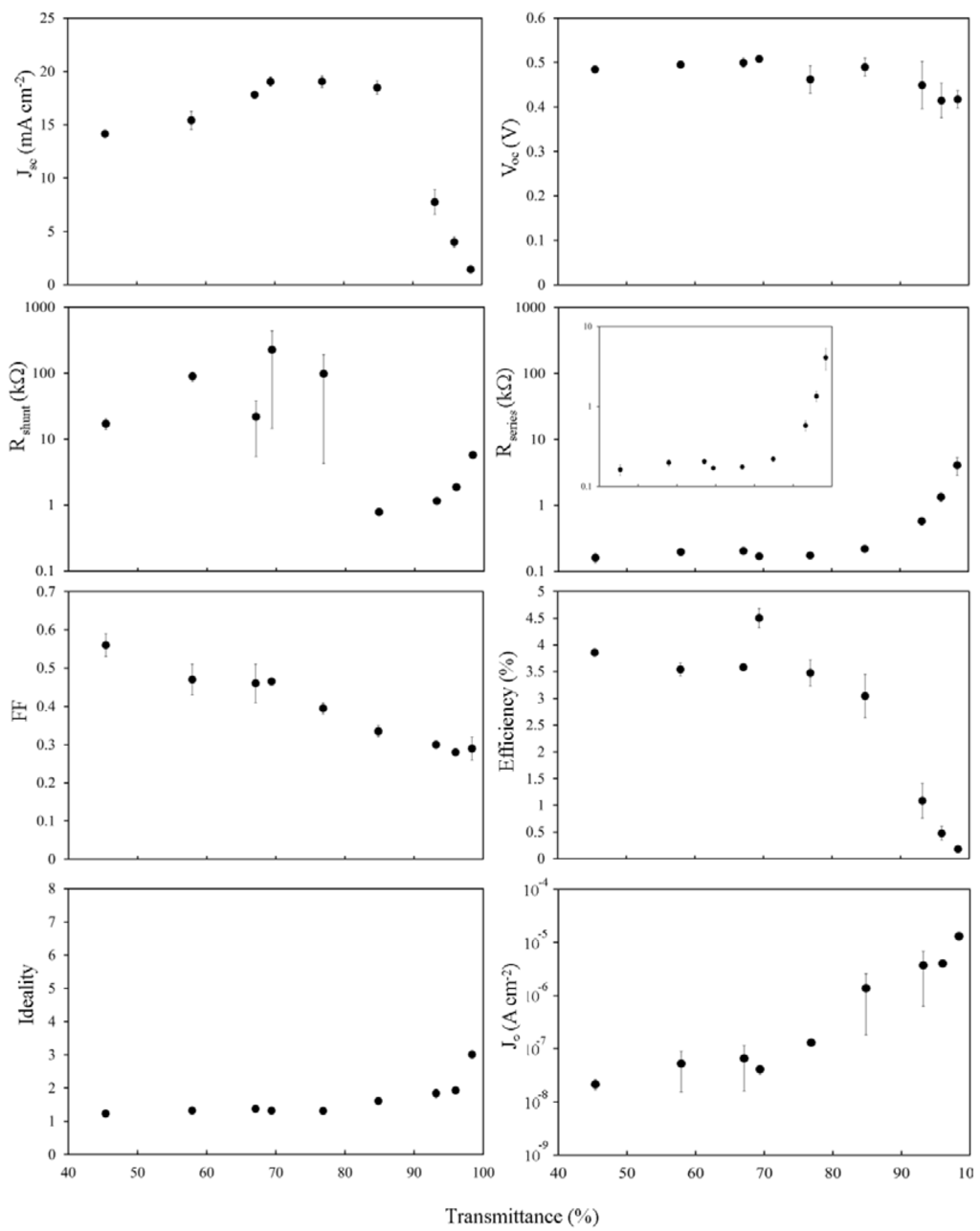

Figure 7. Solar cell parameters extracted from HF treated (second treatment) SWCNT-Si devices with varying SWCNT film thickness, 1 h after treatment.
Figure 7. Solar cell parameters extracted from HF treated (second treatment) SWCNT-Si devices with varying SWCNT film thickness, 1 h after treatment.
Nanomaterials 03 00655 g007
After 4 h in ambient laboratory air, there will certainly be a native oxide (Figure 8). The overall shape of Jsc is again unchanged and still peaks at ~75%–80% but the fill factor, Rs, Rshunt and PCE have all been affected to some degree, predominantly in the middle of the thickness range. The growth and removal of an interfacial oxide has been shown to reversibly improve the performance of some randomly aligned SWCNT-silicon solar cells [21,49] but this is not true of all reports.
Jung reasons that the operating mechanism in their solar cells, made with highly aligned SWCNT films, is not that of a MS Schottky junction primarily because the very high activation energy, Ea is equal to Eg, the energy gap of silicon (1.1 eV) and is far too high for a Schottky barrier, and because of the very long minority carrier lifetime in the microseconds [20]. It is also reasoned that the mechanism of action is the same as in p-n not MIS solar cells because the growth of a thin oxide does not improve their devices’ performance, contrary to the observations of Jia [21,49].

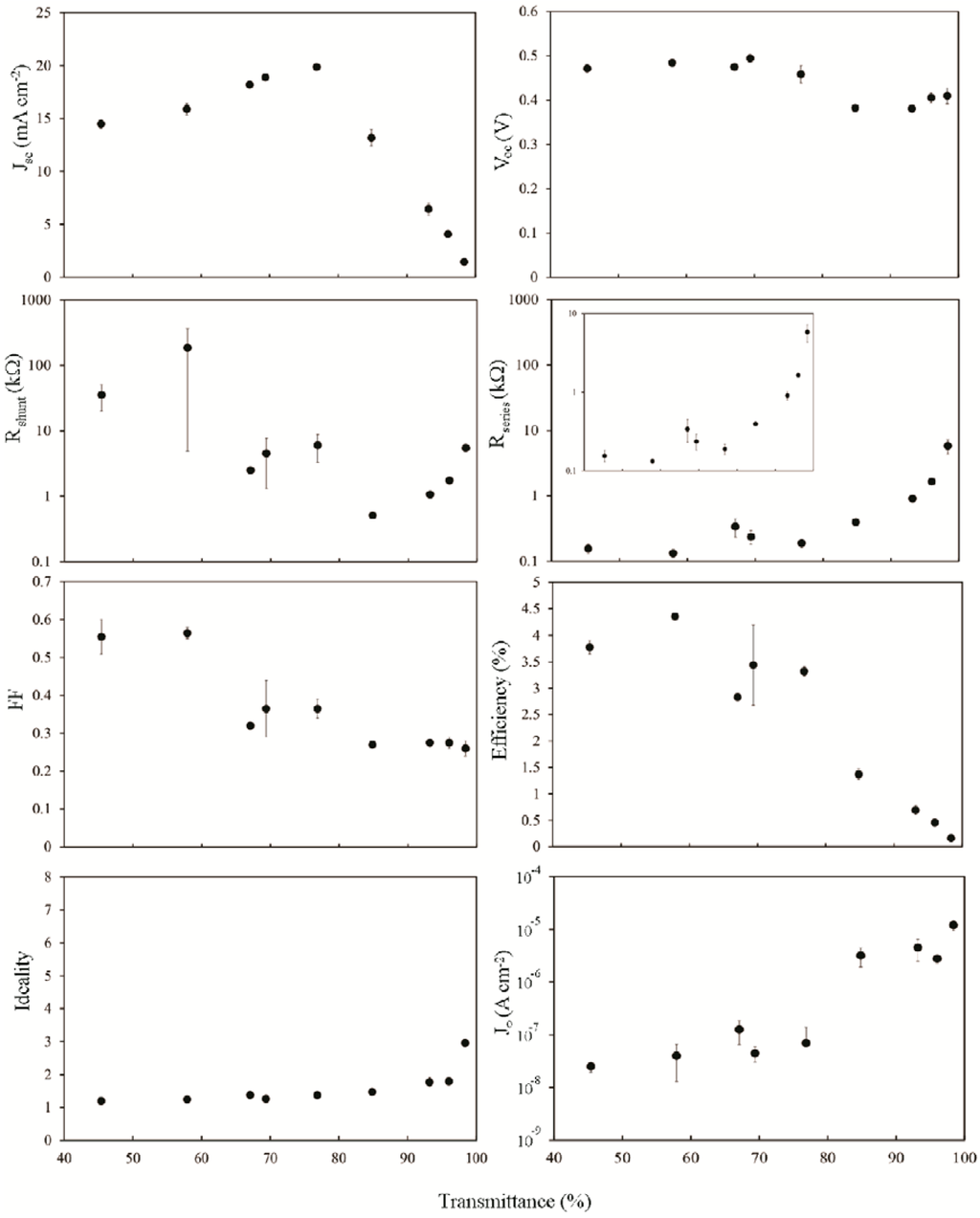

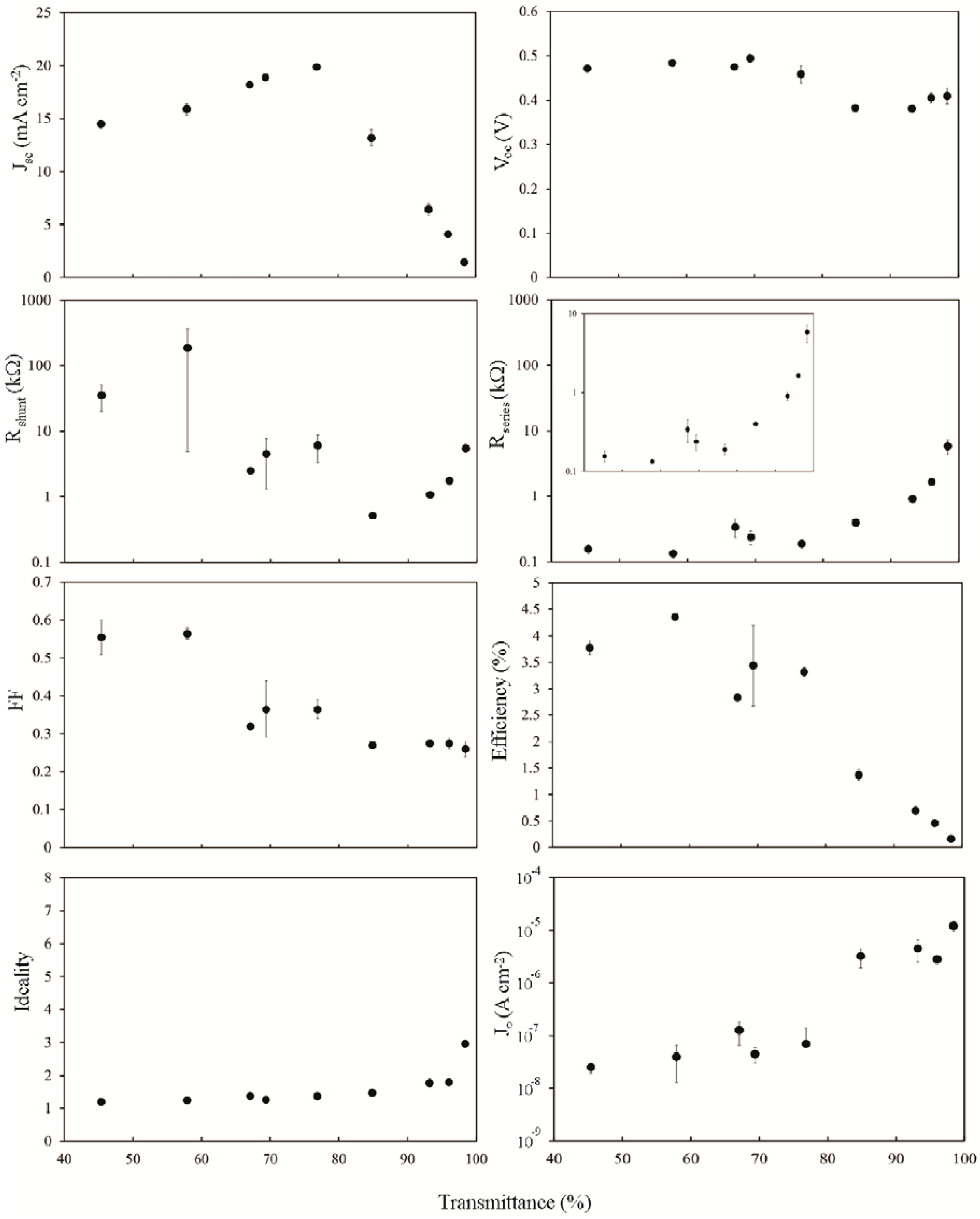

Figure 8. Solar cell parameters extracted from HF treated (second treatment) SWCNT-Si devices with varying SWCNT film thickness, 4 h after treatment.
Figure 8. Solar cell parameters extracted from HF treated (second treatment) SWCNT-Si devices with varying SWCNT film thickness, 4 h after treatment.
Nanomaterials 03 00655 g008
The best of SWCNT films reported here (~1 kΩ·sq−1 for Tav = 90%) are certainly better than many earlier examples such as the high density films in early reports by Li [8] (10–100 kΩ·sq−1 for T550 = 90%) but are outperformed by the latest in very highly aligned films (~10 Ω·sq−1 for T550 = 90%) [31] using a modification of the super acid method of Saha [50].
Consistent with the results shown here, it may be that the thin oxide is required in between the sparse SWCNT junctions formed by randomly aligned films to prevent recombination at these uncovered surfaces and allow carriers time to find a nearby SWCNT-silicon junction in the imperfectly covering film. The ability of the devices to separate charge would thus be governed primarily by the Si:SiOx junction, hence the relative insensitivity of Voc towards SWCNT film thickness in the presence of the oxide and the Ea = Eg observation. This is unnecessary with the very low resistance aligned films and the conformal covering they provide.

3. Experimental Section

3.1. Preparation of SWCNT Suspension

Arc-discharge SWCNTs (5 mg, P3-SWCNT, Carbon Solutions Inc., Riverside, CA, USA) were bath sonicated at ~50 WRMS for 1 h in an aqueous solution of TritonX-100 (50 mL, 1% v/v, Sigma, Castle Hill, Australia). The resulting suspension was centrifuged in 6 × 8 mL tubes for 1 h at 17,500 g. This first supernatant was collected, combined and then centrifuged for a further 1 h at 17,500 g. The upper 6 mL of the second supernatant was collected and combined to yield a (very slightly red) black suspension (36 mL). The centrifuge residues were combined, filtered onto a pre-weighed polycarbonate membrane (0.45 μm, HTTP, Millipore, Kilsyth, Victoria, Australia), rinsed thoroughly with 250 mL of deionized (DI) water and then dried in air for 1 h at 80 °C. The final mass of the unwanted residue was 3.2 mg, giving a process yield (into the suspension) of 36%. The yield can be improved by using a high powered tip sonicator however the bath sonicator was used to minimize damage to the SWCNTs.

3.2. SWCNT Film Formation by Vacuum Filtration

Randomly aligned SWCNT membranes were prepared similarly to Wu [15] and Hu [37]. Volumes of 25, 50, 75, 150, 225, 300, 375, 450 or 600 μL·cm−2 of filter membrane of the SWCNT suspension was first diluted in 250 mL of a 0.01% v/v solution of TritonX-100 in DI water and then filtered onto large pore mixed cellulose ester (MCE) “target” membranes (0.45 µm, HAWP, Millipore, Kilsyth, Victoria, Australia) over a smaller pored “stencil” membrane (25 nm, VSWP, Millipore, Kilsyth, Victoria, Australia). The very large difference in flow rates between target and stencil allows the fabrication of well-defined film shapes on the target membrane, all with identical characteristics. The films made this way are highly reproducible and the thickness/optical density are precisely controllable by varying the concentration and/or volume of SWCNT solution, with the additional benefit of minimizing wastage of SWCNT material. However, to get good long term reproducibility and control of films’ optical and sheet resistance characteristics, it was found that the same apparatus (glass filter frit, etc.) must be used with the same vacuum applied and the concentration of surfactant and age/bundle state of the suspension must all be well controlled. The SWCNT films were rinsed thoroughly with 3 × 50 mL DI water then a further 250 mL DI water. Circular regions (0.32 cm2) of the resulting SWCNT-MCE membrane were taken for device fabrication.

3.3. Device Fabrication

Phosphorous doped n-type silicon wafers (CZ, 5–25 Ω·cm, <100>, SSP, ABC GmbH, München, Germany) with a thermal oxide (100 nm) were diced into rectangular pieces (1 × 1.5 cm2). UV photolithography was used to define circular regions (0.08 cm2) in a positive resist (AZ1518, micro resist technology GmbH, München, Germany), which was developed and then the front metal contact (Ti/Au, 5/145 nm) was sputtered.
Following photoresist lift off the 100 nm oxide in these regions was removed with buffered oxide etch (BOE). The SWCNT films were deposited onto the substrate surfaces by placing the circular SWCNT-MCE membranes, SWCNT side down, centered over the etched holes. The membranes were wetted with DI water then compressed and baked dry (80 °C, 15 min). Following cooling, the substrates were immersed in acetone for 1 h to dissolve the MCE. After being removed from this first acetone bath and dried with N2, the devices were washed in a further 3 baths of fresh acetone for 1 h each and with mild stirring of the solvent. After the final drying with N2, substrates were obtained with SWCNT membranes tightly adsorbed onto their surfaces providing 0.08 cm2 circular active areas surrounded by 0.24 cm2 regions where the SWCNT membranes overlap the front metal contacts. After etching of the rear oxide the devices were completed with gallium indium eutectic (eGaIn) back contacts and mounted on steel plates (2 cm2). The solar cells, shown schematically in Figure 3, thus produced are called “as-prepared”.

3.4. Characterization

UV-vis-NIR absorbance spectra of the SWCNT films were measured using a spectrophotometer (Cary50, Varian, Mulgrave, Victoria, Australia) by passing the beam through films mounted on glass. Simple background subtraction was performed using the absorbance spectra of the glass substrates. Transmittance spectra were calculated post-measurement from the absorbance data. Sheet resistance measurements were taken from the same films using a four point probe (KeithLink) in linear geometry and a multimeter (GDM-8261, GW Instek, Lepas, Penang, Malaysia).
To calculate a reliable measure of the average optical depth the absorbance was averaged from two points chosen so as to be outside the range of the SWCNT absorption peaks. This is because those regions are subject to large changes due to post fabrication film treatments, which would skew the absorbance values. For these large diameter arc-discharge SWCNTs the two wavelengths were 450 nm and 850 nm and the absorption was converted to an average transmittance.
Current-voltage data was collected with a Keithley 2400 source measure unit and recorded using a custom Labview™ virtual instrument. For light experiments, the cells were illuminated by collimated 100 mW·cm−2 light from a xenon-arc source passed through an AM1.5G filter. The irradiance at the sample plane was measured with a silicon reference cell (PV Measurements, NIST-traceable calibration, Denver, CO, USA). Data was obtained by scanning from 1 V to −1 V and several curves were taken to verify the stability of the output characteristics.
The solar cell parameters Jsc, Voc, FF, and PCE were determined and the series resistance (Rs) and shunt resistance (Rshunt) were estimated from the inverse slopes of the current-voltage curves under illumination at Voc and Jsc, respectively. The dark current characteristics were analyzed using the diode Equation [51]:
Nanomaterials 03 00655 i001
where J0 is the reverse saturation current density, V the applied potential; q the elementary charge; k the Boltzmann constant; T the absolute temperature; and n the ideality factor. For V > kT/q, the −1 term can be dropped since the exponential term rapidly becomes >>1. Taking the natural logarithm of both sides gives:
Nanomaterials 03 00655 i002
Thus, the semilog plot of the current-voltage data (lnJ versus V) yields n and J0 from the slope and intercept, respectively. This method works well for close-to-ideal diodes however in some of the SWCNT-silicon test cells the voltage drop due to high parasitic Rs cannot be ignored. Thus, Equation (1) can be modified to give [52]:
Nanomaterials 03 00655 i003
where A is the active area of the junction and Rs is the combined series resistances of the device. In this case a plot of lnJ versus (VJARs) can be more accurate, assuming a reliable measure of Rs can be made. It can be estimated from the light JV data but possible light-induced effects must be taken into account. Another way to determine Rs (but which assumes a Schottky diode [51]) is to take the logarithm of Equation (3), differentiate with respect to J and rearrange terms to give:
Nanomaterials 03 00655 i004
where β = kT/q and a plot of d(V)/d(lnJ) versus J yields the series resistance and a self-consistency check of the ideality factor from the slope and intercept, respectively. Regardless, as with all modeling of real data, it must be done with a good idea of what should be expected and an understanding of the limitations and alternatives of the model used.

3.5. Film Treatments Applied Post Fabrication

After characterization, the as prepared devices were treated for 15 s with 2% HF to remove the native oxide. This was done by placing a single drop on the film surface, which was readily wetted, and then rinsing with water and then ethanol. HF dissolves glass thus it was not possible to use it on the glass-mounted films used for optical and sheet resistance measurements and so 2% HCl was used instead, in the same manner. For thionyl chloride (SOCl2) treatment, two drops were applied to the SWCNT films, allowed to dry in air, and then rinsed briefly with ethanol and dried with N2. A second HF treatment was applied in the same manner as the first.

4. Conclusions

The results show a strong dependence on film thickness, as expected, particularly for films with average transmittance greater than ~70% and the main cause of this is the sheet resistance of the SWCNT film. The effect of doping with SOCl2 is primarily via a reduction in sheet resistance boosting the short circuit current density, open circuit voltage and fill factor of all devices. An interfacial oxide does not improve the devices with doped SWCNT films, but is essential for those with the undoped films, and particularly the thinner films with Tav > 70%.

Acknowledgments

This work is supported by the Australian Microscopy and Microanalysis Research Facility (AMMRF).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brunekreeft, G.; Neuhoff, K.; Newbery, D. Electricity transmission: An overview of the current debate. Util. Policy 2005, 13, 73–93. [Google Scholar] [CrossRef]
  2. Tune, D.D.; Flavel, B.S.; Krupke, R.; Shapter, J.G. Carbon nanotube-silicon solar cells. Adv. Energy Mater. 2012, 2, 1043–1055. [Google Scholar] [CrossRef]
  3. Tune, D.D.; Hennrich, F.; Dehm, S.; Klein, M.F.G.; Glaser, K.; Colsmann, A.; Shapter, J.G.; Lemmer, U.; Kappes, M.M.; Krupke, R.; et al. The role of nanotubes in carbon nanotube–silicon solar cells. Adv. Energy Mater. 2013, 3, 1091–1097. [Google Scholar]
  4. Levitsky, I.A.; Euler, W.B.; Karachevtsev, V.A. Photophysics of Carbon Nanotubes Interfaced with Organic and Inorganic Materials; Springer International Publishing: Zurich, Switwerland, 2012. [Google Scholar]
  5. Tune, D.D.; Blanch, A.J.; Krupke, R.; Flavel, B.S.; Shapter, J.G. The effect of nanotube film metallicity on the performance of carbon nanotube–silicon solar cells. ACS Nano 2013. submitted for publication. [Google Scholar]
  6. Wei, J.; Jia, Y.; Shu, Q.; Gu, Z.; Wang, K.; Zhuang, D.; Zhang, G.; Wang, Z.; Luo, J.; Cao, A.; et al. Double-walled carbon nanotube solar cells. Nano Lett. 2007, 7, 2317–2321. [Google Scholar] [CrossRef]
  7. Li, Z.; Kunets, V.P.; Saini, V.; Xu, Y.; Dervishi, E.; Salamo, G.J.; Biris, A.R.; Biris, A.S. SOCl2 enhanced photovoltaic conversion of single wall carbon nanotube/n-silicon heterojunctions. Appl. Phys. Lett. 2008, 93, 243117:1–243117:3. [Google Scholar]
  8. Li, Z.; Kunets, V.P.; Saini, V.; Xu, Y.; Dervishi, E.; Salamo, G.J.; Biris, A.R.; Biris, A.S. Light-harvesting using high density p-type single wall carbon nanotube/n-type silicon heterojunctions. ACS Nano 2009, 3, 1407–1414. [Google Scholar] [CrossRef]
  9. Jia, Y.; Li, P.; Wei, J.; Cao, A.; Wang, K.; Li, C.; Zhuang, D.; Zhu, H.; Wu, D. Carbon nanotube films by filtration for nanotube-silicon heterojunction solar cells. Mater. Res. Bull. 2010, 45, 1401–1405. [Google Scholar] [CrossRef]
  10. Li, Z.; Jia, Y.; Wei, J.; Wang, K.; Shu, Q.; Gui, X.; Zhu, H.; Cao, A.; Wu, D. Large area, highly transparent carbon nanotube spiderwebs for energy harvesting. J. Mater. Chem. 2010, 20, 7236–7240. [Google Scholar] [CrossRef]
  11. Del Gobbo, S.; Castrucci, P.; Scarselli, M.; Camilli, L.; De Crescenzi, M.; Mariucci, L.; Valletta, A.; Minotti, A.; Fortunato, G. Carbon nanotube semitransparent electrodes for amorphous silicon based photovoltaic devices. Appl. Phys. Lett. 2011, 98, 183113:1–183113:3. [Google Scholar]
  12. Kozawa, D.; Hiraoka, K.; Miyauchi, Y.; Mouri, S.; Matsuda, K. Analysis of the photovoltaic properties of single-walled carbon nanotube/silicon heterojunction solar cells. Appl. Phys. Express 2012, 5, 042304:1–042304:3. [Google Scholar]
  13. Zhao, Y.; Yang, L.; Chen, S.; Wang, X.; Ma, Y.; Wu, Q.; Jiang, Y.; Qian, W.; Hu, Z. Can boron and nitrogen co-doping improve oxygen reduction reaction activity of carbon nanotubes? J. Am. Chem. Soc. 2013, 135, 1201–1204. [Google Scholar] [CrossRef]
  14. Jia, Y.; Wei, J.; Wang, K.; Cao, A.; Shu, Q.; Gui, X.; Zhu, Y.; Zhuang, D.; Zhang, G.; Ma, B.; et al. Nanotube-silicon heterojunction solar cells. Adv. Mater. 2008, 20, 4594–4598. [Google Scholar] [CrossRef]
  15. Wu, Z.; Chen, Z.; Du, X.; Logan, J.M.; Sippel, J.; Nikolou, M.; Kamaras, K.; Reynolds, J.R.; Tanner, D.B.; Hebard, A.F.; et al. Transparent, conductive carbon nanotube films. Science 2004, 305, 1273–1276. [Google Scholar] [CrossRef]
  16. Castrucci, P.; Del Gobbo, S.; Camilli, L.; Scarselli, M.; Casciardi, S.; Tombolini, F.; Convertino, A.; Fortunato, G.; De Crescenzi, M. Photovoltaic response of carbon nanotube-silicon heterojunctions: Effect of nanotube film thickness and number of walls. J. Nanosci. Nanotechnol. 2011, 11, 9202–9207. [Google Scholar] [CrossRef]
  17. Wadhwa, P.; Liu, B.; McCarthy, M.A.; Wu, Z.; Rinzler, A.G. Electronic junction control in a nanotube-semiconductor Schottky junction solar cell. Nano Lett. 2010, 10, 5001–5005. [Google Scholar] [CrossRef]
  18. Wadhwa, P.; Seol, G.; Petterson, M.K.; Guo, J.; Rinzler, A.G. Electrolyte-induced inversion layer Schottky junction solar cells. Nano Lett. 2011, 11, 2419–2423. [Google Scholar] [CrossRef]
  19. Jia, Y.; Cao, A.; Bai, X.; Li, Z.; Zhang, L.; Guo, N.; Wei, J.; Wang, K.; Zhu, H.; Wu, D.; et al. Achieving high efficiency silicon-carbon nanotube heterojunction solar cells by acid doping. Nano Lett. 2011, 11, 1901–1905. [Google Scholar] [CrossRef]
  20. Jung, Y.; Li, X.; Rajan, N.K.; Taylor, A.D.; Reed, M.A. Record high efficiency single-walled carbon nanotube/silicon p-n junction solar cells. Nano Lett. 2012, 13, 95–99. [Google Scholar]
  21. Jia, Y.; Li, P.; Gui, X.; Wei, J.; Wang, K.; Zhu, H.; Wu, D.; Zhang, L.; Cao, A.; Xu, Y. Encapsulated carbon nanotube-oxide-silicon solar cells with stable 10% efficiency. Appl. Phys. Lett. 2011, 98, 133115:1–133115:3. [Google Scholar]
  22. Schriver, M.; Regan, W.; Loster, M.; Zettl, A. Carbon nanostructure–Asi:H photovoltaic cells with high open-circuit voltage fabricated without dopants. Solid State Commun. 2010, 150, 561–563. [Google Scholar] [CrossRef]
  23. Li, X.; Jia, Y.; Wei, J.; Zhu, H.; Wang, K.; Wu, D.; Cao, A. Solar cells and light sensors based on nanoparticle-grafted carbon nanotube films. ACS Nano 2010, 4, 2142–2148. [Google Scholar] [CrossRef]
  24. Li, P.; Wang, S.; Jia, Y.; Li, Z.; Ji, C.; Zhang, L.; Li, H.; Shi, E.; Bian, Z.; Huang, C.; et al. CuI–Si heterojunction solar cells with carbon nanotube films as flexible top-contact electrodes. Nano Res. 2011, 4, 979–986. [Google Scholar] [CrossRef]
  25. Golap Kalita, G.; Adhikari, S.; Aryal, H.R.; Afre, R.; Soga, T.; Sharon, M.; Koichi, W.; Umeno, M. Silicon nanowire array/polymer hybrid solar cell incorporating carbon nanotubes. J. Phys. D 2009, 42, 115104:1–115104:11. [Google Scholar]
  26. Shu, Q.; Wei, J.; Wang, K.; Song, S.; Guo, N.; Jia, Y.; Li, Z.; Xu, Y.; Cao, A.; Zhu, H.; et al. Efficient energy conversion of nanotube/nanowire-based solar cells. Chem. Commun. 2010, 46, 5533–5535. [Google Scholar] [CrossRef]
  27. Shu, Q.; Wei, J.; Wang, K.; Zhu, H.; Li, Z.; Jia, Y.; Gui, X.; Guo, N.; Li, X.; Ma, C.; et al. Hybrid heterojunction and photoelectrochemistry solar cell based on silicon nanowires and double-walled carbon nanotubes. Nano Lett. 2009, 9, 4338–4342. [Google Scholar] [CrossRef]
  28. Zhang, Y.F.; Wang, Y.F.; Chen, N.; Wang, Y.Y.; Zhang, Y.Z.; Zhou, Z.H.; Wei, L.M. Photovoltaic enhancement of Si solar cells by assembled carbon nanotubes. Nano-Micro Lett. 2010, 2, 22–25. [Google Scholar]
  29. Li, C.; Li, Z.; Zhu, H.; Wang, K.; Wei, J.; Li, X.; Sun, P.; Zhang, H.; Wu, D. Graphene nano-“patches” on a carbon nanotube network for highly transparent/conductive thin film applications. J. Phys. Chem. C 2010, 114, 14008–14012. [Google Scholar] [CrossRef]
  30. Fan, G.; Fan, L.; Li, Z.; Bai, X.; Mulligan, S.; Jia, Y.; Wang, K.; Wei, J.; Cao, A.; Wu, D.; et al. Hybrid effect of gas flow and light excitation in carbon/silicon Schottky solar cells. J. Mater. Chem. 2012, 22, 3330–3334. [Google Scholar] [CrossRef]
  31. Li, X.; Jung, Y.; Sakimoto, K.; Goh, T.-H.; Reed, M.A.; Taylor, A.D. Improved efficiency of smooth and aligned single walled carbon nanotube/silicon hybrid solar cells. Energy Environ. Sci. 2013, 6, 879–887. [Google Scholar] [CrossRef]
  32. Shi, E.; Zhang, L.; Li, Z.; Li, P.; Shang, Y.; Jia, Y.; Wei, J.; Wang, K.; Zhu, H.; Wu, D.; et al. TiO2-coated carbon nanotube-silicon solar cells with efficiency of 15%. Sci. Rep. 2012, 2. [Google Scholar] [CrossRef]
  33. Ryabenko, A.G.; Dorofeeva, T.V.; Zvereva, G.I. UV-vis-NIR spectroscopy study of sensitivity of single-wall carbon nanotubes to chemical processing and van-Der-Waals SWNT/SWNT interaction. Verification of the SWNT content measurements by absorption spectroscopy. Carbon 2004, 42, 1523–1535. [Google Scholar] [CrossRef]
  34. O’Connell, M.J.; Eibergen, E.E.; Doorn, S.K. Chiral selectivity in the charge-transfer bleaching of single-walled carbon-nanotube spectra. Nat. Mater. 2005, 4, 412–418. [Google Scholar] [CrossRef]
  35. Dettlaff-Weglikowska, U.; Skákalová, V.; Graupner, R.; Jhang, S.H.; Kim, B.H.; Lee, H.J.; Ley, L.; Park, Y.W.; Berber, S.; Tománek, D.; et al. Effect of SOCl2 treatment on electrical and mechanical properties of single-wall carbon nanotube networks. J. Am. Chem. Soc. 2005, 127, 5125–5131. [Google Scholar] [CrossRef]
  36. Beer, A. Determination of the absorption of red light in colored liquids. Annal. Phys. Chem. 1852, 86, 78–88. [Google Scholar] [CrossRef]
  37. Hu, L.; Hecht, D.S.; Grüner, G. Percolation in transparent and conducting carbon nanotube networks. NanoLett. 2004, 4, 2513–2517. [Google Scholar] [CrossRef]
  38. Pike, G.E.; Seager, C.H. Percolation and conductivity: A computer study. Phys. Rev. B 1974, 10, 1421–1434. [Google Scholar] [CrossRef]
  39. Yi, Y.B.; Sastry, A.M. Analytical approximation of the two-dimensional percolation threshold for fields of overlapping ellipses. Phys. Rev. E 2002, 66, 066130:1–066130:8. [Google Scholar]
  40. Nirmalraj, P.N.; Lyons, P.E.; De, S.; Coleman, J.N.; Boland, J.J. Electrical connectivity in single-walled carbon nanotube networks. Nano Lett. 2009, 9, 3890–3895. [Google Scholar] [CrossRef]
  41. Parekh, B.B.; Fanchini, G.; Eda, G.; Chhowalla, M. Improved conductivity of transparent single-wall carbon nanotube thin films via stable postdeposition functionalization. Appl. Phys. Lett. 2007, 90, 121913:1–121913:3. [Google Scholar]
  42. Geng, H.-Z.; Kim, K.K.; So, K.P.; Lee, Y.S.; Chang, Y.; Lee, Y.H. Effect of acid treatment on carbon nanotube-based flexible transparent conducting films. J. Am Chem. Soc. 2007, 129, 7758–7759. [Google Scholar] [CrossRef]
  43. Blackburn, J.L.; Barnes, T.M.; Beard, M.C.; Kim, Y.-H.; Tenent, R.C.; McDonald, T.J.; To, B.; Coutts, T.J.; Heben, M.J. Transparent conductive single-walled carbon nanotube networks with precisely tunable ratios of semiconducting and metallic nanotubes. ACS Nano 2008, 2, 1266–1274. [Google Scholar] [CrossRef]
  44. Barnes, T.M.; Blackburn, J.L.; van de Lagemaat, J.; Coutts, T.J.; Heben, M.J. Reversibility, dopant desorption, and tunneling in the temperature-dependent conductivity of type-separated, conductive carbon nanotube networks. ACS Nano 2008, 2, 1968–1976. [Google Scholar] [CrossRef]
  45. Tantang, H.; Ong, J.Y.; Loh, C.L.; Dong, X.; Chen, P.; Chen, Y.; Hu, X.; Tan, L.P.; Li, L.-J. Using oxidation to increase the electrical conductivity of carbon nanotube electrodes. Carbon 2009, 47, 1867–1870. [Google Scholar] [CrossRef]
  46. Kim, D.H.; Lee, J.K.; Huh, J.H.; Kim, Y.H.; Kim, G.T.; Roth, S.; Dettlaff-Weglikowska, U. Effect Of SOCl2 doping on electronic properties of single-walled carbon nanotube thin film transistors. Phys. Status Solidi B 2011, 248, 2668–2671. [Google Scholar] [CrossRef]
  47. Znidarsic, A.; Kaskela, A.; Laiho, P.; Gaberscek, M.; Ohno, Y.; Nasibulin, A.G.; Kauppinen, E.I.; Hassanien, A. Spatially resolved transport properties of pristine and doped single-walled carbon nanotube networks. J. Phys. Chem. C 2013, 117, 13324–13330. [Google Scholar] [CrossRef]
  48. Zhang, Z.-B.; Li, J.; Cabezas, A.L.; Zhang, S.-L. Characterization of acid-treated carbon nanotube thin films by means of raman spectroscopy and field-effect response. Chem. Phys. Lett. 2009, 476, 258–261. [Google Scholar] [CrossRef]
  49. Jia, Y.; Cao, A.; Kang, F.; Li, P.; Gui, X.; Zhang, L.; Shi, E.; Wei, J.; Wang, K.; Zhu, H.; et al. Strong and reversible modulation of carbon nanotube-silicon heterojunction solar cells by an interfacial oxide layer. Phys. Chem. Chem. Phys. 2012, 14, 8391–8396. [Google Scholar] [CrossRef]
  50. Saha, A.; Ghosh, S.; Weisman, R.B.; Martí, A.A. Films of bare single-walled carbon nanotubes from superacids with tailored electronic and photoluminescence properties. ACS Nano 2012, 6, 5727–5734. [Google Scholar] [CrossRef]
  51. Cheung, S.K.; Cheung, N.W. Extraction of Schottky diode parameters from forward current-voltage characteristics. Appl. Phys. Lett. 1986, 49, 85–87. [Google Scholar] [CrossRef]
  52. Sze, S.M.; Ng, K.K. Physics of Semiconductor Devices; Wiley Interscience: Hoboken, New Jeresy, NJ, USA, 2006. [Google Scholar]
