Next Article in Journal
Iron Oxide-Cobalt Nanocatalyst for O-tert-Boc Protection and O-Arylation of Phenols
Next Article in Special Issue
A Facile Method for the Preparation of Colored Bi4Ti3O12−x Nanosheets with Enhanced Visible-Light Photocatalytic Hydrogen Evolution Activity
Previous Article in Journal
Study on the Coupling Mechanism of the Orthogonal Dipoles with Surface Plasmon in Green LED by Cathodoluminescence
Previous Article in Special Issue
In-Situ Synthesis of Hydrogen Titanate Nanotube/Graphene Composites with a Chemically Bonded Interface and Enhanced Visible Photocatalytic Activity


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

A Facile Approach to Prepare Black TiO2 with Oxygen Vacancy for Enhancing Photocatalytic Activity

1
School of Physics &Optoelectronic Engineering, Guangdong University of Technology, Guangzhou 510006, China
2
School of Physics Science and Technology, Lingnan Normal University, Zhanjiang 524048, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(4), 245; https://doi.org/10.3390/nano8040245
Submission received: 14 March 2018 / Revised: 7 April 2018 / Accepted: 13 April 2018 / Published: 16 April 2018

Abstract

:
Black TiO2 has triggered worldwide research interest due to its excellent photocatalytic properties. However, the understanding of its structure–property relationships and a more effective, facile and versatile method to produce it remain great challenges. We have developed a facile approach to synthesize black TiO2 nanoparticles with significantly improved light absorption in the visible and infrared regions. The experimental results show that oxygen vacancies are the major factors responsible for black coloration. More importantly, our black TiO2 nanoparticles have no Ti3+ ions. These oxygen vacancies could introduce localized states in the bandgap and act as trap centers, significantly decreasing the electron–hole recombination. The photocatalytic decomposition of both rhodamine B and methylene blue demonstrated that, under ultraviolet light irradiation, better photocatalytic performance is achieved with our black TiO2 nanoparticles than with commercial TiO2 nanoparticles.

1. Introduction

Since the pioneering work of Fujishima and Honda in 1972 [1], titanium dioxide (TiO2) has attracted extensive interest as a widely used semiconductor photocatalyst in the fields of hydrogen production, photocatalytic water-splitting [2], environmental protection technologies [3] and photocatalytic reduction of carbon dioxide [4].Especially in the area of environmental protection, textile dyes and other industrial dye stuffs constitute one of the largest group of organic compounds that represent an increasing environmental danger. Therefore, improving the efficiency of photocatalysis is a current research hotspot. Absorption of light to generate electron-hole pairs and effective charge separation are of great significance for enhancing the efficiency of the photocatalytic reaction in TiO2 semiconductor materials. In general, the more light TiO2 can absorb, the more excited charges are likely to be on its surface, improving its photocatalytic efficiency [5]. However, the large band gap of anatase TiO2 (~3.2 eV) greatly limits its optical absorption in the UV region of the solar spectrum, resulting in poor efficiency for solar-driven photocatalysis.
Therefore, great efforts have been devoted to modifying the band structure to enhance the visible-light absorption, such as doping TiO2 with metal [6,7,8,9] or nonmetal [10,11] elements and co-doping with metal and non-metal elements[12,13,14]. All these efforts have enhanced its visible light absorption and photocatalytic activity. However, the results are not yet satisfactory.
Recently, a hydrogenated black TiO2 (B-TiO2) material was reported by Mao and co-workers, having a narrow bandgap of ~1.5 eV with increased light harvesting efficiency in the visible and infrared regions and enhanced photocatalytic activity [15]. Unsurprisingly, this discovery has triggered worldwide research interest in black TiO2 nanomaterials, which represent a major breakthrough for TiO2 in photocatalysis. Since then, different methods for the synthesis of black TiO2 have been developed, which have allowed the preparation of hydrogenated or reduced TiO2 of different colors like yellow, blue, gray and black, by the use of different initial TiO2 materials and reaction conditions [16,17,18]. Most of these approaches can be divided into two types: reduction from TiO2 and incomplete oxidation from low-valence-state Ti species. To reduce white TiO2 to black TiO2, Al, Mg, Zn, H2, NaBH4, imidazole and ascorbic acid have been used as reducing agents [19,20]. For example, Liu et al. reported black TiO2 nanotubes obtained by pressurized H2 reduction at high temperature (500 °C, 20 bar, for 1 h), with a high photocatalytic hydrogen production rate [21]. Wang et al. reported a mass-production approach to synthesize black TiO2 with a unique crystalline-core amorphous-shell structure (TiO2@TiO2−x), by using aluminum instead of hydrogen as the reducing agent [22]. Sinhamahapatra et al. developed a controlled magnesiothermic reduction to synthesize reduced black TiO2 under a 5% H2/Ar atmosphere, with an optimum bandgap and band position, oxygen vacancies, surface defects and charge recombination centers and showing significantly improved optical absorption in the visible and infrared regions [23]. For the second approach, the Ti sources TiH2, Ti, TiO, Ti2O3, TiCl3 and TiN have been incompletely oxidized to synthesize black or hydrogenated TiO2 [18,24]. For example, Liu et al. synthesized rice-shaped Ti3+ self-doped TiO2−x nanoparticles by mild hydrothermal treatment of TiH2 in a H2O2 aqueous solution; the particles showed a strong absorption from the UV to the visible light regions and retained their light-blue color upon storage under ambient atmosphere or water, for one month at 40 °C [25].Pei et al. prepared gray TiO2−x with enhanced visible light photocatalytic activity by a facile hydrothermal treatment of TiO in HCl solution [26].All these synthetic approaches resulted in changes in the TiO2 color and enhancement of its light absorption. Surface lattice disorders, high-concentration of oxygen vacancies, Ti3+ ions, Ti-OH groups and Ti-H bands have been found in some black TiO2 and explain their color change, enhancement of light absorption and photocatalytic activity. These highly defective TiO2, referred to as Ti3+ ions/oxygen-vacancy self-doping (TiO2−x) and H-doping (TiO2−xHx), always present black color and possess strong visible light absorption. Some papers have also reported prepared black TiO2 that have only oxygen vacancies but no Ti3+ ions. For example, Wang et al. suggested the absence of Ti3+ in hydrogenated black TiO2 nanowires treated at 450 °C [27]. Dong et al. synthesized defective black TiO2−x with a remarkable photocatalytic activity by a facile anodization technique and indicated that there were oxygen vacancies present but no Ti3+ [28]. This may be attributed to their lower preparation temperatures (≤450 °C). Furthermore, the defect structure of black TiO2 is the major factor that determines its various properties, including color change, light absorption and photocatalytic activity [29]. According to previous papers, black TiO2 with disordered shell/hydroxyl groups can induce valence-band/conduction-band tails, that reduce their bandgap [15,30]. They can also induce oxygen vacancies, Ti3+ ions and H-doping defects that reduce the bandgap and introduce mid-gap/localized-donor states below the conduction band, in addition to an upshift of the Fermi level [31,32],which renders color changes. For example, for Ti3+ self-doping black TiO2, the localized excitation of the Ti3+ ions via 3d transitions from the gap state to the empty excited state, significantly increases its light absorption and extends it to the visible region [22].
However, some questions still exist regarding black TiO2. For example, there is no consensus on what are the most essential modifications and the most effective synthetic method for their preparation. Some black TiO2 do not show the expected efficiency in visible light. Furthermore, their preparation is cumbersome and costly. The oxygen vacancies and Ti3+ species created during their synthesis are usually not stable enough because the TiO2 reduction occurs mainly on its surface. These factors severely limit their wide applicability. Therefore, developing a simple and economic strategy to synthesize a higher stability, higher performance black TiO2 photocatalyst is still a great challenge.
Inspired by the above-mentioned considerations, we have developed a facile technique for synthesizing black TiO2 nanoparticles, for the first time by low-temperature annealing in a vacuum-tube furnace. The obtained samples reveal very strong visible and infrared light absorption. The B-TiO2 nanoparticles have oxygen vacancies and no Ti3+ ions. We evaluated the effectiveness of the as-prepared B-TiO2 nanoparticles and the feasibility of applying them to photocatalytic degradation tests. Very promisingly, the resultant B-TiO2 nanoparticles showed superior photocatalytic activity, far beyond that of commercial white TiO2 nanoparticles.

2. Experimental

2.1. Materials

Commercial catalyst white titanium dioxide nanoparticles (20–30 nm) and absolute ethanol were purchased from Macklin Biochemical. All the chemicals used in this study were analytical grade and were used as received. All the solutions were made using ultrapure Milli-Q (Millipore Corporation, Burlington, MA, USA) water.

2.2. Synthesis of B-TiO2 Nanoparticles

In a simple synthetic procedure, commercially available (W-TiO2) nanoparticles were used as precursors. W-TiO2 nanoparticles (0.5 g) and absolute ethanol (10 mL) were mixed in a 50 mL quartz tube using a magnetic stirrer to form a milky-white suspension. The milky-white suspension was stirred for 10 min. Then the suspension was poured into a sintering boat (length 6 cm, width 3 cm, height 1.5 cm) and transferred to a vacuum tube furnace (SK-G06163, Φ60/50 × 1000 mm). The suspension was annealed at 400 °C for 3 h. The detailed annealing procedure is as follows: The initial temperature is set to 50 °C and the temperature is raised at a rate of 5°C/min until reaches 400 °C and the temperature is maintained at 400 °C for three hours. Then, the temperature is lowered at a rate of 5 °C/min until reaches 50 °C. Finally, the sample was allowed to cool to room temperature and a black mass of B-TiO2 nanoparticles was obtained.

2.3. Characterization

The X-ray diffraction patterns (XRD) of the samples were obtained at room temperature using Cu Kα irradiation (λ = 1.5406 Å) operating at 36 kV tube voltage and 20 mA tube current. Data were collected between 10° and 70° (2θ) with a 0.02° step size. Raman spectra were recorded on a UV laser Raman spectrometer at λ = 785 nm. UV-vis diffuse reflectance (DRUV-vis) absorption spectra were recorded on an UV-2700 Spectrophotometer in the range of 200–800 nm. X-ray photoelectron spectra (XPS) were measured on an ESCALAB 250Xi using the reference of C1s (284.8 eV) with an excitation source of 150 W Al Kα (hv = 1486.6 eV) X-rays. The electron paramagnetic resonance (EPR) spectra were obtained using a JES-FA200 spectrometer (JEOL, Tokyo, Japan) at room temperature and an FEI Tecnai G2 F20 (FEI, Hillsboro, OR, USA) model was used to determine the size and morphologies of the nanoparticles. Sample specimens for the transmission electron microscopy (TEM) measurement were prepared by briefly ultrasonicating the sample powders in ethanol, followed by placing a drop of the suspension onto lacey support films that were dried before imaging. Fourier transformed infra-red (FTIR, 80/80v Bruker TENSOR27, BRUKER OPTICS, Karlsruhe, Germany) was used to analyze the functional groups in the catalyst from 500 to 4000 cm−1. Photoluminescence (PL) emission spectrum was recorded on an FLS980 fluorescence spectrophotometer equipped with a 450 W xenon lamp as the excitation source, at room temperature (excitation wavelength λex = 300 nm).

2.4. Photocatalytic Test

Rhodamine B (RhB) and methylene blue (MB) are organic dye with a bright red color and blue color, respectively. They are widely applied as a test model pollutant in photocatalytic processes. Therefore, the photocatalytic activity of the two prepared samples was evaluated by monitoring the decomposition of (RhB)/(MB) in an aqueous solution under UV irradiation from a 500 W Hg lamp. The lamp was positioned in a cylindrical Pyrex vessel and cooled by circulating water to control the reaction temperature at about 27 °C. A quartz tube was used as the photo catalytic reactor. The sample of TiO2 (0.01 g) was mixed with an aqueous solution of RhB/MB (40 mL, 4 × 10–5 M). After stirring for 30 min in the dark, to reach an adsorption equilibrium between the photocatalyst and the RhB/MB solution, the mixture was exposed to UV light. Vigorous magnetic stirring was maintained in order to keep the B-TiO2 and W-TiO2 nanoparticles suspended in the RhB/MB solution. The concentration of aqueous RhB/ MB was determined with a UV-Vis spectrophotometer by measuring the peak intensity at 553/668 nm, respectively. The percentage of degradation was recorded as C/C0, where C and C0 refer to the absorbance of the RhB/MB solution after a certain time interval (20 min) and the initial absorbance, respectively.
The photocatalytic activity of B-TiO2 and W-TiO2 under visible light was also evaluated by monitoring the decomposition of RhB/MB. The apparatus for studying the photocatalytic decomposition of RhB/MB was identical under visible and ultraviolet light, except that an 800W Xe lamp was used instead of a Hg lamp and ultraviolet cut off filter (>420 nm) was applied to cut off the UV light. The amount of catalyst has also been increased to 0.02 g.

3. Results and Discussion

3.1. Characterization

The prepared B-TiO2 nanoparticles showed an outstanding stability. No color change was observed for the B-TiO2 nanoparticles over one year after they were synthesized and stayed black even when annealed at 200 °C in air for 3 days. Figure 1 shows the UV-visible absorption spectra of the B-TiO2 and W-TiO2 nanoparticles. A large absorption peak is observed, for both, at wavelengths shorter than 400 nm (~3.1 eV), which can be attributed to the intrinsic bandgap absorption of crystalline anatase TiO2. Compared with pristine W-TiO2, the B-TiO2 extended the absorption from UV light to the visible and infrared light regions. The extended absorption is consistent with the changes of sample color from white to black (photograph shown in the inset of Figure 1). Furthermore, for the B-TiO2 nanoparticles, a step appeared at approximately 740 nm (~1.67 eV). This step could be due to oxygen vacancies with a trapped electron and it is discussed in detail in the EPR-analysis section.
The crystalline structures of the B-TiO2 and W-TiO2 nanoparticles were determined by XRD analysis. The powder XRD patterns of the two samples, shown in Figure 2a, exhibited characteristic diffraction peaks matching the (101), (004), (200), (105) and (204) planes of anatase TiO2 (JCPDS Card No. 21-1272). It could also be seen that there was almost no phase change in the B-TiO2 nanoparticles and no other diffraction peaks could be observed after the low temperature annealing. However, from the local enlargement of diffraction peaks (inset of Figure 2a), the diffraction peaks of the B-TiO2 nanoparticles moved slightly to a higher angle. According to the Bragg equation (2dsinθ = λ, where d is the crystal spacing, θ the diffraction angle and λ the X-ray wavelength), the shift of peaks towards higher angles suggests that the lattice parameters decrease. This result can be explained in terms of the oxygen vacancies produced by the annealing of the samples [33].
The morphology and crystal structure of the B-TiO2 and W-TiO2 nanoparticles were examined by high-resolution transmittance microscopy (HR-TEM) analysis, as shown in Figure 2b–e. The TEM images showed similar particle sizes and morphologies for B-TiO2 (Figure 2b) and W-TiO2 (Figure 2c), which proves that the low temperature annealing did not change its morphology. The lattice fringe pattern with a spacing of ~0.35 nm, shown in the high resolution TEM (HRTEM) images (Figure 2d,e), confirms the (101) plane of anatase TiO2 for the W-TiO2 and B-TiO2 nanoparticles (in agreement with the XRD analysis). Both the W-TiO2 and B-TiO2 nanoparticles were highly crystallized, as seen from the well resolved lattice features. However, other researchers have reported a disordered surface layer surrounding the crystalline core in the hydrogenated/aluminum-reduced black TiO2 nanoparticles obtained under high temperature (>450 °C) and high pressure (>5 bar) [22,34]. In contrast, the B-TiO2 nanoparticles prepared in this work used low temperature (400 °C) and atmospheric pressure conditions that did not lead to the specific core/shell structure consisting of a disordered surface layer and a crystalline core. The specific surface areas using the Barrett-Emmett-Teller (BET) technique were 52.8 and 61.9 m2/g for the B-TiO2 and W-TiO2 nanoparticles, respectively. The similar BET specific surface areas confirmed that the crystal size of the B-TiO2 nanoparticles did not increase with the low temperature annealing, consistent with the above-discussed TEM results.
Raman spectroscopy is very sensitive to short-range distortions arising from microstructural defects. The structural characteristics of the B-TiO2 nanoparticles were further examined by Raman scattering, as shown in Figure 3. For the W-TiO2 nanoparticles, five characteristic Raman peaks at 143.6, 199.8, 397.2, 516.3 and 639.6 cm−1 were assigned as the Eg, Eg, B1g, A1g + B1g and Eg modes of the anatase phase, respectively [35]. However, compared to the W-TiO2 nanoparticles, it is clear that the frequency of the strongest Eg mode (at 143.6 cm−1) in the B-TiO2 nanoparticles, which results from the external vibration of the Ti-O bonds, had a large blue shift to 152.5 cm−1, accompanied by peak broadening. As reported in previous studies, ruling out grain size effects, the blue shift and peak broadening of the anatase phase TiO2 can be ascribed to the oxygen stoichiometry [36]. Since the B-TiO2 and W-TiO2 nanoparticles had similar particle sizes, the blue shift and broadening of the strongest mode at 143.6 cm−1, can be attributed to a shortening of the correlation length due to the presence of oxygen vacancies (nonstoichiometric). Thus, Raman spectroscopy unambiguously supported the oxygen deficiency of the B-TiO2 nanoparticles.
The existence of oxygen vacancies in the samples was also verified by electron paramagnetic resonance (EPR) at room temperature. EPR is widely-used to examine unpaired spins. In Figure 4, it is easily seen a strong EPR signal in the B-TiO2 nanoparticles at g = 2.003, which is characteristic of oxygen vacancies with a trapped electron in TiO2 and not of Ti3+ ions (g = 1.96–1.99) and consistent with the reported oxygen-deficient TiO2−x [37,38]. Upon removal of an oxygen atom, one or two electrons will be localized in an oxygen vacancy site (reaction 1) and form color centers. The color centers associated with oxygen vacancies in TiO2 are the F, F+ and F++ centers (reactions 2–4) [39]. In our samples, one electron is localized in an oxygen vacancy state (F+-centers).
−O2−→ O + VO + 2e
VO + 2e→ F
VO + 1e→ F+
VO + 0e→ F++
Furthermore, Chen et al. have proved that electrons transit from the color center energy level to the conduction band bottom. The calculated excited energy of the F+-center electron is 1.67 eV [40], which is in reasonable agreement with the step value which appeared at approximately 740 nm (~1.67 eV) in the UV-Vis absorption spectra (Figure 1). Thus, the absorption spectral features in the 1.67 eV region (740 nm) are assigned to a transition from the ground state of the F+ center to its corresponding excited F+* state. By contrast, the W-TiO2 nanoparticles did not contain any paramagnetic site, as a flat line was observed for this sample. Thus, the strong EPR signal peak and also the blue shift of the Raman peak, indicated that B-TiO2 nanoparticles had a high concentration of oxygen vacancies and that no Ti3+ ions existed.
X-ray photo-electron spectroscopy (XPS) analysis was conducted to investigate the chemical states of the Ti and O elements, to gain further insight into the oxygen vacancies in the B-TiO2 nanoparticles and the valence band position on the sample surface. Figure 5a shows the Ti 2p XPS of the B-TiO2 and W-TiO2 nanoparticles. For the W-TiO2 nanoparticles, the Ti 2p3/2 and 2p1/2 XPS peaks were centered at binding energies (BE) 458.6 and 464.36 eV and the calculated ΔBE value between Ti 2p1/2 and Ti 2p3/2 (ΔBE = BE(Ti 2p1/2) − BE(Ti 2p3/2)) was 5.76 eV. These features are typical for the Ti4+-O bonds in TiO2 [18]. The Ti 2p3/2 and 2p1/2 XPS peaks of the B-TiO2 nanoparticles were located at 459.25 and 465.0 eV, respectively, showing a BE positive shift of about 0.65 eV compared with the peaks of the W-TiO2 nanoparticles. However, the ΔBE value between Ti 2p1/2 and Ti 2p3/2 was 5.75 eV, indicating a normal state of Ti4+ in the B-TiO2 nanoparticles. According to previous papers on black TiO2, when the valence of Ti changes to Ti3+, additional peaks at lower binding energies can be observed, or the peaks will show a negative shift in binding energy [41,42].Our results confirmed that the charge states of the Ti atoms at the surface of the B-TiO2 sample were Ti4+ and that no Ti3+ existed at the surface. Additionally, the same phenomenon appeared in the O 1s XPS spectra. Figure 5b shows the high-resolution O 1s XPS spectra of the W-TiO2 nanoparticles: there are two peaks located at about 529.88 and 531.66 eV, which were attributed to the Ti4+-O bond and to surface hydroxyl groups (Ti-OH bonds), respectively. Compared with the W-TiO2 nanoparticles, the O 1s XPS peak of the B-TiO2 nanoparticles (Figure 5c) located at ~530.54 eV, also showed a clear positive shift in binding energy of about 0.66 eV, which is consistent with the Ti 2p. The extra peak existing in the O 1s spectra of the B-TiO2 nanoparticles at higher BE (~532.91 eV) was ascribed to surface free −OH species [43]. Furthermore, the calculated value ΔBE = BE(O 1s) − BE(Ti 2p3/2) = 530.54 eV − 459.25 eV = 71.29 eV, is close to that of anatase (71.4 eV) and quite different from that of the characteristic Ti3+-containing oxides (72.9–73.1 eV) [44]. These features indicated that the valence state of Ti did not change in the B-TiO2 nanoparticles. Reasonably, the clear positive shifts of binding energies of Ti 2p and O 1s were ascribed to the strong interaction between Ti4+ and oxygen vacancies, revealing lattice distortions on the B-TiO2 nanoparticles. It is possible that the oxygen vacancies, sustaining a positive charge, rejected the Ti atoms toward the adjacent oxygen atoms in the crystal structure of B-TiO2, consequently reducing the Ti-O bond length as well as increasing the BE of Ti 2p and O 1s [45,46]. Therefore, the positive shift of the XPS peak is due to the shortening of the correlation length because of the presence of oxygen vacancies. The valence-band maxima were estimated by a linear extrapolation of the peaks to the baselines, which gave a band edge position of 2.7 eV below the Fermi energy for both the B-TiO2 and the W-TiO2 nanoparticles, as shown in Figure 5d. Thus, the oxygen vacancies had a negligible effect on the valence-band position of the B-TiO2 nanoparticles surface.
To gain further insights on the chemical changes produced in the B-TiO2 nanoparticles, Fourier transform infrared (FTIR) spectroscopic measurements were performed, as shown in Figure 6a. Both the B-TiO2 and W-TiO2 nanoparticles showed similar absorption features from 500 cm−1 to 4000 cm−1. Characteristic features of the spectrum are the presence of a band at ~710 cm−1, due to the symmetric stretching vibrations of the Ti-O-Ti bonds of TiO2 and of a peak at about ~3418 cm−1, attributed to the stretching vibration mode of hydroxyls and adsorbed water [47]. Compared with the W-TiO2 nanoparticles, the infrared absorption of the B-TiO2 nanoparticles decreased greatly at ~710 cm−1. This change can be attributed to the presence of a high concentration of oxygen vacancies in the B-TiO2 nanoparticles [48].
The photoluminescence (PL) spectra of the B-TiO2 and W-TiO2 nanoparticles were assessed to investigate the behavior of the electron-hole recombination, which are very important for the photocatalytic activity. Their emission spectra, in the wavelength range of 320–560 nm with excitation at 300 nm, are shown in Figure 6b and were very similar. The main emission peaks of the W-TiO2 nanoparticles appeared at 395 nm (3.1 eV), 436 nm (2.8 eV), 451 nm (2.75 eV) and 459 nm (2.7 eV), respectively. The first one is attributed to the bandgap transition, corresponding to the bandgap energy of anatase. The peaks at 451 nm and 459 nm were attributed to band-edge free excitons [47]. The PL peak intensities of the B-TiO2 nanoparticles showed a significant decrease compared with those of the W-TiO2 nanoparticles. Furthermore, the main emission peak at 395 nm (3.1 eV), could not be observed, which indicated that the recombination rate of photo-generated electrons and holes had been considerably inhibited in the B-TiO2 nanoparticles [49]. Given the fact that oxygen vacancies usually serve as electron traps, the weaker intensity of emission and disappearance of the emission peak at 395 nm should be due to the increased oxygen vacancies. All the results indicated that the B-TiO2 nanoparticles had a relative low recombination rate of electrons and holes. Normally, the low recombination rate of electrons and holes favors high photocatalytic activity.

3.2. Photocatalytic Activity

The photocatalytic activities of the as-prepared samples were evaluated by monitoring the decomposition of RhB in an aqueous solution under UV light irradiation. Commercial W-TiO2 nanoparticles were used as the reference photocatalyst. Before the irradiation of these samples, an adsorption experiment was performed in the dark in order to ensure the adsorption equilibrium of RhB and MB on the catalyst surface. As shown in Figure 7a, the B-TiO2 nanoparticles distinctly showed much better photocatalytic activity than the W-TiO2 nanoparticles. After 20 min of UV-light irradiation, the B-TiO2 nanoparticles could decompose about 50% of the RhB dye, while the value for the W-TiO2 nanoparticles was very low (~10%). When the irradiation time was prolonged to 60 min, the RhB dye was almost completely decomposed (96.2%) by the B-TiO2 nanoparticles but the W-TiO2 nanoparticles only decomposed about 40%. The Figure 7a also shows that the photocatalytic decomposition of RhB, for the two samples, followed a pseudo-first-order reaction [50]; the pseudo-first-order kinetics of the decompositions are illustrated in Figure 7b. The B-TiO2 nanoparticles showed a first-order rate constant of kapp = 0.036 min−1, 4.5 times greater than that of the W-TiO2 nanoparticles (kapp = 0.008 min−1), under UV light irradiation.
The UV-light photocatalytic activity of the B-TiO2 nanoparticles was further evaluated by measuring the photo-catalytic-degradation efficiency of the MB dye in aqueous solution. As shown in Figure 7c, under UV-light irradiation, in the short period of 20 min, the B-TiO2 nanoparticles could decomposed about 40% of the original organic MB dye. After 60 min irradiation, the MB dye had been almost completely decomposed (95.2%) by the B-TiO2 nanoparticles. In contrast, the W-TiO2 nanoparticles photocatalyst were able to decompose only about 70% of the original MB after 60 min irradiation. Figure 7d shows that the first-order rate constants of the B-TiO2 and W-TiO2 nanoparticles were 0.036 min−1 and 0.02 min−1, respectively. The as-prepared B-TiO2 nanoparticles had about 1.8 times better MB-decomposing photocatalytic activity than the W-TiO2 nanoparticles, under the same conditions.
The photocatalytic activity of the B-TiO2 sample was also investigated under visible light (λ > 420 nm) illumination, as shown in Figure 7e,f. Figure 7e shows the photodecomposition of RhB by B-TiO2 and W-TiO2 samples. Under visible light illumination, the RhB solutions containing the B-TiO2 undergo significant decomposition and became nearly transparent within 150 min. In contrast, W-TiO2 exhibits limited activity on photodecomposition of RhB solution. We also evaluated the decomposition of MB dye solution as a model reaction under visible-light irradiation, shown in Figure 7f. The photocatalytic efficiency of B-TiO2 under these conditions is 34%, which is higher than that of W-TiO2 (88%) after an irradiation time of 250 min. Thus, the B-TiO2 samples clearly exhibit improved photocatalytic activity.

3.3. Mechanism

In this work, the B-TiO2 nanoparticles greatly extended their absorption range from the UV- to visible- to infrared-light regions and their photocatalytic activity was greatly improved. All the characterization results proved that this B-TiO2 behavior is attributable to its high concentration of oxygen vacancies. The oxygen vacancies have been demonstrated to be electron donors in TiO2 [51] and have been considered to contribute to the enhanced donor density in B-TiO2 nanoparticles [27]. The electrons located on the oxygen vacancy states have a direct effect on the electronic structure of TiO2 by forming a donor level below the conduction band. The oxygen vacancies introduced localized states at 0.75–1.18 eV below the TiO2 conduction band minimum [46]. Consequently, the visible and near infrared-light absorptions are associated with transitions from the B-TiO2 valence band to the oxygen vacancy levels or from the oxygen vacancies to the TiO2 conduction band or with transitions from the ground state of the F+ center to its corresponding excited state F+*. In order to further understand our B-TiO2 nanoparticles, the energy band diagram of the B-TiO2 nanoparticles is schematized in Figure 8. The valence band maximum (VBM) and conduction band minimum (CBM) of TiO2 are derived mainly from the O 2p orbitals and the Ti 3d orbitals, respectively. According to the UV-vis absorbance spectra, the bandgap of both the B-TiO2 and the W-TiO2 nanoparticles was 3.1 eV. Furthermore, the increased oxygen vacancies can improve charge transport in TiO2 and shift its Fermi level toward the conduction band, facilitating the charge separation at the semiconductor/electrolyte interface [52,53]. The PL results also indicated that, in our experiments, the B-TiO2 nanoparticles had a low recombination rate of electrons and holes. A low recombination rate leads to a large increase in photocatalytic activity.

4. Conclusions

The present work deals with the development of a facile method for the preparation of a highly active black TiO2 photocatalyst. The black TiO2 was prepared via low temperature annealing of commercial W-TiO2 catalyst nanoparticles. The prepared B-TiO2 nanoparticles showed remarkable photocatalytic activity for the degradation of the RhB and MB dyes. An appropriate amount of oxygen vacancies was introduced into the B-TiO2 nanoparticles and Ti3+ ions were not found. The oxygen vacancies are responsible for the increased visible-and infrared-light absorption as they can introduce localized states into the bandgap. At the same time, the oxygen vacancies act as traps for reducing the recombination of electrons and holes and significantly improve the e–h separation efficiency, thus greatly enhancing the photocatalytic activity.

Acknowledgments

This work is supported by the National Nature Science Foundation of China (No. 21271048), Natural Science Foundation of China (11747074), Guangdong province science and technology plan project public welfare fund and ability construction project (2016A010103041, 2017A010103025), Doctoral Program of Lingnan Normal University (ZL1503), China Spark Program (2015GA780058).

Author Contributions

Shihao Chen: performed photocatalysts synthesis, XRD, Raman, TEM, UV-visible absorption spectra analysis, photocatalytic activity tests and wrote the manuscript, Yang Xiao: supervised rhodamine B and methylene blue products analysis in cooperation with Shihao Chen, Yinhai Wang: conceived the concept, designed the experiments, analyzed the data and revised the manuscript, Zhengfa Hu: performed EPR analysis, Hui Zhao: performed XPS analysis, Wei Xie: performed FTIR and PL analysis .

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  2. Zuo, F.; Wang, L.; Wu, T.; Zhang, Z.Y.; Borchardt, D.; Feng, P.Y. Self-Doped Ti3+ Enhanced Photocatalyst for Hydrogen Production under Visible Light. J. Am. Chem. Soc. 2010, 132, 11856–11857. [Google Scholar] [CrossRef] [PubMed]
  3. Shao, J.; Sheng, W.C.; Wang, M.S.; Lia, S.J.; Chen, J.R.; Zhang, Y.; Cao, S.S. In situ Synthesis of Carbon-doped TiO2 Single-crystal Nanorods with Aremarkably Photocatalytic Efficiency. Appl. Catal. B Environ. 2017, 209, 311–319. [Google Scholar] [CrossRef]
  4. Yu, J.G.; Low, J.X.; Xiao, W.; Zhou, P.; Jaroniec, M. Enhanced Photocatalytic CO2-Reduction Activity of Anatase TiO2 by Coexposed {001} and {101} Facets. J. Am. Chem. Soc. 2014, 136, 8839–8842. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, W.; Ni, Y.R.; Lu, C.H.; Xu, Z.Z. Hydrogenation Temperature Related Inner Structures and Visible-light-driven Photocatalysis of N–F co-doped TiO2 Nanosheets. Appl. Surf. Sci. 2014, 290, 125–130. [Google Scholar] [CrossRef]
  6. Liu, B.; Chen, H.M.; Liu, C.; Andrews, S.C.; Hahn, C.; Yang, P.D. Large-Scale Synthesis of Transition-Metal-Doped TiO2 Nanowires with Controllable Overpotential. J. Am. Chem. Soc. 2013, 135, 9995–9998. [Google Scholar] [CrossRef] [PubMed]
  7. Inturi, S.N.R.; Boningari, T.; Suidan, M.; Smirniotis, P.G. Flame Aerosol Synthesized Cr Incorporated TiO2 for Visible Light Photodegradation of Gas Phase Acetonitrile. J. Phys. Chem. C 2014, 118, 231–242. [Google Scholar] [CrossRef]
  8. Chen, Z.Y.; Fang, L.; Dong, W.; Zheng, F.G.; Shen, M.R.; Wang, J.L. Inverse Opal Structured Ag/TiO2 Plasmonic Photocatalyst Prepared by Pulsed Current Deposition and its Enhanced Visible Light Photocatalytic Activity. J. Mater. Chem. A 2014, 2, 824–832. [Google Scholar] [CrossRef]
  9. Kamegawa, T.; Matsuura, S.; Seto, H.; Yamashita, H. A Visible-Light-Harvesting Assembly with a Sulfocalixarene Linker between Dyes and a Pt-TiO2 Photocatalyst. Angew. Chem. Int. Ed. 2013, 52, 916–919. [Google Scholar] [CrossRef] [PubMed]
  10. Pan, J.H.; Cai, Z.Y.; Yu, Y.; Zhao, X.S. Controllable Synthesis of Mesoporous F-TiO2 Spheres for Effective Photocatalysis. J. Mater. Chem. 2011, 21, 11430–11438. [Google Scholar] [CrossRef]
  11. Senna, M.; Myers, N.; Aimable, A.; Laporte, V.; Pulgarin, C.; Baghriche, O.; Bowen, P. Modification of titania nanoparticles for photocatalytic antibacterial activity via a colloidal route with glycine and subsequent annealing. J. Mater. Res. 2013, 28, 354–361. [Google Scholar] [CrossRef]
  12. Milosevic, I.; Jayaprakash, A.; Greenwood, B.; van Driel, B.; Rtimi, S.; Bowen, P. Synergistic Effect of Fluorinated and N Doped TiO2 Nanoparticles Leading to Different Microstructure and Enhanced Photocatalytic Bacterial Inactivation. Nanomaterials 2017, 7, 391. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Q.Y.; Gao, T.T.; Andino, J.M.; Li, Y. Copper and Iodine Co-modified TiO2 Nanoparticles for Improved Activity of CO2 Photo Reduction with Water Vapor. Appl. Catal. B Environ. 2012, 123, 257–264. [Google Scholar] [CrossRef]
  14. Zhang, M.; Wu, J.; Hou, J.; Yang, J.J. Molybdenum and Nitrogen Co-doped Titanium Dioxide Nanotube Arrays with Enhanced Visible Light Photocatalytic Activity. Sci. Adv. Mater. 2013, 5, 535–541. [Google Scholar] [CrossRef]
  15. Chen, X.B.; Liu, L.; Yu, P.Y.; Mao, S.S. Increasing Solar Absorption for Photocatalysis with Black Hydrogenated Titanium Dioxide Nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef] [PubMed]
  16. Shin, J.Y.; Joo, J.H.; Samuelis, D.; Maier, J. Oxygen-Deficient TiO2−δ Nanoparticles via Hydrogen Reduction for High Rate Capability Lithium Batteries. Chem. Mater. 2012, 24, 543–551. [Google Scholar] [CrossRef]
  17. Samsudina, E.M.; Hamida, S.B.A.; Juana, J.C.; Basiruna, W.J.; Kandjani, A.E. Surface Modification of Mixed-phase Hydrogenated TiO2 and Corresponding Photocatalytic Response. Appl. Surf. Sci. 2015, 359, 883–896. [Google Scholar] [CrossRef]
  18. Zhu, Q.; Peng, Y.; Lin, L.; Fan, C.M.; Gao, G.Q.; Wang, R.X.; Xu, A.W. Stable Blue TiO2−x Nanoparticles for Efficient Visible Light Photocatalysts. J. Mater. Chem. A 2014, 2, 4429–4437. [Google Scholar] [CrossRef]
  19. Zou, X.X.; Liu, J.K.; Su, J.; Zuo, F.; Chen, J.S.; Feng, P.Y. Facile Synthesis of Thermal-and Photostable Titania with Paramagnetic Oxygen Vacancies for Visible-Light Photocatalysis. Chem. Eur. J. 2013, 19, 2866–2873. [Google Scholar] [CrossRef] [PubMed]
  20. Kang, Q.; Cao, J.Y.; Zhang, Y.J.; Liu, L.Q.; Xu, H.; Ye, J.H. Reduced TiO2 Nanotube Arrays for Photoelectrochemical Water Splitting. J. Mater. Chem. A 2013, 1, 5766–5774. [Google Scholar] [CrossRef]
  21. Liu, N.; Schneider, C.; Freitag, D.; Hartmann, M.; Venkatesan, U.; Müller, J.; Spiecker, E.; Schmuki, P. Black TiO2 Nanotubes: Cocatalyst-Free Open-Circuit Hydrogen Generation. Nano Lett. 2014, 14, 3309–3313. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, Z.; Yang, C.Y.; Lin, T.Q.; Yin, H.; Chen, P.; Wan, D.Y.; Xu, F.F.; Huang, F.Q.; Lin, J.H.; Xie, X.M.; et al. Visible-light Photocatalytic, Solar Thermal and Photoelectrochemical Properties of Aluminium-reduced Black Titania. Energy Environ. Sci. 2013, 6, 3007–3014. [Google Scholar] [CrossRef]
  23. Sinhamahapatra, A.; Jeon, J.P.; Yu, J.S. A New Approach to Prepare Highly Active and Stable Black Titania for Visible Light-assisted Hydrogen Production. Energy Environ. Sci. 2015, 8, 3539–3544. [Google Scholar] [CrossRef]
  24. Zhou, X.M.; Zolnhofer, E.M.; Nguyen, N.T.; Liu, N.; Meyer, K.; Schmuki, P. Stable Co-Catalyst-Free Photocatalytic H2 Evolution From Oxidized Titanium Nitride Nanopowders. Angew. Chem. Int. Ed. 2015, 54, 13385–13389. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, X.; Gao, S.; Xu, H.; Lou, Z.Z.; Wang, W.J.; Huang, B.B.; Dai, Y. Green Synthetic Approach for Ti3+ Self-doped TiO2−x Nanoparticles with Efficient Visible Light Photocatalytic Activity. Nanoscale 2013, 5, 1870–1875. [Google Scholar] [CrossRef] [PubMed]
  26. Pei, Z.X.; Ding, L.Y.; Lin, H.; Weng, S.X.; Zheng, Z.Y.; Hou, Y.D.; Liu, P. Facile Synthesis of Defect-mediated TiO2-x with Enhanced Visible Light Pphotocatalytic Activity. J. Mater. Chem. A 2013, 1, 10099–10102. [Google Scholar] [CrossRef]
  27. Wang, G.M.; Wang, H.Y.; Ling, Y.C.; Tang, Y.C.; Yang, X.Y.; Fitzmorris, R.C.; Wang, C.C.; Zhang, J.Z.; Li, Y. Hydrogen-Treated TiO2 Nanowire Arrays for Photoelectrochemical Water Splitting. Nano Lett. 2011, 11, 3026–3033. [Google Scholar] [CrossRef] [PubMed]
  28. Dong, J.Y.; Han, J.; Liu, Y.S.; Nakajima, A.; Matsushita, S.; Wei, S.H.; Gao, W. Defective Black TiO2 Synthesized via Anodization for Visible-Light Photocatalysis. ACS Appl. Mater. Interfaces 2014, 6, 1385–1388. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, X.Y.; Zhu, G.L.; Wang, X.; Yuan, X.T.; Lin, T.Q.; Huang, F.Q. Progress in Black Titania: A New Material for Advanced Photocatalysis. Adv. Energy Mater. 2016, 6, 1600452. [Google Scholar] [CrossRef]
  30. Fan, C.Y.; Chen, C.; Wang, J.; Fu, X.X.; Ren, Z.M.; Qian, G.D.; Wang, Z.Y. Black Hydroxylated Titanium Dioxide Prepared via Ultrasonication with Enhanced Photocatalytic Activity. Sci. Rep. 2015, 5, 11712. [Google Scholar] [CrossRef] [PubMed]
  31. Pan, H.; Zhang, Y.W.; Shenoy, V.B.; Gao, H.J. Effects of H-, N-, and (H, N)-Doping on the Photocatalytic Activity of TiO2. J. Phys. Chem. C 2011, 115, 12224–12231. [Google Scholar] [CrossRef]
  32. Wang, Z.Q.; Wen, B.; Hao, Q.Q.; Liu, L.M.; Zhou, C.Y.; Mao, X.C.; Lang, X.F.; Yin, W.J.; Dai, D.X.; Selloni, A.; et al. Localized Excitation of Ti3+ Ions in the Photoabsorption and Photocatalytic Activity of Reduced Rutile TiO2. J. Am. Chem. Soc. 2015, 137, 9146–9152. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, W.; Lu, C.H.; Ni, Y.R.; Song, J.B.; Su, M.X.; Xu, Z.Z. Enhanced Visible-light Photoactivity of {001} Facets Dominated TiO2 Nanosheets with Even Distributed Bulk Oxygen Vacancy and Ti3+. Catal. Commun. 2012, 22, 19–23. [Google Scholar] [CrossRef]
  34. Chen, X.B.; Liu, L.; Liu, Z.; Marcus, M.A.; Wang, W.C.; Oyler, N.A.; Grass, M.E.; Mao, B.H.; Glans, P.A.; Yu, P.Y. Properties of Disorder-engineered Black Titanium Dioxide Nanoparticles Through Hydrogenation. Sci. Rep. 2013, 3, 1510. [Google Scholar] [CrossRef] [PubMed]
  35. Gupta, S.K.; Desai, R.; Jha, P.K.; Sahoob, S.; Kirinc, D. Titanium Dioxide Synthesized Using Titanium Chloride: Size Effect Study Using Raman Spectroscopy and Photoluminescence. J. Raman Spectrosc. 2010, 41, 350–355. [Google Scholar] [CrossRef]
  36. Parker, J.C.; Siegel, R.W. Calibration of the Raman Spectrum to the Oxygen Stoichiometry of Nanophase TiO2. Appl. Phys. Lett. 1990, 57, 943–945. [Google Scholar] [CrossRef]
  37. Liu, H.; Ma, H.T.; Li, X.Z.; Li, W.Z.; Wu, M.; Bao, X.H. The Enhancement of TiO2 Photocatalytic Activity by Hydrogen Thermal Treatment. Chemosphere 2003, 50, 39–46. [Google Scholar] [CrossRef]
  38. Mao, L.; Cai, X.Y.; Gao, H.; Diao, X.G.; Zhang, J.Y. A Newly Designed Porous Oxynitride Photoanode with Enhanced Charge Carrier Mobility. Nano Energy 2017, 39, 172–182. [Google Scholar] [CrossRef]
  39. Serpone, N. Is the Band Gap of Pristine TiO2 Narrowed by Anion-and Cation-Doping of Titanium Dioxide in Second-Generation Photocatalysts? J. Phys. Chem. B 2006, 110, 24287–24293. [Google Scholar] [CrossRef] [PubMed]
  40. Chen, J.; Lin, L.B.; Jing, F.Q. Theoretical Study of F-type Color Center in Rutile TiO2. J. Phys. Chem. Solids 2001, 62, 1257–1262. [Google Scholar] [CrossRef]
  41. Chen, J.; Song, W.X.; Hou, H.S.; Zhang, Y.; Jing, M.J.; Jia, X.N.; Ji, X.B. Ti3+ Self-Doped Dark Rutile TiO2 Ultrafine Nanorods with Durable High-Rate Capability for Lithium-Ion Batteries. Adv. Funct. Mater. 2015, 25, 6793–6801. [Google Scholar] [CrossRef]
  42. Huo, J.C.; Hu, Y.J.; Jiang, H.; Li, C.Z. In Situ Surface Hydrogenation Synthesis of Ti3+ Self-doped TiO2 with Enhanced Visible Light Photoactivity. Nanoscale 2014, 6, 9078–9084. [Google Scholar] [CrossRef] [PubMed]
  43. Ullattila, S.G.; Periyat, P. A ‘One Pot’ Gel Combustion Strategy towards Ti3+ Self-doped ‘black’ Anatase TiO2−x Solar Photocatalyst. J. Mater. Chem. A 2016, 4, 5854–5858. [Google Scholar] [CrossRef]
  44. Atuchin, V.V. Comment on “A ‘one pot’ Gel Combustion Strategy towards Ti3+ Self-doped ‘black’ Anatase TiO2−x Solar Photocatalyst,” by S.G. Ullattil and P. Periyat, J. Mater. Chem. A, 2016, 4, 5854. J. Mater. Chem. A 2017, 5, 426–427. [Google Scholar] [CrossRef]
  45. Pan, X.Y.; Yang, M.Q.; Fu, X.Z.; Zhang, N.; Xu, Y.J. Defective TiO2 with Oxygen Vacancies: Synthesis, Properties and Photocatalytic Applications. Nanoscale 2013, 5, 3601–3614. [Google Scholar] [CrossRef] [PubMed]
  46. Moya, A.; Cherevan, A.; Marchesan, S.; Gebhardt, P.; Prato, M.; Eder, D.; Vilatela, J.J. Oxygen Vacancies and Interfaces Enhancing Photocatalytic Hydrogen Production in Mesoporous CNT/TiO2 Hybrids. Appl. Catal. B Environ. 2015, 179, 574–582. [Google Scholar] [CrossRef] [Green Version]
  47. Wang, Z.; Yang, C.Y.; Lin, T.Q.; Yin, H.; Chen, P.; Wan, D.Y.; Xu, F.F.; Huang, F.Q.; Lin, J.H.; Xie, X.M.; et al. H-Doped Black Titania with Very High Solar Absorption and Excellent Photocatalysis Enhanced by Localized Surface Plasmon Resonance. Adv. Funct. Mater. 2013, 23, 5444–5450. [Google Scholar] [CrossRef]
  48. Sharma, P.K.; Pandey, A.C.; Zolnierkiewicz, G.; Guskos, N.; Rudowicz, C. Relationship between Oxygen Defects and the Photoluminescence Property of ZnO Nanoparticles: A Spectroscopic View. J. Appl. Phys. 2009, 106, 094314. [Google Scholar] [CrossRef]
  49. Tian, Z.L.; Cui, H.L.; Zhu, G.L.; Zhao, W.L.; Xu, J.J.; Shao, F.; He, J.Q.; Huang, F.Q. Hydrogen Plasma Reduced Black TiO2-B Nanowires for Enhanced Photoelectrochemical Water-Splitting. J. Power Sources 2016, 325, 697–705. [Google Scholar] [CrossRef]
  50. Komaguchi, K.; Maruoka, T.; Nakano, H.; Imae, I.; Ooyama, Y.; Harima, Y. Electron-Transfer Reaction of Oxygen Species on TiO2 Nanoparticles Induced by Sub-band-gap Illumination. J. Phys. Chem. C 2010, 114, 1240–1245. [Google Scholar] [CrossRef]
  51. Janotti, A.; Varley, J.B.; Rinke, P.; Umezawa, N.; Kresse, G.; Van de Walle, C.G. Hybrid Functional Studies of the Oxygen Vacancy in TiO2. Phys. Rev. B 2010, 81, 085212. [Google Scholar] [CrossRef]
  52. Cronemeyer, D.C. Infrared Absorption of Reduced Rutile TiO2 Single Crystals. Phys. Rev. 1959, 113, 1222–1226. [Google Scholar] [CrossRef]
  53. Hu, Y.H. A Highly Efficient Photocatalyst-Hydrogenated Black TiO2 for the Photocatalytic Splitting of Water. Angew. Chem. Int. Ed. 2012, 51, 12410–12412. [Google Scholar] [CrossRef] [PubMed]

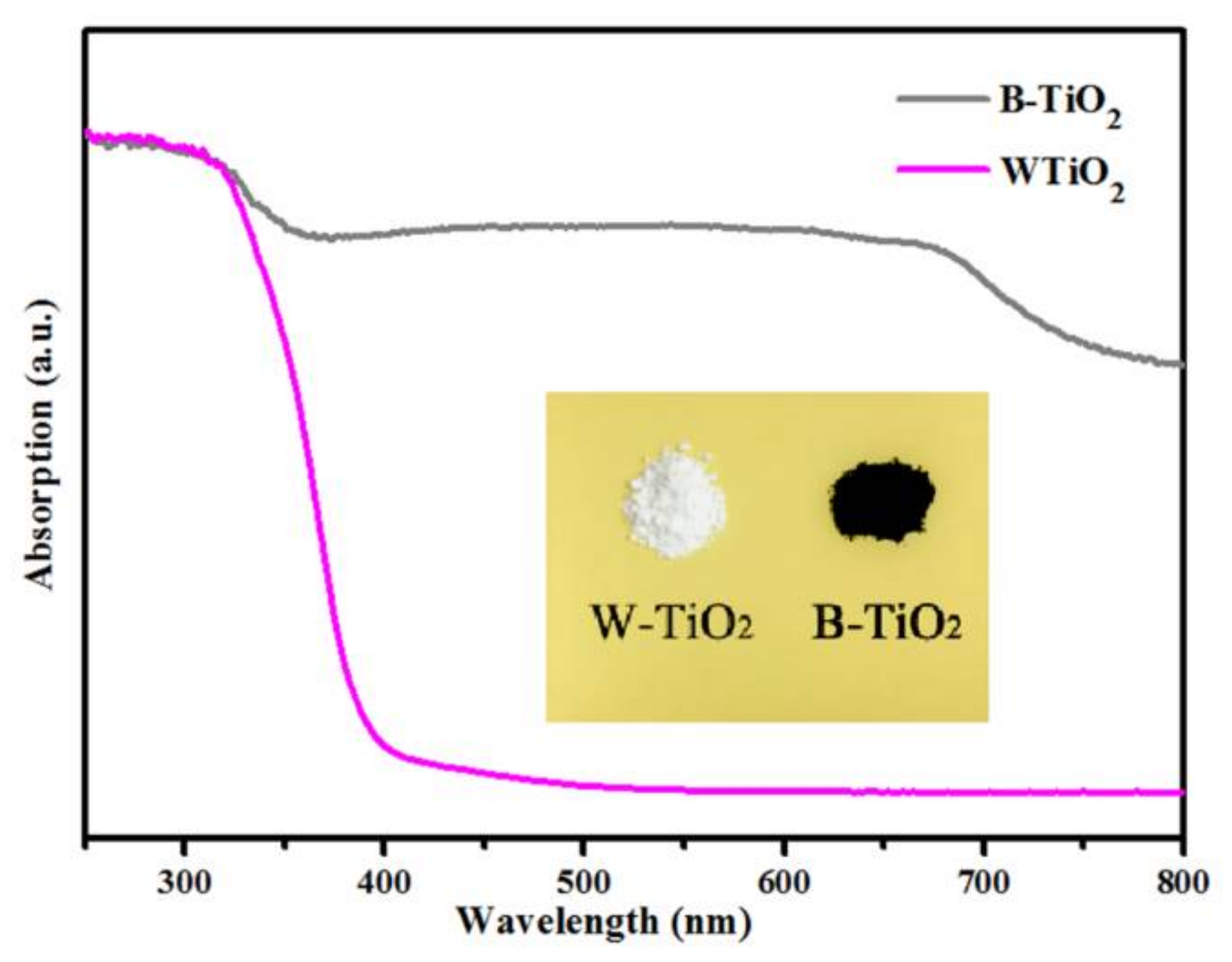

Figure 1. UV-Vis absorption spectra of black B-TiO2 and W-TiO2 nanoparticles. The insert is a photograph of B-TiO2 and W-TiO2 nanoparticles.
Figure 1. UV-Vis absorption spectra of black B-TiO2 and W-TiO2 nanoparticles. The insert is a photograph of B-TiO2 and W-TiO2 nanoparticles.
Nanomaterials 08 00245 g001

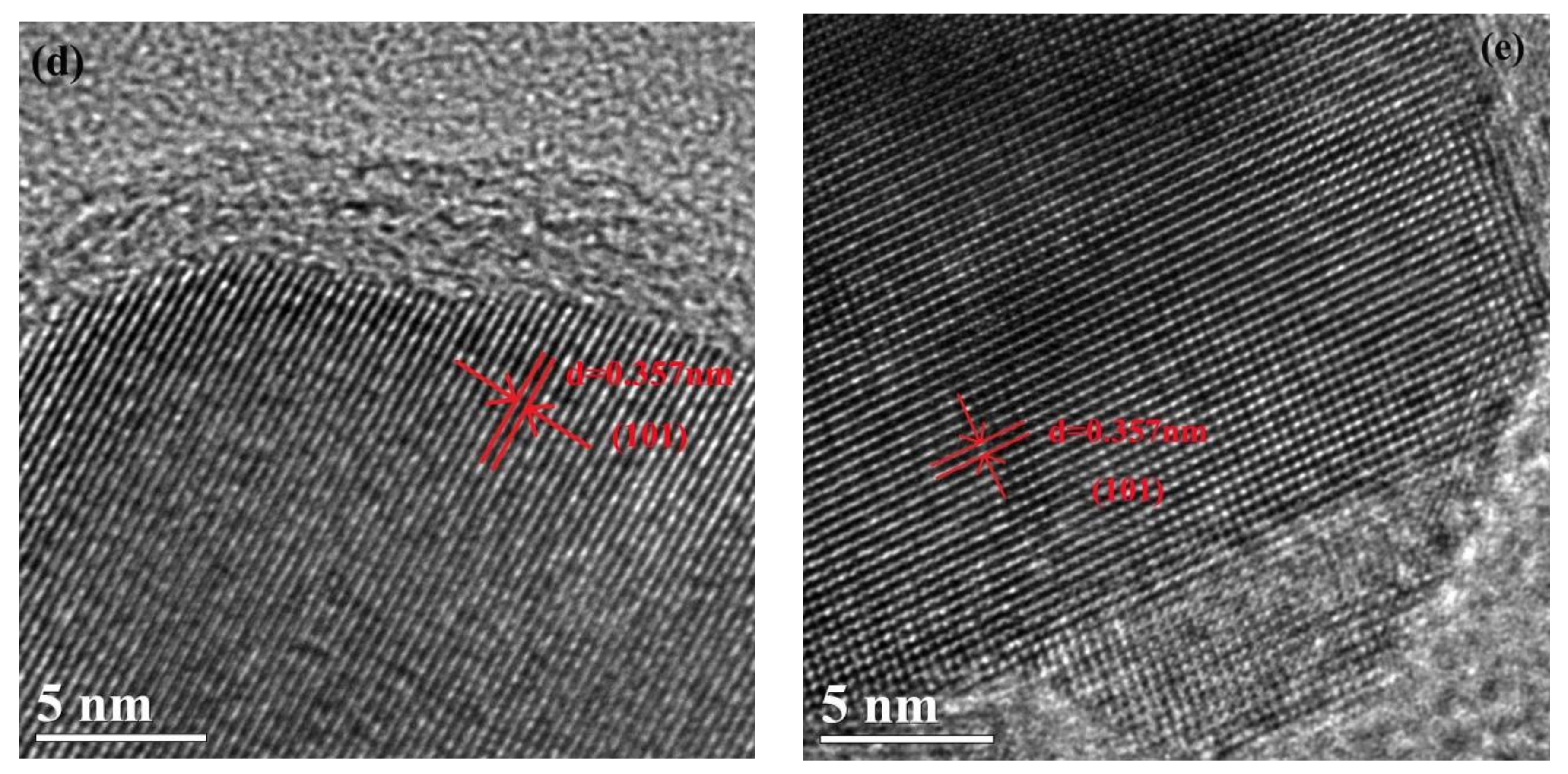

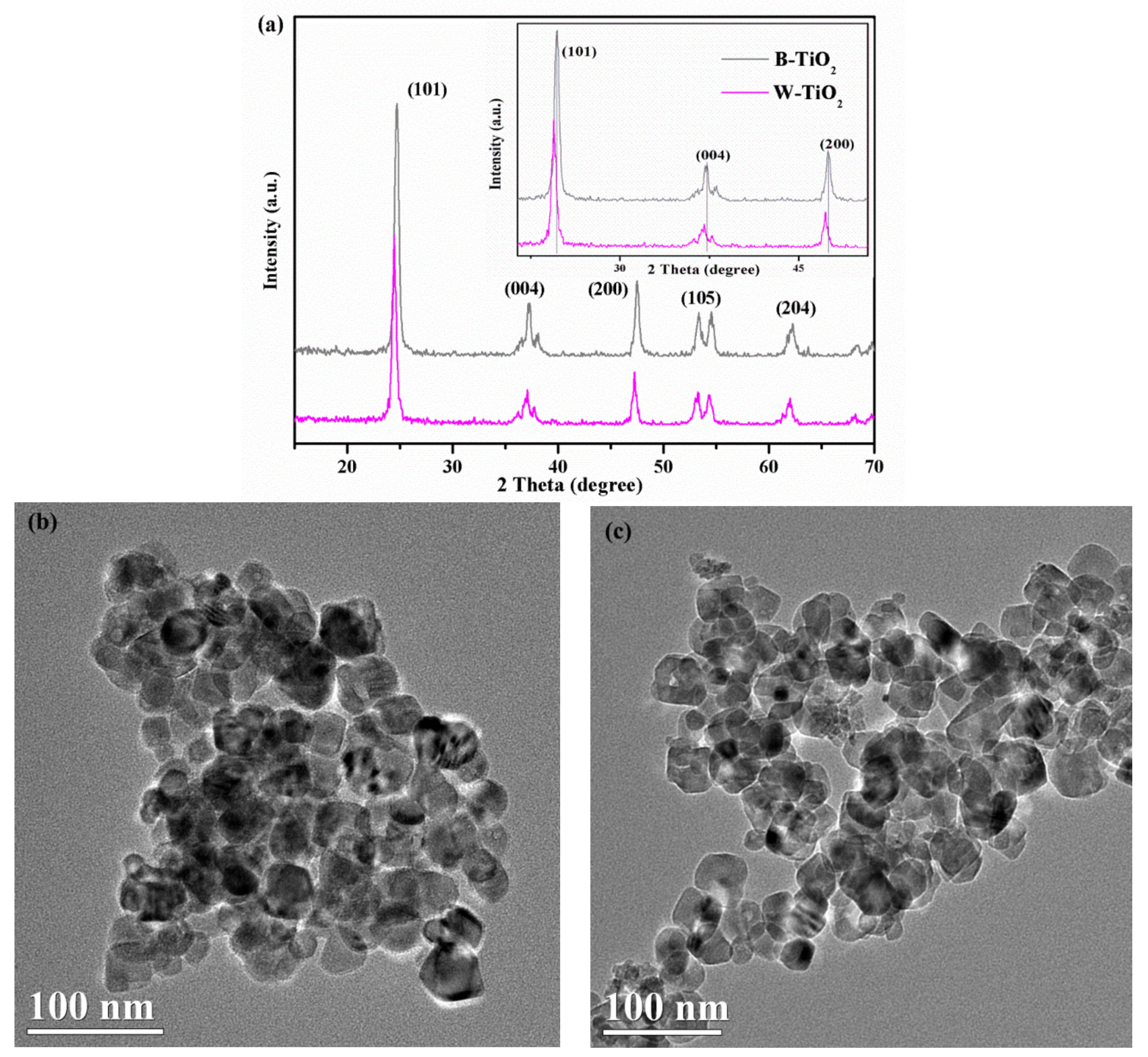

Figure 2. The XRD patterns of the as-prepared samples (a); TEM images of TiO2 nanoparticles before (b) W-TiO2 and after (c) B-TiO2 low temperature annealing; HRTEM images of TiO2 nanoparticles before (d) W-TiO2 and after (e) B-TiO2 low temperature annealing.
Figure 2. The XRD patterns of the as-prepared samples (a); TEM images of TiO2 nanoparticles before (b) W-TiO2 and after (c) B-TiO2 low temperature annealing; HRTEM images of TiO2 nanoparticles before (d) W-TiO2 and after (e) B-TiO2 low temperature annealing.
Nanomaterials 08 00245 g002aNanomaterials 08 00245 g002b

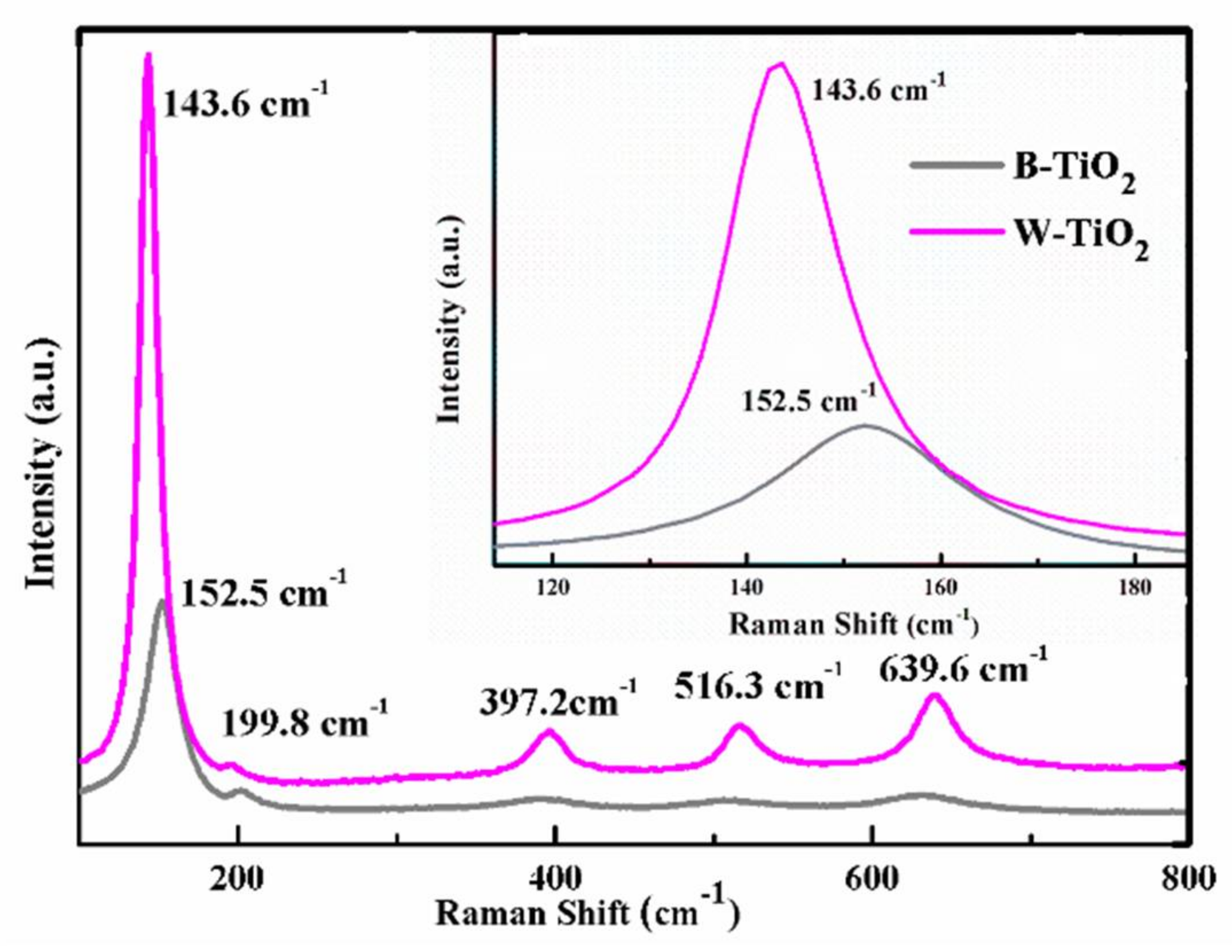

Figure 3. Raman spectra of B-TiO2 nanoparticles and W-TiO2, inset is the magnification of Eg peak.
Figure 3. Raman spectra of B-TiO2 nanoparticles and W-TiO2, inset is the magnification of Eg peak.
Nanomaterials 08 00245 g003

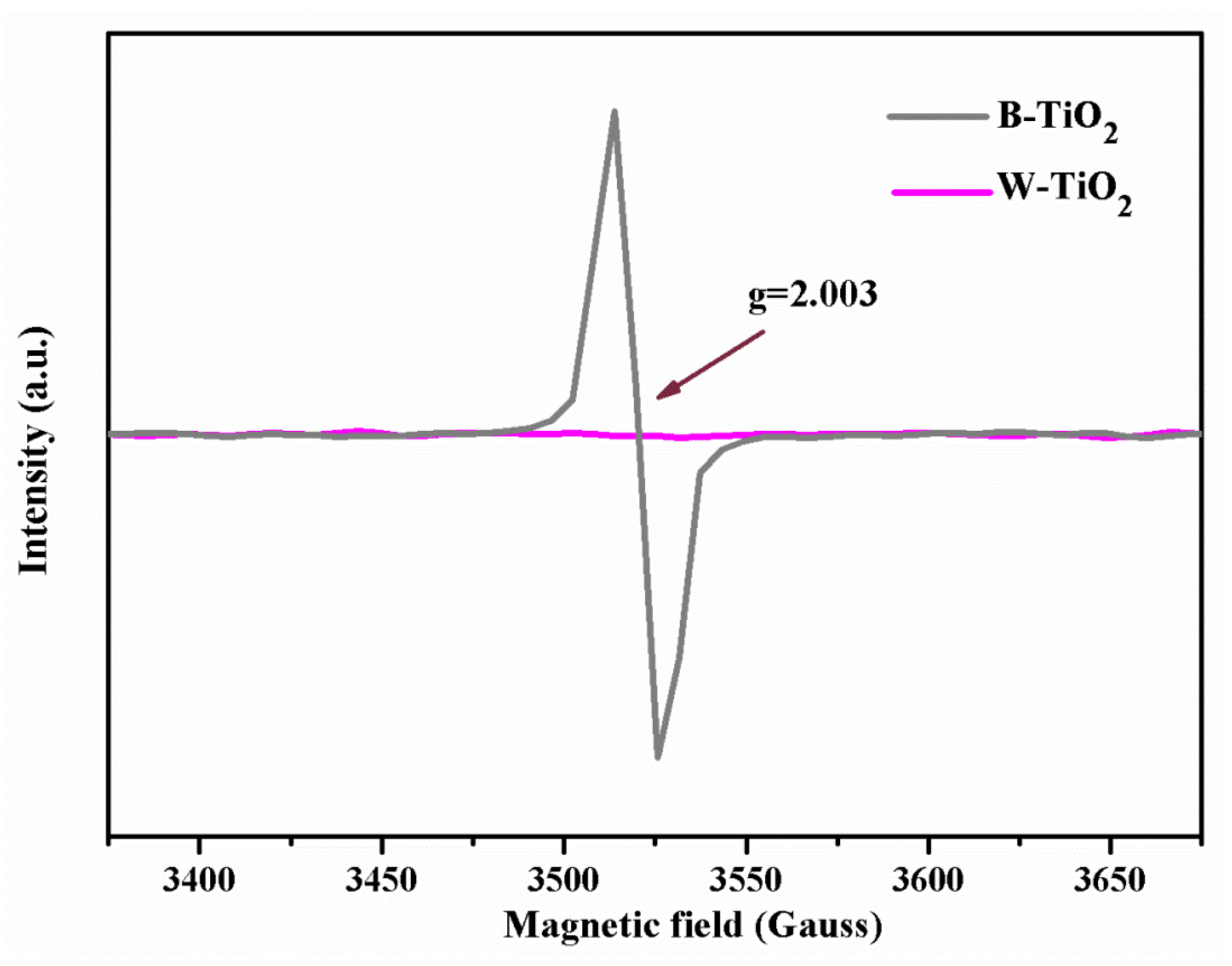

Figure 4. EPR spectra of B-TiO2 and W-TiO2 nanoparticles.
Figure 4. EPR spectra of B-TiO2 and W-TiO2 nanoparticles.
Nanomaterials 08 00245 g004

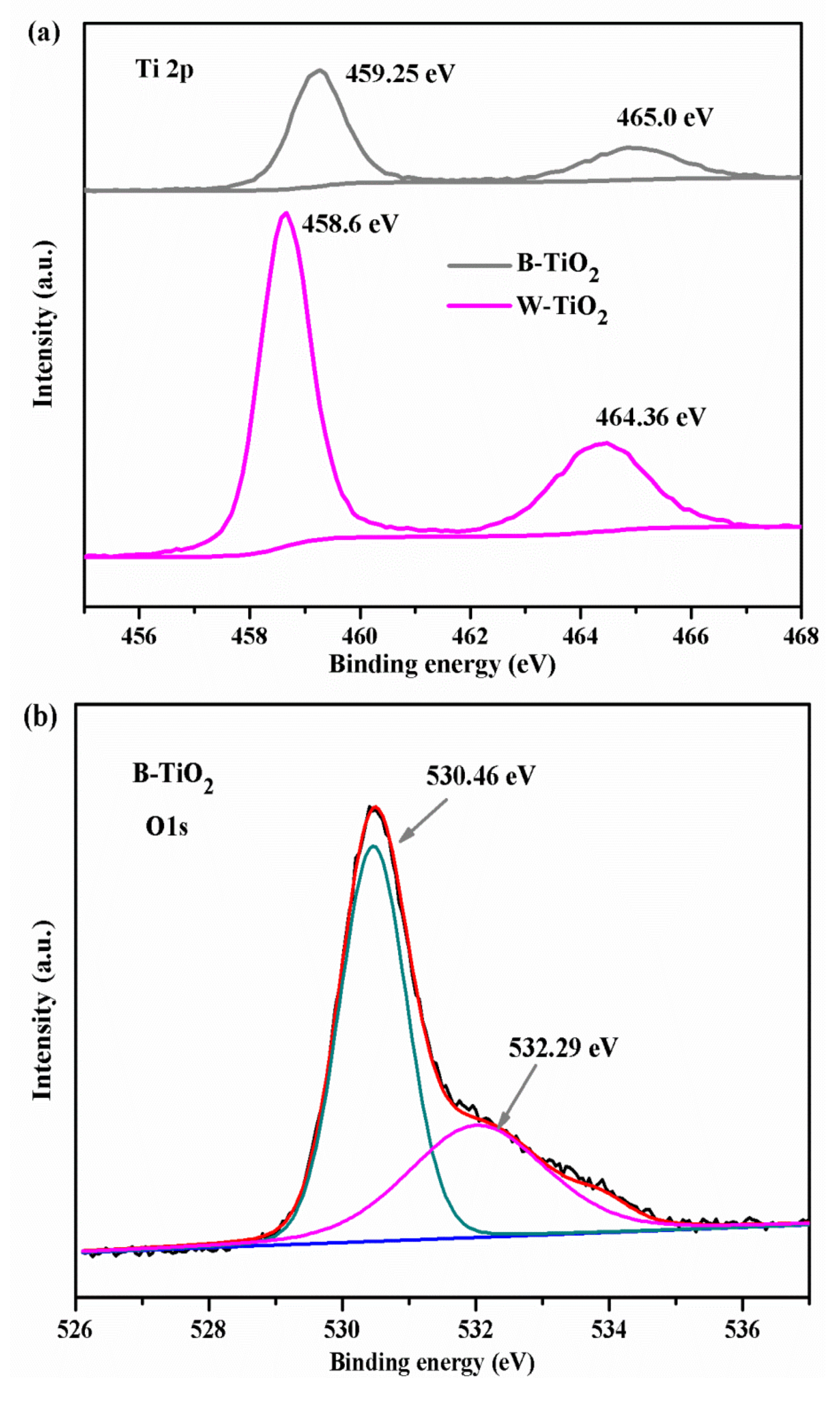

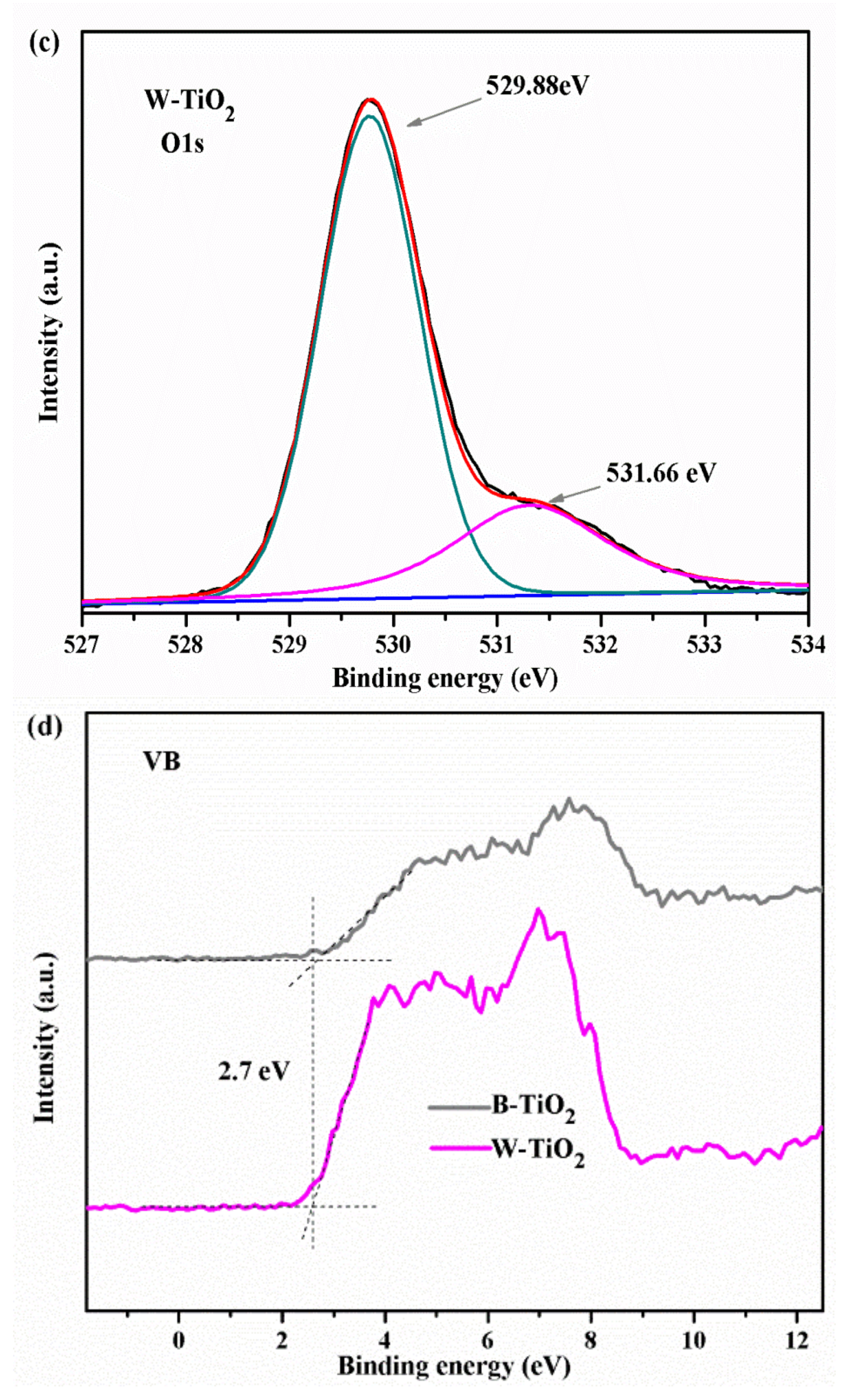

Figure 5. (a) The Ti 2p XPS spectra for the as-prepared B-TiO2 and W-TiO2 nanoparticles; (b)The O 1s XPS spectra for W-TiO2 nanoparticles and (c) the O 1s XPS spectra as-prepared B-TiO2 nanoparticles along with the Gaussian fits; (d) Valence-band XPS spectra of B-TiO2 and W-TiO2 nanoparticles.
Figure 5. (a) The Ti 2p XPS spectra for the as-prepared B-TiO2 and W-TiO2 nanoparticles; (b)The O 1s XPS spectra for W-TiO2 nanoparticles and (c) the O 1s XPS spectra as-prepared B-TiO2 nanoparticles along with the Gaussian fits; (d) Valence-band XPS spectra of B-TiO2 and W-TiO2 nanoparticles.
Nanomaterials 08 00245 g005aNanomaterials 08 00245 g005b

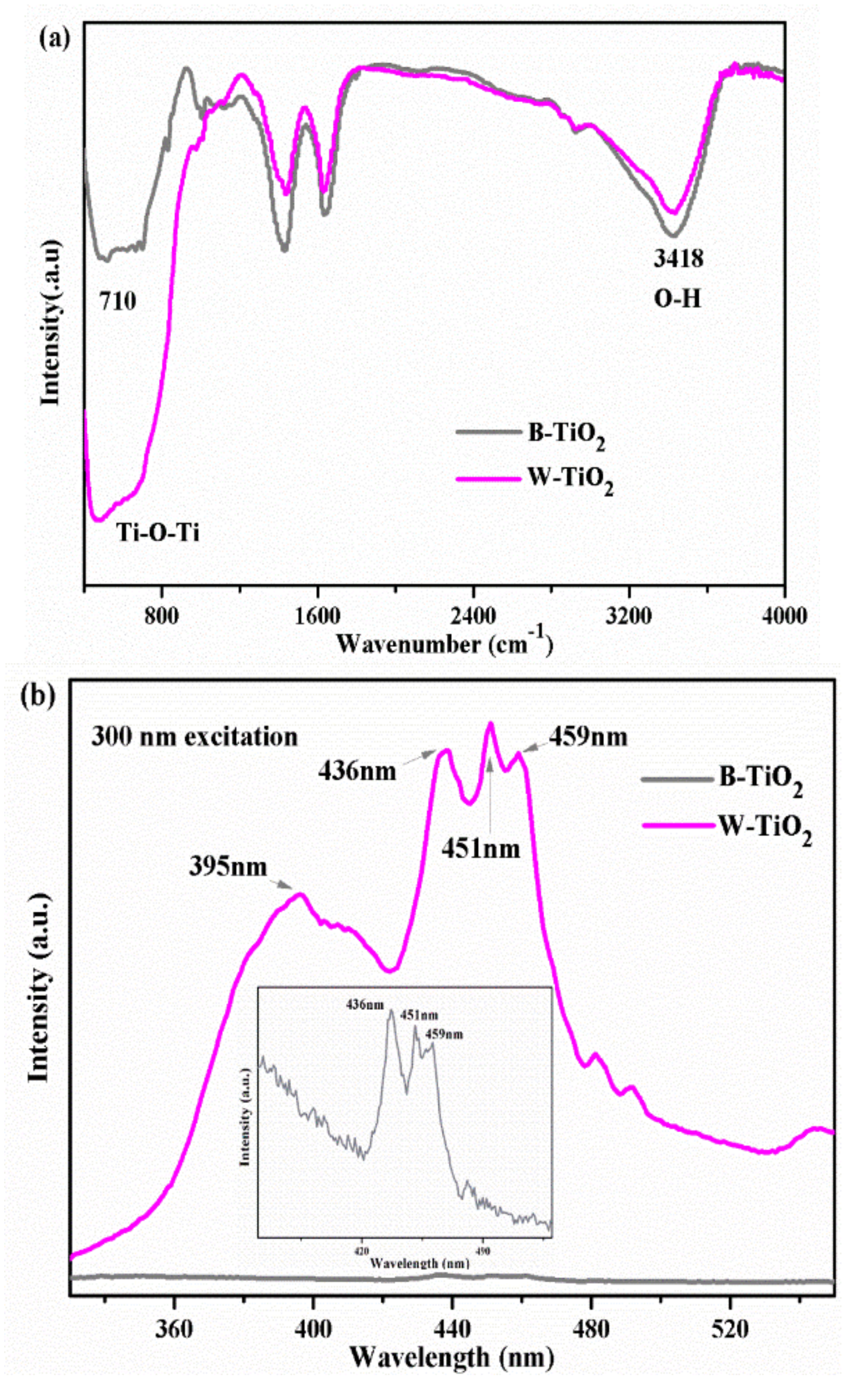

Figure 6. (a) FT-IR spectra of B-TiO2 and W-TiO2 nanoparticles; (b) Photoluminescence spectra of B-TiO2 and W-TiO2 nanoparticles.
Figure 6. (a) FT-IR spectra of B-TiO2 and W-TiO2 nanoparticles; (b) Photoluminescence spectra of B-TiO2 and W-TiO2 nanoparticles.
Nanomaterials 08 00245 g006

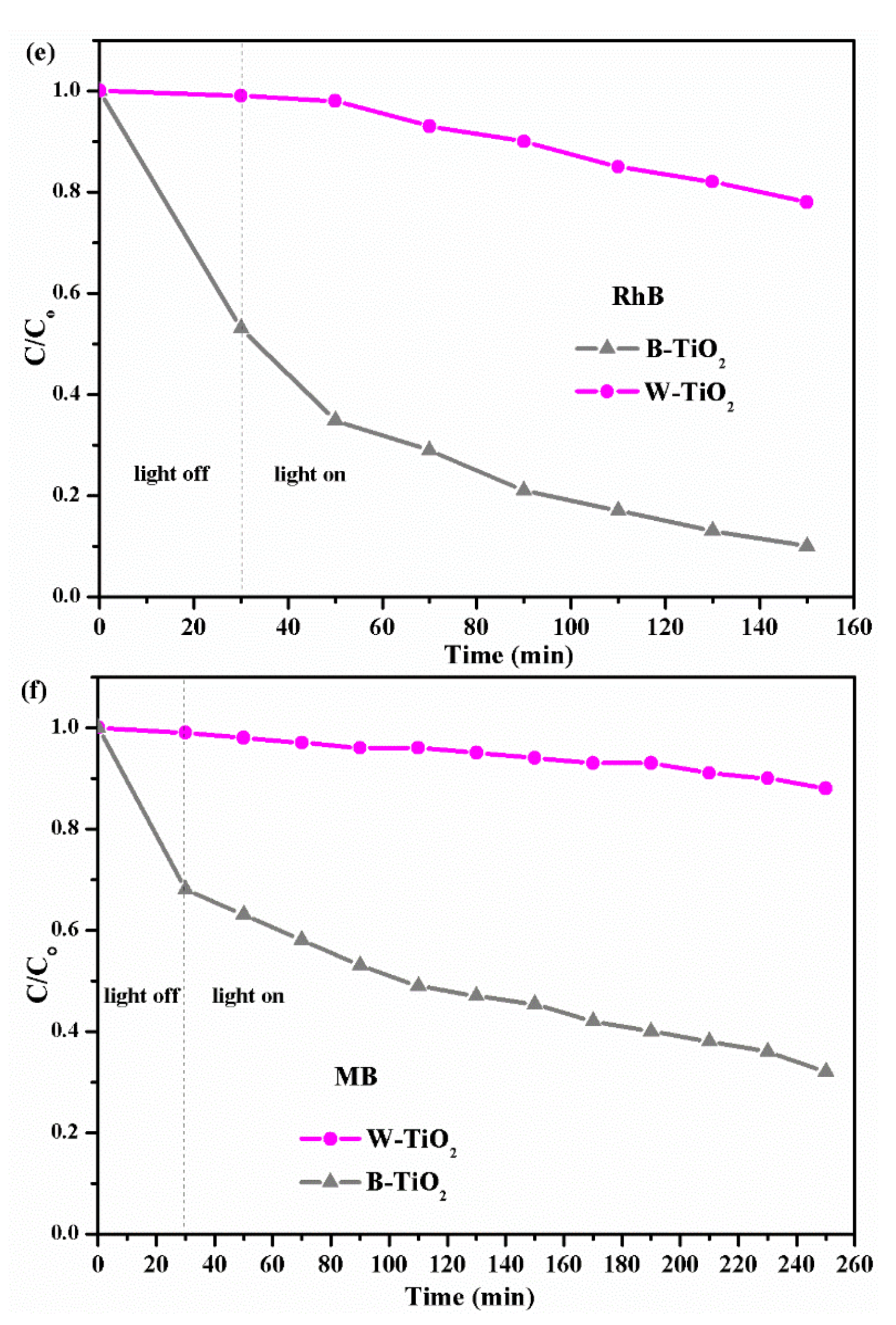

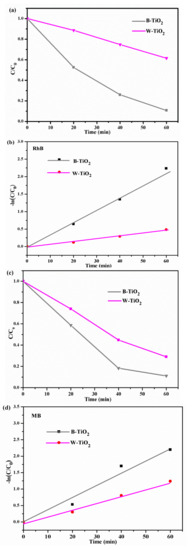

Figure 7. Comparison of photodecomposition of RhB (a) and MB (c) with different photocatalysts under UV light. −ln(C/C0) of the RhB (b) and MB (d) concentration as a function of UV light irradiation time. Photodecomposition of RhB (e) and MB (f) with different photocatalysts under visible light.
Figure 7. Comparison of photodecomposition of RhB (a) and MB (c) with different photocatalysts under UV light. −ln(C/C0) of the RhB (b) and MB (d) concentration as a function of UV light irradiation time. Photodecomposition of RhB (e) and MB (f) with different photocatalysts under visible light.
Nanomaterials 08 00245 g007aNanomaterials 08 00245 g007b

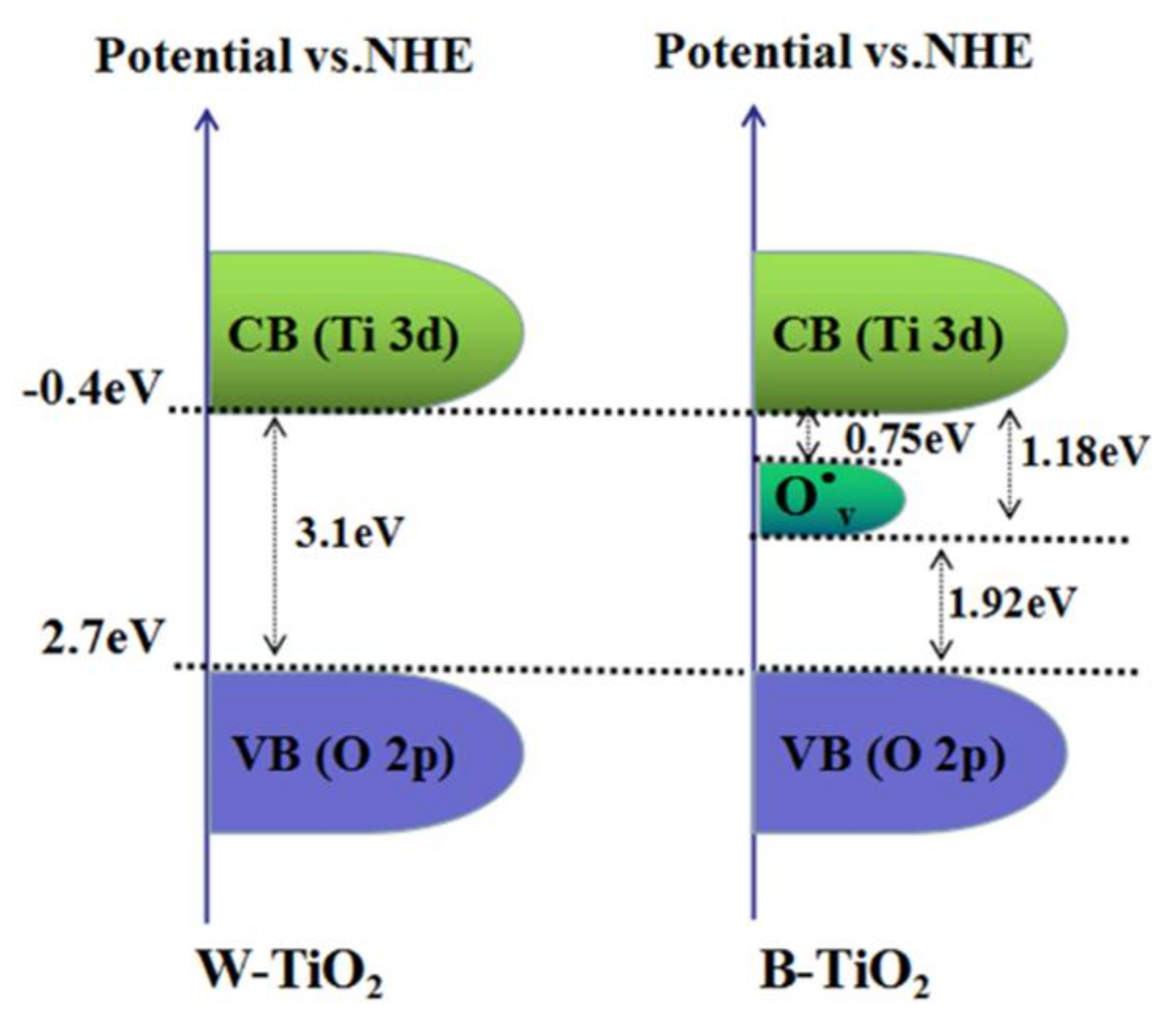

Figure 8. The band energy diagram of B-TiO2 and W-TiO2 nanoparticles.
Figure 8. The band energy diagram of B-TiO2 and W-TiO2 nanoparticles.
Nanomaterials 08 00245 g008

Share and Cite

MDPI and ACS Style

Chen, S.; Xiao, Y.; Wang, Y.; Hu, Z.; Zhao, H.; Xie, W. A Facile Approach to Prepare Black TiO2 with Oxygen Vacancy for Enhancing Photocatalytic Activity. Nanomaterials 2018, 8, 245. https://doi.org/10.3390/nano8040245

AMA Style

Chen S, Xiao Y, Wang Y, Hu Z, Zhao H, Xie W. A Facile Approach to Prepare Black TiO2 with Oxygen Vacancy for Enhancing Photocatalytic Activity. Nanomaterials. 2018; 8(4):245. https://doi.org/10.3390/nano8040245

Chicago/Turabian Style

Chen, Shihao, Yang Xiao, Yinhai Wang, Zhengfa Hu, Hui Zhao, and Wei Xie. 2018. "A Facile Approach to Prepare Black TiO2 with Oxygen Vacancy for Enhancing Photocatalytic Activity" Nanomaterials 8, no. 4: 245. https://doi.org/10.3390/nano8040245

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
