Development of an Electrochemical-Based Aspartate Aminotransferase Nanoparticle Ir-C Biosensor for Screening of Liver Diseases

Abstract

Aspartate aminotransaminase (AST) is a hepatocelluar enzyme released into the bloodstream when hepatic cells are damaged, resulting in elevated blood levels of AST. A single use, disposable biosensor prototype, composed of catalytic iridium nano-particles dispersed on carbon paste, was developed to detect enzymatically-produced H₂O₂ in AST-mediated reactions. This biosensor is capable of measuring AST levels in a phosphate buffer and undiluted human serum over the concentration range of 0 to 0.89 μg/mL AST concentration (corresponding to 0–250 UL⁻¹ specific activity). The biosensor operates at relatively low oxidation potential (+0.3 volt (V) versus the printed Ag/AgCl), minimizing any potential chemical interference in human serum. The measurements of AST in human serum using the biosensor compared well with those measured by standard hospital spectrophotometric assays. This Ir-C biosensor may be useful for AST measurements in the clinical environment.

1. Introduction

Aspartate aminotransferase (AST) is an enzyme found in various tissues of the body, and is most notably expressed in hepatic, myocardial and skeletal muscle cells [1,2]. AST is used in conjunction with other hepatic enzymes, such as alanine aminotransferase (ALT), as a clinical biomarker of liver diseases including viral and alcoholic hepatitis, cirrhosis, and metastatic carcinoma in the liver [2,3]. Elevation of AST in serum indicates hepatocellular necrosis [3]. The elevation of AST in serum may range up to 30–40 fold of the upper normal limit (40 UL⁻¹) of AST [4]. Elevation of AST concentration in serum may indicate acute myocardial infarction [5], and is also associated with patients having ischemic stroke [6,7].

The spectrophotometric technique is currently the “gold standard” in hospitals and clinical laboratories for measuring serum AST. According to the International Federation of Clinical Chemistry (IFCC) reference procedure shown in Scheme 1 [8], quantification of AST is based on the detection of an absorption change at 340 nm UV light and is associated with the formation of NADH (nicotinamide adenine dinucleotide, reduced form):

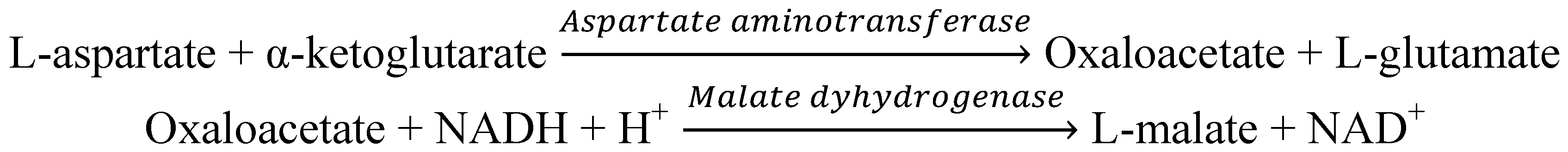

Scheme 1. Reaction mechanism for the spectrophotometric assays of aspartate aminotransferase (AST).

Scheme 1. Reaction mechanism for the spectrophotometric assays of aspartate aminotransferase (AST).

Spectrophotometry requires expensive instrumentation with complicated operational procedures. Therefore, the application of spectrophotometric detection of AST is limited and not suitable for point-of-care tracking of liver status.

Biosensors have shown great potential in AST quantification over the past two decades. AST detection can be accomplished using a relatively small-scale, portable, inexpensive, and disposable sensor that utilizes a simple detection method. Han et al. modified a pyruvate oxidase (PyOx)-based biosensor on a gold electrode, incorporating oxaloacetate decarboxylase (OAC) as a coenzyme. They used a layer-by-layer technique (LBL), which exhibited the signal response through the re-oxidation of the mediator: ferrocene carboxylic acid [9]. This assay involved a complex three-step reaction mechanism in order to achieve a sensitive detection of AST within the range of 7.5–720 UL⁻¹. A long incubation time (25 min) was required to allow for the generation of the oxaloacetate by-product and its reaction with the enzyme electrode. Guo et al. [10] developed a hydrogen peroxide (H₂O₂) sensor by integrating a glutamate electrode on which glutamate oxidase (GluOx) was co-immobilized with horseradish oxidase (HRP), pretreated with a redox polymer. Additionally, Ohgami et al. fabricated a microfluidic system by infusing a modified working electrode. This working electrode contained the identical bi-enzymes, in combination with a Y-shaped micro-flow channel for the reagents to mix through inter-diffusion [11]. These biosensor platforms showed reasonable AST detection with good linearity at a relatively rapid response time (120 s), but the reaction dependence on the assistance of coenzyme intrinsically complicated the sensor design.

Simplifying the testing procedure, Song et al. [12], Mizutani et al. [13], and Ren et al. [14] proposed that AST activity may be effectively quantified by direct measurement of the H₂O₂ generated, based on a two-step reaction mechanism in Scheme 2.

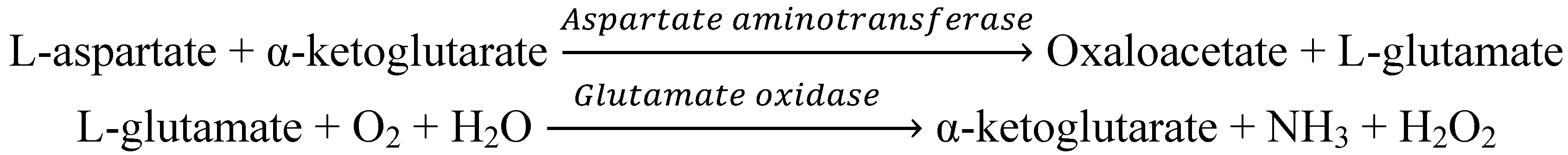

Scheme 2. Reaction mechanism on electrochemical assays of AST by measuring enzymatically generated H₂O₂ from the interaction between L-glutamate and glutamate oxidase.

Scheme 2. Reaction mechanism on electrochemical assays of AST by measuring enzymatically generated H₂O₂ from the interaction between L-glutamate and glutamate oxidase.

The prototype proposed by Song et al. did not demonstrate good linearity at low AST concentrations. This sensor for AST detection contributed to the decline in electrode stability after 120 days in storage at −4 °C [12]. Mizutani et al. also employed a two-step reaction mechanism, without any redox mediator in the reaction. This prototype required the use of an outer polyion membrane in order to prevent the interference of oxidizable compounds such as ascorbic (AA) and uric acids (UA) at a high applied potential (+0.8 V versus Ag/AgCl) for H₂O₂ oxidation [13]. Ren et al. described a Pt/Au bimetallic hierarchical electrode, using a Nafion membrane to reduce the interference of ascorbic acid and uric acid. The Nafion membrane acted as a diffusion barrier, and the sensor response was slower [14]. However, the devices described were complicated to scale up, making the production of a practical biosensor impossible.

Active carbon substrate dispersed by metallic nano-particles (NPs) possessed excellent catalytic capabilities on electroactive species such as H₂O₂ and NADH (nicotinamide adenine dinucleotide, reduced form) for various biosensor applications [15,16,17]. In the method proposed by Chang et al. [18] palladium (Pd) was blended with carbon ink as the working electrode, reducing the oxidation voltage of H₂O₂ to +0.4 V versus an Ag/AgCl reference electrode, while a Nafion coating was employed to minimize the electrode fouling. You et al. prepared an iridium-carbon film with nano-scaled particle distribution by co-sputtering for a glutamate sensor and measured the sensor output at the electrocatalytic potential for H₂O₂ reduction, thus avoiding any interference from oxidized ascorbic acid [19].

In our research group, a single use, disposable biosensor platform has been developed by screen-printed technology. In our development of this biosensor, a 2–5% by weight of iridium (actually iridium oxide) nano-catalyst was mixed with the active carbon powder forming the screen printable ink. The detailed fabrication of this biosensor prototype has been described elsewhere [17,19,20,21,22,23].

In our previous study, alanine aminotransferase (ALT) was assayed well by this iridium-dispersed carbon biosensor prototype, and our quantification of ALT in serum was in excellent agreement with the hospital spectrophotometric quantification [23]. The purpose of this current research is to develop a cost-effective, biosensor capable of quantifying serum AST using the simple two-step reaction mechanism shown in Scheme 2. The experimental quantifications of AST in human serum by this biosensor prototype correlate well with the “gold standard” spectrophotometric quantification of the hospital clinical laboratory. Therefore, this single-use, disposable biosensor provided a simple detection method for the measurement of AST in human serum.

2. Experimental Section

2.1. Materials and Reagents

L-aspartic acid, α-ketoglutararictamic acid disodium salt, L-glutamic acid, L-glutamate oxidase from Streptomyces sp. [GluOx] (E.C. 1.4.3.11), glutamic-oxalacetic transaminase from porcine heart [GOT or AST] (E.C. 2.6.1.1) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Human serum was purchased from MP-Biomedicals (Solon, OH, USA). Potassium chloride, 3% hydrogen peroxide solution, sodium phosphate monobasic, and sodium phosphate dibasic heptahydrate were obtained from Fisher Scientific (Hampton, NH, USA). The Ir-C particles (5% Ir) were purchased from BASF (Somerset, NJ, USA). The additional chemicals used were of analytical grade. The buffers and other reagents made were prepared using deionized water.

2.2. Fabrication Prototype of Thick-Film Screen-Printable biosensor

The single-use, disposable sensor platform had an overall dimension of 30 mm × 5.5 mm and was manufactured by a multi-layer approach using screen-printing technology. The detailed fabrication process had been discussed in previous publications [17,20]. Briefly, a 787 mm × 584 mm PET polymer was employed as the substrate, and silver ink was used as electrical contacts. The prepared Ir-C ink was then printed as the working and counter electrode, Ag/AgCl was printed as the reference electrode. The geometric surface area for the printed working electrode was 7.85 × 10⁻³ cm². Figure 1 shows the sensor prototype which will be used for AST detection.

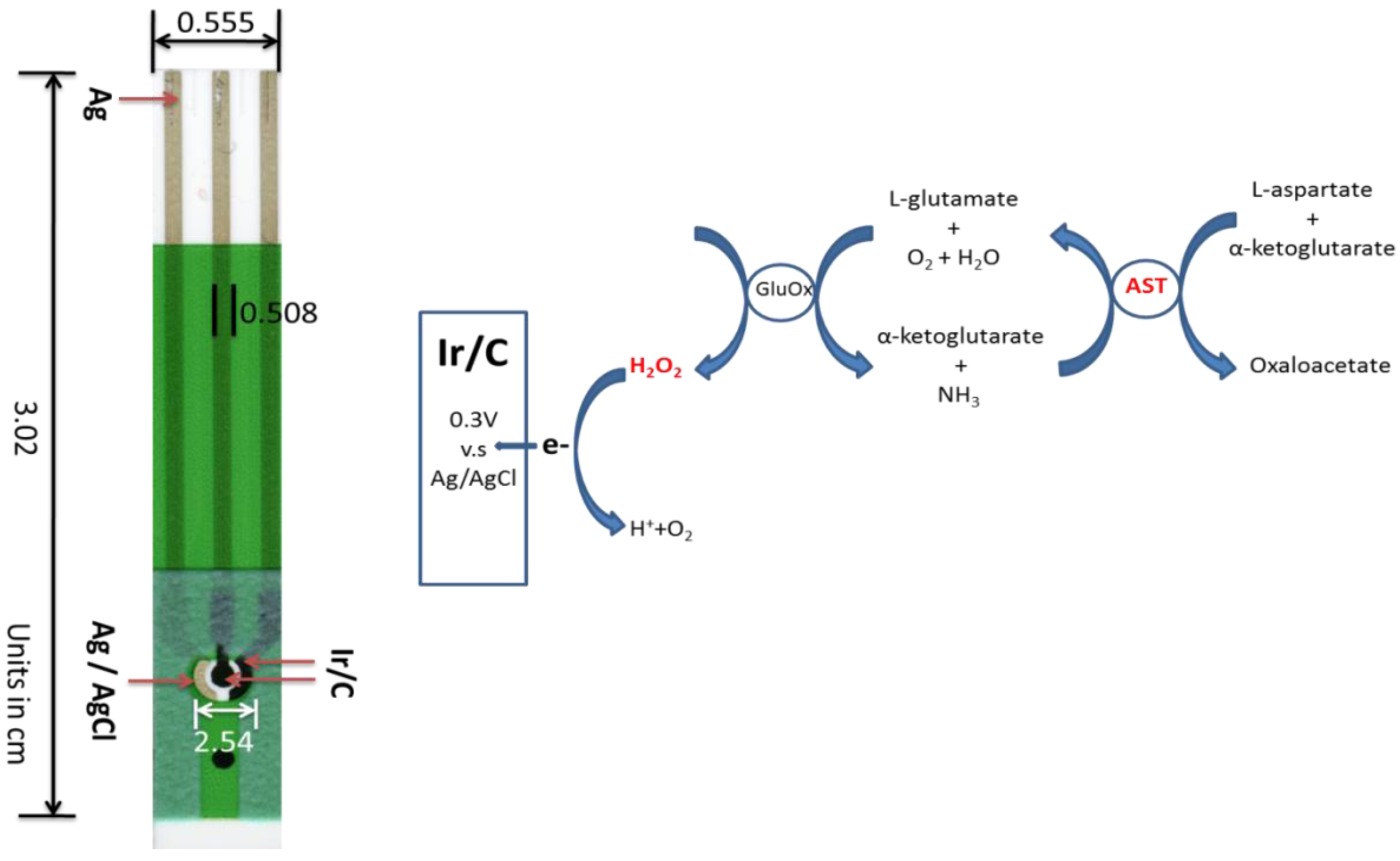

Figure 1. Sensor prototype and reaction mechanism used for the AST detection.

Figure 1. Sensor prototype and reaction mechanism used for the AST detection.

2.3. Experimental Measurement Procedure

Electrochemical measurements including voltammetric and amperometric measurements were performed using a CH Instrument 660A Electrochemical Workstation (CH Instrument, Inc., Austin, TX, USA). Measurements were at 22 ± 1 °C, unless otherwise stated. Typically, a total 200 µL testing solution was prepared with 25 mM L-aspartate, 2.5 mM α-ketoglutarate and AST reagents of variable concentration from 0 to 0.89 μg/mL (corresponding to 0–250 UL⁻¹ in specific activity), and allowed to incubate at 37 °C to enhance the enzymatic conversion. In the testing, a 0.5 µL of glutamate oxidase (GluOx) solution of 0.05 U/µL was placed onto the biosensor prior to the testing. 0.025 U of GluOx per electrode would be produced and this amount theoretically yielded 4.5 mM L-glutamate to H₂O₂ per minute according to Sigma catalog, which was in excess of the testing range from 0–0.4 mM. All the trials were operated after the addition of 5 µL of AST testing solution with 3 minutes incubation. For the serum testing, the serum samples over the testing range of 0–0.89 μg/mL were prepared by spiking a variety of quantities with a known AST concentration. The identical sample preparation was applied for hospital spectrometric testing, suggesting that the serum samples tested by the Ir-C biosensor and spectrometry were compared properly. Cyclic voltammetric or amperometric measurement was then carried out to measure the AST concentration. A fresh sensor was used for each testing. Each concentration of AST was evaluated at least three times to assess the reproducibility of the biosensor.

3. Results and Discussion

3.1. Quantification of L-Glutamate Concentration with Enzymatically Generated H₂O₂

L-aspartate and α-ketoglutarate in Scheme 2 in the presence of AST produced L-glutamate. L-glutamate reacted with glutamate oxidase producing H₂O₂. The L-glutamate concentration was then quantified by measuring the enzymatically-generated H₂O₂. In a typical run, 0.5 µL of enzyme solution (0.05 U/µL GluOx) was applied to the biosensor (Figure 1). 5 µL of L-glutamate testing solution with variable concentration 0–0.4 mM was then added to the biosensor. The reagents were prepared as 0.1 M pH 7.4 phosphate buffer solutions with 150 mM KCl supporting electrolyte. Cyclic voltammetry was performed with the scan ranges −0.1 to +0.4 V at a scan rate of 10 mV per second to identify the oxidation potential of H₂O₂ in the test medium. Figure 2 shows that the substrate (L-glutamate) and product (NH₄OH) in Scheme 2 did not contribute to any oxidized currents based on the cyclic voltammograms. As shown in Figure 2 at +0.3 V versus the printed Ag/AgCl reference electrode, the oxidation current of H₂O₂ could be used to quantify the L-glutamate concentration. The low oxidation potential of H₂O₂ at +0.3 V minimized the interference from oxidation of other species.

In Figure 3, the amperometric determination of L-glutamate concentration exhibited a good linear calibration with the resulting net currents (after subtracting from the averaged background currents) at the response time of the 100th second, quantifying L-glutamate properly and efficiently. This gave a limit of detection (LOD) = 19.89 µM of L-glutamate.

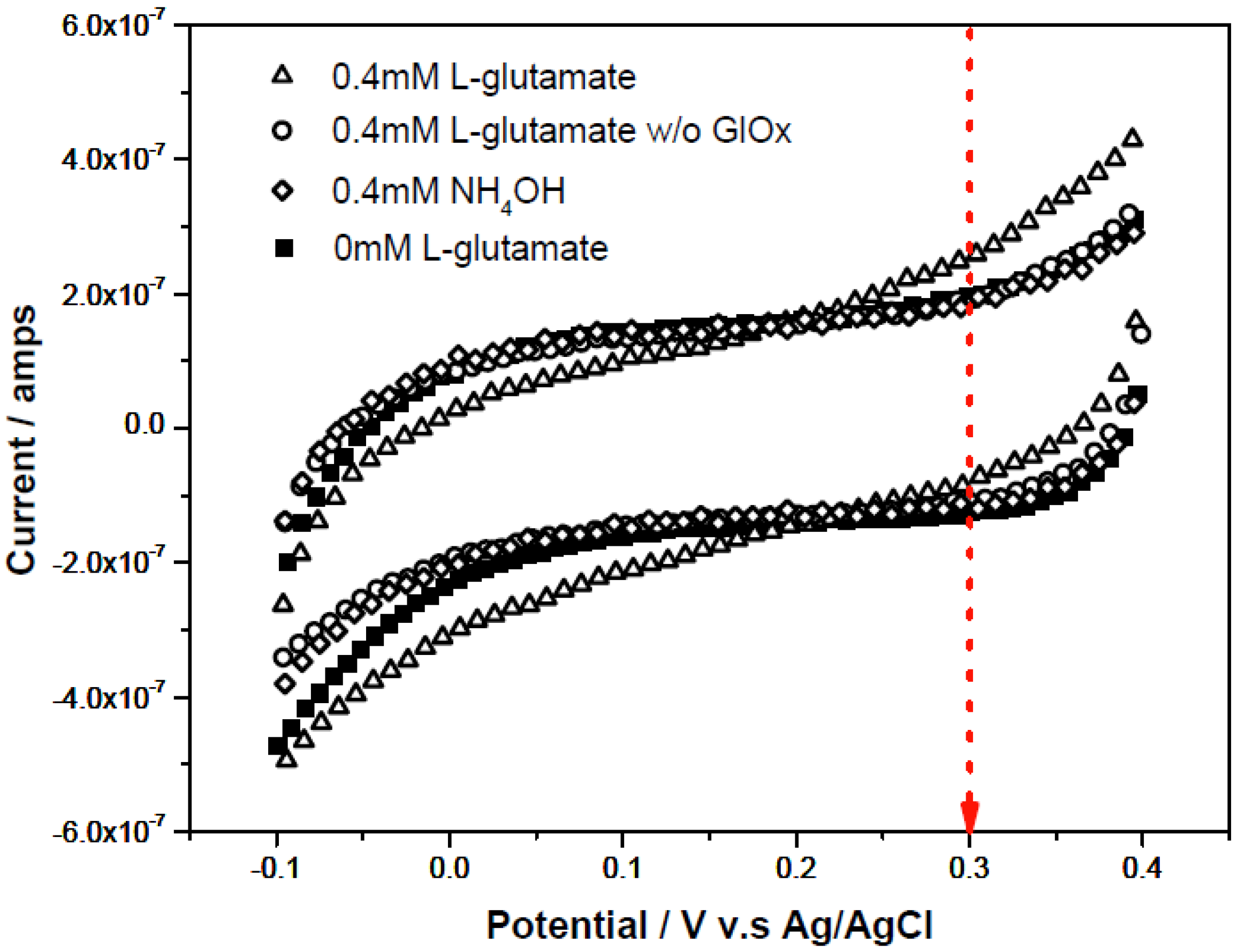

Figure 2. Cyclic voltammograms of background (0 mM L-glutamate) and 0.4 mM NH₄OH, and 0.4 mM L-glutamate in a basic testing solution in the absence or presence of 0.05U/µL GluOx as testing solution (each measurement repeated 3 times using a fresh sensor).

Figure 2. Cyclic voltammograms of background (0 mM L-glutamate) and 0.4 mM NH₄OH, and 0.4 mM L-glutamate in a basic testing solution in the absence or presence of 0.05U/µL GluOx as testing solution (each measurement repeated 3 times using a fresh sensor).

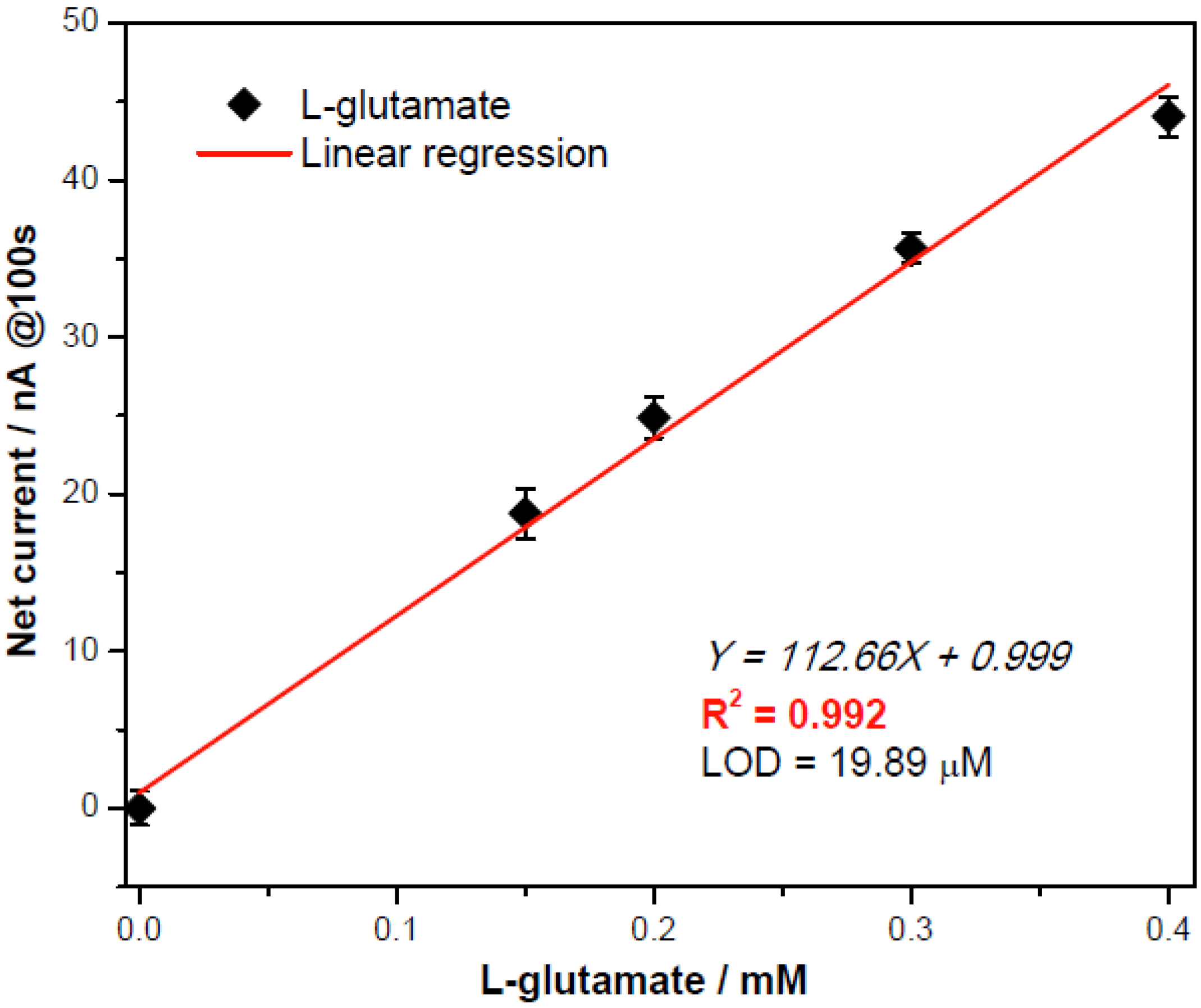

Figure 3. Calibration plot obtained at the 100th second for L-glutamate assessment by0.05U/µL GluOx obtained at +0.3 V versus the printed Ag/AgCl with repeatability demonstrated with a new sensor for each measurement (n = 3).

Figure 3. Calibration plot obtained at the 100th second for L-glutamate assessment by0.05U/µL GluOx obtained at +0.3 V versus the printed Ag/AgCl with repeatability demonstrated with a new sensor for each measurement (n = 3).

3.2. Determination of Aspartate Aminotransferase (AST)

3.2.1. Cyclic Voltammetric Study on AST

Cyclic voltammetry was applied to the correlated reactants (L-aspartate and α-ketoglutarate) and products (oxaloacetate and L-glutamate) involved in the AST reaction mechanism shown in Scheme 2. The cyclic voltammetric measurements were carried out in the voltage window of −0.1 V to +0.4 V versus the printed Ag/AgCl reference electrode with a scan rate of 10 mV per second. Figure 4(a,b) shows that there was no contribution to the current output by either chemical. Figure 4(c) shows the detection of AST by measuring the oxidation of H₂O₂ produced at +0.30 V versus the printed Ag/AgCl.

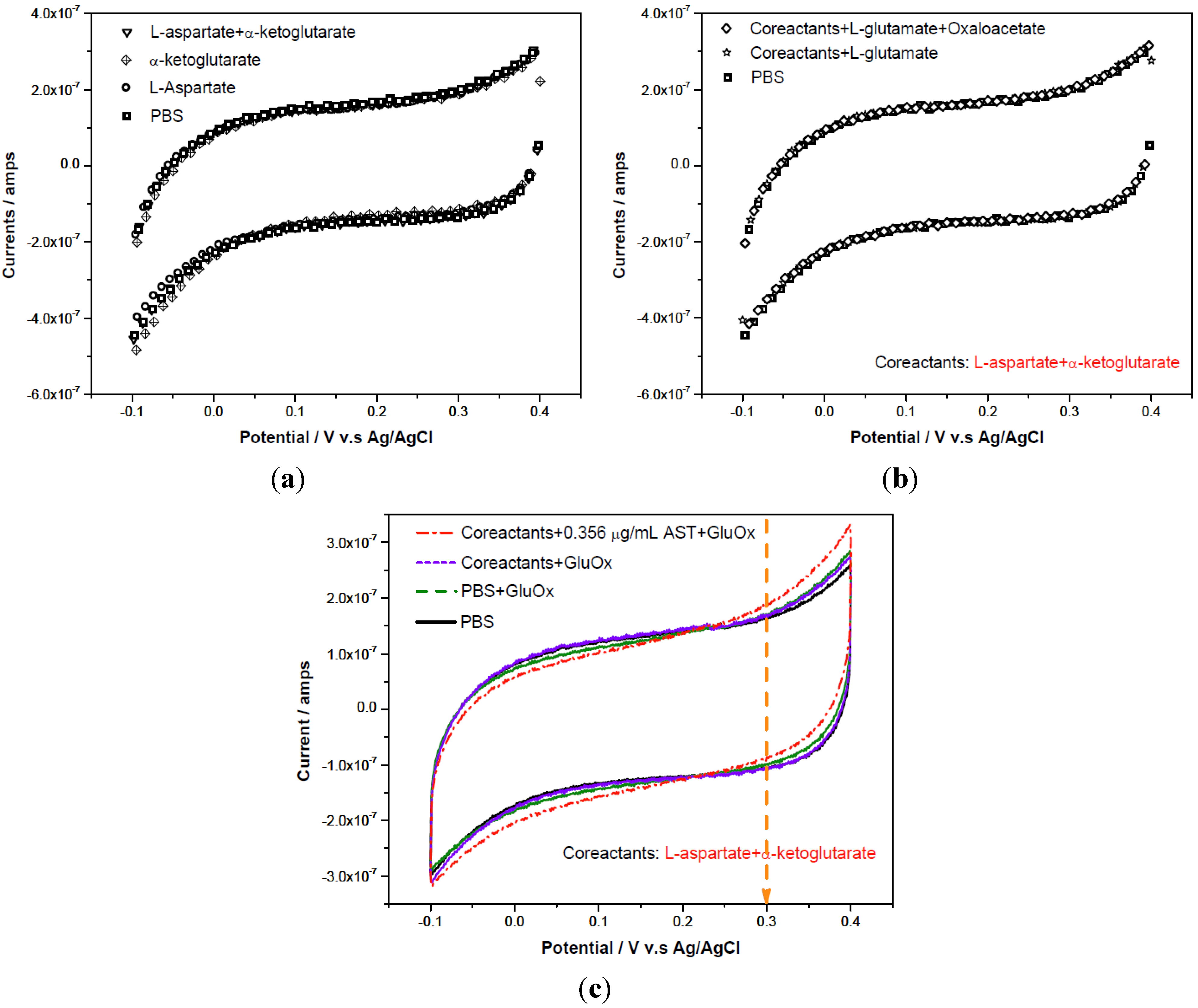

Figure 4. (a) Cyclic-voltammetric scans in the absence/presence of reactants in testing solutions: L-alanine and α-ketoglutarate; (b) Cyclic-voltammetric scans for different added species: reactants and products; (c) Cyclic-voltammetric scans for different added species in testing solutions: co-reactants in the absence/presence of 0.356 μg/mL AST and 0.5 µL of 0.05U/µL GluOx.

Figure 4. (a) Cyclic-voltammetric scans in the absence/presence of reactants in testing solutions: L-alanine and α-ketoglutarate; (b) Cyclic-voltammetric scans for different added species: reactants and products; (c) Cyclic-voltammetric scans for different added species in testing solutions: co-reactants in the absence/presence of 0.356 μg/mL AST and 0.5 µL of 0.05U/µL GluOx.

3.2.2. AST Detection with Amperometric Method

Amperometric studies of AST were carried out in phosphate buffer solution and undiluted human serum. As shown in Figure 4(c), +0.3 V versus the printed Ag/AgCl reference electrode was employed at this relatively low oxidation potential and any oxidation of other species was minimized. The addition of L-aspartate and α-ketoglutarate into either testing fluid would lower original pH value. Therefore, the testing medium was adjusted with 0.1 g/mL NaOH to a pH 7.4. The experimental procedures are described in Section 2.3.

The levels of AST, ranging from 0 to 0.89 μg/mL (corresponding to AST specific activity of 0–250 UL⁻¹), in phosphate buffer solution were measured. The currents at the 150th second were recorded as a function of the AST concentrations. After the subtraction of the blank (the current of 0 μg/mL AST), Figure 5(a) established the sensor current output over AST concentrations. A Michaelis-Menten relationship was obtained, and the inset in Figure 5 corresponds to the Lineweaver-Burk plot. Therefore, the apparent Michaelis-Menten constant ( = 0.71 μg/mL) and maximum catalytic current (i_max = 20.4 nA) were obtained. At low AST concentrations (between 0 to 0.445 μg/mL) the calibration curve showed linearly with sensitivity of 18.5 nA/[μg/mL].

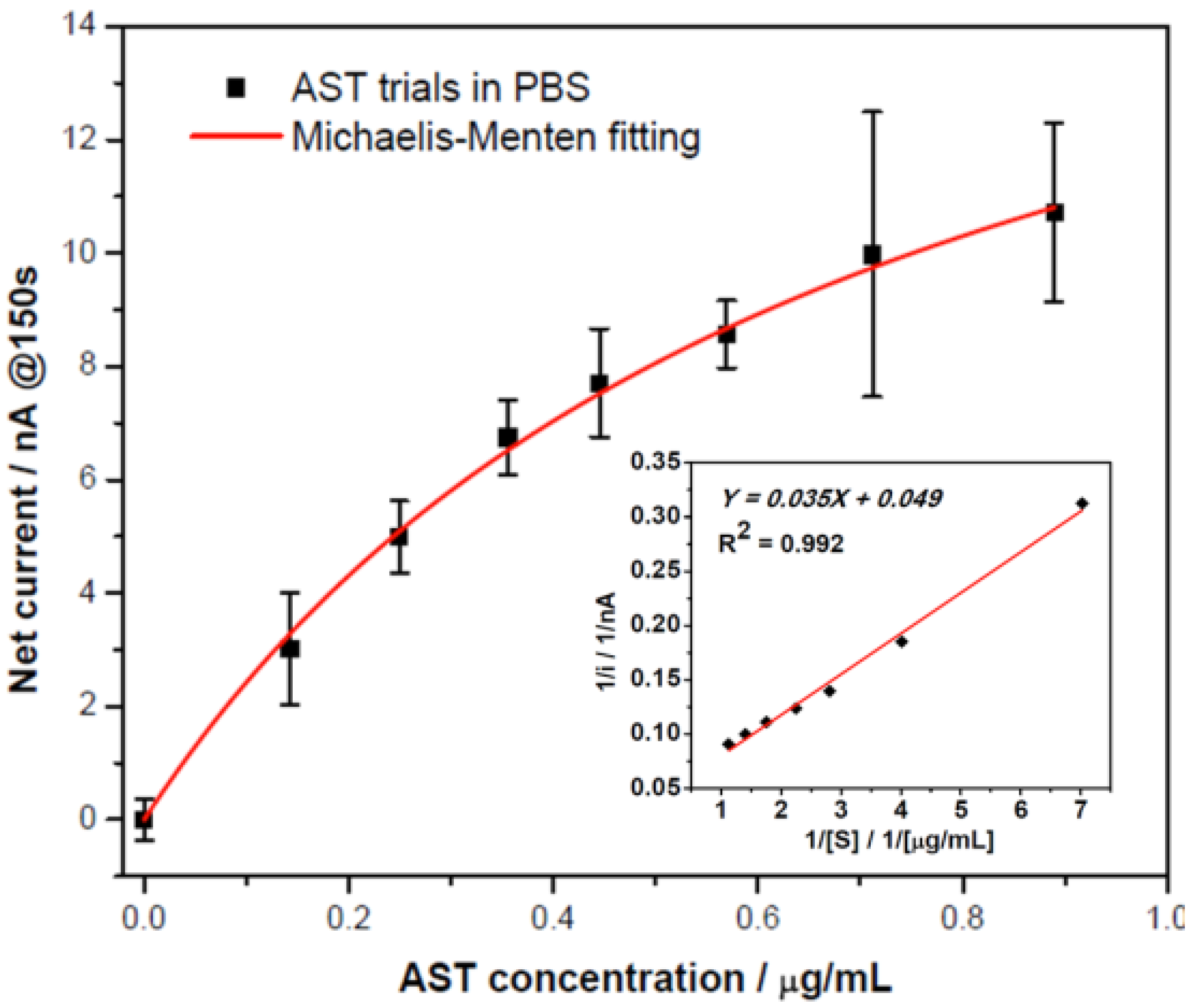

Figure 5. Calibration curve of ALT detection in a pH 7.4 phosphate buffer with the inset as the corresponding Lineweaver-Burk plot.

Figure 5. Calibration curve of ALT detection in a pH 7.4 phosphate buffer with the inset as the corresponding Lineweaver-Burk plot.

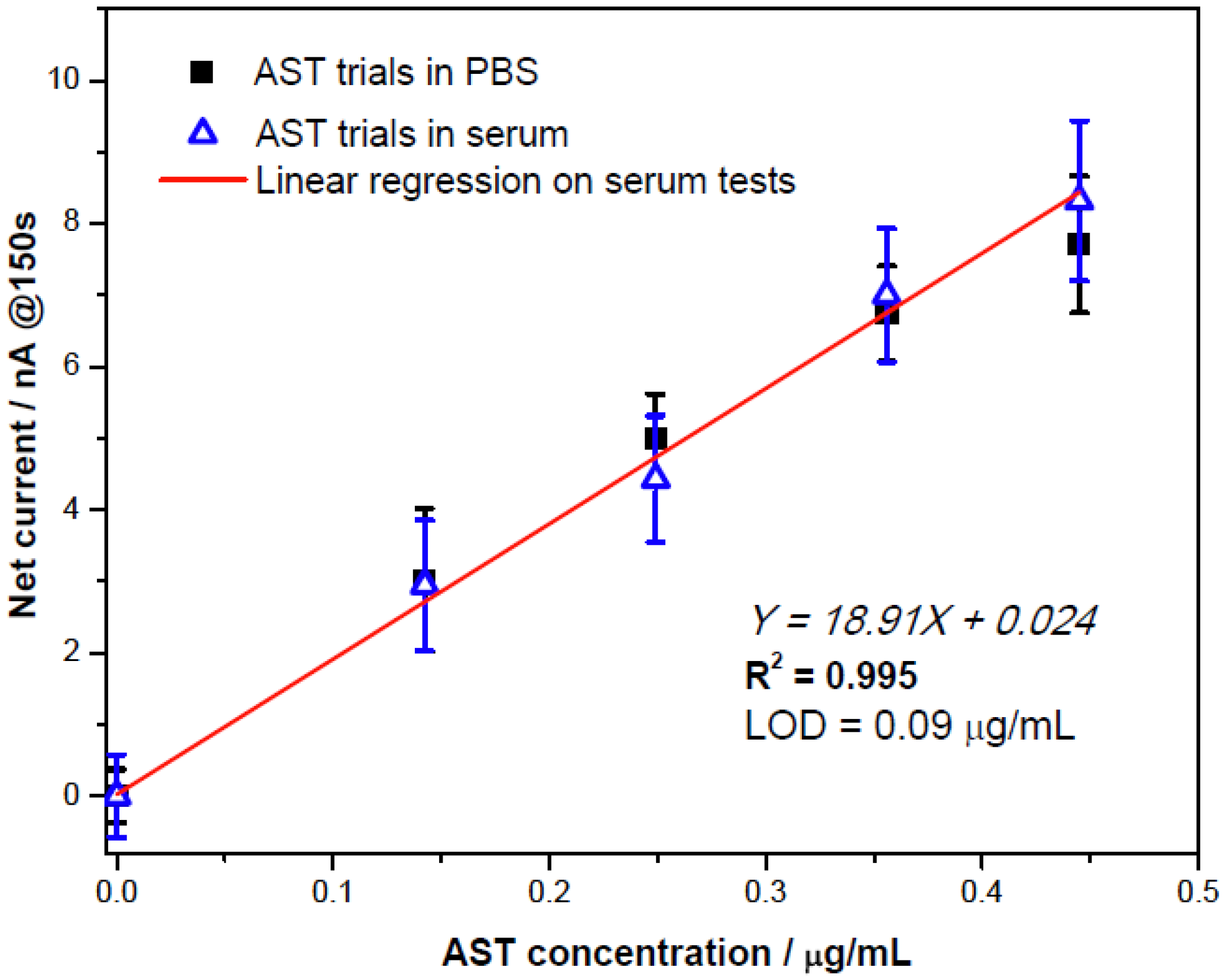

Figure 6. Comparable results for ALT detection in phosphate buffer and human serum testing.

Figure 6. Comparable results for ALT detection in phosphate buffer and human serum testing.

The quantification of AST in human serum was carried out for potential clinical applications. 100 mM potassium chloride solution was added into an undiluted serum solution as the supportive electrolyte. Figure 6 shows that the amperometric current outputs recorded at the 150th second exhibited a sensitivity, 18.91 nA/[μg/mL] (corresponding to 0.067 nA/UL⁻¹), which was almost identical to that in the phosphate buffer solution. This sensitivity was higher than the experimental results in the QC serum measurement reported by Guo et al. [10]. Serum quantification had the limit of detection LOD = 0.09 μg/mL, corresponding to an AST specific activity of 25.3 UL⁻¹. These quantifications were then compared with the assessments by Spectrophotometry Vista 1500 in the University Hospitals of Cleveland, Ohio. Figure 7 showed that the AST detection by the Ir-C biosensor and the spectrophotometric results, indicating the biosensor prototype, can be useful in detecting AST more than 3-fold of the normal upper limits (around 125 UL⁻¹) in a serum sample. Therefore, the proposed Ir-C biosensor may have clinical utility in in vitro AST quantification in human serum samples.

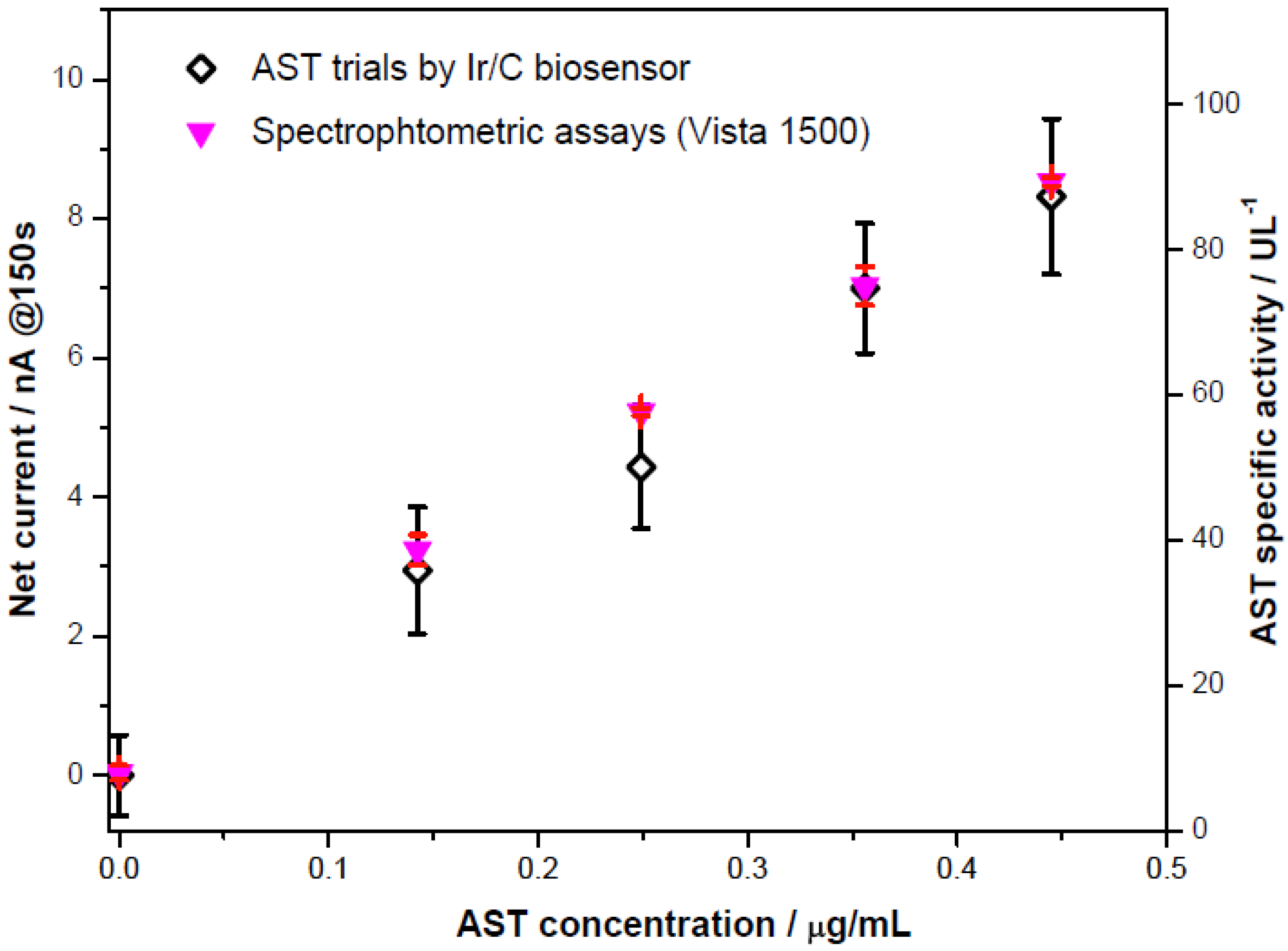

Figure 7. Comparison of measurements achieved by a Vista 1500 spectrophotometer to the Ir-C sensor response currents of human serum.

Figure 7. Comparison of measurements achieved by a Vista 1500 spectrophotometer to the Ir-C sensor response currents of human serum.

4. Conclusions

A single-use, screen-printable Ir-C biosensor was demonstrated to be capable of AST detection using a simple two-step enzymatic reaction mechanism as shown in Scheme 2. The amperometric measurement of AST was performed by quantifying the enzymatically-produced H₂O₂ at an oxidation potential of +0.3 V versus the printed Ag/AgCl reference electrode. The biosensor’s experimental results exhibited an excellent linear relationship in both phosphate buffer and undiluted human serum over the AST concentration range of 0 to 0.445 μg/mL. Additionally, the biosensor’s assessment of AST in human serum agreed well and was compatible with the clinical spectrophotometric results obtained from the hospital.
