Article

Damping Oriented Design of Thin-Walled Mechanical Components by Means of Multi-Layer Coating Technology

Department of Industrial Engineering, University of Bologna, Viale del Risorgimento 2, 40136 Bologna, Italy
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(2), 73; https://doi.org/10.3390/coatings8020073
Submission received: 29 December 2017 / Revised: 31 January 2018 / Accepted: 9 February 2018 / Published: 13 February 2018
(This article belongs to the Special Issue Manufacturing and Surface Engineering)

Abstract

:
The damping behaviour of multi-layer composite mechanical components, shown by recent research and application papers, is analyzed. A local dissipation mechanism, acting at the interface between any two different layers of the composite component, is taken into account, and a beam model, to be used for validating the known experimental results, is proposed. Multi-layer prismatic beams, consisting of a metal substrate and of some thin coated layers exhibiting variable stiffness and adherence properties, are considered in order to make it possible to study and validate this assumption. A dynamical model, based on a simple beam geometry but taking into account the previously introduced local dissipation mechanism and distributed visco-elastic constraints, is proposed. Some different application examples of specific multi-layer beams are considered, and some numerical examples concerning the beam free and forced response are described. The influence of the multilayer system parameters on the damping behaviour of the free and forced response of the composite beam is investigated by means of the definition of some damping estimators. Some effective multi-coating configurations, giving a relevant increase of the damping estimators of the coated structure with respect to the same uncoated structure, are obtained from the model simulation, and the results are critically discussed.

1. Introduction

Multi-coated thin-walled composite mechanical components, such as beams, plates, and shells, can be considered as an application of the Functionally Graded Material (FGM) technology, making it possible to obtain specific mechanical properties, such as high strength and stiffness, light inertia, and high damping. In most modern industrial applications, damping behaviour can be critical and may greatly affect design activities. In the aerospace field, high stiffness and high strength slender shell components, such as turbine blades, are required to show a limited free vibrational behaviour in standard operating conditions in order to increase the system life, to reduce the generated noise, and to maximize the machine efficiency. In this specific field, recent applications were explored, mainly based on experimental approaches. The influence of thin ceramic, polymeric, and metallic coatings, in some cases reinforced by carbon nanotubes, deposed on thin-walled components, on the damping behaviour of the obtained multi-layer composite systems was experimentally studied by some researchers [1,2,3,4,5]. In all of these works, it was found that the deposition of thin coatings can improve the damping behaviour of the composite system. Moreover, it was experimentally found in [6,7,8,9,10] that the dissipative actions in multi-layer architectures can be assumed as localized at the interfaces of the layers.
A global modelling approach of FGM composite components is given in [11], in which an experimental identification procedure of the mechanical properties of nonstandard composite materials by means of frequency domain measurements is reported. However, the global constitutive model of a specific composite material experimentally obtained cannot be used to obtain the model related to a different composite material solution, so that virtual prototyping of new solutions is de facto not allowed in principle. On the other hand, several works on multi-layer composite structure modelling can be found in the literature, but no attempt was made to investigate the dissipative mechanism acting at the interface between any two layers. In [12,13,14,15,16,17], multi-layer beam models, assuming polynomial first and higher order longitudinal displacement component, were proposed and validated by numerical comparisons with exact analytical solutions. Nevertheless, dissipation effects were not taken into account. A dynamical model that was able to deal with the dissipative actions influencing the damping properties of the system response and with the specific multilayer coating architecture was not proposed, to the authors’ knowledge.
The damping behaviour of multi-layer composite beams is taken into account in this work and introduced in a beam model. The local dissipations, acting at the interface between any two layers of the composite beam, are investigated. The dissipation mechanism in a multi-layer structure is described by means of distributed viscous linear shear actions acting at the interface between two layers. The shear-strain local constitutive behaviour is described by defining continuous dissipation functions depending on the thickness and the viscosity at the interface. These parameters can be assumed to model the layer interface coupling actions, which mainly originated by chemical or mechanical coupling phenomena, and are associated with the different technologies employed to depose the layer coatings [18].
Although distributed viscous modelling of the internal shear dissipative actions was already published in known scientific literature, it must be taken into account that such an assumption can lead to misleading results, since while polymer-based materials may follow this behaviour, most metal and ceramic materials do not exhibit internal dissipative actions depending on strain velocity. Moreover, since a proportional damping model follows from this assumption, the theoretical modal damping ratio of a homogeneous component made of a viscoelastic material following the Kelvin-Voigt model linearly increases with respect to frequency, and this result is not supported by experimental findings [11,19]. Since it can be experimentally found that the free vibration modal damping ratio ξk tends to slowly vary with respect to the mode natural frequency ωk and order k for homogeneous, uniform beam specimens made of viscoelastic material, high order material viscoelastic constitutive relationships [11] or fractional derivative order model-based viscoelastic relationships [20,21,22,23] were proposed in the past to overcome the limits of a simple Kelvin viscoelastic model.
In the approach proposed in this paper, viscous shear actions are mainly localized at the interface between any two different layers; they are defined by a C1 function only depending on two parameters, and they are not distributed on the whole layer domain, making it possible to properly model and experimentally validate the modal damping ratio with respect to the modal natural frequency value. Multi-layer prismatic beams with distributed visco-elastic constraints that are subjected to distributed, dynamic load are considered, and a discrete dynamical beam model is introduced. The contribution of aerodynamic drag dissipative actions can be taken into account by means of modelling viscous constraint actions distributed along the whole beam length.
Some examples, consisting of multi-layer composite beams composed by a thick metal-based substrate with high strength and stiffness, and thin coatings, are considered. By varying the coating parameters, such as the number, thickness, and material properties of the layers, the interlaminar dissipation layer thickness, and the viscosity, the effect on the system damping estimate in the frequency range under interest is analysed by means of numerical simulations from within the proposed model. The sensitivity of the layer parameters on the damping behaviour of the structure is outlined. Some effective multilayer configurations associated with a relevant increase of the damping ratio with respect to the single layer solution are illustrated, and a critical discussion follows.

2. Multi-Layer Beam Modelling

In Figure 1, a scheme of a uniform, rectangular section, multi-layer composite beam is shown. Geometrical parameters are the beam length L, depth b, and thickness h; N is the number of layers, hk is the k-th layer thickness, x is the longitudinal, and z is the transversal coordinate; zk is the k-th layer coordinate with respect to the bottom surface, ξ and ζ are the dimensionless coordinates, defined by the relationships:
ξ = x L ,       ζ = z h ,       ζ k = z k h ,       k = 0 , , N
Kinematical parameters are the axial ũ and transversal beam w ˜ displacement components, kx,z is the stiffness of the longitudinal and transversal distributed elastic constraints, cx,z is the viscosity of the longitudinal and transversal distributed viscous constraints, q and Fw are the distributed and concentrated external transversal loads, ρk, Ek, and Gk are the material, k-th layer, mass density, axial and shear moduli, and t is the time coordinate.
The displacement field is defined in dimensionless form, i.e., w = w ˜ / L , u = u ˜ / h ; by assuming w to be independent of coordinate ζ, this assumption is mainly valid in the low to medium excitation frequency range [24] taken into account in this work, and by assuming that u varies with respect to ζ following a cubic polynomial function, whose linear parameter components vary in each layer in the form:
w ( ξ , ζ , t ) = w ( ξ , t ) ,       w ζ = 0 u ( ξ , ζ , t ) = α ( ξ , t ) + β ( ξ , t ) ζ + χ ( ξ , t ) ζ 2 + δ ( ξ , t ) ζ 3 + a ^ k ( ξ , t ) + b ^ k ( ξ , t ) ζ , ζ k 1 ζ ζ k
the following ( α , β , χ , δ , a ^ k , b ^ k , w ) unknown, (2·N + 3) state variables result, where ζ 0 = a ^ 1 = b ^ 1 = b ^ ˙ 1 = 0 .
Starting from Equation (2), in the hypothesis of small deformations, the axial normal strain for the k-th layer, k = 1…N, is:
ε ( ζ ) = h L ( α + β ζ + χ ζ 2 + δ ζ 3 + a ^ k + b ^ k ζ ) , ζ k 1 ζ ζ k
with:
(   ) ξ = (   ) , (   ) t = ( ) ·
and the transverse shear strain for the k-th layer is:
γ ( ζ ) = β + 2 χ ζ + 3 δ ζ 2 + b ^ k + w ,       ζ k 1 ζ ζ k
The transverse normal stress is neglected (σzz = 0), assuming the plane stress hypothesis.
The constitutive equation for the k-th layer of the beam, in the case of isotropic material, is:
{ σ x x τ x z } = { σ τ } = [ E k 0 0 G k ] { ε γ } + [ 0 0 0 G k η k ( ζ ) ] { ε ˙ γ ˙ } { σ = E k ε τ = G k ( γ + η k ( ζ ) γ ˙ )    , ζ k 1 ζ ζ k
From Equations (3), (5) and (6):
( σ ( ζ ) = E k h L ( α + β ζ + χ ζ 2 + δ ζ 3 + a ^ k + b ^ k ζ ) τ ( ζ ) = G k ( γ + η k ( ζ ) γ ˙ ) = τ e + τ a τ e = G k γ = G k ( β + 2 χ ζ + 3 δ ζ 2 + b ^ k + w ) τ a = G k η k ( ζ ) γ ˙ = G k η k ( ζ ) ( β ˙ + 2 χ ˙ ζ + 3 δ ˙ ζ 2 + b ^ ˙ k + w ˙ ) ,   ζ k 1 ζ ζ k
in which η k ( ζ ) C 1 , plotted in Figure 2, is assumed to model the viscous behaviour localized at the k-th interface:
η ( ζ ) = { η k , u ( ζ ) ,     ζ k s k / h ζ ζ k η k + 1 , l ( ζ ) ,     ζ k ζ ζ k + s k / h
in which sk is the interlaminar dissipation layer thickness at the k-th interface.
The upper ηk,u(ζ) and lower ηk+1,l(ζ) contributions are given by means of interpolating polynomials:
η k , u ( ζ ) = η ˜ k 2 ζ 3 3 ( 2 ζ k s k / h ) ζ 2 + 6 ζ k ( ζ k s k / h ) ζ ( ζ k s k / h ) 2 ( s k / h + 2 ζ k ) ( ζ k s k / h ) 3 ζ k 3 + 3 ζ k ( ζ k s k / h ) ( s k / h ) η k + 1 , l ( ζ ) = η ˜ k 2 ζ 3 3 ( 2 ζ k + s k / h ) ζ 2 + 6 ζ k ( ζ k + s k / h ) ζ + ( ζ k + s k / h ) 2 ( s k / h 2 ζ k ) ( ζ k + s k / h ) 3 ζ k 3 3 ζ k ( ζ k + s k / h ) ( s k / h )
satisfying the following conditions, k = 1,…,N − 1:
d η k , u d ζ ( ζ k ) = d η k , u d ζ ( ζ k s k / h ) = d η k + 1 , l d ζ ( ζ k ) = d η k + 1 , l d ζ ( ζ k + s k / h ) = 0 η k + 1 , l ( ζ k + s k / h ) = η k , u ( ζ k s k / h ) = 0 ,    η k ( ζ k ) = η k , u ( ζ k ) = η k + 1 , l ( ζ k ) = η ˜ k
By imposing the continuity of the shear stress at the bottom surface (ζ = ζ0 = 0):
τ ( ζ = 0 ) = G 1 ( β + w + η 1 ( 0 ) ( β ˙ + w ˙ ) ) = G 1 ( β + w ) = 0
giving:
β = w
Substituting Equation (12) into Equation (7):
τ ( ζ ) = G k ( 2 χ ζ + 3 δ ζ 2 + b ^ k + η k ( ζ ) ( 2 χ ˙ ζ + 3 δ ˙ ζ 2 + b ^ ˙ k ) ) ,    ζ k 1 ζ ζ k
By imposing the continuity of the shear stress at the top surface (ζ = ζN = 1):
τ ( ζ = 1 ) = G N ( 2 χ + 3 δ + b ^ N + η N ( 1 ) ( 2 χ ˙ + 3 δ ˙ + b ^ ˙ N ) ) = G N ( 2 χ + 3 δ + b ^ N ) = 0
giving:
b ^ N = 2 χ 3 δ
By imposing the continuity of the shear stress at the k-th interface, τ ( ζ k ) = τ ( ( ζ k ) ) = τ ( ( ζ k ) + ) , where (   ) = lim Δ 0 (   ) Δ ,     (   ) + = lim Δ 0 (   ) + Δ :
τ ( ζ k ) = τ ( ( ζ k ) ) = G k ( 2 χ ζ k + 3 δ ζ k 2 + b ^ k + η ˜ k ( 2 χ ˙ ζ k + 3 δ ˙ ζ k 2 + b ^ ˙ k ) ) =           = G k + 1 ( 2 χ ζ k + 3 δ ζ k 2 + b ^ k + 1 + η ˜ k ( 2 χ ˙ ζ k + 3 δ ˙ ζ k 2 + b ^ ˙ k + 1 ) ) = τ ( ( ζ k ) + )
In the static case ( χ ˙ = δ ˙ = b ^ ˙ k = 0 ) , Equation (16) can be arranged as follows:
{ G 2 b ^ 2 = ( G 1 G 2 ) ( 2 χ ζ 1 + 3 δ ζ 1 2 ) G 3 b ^ 3 G 2 b ^ 2 = ( G 2 G 3 ) ( 2 χ ζ 2 + 3 δ ζ 2 2 ) G k + 1 b ^ k + 1 G k b ^ k = ( G k G k + 1 ) ( 2 χ ζ k + 3 δ ζ k 2 ) G N b ^ N G N 1 b ^ N 1 = ( G N 1 G N ) ( 2 χ ζ N 1 + 3 δ ζ N 1 2 )
By equating the sum of Equation (17) left side to the sum of the right side:
χ ( ξ , ζ ) = χ ¯ δ ( ξ , ζ ) , χ ¯ = 3 2 ( k = 1 N 1 G k G k + 1 G N ζ k 2 + 1 ) ( k = 1 N 1 G k G k + 1 G N ζ k + 1 )
and the following iterative formula is obtained as well:
b ^ k = b k δ ,    b 1 = 0 b k = G k 1 G k b k 1 + G k 1 G k G k ( 2 χ ¯ + 3 ζ k 1 ) ζ k 1 , k = 2 , , N
It can be easily found that this result, collected in Equations (18) and (19), is also valid in the general dynamic case, since evaluating τ ( ( ζ k ) + ) , Equation (16) is still validated:
τ ( ζ k ) = τ ( ( ζ k ) ) = G k ( 2 χ ¯ ζ k + 3 ζ k 2 + b k ) ( δ + η ˜ k δ ˙ ) , τ ( ζ k ) = τ ( ( ζ k ) + ) = G k + 1 ( 2 χ ¯ ζ k + 3 ζ k 2 + b k + 1 ) ( δ + η ˜ k δ ˙ ) = ( δ + η ˜ k δ ˙ ) ( G k + 1 ( 2 χ ¯ ζ k + 3 ζ k 2 ) + G k b k + ( G k G k + 1 ) ( 2 χ ¯ ζ k + 3 ζ k 2 ) ) = G k ( δ + η ˜ k δ ˙ ) ( 2 χ ¯ ζ k + 3 ζ k 2 + b k ) = τ ( ( ζ k ) )
By imposing the continuity of the axial displacement at the k-th interface:
b k ζ k δ + a ^ k = b k + 1 ζ k δ + a ^ k + 1
the following iterative formula is obtained:
a ^ k = a k δ ,      a 1 = 0 a k = a k 1 + ( b k 1 b k ) ζ k 1 , k = 2 , , N .
From Equations (12), (15), (18), (19) and (22):
u ( ζ ) = α w ζ + ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) δ , ζ k 1 ζ ζ k
The strain components are:
ε ( ζ ) = h L ( α ζ w + ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) δ ) γ ( ζ ) = ( 3 ζ 2 + 2 χ ¯ ζ + b k ) δ , ζ k 1 ζ ζ k
and the stress components are:
σ ( ζ ) = E k h L ( α ζ w + ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) δ ) τ ( ζ ) = G k ( 3 ζ 2 + 2 χ ¯ ζ + b k ) ( δ + η k ( ζ ) δ ˙ ) , ζ k 1 ζ ζ k .
Three independent model state scalar variables result and are collected: φ(ξ,t) = [α w δ]T.
The axial displacement, and the normal and shear strains, can be expressed as a function of φ(ξ,t):
u ( ζ ) = A k L 1 ( ϕ ) , ζ k 1 ζ ζ k A k ( ζ ) = [ 1 ζ ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) ] , L 1 (   ) = d i a g ( [ (   ) (   ) (   ) ] T ) ε ( ζ ) = h L A k L 2 ( ϕ ) , L 2 (   ) = ( L 1 ) = d i a g ( [ (   ) (   ) (   ) ] T ) γ ( ζ ) = [ 0 0 B k ] ϕ , B k ( ζ ) = 3 ζ 2 + 2 χ ¯ ζ + b k
The equations of motion can be obtained by minimizing the total potential Π, given by the sum of the elastic deformation energy Uel, the interlaminar dissipation energy Udiss, the inertial force work Win, the external force work Wext, and the potential associated with the visco-elastic constraints ΔΠ:
Π ( ϕ ) = U e l + U d i s s + W i n + W e x t + Δ Π min          Π ϕ = 0
U e l = 1 2 b h 0 1 k = 1 N ζ k 1 ζ k ( h L 2 E k ( L 2 ϕ ) T A ^ k L 2 ϕ + L G k B k 2 ϕ T d i a g ( [ 0 0 1 ] T ) ϕ ) d ζ d ξ           A ^ k ( ζ ) = A k T A k = [ 1 ζ ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) ζ 2 ( ζ 4 χ ¯ ζ 3 b k ζ 2 a k ζ ) s y m ( ζ 3 + χ ¯ ζ 2 + b k ζ + a k ) 2 ]
U d i s s = b h L 0 1 k = 1 N G k ζ k 1 ζ k η k ϕ T d i a g ( [ 0 0 B k 2 ] T ) ϕ ˙ d ζ d ξ
W i n = b h L 0 1 k = 1 N ρ k ζ k 1 ζ k ( h 2 ( L 1 ϕ ) T A ^ k L 1 ϕ ¨ + L 2 ϕ T d i a g ( [ 0 1 0 ] T ) ϕ ¨ ) d ζ d ξ
W e x t = L 2 ξ 3 ξ 4 q ϕ T ( ξ ) [ 0 1 0 ] T d ξ L F w ϕ T ( ξ ¯ ) [ 0 1 0 ] T
Δ Π = 1 2 b L ξ 1 ξ 2 ( h 3 k x ( L 1 ϕ ) T S L 1 ϕ + L 2 k z ϕ T d i a g ( [ 0 1 0 ] T ) ϕ ) d ξ        + b L ξ 1 ξ 2 ( h 3 c x ( L 1 ϕ ) T S L 1 ϕ ˙ + L 2 c z ϕ T d i a g ( [ 0 1 0 ] T ) ϕ ˙ ) d ξ    ,               S = k = 1 N ζ k 1 ζ k A ^ k d ζ

3. Numerical Discretization

Since the system Equation (27) is expressed by means of integro-differential equations that cannot be generally solved in closed form, then a model discretization is proposed, by means of the following hypothesis:
ϕ ( ξ , t ) = [ α ( ξ , t ) w ( ξ , t ) δ ( ξ , t ) ] N ( ξ ) Y ( t )
in which Y(t) is unknown and N(ξ) is assumed to be known, and expressed by means of harmonic shape functions in the variable ξ having argument i π ,     i :
N ( ξ ) 3 × n = [ N α ( ξ ) 0 0 0 N w ( ξ ) 0 0 0 N δ ( ξ ) ] N α ( ξ ) = 2 [ 1 2     sin ( π ξ )     cos ( π ξ )         sin ( n α π ξ )     cos ( n α π ξ ) ] N w ( ξ ) = 2 [ 1 2 6 ( ξ 1 2 )     sin ( π ξ )     cos ( π ξ )         sin ( n w π ξ )     cos ( n w π ξ ) ] N δ ( ξ ) = 2 [ sin ( π ξ )     cos ( π ξ )         sin ( n δ π ξ )     cos ( n δ π ξ ) ]
Equation (34) makes it possible to model three plane beam rigid body motions, so that the total number ntot of system discrete degrees of freedom is:
n tot = 2 ( n α + n w + n δ ) + 3
From Equations (26), (32), and (33):
u ( ζ ) = A k [ N α 0 0 0 N w 0 0 0 N δ ] Y , ε ( ζ ) = h L A k [ N α 0 0 0 N w 0 0 0 N δ ] Y γ ( ζ ) = B k [ 0 0 N δ ] Y , σ ( ζ ) = E k h L A k [ N α 0 0 0 N w 0 0 0 N δ ] Y τ ( ζ ) = G k B k ( [ 0 0 N δ ] Y + η ( ζ ) [ 0 0 N δ ] Y ˙ ) , ζ k 1 ζ ζ k
The elastic deformation energy is:
U e l = 1 2 Y T ( K σ + K τ ) Y K σ = b h 3 L [ S E 11 0 1 N α T N α d ξ S E 12 0 1 N α T N w d ξ S E 13 0 1 N α T N δ d ξ S E 21 0 1 N W T N α d ξ S E 22 0 1 N W T N W d ξ S E 23 0 1 N W T N δ d ξ S E 31 0 1 N δ T N α d ξ S E 32 0 1 N δ T N w d ξ S E 33 0 1 N δ T N δ d ξ ] K τ = b h L k = 1 N G k ζ k 1 ζ k B k 2 d ζ [ 0 0 0 0 0 0 0 0 0 1 N δ T N δ d ξ ] ,        S E = k = 1 N E k ζ k 1 ζ k A ^ k d ζ
The dissipation energy contribution is:
U d i s s =   Y T C Y ˙ ,           C = b h L k = 1 N 1 G k ζ k s k ζ k + s k η ( ζ ) B k 2 d ζ 0 1 [ 0 0 0 0 0 0 0 0 N δ T N δ ] d ξ
The contribution of the inertial forces is:
W i n = Y T ( M u + M w ) Y ¨ M u = b h 3 L [ S ρ 11 0 1 N α T N α d ξ S ρ 12 0 1 N α T N w d ξ S ρ 13 0 1 N α T N δ d ξ S ρ 21 0 1 N w T N α d ξ S ρ 22 0 1 N w T N w d ξ S ρ 23 0 1 N w T N δ d ξ S ρ 31 0 1 N δ T N α d ξ S ρ 32 0 1 N δ T N w d ξ S ρ 33 0 1 N δ T N δ d ξ ] M w = b h L 3 k = 1 N ρ k ( ζ k ζ k 1 ) [ 0 0 0 0 0 1 N w T N w d ξ 0 0 0 0 ] ,           S ρ = k = 1 N ρ k ζ k 1 ζ k A ^ k d ζ
The contribution of the external forces is:
W e x t = Y T L ( F w [ 0 N w T ( ξ ¯ ) 0 ] + L ξ 3 ξ 4 N w T ( ξ ) q d ξ ) = Y T F
The potential energy associated with the visco-elastic constraints is:
Δ Π = 1 2 Y T ( Δ K u + Δ K w ) Y + Y T ( Δ C u + Δ C w ) Y ˙ Δ K u = b h 3 L [ S 11 ξ 1 ξ 2 k x N α T N α d ξ S 12 ξ 1 ξ 2 k x N α T N w d ξ S 13 ξ 1 ξ 2 k x N α T N δ d ξ S 21 ξ 1 ξ 2 k x N w T N α d ξ S 22 ξ 1 ξ 2 k x N w T N w d ξ S 23 ξ 1 ξ 2 k x N w T N δ d ξ S 31 ξ 1 ξ 2 k x N δ T N α d ξ S 32 ξ 1 ξ 2 k x N δ T N w d ξ S 33 ξ 1 ξ 2 k x N δ T N δ d ξ ] Δ K w = b L 3 [ 0 0 0 0 ξ 1 ξ 2 k z N w T N w d ξ 0 0 0 0 ] ,            Δ C w = b L 3 [ 0 0 0 0 ξ 1 ξ 2 c z N w T N w d ξ 0 0 0 0 ] Δ C u = b h 3 L [ S 11 ξ 1 ξ 2 c x N α T N α d ξ S 12 ξ 1 ξ 2 c x N α T N w d ξ S 13 ξ 1 ξ 2 c x N α T N δ d ξ S 21 ξ 1 ξ 2 c x N w T N α d ξ S 22 ξ 1 ξ 2 c x N w T N w d ξ S 23 ξ 1 ξ 2 c x N w T N δ d ξ S 31 ξ 1 ξ 2 c x N δ T N α d ξ S 32 ξ 1 ξ 2 c x N δ T N w d ξ S 33 ξ 1 ξ 2 c x N δ T N δ d ξ ]
From Equations (27) and (37)–(41):
( M u + M w ) Y ¨ + ( C + Δ C u + Δ C w ) Y ˙ + ( K σ + K τ + Δ K u + Δ K w ) Y = F

4. Damping Behaviour Estimate

From Equation (42), the following eigenproblem can be obtained:
( λ r 2 ( M u + M w ) + λ r ( C + Δ C u + Δ C w ) + K σ + K τ + Δ K u + Δ K w ) Δ r = 0
in which 2 · ntot complex conjugate λr eigenvalues and Δr eigenvectors are expected to result.
From λr r-th eigenvalue, natural circular frequency fr and damping ratio ζr can be evaluated as follows:
f r = | λ r | 2 π ,        ζ r = ( λ r ) | λ r |
The ζr values may be considered as a useful system damping estimate in a local frequency range close to r-th natural frequency fr.
A better damping estimate, depending on the input-output coordinate choice and on a frequency range [fmin,fmax], may be obtained from within the evaluation of the system frequency response function H(j2πf) related to input in xforce and output in xresponse.
From Equation (40), by defining a discrete vector of equivalent force F related to unitary excitation 1 e j 2 π f at xforce coordinate:
F = L [ 0 T N w ( ξ f o r c e ) 0 T ] T
Ys s-th response component of vector Y may be easily evaluated by means of the modal approach [25]:
Y s = r = 1 2 n t o t Δ s , r i = 1 n t o t Δ i , r F i j 2 π f λ r
and the complex frequency response function related to xforce and xresponse is:
H ( j 2 π f ; x f o r c e , x r e s p o n s e ) = [ 0 1 0 ] N ( ξ r e s p ) Y
Since the imaginary part of H is mainly responsible of the damping behaviour, a normalized scalar function may be defined as:
d ( j 2 π f ) = | ( H ( j 2 π f ) ) | | H ( j 2 π f ) |
in which d [ 0 , 1 ] is defined for every frequency value and can be plotted in a limited frequency range related to a specific engineering field of interest.
It can be easily found that d 0 except at resonance, if dissipation actions are null, and d is also expected to increase the higher the dissipative contribution is.

5. Application Examples

The damping behaviour of some multi-layer composite beam architectures with distributed visco-elastic constraints is simulated by means of the previously introduced model. Since the effect of aerohydrodynamic damping is not negligible in free and forced vibrations of large specimens [26], drag dissipative actions are linearized and modeled by means of viscous constraint actions that are distributed along the whole beam length.
Some multi-layer architectures are taken into account by considering different substrate and layer parameters (substrate geometry and material, N, hk, Gk, Ek, ρk, sk, η ˜ k).
Tables 1 and 12 refer to two different beam substrate choices, while Tables 3, 4, 6, 7, 9, 10, 14, 15, 17, 18, 20, and 21 refer to different beam multi-layer solutions.
Damping estimates are evaluated with respect to the different configurations and results are shown in Tables 2, 5, 8, 11, 13, 16, 19, and 22, and Figures 3–10.

5.1. Configuration 1

Configuration 1 is given by a homogeneous, uniform, rectangular section single-layer beam subjected to distributed visco-elastic constraints. The mechanical parameters are given in Table 1, the first natural frequencies and damping ratios in Table 2, d parameter with xforce = xresponse = L is plotted in Figure 3.

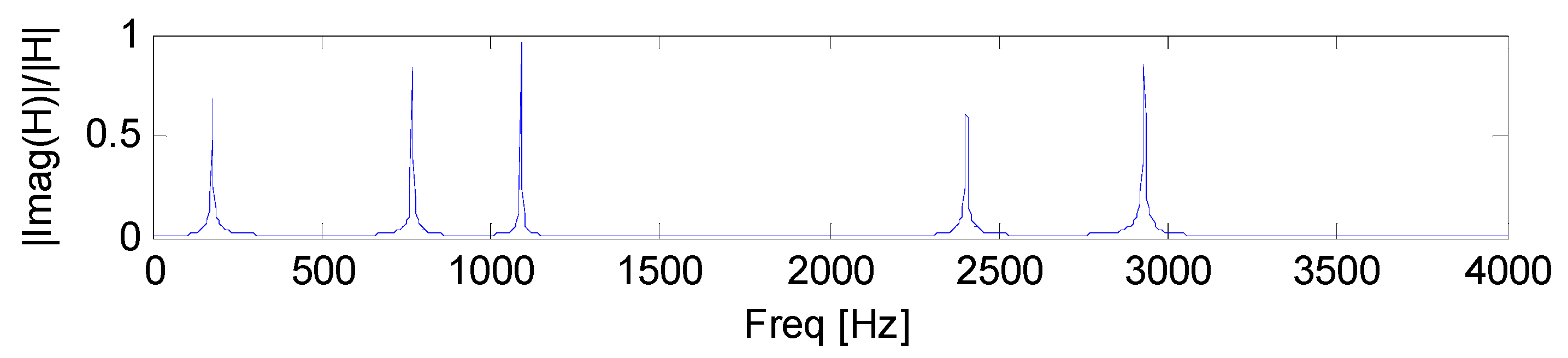

5.1.1. Configuration 1, Four Coating Layers, First Case

A multi-layer architecture is studied, N = 5, i.e., substrate + 4 coating layers. Beam length L, width b, viscoelatic stiffness constraints are reported in Table 1, and in Table 3 and Table 4 the remaining mechanical parameters are listed. In Table 5, the first natural frequencies and damping ratios are given. The d value with xforce = xresponse = L is plotted in Figure 4.

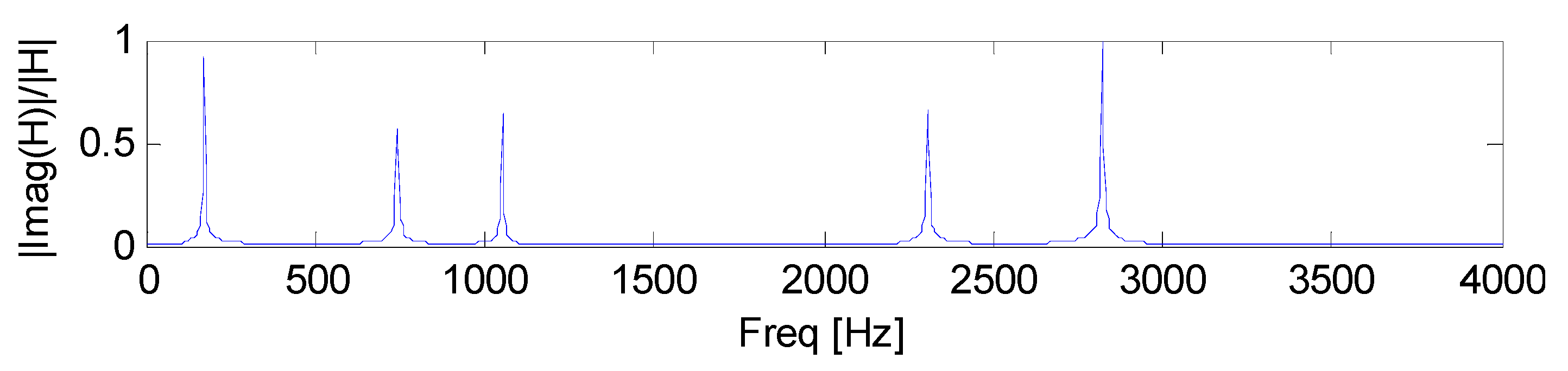

5.1.2. Configuration 1, Four Coating Layers, Second Case

A multi-layer architecture is analysed, N = 5, i.e., substrate + 4 coating layers. Beam length L, width b, viscoelatic stiffness constraints are reported in Table 1, and in Table 6 and Table 7 the remaining mechanical parameters are listed. The first natural frequencies and damping ratios are reported in Table 8. The d damping estimator with xforce = xresponse = L is plotted in Figure 5.

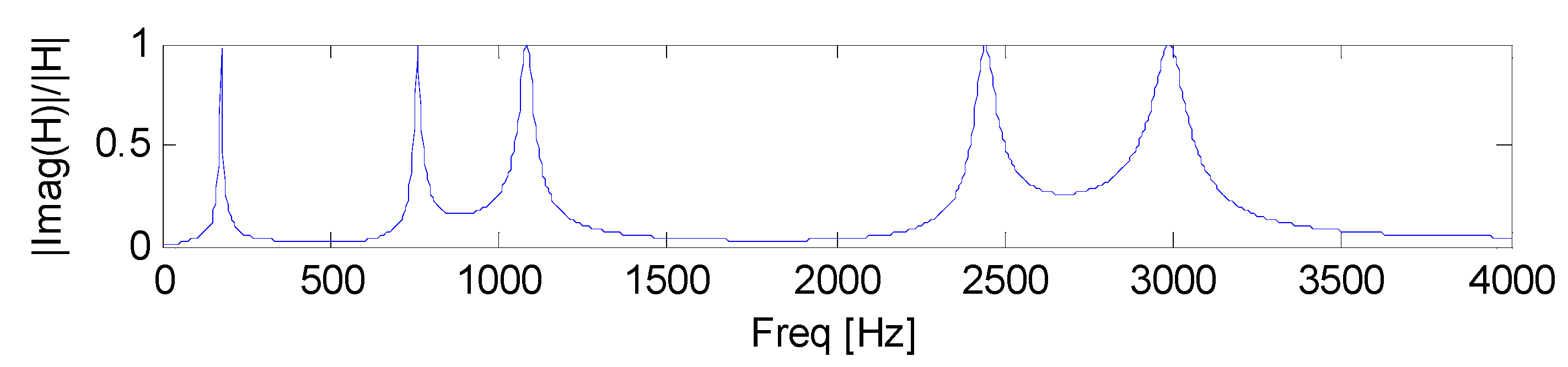

5.1.3. Configuration 1, Eight Coating Layers

A multi-layer architecture is considered, N = 9, i.e., substrate + 8 coating layers. Beam length L, width b, and viscoelatic stiffness constraints are reported in Table 1, and in Table 9 and Table 10 the remaining mechanical parameters are listed. In Table 11, the first natural frequencies and damping ratios are reported. The d estimate with xforce = xresponse = L is plotted in Figure 6.

5.2. Configuration 2

Configuration 2 is associated with a homogeneous, uniform, rectangular section beam subjected to distributed visco-elastic constraints. The mechanical parameters are reported in Table 12, natural frequencies and damping ratios in Table 13; d damping estimator for xforce = xresponse = 0.3 m is plotted in Figure 7.

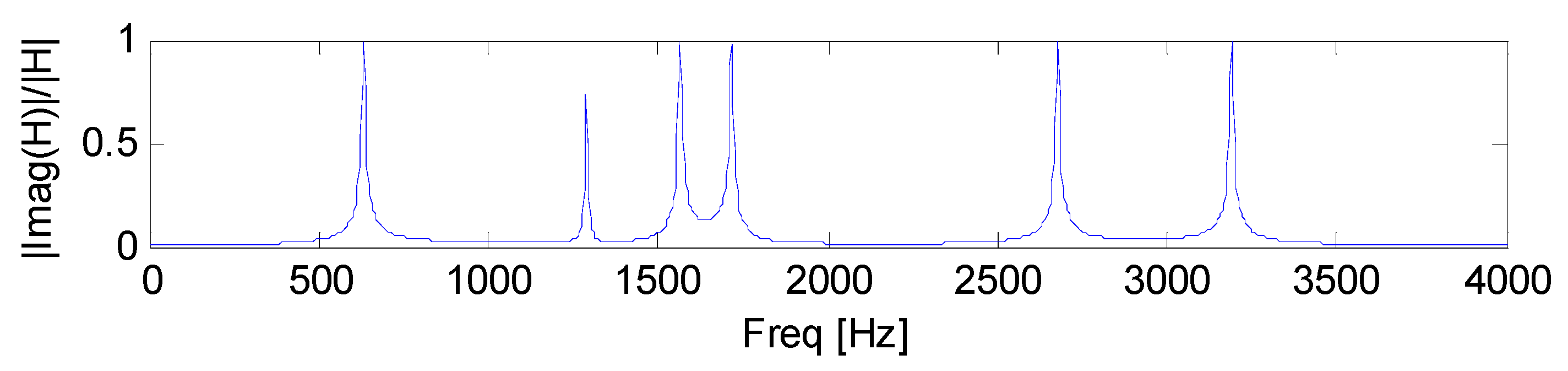

5.2.1. Configuration 2, Eight Coating Layers, First Case

A multi-layer architecture is considered, N = 9, i.e., substrate + 8 coating layers. Beam length L, width b, and viscoelatic stiffness constraints are reported in Table 12, and in Table 14 and Table 15 the remaining mechanical parameters are listed. In Table 16, the first natural frequencies and damping ratios are given. The d estimate, xforce = xresponse = 0.3 m, is plotted in Figure 8.

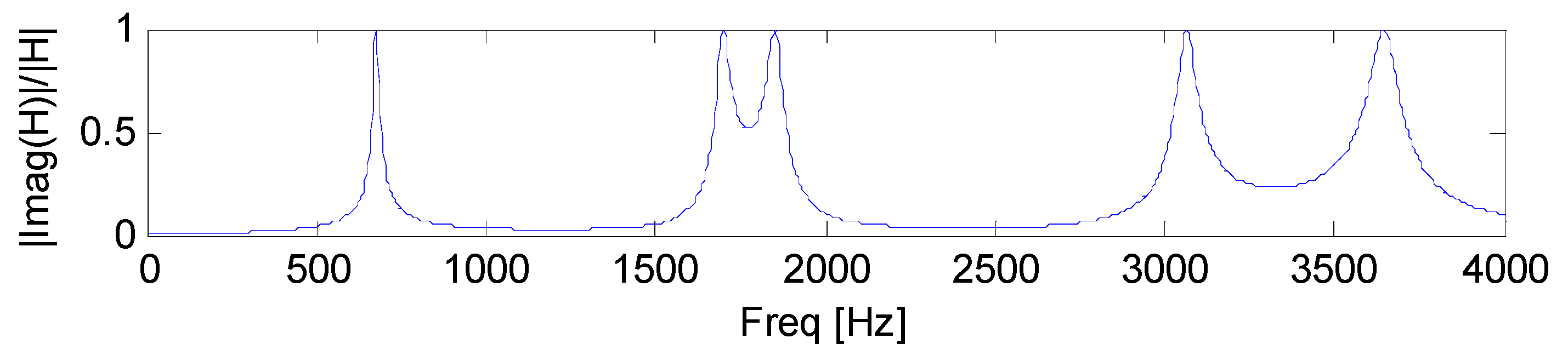

5.2.2. Configuration 2, Eight Coating Layers, Second Case

Table 17 and Table 18 report the mechanical parameters of a N = 9, i.e., substrate + 8 coating layers, composite beam example, beam length L, width b, viscoelatic stiffness constraints being reported in Table 12. Table 19 lists the first natural frequencies and damping ratios. d damping estimator, xforce = xresponse = 0.3 m, is plotted in Figure 9.

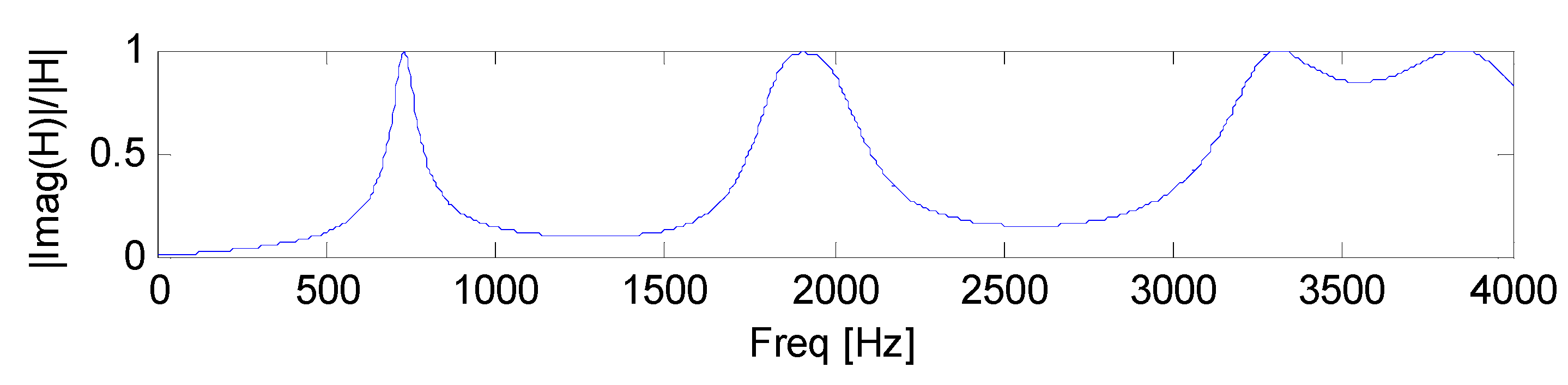

5.2.3. Configuration 2, Sixteen Coating Layers

Table 20 and Table 21 report the mechanical parameters of a N = 17, i.e., substrate + 16 coating layers, composite beam example, and Table 22 the first natural frequencies and damping ratios. Beam length L, width b, viscoelatic stiffness constraints are reported in Table 12. The d estimate with xforce = xresponse = 0.3 m is plotted in Figure 10.

6. Discussion

The application examples presented in the previous section showed that the damping behaviour of a uniform, rectangular section beam, vibrating in flexural-axial plane conditions, may be influenced by a multi-layer coating surface treatment that is local enough to not modify the structure main geometry, strength, and stiffness.
Example 5.1.1 consists of a four coating layer surface treatment, with 2 mm upper and lower total thickness. It is shown that the damping behaviour exhibits little change with respect to the one obtained from the uncoated specimen (Example 5.1), making this specific solution not effective. As a matter of fact, the constrained layer damping (CLD) contribution [1,9], exhibited when the material shear modulus of two close layer coatings is highly different, is low in this example case. To increase the CLD contribution, in Example 5.1.2 a different, stiffer material was adopted in layers k = 2, 4, letting all of the remaining parameters unchanged with respect to previous Example 5.1.1. Both the first evaluated damping ratios and the damping estimator d(j·ω) showed an increase, making the solution related to Example 5.1.2 effective. Example 5.1.3 shows the effect of increasing the number of coating layers, by using the same layer material parameters and architecture, by doubling the number of upper and lower coating layers, and by maintaining the same coating resulting thickness. This solution is even more effective from the damping standpoint than the previously discussed architecture (Example 5.1.2).
Example 5.2 refers to a new beam substrate solution, 4 mm upper total thickness and 12 mm lower total thickness, differing from the one reported in example 5.1 by means of the material, geometry, and boundary conditions. Example 5.2.1 refers to an eight-coating layers unsymmetrical architecture, trying to maximize the CLD contribution: results are poor with respect to damping behaviour, and this solution has not been shown to be effective. Example 5.2.2 refers to the same architecture reported in Example 5.2.1, but a different, softer material was adopted in layers k = 2, 4, 6, and 8, leaving all of the remaining parameters unchanged with respect to previous Example 5.2.1. An effective architecture results from the damping behaviour standpoint, since the first damping ratios and the damping functional d(j·ω) increase, although the material shear modulus difference between any two alternating coating layers is lower than in Example 5.2.1. Example 5.2.3 shows that, by doubling the number of coating layers while maintaining the same architecture, same upper and lower coating thickness, the specimen damping behaviour is increased since, as expected, the contribution of the frictional actions at the layer interfaces is increased as well, so that confirming the same result obtained in Example 5.1.3.
The aim of the model-oriented approach presented in this paper is to obtain, at the design stage, an effective multi-layer coating architecture able to increase the damping behaviour of a mechanical component operating in flexural conditions without altering too much the starting geometrical, inertial, strength, and stiffness properties. Since finding a general, analytical model able to deal with any geometrical and mechanical configuration is a complex task, which requires a high number of degrees of freedom in order to be ineffective at the design stage for iteratively solving the problem at hand, a simple multi-layer beam model is proposed here.
Starting from a given uniform beam configuration, any boundary conditions and new, sub-optimal multi-layer solutions with respect to the damping behaviour may be iteratively and effectively investigated in order to be later applied to real mechanical components. Moreover, starting from the results of the present work, identification tools based on experimental dynamical measurements of simple specimens must also be developed to estimate most of the unknown layer parameters associated with the manufacturing technology, i.e., the ones related to inter-layer coupling, making it possible to extend the design optimization research stage. An experimental dynamical measurement test activity made on bi-layer specimens, mainly differing by means of the PVD, CVD, or hot melting deposition technology adopted, the substrate material, the surface finish texture, and the coating thickness, can be performed by properly designing an experimental test apparatus, following the indications reported in [27,28,29,30,31]. Test data can be used to evaluate the unknown interlaminar dissipation viscosity and thickness values by means of a robust, numerical identification technique, since only two unknown parameters have to be identified, following the approach developed by our research group in [11]. The multi-layer beam model may then be validated by means of new measurements related to multi-layer beam specimens and by adopting the interlaminar dissipation parameters experimentally identied in the bi-layer configuration.
Interlaminar local dissipative actions were modelled by means of a symmetrical, C1 formulation reported in Equation (8), which only depended on two parameters: namely, sk and η ˜ k . Since the formulation η(ζ) is polynomial, the evaluation of the integral in Equation (38) along ζ variable is de facto performed in closed form, because the integrand function Bkη(ζ) that appears in Equation (38) is still a polynomial function, thus making this evaluation easy and effective from a computational standpoint. It should be outlined that a non-symmetrical η(ζ) formulation could be easily taken into account by assuming a different upper and lower interlaminar dissipation thickness, but that an ill-defined numerical problem is expected to result when dealing with the experimental identification of the interlaminar dissipation parameters, since the number of optimization variables increases and multiple equivalent minima are also expected to result.
Results obtained by means of the multilayer beam model, consisting of the number of coating layers to be applied, coating thickness, deposition technology, and coating materials, are expected to be also effective with respect to the application to thin-walled mechanical components such as turbine blades, engine rods, and mechanism shafts among all.

7. Conclusions

Experimental works recently made by one of these authors and by other researchers outlined that coating layer surface treatments may increase the damping behaviour of thin-walled mechanical components vibrating in flexural conditions. Nevertheless, it was also experimentally found that most of these coating surface treatments gave a negligible or null effect with respect to the vibrational damped response in testing or operating conditions.
In order to investigate how different solutions in a free and forced flexural vibration response perform, a simple model, based on a multi-layer, zig-zag, beam assumption, which also locally models the dissipative actions at the interface between the layers, is proposed, and some virtual prototyping application examples are reported.
Numerical examples show that the beam damping behaviour can be increased by both maximizing the CLD behaviour, i.e., the relative difference of the material coating stiffness at any interface and by properly choosing the local interface dissipation parameters. A negligible effect on the damping behaviour is expected to result even if a high value of the viscous dissipation parameters at any interface between the layers is chosen, but coating material stiffness does not vary to a great extent. While the CLD behaviour is already known in principle from previous works, it appears from the reported numerical simulations that the system damping behaviour does not always generally increase by making the difference of the shear modulus of two contiguous coating layers as large as possible, but that an optimal material coating choice has to be found, so that justifying the adoption of this specific model approach. The contribution of the interaction of the layer material stiffness and the interface dissipative actions on the component damping is generally unknown at the design stage, but it can be found by means of the proposed modeling tool.
New multi-layer coating architectures may be investigated in principle by applying this modelling tool, and optimal solutions may then be applied on thin-walled mechanical components at the design stage, to reduce unwanted vibrational behaviour in high speed operating conditions.
Future research will be dedicated towards the experimental identification of the interface dissipative action parameters related to any layer deposition technology under study by testing and modelling simple dual layer beam specimen. Numerical identification techniques, based on the approach reported in [11], are currently under development by these authors. The implementation of some techniques for automatic, optimal generation of a multi-layer coating solution will also be considered and developed in future work.

Acknowledgments

This study was developed within the CIRI-MAM with the contribution of the Regione Emilia Romagna, progetto POR-Fesr-Tecnopoli. Support from Andrea Zucchini and Marzocchi Pompe S.p.A., Casalecchio di Reno, Italy, is also kindly acknowledged. Scientific and technical indications from Angelo Casagrande, University of Bologna, Italy, and Elena Landi, ISTEC-CNR, Italy, are acknowledged.

Author Contributions

Giuseppe Catania and Matteo Strozzi conceived and designed the multilayer beam model; defined and implemented the numerical model, analyzed and critically discussed the numerical results and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

L, b, hbeam length, depth, thickness
x, zlongitudinal, transversal coordinate
ξ, ζdimensionless longitudinal, transversal coordinate
u, wdimensionless axial, transversal displacement
kx, kzlongitudinal, transversal distributed elastic constraint stiffness
cx, czlongitudinal, transversal distributed viscous constraint viscosity
q, Fwdistributed, concentrated external transversal load
ρ, E, Gmaterial mass density, axial modulus, shear modulus
α, β, χ, δ, ak, bkkinematical variables
ε, γaxial, shear strain components
σ, τaxial, shear stress components
ηkk-th interface interlaminar dissipation function
skk-th interface interlaminar dissipation thickness
φstate variable vector
Π, U, Wtotal potential, deformation energy, external actions work
Nshape function matrix
Ydegrees of freedom vector
Kstiffness matrix
Cviscosity matrix
Mmass matrix
Fforce vector
ΔKelastic constraint matrix
ΔCviscous constraint matrix

References

  1. Rongong, J.A.; Goruppa, A.A.; Buravalla, V.R.; Tomlinson, G.R.; Jones, F.R. Plasma deposition of constrained layer damping coatings. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2004, 18, 669–680. [Google Scholar] [CrossRef]
  2. Colorado, H.A.; Velez, J.; Salva, H.R.; Ghilarducci, A.A. Damping behaviour of physical vapor-deposited TiN coatings on AISI 304 stainless steel and adhesion determinations. Mater. Sci. Eng. A 2006, 442, 514–518. [Google Scholar] [CrossRef]
  3. Khor, K.A.; Chia, C.T.; Gu, Y.W.; Boey, F.Y.C. High Temperature damping Behavior of Plasma Sprayed NiCoCrAlY Coatings. J. Therm. Spray Technol. 2002, 11, 359–364. [Google Scholar] [CrossRef]
  4. Kireitseu, M.; Hui, D.; Tomlinson, G.R. Advanced shock-resistant and vibration damping of nanoparticle-reinforced composite materials. Compos. Part B Eng. 2008, 39, 128–138. [Google Scholar] [CrossRef]
  5. Balani, K.; Agarwal, A. Damping behavior of carbon nanotube reinforced aluminum oxide coatings by nanomechanical dynamic modulus mapping. J. Appl. Phys. 2008, 104, 063517. [Google Scholar] [CrossRef]
  6. Amadori, S.; Catania, G. Experimental evaluation of the damping properties and optimal modeling of coatings made by plasma deposition techniques. In Proceedings of the 7th International Conference on Mechanics and Materials in Design, Albufeira, Portugal, 11–15 June 2017. [Google Scholar]
  7. Amadori, S.; Catania, G. Damping contributions of coatings to the viscoelastic behaviour of mechanical components. In Proceedings of the International Conference Surveillance 9, Fes, Morocco, 22–24 May 2017. [Google Scholar]
  8. Fu, Q.; Lundin, D.; Nicolescu, C. Anti-vibration Engineering in Internal Turning Using a Carbon Nanocomposite Damping Coating Produced by PECVD Process. J. Mater. Eng. Perform. 2014, 23, 506–517. [Google Scholar] [CrossRef]
  9. Yu, L.; Ma, Y.; Zhou, C.; Xu, H. Damping efficiency of the coating structure. Int. J. Solids Struct. 2005, 42, 3045–3058. [Google Scholar] [CrossRef]
  10. Zhang, X.; Wu, R.; Li, X.; Guo, Z.H. Damping behaviors of metal matrix composites with interface layer. Sci. China Ser. E Technol. Sci. 2001, 44, 640–646. [Google Scholar]
  11. Amadori, S.; Catania, G. Robust identification of the mechanical properties of viscoelastic non-standard materials by means of frequency domain experimental measurements. Compos. Struct. 2017, 169, 79–89. [Google Scholar] [CrossRef]
  12. Averill, R.C.; Yip, Y.C. Development of simple, robust finite elements based on refined theories for thick laminated beams. Comput. Struct. 1996, 59, 529–546. [Google Scholar] [CrossRef]
  13. Cho, Y.B.; Averill, R.C. An improved theory and finite-element model for laminated composite and sandwich beams using first-order zig-zag sub-laminate approximations. Compos. Struct. 1997, 37, 281–298. [Google Scholar] [CrossRef]
  14. Aitharaju, V.R.; Averill, R.C. C0 zig-zag finite element for analysis of laminated composite beams. J. Eng. Mech. 1999, 125, 323–330. [Google Scholar] [CrossRef]
  15. Averill, R.C. Static and dynamic response of moderately thick laminated beams with damage. Compos. Eng. 1994, 4, 381–395. [Google Scholar] [CrossRef]
  16. Di Sciuva, M.; Gherlone, M.; Librescu, L. Implications of damaged interfaces and of other non-classical effects on the load carrying capacity of multilayered composite shallow shells. Int. J. Non-Linear Mech. 2002, 37, 851–867. [Google Scholar] [CrossRef]
  17. Di Sciuva, M. Geometrically nonlinear theory of multilayered plates with interlaminar slips. AIAA J. 1997, 35, 1753–1759. [Google Scholar] [CrossRef]
  18. El-Desouky, A.R.; Attia, A.N.; Gado, M.M. Damping Behaviour of Composite Materials. In Proceedings of the IMAC XIII, SEM, 275-284, Nashville, TN, USA, 13–16 February 1995. [Google Scholar]
  19. Catania, G.; Sorrentino, S. Experimental evaluation of the damping properties of beams and thin-walled structures made of polymeric materials. In Proceedings of the 27th Conference and Exposition on Structural Dynamics 2009, IMAC XXVII, 1-17, Orlando, FL, USA, 9–12 February 2009. [Google Scholar]
  20. Mainardi, F. Fractional calculus: Some basic problems in continuum and statistical mechanics. In Fractals and Fractional Calculus in Continuum Mechanics; Springer: Berlin, Germany, 1997. [Google Scholar]
  21. Catania, G.; Sorrentino, S. Experimental validation of non-conventional viscoelastic models via equivalent damping estimates. In Proceedings of the ASME 2008 International Mechanical Engineering Congress and Exposition, Boston, MA, USA, 31 October–6 November 2008. [Google Scholar]
  22. Catania, G.; Sorrentino, S. Experimental identification of a fractional derivative linear model for viscoelastic materials. In Proceedings of the ASME 2005 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, Long Beach, CA, USA, 24–28 September 2005. [Google Scholar]
  23. Catania, G.; Fasana, A.; Sorrentino, S. A condensation technique for the FE dynamic analysis with fractional derivative viscoelastic models. J. Vib. Control 2008, 14, 1573–1586. [Google Scholar] [CrossRef]
  24. Paimushin, V.N.; Gazizullin, R.K. Static and Monoharmonic Acoustic Impact on a Laminated Plate. Mech. Compos. Mater. 2017, 53, 283–304. [Google Scholar] [CrossRef]
  25. Ewins, D.J. Modal Testing: Theory, Practice, and Application; Research Studies Press: Baldock, UK; Philadelphia, PA, USA, 2000. [Google Scholar]
  26. Egorov, A.G.; Kamalutdinov, A.M.; Nuriev, A.N.; Paimushin, V.N. Theoretical-Experimental Method for Determining the Parameters of Damping Based on the Study of Damped Flexural Vibrations of Test Specimens 2. The Aerodynamic Component of Damping. Mech. Compos. Mater. 2014, 50, 267–278. [Google Scholar] [CrossRef]
  27. Paimushin, V.N.; Firsov, V.A.; Gyunal, I.; Egorov, A.G. Theoretical-experimental method for determining the parameters of damping based on the study of damped flexural vibrations of test specimens. 1. Experimental basis. Mech. Compos. Mater. 2014, 50, 127–136. [Google Scholar] [CrossRef]
  28. Paimushin, V.N.; Firsov, V.A.; Gyunal, I.; Egorov, A.G.; Kayumov, R.A. Theoretical-Experimental Method for Determining the Parameters of Damping Based on the Study of Damped Flexural Vibrations of Test Specimens. 3. Identification of the Characteristics of Internal Damping. Mech. Compos. Mater. 2014, 50, 633–646. [Google Scholar] [CrossRef]
  29. Paimushin, V.N.; Firsov, V.A.; Gyunal, I.; Shishkin, V.M. Identification of the Elastic and Damping Characteristics of Soft Materials Based on the Analysis of Damped Flexural Vibrations of Test Specimens. Mech. Compos. Mater. 2016, 52, 435–454. [Google Scholar] [CrossRef]
  30. Paimushin, V.N.; Firsov, V.A.; Gyunal, I.; Shishkin, V.M. Identification of the elastic and damping characteristics of carbon fiber-reinforced plastic based on a study of damping flexural vibrations of test specimens. J. Appl. Mech. Tech. Phys. 2016, 57, 720–730. [Google Scholar] [CrossRef]
  31. Egorov, A.G.; Kamalutdinov, A.M.; Paimushin, V.N.; Firsov, V.A. Theoretical-experimental method of determining the drag coefficient of a harmonically oscillating thin plate. J. Appl. Mech. Tech. Phys. 2016, 57, 275–282. [Google Scholar] [CrossRef]
Figure 1. Multi-layer composite beam.
Figure 1. Multi-layer composite beam.
Coatings 08 00073 g001
Figure 2. Dissipation function η(ζ) at the k-th interface.
Figure 2. Dissipation function η(ζ) at the k-th interface.
Coatings 08 00073 g002
Figure 3. d damping estimator, example 5.1.
Figure 3. d damping estimator, example 5.1.
Coatings 08 00073 g003
Figure 4. d estimate, example 5.1.1.
Figure 4. d estimate, example 5.1.1.
Coatings 08 00073 g004
Figure 5. d damping estimator, example 5.1.2.
Figure 5. d damping estimator, example 5.1.2.
Coatings 08 00073 g005
Figure 6. d estimate, example 5.1.3.
Figure 6. d estimate, example 5.1.3.
Coatings 08 00073 g006
Figure 7. d estimate, example 5.2.
Figure 7. d estimate, example 5.2.
Coatings 08 00073 g007
Figure 8. d damping estimator, example 5.2.1.
Figure 8. d damping estimator, example 5.2.1.
Coatings 08 00073 g008
Figure 9. d estimate, example 5.2.2.
Figure 9. d estimate, example 5.2.2.
Coatings 08 00073 g009
Figure 10. d plot, example 5.2.3.
Figure 10. d plot, example 5.2.3.
Coatings 08 00073 g010
Table 1. Mechanical parameters of the configuration 1 beam.
Table 1. Mechanical parameters of the configuration 1 beam.
Mechanical ParametersValue
L0.4 m
b0.08 m
h0.03 m
ρ7.85 × 103 kg/m3
E2.1 × 1011 Pa
G8 × 1010 Pa
kx (0 < x < 0.02 m)2 × 1017 N/m4
kz (0 < x < 0.02 m)1 × 1016 N/m3
cx (0 < x < 0.02 m)400 N∙s/m4
cz (0 < x < 0.02 m)8 × 104 N∙s/m3
cz (0.02 m < x < 0.4 m)4 × 103 N∙s/m3
Table 2. First natural frequencies and damping ratios, example 5.1.
Table 2. First natural frequencies and damping ratios, example 5.1.
f [Hz]ζ (%)
178.70.77
10890.08
29280.07
34590.00
Table 3. Layer material parameters, example 5.1.1.
Table 3. Layer material parameters, example 5.1.1.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 11 × 10−38.5 × 1032.1 × 1079.1 × 106
k = 21 × 10−31 × 1032 × 1069 × 105
k = 3substrate: configuration 1
k = 41 × 10−31 × 1032 × 1069 × 105
k = 51 × 10−38.5 × 1032.1 × 1079.1 × 106
Table 4. Viscous parameters at the k-th interface, example 5.1.1.
Table 4. Viscous parameters at the k-th interface, example 5.1.1.
Interfacek [s]sk [m]
k = 12 × 10−31 × 10−4
k = 24 × 10−32.5 × 10−4
k = 34 × 10−32.5 × 10−4
k = 42 × 10−31 × 10−4
Table 5. Natural frequencies and damping ratios, example 5.1.1.
Table 5. Natural frequencies and damping ratios, example 5.1.1.
f [Hz]ζ (%)
172.70.74
10520.08
28230.07
33300.00
Table 6. Layer material parameters, example 5.1.2.
Table 6. Layer material parameters, example 5.1.2.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 11 × 10−39 × 1036 × 10112.5 × 1011
k = 21 × 10−31 × 1032 × 1069 × 105
k = 3substrate: configuration 1
k = 41 × 10−31 × 1032 × 1069 × 105
k = 51 × 10−39 × 1036 × 10112.5 × 1011
Table 7. Viscous parameters at the k-th interface, example 5.1.2.
Table 7. Viscous parameters at the k-th interface, example 5.1.2.
Interfacek [s]sk [m]
k = 12 × 10−31 × 10−4
k = 24 × 10−32.5 × 10−4
k = 34 × 10−32.5 × 10−4
k = 42 × 10−31 × 10−4
Table 8. Natural frequencies, damping ratios, example 5.1.2.
Table 8. Natural frequencies, damping ratios, example 5.1.2.
f [Hz]ζ (%)
177.02.15
10831.81
29901.60
36220.00
Table 9. Layer material parameters, example 5.1.3.
Table 9. Layer material parameters, example 5.1.3.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 15 × 10−49 × 1036 × 10112.5 × 1011
k = 25 × 10−41 × 1032 × 1069 × 105
k = 35 × 10−49 × 1036 × 10112.5 × 1011
k = 45 × 10−41 × 1032 × 1069 × 105
k = 5substrate: configuration 1
k = 65 × 10−41 × 1032 × 1069 × 105
k = 75 × 10−49 × 1036 × 10112.5 × 1011
k = 85 × 10−41 × 1032 × 1069 × 105
k = 95 × 10−49 × 1036 × 10112.5 × 1011
Table 10. Viscous parameters at the k-th interface of the multi-layer beam in example 5.1.3.
Table 10. Viscous parameters at the k-th interface of the multi-layer beam in example 5.1.3.
Interfacek [s]sk [m]
k = 12 × 10−31 × 10−4
k = 22 × 10−31 × 10−4
k = 32 × 10−31 × 10−4
k = 44 × 10−32.5 × 10−4
k = 54 × 10−32.5 × 10−4
k = 62 × 10−31 × 10−4
k = 72 × 10−31 × 10−4
k = 82 × 10−31 × 10−4
Table 11. Natural frequencies and damping ratios of the multi-layer beam in example 5.1.3.
Table 11. Natural frequencies and damping ratios of the multi-layer beam in example 5.1.3.
f [Hz]ζ (%)
180.73.91
11043.62
30343.67
36220.00
Table 12. Mechanical parameters of the Configuration 2 beam.
Table 12. Mechanical parameters of the Configuration 2 beam.
Mechanical ParametersValue
L0.8 m
b0.05 m
h0.035 m
ρ2.7 × 10 kg/m3
E7 × 1010 Pa
G2.6 × 1010 Pa
kx (0.04 m < x < 0.07 m)1 × 1015 N/m4
kz (0.04 m < x < 0.07 m)1 × 1013 N/m3
cx (0.04 m < x < 0.07 m)10 N∙s/m4
cz (0.04 m < x < 0.07 m)1 × 104 N∙s/m3
kx (0.6 m < x < 0.65 m)1 × 1015 N/m4
kz (0.6 m < x < 0.65 m)2 × 1013 N/m3
cx (0.6 m < x < 0.65 m)10 N∙s/m4
cz (0.6 m < x < 0.65 m)1 × 104 N∙s/m3
cz (0.07 m < x < 0.6 m, 0.65 m < x < 0.8 m)6 × 103 N∙s/m3
Table 13. First natural frequencies and damping ratios, example 5.2.
Table 13. First natural frequencies and damping ratios, example 5.2.
f [Hz]ζ (%)
632.50.79
12910.38
17170.29
31910.15
Table 14. Layer material parameters, example 5.2.1.
Table 14. Layer material parameters, example 5.2.1.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 12 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 22 × 10−39.5 × 1021 × 1073.45 × 106
k = 3substrate: configuration 2
k = 42 × 10−39.5 × 1021 × 1073.45 × 106
k = 52 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 62 × 10−39.5 × 1021 × 1073.45 × 106
k = 72 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 82 × 10−39.5 × 1021 × 1073.45 × 106
k = 92 × 10−33.95 × 1033.6 × 10111.4 × 1011
Table 15. Viscous parameters at the k-th interface, example 5.2.1.
Table 15. Viscous parameters at the k-th interface, example 5.2.1.
Intefacek [s]sk [m]
k = 14 × 10−31 × 10−4
k = 23 × 10−32 × 10−4
k = 33 × 10−32 × 10−4
k = 44 × 10−31 × 10−4
k = 54 × 10−31 × 10−4
k = 64 × 10−31 × 10−4
k = 74 × 10−31 × 10−4
k = 84 × 10−31 × 10−4
Table 16. First natural frequencies and damping ratios, example 5.2.1.
Table 16. First natural frequencies and damping ratios, example 5.2.1.
f [Hz]ζ (%)
676.31.31
13682.13
18541.30
36471.19
Table 17. Layer material parameters, example 5.2.2.
Table 17. Layer material parameters, example 5.2.2.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 12 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 22 × 10−31.1 × 1032.9 × 1071 × 107
k = 3substrate: configuration 2
k = 42 × 10−31.1 × 1032.9 × 1071 × 107
k = 52 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 62 × 10−31.1 × 1032.9 × 1071 × 107
k = 72 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 82 × 10−31.1 × 1032.9 × 1071 × 107
k = 92 × 10−33.95 × 1033.6 × 10111.4 × 1011
Table 18. Viscous parameters at the k-th interface, example 5.2.2.
Table 18. Viscous parameters at the k-th interface, example 5.2.2.
Interfacek [s]sk [m]
k = 14 × 10−31 × 10−4
k = 23 × 10−32 × 10−4
k = 33 × 10−32 × 10−4
k = 44 × 10−31 × 10−4
k = 54 × 10−31 × 10−4
k = 64 × 10−31 × 10−4
k = 74 × 10−31 × 10−4
k = 84 × 10−31 × 10−4
Table 19. First natural frequencies and damping ratios, example 5.2.2.
Table 19. First natural frequencies and damping ratios, example 5.2.2.
f [Hz]ζ (%)
682.22.70
13865.38
18583.31
36423.22
Table 20. Layer material parameters, example 5.2.3.
Table 20. Layer material parameters, example 5.2.3.
Layerh [m]ρ [kg/m3]E [Pa]G [Pa]
k = 11 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 21 × 10−31.1 × 1032.9 × 1071 × 107
k = 31 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 41 × 10−31.1 × 1032.9 × 1071 × 107
k = 5substrate: configuration 2
k = 61 × 10−31.1 × 1032.9 × 1071 × 107
k = 71 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 81 × 10−31.1 × 1032.9 × 1071 × 107
k = 91 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 101 × 10−31.1 × 1032.9 × 1071 × 107
k = 111 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 121 × 10−31.1 × 1032.9 × 1071 × 107
k = 131 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 141 × 10−31.1 × 1032.9 × 1071 × 107
k = 151 × 10−33.95 × 1033.6 × 10111.4 × 1011
k = 161 × 10−31.1 × 1032.9 × 1071 × 107
k = 171 × 10−33.95 × 1033.6 × 10111.4 × 1011
Table 21. Viscous parameters at the k-th interface, example 5.2.3.
Table 21. Viscous parameters at the k-th interface, example 5.2.3.
Interfacek [s]sk [m]
k = 14 × 10−31 × 10−4
k = 24 × 10−31 × 10−4
k = 34 × 10−31 × 10−4
k = 43 × 10−32 × 10−4
k = 53 × 10−32 × 10−4
k = 64 × 10−31 × 10−4
k = 74 × 10−31 × 10−4
k = 84 × 10−31 × 10−4
k = 94 × 10−31 × 10−4
k = 104 × 10−31 × 10−4
k = 114 × 10−31 × 10−4
k = 124 × 10−31 × 10−4
k = 134 × 10−31 × 10−4
k = 144 × 10−31 × 10−4
k = 154 × 10−31 × 10−4
k = 164 × 10−31 × 10−4
Table 22. Natural frequencies and damping ratios, example 5.2.3.
Table 22. Natural frequencies and damping ratios, example 5.2.3.
f [Hz]ζ (%)
730.74.46
14849.52
20005.82
38995.83

Share and Cite

MDPI and ACS Style

Catania, G.; Strozzi, M. Damping Oriented Design of Thin-Walled Mechanical Components by Means of Multi-Layer Coating Technology. Coatings 2018, 8, 73. https://doi.org/10.3390/coatings8020073

AMA Style

Catania G, Strozzi M. Damping Oriented Design of Thin-Walled Mechanical Components by Means of Multi-Layer Coating Technology. Coatings. 2018; 8(2):73. https://doi.org/10.3390/coatings8020073

Chicago/Turabian Style

Catania, Giuseppe, and Matteo Strozzi. 2018. "Damping Oriented Design of Thin-Walled Mechanical Components by Means of Multi-Layer Coating Technology" Coatings 8, no. 2: 73. https://doi.org/10.3390/coatings8020073

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
