On the Importance of Combined Scratch/Acoustic Emission Test Evaluation: SiC and SiCN Thin Films Case Study

1
Regional Centre of Advanced Technologies and Materials, Joint Laboratory of Optics of Palacky University and Institute of Physics of Academy of Sciences of the Czech Republic, Faculty of Science, Palacky University, 17. listopadu 12, 77146 Olomouc, Czech Republic
2
Institute of Physics of the Academy of Sciences of the Czech Republic, Joint Laboratory of Optics of Palacky University and Institute of Physics AS CR, 17. listopadu 50a, 772 07 Olomouc, Czech Republic
3
ZD Rpety—Dakel, Ohrobecká 408/3, 142 00 Prague, Czech Republic
4
Department of Material Analysis, Institute of Physics CAS, Na Slovance 2, 182 21 Prague, Czech Republic
*
Authors to whom correspondence should be addressed.
Coatings 2018, 8(5), 196; https://doi.org/10.3390/coatings8050196
Submission received: 9 April 2018 / Revised: 10 May 2018 / Accepted: 21 May 2018 / Published: 22 May 2018
(This article belongs to the Special Issue Coatings Tribology)

Abstract

:
The scratch test, as probably the most widespread technique for assessment of the adhesive/cohesive properties of a film–substrate system, fully depends on reliable evaluation based on assessment of critical loads for systems’ failures. Traditionally used evaluation methods (depth change record and visual observation) may sometimes give misleading conclusions about the failure dynamics, especially in the case of opaque films. Therefore, there is a need for another independent evaluation technique with the potential to complete the existing approaches. The nondestructive method of acoustic emission, which detects the elastic waves emitted during film cracking and delamination, can be regarded as a convenient candidate for such a role even at nano/micro scale. The strength of the combination of microscopic observation of the residual groove and depth change record with the acoustic emission detection system proved to be a robust and reliable approach in analyzing adhesion/cohesion properties of thin films. The dynamics of the gradual damage taking place during the nano/micro scratch test revealed by the combined approach is presented for SiC and SiCN thin films. Comparison of critical load values clearly reflects the higher ability of the AE approach in detecting the initial material failure compared to the visual observation.

1. Introduction

Rising demands for modern materials with application-optimized physical properties are the main driving force in contemporary material engineering. The use of surface films and coatings is a logical and successful solution to this challenge as materials and components interact with their surroundings through their surface. Nowadays, various types of physical vapor deposition (PVD), chemical vapor deposition (CVD), and sol-gel techniques are used for production of films in nearly all branches of industry [1,2,3,4,5,6,7,8,9]. Regardless of the primary functional property of the films predetermined by their application, their mechanical properties and stability are also essential for their long-term service. Mainly, adhesion of the films to the substrate is the primal parameter governing the performance of the system.
The definition given by the American Society for Testing and Materials (ASTM) says that “adhesion is the state in which two surfaces are held together by interfacial forces which may consist of valence forces or interlocking forces or both” [10]. This “basic or also theoretical adhesion” depends on the electrostatic, chemical, and/or van der Waals forces, which act on the whole contact surface between film and substrate. However, the measured “experimental adhesion” exhibits significantly smaller values due to structural voids and material peculiarities (internal stresses, porosity, homogeneity, roughness of contact area, etc.) and also due to the effects associated with the measurement methods (fixing of the sample, tangential forces, experimental errors, etc.) as well as the rigidity of the testing instrument itself [11,12]. Various experimental techniques have been introduced, aiming for not only the qualitative differentiation between the measured samples but also for the quantification of adhesion forces. In addition to the non-mechanical methods (thermal, nucleation, x-ray diffraction, etc.) [13,14,15], the more direct mechanical methods (scotch tape, bend test, laser spallation, direct pull-off, etc.) [12,15,16,17,18] have been used with varying success. Nevertheless, their mutual comparison is questionable and the level of proximity to the basic adhesion varies. It is mainly the difficulty of the experimental approaches and the cost of measurement which makes many of them impractical solutions [19,20,21].
Among all of these techniques, the instrumented scratch test method is probably the most widespread technique for assessment of adhesion/cohesion parameters of a film–substrate system [22,23,24,25]. This traditional mechanical method is based on the interaction of the diamond testing probe with the coated surface. A probe with a linearly increasing load is pulled across the measured surface, while depth change is continuously measured. A moving indenter induces stresses in the tested film, which in reaction deforms elastically and/or plastically. Despite the experimental/principle simplicity, the scratching process is very complex [26,27,28,29]. When the deformation is sufficient to overcome the cohesive bonds in the film, cracks emerge. When the adhesive forces between film and substrate are surpassed, delamination or chipping of the film occurs. The objective of the scratch test is to find the so called critical loads (LC), which are the forces inducing the typical failure modes. The great advantage of the scratch test stems from its possibility of tailoring the experimental parameters (normal load, indenter size), allowing the position of the von Mises stress maximum to be specified and, in turn, the sensitivity of the test for specific depth regions to be optimized. With increased load, the position of the von Mises stress is shifted to the substrate and this is more pronounced for larger indenter radii [30]. The proper dimensioning of the test can be performed based on Finite Element Modelling (FEM) [31,32,33,34,35,36] or analytical models [30]. Localizing the von Mises stress maximum—which in fact is supposed to be higher than yield stress—to the film–substrate interface is recommended when adhesion is the main concern. Due to its universality, the scratch test has spread from research to industrial use. The scratch test has been proved to be an efficient method for evaluation of adhesion and cohesion properties of various types of coated systems including hard protective coatings [37,38,39,40], optical thin films [41,42,43], medicinal coatings [44], and so on. Besides, it has been shown that also other types of materials can be beneficially explored such as plasma spray coatings [45], where for example the cohesion of individual splats can be studied [46]. In general, the tribological properties, including wear, of any material [47] can be studied as shown for example by Sola et al. for surface modified steel [48,49,50].
The evaluation of the critical loads is traditionally performed through the microscopic observation of the residual scratch groove and the indenter depth change record. While both techniques can be adequate in some cases on their own, they are often and beneficially used in combination to obtain more precise results. Nevertheless, even their combination may fail in the accurate determination of the critical loads in specific cases [30]. As a result, misleading conclusions about the film’s durability and, in turn, improper inputs into the service life estimation and optimization process can be deduced. For example, consider the case of an opaque durable film on a hard brittle substrate (e.g., silicon), that is often the scenario in the semiconductor industry. In this case the stresses introduced during the scratch test can induce film and/or substrate cohesion failure or the adhesion failure between both components. Especially in the last two cases, the failure type classification and critical load identification can be misleading. When cohesive strength of the film itself is strong enough, the film can endure even after the first initiation of adhesion failure or substrate cohesion failure until it breaks away from the substrate at the latter part of the scratch track. As a result, the point of the film detachment is incorrectly identified as initial failure mode in the measured film–substrate system.
One of the possible solutions to overcome the abovementioned shortcomings of the standard evaluation techniques may be detection of acoustic emission (AE) signals recorded during the scratch test [51]. In general, acoustic emissions are elastic waves that are emitted during cracking or other irreversible changes in a material’s internal structure. Although the AE method was already introduced in the scratch test some decades ago, its broader use has been hampered by insufficient hardware, impractical solutions, or weak software support for analysis. To the best of our knowledge, the use of AE during mechanical testing of thin films has been restricted mainly to thicker films (more than 5 µm) [52] or high normal loads (more than 1 N) [52,53,54]. Besides, these tests were often performed with spherical indenters of large radii (more than 100 µm) [52,54]. As a result, the von Mises stress maxima were shifted to the substrate, that is, further from the film–substrate interface. The analytical potential of the AE method is however extremely high. Combined use of AE detection with traditional techniques creates an unmatched approach for not only the detection of the initial cracks in the tested system, but also for deeper analysis and understanding of the failure modes’ dynamics and causality during the scratch test.
Although the SiC thin films and their doped modifications are very promising materials in many structural applications and their mechanical properties have been studied thoroughly [55,56,57], there is a lack of systematic information about their deformation response to the scratch loading and adhesion strength. The tribological properties of various types of SiCxNy films and coatings have been studied and compared [57,58,59,60,61]. However, in most cases the deformation mechanism or the failure dynamic were neglected.
In this paper a combined scratch test evaluation based on the synergic use of the AE signal record along with the confocal microscope visual observation of the residual groove and the analysis of depth change record is presented. Hard a-SiC and a-SiCN thin films with the Si/C~1 on brittle Si substrates are explored and used as a demonstration system. The dynamics of the films’ gradual damage is revealed and the individual failure modes are distinguished.

2. Acoustic Emission Introduction

Acoustic emission (AE) is the phenomenon describing the emission of elastic waves generated by release of internally stored energy during abrupt permanent changes in materials. Significant AE accompanies the initiation and propagation of cracks in rather brittle materials, however weaker AE also accompanies sliding of dislocation (slip planes) during deformation of crystalline material [62,63].
AE sensors have been routinely employed at macro-level for monitoring of structural strength of constructions and pipelines. They have been used for health monitoring and detecting of cracks in large pressure vessels, for control of water cooling pipeline systems in nuclear power plants, monitoring corrosion of reinforced concrete, or as failure control of important structural points [64,65,66,67,68,69,70]. Acoustic emission based methods also found their way to biological research with a drought stress experiment on leaves of common European trees [71]. Although the use of AE methods at macro scale has been successfully proved to be a reliable tool, their application at smaller scales is still a challenging task in terms of construction and data interpretation. Nevertheless, AE may provide a large amount of unique information about the structural integrity of a material/device and is still a very live topic [72,73].
The implementation of an acoustic emission method in the evaluation of the scratch test has been accompanied by various technical solutions throughout history. First, AE sensors based on accelerometers were introduced in the 1980s. Even with a cut-off frequency of around 50 kHz they were strongly disturbed by ambient mechanical vibrations, such as footsteps, motors’ movement, and surface roughness during the tip move. This technology has been overcome by the utilization of the resonant AE sensors working at a frequency range of 30–1000 kHz due to the fact that the majority of the parasitic signals are rather low frequency signals below 50 kHz [74].
Localized stress fields and processes in a material during the scratch test results in acoustic emissions with frequencies up to 1 MHz, which leads to the demand for broadband piezoelectric detectors. The piezoelements are nowadays used in nearly all cases of modern AE systems. The piezoelectric response of used materials allows fabrication of compact sensors compatible with the majority of commercial scratch testers [75,76]. It should be noted that special sensors can be used even at elevated temperatures up to 1150 °C [77].
Since a scratch test on thin film is a sensitive micro-technique that can be affected by its surroundings, specific demands are made on the experimental arrangement. During the test, a micrometer radius tip interacts with the tested thin film causing a localized deformation zone with a size of hundreds of nanometers. The appropriate position of the AE sensor near the emission zone during the scratch test is of the highest importance. Small sensors can be placed on the mount of the scratching tip [75,78,79] or glued to the surface of sample [80,81]. Both solutions are often used in practice and both possess some advantages and disadvantages. A sensor attached to the tip benefits from its proximity to the material interaction volume from where the AE signal is emitted. However, the disadvantage is a small contact surface between the tip and the film’s surface, which eventually transmits only a minor part of the signal that spreads omnidirectionally from the point of origin. Also the fixing procedure of the sensor itself is an issue, as its weight can interfere with the correct movement of the tip. In addition, such mounting makes manipulation during tip’s change more difficult. Alternatively, the AE sensor can be directly placed on the sample surface. This approach benefits from its high sensitivity and easy implementation on pre-existing experimental setups. It should be noted that this is a preferable approach nowadays. The mounting position must be chosen appropriately as contact of the sensor with the tip must be avoided. On the other hand, the contamination of sample surface with the used adhesive is undesirable and may be considered as one of the biggest drawbacks. Since both abovementioned approaches possess substantial shortcomings, the use of AE methods in scratch testing has been only marginal and mostly devoted only to very specific case studies, some of which are listed below.
For example, research on AlN coated stainless steel by Choudhary [75] was focused on the use of the AE method as an indicator of a coating’s cracking during the scratch test without use of any complex signal analysis. Similar use of the method concerning only the amplitude of the AE signal as a signalization of changes in material was used in bone toughness analysis by Kataruka [82] and research on several types of ceramics coatings (TiB2, TiN, Al2O3-SiO2-Cr2O3, CrN) by Ishikawa [83], Bhansali [84], Sekler [85], and Jensen [51].
A more sophisticated approach focusing on energy (wavelet transform) rather than amplitude of the AE signal was adopted in Piotrkovsky’s research related to scratch test behavior of commercial galvanized coatings [86,87], grit scratch tests on aerospace alloys by Griffin [88,89,90], as well as a different type of tests on reinforced concrete by Sagasta, Zitto, and Piotrkovsky [91,92]. Research on deformation processes during scratch tests of molybdenum and tungsten by Zhou [93] also uses analysis of more complex outputs of the AE record. The deformation response of TiN thin films and the underlying Si substrate under sliding indentation was investigated by Benayoun [53] or Shiwa [94]. To reveal the substrate deformation, the film was chemically etched [94]. The combination of Focused Ion Beam (FIB) cross-sectioning of the residual groove and the AE was used to study the effect of substrate surface finish on the scratch induced failure mechanism of TiN on WC-Co substrate by Yang et al. [54].
It is not surprising, that the amount of data obtained from AE is massive. One of the solutions to handle the analysis of such an amount of data is the use of artificial neural networks [70,90].

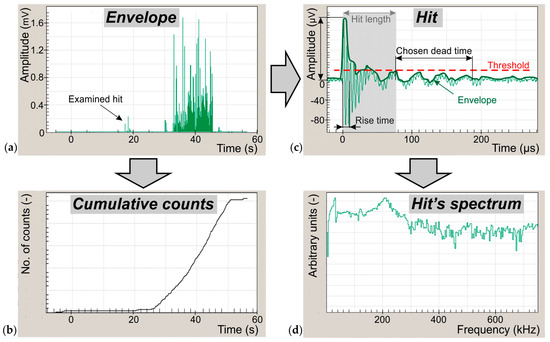

Acoustic Emission Signal

The amplitude and frequency of AE events are functions of sample’s material properties and geometry, and also depend on the source of AE. The complete record of the AE signal represents a large amount of data that may be inappropriately sizeable and too detailed for basic determination of critical events representing various types of film–substrate failure. It is more common to use a time compressed AE record, a so-called Envelope (see Figure 1a), that can be directly compared with the depth change record and the microscopic image of residual scratch groove. To visualize the dynamic of gradual damage of the tested material, one can choose the amplitude threshold and trace the number exceeding in full time resolution in the form of Cumulative counts (see Figure 1b). A full-resolution record of a specific AE event corresponding to the failure event occurring during the scratch test is called the Hit (see Figure 1c). It is defined by the amplitude and time thresholds. Using the Fourier transformation, a Hit’s spectrum can be obtained (see Figure 1d). In addition to the hit’s shape, its frequency spectra may be considered as a possible “fingerprint” of a particular type of failure mode in the film–substrate system [63].

3. Instrumentation and Methods

3.1. Acoustic Emission Setup

The acoustic emissions were detected using the ZEDO system (Dakel, Prague, Czech Republic) with the 10 MHz signal sampling rate allowing detections of AE signal variations with sub-microsecond resolution. The high dynamic range of the ZEDO system brings the possibility to register and analyze both the strong AE signals (complete breakage of the film) as well as weak AE signals originating from the small initial cracking. The AE record synchronized with the depth-change record allows accurate assignment of individual AE events to the microscopically observable failures in the residual scratch or the events in depth change record.

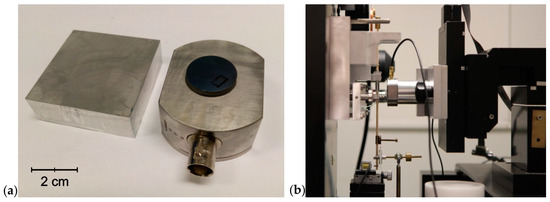

The samples were loaded on the special AE sample holder of our own design with the inbuilt high-sensitivity piezoelectric sensor and the dedicated preamplifier. Its design reflects the needs of high sensitivity and universal applicability and addresses the need of simple sample manipulation and avoiding the surface contamination by adhesive. Samples can be easily fixed to the holder using traditional cold or warm bonding (glue or wax, respectively).

3.2. Scratch Test Setup

The scratch tests were performed using the fully calibrated NanoTest instrument (MicroMaterials Ltd., Wales, UK) with the diamond cono-spherical Rockwell indenter with an actual radius of 9 μm. Samples were fixed on the special AE holder using a low temperature wax. In fact, the AE holder resembles the regular holder, except for the cable transferring the electric signal to the AE main unit (see Figure 2).
During the ramped-load scratch tests the load on the indenter was linearly increased until the maximum of 500 mN. The experiments were performed as a 3-pass test, where the initial topography pass with very low topography load of 0.02 mN was followed by on-load scratch, after which came the final topography pass scanning the worn profile. The residual scratch groove was thoroughly explored using the laser scanning confocal microscope OLS LEXT 3100 (Olympus, Tokyo, Japan). The cross-sections of the residual scratch groove were made using the FEI Quanta 3D (Hillsboro, OR, USA) Dual-Beam SEM/FIB system with a Ga+ ion source. Each test was repeated at least five times for sufficient data statistics and sample homogeneity. The evaluation of the instrumented scratch test was carried out based on a combination of three methods: (i) the depth change record, (ii) residual scratch imaging, and (iii) the acoustic emissions record.

4. Advanced Scratch Test Evaluation

The strength of the simultaneous AE detection during the scratch test supplementing the traditional methods will be demonstrated for a-SiCxNy (y ≥ 0) films magnetron sputtered on silicon substrates. These SiC and SiCN films, depending on actual structure and composition, can possess high hardness [95], resistance to chemicals and abrasion even at high temperatures [96,97], as well high radiation resistance [98]. This excellent combination of physical and chemical properties makes them a very promising candidate for protective high temperature coatings [56,99,100]. It is especially the doping capability that allows tailoring of physical and material properties. For example, the imposed brittleness of the pure SiC can be partially suppressed by incorporation of N into the SiC structure. Besides, the band gap can be tuned by N content [101]. Since the a-SiC and a-SiCN films are often used in structural applications, their durability (including adhesion and cohesion) is of the highest importance and hence it has been studied extensively even in situ at elevated temperatures [102,103,104].

4.1. Combined Approach—Dynamic Revealed

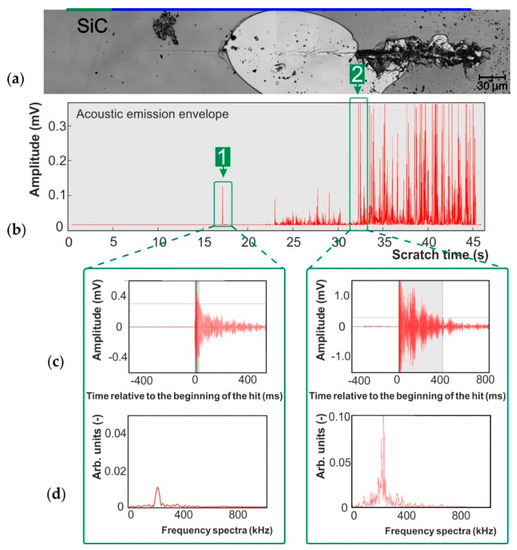

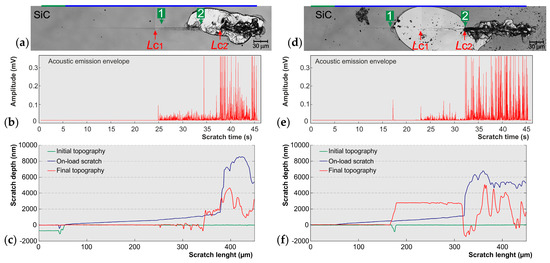

A typical example, where the traditional approach lead to the incorrect determination of critical loads, can be instructively presented on two scratch tests performed on the SiC thin film (see Figure 3). A microscopic image of the first test’s residual groove shows gross spallation beginning at the point marked by number “2”, see Figure 3a. Small cracks inside the residual groove were detected with difficulty using higher magnification (not shown here) in the earlier stages starting from the point labeled by number “1”. However, the acoustic emission record (see Figure 3b) shows an abrupt amplitude increase in the 25th second, indicating that the very first cracking in the film–substrate system (LC1) occurred sooner than expected from the microscopic observation (marked by number “1” in Figure 3a). Besides, analysis of the depth change record reveals, that point “2”—considered as the onset of the gross spallation—is determined incorrectly, see Figure 3c. While the red curve representing the final topography indicates onset of the film failure already around the 340th micrometer of the track, the blue on-loaded scratch curve abruptly drops later, around the 380th micrometer. Taking all of these pieces of information into account, the dynamic of the film damage can be revealed and the onsets of the film–substrate failures can be evaluated correctly. In this particular case, film spallation occurs in the 380th micrometer (now marked as LC2) both in the forward direction and even partially backward until the point “2”.
Similarly to the previous example, relying solely only on the microscopic analysis (Figure 3d) inevitably leads to the misleading assumption that large area film delamination occurred at the point marked “1” and spread until the point “2”. However, the depth change record analysis shows different dynamics of the film’s failure, see Figure 3f. It is important to note that on-load depth as well as final depth records must be considered. The course of blue curve (on-load), representing the evolution of the tip penetration depth with an increasing normal load, increases linearly with a load until a sudden drop to a depth of around 8 µm occurs at 320th micrometer of the track, also labeled as the point “2”. On the other hand, the red curve representing final topography profile shows surprising information: the depth curve drops abruptly to a depth of two microns around the 180th micrometer (point marked “1”) and remains steady until point “2”. Based on previous findings, it can be correctly determined that film delamination occurs at the moment of reaching point “2” (now designated LC2), where the film delaminates significantly in the reverse direction until point “1”. The last piece of information for full understanding of the failure dynamics is provided by the acoustic emission record. A single peak can be seen around 17th second of the AE record caused by the single crack in the film (see Figure 3e, position corresponds with the point “1” from the microscopic image Figure 3d). Its origin stems from a local growth defect on the film surface actually revealed in the initial topography (see green curve in Figure 3f). The backward spallation of the film, which detached at point “2” (=LC2), was therefore stopped by this crack. The most interesting part in AE record can be seen around 22nd second, where signal amplitude rises again. Subsequent comparison with the microscopic record (see Figure 3d) points out cracking initiated at the film–substrate interface, which was still at the time covered by the coating (as explained above). The onset of this substrate cracking is assigned to the critical load LC1.
Since the position of LC1 from this second scratch actually matches the LC1 in the first scratch, it can be concluded that substrate cracking below the still adhering film is indeed the very first failure event in all tested film–substrate systems. All this was revealed only through the combined use of the three evaluation techniques of ramped scratch test.

4.2. Extended Approach—Failure Type Revealed

The information content obtained from the scratch test and its reliability can be further enhanced via analysis of the residual groove by SEM-EDX mapping. The strength of such a complex approach can be manifested on the a-SiCN thin films annealed in air. It is well known that SiCN films with higher N content are prone to oxidation, especially at higher temperatures above 1000 °C, where the SiOx oxidation layer is formed [105]. This is another instructive example of how the sole visual observation may be misleading in terms of evaluation of scratch test.

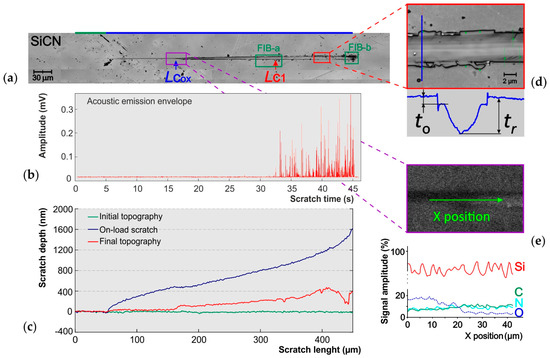

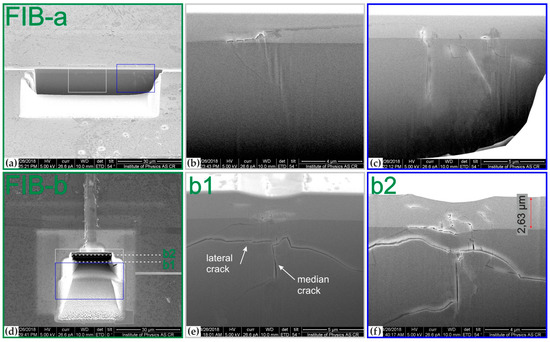

Typical residual scratch groove for the SiCN film with the N content of 36 at % is shown in Figure 4. At the first glance, using only microscopic evaluation one may conclude that coating seems to be scratched through in the area highlighted by the violet rectangle, while the first critical load LC1 is practically undetectable even if combined with the depth change record. Subsequent detailed analysis based on the depth profiling of the 3D high resolution confocal microscope image and especially the electron microscope (see Figure 4d,e, respectively) revealed the penetration of the oxide SiOx surface layer only (thus marked LCox), while the remaining unoxidized SiCN film remained intact. The exact point of scratching through the oxide layer was confirmed using electron microscopes’ EDS mapping technique [106] as can be seen from Figure 4e, where the green arrow indicates the direction of the linear mapping profile inside the residual groove; the corresponding spectra are shown below. The blue dashed line of oxygen signal drops exactly at the point where SiOx is scraped off. Another detail from the latter part of scratch track (see Figure 4d) shows the further evidence of the detached SiOx layer even with its thickness evaluation. Perpendicular profile using calibrated confocal microscope shows a sharp transition between the SiOx layer and the free surface of the SiCN film. Step measurement indicates thickness of SiOx layer of t0 = 100 nm. The coating itself proved to be unharmed since its plastic deformation at the deepest point of the residual groove is tr = 400 nm, which still does not reach the full coating thickness of 2.6 µm. Moreover, the acoustic emission record clearly shows signal increase around 33th second. This is probably the very same failure mode caused by the film–substrate interface cracking, as described in the previous case on SiC samples (shown in Figure 3) and evidenced in the FIB-milled longitudinal cross-section. The lateral and median cracks are clearly identified in the film and substrate as can be seen in Figure 5. A detailed inspection of the SEM image shows no evidence of through-thickness cracking as all the cracks were stopped within the film. This may be related to the compressive stress in the films [56]. The initial cracks occurrence coincides well with the critical load LC1 obtain from the AE record. With the increasing load, the cracking in both the film as well as the substrate is more pronounced as shown on the perpendicular cross-section, see Figure 5.

4.3. AE as a Tool for First Failure Detection

The strength of the AE method in terms of the very first failure detection during the scratch test is clearly manifested by the comparison of values of critical loads evaluated by in situ AE and visual observation methods for SiC and SiCN thin films, see Figure 6. The as-deposited as well as air annealed films (700, 900 and 1100 °C) were explored. The primary goal was to test the effect of annealing temperature on tribological properties of these films with potential use for high temperature protective purposes. Introduction of nitrogen into the SiC structure led to the improvement of scratch resistance of originally deposited and also annealed coatings. However, the main finding in the context of combined scratch test evaluation described in this article is that the sensitivity of acoustic emissions exceeded the visual microscopic method in all cases. Critical loads obtained by the AE method were always lower (=detected sooner) than the microscopic ones. In extreme case the difference in the critical load values reaches 22%.

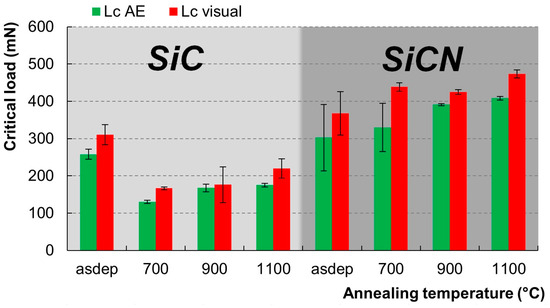

The use of the AE method as a complementary technique has been proved to be an important step forward in enhancement of the reliability and accuracy of the scratch test evaluation. However, the AE may go far beyond just identification of the very first cracking. The high sampling frequency of modern AE hardware units allows the recording of the AE signal with sub-microsecond resolution. As a result, the individual AE hits representing the particular physical events (cracking, chipping, delamination, etc.) in the film–substrate system can be subjected to a thorough analysis in time as well as frequency domain. Applying such an enhanced approach, it is possible to distinguish between various types of failures. Figure 7 illustrates the difference between the hit representing cracking in the SiC film only occurring at low load and the combined SiC film and underlying Si substrate cracking. The corresponding frequency spectra confirm the different response of the film–substrate system at different loads. Since various types of material failure are frequency dependent it is possible to online monitor and even classify the material/device/component deterioration that further emphasizes the beneficial role of AE method.

5. Conclusions

The importance of the combined evaluation of the scratch tests on thin films was presented. In this combined approach, the standardly used visual observation of the residual groove and the depth change record were correlated with the simultaneous acoustic emission (AE) record. The illustrative examples were presented for the SiC and SiCN thin films deposited on Si substrates.
It was shown that proper analysis of the AE signal and its correlation with standard techniques can significantly increase the informative value of the scratch test. As a result, more reliable conclusions about the material response to external loading can be drawn. The present combined scratch/acoustic emission test evaluation has provided an excellent insight into the physical behaviour of SiC and SiCN films on silicon substrates during the single asperity scratching contact simulated by the diamond indenter.
The AE method provides unique information that enables the elucidation of the dynamics of the material failure with the potential to differentiate between the film and substrate cracking even at nano/micro scale. The use of AE in scratch testing is especially beneficial in the case of nontransparent thin films, where the AE signal can reveal subsurface cracking. Ignoring and/or neglecting the internal cracking may dramatically affect the scratch test results/findings. When they are used as input parameters into finite element modeling then the simulation findings can be distorted. Besides, it was shown that AE always detects critical loads sooner than visual observation.

Author Contributions

R.C. and J.T. conceived and designed the experiments, J.T. focused on scratch test experiments—their design, performance, and evaluation. R.C. and M.D. focused on crosschecking of acoustic emission data and advance Hit and Hit’s spectra analysis. J.M. performed the FIB milling and SEM. J.T. and R.C. wrote the paper.

Acknowledgments

The authors gratefully acknowledge the support by the Operational Programme Research, Development and Education—European Regional Development Fund, project no CZ.02.1.01/0.0/0.0/16_019/0000754 of the Ministry of Education, Youth and Sports of the Czech Republic and the project TH03020245 of the Technology Agency of the Czech Republic, J.T. also acknowledges the Internal Grant of Palacky University (IGA_PrF_2018_009). J.M. acknowledges the support of the project LM2015087 of the Czech Ministry of Education, Youth and Sports.

Conflicts of Interest

The authors declare no conflict of interest.
