Accurate Mass Measurements for Planetary Microlensing Events Using High Angular Resolution Observations

Abstract

The microlensing technique is a unique method to hunt for cold planets over a range of mass and separation, orbiting all varieties of host stars in the disk of our galaxy. It provides precise mass-ratio and projected separations in units of the Einstein ring radius. In order to obtain the physical parameters (mass, distance, orbital separation) of the system, it is necessary to combine the result of light curve modeling with lens mass-distance relations and/or perform a Bayesian analysis with a galactic model. A first mass-distance relation could be obtained from a constraint on the Einstein ring radius if the crossing time of the source over the caustic is measured. It could then be supplemented by secondary constraints such as parallax measurements, ideally by using coinciding ground and space-born observations. These are still subject to degeneracies, like the orbital motion of the lens. A third mass-distance relation can be obtained thanks to constraints on the lens luminosity using high angular resolution observations with 8 m class telescopes or the Hubble Space Telescope. The latter route, although quite inexpensive in telescope time is very effective. If we have to rely heavily on Bayesian analysis and limited constraints on mass-distance relations, the physical parameters are determined to 30–40% typically. In a handful of cases, ground-space parallax is a powerful route to get stronger constraint on masses. High angular resolution observations will be able to constrain the luminosity of the lenses in the majority of the cases, and in favorable circumstances it is possible to derive physical parameters to 10% or better. Moreover, these constraints will be obtained in most of the planets to be discovered by the Euclid and WFIRST satellites. We describe here the state-of-the-art approaches to measure lens masses and distances with an emphasis on high angular resolution observations. We will discuss the challenges, recent results and perspectives.

1. Introduction

Gravitational microlensing is unique in its sensitivity to exoplanets in the Earth-Saturn mass range beyond the snow line [1,2,3], where the core accretion theory predicts that the most massive planets will form [4,5]. It gives us the opportunity to detect exoplanets orbiting host stars ranging from just over a solar mass down to the brown dwarf regime, and it can find them at distances ranging from a few hundred pc all the way to the central Galactic Bulge. Microlensing planets are detected without using any light from the planet host star. This allows planets to be discovered orbiting very faint stars (contrary to transit and radial velocity), but it can also make it difficult to infer the properties of the host stars. Over ∼90 planets have been discovered by microlensing over the past 13 years1, including cold super Earths [6,7,8,9,10] cold Neptunes [11,12,13], Saturns in the disk [14,15], planets in the Bulge [16,17,18,19], multiple planet systems [20,21,22,23], a circumbinary planet [24], brown dwarf desert objects [25,26] brown dwarfs orbiting M dwarfs [27] and a first exomoon candidate [28]. Surprisingly a M dwarf orbited by a super Earth has been serendipitously found towards the anti-galactic center with a source star at 800 pc ([29]). Exoplanets could also be discovered in the M31 galaxy and a first candidate has been reported by [30].

Although the number of detected planets is relatively low compared to that discovered by the radial velocity and transit methods, microlensing probes a part of the parameter space (host separation vs. planet mass), which is mostly not accessible in the medium term to any other technique (Figure 1). Microlensing complements these detections because it is most sensitive to planets beyond the distance where water ice forms (the snow line), and down to earth mass planets.

Gould et al. [31] have made the first measurement of the frequency of ice and gas giants beyond the snow line, and have shown that this is about seven times higher than closer-in systems probed by the Doppler method. This comparison suggests that most giant planets do not migrate inwards very far. Howard et al. [32] have presented the first abundances of planets orbiting solar like stars within 0.25 AU using Kepler, while [33] have measured the abundance of Neptunes and super Earths using radial velocities. These studies show that 17–30% of solar like stars have planets on short orbits. With the microlensing technique, [34], measured the fraction of bound planets over 0.5–10 AU orbits from 10 Jupiter mass to 5 Earth mass and showed that planets around stars are the rule, rather than the exception. Then, [35], found high planet occurrence rates for the Kepler GK dwarf sample.

The MOA collaboration has recently measured the mass ratio function [36] beyond the snow line. This mass ratio function rises steeply toward lower masses as $q^{-0.85\pm 0.13}$ down to $q\sim {10}^{-4}$ where there is a break and possible peak in the mass ratio function. This is broadly consistent with the core accretion prediction that Neptune-Saturn ice giants should be more common than Jupiters, particularly in orbits around low-mass stars [37] but it shows that these population synthesis models under-predict the number of planets with planet:star mass ratios $q>{10}^{-4}$ as shown in Figure 1. Models from the Bern group [38] show a similar factor 10 discrepancy. These microlensing results are consistent with radial velocity and direct imaging surveys [39] but only microlensing probes the population of planets below Jupiter at these relatively wide separations on a routine basis. A major impediment to understanding this discrepancy with planet formation models is the fact that the microlens planets have been characterized only by their mass ratios, without knowledge of the host masses (see also [40]).

Indeed, the modeling of the observed planetary microlensing light curves gives the mass-ratio q and projected separation d in units of the angular Einstein radius ${\Theta }_E$ of the host star and its planet companion with an accuracy of 5–10% typically. Using maps from the OGLE-III collaboration we have a source distance $D_S$ estimate [41]. Unfortunately, there is only a single measurable parameter, the Einstein radius ${\Theta }_E$ crossing time, $t_E$, to constrain the lens mass $M_L$, distance $D_L$ and the relative lens-source proper motion, ${\mu }_{rel}$.

We have

$${\Theta }_E=1.01mas{\left(\frac{M}{M_{\odot }}\right)}^{1/2}{\left(\frac{D_S-D_L}{D_S{D}_L}8kpc\right)}^{1/2}$$

and

$$t_E=1.01yr{\left(\frac{M}{M_{\odot }}\right)}^{1/2}{\left(\frac{D_S-D_L}{D_S{D}_L}8kpc\right)}^{1/2}\left(\frac{1masy{r}^{-1}}{{\mu }_{rel}}\right)$$

As a consequence, the physical mass and distance to the lens system are usually determined via a Bayesian analysis including a galactic model, and/or using additional constraints. There are three mass-distance relations that might constrain the physical parameters of the system, which can be combined for an accurate lens mass measurement. We are going to review them in the next sections.

1.1. Mass-Distance Relation from Resolving the Source by Caustics

Fortunately, the majority of binary microlensing events have sharp light curve features that resolve the finite angular size of the source radius ${\Theta }_{\ast }$ crossing time to be measured in unit of the Einstein ring radius ${\Theta }_E$. Moreover, for a large fraction of the microlensing events we know the magnitude and color of the source. Therefore, we can use an infrared surface brightness relation, for example, [42] that links ($V-H,H$) magnitudes to angular radius:

$$log\left(2{\Theta }_{\ast }\left(\mu as\right)\right)=0.536654+0.072703(V-H)-0.2H$$

This relation is a revision of the original [43], incorporating more data and excluding some unreliable measurements. We can then estimate the angular Einstein radius, ${\Theta }_E$, which is usually derived to 10% or better. This constraint then leads to a mass-distance relation between lens mass $M_L$ at distance $D_L$, under the form

$$M_L=\frac{{\theta }_E^2}{\kappa {\pi }_{rel}}with{\pi }_{\mathrm{rel}}=\mathrm{AU}\left(\frac{1}{D_L}-\frac{1}{D_S}\right)and\kappa =8.144mas{M}_{\odot }^{-1}$$

(1)

1.2. Mass-Distance Relation from Parallax Measurements

A second mass-distance relation is obtained when the microlensing parallax, ${\pi }_E$, is measured [44]. This requires detecting the Earth orbital motion effect in the light curve for microlensing events with time scale larger than a month [8] or simultaneous observations of strong features from multiple sites at different latitudes [45]. An ideal configuration is to observe the microlensing event from two telescopes separated by ∼0.5+ AU [46,47,48]. Both configurations relate the projected size of the Einstein radius to solar system scales. This yields a relation between the parallax ${\pi }_E$ and the lens mass $M_L$,

$$M_L=\frac{{\theta }_E}{\kappa {\pi }_E}$$

(2)

This allows the elimination of ${\theta }_E$ to give a useful mass-distance relation for the case when we have well-defined parallax ${\pi }_E$ but unknown ${\theta }_E$:

$$M_L=\frac{{\pi }_{\mathrm{rel}}}{\kappa {\pi }_E^2}$$

(3)

In practice, with ground-based data alone, ${\pi }_E$ is often not well constrained. Moreover, there is a degeneracy with the orbital motion of the planetary companion from the fitted light curve [15]. Even ${\pi }_E$ measurements from the Spitzer space telescope yield degenerate light curve models, but it is most of the time much more constrained than the ground-based. Figure 2 gives a superb example of a strong parallax signal detected between the ground and the Spitzer space telescope for the microlensing event OGLE 2014-BLG-0124 [49,50]. Good ground-space parallax observations combined with caustic crossings can give precise physical parameters for a system with a Neptune mass planet [13]. Shvartzvald et al. [10] combined Spitzer and ground-based Korea Microlensing Telescope Network measurements to detect an Earth mass planet orbiting an ultracool dwarf. Degeneracies of a system composed of a G dwarf orbited by a $13.4\pm 0.9M_{Jupiter}$ companion located in the galactic Bulge. Another route described by [51] is to use the parallax modulation during the orbit of a geosynchronous satellite to measure masses of low mass free-floating brown dwarfs or planets, without using ground-based data.

1.3. Mass-Distance Relation from Detecting Light from the Lens

We have a third mass-distance relation if the flux from the lens system can be reliably measured. Using high angular resolution observations from adaptive optics on 8–10 m class telescopes or with the Hubble Space Telescope, it is possible to separate the contributions of the source and lens stars from other stars that are blended with the source in seeing-limited images ([52] and see Figure 3).

We know the source luminosity from the light curve model, so we can subtract that from the measured flux which is a combination of source+lens flux. We combine this measurement with an empirical mass-luminosity relation [53] or isochrones [54] and then get an independent mass-distance relation as shown in Figure 4 and Figure 5.

$$M_L\left(\lambda \right)=10+5log(D_L/1kpc)+A_L\left(\lambda \right)+M_{isochrone}(\lambda ,M_L,age,[Fe/H])$$

(4)

This has been done routinely on about 20+ planetary microlensing events to date.

In this procedure, we made the assumption that the lens star itself is not variable. Only a fraction of a percent of main sequence stars towards the galactic bulge are variable with amplitude of ∼0.1 mag or more.

1.4. Contribution of Unresolved Light Aligned with the Source

There is unfortunately a slight complication. When measuring the blended flux aligned with the source, does it come from the lens star alone? Or could some other star contribute additional flux within 50–100 mas of the source? When we detect blended light aligned with the source to better than ∼50–200 milliarcsecond PSF full-width at half-maximum, we must estimate if it is likely to be the lens star alone or if it has contributions from un-resolved additional stars:

-

An ambient star, (aligned with source and lens not associated with either)

-

a companion to the lens, (separated enough to not affect the lensing effect, while being unresolved)

-

a companion to the source, (separated enough to not affect the lensing effect, while being unresolved).

This can be estimated statistically [57,58], These two approaches differ in a number of details, but the final results are very close [50]. Currently, these corrections have been applied to a few systems [50,57,58,59] but it will have to be extended to all systems.

1.5. Constraining Dark Lenses

Microlensing is a unique method with sensitivity to free-floating planets and black hole candidates. High angular resolution observations permit to separate source + lens from unrelated subarcsecond blends. If no light excess is detected aligned with the source, we can put upper limits on the luminosity of the lens. The rigorous approach is that whether or not a small light excess is detected, a Bayesian analysis will be necessary to estimate what would be the most likely scenario: upper limit on the flux coming from the lens, luminous companion to the lens (separated enough from the lens to not affect the lensing effect, while being close enough in order not to be resolved), unrelated chance aligned star, unresolved companion to the source. For instance, for the microlensing MOA 2011-BLG-262 [28], measured the source+lens flux to $H_{S+L}=18.15\pm 0.07$ while the two models were predicting $H_S\sim 18.22\pm 0.04$. It is compatible with a dark lens and if we assign all potential flux to the lens, we can put an upper limit to $H_L\le 21.06\pm 1.0$. To summarize, high angular resolution observations will be an important diagnostic to be able to exclude false-alarm free-floating planets and black holes. However, because we will not detect any light from the lens, we cannot derive a mass-distance relation, only upper limits to the light coming from the lens. This has also been the case for the planetary microlensing OGLE-2007-BLG-387 [60] where an upper limit on the flux has been used as a constraint in the Bayesian analysis to estimate the host mass.

1.6. Resolving Source and Lens and Measuring Relative Source-Lens Relative Proper Motion

The relative source-lens proper motion is typically of the order of ∼5 mas/yr${}^{-1}$ and mostly in the range ∼1–10 mas/yr${}^{-1}$. Therefore, 5–10 years after the microlensing event, it might be possible to directly resolve source and lens with adaptive optics on 10 m class telescopes. Then, we can measure the relative flux between the source and the lens, the amplitude and direction of the relative source lens proper motion. With the very stable PSF of the Hubble Space Telescope, it is possible to measure centroid variations while source and lens are not fully resolved, to contrain their flux ratio and relative proper motion [52].

Resolving lens and source and measuring their relative proper motion is done in a reference that is indistinguishable from the heliocentric reference frame. On the other hand, the contraint on the relative lens-source proper motion from the light curve is coming from the geocentric reference frame. We therefore have to convert our heliocentric relative proper motion measurement into the geocentric frame.

$${\mu }_{\mathrm{rel},\mathrm{geo}}={\mu }_{\mathrm{rel},\mathrm{helio}}-\Delta \mu$$

where

$$\Delta \mu =\frac{{\pi }_{\mathrm{rel}}{V}_{\oplus ,\perp }}{\mathrm{AU}}=(\frac{1}{D_L}-\frac{1}{D_S})V_{\oplus ,\perp }\mathrm{Dong}\mathrm{et}\mathrm{al}.2009.$$

$${\pi }_{\mathrm{rel}}=\mathrm{AU}\left(\frac{1}{D_L}-\frac{1}{D_S}\right)$$

Here $V_{\oplus ,\perp }$ is the velocity of the Earth projected on the sky at the time of the microlensing event (i.e., at $t_0$), in North and East coordinates [61]. We need to assume a starting value for the distance of the lens, $D_{L,0}$, since the offset between them is a function of the relative distance between the lens and the source: Since the initial $D_{L,0}$ value that we use to determine ${\mu }_{\mathrm{rel},\mathrm{geo}}$ is a guess, we need to perform several loops to converge to a stable lens distance solution. For each tested value of ${\mu }_{\mathrm{rel},\mathrm{helio}}$, we obtain a value of ${\mu }_{\mathrm{rel},\mathrm{geo}}$ that gives ${\theta }_E={\mu }_{\mathrm{rel},\mathrm{geo}}{t}_E$.

To date, resolving source and lens have been published on two microlensing events. Alcock et al. [62] resolved the disk lens and its Magellanic Cloud source in the microlensing event MACHO-LMC-5. Using HST and KECK [55,56], resolved source and lens in the planetary microlensing OGLE-2006-BLG-169 (Figure 6).

2. A Recipe for Constraining the Light Coming from the Lens with Adaptive Optics

The objective is first to perform JHK photometry in crowded galactic bulge field for targets that are usually in the range H = 15–19. In practise we will be able to reach a precision of a few percent. Knowing the source flux, we aim to constrain a super-imposed lens flux thanks to the measurement. It might be difficult if the source is a giant with a main-sequence dwarf lens at few kpc; it will be much easier if the source and the lens have comparable brightness.

(1)

Accurate position of the source star. Using the follow-up data is important to refine the position of the source star. It was done while the star was amplified to minimise potential contribution by blends. Typically with OGLE images we reach $\sim 20$ mas precision.

(2)

Calibration data in JHK. Images collected by the VISTA 4m telescope as part of the VVV survey are excellent [64] but the current interface and data products are not satisfactory. Our approach is to download all VVV data and develop tools to extract data cubes of 6 arcmin centred on the target. Then we perform PSF photometry using PSFEx [65] and SExtractor [66] from the AstrOmatic.net suite of tools. We then calibrate the catalogues using 2MASS both for astrometry and photometry the JHK data.

(3)

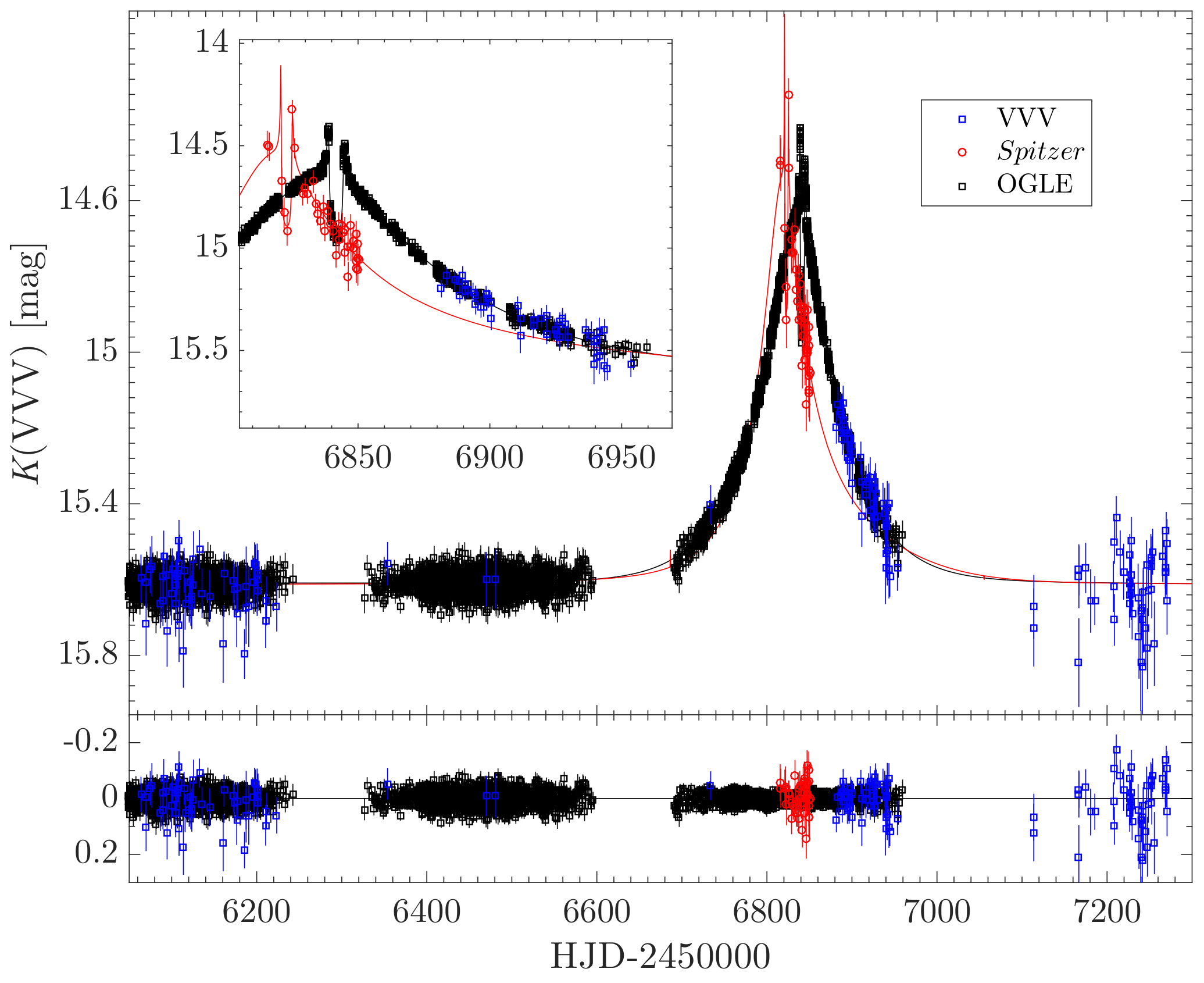

Source estimates in H and/or K. If the microlensing target has been observed in IR, we extract its photometric light curve. The objective is to have measurements at different levels of amplification to be able to estimate accurately the source in IR bands. In the absence of such IR data, knowing the fitted V, I color of the source and extinction, we derive the color of the source and predict what would be its H and K magnitudes. It is better to stick closer to the observations and if possible, we prefer to avoid the color-transformation step.

(4)

Preparing AO observations. First, we have to identify if there are some close stars bright enough to be acting as a natural guide star. They ideally have to be close to the target, 10–15 arcsec at most, while being bright enough to be able to close the adaptive optics loop and obtain diffraction limited images. In practise, it has been possible to use natural guide star for about half of the microlensing targets. We also have to identify stars for tip-tilt correction, but they can be fainter and further away. In the absence of bright natural guide star, it is possible to use at some telescopes (KECK) a laser guide star. We advise to build finding charts (with dimensions and orientation indicated) in the optical and also in the infrared, to be able to identify the field, guide-star, tip-tilt star and target quickly. Because galactic bulge fields are too crowded, we recommend dedicated observations of a dark field to estimate the sky.

(5)

Observing strategy for constraining the lens flux. Any information at the subarcsecond level is valuable, even if the conditions are not excellent. Therefore, such measurement can be attempted in any decent observing conditions. In the case of KECK, we would advise to use the WIDE camera (40 arcsec) in order to have $\sim 100+$ VVV stars in the field for calibration. We advise a number of dithered observations, with a step of few arcsec. It should be kept in mind that such cameras usually have fairly large distortion.

(6)

Resolving lens and source, measuring the relative proper motion. With very stable PSF as achieved with HST, it is possible to constrain the relative source/lens flux and relative proper motion while not resolving them, as done by [56]. It can be done even if source and lens are separated only a fraction of the FWHM. Given the adaptive optics of PSF stability, we are currently limited to resolving source and lens with a separation of ∼60+ mas. The measurement will be done using for instance the NARROW camera at KECK (10 arcsec field of view). It can be attempted only under best observing conditions, when 45–60 mas images are being obtained.

(7)

Data processing. First, it is necessary to correct for the dark current and flat-fields in a standard way. We also need to observe a field with very few or no stars to estimate the sky contribution in the observations. A possibility is to target a dark cloud located about 400 arcsec north and 713 arcsec west of the Center. We then correct the science images. We then correct for the distortion of the images, using accurate maps provided by the observatory for the camera. We then compute an astrometric solution for each image using VVV as a reference and SCAMP [67]. Images are re-gridded and then stacked using SWARP [68].

(8)

Data analysis. We perform aperture photometry using the SExtractor package. We then cross-identify the stars observed both by AO and VVV, for example using TOPCAT [69]. We usually are able to calibrate to $1\%$ routinely with the KECK WIDE Camera. With a smaller field of view, it could become tricky since few stars at best might be available, and there is always the risk that one is variable, or that nearby bright stars are contaminating the photometry and making it impractical. Unless we attempt to resolve blended source and lens, we perform aperture photometry to measure the fluxes. It is also possible to perform PSF fitting using some tools such as AIROPA [70].

3. Getting the Mass and Distance to the Lens

3.1. Calculating Extinction to the Source and the Lens

Nataf et al. [41] combined wide field imager data from OGLE and VVV survey of the Galactic Bulge [64,71]. Knowing the mean properties of the red-clump stars, they estimated distances and extinctions over 4000 line of sights. By interpolating these measurements, it is possible to obtain distance, extinction maps and coefficients for the galactic Bulge. A convenient server has been developed by OGLE based on [41] analysis. It should be noted that the extinction towards the Bulge is so called “anomalous”, and that the coefficients differ from the ones in the solar neighbourhood [72]. It is also possible to use multi-band photometry to build color magnitude diagrams and derive extinction and distances for the analyzed fields.

In practise, we adopt as a scale height of the dust towards the galactic bulge ${\tau }_{dust}=\left(0.120\mathrm{kpc}\right)/sin\left(b\right)$, where b is the galactic latitude. Then we write the lens extinction in H band A${}_{H_L}$:

$$A_{H_L}=(1-e^{-D_L/{\tau }_{dust}})/(1-e^{-D_S/{\tau }_{dust}})A_{H_S}.$$

(5)

This model attributes most of the extinction to short distances. Another route is to perform additional observations (such as using X-shooter on the VLT) to actually fit the UV-to-NIR spectra energy distribution and extinction simultaneously [73].

3.2. Using Empirical Mass-Luminosity Relations or Isochrones

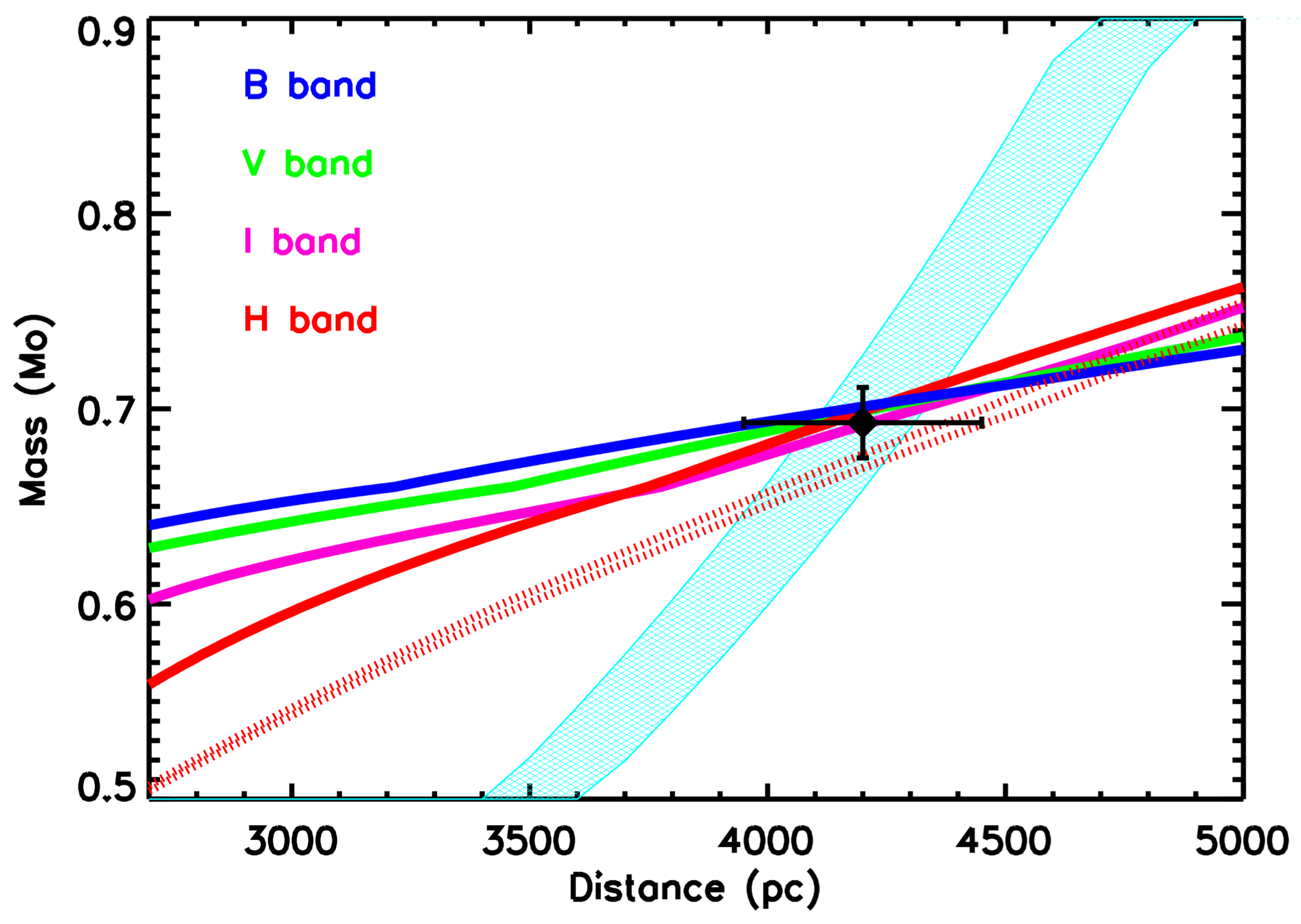

Thanks to the high angular resolution images, we have estimates of the luminosity of the lens. We then adopt a set of isochrones or mass-luminosity relations, and then, using Equation (4) we obtain a mass-distance relation. Figure 4 is showing the BVIH constraints on the host star of the microlensing event OGLE-2005-BLG-169. The empirical mass-luminosity relation calibrated using stars from the solar neighbourhood is giving masses systematically higher than the isochrones from [54] for a solar metallicity by a few percent. We are now reaching the level of precision where this will have to be taken into account. GAIA parallaxes will provide a good opportunity to recalibrate these mass-luminosity relations and hopefully remove the remaining small discrepancies in mass-luminosities relations.

3.3. Current Limitations

We can identify several steps in the process that could be improved. First, the distance to the source is now becoming one of the dominant sources of error. Revisiting the galactic Bulge structure using constraints from GAIA combined with multiband photometry is necessary. Secondly, extinction, especially for the low latitude fields should be revisited. Indeed, the first studies of the fields in the galactic plane with $A_K\sim 1.5$ [74], shows the limitation of the simple model presented in Section 3.1 and suggest that the nature of the dust is different. This leads to ambiguous results in these particular fields, and is also the one with the highest optical depth to microlensing and preeminent line of sight for Euclid and WFIRST.

4. Results

High angular resolution observations have been obtained with KECK, SUBARU, VLT or MAGELLAN on about 40 planetary microlensing events and 15 free-floating planets, while the Hubble Space Telescope observed six planetary microlensing to date. Such observations are relatively cheap in telescope time, since it requires about one hour with overheads for the AO observations, for instance. Nevertheless, they are a powerful way to constrain the planetary systems after their discoveries. The results from

Table 1. Lens host masses and distances of planetary systems discovered by microlensing with constraints from high angular resolution constraints. We list the initial estimate if it was without high angular resolution with the label “initial”. If the initial study included high angular resolution it is then listed only with the label “with HR”. Otherwise, the HR labels indicate the current best estimates for mass and distances for these host stars. (124) [49,50], (220) [59,75], (132) [58,76], (026) [23,77], (293) [17,78], (319) [14,59], (400) [59,79], (192) [7,9], (169) [55,56,63], (071) [80,81], (235) [52,59,82], (227) [57], (605) [12], (950) [83], (563) [84], (006) [85], (310) [16,18], (368) [11], (387) [60], (349) [24], (109) [20,21].

Name	Distance (kpc) Initial	Distance (kpc) with HR	Mass (${\mathit{M}}_{\odot }$) Initial	Mass (${\mathit{M}}_{\odot }$) with HR	ref

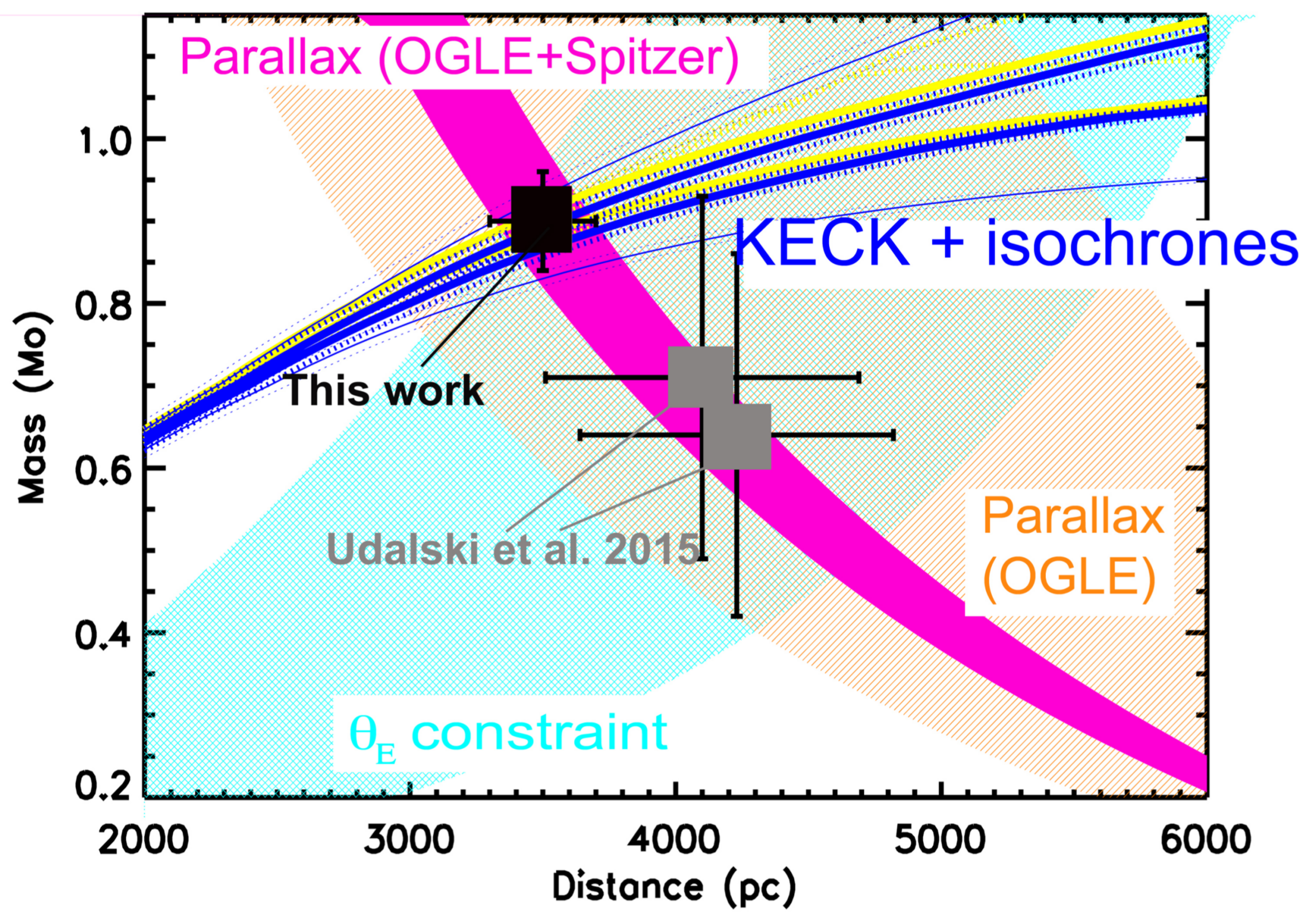

OGLE-2014-BLG-124	$4.23\pm 0.6$	$3.5\pm 0.2$	$0.65\pm 0.22$	$0.90\pm 0.05$	(124)
MOA-2013-BLG-220	$1.6-6.5$	$6.55\pm 0.5$	$0.05-0.8$	$0.96\pm 0.07$	(220)
OGLE-2013-BLG-132	${3.9}_{-1.3}^{+1.5}$	$3.45\pm 0.75$	${0.54}_{-0.23}^{+0.30}$	$0.50\pm 0.08$	(132)
OGLE-2012-BLG-026	$4.08\pm 0.4$	$4.0\pm 0.3$	$0.82\pm 0.13$	$1.06\pm 0.05$	(026)
MOA-2011-BLG-293	$7.15\pm 0.94$	$7.72\pm 0.44$	${0.59}_{-0.29}^{+0.35}$	$0.86\pm 0.06$	(293)
MOA-2009-BLG-319	${6.1}_{-1.2}^{+1.1}$	$6.9\pm 0.3$	${0.38}_{-0.18}^{+0.34}$	$0.82\pm 0.05$	(319)
MOA-2007-BLG-400	${5.8}_{-0.7}^{+0.8}$	$7.2\pm 0.5$	${0.30}_{-0.12}^{+0.19}$	$0.95\pm 0.06$	(400)
MOA-2007-BLG-192	$1.0\pm 0.4$	${0.66}_{-0.07}^{+0.1}$	${0.06}_{-0.021}^{+0.028}$	${0.084}_{-0.012}^{+0.015}$	(192)
OGLE-2005-BLG-169	${2.7}_{-1.3}^{+1.6}$	$4.2\pm 0.2$	${0.49}_{-0.29}^{+0.23}$	$0.69\pm 0.02$	(169)
OGLE-2005-BLG-071	$1.5-5$	${3.74}_{-0.55}^{+0.68}$	$0.08-0.5$	${0.201}_{-0.045}^{+0.053}$	(071)
OGLE-2003-BLG-235	${5.2}_{-2.9}^{+0.2}$	$5.2\pm 0.5$	${0.36}_{-0.28}^{+0.03}$	$0.56\pm 0.04$	(235)
MOA-2016-BLG-227		$6.5\pm 1.0$		${0.29}_{-0.15}^{+0.23}$	(227)
OGLE-2013-BLG-605		${3.74}_{-0.55}^{+0.68}$		${0.201}_{-0.045}^{+0.053}$	(605)
OGLE-2012-BLG-950		${3.0}_{-1.1}^{+0.8}$		${0.56}_{-0.16}^{+0.12}$	(950)
OGLE-2012-BLG-563		${1.3}_{-0.8}^{+0.6}$		${0.34}_{-0.20}^{+0.12}$	(563)
OGLE-2012-BLG-006		${5.3}_{-1.3}^{+0.8}$		${0.49}_{-0.23}^{+0.27}$	(006)
MOA-2008-BLG-310		$7.7\pm 1.1$		$0.21\pm 0.14$	(310)
OGLE-2007-BLG-368		${5.9}_{-1.4}^{+0.9}$		${0.64}_{-0.26}^{+0.21}$	(368)
OGLE-2007-BLG-387		$7.2\pm 0.8$		${0.11}_{-0.06}^{+0.21}$	(387)
OGLE-2007-BLG-349		$2.76\pm 0.38$		$0.41\pm 0.07$	(349)
				$0.30\pm 0.07$
OGLE-2006-BLG-109		${1.51}_{-0.12}^{+0.11}$		${0.51}_{-0.04}^{+0.05}$	(109)

show a significant improvement in the mass and distance measurements of the host stars. Contrary to popular belief, it is also clear that once the microlensing event is over, it is still possible to perform additional observations to refine the physical parameters of the system.

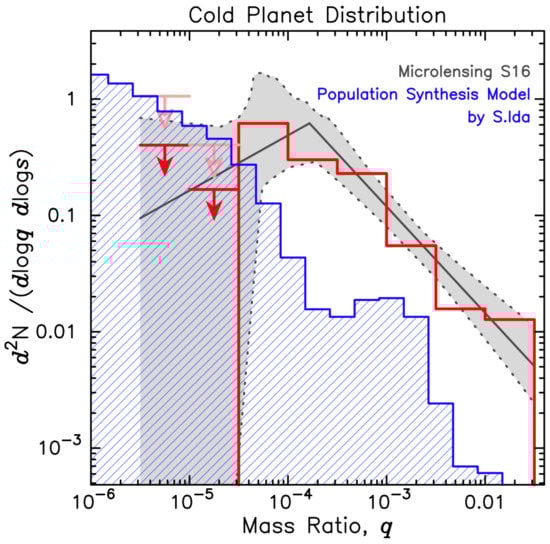

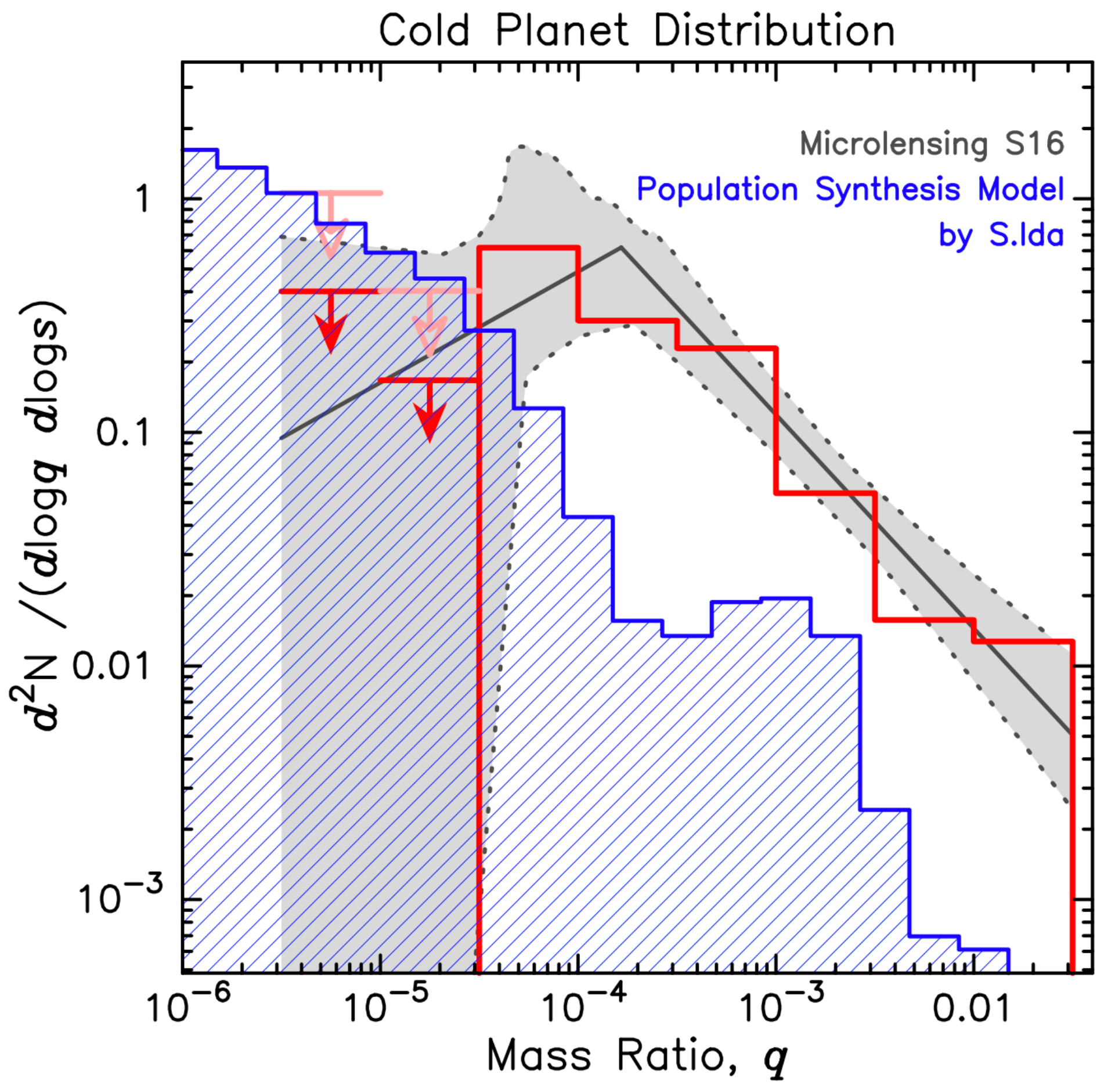

The next step is to extend this study to the entire [36] sample, and then be able to plot a mass-function instead of the mass-ratio function (Figure 1). It will also be possible to study the spatial distribution and discuss the relative abundance in the disk and in the Bulge of our galaxy.

Most microlensing planets are currently detected by combining high cadence observations obtained with wide field imager (OGLE-IV, MOA-II, KMTNeT, WISE, ROME-REA). Targeted observations of high magnification events with high sensitivity to exoplanets are done by follow up telescopes such at the 1.3 m Harlingten telescope at University of Tasmania Greenhill Observatory and the telescopes of the Las Cumbres Observatory. These observations are still valuable to be able to unveil a planetary anomaly such as in OGLE-2015-BLG-1395 [86], to well characterise a caustic crossing missed by survey telescope or for Terrestrial parallax [28]. Now, the sensitivity extends to ∼1 Earth mass planets at the snow line in favorable cases [10].

There has been an aggressive campaign with the Spitzer space telescope to provide excellent ground-space parallaxes in the period 2014–2018 for a handful of planetary events [10,13,49]. First, the target has to be observable within a one month window of Spitzer and it has to be bright enough. Secondly, it is possible to do only weekly updates of observing targets. Because of the very nature of microlensing events, it is hard to predict early which ones will have a high planet detection efficiency. Ideally, it is much more efficient to update the observing strategy and target list on a daily basis at least. Updating every week the Spitzer target list means that some interesting targets will be missed, while observing time will be dedicated to targets that will turn out to have low interest. Moreover, Spitzer will have to concentrate on relatively bright targets. Given these constraints, the team for the Spitzer observations has set up a strategy to try to optimise their observing strategies [10]. Third, the parallax has to be well enough constrained by the observations. See [87] for the strategy and [88] for the post-2018 perspectives. The campaign 9 of Kepler-K2 gave only one planet [57] and no free-floating planets. The photometry with such large pixels in the Galactic Bulge has been more challenging than anticipated.

Despite these efforts on the parallax front, there is still a limitation on the accuracy of the determination of the physical parameters, that could be overcome with constraints from high angular resolution observations. The key ingredients required are infrared photometry high angular resolution observations from 8+m class telescopes and/or with V, I on the Hubble Space telescope. Recently, 10 nights have been allocated as a “Keck Key Strategic Mission Support” to observe all known microlensing planets to date. Within the next three years, we will obtain accurate mass measurements of ∼100+ cold planets. We will then derive the cold planet mass-function and compare the relative planet populations in the disk and the bulge. While we will be conducting this work, we will also test the method that will be used routinely on WFIRST to measure masses for over 90% of the planets to be discovered by microlensing.
