Review

m1A Post‐Transcriptional Modification in tRNAs

Institut de Biologie Physico‐chimique (IBPC), CNRS, UMR 8261 CNRS/Université Paris Diderot, 13 rue Pierre et Marie Curie, Paris 75005, France
*
Author to whom correspondence should be addressed.
Biomolecules 2017, 7(1), 20; https://doi.org/10.3390/biom7010020
Submission received: 16 January 2017 / Accepted: 16 February 2017 / Published: 21 February 2017
(This article belongs to the Collection RNA Modifications)

Abstract

:
To date, about 90 post-transcriptional modifications have been reported in tRNA expanding their chemical and functional diversity. Methylation is the most frequent post-transcriptional tRNA modification that can occur on almost all nitrogen sites of the nucleobases, on the C5 atom of pyrimidines, on the C2 and C8 atoms of adenosine and, additionally, on the oxygen of the ribose 2′-OH. The methylation on the N1 atom of adenosine to form 1-methyladenosine (m1A) has been identified at nucleotide position 9, 14, 22, 57, and 58 in different tRNAs. In some cases, these modifications have been shown to increase tRNA structural stability and induce correct tRNA folding. This review provides an overview of the currently known m1A modifications, the different m1A modification sites, the biological role of each modification, and the enzyme responsible for each methylation in different species. The review further describes, in detail, two enzyme families responsible for formation of m1A at nucleotide position 9 and 58 in tRNA with a focus on the tRNA binding, m1A mechanism, protein domain organisation and overall structures.

1. Introduction

The biosynthesis and maturation of tRNA is a complex and multistep process that varies across organelles and organisms. Despite the variety, they still retain common features, such as transcription from a distinct transfer DNA (tDNA) gene, removal (processing) of the 5′-leader and 3′-trailer, intron splicing (where introns are present), addition of 3′-CCA for amino acid coupling, and several nucleotide modifications (reviewed in [1,2,3,4,5]). Post-transcriptional modifications of tRNAs, in which a large variety of modified nucleotides are enzymatically introduced onto the tRNA transcript [6,7], expand their chemical and functional diversity. In some cases, these modifications have been shown to increase the structural stability and induce correct folding of the tRNA [3,8,9,10]. The most frequent post-transcriptional modification of tRNA is methylation. Methylation occurs on almost all nitrogen sites of the nucleobases, and additionally on the oxygen of the ribose 2′-OH, C5 atom of pyrimidines, and C2 and C8 atoms of adenosine (reviewed in [11,12]). tRNA methylations are performed by a family of RNA methyltransferases (MTases) that comprises more than 60 members in humans. Based on sequence and topology comparisons, RNA MTases were classified into four superfamilies: Rossmann-fold MTases (RFM, class I of SAM-dependent MTases), SpoU–TrmD MTases (SPOUT, class IV of SAM-dependent MTases), radical-SAM, and FAD/NAD(P)-dependent MTases [11,13], the largest of which is the RFM family [14], followed by the SPOUT family [15,16]. MTases are further divided into tRNA MTase subfamilies named either ‘Trm’ or ‘Trmt’ followed by a number (e.g. Trm5) or a letter (e.g. TrmD), depending on the kingdom of origin for the enzyme.
In this review, we outline the known tRNA sites to undergo methylation on the N1 atom of adenosine to form 1-methyladenosine (m1A), and provide an overview of the proteins responsible for this modification at each position in the tRNA. We further discuss, in detail, the m1A modifications at the two best-characterized positions: 9 and 58.

2. m1A Modifications in tRNA

In cytosolic (cyt) tRNA, the m1A modification (Figure 1A) occurs at five different positions (9, 14, 22, 57, and 58), two of which (9 and 58) are also found in mitochondrial (mt) tRNAs (Figure 1B and Table 1) [7]. The m1A modification in nucleotide position 14 (m1A14) is rare, and has so far only been identified in (cyt)tRNAPhe from mammals [17,18], whereas the m1A22 modification has been identified only in tRNAs from bacteria [19,20,21,22]. The m1A57 modification was identified in archaea and exists only transiently as an intermediate leading to 1-methylinosine (m1I) by hydrolytic deamination [23,24]. The m1A58 modification occurs on (cyt)tRNAs from all three domains of life and further in (mt)tRNAs. The m1A9 modification is found in (cyt)tRNA from archaea or mammalian (mt)tRNAs [25,26].

3. The Biological Role of m1A Modifications in tRNA

The well-studied m1A9 and m1A58 modifications have both been linked to structural stability and/or correct folding of the tRNA. For the m1A9 modification, this link has been investigated in detail for human (mt)tRNALys, which exists in vitro as an extended hairpin structure [8,9] in equilibrium with the classical and functional tRNA ‘L-shape’ conformation [8,9]. The m1A9 modification shifts this equilibrium towards the ‘L-shape’ structure by disrupting a destabilizing Watson–Crick interaction that would otherwise form between A9 and U64 [9,25,27]. The impairment of the A9–U64 interaction allows U64 to bind to A50, allowing the tRNA to remain in the functional L-shaped structure [8,28]. Structural plasticity, similar to what is observed for (mt)tRNALys, was also reported for (mt)tRNALeu(UUR) and (mt)tRNAAsp, indicating that post-transcriptional modifications may also affect the fold of these (mt)tRNAs [29,30,31].
In Drosophila, small interfering RNA (siRNA)-mediated knockdown of the MTase performing the m1A9 modification was shown to be embryonically lethal [32]. In HeLa cells, the knockdown resulted in reduced mitochondrial respiration [33], indicating that this enzyme is also important for cell viability. The very rare autosomal recessive disorder combined oxidative phosphorylation deficiency 30 (COXPD30, MIM#616974) was recently attributed to missense mutations in a human mitochondrial m1A9 MTase [34,35,36]. Heterozygous or homozygous patients presented at birth with lactic acidosis, hypotonia, feeding difficulties, and deafness with death at five months of age after respiratory failure [36]. Analysis of patient fibroblasts showed decreased levels of the m1A9 MTase, indicative of lowered protein stability. In addition to the m1A9 activity, the affected MTase catalyses m1G9 formation [37] and is involved in 5′-end processing of mitochondrial precursor tRNA [37,38,39], making it difficult to attribute the patient phenotype to the m1A9 activity only.
The m1A58 modification has been related to structural thermostability of tRNA. The combination of m1A58 with two other post-transcriptional modifications (Gm18 and m5s2U54) was shown to increase the melting temperature of tRNAs from Thermus thermophilus by approximately 10 °C, compared to the unmodified transcript [10,40,41,42], and the lack of the enzyme forming m1A58 led to thermosensitivity in bacterial tRNAs [43]. The m1A58 in human tRNALys3 was shown to be crucial for reverse transcription fidelity and efficiency of retroviruses like HIV-1 [44]. m1A58 was also found to be important for maturation of the initiator tRNAMet from yeast [45]. The initiator tRNA from eukaryotes (tRNAi) has a conserved A-rich T-loop (A54, A58, and A69), a conserved A20 and a shorter-than-average D-loop (seven nucleobases). These features cluster in the ‘corner’ of the L-shaped tRNA and the structure is maintained by a dense network of hydrogen bonds between the conserved adenines [46]. In this network, A58 forms hydrogen bonds to A54 and A60 (Figure 2) and the lack of m1A58 results in an abnormal tRNAi structure, guiding it for degradation. This might explain why deletion of the MTase N1-methylation A58 in yeast produces non-viable cells [47], and why exclusion of this MTase by siRNA-mediated knockdown gave rise to a slow-growth phenotype in human cells [48]. Recently, the human demethylase performing the reverse reaction (removal of the methyl group from the N1 atom of A58) was identified [49]. Knockdown of this enzyme resulted in elevated levels of tRNAi, agreeing with a role of m1A58 in tRNAi structure stability.
Little is known about the specific role of m1A14 and m1A22, but the MTase responsible for m1A22 in Streptococcus pneumoniae was shown to be essential for bacterium survival [50].
In addition to tRNA, the m1A modification was also identified on messenger RNA (mRNA) (reviewed in [51]). The modification was predominantly found in structured regions of the 5′ untranslated region, or close to canonical or alternative start codons [52,53], suggesting that also in mRNA this modification plays a role in RNA structural stability. The presence of the m1A modification on mRNA was linked to increased translation rates [52], and the level of the modification was shown to decrease in response to induced stress, i.e., glucose or amino acid starvation [52]. The DNA repair enzyme ALKBH3 that demethylates N1-methyldeoxyadenosine in single-stranded DNA [54,55] was suggested as a candidate for removing the methyl group from m1A in the mRNA [52].

4. Enzymes Responsible for the m1A Modifications in tRNA

The MTases responsible for the m1A modification belong to either the RFM or the SPOUT superfamily of MTases, both of which utilise S-adenosyl-l-methionine (SAM) as the methyl donor, linking tRNA methylation to occurrence of ATP and methionine; the precursors for SAM catabolism. The SPOUT superfamily of proteins methylate bases and ribose moieties of tRNAs, but also rRNAs, in all three domains of life [11,15,16,56]. The SPOUT-fold comes in two subtypes, both resembling a Rossmann-fold in the first part and encompassing a trefoil knot in the second part (Figure 3A). The SPOUT domain is the catalytically active subunit of the MTases and binds the SAM cofactor. Many SPOUT MTases contain additional nucleic acid binding domains, indicating their primary function as MTases towards nucleic acids [16,57,58]. The RFM family contains RNA MTases and the majority of DNA MTases [11], and is named after the structural motif (Rossmann-fold) known for binding of adenosine-containing cofactors (SAM, NADH, etc.). The RFM-fold covers seven-stranded β-sheet flanked by six α-helices (Figure 3B). RFM MTases are often monomeric, although di-, tri-, and tetrameric oligomeric states have been reported. They often contain additional domains inserted throughout the RFM-fold, which play roles in substrate recognition [14]. The SPOUT and RFM MTases, responsible for m1A modifications at nucleotide position 9, 14, 22, and 58, are shown in Table 1, which further outlines the domain(s) of origin for each enzyme class and the cellular localisation of the substrate tRNA. The m1A9 and m1A58 MTases are well-studied and will be described in detail in later sections. The m1A22 MTase (TrmK) belongs to the COG2384 protein family and has orthologues in Gram-positive and Gram-negative bacteria, with no homologues identified in eukaryotes to date. TrmK is well conserved in the bacterial kingdom with enzymes from a number of pathogenic bacteria, e.g. Vibrio cholerae, Listeria monocytogenes, Staphylococcus aureus, S. pneumoniae, showing a high sequence identity (>40%). As highlighted in Table 1, the m1A14 MTase is yet unidentified, but an enzyme, partially purified from rat brain cortices, catalysed the reaction in vitro [59]. The gene encoding the protein is still unknown.

5. Mechanism for Formation of the N1-Methylation in tRNA

N1-methylation can occur on both purines (adenine and guanine), with m1A occurring at a greater number of positions (9, 14, 22, 57, and 58) than m1G (9, 37) [7]. The mechanism by which the purines are methylated has been studied most extensively for guanine (m1G). Studies on the m1G37 specific SPOUT family member TrmD from the bacteria Haemophilus influenzae [60] and the m1G37 specific RFM family member Trm5 from the archaea Methanocaldococcus jannaschii [61,62] showed that the m1G37 mechanism involves a deprotonation of the N1 atom by an aspartate or glutamate residue (general base), a stabilisation of the resulting negative charge on the O6 atom by an arginine residue (intermediate charge-stabiliser), and an interaction with the N2 atom by a glutamate residue (Figure 4A). Subsequently, the activated N1 atom makes a nucleophilic attack on the reactive methyl group of SAM [63]. TrmD has recently been shown to further utilise a Mg2+ ion for stabilisation of the negatively-charged intermediate [64].
Due to the differences in protonation states of the N1 atom at physiological pH, the formation of m1A must proceed via a mechanism different from m1G. Two mechanisms for formation of m1A have been proposed, based on investigations on the m1A58 specific RFM family member TrmI from the eubacteria T. thermophilus [65,66]. In the first mechanism (Figure 4B), a deprotonation takes place as the initial step. In contrast to the N1 atom in guanosine, this atom in adenosine is not protonated at physiological pH, and the deprotonation by the Asp general base is, therefore, suggested to occur on the exocyclic N6 atom, resulting in the formation of an imino tautomer. This formation would activate the lone pair of the N1 atom for nucleophilic attack on the reactive methyl group of SAM, similar to the methylation of guanine [65]. In the second mechanism (Figure 4C), another role was suggested for the aspartate general base in the N1-methylation of adenine. Rather than deprotonating the N6 atom, it serves merely to position the methyl donor SAM and the target adenosine for methylation reaction [65]. A recent crystal structure of the human m1A58 MTase in complex with tRNALys3 [67] unfortunately did not provide information on the correct mechanism, as the position of A58 in the active site resembled a methylated nucleobase in a product-complex. Further studies are, thus, needed to fully elucidate the catalytic mechanism for m1A formation.

6. m1A58

The m1A58 MTases belong to the RFM superfamily and one of two subfamilies (Trm6 or Trm61). In eukaryotes, the m1A58 MTase located in the cytosol is composed of a catalytic protein unit from the Trm61 subfamily (Trm61A) and an RNA-binding protein unit from the Trm6 subfamily (Trm6) [45]. Sequence analysis has suggested that Trm6 and Trm61 share a common ancestor and arose via gene duplication and divergent evolution [68,69]. The mitochondrial m1A58 MTase consists of a single protein from the Trm61 family (Trmt61B), which is a paralogue to Trm61A from the cytosolic complex [70]. In archaea and bacteria, the m1A58 MTases belong to the TrmI subfamily and function without complex partners. These MTases were first identified as homologues of yeast Trm61 [43,71].
The eukaryotic complex of Trm6–Trm61 has been reported as a heterotetramer, whereas bacterial and archaeal TrmI proteins have been shown to form homotetramers [71]. Crystal structures are available for heterotetrameric Trm6–Trm61A complexes from Saccharomyces cerevisiae [72] and human (PDB 2B25). A structure of the human complex bound to tRNA is also reported [67]. Structures of homotetrameric TrmI proteins are available for the archaea Pyrococcus abyssi [73], and the bacteria T. thermophilus [65,66], Aquifex aeolicus [74], Thermotoga maritima (Joint Center for Structural Genomics 2003, PDB 1O54), and Mycobacterium tuberculosis [75].

6.1. Eukaryotes

In the complex of Trm6–Trm61 from S. cerevisiae, both subunits harbour an N-terminal domain linked to a C-terminal domain (Figure 5A) [72]. The C-terminal domains cover a Rossmann-fold and are very similar between the two subunits, whereas significant differences are found between the N-terminal domains. The N-terminal domain of Trm61 contains a short α-helix and three hairpin β-motifs, whereas Trm6 consists of a short α-helix with seven antiparallel β-strands and a highly flexible region with a number of positively-charged residues. Each subunit of the Trm6–Trm61 complex forms heterodimers that, again, assemble as a heterotetramer. The catalytic subunit of this complex (Trm61) binds the cofactor SAM; a binding that is made impossible in the other subunit (Trm6) by the loss of conserved motifs involved in accommodation of this cofactor. Each heterotetramer binds two tRNA molecules onto two distal, L-shaped surfaces on the protein complex (Figure 5B) [67]. tRNA undergoes large conformational changes during binding in which the D- and T-arm are separated (Figure 5B, insert). The T-loop contains the nucleobase to be modified (A58) and binds in the active site. The binding is stabilised by the formation of numerous hydrogen bonds with the C56 nucleobase and the sugar-phosphate backbone. A stabilising hydrogen bond is also formed between a phosphate O atom of C56 and a H atom of the exocyclic N6 atom of A58. No hydrogen bonds are observed between the protein complex and A58, and the orientation of this adenosine towards the bound S-adenosyl-l-homocysteine (SAH) resembles a methylated nucleobase. A conserved aspartate residue (Asp181) is found in close proximity to A58 (3.3 Å Asp181(Oδ1)-A58(N1)) and could serve as the catalytic base. In support of this, Asp181 was previously shown to be essential for m1A58 MTase activity in T. thermophilus [65]. The complex makes additional contacts with the tRNA substrate with binding of the acceptor stem to the N-terminal domain of the catalytic subunit Trm61, and binding of the T-stem/loop to an insert in the N-terminal domain of Trm6, not present in Trm61. The vast number of interactions with both complex subunits explain previous findings that both Trm6 and Trm61 are required for tRNA binding [76]. The interactions between tRNA and Trm6 help orient A58 for catalysis and may contribute to target specificity [67], providing a role for the non-catalytic subunit Trm6 in activity [45,77].

6.2. Archaea and Bacteria

In the homotetramer of TrmI proteins (Figure 5C), each molecule contains an N-terminal domain and a catalytic C-terminal domain [75], both of which are structurally highly conserved to Trm61 from the eukaryotic MTase [67]. The reported crystal structures of TrmI proteins from mesophilic, thermophilic, or hyperthermophilic organisms allowed a detailed analysis of the architecture of this protein family [78]. The analysis revealed a different molecular strategy for maintaining the tetrameric architecture and, thus, activity, under extreme conditions. One difference was observed for the type of intermolecular interactions utilised to maintain the tetrameric structure. For thermophilic bacteria, the structure is stabilised by a number of ionic interactions found across the dimer interfaces, whereas hyperthermophilic bacteria utilised a number of hydrophobic interactions. The tetrameric structure of most TrmI proteins is further stabilised by two bidentate ionic bonds that, in archaeal P. abyssi, were found to be replaced by four inter-subunit disulfide bridges.
No structure of a tRNA–protein complex with TrmI is currently available, but biochemical studies of T. thermophilus showed that each homotetramer accommodates up to two tRNA molecules [65]. Modelling the tRNALys3 from the human heterotetrameric complex onto TrmI from T. thermophilus, reveals that the substrate is likely to be accommodated similarly in the homotetrameric protein, suggesting that a comparable methylation mechanism is probably used by the two proteins.

6.3. Mitochondria

The m1A58 modification has been reported in a small number of (mt)tRNAs from humans and bovines [70,79,80]. The modification is performed by the MTase Trmt61B, shown to fully, or partly, methylate some (mt)tRNAs at A58 in vitro [70]. The functional role of m1A58 in these (mt)tRNAs remains to be established, but does not appear to affect processing, stability, or function of tRNALeu(UUR) [70]. Trmt61B forms a tetramer, presumed to resemble the homotetramers of TrmI proteins. In support of a similar structural arrangement between Trmt61B and TrmI, a phylogenetic analysis confirmed a bacterial origin of the human protein [70].

7. m1A9

The m1A9 MTases belong to the Trm10 subfamily of the SPOUT superfamily. In addition to the m1A9 modification, the Trm10 subfamily of MTases methylates guanosine in some organisms [11]. Currently, seven Trm10 proteins have confirmed N1-methylation activity for adenosine, guanosine, or both [37,81,82,83], of which four have been crystallised: human Trmt10A (PDB: 4FMW, Dong et al., 2012), Schizosaccharomyces pombe Trm10 (PDB: 4JWF) [83], S. cerevisiae Trm10 (PDB: 4JWJ) [83], and Sulfolobus acidocaldarius Trm10 (PDB: 5A7T) [84]. The Trm10 family of proteins contain a non-conserved N-terminal domain, a catalytic SPOUT domain with a subtype-2 SPOUT fold, and a non-conserved C-terminal extension. All crystal structures cover the SPOUT domain, but only the Trm10 MTase from S. acidocaldarius was reported as the full-length structure (Figure 6A). All crystal structures show monomeric protein domains, and this monomeric state was confirmed in studies of full-length Trm10 from yeast and archaea [83,84].

7.1. Eukaryotes

In eukaryotes, m1G9 is present in (cyt)- and (mt)tRNAs, whereas m1A9 is found only in animal (mt)tRNAs [26]. In humans, adenine occupies nucleotide position 9 in 14 out of the 22 (mt)tRNAs [26,85], all of which can be methylated on the N1 atom. m1A9 methylation on (mt)tRNAs is performed by Trmt10C, also known as mitochondrial ribonuclease P protein subunit 1 (MRPP1) [37]; a paralogue to the cytosolic m1G9 MTases Trmt10A and Trmt10B [37]. In contrast to its cytosolic paralogues, Trmt10C functions as a methyltransferase only when in complex with the unrelated mitochondrial metabolic enzyme 17β-hydroxysteroid dehydrogenase type 10 (HSD10) [39], belonging to the short-chain dehydrogenase/reductase (SDR) family of proteins [86,87,88]. In this complex, HSD10 is also known as mitochondrial ribonuclease P protein subunit 2 (MRPP2). The complex of Trmt10C–HSD10 (or MRPP1–MRPP2) catalyses the m1A9 formation (and m1G9) on tRNAs utilising SAM [89]. In vitro studies on the MTase activity of the Trmt10C–HSD10 complex revealed that both precursor and mature (mt)tRNA is a substrate for N1-methylation on guanosine and adenosine [37]. The role of HSD10 in this complex is unclear at present, but is likely independent of its catalytic function. In addition to the MTase activity, Trmt10C also interacts with the mitochondrial complement C1q binding protein (C1QBP) [38], and is involved in 5′-end processing of precursor tRNA as a component of the three-way (mt)RNase P complex [37,39].
The mechanism by which Trmt10C methylates the N1-atom in A9 is unclear, but—similarly to m1G9 formation—was shown to depend on an aspartate residue (Asp314) in the active site (putative catalytic base) [37] and a glutamine residue (Gln226) outside the immediate active site pocket [83]. Further studies are needed to elucidate how one enzyme can perform two such distinctively different mechanisms.

7.2. Archaea

Nucleotide position 9 is the only position known to carry methylated adenosine and guanosine (m1A and m1G), where both reactions are sometimes even catalysed by the same enzyme. Trm10 proteins from S. acidocaldarius and Thermococcus kodakarensis have confirmed m1A9 activity [81]. Both of these proteins have an aspartate residue (Asp184 [84] and Asp206 [81], respectively), which is not present in Trm10 proteins from yeast harbouring only m1G9 activity. Mutation of this aspartate residue was shown to abolish m1A9 activity in the archaeal Trm10 proteins [84], and as this residue is not present in the m1G9-specific MTases from yeast, it was speculated to be one potential determinant for m1A activity. In human Trmt10C, this aspartate residue is replaced by leucine that, due to its uncharged nature, is likely to act differently in catalysis than a charged aspartate residue. Therefore, this amino acid position cannot be the sole determinant for m1A9 activity. Another aspartate residue is located deep in the active site pocket of human Trmt10C (Asp293), in a position corresponding to the Lys81 residue in the SPOUT protein TrmL from Escherichia coli, which was previously shown to be involved in catalysis but not tRNA binding [90]. Although the Asp293 residue could be involved in the MTase function in human Trmt10C, it seems unlikely to be the determinant for m1A9 activity, as this position is occupied by aspartate in the m1G9-specific Trm10 proteins from yeast, and is not conserved in m1A9 active Trm10 proteins from S. acidocaldarius and T. kodakarensis. Aside from the residues discussed above, alignment of the available Trm10 protein structures and their primary sequences show no other obvious amino acid candidates in the active site that could account for the differences between m1G9-specific (S. cerevisiae and S. pombe), m1A9-specific (S. acidocaldarius) and m1A9/m1G9 dual-specific (human Trmt10C and Trm10 from T. kodakarensis) Trm10 MTases. It is possible that the purine specificity could simply be due to differences in surface charge around the active site and size and/or layout of the purine-binding pocket (Figure 7), which could allow different Trm10 family members to accommodate different purine substrates, rather than to specific residues for catalysis. The active site pocket is more open for the m1G9-specific Trmt10A and m1A9-specific Trm10, compared to the other Trm10 proteins. However, no obvious similarities are observed within the m1G9-specific group of proteins that are also clearly different from the m1A9-specific Trm10, and altered in the m1G9/m1A9 dual-specific protein. A detailed understanding on how the substrate specificities are generated would benefit from a future high-resolution, substrate-bound crystal structure of Trm10 family members.

7.3. tRNA Recognition by Trm10 Proteins

Most SPOUT MTases are dimeric proteins, contrasting the monomeric nature of Trm10 proteins. Despite the differences in oligomeric state, a similar binding site is found for the SAM cofactor in the catalytic SPOUT domains. During catalysis, the dimeric SPOUT proteins involve residues from two catalytic SPOUT domains in binding of the purine to be modified [56]. As the SPOUT domain of Trm10 members are monomeric, the above active site organisation and tRNA binding is impossible, and the tRNA recognition for the Trm10 subfamily is, thus, hypothesised to be different from other SPOUT superfamily members. A different binding of tRNA is supported by findings that other SPOUT members need an intact dimer for tRNA binding [90]. These dimers still accommodate only one tRNA substrate [56,91,92], explained by conformational changes in the protein homodimer–tRNA complex that render the protein asymmetrical after tRNA binding [56]. No crystal structures are yet available for a Trm10 protein in complex with tRNA, but mutational studies on Trm10 proteins from yeast and archaea revealed that the non-conserved N-terminal domains directly interact with the tRNA substrate [83,84]. The assistance in tRNA binding by domains, additional to the enzymatic domain, has been shown for many SPOUT family members and other tRNA modifying enzymes [56,84,93,94,95]. A docking model for tRNA onto Trm10 from S. acidocaldarius showed that the N-terminal domain could interact with the acceptor stem of tRNA and that the C-terminal extension could be involved in remoulding the tRNA (Figure 6B), such that the otherwise buried adenosine-9 becomes surface-exposed for methylation [84]. Further studies are needed to fully elucidate the binding of tRNA to these monomeric SPOUT proteins.

8. Conclusions

The m1A modification occurs at five nucleotide positions in the tRNA (9, 14, 22, 57, and 58) and plays a number of biological roles, e.g., enhancing structural stability and inducing correct folding of the tRNA. The most well-studied m1A modifications are those occurring at nucleotide positions 9 and 58. The MTase responsible for the formation of m1A58 in eukaryotes is a heterotetrameric complex of two heterodimeric subunits (Trm6–Trm61) in cytosol, and a homodimer of one subunit (Trmt61B) in mitochondria. In archaea and bacteria, the m1A58 MTase is, likewise, a homotetramer of one subunit (TrmI). All so far characterised m1A9 MTases are monomers in solution as well as in their crystal structures. The monomeric arrangement of this subfamily of subtype-2 SPOUT proteins is unusual, as ‘regular’ subtype-2 SPOUT proteins are usually found as dimers. The monomeric nature of the Trm10 family can be explained by the presence of an additional helix (αF), sterically hindering otherwise subtype-2 SPOUT-like dimerization via helix-αE.
Binding of tRNA to the m1A9 and m1A58 MTase has been extensively studied, but so far a crystal structure exists only for the human Trm6–Trm61 complex bound to tRNALys3, in which both the catalytic and non-catalytic domain contribute to tRNA binding. Biochemical studies on the enzyme families of TrmI and Trm10 show that also these proteins utilise the non-catalytic domains for tRNA binding. In the crystal structure of human Trm6–Trm61, and the docking model of Trm10 from archaea, the non-catalytic domains interact with the conserved acceptor stem of tRNA. It is tempting to speculate that the role of these non-catalytic domains is to recognise a more universally conserved part of the tRNAs, if the immediate environment around the modified nucleobase shows low structural conservation.
The mechanism for formation for m1A has not yet been determined, but relies on a number of residues, e.g., aspartate and glutamine, in all families. Some Trm10 MTases catalyse solely m1A or m1G formation, whereas some are able to catalyse both. No studies have yet been able to explain the purine specificity with simple residue mutation studies and it might, thus, be due to differences in surface charge around the active site and size, and/or layout of the purine-binding pocket.
We believe that crystal structures of m1A MTases in complex with their tRNA substrates, and accompanying thorough studies on the m1A mechanism, would greatly benefit the field going forward. Furthermore, often a limited number of the same tRNAs are utilised across the field and we believe that the knowledge on tRNA modifications would benefit from a systematic mapping of modifications in identical nucleotide positions across all tRNAs both in vivo and in vitro.

Acknowledgments

Financial support from ANR (ANR-14-CE09-0012-01), CNRS and USPC is acknowledged.

Author Contributions

All authors contributed to the writing of the article and the preparation of the figures.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Phizicky, E.M.; Hopper, A.K. tRNA biology charges to the front. Genes Dev. 2010, 24, 1832–1860. [Google Scholar] [CrossRef] [PubMed]
  2. Hopper, A.K.; Phizicky, E.M. tRNA transfers to the limelight. Genes Dev. 2003, 17, 162–180. [Google Scholar] [CrossRef] [PubMed]
  3. Motorin, Y.; Helm, M. tRNA stabilization by modified nucleotides. Biochemistry 2010, 49, 4934–4944. [Google Scholar] [CrossRef]
  4. Li, H. Complexes of tRNA and maturation enzymes: Shaping up for translation. Curr. Opin. Struct. Biol. 2007, 17, 293–301. [Google Scholar] [CrossRef]
  5. Hopper, A.K. Transfer RNA post-transcriptional processing, turnover, and subcellular dynamics in the yeast Saccharomyces cerevisiae. Genetics 2013, 194, 43–67. [Google Scholar] [CrossRef] [PubMed]
  6. Machnicka, M.A.; Olchowik, A.; Grosjean, H.; Bujnicki, J.M. Distribution and frequencies of post- transcriptional modifications in tRNAs. RNA Biol. 2014, 11, 1619–1629. [Google Scholar] [CrossRef] [PubMed]
  7. tRNAmodviz. Available online: http://genesilico.pl/trnamodviz (accessed on 9 February 2017).
  8. Helm, M.; Brulé, H.; Degoul, F.; Cepanec, C.; Leroux, J.P.; Giegé, R.; Florentz, C. The presence of modified nucleotides is required for cloverleaf folding of a human mitochondrial tRNA. Nucleic Acids Res. 1998, 26, 1636–1643. [Google Scholar] [CrossRef] [PubMed]
  9. Voigts-Hoffmann, F.; Hengesbach, M.; Kobitski, A.Y.; Van Aerschot, A.; Herdewijn, P.; Ulrich Nienhaus, G.; Helm, M. A methyl group controls conformational equilibrium in human mitochondrial tRNALys. J. Am. Chem. Soc. 2007, 129, 13382–13383. [Google Scholar] [CrossRef] [PubMed]
  10. Watanabe, K.; Shinma, M.; Oshima, T.; Nishimura, S. Heat-induced stability of tRNA from an extreme thermophile, Thermus thermophilus. Biochem. Biophys. Res. Commun. 1976, 72, 1137–1144. [Google Scholar] [CrossRef]
  11. Motorin, Y.; Helm, M. RNA nucleotide methylation. Wiley Interdiscip. Rev. RNA 2011, 2, 611–631. [Google Scholar] [CrossRef] [PubMed]
  12. Hori, H. Methylated nucleosides in tRNA and tRNA methyltransferases. Front. Genet. 2014, 5, 1–26. [Google Scholar] [CrossRef] [PubMed]
  13. Czerwoniec, A.; Kasprzak, J.M.; Kaminska, K.H.; Rother, K.; Purta, E.; Bujnicki, J.M. Folds and Functions of Domains in RNA Modification Enzymes. In DNA and RNA Modification Enzymes: Structure, Mechanism, Function and Evolution; Grosjean, H., Ed.; Landes Bioscience: Austin, TX, USA, 2009; pp. 289–302. [Google Scholar]
  14. Schubert, H.L.; Blumenthal, R.M.; Cheng, X. Many paths to methyltransfer: A chronicle of convergence. Trends Biochem. Sci. 2003, 28, 329–335. [Google Scholar] [CrossRef]
  15. Anantharaman, V.; Koonin, E.V.; Aravind, L. SPOUT: A Class of Methyltransferases that Includes spoU and trmD RNA Methylase Superfamilies, and Novel Superfamilies of Predicted Prokaryotic RNA Methylases. J. Mol. Microbiol. Biotechnol. 2002, 4, 71–75. [Google Scholar] [PubMed]
  16. Tkaczuk, K.; Dunin-Horkawicz, S.; Purta, E.; Bujnicki, J.M. Structural and evolutionary bioinformatics of the SPOUT superfamily of methyltransferases. BMC Bioinform. 2007, 8, 73. [Google Scholar] [CrossRef] [PubMed]
  17. Roovers, M.; Kaminska, K.H.; Tkaczuk, K.L.; Gigot, D.; Droogmans, L.; Bujnicki, J.M. The YqfN protein of Bacillus subtilis is the tRNA: m1A22 methyltransferase (TrmK). Nucleic Acids Res. 2008, 36, 3252–3262. [Google Scholar] [CrossRef] [PubMed]
  18. Sprinzl, M.; Horn, C.; Brown, M.; Ioudovitch, A.; Steinberg, S. Compilation of tRNA sequences and sequences of tRNA genes. Nucleic Acids Res. 1998, 26, 148–153. [Google Scholar]
  19. Menichi, B.; Arnold, H.H.; Heyman, T.; Dirheimer, G.; Keith, G. Primary Structure of Bacillus subtilis tRNAsTyr. Biochem. Biophys. Res. Commun. 1980, 95, 461–467. [Google Scholar] [CrossRef]
  20. Matsugi, J.; Jia, H.T.; Murao, K.; Ishikura, H. Nucleotide sequences of serine tRNAs from Bacillus subtilis. Biochem. Biophys. Acta. 1992, 1130, 333–335. [Google Scholar] [CrossRef]
  21. Andachi, Y.; Yamao, F.; Muto, A.; Osawa, S. Codon recognition patterns as deduced from sequences of the complete set of transfer RNA species in Mycoplasma capricolum. Resemblance to mitochondria. J. Mol. Biol. 1989, 209, 37–54. [Google Scholar] [CrossRef]
  22. Raettig, R.; Kersten, H.; Weissenbach, J.; Dirheimer, G. Methylation of an adenosine in the D-loop of specific transfer RNAs from yeast by a procaryotic tRNA (adenine-1) methyltransferase. Nucleic Acids Res. 1977, 4, 1769–1782. [Google Scholar] [CrossRef] [PubMed]
  23. Grosjean, H.; Constantinesco, F.; Foiret, D.; Benachenhou, N. A novel enzymatic pathway leading to 1-methylinosine modification in Haloferax volcanii tRNA. Nucleic Acids Res. 1995, 23, 4312–4319. [Google Scholar] [CrossRef]
  24. Grosjean, H.; Auxilien, S.; Constantinesco, F.; Simon, C.; Corda, Y.; Becker, H.F.; Foiret, D.; Morin, A.; Jin, Y.X.; Fournier, M.; et al. Enzymatic conversion of adenosine to inosine and to N1-methylinosine in transfer RNAs: A review. Biochimie 1996, 78, 488–501. [Google Scholar] [CrossRef]
  25. Helm, M.; Attardi, G. Nuclear Control of Cloverleaf Structure of Human Mitochondrial tRNALys. J. Mol. Biol. 2004, 337, 545–560. [Google Scholar] [CrossRef]
  26. Jühling, F.; Mörl, M.; Hartmann, R.K.; Sprinzl, M.; Stadler, P.F.; Pütz, J. tRNAdb 2009: Compilation of tRNA sequences and tRNA genes. Nucleic Acids Res. 2009, 37, D159–D162. [Google Scholar] [CrossRef] [PubMed]
  27. Kobitski, A.Y.; Hengesbach, M.; Helm, M.; Nienhaus, G.U. Sculpting an RNA conformational energy landscape by a methyl group modification—a single-molecule FRET study. Angew. Chem. Int. Ed. 2008, 47, 4326–4330. [Google Scholar] [CrossRef] [PubMed]
  28. Helm, M.; Giegé, R.; Florentz, C. A Watson−Crick Base-Pair-Disrupting Methyl Group (m1A9) Is Sufficient for Cloverleaf Folding of Human Mitochondrial tRNALys. Biochemistry 1999, 38, 13338–13346. [Google Scholar] [CrossRef] [PubMed]
  29. Wittenhagen, L.M.; Kelley, S.O. Impact of disease-related mitochondrial mutations on tRNA structure and function. Trends Biochem. Sci. 2003, 28, 605–611. [Google Scholar] [CrossRef] [PubMed]
  30. Sohm, B.; Frugier, M.; Brulé, H.; Olszak, K.; Przykorska, A.; Florentz, C. Towards understanding human mitochondrial leucine aminoacylation identity. J. Mol. Biol. 2003, 328, 995–1010. [Google Scholar] [PubMed]
  31. Sohm, B.; Sissler, M.; Park, H.; King, M.P.; Florentz, C. Recognition of human mitochondrial tRNALeu(UUR) by its cognate leucyl-tRNA synthetase. J. Mol. Biol. 2004, 339, 17–29. [Google Scholar] [CrossRef] [PubMed]
  32. Sen, A.; Karasik, A.; Shanmuganathan, A.; Mirkovic, E.; Koutmos, M.; Cox, R.T. Loss of the mitochondrial protein-only ribonuclease P complex causes aberrant tRNA processing and lethality in Drosophila. Nucleic Acids Res. 2016, 2, gkw338. [Google Scholar] [CrossRef] [PubMed]
  33. Sanchez, M.I.; Mercer, T.R.; Davies, S.M.; Shearwood, A.M.; Nygård, K.K.; Richman, T.R.; Mattick, J.S.; Rackham, O.; Filipovska, A. RNA processing in human mitochondria. Cell Cycle 2011, 10, 2904–2916. [Google Scholar] [CrossRef] [PubMed]
  34. Gillis, D.; Krishnamohan, A.; Yaacov, B.; Shaag, A.; Jackman, J.E.; Elpeleg, O. TRMT10A dysfunction is associated with abnormalities in glucose homeostasis, short stature and microcephaly. J. Med. Genet. 2014, 51, 581–586. [Google Scholar] [CrossRef] [PubMed]
  35. Igoillo-Esteve, M.; Genin, A.; Lambert, N.; Désir, J.; Pirson, I.; Abdulkarim, B.; Simonis, N.; Drielsma, A.; Marselli, L.; Marchetti, P.; et al. tRNA methyltransferase homolog gene TRMT10A mutation in young onset diabetes and primary microcephaly in humans. PLoS Genet. 2013, 9, e1003888. [Google Scholar] [CrossRef] [PubMed]
  36. Metodiev, M.D.; Thompson, K.; Alston, C.L.; Morris, A.A.M.; He, L.; Assouline, Z.; Rio, M.; Bahi-Buisson, N.; Pyle, A.; Griffin, H.; et al. Recessive Mutations in TRMT10C Cause Defects in Mitochondrial RNA Processing and Multiple Respiratory Chain Deficiencies. Am. J. Hum. Genet. 2016, 98, 993–1000. [Google Scholar] [CrossRef] [PubMed]
  37. Vilardo, E.; Nachbagauer, C.; Buzet, A.; Taschner, A.; Holzmann, J.; Rossmanith, W. A subcomplex of human mitochondrial RNase P is a bifunctional methyltransferase—extensive moonlighting in mitochondrial tRNA biogenesis. Nucleic Acids Res. 2012, 40, 11583–11593. [Google Scholar] [CrossRef] [PubMed]
  38. Wu, H.; Sun, H.; Liang, X.; Lima, W.F.; Crooke, S.T. Human RNase H1 Is Associated with Protein P32 and Is Involved in Mitochondrial Pre-rRNA Processing. PLoS ONE 2013, 8, e71006. [Google Scholar] [CrossRef] [PubMed]
  39. Holzmann, J.; Frank, P.; Löffler, E.; Bennett, K.L.; Gerner, C.; Rossmanith, W. RNase P without RNA: Identification and functional reconstitution of the human mitochondrial tRNA processing enzyme. Cell 2008, 135, 462–474. [Google Scholar] [CrossRef] [PubMed]
  40. Horie, N.; Hara-Yokoyama, M.; Yokoyama, S.; Watanabe, K.; Kuchino, Y.; Nishimura, S.; Miyazawa, T. Two tRNAIle1 species from an extreme thermophile, Thermus thermophilus HB8: effect of 2-thiolation of ribothymidine on the thermostability of tRNA. Biochemistry 1985, 24, 5711–5715. [Google Scholar] [CrossRef] [PubMed]
  41. Shigi, N.; Sakaguchi, Y.; Suzuki, T.; Watanabe, K. Identification of two tRNA thiolation genes required for cell growth at extremely high temperatures. J. Biol. Chem. 2006, 281, 14296–14306. [Google Scholar] [CrossRef] [PubMed]
  42. Tomikawa, C.; Yokogawa, T.; Kanai, T.; Hori, H. N7-Methylguanine at position 46 (m7G46) in tRNA from Thermus thermophilus is required for cell viability at high temperatures through a tRNA modification network. Nucleic Acids Res. 2009, 38, 942–957. [Google Scholar] [CrossRef] [PubMed]
  43. Droogmans, L.; Roovers, M.; Bujnicki, J.M.; Tricot, C.; Hartsch, T.; Stalon, V.; Grosjean, H. Cloning and characterization of tRNA (m1A58) methyltransferase (TrmI) from Thermus thermophilus HB27, a protein required for cell growth at extreme temperatures. Nucleic Acids Res. 2003, 31, 2148–2156. [Google Scholar] [CrossRef] [PubMed]
  44. Auxilien, S.; Keith, G.; Le Grice, S.F.J.; Darlix, J.L. Role of Post-transcriptional Modifications of Primer tRNALys,3 in the Fidelity and Efficacy of Plus Strand DNA Transfer during HIV-1 Reverse Transcription. J. Biol. Chem. 1999, 274, 4412–4420. [Google Scholar] [CrossRef] [PubMed]
  45. Anderson, J.; Phan, L.; Cuesta, R.; Carlson, B.A.; Pak, M.; Asano, K.; Bjo, G.R.; Tamame, M.; Hinnebusch, A.G. The essential Gcd10p–Gcd14p nuclear complex is required for 1-methyladenosine modification and maturation of initiator methionyl-tRNA. Genes Dev. 1998, 3, 3650–3662. [Google Scholar] [CrossRef]
  46. Basavappa, R.; Sigler, P.B. The 3 Å crystal structure of yeast initiator tRNA: Functional implications in initiator/elongator discrimination. EMBO J. 1991, 10, 3105–3111. [Google Scholar] [PubMed]
  47. Anderson, J.; Phan, L.; Hinnebusch, A.G. The Gcd10p/Gcd14p complex is the essential two-subunit tRNA(1-methyladenosine) methyltransferase of Saccharomyces cerevisiae. Proc. Natl. Acad. Sci. USA 2000, 97, 5173–5178. [Google Scholar] [CrossRef] [PubMed]
  48. Saikia, M.; Fu, Y.E.; Pavon-Eternod, M.; He, C.; Pan, T. Genome-wide analysis of N1-methyl-adenosine modification in human tRNAs. RNA 2010, 16, 1317–1327. [Google Scholar] [CrossRef] [PubMed]
  49. Liu, F.; Clark, W.; Luo, G.; Wang, X.; Fu, Y.; Wei, J.; Wang, X.; Hao, Z.; Dai, Q.; Zheng, G.; et al. ALKBH1-Mediated tRNA Demethylation Regulates Translation. Cell 2016, 167, 816–828. [Google Scholar] [CrossRef] [PubMed]
  50. Thanassi, J.A.; Hartman-Neumann, S.L.; Dougherty, T.J.; Dougherty, B.A.; Pucci, M.J. Identification of 113 conserved essential genes using a high-throughput gene disruption system in Streptococcus pneumoniae. Nucleic Acids Res. 2002, 30, 3152–3162. [Google Scholar] [CrossRef] [PubMed]
  51. Hoernes, T.P.; Hüttenhofer, A.; Erlacher, M.D. mRNA modifications: Dynamic regulators of gene expression? RNA Biol. 2016, 13, 760–765. [Google Scholar] [CrossRef] [PubMed]
  52. Dominissini, D.; Nachtergaele, S.; Moshitch-Moshkovitz, S.; Peer, E.; Kol, N.; Ben-Haim, M.S.; Dai, Q.; Di Segni, A.; Salmon-Divon, M.; Clark, W.C.; et al. The dynamic N1-methyladenosine methylome in eukaryotic messenger RNA. Nature 2016, 530, 441–446. [Google Scholar] [CrossRef] [PubMed]
  53. Li, X.; Xiong, X.; Wang, K.; Wang, L.; Shu, X.; Ma, S.; Yi, C. Transcriptome-wide mapping reveals reversible and dynamic N1-methyladenosine methylome. Nat. Chem. Biol. 2016, 12, 311–316. [Google Scholar] [CrossRef] [PubMed]
  54. Duncan, T.; Trewick, S.C.; Koivisto, P.; Bates, P.A.; Lindahl, T.; Sedgwick, B. Reversal of DNA alkylation damage by two human dioxygenases. Proc. Natl. Acad. Sci. USA 2002, 99, 16660–16665. [Google Scholar] [CrossRef] [PubMed]
  55. Aas, P.A.; Otterlei, M.; Falnes, P.O.; Vågbø, C.B.; Skorpen, F.; Akbari, M.; Sundheim, O.; Bjørås, M.; Slupphaug, G.; Seeberg, E.; et al. Human and bacterial oxidative demethylases repair alkylation damage in both RNA and DNA. Nature 2003, 421, 859–863. [Google Scholar] [CrossRef] [PubMed]
  56. Ito, T.; Masuda, I.; Yoshida, K.; Goto-Ito, S.; Sekine, S.; Suh, S.W.; Hou, Y.M.; Yokoyama, S. Structural basis for methyl-donor-dependent and sequence-specific binding to tRNA substrates by knotted methyltransferase TrmD. Proc. Natl. Acad. Sci. USA 2015, 112, E4197–E4205. [Google Scholar] [CrossRef] [PubMed]
  57. Aravind, L.; Koonin, E.V. THUMP—a predicted RNA-binding domain shared by 4-thiouridine, pseudouridine synthases and RNA methylases. Trends Biochem. Sci. 2001, 26, 215–217. [Google Scholar] [CrossRef]
  58. Aravind, L.; Koonin, E.V. Novel predicted RNA-binding domains associated with the translation machinery. J. Mol. Evol. 1999, 48, 291–302. [Google Scholar] [CrossRef] [PubMed]
  59. Salas, C.E.; Dirheimer, G. In vitro methylation of yeast tRNAAsp by rat brain cortical tRNA-(adenine-1) methyltransferase. Nucleic Acids Res. 1979, 6, 1123–1133. [Google Scholar] [CrossRef]
  60. Ahn, H.J.; Kim, H.W.; Yoon, H.J.; Lee, B.I.; Suh, S.W.; Yang, J.K. Crystal structure of tRNA(m1G37)methyltransferase: Insights into tRNA recognition. EMBO J. 2003, 22, 2593–2603. [Google Scholar] [CrossRef] [PubMed]
  61. Christian, T.; Lahoud, G.; Liu, C.; Hoffmann, K.; Perona, J.J.; Hou, Y.M. Mechanism of N-methylation by the tRNA m1G37 methyltransferase Trm5. RNA 2010, 16, 2484–2492. [Google Scholar] [CrossRef] [PubMed]
  62. Goto-Ito, S.; Ito, T.; Kuratani, M.; Bessho, Y.; Yokoyama, S. Tertiary structure checkpoint at anticodon loop modification in tRNA functional maturation. Nat. Struct. Mol. Biol. 2009, 16, 1109–1115. [Google Scholar] [CrossRef] [PubMed]
  63. Elkins, P.A.; Watts, J.M.; Zalacain, M.; van Thiel, A.; Vitazka, P.R.; Redlak, M.; Andraos-Selim, C.; Rastinejad, F.; Holmes, W.M. Insights into Catalysis by a Knotted TrmD tRNA Methyltransferase. J. Mol. Biol. 2003, 333, 931–949. [Google Scholar] [CrossRef] [PubMed]
  64. Sakaguchi, R.; Lahoud, G.; Christian, T.; Gamper, H.; Hou, Y.M. A Divalent Metal Ion-Dependent N1-Methyl Transfer to G37-tRNA. Chem. Biol. 2014, 21, 1351–1360. [Google Scholar] [CrossRef] [PubMed]
  65. Barraud, P.; Golinelli-Pimpaneau, B.; Atmanene, C.; Sanglier, S.; Van Dorsselaer, A.; Droogmans, L.; Dardel, F.; Tisné, C. Crystal Structure of Thermus thermophilus tRNA m1A58 Methyltransferase and Biophysical Characterization of Its Interaction with tRNA. J. Mol. Biol. 2008, 377, 535–550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Dégut, C.; Ponchon, L.; Folly-Klan, M.; Barraud, P.; Tisné, C. The m1A58 modification in eubacterial tRNA: An overview of tRNA recognition and mechanism of catalysis by TrmI. Biophys. Chem. 2016, 210, 27–34. [Google Scholar] [CrossRef] [PubMed]
  67. Finer-Moore, J.; Czudnochowski, N.; O’Connell, J.D.; Wang, A.L.; Stroud, R.M. Crystal Structure of the Human tRNA m1A58 Methyltransferase–tRNA3Lys Complex: Refolding of Substrate tRNA Allows Access to the Methylation Target. J. Mol. Biol. 2015, 427, 3862–3876. [Google Scholar] [CrossRef] [PubMed]
  68. Bujnicki, J.M.; Rychlewski, L. Grouping together highly diverged PD-(D/E)XK nucleases and identification of novel superfamily members using structure-guided alignment of sequence profiles. J. Mol. Microbiol. Biotechnol. 2001, 3, 69–72. [Google Scholar] [PubMed]
  69. Bujnicki, J.M. In silico analysis of the tRNA:m1A58 methyltransferase family: Homology-based fold prediction and identification of new members from Eubacteria and Archaea. FEBS Lett. 2001, 507, 123–127. [Google Scholar] [CrossRef]
  70. Chujo, T.; Suzuki, T. Trmt61B is a methyltransferase responsible for 1-methyladenosine at position 58 of human mitochondrial tRNAs. RNA 2012, 18, 2269–2276. [Google Scholar] [CrossRef] [PubMed]
  71. Roovers, M.; Wouters, J.; Bujnicki, J.M.; Tricot, C.; Stalon, V.; Grosjean, H.; Droogmans, L. A primordial RNA modification enzyme: The case of tRNA (m1A) methyltransferase. Nucleic Acids Res. 2004, 32, 465–476. [Google Scholar] [CrossRef] [PubMed]
  72. Wang, M.; Zhu, Y.; Wang, C.; Fan, X.; Jiang, X.; Ebrahimi, M.; Qiao, Z.; Niu, L.; Teng, M.; Li, X. Crystal structure of the two-subunit tRNA m1A58 methyltransferase TRM6–TRM61 from Saccharomyces cerevisiae. Sci. Rep. 2016, 6, 32562. [Google Scholar] [CrossRef] [PubMed]
  73. Guelorget, A.; Roovers, M.; Guérineau, V.; Barbey, C.; Li, X.; Golinelli-Pimpaneau, B. Insights into the hyperthermostability and unusual region-specificity of archaeal Pyrococcus abyssi tRNA m1A57/58 methyltransferase. Nucleic Acids Res. 2010, 38, 6206–6218. [Google Scholar] [CrossRef] [PubMed]
  74. Kuratani, M.; Yanagisawa, T.; Ishii, R.; Matsuno, M.; Si, S.Y.; Katsura, K.; Ushikoshi-Nakayama, R.; Shibata, R.; Shirouzu, M.; Bessho, Y.; et al. Crystal structure of tRNA m1A58 methyltransferase TrmI from Aquifex aeolicus in complex with S-adenosyl-l-methionine. J. Struct. Funct. Genomics. 2014, 15, 173–180. [Google Scholar] [CrossRef] [PubMed]
  75. Gupta, A.; Kumar, P.H.; Dineshkumar, T.K.; Varshney, U.; Subramanya, H.S. Crystal structure of Rv2118c: an AdoMet-dependent methyltransferase from Mycobacterium tuberculosis H37Rv. J. Mol. Biol. 2001, 312, 381–391. [Google Scholar] [CrossRef] [PubMed]
  76. Ozanick, S.; Krecic, A.; Andersland, J.; Anderson, J.T. The bipartite structure of the tRNA m1A58 methyltransferase from S. cerevisiae is conserved in humans. RNA 2005, 11, 1281–1290. [Google Scholar] [CrossRef] [PubMed]
  77. Kadaba, S.; Krueger, A.; Trice, T.; Krecic, A.M.; Hinnebusch, A.G.; Anderson, J. Nuclear surveillance and degradation of hypomodified initiator tRNAMet in S. cerevisiae. Genes Dev. 2004, 18, 1227–1240. [Google Scholar] [CrossRef] [PubMed]
  78. Guelorget, A.; Barraud, P.; Tisné, C.; Golinelli-Pimpaneau, B. Structural comparison of tRNA m1A58 methyltransferases revealed different molecular strategies to maintain their oligomeric architecture under extreme conditions. BMC Struct. Biol. 2011, 11, 48. [Google Scholar] [CrossRef] [PubMed]
  79. Yasukawa, T.; Suzuki, T.; Suzuki, T.; Ueda, T.; Ohta, S.; Watanabe, K. Modification defect at anticodon wobble nucleotide of mitochondrial tRNAsLeu(UUR) with pathogenic mutations of mitochondrial myopathy, encephalopathy, lactic acidosis, and stroke-like episodes. J. Biol. Chem. 2000, 275, 4251–4257. [Google Scholar] [CrossRef] [PubMed]
  80. Yokogawa, T.; Watanabe, Y.; Kumazawa, Y.; Ueda, T.; Hirao, I.; Miura, K.I.; Watanabe, K. A novel cloverleaf strcuture found in mammalian mitochondrial tRNASer(UCN). Nucleic Acids Res. 1991, 19, 6101–6105. [Google Scholar] [CrossRef] [PubMed]
  81. Kempenaers, M.; Roovers, M.; Oudjama, Y.; Tkaczuk, K.L.; Bujnicki, J.M.; Droogmans, L. New archaeal methyltransferases forming 1-methyladenosine or 1-methyladenosine and 1-methylguanosine at position 9 of tRNA. Nucleic Acids Res. 2010, 38, 6533–6543. [Google Scholar] [CrossRef] [PubMed]
  82. Jackman, J.E. Identification of the yeast gene encoding the tRNA m1G methyltransferase responsible for modification at position 9. RNA 2003, 9, 574–585. [Google Scholar] [CrossRef] [PubMed]
  83. Shao, Z.; Yan, W.; Peng, J.; Zuo, X.; Zou, Y.; Li, F.; Gong, D.; Ma, R.; Wu, J.; Shi, Y.; et al. Crystal structure of tRNA m1G9 methyltransferase Trm10: Insight into the catalytic mechanism and recognition of tRNA substrate. Nucleic Acids Res. 2014, 42, 509–525. [Google Scholar] [CrossRef] [PubMed]
  84. Van Laer, B.; Roovers, M.; Wauters, L.; Kasprzak, J.M.; Dyzma, M.; Deyaert, E.; Kumar Singh, R.; Feller, A.; Bujnicki, J.M.; Droogmans, L.; et al. Structural and functional insights into tRNA binding and adenosine N1-methylation by an archaeal Trm10 homologue. Nucleic Acids Res. 2015, 44, 940–953. [Google Scholar] [CrossRef] [PubMed]
  85. Pütz, J.; Dupuis, B.; Sissler, M.; Florentz, C. Mamit-tRNA, a database of mammalian mitochondrial tRNA primary and secondary structures. RNA 2007, 13, 1184–1190. [Google Scholar] [CrossRef] [PubMed]
  86. Jomvall, H.; Persson, B.; Krook, M.; Atrian, S.; Gonzàlez-Duarte, R.; Jeffery, J.; Ghosh, D. Short-Chain Dehydrogenases/Reductases (SDR). Biochemistry 1995, 34, 6003–6013. [Google Scholar]
  87. Kallberg, Y.; Oppermann, U.; Jörnvall, H.; Persson, B. Short-chain dehydrogenase/reductase (SDR) relationships: A large family with eight clusters common to human, animal, and plant genomes. Protein Sci. 2002, 11, 636–641. [Google Scholar] [CrossRef] [PubMed]
  88. Kavanagh, K.L.; Jörnvall, H.; Persson, B.; Oppermann, U. Medium- and short-chain dehydrogenase/reductase gene and protein families: the SDR superfamily: functional and structural diversity within a family of metabolic and regulatory enzymes. Cell. Mol. Life Sci. 2008, 65, 3895–3906. [Google Scholar] [CrossRef] [PubMed]
  89. Lopez Sanchez, M.I.; Mercer, T.R.; Davies, S.M.; Shearwood, A.M.J.; Nygård, K.K.; Richman, T.R.; Mattick, J.S.; Rackham, O.; Filipovska, A. RNA processing in human mitochondria. Cell Cycle 2011, 10, 2904–2916. [Google Scholar] [CrossRef] [PubMed]
  90. Liu, R.J.; Zhou, M.; Fang, Z.P.; Wang, M.; Zhou, X.L.; Wang, E.D. The tRNA recognition mechanism of the minimalist SPOUT methyltransferase, TrmL. Nucleic Acids Res. 2013, 41, 7828–7842. [Google Scholar] [CrossRef] [PubMed]
  91. Christian, T.; Lahoud, G.; Liu, C.; Hou, Y.M. Control of Catalytic Cycle by a Pair of Analogous tRNA Modification Enzymes. J. Mol. Biol. 2010, 400, 204–217. [Google Scholar] [CrossRef] [PubMed]
  92. Watanabe, K.; Nureki, O.; Fukai, S.; Ishii, R.; Okamoto, H.; Yokoyama, S.; Endo, Y.; Hori, H. Roles of conserved amino acid sequence motifs in the SpoU (TrmH) RNA methyltransferase family. J. Biol. Chem. 2005, 280, 10368–10377. [Google Scholar] [CrossRef] [PubMed]
  93. Schilling, O.; Späth, B.; Kostelecky, B.; Marchfelder, A.; Meyer-Klaucke, W.; Vogel, A. Exosite modules guide substrate recognition in the ZiPD/ElaC protein family. J. Biol. Chem. 2005, 280, 17857–17862. [Google Scholar] [CrossRef] [PubMed]
  94. Kostelecky, B.; Pohl, E.; Vogel, A.; Schilling, O.; Meyer-Klaucke, W. The crystal structure of the zinc phosphodiesterase from Escherichia coli provides insight into function and cooperativity of tRNase Z-family proteins. J. Bacteriol. 2006, 188, 1607–1614. [Google Scholar] [CrossRef] [PubMed]
  95. Liu, R.J.; Long, T.; Zhou, M.; Zhou, X.L.; Wang, E.D. tRNA recognition by a bacterial tRNA Xm32 modification enzyme from the SPOUT methyltransferase superfamily. Nucleic Acids Res. 2015, 43, 7489–7503. [Google Scholar] [CrossRef] [PubMed]

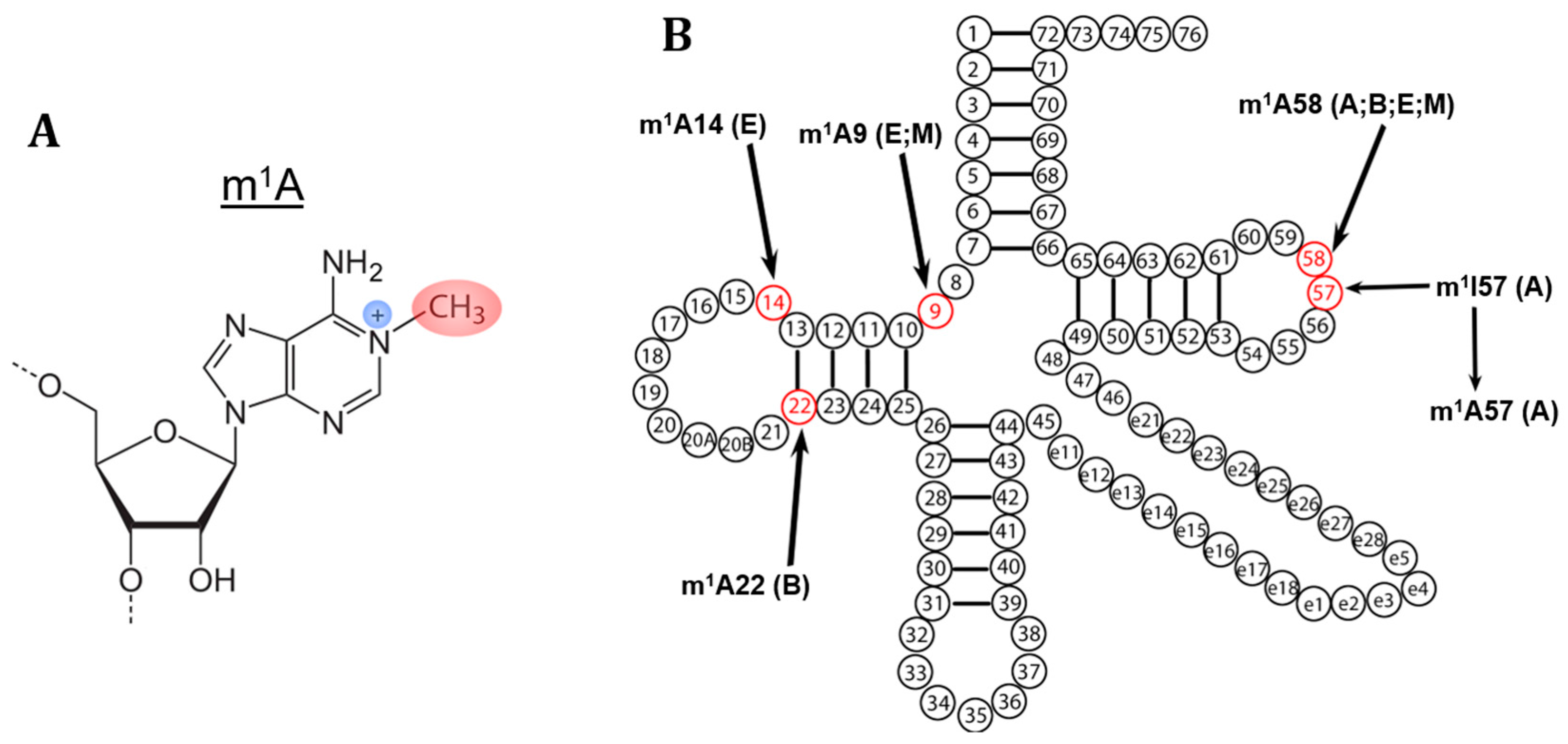

Figure 1. m1A modifications in tRNAs. (A) Chemical structure of the m1A modification on the adenosine base; (B) The m1A modification shown on a tRNA at all sites where the modification occurs (in red). The domain in which the modification has been identified is indicated as A: archaea, E: eukaryotes, and B: bacteria. Some modifications are found in mitochondria which is indicated as M.
Figure 1. m1A modifications in tRNAs. (A) Chemical structure of the m1A modification on the adenosine base; (B) The m1A modification shown on a tRNA at all sites where the modification occurs (in red). The domain in which the modification has been identified is indicated as A: archaea, E: eukaryotes, and B: bacteria. Some modifications are found in mitochondria which is indicated as M.
Biomolecules 07 00020 g001

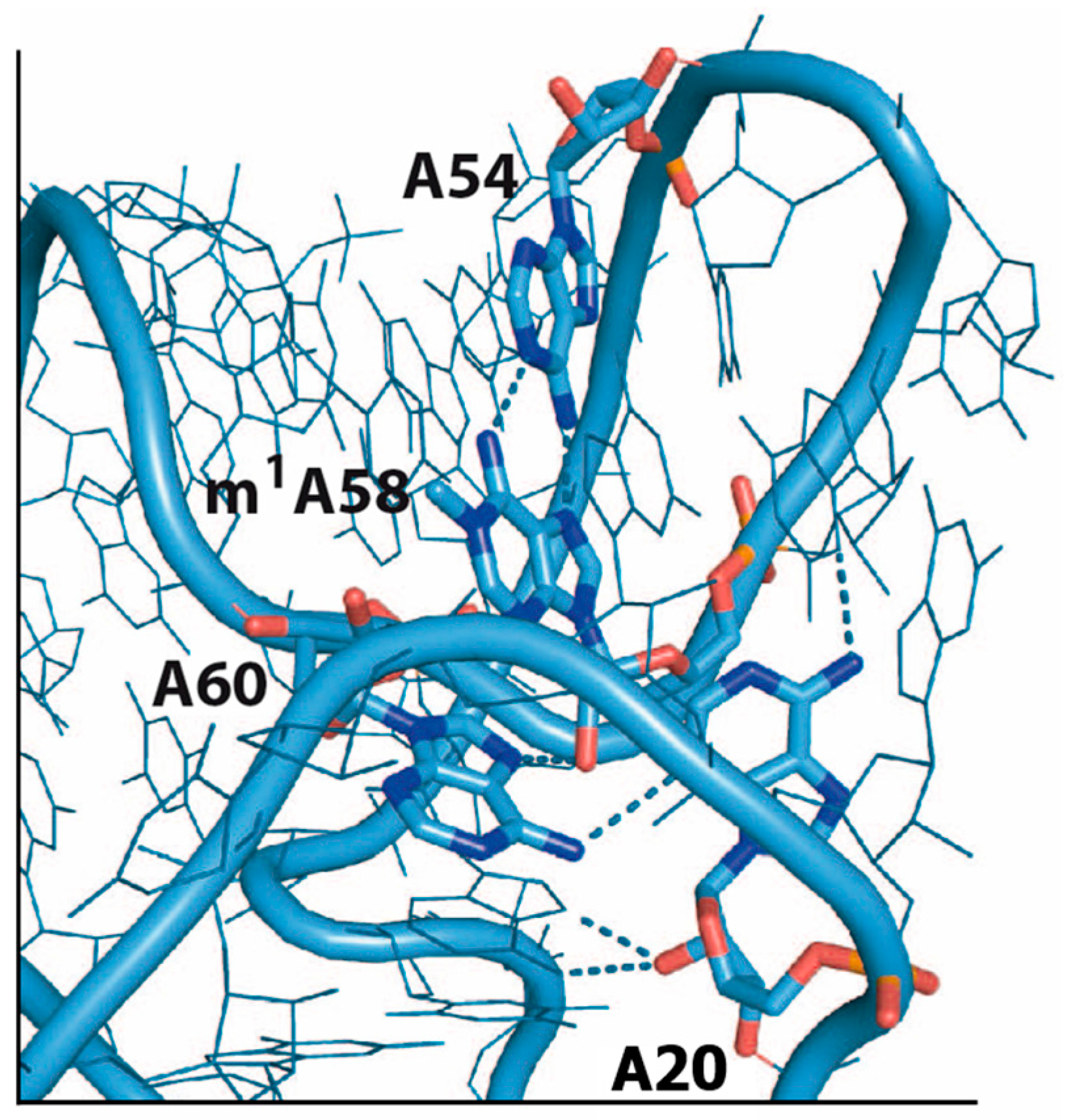

Figure 2. An overview of the ‘corner’ of the L-shaped initiator tRNA (tRNAi) from eukaryotes (PDB 1YFG). The nucleobases A20, A54, and A60 are highlighted along with the N1-modified A58 (m1A58). Hydrogen bonds are drawn as dotted lines.
Figure 2. An overview of the ‘corner’ of the L-shaped initiator tRNA (tRNAi) from eukaryotes (PDB 1YFG). The nucleobases A20, A54, and A60 are highlighted along with the N1-modified A58 (m1A58). Hydrogen bonds are drawn as dotted lines.
Biomolecules 07 00020 g002

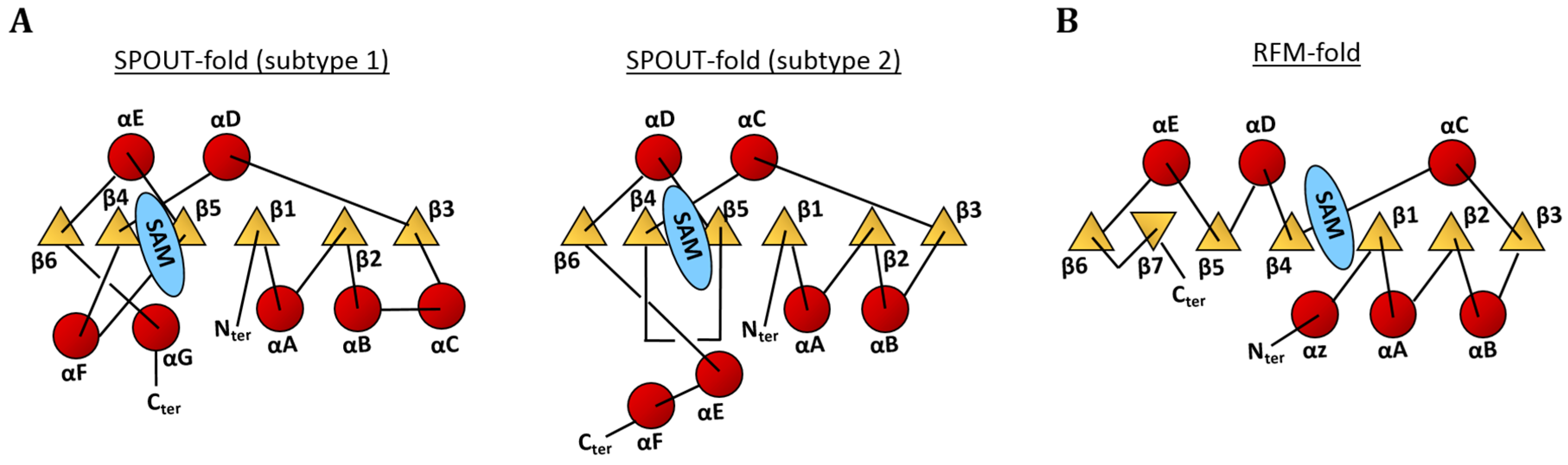

Figure 3. Topology diagrams of the classical folds for (A) the SPOUT superfamily (two subtypes), and (B) the Rossmann-fold methyltransferase (RFM) superfamily. SAM: S-adenosyl-l-methionine.
Figure 3. Topology diagrams of the classical folds for (A) the SPOUT superfamily (two subtypes), and (B) the Rossmann-fold methyltransferase (RFM) superfamily. SAM: S-adenosyl-l-methionine.
Biomolecules 07 00020 g003
Figure 4. Mechanism for N1-methylation on purine bases using the cofactor S-adenosyl-l-methionine (SAM) converting it to S-adenosyl-l-homocysteine (SAH). (A) Mechanism for m1G37 formation by TrmD (with aspartate as catalytic base) or Trm5 (with glutamate as catalytic base). Only the guanine base of tRNA is depicted for clarity. (B) Suggested mechanism for m1A based on studies on TrmI (m1A58) with aspartate as the catalytic base. (C) Alternative mechanism for m1A based on studies on TrmI (m1A58) where aspartate serves merely to position the cofactor and methylation site for reaction.
Figure 4. Mechanism for N1-methylation on purine bases using the cofactor S-adenosyl-l-methionine (SAM) converting it to S-adenosyl-l-homocysteine (SAH). (A) Mechanism for m1G37 formation by TrmD (with aspartate as catalytic base) or Trm5 (with glutamate as catalytic base). Only the guanine base of tRNA is depicted for clarity. (B) Suggested mechanism for m1A based on studies on TrmI (m1A58) with aspartate as the catalytic base. (C) Alternative mechanism for m1A based on studies on TrmI (m1A58) where aspartate serves merely to position the cofactor and methylation site for reaction.
Biomolecules 07 00020 g004

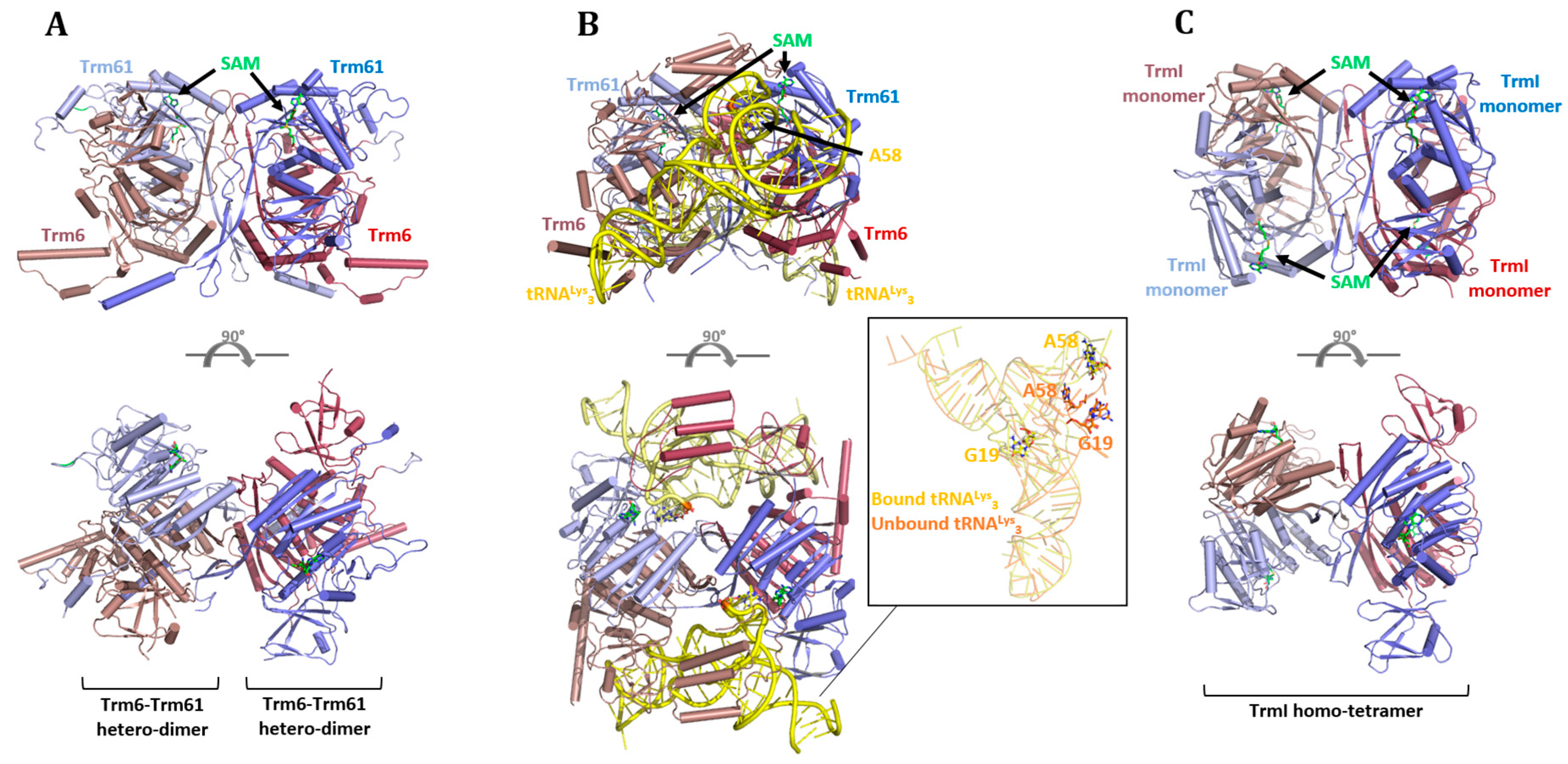

Figure 5. Structures of m1A58 tRNA MTases: (A) Trm6–Trm61 heterotetramer (PDB 5ERG); (B) Trm6–Trm61 heterotetramer bound to tRNALys3 (PDB 5CCB). The insert shows a superposition of free tRNALys3 (PDB 1FIR) and bound tRNALys3 (from PDB 5CCB). A58 and G19 are highlighted to emphasise the structural rearrangement of the tRNA upon binding; (C) TrmI homotetramer (PDB 2PWY).
Figure 5. Structures of m1A58 tRNA MTases: (A) Trm6–Trm61 heterotetramer (PDB 5ERG); (B) Trm6–Trm61 heterotetramer bound to tRNALys3 (PDB 5CCB). The insert shows a superposition of free tRNALys3 (PDB 1FIR) and bound tRNALys3 (from PDB 5CCB). A58 and G19 are highlighted to emphasise the structural rearrangement of the tRNA upon binding; (C) TrmI homotetramer (PDB 2PWY).
Biomolecules 07 00020 g005

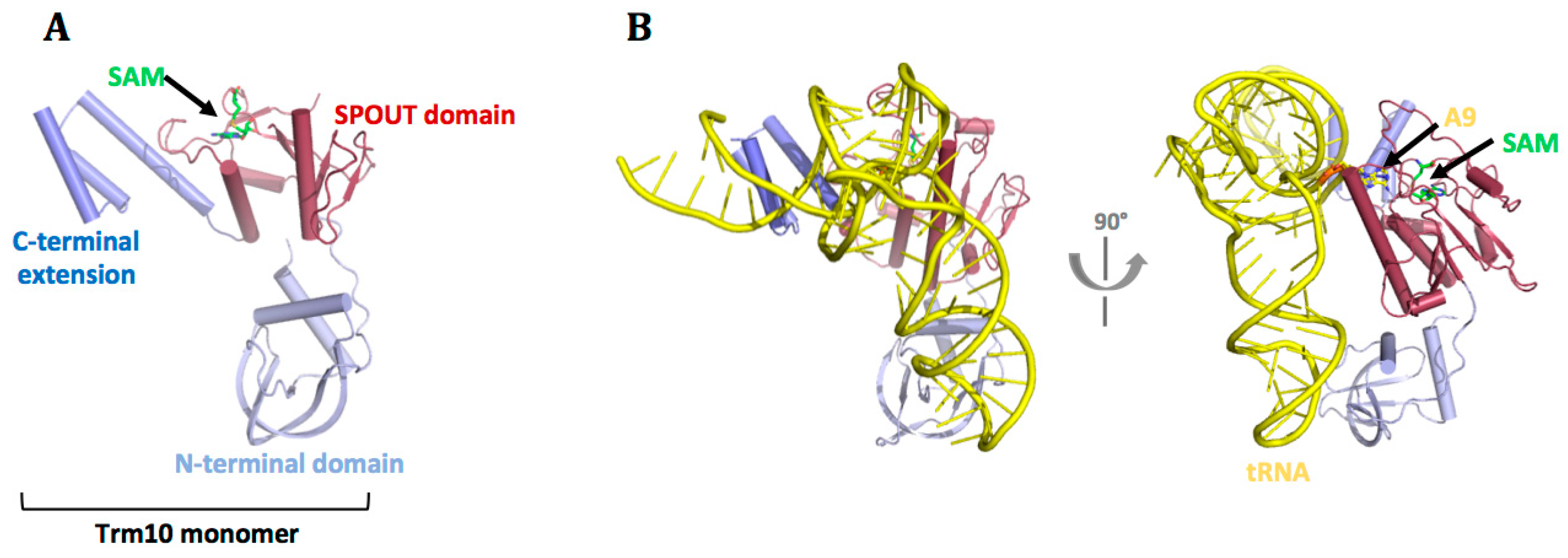

Figure 6. Structural data of Trm10. (A) Full-length Trm10 from Sulfolobus acidocaldarius (PDB 5A7Y). Residues 182–202 are not modelled. (B) Docking from [84] of Escherichia coli initiator tRNA (PDB: 3CW5) onto Trm10 from S. acidocaldarius.
Figure 6. Structural data of Trm10. (A) Full-length Trm10 from Sulfolobus acidocaldarius (PDB 5A7Y). Residues 182–202 are not modelled. (B) Docking from [84] of Escherichia coli initiator tRNA (PDB: 3CW5) onto Trm10 from S. acidocaldarius.
Biomolecules 07 00020 g006

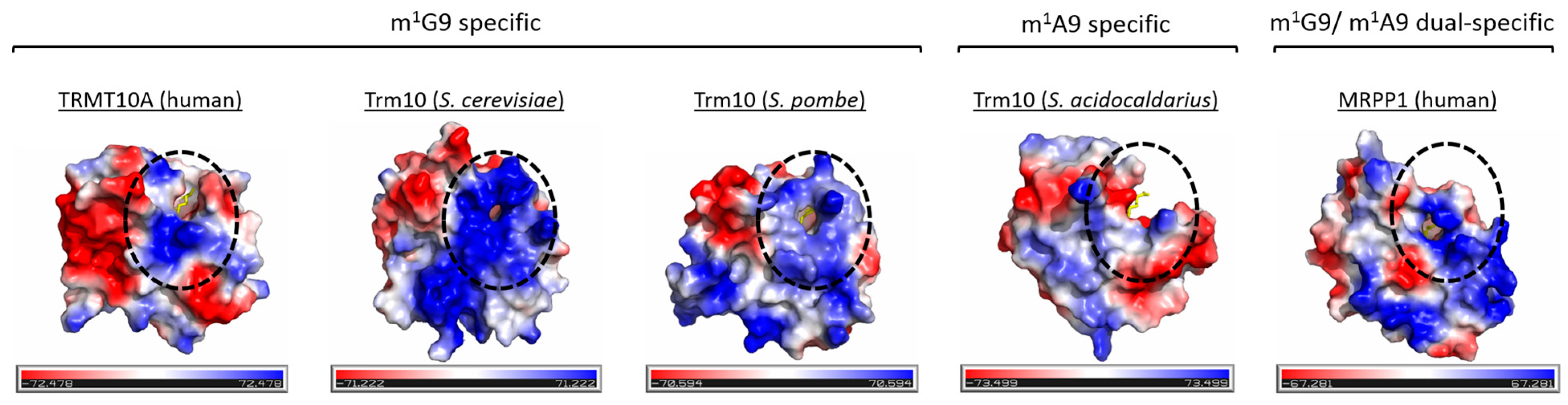

Figure 7. The electrostatic potential of the SPOUT domain for each Trm10 member for which a crystal structure is available. The SAM cofactor is shown as yellow sticks. The N1-methylation specificity is shown for each Trm10 member.
Figure 7. The electrostatic potential of the SPOUT domain for each Trm10 member for which a crystal structure is available. The SAM cofactor is shown as yellow sticks. The N1-methylation specificity is shown for each Trm10 member.
Biomolecules 07 00020 g007
Table 1. Overview of the SPOUT and RFM methyltransferases (MTases) responsible for m1A modifications at nucleotide positions 9, 14, 22, and 58, with the domain(s) of origin for each enzyme class and the cellular localisation of the substrate tRNA.
Table 1. Overview of the SPOUT and RFM methyltransferases (MTases) responsible for m1A modifications at nucleotide positions 9, 14, 22, and 58, with the domain(s) of origin for each enzyme class and the cellular localisation of the substrate tRNA.
tRNA
nt-position
Domain
(tRNA cellular location)
MTase
Superfamily
MTase
Subfamily
9E (mt), ASPOUT/class IVTrm10 *
14E (cyt)UnknownUnknown
22BRFM/class ITrmK
58E (cyt)RFM/class ITrm6/Trm61
58E (mt)RFM/class ITrm61 *
58A, BRFM/class ITrmI
nt: nucleotide, E: eukaryotes, A: archaea, B: bacteria, mt: mitochondria, cyt: cytosol. * Subfamilies are sometimes alternatively referred to as Trmt10 and Trmt61, respectively.

Share and Cite

MDPI and ACS Style

Oerum, S.; Dégut, C.; Barraud, P.; Tisné, C. m1A Post‐Transcriptional Modification in tRNAs. Biomolecules 2017, 7, 20. https://doi.org/10.3390/biom7010020

AMA Style

Oerum S, Dégut C, Barraud P, Tisné C. m1A Post‐Transcriptional Modification in tRNAs. Biomolecules. 2017; 7(1):20. https://doi.org/10.3390/biom7010020

Chicago/Turabian Style

Oerum, Stephanie, Clément Dégut, Pierre Barraud, and Carine Tisné. 2017. "m1A Post‐Transcriptional Modification in tRNAs" Biomolecules 7, no. 1: 20. https://doi.org/10.3390/biom7010020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
