Communication

Chemical Constituents and Antifungal Activity of Ficus hirta Vahl. Fruits

1
Jiangxi Key Laboratory for Postharvest Technology and Nondestructive Testing of Fruits & Vegetables; Collaborative Innovation Center of Post-Harvest Key Technology and Quality Safety of Fruits and Vegetables; College of Agronomy, Jiangxi Agricultural University, Nanchang 330045, China
2
Pingxiang University, Pingxiang 337055, China
*
Author to whom correspondence should be addressed.
Plants 2017, 6(4), 44; https://doi.org/10.3390/plants6040044
Submission received: 1 September 2017 / Revised: 25 September 2017 / Accepted: 25 September 2017 / Published: 27 September 2017
(This article belongs to the Special Issue Medicinal Plants and Natural Product Research)

Abstract

:
Phytochemical investigation of Ficus hirta Vahl. (Moraceae) fruits led to isolate two carboline alkaloids (1 and 2), five sesquiterpenoids/norsesquiterpenoids (3–7), three flavonoids (8–10), and one phenylpropane-1,2-diol (11). Their structures were elucidated by the analysis of their 1D and 2D NMR, and HR-ESI-MS data. All of the isolates were isolated from this species for the first time, while compounds 2, 4–6, and 8–11 were firstly reported from the genus Ficus. Antifungal assay revealed that compound 8 (namely pinocembrin-7-O-β-d-glucoside), a major flavonoid compound present in the ethanol extract of F. hirta fruits, showed good antifungal activity against Penicillium italicum, the phytopathogen of citrus blue mold caused the majority rotten of citrus fruits.

1. Introduction

The genus Ficus (Moraceae) contains more than 1000 species, most of them are distributed in tropical, sub-tropical, and Mediterranean regions [1]. There are around 98 species distributed in the South of China. Ficus hirta Vahl. is mainly distributed in Yunnan, Guizhou, Guangxi, Guangdong and Hainan province, China [1]. The fruits of F. hirta were used as medicine and food resource by the local people of Guangdong province, China. Previous chemical investigations on the F. hirta focused on its roots, which led to isolate and identify the predominant chemical constituents, flavonoids, and coumarins. To date, the total of 31 flavonoids [2,3,4,5,6,7] and 7 coumarins [2,3,5,8] have been reported from this species. Except the flavonoids and coumarins, there are some other compounds reported from this species, such as steroids [2,7] and benzoic acid derivatives [7].
Several studies on the pharmacological activities of F. hirta showed its antioxidation [9], cytotoxicity, and apoptosis of HeLa cells [10]; anti-inflammation and analgesia [11], antitussive and antiasthmatic [12], hepatoprotective [13], and radioresistance effects [14]. The fruits of F. hirta consumed as a plant-derived food that showed potential tonic effects [15]. Besides mentioned above, F. hirta also showed antibacterial activity against Escherichia coli, Staphylococcus aureus [16], and Penicillium italicum, a phytopathogenic cause of citrus blue mold resulted in the destructive fruit rotten of citrus. The fruits of F. hirta and several other medicinal plants were also used to control the phytopathogen in order to decrease the loss of citrus rotten [17,18]. The fruits of F. hirta showed promising antifungal activity against P. italicum and prolonged the Nanfeng mandarin preservation period [19], while the major antifungal constituents were not clear until now.
In order to continue our studies on isolation and identification of the antifungal compounds from plants. We have elucidated the antifungal constituents of F. hirta fruits. Fortunately, our previous studies have identified nine monosubstituted benzene derivatives from the extracts of F. hirta fruits and some of them showed good antifungal activities [17,18], while they were not the major antifungal constituents for their low content in the plant. In continuation, the current study was aimed to discover the major antifungal compounds with diverse structures from this species.

2. Results

As described previously, the ethanol extracts (FH) of the fruits of F. hirta and the fractions (FH1–FH4) fractionated by D101 macro resin column were evaluated for their antifungal activities against P. italicum. Fractions FH2–FH4 showed stronger antifungal activities in a concentration-dependent manner than that of FH crude extract [18]. The further isolation was focused on the fractions with potent antifungal activities to find more active compounds present in the fruits of F. hirta.
As a result, 11 compounds (1–11) (Figure 1) were isolated from those fractions, and their structures were elucidated based on the analysis of spectroscopic data (including HR-ESI-MS, 1H-NMR, 13C-NMR, and 2D NMR) and comparison of these data to previous published paper. The 11 compounds were determined as 1-methyl-1,2,3,4-tetrahydro-β-carboline-3-carboxylic acid (1) [20], methyl 1-methyl-1,2,3,4-tetrahydro-β-carboline-3-carboxylate (2) [21], vomifoliol (3) [22], dehydrovomifoliol (4) [22], icariside B2 (5) [23], dihydrophaseic acid (6) [24], pubinernoid A (7) [25], pinocembrin-7-O-β-d-glucoside (8) [26], naringenin-7-O-β-d-glucoside (9) [27], eriodictyol-7-O-β-d-glucoside (10) [28], and 1-phenylpropane-1,2-diol (11) [29]. All of the isolates were isolated from this species for the first time, while compounds 2, 46, and 811 were first reported from the genus Ficus.
Compound 5, was obtained as colorless amorphous solid, displayed a molecular formula of C19H30O8 as determined by HRESIMS at m/z 409.1822 [M + Na]+ (calcd. for C19H30O8Na, 409.1838). In the 1H-NMR spectrum, four tertiary methyls signals (δH 2.29, 1.21, 1.19, 0.96, each 3H, s), a trans double bond protons signal at δH 7.17 (1H, d, J = 15.8 Hz) and 6.18 (1H, d, J = 15.8 Hz), and an anomeric proton at δH 4.34 (1H, d, J = 7.0 Hz), as well as oxygen-bearing methine protons at δH 3.86 (1H, m) were observed. The 13C-NMR and HSQC spectra revealed the presence of 19 carbon resonances, 6 of them were contributed to glucose. Analysis of the 1D and 2D NMR spectra data (including 1H–1H COSY, HSQC, HMBC) allowed for the establishment of the structure of 5. The HSQC spectrum permitted the assignment of all of the protons to their bonding carbons. The 1H–1H COSY spectra (drawn with bold bonds in Figure 2) disclosed that compound 5 had three partial structure units (including a sugar moiety). Analysis of the HMBC spectrum then enabled the connectivity of these spin coupling fragments and the other functional groups. The HMBC correlations (Figure 2) from H3-12 (H3-13) to C-1, C-2, C-6, and C-13 (C-12); from H-11 to C-4, C-5, and C-6; from H-7 and H-8 to C-6; and from H3-10 to C-8 and C-9, allowed the construction of the planar structure of aglycone. The glucopyranose was linked to C-3 by the HMBC correlation from H-1′ to C-3. Searching the structure with SCIFINDER revealed it has the same planar structure as the NMR data of 5 with those of icariside B2 indicated they had the same stereochemistry. Therefore, compound 5 was determined as icariside B2.
Compound 6, had a molecular formula of C15H22O5 as determined by HRESIMS at m/z 305.1349 [M + Na]+ (calcd. for C15H22O5Na, 305.1365). The 1H-NMR spectrum showed a trans double bond signals at δH 7.98 (1H, d, J = 15.8 Hz) and 6.52 (1H, d, J = 15.8 Hz), an olefinic proton signal at δH 5.76 (1H, s), an oxygenated methylene signal at δH 3.80 (1H, d, J = 7.4 Hz) and 3.70 (1H, d, J = 7.4 Hz), and three tertiary methyls signals (δH 2.08, 1.15, 0.93, each 3H, s). The 13C-NMR and HSQC spectra revealed the presence of 15 carbon signals, attributing to 3 methyls, 3 methylenes, 4 methines, and 5 quaternary carbons. Aforementioned data suggested that compound 6 was likely a sesquiterpenoid. Further analysis of 2D NMR (1H–1H COSY, HSQC, and HMBC) data allowed us to determine the structure of 6. The 1H–1H COSY correlations of H-2/H-3, H-3/H-4, and H-7/H-8 indicated the presence of two structure units (drawn with bold bonds in Figure 3). The HMBC correlations (Figure 3) from H2-12 to C-1, C-2, C-5, C-6, and C-13; from H3-14 to C-4, C-5, and C-6; from H-7 and H-8 to C-6; from H3-15 to C-8, C-9 and C-10; and from H-10 to C-11, constructed the planar structure of 6. Compared the NMR data of 6 with those of dihydrophaseic acid revealed they had the same structure. Therefore, compound 6 was elucidated as dihydrophaseic acid.
The antifungal activities of all of the isolates were tested at two concentrations (2.0 and 4.0 mg/mL). The results showed that none of them except compound 8 showed antifungal activity with the DIZs of 19.0 ± 0.5 mm and 24.0 ± 0.5 mm at 2.0 and 4.0 mg/mL, respectively, which are more powerful than that of FH (11.0 ± 0.6 mm at 2.0 mg/mL).
Moreover, compound 8 was also evaluated, its antifungal activity using mycelia growth method, the results are shown in Table 1. The inhibition rate was shown as concentration-dependent. Compound 8 exhibited more than 90% inhibitory effect against P. italicum at 400 µg/mL, while 100% inhibition rate was achieved at 800 µg/mL.

3. Discussion

The genus Ficus is characterized by flavonoids, coumarins, terpenoids (triterpenoids and sesquiterpenoids), and alkaloids [30]. In the current study, 11 compounds (111) were isolated and identified from the fruits of F. hirta, which were classified as carboline alkaloids (1 and 2), sesquiterpenoids/norsesquiterpenoids (37) and flavonoid glucosides (810). The structural classes of these isolates support the taxonomic placement of F. hirta in the genus Ficus. All of the chemical constituents are isolated from this species for the first time. Moreover, compounds 2, 46, and 811 are firstly reported from the genus Ficus. Compound 1 has been isolated from Ficus pumila [17], which is the only carboline alkaloid reported from the genus Ficus before the current study. Five sesquiterpenoids/norsesquiterpenoids (37) could be further classified as megastigmanes (3 and 5), carotenoid sesquiterpenoid (6), and norsesquiterpenoid with 11C skeleton (7). Vomifoliol (3) has been exclusively obtained from the species of Ficus platypoda and Ficus pumila before our study [17,31].
The discovery of compounds 1 and 3 showed the relevance between this species and other Ficus species such as F. platypoda and F. pumila. Compound 6 is a derivative of plant hormone abscisic acid that can be classified as carotenoid sesquiterpenoid, which is different from other sesquiterpenoids isolated from the genus Ficus [32,33]. Compound 7 is a norsesquiterpenoids with 11C skeleton with different linkage with other 11C skeleton norsesquiterpenoids previously isolated from Ficus microcarpa [34,35]. Previously, two isomers of “Eriodictyol hexoside” and other flavonoids were tentative identified in the fruits of F. carica using HPLC-MS approaches [36]. The identification of eriodictyol-7-O-β-d-glucoside (10) in F. hirta confirmed these results and showed the relevance between this species and F. carica.
Pinocembrin-7-O-β-d-glucoside (8) showed good antifungal activity while the compounds 9 and 10 showed none activity, which indicated the antifungal activity of flavonoids maybe effected by the number of hydroxyl in the C loop. This is the first time the antifungal activity of compound 8 against P. italicum has been reported. However, some references have already revealed the antifungal activity of its aglycone, namely pinocembrin [37,38].
Overall, these results indicated that carboline alkaloid, megastigmanes, and flavonoids could be regarded as a chemotaxonomic marker of F. hirta. Also, while only one carotenoid sesquiterpenoid and a norsesquiterpenoid with 11C skeleton were identified herein, whether they may be regarded as a chemotaxonomic marker of F. hirta species remains to be established. Pinocembrin-7-O-β-d-glucoside (8) was the major antifungal constituent against P. italicum existed in the fruits of Ficus hirta.

4. Materials and Methods

4.1. Plant Material

The fruits of F. hirta were bought from Zhangshu medicinal market, Jiangxi Province, China, and authenticated by Prof. Shouran Zhou (College of Basic Medicine, Jiangxi University of Traditional Chinese Medicine). A voucher specimen (no. FH-201406) was deposited in the herbarium of Jiangxi Key Laboratory for Postharvest Technology and Nondestructive Testing of Fruits & Vegetables, Jiangxi Agricultural University (Nanchang, Jiangxi, China).

4.2. Equipment and Reagents

1H- and 13C-NMR spectral data were tested on a Varian 400 MHz Nuclear magnetic resonance spectrometer with Tetramethylsilane (TMS) as internal standard. HR-ESI-MS were detected on a TripleTOF™ 5600 LC/MS/MS (Applied Biosystems MDS, Foster City, CA, USA) mass spectrometer. Medium pressure liquid chromatography (MPLC) was carried out on a C-605 pump (BUCHI, Flawil, Switzerland) coupled with a reverse phase C18 column (3.6 × 46 cm). HPLC was conducted on a Hitachi Elite Chromaster system—consisting of a 5210 autosampler, 5110 pump, 5430 diode array detector, and 5310 column oven—which were operated by EZChrom Elite software. Luna C18 column (5 µm, 4.6 × 250 mm) for analysis and Luna C18 column (5 µm, 10 × 250 mm) for semi-preparative HPLC were purchased from Phenomenex Inc. (Torrance, CA, USA). The HPLC grade solvents were purchased from Sigma (Sigma, St. Louis, MO, USA). All analytical solvents were bought from Tansoole (Shanghai, China).

4.3. Extraction and Chromatography

The air dried fruits of F. hirta (4.9 kg) were ground and extracted using ultrasonic-assisted method with 95% ethanol (3 × 25 L) at 25 °C for 90 min. The extract were evaporated to remove ethanol solvent and yielded the dried ethanol extract (345.1 g), which was subjected to D101 macro rein column chromatography eluted with water, 30% ethanol (v/v), 50% ethanol, and 95% ethanol, respectively, to yield four fractions (FH1–FH4). Antifungal activity test indicated that three fractions (FH2–FH4) were the active fractions. Activity-guided isolation were performed accordingly, as follows.
The 30% ethanol fraction FH2 (113.6 g) was subjected to C18 silica gel column (3.6 × 46 cm) chromatography elution with MeOH/H2O (MeOH/H2O, 15/85 to 25/75, v/v) to yield five fractions (FH2a–FH2e). Fraction FH2c was separated on Sephadex LH-20 and eluted with MeOH to give six combined sub-fractions (FH2c1–FH2c6). Fraction FH2c2 was subjected to Sephadex LH-20 elution with MeOH to give five sub-fractions (FH2c2a–FH2c2e). Sub-fraction FH2c2c was purified using silica gel column chromatography using CH3Cl-MeOH (10:1 to 1:1, v/v) for elution to give compound 1 (12.0 mg) and two sub-fractions (FH2c2c1 and FH2c2c2). Purification of FH2c2c1 with semi-preparative HPLC, eluting with MeOH-H2O (0–25 min: 20:80 to 55:45; 25–26 min: 55:45 to 100:0; 26–27 min: 100:0; 27–28 min: 100:0 to 20:80; 28–35 min: 20:80; v/v, 3 mL/min), yielded compound 5 (2.4 mg). Fraction FH2c2d was subjected to silica gel column chromatography eluted with CH3Cl-MeOH (100:1 to 1:1, v/v) to get seven fractions (FH2c2d1–FH2c2d7).
Purification of fraction FH-2C2d1 with semi-preparation HPLC, eluting with MeOH-H2O (0–25 min: 20:80 to 68:32; 25–26 min: 68:32 to 100:0; 26–27 min: 100:0; 27–28 min: 100:0 to 30:70; 28–35 min: 30:70; v/v, 3 mL/min), yielded compound 4 (3.6 mg).
Fraction FH2c2d2 was purified by semi-preparative HPLC, eluting with MeOH-H2O (0–20 min: 20:80 to 51:49; 20–21 min: 51:49 to 100:0; 21–22 min: 100:0; 22–23 min: 100:0 to 20:80; 23–30 min: 20:80; v/v, 3 mL/min), yielded compounds 7 (4.0 mg) and 11 (4.5 mg). Fraction FH2c2d5 was subjected on Sephadex LH-20 eluted with MeOH to give three sub-fractions (FH2c2d5a–FH2c2d5c). Purification of FH2c2d5b with semi-preparative HPLC, eluting with MeOH-H2O (0–35 min: 30:70 to 34:66; 35–36 min: 34:66 to 100:0; 36–37 min: 100:0; 37–38 min: 100:0 to 30:70; 38–45 min: 30:70; v/v, 3 mL/min), yielded compounds 2 (3.2 mg) and 6 (8.2 mg). Fraction FH2c3 was purified by semi-preparative HPLC, eluting with MeOH-H2O (0–21 min: 20:80 to 55:45; 21–22 min: 55:45 to 100:0; 22–23 min: 100:0; 23–24 min: 100:0 to 20:80; 24–31 min: 20:80; v/v, 3 mL/min), yielded compound 3 (9.7 mg). Fraction FH2d was separated on Sephadex LH-20 eluted with MeOH to give eleven combined sub-fractions (FH2d1–FH2d11). Fraction FH2d6 was recrystallized with methanol to yield compound 10 (15.4 mg).
The 50% ethanol fraction FH3 (35.5 g) was subjected to C18 silica gel column chromatography eluted with MeOH/H2O (MeOH/H2O, 40/60 to 70/30, v/v) to yield six fractions FH3a–FH3f. Fraction FH3c was separated on Sephadex LH-20 eluted with MeOH to give eight combined sub-fractions (FH3c1–FH3c8). Fraction FH3c7 was recrystallized with methanol to yield compound 9 (13.2 mg).
The 95% ethanol eluted fraction FH4 (7.2 g) was separated over a column of Sephadex LH-20 eluted with MeOH to give eight combined sub-fractions (FH4a–FH4h). Fraction FH4e was recrystallized with methanol to yield compound 8 (21.5 mg).

4.4. Antifungal Activity Test

The antifungal activity of FH extracts and isolates against P. italicum was evaluated by the Oxford Cup method as described previously [17,18].
The antifungal activity of the pure compound 8 (pinocembrin-7-O-β-d-glucoside) against P. italicum were further examined by the mycelia growth method as described previously [17]. Briefly, the pure compound 8 were dissolved in 95% ethanol, and then added to the sterile PDA (potato dextrose agar) culture medium at the specified concentrations. The mixed media were then poured into plastic Petri dishes (90 mm). The agar-mycelial plugs (6 mm) infected with pathogens were incubated at the center of the Petri dishes sealed with parafilm and incubated in the dark. Mycelium colony growth diameters were measured when the fungal mycelium of the control group had completely covered the Petri dishes. All treatments were tested in six replicates. The inhibition of mycelial growth (IMG, %) was calculated as the following formula: IMG (%) = 100 × (dc − dt)/(dc − 6), where dc and dt were the mycelium diameters (mm) of the control and the treatment, respectively.

4.5. NMR and MS Data of Compounds 111

The 1H- and 13C-NMR data of these compounds (111) were listed as follows.
Compound 1 HR-ESI-MS m/z 231.1130 [M + H]+, 1H-NMR (400 MHz, DMSO-d6) δ: 4.52 (1, H d, J = 6.0 Hz, H-1), 3.64 (1H, dd, J = 4.5, 12.0 Hz, H-3), 2.78 (1H, m, H-4b), 7.45 (1H, d, J = 7.8 Hz, H-5), 7.01 (1H, t, J = 7.2 Hz, H-6), 7.10 (1H, t, J = 7.2 Hz, H-7), 7.34 (1H, d, J = 7.8 Hz, H-8), 3.18 (1H, dd, J = 4.5, 15.3 Hz, H-4a), 1.63 (3H, d, J = 6.2 Hz, CH3). 13C-NMR (100 MHz, DMSO-d6) δ: 49.5 (C-1), 58.1 (C-3), 23.7 (C-4), 118.5 (C-5), 119.3 (C-6), 121.8 (C-7), 111.7 (C-8), 107.2 (C-4a), 126.6 (C-4b), 136.8 (C-8a), 132.7 (C-9), 17.4 (C-10), 170.0 (C-11).
Compound 2 HR-ESI-MS m/z 245.1284 [M + H]+, 1H-NMR (400 MHz, CD3OD) δ: 4.60 (1H, dd, J = 5.3, 12.0 Hz, H-1), 3.95 (3H, s, OCH3), 3.59 (1H, dd, J = 4.8, 11.2 Hz, H-3), 3.52 (1H, t, J = 6.0 Hz, H-4b), 7.50 (1H, d, J = 7.8 Hz, H-5), 7.07 (1H, t, J = 7.2 Hz, H-6), 7.16 (1H, t, J = 7.2 Hz, H-7), 7.37 (1H, d, J = 7.8 Hz, H-8), 3.14 (1H, m, H-4b), 1.78 (3H, d, J = 6.2 Hz, CH3). 13C-NMR (100 MHz, CD3OD) δ: 50.2 (C-1), 55.6 (C-3), 22.3 (C-4), 117.7 (C-5), 119.4 (C-6), 122.3 (C-7), 110.0 (C-8), 104.6 (C-4a), 125.7 (C-4b), 137.2 (C-8a), 129.4 (C-9), 15.6 (C-10), 169.0 (C-11), 52.5 (OCH3).
Compound 3 HR-ESI-MS m/z 247.1291 [M + Na]+, 1H-NMR (400 MHz, CD3OD) δ: 1.00 (3H, s, CH3-11), 1.03 (3H, s, CH3-12), 1.24 (3H, d, J = 6.8 Hz, CH3-10), 1.91 (3H, d, J = 1.2 Hz, CH3-13), 2.16 (1H, d, J = 16.4 Hz, H-2a), 2.48 (1H, d, J =16.4 Hz, H-2b), 4.32 (1H, dq, J = 6.4, 6.4 Hz, H-9), 5.78 (1H, d, J = 16.0 Hz, H-7), 5.80 (1H, dd, J = 16.0, 6.4 Hz, H-8), 5.87 (1H, q, J = 1.4 Hz, H-4). 13C-NMR (100 MHz, CD3OD) δ: 41.0 (C-1), 49.3 (C-2), 199.8 (C-3), 125.7 (C-4), 166.0 (C-5), 79.1 (C-6), 128.5 (C-7), 135.5 (C-8), 67.2 (C-9), 18.1 (C-10), 23.1 (C-11), 22.4 (C-12), 22.0 (C-13).
Compound 4 HR-ESI-MS m/z 221.1164 [M − H], 1H-NMR (400 MHz, CD3OD) δ: 1.01 (3H, s, CH3-11), 1.06 (3H, s, CH3-12), 2.31 (3H, s, CH3-10), 1.90 (3H, d, J = 1.2 Hz, CH3-13), 2.31 (1H, d, J = 16.4 Hz, H-2a), 2.62 (1H, d, J = 16.4 Hz, H-2b), 6.98 (1H, d, J = 16.0 Hz, H-7), 6.43 (1H, dd, J = 16.0, 6.4 Hz, H-8), 5.93 (1H, s, H-4). 13C-NMR (100 MHz, CD3OD) δ: 40.6 (C-1), 49.1 (C-2), 189.9 (C-3), 126.6 (C-4), 163.2 (C-5), 78.6 (C-6), 146.9 (C-7), 130.3 (C-8), 199.2 (C-9), 26.2 (C-10), 22.1 (C-11), 23.3 (C-12), 17.7 (C-13).
Compound 5 HR-ESI-MS m/z 409.1822 [M + Na]+, 1H-NMR (CD3OD, 400 MHz) δ: 7.17 (1H, d, J = 15.8 Hz, H-7), 6.18 (1H, d, J = 15.8 Hz, H-8), 4.34 (1H, d, J = 7.0 Hz, H-1′), 3.86 (1H, m, H-3), 3.12-3.83 (6H, Sugar H-2′, 3′, 4′, 5′, 6′), 2.42 (1H, m, H-4), 2.29 (3H, s, H-10), 1.81 (1H, dd, J = 8.2, 14.6 Hz, H-4), 1.73 (1H, m, H-2), 1.40 (1H, m, H-2), 1.21 (3H, s, H-13), 1.19 (3H, s, H-12), 0.96 (3H, s, H-11). 13C-NMR (CD3OD, 100 MHz) δ: 34.5 (C-1), 43.8 (C-2), 71.3 (C-3), 36.7 (C-4), 66.9 (C-5), 69.7 (C-6), 143.8 (C-7), 132.4 (C-8), 198.8 (C-9), 24.0 (C-10), 26.0 (C-11), 28.0 (C-12), 18.8 (C-13), 101.5 (C-1′), 73.7 (C-2′), 76.7 (C-3′), 70.2 (C-4′), 76.4 (C-5′), 61.3 (C-6′).
Compound 6 HR-ESI-MS m/z 305.1349 [M + Na]+, 1H-NMR (CD3OD, 400 MHz) δ: 7.98 (1H, d, J = 15.8 Hz, H-4), 6.52 (1H, d, J = 15.8 Hz, H-5), 5.76 (1H, s, H-2), 0.93 (3H, s, H-13), 1.15 (3H, s, H-14), 2.08 (3H, s, H-15), 1.66 (1H, m, H-10b), 1.73 (1H, m, H-8b), 1.84 (1H, m, H-10a), 2.03 (1H, m, H-8a), 3.70 (1H, d, J = 7.4 Hz, H-12a), 3.80 (1H, d, J = 7.4 Hz, H-12b), 4.11 (1H, m, H-9). 13C-NMR (CD3OD, 100 MHz) δ: 168.1 (C-1), 117.8 (C-2), 150.1 (C-3), 130.4 (C-4), 133.8 (C-5), 81.8 (C-6), 86.3 (C-7), 44.6 (C-8), 64.6 (C-9), 43.1 (C-10), 75.8 (C-12), 14.9 (C-13), 18.2 (C-14), 19.8 (C-15).
Compound 7 HR-ESI-MS m/z 197.1155 [M + H]+, 1H-NMR (CD3OD, 400 MHz) δ: 5.78 (1H, s, H-6), 4.10 (1H, m, H-2), 2.46 (1H, m, H-3β), 1.98 (1H, m, H-1β), 1.29 (1H, overlap, H-3α), 1.42 (1H, t, J = 11.6 Hz, H-1α), 1.59 (3H, s, H-11), 1.31 (3H, s, H-9), 1.28 (3H, s, H-10). 13C-NMR (CD3OD, 100 MHz) δ: 49.3 (C-1), 63.8 (C-2), 47.6 (overlap, C-3), 87.1 (C-4), 182.4 (C-5), 112.3 (C-6), 172.5 (C-7), 34.7 (C-8), 23.9 (C-9), 28.9 (C-10), 24.3 (C-11).
Compound 8 ESI-MS m/z 417.00 [M − H], 1H-NMR (600 MHz, DMSO-d6) δ: 12.05 (5-OH), 7.55 (2H, d, J = 7.6 Hz, H-2′, 6′), 7.44 (3H, m, H-3′, 4′, 5′), 6.21 (1H, d, J = 1.5 Hz, H-8), 6.16 (1H, d, J = 1.5 Hz, H-6), 5.66 (1H, d, J = 12.9, H-2), 4.99 (1H, d, J = 7.4 Hz, H-1″), 3.66 (1H, d, J = 9.4 Hz, H-6″a), 3.15-3.45 (6H, H-3a, 2″, 3″, 4″, 5″, 6″b), 2.85 (1H, d, J = 16.7 Hz, H-3b). 13C-NMR (150 MHz, DMSO-d6) δ: 79.1 (C-2), 42.6 (C-3), 197.3 (C-4), 163.4 (C-5), 97.1 (C-6), 165.8 (C-7), 96.0 (C-8), 163.0 (C-9), 103.7 (C-10), 138.9 (C-1′), 127.2 (C-2′), 129.1 (C-3′), 129.1 (C-4′), 129.1 (C-5′), 127.2 (C-6′), 100.0 (C-1″), 73.5 (C-2″), 76.8 (C-3″), 69.9 (C-4″), 77.6 (C-5″), 61.0 (C-6″).
Compound 9 ESI-MS m/z 432.90 [M − H], 1H-NMR (600 MHz, DMSO-d6) δ: 12.06 (5-OH), 7.33 (2H, d, J = 7.8 Hz, H-2′, 6′), 6.80 (3H, m, H-3′, 5′), 6.16 (1H, d, J = 1.5 Hz, H-8), 6.14 (1H, d, J = 1.5 Hz, H-6), 5.50 (1H, d, J = 12.7, H-2), 4.96 (1H, d, J = 7.6 Hz, H-1″), 3.67 (1H, d, J = 9.4 Hz, H-6″a), 3.14-3.46 (6H, H-3a, 2″, 3″, 4″, 5″, 6″b), 2.74 (1H, d, J = 16.9 Hz, H-3b). 13C-NMR (150 MHz, DMSO-d6) δ: 79.1 (C-2), 42.5 (C-3), 197.7 (C-4), 163.4 (C-5), 97.0 (C-6), 165.8 (C-7), 95.9 (C-8), 163.2 (C-9), 103.7 (C-10), 129.1 (C-1′), 128.9 (C-2′), 115.7 (C-3′), 158.3 (C-4′), 115.7 (C-5′), 128.9 (C-6′), 100.0 (C-1″), 73.5 (C-2″), 76.8 (C-3″), 69.9 (C-4″), 77.5 (C-5″), 61.0 (C-6″).
Compound 10 ESI-MS m/z 449.10 [M − H], 1H-NMR (600 MHz, CD3OD) δ: 6.94 (1H, brs, H-5′), 6.80 (2H, brs, H-2′, 6′), 6.22 (1H, brs, H-8), 6.19 (1H, brs, H-6), 5.32 (1H, d, J = 12.6, H-2), 4.98 (1H, d, J = 7.4 Hz, H-1″), 3.89 (1H, d, J = 12.0 Hz, H-6″a), 3.70 (1H, dd, J = 5.3, 12.1 Hz, H-6″b), 3.40–3.48 (4H, H-3a, 2″, 3″, 4″), 3.13 (1H, m, H-5″), 2.75 (1H, d, J = 17.0 Hz, H-3b). 13C-NMR (150 MHz, CD3OD) δ: 79.3 (C-2), 42.8 (C-3), 197.1 (C-4), 163.5 (C-5), 96.6 (C-6), 165.6 (C-7), 95.5 (C-8), 163.2 (C-9), 103.5 (C-10), 130.1 (C-1′), 113.4 (C-2′), 145.1 (C-3′), 145.6 (C-4′), 114.9 (C-5′), 118.0 (C-6′), 99.8 (C-1″), 73.2 (C-2″), 76.4 (C-3″), 69.7 (C-4″), 76.8 (C-5″), 60.9 (C-6″).
Compound 11 HR-ESI-MS m/z 175.0713 [M + Na]+, 1H-NMR (CD3OD, 400 MHz) δ: 7.26–7.35 (5H, m, H-2,3,4,5,6), 4.34 (1H, d, J = 7.1 Hz, H-7), 3.80 (1H, m, H-8), 0.95 (3H, d, J = 6.4 Hz, H-9).

5. Conclusions

Two carboline alkaloids (1 and 2), five sesquiterpenoids/norsesquiterpenoids (37) (three of which are megastigmanes), three flavonoids (8–10), and phenylpropane-1,2-diol (11) were isolated and identified from the fruits of F. hirta for the first time. Moreover, compounds 2, 46, and 811 were reported for the first time in the Ficus genus. Pinocembrin-7-O-β-d-glucoside (8) was the major antifungal constituent against P. italicum existed in the fruits of Ficus hirta. Chemotaxonomic analysis revealed that the carboline alkaloid, megastigmanes, and flavonoids could be regarded as a chemotaxonomic marker of F. hirta.

Acknowledgments

This project was supported by the National Natural Science Foundation of China (31500286) and the Natural Science Foundation of Jiangxi Province (20161BAB214167).

Author Contributions

Chunpeng Wan and Jinyin Chen conceived and designed the experiments; Chunpeng Wan, Chuying Chen, Mingxi Li, Youxin Yang and Ming Chen performed the experiments; Chunpeng Wan and Chuying Chen analyzed the data; Chunpeng Wan and Jinyin Chen wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Flora Compilation Committee of Chinese Academy of Science. Flora of China; Science Press: Beijing, China, 1998; Volume 23, pp. 67–160. [Google Scholar]
  2. Li, C.; Bu, P.B.; Qiu, D.K.; Sun, Y.F. Chemical constituents from roots of Ficus hirta. China J. Chin. Mater. Med. 2006, 31, 131–133. [Google Scholar]
  3. Ya, J.; Zhang, X.Q.; Wang, Y.; Li, Y.; Ye, W. Studies on flavonoids and coumarins in the roots of Ficus hirta Vahl. Chem. Ind. For. Prod. 2008, 28, 49–52. [Google Scholar]
  4. Ya, J.; Zhang, X.Q.; Wang, G.C. Flavonoids from the roots of Ficus hirta Vahl. Asia Chem. Lett. 2009, 13, 21–26. [Google Scholar]
  5. Ya, J.; Zhang, X.Q.; Wang, Y.; Zhang, Q.W.; Chen, J.X.; Ye, W.C. Two new phenolic compounds from the roots of Ficus hirta. Nat. Prod. Res. 2010, 24, 621–625. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, L.P.; Di, B.; Feng, F. Chemical constituents from the roots of Ficus hirta. Pharm. Clin. Res. 2008, 16, 5–7. [Google Scholar]
  7. Zheng, R.R.; Ya, J.; Wang, W.J.; Yang, H.B.; Zhang, Q.W.; Zhang, X.Q.; Ye, W.C. Chemical studies on roots of Ficus hirta. China J. Chin. Mater. Med. 2013, 38, 3696–3701. [Google Scholar]
  8. Jiang, B.; Liu, Z.Q.; Zeng, Y.E.; Xu, H. Chemical constituents roots of Ficus hirta. Chin. Tradit. Herb. Drugs 2005, 36, 1141–1142. [Google Scholar]
  9. Yi, T.; Chen, Q.; He, X.; So, S.; Lo, Y.; Fan, L.; Chen, H. Chemical quantification and antioxidant assay of four active components in Ficus hirta root using UPLC-PAD-MS fingerprinting combined with cluster analysis. Chem. Cent. J. 2013, 7, 115. [Google Scholar] [CrossRef] [PubMed]
  10. Zeng, Y.; Liu, X.; Lv, Z.; Peng, Y.H. Effects of Ficus hirta Vahl.(Wuzhimaotao) extracts on growth inhibition of HeLa cells. Exp. Toxicol. Pathol. 2012, 64, 743–749. [Google Scholar] [CrossRef] [PubMed]
  11. Zhou, T.N.; Wang, Y.; Tang, L.H.; Liu, D.D.; Hou, S.Z.; Deng, X.C.; Ye, M.R. Study of Radix Fici hirtae on anti-inflammatory analgesic and effect of acute liver injury of mice. Pharm. Today 2008, 18, 55–58. [Google Scholar]
  12. Zhou, T.N.; Tang, L.H.; Huang, S.C.; Lu, D.D.; Wang, Y.; Liu, L.F.; Ye, M.R. Study on the antitussive and antiasthmatic effects of radix Fici hirtae. J. Chin. Med. Mater. 2009, 32, 571–574. [Google Scholar]
  13. Jia, F.L.; Ruan, M. Radix Fici hirtae protective effect of aqueous extract on acute hepatic injury in mice induced by two methyl farmamide. J. Chin. Med. Mater. 2008, 31, 1364–1368. [Google Scholar]
  14. Wang, X.P.; Duan, L.J.; Huang, X.; Cen, Y.W.; Li, G.F. Protective Role Of Aqueous Extract From Fici hirtae radix for DNA damage of bone marrow cells by~(60) Coγ-ray in mice. Chin. J. Mod. Appl. Pharm. 2011, 28, 284–287. [Google Scholar]
  15. Zhou, T.N.; Wang, Y.; Liu, D.D.; Tang, L.H.; Xiao, X.J.; Liu, L.F.; Ye, M.R. Experimental study on the tonic effect of different extracts from Radix Fici hirtae. J. Chin. Med. Mater. 2009, 32, 753–757. [Google Scholar]
  16. Chen, Q.; Ye, S.X.; Yu, J. Antibacterial activity of Radix Fici hirtae by chromotest microassay. Med. Plant 2012, 3, 13–16. [Google Scholar]
  17. Chen, C.; Wan, C.; Peng, X.; Chen, Y.; Chen, M.; Chen, J. Optimization of antifungal extracts from Ficus hirta fruits using response surface methodology and antifungal activity tests. Molecules 2015, 20, 19647–19649. [Google Scholar] [CrossRef] [PubMed]
  18. Wan, C.; Han, J.; Chen, C.; Yao, L.; Chen, J.; Yuan, T. Monosubstituted benzene derivatives from fruits of Ficus hirta and their antifungal activity against phytopathogen Penicillium italicum. J. Agric. Food Chem. 2016, 64, 5621–5624. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, C.; Peng, X.; Zeng, R.; Chen, M.; Wan, C.; Chen, J. Ficus hirta fruits extract incorporated into an alginate-based edible coating for Nanfeng mandarin preservation. Sci. Hortic. 2016, 202, 41–48. [Google Scholar] [CrossRef]
  20. Wei, W.; Fan, C.L.; Wang, G.Y.; Tang, H.J.; Wang, Y.; Ye, W.C. Chemical constituents from Ficus pumila. Chin. Tradit. Herb. Drugs 2014, 45, 615–621. [Google Scholar]
  21. Zeng, Y.; Zhang, Y.; Weng, Q.; Hu, M.; Zhong, G. Cytotoxic and insecticidal activities of derivatives of harmine, a natural insecticidal component isolated from Peganum harmala. Molecules 2010, 15, 7775–7791. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, N.Y.; Duan, J.A.; Li, P.; Qian, S.H. Chemical constituents of Glechoma longituba. Acta Pharm. Sin. 2006, 41, 431–434. [Google Scholar]
  23. Woo, K.W.; Lee, K.R. Phytochemical constituents of Allium victorialis var. platyphyllum. Nat. Prod. Sci. 2013, 19, 221–226. [Google Scholar]
  24. Cai, L.; Liu, C.S.; Fu, X.W.; Shen, X.J.; Yin, T.P.; Yang, Y.B.; Ding, Z.T. Two new glucosides from the pellicle of the walnut (Juglans regia). Nat. Prod. Bioprospect. 2012, 2, 150–153. [Google Scholar] [CrossRef]
  25. He, J.B.; Niu, Y.F.; Li, J.X.; Wang, L.B.; Zi, T.P.; Yu, S.; Tao, J. Studies on terpenoids from Zygophyllum fabago. China J. Chin. Mater. Med. 2015, 40, 4634–4638. [Google Scholar]
  26. Zhao, Q.; Liu, F.; Li, Q.J.; Chen, W.P. Chemical constituents from flowers of Rosa chinensis. Chin. Tradit. Herb. Drugs 2012, 43, 1484–1488. [Google Scholar]
  27. Ding, Y.X.; Guo, Y.J.; Ren, Y.L.; Dou, D.; Li, Q. Isolation of flavonoids from male flowers of Eucommia ulmoides and their anti-oxidantive activities. Chin. Tradit. Herb. Drugs 2014, 45, 323–327. [Google Scholar]
  28. Deng, R.X.; Zhang, C.F.; Liu, P.; Duan, W.L.; Yin, W.P. Separation and identification of flavonoids from Chinese Fringetree Flowers (Chionanthus retusa Lindl et Paxt). Food Sci. 2014, 35, 74–78. [Google Scholar]
  29. Mayorga, H.; Knapp, H.; Winterhalter, P.; Duque, C. Glycosidically bound flavor compounds of cape gooseberry (Physalis peruviana L.). J. Agric. Food Chem. 2001, 49, 1904–1908. [Google Scholar]
  30. Fan, M.S.; Ye, G.; Huang, C.G. The advances of chemistry and pharmacological study of Ficus genus. Nat. Prod. Res. Dev. 2005, 17, 497–504. [Google Scholar]
  31. El-Hela, A.; Mohammed, A.E.; Ragab, E.; Afifi, W. Chemical constituents and biological activity of Ficus platypoda (Miq.) leaves. J. Biomed. Pharm. Res. 2014, 3, 21–37. [Google Scholar]
  32. Kitajima, J.; Kimizuka, K.; Tanak, Y. Three new sesquiterpenoid glucosides of Ficus pumila fruit. Chem. Pharm. Bull. 2000, 48, 77–80. [Google Scholar] [CrossRef] [PubMed]
  33. Somwong, P.; Suttisri, R.; Buakeaw, A. New sesquiterpenes and phenolic compound from Ficus foveolata. Fitoterapia 2013, 85, 1–7. [Google Scholar] [CrossRef] [PubMed]
  34. Li, Y.C.; Kuo, Y.H. A monoterpenoid and two simple phenols from heartwood of Ficus microcarpa. Phytochemistry 1998, 49, 2417–2419. [Google Scholar] [CrossRef]
  35. Kuo, Y.H.; Li, Y.C. Three new compounds, ficusone, ficuspirolide, and ficusolide from the heartwood of Ficus microcarpa. Chem. Pharm. Bull. 1999, 47, 299–301. [Google Scholar] [CrossRef]
  36. Ammar, S.; del Mar Contreras, M.; Belguith-Hadrich, O.; Bouaziz, M.; Segura-Carretero, A. New insights into the qualitative phenolic profile of Ficus carica L. fruits and leaves from Tunisia using ultra-high-performance liquid chromatography coupled to quadrupole-time-of-flight mass spectrometry and their antioxidant activity. RSC Adv. 2015, 26, 20035–20050. [Google Scholar] [CrossRef]
  37. Yang, S.; Liu, L.; Li, D.; Xia, H.; Su, X.; Peng, L.; Pan, S. Use of active extracts of poplar buds against Penicillium italicum and possible modes of action. Food Chem. 2016, 196, 610–618. [Google Scholar] [CrossRef] [PubMed]
  38. Peng, L.; Yang, S.; Cheng, Y.J.; Chen, F.; Pan, S.; Fan, G. Antifungal activity and action mode of pinocembrin from propolis against Penicillium italicum. Food Sci. Biotechnol. 2012, 6, 1533–1539. [Google Scholar] [CrossRef]

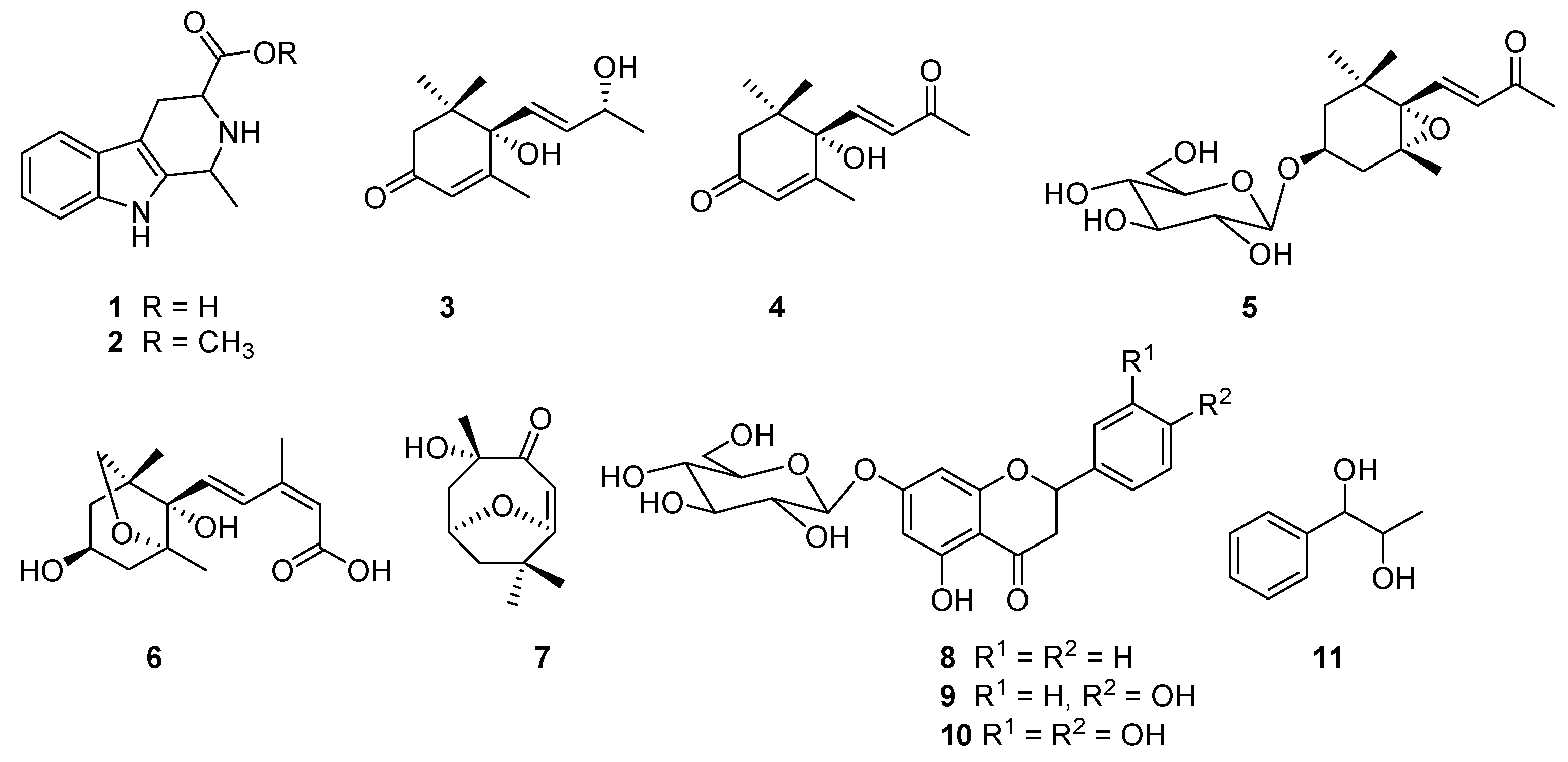

Figure 1. Structures of the compounds isolated from the fruits of Ficus hirta.
Figure 1. Structures of the compounds isolated from the fruits of Ficus hirta.
Plants 06 00044 g001

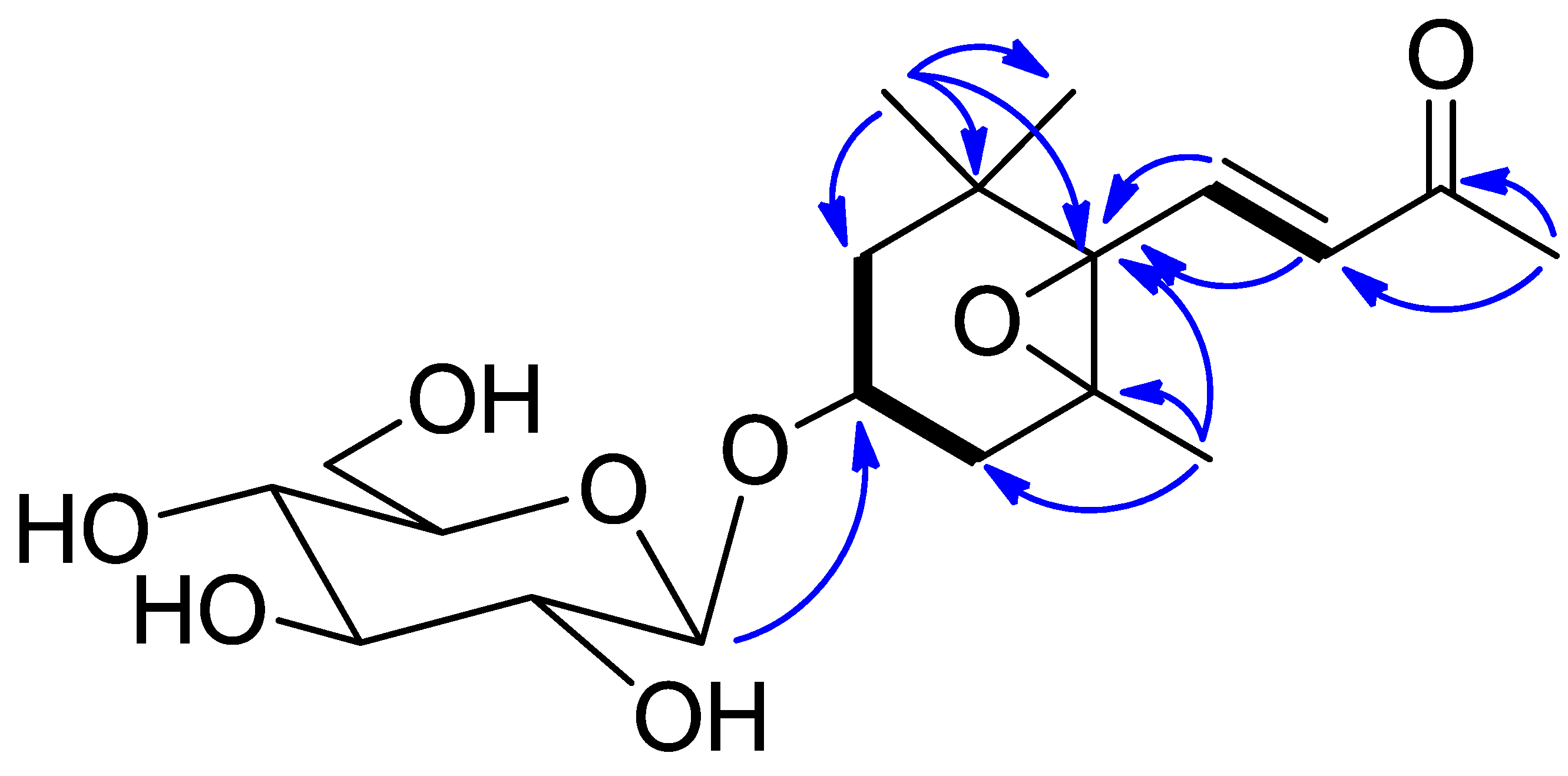

Figure 2. 1H–1H COSY (bold bonds) and HMBC (arrows) correlations of Compound 5.
Figure 2. 1H–1H COSY (bold bonds) and HMBC (arrows) correlations of Compound 5.
Plants 06 00044 g002

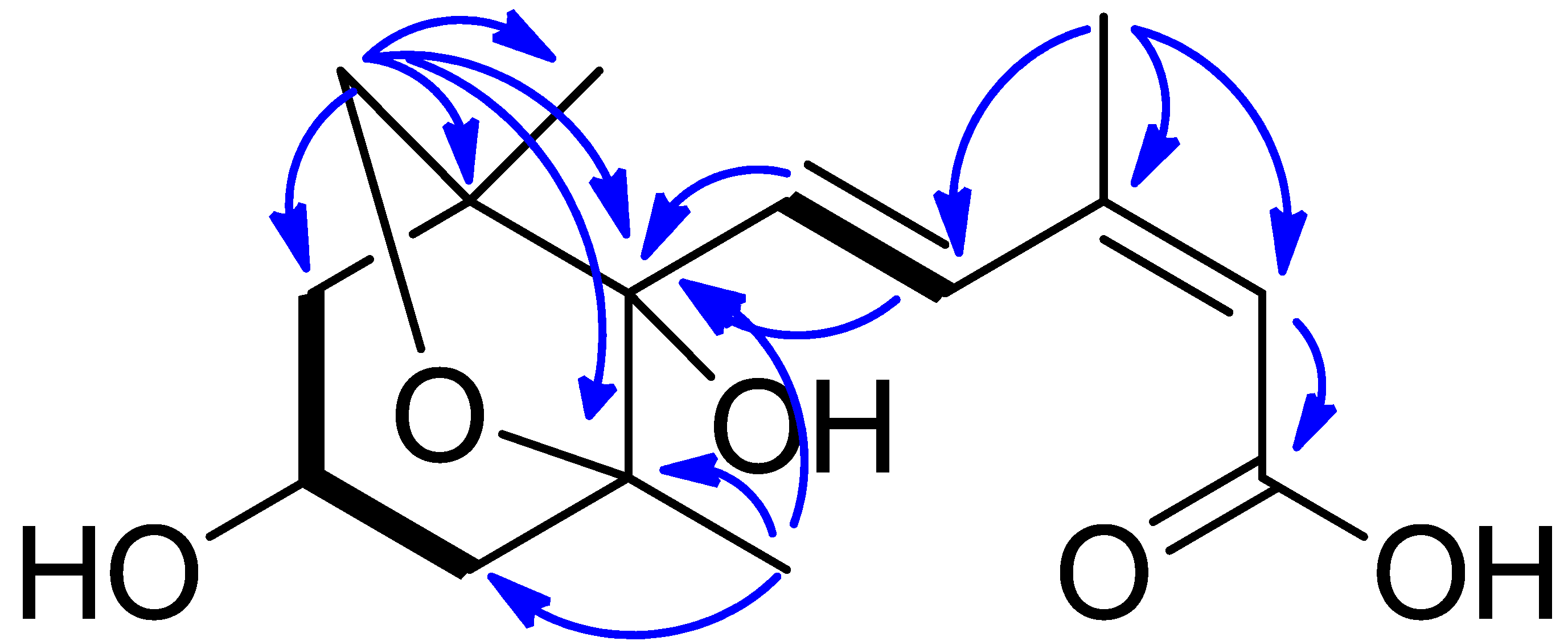

Figure 3. 1H–1H COSY (bold bonds) and HMBC (arrows) correlations of Compound 6.
Figure 3. 1H–1H COSY (bold bonds) and HMBC (arrows) correlations of Compound 6.
Plants 06 00044 g003
Table 1. Antifungal activity of Compound 8 tested by mycelia growth method
Table 1. Antifungal activity of Compound 8 tested by mycelia growth method
Concentration (µg/mL)Inhibition Rate
2513.70 ± 1.81
5036.88 ± 1.08
10056.10 ± 2.55
20074.65 ± 1.61
40092.05 ± 1.55
800100
