Article

Phloem-Conducting Cells in Haustoria of the Root-Parasitic Plant Phelipanche aegyptiaca Retain Nuclei and Are Not Mature Sieve Elements

Graduate School of Life and Environmental Sciences, Osaka Prefecture University, 1-1 Gakuen-Cho, Naka-Ku, Sakai, Osaka 599-8531, Japan
*
Author to whom correspondence should be addressed.
Plants 2017, 6(4), 60; https://doi.org/10.3390/plants6040060
Submission received: 3 November 2017 / Revised: 29 November 2017 / Accepted: 3 December 2017 / Published: 5 December 2017
(This article belongs to the Special Issue Plasmodesmata and Intercellular Movement)

Abstract

:
Phelipanche aegyptiaca parasitizes a wide range of plants, including important crops, and causes serious damage to their production. P. aegyptiaca develops a specialized intrusive organ called a haustorium that establishes connections to the host’s xylem and phloem. In parallel with the development of xylem vessels, the differentiation of phloem-conducting cells has been demonstrated by the translocation of symplasmic tracers from the host to the parasite. However, it is unclear yet whether haustorial phloem-conducting cells are sieve elements. In this study, we identified phloem-conducting cells in haustoria by the host-to-parasite translocation of green fluorescent protein (GFP) from AtSUC2pro::GFP tomato sieve tubes. Haustorial GFP-conducting cells contained nuclei but not callose-rich sieve plates, indicating that phloem-conducting cells in haustoria differ from conventional sieve elements. To ascertain why the nuclei were not degenerated, expression of the P. aegyptiaca homologs NAC-domain containing transcription factor (NAC45), NAC45/86-dependent exonuclease-domain protein 1 (NEN1), and NEN4 was examined. However, these genes were more highly expressed in the haustorium than in tubercle protrusion, implying that nuclear degradation in haustoria may not be exclusively controlled by the NAC45/86-NEN regulatory pathway. Our results also suggest that the formation of plasmodesmata with large size exclusion limits is independent of nuclear degradation and callose deposition.

Graphical Abstract

1. Introduction

Parasitic plants belonging to the genera Orobanche and Phelipanche are obligate parasites that subsist on hosts’ roots. Phelipanche aegyptiaca parasitizes a wide range of plants, including important crops such as tomato, melon, and legumes, and causes serious damage to crop production [1]. P. aegyptiaca develops a radicle upon germination when perceiving a stimulant exuded from the hosts’ roots. When the radicle contacts the host root, a haustorium (a specialized intrusive organ) differentiates from the terminus of the radicle and reaches the host’s vascular tissues, and the vascular conducting tissues then differentiate. After establishing the conducting tissues, P. aegyptiaca initiates the development of a tubercle, which is a storage organ developed from the seedling remaining outside the host’s root [2]. Formation of vascular conducting tissue in haustoria is necessary for obligate parasitic plants to absorb water and nutrients from the hosts, because they lack roots or photosynthetic organs.
Xylem and phloem differentiation in haustoria are pivotal steps in the successful establishment of a parasitic connection. Xylem differentiation is characterized by the formation of vessel elements with highly lignified cell walls [3]. Elongated cells in the haustorial tips of Striga hermonthica perforate cell walls of the host’s xylem vessel, and the invading part of the contact cell (the osculum) loses its cytoplasmic contents and differentiates into a water-conducting vessel element [3]. In a P. aegyptiaca-Arabidopsis thaliana parasitic complex, exogenous auxin application decreases the infection rate, suggesting that auxin flow plays an important role in xylem continuity [4]. Open xylem connections at the parasite-host interface allow a flow of water and minerals to the parasitic plant.
Haustorial phloem differentiation has also been described. Studies on the haustiorial phloem of various parasitic plants showed that the presence of sieve elements (SEs) in haustoria depends upon the species in question. A morphological study using light microscopy on the structure of the haustorium of a stem parasitic plant, Cuscuta gronovii, has demonstrated that most of the cells in sieve tubes have prominent nuclei and sieve plates, and no sieve-tube members reach the host phloem [5]. In contrast, morphological studies of haustoria of a stem obligate parasitic plant, Cuscuta odorata, using electron microscopy have demonstrated that there are sieve element (SE)-companion cell (CC) complexes in haustoria that are directly in contact to host SEs [6]. A root facultative parasitic plant in the Orobancaceae family, Lathraea, does not develop phloem in haustoria, and it takes organic substances through xylem. Another root facultative parasitic plant, Alectra vogelii, develops SEs in haustoria, but they do not have a direct contact to the host’s SE [6]. In secondary haustoria of a root obligate parasitic plant, Phelipanche ramosa, SEs appear to develop, however, a final cell that attaches to host’s SE is of parenchymatous nature [6]. On the other hand, transport function of haustorial phloem has been demonstrated by using symplasmic tracers. Studies using fluorescent symplasmic tracers have demonstrated that carboxyfluorescein or CC-expressed green fluorescent protein (GFP) can be transported from host to parasite through haustoria in Cuscuta reflexa [7,8], Phelipanche ramosa [9], and P. aegyptiaca [10]. In haustoria of a facultative parasitic plant, Phtheirospermum japonicum, carboxyfluorescein was transported from the host’s sieve tubes to haustoria, but CC-expressed GFP was not, implying the lack of phloem-to-phloem connection between the host and parasite, or difficulty in GFP movement due to its size [11]. Despite the exception of Lathraea and P. japonicum, these studies on the cell morphology and the transport function collectively suggested that it is likely that phloem contents should be transported from the host to parasitic plants by haustorial phloem. However, because few previous studies examined the cell morphology and transport function of the haustorial phloem simultaneously, it is still unclear whether the pathway in which phloem contents are transported occurs in SEs.
In this study, we observed the transport function of phloem-conducting cells in haustoria and their morphology at the same time. We identified phloem-conducting cells in haustoria by the plant-to-plant translocation of GFP from AtSUC2pro::GFP tomato sieve tubes. GFP-conducting cells contained nuclei but not callose-rich sieve plates, indicating that phloem-conducting cells in haustoria differ from conventional sieve elements (SE). However, normal SEs were present in phloem-conducting cells in tubercle protrusions. The retention of nuclei and lack of sieve plates suggest that SE maturation is retarded in the haustoria. We also investigated the expression profiles of genes involved in SE differentiation, including homologs of NAC-DOMAIN CONTAINING TRANSCRIPTION FACTOR (NAC45), NAC45/86-DEPENDENT EXONUCLEASE-DOMAIN PROTEIN 1 (NEN1), and NEN4. The relative expression levels of these genes were higher in haustoria than in the tubercle protrusions. This result was not consistent with the immaturity of sieve elements; therefore, nuclear degradation in haustorial GFP-conducting cells may not be controlled exclusively by the NAC45/86-NEN regulatory pathway. Our results also suggest that formation of plasmodesmata with a large size exclusion limit (SEL) is independent of nuclear degradation and callose deposition.

2. Results

2.1. GFP Expressed in Phloem of Host Plant Visualized a Symplasmic Pathway of a Parasitic Plant

We traced a symplasmic pathway between AtSUC2pro::GFP tomato and P. aegyptiaca. The developmental stages of the P. aegyptiaca tubercles were judged by their diameters, which were 1.5 mm, 3 mm, and 1 cm (Figure 1A–C). In the 3-mm-diameter tubercle, GFP was clearly detected in the haustoria and tubercle protrusions (Figure 2A), so it was transported a long distance from host sieve tube to the haustoria and protrusions through the symplasmic pathway. To visualize the cell architecture more clearly, we made paraffin sections and detected GFP by immunostaining (Figure 2B). In the protrusions, GFP was detected in two poles in the stele (Figure 2C), suggesting that in protrusion, phloem-conducting cells are spatially arranged in a similar manner to that in the roots of vascular plants. In contrast, in haustoria, GFP-conducting cells appeared to be arranged more irregularly (Figure 2D).

2.2. Nuclei Were Present in GFP-Conducting Cells

Most of the GFP-conducting cells in the haustoria contained nuclei. We stained haustorial sections from the 1.5-mm-diameter and 3-mm-diameter tubercles with 4′6-diamidino-2-phenylindole (DAPI) (Figure 3A,B), and we found that GFP-conducting cells in haustoria of both the 1.5-mm-diameter tubercle, which did not seem to have any protrusions, and the 3-mm-diameter tubercle, which had elongated protrusions, contained nuclei. This suggests that GFP-conducting cells in the haustoria do not develop into mature SEs.

2.3. GFP-Conducting Cells in Haustoria Were Not Mature SEs

To ascertain whether GFP-conducting cells in haustoria are SEs, we detected nuclei with DAPI staining and callose-rich sieve plate with Aniline Blue staining using the developed, 1-cm-diameter tubercle. In the haustoria, nuclei were co-localized with GFP-conducting cells (Figure 4A–C); however, callose deposition was not detected in cell walls between adjacent GFP-conducting cells, indicating that no sieve plates had developed (Figure 4G–I). However, in the protrusions, few nuclei were found in GFP-conducting cells (Figure 4D–F), whereas callose deposition was clearly detected between neighboring GFP-conducting cells, indicating the presence of sieve plates (Figure 4J–L). To confirm that the nuclei were retained, we counted the number of GFP-conducting cells with or without nuclei in the haustorial and protrusion sections (Figure 4M). In the haustoria, nuclei were detected in approximately 62% of GFP-conducting cells. In the protrusions, nuclei were detected in approximately 7% of GFP-conducting cells, which was a significantly lower percentage than that in the haustoria. This result demonstrates that GFP-conducting cells in haustoria are not mature SEs, whereas those in protrusions are.

2.4. SE Differentiation-Related Genes Were Expressed in Haustoria

SE differentiation is regulated by the transcription factor NAC45/86 [12]. NAC45/86 positively controls the expression of NEN1 to NEN4, which are responsible for the degradation of nuclei in SE precursor cells (Figure 5A). Nuclear retention in haustorial GFP-conducting cells may have been caused by the suppression of NAC45/86 and NEN expression to lower than that in the protrusions, which resulted in the inhibition of nuclear degradation in the haustoria. To test this hypothesis, we dissected a tomato root containing the haustorium and the rest of the tubercle (diameter 3 ± 1 mm), and quantified the relative expression levels of PaNAC45, PaNEN1, and PaNEN4. Unexpectedly, the relative expression levels of all three genes were significantly higher in the haustorium than in the protrusion (Figure 5B–D), suggesting that SE differentiation is indeed activated in the haustorium.

3. Discussion

3.1. Haustorial Phloem-Conducting Cells Are Not Mature SEs

The movement of GFP that is expressed in the host’s CCs to parasitic plants has been reported in a stem parasitic plant (Cuscuta reflexa) [7,8] and root parasitic plants (P. ramosa and P. aegyptiaca) [9,10]. GFP is smaller (27 kDa) than the typical size exclusion limit (SEL) of plasmodesmata between CCs and SEs (that can be as large as 67 kDa) [13], so GFP synthesized in CCs can be translocated to SEs. In addition, in Arabidopsis and tobacco plants that express AtSUC2pro::GFP, GFP is restricted to the phloem [14]. These results suggest that GFP expressed in CCs is translocated within the SE-CC complex, and the translocation of GFP into parasitic plants means that there should be a continuity of sieve tubes across the boundary between the host and parasitic plants, and GFP moves non-selectively from the source (host) to the sink (parasite) following the phloem translocation stream.
GFP-conducting cells in the haustoria of P. aegyptiaca contained nuclei but not sieve plates (Figure 3A,B and Figure 4C). Conventional sieve tube elements are characterized by the elimination of cellular components, including nuclei during development [15] and callose deposition in sieve plates [16]. The apparent lack of these attributes first led us to examine whether P. aegyptiaca is capable of developing SEs in other organs. In the tubercles, GFP moved a long distance to the protrusions, and GFP-conducting cells were clearly visible there (Figure 2C). In contrast to in haustoria, GFP-conducting cells in the protrusions had sieve plates, and fewer nuclei than the surrounding cells (Figure 4J–L). Therefore, P. aegyptiaca should not have any defects in the development of SEs.
The presence of nucleated SEs in haustoria have been reported in C. gronovii [5]. In C. gronovii, it has been reported that most of the cells in haustorial sieve tubes, which were recognized as continuous strands of elongated cells which made connection with the host phloem, had prominent nuclei [5]. The nucleated phloem-conducting cells of P. aegyptiaca are similar to SEs of C. gronovii. However, the study using C. gronovii did not clarify whether phloem transport occurred in “the continuous strands of elongated cells”. In this study, we clearly identified phloem-conducting cells in P. aegyptiaca haustoria by tracing the transport of contents of host’s sieve tubes (i.e., GFP), and demonstrated that the GFP-conducting cells were nucleated and lacked sieve plates (Figure 3 and Figure 4).
To explain the retention of nuclei, we first hypothesized that SE differentiation activity could be low in haustoria, and, consequently, SE maturation is retarded. However, the expression level of PaNAC45, which is responsible for the regulation of SE differentiation, and the expression levels of PaNEN1 and PaNEN4, which are responsible for nuclear degeneration [12], were higher in the haustoria than in the protrusions (Figure 5B–D), which does not support the hypothesis that SE differentiation activity is low in haustoria.

3.2. Why Do Haustorial Phloem-Conducting Cells Fail to Undergo Nuclear Degradation?

It has recently been reported that nucleated SEs were present in an Arabidopsis loss-of-function mutant of genes similar to SUPPRESSOR OF MAX2 1-LIKE (SMXL), smxl4;smxl5 [17]. Although functions of SMXL4 and SMXL5 were finally shown to be independent of strigolactone and karrikin signaling [17], they were shown to be involved in differentiation of protophloem in the root, since in cells located at positions expected for SEs, degradation of nuclei did not occur [17]. However, expression levels of genes involved in SE differentiation, including NEN4, NAC86 [12], ALTERED PHLOEM DEVELOPMENT (APL) [18], and CALLOSE SYNTHASE 7 (CALS7) [19], were lower than those of wild type Arabidopsis during induction of phloem differentiation using VISUAL [20], which is different from the gene expression profiles observed in haustoria of P. aegyptiaca (Figure 5B–D). SMXL4 and SMXL5 might regulate the NAC-NEN regulatory pathway of phloem differentiation [21]. We thus speculate that retention of nuclei in haustorial GFP-conducting cells may not be due to the repression of SMXLs.
Retention of nuclei in the root protophloem was also observed in a triple mutant of brassinosteroid (BR) receptor genes, brassinosteroid insensitive 1 (bri1); bri1-like 1 (brl1); bri1-like 3 (brl3) [22]. The BR signaling pathway is known to be activated by a polarly localized membrane-associated protein OCTOPUS (OPS) [23]. Morphologies of SEs in bri1;brl1;brl3 and ops mutants were similar to that of haustorial GFP-conducting cells. In roots of bri1;brl1;brl3 and ops mutants, differentiation of SEs in the protophloem cell file was discontinuous, and nuclear degradation or callose deposition were not seen in the protophloem cell file gaps, indicating that loss-of-function of BR receptor genes and OPS delays protophloem differentiation [22,24]. A loss-of-function mutant of a homolog of OPS, OCTOPUS-LIKE 2 (OPL2), also had a defect in metaphloem differentiation [25]. It has been proposed that the NAC-NEN regulatory pathway is not directly coupled to the BR signaling pathway including OPS, although a crosstalk between these pathways has not been studied in detail [21]. If repression of OPS does not down-regulate NEN genes, expression levels of NEN genes could stay high in differentiating SEs, and SEs possibly retain nuclei like in the ops mutant. This argument tempts us to hypothesize that nuclear retention in haustorial GFP-conducting cells may be due to the repression in the BR-perception associated with the downregulation of an OPS ortholog of P. aegyptiaca. Identification of P. aegyptiaca OPS is currently underway.
A hypothesis from a different point of view for the nuclear retention is that exonuclease activities of NEN1 and NEN4 may be repressed by an inhibitor protein. In the case of apoptosis, a major apoptotic nuclease, Caspase-activated DNase (CAD), is deactivated by complex formation with the inhibitor of CAD (ICAD) [26]. During apoptotic execution of nuclear degradation, ICAD is cleaved by a protease, caspase, and then CAD is liberated to form an active homo-dimer [27]. We speculate that NEN1 and NEN4 might be deactivated in haustorial GFP-conducting cells by a nuclease inhibitor, although the inhibitor needs to be identified.

3.3. Retention of Nuclei Is Independent of Other SE Differentiation Processes

In the haustorial GFP-conducting cells, the nuclei were retained not only in developing tubercles that were 1.5 mm and 3 mm in diameter (Figure 3A,B), but also in developed, 1-cm-diameter tubercles (Figure 4A–C). This suggests that nuclear retention in phloem-conducting cells occur in haustoria in an organ-specific manner. Our findings clearly demonstrate that phloem-conducting cells retain their nuclei and do not develop sieve plates even after an array of cells has started transporting phloem materials, suggesting that nuclear degradation and sieve plate formation are coordinated, while the formation of plasmodesmata with large SEL is independent of them. It has been suggested that degradation of nucleus controlled by the NAC45-dependent regulatory pathway is independent of the callose accumulation [12]. Regarding the formation of plasmodesmata with large SEL, it has been reported that development of the sieve plate pores is affected by CHOLINE TRANSPORTER-LIKE 1 (CHER1), since cher1-1 mutant of Arabidopsis has been shown to have reduced phloem conductivity [28]. It is currently unclear whether CHER1 is controlled by the same upstream transcriptional regulator as those controlling the nuclear degradation or callose deposition. Taken together, it can be hypothesized that the processes of sieve element differentiation, such as nuclear degeneration, sieve plate formation, and formation of plasmodesmata with large SELs, may be controlled independently. Regulatory relationships between the pathways that lead to these cellular events remain to be investigated.

4. Materials and Methods

4.1. Plant Materials

P. aegyptiaca seeds were stored at 4 °C in the dark. The seeds were surface-sterilized with 1 mL of 99.5% (v/v) ethanol for 1 min and 1 mL of 1% (v/v) sodium hypochlorite (Wako Pure Chemical Industries, Ltd., Osaka, Japan) for 10 min, twice. After washing with sterile distilled water three times, the seeds were spread on sterilized glass filter paper (ADVANTEC, Tokyo, Japan) with 3 mL of sterile distilled water inside a plastic dish and incubated in the dark at 25 °C for 3 days. One day after applying the synthetic germination stimulant rac-GR24 (Chiralix, Nijmegen, Netherlands) (final concentration, 2 mg/L) to induce germination, the seeds on the glass filter paper were placed on Murashige and Skoog (MS) solid medium supplemented with MS Plant Salt Mixture (Wako Pure Chemical Industries, Ltd.), 3% (w/v) of sucrose (Wako Pure Chemical Industries, Ltd.), MS modified vitamin solution (1000×) (final concentration, 1×) (MP Biomedicals, Santa Ana, CA, USA), and 0.8% (w/v) of agarose with the pH adjusted to 5.8. The paper was then removed and the seeds were incubated in the dark at 25 °C. The host plants, Solanum lycopersicum ‘Micro-Tom’ (accession number TOMJPF00001, National Bioresource Project, Japan) and transgenic tomato plants (Solanum lycopersicum ‘M82’) expressing AtSUC2pro::GFP, were grown on rhizotrons under a 16/8 h light/dark cycle at 25 °C. Three days after the GR24 treatment, germinated P. aegyptiaca seeds were inoculated to 3-week-old host plants in rhizotrons and grown under a 16/8 h light/dark cycle at 25 °C.

4.2. Cloning Complementary DNA (cDNA) of PaNEN1, PaNEN4, and PaNAC45

To select P. aegyptiaca target genes, contigs of the Parasitic Plant Genome Project OrAeBC5 dataset (http://ppgp.huck.psu.edu/) were compared with the protein sequence of Sesamum indicum provided in Sinbase (http://ocri-genomics.org/Sinbase/) [29] using BLASTx [30]. Based on the top hits, OrAeBC5_5123, OrAeBC5_14368.1, and OrAeBC5_32545.1 were chosen for PaNEN1, PaNEN4, and PaNAC45, respectively. For cloning, gene-specific primers were designed based on the sequence of each contig (Table 1). For cDNA isolation, P. aegyptiaca tubercles that were frozen in liquid nitrogen were homogenized using a pestle and mortar. Total RNA was extracted using a Qiagen RNeasy Plant Mini Kit (Qiagen, Hilden, Germany), according to the manufacturer’s protocol. cDNA was synthesized using a ReverTra Ace® quantitative polymerase chain reaction (qPCR) reverse transcription (RT) kit (Toyobo, Osaka, Japan) and an oligo (dT) primer (Toyobo). Using gene-specific primers, partial sequences of the target genes were amplified, extracted from agarose gel using a Wizard® SV Gel and PCR Clean-Up System (Promega, Madison, WI, USA), and cloned into a pCR™-Blunt II TOPO® vector using a Zero Blunt® TOPO® PCR Cloning Kit (Thermo Fisher Scientific, Waltham, MA, USA). The cDNA sequences of PaNAC45, PaNEN1, and PaNEN4 are provided in Supplementary Table S1. The nucleotide sequences reported in this paper have been submitted to the DNA Data Bank of Japan under accession numbers; PaNAC45: LC333147, PaNEN1: LC333148, and PaNEN4: LC333149.

4.3. Real Time PCR

Two weeks after parasitization on the ‘Micro-Tom’ plant, parasitic interface tissues were surgically separated into ‘haustorium’ (Ha) and ‘protrusion’ (Pr) samples. RNA was extracted from each sample (approximately 100 mg) and treated with DNase using a TURBO DNA-free™ Kit (Thermo Fisher Scientific). cDNA was synthesized using a ReverTra Ace® qPCR RT kit (Toyobo) and an oligo (dT) primer (Toyobo). Based on previous studies [31,32], the stable-expression gene Ubiquitin1 (PaUBQ1) (OrAeBC4_32941) was chosen as a reference gene for normalization. In order to avoid amplification of the host’s genes, primers were designed based on untranslated region sequence of each contig and confirmed parasite-specific amplification. qRT-PCR was performed using SYBR® Green on Applied Biosystems StepOne™ Real Time PCR System (Thermo Fisher Scientific). PCR reactions were performed in 20-μL total volume (per well) that contained 1 μL of cDNA, 0.4 μL each of the gene-specific primers (10 μM), 10 μL of Fast SYBR™ Green Master Mix (Thermo Fisher Scientific), and water, according to the manufacturer’s protocol. The annealing temperature was set at 56 °C. For generating standard curves of target genes, cDNA from P. aegyptiaca protrusion tissue was diluted to 1:5, 1:25, 1:125, and 1:625. Data were analyzed using StepOneTM Software v2.3 (Thermo Fisher Scientific) and normalized to the PaUBQ1 expression level.

4.4. Preparation and Imaging of Agarose-Embedded Sections

Two weeks after parasitization on AtSUC2pro::GFP tomato plants, parasitic interface tissues were cut and embedded in 5% (w/v) agarose without fixation, and cut using MicroSlicerTM ZERO 1N (DOSAKA, Kyoto, Japan) into 100-μm sections. The sections were then stained with 1% (w/v) Aniline Blue (WALDECK GmbH & Co., KG, Waldeck, Germany) at room temperature for 2 h and washed with phosphate-buffered saline (PBS) (137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, and 1.47 mM KH2PO4) three times.

4.5. Immunostaining

Immunostaining was performed as previously described [33], with slight modifications. Two weeks after parasitization on AtSUC2pro::GFP tomato plants, parasitic interface tissues were fixed with 4% (w/v) paraformaldehyde phosphate buffer solution (Wako Pure Chemical Industries Ltd., Richmond, VA, USA) and embedded in paraffin (Paraplast, Leica Biosystems, Richmond, VA, USA) according to the conventional protocol [34]. Paraffin blocks were cut with a microtome (PR-50, Yamato Kohki, Saitama, Japan) into 10-μm sections and fixed on glass slides at 40 °C for 1 day. After deparaffinization, the sections were treated with blocking buffer (1% w/v bovine serum albumin (Nacalai Tesque, Kyoto, Japan) in PBS pH 7.0) for 2 h at room temperature in a humidified chamber and washed three times with PBS. They were then incubated with primary antibodies (monoclonal mouse anti-GFP antibody (Nacalai Tesque, Kyoto, Japan, 4363-24) 1:1000 in blocking buffer, and normal rat IgG 1:1000 in blocking buffer) over night at 4 °C in a humidified chamber. After washing three times with PBS, sections were incubated with secondary antibody (CF568 Donkey Anti-Mouse IgG (H + L) (Biotium, Fremont, CA, USA) that was highly cross-adsorbed, and diluted 1:750 in blocking buffer) for 2 h, washed three times with PBS, and incubated with 2 μg/mL DAPI (Nacalai Tesque) for 20 min at room temperature in a dark, humidified chamber. After removing excess buffer, the sections were encapsulated in SlowFade™ Diamond Antifade Mountant (Thermo Fisher Scientific).

4.6. Confocal Laser-Scanning Microscopy

Images were taken by using a confocal laser-scanning microscope (Leica 408 TCS SP8, Leica Microsystems, Wetzlar, Germany). GFP was excited at 488 nm and the light emitted was captured at 500 to 530 nm. CF568 was excited at 552 nm, and the light emitted was captured at 580 to 610 nm. DAPI and Aniline Blue were excited at 405 nm, and the light emitted was captured at 430 to 480 nm. Images were analyzed using Leica Application Suite X (Leica Microsystems).

Supplementary Materials

The following are available online at www.mdpi.com/2223-7747/6/4/60/s1, Table S1: DNA sequences of PaNEN1, PaNEN4, and PaNAC45 cDNAs.

Acknowledgments

We thank Joseph Hershenhorn (Volcani Center, Israel) for providing us with P. aegyptiaca seeds, Shmuel Wolf (The Hebrew University of Jerusalem, Israel) for the AtSUC2pro::GFP tomato seeds, and the National BioResource Project Tomato (AMED, Japan) for providing us with ‘Micro-Tom’ seeds (accession number: TOMJPF00001). We also thank Junpei Takano and Akira Yoshinari (Osaka Prefecture University) for the confocal laser-scanning microscopy. This study was partly supported by the Scientific Research in Innovative Areas project “The Plant Cell Wall as an Information Processing System” (MEXT, Japan) to KA (grant No. 15H01237), and by the Grant-in-Aid for Scientific Research (B) to KA (grant No. 16H04875).

Author Contributions

M.E. performed the experiments, analyzed the data, and wrote the paper; K.A. conceived and designed the experiments, analyzed the data, and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

BRbrassinosteroid
CCcompanion cell
CHER1CHOLINE TRANSPORTER-LIKE 1
DAPI4′,6-diamidino-2-phenylindole
PBSphosphate-buffered saline
qPCRquantitative polymerase chain reaction
SEsieve element
SELsize exclusion limit
SUC2SUCROSE-PROTON SYMPORTER 2

References

  1. Parker, C. Observations on the current status of Orobanche and Striga problems worldwide. Pest Manag. Sci. 2009, 65, 453–459. [Google Scholar] [CrossRef] [PubMed]
  2. Fernández-Aparicio, M.; Reboud, X.; Gibot-Leclerc, S. Broomrape weeds. Underground mechanisms of parasitism and associated strategies for their control: A review. Front. Plant Sci. 2016, 7, 135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Dörr, I. How Striga parasitizes its host: A TEM and SEM study. Ann. Bot. 1997, 79, 463–472. [Google Scholar] [CrossRef]
  4. Bar-Nun, N.; Sachs, T.; Mayer, A.M. A role for IAA in the infection of Arabidopsis thaliana by Orobanche aegyptiaca. Ann. Bot. 2008, 101, 261–265. [Google Scholar] [CrossRef] [PubMed]
  5. Truscott, F.H. On the regeneration of new shoots from isolated dodder haustoria. Am. J. Bot. 1958, 45, 169–177. [Google Scholar] [CrossRef]
  6. Dörr, I. Sieve elements in haustoria of parasitic angiosperms. In Sieve Elements: Comparative Structure, Induction and Development; Behnke, H.-D., Sjolund, R.D., Eds.; Springer: Berlin, Germany, 1990; pp. 239–256. [Google Scholar]
  7. Haupt, S.; Oparka, K.J.; Sauer, N.; Neumann, S. Macromolecular trafficking between Nicotiana tabacum and the holoparasite Cuscuta reflexa. J. Exp. Bot. 2001, 52, 173–177. [Google Scholar] [CrossRef] [PubMed]
  8. Birschwilks, M.; Haupt, S.; Hofius, D.; Neumann, S. Transfer of phloem-mobile substances from the host plants to the holoparasite Cuscuta sp. J. Exp. Bot. 2006, 57, 911–921. [Google Scholar] [CrossRef] [PubMed]
  9. Péron, T.; Candat, A.; Montiel, G.; Veronesi, C.; Macherel, D.; Delavault, P.; Simier, P. New insights into phloem unloading and expression of sucrose transporters in vegetative sinks of the parasitic plant Phelipanche ramosa L. (Pomel). Front. Plant Sci. 2016, 7, 2048. [Google Scholar] [CrossRef] [PubMed]
  10. Aly, R.; Hamamouch, N.; Abu-Nassar, J.; Wolf, S.; Joel, D.M.; Eizenberg, H.; Kaisler, E.; Cramer, C.; Gal-On, A.; Westwood, J.H. Movement of protein and macromolecules between host plants and the parasitic weed Phelipanche aegyptiaca Pers. Plant Cell Rep. 2011, 30, 2233–2241. [Google Scholar] [CrossRef] [PubMed]
  11. Spallek, T.; Melnyk, C.W.; Wakatake, T.; Zhang, J.; Sakamoto, Y.; Kiba, T.; Yoshida, S.; Matsunaga, S.; Sakakibara, H.; Shirasu, K. Interspecies hormonal control of host root morphology by parasitic plants. Proc. Natl. Acad. Sci. USA 2017, 114, 5283–5288. [Google Scholar] [CrossRef] [PubMed]
  12. Furuta, K.M.; Yadav, S.R.; Lehesranta, S.; Belevich, I.; Miyashima, S.; Heo, J.O.; Vatén, A.; Lindgren, O.; De Rybel, B.; Van Isterdael, G.; et al. Plant development. Arabidopsis NAC45/86 direct sieve element morphogenesis culminating in enucleation. Science 2014, 345, 933–937. [Google Scholar] [CrossRef] [PubMed]
  13. Stadler, R.; Wright, K.M.; Lauterbach, C.; Amon, G.; Gahrtz, M.; Feuerstein, A.; Oparka, K.J.; Sauer, N. Expression of GFP-fusions in Arabidopsis companion cells reveals non-specific protein trafficking into sieve elements and identifies a novel post-phloem domain in roots. Plant J. 2005, 41, 319–331. [Google Scholar] [CrossRef] [PubMed]
  14. Imlau, A.; Truernit, E.; Sauer, N. Cell-to-cell and long-distance trafficking of the green fluorescent protein in the phloem and symplastic unloading of the protein into sink tissues. Plant Cell 1999, 11, 309–322. [Google Scholar] [CrossRef] [PubMed]
  15. Esau, K. Development and structure of the phloem tissue. II. Bot. Rev. 1950, 16, 67–114. [Google Scholar] [CrossRef]
  16. Evert, R.F. Esau’s Plant Anatomy: Meristems, Cells and Tissues of the Plant Body: Their Structure, Function and Development, 3rd ed.; Wiley: Hoboken, NJ, USA, 2006; pp. 357–405. [Google Scholar]
  17. Wallner, E.S.; López-Salmerón, V.; Belevich, I.; Poschet, G.; Jung, I.; Grünwald, K.; Sevilem, I.; Jokitalo, E.; Hell, R.; Helariutta, Y.; et al. Strigolactone- and karrikin-independent SMXL proteins are central regulators of phloem formation. Curr. Biol. 2017, 27, 1241–1247. [Google Scholar] [CrossRef] [PubMed]
  18. Bonke, M.; Thitamadee, S.; Mähönen, A.P.; Hauser, M.T.; Helariutta, Y. APL regulates vascular tissue identity in Arabidopsis. Nature 2003, 426, 181–186. [Google Scholar] [CrossRef] [PubMed]
  19. Xie, B.; Hong, Z. Unplugging the callose plug from sieve pores. Plant Signal. Behav. 2011, 6, 491–493. [Google Scholar] [CrossRef] [PubMed]
  20. Kondo, Y.; Nurani, A.M.; Saito, C.; Ichihashi, Y.; Saito, M.; Yamazaki, K.; Mitsuda, N.; Ohme-Takagi, M.; Fukuda, H. Vascular cell induction culture system using Arabidopsis leaves (VISUAL) reveals the sequential differentiation of sieve element-like cells. Plant Cell 2016, 28, 1250–1262. [Google Scholar] [CrossRef] [PubMed]
  21. Heo, J.O.; Blob, B.; Helariutta, Y. Differentiation of conductive cells: A matter of life and death. Curr. Opin. Plant Biol. 2017, 35, 23–29. [Google Scholar] [CrossRef] [PubMed]
  22. Kang, Y.H.; Breda, A.; Hardtke, C.S. Brassinosteroid signaling directs formative cell divisions and protophloem differentiation in Arabidopsis root meristems. Development 2017, 144, 272–280. [Google Scholar] [CrossRef] [PubMed]
  23. Anne, P.; Azzopardi, M.; Gissot, L.; Beaubiat, S.; Hématy, K.; Palauqui, J.C. OCTOPUS negatively regulates BIN2 to control phloem differentiation in Arabidopsis thaliana. Curr. Biol. 2015, 25, 2584–2590. [Google Scholar] [CrossRef] [PubMed]
  24. Truernit, E.; Bauby, H.; Belcram, K.; Barthélémy, J.; Palauqui, J.C. OCTOPUS, a polarly localised membrane-associated protein, regulates phloem differentiation entry in Arabidopsis thaliana. Development 2012, 139, 1306–1315. [Google Scholar] [CrossRef] [PubMed]
  25. Ruiz Sola, M.A.; Coiro, M.; Crivelli, S.; Zeeman, S.C.; Schmidt Kjølner Hansen, S.; Truernit, E. OCTOPUS-LIKE 2, a novel player in Arabidopsis root and vascular development, reveals a key role for OCTOPUS family genes in root metaphloem sieve tube differentiation. New Phytol. 2017, 216, 1191–1204. [Google Scholar] [CrossRef] [PubMed]
  26. Enari, M.; Sakahira, H.; Yokoyama, H.; Okawa, K.; Iwamatsu, A.; Nagata, S. A caspase-activated DNase that degrades DNA during apoptosis, and its inhibitor ICAD. Nature 1998, 391, 43–50. [Google Scholar] [CrossRef] [PubMed]
  27. Woo, E.J.; Kim, Y.G.; Kim, M.S.; Han, W.D.; Shin, S.; Robinson, H.; Park, S.Y.; Oh, B.H. Structural mechanism for inactivation and activation of CAD/DFF40 in the apoptotic pathway. Mol. Cell 2004, 14, 531–539. [Google Scholar] [CrossRef]
  28. Dettmer, J.; Ursache, R.; Campilho, A.; Miyashima, S.; Belevich, I.; O’Regan, S.; Mullendore, D.L.; Yadav, S.R.; Lanz, C.; Beverina, L.; et al. CHOLINE TRANSPORTER-LIKE1 is required for sieve plate development to mediate long-distance cell-to-cell communication. Nat. Commun. 2014, 5, 4276. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, L.; Yu, J.; Li, D.; Zhang, X. Sinbase: An integrated database to study genomics, genetics and comparative genomics in Sesamum indicum. Plant Cell Physiol. 2015, 56, e2. [Google Scholar] [CrossRef] [PubMed]
  30. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [PubMed]
  31. González-Verdejo, C.I.; Die, J.V.; Nadal, S.; Jiménez-Marín, A.; Moreno, M.T.; Román, B. Selection of housekeeping genes for normalization by real-time RT-PCR: Analysis of Or-MYB1 gene expression in Orobanche ramosa development. Anal. Biochem. 2008, 379, 176–181. [Google Scholar] [CrossRef] [PubMed]
  32. Fernández-Aparicio, M.; Huang, K.; Wafula, E.K.; Honaas, L.A.; Wickett, N.J.; Timko, M.P.; Depamphilis, C.W.; Yoder, J.I.; Westwood, J.H. Application of qRT-PCR and RNA-Seq analysis for the identification of housekeeping genes useful for normalization of gene expression values during Striga hermonthica development. Mol. Biol. Rep. 2013, 40, 3395–3407. [Google Scholar] [CrossRef] [PubMed]
  33. Hozumi, A.; Bera, S.; Fujiwara, D.; Obayashi, T.; Yokoyama, R.; Nishitani, K.; Aoki, K. Arabinogalactan proteins accumulate in the cell walls of searching hyphae of the stem parasitic plants, Cuscuta campestris and Cuscuta japonica. Plant Cell Physiol. 2017, 58, 1868–1877. [Google Scholar] [CrossRef] [PubMed]
  34. Ruzin, S.E. Sectioning and mounting. In Plant Microtechnique and Microscopy; Oxford University Press: Oxford, UK, 1999; pp. 73–85. [Google Scholar]
Figure 1. Appearance of Phelipanche aegyptiaca tubercles at different parasitic stages. The tubercle diameters are (A) 1.5 mm, (B) 3 mm, and (C) 1 cm. Scale bar: 1 mm. Tu, tubercle; Pr, protrusion; Sl, tomato; Pa, P. aegyptiaca.
Figure 1. Appearance of Phelipanche aegyptiaca tubercles at different parasitic stages. The tubercle diameters are (A) 1.5 mm, (B) 3 mm, and (C) 1 cm. Scale bar: 1 mm. Tu, tubercle; Pr, protrusion; Sl, tomato; Pa, P. aegyptiaca.
Plants 06 00060 g001
Figure 2. Translocation of green fluorescent protein (GFP, green) from AtSUC2::GFP tomato roots to a tubercle. (A) GFP in a 3-mm-diameter tubercle. Scale bar: 500 μm. (B) GFP detected by immunostaining in a paraffin section of a 3-mm-diameter tubercle. Scale bar: 250 μm. (C) Magnified image of the rectangle C in Panel (B). GFP in a protrusion. Scale bar: 100 μm. (D) Magnified image of the rectangle D in Panel (B). GFP in the tomato-Phelipanche aegyptiaca interface. Scale bar: 100 μm. Tu, tubercle; Ha, haustorium; Pr, protrusion; X, xylem of tomato; P, phloem of tomato; Sl, tomato; Pa, P. aegyptiaca.
Figure 2. Translocation of green fluorescent protein (GFP, green) from AtSUC2::GFP tomato roots to a tubercle. (A) GFP in a 3-mm-diameter tubercle. Scale bar: 500 μm. (B) GFP detected by immunostaining in a paraffin section of a 3-mm-diameter tubercle. Scale bar: 250 μm. (C) Magnified image of the rectangle C in Panel (B). GFP in a protrusion. Scale bar: 100 μm. (D) Magnified image of the rectangle D in Panel (B). GFP in the tomato-Phelipanche aegyptiaca interface. Scale bar: 100 μm. Tu, tubercle; Ha, haustorium; Pr, protrusion; X, xylem of tomato; P, phloem of tomato; Sl, tomato; Pa, P. aegyptiaca.
Plants 06 00060 g002
Figure 3. Green fluorescent protein (GFP)-conducting cells containing nuclei in the haustoria of (A) a 1.5-mm-diameter tubercle and (B) a 3-mm-diameter tubercle. White arrows indicate nuclei. Most of the GFP-conducting cells contained nuclei. Scale bar: 50 μm.
Figure 3. Green fluorescent protein (GFP)-conducting cells containing nuclei in the haustoria of (A) a 1.5-mm-diameter tubercle and (B) a 3-mm-diameter tubercle. White arrows indicate nuclei. Most of the GFP-conducting cells contained nuclei. Scale bar: 50 μm.
Plants 06 00060 g003
Figure 4. Detection of nuclei and callose-rich sieve plates in green fluorescent protein (GFP)-conducting cells in a 1-cm-diameter tubercle. (AC) 4′6-diamidino-2-phenylindole (DAPI) staining of haustorial cells; (A) GFP, (B) DAPI, and (C) merged. (DF) DAPI staining of protrusion cells; (D) GFP, (E) DAPI, and (F) merged. White arrows indicate nuclei. (GI) Aniline Blue staining of haustorial cells; (G) GFP, (H) Aniline Blue, and (I) merged. (JL) Aniline Blue staining of protrusion cells; (J) GFP, (H) Aniline Blue, and (I) merged. White triangles indicate sieve plates. Scale bar: 50 μm. (M) Percentage of nucleated GFP-conducting cells to all GFP-conducting cells. Ha, haustorium; Pr, protrusion. The means and standard deviations of six and three different haustorial and protrusion specimens, respectively, are presented. n: number of specimens.
Figure 4. Detection of nuclei and callose-rich sieve plates in green fluorescent protein (GFP)-conducting cells in a 1-cm-diameter tubercle. (AC) 4′6-diamidino-2-phenylindole (DAPI) staining of haustorial cells; (A) GFP, (B) DAPI, and (C) merged. (DF) DAPI staining of protrusion cells; (D) GFP, (E) DAPI, and (F) merged. White arrows indicate nuclei. (GI) Aniline Blue staining of haustorial cells; (G) GFP, (H) Aniline Blue, and (I) merged. (JL) Aniline Blue staining of protrusion cells; (J) GFP, (H) Aniline Blue, and (I) merged. White triangles indicate sieve plates. Scale bar: 50 μm. (M) Percentage of nucleated GFP-conducting cells to all GFP-conducting cells. Ha, haustorium; Pr, protrusion. The means and standard deviations of six and three different haustorial and protrusion specimens, respectively, are presented. n: number of specimens.
Plants 06 00060 g004aPlants 06 00060 g004b

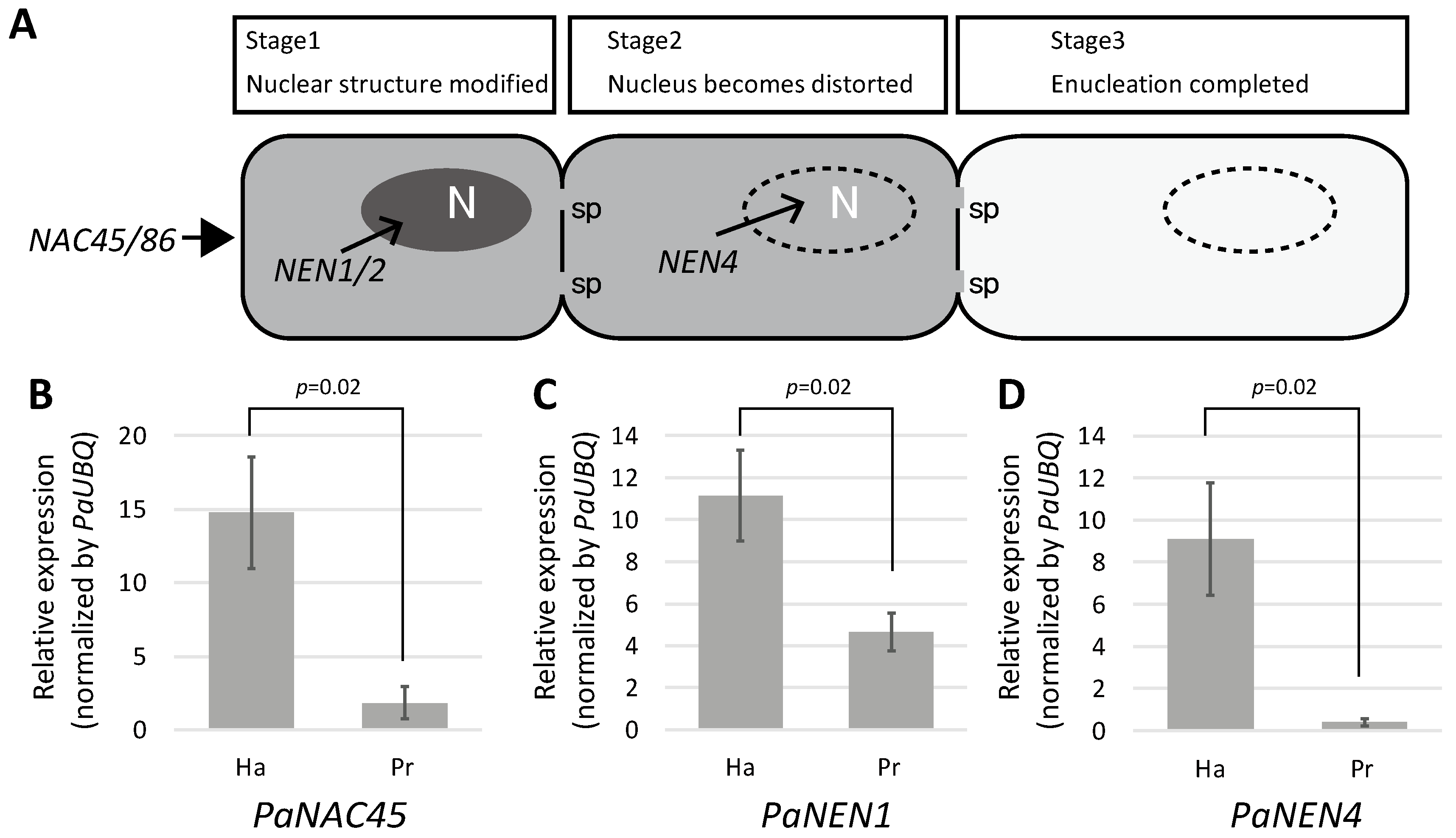

Figure 5. (A) Stages of sieve element differentiation. N, nucleus; sp, sieve plate pore. (BD) Relative expression levels of (B) PaNAC45, (C) PaNEN1, and (D) PaNEN4 in a surgically separated haustorium (Ha) and protrusion (Pr). Expression levels were normalized to that of Phelipanche aegyptiaca UBIQUITIN (PaUBQ). The means and standard deviations of three replicates are presented. NAC = NAC-domain containing transcription factor; NEN = NAC45/86-dependent exonuclease-domain protein.
Figure 5. (A) Stages of sieve element differentiation. N, nucleus; sp, sieve plate pore. (BD) Relative expression levels of (B) PaNAC45, (C) PaNEN1, and (D) PaNEN4 in a surgically separated haustorium (Ha) and protrusion (Pr). Expression levels were normalized to that of Phelipanche aegyptiaca UBIQUITIN (PaUBQ). The means and standard deviations of three replicates are presented. NAC = NAC-domain containing transcription factor; NEN = NAC45/86-dependent exonuclease-domain protein.
Plants 06 00060 g005
Table 1. Primers used in this study.
Table 1. Primers used in this study.
Primer IDSequence (5′ → 3′)
PaNEN1 forwardACAAGCAAGCTATACATAACCGTG
PaNEN1 reverseTAACAGCACCAAAGTTAAATCAAACC
PaNEN1 qPCR forwardACAAGCAAGCTATACATAACCGTG
PaNEN1 qPCR reverseTATTCAGGAAATAAAGAATAATGGGAGC
PaNEN4 forwardACAGATGTAGTGTATGCTAGGATTACC
PaNEN4 reverseATAACGACACCATCTTACAAAGTTTGAAC
PaNEN4 qPCR forwardAGGAAGAACTCATTCTTGCTAACAAC
PaNEN4 qPCR reverseTGACATTGTCAGTTGTAACATACTG
PaNAC45 forwardATTTCAAAAAAGGACCAGGAGACTGG
PaNAC45 reverseAGTTCATTGGCATTGGATATTCAGAAG
PaNAC45 qPCR forwardATCAATGGCCGCAAAATCGATC
PaNAC45 qPCR reverseTACCATTCAAGATCTTTGCTTGGC
PaUBQ1 qPCR forwardATCACTGCCTGATTATCAGACGC
PaUBQ1 qPCR reverseTAGGGAATCAACTCGATTATGGCG
