Article

Development of Bio-Sourced Epoxies for Bio-Composites

1
Advanced Materials and Composites Department, Faculty of Science & Engineering, University of Nottingham (UNNC), Ningbo 315100, China
2
AVIC Composite Corporation Ltd. (ACC), Beijing 101300, China
3
AVIC XAC, Commercial Aircraft Co., Ltd., Xi’an 710000, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Aerospace 2018, 5(2), 65; https://doi.org/10.3390/aerospace5020065
Submission received: 22 April 2018 / Revised: 29 May 2018 / Accepted: 11 June 2018 / Published: 15 June 2018

Abstract

:
In the air and ground transportation sectors, new environmental regulations and societal concerns have triggered a search for new products and processes that complement resources and the environment. To address these issues, this article reports on current R&D efforts to develop bio-sourced materials by an international joint project. Novel bio-sourced epoxies and biocomposites were developed, characterized, modified and evaluated in terms of the mechanical property levels. Quasi-structural composite parts were finally trial-manufactured and demonstrated.

Graphical Abstract

1. Introduction

With the present state of composite technological development, biocomposites are understood as composites that consist of biopolymer matrices, i.e., bio-sourced resins and/or natural fiber reinforcements, e.g., plant fibers (PF) [1,2]. Besides existing applications in automobiles [3], this new member of the material family may provide an economical and environmentally-friendly alternative to glass-fiber-reinforced composites for quasi-structural applications in aircraft. The present paper provides an overview on the current development of biocomposite materials by an international joint project, ECO-COMPASS (Ecological and Multifunctional Composites for Application in Aircraft Interior and Secondary Structures, 2016–2019) [4], which is co-funded by the Chinese Ministry of Industry and Information Technology (MIIT) and the European Union, but with a special emphasis on bio-sourced epoxies and biocomposites. Quasi-structural composite parts were finally trial-manufactured and demonstrated using the epoxies as matrix resins.

2. Rosin-Sourced Epoxy as a Matrix Resin

Rosin is an abundantly available natural product, it is nontoxic and odorless, and contains various isomerized acids (>90%) and some neutral substances [5]. Reactive double bonds and carboxyl groups of rosin acids render them suitable for the Diels–Alder reaction, esterification and condensation reaction usage. Therefore, rosin acid has received increasing attention as a bio-sourced form of renewable feedstock in polymer science.
Anhydride is one of the curing agents for epoxies (EPs). Owing to their characteristic bulky hydrogenated phenanthrene ring structure, rosin acids are analogous to many aromatic compounds in rigidity. However, their curing temperature is generally high, about 200–250 °C, and the curing time is long, which limits the use of the anhydride in some products and apparatus. The complex reactions of epoxy/anhydride curing include the carboxyl group reaction with an epoxy ring in the catalyzed action of accelerator, alternate ring-opening copolymerization of epoxy, and anhydride catalyzed by amine and polyetherification at high temperatures, initiated by amine and catalyzed by hydroxyl groups [6]. These processes occur when an amine is added as the catalyst. An excellent reference [6] on this issue can be found in the literature.
In this study [7,8], an anhydride-type epoxy curing agent, maleopimaric (Scheme 1), was synthesized as a hardener from rosin acid (Scheme 1). This was supplied by the Ningbo Institute of Materials and Technology Engineering. A resin mixed with an E51-type epoxy and a solid phenolic epoxy was then prepared as the main component, together with an accelerator mixed of two amino imidazole salts as the thermally latent curing agent and also as the catalyst for the anhydride. The experimental details can also be find in reference [7]. Figure 1 exhibits the glass transition behavior of the formulated resin system. As shown, the curing degree increased with the curing temperature for a constant curing time of 3 h, as well as the glass transition temperature. The formulated matrix resin was finally designated as AGMP3600, with a bio-content of about 30%.
Figure 2 shows the typical viscosity behavior of the trial product AGMP3600. It behaved well in the film manufacturing and subsequent prepreg production. The process condition for the prepreg using AGMP3600 as the matrix in the autoclave is shown in Figure 3.
The mechanical properties of AGMP 3600 laminates reinforced with different kinds of fibers and weaves were determined and are listed in Table 1, Table 2, Table 3 and Table 4 in some cases compared with the state-of-the-art counterparts as reference.
In parallel, a 180 °C/2 h cured-rosin epoxy was also developed, designated as AGMP5600, with a higher bio-content of about 40%. It is particularly interesting to note that the glass transition temperature of AGMP5600 matrix composite reinforced with EW250F glass weave was about 220 °C. Table 4 lists the mechanical properties of the laminated composite. The temperature-dependent mechanical properties were also studied, as well as those after the hot/wet exposure (1000 h/70 °C/85% r.H.)

3. Epoxy Resins Based on Itaconic Acid

Itaconic acid, which is also referred to as methylenesuccinic acid, is typically produced through the fermentation of carbohydrates such as glucose or starch using Aspergillus terreus. Given its strong capacity to replace petrochemicals in the chemical industry, it has been selected as one of the top 12 potential bio-based platform chemicals by the U.S. Department of Energy [9]. To the best of our knowledge, it has been widely used in the production of styrene–butadiene–acrylonitrile and acrylate latex in the paper and coating sectors.
Epoxy (EP) resin derived from itaconic acid, designated in the paper as EIA, can be synthesized following the synthetic route shown in Scheme 2. To evaluate its properties, EIA and commercial DGEBA (diglycidyl ether of bisphenol A, epoxide equivalent weight of 182–192 g/eq.) were cured with methyl hexahydrophthalic anhydride (MHHPA), respectively. The results show that EIA presented higher epoxide (0.625) and higher reactivity values than DGEBA. Relative to DGEBA, the cured EIA showed comparable or higher tensile strength (87.5 MPa), elongation at break (7.1%), flexural strength (152.4 MPa) and modulus (3430.8 MPa), and glass transition temperature (Tg = 130 °C). In addition, after co-monomers such as divinyl benzene (DVB) and acrylated epoxidized soybean oil (AESO) were introduced into the EIA/MHHPA system, dual-curing systems were formed, and the rigidity and toughness could be manipulated further via the various contents of rigid DVB or soft AESO, as shown in Figure 4, compared with data from reference published [10].
As shown in Scheme 3, direct reactions between itaconic acid and epichlorohydrin generate resin EIA, which is a mixture of different oligomers of varying molecular weights. To make the best use of the carboxyl groups and itaconic acid double bond, a trifunctional EP monomer (TEIA) was designed and synthesized (Figure 4), and it generated an extremely high epoxide value of 1.16 and a low viscosity of 0.92 Pa s at 25 °C. It is well known that low resin viscosities are beneficial for manufacturing. The lower viscosities in TEIA render it easier to process than DGEBA. In Table 5, the flexural properties of TEIA cured by different curing agents are listed. When flexible poly(propylene glycol) bis(2-aminopropyl ether) (D230) is used as the curing agent, the TEIA/D230 system shows higher flexural modulus, higher strain at break and comparable flexural strength to DGEBA/D230. When rigid MHHPA was employed as the curing agent, the flexural strength, modulus and elongation at break of the TEIA/MHHPA system exceeded those of the DGEBA/MHHPA system. These results denote that TEIA may be used as a high-performance epoxy resin [11].
Given the presence of double bonds in itaconic acid and the low flame retardancy of EP resins, a flame-resistant DOPO (6H-dibenz(C,E)(1,2)oxaphosphorin-6-oxide) was chemically incorporated into the itaconic-acid-based EP resin, and a phosphorus-containing EP resin (EADI) was obtained (Scheme 4). The property study showed that the cured EADI network presents a comparable glass transition temperature and mechanical properties to those of the DGEBA system. In addition, excellent flame retardancy capacities with the UL94 V-0 grade used during vertical burning tests were observed for the EADI system. EADI may be used as a bio-based candidate for EP flame retardancy [12].

4. Trial Manufacturing and Demonstration

With the promising properties, as one of the project targets, biocomposites were trial-manufactured to produce interior and quasi-structural parts for potential application in airplane and ground transportation vehicles. Figure 5 is an illustration of an interior side panel made of AGMP3600, the rosin-sourced EP, with a honeycomb sandwich core for a MA600 airplane. The side panel was manufactured using AGMP3600 prepregs in an autoclave. The composite panels are strong, lightweight, fire resistant, decorative, and impervious to mold and insects. Structure–decoration integration methods can clearly support to the production of identical or even more complex composite parts while simultaneously presenting mechanical and structural damping advantages in various applications.
Figure 6 shows an electric race car in cooperation with Tsinghua University, China. In this case, the rosin-sourced epoxy composite was used to produce the carbon composite body with a honeycomb core. The process also used AGMP3600 prepreg. The strong conforming capacities of the materials along the curved contour were well-demonstrated. A manufacturing benefit of the biocomposites cured in an autoclave pertains to their full compatibility with the standard industrial production processes.

5. Conclusions

  • Rosin-sourced anhydride was developed and used as a hardener for epoxy to formulate a matrix resin with an imidazole-type latent catalyst for biocomposites. The mechanical properties of the biocomposites with the rosin-epoxy as matrix resins were tested, also under hydrothermal conditions. It was shown that the mechanical properties were generally comparable to the state-of-the-art, petroleum-sourced counterpart materials, but yielded a higher glass transition temperature.
  • Epoxy resin derived from itaconic acid was also synthesized. It showed comparable or higher mechanical properties and glass transition temperatures compared to a common counterpart. A phosphorus-containing epoxy was also developed by incorporating DOPO into the itaconic acid EP to formulate a flame-retardant resin system.
  • Using the rosin epoxy system, which is technologically more mature than the itaconic system, quasi-structural plant fiber reinforced components were manufactured and demonstrated for aircraft and ground transportation vehicles. The process condition was found to be fully compatible with standard industrial processes.

Author Contributions

X.Y. conceived and guided the project and study; X.Z. performed the formulation of the resins; F.D. and J.T. were responsible for the manufacturing of the structural parts.

Funding

The study was partially supported by the Chinese MIIT Special Research Program under Grant No. MJ-2015-H-G-103 and the European Union’s Horizon 2020 Research and Innovation Program under Grant Agreement No. 690638. They are greatly acknowledged.

Acknowledgments

The authors are thankful to Xiaoqing Liu, Songqi Ma and Jin Zhu, NIMTE-CAS (Ningbo Institute of Materials and Technology Engineering, Chinese Academy of Sciences), for supplying the rosin-sourced polymers and related information.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yi, X.; Li, Y. Bio-Sourced Resins, Plant Fibers and Biocomposites; China Construction Industry Press: Beijing, China, 2017. (In Chinese) [Google Scholar]
  2. Powers, W.F. Automotive Materials in the 21st Century. Adv. Mater. Process. 2000, 157, 38–41. [Google Scholar]
  3. Drzal, L.T.; Mohanty, A.K.; Misra, M. Bio-composite materials as alternatives to Petroleum-based composites for automotive applications. In Composite Materials and Structures Center; Michigan State University: East Lansing, MI, USA, 2000. [Google Scholar]
  4. ECO-COMPASS. Available online: http://www.eco-compass.eu (accessed on 30 June 2016).
  5. Coppen, J.J.W.; Hone, G.A. Gum naval stores: Turpentine and rosin from pine resin. In NON-WOOD FOREST PRODUCTS 2; Natural Resources Institute, Ed.; Food and Agriculture Organization of the United Nations: Rome, Italy, 1995; p. 4. ISBN 92-5-103684-5. [Google Scholar]
  6. Liu, X.; Yi, X.; Zhu, J. Bio-based epoxies and composites as environmentally friendly alternative materials. In Thermosets: Structure, Properties and Applications, 2nd ed.; Guo, Q., Ed.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 621–636. ISBN 978-0-08-101021-1. [Google Scholar]
  7. Zhang, X.; Wu, Y.; Wei, J.; Tong, J.; Yi, X. Curing kinetics and mechanical properties of bio-based composite using rosin-sourced anhydrides as curing agent for hot-melt prepreg. Sci. China Technol. Sci. 2017, 60, 1318–1331. [Google Scholar] [CrossRef]
  8. Lu, Y.; Zhao, Z.; Bi, L.; Chen, Y.; Wang, J.; Xu, S. Synthesis of a multifunctional hard monomer from rosin: The relationship of allyl structure in maleopimarate and UV-curing property. Sci. Rep. 2018, 8, 2399. [Google Scholar] [CrossRef] [PubMed]
  9. Werpy, T.; Petersen, G. Top Value Added Chemicals from Biomass. In Volume I—Results of Screening for Potential Candidates from Sugars and Synthesis Gas; The National Renewable Energy Laboratory (NREL) Report DOE/GO-102004-1992; U.S. Department of Energy: Washington, DC, USA, 2004. [Google Scholar]
  10. Ma, S.; Liu, X.; Jiang, Y.; Tang, Z.; Zhang, C.; Zhu, J. Bio-based epoxy resin from itaconic acid and its thermosets cured with anhydride and comonomers. Green Chem. 2013, 15, 245–254. [Google Scholar] [CrossRef]
  11. Ma, S.; Liu, X.; Fan, L.; Jiang, Y.; Cao, L.; Tang, Z.; Zhu, J. Synthesis and Properties of a Bio-Based Epoxy Resin with High Epoxy Value and Low Viscosity. ChemSusChem 2014, 7, 555–562. [Google Scholar] [CrossRef] [PubMed]
  12. Ma, S.; Liu, X.; Jiang, Y.; Fan, L.; Feng, J.; Zhu, J. Synthesis and properties of phosphorus-containing bio-based epoxy resin from itaconic acid. Sci. China-Chem. 2014, 57, 379–388. [Google Scholar] [CrossRef]

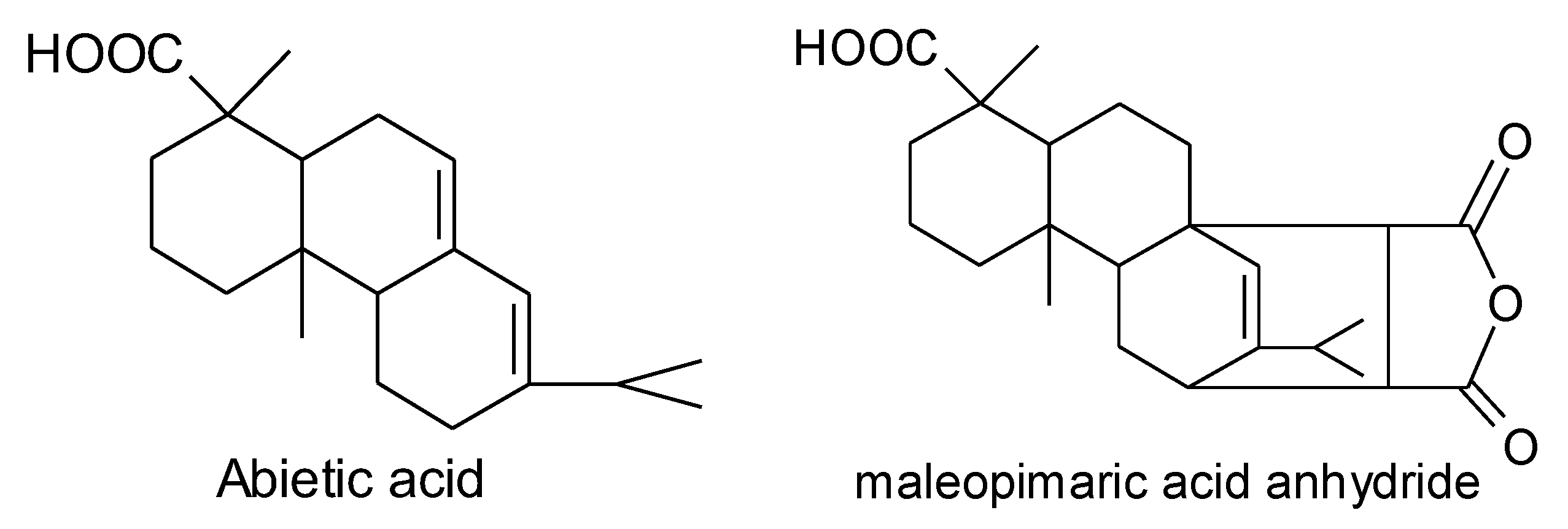

Scheme 1. Structure formula of abietic acid and maleopimaric acid anhydride.
Scheme 1. Structure formula of abietic acid and maleopimaric acid anhydride.
Aerospace 05 00065 sch001

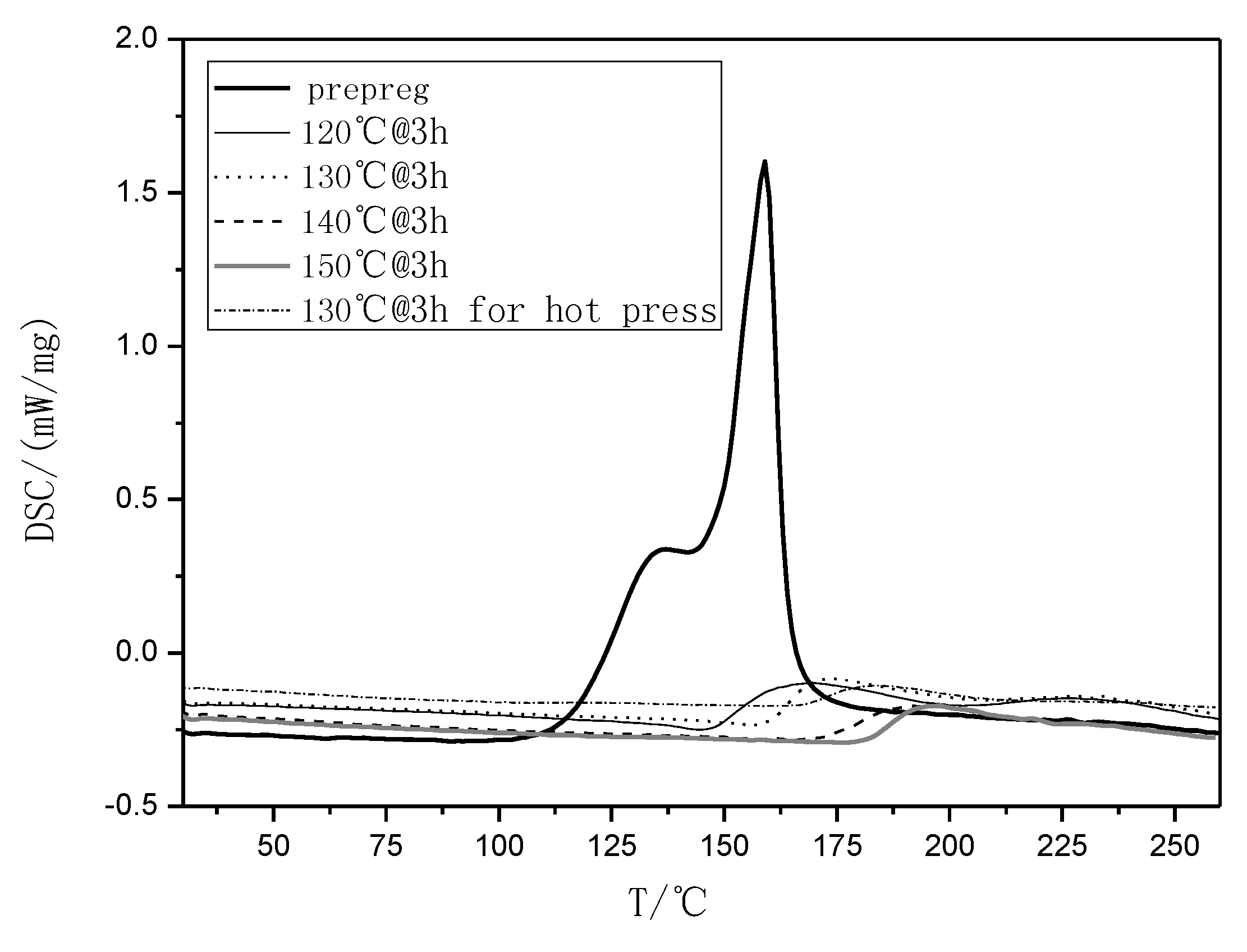

Figure 1. Differential Scanning Calorimetry (DSC) curves of the rosin-sourced epoxy resin system designated as AGMP3600 at different temperature conditions.
Figure 1. Differential Scanning Calorimetry (DSC) curves of the rosin-sourced epoxy resin system designated as AGMP3600 at different temperature conditions.
Aerospace 05 00065 g001

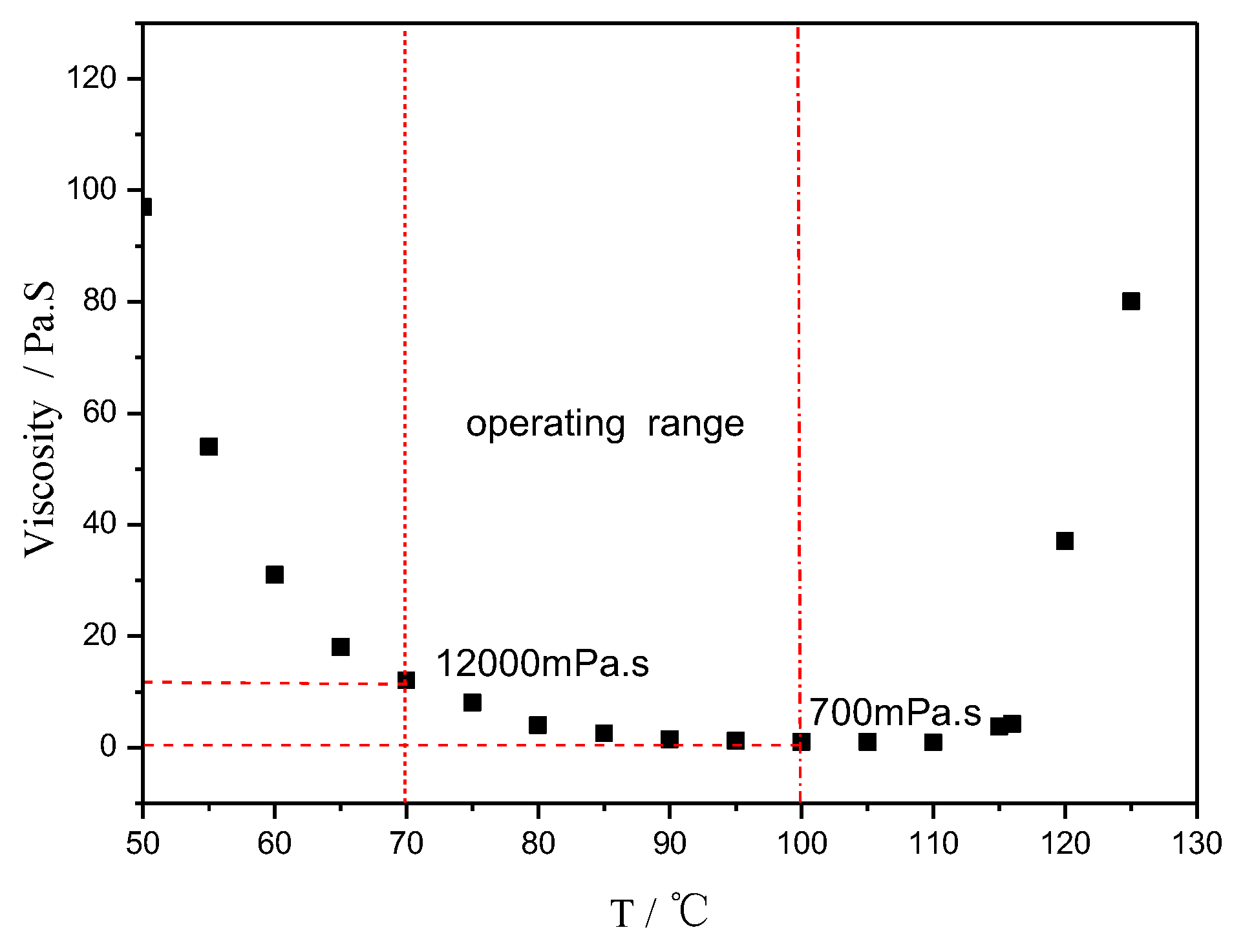

Figure 2. Viscosity vs. temperature of AGMP3600, a rosin-sourced epoxy resin system.
Figure 2. Viscosity vs. temperature of AGMP3600, a rosin-sourced epoxy resin system.
Aerospace 05 00065 g002
Figure 3. Process parameters for the curing of AGMP3600 prepreg in an autoclave.
Figure 3. Process parameters for the curing of AGMP3600 prepreg in an autoclave.
Aerospace 05 00065 g003

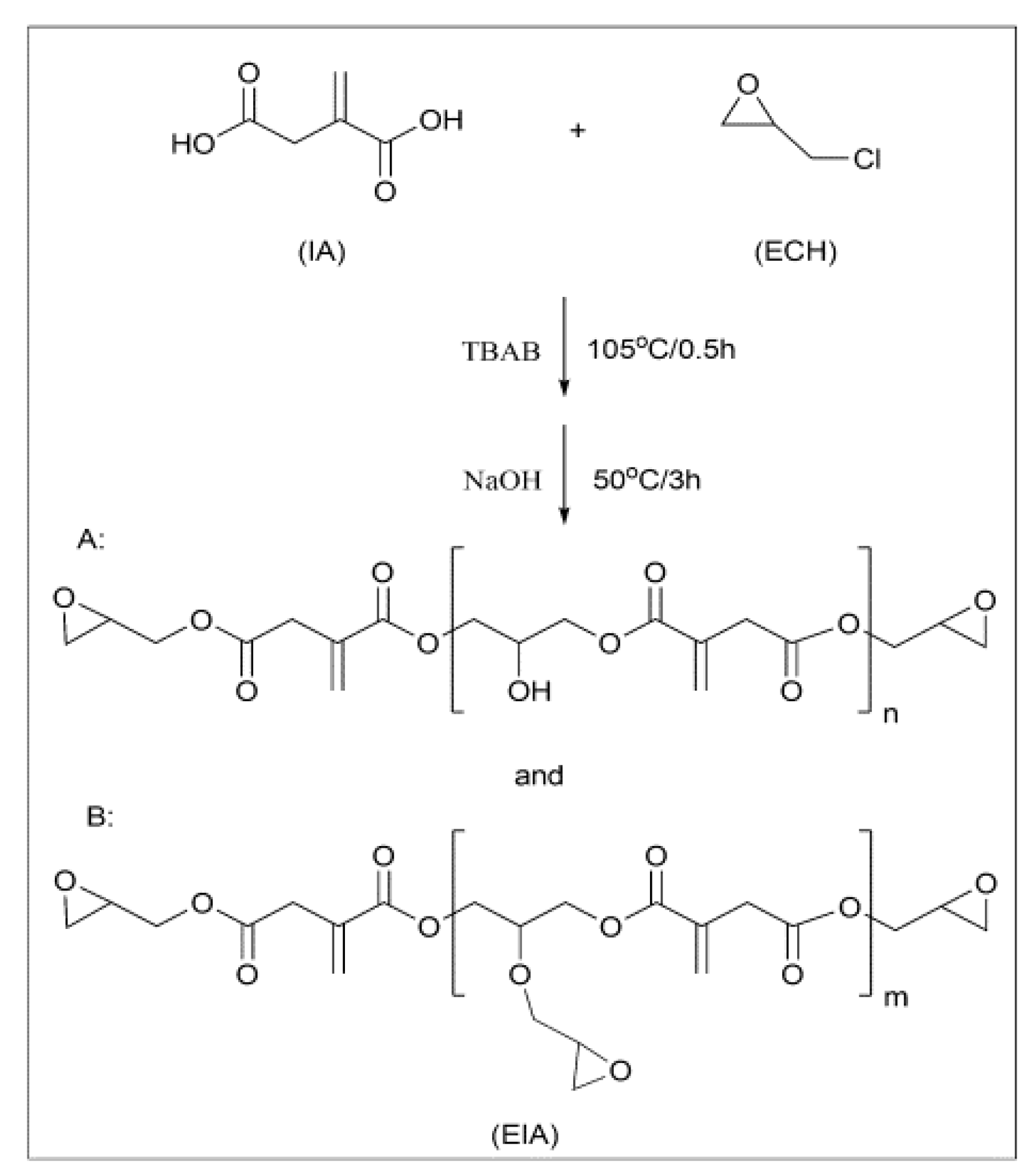

Scheme 2. Synthetic route and chemical structures of itaconic-acid-based epoxy resin (EIA).
Scheme 2. Synthetic route and chemical structures of itaconic-acid-based epoxy resin (EIA).
Aerospace 05 00065 sch002

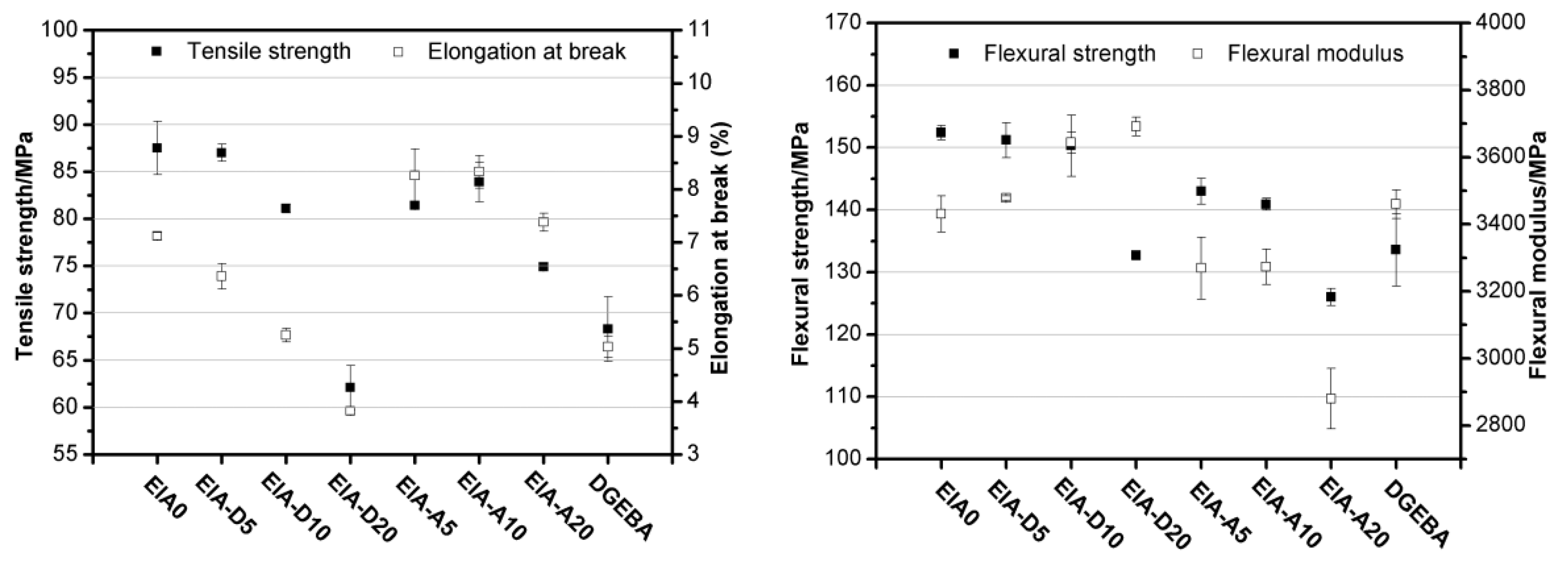

Figure 4. Mechanical properties of the cured EP resins. EIA0 and DGEBA refer to the cured samples without comonomers; D and A denote the DVB (divinyl benzene) and AESO (acrylated epoxidized soybean oil) co-monomers, respectively.
Figure 4. Mechanical properties of the cured EP resins. EIA0 and DGEBA refer to the cured samples without comonomers; D and A denote the DVB (divinyl benzene) and AESO (acrylated epoxidized soybean oil) co-monomers, respectively.
Aerospace 05 00065 g004

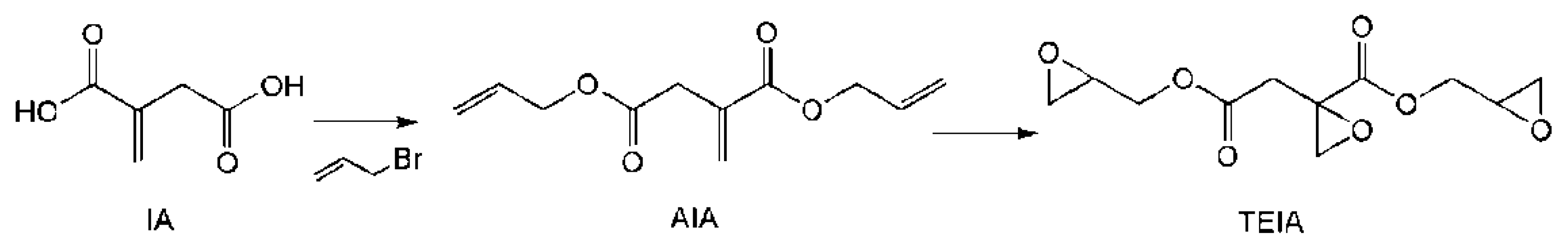

Scheme 3. Synthesis of the trifunctional epoxy resin of itaconic acid (TEIA).
Scheme 3. Synthesis of the trifunctional epoxy resin of itaconic acid (TEIA).
Aerospace 05 00065 sch003

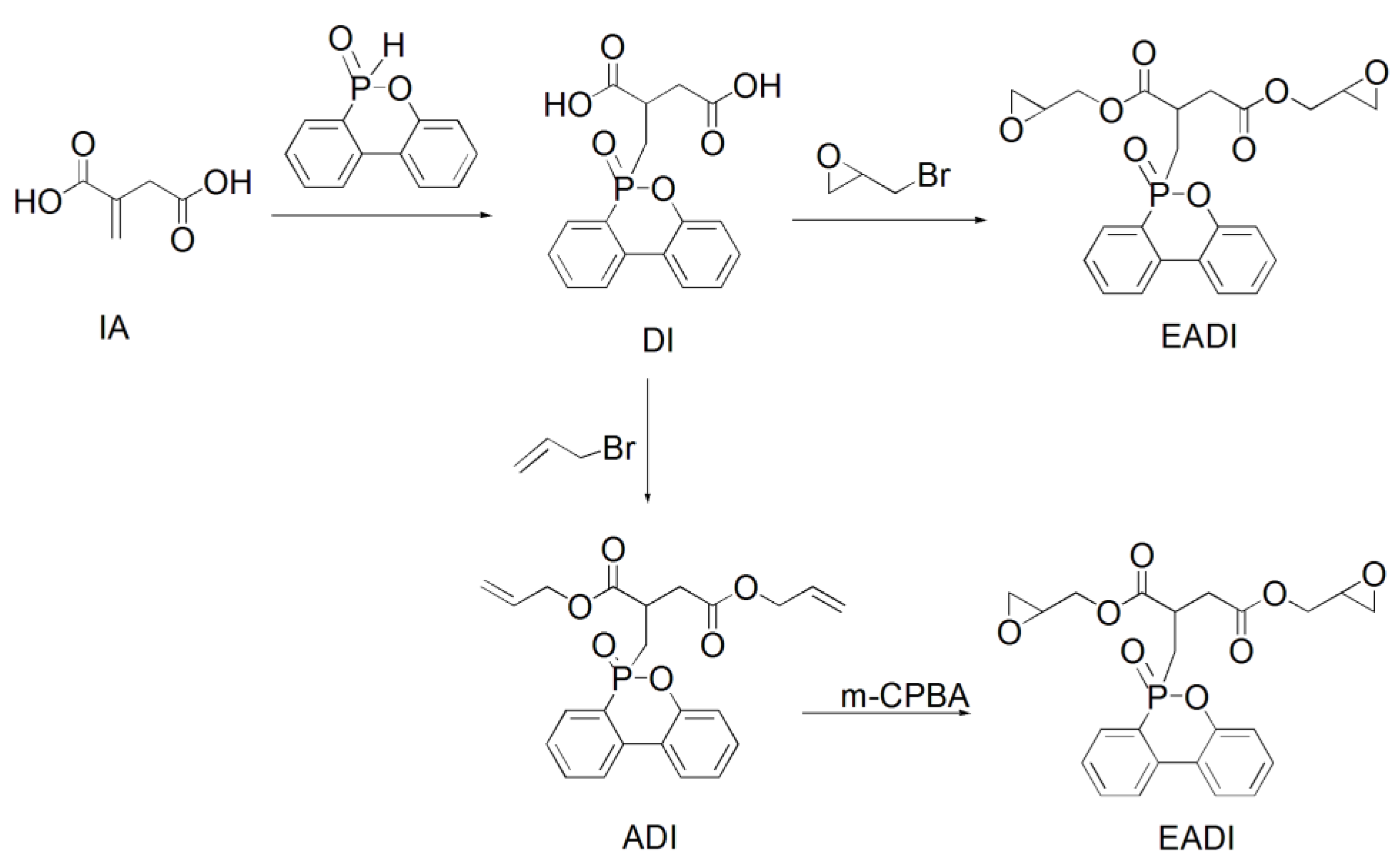

Scheme 4. Synthetic route of phosphorus-containing itaconic-acid-based epoxy resin.
Scheme 4. Synthetic route of phosphorus-containing itaconic-acid-based epoxy resin.
Aerospace 05 00065 sch004

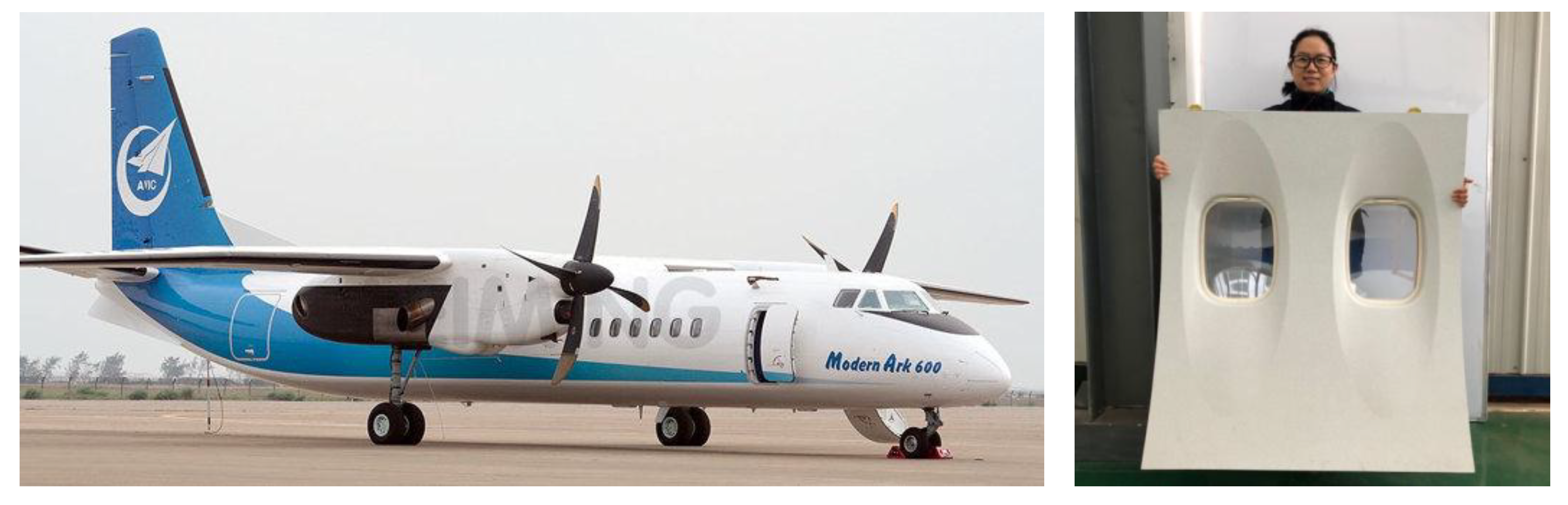

Figure 5. MA600 airplane and the composite side panel made of AGMP3600/honeycomb sandwich composites (Photos courtesy of Fangbo Ding, AVIC XAC, Commercial Aircraft Co., Ltd.).
Figure 5. MA600 airplane and the composite side panel made of AGMP3600/honeycomb sandwich composites (Photos courtesy of Fangbo Ding, AVIC XAC, Commercial Aircraft Co., Ltd.).
Aerospace 05 00065 g005
Figure 6. Electric race car, its body was manufactured using AGMP3600/honeycomb sandwich composites.
Figure 6. Electric race car, its body was manufactured using AGMP3600/honeycomb sandwich composites.
Aerospace 05 00065 g006
Table 1. Mechanical properties of AGMP3600/EW250F (glass fabric, 8 satin, 47 vol %), a rosin-sourced epoxy laminates, and of 3233B/EW250F, a standard intermediate-temperature epoxy laminate for reference and comparison.
Table 1. Mechanical properties of AGMP3600/EW250F (glass fabric, 8 satin, 47 vol %), a rosin-sourced epoxy laminates, and of 3233B/EW250F, a standard intermediate-temperature epoxy laminate for reference and comparison.
PropertiesUNIT3233B/EW250FAGMP3600/EW250F
Ply thicknessmm0.2410.237
Bending strengthMPa696674
Bending modulusGPa19.921.1
Short beam shear strengthMPa4560.9
Tensile strengthMPa470540
Tensile modulusGPa22.525.3
Compression strengthMPa474483
Compression modulusGPa23.927
Table 2. Mechanical properties of AGMP3600/CW3011 (carbon fiber plain weave, 200 g/m2, 57 vol %), a rosin-epoxy laminate, and a corresponding reference laminate for comparison.
Table 2. Mechanical properties of AGMP3600/CW3011 (carbon fiber plain weave, 200 g/m2, 57 vol %), a rosin-epoxy laminate, and a corresponding reference laminate for comparison.
Property and Test ConditionUnitReference 1Test ResultStandard
Tensile strength warpRT/dryMPa≥500707ASTM D3039
Tensile modulus warpRT/dryGPa65 ± 862.3
Tensile strength weftRT/dryMPa≥500557
Tensile modulus weftRT/dryGPa65 ± 860.9
Compression strength warpRT/dryMPa≥300509ASTM D6641
Compression modulus WarpRT/dryGPa58 ± 861.2
Compression strength WeftRT/dryMPa≥280362
Compression modulus weftRT/dryGPa57 ± 857.7
Bending strength warpRT/dryMPa≥650883ASTM D790
Bending modulus warpRT/dryGPa58 ± 856.8
Short bean shear strengthRT/dryMPa≥5055.7ASTM D2344
In plane shear strengthRT/dryMPa≥4572.6ASTM D3518
In plane shear modulusRT/dryGPa3.5 ± 13.84
1 A commercial product.
Table 3. Mechanical properties of AGMP3600/A38 (carbon fiber, twill fabric, 200 g/m2, 42 vol %), a rosin-epoxy laminate, under a hydrothermal condition of 1000 h/70 °C/85% r.H.
Table 3. Mechanical properties of AGMP3600/A38 (carbon fiber, twill fabric, 200 g/m2, 42 vol %), a rosin-epoxy laminate, under a hydrothermal condition of 1000 h/70 °C/85% r.H.
PropertiesUnitHumidityTemperature/°CReference 1AGMP3600/A38Standard
ply thicknessmm 0.260.265
Flexural strength warpMPadry−55949ASTMD 790–03
RT947
70903
70 °C/wet 85%70826
Flexural modulus warpGPadry−5550.9
RT51.4
7058.7
70 °C/wet 85%7051.8
Interlaminar shear strength warpMPadry−556562.4ASTMD
2344/D2344M-00(2006)
RT6074.8
704065.3
70 °C/wet 85%701946.4
Tensile strength warpMPadry−55500618ASTMD
3039/D3039M-e1
RT625667
70590714
70 °C/wet 85%70560674
Tensile modulus warpGPadry−5552 ± 655.25
RT52 ± 654.6
7052 ± 653
70 °C/wet 85%7052 ± 649
Poisson ratio-dryRT0.05 ± 0.0050.052
Compression strength warpMPadry−55600758ASTMD
6641/D6641M-14
RT535651
70430630
70 °C/wet 85%70310605
Compression modulus warpGPadry−5546 ± 652.5
RT46 ± 653
7046 ± 652.5
70 °C/wet 85%7046 ± 655
In plane shear strengthMPadry−55100136ASTMD
3518/D3518M-94
RT95114
708096.8
70 °C/wet 85%706089
In plane shear modulusGPadry−554.5 ± 0.354.74
RT3.65 ± 0.354.21
703.5 ± 0.352.63
70 °C/wet 85%701.25 ± 0.352.75
CAI (lay up (+/0/−/90)2 s, energy 25 JMPadryRT180185ASTMD 7136/7137
Filled hole tension strengthMPadryRT180317ASTMD3518
Filled hole compression strengthMPadryRT250no destroy, displacement 4 mmASTMD6742
1 A commercial product.
Table 4. Mechanical properties of AGMP5600/EW250F (glass fabric, 8 satin, 47 vol %), a 180 °C cure rosin-sourced epoxy laminate, under different hydrothermal conditions.
Table 4. Mechanical properties of AGMP5600/EW250F (glass fabric, 8 satin, 47 vol %), a 180 °C cure rosin-sourced epoxy laminate, under different hydrothermal conditions.
Mechanical PropertiesUnitTest ConditionReference 1AGMP5600/EW250F
ply thicknessmm0.260.265
Flexural strength warpMPa−55864
RT687
70650
70 °C/wet 85%431
Flexural modulus warpGPa−5521.4
RT23.4
7022
70 °C/wet 85%22.2
Interlaminar shear strength warpMPa−558874.6
RT6859.1
705949
70 °C/wet 85%39.648.3
Tensile strength warpMPa−55500573
RT410510
70330460
70 °C/wet 85%315
Tensile modulus warpGPa−5527 ± 623.9
RT24 ± 624.4
7024 ± 622.3
70 °C/wet 85%24 ± 6
Compression strength warpMPa−55800589
RT660456
70550397
70 °C/wet 85%470384
Compression modulus warpGPa−5526 ± 326.7
RT25 ± 325.8
7025 ± 324
70 °C/wet 85%25 ± 324.7
In plane shear strengthMPa−55110113
RT8590
708871
70 °C/wet 85%7756.4
In plane shear modulusGPa−555.7 ± 14.8
RT4.8 ± 13.26
703.9 ± 13.1
70 °C/wet 85%3.5 ± 13.13
1 A commercial product.
Table 5. Flexural properties of cured EP resins with D230 curing agents.
Table 5. Flexural properties of cured EP resins with D230 curing agents.
SamplesFlexural Strength (MPa)Flexural Modulus (MPa)Elongation at Break (%)
DGEBA/D230121 ± 12952 ± 1813 ± 2
TEIA/D230117 ± 23603 ± 7721 ± 1
