Impedance-Matched, Double-Zero Optical Metamaterials Based on Weakly Resonant Metal Oxide Nanowires

Abstract

Artificial optical metamaterial with a zero index of refraction holds promise for many diverse phenomena and applications, which can be achieved with vacuum (or related) surface impedance and materials in the optical domain. Here, we propose simple metal-oxide nanorods as meta-atoms on the basis of an effective medium approach, based on their weak overlapping (electric/magnetic) resonances. We thus studied the optical properties of ${\mathrm{TiO}}_2$ nanowire arrays with a high-filling fraction through their photonic band structure, which exhibits a double-degeneracy point without a band gap at the center of the Brillouin zone. Various configurations are considered that reveal their performance over a reasonable range of incident wave vectors as impedance-matched, double-zero, bulk (low-loss) metamaterials.

1. Introduction

In recent years, new phenomena have been observed in the field of metamaterials that would allow unprecedented control of the flow of electromagnetic waves, thus opening fascinating possibilities in different fields of physics and engineering. From the advent of negative-index metamaterials [1,2], other regimes of effective dielectric permittivity or magnetic permeability have been explored with tailored effective refractive indices, ranging from positive to negative values [3,4]. In particular, zero-index metamaterials [5,6,7,8,9] (effective refraction index near zero, $n\simeq 0$) have also become a subject of active investigation [10,11,12,13,14,15,16,17] due to their unique electromagnetic characteristics stemming from their vanishing $\epsilon$, namely, the electromagnetic tunneling and energy squeezing that occurs through subwavelength narrow channels, which can be exploited in supercoupling [10,11], optical nanocircuit boards [18], waveguide coupling [19], directional [5,20] or position-independent emission enhancement [21], enhanced nonlinear effects [22,23], photonic doping [24], and even levitation [25]. Thus far, most investigated zero-index metamaterials are based on $\epsilon$-near-zero (ENZ) metamaterials, although magnetic $\mu$-near-zero metamaterials would also yield $n\simeq 0$, exhibiting properties identical to those of $\epsilon$-near-zero metamaterials [26,27].

Attempts to fabricate zero-index metamaterials have been carried out in the microwave [14], THz [28], IR [23,29], and optical domains [17,30,31,32]. Nonetheless, like any other optical metamaterial, making them bulky and lossless is a major challenge [33,34,35]. Moreover, matching the impedance of metamaterials to that of a vacuum is crucial in many applications [6,9,13,20,29,30]. Therefore, the effective dielectric permittivity and magnetic permeability must reach zero simultaneously so that the resulting impedance-matched, double-zero metamaterial (DZM) exhibits $n\to 0$ and $Z=\sqrt{\mu /\epsilon }\sim 1$. However, as is known, supercoupling effects, such as a perfect conductor slab or a waveguide filled with material with high Z values (where both $\epsilon$ and $\mu$ neither match nor approach zero with the same dispersion profile) can arise at specific configurations [9,10,11,27,36].

In this regard, one approach has relied on high-index all-dielectric photonic crystals [15,30,31], exploiting the emergence of an accidental-degeneracy-induced Dirac point at the center of the Brillouin zone, which leads to an effective DZM behavior [15]. In this respect, it should be pointed out that (non-magnetic) high-index dielectric meta-atoms (such as semiconductor nanoparticles) can deliver effective optical magnetic responses through Mie-like magnetic resonances [37,38,39,40,41,42,43,44,45,46,47,48,49,50,51], which, combined with the well known negative electric response of metals in the visible range, might lead to bulky negative-index metamaterials [34,35,52,53] or cloaking devices [54,55,56,57].

In this work, we show theoretically that the combination of weak (electric and magnetic) resonances, slightly blue-shifted, in lossless dielectric nanoparticles suffice to achieve optical double-zero metamaterials in such a way that the corresponding impedance remains close to that of the vacuum. In particular, we propose dielectric nanorods with a lossless, moderately large dielectric function $\epsilon$ (as is the case of metal oxides), made of materials that can potentially span the whole visible range, at the expense of high-filling fractions, as excellent candidates for the meta-atoms of such impedance-matched, optical DZMs, revealing numerically their remarkable performance as DZM supercoupling devices in two dimensions based on arrays of titanium oxide nanowires.

2. Results

2.1. An Effective Medium Approach

Let us first analyze through a simple theoretical model the requirements for a nearly-zero-dielectric permittivity and magnetic permeability. To that end, we have extended the effective medium theory of magnetodielectric composites developed specifically for cylinders or spheres, [58] which reduces in the quasi-static limit to the Maxwell–Garnett theory. In the (2D) case of infinitely long nanowires of radius R, with dielectric permittivity ${\epsilon }_c$ (non-magnetic ${\mu }_c=1$), embedded in vacuum (${\epsilon }_0,{\mu }_0$) with filling fraction f, we obtain generalized expressions for the effective anisotropic ${\tilde{\epsilon }}_{\mathrm{eff}}$ and ${\tilde{\mu }}_{\mathrm{eff}}$ (${\epsilon }_{\parallel }^{\mathrm{eff}}$ and ${\mu }_{\parallel }^{\mathrm{eff}}$ in the plane perpendicular to the nanowire axis and ${\epsilon }_z^{\mathrm{eff}}$ and ${\mu }_z^{\mathrm{eff}}$ along the nanowire axis) in terms of analogue dipolar polarizibilities, as follows:

$$\begin{array}{c}\hfill \frac{{\epsilon }_{\parallel }^{\mathrm{eff}}-{\epsilon }_0}{{\epsilon }_{\parallel }^{\mathrm{eff}}+{\epsilon }_0}=-f\frac{{\alpha }_{\parallel }^{\left(E\right)}}{\pi R^2},\end{array}$$

(1)

$$\begin{array}{c}\hfill \frac{{\mu }_z^{\mathrm{eff}}}{{\mu }_0}-1=-f\frac{{\alpha }_z^{\left(H\right)}}{\pi R^2}\end{array}$$

(2)

for transverse electric (TE) waves, that is, the electric field linearly polarized perpendicular to the nanowire axis; note that, due to the symmetry of Maxwell’s equations, the effective medium parameters for transverse magnetic (TM) waves can be obtained from those of TE waves by exchanging permittivities, permeabilities, and polarizibilities. These expressions allow us to roughly determine what type of (or spectral regime of) polarizabilities will be a priori suitable to yield specific effective medium behaviors. For instance, a negative refractive index (${\epsilon }_{\parallel }^{\mathrm{eff}}\simeq -1,{\mu }_z^{\mathrm{eff}}\simeq -1$) requires from Equation (2) very high electric dipolar polarizibility $1/{\alpha }_{\parallel }^{\left(E\right)}\to 0$, which is in turn the approach followed in [34,35] through overlapping electric and magnetic Mie resonances in dense arrays of core-shell metal-semiconducting nanowires. One would expect that a similar approach would suffice to achieve DZMs with the advantage of not needing such large filling fractions. Though this is plausible, the on-resonance condition introduces moderately large (scattering) losses that may in turn kill the zero-index behavior through the imaginary parts of ${\alpha }_{\parallel }^{\left(E\right)}$ and ${\alpha }_z^{\left(H\right)}$.

Nonetheless, another approach can be inferred from Equation (2) upon assuming that ${\epsilon }_{\parallel }^{\mathrm{eff}}$ and ${\mu }_z^{\mathrm{eff}}=0$. The required dipolar polaribilities can be written as

$$\begin{array}{c}\hfill {\alpha }_{\parallel }^{\left(E\right)}\simeq f^{-1}\pi R^2\end{array}$$

(3a)

$$\begin{array}{c}\hfill {\alpha }_z^{\left(H\right)}\simeq f^{-1}\pi R^2.\end{array}$$

(3b)

Such electromagnetic (EM) conditions can be fulfilled on the blue side of the spectral regime of weakly resonant scattering of dielectric nanorods. Since only moderately large dielectric constants are needed, metal oxides can be exploited with negligible losses in most of the optical domain [59], in turn synthesized as nanowires with suitable dimensions [60]; as e.g., ${\mathrm{TiO}}_2$ nanowires, which can be easily fabricated through thermal evaporation [61]. Upon plane wave illumination, the scattering and extinction cross sections (and thus the absorption) of cylinders can be expanded as sums over different multipolar contributions [34]. For a TE wave:

$$\begin{array}{c}\hfill Q_{sca}={\displaystyle \frac{2}{kR}}\left(|a_0{|}^2+2\sum _{j=1}^{\infty }{\left|a_j\right|}^2\right)\end{array}$$

(4)

$$\begin{array}{c}\hfill Q_{ext}={\displaystyle \frac{2}{kR}}Re\left(a_0+2\sum _{j=1}^{\infty }{a}_j\right)\end{array}$$

(5)

where $k=2\pi /\lambda$, $\lambda$ being the wavelength of the external medium. For dielectric particles ($n=\sqrt{\epsilon }$), the coefficients $a_j$ are given by

$$a_j={\displaystyle \frac{n{J}_j^{\prime }\left(kR\right)J_j\left(nkR\right)-J_j\left(kR\right)J_j^{\prime }\left(nkR\right)}{n{J}_j\left(nkR\right)H_j^{\prime }\left(kR\right)-H_j\left(kR\right)J_j^{\prime }\left(nkR\right)}}$$

(6)

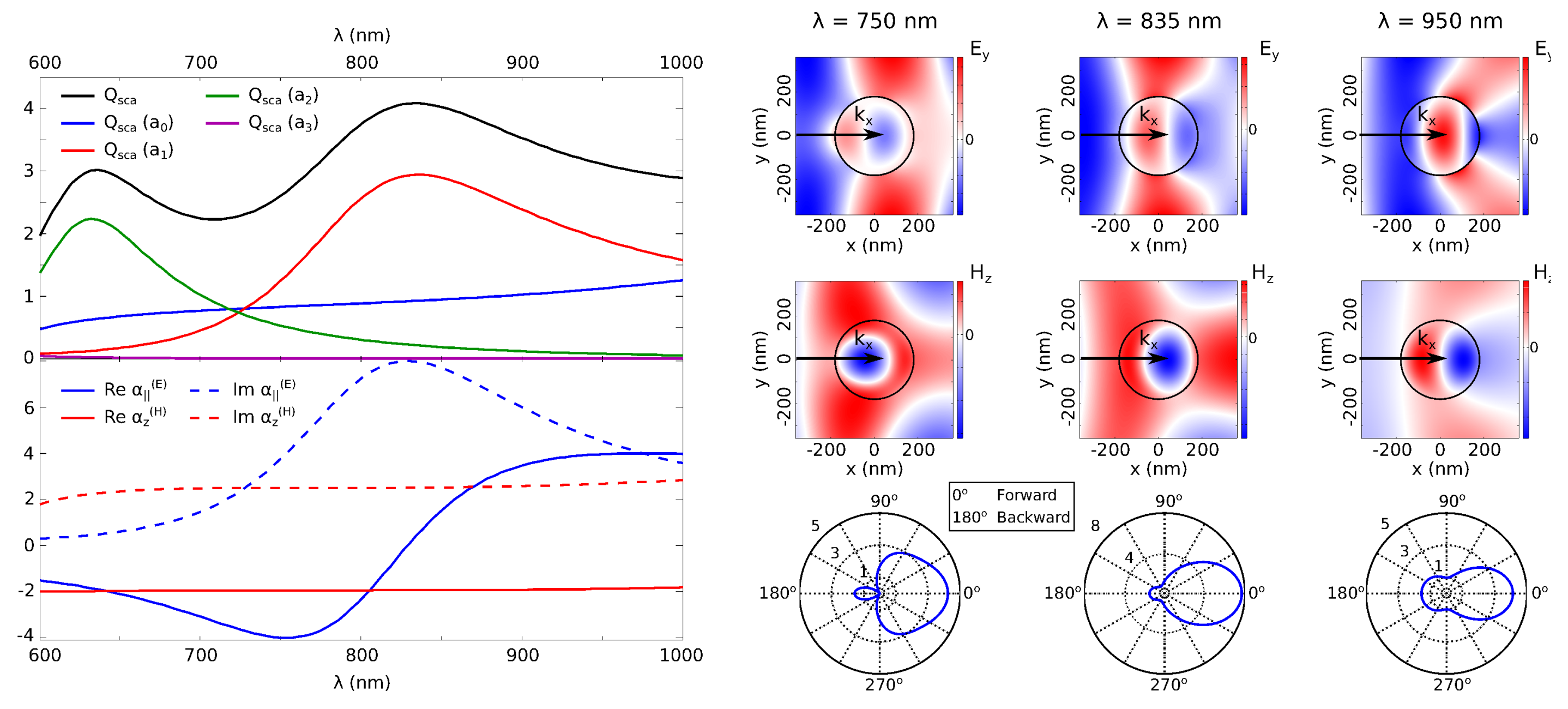

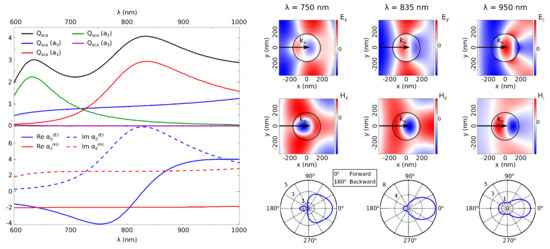

where $J_j$ and $H_j$ are the standard Bessel and (first-kind) Hankel functions, and the primes indicate differentiation with respect to the argument. Each coefficient $a_j$ represents a certain multipolar character that can be either electric or magnetic. The first two lowest-order terms, $a_0$ and $a_1$, are related to the magnetic and electric dipole polarizabilities, respectively, while higher-order terms are related to other multipolar contributions. The Mie extinction (or scattering, since absorption is neglected thus far) cross section of an infinite ${\mathrm{TiO}}_2$ nanocylinder of radius $R=180$ nm in TE polarization (the electric field perpendicular to the cylinder axis) is shown in Figure 1; incidentally, note that the polarization is the opposite to that in [15,30,31]. The refractive index of ${\mathrm{TiO}}_2$ is assumed constant $n_{{\mathrm{TiO}}_2}=2.6$ throughout the spectral region studied therein [59]. In addition, we show separately the lowest-order multipolar contributions to the Mie extinction cross section. The electric-dipole resonance is clearly observed, stemming from the $a_1$ term in Mie scattering, which in turn gives the contribution to the electric polarizibility ${\alpha }_{\parallel }^{\left(E\right)}$. On the other hand, the contribution from the $a_0$ term yields a very weak magnetic resonance in the infrared (not shown in Figure 1), providing the contribution to the (effective) magnetic polaribility ${\alpha }_z^{\left(H\right)}$. Both are negative in the overlapping regime in the blue part (at smaller wavelengths) of the electric/magnetic resonances, exhibiting appropriate DZM conditions (3) as explicitly indicated. Snapshots of the EM field components (in-plane electric and out-of-plane magnetic) for an incoming field propagating along the x axis (from left to right) are shown at and off resonance. The field distributions illustrate their behavior opposing the incident fields on the blue side of the resonances ($\lambda =750$ nm).

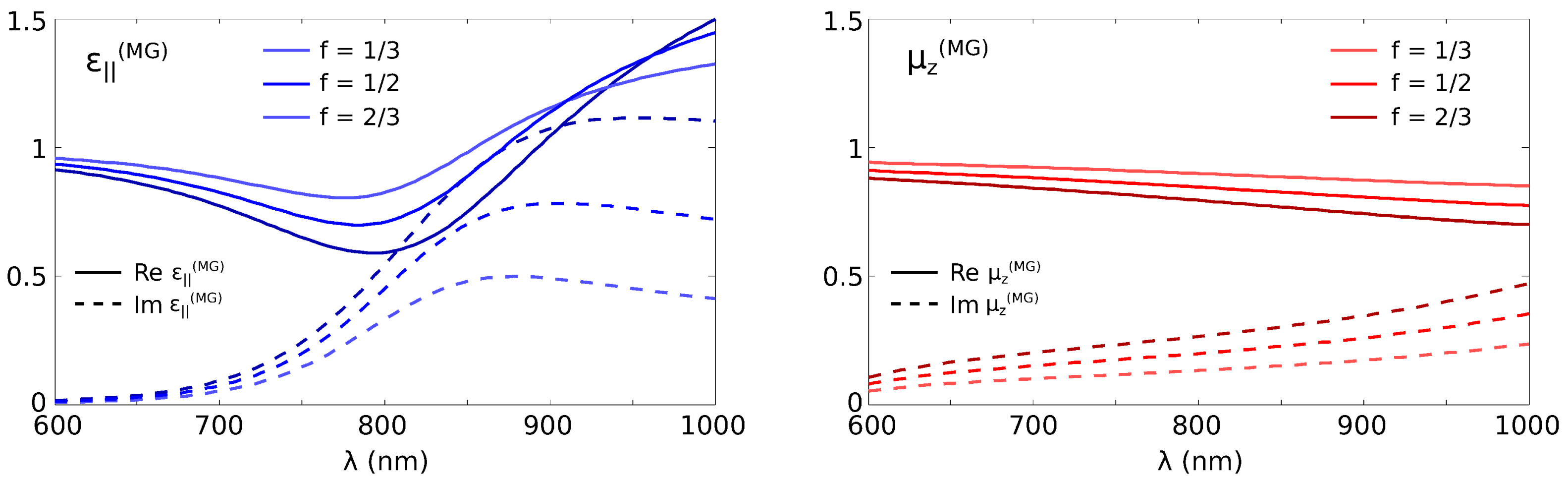

Next, we exploit the effective medium (Equation (2)) to obtain the effective parameters expected for a random arrangement of ${\mathrm{TiO}}_2$ nanorods. This is shown in Figure 2 for varying filling fractions. It can be seen that, for increasing filling fraction f, the real parts of ${\epsilon }_{\parallel }^{\mathrm{eff}}$ and ${\mu }_z^{\mathrm{eff}}$ tend to decrease; this is true not only for their real parts but also their imaginary parts, which account for the effective absorption. These, however, remain reasonably low. Since the material is lossless, effective absorption losses stem only from scattering losses. In this regard, we have plotted the scattering pattern associated to single Mie nanocylinders at several frequencies in Figure 1. Note that, though the scattering cross section is moderately large in the blue part of the electric resonance (spectral regime appropriate for DZM behavior), the angular pattern reveals strong suppression of backward scattering, which might contribute to the minimization of scattering losses in the effective medium. With the help of the above (effective medium) parameters, we expect the resulting effective refractive index $n^{\mathrm{eff}}=\sqrt{{\epsilon }_{\parallel }^{\mathrm{eff}}{\mu }_z^{\mathrm{eff}}}$ to approach zero with a moderate impedance.

2.2. Numerical Calculations: Double-Zero Metamaterials

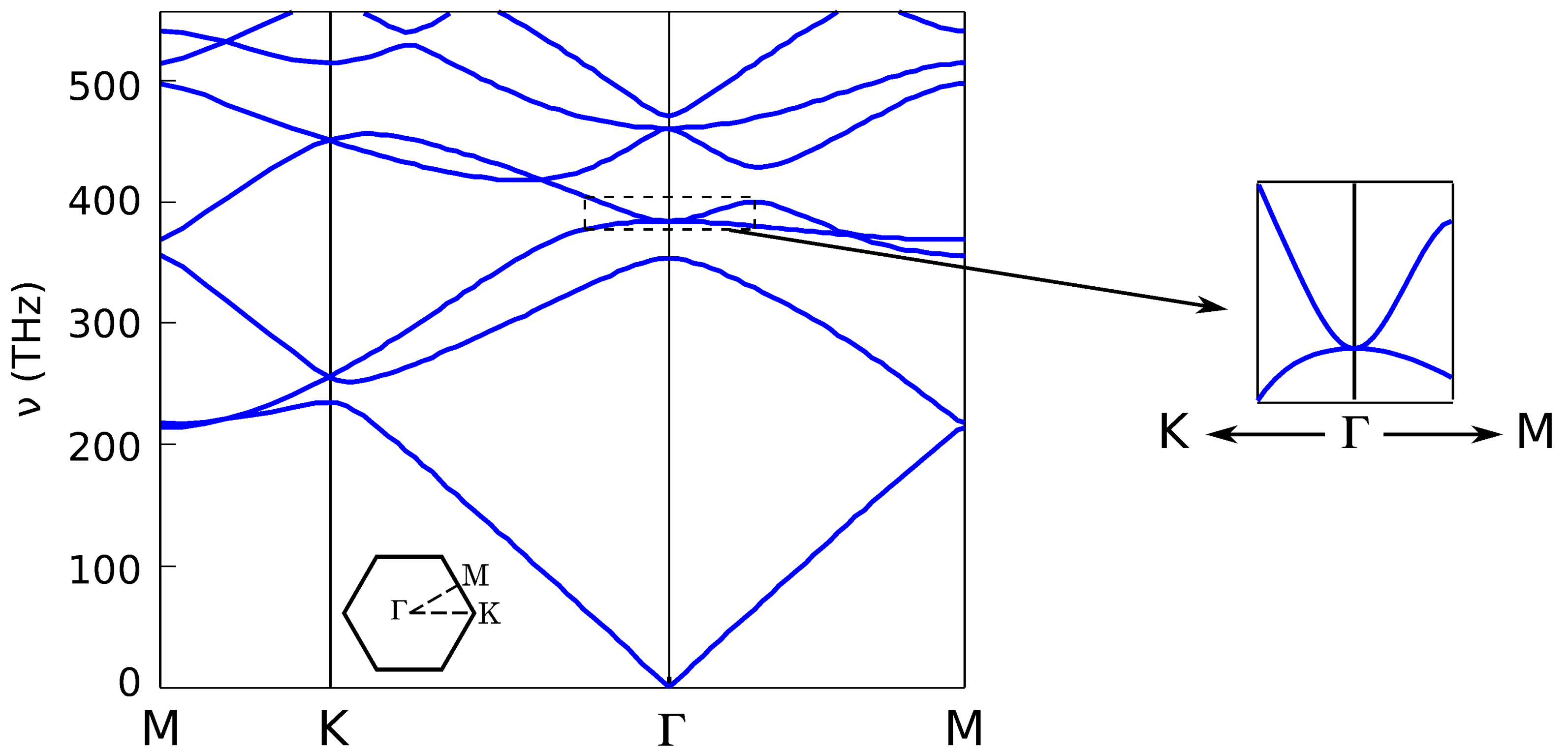

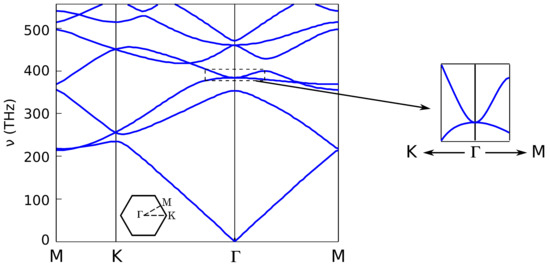

Since the required filling fractions $f\ge 2/3$ exceed the limit of validity of the effective medium theory, let us explore numerically the EM behavior of a metamaterial consisting of such ${\mathrm{TiO}}_2$ nanorods. To that end, a triangular lattice of ${\mathrm{TiO}}_2$ is considered with a period ($d=380$ nm), such that the resulting filling fraction $f\sim 0.8$ belongs to the spectral regime of interest $n^{\mathrm{eff}}\sim 0$, predicted above. First of all, we show in Figure 3 the resulting photonic band structure. The region of interest lies near the $\mathsf{\Gamma }$ point at frequencies above the pseudo-gap of the second band, where the third and fourth bands appear degenerate. Incidentally, this spectral region roughly coincides with that of the electric dipole, the $a_1$ Mie resonance mentioned in the previous subsection. This region has been magnified for the sake of clarity in Figure 3: A double degeneracy is observed at the $\mathsf{\Gamma }$ point with nearly isotropic quadratic bands with increasing k. It should be emphasized that no (accidental) triply-degenerate Dirac point is achieved as mentioned in [15,30,31,62] for opposite linear polarization, different lattice symmetry, and higher refractive index contrast. However, as mentioned in [63], if indeed our system can be made homogeneous, the zero phase velocity with the high group velocity associated with the obtained bands could lead to DZM behavior near the $\mathsf{\Gamma }$ point. It should be recalled that, if the effective index of refraction is actually close to zero, the effective wavelength inside could be large enough to consider the medium homogenizable [15].

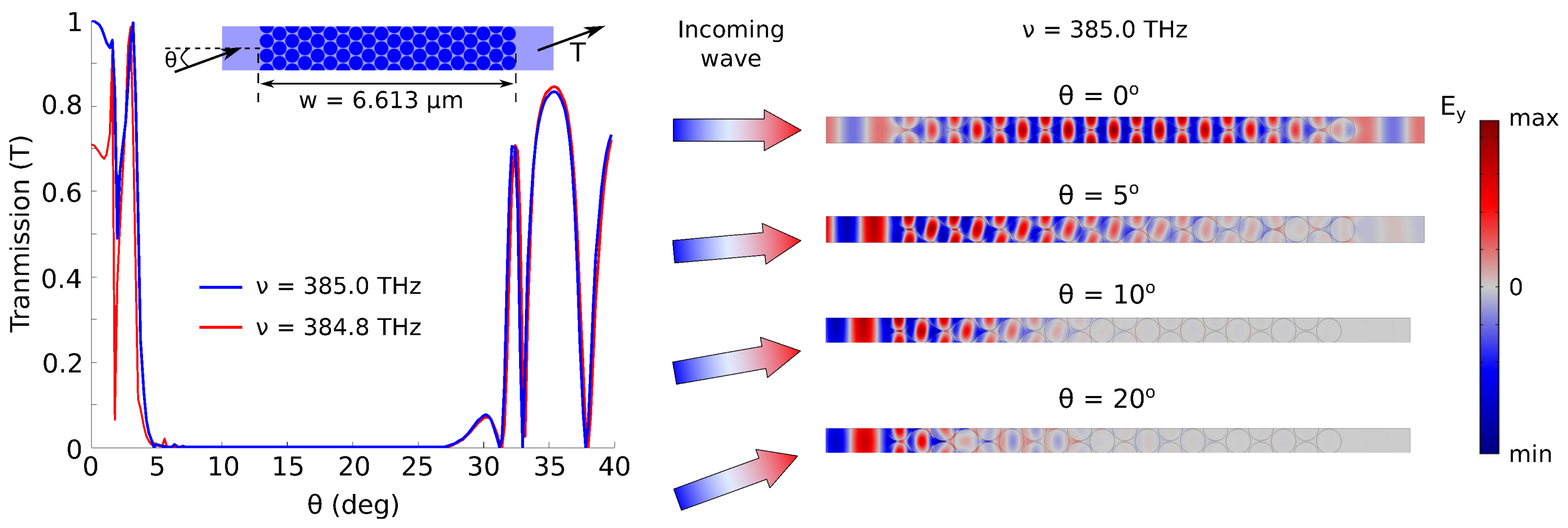

The plausible behavior of our all-dielectric array as DZM about the doubly degenerate point now needs to be verified. Therefore, we show the transmission of a plane wave through an infinite slab for an increasing angle of incidence in Figure 4. A remarkable DZM behavior is observed, with a total transmission only very near normal incidence (a constant phase front) and an abrupt total reflection beyond a narrow admittance angle ∼$3°$. Such total reflection is preserved up to a large angle of incidence ≥$30°$, which corresponds to the wavevector region shown above (see Figure 3), where the two photonic bands bend and cross each other along the $\mathsf{\Gamma }M$ direction.

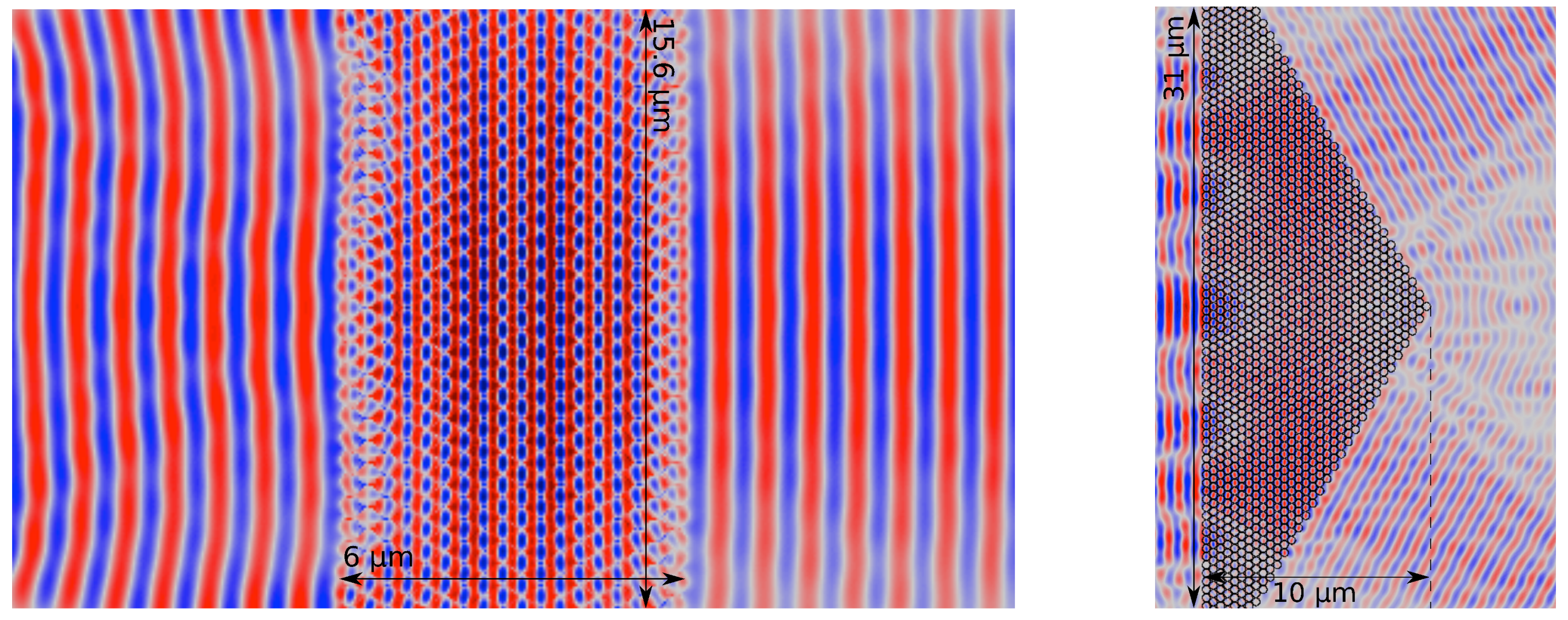

Finally, two devices are numerically simulated where the DZM behavior is evidenced. First, we show in Figure 5 a finite thin slab similar to the infinite one considered in Figure 4. The zero-phase-delay across the slab can be observed, although a finer structure of the electric field within the rods is also appreciable. The wave front is fully transmitted with negligible absorption ($n^{\mathrm{eff}}\sim 0$) and a nearly negligible reflection at the entrance face. Moreover, a prism acting as a beam splitter is also shown in Figure 5, where some disturbances in the input face can be observed due to unwanted reflection, and in the output corner. Corresponding videos are included as supplementary information. The phase front evolution can be clearly observed, evidencing this quasi-constant phase (quasi-infinite phase velocity) across both devices. Particularly, in the case of the prism, it can be observed that the wavefront actually follows the inclination of the output faces, leading to two outgoing beams (except for some spurious diffraction near the prism edge) emerging from these two faces of the prism, as is observed in beam splitters.

3. Conclusions

We have theoretically explored a means of obtaining an impedance-matched, double-zero optical metamaterial on the basis of weakly (electric/magnetic) resonant meta-atoms, exploiting their off-resonant, negative polarizibilities on the blue side of the overlapping resonances. Metal-oxide nanowires are proposed as good candidates to fulfill such conditions, revealing through effective medium theory that this is the case for ${\mathrm{TiO}}_2$ cylinders in the optical domain. Numerical analysis of the photonic band structure in TE polarization for a closely packed triangular lattice of ${\mathrm{TiO}}_2$ rods reveals a doubly degenerate point at $k=0$ at the third and fourth bands. The transmission of plane waves at frequencies close to the degeneracy exhibit a DZM behavior with a transmission only at near normal incidence and a total reflection for an increasing angle up to ∼$30°$, beyond which the two bands bend and cross each other. Further numerical simulations for configurations such as a finite slab and a beam splitter (prism) neatly manifest remarkable DZM-expected phenomena, which have fascinating applications in optics and engineering. Our results aid in the actualization of impedance-matched, low-loss (bulky) DZMs (in the visible and throughout the EM spectrum) with moderately large index dielectrics, which might ease optical DZM fabrication through state-of-the-art metal-oxide nanowire arrays [60,61].
