Data Descriptor

Taguchi Orthogonal Array Dataset for the Effect of Water Chemistry on Aggregation of ZnO Nanoparticles

Graduate School of Water Resources, Sungkyunkwan University (SKKU) 2066, Suwon 16419, Korea
*
Author to whom correspondence should be addressed.
Submission received: 29 May 2018 / Revised: 12 June 2018 / Accepted: 13 June 2018 / Published: 15 June 2018

Abstract

:
The dynamic nature of engineered nanoparticle (ENP) aggregation behavior and kinetics are of paramount importance in the field of toxicological and environmental nanotechnology. The Taguchi orthogonal array (OA) L27(313) matrix based on a fractional factorials design was applied to systematically evaluate the contribution and significance of water chemistry parameters (pH, temperature, electrolyte, natural organic matter (NOM), content and type) and their interactions in the aggregation behavior of zinc oxide nanoparticles (ZnO NPs). The NPs were dispersed into the solution using a probe-sonicator cell crusher (Bio-safer, 1200-90, Nanjing, China). The data were obtained from UV–Vis spectroscopy (Optizen 2120 UV, Mecasys, Daejeon, Korea), Fourier Transform Infrared Spectrometery (FT-IR 4700, spectroscopy, a JASCO Analytical Instruments, Easton, Pennsylvania, USA) and particle electrophoresis (NanoZS, Zetasizer, Malvern Instruments Ltd., Worcestershire, UK). The dataset revealed that Taguchi OA matrix is an efficient approach to study the main and interactive effects of environmental parameters on the aggregation of ZnO NPs. In addition, the aggregation profile of ZnO NPs was significantly influenced by divalent cations and NOM. The result of the FT–IR data presents a possible mechanism of ZnO NP stabilization in the presence of different NOM. This data may be helpful to predict the aggregation behavior of ZnO NPs in environmental and ecotoxicological contexts.
Dataset: Available as the supplementary file.
Dataset License: CC-BY

Graphical Abstract

1. Summary

With the development of nanotechnology, production, and utilization of engineered nanoparticles (ENPs) has increased in consumer products and commercial applications. Among the diverse ENPs, zinc oxide nanoparticles (ZnO NPs) are the third most frequently used metal-containing nanomaterials due to their unique structural properties [1]. The estimated annual global production is currently between 570–33,400 t/year, and is anticipated to reach 58,000 t/year by 2020 [2]. However, such broad applications and production of ZnO NPs have generated concern to both the scientific and public communities due to their environmental release, which may increase the bioavailability and NPs’ toxicity in an aqueous environment [3]. The potential adverse effects of ZnO NPs on phytoplankton, plants, and even human cell lines are well-known [4]. However, limited knowledge is available regarding the nanoparticle–liquid interaction and aggregation among NPs. Thus, understanding the aggregation phenomena of ZnO NPs under various parameters of water chemistry is important to properly assess their risk.
Several researchers have studied the ZnO NP fate and mobility in an aqueous environment [5,6,7]. ZnO NP aggregation phenomena are highly influenced by physicochemical properties and solution chemistry [8]. NP properties such as size, shape, and coating may cause substantial variation in their aggregation kinetics [9]. Few studies [10,11] have reported that large size particles tend to aggregate, however, tiny size particles remain suspended in solution and increase the risk of harm to aquatic species. The variation in solution pH and temperature affect the surface potential and solubility of ZnO NPs which may also influence their agglomeration phenomena [7,12]. Fast aggregation has been reported in high-salt content solutions due to compression of the electrical double layer (EDL) [9,13]. The studies also showed that ubiquitous natural organic matter (NOM) stabilizers kept ZnO NPs suspended in water due to steric hindrance and potential charge reversal [14,15]. Furthermore, few studies have demonstrated that the presence of divalent cations i.e., Ca2+, Mg2+ may form intermolecular bridging between NOM and ZnO NPs, to promote aggregation [16]. Additionally, the presence of trivalent electrolytes such as aluminum sulfate (Al2(SO4)3) with the strong potential to form a bridge between metal NPs and aggregates, may enhance the hetero-aggregation due to the formation of aluminum complexes [17,18]. These results further suggest that different electrolytes play a significant role in the aggregation of ENPs in aqueous matrices.
In previous studies [19,20,21,22], the influence of various environmental parameters on agglomeration phenomena of ZnO NPs has generally been studied using individual factors and has been limited to pure water. Additionally, the interaction of multiple parameters affecting this phenomenon has been rarely investigated by environmental scholars. Therefore, it is important to evaluate the aggregation phenomena of ZnO NPs together with a combination of different parameters that may affect their function and toxicity in an ecosystem.
A recent study has shown a significant influence of several environmental parameters on sedimentation and aggregation of ZnO NPs [23]. Numerous datasets on such phenomena of other ENPs i.e., copper oxide (CuO) and titanium dioxide (TiO2) have been reported [22,24]. However, to the knowledge of the authors, there are no datasets available regarding the effect of combined multiple environmental parameters on ZnO NP aggregation. In light of this, ZnO NP aggregation phenomena in single and multiple environmental parameters were investigated. The fractional factorial method based on Taguchi orthogonal array (OA) L27 (313) design matrix was used to measure the main and interactive effects of multiple factors. This study quantitatively presents a ZnO NPs aggregation dataset obtained from UV–Vis spectrophotometry, Fourier transform infrared spectrometry (FT–IR), zeta potential analysis and Optizen view 4.2.5 PC interference software.
The dataset obtained from the UV/Vis spectrophotometer presents the absorbance data of ZnO NPs at various environmental conditions such as pH, electrolyte type and concentration, and NOM type and concentration. Earlier, the zeta potential and FT–IR spectra of ZnO–NOM complexes were elucidated under different aqueous matrices [23]. This data may contribute to a better understanding of the agglomeration phenomena and fate of ZnO NPs in complex heterogeneous environments.

2. Data Description

Here, we present a dataset of ZnO NP aggregation efficiency and its kinetics in an Excel (Microsoft Corp., Redmond, WA, USA) spreadsheet file (see supplementary material). Tables S1–S12 show the ZnO NP data obtained after a bench scale aggregation experiment which are listed and described in Table 1 and Table 2 at 25 °C ± 0.5. Tables S1 and S2 show the absorbance data across various wavelengths and concentrations. This data is used to determine the concentration from a quantitative standard linear curve based on the Beer–Lambert law. Table S3 shows turbidity data at various time and power levels of sonicator to obtain the optimum sonication condition for further aggregation experiments. The data in Table S4 contains the residual absorbance and zeta potential at various pH ranges. This data shows that the solubility of ZnO NPs increases sharply at pH below 7 or above 11. Considering the dissolution of ZnO NPs at such conditions, further experiments were conducted in the pH range 7–9.5 to minimize this effect and to obtain systematic data of ZnO NP aggregation. The data in Tables S5 and S6 shows the residual absorbances and corresponding zeta potentials at various electrolytes, NOM types and concentrations after 6 h. This can be used to predict the effect of interfering ions on the aggregation phenomena of ZnO NPs in an aqueous environment. Table S7 shows the time-resolved optical absorbance measured at 370 nm across various solution matrices. The aggregation rate k can be estimated from this data using Stokes sedimentation theory; it also indicates that aggregation kinetics may vary substantially in the presence of high electrolyte and NOM concentrations. Table S8 shows the data derived from FT/IR spectra of pristine ZnO NPs before and after interaction with high concentration of various NOM i.e., humic acid, salicylic acid and citric acid. It shows the percent transmittance against the wave numbers (500–4000 cm−1). This data is helpful in providing the information about modification in the surface of ZnO NPs after interaction with NOM.
Furthermore, Tables S9–S11 show the data of residual absorbance and corresponding aggregation efficiencies, variance and range analysis obtained from Taguchi OA L27 (313) matrix for multi-parameters experiments. This data is important to determine the analysis of variance (ANOVA) and, consequently, the dominant parameters influencing the ZnO NPs aggregation in a real environment. In addition, the data in Tables S12 and S13 shows the residual absorbance and aggregation efficiencies obtained across various environmentally tested waters. This data is helpful in providing ZnO NPs aggregation phenomena in real environmental conditions.

3. Methods

3.1. Solution and Synthetic Waters Preparation

The nanopowder of ZnO NPs assay 97%; humic acid sodium salt (HA), salicylic acid (SA) and citric acid (CA) were purchased from the Sigma-Aldrich (St. Louis, MO, USA) and used without further purification. While inorganic salts i.e., potassium chloride (KCl), sodium sulfate (Na2SO4), magnesium chloride (MgCl2.6H2O), nitric acid (HNO3), hydrochloric acid (HCl), sodium hydroxide (NaOH) used in this study were obtained from local suppliers. According to the vendor, NPs have particle size <50 nm with a specific surface area 15–25 m2/g and it contain 6% Al as dopant. The 100 mg/L of ZnO NPs solution was prepared by adding 10 mg of ZnO nanopowder in 100 mL of nanopure water. The solution was subjected to probe-sonication using an ultrasonicator (ultrasonic cell crusher, Bio-safer, 1200-90, Nanjing, China) for 5–40 min and 100–600 W power to obtain a homogenous NP dispersion. Moreover, the solution turbidity was also measured using Turbidimeter (Hach Benchtop 2100N, Loveland, CO, USA). The natural organic matter (NOM) stock solutions were prepared by dissolving 1 g powder of each NOM in 1 L of deionized (DI) water. The pH of HA was adjusted to 10 using NaOH to ensure complete dissolution of HA. The solution was stirred at 600 rpm for overnight to improve further stability [25]. All the stock solutions’ pH values were adjusted to 7 prior to storage in the dark at 4 °C. The stock solutions of inorganic salts with 0.1 M ionic strength (IS) were prepared by adding 7.45 g KCl, 14.2 g Na2SO4 and 20.32 g MgCl2.6H2O in 1 L solution respectively. Four synthetic waters were prepared in the laboratory, while tap water and wastewater were collected from Sungkyunkwan University, Suwon and metal processing industry located at Ulsan, Korea respectively. The detailed characteristics of all water samples are already presented in our previous study [23]. The IS (Ie) was calculated from the electrical conductively (EC) [26] according to the following equation.
I e = 0.01442 × E C 1.009

3.2. Standard Calibration Curve Analysis

Prior to the aggregation experiments, optical absorption analysis was conducted using a UV/Vis spectrophotometer (Optizen 2120 UV, Mecasys, Daejeon, Korea) using a 100 mm path length quartz cuvette. The device was equipped with high-quality Tungsten–Halogen lamp and a Deuterium lamp which allows the analysis of ZnO NPs at relatively low concentrations (100 to 1000 µg/L). The absorption spectra of the colloids were collected between 200–800 nm at 25 °C. The background was set up with the proper solvent and then, each colloid sample was examined. Since UV–Vis spectra fit well to Beer–Lamber law; thus, a standard calibration curve was collected at 370 nm and used as a quantitative criterion of ZnO NPs.

3.3. Aggregation Efficiency of Nanoparticles

The ZnO NPs concentration and aggregation efficiencies were estimated using fitted curve equation having R2 of 0.9993 as shown in Equations (2) and (3). In current study, initial concentration of ZnO NPs in vial was maintained at 100 mg/L.
Y = 0.0086 x 0.0116
where Y represents the concentration of ZnO NPs and x indicates residual absorbance [24].
A = C i C t C i × 100
where A corresponds to aggregation efficiency, Ci and Ct are concentration of ZnO NPs before and after aggregation experiments.

3.4. Aggregation and Sedimentation Experiments

The experiments were conducted in standard sedimentation glass tubes (Fisher Scientific Co., Fair Lawn, NJ, USA) with the dimensions (height; 30 cm, radius; 2 cm) for 6 h. The predetermined concentration of inorganic salts and NOM were spiked into 100 mg /L of ZnO NPs suspension. The pH was adjusted using 0.1 M HCl and 0.1 M NaOH solution. The suspension was subjected to ultrasonication to fully disperse the NPs in solution. However, in the case of NOM interactions, the ZnO NPs dispersions were ultrasonicated twice for a cycle of 15 min. During the interval of two sonications, NOM was added and mixed with a magnetic stirrer for 5 min to homogenize the dispersion and then experiments were performed. After completion of aggregation experiments, 1 mL aliquots were collected from each suspension tube at ¼ height (7.5 cm from top of tube) to measure the absorbance of residual ZnO NPs. Prior to aliquot analysis, the equipment was calibrated using a blank nanopure water solution. Following this approach, single- and multiple-parameter experiments were performed as shown in Table 1 and Table 2. In the case of kinetic experiments, the instrument was specifically tuned in UV/Vis kinetic mode to optimize the wavelength at 370 nm and time setting in the selection window. Afterwards, the sample was placed in a quartz cuvette and the absorbance was continuously measured after every 3 min. The settling rate and velocity of the NPs were calculated using first-order kinetics and Stokes’s equation [27] respectively.
ln C t = ln C i k t
where t represents the time; Ci and Ct are ZnO NPs concentrations at initial and t time points, respectively; and k is the sedimentation rate constant in (h−1). Moreover, the settling velocity Vt of NPs under controlled conditions i.e., pH 7, 100 mg/L ZnO NPs having primary particle size 50 nm and density 5.60 g/cm3 at various temperature levels (15–35 °C) were calculated using Stoke’s law equation (Table 3).
V t = g d 2 ( ρ ρ ρ m ) 18 μ
where g represents acceleration of gravity (m/s2), d particle diameter (m), ρ ρ density of particle (g/cm3), ρ m density of medium (g/cm3), μ viscosity of medium (g/m·s) and Vt settling velocity of particles respectively.

3.5. Sample Preparation for FTIR Measurement

The Fourier transform infrared spectra (FT/IR-4700, spectroscopy, JASCO Analytical Instruments, Easton, PA, USA) of ZnO NPs before and after interaction with various NOM were recorded. Spectroscopy has been used as a useful tool for the identification of structures and functional groups. The extracted aliquots of ZnO NOM complexes after aggregation experiment were collected and NPs were separated by centrifugation (Hettich Centrifuger Universal 320R, Tuttlingen, Germany) at 3000 RPM for 15 min. The resultant ZnO NP pellets were subjected to vacuum drying for 24 h to remove any moisture content. The high sensitive Mercury–Cadmium–Telluride (MCT) focal-plane array detector was cooled for 30 min with liquid nitrogen (LIN). The dried samples were inserted into the sample platform to characterize the attachment of functional groups in the range of wave number 500–4000 cm−1. The Thermo Scientific OMNIC FTIR software was used to analyze the data and exported in the text file format for further processing.

3.6. Zeta Potential Analysis

After the aggregation experiments, an aliquot was removed from the suspension and placed into the zeta potential cell. The cell was filled up with the colloids avoiding the formation of bubbles. The electrophoretic mobility of the particles was measured using a Zetasizer Nano-ZS (Malvern Instrument Ltd., Worcestershire, UK). The temperature in the Zetasizer was set to 25 ± 0.1 °C. Three electrophoretic mobility measurements were made for each sample. The value of electrophoretic mobility was directly converted by default function of equipment. The default Smoluchowski equation is given [28] below.
ζ = 4 π η ( v E ) / ε
where ζ represents zeta potential (mV), ( V E ) electrophoretic mobility (microns/sec × volt/cm), η solvent viscosity (poise) and ε is dielectric constant.

3.7. Characterization of Water Samples

The aliquot obtained from tap and industrial wastewater were filtered through a 0.45-µm glass fiber filter; digested with 99% pure HNO3 prior to analysis [29]. The Inductively coupled plasma mass spectrometry (ICP-MS, 7700x, Agilent Technologies, Palo Alto, CA, USA) was used to analyze the concentration of common element i.e., potassium (K+), sodium (Na+), copper (Cu2+), iron (Fe), magnesium (Mg2+), arsenic (As), calcium (Ca2+) and antimony (Sb). The industrial wastewater filtered samples were further diluted in 1:10 ratio to measure the concentration of common anions (NO3, Cl and SO42−) using ion chromatography with metrosep A Supp5 column in (861 Advanced Compact IC, Metrohm, Herisau, Switzerland).

3.8. Taguchi Orthogonal Array Experimental Design

In recent years, many design of experiments (DOE) including full factorial and fractional factorial design have been developed and widely used in many engineering fields to optimize and design experiments [30,31,32]. A full factorial design may become onerous to be completed with the increase of number of parameters. Therefore, the concept of Taguchi orthogonal array (OA) based on fractional factorial design was developed by Dr. Genichi Taguchi to study a large number of variables with a small number of experimental trials [33]. Using the OA approach significantly reduce the number of experimental configurations to be studied and provides the main and interactive effects. The parameters and levels are selected according to the experimental design. The term parameters correspond to the number of experimental variables while the term levels show the number of different values a variable can assume according to its discretization.
In the current study, the variation of all input parameters was systematically studied at three levels as shown in Table 2. We applied the standard OA L27(313) (Figure 1a) of Taguchi method using various parameters of water chemistry to investigate ZnO NP aggregation behavior. The standard OA was modified (Figure 1b) using a line separation method to assign the parameters and interactions to various columns. The ZnO NPs aggregation phenomena were evaluated under the control of six parameters i.e., pH (A), electrolyte concentration (B), NOM concentration (C), electrolyte type (D), NOM type (E) and temperature (F) with three levels and two potential interactions i.e., A × B and B × C. The OA L27(313) which has 27 rows corresponds to a number of trials with 13 columns at 3 levels as shown in Table S9. The plan of the experiment was as follows. The pH (A) was assigned in the first column, electrolyte concentration (B) in the second column, NOM concentration (C) in the fifth column, electrolyte type (D) in ninth column, NOM type (E) in tenth column and temperature (F) in the twelfth column. The possible two parameter interactions (A × B)1 and (A × B)2 were assigned to third and fourth columns while eighth and eleventh were assigned to (B × C)1 and (B × C)2 interactions. The remaining sixth, seventh and thirteenth columns were left empty in order to calibrate the standard matrix. The experiments were conducted for each combination of parameters as per selected OA in triplicate and average values were reported.

3.9. Statistical Analysis

The experimental data obtained by following the Taguchi OA matrix procedure were analyzed by the general linear model (GLM) with Tukey’s post Hoc test using the software MINITAB18.0 (Minitab, Inc., State College, PA, USA). The MINITAB was also used for range analysis and analysis of variance (ANOVA) and predicting the dominant parameters for ZnO NPs aggregation. Probability p-value less than 0.05 were considered to be significant. The normality and homogeneity of data were considered before conducting the ANOVA. Each experiment was performed in triplicate and average values were reported.

3.10. Optizen View 4.2.5

A UV–Vis spectrophotometer was connected with a PC interference software “Optizen view 4.2.5” to obtain the absorbance and real-time kinetics data of ZnO NPs in solution. The method adopted for obtaining sample survey scans and kinetic data is illustrated in Figure 2a–d.

4. User Note

Our dataset provides quality information about the sedimentation and aggregation phenomena of ZnO NPs that might be useful for researchers and the scientific community. The approach described here may help researchers who intend to increase the number of parameters and their interactions, in the range of our dataset. In addition, it may add to toxicological studies about ENPs, given that many parameters in our dataset are commonly found in natural water bodies. In the view of a global scale, one may use the dataset to incorporate more information of water chemistry parameters present in the local environments to assess other parameters that were not covered in the current matrix data.

Supplementary Materials

The following are available online at https://www.mdpi.com/2306-5729/3/2/21/s1. Table S1: Survey scan of ZnO NPs suspension in nanopure water, Table S2: Standard linear Curve of ZnO NPs at 365 nm, Table S3: Turbidity of the solution at various time and power levels of sonicator, Table S4: Absorbance and zeta potential of ZnO NPs at various pH range, Table S5: Absorbance of ZnO NPs at different electrolyte concentration of KCl, Na2SO4 and MgCl2, Table S6: Absorbance and corresponding zeta potential of ZnO NPs at various NOM concentrations of humic, salicyclic and citric acid respectively, Table S7: Normalized absorbance of ZnO NPs at various experimental conditions, Table S8: FT-IR spectra of ZnO NPs before and after interaction with 100 mg/L concentration of various NOM, Table S9: Column assignment for various parameters and two interactions in Taguchi L27 (313) orthogonal array and experimental absorbance, Table S10: The detail of the range analysis, Table S11: The detail result of the variance analysis, Table S12: Aggregation kinetic of Environmental Water samples, Table S13: Characterization of various environmental water samples and corresponding residual absorbance.

Author Contributions

R.K. and I.T.Y. conceived and designed the study. R.K. and M.A.I. conducted the experiment. S.Z.Z. and D.R.P. were responsible for experimental setup arrangements. R.K. and M.A.I. analyzed and revised the dataset. R.K. led the writing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Keller, A.A.; McFerran, S.; Lazareva, A.; Suh, S. Global life cycle releases of engineered nanomaterials. J. Nanopart. Res. 2013, 15. [Google Scholar] [CrossRef]
  2. Handy, R.D.; Von Der Kammer, F.; Lead, J.R.; Hassellöv, M.; Owen, R.; Crane, M. The ecotoxicology and chemistry of manufactured nanoparticles. Ecotoxicology 2008, 17, 287–314. [Google Scholar] [CrossRef] [PubMed]
  3. Xia, T.; Kovochich, M.; Liong, M.; Mädler, L.; Gilbert, B.; Shi, H.; Yeh, J.I.; Zink, J.I.; Nel, A.E. Comparison of the Mechanism of toxicity of Zinc and Cerium Oxide Nanoparticles Based on Dissolution and Oxidative Stress Properties. Am. Chem. Soc. Nano 2008, 2, 2121–2134. [Google Scholar] [CrossRef] [PubMed]
  4. Brunner, T.J.; Wick, P.; Manser, P.; Spohn, P.; Grass, R.N.; Limbach, L.K.; Bruinink, A.; Stark, W.J. In vitro cytotoxicity of oxide nanoparticles: Comparison to asbestos, silica, and the effect of particle solubility. Environ. Sci. Technol. 2006, 40, 4374–4381. [Google Scholar] [CrossRef] [PubMed]
  5. Majedi, S.M.; Kelly, B.C.; Lee, H.K. Combined effects of water temperature and chemistry on the environmental fate and behavior of nanosized zinc oxide. Sci. Total Environ. 2014, 496, 585–593. [Google Scholar] [CrossRef] [PubMed]
  6. Baalousha, M. Aggregation and disaggregation of iron oxide nanoparticles: Influence of particle concentration, pH and natural organic matter. Sci. Total Environ. 2009, 407, 2093–2101. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, Y.; Chen, Y.; Westerhoff, P.; Hristovski, K.; Crittenden, J.C. Stability of commercial metal oxide nanoparticles in water. Water Res. 2008, 42, 2204–2212. [Google Scholar] [CrossRef] [PubMed]
  8. Degen, A.; Kosec, M. Effect of pH and impurities on the surface charge of zinc oxide in aqueous solution. J. Eur. Ceram. Soc. 2000, 20, 667–673. [Google Scholar] [CrossRef]
  9. Zhou, D.; Keller, A.A. Role of morphology in the aggregation kinetics of ZnO nanoparticles. Water Res. 2010, 44, 2948–2956. [Google Scholar] [CrossRef] [PubMed]
  10. Mudunkotuwa, I.A.; Rupasinghe, T.; Wu, C.-M.; Grassian, V.H. Dissolution of ZnO Nanoparticles at Circumneutral pH: A Study of Size Effects in the Presence and Absence of Citric Acid. Langmuir 2012, 28, 396–403. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, W.S.; Peng, Y.H.; Shiung, C.E.; Shih, Y.H. The effect of cations on the aggregation of commercial ZnO nanoparticle suspension. J. Nanopart. Res. 2012, 14. [Google Scholar] [CrossRef]
  12. Bian, S.W.; Mudunkotuwa, I.A.; Rupasinghe, T.; Grassian, V.H. Aggregation and dissolution of 4 nm ZnO nanoparticles in aqueous environments: Influence of pH, ionic strength, size, and adsorption of humic acid. Langmuir 2011, 27, 6059–6068. [Google Scholar] [CrossRef] [PubMed]
  13. Van Hoecke, K.; De Schamphelaere, K.A.C.; Van Der Meeren, P.; Smagghe, G.; Janssen, C.R. Aggregation and ecotoxicity of CeO2 nanoparticles in synthetic and natural waters with variable pH, organic matter concentration and ionic strength. Environ. Pollut. 2011, 159, 970–976. [Google Scholar] [CrossRef] [PubMed]
  14. Philippe, A.; Schaumann, G.E. Interactions of dissolved organic matter with natural and engineered inorganic colloids: A review. Environ. Sci. Technol. 2014, 48, 8946–8962. [Google Scholar] [CrossRef] [PubMed]
  15. Zhu, M.; Wang, H.; Keller, A.A.; Wang, T.; Li, F. The effect of humic acid on the aggregation of titanium dioxide nanoparticles under different pH and ionic strengths. Sci. Total Environ. 2014, 487, 375–380. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Keller, A.A.; Wang, H.; Zhou, D.; Lenihan, H.S.; Cherr, G.; Cardinale, B.J.; Miller, R.; Zhaoxia, J.I. Stability and aggregation of metal oxide nanoparticles in natural aqueous matrices. Environ. Sci. Technol. 2010, 44, 1962–1967. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, J.; Dong, Q.; Liu, Y.; Zhou, X.; Shi, H. Response to shock load of engineered nanoparticles in an activated sludge treatment system: Insight into microbial community succession. Chemosphere 2016, 144, 1837–1844. [Google Scholar] [CrossRef] [PubMed]
  18. Zhou, X.; Huang, B.-C.; Zhou, T.; Liu, Y.C.; Shi, H. Aggregation behavior of engineered nanoparticles and their impact on activated sludge in wastewater treatment. Chemosphere 2015, 119, 568–576. [Google Scholar] [CrossRef] [PubMed]
  19. Li, X.; Lenhart, J.J.; Walker, H.W. Aggregation kinetics and dissolution of coated silver nanoparticles. Langmuir 2012, 28, 1095–1104. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, Y.; Chen, Y.; Westerhoff, P.; Crittenden, J. Impact of natural organic matter and divalent cations on the stability of aqueous nanoparticles. Water Res. 2009, 43, 4249–4257. [Google Scholar] [CrossRef] [PubMed]
  21. Peng, Y.H.; Tsai, Y.C.; Hsiung, C.E.; Lin, Y.H.; hsin Shih, Y. Influence of water chemistry on the environmental behaviors of commercial ZnO nanoparticles in various water and wastewater samples. J. Hazard. Mater. 2017, 322, 348–356. [Google Scholar] [CrossRef] [PubMed]
  22. Peng, C.; Shen, C.; Zheng, S.; Yang, W.; Hu, H.; Liu, J.; Shi, J. Transformation of CuO Nanoparticles in the Aquatic Environment: Influence of pH, Electrolytes and Natural Organic Matter. Nanomaterials 2017, 7. [Google Scholar] [CrossRef] [PubMed]
  23. Khan, R.; Inam, M.A.; Zam, S.Z.; Park, D.R.; Yeom, I.T. Assessment of Key Environmental Factors Influencing the Sedimentation and Aggregation Behavior of Zinc Oxide Nanoparticles in Aquatic Environment. Water 2018, 10. [Google Scholar] [CrossRef]
  24. He, G.; Chen, R.; Lu, S.; Jiang, C.; Liu, H.; Wang, C.; He, G.; Chen, R.; Lu, S.; Jiang, C.; et al. Dominating Role of Ionic Strength in the Sedimentation of Nano-TiO2 in Aquatic Environments. J. Nanomater. 2015, 2015, 1–10. [Google Scholar] [CrossRef]
  25. Dong, Y.; Li, X.; Huang, Y.; Wang, H.; Li, F. Coagulation and dissolution of zinc oxide nanoparticles in the presence of humic acid under different pH values. Environ. Eng. Sci. 2016, 33, 347–353. [Google Scholar] [CrossRef]
  26. Marion, G.M.; Babcock, K.L. Predicting specific conductance and salt concentration in dilute aqueous solutions. Soil Sci. 1976, 122, 181–187. [Google Scholar] [CrossRef]
  27. Kato, H.; Fujita, K.; Horie, M.; Suzuki, M.; Nakamura, A.; Endoh, S.; Yoshida, Y.; Iwahashi, H.; Takahashi, K.; Kinugasa, S. Dispersion characteristics of various metal oxide secondary nanoparticles in culture medium for in vitro toxicology assessment. Toxicol. Vitr. 2010, 24, 1009–1018. [Google Scholar] [CrossRef] [PubMed]
  28. Smoluchowski, M. Handbuch der Elektrizitat und Magnetisums 1914; Graetz, L., Ed.; Barth-Verlag: Leipzig, Germany, 1921. [Google Scholar]
  29. Fang, L.; Xiao, X.; Kang, R.; Ren, Z.; Yu, H.; Pavlostathis, S.G.; Luo, J.; Luo, X. Highly Selective Adsorption of Antimonite by Novel Imprinted Polymer with Microdomain Confinement Effect. J. Chem. Eng. Data 2018, 63, 1513–1523. [Google Scholar] [CrossRef]
  30. Phadke, M.S. Quality Engineering Using Robust Design; Prentice Hall: Upper Saddle River, NJ, USA, 1989; ISBN 0137451679. [Google Scholar]
  31. Lan, W.G.; Wongt, M.K.; Chen, N.; Sin, Y.M. Orthogonal array design as a chemometric method for the optimization of analytical procedures. Part 5. Three-level design and its application in microwave dissolution of biological samples. Analyst 1995, 120, 1115–1124. [Google Scholar] [CrossRef] [PubMed]
  32. Chidambara, R.; Quan, H.Q. Advanced oxidation processes for wastewater treatment: Optimization of UV/H2O2 process through a statistical technique. Chem. Eng. Sci. 2005, 60, 5305–5311. [Google Scholar] [CrossRef]
  33. Taguchi, G.; Konishi, S.; Konishi, S. Taguchi Methods: Orthogonal Arrays and Linear Graphs: Tools for Quality Engineering; American Supplier Institute: Dearborn, MI, USA, 1987; ISBN 094124301X. [Google Scholar]

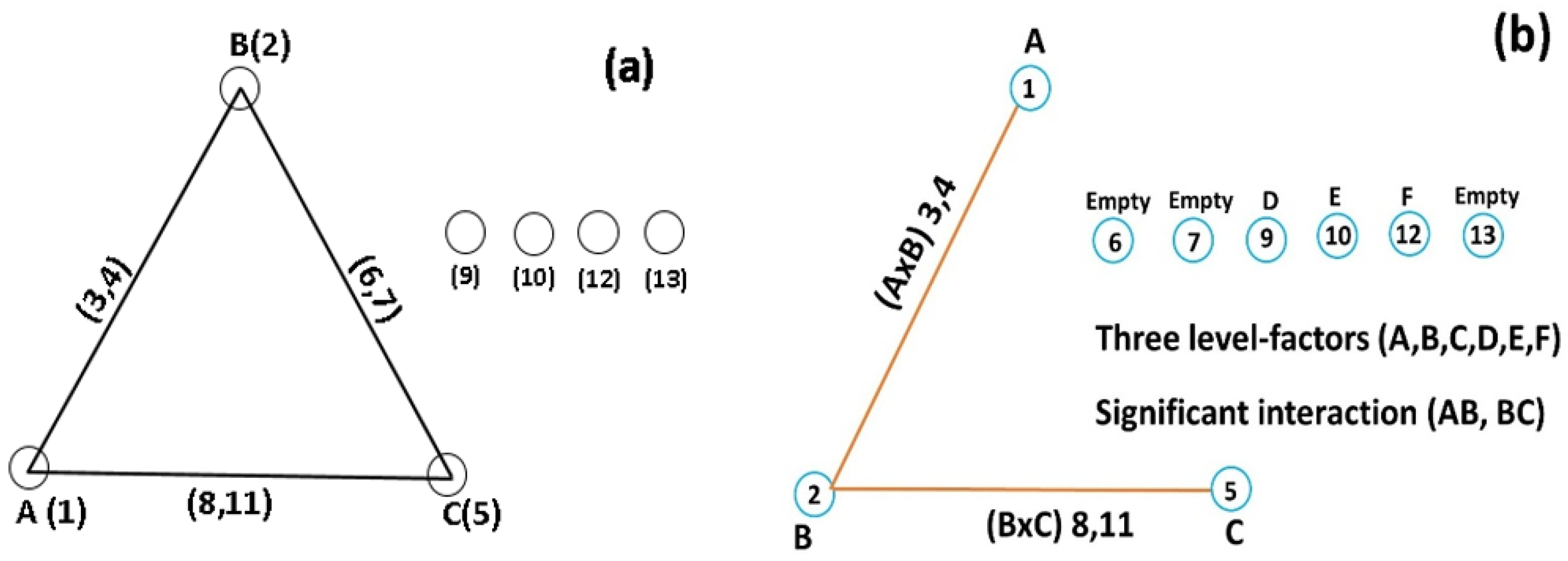

Figure 1. Standard linear graph for L27 (313) array (a); and modified linear graph for column assignment (b).
Figure 1. Standard linear graph for L27 (313) array (a); and modified linear graph for column assignment (b).
Data 03 00021 g001
Figure 2. An illustration of Optizen view 4.2.5 software showing (a) main screen of user interference; (b) survey scan for determination of ZnO NPs wavelength; (c) time-resolved kinetic study of ZnO NPs under various solution chemistry; (d) procedure to export data to Excel.
Figure 2. An illustration of Optizen view 4.2.5 software showing (a) main screen of user interference; (b) survey scan for determination of ZnO NPs wavelength; (c) time-resolved kinetic study of ZnO NPs under various solution chemistry; (d) procedure to export data to Excel.
Data 03 00021 g002aData 03 00021 g002b
Table 1. Type of experiment and condition of single parameter experiments.
Table 1. Type of experiment and condition of single parameter experiments.
ExperimentParameterUnitCondition
ApH-3 to 12
BKCl, Na2SO4mM0.01 to 100
MgCl2mM0.01 to 25
CHA, SA, CAmg∙L−10.5 to 100
DSynthetic Environmental water samples
Where HA, SA and CA corresponds to humic acid, salicylic acid and citric acid respectively.
Table 2. The input parameter and their corresponding levels for the Taguchi L27 (313) experiment.
Table 2. The input parameter and their corresponding levels for the Taguchi L27 (313) experiment.
ParameterUnitsLevel
123
pH-7.08.09.5
Electrolyte ConcentrationmM2550100
NOM Concentration *mgL−151025
Electrolyte type-KClNa2SO4MgCl2
NOM type-HASACA
Temperature°C152535
* NOM corresponds to natural organic matter.
Table 3. Calculated Vt of ZnO NPs at various water temperature under controlled conditions.
Table 3. Calculated Vt of ZnO NPs at various water temperature under controlled conditions.
Temperature (°C)152535
Vt (×10−3 cm/h)1.9782.5333.105
