Time-Correlated Vortex Tunneling in Layered Superconductors

Abstract

The nucleation and dynamics of Josephson and Abrikosov vortices determine the critical currents of layered high-T_c superconducting (HTS) thin films, grain boundaries, and coated conductors, so understanding their mechanisms is of crucial importance. Here, we treat pair creation of Josephson and Abrikosov vortices in layered superconductors as a secondary Josephson effect. Each full vortex is viewed as a composite fluid of micro-vortices, such as pancake vortices, which tunnel coherently via a tunneling matrix element. We introduce a two-terminal magnetic (Weber) blockade effect that blocks tunneling when the applied current is below a threshold value. We simulate vortex tunneling as a dynamic, time-correlated process when the current is above threshold. The model shows nearly precise agreement with voltage-current (V-I) characteristics of HTS cuprate grain boundary junctions, which become more concave rounded as temperature decreases, and also explains the piecewise linear V-I behavior observed in iron-pnictide bicrystal junctions and other HTS devices. When applied to either Abrikosov or Josephson pair creation, the model explains a plateau seen in plots of critical current vs. thickness of HTS-coated conductors. The observed correlation between theory and experiment strongly supports the proposed quantum picture of vortex nucleation and dynamics in layered superconductors.

1. Introduction

Both high- and low-T_c superconducting wires, cables, and Josephson devices are spurring advances in energy, medicine, and other sectors of the economy. The critical current density, or J_c, of a high-T_c superconducting (HTS) thin film or coated conductor is often limited by grain boundaries, where misoriented crystallites join at an interface [1,2,3,4]. Each grain boundary acts like a Josephson Junction (JJ) or weak link, usually with a width greater than the Josephson penetration length, w >> λ_J [5,6]. The critical current of a wide JJ is limited by nucleation and motion of Josephson vortices. Abrikosov vortices [7], with a radius comparable to the London penetration length λ_L, and Josephson vortices [6,8] of widths ~λ_J and ~2λ_L along and perpendicular to the grain boundary, respectively, carry quantized magnetic flux, Ф₀ = h/2e. After they nucleate, they limit the J_c [1,2,3,4] by generating a finite voltage and dissipating energy as they move, driven by the interaction between flux and current [9].

A Josephson vortex is a topological flux soliton [10] dual to the charge soliton of a charge density wave (CDW) [11,12,13,14]. Josephson [10] and Abrikosov [15,16,17] vortices can nucleate or depin, in principle, either by either thermal activation or quantum tunneling [18]. In layered high-T_c superconductors, the latter appears to be enabled by short HTS coherence lengths, pancake vortex structures [19], and light vortex masses [20]. Magnetic relaxation rates of trapped flux in YBa₂Cu₃O₇ (YBCO), for example, decrease with temperature and are nearly temperature-independent when normalized to magnetization [21], suggesting non-thermally-activated depinning of Abrikosov vortices.

Quantum pair creation of Josephson vortices has been proposed for a wide JJ treated as a sine-Gordon model [22]. Tunneling occurs when the applied current tilts the sinusoidal Josephson coupling energy so each newly created soliton-antisoliton pair bounds a lower energy ‘bubble’ wide enough to balance the positive energy of the solitons, as depicted in Figure 1a. Such tilted sine-Gordon models predict a Zener-like form for the pair production rate [23], $\mathrm{\Gamma }\propto F\exp \left[F_0/F\right]$, where the force F is proportional to applied current for a JJ. This is formally identical to the rate of Schwinger electron-positron pair production in 1D [24], or CDW soliton pair production [25], but in these latter cases F is proportional to electric field E rather than current. Figure 1b illustrates an approach discussed in the following sections, in which phase differences φ_k across HTS grain boundaries for individual layers allow for nucleation of composite vortices consisting of many pancake vortices.

In a CDW, the internal electric field E* created by a charged soliton–antisoliton pair modifies the smooth Zener-like current-voltage (I-V) curve to create a Coulomb blockade threshold field, E_T = E*/2, for pair production [26]. Above the threshold, soliton tunneling becomes correlated in time and exhibits phenomena such as coherent oscillations, narrow-band noise, and mode locking [11,12,13,14]. In a similar vein, the next sections discuss: (1) a two-terminal magnetic, or Weber, blockade mechanism leading to a threshold current for pair creation of flux vortices; and (2) time-correlated vortex tunneling when the applied current is above the threshold.

2. Results

Here we discuss the results of our model, which include the effects of energy on the voltage-current (V-I) curve, due to the magnetic field B* inductively coupling vortices and antivortices. This magnetostatic energy leads to a sharp threshold current for vortex pair creation, and causes vortex tunneling to become correlated in time above threshold. Simulation results are compared with experimental measurements of critical currents in HTS-coated conductors and with voltage-current characteristics of cuprate HTS grain boundary junctions and iron-pnictide bicrystal junctions.

2.1. Weber Blockade Threshold Current for Vortex Pair Creation

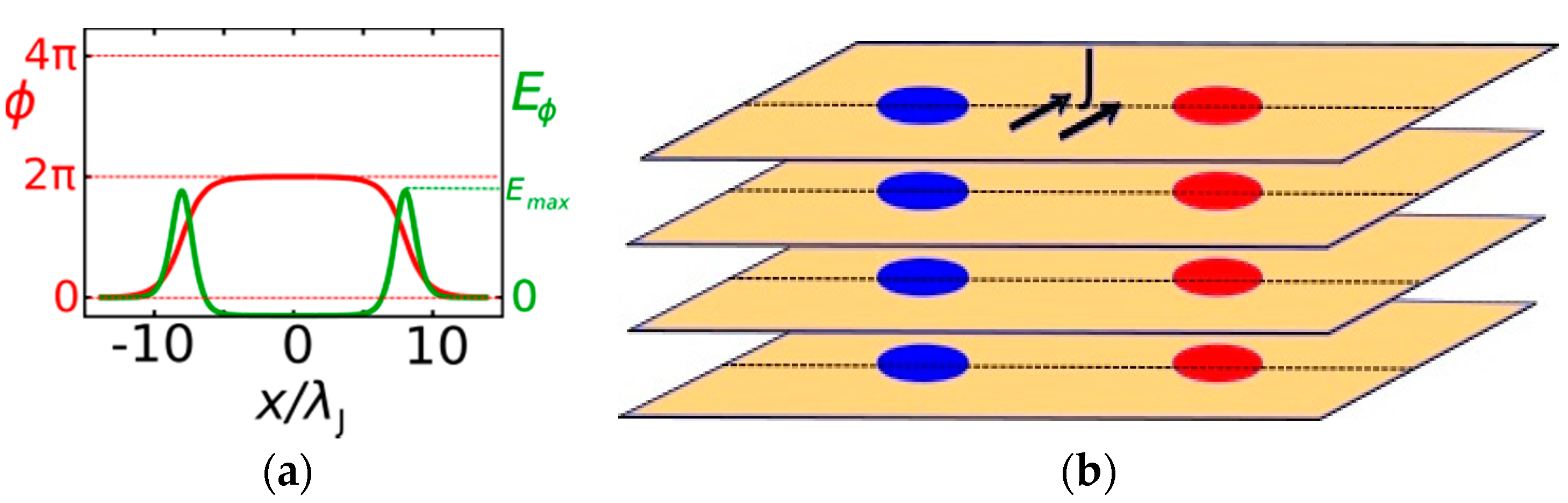

An HTS grain boundary behaves as a JJ with a periodic Josephson coupling energy vs. φ. Since a 2π change in φ(x) generates a circulating current and vector potential encompassing one flux quantum, Ф₀, a 2π soliton (antisoliton) in φ is equivalent to a Josephson vortex (antivortex), e.g., see [6,8]. A sufficiently high applied current enables nucleation of a bubble bounded by solitons [22], as shown in Figure 1. Once nucleated, the lower-energy bubble expands as the Lorentz-like force from the current drives the vortex and antivortex apart. Though spatially extended, Josephson vortices are extremely light. Using the expression provided by Grosfeld and Stern [27], the mass of a Josephson vortex spanning a 1-µm-thick film is estimated to be ~10⁻²m_e. If, in a layered superconductor, we view a full vortex as a composite of pancake vortices [20] (see Figure 1b), then the mass of each pancake vortex within a single layer is orders of magnitude smaller still.

The two-terminal Weber blockade mechanism proposed here leads to a threshold current for vortex pair creation and is dual to the Coulomb blockade effect that blocks tunneling of electrons [28] or charge solitons [11,12,13,14] below a threshold field (see [29] for a three-terminal Weber blockade effect.) Figure 2 illustrates vortex pair creation in a zero externally applied field. The vortices generate a magnetic field with an average value, $B^{*}~\beta {\Phi }_0/{\lambda }^2$, linking the vortex and anti-vortex. Here $\lambda =\sqrt{{\lambda }_J{\lambda }_L}$ or $\lambda ={\lambda }_L$ for a Josephson or Abrikosov vortex pair, respectively, and β is a dimensionless factor to account for effects of non-uniform field [30], partial field penetration, and/or any vortex overlap. When the film thickness d becomes small, λ will be replaced by the thickness-dependent Pearl penetration length Λ, to be discussed later.

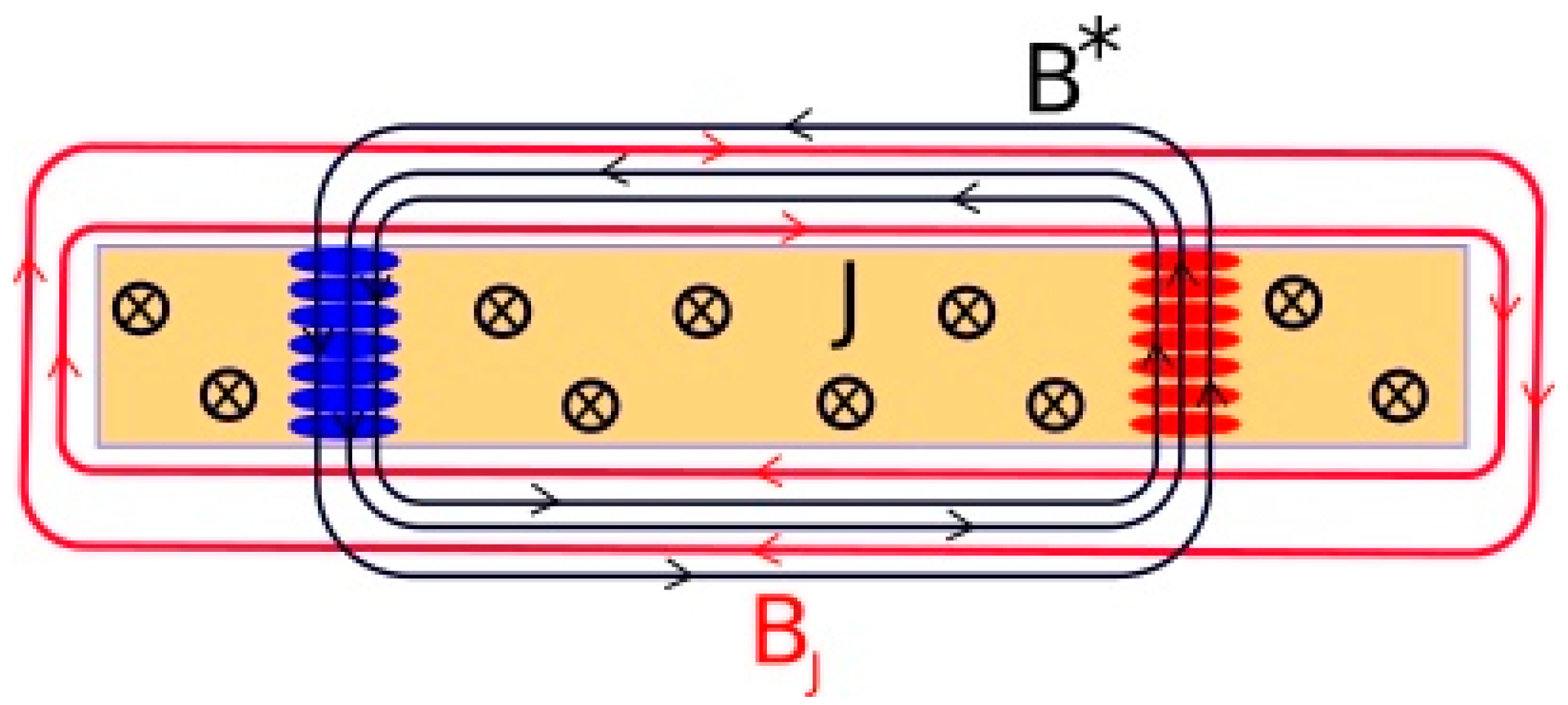

An applied current density J in a film of thickness d creates an additional self-field, $B_J\cong {\mu }_{0}Jd/2$, which runs just outside the film perpendicular to J in opposite directions above and below the film, as shown in Figure 2, and can partially cancel B*. Once nucleated, the vortices are driven apart by the Lorentz-like force between flux and current.

Energy conservation prevents vortex pair creation for arbitrarily small applied currents because of the vortices’ inductive magnetic energy. Even though B_J and B* partially cancel, pair creation is blocked when the integrated magnetic energy between vortices with the pair, $\propto {\left(B_J-B^{*}\right)}^2/2{\mu }_0$, exceeds that without the pair, $\propto B_J^2/2{\mu }_0$. Equivalently, pair creation cannot occur when the energy difference, ${\left(B_J-B^{*}\right)}^2/2{\mu }_0-B_J^2/2{\mu }_0 = \left(B^{*}/{\mu }_0\right)\left[B^{*}/2-B_J\right]$, is positive, i.e. if $B_J<B^{*}/2$. When the applied current J and self-field B_J are sufficiently large that $B_J>B^{*}/2$ however, or when $\theta \equiv 2\mathsf{\pi }{B}_J/B^{*}>\mathsf{\pi }$, the former global minimum (vs. φ) becomes a metastable state. A bubble bounded by 2π solitons (Figure 1) can thus nucleate when θ, proportional to J below threshold, exceeds π. In the limit, d >> λ, this yields a threshold pair creation current per unit width given by:

$$j_{pc}^0=B^{*}/{\mu }_0=\beta {\Phi }_0/\left({\mu }_0{\lambda }^2\right).$$

(1)

When d becomes comparable to or smaller than λ, Equation (1) will be replaced by an expression that accounts for the thickness dependence of the penetration length, to be discussed shortly. If the nucleated vortex and antivortex are initially separated by a distance $\mathsf{\Delta }x$, then the pair creation critical current between vortices can be written as:

$$j_{pc}^0\mathsf{\Delta }x ~ {\Phi }_0/2L,$$

(2)

where $L ~{\mu }_0{\lambda }^2/2\beta \mathsf{\Delta }x$ is the inductance of the flux toroid coupling the vortices. This is essentially the dual of the Coulomb blockade voltage V_c = e/2C for a small capacitance tunnel junction. Nucleation of a vortex near one edge and antivortex near the other can be treated similarly using the image vortex concept [31].

The critical current vs. thickness, d, of HTS-coated conductors usually shows sub-linear behavior and often reaches a plateau, causing J_c to decrease with thickness [32,33,34]. This is readily explained by the Weber blockade mechanism. For a strip of width w, the total pair creation current becomes: $I_{pc}^{ 0}=j_{pc}^{ 0}w=\beta {\Phi }_{0}w/\left({\mu }_0{\lambda }^2\right)$, which is independent of d when d >> λ. Eventually, however, it is likely that vortex pair creation will be superseded by anisotropic ring nucleation when the film or bulk material becomes extremely thick. As d becomes small the vortices acquire a quasi-2D character and their diameters increase, as predicted by Pearl [35] and directly imaged by Tafuri et al. [36]. When $d\ll \lambda$, the size of each vortex is governed by an effective length, Λ, known as the Pearl penetration length [35,36], $\mathrm{\Lambda }=2{\lambda }^2/d$. Since the relevant length scale becomes $\mathrm{\Lambda }=\lambda$ when $d\gg \lambda$, we use the approximation: $\mathrm{\Lambda }\cong \lambda +2{\lambda }^2/d$. Using Λ to replace λ in Equation (1) then yields the following expression, as a function of d, for the pair creation critical current, I_pc = j_pcw:

$$I_{pc}\left(d\right)=\frac{I_{pc}^0}{{\left[1+2\lambda /d\right]}^2}.$$

(3)

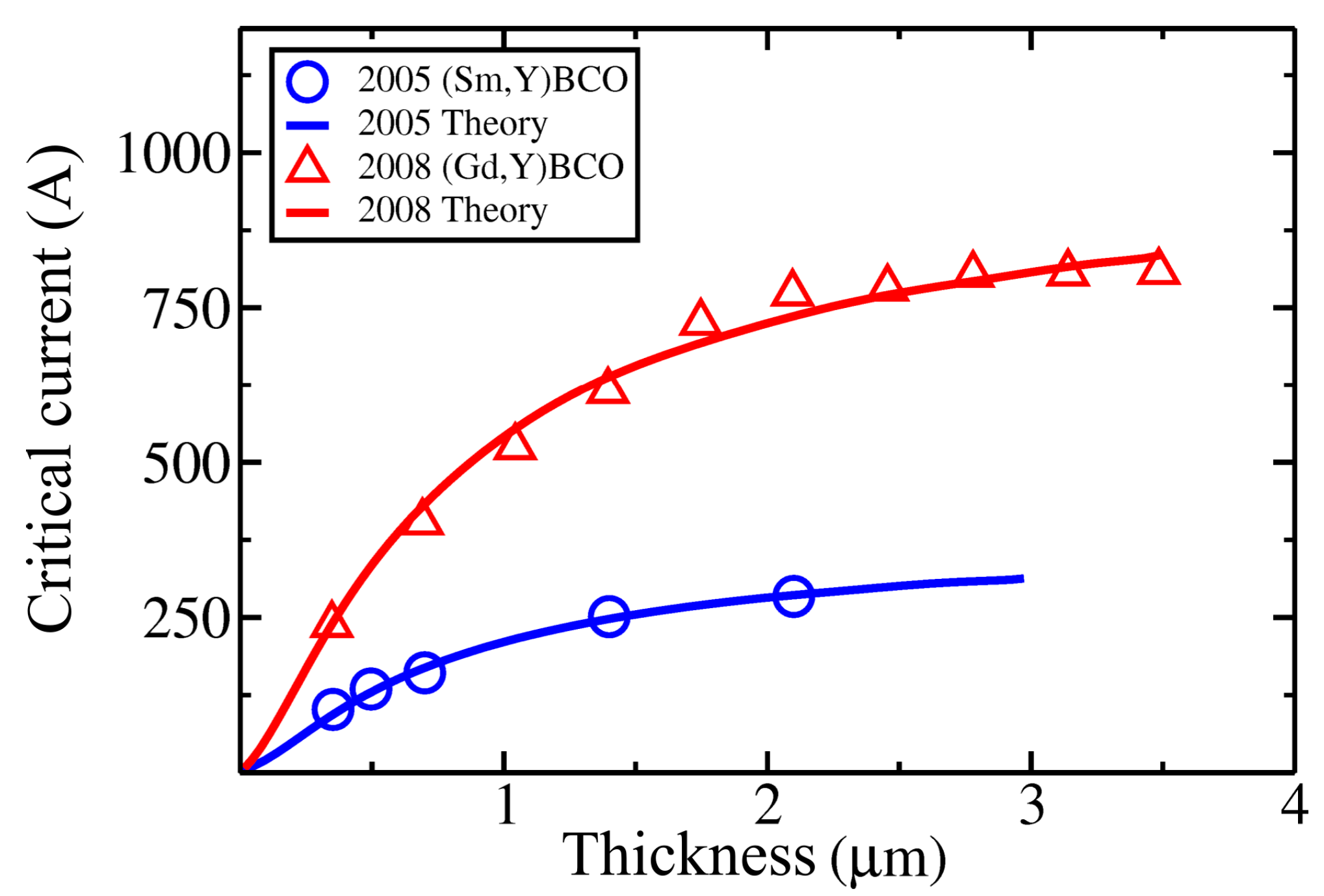

Figure 3 shows a favorable comparison of Equation (3) with measured critical currents vs. thickness of HTS-coated conductors, consistent with the observed plateau effect.

The introduction of insulating CeO₂ spacer layers into HTS-coated conductors has been reported to improve the critical current [32,37] vs. thickness behavior by reducing the plateau effect. Our model provides a straightforward interpretation consistent with [37], sufficiently thick spacer layers decouple vortex pair nucleation events on adjacent HTS layers, enabling total critical current to scale with the number of layers. This multi-layer approach is potentially advantageous for HTS magnets constructed with tapes in a pancake geometry, since field lines along the ab-plane would be constrained by spacer layers. The next section discusses the dynamics of vortex tunneling above threshold, following a previous model of time-correlated soliton tunneling [11,12,13,14] in charge and spin density waves.

2.2. Time-Correlated, Coherent Tunneling of Josephson Vortices

In time-correlated single-electron tunneling [28], an applied voltage V across a capacitive tunnel junction increases the displacement charge, Q = CV, until it reaches the critical value, Q = e/2, needed to overcome the Coulomb barrier, ${\left(Q\pm e\right)}^2/2C-Q^2/2C$. This enables an electron to tunnel through the junction, causing a drop in voltage followed by another increase, and the process repeats many times to cause jerky flow of electric current, $I=dQ/dt$. After n tunneling events, the total displacement charge, driven across and through the junction, becomes: $Q=CV+ne$. Time-correlated soliton tunneling in CDWs [12,13,14] is similar, except that the soliton charge Q₀ replaces the electron charge e. The model combines a sine-Gordon potential, representing CDW pinning, with the solitons’ electrostatic energy [26,38]. Following a classic paper on the massive Schwinger model [38], the soliton tunneling model also relates the ‘vacuum angle’ θ(t) to the total displacement charge Q(t) and soliton charge Q₀ using: $\theta =2\pi \left(Q/Q_0\right)$.

In the model proposed here, θ scales with the applied current J and the resulting self-field B_J, when J is below threshold, and is proportional to displaced flux when J is above threshold. We define the total displacement flux Ф, after n vortex tunneling/nucleation events, using $\Phi ={\lambda }^2{B}_J/\beta +n{\Phi }_0$. The relation between θ and Ф then becomes, $\theta =2\pi \left(\Phi /{\Phi }_0\right)$, which highlights the duality between flux and charge. We take φ_k to represent phase differences across a junction for individual layers (e.g., Figure 1b), as well as incorporating spatial degrees of freedom. The potential energy for each microscopic degree of freedom k can then be written as:

$$u\left[{\varphi }_k\right]=u_J\left[1-\cos {\varphi }_k\left(x\right)\right]+ u_M{\left(\theta -{\varphi }_k\left(x\right)\right)}^2,$$

(4)

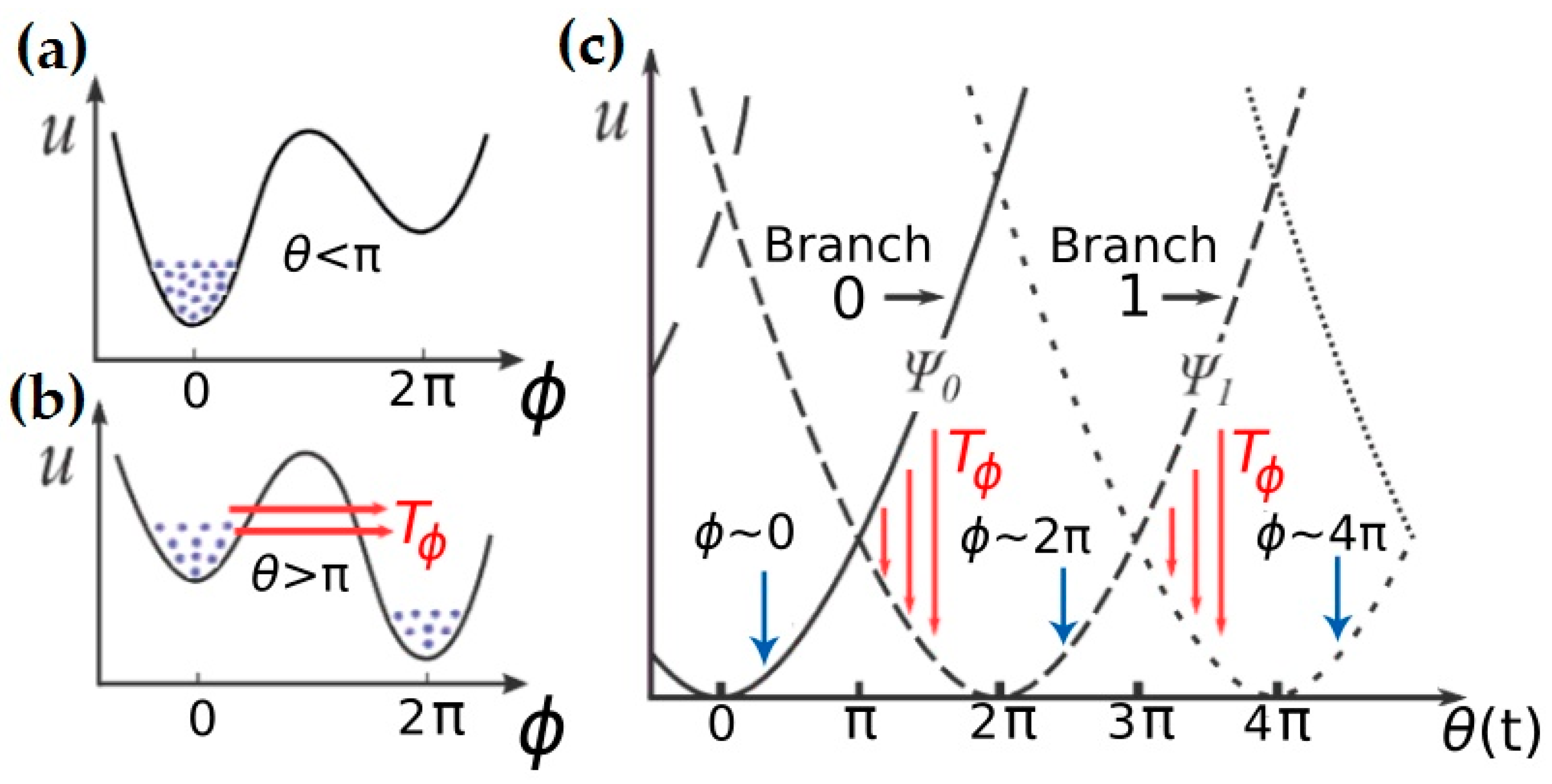

where the first term is the Josephson coupling energy and the second, quadratic term is the magnetostatic contribution. Figure 4a,b shows how the global minimum for the phases switches from the potential well near φ ~ 0 to the one at φ ~ π when θ crosses above the critical value of π.

In Figure 4c, Equation (4) is minimized by setting $\varphi ~ 2\pi n$ (dropping the subscript k) so that φ is sitting in a potential well (assuming $u_M\ll u_J$). This leads to a series of piecewise parabolic magnetostatic energy plots, $u\left(\theta \right) \propto {\left(\theta -2\pi n\right)}^2 \propto {\left(\Phi -n{\Phi }_0\right)}^2/2L$, as shown in Figure 4c. These are dual to the piecewise charging Coulomb energy curves in time-correlated soliton tunneling in CDWs [11,12,13,14], and should not be confused with the Josephson coupling energy. The ‘vacuum angle’ θ continually increases with time as the system evolves. Each time a parabola in Figure 4c crosses the next, at an instability point θ = 2π(n + ½), the phases φ_k tunnel coherently into the next well, causing the overall phase to advance by 2π.

This process repeats itself many times, leading to Josephson-like oscillations and Shapiro steps due to mode-locking with a microwave source. In this picture, although the overall behavior is somewhat jerky, the microscopic degrees of freedom nonetheless flow through the barrier in a continuous fashion, as discussed in [12,13,14]. The advance with time, of $\theta \left(t\right)$ and the phase expectation value $⟨\varphi \left(t\right)⟩$, are closely related. Although they only approximately track within a cycle, their correlation becomes precise when time-averaged. Regardless of the detailed shape of the periodic Josephson coupling energy, which may or may not be sinusoidal and may include disorder, the emergent behavior as $\theta \left(t\right)$ that evolves is often non-sinusoidal.

We now follow [12,13,14] to model dynamics. We hypothesize that the amplitudes ψ_n and ψ_{n + 1} for the system to be on branches n and n + 1 in Figure 4c, respectively, are coupled via coherent, Josephson-like tunneling of microscopic quantum solitons [39,40]. We use a matrix element $T_{\phi }$ to represent this coupling, motivated by Feynman’s intuitive derivation [41] of the dc and ac Josephson effects. Advancing φ_k(x) by 2π within a finite ‘bubble’ is equivalent to creating a pair of microscopic solitons. These can either be pancake Josephson vortices [20] with very small masses [27] or even deformations of the Cooper pair wavefunctions within the condensate (see Discussion). We treat the phases φ_k as comprising a quantum fluid, within which they are capable of coherent, Josephson-like tunneling. This picture can presumably be extended to coherent tunneling of Abrikosov pancake vortices [42], which also have small masses [19], or to deformations of their resulting pair wavefunctions.

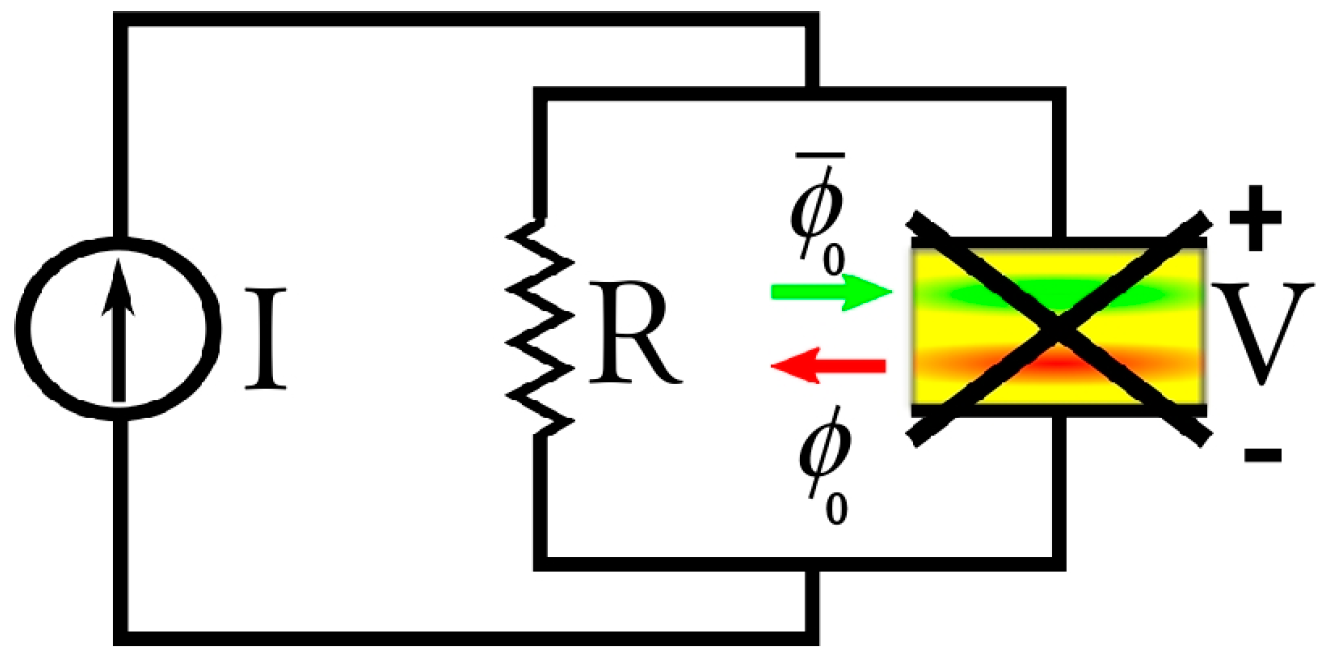

We use a slightly modified resistively shunted junction (RSJ) model [6], shown in Figure 5, to simulate voltage-current characteristics of an HTS grain boundary junction. This is discussed in Materials and Methods, which also defines the parameters used. Figure 6 shows resulting theoretical voltage vs. current plots for various parameter values. Some of the V-I plots exhibit piecewise linear behavior, which fits neither the classical RSJ model nor a straightforward thermally activated flux flow model. Piecewise quasi-linear behavior is often seen in HTS grain boundary junctions and has largely eluded explanation. Here this behavior is readily explained via the proposed model and two-terminal Weber blockade mechanism. In Figure 6b the main effect of increasing q₀, which corresponds to increasing barrier height and decreasing λ_J as temperature goes down, is to increase the degree of rounding in the V-I curve.

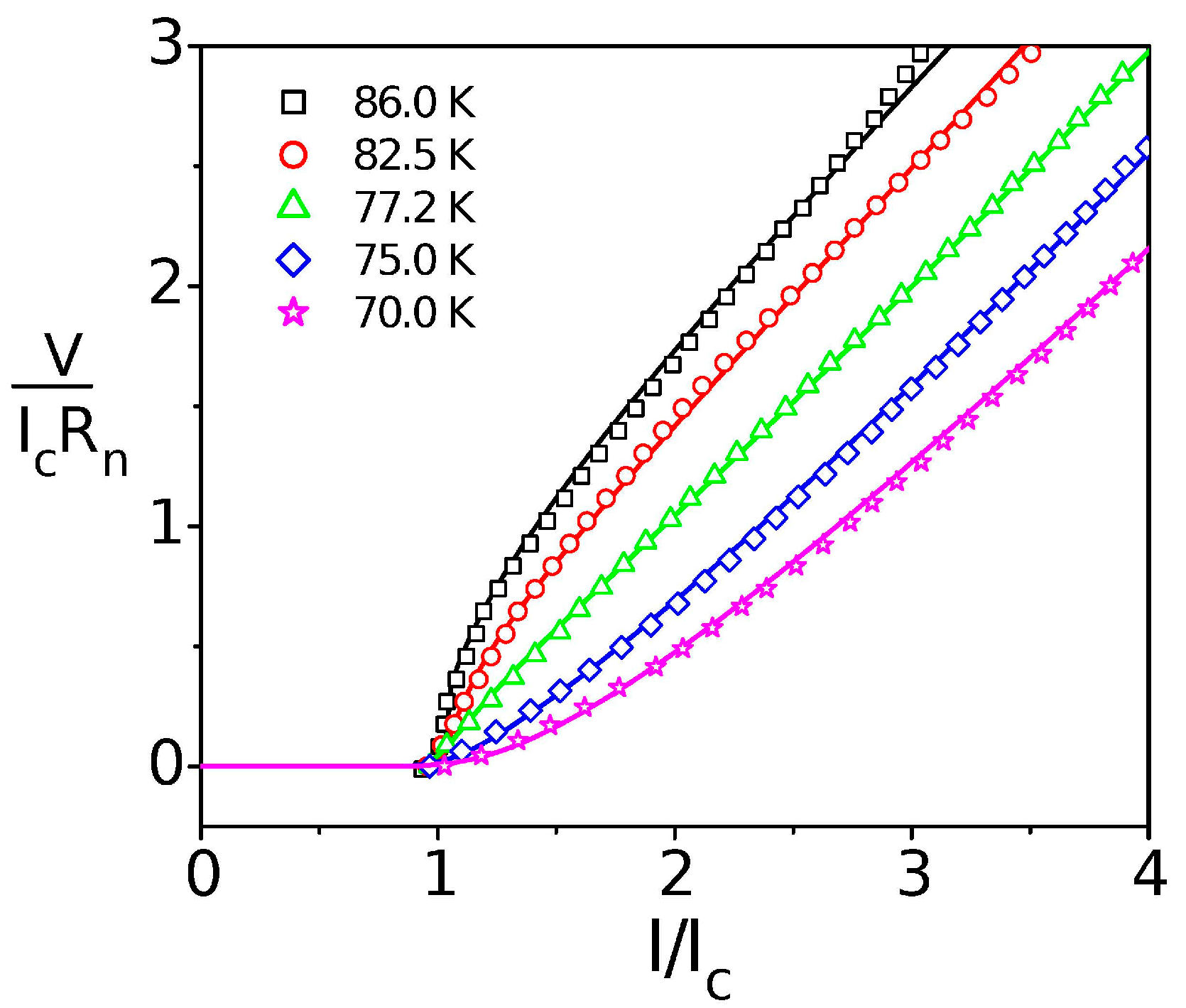

Figure 7 shows comparisons between theory and measured V-I characteristics of an YBa₂Cu₃O₇ (YBCO) [43] grain boundary junction at several temperatures. The simulated 86 K plot in Figure 7 (top) is obtained using the classical resistively shunted junction (RSJ) model in the overdamped limit: $V/\left(I_c{R}_n\right)=\sqrt{{\left(I/I_c\right)}^2-1}$, without invoking thermal activation. The fact that the 86 K data fit the classical RSJ model almost perfectly suggests that the effective Josephson penetration length is comparable to or longer than the junction width (short junction limit) due to the small Josephson coupling energy at this temperature. Even at this high temperature there is little or no evidence for concave rounding caused by thermal activation.

The theoretical plots for the remaining temperatures in Figure 7, as well as for Figure 8a,b, are obtained via the time-correlated vortex tunneling model (see Materials and Methods), using parameters in

Table 1. Parameters used to generate the simulated V-I curves in Figure 7 and Figure 8.

Figure Plot	${\mathit{I}}_{\mathit{c}}/{\mathit{I}}^{*}$	$\mathit{w}/\mathit{\ell }$	γ	q0
Figure 7—82.5 K	0.55	1.15	50	0.5
Figure 7—77.2 K	0.72	1.09	45	1.7
Figure 7—75.0 K	1.25	1.16	40	6.5
Figure 7—70.0 K	1.80	1.16	30	12
Figure 8a	0.71	1.04	60	1.9
Figure 8b	1.00	1.00	12	6.0

. The theoretical plots (solid lines) show nearly precise quantitative agreement with the experimental data (open symbols). As the temperature is reduced, from 82.5 K down to 70.0 K, both the experimental and theoretical V-I curves show more concave rounding, providing convincing evidence that this is not due to a thermally activated process. The Josephson coupling energy increases with decreasing temperature, causing the characteristic force F₀ (proportional to q₀) to increase. This increase in F₀ affects the matrix element $T_{\phi }$ (Equation (11) of Materials and Methods), and leads to rounded, Zener-like theoretical plots at lower temperatures, in agreement with experiment. Similar quantum fluidic effects may play a role in magnetic relaxation of Abrikosov vortices in bulk YBCO [21], for which V-I plots also tend to be quite rounded at low temperatures.

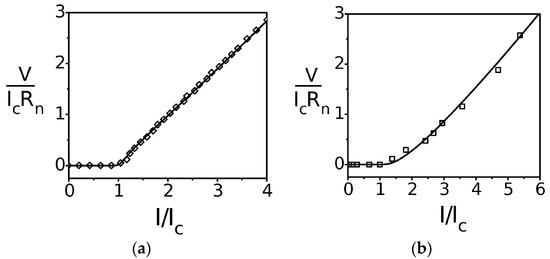

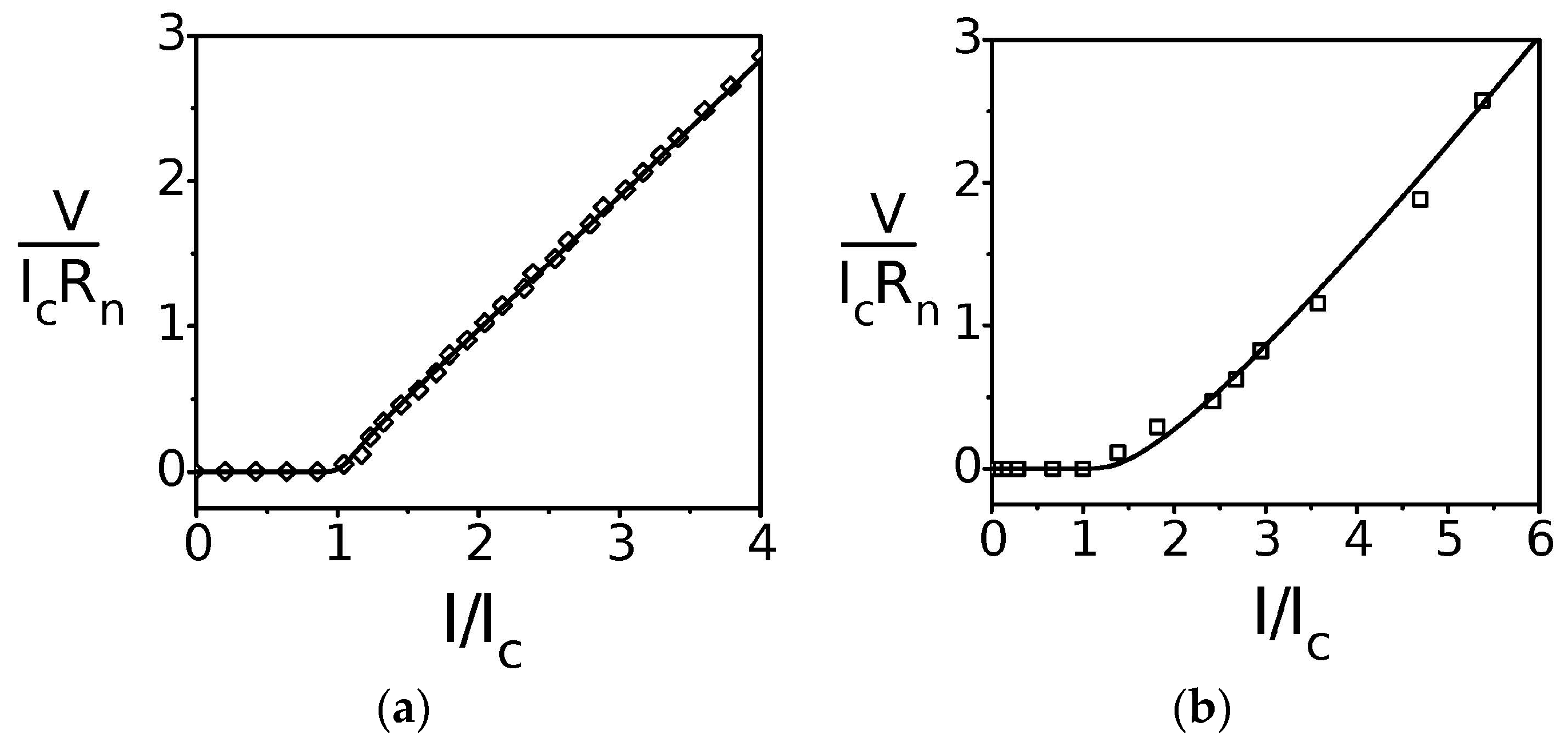

Figure 8a shows excellent agreement between our quantum model and the V-I curve of an iron pnictide superconducting bicrystal [44], consisting of coupled SrFe_1.74Co_0.26As₂ and Ba_0.23K_0.77Fe₂As₂ crystals, each ~300 µm wide, and thus in the long junction limit. The piecewise linear V-I behavior in Figure 8a also occurs frequently in cuprate grain boundary junctions (e.g., Figure 7, 77.2 K data, and references [1,45]). This behavior is analogous to the piecewise linear I-V curve of an ideal Coulomb blockade tunnel junction. Figure 8b plots our simulation as compared to the measured V-I characteristic of a thallium-based cuprate grain boundary [46], showing good agreement with the data. Table 1 in Materials and Methods shows the parameters used for the simulations and plots.

The time-dependent Schrödinger equation (Materials and Methods) and generalized tunneling matrix element $T_{\phi }$, coupled with the Weber blockade mechanism, provides a simple, yet powerful approach to modeling the dynamics of vortex tunneling. For a uniform junction, the piecewise parabolic curves in Figure 4 and simulations discussed above often predict non-sinusoidal voltage oscillations. The top plot in Figure 9 shows such non-sinusoidal voltage oscillations for a uniform junction. In the remaining plots of Figure 9, we model non-uniformities by representing the junction as 100 domains with a spread in parameters related to coupling energy (see Materials and Methods). The bottom three plots in Figure 9 represent various levels of disorder. The middle two plots show reduced voltage amplitudes and an apparent amplitude modulation effect, consistent with reported subharmonic Shapiro steps [47]. The bottom plot, depicting the most disorder for this series, shows further reduced amplitudes. Voltage oscillations and Shapiro steps are thus expected to become immeasurably small in a sufficiently non-uniform junction.

3. Discussion and Conclusions

This paper considers tunneling of Josephson vortices and, to a lesser extent, Abrikosov vortices. The model, which includes a magnetic Weber blockade effect, shows good quantitative agreement with measured critical current vs. film thickness of HTS-coated conductors, providing a fundamental explanation for the observed critical current plateau. A multilayer approach [32,37] might potentially improve engineering critical currents by decoupling vortex pair creation events in different HTS layers. The spacer layers would also enable flux trapping along the ab-plane, which would be especially useful for pancake coil magnets made from HTS tapes. Further work is needed to consider anisotropic vortex ring nucleation in thick films or bulk materials, and to extend the model to include finite external fields. Creation of a dislocation pair [48], for example, may be the energetically least costly process for depinning a vortex lattice in a finite external field. We have also simulated time-correlated tunneling of Josephson vortices. We find nearly precise agreement with measured voltage-current characteristics of HTS grain boundary junctions, which are important for thin film device applications.

A key premise of this paper is that the concept of coherent Josephson-like tunneling should be generalized to include other phenomena with quantum fluidic properties. We view the system as a quantum fluid in which Josephson-like tunneling couples different topological states [49]. While we previously considered tunneling of pancake vortices (Figure 2), an even more microscopic picture is obtained by examining the Bardeen-Cooper-Schrieffer (BCS) ground state [50]: ${\psi }_0=\stackrel{⌢}{\text{A}}{\phi }_0\left(r_1-r_2\right){\chi }_{12}\dots {\phi }_0\left(r_{N-1}-r_N\right){\chi }_{N-1,N}$. In this real-space version, ϕ₀ is the wavefunction for each pair of electrons or holes, χ is the spin wavefunction, and $\stackrel{⌢}{\text{A}}$ is the antisymmetrization operator. The ground state ψ₀ evolves into a new state, ψ_vp, containing a vortex-antivortex pair. Each individual pair state evolves into its corresponding vortex-pair-deformed state, ϕ_vp. Further work is needed to develop a complete microscopic picture. One could, for example, use a representation of operators [51] that operate on the original ground state to create a coherent state description of the vortex pair state.

Beyond improving our understanding of superconductivity and other correlated electron systems, the concepts proposed here could have broad scientific impact in other areas. These include tunneling in quantum cosmology [52,53,54], perhaps treating the universe as a quantum fluid [55], the theta = pi instability in spontaneous charge-parity (CP) violation [56], and tunneling of atomic bright solitons [57]. Finally, understanding of the quantum behavior of flux solitons could potentially lead to topologically robust forms of quantum information processing or superconducting digital electronics.

4. Materials and Methods

Here we discuss simulation of time-correlated vortex tunneling. The voltage across the junction in Figure 5 is:

$$V=d\Phi /dt=\left({\Phi }_0/2\mathsf{\pi }\right)d\theta /dt,$$

(5)

yielding a normal current through the shunt resistance:

$$I_n=V/R=\left({\Phi }_0/2\mathsf{\pi }R\right)d\theta /dt$$

(6)

For a grain boundary junction with total current I, we define: $\omega =\left(2\pi R/{\Phi }_0\right)I$. For each ‘bubble’ nucleation event in which the average phase advances toward the next potential well, the applied current splits into a supercurrent I_s and a normal shunt current given by Equation (6). Many such events advance the average phase by $⟨\varphi ⟩$ to yield a net supercurrent:

$$I_s=\left(I^{*}/2\pi \right)\left[\theta -⟨\varphi ⟩\right].$$

(7)

Here $I^{*}=2j_{pc}\ell$ within a grain boundary region of width $\ell$, comparable to but slightly smaller than w due to the finite width of the vortices. Each time $⟨\varphi ⟩$ advances by 2π, the supercurrent returns close to its previous value, thus preventing it from increasing ad infinitum as θ evolves with time. Using $I_n=I-I_s$ and introducing the time constant $\tau =L/R$, yields the following equation (also see [12]) for the time rate of change of θ, which is proportional to voltage:

$$\frac{d\theta }{dt}=\omega -\frac{1}{\tau }\left[\theta -\langle \varphi \rangle \right].$$

(8)

If the system starts out on branch 0 in Figure 4c, then $⟨\varphi ⟩$ will initially be zero. The expectation value $⟨\varphi ⟩$ will begin to increase once microscopic degrees of freedom φ_k start tunneling coherently into the next well (Figure 4b) representing branch 1. Our model represents the amplitudes ψ_0,1 for the system to be on branches 0 and 1 (or n and n + 1) in terms of coherent amplitudes:

$${\psi }_{0,1}=\sqrt{{\rho }_{0,1}}\exp \left[i{\delta }_{0,1}\right].$$

(9)

Here ρ_0,1 represents the fraction of phases φ_k in the left or right wells, respectively (Figure 4b), corresponding to branches 0 and 1 in Figure 4c. In this picture, ψ_0,1 are not the superconducting order parameters on opposite sides of the junction but, rather, represent the amplitudes for the phases φ_k to be in either of the two wells in Figure 4b. The phases δ_0,1 are related to Berry phases for vortices, which would, for example, lead to an Aharanov–Casher effect [58].

The expectation value $⟨\varphi ⟩$ in Equation (8) is computed by solving the time-dependent Schrödinger equation:

$$i\hslash \frac{\partial {\psi }_{0,1}}{\partial t}=U_0{\psi }_{0,1}+T_{\phi }{\psi }_{1,0}$$

(10)

Advancing φ_k(x) by 2π within a given region, taking φ_k from one branch to the next, is equivalent to creating a pair of 2π-solitons. The driving force is the energy difference per unit length between potential minima at $\varphi ~2\mathsf{\pi }n$ and $\varphi ~2\mathsf{\pi }\left(n+1\right)$. When $u_M/u_J\ll 1$, this force is: $F=4\mathsf{\pi }{u}_M{\theta }_n\text{'}$, where ${{\theta }_n}^{\prime }\equiv \theta -2\mathsf{\pi }\left(n+1/2\right)$. Using the analogy to pair production [24] and following Bardeen [59,60], the effective matrix element for Zener tunneling through the soliton energy gap is estimated to be:

$$T_{\phi }\left(F\right)=-4F\lambda \exp \left[-F_0/F\right].$$

(11)

Here ${\lambda }^{-1}~{\mathsf{\Delta }}_{\phi }/\hslash c_0 + {\lambda }_m^{-1}$, ${\lambda }_m$ is a mean free path length, Δ_ϕ is the soliton energy for a microscopic (e.g., pancake) Josephson vortex, c₀ is the phase (Swihart) velocity [61], and $F_0~{\Delta }_{\phi }^2/\hslash c_0$. This expression for $T_{\phi }$ is similar to the rate of soliton pair production, Zener tunneling of electrons across a bandgap, or Schwinger electron–positron pair production in 1D [24]. Since any negative energy difference within the lower energy ‘bubble’ is balanced by the positive flux soliton pair energy, the matrix element couples states of equal energy, $U_0=U_1=U$. Thus, defining ${\psi }_{0,1}={\chi }_{0,1}\left(t\right)\exp \left[-iUt/\hslash \right]$, the Schrödinger equation (Equation (10)) reduces to:

$$i\hslash \partial {\chi }_{0,1}/\partial t=T_{\phi }{\chi }_{1,0}.$$

(12)

Below the pair creation threshold, we can write: $\theta =2\pi I/I^{*}$. In the computer simulations, the variables are put into dimensionless form: $t^{\prime }\equiv t/\tau$, $f\equiv \omega \tau /2\pi$ (proportional to total current I), $q\equiv \theta /2\mathsf{\pi }$, $q_0\equiv {\theta }_0/2\mathsf{\pi }=F_0/\left(4\pi u_M\right)$, and ${q_n}^{\prime }\equiv {{\theta }_n}^{\prime }/2\mathsf{\pi }=q-n-\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.$. Additionally, $i_s\equiv I_s/I^{*}=q-p-n$ is the normalized supercurrent, while the normalized voltage is:$v\equiv \frac{dq}{d{t}^{\prime }}=f-i_s$. Finally, setting ${\chi }_0\left(t\right)=c_0\left(t\right)$ and ${\chi }_1\left(t\right)=i{c}_1\left(t\right)$ in Equation (12), taking c₀ and c₁ to be real, yields the following coupled differential equations:

$$\frac{d{c}_1}{d{t}^{\prime }}= \left[\gamma {q_n}^{\prime }\exp \left(-q_0/{q_n}^{\prime }\right)\right]c_0,$$

(13)

and

$$\frac{d{c}_0}{d{t}^{\prime }}= -\left[\gamma {q_n}^{\prime }\exp \left(-q_0/{q_n}^{\prime }\right)\right]c_1.$$

(14)

for ${q_n}^{\prime }>0$, where $\gamma =32{\mathsf{\pi }}^2{u}_M\lambda$. These are integrated numerically, taking the initial values to be c₀ = 1 and c₁ = 0. The phase expectation value is then given by: $⟨\varphi ⟩=2\mathsf{\pi }\left[n+p\right]$, where $p={\left|c_1\right|}^2$, and the transition is considered complete when p exceeds a cutoff close to one. This process repeats each time the system makes a transition from one branch to the next in Figure 1c. For each current, or value of $f=I/I^{*}$, a time average over several complete cycles is performed to compute $v=\left(\ell /w\right)\left(V/I^{*}R\right)$. A similar approach was used previously to compute current-voltage characteristics due to soliton pair production in density waves [12,13,14]. As in the density wave case, the transition from one branch to the next takes place over a relatively long time interval, suggesting that the phases φ_k ‘flow’ through the barrier like a quantum fluid rather than tunneling abruptly as a single massive object.

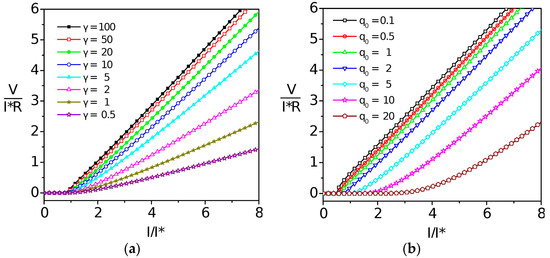

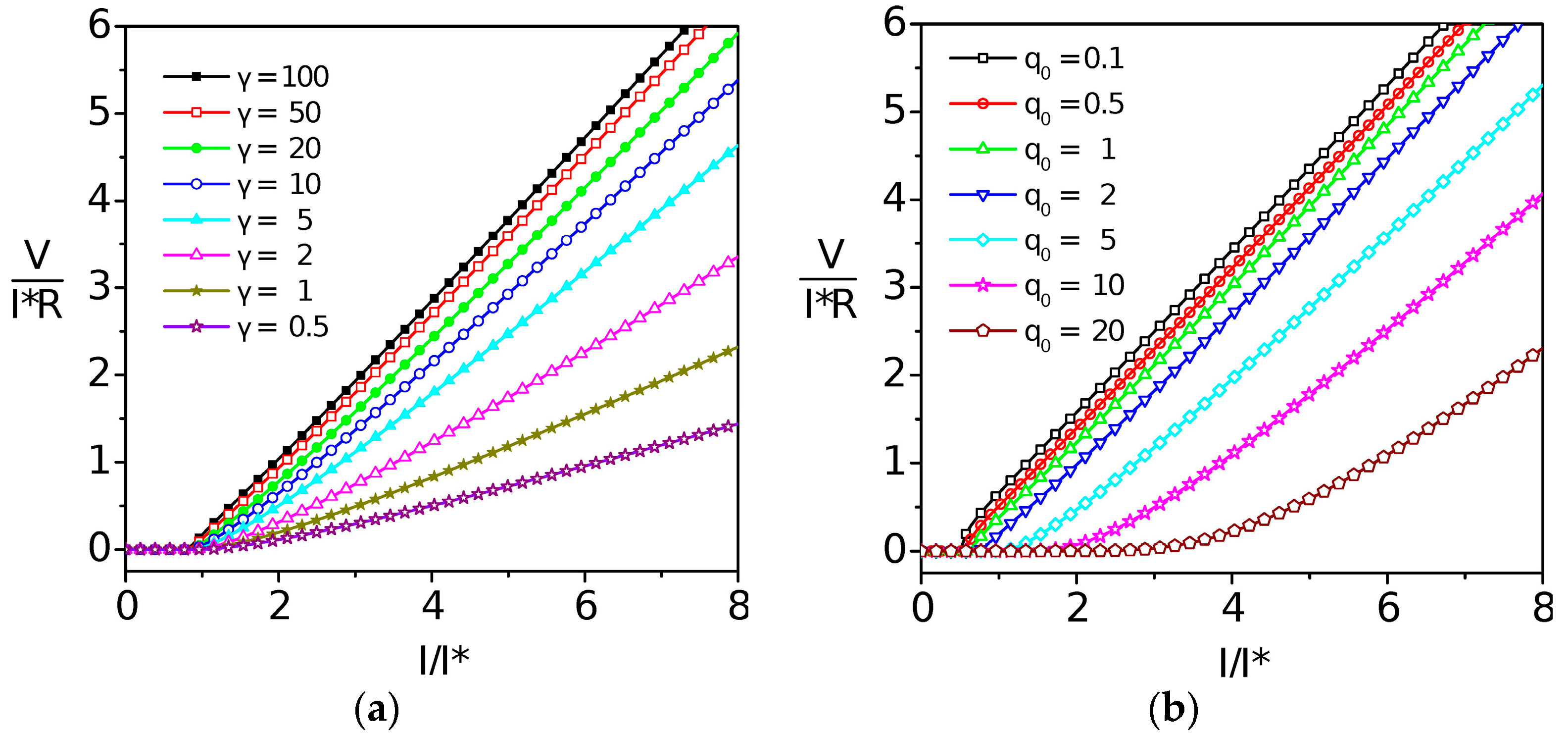

Figure 6, Figure 7 and Figure 8 show various simulated V-I plots, which are compared with experiment in Figure 7 and Figure 8. Figure 6b represents a fixed value of γ = 20 and several values of q₀. Here, the main effect of increasing q₀, which corresponds to increasing the energy required to nucleate each vortex-antivortex pair, is to increase the degree of rounding in the V-I curve. As q₀ becomes significantly greater than one, this rounding causes the ‘measured’ critical current I_c to exceed the nominal Coulomb blockade pair creation critical current, $I_{pc}\cong I^{*}/2$ . For example, when q₀ = 20, from Figure 6b one can estimate a ‘measured’ critical current I_c given by: $I_c/I^{*}~ 3$, about a factor of six greater than $I_{pc}/I^{*}\cong 0.5$, but still much smaller than the classical RSJ critical current [6]. Since ${\lambda }_J~1/\sqrt{u_J}$, as the Josephson coupling energy increases, the vortex sizes, ~λ_J, decrease until they become comparable to λ_L, the London penetration length. Thus, the rounded behavior seen for large q₀ is also expected for Abrikosov vortex pair creation (provided one minimizes heating effects above the critical current).

Table 1 above shows the parameters used for the simulations that were compared to the experimental results.

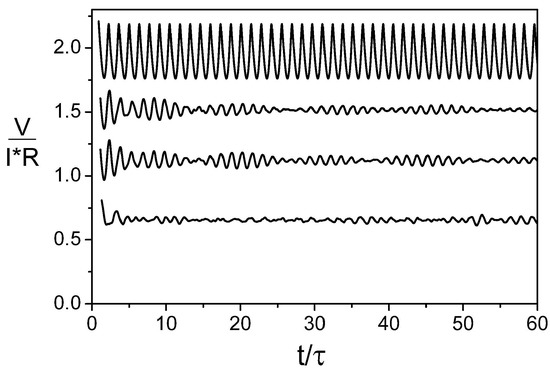

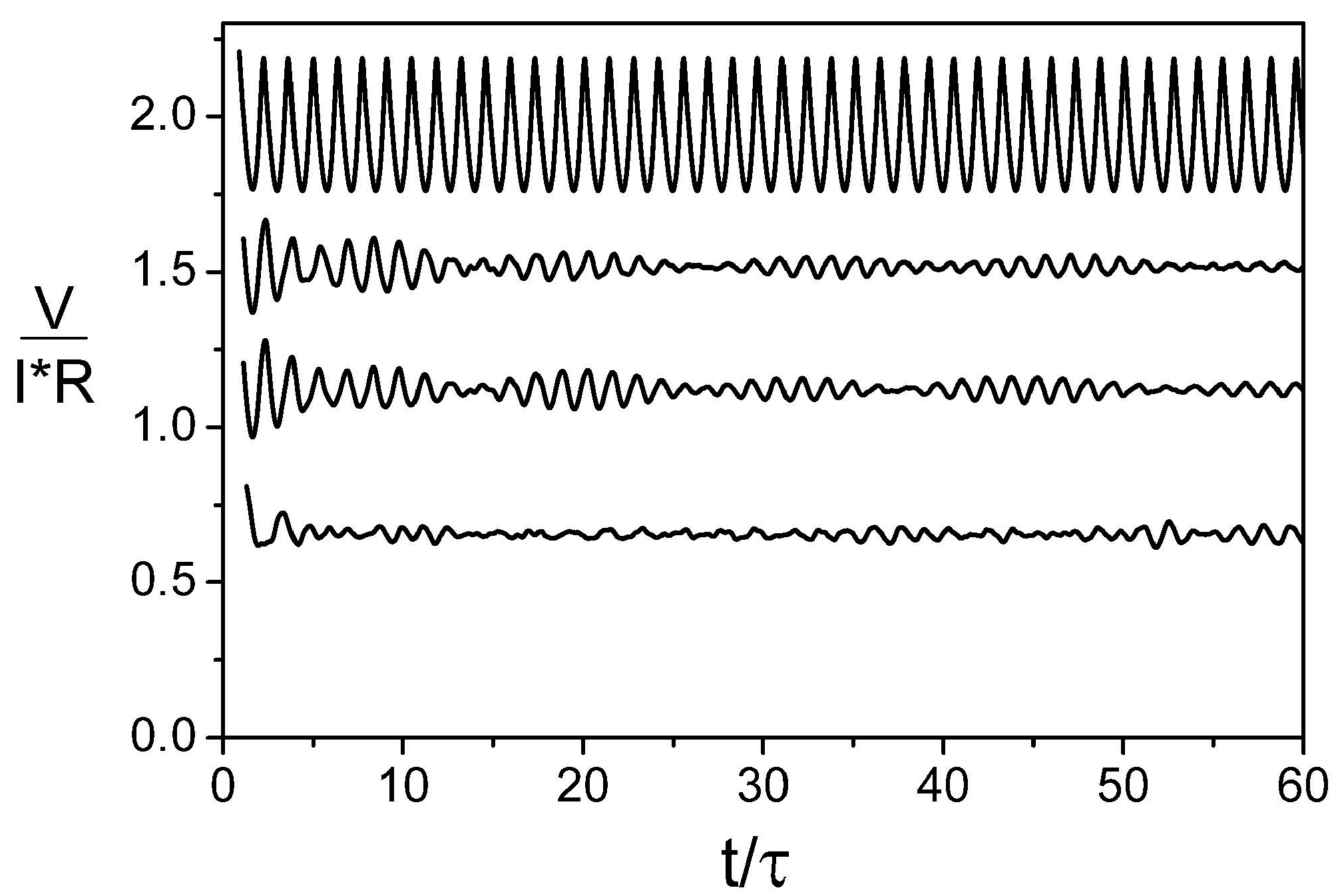

The top plot in Figure 9 shows non-sinusoidal voltage oscillations in a uniform junction for a fixed driving current $f=I/I^{*}$ = 2.5. In the remaining plots of Figure 9 we model non-uniformities by representing the junction as 100 domains in parallel, for which γ and q₀ are pseudo-randomly varied with a uniform distribution within the ranges $\gamma \left[1\pm \delta \right]$ and $q_0\left[1\pm \delta \right]$, respectively. The phases in adjacent domains i are coupled by spring-like terms that add to the net force acting on each domain, $k\left[{⟨\varphi ⟩}_{i+1}-2{⟨\varphi ⟩}_i+{⟨\varphi ⟩}_{i-1}\right]$, and we apply periodic boundary conditions. The bottom three plots in Figure 9 represent various levels of disorder.
