Article

Improving Freeze–Thaw Resistance of Concrete Road Infrastructure by Means of Superabsorbent Polymers

1
Energy & Materials in Infrastructure & Buildings (EMIB), Faculty of Applied Engineering, University of Antwerp, 2020 Antwerp, Belgium
2
Durable Building in Team (DUBiT), Department of Industrial Sciences & Technology, Odisee University College, 9320 Aalst, Belgium
3
Geological Consultancy, 3078 Meerbeek (Kortenberg), Belgium
*
Author to whom correspondence should be addressed.
Infrastructures 2018, 3(1), 4; https://doi.org/10.3390/infrastructures3010004
Submission received: 7 January 2018 / Revised: 28 January 2018 / Accepted: 29 January 2018 / Published: 31 January 2018
(This article belongs to the Special Issue Concrete Structures: Present and Future Trends)

Abstract

:
The scope of the paper is to report an investigation on durability of infrastructure concrete for roads and bridges by creating a size and shape-designed pore systems in concrete in order to improve it, especially in terms of freeze–thaw resistance. By means of this experimental laboratory study, an alternative for usage of air entrainment agents (AEA) in concrete infrastructures was found in the way of using superabsorbent polymer materials (SAPs). The effect of the addition of SAPs of different amounts and different types into fresh concrete mix was investigated, including: compressive strength tests, weight loss measurements, visual and microscopic inspections and scanning electron microscopy (SEM) analysis. The detrimental strength reduction effect was not observed. The freeze–thaw procedure was varied, using different types of de-icing salts and heating/cooling regimes. It can be concluded that an improvement of the freeze–thaw resistance of concrete infrastructure depends on the particle size and optimal amount of SAPs added into concrete mix. The addition of 0.26 wt % of dry SAPs into the fresh concrete reference mix led to the significant decrease of scaling up to 43% after 28 freeze–thaw cycles. Both dosage and particle size of the SAPs had a significant impact on the obtained results and the freeze–thaw resistance in this experimental laboratory study.

1. Introduction

Belgium has a very extensive motorway system, which is one of the densest in the world, and is one of the busiest transit countries in Europe. Approximately 40% of the Belgian roads are made of non-reinforced and reinforced concrete [1]. The quality and condition of road infrastructure differs from region to region. Most road construction and maintenance is observed in the north of Belgium in the Flemish Region (Flanders). Flanders invests 350 million euros in the maintenance of roads and bridges every year. The road infrastructure in the south of Belgium (Wallonia) and Brussels-Capital Region is in a quite poor condition where no maintenance is being carried out. Over the past five years there has been an increase of potholes [2,3] as a result of severe winter weather, primarily through the physical process of freeze–thaw and the ingress of water.
Concrete infrastructure elements should have adequate strength and durability in order to guarantee the proposed design life. The performance of both flexible and rigid pavements is significantly influenced by environmental conditions [4]. The impact of freeze–thaw cycles plays a key role in defining the bounds of the environmental impact on the performance of the pavement. In Belgium, road engineering applications are regulated by the Standaard Bestek 250 (SB250) [5]. In this code, the concrete composition restrictions are listed (water-to-cement ratio, choice of cement type and amount, minimal compressive strength, water absorption ratio and scaling/exfoliation), in order to come to a durable concrete application. In practice [3], a lot of damage of the Belgian concrete roads is visible. According to Jones et al. [2] freeze–thawing is the second main deterioration process affecting the concrete’s durability, besides steel corrosion in reinforced concrete elements. The main factors contributing to concrete failure are the impact of the environment, poor concrete quality, and insufficient handling and curing of the freshly cast concrete. During harsh Belgian winters under condition of negative temperatures, cycles of freezing and thawing, and in combination with the use of de-icing salts, concrete infrastructure (roads and bridges) suffers from scaling, which increases the roughness of the surface with following decrease of the thickness of the concrete pavement and internal mechanical degradation due to freeze–thaw attack [6]. This exfoliation of the outer concrete layers results in a reduction of durability, comfort and safety of its practical application [6]. Dooms et al. [3] also mentioned that in the case where supplementary cementitious materials (SCMs) such as blast furnace slags and fly ashes are used, the effect of the curing duration and handling is of major importance in order to come to a durable and frost resistant concrete. In cases where de-icing salts are used, the impact of the freeze–thaw effect is worsened, mainly due to the scaling effect (chlorides lower the freezing point and the temperature gradient due to the de-icing effects leading to exfoliation of the outer concrete layer) and the osmotic pressure (due to salt concentration gradient).
In order to overcome internal mechanical degradation, concrete has to contain small cavities/pores in the concrete matrix which form a connecting network of pressure vessels. This network of pores can react to increasing pressure of the freezing water reducing the tension pressure in the upper and inner concrete layers. In SB250 [5], the standard measure to overcome frost damage (with or without the use of de-icing salts), is the use of air entrainment agents (AEA) for a durable concrete. It is well known that inducing additional air into a concrete matrix leads to reduction of the tensile and compressive strength of the material (one percent induced air leads to a roughly five percent strength reduction) [7]. In Belgium, in the case of traditional concrete, air entrainment agents (AEA) are added into concrete mix in order to increase resistance against freeze–thaw actions. In the case of heavy load bearing structures, addition of AEA into concrete mix is not desirable since it gives significant strength losses [7]. An improvement in degradation resistance of concrete pavements can be obtained by modifying the composition of the considered pavement or its components. The use of fibers and/or polymer modified binders in asphalt has proven to be very efficient for concrete layers [8]. A study conducted by [9] mentioned the improvement of frost scaling resistance by replacing Ordinary Portland Cement (OPC) of the reference concrete mix with fly ash (FA) and/or silica fume (SF) (up to 15% by weight of cement). However, it was noted that scaling values of the FA specimens without SF were less than control specimens’ scaling, but they did not satisfy the capillary suction, se-icing agent and freeze–thaw-test (CDF) criterion. The obtained ternary concrete mix with 15% OPC replacement with 10% of fly ash and 5% of silica fume showed a significant reduction up to 50% of the scaling. This was also confirmed by Dooms et al. [3] evaluating the scaling of concrete (W/C-ratio of 0.45, 340 kg of added cement) with various cement types. In the case where sufficient curing (56 days under water) of the specimens was applied, specimens containing blast furnace slag clearly performed better compared to the ones containing OPC. The difference between specimens that were cured in open air (relative humidity of 60%) was much smaller. In practice [3], concrete infrastructure elements using blast furnace slag cements or other supplementary cementitious materials suffer severely from freeze–thaw actions, especially in cases where the curing time was insufficient.
As an alternative solution for the improvement of scaling resistance, the use of superabsorbent polymer materials (SAPs) can be recommended. SAPs are cross-linked hydrogel networks consisting of water-soluble polymers which generally are composed of ionic monomers and need a low cross-linking density in order to create a large fluid uptake capacity. SAPs can take up and hold aqueous solutions up to several hundred times their own weight while retaining it even under pressure [10]. As the SAPs will release their water during hardening, they will leave behind air-filled pores. During freeze–thaw cycles, these voids can protect concrete in a similar way as by using air entrainment [11]. With SAPs, the dimensions of the voids are fixed to the swollen state of the SAP during mixing, in contrast to regular air entrainment. Addition of SAPs does not necessarily need to affect the compressive strength [12] and seems to be promising independent from local raw materials and production processes [13].
The scope of this paper was to report an investigation under laboratory conditions on concrete durability by creating a size and shape-designed pore systems using SAP in concrete mixes, as an in alternative to AEA, in order to improve its durability, especially in terms of freeze–thaw resistance.

2. Materials and Methods

2.1. Materials

2.1.1. Raw Materials

In the research, the concrete mix composition was selected as the reference concrete composition (REF) which was an application-based concrete mix (water-to-cement ratio of 0.45) frequently used for infrastructure concrete and complies with the BENOR regulations for traditional concrete (NBN EN 206-1:2001) and with the Belgian guidelines and requirements for road concrete (SB250) [5]. In REF concrete mix, the following were used: blast furnace slag cement CEM III/B 42.5 N LA; natural round river sand 0/1 and crushed limestone sand 0/4, crushed limestone aggregates 2/6 and 6/14; a polycarboxylic ether-based plasticizer (3rd generation) which was added for the improvement of the flowability of the fresh concrete mix.

2.1.2. Superabsorbent Polymers (SAPs)

In the research, two types of SAPs (SAPCT and SAPPT), which are bulk polymerized, covalently cross-linked acrylamide/acrylic acid copolymers obtained from one individual industrial producer, were used (see Figure 1). SAPCT is a commercially available polymer and SAPPT is a prototype (under development) (see Figure 2).
Both polymers have an irregular particle shape as they were produced by the bulk polymerization technique, followed by crushing into single particles. The density is 700 kg/m3, their particle size distributions in the dry state are presented in Figure 3. The mean particle size is 95 μm and 560 μm for the prototype and the commercial type, respectively.
The absorption capacity was determined by means of the so called ‘tea bag method’. As the absorption capacity of SAPs is very dependent on the pH of the fluid to be absorbed, this parameter was determined for different liquid types: demineralized water (pH = 6.64), tap water (pH = 7.75) and a cementitious pore solution containing blast furnace slag cement (pH = 12.6). The results are presented in Figure 4 and Table 1. The finer prototype has a higher sorptivity compared to the coarse commercial type: 39.4 g pore fluid/g SAP vs. 13.5.

2.1.3. Concrete Mix Proportioning, Specimens Preparation and Storage Conditions

During experimental program the amount of SAP varied from 0.13 wt % up to 0.39 wt % (dry SAP, relative to cement weight) in the concrete mixes (SAP0.26CT, SAP0.13PT, SAP0.26PT, SAP0.39PT). The amount of 0.2–1.0 wt % dry SAP by weight of cement had been found to be most beneficial throughout numerous test campaigns and for multiple benefits and applications [14,15,16]. According to Hasholt et al. [17], 0.3 wt % SAP/C is preferred as an appropriate addition of SAPs for concrete mixes with moderate W/C-ratios (0.40 < W/C-ratio < 0.50). No additional water was added to the concrete mixes containing SAPs. To cope with the effects of SAPs on the fresh concrete’s consistency, superplasticizer was added to come to a target consistency class S3–S4. The total W/C-ratio was kept constant at 0.45. By means of the absorption capacity (see Table 2) it is possible to calculate the amount of pore fluid that is absorbed by the SAPs (WSAP) and the effective water amount in the concrete mix (Weff = Wtotal − WSAP). Absorption capacity of SAPs can be seen in Figure 4, these are equilibrium values reached when mass increase in between two measurements is less than 0.1%. All six concrete mix compositions (REF, with air entrainment agents (AEA) and with SAPs) are given in Table 2.
The concrete mixes comply with the regulations for concrete structures (roads and bridges) in external environment in contact with de-icing salts (EE4 according to NBN EN 206-1): a maximal water-to-cement ratio of 0.45, a minimal cement content of 340 kg/m3 of concrete and a minimal strength class of C30/37. According to SB250 the minimal cement content must exceed 375 kg/m3, the water-to-cement ratio must be less than 0.50 and the mean compressive strength after 90 days must exceed 50 MPa. The mixing procedure of the concrete mix compositions with SAPs was following: first the dry aggregates were mixed with half of the amount of mixing water, then the cement and dry SAPs were added. After 30 s of mixing, the remaining water together with plasticizer (HRWRA) was added. In total, 10 min of mixing time was applied.

2.2. Methods

2.2.1. Fresh Properties

The consistency of each concrete mix was characterized by means of the slump test with Abrams cone according to NBN EN 12350-2. The air content and the density were obtained according to NBN EN 12350-7 and 12350-6, respectively.

2.2.2. Mechanical Properties

Out of each concrete mix, 20 cube specimens with a side of 150 mm were cast and stored immediately in a climate chamber (+20 °C, 90% RH) according to NBN EN 12390-2. At the age of 1, 2, 7, 28 and 90 days the compressive strength tests were performed according to NBN EN 12390-3. According to the requirements defined in SB250 the mean compressive strength must exceed 50 MPa (after 90 days) for road applications. According to NBN EN 206-1 concrete in contact with de-icing salts must have a strength class of C30/37, meaning the characteristic strength of the cubes must exceed 37 MPa after 28 days of hardening.

2.2.3. Freeze–Thaw Resistance

The resistance of the specimens and the different concrete mixes against freeze–thaw attack can be evaluated by means of material loss weighing measurements (scaling or exfoliation) after 5 to 8 freeze–thaw cycles. Freeze–thaw resistance of the concrete mixes was determined according to two procedures was determined according to two procedures: CEN/TS 12390-9 and ISO/DIS 4846-2 (see Table 3).
The first procedure is based on CEN/TS 12390-9, slab test described by Tang and Peterssen [18], with freeze temperature −20 °C, thaw temperature +20 °C and a continuous temperature drop (see Figure 5, FT1). Cubic specimens (150 mm3) were cured at +20 °C in a humidity controlled environment. At the age of 21 days, a 50 mm thick slab was sawn from each cube, perpendicular to the top surface and the two most parallel side surfaces, so that one cut surface was located in the center of the cube and becomes the test surface. During the tests, the top surface of the specimens (surface area = 2.250 dm2) were exposed to a salt solution containing 3 wt % NaCl and 97 wt % demineralized water. To ensure that the solution stays on the top surface, a rubber slab was placed around the sawn specimens and evaporation is limited by means of a plastic foil placed on top of the specimens. The specimens were subjected to 28 consecutive freeze–thaw cycles; after each 7 cycles the exfoliation on the exposed surface was measured: the solution comprising the scaled material was filtered, and afterwards the paper filter was dried to constant mass. The exfoliation can be expressed in dry mass per unit of exposed area (g/dm3).
The second procedure is a comparison between the CEN/TS 12390-9 method and an alternative freeze–thaw test method according to ISO/DIS 4846-2 applied for a composition REF, AEA and SAP0.26CT with freeze temperature −18 °C, thaw temperature +20 °C, sudden temperature drop (see Figure 6, FT2). This alternative method was used to determine concrete mix resistance against scaling. Cylindrical cores with a height of 45 mm and a diameter of 100 mm were drilled out of a cast concrete plate. The concrete plates were produced and stored immediately after mixing in a climate chamber (+20 °C, 90% RH) for 90 days. During the tests, the top surface of the specimens (surface area = 0.785 dm2) was exposed to a salt solution containing 3 wt % CaCl2 and 97 wt % demineralized water. The specimens were also provided with a tight rubber slab. The specimens were subjected to 30 consecutive freeze–thaw cycles: after each 5 cycles the exfoliation on the exposed surface was measured in the same way as above described. Four specimens were tested for each concrete mix composition. The SB250 acceptance criterion is a maximum mean scaling of 10 g/dm2 after 30 freeze–thaw cycles.

2.2.4. Microstructure Analysis

Phenomena occurring in concrete subjected to frost actions can be evaluated and described by means of capillary porosity quantification and scanning electron microscopy [19]. The porosity of the specimens of the different concrete mixes can be quantified by means of the water absorption by immersion (according to NBN B15-215). According to the requirements defined in SB250 the mean water absorption has to be less than to 6.3%.
The influence of cyclic freezing and thawing of the concrete specimens and the effect of addition of SAPs upon its microstructure was investigated by means of petrographic analysis on thin sections and scanning electron microscopy (SEM) in order to identify and find the expected cavities in the concrete containing SAPs.

3. Results and Discussion

3.1. Fresh Properties

It was decided that in order to keep the total water content constant throughout the entire experimental program in order to maintain the prescribed consistency class S3–S4 of concrete mix, an additional amount of superplasticizer was needed (see Table 3 and Table 4). In the case of the coarser commercially available SAPCT, the amount of superplasticizer was equal to that of the reference concrete mix. As a consequence, the slump value decreased by 47%. For the finer prototype SAP, doubling the amount of superabsorbent polymer led to a decrease in a slump by 20% (SAP0.26PT vs. SAP0.13PT). In order to get the same slump value, an additional amount (more than 50%) of superplasticizer was needed in case the amount of SAP was increased by 33% (SAP0.39PT vs. SAP0.26PT). By adding SAPs, the air content of the fresh concrete mix increased by 20%.

3.2. Mechanical Properties

All concrete mixes, except for the one containing AEA, have met the requirement of a minimal mean compressive strength of 50 MPa according to SB250 (see Figure 6). It is evident that the amount of added SAPs influences the compressive strength.
By adding SAPs into the REF concrete mix the compressive strength evolution was noticed after 28 days in all cases (see Figure 6, increase between 10% and 20%). This increase in strength is most likely due to the decrease in effective W/C-ratio due to the addition of the polymers during mixing. It is well known that strength of concrete increases when the W/C-ratio is lowered, e.g., by adding SAPs. However, at the age of 90 days, the strength only increased in the 0.13 and 0.26 wt % prototype polymer. Addition of the coarser commercially available SAPs or a higher amount of prototype polymer had a negative effect on the compressive strength. By adding 0.13 to 0.26 wt % prototype polymer, a higher 28-day and 90-day strength was obtained compared to the concrete mix with the same amount of commercially available polymer. The higher absorption capacity of the finer prototype SAP led to a higher reduction in effective W/C-ratio. By adding air entrainment agents, the strength was lowered significantly by 33% after 28 days.
It can be concluded that by increasing the amount of SAPs the strength develops slower, but in cases where finer SAPs are used in an optimal amount, the strength is higher compared the reference concrete mix without polymers. The optimal percentage of SAP in this experimental program is the range of 0.13–0.26 wt % (weight of dry SAP relative to the cement weight).

3.3. Evaluation of the Freeze–Thaw Resistance

The mean exfoliation of the reference concrete specimens after 28 consecutive freeze–thaw cycles is presented in Figure 7. Scaling of 3.1 g/dm2 was obtained which is less than the acceptance criterion of 10 g/dm2 (according to SB250), mainly due to the perfect curing conditions preceding the casting.
For the commercially available polymer the resistance against scaling is lower: scaling of 4.1 g/dm2 was obtained after 28 cycles, which is an increase of 32%. By adding the coarse and commercially available superabsorbent polymers SAPCT the freeze–thaw resistance of the concrete was not ameliorated.
Addition of finer superabsorbent polymers SAPPT into the concrete mix had a positive effect on the freeze–thaw resistance: in the case of 0.13 wt %, 0.26 wt % or 0.39 wt % the exfoliation after 28 cycles decreased by 30%, 42% and 43%, respectively. This proved that the amount of added SAPs and the type (more specific: the grading and retention capacity) is a decisive factor for the improvement of the freeze–thaw resistance of concretes with W/C-ratio between 0.40 and 0.50.
It can be concluded that the optimal percentage of SAPs in this research study is quite close to the percentage of 0.26–0.39 wt % (weight of dry SAP relative to the cement weight). The size of the polymers has a decisive effect on the effectiveness: SAPs with mean particle size less than 100 μm have a positive effect, while SAPs with mean particle size greater than 500 μm have a negative effect. It must be mentioned that the obtained results in this study are applicable to the concrete mixes used in it, and cannot be generalized for all concrete types.
It has to be noted that by using AEA, the cumulated exfoliation was reduced significantly compared to the reference concrete mix. The cavities created by the polymers or the air entrainment agents compensated for the expanding freezing water, where for the dense reference concrete mixes less space was available, leading towards more scaling and internal cracking. Addition of AEA significantly reduced the strength which might be undesirable for infrastructure concrete for roads and bridges.
By comparing the freeze–thaw testing procedure (FT1 vs. FT2) it became clear that this has a major impact on the obtained results (see Figure 8). The measured cumulated exfoliation is three times higher for the reference concrete mix in the case where the ISO/DIS 4846-2 method was used. The sudden temperature drop from +20 °C to −18 °C and the use of CaCl2 instead of NaCl might explain the observed difference. For the concrete mixes AEA’ and SAP0.26-CT” the exfoliation was approximately four times higher (see Figure 8). Especially after 5 to 10 freeze–thaw cycles, the concrete experience had quite high scaling.

3.4. Evaluation of Porosity and the Microstructure

3.4.1. The Water Absorption by Immersion

Small differences were noticeable in the obtained results of the water absorption of the specimens of the different concrete mixes, and all concrete mixes complied with the acceptance criterion of SB250 (absorption smaller than 6.3%). In the case of SAPPT, the water absorption was decreased compared to the reference concrete mix, which is not the case for the commercially available polymer (see Table 4). Addition of AEA increased the water absorption capacity of the concrete.

3.4.2. Scanning Electron Microscopy and Petrography on Thin Sections

By means of petrographic microscopy on thin sections the microstructure of concrete mixes REF, SAP0.26CT and SAP0.26PT were visualized (see Figure 9).
For the reference concrete mix REF (see Figure 9a) several air bubbles are noticeable with diameter in between 250 μm and 340 μm. Internal micro-cracking was observed most likely due to the self-desiccation of the matrix (e.g., autogenous shrinkage). SEM imaging (see Figure 10a) confirms the micro-cracking. A very dense matrix was also noticeable, which is typically for concrete containing blast furnace slags. The spacing factor, i.e., the distance of the shortest travel path of expanding water, varies between 510 and 1760 μm. In the literature [20], a distance factor of approximately 200–300 μm can be seen as effective. A SEM image of the AEA mix after 28 freeze–thaw cycles (see Figure 10b) proves that this distance is necessary for effective improvement of the freeze–thaw resistance. It should be noticed that the cracks move towards the air bubbles. The higher factor of the reference concrete mix can be an explanation of the experienced scaling. By using the commercially available polymer in SAP0.26CT (see Figure 9b) the amount of air voids and its dimensions increases significantly: voids with size up to 1000 μm were found. The voids with irregular shape are created by the superabsorbent polymer. The spacing factor also varies from 500 to 880 μm, which is too high for effective freeze–thaw resisting concrete.
In concrete mix SAP0.26PT with the finer prototype polymer (see Figure 9c), several air bubbles and irregular structures can be identified. The shape and size of these air bubbles are more or less the same as the air bubbles shown in the previous two images (see Figure 9a,b). However, these air voids are well scattered small irregular structures in this composition, with a spacing factor close to 200 μm. These cavities are the result of adding the prototype superabsorbent polymers: they have a smaller size than the pores created by adding commercially available type. This is the main reason why these compositions containing fine SAPs show a better freeze–thaw resistance in comparison to the reference composition.
The cavities formed by the SAPs are very recognizable due to their more irregular shape compared to air bubbles. During mixing, the superabsorbent polymer particles absorbed a part of the mixing water (pore fluid) but not at their full absorbing capacity due to the alkalinity of its environment. The absorbing capacity of pore solution was lower than the absorbing coefficient of pure water. During hardening and hydration of the cement in concrete, the minerals in the cement particles form CSH layers with the free mixing water. At a certain time, no more free water was available for the continuation of the hydration process and self-desiccation started, leading towards an under-pressure in the matrix, and autogenous shrinkage cracking in the case of the reference concrete mix. As a consequence, the water absorbed by the SAPs was gradually released and the hydration process continued in the close environment and in contact with the SAPs: small cavities between 190 μm up to 370 μm remained in the matrix. These cavities can serve as expansion vessels for expanding freezing water in the matrix.

4. Conclusions

Based on the reported research concerning the freeze–thaw resistance of concrete mixes used for infrastructure (road and bridges) applications, and the effect of superabsorbent polymers (SAPs) for the improvement and mitigation of its resistance as an alternative for the application of air entrainment agents (AEA), the following conclusions can be drawn:
  • Addition of SAPs
Increasing the amount of SAPs in the concrete mix led to a small increase of compressive strength after 28 days of hardening, mainly as a result of the decrease of the effective W/C-ratio due to absorption of free water by the polymers during mixing. The difference decreased or even disappeared after 90 days of hardening where the amount of SAPs was too high or the size of the polymers was too large. Small cavities (between 190 μm up to 370 μm) were created in the matrix. Due to the absorbed water, self-desiccation during the hydration process was reduced, leading towards a higher ultimate degree of hydration, which clearly compensated the strength reduction due to the more porous matrix. By addition of an optimal percentage of SAPs in the range of 0.13–0.26 wt % (weight of dry SAP relative to the cement weight), there was a clear reduction of scaling. The particle size of the SAPs is a very important factor: polymers with mean size less than 100 μm had proven their effectiveness, while polymers with mean size up to 500 μm showed to be ineffective. The cumulated mass loss after 28 freeze–thaw cycles of the concrete mix can be less than 2 g/dm2 in the case of 0.26–0.39 wt % SAPs (relative to the cement weight) were added into the concrete mix.
  • Freeze–thaw testing procedure
By comparing the freeze–thaw testing procedure, it became evident that this has a major impact on the obtained results. The measured cumulated exfoliation is three to four times higher for the concrete mixes in the case where the ISO/DIS 4846-2 method is used. The sudden temperature drop from +20°C to −18°C and the use of CaCl2 in the case of NaCl might explain the observed difference.
It has to be noted that the obtained conclusions regarding dosage and size of SAPs to be added are only applicable for the concrete mixes mentioned in this experimental research study.

Acknowledgments

The authors would like to express their gratitude to BAS Research & Technology for their contribution to this research project by means of providing their technical equipment. Also undergraduate student Gilles De Brabander (Odisee University College) is acknowledged for his contribution in the experimental work.

Author Contributions

B.C. wrote the first draft of the paper; G.C. contributed reagents/materials/analysis tools; B.C. and G.C. conceived and designed the experiments; B.C. performed the experiments; B.C. and P.K.D.M. analyzed the data, managed the literature searches and worked on the final draft of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Concrete Technology (In Dutch); Belgische BetonGroepering (Belgian Concrete Association): Brussels, Belgium, 2015; p. 605.
  2. Jones, A.E.K.; Marsh, B.K.; Clark, L.A.; Seymour, B.P.A.M.; Long, A.M. Development of a Holistic Approach to Ensure the Durability of New Concrete Construction; Report C/21; British Cement Association: Camberley, UK, 1997; p. 81. [Google Scholar]
  3. Dooms, B.; Mosselmans, G.; Beeldens, A. Frost Damage of Concrete Pavements: Effect of Cement (In Dutch); WTCB-Dossiers 2014/3.3; Belgian Building Research Institute: Brussels, Belgium, 2015. [Google Scholar]
  4. Zapata, C.E.; Andrei, D.; Witczak, M.W.; Houston, N.L. Incorporation of environmental effects in pavement design. Road Mater. Pavement Des. 2011, 8, 667–693. [Google Scholar] [CrossRef]
  5. Flemish Road Standard (Standaardbestek 250 Voor de Wegenbouw) Version 4.0; Vlaamse overheid, Flemish Road Agency: Brussels, Belgium, 2017.
  6. Craeye, B.; Tielemans, T.; Lauwereijssens, G.; Stoop, J. Effect of super absorbing polymers on the freeze-thaw resistance of colored concrete roads. Road Mater. Pavement Des. 2013, 14, 90–106. [Google Scholar] [CrossRef]
  7. Newman, J.; Choo, B.S. Advanced Concrete Technology 2: Concrete Properties; Butterworth-Heinemann: Oxford, UK, 2004; p. 352. [Google Scholar]
  8. Francken, L. Prevention of cracks in pavements. Road Mater. Pavement Des. 2011, 6, 407–425. [Google Scholar] [CrossRef]
  9. Yener, E.; Hinislioglu, S. The effects of silica fume and fly ash on the scaling resistance and flexural strength of pavement concretes. Road Mater. Pavement Des. 2011, 12, 177–194. [Google Scholar] [CrossRef]
  10. Mignon, A.; Snoeck, D.; Dubruel, P.; Van Vlierberghe, S.; De Belie, N. Crack mitigation in concrete: Superabsorbent polymers as key factor to success? Materials 2017, 10, 237. [Google Scholar] [CrossRef] [PubMed]
  11. Bentz, D.P.; Jensen, O.M. Mitigation strategies for autogenous shrinkage cracking. Cem. Concr. Compos. 2004, 26, 677–685. [Google Scholar] [CrossRef]
  12. Jones, W.A.; Weiss, W.J. Freeze thaw durability of internally cured concrete made using superabsorbent polymers. In Proceedings of the 4th International Conference on the Durability of Concrete Structure, Purdue University, West Lafayette, IN, USA, 24–26 July 2014. [Google Scholar]
  13. Mechtcherine, V.; Schröfl, C.; Wyrzykowski, M.; Gorges, M.; Lura, P.; Cusson, D.; Margeson, J.; De Belie, N.; Snoeck, D.; Ichimiya, K.; et al. Effect of superabsorbent polylers (SAP) on the freeze-thaw resistance of concrete: Results of a RILEM interlaboratory study. Mater. Struct. 2017, 50, 14. [Google Scholar] [CrossRef]
  14. Schrofl, C.; Snoeck, D.; Mechtcherine, V. A review of characterisation methods for superabsorbent polymer (SAP) samples to be used in cement-based construction materials: Report of the RILEM TC 260-RSC. Mater. Struct. 2017, 50, 197. [Google Scholar] [CrossRef]
  15. Jensen, O.M.; Hansen, P.F. Water-entrained cement-based materials I: Principle and theoretical background. Cem. Concr. Res. 2001, 31, 647–654. [Google Scholar] [CrossRef]
  16. Jensen, O.M.; Hansen, P.F. Water-entrained cement-based materials II: Implementation and experimental results. Cem. Concr. Res. 2002, 32, 973–978. [Google Scholar] [CrossRef]
  17. Hasholt, M.T.; Jespersen, M.H.T.; Jensen, O.M. Mechanical properties of concrete with SAP: Development of compressive strength. In RILEM Proceedings PRO 74, Use of Superabsorbent Polymers and Other New Additives in Concrete; Technical University of Denmark: Lyngby, Denmark, 2010; pp. 117–126. [Google Scholar]
  18. Tang, L.; Peterssen, P.E. Slab test: Freeze/thaw resistance of concrete—Internal deterioration. Mater. Struct. 2004, 37, 754–759. [Google Scholar] [CrossRef]
  19. Lelusz, M.; Malaszkiewicz, D. Identification of phenomena occurring in porous structure of cement concrete subjected to cyclic freezing and thawing. J. Civ. Eng. Manag. 2010, 10, 31–36. [Google Scholar] [CrossRef]
  20. CUR. Durability and Maintenance of Concrete Structures (In Dutch); CUR Report; CUR: Gouda, The Netherlands, 1998. [Google Scholar]

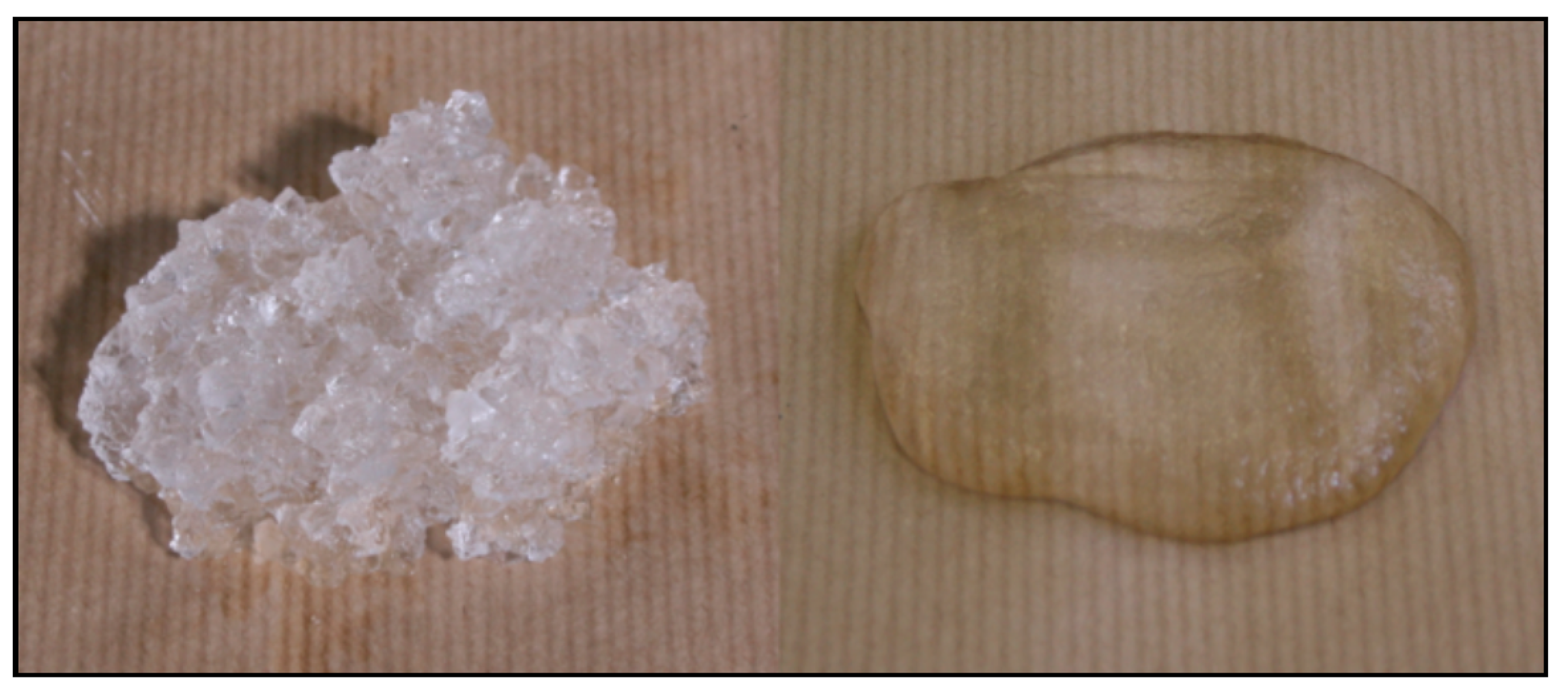

Figure 1. Visualization of superabsorbent polymers (SAPs): SAPCT (left) and SAPPT (right) containing absorbed water.
Figure 1. Visualization of superabsorbent polymers (SAPs): SAPCT (left) and SAPPT (right) containing absorbed water.
Infrastructures 03 00004 g001
Figure 2. SEM images of SAPPT particles.
Figure 2. SEM images of SAPPT particles.
Infrastructures 03 00004 g002

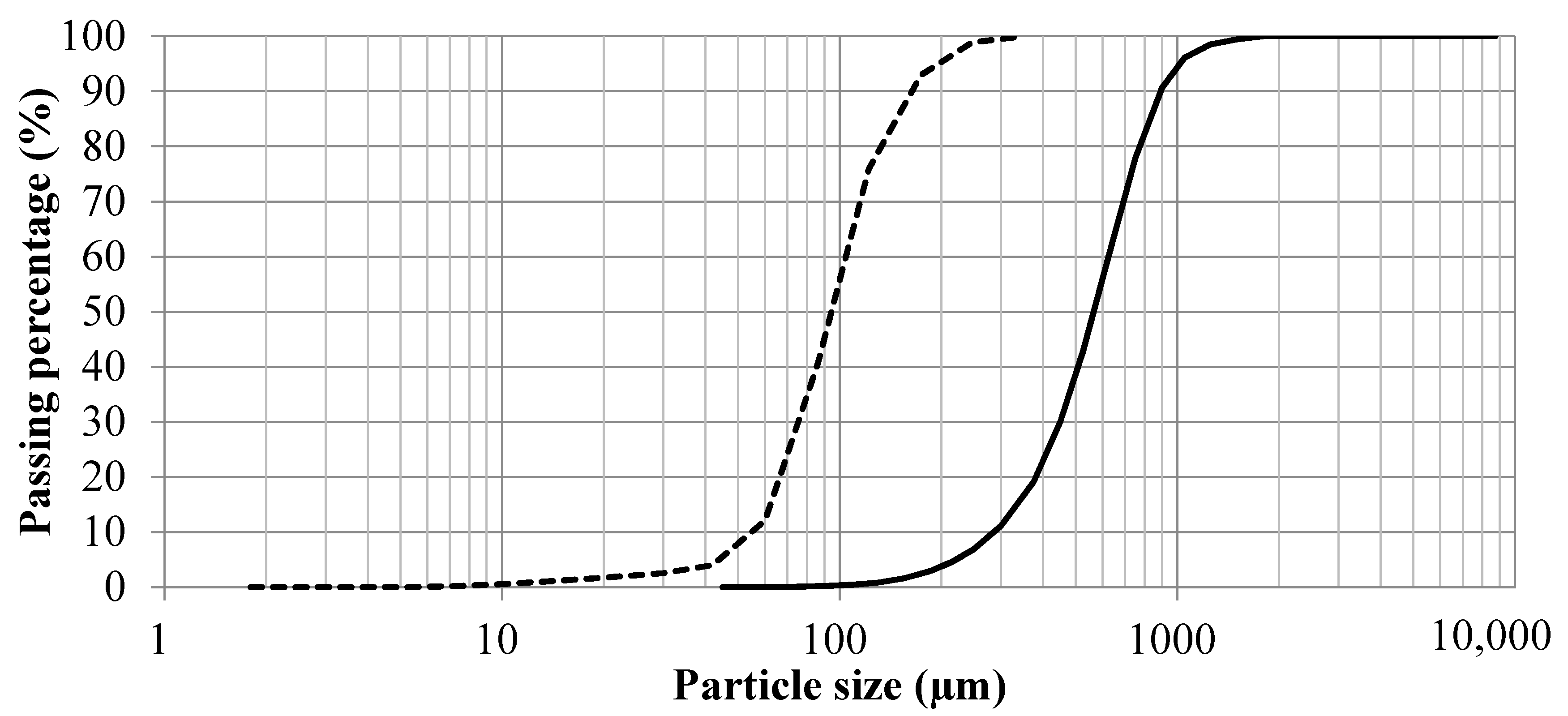

Figure 3. Particle size distribution of SAPCT (bold line) and SAPPT (dashed line).
Figure 3. Particle size distribution of SAPCT (bold line) and SAPPT (dashed line).
Infrastructures 03 00004 g003

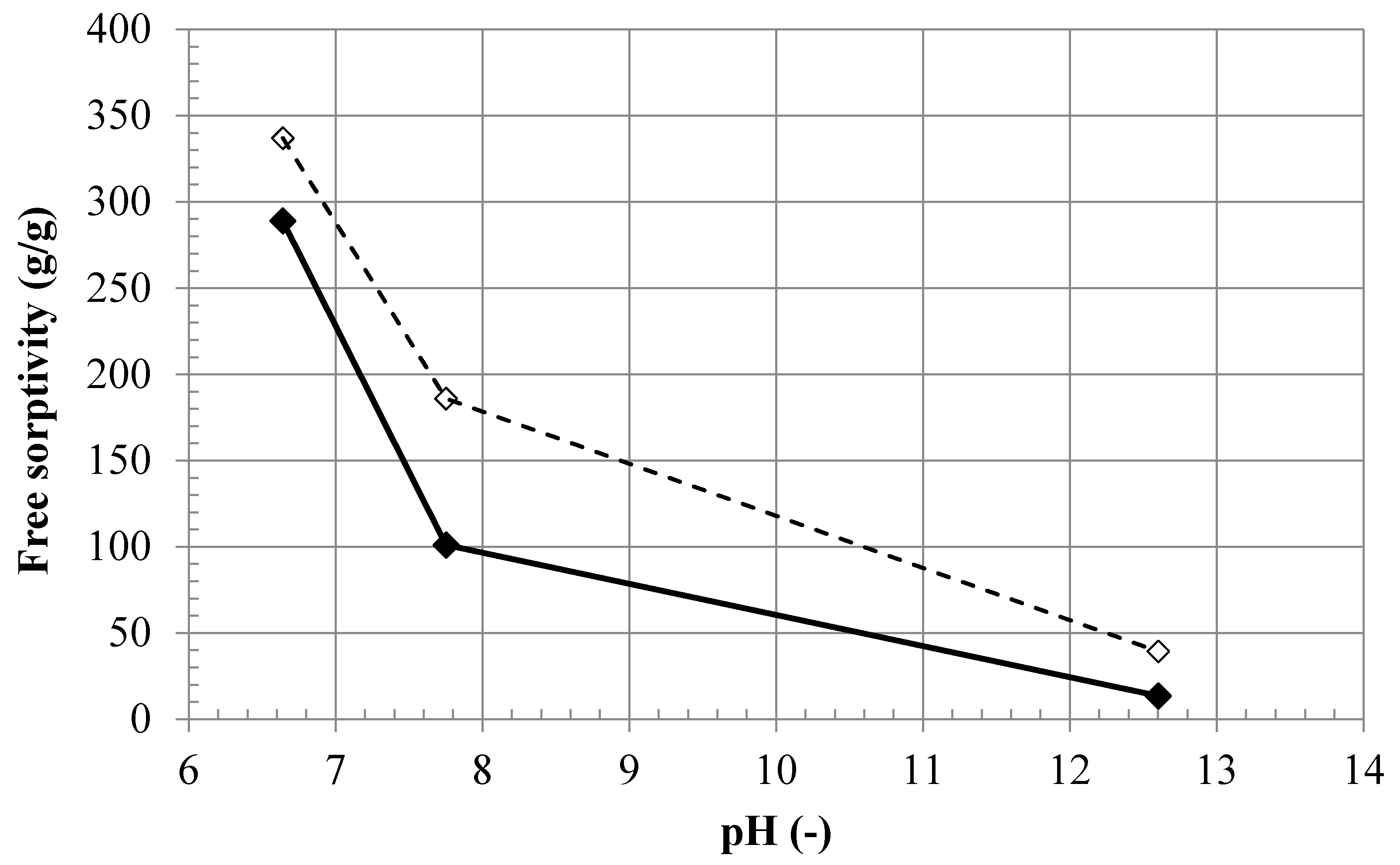

Figure 4. Absorption capacity (free sorptivity) of SAPCT (bold line) and SAPPT (dashed line).
Figure 4. Absorption capacity (free sorptivity) of SAPCT (bold line) and SAPPT (dashed line).
Infrastructures 03 00004 g004

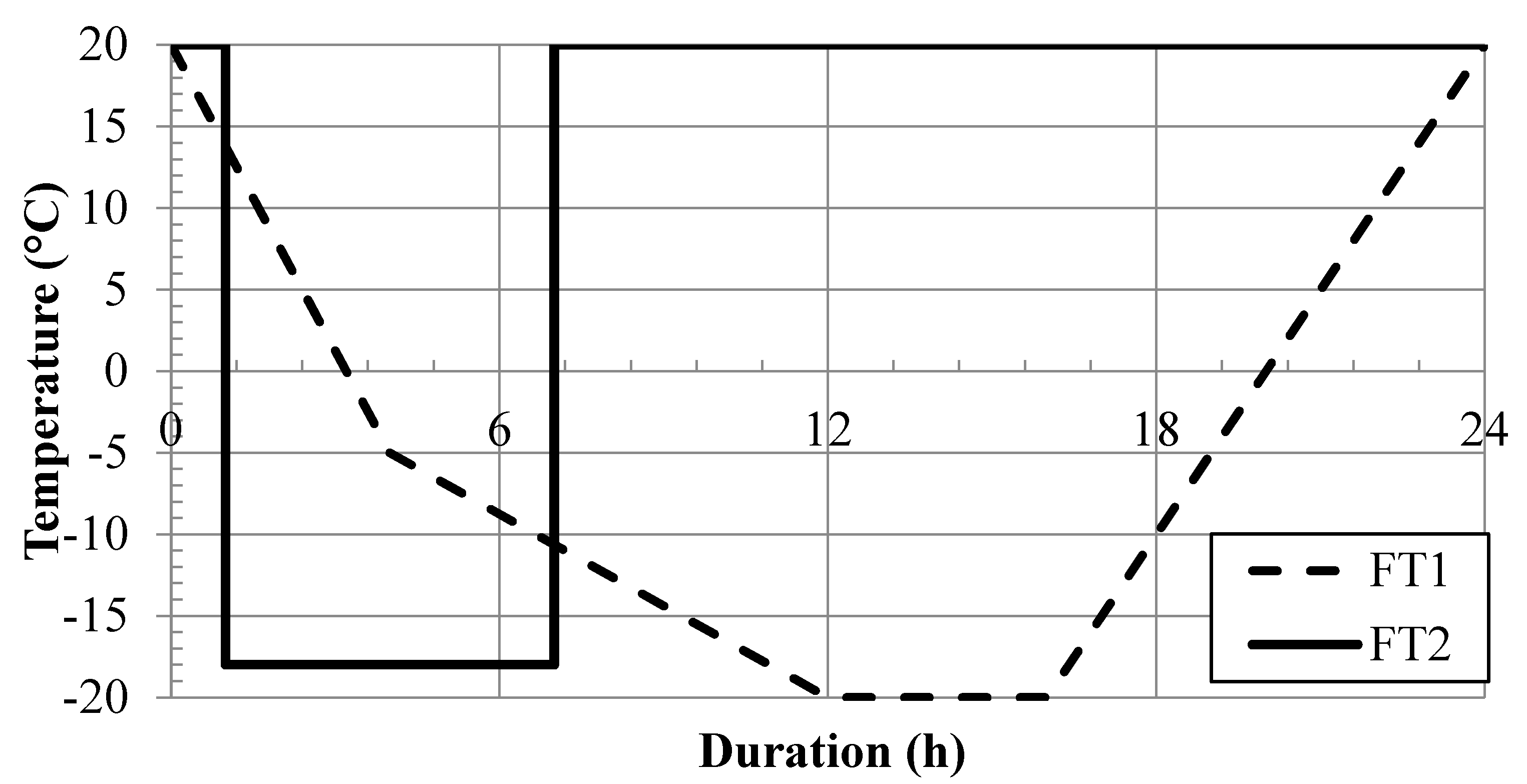

Figure 5. Freeze–thaw temperature cycles of the CEN/TS 12390-9 (FT1) and the ISO/DIS 4846-2 (FT2).
Figure 5. Freeze–thaw temperature cycles of the CEN/TS 12390-9 (FT1) and the ISO/DIS 4846-2 (FT2).
Infrastructures 03 00004 g005

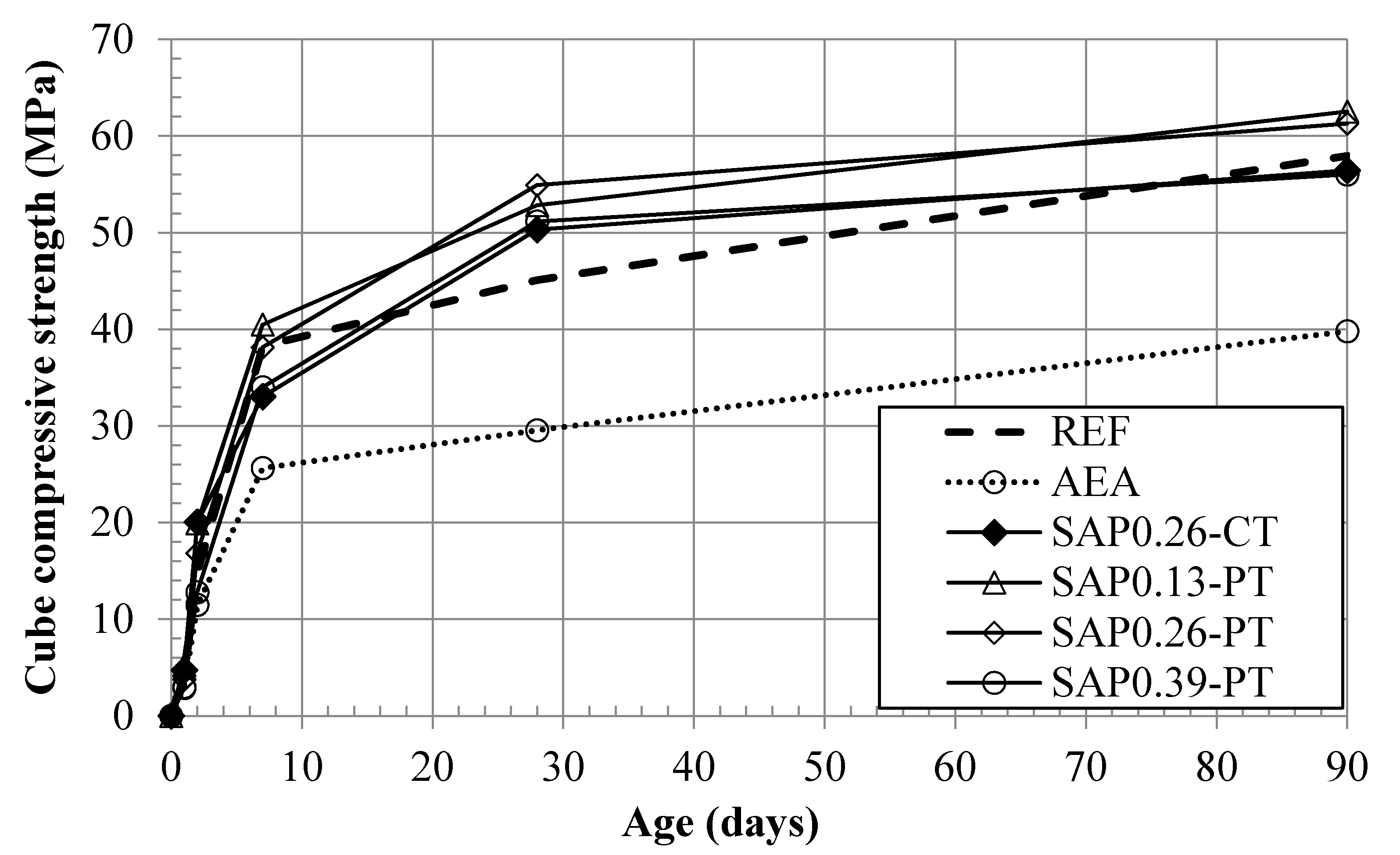

Figure 6. Cube compressive strength development of the different concrete mixes between ages of 1 day and 90 days.
Figure 6. Cube compressive strength development of the different concrete mixes between ages of 1 day and 90 days.
Infrastructures 03 00004 g006

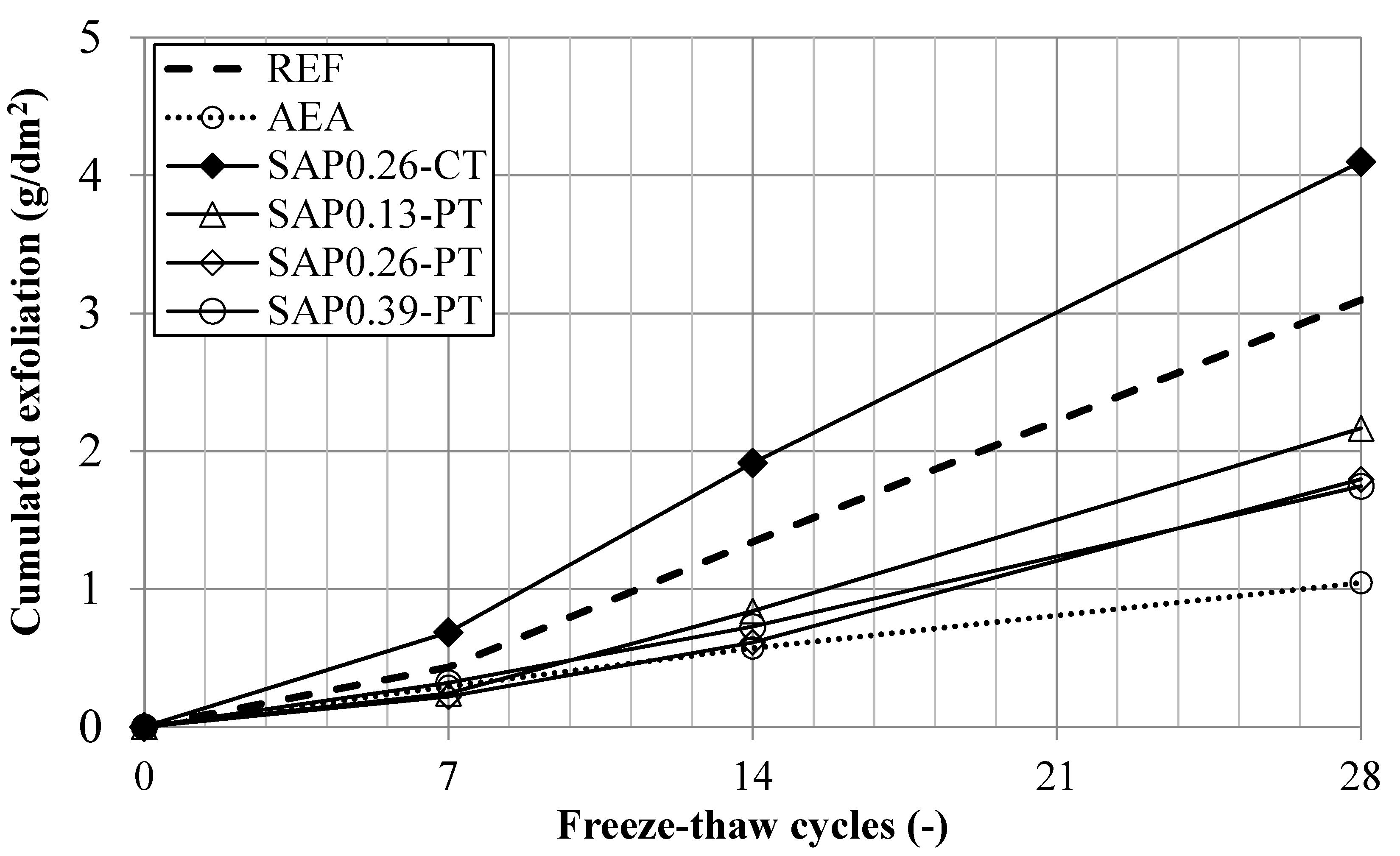

Figure 7. Cumulated exfoliation of the different mixes after 28 cycles (FT1 method).
Figure 7. Cumulated exfoliation of the different mixes after 28 cycles (FT1 method).
Infrastructures 03 00004 g007

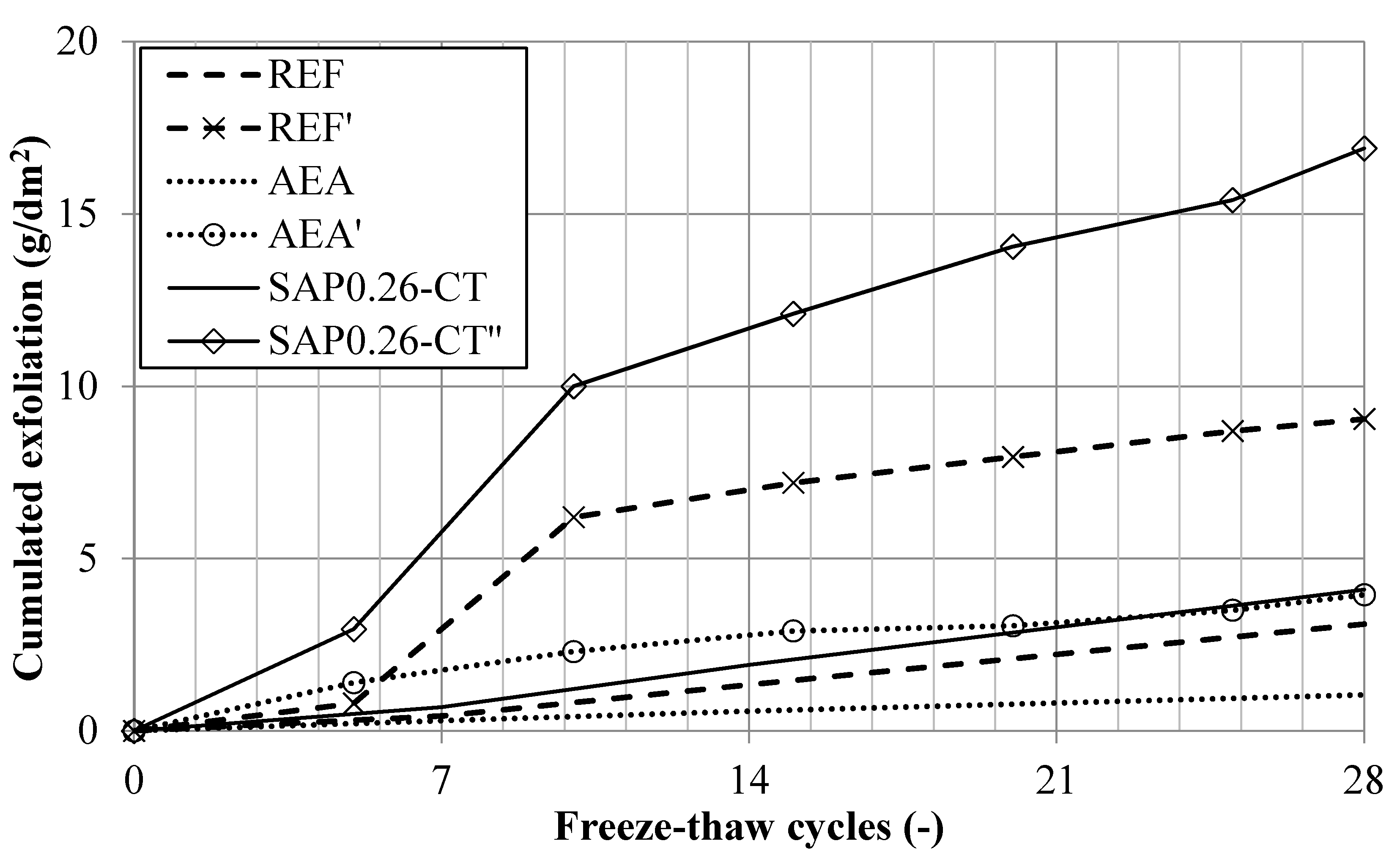

Figure 8. Cumulated exfoliation of the different concrete mixes with AEA and SAPCT after 28 cycles (FT1 vs. FT2 method).
Figure 8. Cumulated exfoliation of the different concrete mixes with AEA and SAPCT after 28 cycles (FT1 vs. FT2 method).
Infrastructures 03 00004 g008
Figure 9. Images of microscopic analysis (petrography on thin sections) of (a) REF, (b) SAP0.26CT and (c) SAP0.26PT.
Figure 9. Images of microscopic analysis (petrography on thin sections) of (a) REF, (b) SAP0.26CT and (c) SAP0.26PT.
Infrastructures 03 00004 g009aInfrastructures 03 00004 g009b
Figure 10. SEM image of (a) REF (150×) and (b) AEA (110×) (scale 100 μm).
Figure 10. SEM image of (a) REF (150×) and (b) AEA (110×) (scale 100 μm).
Infrastructures 03 00004 g010
Table 1. Particle size and absorption capacity (g pore fluid/g SAPs) of SAPCT and SAPPT.
Table 1. Particle size and absorption capacity (g pore fluid/g SAPs) of SAPCT and SAPPT.
pHSAPCTSAPPT
Demineralized water6.64289 ± 7.5337 ± 1.0
Tap water7.75101 ± 2.3186 ± 1.1
Cement pore solution12.613.5 ± 1.339.4 ± 1.4
d10μm29055
d50μm56095
d90μm900170
Table 2. The concrete mix compositions.
Table 2. The concrete mix compositions.
REFAEASAP0.26CTSAP0.13PTSAP0.26PTSAP0.39PT
CEM III/B 42.5 N LA[kg/m3]380380380380380380
River sand 0/1[kg/m3]144144144144144144
Limestone 0/4[kg/m3]608608608608608608
Limestone 2/6[kg/m3]422422422422422422
Limestone 6/14[kg/m3]726726726726726726
HRWRA[kg/m3]1.881.881.882.582.585.57
AEA[kg/m3]-1.14----
SAPCT[kg/m3]--1.0---
SAPPT[kg/m3]---0.51.01.5
Wtotal[kg/m3]171171171171171171
WSAP[kg/m3]--13.519.739.459.1
Weff[kg/m3]--157.5151.3131.6111.9
(W/C)total[-]0.450.450.450.450.450.45
(W/C)SAP[-]--0.040.050.100.16
(W/C)eff[-] 0.410.400.350.29
wt % SAP/C[-]--0.26%0.13%0.26%0.39%
Table 3. Comparison of CEN/TS 12390-9 (FT1) and ISO/DIS 4846-2 (FT2) freeze–thaw methods.
Table 3. Comparison of CEN/TS 12390-9 (FT1) and ISO/DIS 4846-2 (FT2) freeze–thaw methods.
UnitFT1FT2
Code-CEN/TS 12390-9ISO/DIS 4846-2
Specimen-cubecylindrical
Dimensionsmm150/50φ100 × H45
Exposed areadm32.2500.785
Deicing salt-3 wt % NaCl3 wt % CaCl2
Freeze–thaw cycle-curve 1curve 2
Table 4. Fresh properties and porosity of the different mixes.
Table 4. Fresh properties and porosity of the different mixes.
REFAEASAP0.26CTSAP0.13PTSAP0.26PTSAP0.39PT
Slump(mm)190220102193155150
Air%(%)1.910.02.72.42.42.3
Density(kg/m3)243019802390244024302415
Water absorption (immersion)(%)4.285.724.673.874.204.07
Water absorption (forced)(%)11.6811.9711.8810.0110.0210.86
Volumetric weight(kg/m3)241522302425245024452410
