Article

Leaf Spot Disease of Red Clover Caused by Leptosphaeria weimeri (=Longiseptatispora meliloti) in China

1
Key Laboratory of Herbage Improvement and Grassland Agroecosystems, Lanzhou University, Lanzhou 730020, China
2
Key Laboratory of Grassland Livestock Industry Innovation, Ministry of Agriculture and Rural Affairs, Lanzhou 730020, China
3
College of Pastoral Agriculture Science and Technology, Lanzhou University, Lanzhou 730020, China
*
Author to whom correspondence should be addressed.
Agronomy 2024, 14(5), 1055; https://doi.org/10.3390/agronomy14051055
Submission received: 16 April 2024 / Revised: 8 May 2024 / Accepted: 13 May 2024 / Published: 16 May 2024
(This article belongs to the Special Issue Grass and Forage Diseases: Etiology, Epidemic and Management)

Abstract

:
Red clover (Trifolium pretense) is widely cultivated as an excellent forage and green manure crop. In 2021, a leaf spot disease was discovered in a red clover field in Min County, Gansu Province, China. Symptoms on T. pratense manifested as small white spots that gradually expanded into nearly oval or irregularly shaped gray-white lesions. The causal agent of this new disease was identified as Leptosphaeria weimeri (=Longiseptatispora meliloti) based on morphological identification, pathogenicity tests, and the phylogenetic identification of ITS, LSU, and SSU sequence. The optimal growth temperature was found to be 20 °C under different culture conditions, while the optimal spore-producing temperature was 25 °C. The pH for optimal growth and spore production was seven. The fungus grew and produced spores successfully on both PDA and PSA media. Additionally, the pathogen was efficiently inhibited using 450 g/L of prochloraz fungicide in vitro. To our knowledge, this is the first report of leaf spot disease on red clover caused by L. meliloti in China.

1. Introduction

Red clover (Trifolium pratense) is a perennial herb belonging to the Leguminosae family. It stands as one of the most important cultivated legume forages in Europe, the United States, Canada, Australia, and New Zealand [1]. China also extensively cultivates red clover. However, fungal diseases substantially constrain its growth and yield, thereby impacting its overall productivity and quality. By 2022, global reports from Fungal Databases (https://nt.ars-grin.gov/fungaldatabases/, accessed on 1 December 2022) have documented over 100 fungal pathogens causing more than 50 diseases in red clover. Notable among these are powdery mildew caused by Erysiphe spp., root rot caused by Fusarium spp., southern blight caused by Colletotrichum spp., and Sclerotinia rot caused by Sclerotinia spp., contributing to significant losses in red clover production in Europe, the United States, India, and other regions [2,3,4,5].
Leptosphaeriaceae, an economically significant family of plant pathogens within the order Pleosporales, poses a substantial threat. Some species within this family also act as endophytes or saprobes on various host plants [6]. The genus Leptosphaeria, belonging to the Leptosphaeriaceae family, infects various parts of legume crops, including the leaves, stems, root crowns, and roots, leading to conditions like leaf spot, crown rot, and root rot [7,8]. Notable species like L. maculans and L. biglobosa cause blackleg and stem canker, severely impacting oilseed Brassicas, particularly canola (B. napus and B. rapa) [9]. Moreover, the mitotic sporulating fungus Phoma macdonaldii (Teleomorph: L. lindquistii) poses a threat to sunflower (Helianthus annuus) and has been associated with premature plant death and yield losses [10,11]. Recent reports by Claassen [12] have identified a new disease of Rorippa curvisiliqua caused by Leptosphaeria spp.
Taxonomy within the Leptosphaeriaceae family remains challenging due to a limited understanding of crucial morphological characters for taxonomic differentiation and a lack of reference strains. Sequences of the entire ITS region, including the 5.8S rDNA of Leptosphaeria isolates and other closely related Leptosphaeria and Phaeosphaeria species, were used to construct a phylogenetic tree using parsimony and distance analyses to determine the phylogenetic relationships [13,14]. While the ITS locus, especially for the nuclear ribosomal RNA gene sequences (ITS, LSU, and SSU), served as a universal DNA barcode for fungi [15] and is the most widely sequenced marker for fungi, it may not suffice for distinguishing closely related species within Leptosphaeria, also known as phoma-like fungi, necessitating the identification of alternative DNA loci [16,17]. Therefore, identifying an alternative DNA locus (or secondary DNA marker) has been a promising approach [18]. Phylogenetic analyses using additional markers like the RPB2, EF-1α, ACT, and β-tubulin regions have been employed to establish evolutionary relationships and provide a backbone tree for Leptosphaeria and allied genera [6,19,20].
Chemical control plays a pivotal role in integrated disease management due to its rapid action, simplicity, and lack of regional and seasonal restrictions. Methods like carbendazim seed treatment have proven effective against crown rot and powdery mildew and can enhance red clover seed yield when combined with foliar sprays of wettable sulfur or hexaconazole [5]. Additionally, seed treatment before sowing effectively controls seed-borne pathogens, thereby enhancing seedling emergence [21]. Greenhouse experiments have demonstrated the efficacy of fungicides like Panoctine 400 and Rovral Flo in inhibiting seedling root infestations by Fusarium, Phoma, and Alternaria, resulting in the decreased severity of root diseases [22]. Chemical fungicides can effectively control diseases to a certain extent, but improper application can lead to pathogen resistance. In contrast, antibiotics and biological control agents are gaining attention, owing to their potential to enhance agricultural sustainability.
Our study aimed to identify the pathogen causing leaf spot on red clover through morphological and molecular characterization, with additional objectives including assessing the efficacy of eight fungicides and antibiotics against the pathogen in vitro and the exploration of the biological characteristics of the pathogen.

2. Materials and Methods

2.1. Field Survey, Diseased Leaf Collection, and Pathogen Isolation

Leaf spot disease was discovered in red clover fields planted in Min County, Gansu Province, in May 2021. Five plots (1 m × 1 m) were randomly chosen to examine disease incidence using a 5-point sampling method. Within each plot, 50 leaves of red clover were randomly chosen for each point to assess both the incidence and severity of the disease. Subsequently, the incidence rate (I) and disease index (DI) were computed utilizing the following formulas [23]:
I (%) = (number of diseased leaves/total number of leaves investigated) × 100
DI = [sum (class frequency × score of rating class)]/[(total number of leaves investigated) × 5] × 100
The following disease scale of 0 to 5 class was used: 0 = healthy, 1 = 0 to 20% of leaf area affected, 2 = 21 to 40%, 3 = 41 to 60%, 4 = 61 to 80%, and 5 = 81 to 100%.
Diseased leaves were promptly collected, and the infected tissue was prepared by cutting it into 3 × 3 mm pieces. Subsequently, these pieces underwent surface sterilization using 75% ethanol for 30 s, followed by 5% commercial bleach (NaOCl) for 2 min. After thorough rinsing with sterilized distilled water, the samples were dried with sterilized filter paper. The diseased tissue was then cultured on potato dextrose agar (PDA) and incubated at 25 °C in darkness for 10 days, leading to the isolation of a fungus from the diseased leaves, with isolation frequencies ranging from 80% to 100%. A total of eight isolates were acquired, with MXK7 chosen for subsequent experiments owing to its optimal growth conditions.

2.2. Morphological and Molecular Characterization

The identification of the isolates at the species level was achieved through an examination of the morphology, supplemented by molecular phylogenetic analysis. Colony traits were meticulously assessed by observing cultures on PDA plates after 20 days of incubation at 25 °C in darkness. A small amount of mycelium was collected using a pin and positioned on a slide with a drop of sterile water to prepare for microscopic observation. The observation and recording of the hyphae and conidia were conducted using Olympus XZ251 (40×, Olympus Corporation, Tokyo, Japan) with a digital camera. Furthermore, three strains containing MXK7 (MXK5, MXK6, and MXK7) underwent targeted DNA sequence amplification and sequencing.
Mycelia from fresh colonies were carefully collected from the PDA medium using sterile slides for subsequent DNA extraction. Genomic DNA extraction for fresh samples was performed using a Fungal DNA Kit (Sangon Biotech Shanghai, Shanghai, China) following the manufacturer’s instructions. DNA concentration, ranging from 50 to 200 ng/μL, was measured using a NanoDrop 2000 spectrophotometer (Thermo Scientific, Waltham, MA, USA). DNA sequences from the internal transcribe spacer (ITS), small subunit (SSU), and large subunit (LSU) of the nuclear ribosomal RNA genes were obtained, utilizing specific primer sets for each region (Table 1). The ITS region was amplified using ITS4/ITS5 primers [24], the SSU region was amplified using NS1/NS4 primers [25,26], and the LSU region was amplified using LR0R/LR5 primers [27]. PCR amplifications were carried out using a T100 thermal cycler (Bio-Rad, Hercules, CA, USA) (1 μL DNA, 1 μL each of forward and reverse primers, 12.5 μL PCR MasterMix, and 9.5 μL ddH2O), and PCR products were subjected to visualization through electrophoresis on a 1% agarose gel, purification, and bidirectional sequencing by Sangon Biotech Shanghai, China. The gene sequences were assembled and manually adjusted using Seqman (DNASTAR 11.0, Seqman Pro) and MEGA v.11, respectively. Maximum likelihood phylogenies were inferred using IQ-TREE [28] under the Edge-linked partition model for 1000 ultrafast bootstraps [29]. Bayesian inference phylogenies were inferred using MrBayes 3.2.6 [30] under the partition model, with 2 parallel runs and 100,000 generations, discarding the initial 25% of sampled data as burn-in [31]. The resulting phylogenetic tree was edited and annotated in figtree v1.4.4 and Adobe Illustrator 2023.

2.3. Biological Characteristics

The effect of different culture media, temperatures, pH, carbon sources, and nitrogen sources on the biological characteristics of strain MXK7 were assessed individually. Isolated colonies were purified by selecting the fresh 4 mm mycelial cakes using a sterilized borer from the colony edge and reculturing them on various media, including PDA, plate count agar (PCA), corn meal agar (CMA), oatmeal agar (OMA), Czapek–Dox agar (CZA), and malt extract agar (MEA).
Czapek–Dox medium with the carbon or nitrogen source replaced served as the control. Carbon sources tested included sucrose, d-glucose, d-fructose, d-galactose, d-maltose, d-lactose, d-sorbitol, and soluble starch, while nitrogen sources comprised potassium nitrate, ammonium sulfate, ammonium chloride, diammonium hydrogen phosphate, peptone, urea, glycine, and sodium nitrate. Hyphae were transferred onto a PDA plate and incubated at temperatures ranging from 5 °C to 35 °C for 20 days. The pH of the sterilized PDA medium was adjusted to 4, 6, 7, 8, 10, 11, and 12 using 1 mol/L HCl and 1 mol/L NaOH solutions under aseptic conditions.
Each treatment was replicated four times, and all treatments were incubated at a constant temperature of 25 °C in the dark for 20 days. The initial measurement was taken on the third day of culturing, followed by three more measurements every two days. Colony diameter measurement and growth rate calculation were performed following the method described by Xue [32]. All data were compared using the Duncan test (p < 0.05) and analyzed with SPSS Statistics 28.

2.4. Greenhouse Pathogenicity Tests

The test variety utilized was Trifolium pretense (CV. Minshan), harvested from the fields of Min County in autumn 2020. Seeds were chosen for their robustness and integrity, undergoing a series of treatments, as follows: soaking in 75% alcohol for 30 s, disinfection with 10% hydrogen peroxide (H2O2) solution for 10 min, and rinsing with sterilized water five times. Subsequently, the seeds were placed in petri dishes lined with two layers of sterilized filter paper, moistened with sterile water, and then incubated in a plant incubator maintained at 25 °C and 65% humidity for two days. Humidity levels were upheld by daily water additions. Upon germination, the seeds were sown with eight seeds per pot, and three plants were planted after seedling emergence.
For the pathogenicity test, strain MXK7 was cultured on PDA medium at 25 °C for 20 days. Conidia were collected by adding 10 mL of sterile water to a culture plate, scraping with a sterile glass slide to release conidia, followed by dilution and counting using a hemocytometer. The spore suspension was adjusted to 1 × 106 spores/mL, and the count was repeated thrice. Next, 20 mL of 1 × 106 spores/mL was evenly sprayed onto healthy red clover leaves, with 0.02% Tween 80 solution added to enhance adhesion. Sterilized water with 0.02% Tween 80 solution served as the blank control. Disease progression on the leaves was monitored, and the incidence rate was calculated regularly every two days starting at 48 h after inoculation.

2.5. Sensitivity Testing of Fungicides

Eight fungicides and antibiotics were prepared separately in sterilized water, mixed evenly, and diluted fivefold. The plates were prepared as follows: under aseptic conditions, 99 mL of sterilized PDA medium at 50 to 60 °C was put into a blue cap bottle, and then 1 mL of each solution of each fungicide was added in and mixed thoroughly, after which, approximately 20 mL was poured into each 90-mm sterile culture dish. Pathogen colonies (4 mm in diameter) were placed at the center of the PDA medium containing fungicides and cultured for 20 days at 25 °C and 75% relative humidity in darkness. The mycelial growth inhibition rate (MGIR, %) was calculated following the method described by Zhang et al. [33]; the formula is as follows:
MGIR (%) = (control colony diameter − treated colony diameter)/control colony diameter × 100
The probability of MGIR was set as Y, and the concentration of each fungicide was set as X to establish the regression equation using the regression method and calculate the EC50 values [34]. All data in this study were analyzed using IBM SPSS Statistics v.20.

3. Results

3.1. Disease Survey

In May 2021, leaf spot disease was detected in the red clover fields planted in Min County, Gansu Province, with an initial incidence rate of 0.80% (Figure 1). The disease predominantly affects the leaves, manifesting initially as small white spots that gradually expand to form near-oval or irregularly shaped gray-white lesions bordered by a faint black margin (Figure 2a,b). The central area of these lesions appears lighter in color (Figure 2c). The incidence rate peaked in August at 4.20%, and the disease index ranged from 0.23 to 1.23. In 2022, the incidence rate progressively increased from 1.30% in May to a peak of 4.80% in August, with the disease index escalating from 0.50 to 1.53 (Figure 1). In the advanced stages, red clover leaves desiccated and cracked. Overall, this leaf spot disease exhibited an upward trend in progression, although both the incidence rate and the disease index remained extremely low.

3.2. Isolation and Identification of the Pathogen

A fungus was isolated from the diseased leaves at a frequency of 80% to 100%. On PDA medium, the pathogen’s mycelium appears felt-like, exhibiting slow growth resulting in relatively small colony areas, ranging in color from pink to off-white (Figure 3a,b). The colony surface is wrinkled and thick, and the mass of spores was produced and released from luminal or stalk-like sites (Figure 3c,d). The spores were approximately 6–15 × 1–3 μm in size, colorless, with one or no septa, and elliptical to ovoid (Figure 3e–k).
A sequence alignment analysis of strains was conducted based on ITS, LSU, and SSU genes. The reference strains were obtained from GenBank and previous research (Table 2) for constructing the ITS–SSU–LSU phylogenetic tree [6,15]. The results indicated that strains MXK5, MXK6, and MXK7, along with L. meliloti sampled from various locations, clustered into a single group with a self-sustaining rate of 100% BS and 100%/1 BI (Figure 4), supporting the morphological and molecular identification.

3.3. Biological Characteristics

For the tested temperature, pH, and growth media, the optimum growth temperature for L. meliloti is 20 °C, while the most favorable temperature for sporulation is 25 °C. The ideal pH for both growth and sporulation is seven. The best medium for spore production is PDA, while PSA is the optimal medium for mycelial growth (Table 3, Figure 5). The pathogen efficiently utilizes carbon sources such as maltose, fructose, galactose, and soluble starch, as well as nitrogen sources such as peptone, glycine, and sodium nitrate (Figure 5). It does not produce spores in any of the tested Czapek–Dox medium with the carbon and nitrogen source conditions replaced (Table 3).

3.4. Pathogenicity Testing

Ten days after inoculation, the leaves inoculated with the spore suspension exhibited symptoms with an incidence rate of 2% and no longer developing. The lesions manifested as irregularly shaped grayish-brown spots on the margins of the leaves (Figure 6b), somewhat similar to those previously recorded in Min Country, while no symptoms were found in the control plants (Figure 6a). However, the same pathogen was re-isolated from the lesions and confirmed by both morphology and molecular identification as L. meliloti, thus fulfilling Koch’s postulates.

3.5. Effects of Eight Fungicides and Antibiotics on Mycelia Growth

Compared with the control treatment, eight fungicides and antibiotics differentially inhibited mycelial growth, with MGIR ranging from 0.72 to 62.89%, and the inhibitory effect increased with concentration (Table 4). A total of 450 g/L prochloraz exhibited significant antifungal activity with an EC50 value of 0.6424 mg/L, followed by 10% difenoconazole with an EC50 value of 0.8821 mg/L, while 6% kasugamycin was the least, with an EC50 of 328.0198 mg/L. Based on the regression equations, the slope of the 450 g/L prochloraz was the steepest at 0.2133, while the slope of the 250 g/L azoxystrobin was the smallest at 0.1012, indicating that L. meliloti was most sensitive to prochloraz and least sensitive to azoxystrobin (Table 5).

4. Discussion

In this study, the pathogen of red clover leaf spot disease was identified as L. weimeri (=L. meliloti) through morphological comparison, molecular identification, and a pathogenicity test. This marks the first documented instance of red clover leaf spot caused by L. meliloti in China.
According to the Index Fungorum (www.indexfungorum.org, accessed on 31 January 2024), L. weimeri stands as a legitimate and distinct species without any synonyms or anamorphs. This stands in contrast to the findings of Schoemaker et al. [35], who delineated a new species, Massarina walkeri (=Acrocalymma walkeri), discovered in Medicago sativa. It is distinct from L. pratensis and the newly recognized L. weimeri, as well as L. viridella (=P. viridella, 1984). These assertions diverge from the conclusions drawn by Boerema [36], who synonymized L. weimeri and Stagonospora meliloti (1920). Subsequently, there has been a steady stream of research confirming the anamorph–teleomorph connection between L. weimeri and P. meliloti (=L. meliloti, 2020) [20,37,38].
Currently, L. meliloti is solely reported on Leguminosae plants such as Medicago, Trifolium, Lupinus, and Melilotus (based on the Fungaldatabase). Shang [39] reported a novel disease of white clover (Trifolium repens) caused by S. meliloti and dubbed Stagonospora leaf spot, in China. Its teleomorph was identified as L. weimeri, although it was not cultured from the infected leaves. The disease has been reported widely in the United States and Europe, affecting various leguminous forage crops. The pathogen has caused morbidity and yield loss in alfalfa in Australia and France [40,41] and has inflicted severe damage on white clover in Alabama, USA [42]. Apart from leaf damage, the pathogen also infects stems, root crowns, and roots, causing foot rot and root rot, which, in severe cases, result in plant death and stunting. Furthermore, the pathogen can be transmitted via seed, necessitating seed testing upon introduction [43,44]. Research on L. meliloti in red clover has been largely confined to disease records, with limited in-depth investigations and scant reports. To date, there are no records of this disease afflicting red clover in China. In the red clover fields of Min County, the overall incidence and severity of Longiseptatispora leaf spot were low, albeit noticeable symptoms were observed throughout the growing season, exerting minimal impact on red clover production. In greenhouse pathogenicity tests, symptoms emerged on red clover seven days after inoculation with L. meliloti; however, the disease did not exacerbate as the plants matured, indicating relatively low severity of the disease.
Temperature plays a pivotal role in disease dissemination. Under natural conditions, it influences infection, colonization, lesion expansion, and pathogen spread [45,46]. Results revealed that the optimum growth temperature and the optimum spore production temperature were 20 °C and 25 °C respectively. L. meliloti strains exhibit a narrow temperature adaptation range, thriving in the alpine and cool climates of Min County. Studies on its biological characteristics aid in understanding the environmental and nutritional conditions conducive to pathogen survival and spore production, thereby facilitating disease management. The pathogen displayed poor growth under varied nitrogen and carbon source conditions, characterized by sparse mycelium and small colonies. Its optimal pH was seven, and the preferred media included PSA and PDA. Incorporating colony morphology will streamline subsequent morphological identification of the fungus.
Of the eight selected fungicides and antibiotics, synthetic fungicides demonstrate high efficiency. They antagonize pathogenic fungi by disrupting mycelium formation, impeding cell division, inhibiting mitochondrial respiration, and suppressing ergosterol or sterol biosynthesis [47,48,49]. In the virulence test against L. meliloti, miconazole and metronidazole phenyl ether were highly effective, while chunramycin proved the least effective. Tetramycin, ethylicin, and metribuzin demonstrated poor performance. These findings suggest that L. meliloti is sensitive to methoxyacrylates and imidazoles but insensitive to antibiotics and benzimidazoles. It is important to note that the most efficacious fungicide was also the most soluble in water in this experiment. The solubility of fungicides in water is limited, and there are instances in which the concentration gradients of the suspensions used for experimental purposes surpass the solubility [50,51]. Consequently, when conducting fungicide sensitivity experiments using water as a solvent, it is crucial to consider the potential impact of solubility on the results or dissolve fungicides in DMSO or an organic solvent like acetone. The results mentioned above were obtained from indoor testing; the utilization of the fungicides in the field requires consideration of factors such as local climate, product cost, and application methods, which are critical for disease control and prevention.

5. Conclusions

To the best of our knowledge, this is the first report of L. meliloti causing leaf spot disease on red clover in China. The field incidence of the disease was 4.80%, with the prevalence and resultant damage deemed not severe. Prochloraz and difenoconazole fungicides emerge as viable options for red clover leaf spot disease management. This study furnishes valuable insights into pathogen identification, pathogenicity, and disease occurrence.

Author Contributions

R.Z. performed the experiment and data analyses. R.Z., Z.N. and T.D. wrote and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this research was provided by the China Modern Agriculture Research System (CARS-22 Green Manure).

Data Availability Statement

All applicable data are published and referenced in the paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. McKenna, P.; Cannon, N.; Conway, J.; Dooley, J. The use of red clover (Trifolium pratense) in soil fertility-building: A Review. Field Crop. Res. 2018, 221, 38–49. [Google Scholar] [CrossRef]
  2. Coulman, B.E.; Lambert, M. Selection for resistance to root rot caused by Fusarium spp. in red clover (Trifolium pratense L.). Can. J. Plant Sci. 1995, 75, 141–146. [Google Scholar] [CrossRef]
  3. Jacob, I.; Hartmann, S.; Struck, C. Response of different fodder legume species to Colletotrichum trifolii. Crop. Pasture Sci. 2016, 67, 1110–1115. [Google Scholar] [CrossRef]
  4. Hartmann, S.; Schubiger, F.X.; Grieder, C.; Wosnitza, A. A decade of variety testing for resistance of red clover to southern anthracnose (Colletotrichum trifolii) at the Bavarian state research center for agriculture. Agriculture 2022, 12, 249. [Google Scholar] [CrossRef]
  5. Bhardwaj, N.R.; Banyal, D.K.; Roy, A.K. Integrated management of crown rot and powdery mildew diseases affecting red clover (Trifolium pratense L.). Crop. Prot. 2022, 156, 105943. [Google Scholar] [CrossRef]
  6. Ariyawansa, H.A.; Phukhamsakda, C.; Thambugala, K.M.; Bulgakov, T.S.; Wanasinghe, D.N.; Perera, R.H.; Mapook, A.; Camporesi, E.; Kang, C.J.; Jones, E.B. Revision and phylogeny of Leptosphaeriaceae. Fungal Divers. 2015, 74, 19–51. [Google Scholar] [CrossRef]
  7. Rouxel, T.; Balesdent, M.H. The stem canker (blackleg) fungus, Leptosphaeria maculans, enters the genomic era. Mol. Plant Pathol. 2005, 6, 225–241. [Google Scholar] [CrossRef]
  8. Roustaee, A.; Costes, S.; Dechamp-Guillaume, G.; Barrault, G. Phenotypic variability of Leptosphaeria lindquistii (anamorph: Phoma macdonaldii), a fungal pathogen of sunflower. Plant Pathol. 2000, 49, 227–234. [Google Scholar] [CrossRef]
  9. Sprague, S.J.; Kirkegaard, J.A.; Howlett, B.J.; Graham, J. Effect of root rot and stem canker caused by Leptosphaeria maculans on yield of Brassica napus and measures for control in the field. Crop. Pasture Sci. 2009, 61, 50–58. [Google Scholar] [CrossRef]
  10. Howlett, B.J.; Idnurm, A.; Pedras, M.S.C. Leptosphaeria maculans, the causal agent of blackleg disease of Brassicas. Fungal Genet. Biol. 2001, 33, 1–14. [Google Scholar] [CrossRef]
  11. Descorps, C.; Hebrard, C.; Rakotonindraina, T.; Dechamp-Guillaume, G.; Mestries, E.; Aubertot, J.N. Advances in Phoma macdonaldii (Leptosphaeria lindquistii) epidemiology. In Proceedings of the 18 International Conference on Sunflower, Barcarce, Argentina, 27 February–1 March 2012; p. 203. [Google Scholar]
  12. Claassen, B.J.; Thomas, W.J.; Mallory-Smith, C.; Ocamb, C.M. First report of Rorippa curvisiliqua as a host for Leptosphaeria spp. (black leg) in North America. Plant Dis. 2017, 101, 1328. [Google Scholar] [CrossRef]
  13. Mendes-Pereira, E.; Balesdent, M.H.; Hortense, B.R.U.N.; Rouxel, T. Molecular phylogeny of the Leptosphaeria maculansL. biglobosa species complex. Mycol. Res. 2003, 107, 1287–1304. [Google Scholar] [CrossRef]
  14. Câmara, M.P.S.; Palm, M.E.; van Berkum, P.; O’Neill, N.R. Molecular phylogeny of Leptosphaeria and Phaeosphaeria. Mycologia 2002, 94, 630–640. [Google Scholar] [CrossRef]
  15. Schoch, C.L.; Seifert, K.A.; Huhndorf, S.; Schindel, D. Nuclear ribosomal internal transcribed spacer (ITS) region as a universal DNA barcode marker for Fungi. Proc. Natl. Acad. Sci. USA 2012, 109, 6241–6246. [Google Scholar] [CrossRef]
  16. Aveskamp, M.M.; Woudenberg, J.H.; De Gruyter, J.; Turco, E.; Groenewald, J.Z.; Crous, P.W. Development of taxon-specific sequence characterized amplified region (SCAR) markers based on actin sequences and DNA amplification fingerprinting (DAF): A case study in the Phoma exigua species complex. Mol. Plant Pathol. 2009, 10, 403–414. [Google Scholar] [CrossRef]
  17. Chen, Q.; Jiang, J.R.; Zhang, G.Z.; Cai, L.; Crous, P.W. Resolving the Phoma enigma. Stud. Mycol. 2015, 82, 137–217. [Google Scholar] [CrossRef]
  18. Armstrong, K.F.; Ball, S.L. DNA Barcodes for biosecurity: Invasive species identification. Philos. Trans. R. Soc. B 2005, 360, 1813–1823. [Google Scholar] [CrossRef]
  19. Dilmaghani, A.; Balesdent, M.H.; Didier, J.P.; Wu, C.; Davey, J.; Barbetti, M.J.; Rouxel, T. The Leptosphaeria maculansLeptosphaeria biglobosa species complex in the American continent. Plant Pathol. 2009, 58, 1044–1058. [Google Scholar] [CrossRef]
  20. Hou, L.W.; Groenewald, J.Z.; Pfenning, L.H.; Yarden, O.; Crous, P.W.; Cai, L. The phoma-like dilemma. Stud. Mycol. 2020, 96, 309–396. [Google Scholar] [CrossRef] [PubMed]
  21. Sharma, K.K.; Singh, U.S.; Sharma, P.; Kumar, A.; Sharma, L. Seed treatments for sustainable agriculture—A review. J. Appl. Nat. Sci. 2015, 7, 521–539. [Google Scholar] [CrossRef]
  22. Lager, J.; Gerhardson, B. Pathogenicity of clover root pathogens to pea, bean and lucerne. J. Plant Dis. Protect. 2002, 2, 142–151. [Google Scholar]
  23. Gao, P.; Nan, Z.B.; Christensen, M.J.; Barbetti, M.J.; Duan, T.Y.; Liu, Q.T.; Meng, F.J.; Huang, J.F. Factors influencing rust (Melampsora apocyni) intensity on cultivated and wild Apocynum venetum in Altay Prefecture, China. Phytopathology 2019, 109, 593–606. [Google Scholar] [CrossRef]
  24. White, T.J.; Bruns, T.D.; Lee, S.B.; Taylor, J.W. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR Protocols: A Guide to Methods and Applications; Academic Press: New York, NY, USA, 1990; pp. 315–322. [Google Scholar]
  25. Liu, Y.J.; Whelen, S.; Hall, B.D. Phylogenetic relationships among ascomycetes: Evidence from an RNA polymerse II subunit. Mol. Biol. Evol. 1999, 16, 1799–1808. [Google Scholar] [CrossRef]
  26. Sung, G.H.; Sung, J.M.; Hywel-Jones, N.L.; Spatafora, J.W. A multi-gene phylogeny of Clavicipitaceae (Ascomycota, Fungi): Identification of localized incongruence using a combinational bootstrap approach. Mol. Phylogenet. Evol. 2007, 44, 1204–1223. [Google Scholar] [CrossRef]
  27. Vilgalys, R.; Hester, M. Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J. Bacteriol. 1990, 172, 4238–4246. [Google Scholar] [CrossRef]
  28. Nguyen, L.T.; Schmidt, H.A.; von Haeseler, A.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar] [CrossRef] [PubMed]
  29. Minh, B.Q.; Nguyen, M.A.; von Haeseler, A. Ultrafast approximation for phylogenetic bootstrap. Mol. Biol. Evol. 2013, 30, 1188–1195. [Google Scholar] [CrossRef]
  30. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef]
  31. Liu, C.L.; Zheng, X.R.; Chen, F.M. Dieback and Leaf Spot in Box Elder (Acer negundo) Caused by Exserohilum rostratum. Plant Dis. 2021, 105, 2955–2963. [Google Scholar] [CrossRef] [PubMed]
  32. Xue, L.; Zhang, L.; Yang, X.X.; Huang, X.; Zhou, X.; White, J.F.; Liu, Y.; Li, C. Characterization, phylogenetic analyses, and pathogenicity of Colletotrichum species on Morus alba in Sichuan Province, China. Plant Dis. 2019, 103, 2624–2633. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, L.Q.; Song, L.L.; Xu, X.M.; Zou, X.H.; Duan, K.; Gao, Q.H. Characterization and fungicide sensitivity of Colletotrichum species causing strawberry anthracnose in eastern China. Plant Dis. 2020, 104, 1960–1968. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, T.; Wu, X.; Dai, Y.; Yin, X.; Zhao, Z.; Zhang, Z.; Li, W.; He, L.; Long, Y. Sensitivity testing of natural antifungal agents on Fusarium fujikuroi to investigate the potential for sustainable control of kiwifruit leaf spot disease. J. Fungi 2022, 8, 239. [Google Scholar] [CrossRef]
  35. Shoemaker, R.A.; Babcock, C.E.; Irwin, J.A.G. Massarina walkeri n. sp., the teleomorph of Acrocalymma medicaginis from Medicago sativa contrasted with Leptosphaeria pratensis, L. weimeri n. sp., and L. viridella. Can. J. Bot. 2011, 69, 569–573. [Google Scholar] [CrossRef]
  36. Boerema, G.H.; de Gruyter, J.; Noordeloos, M.E.; Hamers, M.E.C. Phoma Identification Manual Differentiation of Species and Infra-Specific Taxa in Culture; CABI Publishing: Wallingford, UK, 2004; p. 417. [Google Scholar]
  37. Lucas, M.T.; Webster, J. Conidial states of British species of Leptosphaeria. Trans. Br. Mycol. Soc. 1967, 50, 85–121. [Google Scholar]
  38. Kövics, G.J.; Irinyi, L.; Rai, M. Overview of Phoma-like fungi on important legumes (Papilionaceous Plants). In Phoma: Diversity, Taxonomy, Bioactivities, and Nanotechnology; Springer: Cham, Switzerland, 2022; pp. 65–89. [Google Scholar]
  39. Shang, H. Research brief on leaf spot disease in white clover caused by Stagonospora meliloti. Acta Prataculturae Sin. 1994, 3, 81. [Google Scholar]
  40. Irwin, J.A.G.; Mackie, J.M.; Marney, T.S.; Musial, J.M.; Roberts, S. Incidence of Stagonaspora meliloti and Acracalymma medicaginis in lucerne crowns and roots in eastern Australia, their comparative aggressiveness to lucerne and inheritance of reaction to S. meliloti in lucerne. Australas. Plant Path. 2004, 33, 61–67. [Google Scholar] [CrossRef]
  41. Musial, J.M.; Mackie, J.M.; Armour, D.J.; Phan, H.T.T.; Ellwood, S.E.; Aitken, K.S.; Irwin, J.A.G. Identification of QTL for resistance and susceptibility to Stagonospora meliloti in autotetraploid lucerne. Theor. Appl. Genet. 2007, 114, 1427–1435. [Google Scholar] [CrossRef]
  42. Albrecht, H.R. Effect of disease upon survival of white clover, Trifolium repens L., in Alabama. Agron. J. 1942, 34, 725–730. [Google Scholar] [CrossRef]
  43. Taylor, J.L. A simple, sensitive, and rapid method for detecting seed contaminated with highly virulent Leptosphaeria maculans. Appl. Environ. Microb. 1993, 59, 3681–3685. [Google Scholar] [CrossRef]
  44. Zhang, X.; White, R.P.; Demir, E.; Jedryczka, M.; Lange, R.M.; Islam, Z.; Li, J.Q.; Huang, A.M.; Hall, G.; Zhou, Z. Leptosphaeria spp., phoma stem canker and potential spread of L. maculans on oilseed rape crops in China. Plant Pathol. 2014, 63, 598–612. [Google Scholar] [CrossRef]
  45. Bonde, M.R.; Nester, S.E.; Berner, D.K. Effects of daily temperature highs on development of Phakopsora pachyrhizi on soybean. Phytopathology 2012, 102, 761–768. [Google Scholar] [CrossRef] [PubMed]
  46. Mayorquin, J.S.; Wang, D.H.; Twizeyimana, M.; Eskalen, A. Identification, distribution, and pathogenicity of Diatrypaceae and Botryosphaeriaceae associated with citrus branch canker in the southern California desert. Plant Dis. 2016, 100, 2402–2413. [Google Scholar] [CrossRef] [PubMed]
  47. Morton, V.; Staub, T. A short history of fungicides. APSnet Features 2008, 308, 1–12. [Google Scholar] [CrossRef]
  48. Vandenbosch, D.; Braeckmans, K.; Nelis, H.J.; Coenye, T. Fungicidal activity of miconazole against Candida spp. biofilms. J. Antimicrob. Chemoth. 2010, 65, 694–700. [Google Scholar] [CrossRef]
  49. Zhang, P.; Guan, A.; Xia, X.; Sun, X.; Wei, S.; Yang, J.; Wang, J.; Li, Z.; Lan, J.; Liu, C. Design, synthesis, and structure–activity relationship of new arylpyrazole pyrimidine ether derivatives as fungicides. J. Agric. Food Chem. 2019, 67, 11893–11900. [Google Scholar] [CrossRef] [PubMed]
  50. Teramoto, A.; Meyer, M.C.; Suassuna, N.D.; Cunha, M.G.D. In vitro sensitivity of Corynespora cassiicola isolated from soybean to fungicides and field chemical control of target spot. Summa Phytopathol. 2017, 43, 281–289. [Google Scholar] [CrossRef]
  51. Camiletti, B.X.; Lichtemberg, P.S.; Paredes, J.A.; Carraro, T.A.; Velascos, J.; Michailides, T.J. Characterization, pathogenicity, and fungicide sensitivity of Alternaria isolates associated with preharvest fruit drop in California citrus. Fungal Biol. 2022, 126, 277–289. [Google Scholar] [CrossRef]

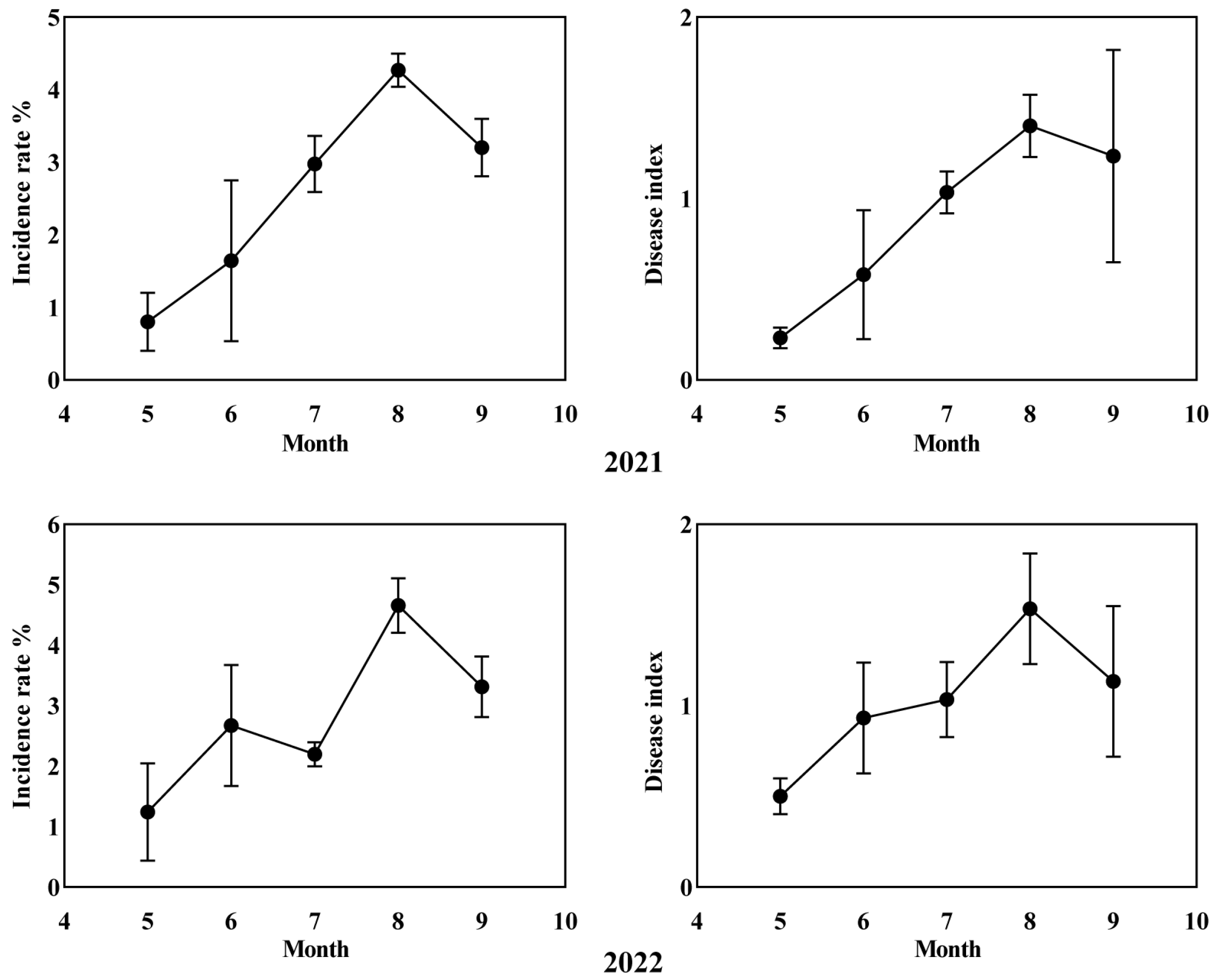

Figure 1. Incidence and disease index of red clover leaf spot disease in the fields in the years 2021 and 2022.
Figure 1. Incidence and disease index of red clover leaf spot disease in the fields in the years 2021 and 2022.
Agronomy 14 01055 g001
Figure 2. Symptoms of red clover leaf spot disease. (a,b) Symptoms in the fields; (c) symptoms under microscopy.
Figure 2. Symptoms of red clover leaf spot disease. (a,b) Symptoms in the fields; (c) symptoms under microscopy.
Agronomy 14 01055 g002
Figure 3. Morphological characteristics of L. meliloti. (a,b) Front and back of a colony of L. meliloti cultivated on PDA for 20 days in the dark at 25 °C; (c,d) spores are produced and released from luminal or stalk-like sites; (ek) conidia (the black scale in the figures represent 5 μm).
Figure 3. Morphological characteristics of L. meliloti. (a,b) Front and back of a colony of L. meliloti cultivated on PDA for 20 days in the dark at 25 °C; (c,d) spores are produced and released from luminal or stalk-like sites; (ek) conidia (the black scale in the figures represent 5 μm).
Agronomy 14 01055 g003

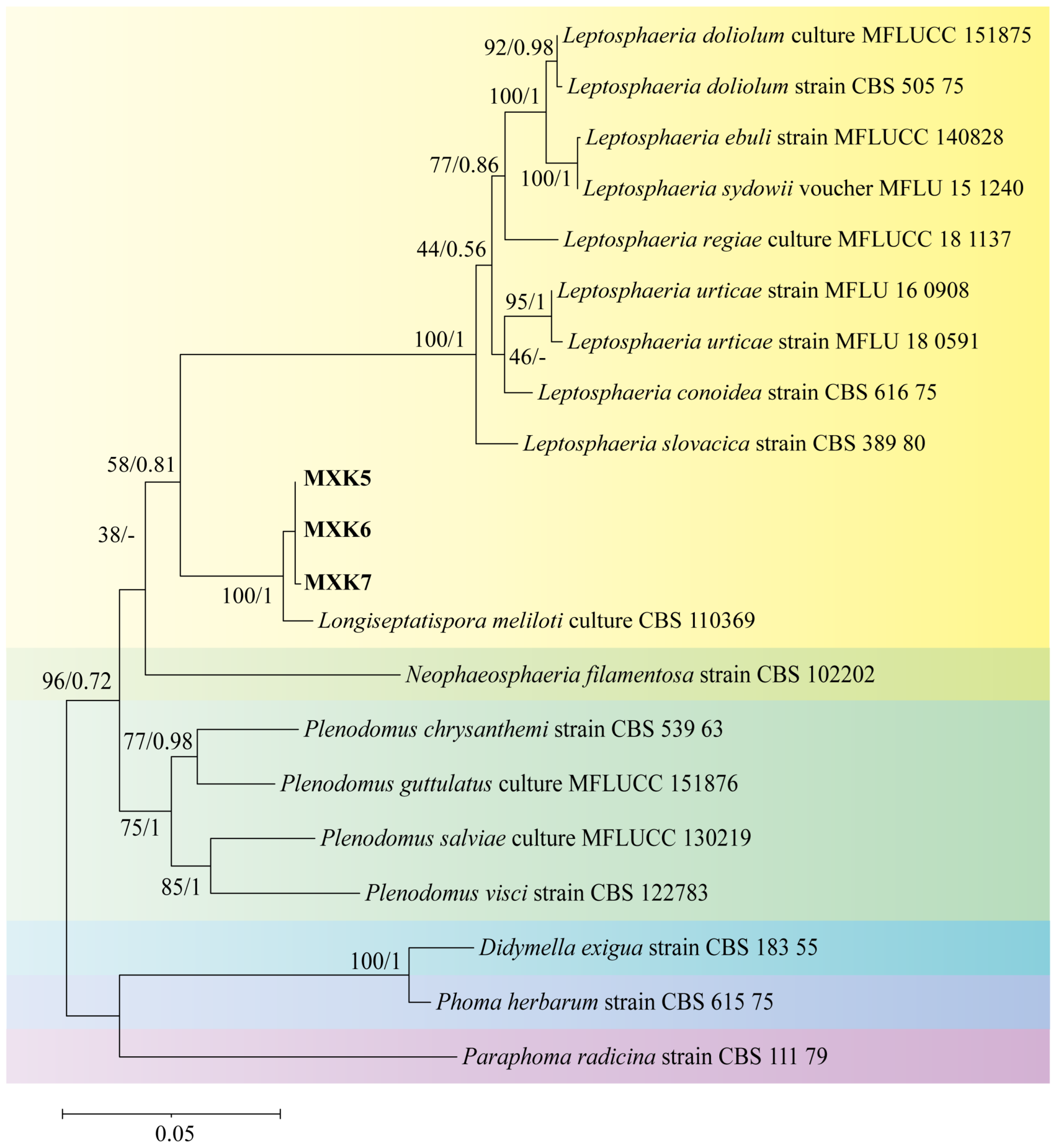

Figure 4. Maximum-likelihood (ML) phylogenetic tree of the Leptosphaeria or Longiseptatispora species based on the combined sequence of LSU, SSU, and ITS. The node shows bootstrap support (BS) values and Bayesian inference (BI) scores. Different colors in the figure represent different genus of fungi.
Figure 4. Maximum-likelihood (ML) phylogenetic tree of the Leptosphaeria or Longiseptatispora species based on the combined sequence of LSU, SSU, and ITS. The node shows bootstrap support (BS) values and Bayesian inference (BI) scores. Different colors in the figure represent different genus of fungi.
Agronomy 14 01055 g004
Figure 5. Growth of colonies cultured on different media, pH values, and temperatures, carbon sources, and nitrogen sources (front side).
Figure 5. Growth of colonies cultured on different media, pH values, and temperatures, carbon sources, and nitrogen sources (front side).
Agronomy 14 01055 g005
Figure 6. Symptoms on red clover after inoculating with isolates of MXK7 in a greenhouse. (a) Inoculated with sterilized water; (b) inoculated with spore suspension (red circle).
Figure 6. Symptoms on red clover after inoculating with isolates of MXK7 in a greenhouse. (a) Inoculated with sterilized water; (b) inoculated with spore suspension (red circle).
Agronomy 14 01055 g006
Table 1. List of primers used in this study.
Table 1. List of primers used in this study.
GenePrimerSequence (5′-3′)References
nrSSUNS1GTAGTCATATGCTTGTCTC[25,26]
NS4CTTCCGTCAATTCCTTTAAG
nrLSULR0RGTACCCGCTGAACTTAAGC[27]
LR5ATCCTGAGGGAAACTTC
ITSITS4TCCTCCGCTTATTGATATGC[24]
ITS5GGAAGTAAAAGTCGTAACAAGG
Table 2. Reference isolates used in this study and their GenBank accession numbers.
Table 2. Reference isolates used in this study and their GenBank accession numbers.
TaxonCulture StrainsLSUITSSSU
Didymella exiguaGU237794.1EU754155.1GU237794.1EU754056.1
Leptosphaeria conoideaJF740201.1JF740279.1JF740201.1JF740099.1
Leptosphaeria doliolumKT454727.1KT454719.1KT454727.1KT454734.1
Leptosphaeria doliolumJF740205.1GQ387576.1JF740205.1GU296159.1
Leptosphaeria ebuliNR_155323.1KP744488.1NR_155323.1KP753954.1
Leptosphaeria regiaeMN244201.1MN244171.1MN244201.1MN244177.1
Leptosphaeria slovacicaJF740247.1JF740315.1JF740247.1JF740101.1
Leptosphaeria sydowiiMT185517.1MT183480.1MT185517.1MT214959.1
Leptosphaeria urticaeOQ401052.1OQ411135.1OQ401052.1OQ411131.1
Leptosphaeria urticaeMK123333.1MK123332.1MK123333.1MK123329.1
Longiseptatispora melilotiMT223814.1MT223909.1MT223814.1-
Neophaeosphaeria filamentosaJF740259.1GQ387577.1JF740259.1GQ387516.1
Paraleptosphaeria rubiKT454726.1KT454718.1KT454726.1KT454733.1
Phoma herbarumFJ427022.1KF251715.1FJ427022.1EU754087.1
Plenodomus chrysanthemiNR_111622.1GU238151.1NR_111622.1GU238230.1
Plenodomus guttulatusKT454721.1KT454713.1KT454721.1KT454729.1
Plenodomus salviaeKT454725.1KT454717.1KT454725.1KT454732.1
Plenodomus visciNR_119957.1EU754195.1NR_119957.1EU754096.1
Table 3. Fungicide concentration gradient used for test.
Table 3. Fungicide concentration gradient used for test.
Growth Condition Growth Rate (mm/20 d)Spore Production (×105/mL)
Culture mediaPDA9.13 ± 0.64 c7.94 a
PSA11.28 ± 0.94 a-
WA8.05 ± 0.81 d-
Czapek8.14 ± 0.40 d-
CMA7.9 ± 0.57 d3.88 b
OMA9.67 ± 0.30 b0.56 c
pH values1026.34 ± 1.86 c-
832.19 ± 1.17 b0.08 c
738.55 ± 1.03 a6.70 a
68.79 ± 0.73 e2.69 b
414.53 ± 0.89 d-
Temperatures (°C)53.00 ± 0.00 e-
106.65 ± 0.50 d-
157.95 ± 0.61 c4.56 b
2013.71 ± 0.33 a4.44 b
258.81 ± 0.74 b7.94 a
303.00 ± 0.00 e-
Carbon sourceSucrose8.14 ± 0.40 c-
Glucose9.50 ± 0.64 a-
Sorbitol8.24 ± 1.01 bc-
Fructose8.60 ± 0.43 bc-
Lactose8.37 ± 0.40 bc-
Galactose6.20 ± 0.48 d-
Soluble starch8.35 ± 0.35 bc-
Maltose8.85 ± 0.47 b-
Nitrogen sourceKNO38.14 ± 0.40 c-
Peptone9.97 ± 0.57 a-
NH4Cl6.87 ± 0.47 d-
NH4H2PO47.88 ± 0.57 c-
Urea3.00 ± 0.00 f-
(NH4)2SO45.71 ± 0.36 e-
Glycine9.67 ± 0.50 a-
NaNO39.17 ± 0.40 b-
Notes, Different lowercase letters indicate significant differences between different treatments (p < 0.05).
Table 4. Fungicide and antibiotic concentration gradients used for test.
Table 4. Fungicide and antibiotic concentration gradients used for test.
FungicidesConcentration (mg/L)Colony Diameters (mm)Inhibition Rate (%)
CK018.18-
450 g/L Prochloraz0.006417.68 ± 0.40 a2.75 ± 2.25 e
0.03214.63 ± 0.55 b19.53 ± 3.15 d
0.169.29 ± 0.88 c48.91 ± 4.98 c
0.88.24 ± 0.23 d54.69 ± 1.03 b
47.32 ± 0.31 e59.73 ± 1.86 a
10% Difenoconazole0.006417.17 ± 0.39 a5.59 ± 2.55 e
0.03213.98 ± 0.27 b23.10 ± 1.41 d
0.1611.72 ± 0.53 c35.53 ± 3.14 c
0.88.23 ± 0.35 d54.74 ± 1.94 b
47.58 ± 0.25 e58.33 ± 1.47 a
50% Carbendazim0.03217.04 ± 0.17 a6.28 ± 0.08 e
0.1615.05 ± 0.89 b17.22 ± 0.50 d
0.812.86 ± 0.14 c29.29 ± 0.80 c
410.60 ± 0.36 d41.69 ± 2.13 b
206.88 ± 0.21 e62.18 ± 1.17 a
70% Thiophanate-methyl0.1618.05 ± 0.16 a0.72 ± 0.01 e
0.816.55 ± 0.42 b8.99 ± 2.40 d
415.56 ± 0.54 c14.45 ± 2.81 c
2011.57 ± 0.71 d36.37 ± 4.10 b
1007.08 ± 0.28 e61.08 ± 1.47 a
250 g/L Azoxystrobin0.1612.44 ± 0.40 a31.57 ± 2.01 e
0.810.44 ± 0.40 b42.57 ± 2.01 d
49.71 ± 0.22 c46.61 ± 1.03 c
208.63 ± 0.43 d52.53 ± 2.34 b
1006.92 ± 0.34 e61.94 ± 2.23 a
6% Kasugamycin0.0815.58 ± 0.48 a14.32 ± 2.71 e
0.414.72 ± 0.30 b19.04 ± 1.41 d
213.63 ± 0.25 c25.02 ± 1.41 c
1012.21 ± 0.36 d32.83 ± 2.14 b
5010.23 ± 0.47 e43.74 ± 2.73 a
80% Ethylicin0.0817.03 ± 0.21 a6.33 ± 1.03 e
0.415.61 ± 0.51 b14.15 ± 2.73 d
213.35 ± 0.41 c26.56 ± 2.43 c
1011.19 ± 0.57 d38.48 ± 3.01 b
508.18 ± 0.28 e55.04 ± 1.79 a
0.3% Tetramycin0.0816.76 ± 0.62 a7.84 ± 3.40 d
0.414.73 ± 0.32 ab18.98 ± 1.60 cd
213.14 ± 0.38 bc27.72 ± 2.16 bc
1011.89 ± 3.81 c34.63 ± 20.99 b
506.75 ± 0.29 d62.89 ± 1.67 a
Notes, Different lowercase letters indicate significant differences between different concentrations of the fungicide (p < 0.05).
Table 5. Toxicity of different fungicides and antibiotics on strain MXK7.
Table 5. Toxicity of different fungicides and antibiotics on strain MXK7.
FungicidesRegression EquationrEC50(mg/L)95% Confidence Intervals
450 g/L Prochlorazy = 0.2133x + 0.54100.95270.64240.4421–0.9970
10% Difenoconazoley = 0.1962x + 0.51070.98450.88210.7781–0.9990
50% Carbendazimy = 0.1949x + 0.33220.99137.26110.8690–0.9995
70% Thiophanate-methyly = 0.2119x + 0.11570.958865.10290.4965–0.9974
250 g/L Azoxystrobiny = 0.1012x + 0.40960.98847.82170.8298–0.9993
6% Kasugamyciny = 0.1039x + 0.23860.9863328.01980.8008–0.9991
80% Ethyliciny = 0.1742x + 0.22870992636.09110.8883–0.9995
0.3% Tetramyciny = 0.1799x + 0.25000.958824.53010.4970–0.9974
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zheng, R.; Nan, Z.; Duan, T. Leaf Spot Disease of Red Clover Caused by Leptosphaeria weimeri (=Longiseptatispora meliloti) in China. Agronomy 2024, 14, 1055. https://doi.org/10.3390/agronomy14051055

AMA Style

Zheng R, Nan Z, Duan T. Leaf Spot Disease of Red Clover Caused by Leptosphaeria weimeri (=Longiseptatispora meliloti) in China. Agronomy. 2024; 14(5):1055. https://doi.org/10.3390/agronomy14051055

Chicago/Turabian Style

Zheng, Rongchun, Zhibiao Nan, and Tingyu Duan. 2024. "Leaf Spot Disease of Red Clover Caused by Leptosphaeria weimeri (=Longiseptatispora meliloti) in China" Agronomy 14, no. 5: 1055. https://doi.org/10.3390/agronomy14051055

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
