An Intelligent Detection System for Wheat Appearance Quality

Abstract

In the realm of commercial trade, the appearance quality of wheat is a crucial metric for assessing its value and grading. Traditionally, evaluating wheat appearance quality is a manual process conducted by inspectors, which is time-consuming, laborious, and error-prone. In this research, we developed an intelligent detection system for wheat appearance quality, leveraging state-of-the-art neural network technology for the efficient and standardized assessment of wheat appearance quality. Our system was meticulously crafted, integrating high-performance hardware components and sophisticated software solutions. Central to its functionality is a detection model built upon multi-grained convolutional neural networks. This innovative setup allows for the swift and precise evaluation and categorization of wheat quality. Remarkably, our system achieved an exceptional overall recognition accuracy rate of 99.45% for wheat grain categories, boasting a recognition efficiency that was approximately five times faster than manual recognition processes. This groundbreaking system serves as a valuable tool for assisting inspectors, offering technical support for customs quarantine, grain reserves, and food safety.

1. Introduction

With the development of the economy and the improvement of people’s living standards, the global supply of crops is becoming increasingly tight due to the increased demand [1,2]. The international trade of crops through the global market not only helps balance the market demand of crop-deficient countries but also enhances the income level of farmers in crop-exporting countries, stimulating agricultural production and rural economic growth in major crop-producing nations [3]. A prior assessment of the quality of crops before import and export is crucial to ensuring grain security, as well as serving as the basis for crop grading and is an essential safeguard for food safety. Among them, the appearance assessment of granular crops (such as wheat, soybeans, etc.) is one of the main methods for evaluating crop quality. Typically, a crop item is considered high quality if the rate of unsatisfactory appearance is less than 2%, while a rate exceeding 12% makes it unsuitable for human consumption and can only be used for animal feed or ethanol processing [4,5]. In practice, the visual quality assessment of granular crops often requires inspectors to conduct manual sampling and sensory inspections for each kernel [6]. This method is labor-intensive, time-consuming, and cumbersome, far from meeting the actual needs of crop reserves, production processing, and expedited customs clearance. Moreover, issues such as subjective differences in inspection standards among inspectors and increased error rates due to fatigue make it difficult to achieve uniform standards across different countries and laboratories [7]. Therefore, developing an efficient and standardized intelligent system for the visual quality assessment of crops is highly necessary.

With the advancement of computer vision in recent years, researchers are exploring the use of image processing techniques to replace manual detection. The objective is to enhance detection accuracy and efficiency while minimizing labor costs. Researchers employ conventional image processing methods to extract and refine features from gathered crop images (taking wheat as an example, including broken grains, insect grains, moldy grains, blemished grains, etc., as depicted in Figure 1), and subsequently analyze and process them to derive the classification outcomes of imperfect grains [8,9,10]. However, due to subtle visual feature discrepancies among different categories of imperfect grain images, such as blemished grains and black-tipped grains, as well as potentially significant visual feature differences within the same category, like broken grains, traditional image processing methods often encounter challenges in achieving satisfactory results regarding accuracy, repeatability, and generalization [11]. The robust feature learning capability of deep learning effectively addresses this issue [12,13,14]. Through extensive data training, the model grasps subtle feature distinctions and intricate relationships within the data, enabling better generalization to new, previously unseen data, and yielding more precise predictions [15,16,17].

In this study, we developed an intelligent wheat appearance quality detection system that integrates advanced hardware equipment and software technologies to ensure efficient and precise detection results. On the hardware side, the system was equipped with high-performance industrial computers, wireless touch displays, high-resolution cameras, and other devices, ensuring the stability of system operations. Additionally, we designed a specialized high-throughput sampling board for precise and comprehensive information collection of wheat samples. On the software side, we utilized advanced deep learning algorithms and AI technologies to construct a wheat appearance quality detection model based on multi-grained convolutional neural networks. Through extensive data training and analysis, the system can achieve rapid and accurate evaluation and classification of wheat quality. Furthermore, we developed an intuitive and user-friendly interface to assist operators in quickly picking up imperfect grains. Overall, our crop appearance quality detection system integrates advanced hardware equipment, powerful software technologies, and a user-friendly interface, providing users with a convenient and efficient experience. This system serves as an effective tool to assist inspectors, facilitating efficient and fast sorting operations, and providing technical support for customs quarantine, grain storage, and food safety initiatives.

The main contributions of this study are as follows:

(1)

We designed a high-throughput wheat sampling module to ensure comprehensive image data acquisition, along with installing dual cameras in the system for capturing images from both the top and bottom sides.

(2)

Initially, we harnessed AI technology to construct a versatile fine-grained network classification model. To achieve fine-grained detection of wheat appearance quality, we independently curated a high-quality dataset consisting of nearly 20,000 wheat images. Subsequently, we trained the network model using transfer learning techniques, leading to an impressive 99.45% recognition accuracy rate.

(3)

To assist in the manual sorting of imperfect grains, we created a sorting interaction interface that assists users in swiftly and accurately locating and sorting imperfect grains. This facilitates subsequent operations such as weighing and statistical analyses of imperfect grains.

2. Materials and Methods

2.1. System Hardware Design

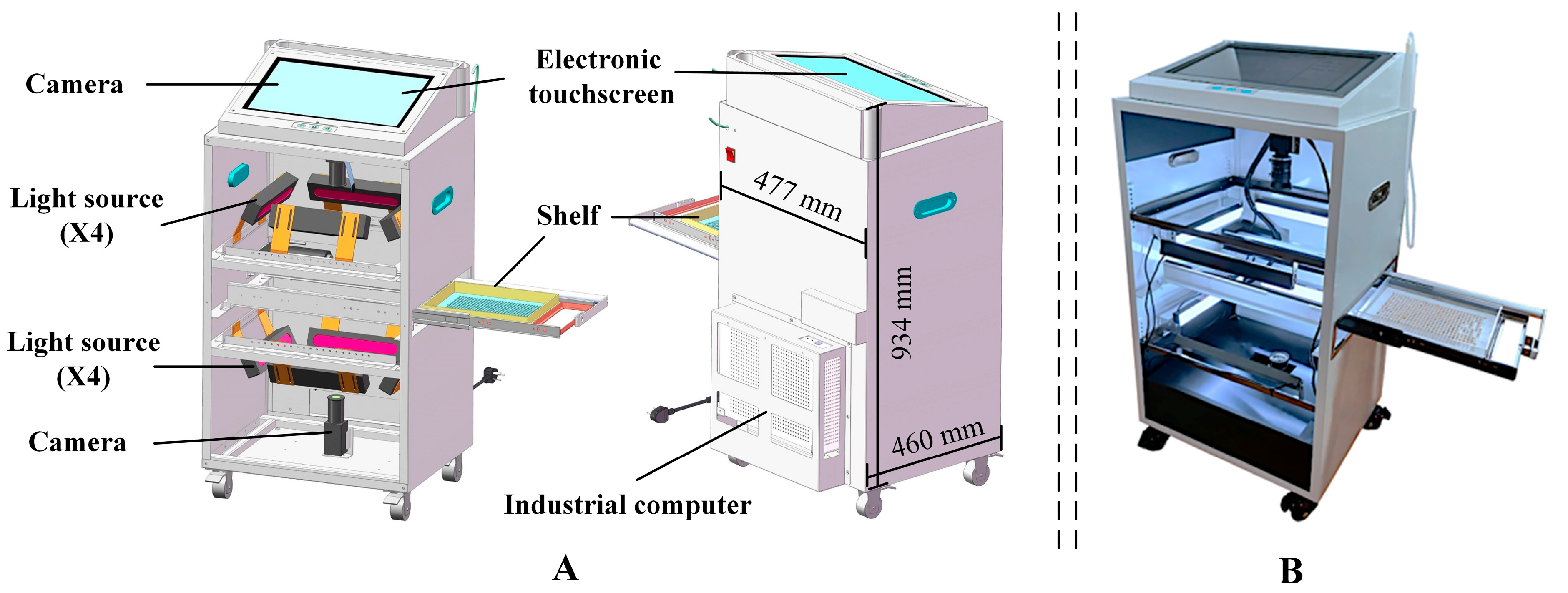

The overall structural design of the system, as depicted in Figure 2, primarily comprises two high-resolution cameras, four pairs of light sources (eight white light sources; model number: MV-LLDS-192-28; power: 7.2 w (four), 9.0 w (four); color temperature: 6000–7000 K), a high-throughput sampling board and shelf, an external industrial computer, a wireless electronic touchscreen, and a power supply module.

2.1.1. Comprehensive Image Data Capture

• Image Acquisition Module

To minimize the impact of external light on the captured image, a sealed light-shielding enclosure made of a metal material was devised for this study, featuring only one inlet and outlet for sample insertion and retrieval (Figure 2A). Within this enclosure, a movable loading platform was installed, capable of movement along the X and Y axes to accommodate samples. This loading platform is operated by two stepper motors that control two pairs of sliders, ensuring precise sample positioning. Positioned 18 cm above and below the loading platform are two 2000 w high-resolution cameras (Nikon Corporation, Tokyo, Japan) utilized for capturing wheat (or even other crop) image. Additionally, surrounding the shooting plane approximately 10 cm above and below are four long incandescent light sources, powered by the power supply module located beneath the enclosure.

• Design of high-throughput sampling board

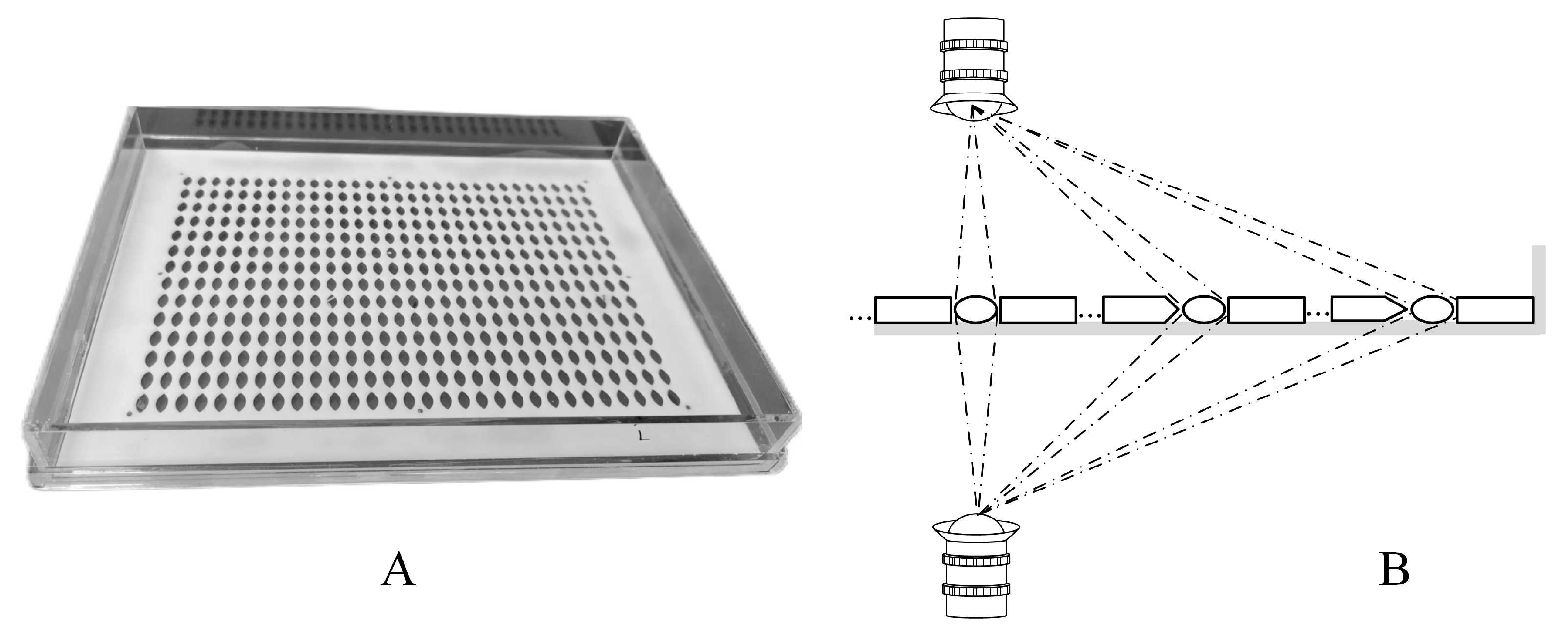

The high-throughput sampling board developed for our research is a device designed for arranging and placing granular crops. It features a composite double-layer structure with sieve holes, as depicted in Figure 3A. The outer layer is a transparent square box made of acrylic material, which enables the bottom camera to capture images of the back side. Inside, there is a square sieve plate made of nylon material with hollows, securely fixed at the bottom of the sieve box. Nylon material was chosen due to its resistance to discoloration from exposure to ultraviolet light, minimizing its impact on the captured crop images. The size and shape of the bottom sieve holes were customized based on the size and shape of the crop grains. For instance, using wheat as an example, we selected olive-shaped sieve holes with a diameter that allowed only one normal-sized grain to fit into each hole. Furthermore, the sieve holes were designed with double-sided chamfers, with varying chamfer sizes (as shown in Figure 3B). Holes farther from the camera have larger chamfers, while those closer to the camera have smaller chamfers. Holes directly below the camera have no chamfers, and the chamfer angles are consistent on both sides. This design effectively addresses edge obstruction issues, enabling the camera to capture more comprehensive double-sided crop image information.

Compared to existing technologies [18,19], our device features a composite double-layer structure and a unidirectional double-sided chamfered sieve hole design, which facilitates the capture of additional image information by the cameras. Additionally, this design organizes crop grains in a regular pattern, simplifying image segmentation and the pairing of front and back sides, thereby improving the crop detection efficiency.

2.1.2. Vision-Guided Human–Machine Interactive Sorting

The vision-guided human–machine interactive sorting module features a wireless touch screen display device that provides the real-time sorting status for crops and highlights the position of grains to be picked up through flashing, as depicted in Figure 4. On the left side of the display screen, details about the grains slated for picking up are presented. Clicking on a specific type of grain triggers a color change from green to red in the corresponding box, accompanied by flashing. Simultaneously, the top of the screen displays “Please sort ** grains”, with images of the grains to be sorted shown on the left side. The grid area on the right side corresponds to the sample box, with the flashing area indicating the grains to be sorted. Inspectors utilize tweezers or a vacuum pickup pen to extract grains from the flashing positions and deposit them into the corresponding category containers. They repeat this process by clicking on the next button until all imperfect grains have been sorted out.

It is worth mentioning that in our equipment, both the assistance sorting module and the industrial computer are integrated into the entire system (Figure 2). The industrial computer is positioned at the back, while the assistance sorting touchscreen is positioned above the system. This integration allows for seamless operation and facilitates the work of inspectors. Simultaneously considering ergonomic factors, we designed a specific angle (approximately 25°) for placing the display touch screen, enhancing the comfort of quality inspectors when using the device.

2.2. Dataset Annotation of Wheat Grains

The dataset annotation process in this study comprises several steps: the collection of grain seeds, image acquisition, image preprocessing, and sample labeling. The grain samples used were provided by the Shanghai Customs Technical Center in China and covered 8 categories of samples including normal grains, broken grains, sprouted grains, moldy grains, insect grains, blemished grains, black-tipped grains, and red enzyme grains, as depicted in Figure 1. Each sample was identified and confirmed by technical experts from customs, and the categories can be distinctly distinguished based on the surface characteristics of the grains. After collecting the 8 categories of grain samples, we proceeded to the image acquisition phase, capturing separate high-resolution images for each category using the image acquisition module described in Section 2.1.1. Subsequently, the software, built on Python 3.7, processes two images by extracting individual samples and pairs them with their front and back images to create a sample set. Empty positions on the sampling board were automatically excluded. Finally, the paired wheat images were labeled using one-hot encoding [20] to establish a database with truth labels, as shown in Figure 5. This labeling method is simple, intuitive, and easy to implement [21,22]. Following data labeling, we invited two technical experts to validate the annotated images, making corrections and deletions as necessary to ensure the data quality.

The distribution of the various sample types in our dataset is shown in

Table 1. The statistical count of various sample types.

Blemished	Red Enzyme	Sprouted	Blacktip	Broken	Mold	Insect	Intact	Total
3188	2720	3014	2064	1648	1572	1854	2378	18,438

.

2.3. System Software Design

2.3.1. Software Design

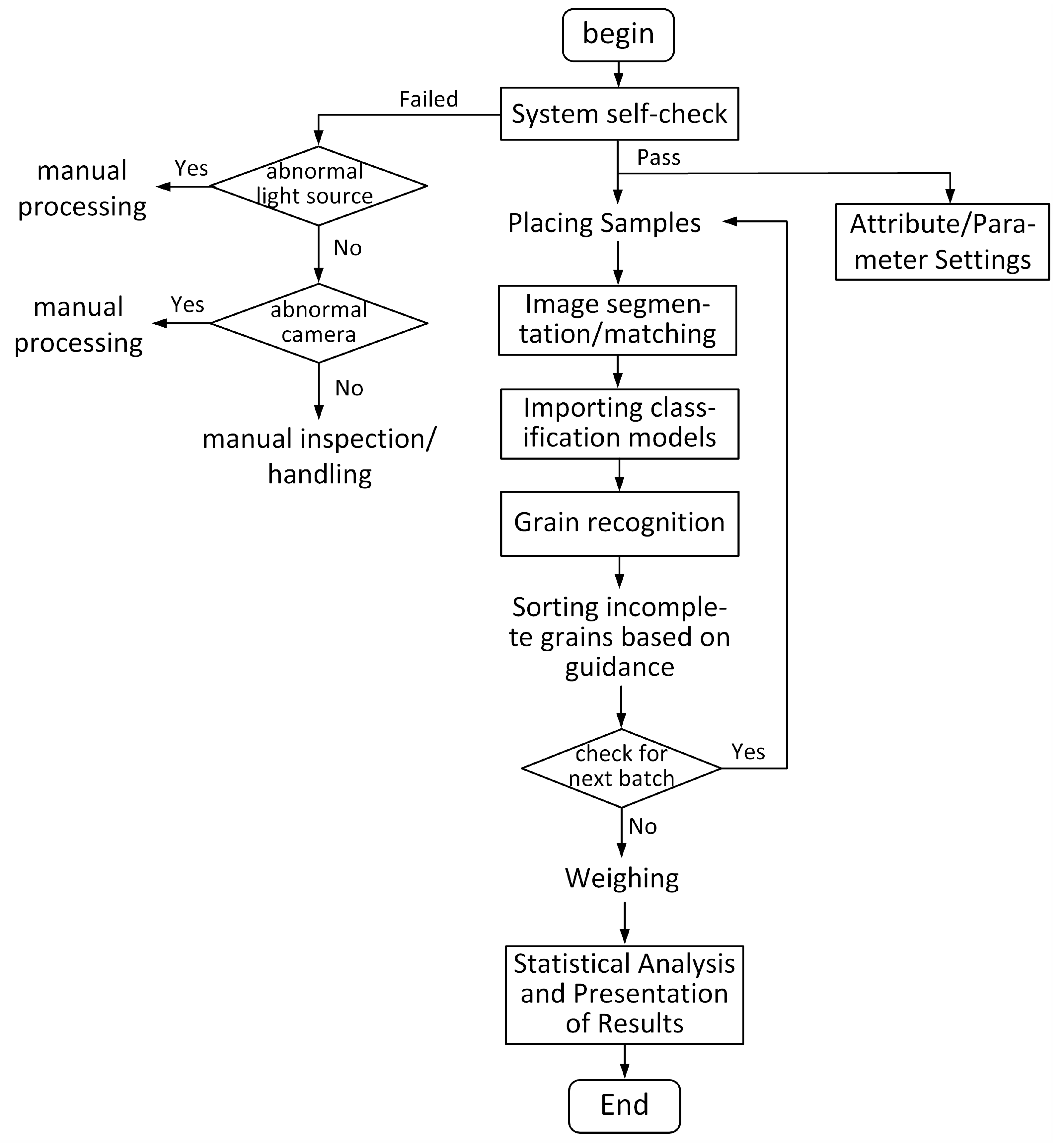

The software design workflow diagram of our system is depicted in Figure 6. Solid line boxes denote tasks automated by the system, while unmarked areas require manual intervention. Upon opening our system software, it enters the self-check mode, primarily evaluating the operational status of the light source and cameras based on the light intensity and image quality. If any anomalies are detected, manual intervention is needed for repairs, such as checking for loose power lines, replacing light sources, and adjusting the camera alignment. Once the self-check is passed, the system proceeds to the imperfect grain detection phase for wheat. Initially, camera parameters and model hyperparameters can be manually adjusted, or default settings from the software can be utilized. Subsequently, the sampling plate is positioned on the shelf (Figure 2) and sample insertion into the system is initiated by pressing the control button outside the device. Clicking the detection button on the software interface captures the final frame images from the upper and lower cameras. Leveraging the segmentation and matching module introduced in this study, the system extracts individual wheat grains from the images, followed by applying the trained fine-grained classification model to detect imperfect grains one by one and annotating their positions. Upon retrieving the sampling plate, the software automatically opens the sorting interface (Figure 4), enabling the user to utilize the vision-guided human–machine interactive sorting module proposed in this study to pick up the imperfect grains. The system then determines whether to proceed with the next batch; if yes, the process repeats, if no, the weight of the picked up imperfect grains is measured. The system automatically reads the weight results and presents them in a histogram on the interface for the operator to view and save.

The developed software interface is characterized by simplicity, clarity, strong consistency, feedback capability, and ease of navigation. Its simplicity and clarity allow users to quickly locate the functions and modules they require. Strong consistency ensures that the layout, style, and interaction elements of our interface remain consistent, aiding users in better understanding and utilizing the application. The feedback capability involves providing timely feedback to users, such as indicating the acceptance of their actions through progress bars and dialog boxes. Lastly, the ease of navigation ensures that users can effortlessly access the information they need, thanks to clear navigation menus, labels, and buttons.

2.3.2. Fine-Grained Classification Model for Wheat Quality

• Model structure

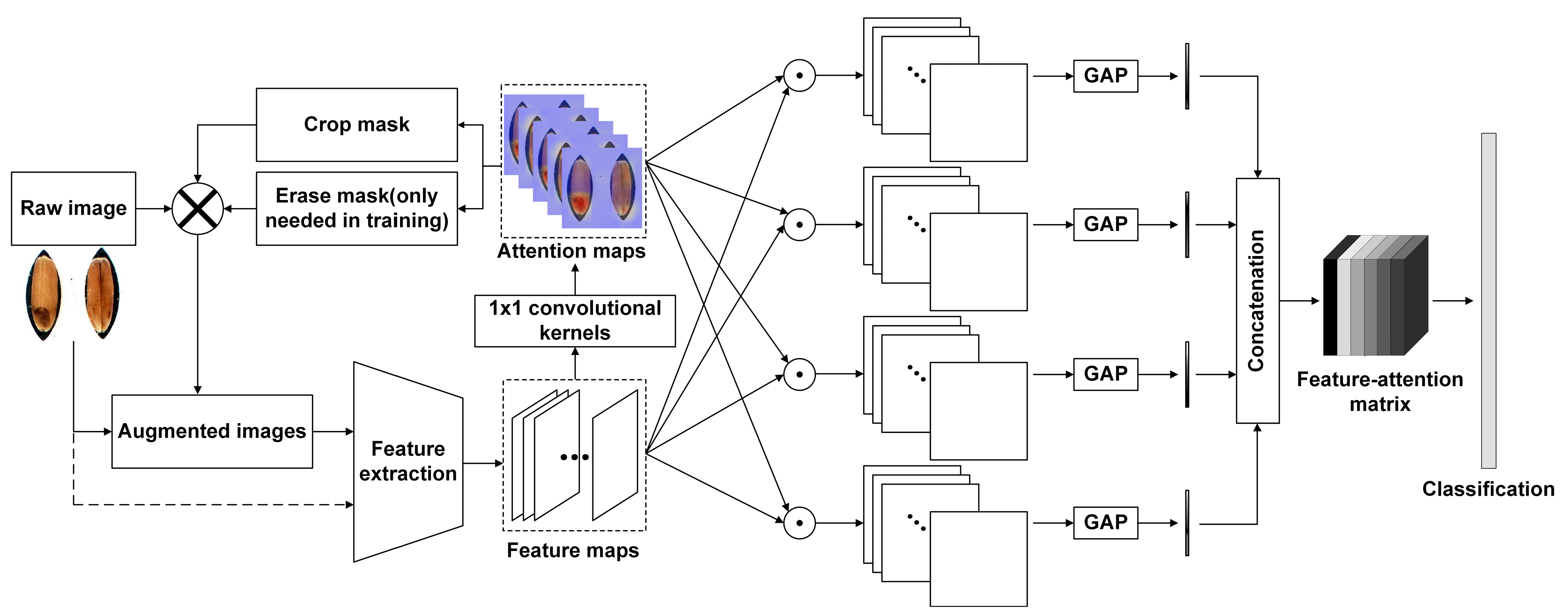

In this study, we developed a weakly supervised neural network model named the Attention-based Cropping and Erasing Network [23] (ACEN, the study has been published in Neurocomputing) for model training, as depicted in Figure 7.

Initially, we extracted feature maps from a basic CNN model and then generated attention maps using a 1 × 1 convolution kernel on these feature maps. Subsequently, we utilized a bilinear global pooling framework [24] to combine the feature maps and attention maps into a final feature-attention matrix. This matrix was fed into the classification head to determine the wheat category. By imposing alignment constraints, our model can create distinctive feature representations for each subclass using straightforward training strategies and minimal computational costs. To encourage multi-attention learning and mitigate overfitting, we employed attention region cropping and erasing operations. Attention cropping images highlight locally magnified discriminative object parts, while attention erasing images eliminate information-rich regions from the original image, prompting the model to focus on other informative regions. These enhanced images were fed into our model to improve the robust fine-grained feature learning, offering an effective solution for fine-grained classification compared to standard random data augmentation. During testing, our network initially predicts the classification of the original image, known as the coarse prediction. Based on the confidence value and attention map, we obtain the fine-grained cropping image, and the model generates a fine-grained prediction. This prediction is integrated with the coarse and fine predictions to form the final result.

• Performance of the ACEN model on the wheat dataset

The ACEN model, known for its universal fine-grained classification capabilities, has demonstrated high performance on three widely used fine-grained classification datasets (CUB-200-2011 [25], FGVC-Aircrafts [26], and Stanford Cars [27]). As a result, we sought to integrate it into our system. Given that our fine-grained classification task lies between coarse-grained and typical fine-grained tasks in terms of complexity, we speculated that utilizing a simpler backbone model like ResNet-50 could meet the practical requirements. To validate this speculation, we replaced the original ResNet-101 backbone in ACEN with ResNet-50 and evaluated both models’ performance on our wheat fine-grained classification dataset. Interestingly, both models achieved comparable recognition accuracy (as depicted in

Table 2. The performance of different backbones in ACEN based on our dataset.

Base Model	Wheat Acc. (%)
ACEN(ResNet-50)	96.0
ACEN(ResNet-101)	95.9

). This suggests that our task’s inherent complexity does not necessitate an intricate backbone to effectively learn data patterns and features.

Based on the aforementioned study, we compared the ACEN method with other advanced fine-grained classification models (all utilizing ResNet-50 as the backbone) on the wheat dataset, as demonstrated in

Table 3. Different fine-grained classification methods’ performance on the wheat dataset.

Methods	Accuracy (%)
Baseline [28]	93.0
NTS-Net [29]	95.0
WSDAN [24]	94.8
PMG [30]	95.7
API-Net [31]	95.8
ACEN	96.0

. The results demonstrated the ACEN method achieved a state-of-the-art performance compared to other fine-grained classification network models. Consequently, we integrated the ACEN method into the software system for detecting imperfect wheat grains.

2.4. Testing and Evaluation Criteria

• System recognition accuracy

To validate the system’s effectiveness, we conducted an evaluation of its recognition accuracy. We randomly selected 10 batches of wheat samples, each containing 50 g of seeds (according to the National Standard of the People’s Republic of China GBT 5494-2019 [32], 50 g of medium-sized seeds (such as wheat, grain sorghum) in a batch). Our system detected each batch of wheat samples, and the detection results were individually evaluated by experienced inspectors for each grain. We calculated perfect grains, imperfect grains, and the average recognition accuracy across all samples using Formulas (1)–(3), as well as the system’s recognition accuracy for each type of imperfect grain (Formula (2)).

Perfect grain recognition accuracy = (NP/TP) × 100%

(1)

Imperfect grain recognition accuracy = (NIP/TIP) × 100%

(2)

Overall accuracy = (NP + NIP)/(TP + TIP) × 100%

(3)

Here, NP represents the number of perfect grains correctly identified by the machine; TP represents the total number of perfect grains identified by the machine; NIP represents the number of imperfect grains correctly identified by the machine; and TIP represents the total number of imperfect grains identified by the machine.

• System Detection Time

The efficiency in detection is a crucial measure of system usability for an automated intelligent detection system. To evaluate this, we compared the time taken for manual inspection by experienced quality inspectors with the time required for our system to detect samples in a single batch.

3. Results

3.1. System Recognition Performance

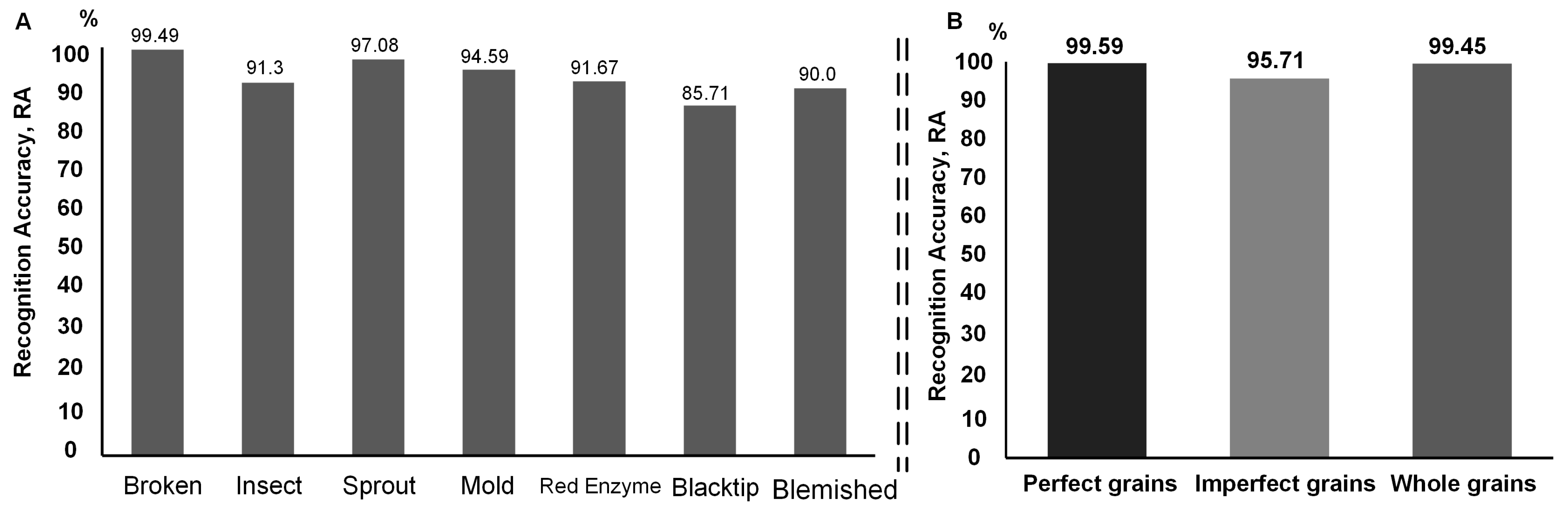

In this study, we utilized our operating system to analyze wheat samples from 10 batches to assess the system’s recognition accuracy (depicted in Figure 8). Figure 8A represents the system’s recognition accuracy for each type of imperfect grain. There were variations in the system’s accuracy in recognizing different categories of imperfect grains. This discrepancy may stem from certain categories having distinct features that make them easier for the model to identify (such as broken grains). Conversely, other categories of imperfect grains may exhibit less conspicuous characteristics, leading to a lower accuracy (like black-tipped grains). Moving forward, we plan to prioritize enhancing the model’s ability to recognize categories with less distinct features. Figure 8B represents the system’s average recognition accuracy results for perfect grains, imperfect grains, and all of the test samples. Across all samples, the system exhibited an average recognition accuracy of 99.59% for perfect grains and 95.71% for imperfect grains. As for the entire set of wheat samples, the system achieved a comprehensive recognition accuracy of 99.45%. The recognition accuracy for imperfect grains was slightly lower than that for perfect grains. This disparity can be attributed to the fact that the model primarily focuses on the global information of the entire sample during the discrimination of perfect grains. In contrast, the model must accurately discern the local features of wheat for imperfect grains, which is influenced by factors like lighting conditions, shooting angles of the samples, or subtle differences between categories that are not easily distinguishable. These factors occasionally lead to confusion and misinterpretations in the model’s recognition process.

3.2. Efficiency of the Wheat Appearance Quality Intelligent Detection System

The purpose of designing this system in our study is to replace traditional manual inspection with intelligent detection. Therefore, evaluating the system’s efficiency during operation is essential.

Table 4. The time taken by the system compared to manual operations.

Function	Time/min
Capture Image and Preprocessing (Segmentation/Pairing)	~(0.5 × 2)
Automatic Detection	~(2.5 × 2)
Manually Picking up	~(3 × 2)
Total Duration	~12
Time Taken by Inspector	~60

presents a comparison of the time duration for each stage using the system for 50 g of wheat (one sample batch, requiring two detection cycles) and the time duration for manual operations. It is evident that an experienced quality inspector takes approximately five times longer to complete a batch of wheat inspection compared to the machine. Hence, the development of this intelligent detection system is crucial.

Furthermore, it is important to highlight that our system is not limited to the intelligent detection of wheat samples but can also be adapted for assessing the appearance quality of various granular crops. The key difference is that when evaluating other crop categories, we must design a high-throughput sampling plate tailored to the specific crop under examination, along with gathering high-quality datasets for model training.

4. Discussion

4.1. Discussion about the System Hardware Design

In this study, we implemented a high-throughput sampling plate with a chamfered edge design (Section 2.1.1) to optimize the camera’s ability to capture detailed image information. For wheat appearance quality detection, even minor visual obstructions can significantly impact the recognition accuracy. For example, a small obstruction like a hole in an insect grain occurring in the camera’s blind spot, may be mistakenly identified as a normal grain. Similarly, the unnoticed sharp tip of a black-tipped grain can also be misidentified as a normal grain. Therefore, the targeted design of the sampling plate in this study is crucial to ensuring the comprehensive capture of wheat information. Furthermore, in a single batch of samples, the proportion of imperfect grains is pivotal for evaluating the wheat batch quality. Hence, picking up and weighing the identified imperfect grains becomes necessary. The sorting interface developed in this study, combined with the densely arranged sampling plate, aids inspectors in swiftly identifying various imperfect grain types and picking them efficiently (as depicted in Figure 4). Moreover, this study integrated existing hardware into an intelligent system for wheat appearance quality detection. The decision to use high-resolution cameras ensures that the captured wheat image pixels meet the image recognition algorithm requirements, while also factoring in equipment costs. The selection of sampling plate materials involved screening from numerous options and considering factors like transport durability and resistance to discoloration from long-term ultraviolet exposure. The sampling plate size underwent rigorous testing; a size too large would hinder transport, while a size too small would necessitate multiple repetitions per batch, affecting the system’s efficiency. Overall, our hardware design aimed to enhance the practicality and effectiveness of the entire system. However, it is worth noting that this study did not achieve fully automated wheat quality detection, picking, and weighing. Future utilization of deep learning algorithms to directly map imperfect grain images with their weight may pave the way for complete system automation.

4.2. Discussion about the System Software Design

The focus of this study was the overall system design. To ensure optimal performance across all system modules, we developed corresponding software that was tailored to control the hardware components and execute specific functionalities through the integrated algorithmic modules. Our software initiates a system self-check during startup, analyzing the image quality captured by the camera to detect abnormalities in the light source or camera. Once the self-check is passed, a quality inspection of wheat’s appearance can be carried out. This phase incorporates segmentation and matching algorithms alongside a fine-grained classification network, enabling the precise grain-by-grain detection of wheat samples on the sampling board. Following this, our sorting interface guides inspectors in identifying and picking up various types of imperfect grains. Upon manual weighing, the results are fed into the software, which automatically generates a user-friendly histogram for convenient viewing and analysis. Therefore, we interconnected the system’s hardware via software, allowing it to execute detection tasks through human–machine interactions.

5. Conclusions

This study harnessed deep learning-based AI technology to develop a classification model for assessing wheat appearance quality, with the goal of categorizing and statistically analyzing the appearance quality of wheat samples. The model demonstrates exceptional accuracy, swift decision-making capabilities, robust generalization, and high repeatability. The innovative design of dual cameras (top and bottom) and the high-throughput sampling plate proposed in this study allows for comprehensive image capture from both sides of the target object. Additionally, the double-sided chamfer design of the sieve holes enhances the image capture comprehensiveness. Furthermore, the size and shape of the sieve holes can be tailored to different crop varieties, thus broadening the system’s applicability. Moreover, the incorporation of indicators for picking up imperfect grains streamlines the sorting process for inspectors, enabling quick and efficient crop sorting. These advancements collectively contribute to the efficacy and versatility of our system in intelligent crop quality assessment. Overall, our study presents a robust solution for wheat appearance quality assessment, leveraging cutting-edge technology to enhance the efficiency and accuracy of crop quality evaluation processes.
