UBC Gene Family Analysis in Salvia castanea and Roles of ScUBC2/5 Genes under Abiotic Stress

by
Longyi Zhu
1,
Yuee Sun
1,
Najeeb Ullah
2,
Guilian Zhang
1,
Hui Liu
3 and
Ling Xu
1,*
1
Zhejiang Province Key Laboratory of Plant Secondary Metabolism and Regulation, College of Life Sciences and Medicine, Zhejiang Sci-Tech University, Hangzhou 310018, China
2
Agricultural Research Station, Office of VP for Research & Graduate Studies, Qatar University, Doha 2713, Qatar
3
Faculty of Science, UWA Institute of Agriculture, UWA School of Agriculture and Environment, The University of Western Australia, Perth, WA 6009, Australia
*
Author to whom correspondence should be addressed.
Plants 2024, 13(10), 1353; https://doi.org/10.3390/plants13101353
Submission received: 20 March 2024 / Revised: 7 May 2024 / Accepted: 9 May 2024 / Published: 14 May 2024
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Salvia castanea Diels, a relative of the medicinal plant Salvia miltiorrhiza Bunge, belongs to the genus Salvia and family Lamiaceae. Ubiquitin-conjugating enzyme E2 (UBC) is an important ubiquitin-binding enzyme in protein ubiquitination. This study aimed to analyze the regulatory role of UBC genes, particularly ScUBC2/5, on the growth and adaptation of S. castanea to extreme environments including cold or drought stress. We identified nine UBC genes in S. castanea and found that these genes were extremely stable and more highly expressed in the roots than other tissues. This suggested that UBC genes might play a role in promoting root adaptation to cold and dry environments. Further analysis of UBC gene expression in hairy roots under cold (4 °C) and UV stress also confirmed their importance under stress. The contents of tanshinone and salvianolic acid in hairy roots with the overexpression of ScUBC2/5 were increased compared to non-transgenic wild type, and the cold and UV resistance of hairy roots was increased compared with that of wild type. Together, these findings highlighted the role of ScUBC2/5 in enhancing secondary metabolite accumulation and regulation in response to cold and ultraviolet stress in S. castanea, providing a new perspective for genetic improvement in its phytochemistry.

1. Introduction

Salvia castanea Diels, a perennial fragrant herb with castaneous flowers, is mainly distributed in areas with an altitude of 2500–3750 m [1]. Salvia is a very large genus of Lamiaceae, with nearly 900 species [2], including well-cultivated Chinese traditional medicine Salvia miltiorrhiza Bunge, also known as “DanShen” [3]. S. castanea is an important wild germplasm resource in the Qinghai–Tibet Plateau, and an important relative species of S. miltiorrhiza. Both species can be used as medicinal plants for treating cardiovascular diseases [4]. The active ingredients of these plants can regulate menstruation by dispelling blood stasis, relieving pain, eliminating carbuncles and irritation, and nourishing the blood [5,6]. S. castanea has certain ornamental properties but this species has particularly been explored for its medicinal values both in China and overseas. In Tibet and some other parts of China, S. castanea is often used as a substitute for S. miltiorrhisa for treating cardiovascular diseases, palpitations, insomnia, jaundice fever, etc. [7]. With high antioxidant capacity, S. castanea has no adverse reactions for long-term medication usage [8].
Abiotic stress affects plant survival and growth, and their accumulation of secondary metabolites [9]. Extreme climates in high-altitude areas, such as long-term sunshine, low temperature, and high ultraviolet radiation intensity, will affect the evolution of plants. To adapt to these special plateau climates, plants have developed specialized traits, such as densely covered surfaces, fleshy leaves, colorful appearances, and a high content of secondary metabolites [10,11]. The adaptation to harsh climates in S. castanea is reported to be facilitated by its active ingredients, including both fat-soluble compounds, such as tanshinoneIIA (TIIA), tanshinoneI(T-I), and cryptotanshinone (CT), and water-soluble compounds, such as salvianolic acid B [12,13,14,15]. In addition, phenolic substances have an important role in protecting plants from ultraviolet radiation, forming a protective barrier against UV-B at high altitudes [16]. And terpenoids regulate plant growth and development [17]; for example, tanshinone IIA can protect cells from oxidative damage by regulating reactive oxygen species (ROS) generation [18]. Previous reports indicated significant variation in active ingredient concentrations in S. castanea and S. miltiorrhiza roots at the same developmental phase [15,19]. For example, S. castanea contains relatively more tanshinone, and S. miltiorrhiza produces higher levels of salvianolic acid B at flowering [20]. The chemistry, pharmacology, and pharmacodynamics of both species have been extensively explored, but the major divergent mechanism remains unknown [1,21,22,23].
The ubiquitin/26S proteasome pathway is a highly efficient and specific regulatory mechanism of plant protein degradation, and plays an important role in the regulation of the biosynthesis of secondary metabolites [24]. It mediates various signal transduction pathways and immune response to environmental stress [25,26]. There are three main enzymes in this pathway: ubiquitin-activating enzyme (E1), ubiquitin-conjugating enzyme (E2), and ubiquitin ligase (E3). Ubiquitin-conjugating enzyme E2 (UBC) plays a central role in this pathway and is involved in protein degradation along with E1 and E3 [27]. Ubiquitination, a key regulator of various physiological processes including DNA repair and cell cycle control [28], is integral to multiple aspects of plant biology such as hormone responses, light signaling, embryogenesis, organogenesis, leaf aging, and defense mechanisms [29], underscoring the significant role of the UBC gene family in orchestrating the ubiquitin/proteasome pathway in plants. Research on the UBC family has been documented in many plants such as Glycine max L. [30], Solanum tuberosum L. [31], and Brassica napus L. [32], unraveling a major role of UBC genes in responding to challenges such as ultraviolet irradiation and cold stress. To better understand the adaptability of S. castanea to the extreme high-altitude environment, characterized by intense ultraviolet light and low temperatures, this study aims to perform a comprehensive analysis of ScUBC2 and ScUBC5 genes in S. castanea for their structures, functions, and expressions under stress, and their possible roles in regulating those secondary metabolites as active ingredients of this important medicinal plant.

2. Results

2.1. Analysis of UBC Gene Family Members in S. castanea and Other Species

In this study, a total of 9 UBC genes were identified in S. castanea (named ScUBC1–ScUBC9) and 32 UBC genes in other species. Isoelectric point and molecular weight analysis were performed on 41 UBC sequences using ExPASy (Table 1). The results showed that the difference between the isoelectric point and molecular weight of the nine ScUBCs was not large, the isoelectric point range was 7.69–7.72, and the molecular weight range was 16,446.96–16,606.17 Da. Andrographis paniculata and Amborella trichopoda had the largest differences in isoelectric points and molecular weights compared with S. castanea, which were 6.03, 8441.88 Da and 8.32, 20,429.61 Da, respectively. This result preliminarily confirmed that S. castanea is most closely related to S. miltiorrhiza, and gene functions in S. castanea are similar to those in Andrographis paniculata and Amborella trichopoda.
The ORF sequence length of ScUBC2 was 447 bp, encoding 148 amino acids, including 16 strongly basic (K,R), 15 strongly acidic (D,E), and 47 hydrophobic amino acids (A,I,L,F,W,V). There were also 38 polar amino acids (N,C,Q,S,T,Y). ExPASy online software predicted the molecular weight of the protein as 16,562.15 and the isoelectric point (PI) as 7.72. This indicated a basic nature of protein with 15 negatively (Asp + Glu) and 16 positively (Arg + Lys) charged residues. The instability index (II) was calculated as 46.06, which classified the protein as unstable. This analysis indicated an aliphatic index of 75.81 and a grand average of hydropathicity of −0.311. The SMART prediction results showed that there was no low complexity of the copy area. According to the online software TMHMM-2.0, the protein was predicted to have no transmembrane helical region, indicating that it could be expressed in the prokaryotic expression system.
Similar to ScUBC2, ScUBC5 had an ORF sequence length of 447 bp, encoding 148 amino acids, including 16 strongly basic (K,R), 15 strongly acidic (D,E), and 47 hydrophobic amino acids (A,I,L,F,W,V). Further, it contained 39 polar amino acids (N,C,Q,S,T,Y). ExPASy online software predicted the protein molecular weight as 16,566.10 and isoelectric point (PI) as 7.72, indicating a basic nature of the protein, with 15 negatively (Asp + Glu) and 16 positively (Arg + Lys) charged residues. With an II value of 49.75, the ScUBC5 protein was classified as unstable. The aliphatic index was 75.81 and the grand average of hydropathicity was −0.311. SMART prediction results showed that there was no low complexity of the copy area. The online software TMHMM-2.0 predicted that the protein had no transmembrane helical region, indicating that it could be expressed in the prokaryotic expression system.

2.2. Phylogenetic Tree Analysis of ScUBCs

The sequence alignment diagram of ScUBCs is shown in Figure 1. Genes within the same branch in the evolutionary relationship shared similar functions. However, some structural variations occurred during evolution. In ScUBCs, most protein sequences were consistent and stable, with only a few mutations. For example, in the seventh column, only ScUBC7 and ScUBC8 mutated into Q, and the others remained L. These mutations may be the reason for the structural and functional specificity of ScUBCs.
Based on the UBC domain sequences of 15 species, MEGA7.0 software was used to determine the optimal amino acid replacement model as JTT + G + I. A phylogenetic tree of S. castanea and 14 other species was drawn, and the species were divided into Groups A to G according to evolutionary branches. There were seven groups in total (Figure 2). ScUBCs and SmUBCs mainly clustered into the same branch. ScUBC1 and SiUBC1 clustered in Group A. ScUBC2 clustered with SmUBC1, SmUBC3, and SmUBC6 in Group B. ScUBC5 and ScUBC9 clustered with SmUBC2 and SmUBC6 in Group C; ScUBC3, ScUBC4, and ScUBC6 clustered with SmUBC4 in Group D. ScUBC7 and ScUBC8 clustered with SmUBC5 and SmoUBC2 in Group G. Meanwhile, no ScUBCs were found in Group E or Group F. The results indicated that among the investigated species, S. castanea was closely related to S. miltiorrhiza, but far related to Arabidopsis thaliana (L.) Heynh., Amborella trichopoda, and Musa acuminata.

2.3. UBC Gene Structure Characteristics of S. castanea

The 41 sequences were visualized using TBtools 11 software (Figure 3). According to phylogenetic clades, Ga-Gg was divided into seven groups. The results showed that the sequences of ScUBCs had Motif 1, Motif 2, and Motif 3 with most UBCs, indicating that the sequences of this gene family were conserved and functionally similar. In addition, the AtrUBC sequence was the longest and had Motif 7, Motif 8, and Motif 9. There were also Motif 4, Motif 5, Motif 6, and Motif 10 in ZmUBC4. However, Motif 1, Motif 2, and Motif 3 were not present in ApUBC, which suggested some differences in the function of these genes.

2.4. Secondary Structure Prediction and 3D Structure Prediction of ScUBC2 and ScUBC5

The prediction results of the secondary structure of ScUBC2 using the online software SOPMA are shown in Figure 4. Among the proteins encoded by the ScUBC2 gene, the Alpha helix accounted for 37.8% and the extended strand accounted for 17.56%. The Beta turn accounted for 6.1% and the random coil for 38.5%, indicating that the random coil structure was the skeleton of protein UBC2. Among the amino acids encoded by the ScUBC2 gene, proline was the most abundant. The prediction results of the secondary structure of ScUBC5 are shown in Figure 5. Among the proteins encoded by the ScUBC5 gene, the Alpha helix accounted for 37.84%, the extended strand accounted for 17.57%, and the Beta turn accounted for 4.73%. The random coil accounted for 39.86%, indicating that the random coil structure was the skeleton of protein UBC5. The amino acids contained in ScUBC2 (Figure 6a) and ScUBC5 (Figure 6b) are shown in Figure 6, both of which had the highest proportion of proline.
As can be seen from Figure 7, the GMQE value of the 3D predicted structure chart reaches 0.97, close to 1. The Ramachandran figure shows that more than 99.32% of amino acid residues are in the allowed region, indicating that the protein model is of good quality (Figure 7b). In Figure 8, the GMQE value of the 3D predicted structure chart reaches 0.96, close to 1. The Ramachandran figure shows that more than 96.62% of amino acid residues are in the allowed region, indicating that the protein model is of good quality (Figure 8b).

2.5. ScUBC Gene Expression Pattern

In this study, based on the expression data of ScUBCs, a heat map was created, and nine ScUBC genes were divided into three categories: GI, GII, and GIII. ScUBC8 was classified as GI; ScUBC3, ScUBC4, ScUBC6, and ScUBC7 as GII; and ScUBC1, ScUBC2, ScUBC5, and ScUBC9 as GIII (Figure 9). The expression patterns of the nine ScUBC genes were GIII > GIII > GI in the leaf, pericarp, phloem, and xylem of S. castanea. Meanwhile, the expression levels of ScUBC2 and ScUBC5 were higher than those of the other genes.
In GIII, ScUBC5 expression was the strongest, and the expression level in roots was higher than that in leaves. The expression level of ScUBC2 was the highest in AR2, which was increased by 75% compared to PR2. In comparison to PR3, the expression of AR3 was increased by 51%. In GII, the expression of ScUBC3 and ScUBC6 in AL was increased by 90% and 74%, respectively, compared to PL. In comparison to PR1, the expression of ScUBC3 and ScUBC6 in PR1 was increased by 91% and 45%, respectively. In addition, we found that ScUBC8 was down-regulated in leaves, and expressed in different root tissues at different ages, suggesting that the function of this gene had a low effect on perennial leaf tissue. In conclusion, the expression of ScUBCs was up-regulated during different development stages in S. castanea, indicating that this family played an important regulatory role in S. castanea growth. Meanwhile, the up-regulation of the ScUBC5 gene was the most obvious, followed by ScUBC2, which was presumed to play an important role in the adaptation of S. castanea to the plateau environment. Therefore, the UBC2 and UBC5 genes were selected for subsequent experiments to investigate their expressions in hairy roots.

2.6. Screening of Hairy Roots with Overexpression of ScUBC2 and ScUBC5 in S. castanea

After 20 days of culture (Figure 10), the hairy roots of the sample were interleaved into clumps, and new white roots grew out of the branches. The medium was clarified, and the medium in conical bottles was red. After PCR amplification, agar gel electrophoresis showed that the band size was correct, which confirmed that the gene had been successfully introduced into the hairy root (Figure 11). The gel electrophoresis results showed that the hairy roots were transgenic (named ScUBC2-1, ScUBC2-2, ScUBC2-3, ScUBC5-1, ScUBC5-2, and ScUBC5-3). A single line of transgenic hairy roots was selected, and after 20 days of culture, RNA was extracted and quantitative PCR was performed. The lines with a high gene expression were selected for follow-up experiments. Figure 12 shows that ScUBC2-1, ScUBC2-2, ScUBC5-2, and ScUBC5-3 have higher gene expression levels in overexpressed lines, and there is little difference in gene expression levels between wild type and empty vector, indicating that empty plasmid has little influence on the genes of the hairy root synthesis pathway.

2.7. Functional Verification of S. castanea UBC2/5 under Abiotic Stress

According to quantitative PCR results, the gene expressions of those increased hairy roots that were treated at 4 °C for 3 h showed up-regulation compared to those of wild-type ATCC15834 hairy roots (Figure 13a). The expression levels of those increased hairy roots after 0.5 h ultraviolet irradiation were all up-regulated compared to those of wild-type ATCC15834 hairy roots (Figure 13b).

2.8. Determination of Tanshinones and Phenolic Acids in Overexpressed Hairy Roots

The HPLC results showed that compared to wild-type hairy roots, the contents of dihydrotanshinone I (DT-I), cryptotanshinone (CT), tanshinone I (T-I), and tanshinone IIA (T-IIA) in hairy roots with UBC2 gene overexpression were significantly increased, while the contents of salvianolic acid B (SAB) were slightly decreased (Figure 14).The contents of the five substances in hairy roots with UBC5 overexpression were significantly higher than those in wild-type.

3. Discussion

3.1. Discussion of ScUBC Gene Family

At present, the UBC gene family has been widely identified in soybean Glyma max [30], Solanum tuberosum [31], Brassica napus [32], Litchi chinensis Sonn. [33], and other plants. Some UBC family members have been systematically studied in Arabidopsis thaliana [34], Oryza sativa [35], Nicotiana tabacum [36], and other model plants, but no similar studies have been conducted in S. castanea. In this study, nine ScUBCs from S. castanea were identified using gene family analysis. Ubiquitin-conjugating enzyme E2 has been reported to contain a highly conserved UBC domain consisting of about 140–200 amino acids [37]. By comparing the evolutionary tree with 14 other species, it can be seen that S. castanea and S. miltiorrhiza are the most closely related. In domain analysis, Motif 1, Motif 2, and Motif 3 were found in both S. castanea and other species, indicating that the ScUBCs had highly conserved domains during evolution. At the same time, most of the ScUBCs were up-regulated in roots at different ages, and ScUBC5 was the most up-regulated gene, followed by ScUBC2, suggesting that they played an important role in the adaptation to the plateau environment. The ORF sequence length of both ScUBC2 and ScUBC5 is 447 bp, encoding 148 amino acids, and the number of strong basic amino acids, strong acidic amino acids, and hydrophobic amino acids is the same. The only difference is that ScUBC5 has one more polar amino acid than ScUBC2. Both proteins are unstable and have no low complexity, no transmembrane helical region, and can be expressed in the prokaryotic expression system.

3.2. Discussion of the Functional Analysis of ScUBC2 and ScUBC5 under Abiotic Stress

The effects of the overexpression of ScUBC2 and ScUBC5 on the accumulation of secondary metabolites, as well as the adaptation to cold and UV stress, were mainly analyzed based on these two genes. First, the hairy roots that successfully introduced ScUBC2 and ScUBC5 genes were screened. Then, the expression levels of those hairy roots with the gene overexpression that were treated with 4 °C cold stress or ultraviolet irradiation showed a significant increase of 1.5 to 2.5 times compared with those of wild type, indicating that the stress resistance of the hairy roots with an overexpression of ScUBC2 and/or ScUBC5 genes was enhanced. The UBC genes play an integral role in the biological processes of plants, such as plant growth and response to stress [38]. For example, the AtUBC2 gene plays a key role in tolerance response to UV stress and the activation of flower suppressor genes [34]. In Zea mays, the expression of the ZmUBC gene was significantly up-regulated under drought and salt stress [38]. The results of UBC gene expression in different species under stress are consistent with our findings. The expression of the ScUBC gene was also significantly up-regulated under UV stress and drought stress.

3.3. Discussion on Changes in Secondary Metabolites in S. castanea under Stress

The accumulation of secondary metabolites such as tanshinone and salvianolic acid is closely related to the anti-stress function of S. castanea. The accumulation of dihydrotanshinone (DT-I) in the hairy roots of ScUBC2 overexpression was 5.32 and 4.36 times that of the wild type, and the accumulation of cryptotanshinone (CT) was 11.22 and 10.76 times that of the wild type. The accumulation of tanshinone I (T-I) and tanshinone IIA (TIIA) was 2.67 times, 3.85 times, 6.31 times, and 11.45 times that of the wild type, and the accumulation of salvianolic acid B (SAB) was lower than that of the wild type. The accumulation of cryptotanshinone and tanshinone IIA in the hairy roots of ScUBC5 overexpression was 19.88 times, 20.91 times, 22.32 times, and 17.01 times that of the wild type, and also more than twice the accumulation of ScUBC2-overexpressing hairy roots. Meanwhile, the accumulation of rhizosalvianolic acid B in ScUBC5-overexpressed hairy roots was 6.55 times and 1.89 times that of the wild type. It can be seen that although the accumulation of secondary metabolites in the hairy roots with the overexpression of the two genes is higher than that of the wild type, that of hairy roots with ScUBC5 overexpression is extremely high, which is consistent with the results of the expression heat map, confirming the accuracy and reliability of the experimental results in this study.

4. Materials and Methods

4.1. Identification of UBC Gene Family in S. castanea

The gene sequence of S. castanea was derived from transcriptome sequencing. UBC gene sequences from 13 species, including Oryza sativa, Zea mays, and Arabidopsis thaliana, were downloaded from NCBI (https://www.ncbi.nlm.nih.gov). The gene sequence data of S. miltiorrhiza were obtained from the National Bioinformatics Center (https://www.cncb.ac.cn). The target sequences of S. castanea and S. miltiorrhiza were initially screened using a hidden Markov model (HMM, http://pfam.xfam.org) combined with UBC domain (PF00179) [39]. The CD-Search (https://www.ncbi.nlm.nih.gov/cdd, accessed on 13 October 2023), Smart (http://smart.embl.de/, accessed on 13 October 2023) [40], and Pfam databases (http://pfam.xfam.org/search, accessed on 13 October 2023) were used to verify the conserved domain structure. Subsequently, to eliminate duplicate transcripts and obtain the corresponding gene sequences of proteins, we identified the members of the S. castanea UBC protein sequence family. Using ExPASy (http://web.expasy.org/protparam, accessed on 13 October 2023) [41] analysis of proteins, the isoelectric point (pI) and molecular weight (Mw) were obtained.

4.2. ScUBC2 and ScUBC5 Secondary Structure Prediction and 3D Protein Structure Prediction

The amino acid sequences of ScUBC2 and ScUBC5 genes were analyzed using DNAStar (https://www.dnastar.com, accessed on 16 October 2023) and DNAMAN (https://www.lynnon.com/dnaman.html, accessed on 16 October 2023). The online software TMHMM-2.0 (https://services.healthtech.dtu.dk/services/TMHMM-2.0/, accessed on 17 October 2023) was used to predict whether the protein had a transmembrane spiral region. We used the online software SOPMA (https://npsaprabi.ibcp.fr/cgibin/npsa_automat.plpage=npsa_sopma.html, accessed on 18 October 2023) for ScUBC2/5 secondary structure prediction. According to the homologous modeling method, the 3D protein structure model prediction diagram was constructed on swissmodel (https://swissmodel.expasy.org).

4.3. Family Phylogenetic Tree Construction and Analysis of Gene Conserved Domain

The Clustal W analysis method was used to complete the matching sequence. The optimal amino acid replacement model was determined using MEGA7.0 Models. The maximum likelihood (ML) method was used to construct the phylogenetic tree, and the bootstrap was set to 1000 and other parameters were defaulted. The Motif structure was identified using MEME (https://meme-suite.org) [42]. The conserved motifs of 14 species such as Arabidopsis thaliana, Oryza sativa, Zea mays, and S. miltiorrhiza were obtained by MEME, and 10 motifs were set. The 41 sequences were visualized using TBtools 11 software.
The UBC gene sequences of other species, except S. castanea and S. miltiorrhiza, were downloaded from NCBI (https://www.ncbi.nlm.nih.gov). MEGA7.0 software was applied to compare the full-length sequence of the UBC gene family protein of S. castanea. The phylogenetic tree of the gene family was constructed using the neighbor-joining method, and the validation parameter was set to 1000 times. Clustal X-2.1-win-msi software and MEME 5.3.0 software were used to analyze the amino acid sequences of ScUBCs family proteins by means of sequence comparison and conserved domain analysis.

4.4. Mapping of ScUBC Gene Expression Map

Based on S. castanea transcriptome data, screening ScUBC FPKM values through the cloud platform of Lc-Bio Technologies Co., Ltd. (Hangzhou, China) (https://www.omicstudio.cn), heat maps were drawn.

4.5. Screening of Overexpressed Hairy Roots in S. castanea

The plant material S. castanea was collected from Yulong Snow Mountain, Lijiang City, Yunnan Province (Supplementary Figure S1, https://www.tianditu.gov.cn/, Drawing approcal number: NO. GS(2019)1671, Produced by Ministry of Natural Resources). The roots were used for this experiment, and the other tissues were frozen at −80 °C.
This experiment used the DNA extraction kit Plant Genomic DNA Kit from Hangzhou Kaitai Biotechnology Co., Ltd. (Hangzhou, China). The FastPure Universal Plant Total RNA Isolation Kit (RC411) and HiScript III 1st Strand cDNA Synthesis Kit (+gDNA wiper) were all from Vazyme Biotechnology Co., Ltd. (Nanjing, China) PrimeSTAR® Max DNA Polymerase High fidelity enzyme, DL2000 DNA Marker, DL5000 DNA Marker, and 6 × Loading Buffer were from Takara Biotechnology (Kusatsu, Japan). The nucleic acid dye came from Shanghai Bioscience Co., Ltd. (Shanghai, China).
The agrobacterium-mediated transient transformation has the advantages of low cost, easy operation, and high success rate, and it is used in many research fields, including gene expression detection, gene silencing, subcellular localization, protein interaction analysis, and inhibitor function identification [43]. Several single lines of hairy roots containing a wild type of agrobacterium hair-root ATCC15834, an empty vector of pCAMBIA1300-eGFP, an overexpression vector of pCAMBIA1300-ScUBC2, and an overexpression vector of pCAMBIA1300-ScUBC5 were taken. The extracted DNA was used to verify the presence of the target gene in the hairy roots for subsequent tests. RNA was extracted from the selected positive strains and reverse-transcribed into cDNA, and the obtained cDNA was used for fluorescence quantitative PCR. After obtaining the results, the 2−∆∆Ct method was used to calculate the two overexpressed strains selected for each strain [44]. The primers used are shown in Table 2.

4.6. Functional Verification of S. castanea UBC 2/5 under Abiotic Stress

The experiment materials, instruments, and methods are the same as mentioned in Section 2.4. Overexpressed hairy roots and wild-type hairy roots were cultured in conical bottles containing 6,7 V medium [45] for 20 days and were evenly divided into 5 groups; each group had 15 bottles. One group was control without any treatment, one group was treated under ultraviolet light for 0.5 h, one group was treated under ultraviolet light for 1 h, one group was placed at 4 °C for 3 h, and one group as placed at 4 °C for 6 h. There were three biological replicates for each treatment. The treated hairy root RNA was extracted and converted into cDNA for fluorescence quantitative PCR to determine its expression. The primers used are shown in Table 2.

4.7. Content Determination of Tanshinones and Phenolic Acids

We took 1.0 g samples from conical bottles, dried them in the oven to constant weight, and ground them into powder in a sample grinding tube. After repeated weighing, 0.02 g of each sample was taken and dissolved in a 2 mL centrifuge tube containing 1 mL 70% methanol. After ultrasound and centrifugation, the supernatant was collected with a disposable syringe and filtered through a 0.22 µm filter membrane to obtain the sample for testing. The technique was repeated three times for each treatment. The content of active components in plant tissues was determined using a Waters e2695 high-performance liquid chromatograph (Waters, Milford, MA, USA). The chromatographic conditions were a flow rate of 1 mL/min, a column temperature of 30 °C, and a sample volume of 10 µL. The tanshinones and phenolic acids were detected at 270 nm and 288 nm, respectively. The mobile phase was 0.02% phosphoric acid aqueous solution and acetonitrile, respectively, for gradient elution [46]. The content of tanshinones and phenolic acids was calculated using the measured peak area according to the standard curves (Table 3).

5. Conclusions

In this study, nine UBC genes were identified in the Salvia castanea Diels genome. The specificity and identity of these UBC genes were verified by comparing them with the UBC genes of other species. In this study, hairy roots of overexpressed ScUBC2 and ScUBC5 genes were screened for functional verification, functional analysis, and composition determination under abiotic stress. Under 4 °C cold stress and UV stress, the expression of the genes in overexpressed hairy roots increased, which proved that the introduction of the UBC gene could enhance adaptation to cold and UV stress in S. castanea. The composition of wild-type and overexpressed hairy roots was determined by means of HPLC. An increased accumulation of secondary metabolites such as tanshinone and salvianolic acid in the overexpressed hairy roots also confirmed that the introduction of the UBC gene could enhance the adaptation of S. castanea to cold and UV. Overall, this study provided a foundation for comprehensive understanding of the distribution, evolutionary relationship, and probable function of ScUBC genes and provided a molecular approach for improving the adaptability of S. castanea in the wild plateau environment, as well as a theoretical basis for breeding new varieties of S. castanea with higher stress resistance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13101353/s1, Figure S1: Jade Dragon Snow (Yulong) Mountain in China and the morphological characteristics of Salvia castanea in the habitat. Longitude, latitude, and altitude: 100°15′ E, 27°9′ N, and 3052 m.

Author Contributions

Conceptualization, L.Z. and L.X.; methodology, formal analysis, and investigation, L.Z. and Y.S.; software, N.U.; validation, L.Z., Y.S. and G.Z.; resources, data curation, and supervision: L.X.; writing—original draft preparation, L.Z.; writing—review and editing, N.U. and H.L.; project administration, L.X.; funding acquisition, L.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (31871694), the China Scholarship Council (CSC), and the Fundamental Research Funds of Zhejiang Sci-Tech University (23042097-Y).

Data Availability Statement

The data presented on this study are available in the article.

Acknowledgments

Thanks are due to the College of Life Sciences and Medicine, Zhejiang Sci-Tech University; Qatar University; the UWA School of Agriculture and Environment; and the UWA Institute of Agriculture, Faculty of Science, The University of Western Australia. We also thank Mengting Cao, graduated from Zhejiang Sci-Tech University, for her assistance.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Su, P.-J.; Zhang, Z.-P.; Cui, W.-B.; Liu, X.; Wang, R.-Y.; Zhi, D.-J.; Qi, F.-M.; Chen, X.-H.; Li, Y.-Q.; Djimabi, K.; et al. Polyoxygenated sesquiterpenoids from Salvia castanea and their potential anti-Alzheime’s disease bioactivities. Fitoterapia 2021, 151, 104867. [Google Scholar] [CrossRef] [PubMed]
  2. Pan, Z.H.; Li, Y.; Wu, X.D.; He, J.; Chen, X.Q.; Xu, G.; Peng, L.Y.; Zhao, Q.S. Norditerpenoids from Salvia castanea Diels f. pubescens. Fitoterapia 2012, 83, 1072–1075. [Google Scholar] [CrossRef] [PubMed]
  3. Jiang, Y.Y.; Wang, L.; Zhang, L.; Wang, T.; Yu, L.; Ding, C.B.; Yang, R.W.; Wang, X.L.; Zhou, Y.H. Characterization, antioxidant and antitumor activities of polysaccharides from Salvia miltiorrhiza Bunge. Int. J. Biol. Macromol. 2014, 70, 92–99. [Google Scholar] [CrossRef]
  4. Fang, Y.; Hou, Z.; Zhang, X.; Yang, D.; Liang, Z. Diverse specialized metabolism and their responses to lactalbumin hydrolysate in hairy root cultures of Salvia miltiorrhiza Bunge and Salvia castanea Diels f. tomentosa Stib. Biochem. Eng. J. 2017, 131, 58–69. [Google Scholar] [CrossRef]
  5. Liang, Z.S.; Yang, D.F.; Liang, X.; Zhang, Y.J.; Liu, Y.; Liu, F.H. Roles of reactive oxygen species in methyl jasmonate and nitric oxide-induced tanshinone production in Salvia miltiorrhiza hairy roots. Plant Cell Rep. 2012, 31, 873–883. [Google Scholar] [CrossRef] [PubMed]
  6. Hou, Z.N.; Li, Y.Y.; Su, F.; Wang, Y.F.; XZhang, X.D.; Xu, L.; Yang, D.F.; Liang, Z.S. The exploration of methyl jasmonate on the tanshinones biosynthesis in hair roots of Salvia miltiorrhiza Bunge and Salvia castanea f. tomentosa Stib. Ind. Crops Prod. 2021, 167, 113563. [Google Scholar] [CrossRef]
  7. Subedi, L.; Gaire, B.P. Tanshinone IIA: A phytochemical as a promising drug candidate for neurodegenerative diseases. Pharmacol. Res. 2021, 169, 105661. [Google Scholar] [CrossRef]
  8. Liu, L.; Yang, D.; Xing, B.; Zhang, H.; Liang, Z. Salvia castanea Hairy Roots are More Tolerant to Phosphate Deficiency than Salvia miltiorrhiza Hairy Roots Based on the Secondary Metabolism and Antioxidant Defenses. Molecules 2018, 23, 1132. [Google Scholar] [CrossRef]
  9. Zhang, Y.; Xia, P. The DREB transcription factor, a biomacromolecule, responds to abiotic stress by regulating the expression of stress-related genes. Int. J. Biol. Macromol. 2023, 243, 125231. [Google Scholar] [CrossRef]
  10. Liu, W.; Zheng, L.; Qi, D. Variation in leaf traits at different altitudes reflects the adaptive strategy of plants to environmental changes. Ecol. Evol. 2020, 10, 8166–8175. [Google Scholar] [CrossRef]
  11. Alonso-Amelot, M.E. High altitude plants, chemistry of acclimation and adaptation. Stud. Nat. Prod. Chem. 2008, 34, 883–982. [Google Scholar]
  12. Yang, D.F.; Liang, Z.S. Three-dimensional multi-component quality evaluation of Chinese medicine based on proportion consistency of active components: A study of Salvia miltiorrhiza. Zhongguo Zhong Yao Za Zhi 2022, 47, 3118–3124. [Google Scholar]
  13. Gao, H.; Huang, L.; Ding, F.; Yang, K.; Feng, Y.; Tang, H.; Xu, Q.-M.; Feng, J.; Yang, S. Simultaneous purification of dihydrotanshinone, tanshinone I, cryptotanshinone, and tanshinone IIA from Salvia miltiorrhiza and their anti-inflammatory activities investigation. Sci. Rep. 2018, 8, 8460. [Google Scholar] [CrossRef]
  14. Xu, L.; Cao, M.; Wang, Q.; Xu, J.; Liu, C.; Ullah, N.; Li, J.; Hou, Z.; Liang, Z.; Zhou, W.; et al. Insights into the plateau adaptation of Salvia castanea by comparative genomic and WGCNA analyses. J. Adv. Res. 2022, 42, 221–235. [Google Scholar] [CrossRef] [PubMed]
  15. Yang, D.; Yang, S.; Zhang, Y.; Liu, Y.; Meng, X.; Liang, Z. Metabolic profiles of three related Salvia species. Fitoterapia 2009, 80, 274–278. [Google Scholar] [CrossRef]
  16. Moreno, A.G.; de Cózar, A.; Prieto, P.; Domínguez, E.; Heredia, A. Radiationless mechanism of UV deactivationby cuticle phenolics in plants. Nat. Commun. 2022, 13, 1786. [Google Scholar] [CrossRef]
  17. Tholl, D. Biosynthesis and biological functions of terpenoids in plants. Adv. Biochem. Eng. Biotechnol. 2015, 148, 63–106. [Google Scholar] [PubMed]
  18. Liu, T.; Jin, H.; Sun, Q.; Xu, J.; Hu, H. The neuroprotective effects of tanshinone IIA onβ-amyloid- induced toxicity in rat cortical neurons. Neuropharmacology 2010, 59, 595–604. [Google Scholar] [CrossRef] [PubMed]
  19. Yang, D.; Ma, P.; Liang, X.; Liang, Z.; Zhang, M.; Shen, S.; Liu, H.; Liu, Y. Metabolic profiles and cDNA-AFLP analysis of Salvia miltiorrhiza and Salvia castanea Diel f. tomentosa Stib. PLoS ONE 2012, 7, e29678. [Google Scholar] [CrossRef]
  20. Yang, D.; Fang, Y.; Xia, P.; Zhang, X.; Liang, Z. Diverse responses of tanshinone biosynthesis to biotic and abiotic elicitors in hairy root cultures of Salvia miltiorrhiza and Salvia castanea Diels f. tomentosa. Gene 2018, 643, 61–67. [Google Scholar] [CrossRef]
  21. Zou, Y.-H.; Zhao, L.; Xu, Y.-K.; Bao, J.-M.; Liu, X.; Zhang, J.-S.; Li, W.; Ahmed, A.; Yin, S.; Tang, G.-H. Anti-inflammatory sesquiterpenoids from the Traditional Chinese Medicine Salvia plebeia: Regulates pro-inflammatory mediators through inhibition of NF-κB and Erk1/2 signaling pathways in LPS-induced Raw264.7 cells. J. Ethnopharmacol. 2018, 210, 95–106. [Google Scholar] [CrossRef] [PubMed]
  22. Jang, H.-J.; Lee, S.; Lee, S.-J.; Lim, H.-J.; Jung, K.; Kim, Y.H.; Lee, S.W.; Rho, M.-C. Anti-inflammatory Activity of Eudesmane-Type Sesquiterpenoids from Salvia plebeia. J. Nat. Prod. 2017, 80, 2666–2676. [Google Scholar] [CrossRef] [PubMed]
  23. Hou, Z.; Li, Y.; Su, F.; Chen, J.; Zhang, X.; Xu, L.; Yang, D.; Liang, Z. Application of 1H-NMR combined with qRT-PCR technology in the exploration of rosmarinic acid biosynthesis in hair roots of Salvia miltiorrhiza Bunge and Salvia castanea f. tomentosa Stib. Planta 2020, 253, 2. [Google Scholar] [CrossRef] [PubMed]
  24. Jia, W.; Liu, G.; Zhang, P.; Li, H.; Peng, Z.; Wang, Y.; Jemrić, T.; Fu, D. The Ubiquitin-26S Proteasome Pathway and Its Role in the Ripening of Fleshy Fruits. Int. J. Mol. Sci. 2023, 24, 2750. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, F.Q.; Xue, H.W. The ubiquitin-proteasome system in plant responses to environments. Plant Cell Environ. 2019, 42, 2931–2944. [Google Scholar] [CrossRef] [PubMed]
  26. Smalle, J.; Vierstra, R.D. The ubiquitin 26S proteasome proteolytic pathway. Annu. Rev. Plant Biol. 2004, 55, 555–590. [Google Scholar] [CrossRef] [PubMed]
  27. Pickart, C.M.; Eddins, M.J. Ubiquitin: Structures, functions, mechanisms. Biochim. Biophys. Acta (BBA)—Mol. Cell Res. 2004, 1695, 55–72. [Google Scholar] [CrossRef] [PubMed]
  28. Jentsch, S. The ubiquitin-conjugation system. Annu. Rev. Genet. 1992, 26, 179–207. [Google Scholar] [CrossRef]
  29. Dreher, K.; Callis, J. Ubiquitin, hormones and biotic stress in plants. Ann. Bot. 2007, 99, 787–822. [Google Scholar] [CrossRef]
  30. Chen, C.; Qiao, Y.; Jing, C.; Lu, W.; Jin, X.; Yu, L. Identification of UBC gene family and preliminary function analysis of GmUBC46 gene in soybean. J. Plant Genet. Resour. 2019, 21, 154–163. [Google Scholar]
  31. Liu, W.; Tang, X.; Zhu, X.; Qi, X.; Zhang, N.; Si, H. Genome-wide identification and expression analysis of the E2 gene family in potato. Mol. Biol. Rep. 2019, 46, 777–791. [Google Scholar] [CrossRef] [PubMed]
  32. Yao, S.; Xie, M.; Hu, M.; Cui, X.; Wu, H.; Li, X.; Hu, P.; Tong, C.; Yu, X. Genome-wide characterization of ubiquitin-conjugating enzyme gene family explores its genetic effects on the oil content and yield of Brassica napus. Front. Plant Sci. 2023, 14, 1118339. [Google Scholar] [CrossRef] [PubMed]
  33. Dong, C.; Wei, Y.; Wang, Y.; Zheng, X.; Li, W.; Shi, S. Analysis of bioinformatics and expression characteristics of ubiquitin-binding enzyme (LcUBC12) gene in Litchi. J. South. Agric. Sci. 2020, 51, 1091–1097. [Google Scholar]
  34. Xu, L.; Ménard, R.; Berr, A.; Fuchs, J.; Cognat, V.; Meyer, D.; Shen, W.H. The E2 ubiquitin-conjugating enzymes, AtUBC1 and AtUBC2, play redundant roles and are involved in activation of FLC expression and repression of flowering in Arabidopsis thaliana. Plant J. 2009, 57, 279–288. [Google Scholar] [CrossRef] [PubMed]
  35. E, Z.; Zhang, Y.; Li, T.; Wang, L.; Zhao, H. Characterization of the ubiquitin-conjugating enzyme gene family in rice and evaluation of expression profiles under abiotic stresses and hormone treatments. PLoS ONE 2015, 10, e0122621. [Google Scholar] [CrossRef]
  36. Xu, D.; Yu, Y.; Han, Q.; Ma, Y.; Gao, S.; Tian, Y.; Xu, Z.; Li, L.; Qu, Y.; Ma, Y.; et al. Characteristics and Function of a GmDREB5-Interacting Protein GmUBC13 in Soybean. Sci. Agric. Sin. 2014, 47, 3534–3544. [Google Scholar]
  37. van Wijk, S.J.L.; Timmers, H.T. The family of ubiquitin-conjugating enzymes (E2s): Deciding between life and death of proteins. FASEB J. 2010, 24, 981–993. [Google Scholar] [CrossRef]
  38. Jue, D.; Sang, X.; Lu, S.; Dong, C.; Zhao, Q.; Chen, H.; Jia, L.; Margis, R. Genomewide identification, phylogenetic and expression analyses of the ubiquitinconjugating enzyme gene family in Maize. PLoS ONE 2015, 10, e0143488. [Google Scholar] [CrossRef] [PubMed]
  39. Finn, R.D.; Coggill, P.; Eberhardt, R.Y.; Eddy, S.R.; Mistry, J.; Mitchell, A.L.; Potter, S.C.; Punta, M.; Qureshi, M.; Sangrador-Vegas, A.; et al. The Pfam protein families database: Towards a more sustainable future. Nucleic Acids Res. 2016, 44, 279–285. [Google Scholar] [CrossRef]
  40. Letunic, I.; Khedkar, S.; Bork, P. SMART: Recent updates, new developments and status in 2020. Nucleic Acids Res. 2021, 49, 458–460. [Google Scholar] [CrossRef]
  41. Artimo, P.; Jonnalagedda, M.; Arnold, K.; Baratin, D.; Csardi, G.; de Castro, E.; Duvaud, S.; Flegel, V.; Fortier, A.; Gasteiger, E.; et al. ExPASy: SIB bioinformatics resource portal. Nucleic Acids Res. 2012, 40, 597–603. [Google Scholar] [CrossRef] [PubMed]
  42. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME Suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [PubMed]
  43. Xia, P.; Hu, W.; Liang, T.; Yang, D.; Liang, Z. An attempt to establish an Agrobacterium-mediated transient expression system in medicinal plants. Protoplasma 2020, 257, 1497–1505. [Google Scholar] [CrossRef] [PubMed]
  44. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using realtime quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  45. Lin, J.; Du, X.; Liang, Z.; Yang, D. Effects of different medium on hairy root growth and accumulation of effective components of Salvia miltiorrhiza and Salvia villosa. Shi Zhen Chin. Med. 2023, 34, 692–697. [Google Scholar]
  46. Li, B.; Zhang, C.; Peng, L.; Liang, Z.; Yan, X.; Zhu, Y.; Liu, Y. Comparison of essential oil composition and phenolic acid content of selected Salvia species measured by GC–MS and HPLC methods. Ind. Crops Prod. 2015, 69, 329–334. [Google Scholar] [CrossRef]
Plants 13 01353 g001
Figure 1. Multiple alignment of UBC core sequences in Salvia castanea (ScUBCs).
Figure 1. Multiple alignment of UBC core sequences in Salvia castanea (ScUBCs).
Plants 13 01353 g001
Plants 13 01353 g002
Figure 2. Multiple alignment of UBC core sequences in Salvia castanea and other species. Note: According to evolutionary branches, the species were divided into Groups A to G.
Figure 2. Multiple alignment of UBC core sequences in Salvia castanea and other species. Note: According to evolutionary branches, the species were divided into Groups A to G.
Plants 13 01353 g002
Plants 13 01353 g003

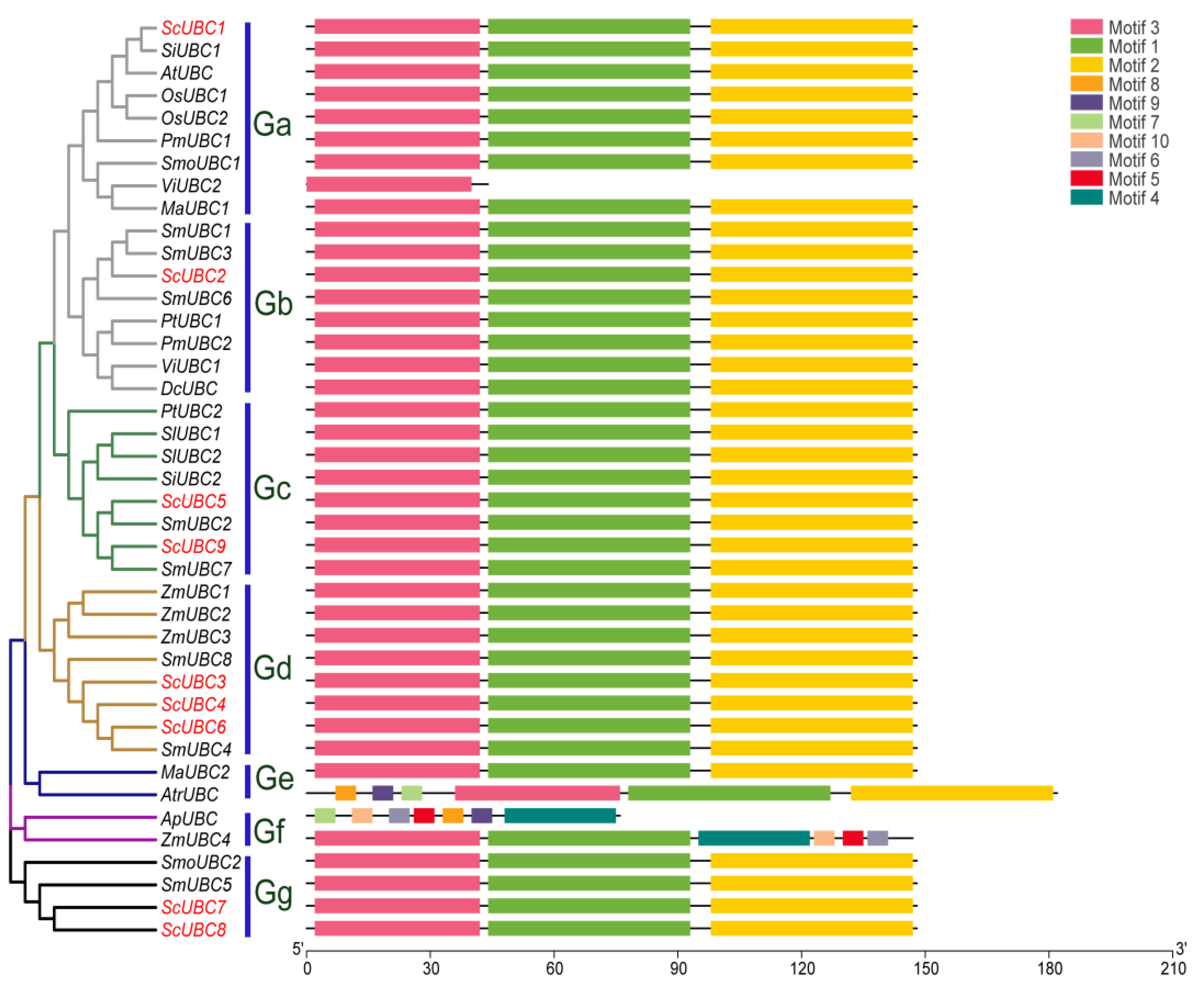

Figure 3. Motif structure of 41 UBC protein sequences from the 15 investigated species. Note: The red font is the UBC protein sequences of Salvia castanea.
Figure 3. Motif structure of 41 UBC protein sequences from the 15 investigated species. Note: The red font is the UBC protein sequences of Salvia castanea.
Plants 13 01353 g003
Plants 13 01353 g004

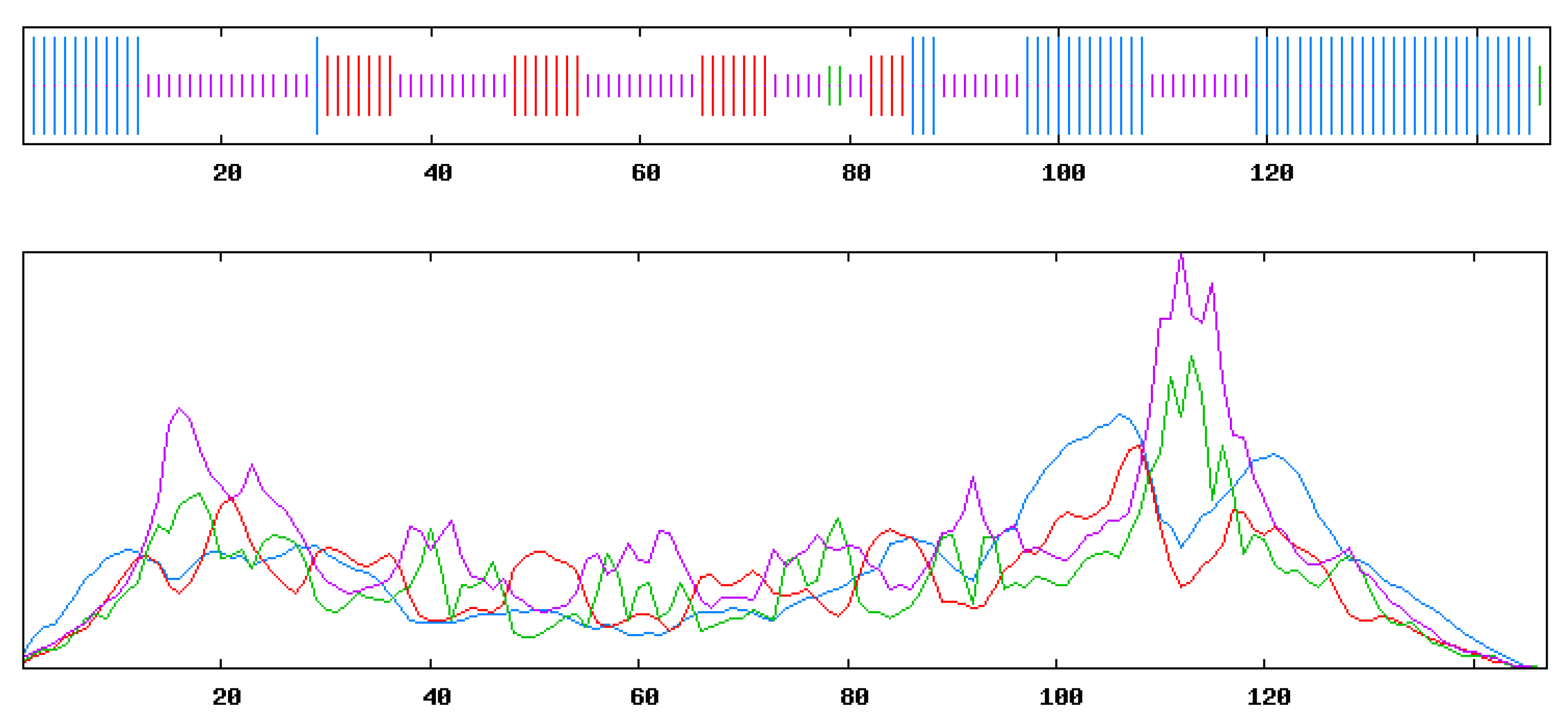

Figure 4. Secondary structure prediction map of protein encoded by transcription factor ScUBC2. Note: Blue indicates the Alpha helix; green indicates the Beta turn; purple indicates the random coil; and red indicates the extended strand. UBC2 gene of Salvia castanea (ScUBC2).
Figure 4. Secondary structure prediction map of protein encoded by transcription factor ScUBC2. Note: Blue indicates the Alpha helix; green indicates the Beta turn; purple indicates the random coil; and red indicates the extended strand. UBC2 gene of Salvia castanea (ScUBC2).
Plants 13 01353 g004
Plants 13 01353 g005

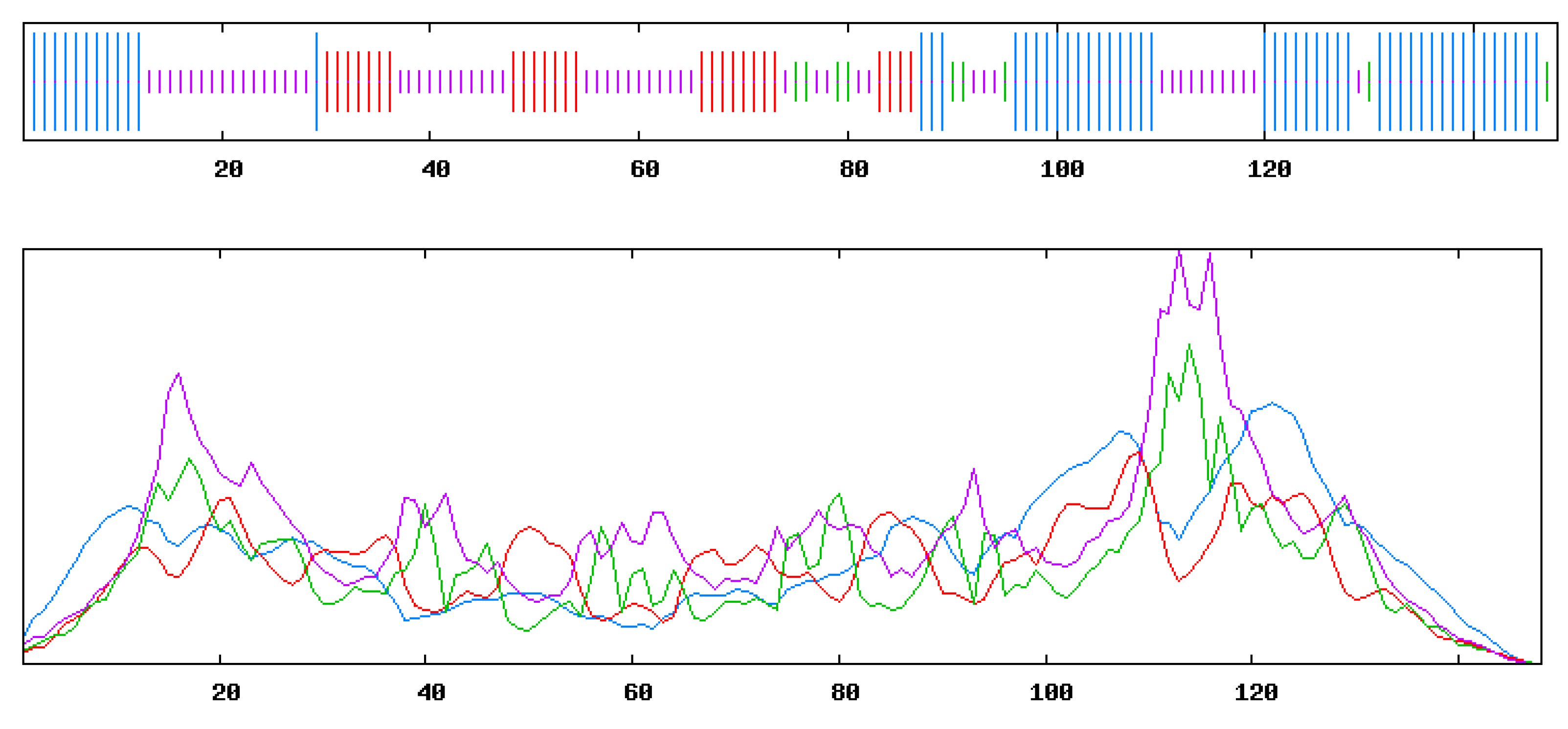

Figure 5. Secondary structure prediction map of protein encoded by transcription factor ScUBC5. Note: Blue indicates the Alpha helix; green indicates the Beta turn; purple indicates the random coil; and red indicates the extended strand. UBC5 gene of S. castanea (ScUBC5).
Figure 5. Secondary structure prediction map of protein encoded by transcription factor ScUBC5. Note: Blue indicates the Alpha helix; green indicates the Beta turn; purple indicates the random coil; and red indicates the extended strand. UBC5 gene of S. castanea (ScUBC5).
Plants 13 01353 g005
Plants 13 01353 g006

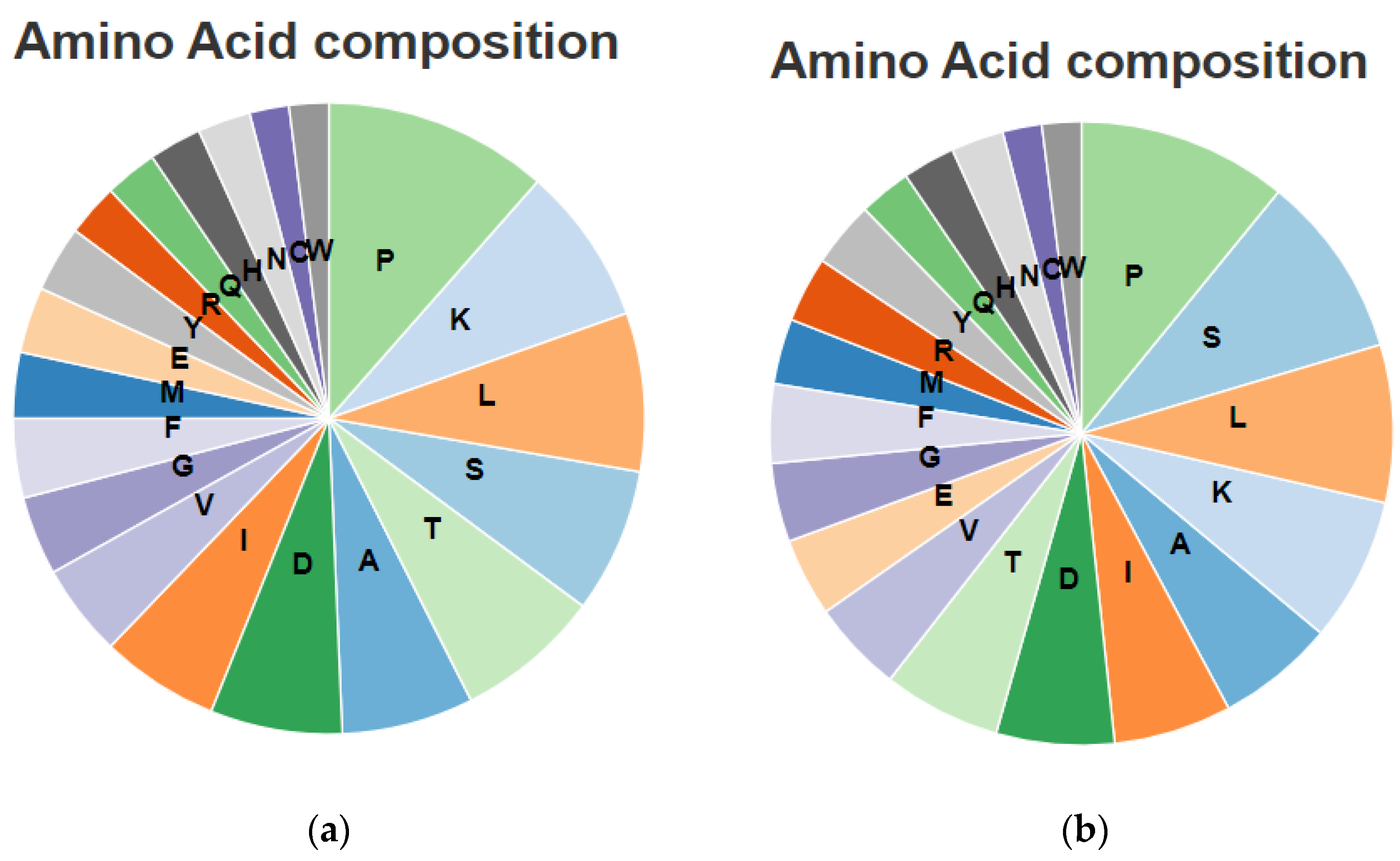

Figure 6. Number of each amino acid in the predicted secondary structure of the protein encoded by transcription factor genes ScUBC2 (a) and ScUBC5 (b) in Salvia castanea.
Figure 6. Number of each amino acid in the predicted secondary structure of the protein encoded by transcription factor genes ScUBC2 (a) and ScUBC5 (b) in Salvia castanea.
Plants 13 01353 g006
Plants 13 01353 g007

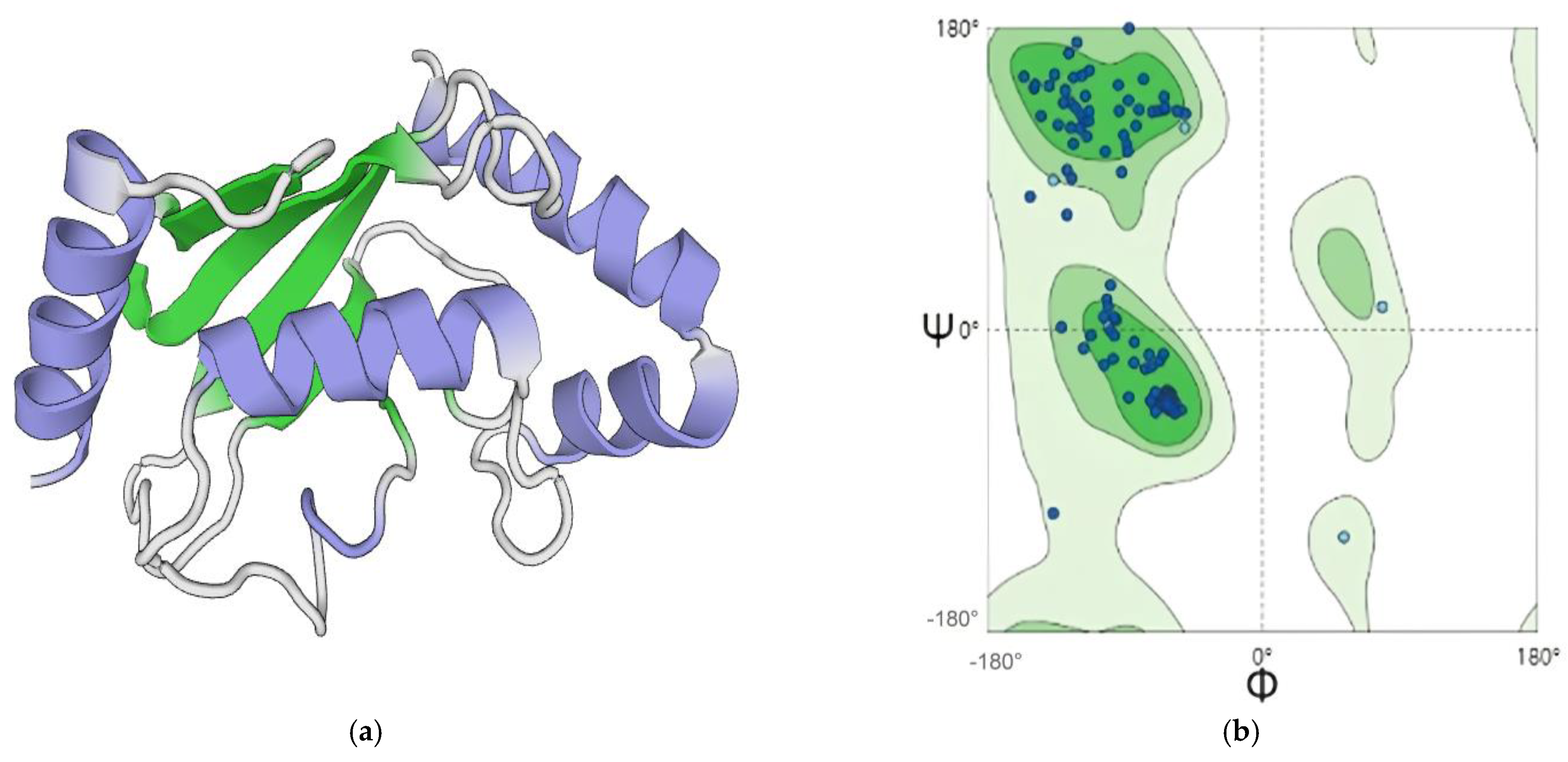

Figure 7. Homology modeling and model quality evaluation of ScUBC2 in S. castanea. (a) Predicted three-dimensional structure of ScUBC2, with the blue ring representing the Alpha helix structure, and the green arrow representing the Beta turn structure. (b) Green indicates the optimal region; light green indicates the subpermissive region; and the lightest color indicates the impermissive region.
Figure 7. Homology modeling and model quality evaluation of ScUBC2 in S. castanea. (a) Predicted three-dimensional structure of ScUBC2, with the blue ring representing the Alpha helix structure, and the green arrow representing the Beta turn structure. (b) Green indicates the optimal region; light green indicates the subpermissive region; and the lightest color indicates the impermissive region.
Plants 13 01353 g007
Plants 13 01353 g008

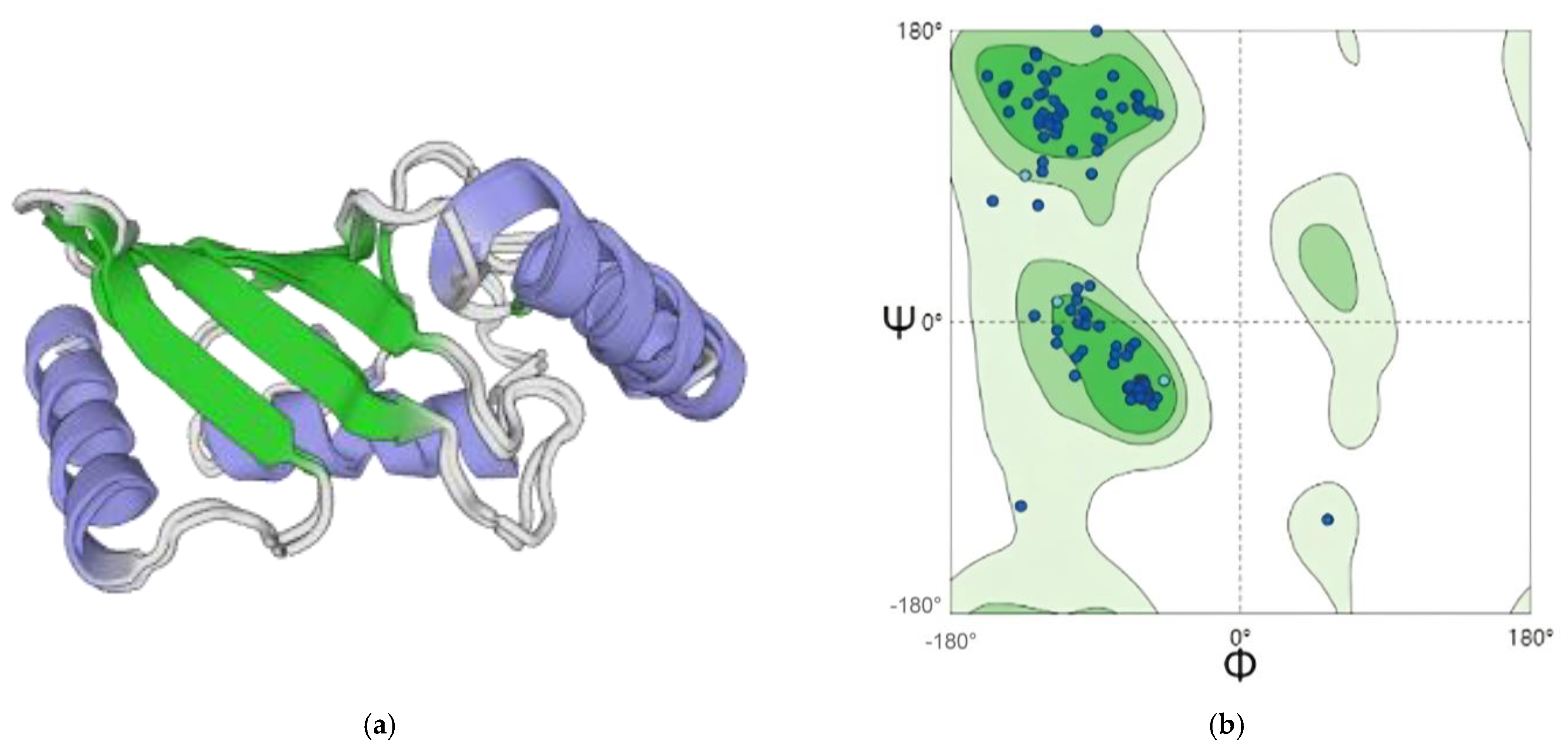

Figure 8. Homology modeling and model quality evaluation of ScUBC5 in Salvia castanea. (a) Predicted three-dimensional structure of ScUBC5, with the blue ring representing the Alpha helix structure, and the green arrow representing the Beta turn structure. (b) Green indicates the optimal region; light green indicates the subpermissive region; and the lightest color indicates the impermissive region.
Figure 8. Homology modeling and model quality evaluation of ScUBC5 in Salvia castanea. (a) Predicted three-dimensional structure of ScUBC5, with the blue ring representing the Alpha helix structure, and the green arrow representing the Beta turn structure. (b) Green indicates the optimal region; light green indicates the subpermissive region; and the lightest color indicates the impermissive region.
Plants 13 01353 g008
Plants 13 01353 g009
Figure 9. Gene expression heat map of ScUBCs in Salvia castanea. Note: AL: Annual leaf; AR1: Annual pericarp; AR2: Annual phloem; AR3: Annual xylem; PL: Perennial leaf; PR1: Perennial pericarp; PR2: Perennial phloem; PR3: Perennial xylem.
Figure 9. Gene expression heat map of ScUBCs in Salvia castanea. Note: AL: Annual leaf; AR1: Annual pericarp; AR2: Annual phloem; AR3: Annual xylem; PL: Perennial leaf; PR1: Perennial pericarp; PR2: Perennial phloem; PR3: Perennial xylem.
Plants 13 01353 g009
Plants 13 01353 g010
Figure 10. Hairy roots were cultured for 20 days.
Figure 10. Hairy roots were cultured for 20 days.
Plants 13 01353 g010
Plants 13 01353 g011
Figure 11. Identification of transgenic hairy roots of Salvia miltiorrhiza using PCR.
Figure 11. Identification of transgenic hairy roots of Salvia miltiorrhiza using PCR.
Plants 13 01353 g011
Plants 13 01353 g012

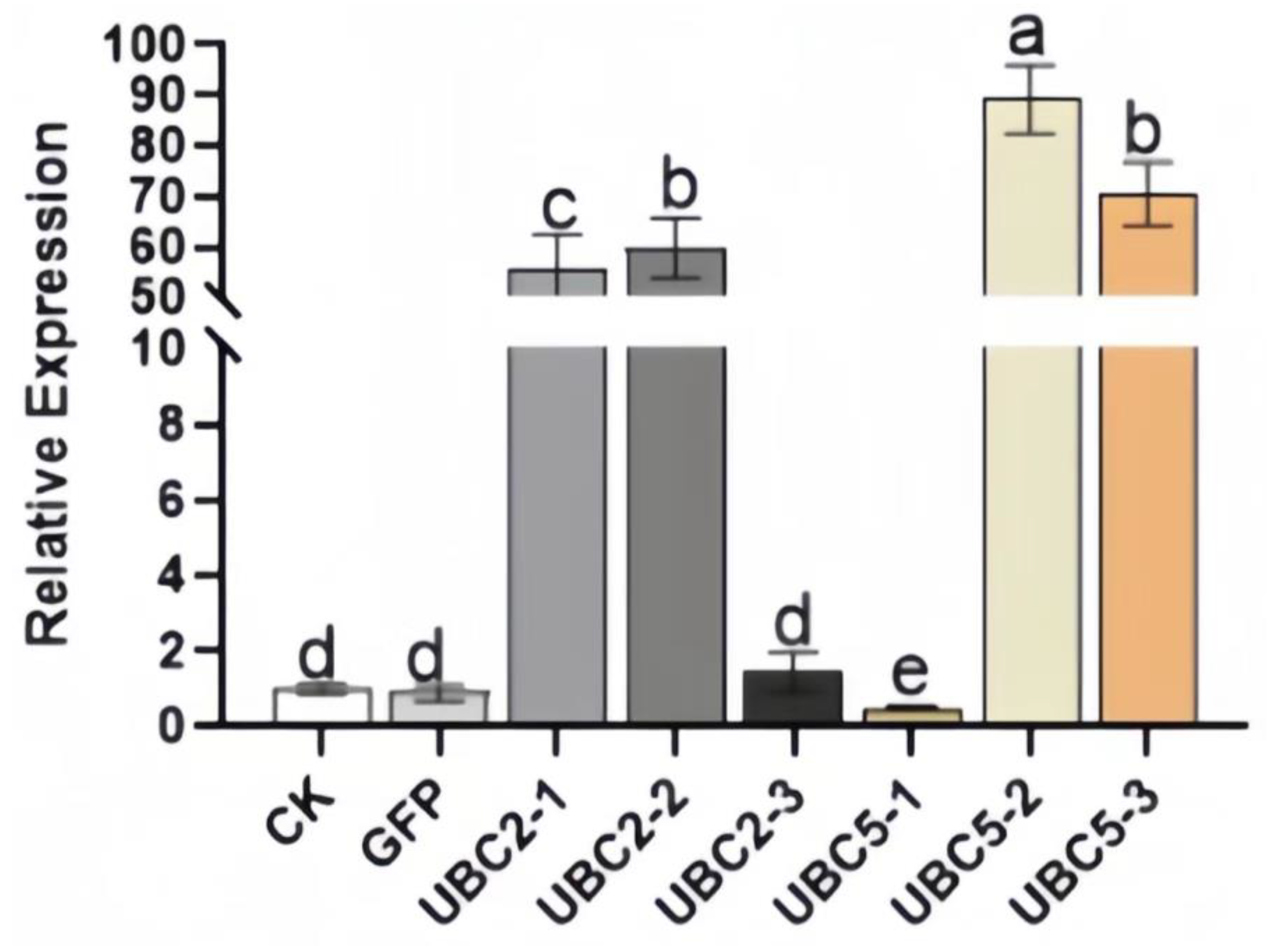

Figure 12. Gene expression of ScUBC2 and ScUBC5 in Salvia castanea overexpression strains. Note: All data are the average of three replicates (mean ± SD). Different lowercase letters indicate significant differences at the p < 0.05 level, as determined by the Duncan’s multiple range test.
Figure 12. Gene expression of ScUBC2 and ScUBC5 in Salvia castanea overexpression strains. Note: All data are the average of three replicates (mean ± SD). Different lowercase letters indicate significant differences at the p < 0.05 level, as determined by the Duncan’s multiple range test.
Plants 13 01353 g012
Plants 13 01353 g013

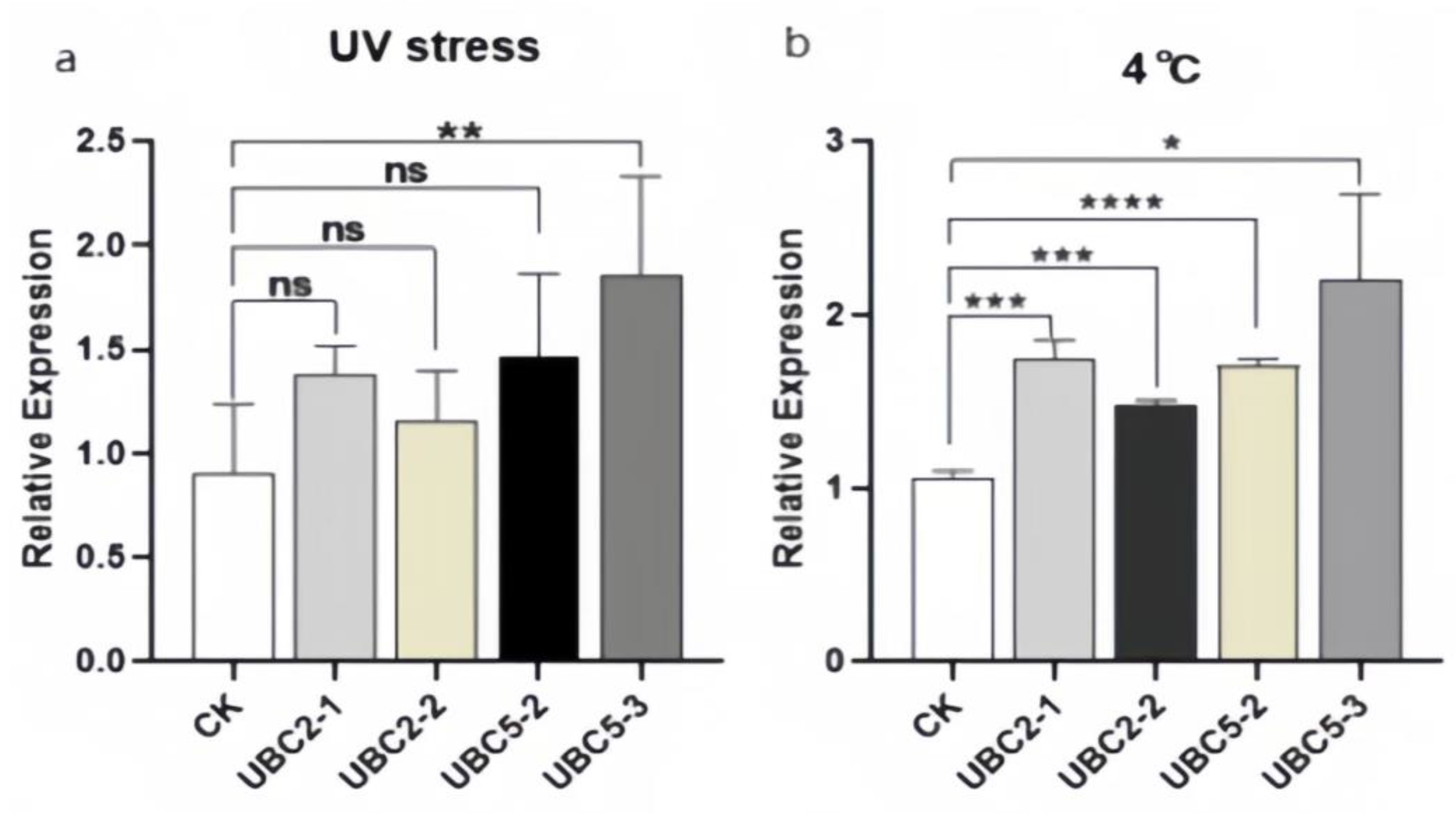

Figure 13. Relative expression of hairy roots after stress. Note: CK was a wild type, and the expression levels of the wild type were used as controls. (a) Relative expression of hairy roots after UV stress; (b) Relative expression of hairy roots after 4 °C cold stress. All data were the average of three replicates (mean ± SD). * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001. ns: No significant difference.
Figure 13. Relative expression of hairy roots after stress. Note: CK was a wild type, and the expression levels of the wild type were used as controls. (a) Relative expression of hairy roots after UV stress; (b) Relative expression of hairy roots after 4 °C cold stress. All data were the average of three replicates (mean ± SD). * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001. ns: No significant difference.
Plants 13 01353 g013
Plants 13 01353 g014aPlants 13 01353 g014b

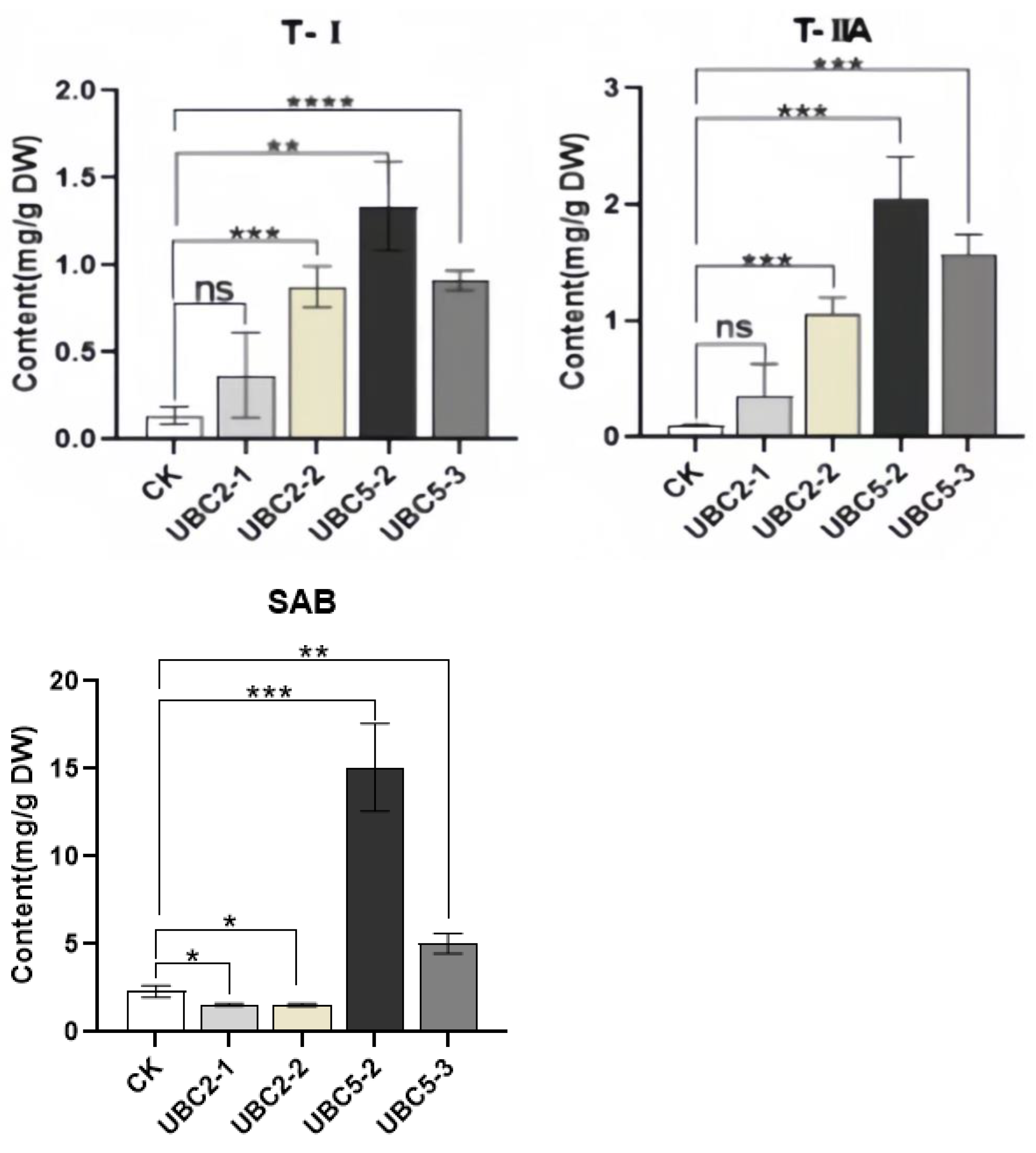

Figure 14. Contents of tanshinone and phenolic acids in transgenic hairy roots. Note: DT-I: dihydrotanshinone I; CT: Cryptotanshinone; T-I: Tanshinone I; T-II: Tanshinone IIA; SAB: Salvianolic acid B. A: Tanshinone I content; B: tanshinone IIA content; C: salvianolic acid B content; and D: rosmarinic acid content. CK is a wild type, and the expression levels of the wild type were used as controls. All data are the average of three replicates (mean ± SD). * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001. ns: No significant difference.
Figure 14. Contents of tanshinone and phenolic acids in transgenic hairy roots. Note: DT-I: dihydrotanshinone I; CT: Cryptotanshinone; T-I: Tanshinone I; T-II: Tanshinone IIA; SAB: Salvianolic acid B. A: Tanshinone I content; B: tanshinone IIA content; C: salvianolic acid B content; and D: rosmarinic acid content. CK is a wild type, and the expression levels of the wild type were used as controls. All data are the average of three replicates (mean ± SD). * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001. ns: No significant difference.
Plants 13 01353 g014aPlants 13 01353 g014b
Table 1. UBC gene characteristics in Salvia castanea and other species. The gene sequences of S. castanea were derived from transcriptome sequencing. The gene sequence data of S. miltiorrhiza were obtained from the National Bioinformatics Center (https://www.cncb.ac.cn). The UBC gene sequences from the other 13 species were downloaded from NCBI (https://www.ncbi.nlm.nih.gov). The abbreviated content is isoelectric point (pI) and molecular weight (Mw).
Table 1. UBC gene characteristics in Salvia castanea and other species. The gene sequences of S. castanea were derived from transcriptome sequencing. The gene sequence data of S. miltiorrhiza were obtained from the National Bioinformatics Center (https://www.cncb.ac.cn). The UBC gene sequences from the other 13 species were downloaded from NCBI (https://www.ncbi.nlm.nih.gov). The abbreviated content is isoelectric point (pI) and molecular weight (Mw).
SpeciesGene NameComment IDpIMw
Salvia castaneaScUBC1c14380_g17.7116,538.13
ScUBC2c15670_g17.7216,562.15
ScUBC3c15890_g17.7216,606.17
ScUBC4c15906_g17.7216,606.17
ScUBC5c15861_g17.7216,566.10
ScUBC6c15345_g17.7216,606.17
ScUBC7c16215_g17.6916,446.96
ScUBC8c16784_g17.6916,446.96
ScUBC9c14548_g17.7216,524.06
Andrographis paniculataApUBCAFU08355.16.038441.88
Amborella trichopodaAtrUBCXP_006846899.38.3220,429.61
Arabidopsis thalianaAtUBCNP_001031228.17.7216,510.04
Daucus carotaDcUBCXP_017223186.17.7216,534.10
Musa acuminataMaUBC1XP_018679775.17.7416,518.06
MaUBC2XP_018679365.17.7216,530.11
Oryza sativaOsUBC1EAY85278.17.7116,480.05
OsUBC2XP_015627363.17.7116,446.03
Prunus mumePmUBC1XP_016651554.17.7216,518.10
PmUBC2XP_008239078.17.7116,521.10
Populus trichocarpaPtUBC1XP_002303624.17.7216,522.09
PtUBC2XP_002323682.37.7216,460.06
Sesamum indicumSiUBC1XP_011095163.17.7116,510.08
SiUBC1XP_011080642.17.7216,478.04
Solanum lycopersicumSlUBC1NP_001234247.17.7216,522.09
SlUBC2NP_001294911.17.7216,522.09
Selaginella moellendorffiiSmoUBC1EFJ35297.17.7216,571.16
SmoUBC2XP_024522878.16.8216,797.27
Salvia miltiorrhizaSmUBC1EVM0014715.17.7216,562.15
SmUBC2EVM0027060.17.7216,566.10
SmUBC3EVM0018149.17.7216,562.15
SmUBC4EVM0013655.17.7216,606.17
SmUBC5EVM0026692.26.8116,436.94
SmUBC6EVM0006402.17.7216,562.15
SmUBC7EVM0006158.17.7216,524.06
SmUBC8EVM0006069.57.7216,576.14
Vitis viniferaViUBC1XP_010658920.17.7216,548.13
ViUBC2AAU04836.15.524857.55
Zea maysZmUBC1NP_001104888.17.7116,503.04
ZmUBC2AAB88617.17.7116,503.04
ZmUBC3NP_001148222.17.7216,507.03
ZmUBC4NP_001146962.17.7416,589.06
Table 2. Primer sequence list.
Table 2. Primer sequence list.
Primer NameSequenceApplication
1-UCB2-FTCCCGCCAGACTACCCTTSelection of primers for ScUBC2 overexpression lines
1-UCB2-RTGGGTCGTCCGGGTTTGG
2-UCB2-FCCCGCCAGACTACCCTT
2-UCB2-RGGGTCGTCCGGGTTTG
3-UCB2-FCCATTCATTTCCCGCCAGAC
3-UCB2-RCAATGGGTCGTCCGGGTTT
1-UCB5-FAGTCCTTATGCTGGAGGTGTSelection of primers for ScUBC5 overexpression lines
1-UCB5-RCGAGCAAATAGACAGCAGGAC
2-UCB5-FGGCAAGCCACAATCATGGG
2-UCB5-RGTCAATGCTGGACTCCACTG
3-UCB5-FGAGCAGTGGAGTCCAGCATT
3-UCB5-RCCCATGGCATATTTCTGGGT
1-L-SmAOC-RT-FCAACTCCATCCAAGGTTCAGGLow temperature primer
1-L-SmAOC-RT-RTCGCCGGAGTAGAGCTTGTTG
1-PAL3-FGTGACGTTGTGGTTGAGGAATUltraviolet primer
1-PAL3-RCTCATCAACAAGAGCAGCAAT
2-LOX6-FTTGAAGACTCATGCCTGCAC
2-LOX6-RGTCAAACCGCCACAATTTCT
Actin-FGGTGCCCTGAGGTCCTGTTInternal reference primer
Actin-RAGGAACCACCGATCCAGACA
Table 3. Standard curves of tanshinones and phenolic acids.
Table 3. Standard curves of tanshinones and phenolic acids.
CompositionStandard CurveComposition
DTIy = (x − 23,027.7527)/2,660,639.56DTI
CTy = (x − 85,722.742)/5,526,269.802CT
T-Iy = (x + 86,099.6853)/3,752,634.878T-I
TIIAy = (x + 58,317.4739)/5,128,785.876TIIA
SABy = (x + 614,965.8527)/1,032,490.8342SAB
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, L.; Sun, Y.; Ullah, N.; Zhang, G.; Liu, H.; Xu, L. UBC Gene Family Analysis in Salvia castanea and Roles of ScUBC2/5 Genes under Abiotic Stress. Plants 2024, 13, 1353. https://doi.org/10.3390/plants13101353

AMA Style

Zhu L, Sun Y, Ullah N, Zhang G, Liu H, Xu L. UBC Gene Family Analysis in Salvia castanea and Roles of ScUBC2/5 Genes under Abiotic Stress. Plants. 2024; 13(10):1353. https://doi.org/10.3390/plants13101353

Chicago/Turabian Style

Zhu, Longyi, Yuee Sun, Najeeb Ullah, Guilian Zhang, Hui Liu, and Ling Xu. 2024. "UBC Gene Family Analysis in Salvia castanea and Roles of ScUBC2/5 Genes under Abiotic Stress" Plants 13, no. 10: 1353. https://doi.org/10.3390/plants13101353

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
