1. Introduction
Bamboo is a lightweight, naturally renewable, and tree-like plant belonging to the grass family
Poaceae, and it has about 1482 known species classified under the following three bamboo tribes:
Arundinarieae (546 species),
Bambuseae (812 species), and
Olyreae (124 species) [
1]. It is recognized as one of the most rapidly growing perennial plants that is cultivated in tropical to mild-temperate regions [
2]. There are a total of 62 bamboo species that can be found in the Philippines and only eight of these are economically important, including
Bambusa blumeana (kawayan tinik),
Bambusa sp.1 (formerly
Dendrocalamus merriliamus) (bayog),
Bambusa sp.2 (laak),
Bambusa vulgaris (kawayan kiling),
Dendrocalamus asper (giant bamboo),
Gigantochloa atter (kayali),
Gigantochloa levis (bolo), and
Schizostachyum lumampao (buho). In addition, four more species were identified as having significant potential for economic development and still requiring further research, including
Bambusa oldhamii (Oldham bamboo),
Dendrocalamus latiflorus (machiku),
Guadua angustifolia (iron bamboo), and
Thyrsostachys siamensis (monastery bamboo). These species are distributed in certain provinces and rural areas around the country such as Abra, Bukidnon, and Davao del Norte [
3].
Bamboo is considered a sustainable construction material due to its ability to grow and be harvested in a relatively short amount of time, and its mechanical properties are comparable to that of timber [
4]. Depending on the species, bamboo only takes 3–5 years to reach full maturity, in comparison to hardwood trees, which can take about 30–40 years. Moreover, its abundance, workability, and cheap cost have made it a popular construction-material substitute for wood. Considering the availability of numerous Philippine bamboo species, further studies must be conducted to expand the use of our natural resources and shift to more sustainable options. The use of bamboo in the construction industry establishes significant impacts on environmental aspects. It also serves to reduce the rate of deforestation, which also decreases the consumption rate of wood and timber [
5]. Furthermore, bamboo plantations are able to aid in carbon sequestration of up to 12 tons of carbon dioxide per hectare, and bamboo produces 35% more oxygen than equivalent areas of trees [
6].
The mechanical properties of bamboo such as bending strength, shear strength, compressive strength, and tensile strength are significant in assessing its capacity to support loads, as well as for bamboo-grading purposes. These properties are evaluated in order to generate appropriate structural standards for bamboo in the Philippines for it to be effectively used as a construction material.
Among these mechanical characteristics, the compressive strength of the bamboo species that are readily available in the Philippines requires further research. Available data about economically important bamboo species in the Philippines are mostly limited to their average strength values. For grading and design purposes, the characteristic strength values of the bamboo need to be established as grading considers the strength value at the 5th percentile, which means that 95% of the samples have strength values that are higher than the characteristic strength value. This indicates that it is a better representation of the strength property of bamboo than the average strength value. Additionally, local bamboo users such as the Base Bahay Foundation, Inc. utilize the allowable stress from characteristic strength values supported by safety factors for the design value used in construction.
This lack of engineering data for the mechanical properties of bamboo hinders the establishment of appropriate building codes [
7]. To be specific, although there are studies regarding the material characterization of bamboo, data are still insufficient as there exists a wide variety of bamboo species and their strength properties may vary depending on their morphology. In the context of the Philippines, studies characterizing the species
Bambusa blumeana,
Bambusa vulgaris, and
Dendrocalamus asper exist but are only focused on tension [
8], shear [
9], and bending strength [
10].
The National Structural Code of the Philippines (NSCP) 2015 serves as the guidance code for the design of structural members. It includes standards for using conventional building materials such as concrete, steel, and wood/timber. Bamboo is commonly used as a building material, and it can be fully utilized by designers and engineers if it becomes part of the National Structural Code of the Philippines. In addition to this, the Department of Trade and Industry (DTI) recently adopted the International Organization for Standardization (ISO) standards on bamboo structures as Philippine National Standards (PNS) in May 2020 [
11]. However, the adopted standards are only focused on the grading of bamboo culms (PNS ISO 19624:2020) and the test methods used to determine its physical and mechanical properties (PNS ISO 22157:2020), not necessarily on bamboo’s application to buildings or structures. Thus, there is a need to establish the mechanical properties of bamboo, one of which is the characteristic compressive strength parallel to the fiber.
The main objective of this study is to establish the compressive strength parallel to the fibers of four Philippine bamboo species:
Bambusa vulgaris,
Dendrocalamus asper,
Bambusa blumeana, and
Guadua angustifolia Kunth. It was hypothesized that would be little to no significant differences between the compressive strength of samples in the node condition and in the internode condition for all bamboo species tested. The compressive strength among the four bamboo species was also expected to have little to no significant differences. It was assumed that the samples satisfy the grading requirement stated in PNS ISO 19624 (2020) [
12].
This study only covered the use of bamboo as a construction material, and other aspects such as its medicinal attributes or industrial uses were not discussed. The bamboo samples tested were also limited to the identified four bamboo species being cultivated in the Philippines, excluding any other local or foreign species. Specifically, these samples were outsourced from the Base Bahay Foundation, Inc., and the tests were conducted in the Department of Public Works and Highways—Bureau of Research and Standards (DPWH-BRS) in Quezon City. Other bamboo properties such as its age at harvest were not considered in this study. Its physical properties such as moisture content, basic density, and mass per unit length, however, were considered and determined for each test sample. This study also established the characteristic compressive strength of bamboo; bending, tensile, and shear strengths were not considered. As ISO 22157-1 (2017) guidelines only provide the testing methodology for compressive strength parallel to the fiber, bamboo’s compressive strength perpendicular to its fibers is not part of this study [
13]. Compression tests were only performed on the bamboo culms in the node and internode part of the bamboo, without considering any branches. Lastly, this study is limited to the determination of the compressive strength based on its location in the culm (top, middle, or bottom).
This study will be significant in developing standards for bamboo as a construction material in the Philippines. Aside from the aforementioned environmental benefits that bamboo has to offer, this research can be used as a guide for engineers, construction firms, and other researchers to support the use of green building materials and the use of bamboo as a structural material.
3. Results and Discussion
3.1. Geometric, Physical, and Compressive Properties
The geometric properties of each bamboo species categorized based on the appearance of nodes are listed in
Table 2. The length
L, outer diameter
D, thickness
δ, and cross-sectional area
A, are the properties measured using ISO 22157-1 (2017) [
13].
Table 3 shows the physical properties of the bamboo species considering the mass per unit length
q, moisture content
ω, and basic density
ρ. The mass per unit length values were calculated from the geometric measurements of the samples prior to compression tests, whereas the moisture content and basic density were obtained from the test specimens after the compression tests.
B. vulgaris and
D. asper samples, including both nodal and internodal samples, had the lowest and highest average mass per unit length results in this study with values ranging from 1.45 kg/m to 2.71 kg/m, respectively. It can be observed that the mass per unit length was greater for samples with nodes than for samples without nodes, which applies to all four species. In terms of the moisture content, it can be observed that the values for the average moisture content of all species in this study were within the prescribed range of 12 ± 3%. The moisture contents of the species for both nodal and internodal samples ranged from 10.67% to 11.67%, with
D. asper and
G. angustifolia Kunth obtaining the lowest and highest moisture contents, respectively. Like the previous property, the moisture content values were greater for samples with nodes compared to samples without nodes for all species in this study. The average basic densities of the species for both nodal and internodal samples ranged from 700.06 kg/m
3 to 806.85 kg/m
3, with
D. asper and
B. blumeana obtaining the lowest and highest basic densities, respectively. It is noteworthy that the basic density varied proportionally with the mass per unit length of the samples in which the density increases as the mass per unit length increases, which supports the claim by Nurmadina et al. [
17] that a higher mass per unit length results in a higher culm density. The basic density was also greater for samples with nodes in comparison to samples without nodes for all species in this study. However, it should also be noted that mass and volume determine the density of the bamboo. As the diaphragm of the samples with nodes is included when obtaining the mass and it is disregarded in the volume computation, the samples with nodes in this study are more likely to exhibit higher density than samples without nodes [
18].
The compressive strength parallel to the fibers of each different bamboo species is shown in
Table 4, where the loads applied ranged from 0.13–4.19 kN/s. It can be observed that internode samples of
B. blumeana obtained the highest average compressive strength among the species with 75 MPa, whereas
B. vulgaris samples taken at the node obtained the lowest average strength value of 55.59 MPa. From the comparison of average strengths of the four main species between node and internode samples, it was common for internode samples to have greater compressive strengths than node samples. Bahtiar et al. [
18] noted that the higher compressive strength values exhibited by bamboo samples without nodes may be attributed to the fiber orientation. The fibers on bamboos are parallel to the axial direction and some change direction as they cross the nodes, which may reduce the strength capacity of the bamboo. In comparing the average strengths of the four main species for both node and internode samples,
B. blumeana and
G. angustifolia Kunth obtained the highest and lowest strengths with 70.67 MPa and 57.53 MPa, respectively. For the corresponding coefficient of variation (COV) of the compressive strength of the species,
D. asper internode samples were recorded to have the highest coefficient of variation of 0.21, whereas the
B. vulgaris and
B. blumeana samples taken at the node obtained the lowest COV of 0.18. Samples without a node were observed to have greater variance than samples with a node.
3.2. Failure Modes

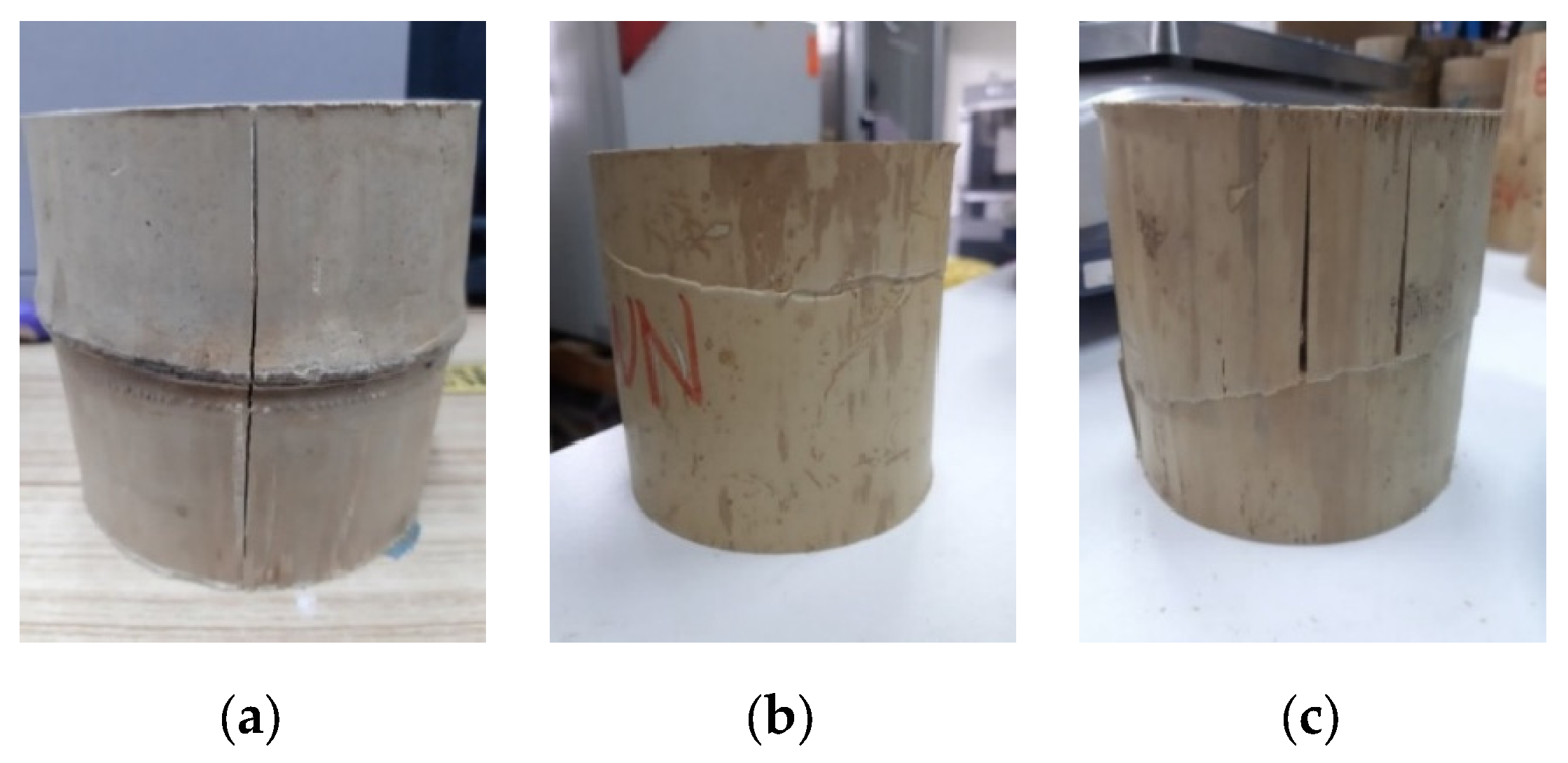

The failures observed on the bamboo culms after being subjected to compressive loading were recorded. The failure modes are categorized into three types: splitting failure, crushing failure, and combined splitting and crushing. Splitting failure is characterized by cracks parallel to the fiber of the culms (
Figure 5a). Due to the fibers of the bamboo running in a single, parallel direction, except at the nodes, splitting is a common failure behavior [
19]. The variations in location, frequency, and length of the splitting observed in the culms were also noted. Crushing failure is characterized by a perpendicular or diagonal distortion in the culm due to the applied compressive force (
Figure 5b). This can be found on the outer or inner surface of the culm, and it sometimes even penetrates through the entire thickness. In the study of Li et al. [
20], they observed that crushing failure commonly happened on short-column samples, whereas long-column samples experienced buckling. The crushing failure in the culms also varied in location, frequency, and length. Combined splitting and crushing is the occurrence of both splitting and crushing in a culm (
Figure 5c).
Table 5 shows the frequency of each failure mode observed in each species, considering the nodal condition of the culms.
Splitting failure was more frequent in B. vulgaris under node conditions (BV-N) than under internode conditions (BV-WN). For BV-N, the splits were observed on the outside surface of the culm, with varying frequencies and most were characterized as short splits. For BV-WN, multiple long splits were observed outside the culm surface, with some penetrating the thickness. Crushing failure occurred only in BV-WN, where mostly long, perpendicular crushing outside the culm surface was observed. Combined splitting and crushing failure occurred in both BV-N and BV-WN, where multiple short splits near the crushing were observed for BV-N, whereas larger splits running along the height of the culms were observed for BV-WN. It should also be noted that the crushing on BV-WN samples that experienced combined failure were mostly located inside, either at the top or bottom of the sample, or passing through the splits. Multiple D. asper samples under both node (DA-N) and internode (DA-WN) conditions experienced splitting failure. DA-WN samples had mostly single, short splits located either outside or inside the culm surface but never penetrating through the culm thickness. The splitting failure on DA-N behaved quite similarly, having predominantly single splits occurring outside with varying lengths between samples. A few small crushing failures were also observed on both sample types. For the combined splitting and crushing failures observed, the splits were not found near the crushing failure. The failures observed on B. blumeana samples were mostly combined splitting and crushing. For B. blumeana samples without a node (BB-WN), the crushing failures observed were characterized by perpendicular crushing that runs along the inner circumference, located either on the upper or lower portion of the culm. The splits were observed to be located near the crushing are and they varied in length and frequency. Shorter splits were located outside the culm whereas longer splits tended to penetrate through its thickness. For B. blumeana samples with a node (BB-N), the splitting and crushing failures were more varied in terms of frequency, length, and location. The G. angustifolia Kunth samples with a node (G-N) had failure modes that were mostly splitting or combined splitting and crushing, whereas G. angustifolia Kunth samples without a node (G-WN) had only crushing and combined splitting and crushing. There were multiple short splits observed on G-N samples and they were located on both the inside and outside surfaces of the culm. The crushing failures were oriented perpendicularly, and they varied in length and location. Similar to G-N, the crushing failures in G-WN also varied in length and location, with only one sample recorded as having a diagonal orientation, whereas the rest had splits that were oriented perpendicularly. There were multiple splits observed per sample and they were characterized as long splits located mostly on the outside surface of the culm.
The general trend of failure modes occurring for each species were as follows: in
B. vulgaris, the presence of nodes had an effect promoting the occurrence of crushing; splitting failure generally governed the failure modes of
D. asper; combined splitting and crushing were the most prominent among
B. blumeana samples; and for
G. angustifolia Kunth crushing was most prominent. Furthermore, results of
D. asper and
G. angustifolia Kunth were consistent with the study of Li et al. [
20], where they noted that crushing failure commonly occurs in short-column samples, whereas long-column samples experienced buckling.
D. asper samples were generally longer, having an average length of 121.40 mm, whereas
G. angustifolia Kunth samples were relatively short at an average length of 57.53 mm. Although buckling was not possible for the length of the samples, splitting was the failure mode that is most closely related to buckling. In addition to this, in observing average compressive strengths,
B. vulgaris and
G. angustifolia Kunth, which have low average
fc,0 values, are most prone to crushing whereas
D. asper and
B. blumeana, which had relatively high average
fc,0 values, experienced mostly splitting. Hence, it could be inferred that splitting usually occurs with high compressive strength bamboos, whereas crushing is most common for bamboos with relatively low compressive strength.

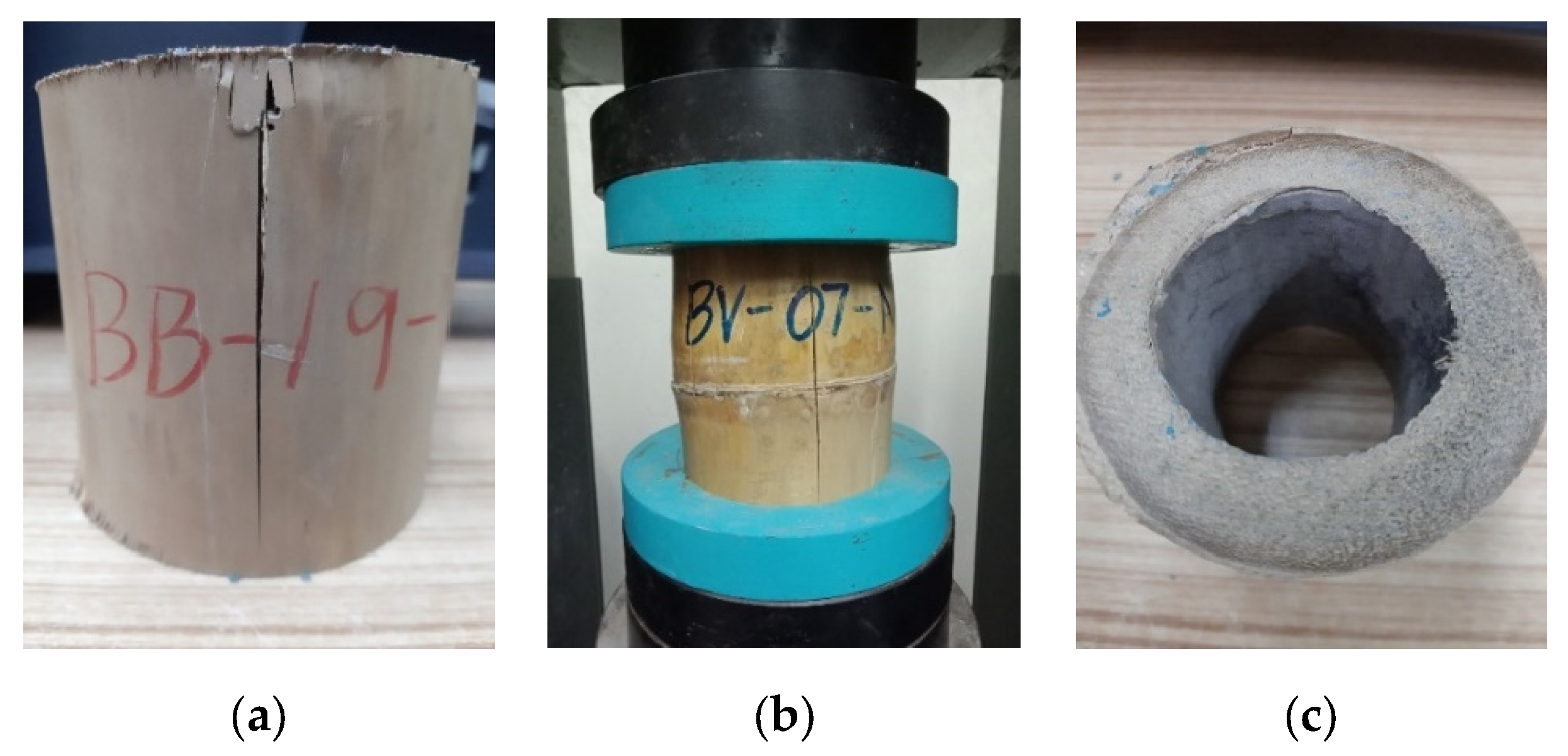

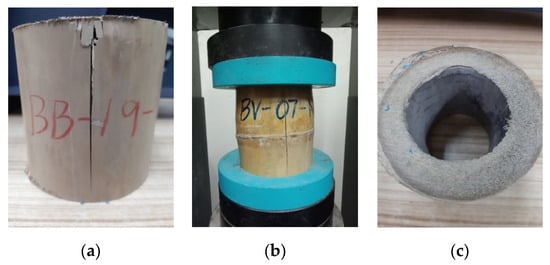

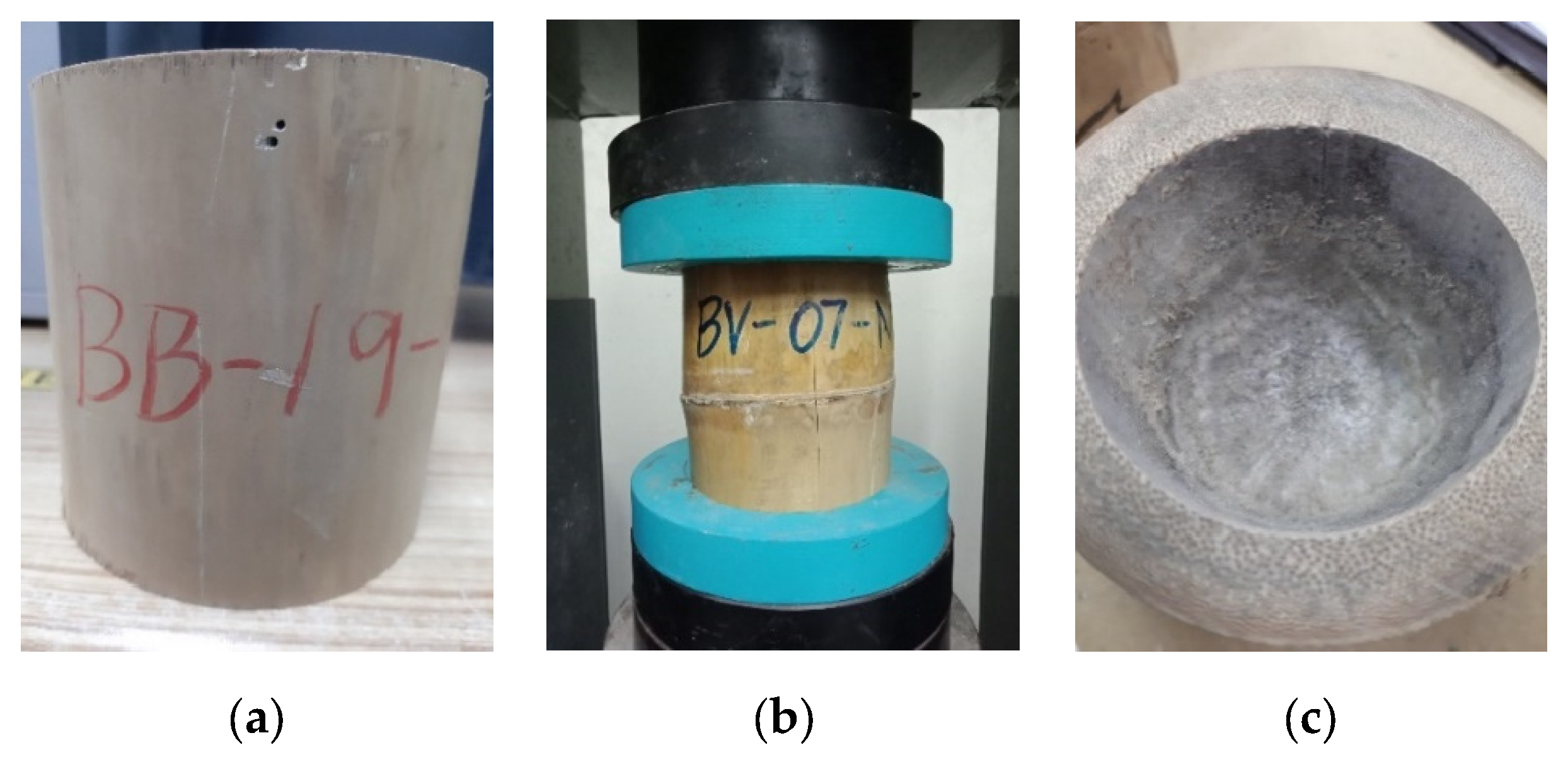

Samples with pre-existing defects were taken note of before compressive loading, specifically holes, cracks, and fungal infection (
Figure 6). It was observed that culms with holes, regardless of the species and nodal condition, were more likely to experience splitting failure along or near the holes (
Figure 7a). The pretesting cracks observed on all the samples were parallel to the fiber of the culm. After being subjected to compressive loading, the pretesting cracks were enlarged, resulting to a splitting failure (
Figure 7b). Lastly, fungal infection on bamboo was mostly observed on
G. angustifolia Kunth samples both under node and internode conditions, where failures were observed after being subjected to compressive loading (
Figure 7c). It should also be noted that most
G. angustifolia Kunth samples with fungal infection were observed to also have pretesting cracks parallel to the fiber.
3.3. Characteristic Strength
According to ISO 12122-1 (2014) [
16], the computed characteristic compressive strength for the species in this study are based on the 5th percentile value with 75% confidence as summarized in
Table 6. It can be observed that the highest characteristic strength was 46.63 MPa exhibited by
B. blumeana, whereas the lowest characteristic strength was 36.99 MPa exhibited by
G. angustifolia Kunth;
B. vulgaris and
D. asper showed characteristic strengths of 40.35 MPa and 40.21 MPa, respectively.
3.4. Effect of Nodes on Compressive Strength
The presence or absence of a node for samples subjected to mechanical testing was evaluated, and its effects on compressive strength
fc were determined using Welch’s
t-test (two-sample
t-test with unequal variances). Shown in
Table 7 is the summary for the statistical analysis of node and internode comparison. The determination of statically significant difference was dependent on satisfying the condition of
p-value < 0.05. If this condition was not met, then there was not enough evidence to conclude that there was a statistically significant difference. As is presented in
Table 7, node–internode relationships of
B. vulgaris and
B. blumeana included statistically significant differences. Hence, it can be determined that the presence or absence of nodes on bamboo culms affects the attained compressive strength
fc values.
3.5. Correlation Models
The correlation between the geometric and physical properties and the compressive strength of the bamboo was analyzed using a simple linear regression technique. The length
L, diameter
D, wall thickness
δ, area
A, mass per unit length
q, moisture content
ω, and basic density
ρ of each species were tabulated grouped by nodal condition. There are four levels of correlation used to determine the performance of each variable. 0 <
R2 < 0.3 indicates no correlation or a very weak correlation, 0.3 <
R2 < 0.5 indicates weak correlation, 0.5 <
R2 < 0.7 indicates moderate correlation, and
R2 > 0.7 indicates strong correlation.
Table 8 shows the
R2 values of each species grouped by nodal condition. It was observed that the geometrical properties of each bamboo species were correlated with its compressive strength only to some small extent. The physical properties, on the other hand, showed higher
R2 values. For the basic density,
D. asper both with and without nodes showed strong correlation, followed by
B. blumeana with node and
B. vulgaris without node, which both showed moderate correlations. The rest of the species showed weak correlations. However, the mass per unit length and moisture content showed correlation to the compressive strength only to some small extent. Among the listed geometric and physical properties, only the basic density showed a weak to strong correlation.
The correlation of the variables independent of the node conditions were also determined. As seen in
Table 9, the geometric properties showed very weak correlations, except for
B. vulgaris. This suggests that the compressive strength of the bamboo species is independent of its geometric property. For the physical properties of the bamboo, the moisture content showed a consistent weak correlation. Only the basic density of
D. asper showed a moderate correlation whereas the remaining three species showed very weak correlations. This means that the physical properties of the bamboo may affect its compressive strength to only a small extent. The correlations observed between density and compressive strength, especially for
D. asper, were comparable to the results of studies cited in Trujillo and López [
15].
3.6. Comparative Analysis
In comparing the compressive strength
fc,0 values across all bamboo species tested, the Single-factor Analysis of Variance (ANOVA) test was used, as shown in
Table 10. Comparisons were based on the assumption of
fc values having equal values among species (
Ho). Rejection of this assumption says otherwise (
Ha). As shown in the ANOVA results, at F statistic = 12.56, at
p-value = 1.5712 × 10
−7,
Ho was rejected, considering F crit = 2.65, and
p-value < 0.05, respectively. Hence, there is enough evidence to reject
fc values being equal and suggesting that there is at least one inequality among the species. In addition to this, considering
p-value < 0.0001, there is statistically significant difference among sampled groups.
As there is at least one inequality among the species, multiple Welch’s
t-Tests were performed, comparing each species to another, as shown in
Table 11. If the absolute value of
t Stat is greater than
t Crit and
p < 0.05, then there exists a statistically significant difference among the sampled species; otherwise, there is not enough evidence to reject the null hypothesis. From these results, compressive strengths
fc showing comparable values were observed for (1)
B. vulgaris and
D. asper, (2)
B. vulgaris and
G. angustifolia Kunth, and (3)
D. asper and
G. angustifolia Kunth.
3.7. Comparison to Other Studies and NSCP Section 6—Wood
Table 12 shows the comparison of the average compressive strength parallel to fiber of the Philippine bamboo species investigated in this study with results from previous studies of the same species based on the presence of a node. It should be noted that the number of samples used, and the origin of the species, may vary between studies, and some of the previous research did not specify the classification of their samples in terms of nodes; hence, they are assumed to include a combination of both node and internode samples.
For
Bambusa vulgaris, it can be observed that the result of this study was higher than the results obtained by Widjaja and Risyad [
21] using the samples from Indonesia and Acma [
22], and lower than the strength obtained from the study of Onche et al. [
23] that tested a particular variant,
B. vulgaris-schrad, from Nigeria. This suggests that the compressive strength parallel to fiber of the Philippine
B. vulgaris is greater than the Indonesian variant but lower than that of the Nigerian variant. Acma [
22] also tested the bamboo in its green condition, which explains the lower compressive strength value.
For
Dendrocalamus asper, it can be observed that the compressive strength values from this study are close to the results gathered by De Jesus et al. [
24]. The results of this study obtained higher strengths for the samples with a node, but lower strength for the internode samples compared to the study mentioned. The similarity in results can also be attributed to the fact that the samples used in both studies were Philippine variants sourced from the same facility. Sompoh et al. [
25] produced a slightly higher result than was observed in this study. However, the results from Acma [
22] were about twice as high as the results from this study. As stated before, this is due to the green condition of the bamboo during testing.
For
Bambusa blumeana, the average compressive strength values from this study were within the ranges of the results from the studies of Sompoh et al. [
25], Janssen [
26], Acma [
22], and Candelaria and Hernandez Jr. [
27], but this study’s strength values were about twice that of the strength values recorded by Espiloy [
28] and Salzer et al. [
8] in their respective investigations, both of which also used green bamboo samples.
For
Guadua angustifolia Kunth, the average compressive strength values in this study were higher than the results from the studies of Londoño et al. using
G. angustifolia samples from Colombia that were in a green condition, and they were slightly greater than the results from Trujillo and López [
15]. Comparing the strength values obtained by Omaliko and Uzodimma [
29] and Bahtiar et al. [
18], the results of this study recorded lower strength values. The variation in the compressive strength values between this study and the study of Trujillo and López [
15] may be attributed to the fact that the strength of the former was recorded under a dry condition, whereas the latter was tested under a green condition.
Overall, this study provides the following: an updated average compressive strength value for the bamboos tested such as that for
B. vulgaris from the study of Widjaja and Risyad [
21]; verification of results from recent studies such as that of De Jesus et al. [
24]; and results from tests conducted using samples with a 12% moisture content limit as for ISO 22157-1 (2017) in contrast to studies such as Acma [
22] and Espiloy [
28] that tested this under a green condition.
Table 12.
Comparison of average compressive strength parallel to fiber against other studies.
Table 12.
Comparison of average compressive strength parallel to fiber against other studies.
Average Compressive Strength Parallel to Fiber (MPa) |
---|
Species | This Study | Other Studies |
---|
B. vulgaris | | Widjaja and Risyad (1987) [21] | Onche et al. (2020) [23] | Acma (2017) [22] |
| Node | 55.59 | - | - | - |
| Internode | 66.73 | - | - | 44.74 * |
| Both | 61.16 | 44.62 | 98 ± 5 | - |
D. asper | | De Jesus et al. (2021) [24] | Sompoh et al. (2013) [25] | Acma (2017) [22] |
| Node | 58.64 | 55.55 | - | - |
| Internode | 60.34 | 63.42 | - | 130.40 * |
| Both | 59.49 | - | 68.67 | - |
B. blumeana | | Sompoh et al. (2013) [25] | Janssen (1981) [26] | Candelaria and Hernandez Jr. (2019) [27] |
| Node | 66.24 | - | - | - |
| Internode | 75.00 | - | - | - |
| Both | 70.67 | 66.50 | 60–176 | 62.49–76.84 |
| | | |
| Espiloy (1987) [28] | Salzer et al. (2018) [8] | Acma (2017) [22] |
| 36.40 * | - | - |
| 38.30 * | - | 61.75 * |
| - | 36.40 * | - |
G. angustifolia Kunth | Omaliko and Uzodimma (2021) [29] | Trujillo and López. (2010) [15] | Trujillo and López (2010) [15] |
| Node | 56.29 | 68–81 | - | - |
| Internode | 58.76 | 60–68 | - | - |
| Both | 57.53 | - | 54.8–56.2 | 32.00 * |
| | | | | |
| | | Bahtiar, Trujillo, and Nugroho (2020) [18] | | |
| | | - | | |
| | | - | | |
| | | 78.3 | | |
Table 13 shows the comparison of the characteristic compressive strength parallel to the fiber of the bamboo samples. The characteristic compressive strength values ranged from 36.99 MPa to 46.63 MPa with
G. angustifolia Kunth and
B. blumeana having the lowest and highest strengths, respectively. Generally, it can be observed that these values were greater than the strengths of the unseasoned structural timber of Philippine woods belonging to the high-strength group with an 80% stress grade as established in the NSCP 2015, with strengths ranging from 13.70 MPa to 21.60 MPa.
Considering the high percentage differences between the characteristic compressive strength of the bamboo species and the compressive strength of timber, as in the case of B. blumeana showing a 216% increase over that of Sasalit, which showed the highest strength among the timber group, this suggests that bamboo species tested in this study have great potential to be used as an alternative to timber, specifically for compressive strength parallel to fiber.
4. Conclusions
The average compressive strengths parallel to the fibers of the four species investigated ranged from 55.59 MPa to 75.00 MPa, from samples of B. vulgaris with node to B. blumeana without node, respectively. Three modes of failure were noted, which are splitting, crushing, and combined splitting and crushing. The failures observed per species varied in length, frequency, and location. One notable observation was that for a sample that experienced combined splitting and crushing failure, the splits were almost always found passing through the crushing of the culm regardless of the length of the split. The characteristic compressive strength was calculated from 196 tests and resulted in a characteristic strength of 40.35 MPa for Bambusa vulgaris, 40.21 MPa for Dendrocalamus asper, 46.63 MPa for Bambusa blumeana, and 36.99 MPa for Guadua angustifolia Kunth.
Through the use of Welch’s t-test, compressive strength values obtained from nodal and internodal samples were evaluated. There was a statistically significant difference among the node–internode relationships of B. vulgaris and B. blumeana, whereas for D. Asper and G. angustifolia Kunth, compressive strength values were comparable.
Simple linear regression was used to determine the correlations of the geometric and physical properties with the compressive strength of the bamboo. Two analyses were performed as follows: (1) correlations between variables considering node condition and (2) correlation between variables independent of node condition. For the first analysis, the highest correlation for the geometric properties was between 0.3 to 0.5, which denotes a weak correlation, and this was observed for B. vulgaris. The physical properties, on the other hand, showed varying correlation strengths, with basic density for D. asper both with and without a node showing an R2 value greater than 0.7, exhibiting strong correlation. For the second analysis that is independent of the node condition, the geometric properties showed very weak to weak correlations, whereas the physical properties showed very weak to moderate strength correlations. It is therefore concluded that the compressive strength of the bamboo is independent of its geometric properties, whereas its physical properties may affect the compressive strength to only a small extent. For D. asper, it is evident that its basic density has a significant effect on its compressive strength.
Next, comparative analysis across all bamboo species using Single-Factor ANOVA resulted in the conclusion that there exists at least one inequality among the species. It cannot be concluded that strengths across all species are of equal magnitude or at least comparable to each other. Hence, Welch’s t-Test was performed for the comparison of pairs of species. Comparable strength values were seen between B. vulgaris and D. asper, B. vulgaris and G. angustifolia Kunth, and between D. asper and G. angustifolia Kunth. In contrast, those pairs with statistically significant differences were B. vulgaris and B. blumeana, D. asper and B. blumeana, and B. blumeana and G. angustifolia Kunth.
Most of the related studies were supported by the results of this study, in which the values were within the ranges of values obtained by other authors. It was evident that the characteristic compressive strengths of the Philippine bamboo species studied in this paper were greater than the compressive strengths of unseasoned structural timber belonging to a high-strength group with an 80% stress grade. Thus, it can be concluded that these bamboo species can provide significant alternatives to timber, and that the average and characteristic compressive strengths provided by this study can be used to characterize the mechanical properties of bamboo and can be adopted by National Structural Code of the Philippines.
This study is limited to investigating only the characteristic compressive strength parallel to the fiber of four local Philippine bamboo species. However, it is recommended that researchers conduct further tests to establish the modulus of elasticity and Poisson’s ratio for these bamboo species. Also, other mechanical properties such as flexure, shear, and tensile strength need to be explored further to establish relationships between the different mechanical properties and enable the discrimination of one property from another without the need for additional testing. In addition to this research, quantifying the effects of fungus infection could help to determine possible mitigations and help in repurposing affected bamboos. SEM Analysis of the test specimen for moisture content determination could also be explored to give a better understanding of the samples’ failure mechanism. Exploration of other endemic bamboo species such as Bambusa philippinensis, Gigantochloa apus, and Bambusa merrilliana should be studied to further determine the general characteristics of bamboos that are economically important.
