1. Introduction
Sorghum is a genus of plants belonging to the family of
Poaceae, widely used as forage crop as well as human food and for biofuel production. Globally, the most cultivated species is
Sorghum bicolor (L.) Moench, also known as broomcorn or great millet; this species is particularly widespread in the Americas and Africa, which, in 2017–2021, accounted together for more than 80% of total production. In 2021, Europe produced 1.9% of global Sorghum, with France being the highest-producing country at 386,040 t [
1]. In Italy, the second highest-ranking European producer, the Sorghum yield reached 242,855 t in 2023, making it the fourth cereal after wheat, corn and rice [
2]. Some wild species are also exploited for animal feeding, such as the widespread
Sorghum halepense (L.) Pers., commonly referred to as Johnson grass, originating from the Mediterranean and Western Asia regions and now reported as an invasive weed across all continents [
3].
When used as feed, Sorghum must be managed with particular caution because of a cyanogenic glycoside called dhurrin ((S)-4-Hydroxymandelonitrile β-
d-glycoside) [
4], which is synthesised as a secondary metabolite in its tissues. This molecule contains a cyanide group (CN
−) that can be released upon hydrolysis and is extremely toxic to all eukaryotic cells. CN
− inhibits cellular respiration by binding to the Fe
+++ of cytochrome oxidase, rendering cells unable to utilise molecular oxygen and ultimately to synthetise ATP [
5]. The rumen microbiota is able to rapidly hydrolyse dhurrin, further accelerating cyanide release and therefore making ruminants much more sensitive to CN
− than monogastric species [
6,
7]. Such rapid and massive CN
− release can cause severe, often lethal, poisonings in ruminants, particularly upon the ingestion of large amounts of fodder with high dhurrin content [
6].
In Sorghum plants, dhurrin is produced especially during early growth phases [
5,
8]. Thanks to this glycoside,
Sorghum species are quite resistant to herbivores, including insects [
9]. Mature plants generally contain a lower amount of dhurrin and are therefore considered safe for animal feeding; however, dhurrin content is reported to increase under the following conditions [
10]:
Prolonged drought, frost, wilting, chewing and any other condition causing plant cell injury;
Massive herbicide treatments;
Extensive use of nitrogen-based fertilisers.
When used as feed, Sorghum can be directly grazed by animals or harvested for green forage, silage and hay production. Generally, the ensiling process leads to a dispersal of CN
− from plant tissues. Still, in some cases, high CN
− concentrations can remain in plants that have undergone rapid desiccation and subsequent conservation in large bales [
9]. Because of the CN
− poisoning potential, Sorghum harvesting and use require cautious management in order to minimise poisoning risks, with special attention when used for feeding ruminants. Young leaves and new shoots, including the sprouts, are the most dangerous parts, as they can concentrate large amounts of dhurrin [
6].
Although Sorghum toxicity has long been known, no poisoning cases in bovines have been reported in Europe in recent decades [
11,
12], with the exception of two cases in Spain quoted in a review on plant poisoning [
13]. A search of the grey literature also revealed no results in Europe, but there were several cases in both the Americas and Australia [
14]. Likewise, data on Sorghum poisonings were found—both in scientific databases and through online search engines—in extra-European countries, especially in semi-arid regions of South America [
15,
16,
17] and India [
18,
19,
20], where Sorghum cultivation for fodder purposes is common.
In August 2022, 66 bovines died in Piedmont (a region in Northwest Italy) after being exposed to the
S. bicolor ×
S. sudanense—i.e.,
S. bicolor ssp
. sudanense (P.) Stapf—cultivar called Suzy [
21] or to forage containing
S. halepense. The aim of this study is to provide a detailed overview of this outbreak, with special emphasis on the diagnosis and the therapeutic management of this toxicosis. Results of dhurrin concentration monitoring from August to November 2022 in both cultivated and wild
Sorghum samples from the affected farms and elsewhere are also presented. A short preliminary report of the outbreak has been published in Italian in 2023 [
22].
1.1. Poisoning Cases (August 2022)
Five outbreaks of Sorghum poisoning occurred in August 2022 in Piedmont.

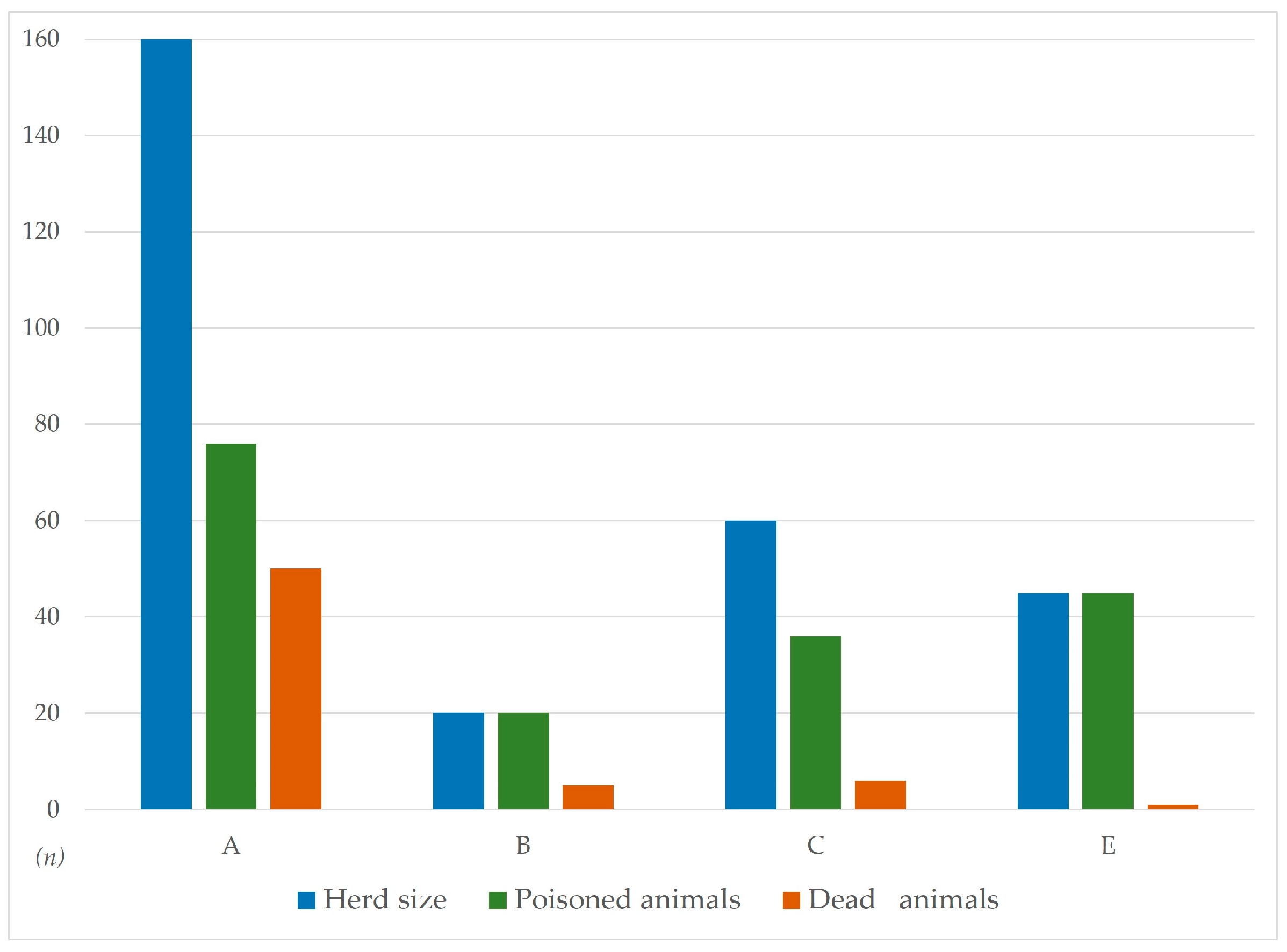

Figure 1 shows the epidemiological data concerning the poisoning cases.
1.1.1. Case A—6th of August: Sommariva del Bosco (Cuneo)
A herd of 160 cows, mainly of the Piedmontese breed, was allowed free access to a field entirely cultivated with the
S. bicolor ×
S. sudanense cultivar Suzy. As the animals were hungry due to overnight fasting, they rapidly ingested Sorghum plants, specifically sprouts with a height range of 30–45 cm. Around half of the animals were poisoned; forty-six of them rapidly died 20–30 min after the ingestion (
Figure 2a), while in four further individuals, death ensued in the following hours. Most of the dead individuals were pregnant. The surviving ones were immediately moved away. Based on the clinical picture, the sudden deaths and the gross lesions (see below), cyanogenic glycoside poisoning was promptly suspected.
1.1.2. Case B—11th of August: Moretta (Cuneo)
A group of 20 adult mixed-breed cows and bulls (mainly Friesian × Piedmontese or other meat breeds) housed in tie stalls were fed green chop (fresh forage) mainly composed of
S. halepense. This is a common farming practice in Piedmont, especially during the warm season, when green and high-quality forage is scarce. All the affected animals were lactating cows aged more than 3 years; five of them suddenly died after being offered the contaminated feed (
Figure 2b). The forage was promptly removed from the troughs after the onset of the clinical signs of poisoning.
1.1.3. Case C—11th of August: Bra (Cuneo)
Sixty adult cows of the Piedmontese breed housed in a free-stall barn were fed green chop, mainly consisting of Johnson grass. Poisoning signs were noticed during the subsequent night in thirty-six individuals; four of these suddenly died after grass ingestion, while in two further individuals, death ensued few days later. As in case B, the forage was removed after the first symptoms, and no further mortality was recorded.
1.1.4. Case D—12th of August: Asti
This case occurred in a cow–calf operation farm consisting of about 60 heads of the Piedmontese breed (cows and calves) housed in a free-stall barn. By day, the animals were allowed to graze on pastures in proximity to the farm for most of the year. Four cows died after ingestion of S. halepense, which was found to contaminate the pasture. This episode was tardily and poorly reported to the veterinarians, such that it was not possible to collect reliable epidemiologic information.
1.1.5. Case E—25th of August: Cossato (Biella)
The farm’s characteristics were similar to those from case D, i.e., a cow–calf operation farm with about 45 head, mainly of the Piedmontese breed (but also meat crossbreds). For most of the year, animals were free to graze on pastures surrounding the farm. All cows showed the typical signs of cyanide poisoning, mainly respiratory distress and a tendency toward recumbency; overall, symptoms were less severe than in cases A, B and C, resulting in the loss of only one cow. Also in this case, the cause of poisoning was pasture contamination with S. halepense.
2. Materials and Methods
2.1. Necropsies and Histological Analysis
Due to unfavourable conditions (high external temperatures and the limited availability of veterinarians), necropsies were performed on only a few animals (n = 6 in total) directly at the farms. Heart, lung, brain, liver, kidney, spleen, reticulum, rumen, omasum, abomasum and intestine samples were collected, fixed in 10% buffered formalin (4% formaldehyde), dehydrated and embedded in paraffin wax blocks. Each sample was then sectioned at 4–5 µm-thickness, mounted on glass slides and stained with haematoxylin and eosin to reveal histopathological alterations. Slides were examined by two independent veterinary pathologists.
2.2. Sorghum Sample Collection
To confirm the suspicion of cyanogenic glycoside poisoning, samples of Sorghum to which the cattle were exposed were collected at each farm involved in the outbreak (
Figure 3) and submitted for dhurrin determination (see below). It was also decided to collect and analyse additional specimens of both wild and cultivated Sorghum in order to measure dhurrin content in plants from different areas of the Piedmont region. In particular, the selection process was based on three main factors:
In addition, in certain instances, samples were collected from different plant portions and at diverse growth stages.
As regards cultivated Sorghum, the
S. bicolor ×
S. sudanense cultivar Suzy was involved in case A. Two cultivars,
S. bicolor ssp
. drummondii Piper and
S. bicolor ×
S. sudanense Sudal [
24], were then sampled from a farm in Montechiaro d’Asti (Asti), which was experiencing similar drought conditions to the farm in case A; Sorghum had not yet been harvested due to the severe outbreak that had occurred in Sommariva del Bosco.
Common Johnson grass, which is frequently used as fodder by Piedmontese farmers, was the cause of poisoning cases B, C, D and E. Further sites for S. halepense sampling were Verrua Savoia (Torino province), Montiglio Monferrato (Asti province), Cuneo, Faule, Sampeyre and Sanfrè (Cuneo province).
One pooled sample composed of a minimum of 500 g of fresh plant materials was collected randomly from different areas inside pasture fields or directly taken from the green forage offered to animals in the stalls. Additionally, in one case (A), the rumen content was collected from a dead cow. All sampling activities were completed from August to November 2022.
2.3. Dhurrin Determination
Samples were analysed using an in-house liquid chromatography–tandem mass spectrometry (LC–MS/MS) method at the National Reference Laboratory for Plant Toxins, Food Chemical Department of Istituto Zooprofilattico Sperimentale della Lombardia e dell’Emilia Romagna (IZSLER), located in Bologna. Samples were ground into flour, and 1 ± 0.1 g of each one was extracted with 6 mL of aqueous methanol (80%). The sample was shaken vigorously for 30 s and placed in an ultrasonic water bath for 15 min. The mixture was centrifugated for 5 min at 4000× g, and the supernatant was collected in another tube. This extraction was repeated twice, and the supernatant was combined and made up to a volume of 20 mL with water. Thereafter, 1 mL of solution was evaporated to dryness under a stream of nitrogen at 40 °C. The residue was dissolved in 0.5 mL of 10% methanol in aqueous solution, diluted and analysed by using LC–MS/MS.
The LC–MS/MS analysis was performed on a XEVO Tq-XS Acquity ultra-performance liquid chromatograph (UPLC) I Class Plus from Waters (Milford, MA, USA). Chromatographic separation was achieved on an Acquity UPLC C8 BEH column measuring 100 mm × 2.1 mm, 1.7 µm (Water Corporation, Milford, MA, USA). Data acquisition and processing were carried out using MassLynx software v. 4.2. SCN1012. Mobile phase A consisted of 0.1% formic acid in water/acetonitrile (95:5,
v/
v), and mobile phase B consisted of 0.1% formic acid in acetonitrile. The following gradient was used: 0–0.5 min, isocratic 2% B; 0.5–4 min, linear gradient 2–50% B; return to initial conditions in 0.5 min and hold for 1 min. The total run time was 6 min. The flow rate was 0.4 mL/min. The injection volume was set at 5 µL. The ESI source operated in positive ionisation mode with the following instrumental parameters: capillary voltage of 0.5 kV, cone voltage of 40 V, source temperature of 120 °C and desolvation temperature of 600 °C. The conditions of ionisation and fragmentation were identified by continuous infusion of tuning solutions and gradual adjustment of the parameters. According to SANTE/12089/2016 [
25], dhurrin was identified by the retention time, ion fragments and ion ratio. LC–MS/MS parameters for dhurrin determination (retention time, precursor ions, daughter ions and fragmentation conditions) are shown in
Table S1. The retention time was within ±0.2 min of the reference peaks. The peaks showed similar shapes and overlapped with each other. The ion ratio was within ±30% of the average of the calibration standards from the same sequence. The peaks were within the linear range of the detector with an S/N ≥ 3 [
26]. The LC–MS/MS method’s selectivity was evaluated by acquiring the data in MRM mode and monitoring one precursor ion and two daughter ions for each molecule [
25].
A multi-level calibration curve with concentration levels from lowest to highest (0.2–0.5–1–2.5–5–10–15 µg/mL) was prepared in 10% methanol in aqueous solution. A correlation coefficient (R
2) ≥ 0.99 and a normal distribution of residuals lower than 20% were achieved in every analytical batch. The calibration curve, a representative chromatogram of dhurrin reference material (2.5 µg/mL) and a chromatogram of a blank and a contaminated Sorghum sample are shown in
Figures S1–S4.
The limit of quantification (LOQ) of dhurrin in feed was 50 mg/kg, corresponding to 4.3 mg/kg hydrogen cyanide (HCN), i.e., cyanide. It has been evaluated under conditions of accuracy and precision, verifying the signal-to-noise ratio to be at least equal to 10. The recovery % (70–120) of the quality control spiked at LOQ was in line with the guidance document on performance criteria of the European Union Reference Laboratory for Mycotoxin and Plant Toxins [
26]. According to EFSA [
27], 1 g of dhurrin has an HCN potential of 86.7 mg, representing the total amount of HCN released under conditions of complete hydrolysis of the present dhurrin. For the sake of simplicity, in this paper, the HCN potential is referred to as HCN/cyanide concentration.
2.4. Clinical Picture
Poisoned bovines showed multiple symptoms, with variable distribution among individuals. Many cows were found in sternal or lateral recumbency, mainly on the right side. Respiratory distress was observed in most of the poisoned animals, consisting of tachypnoea, dyspnoea, panting and gasping. Several cows also displayed stupor, convulsions and muscle twitching with vocalisations (mooing). Sialorrhoea was an additional common symptom among poisoned bovines. Moreover, light to moderate tympanism was detected in a few individuals. Hyperthermia, nystagmus, mydriasis and wheezes were occasionally observed.
2.5. Therapeutical Protocols
Table 1 depicts the treatment performed in each case and the relative success rate.
2.5.1. Case A
Although, as mentioned above, a cyanogenic glycoside poisoning was suspected, it was difficult to find the proper remedies also because this outbreak happened during the weekend. Thirty animals were treated intravenously with a mix of rehydrating solutions (Ringer’s lactate, physiological and glucose solutions), coupled with 60 mL of the multivitamin Dobetin B1® (cyanocobalamin 1 mg/mL, thiamine hydrochloride 100 mg/mL). Considered the hot external temperature (over 38 °C), the cows were also cooled down by spraying with water taken from the mobile drinking troughs. Twenty-six of the treated animals survived.
2.5.2. Case B
Owing to the similarity to the clinical picture described for the Sommariva del Bosco poisoning (case A) and based on the first analytical results revealing the mass presence of dhurrin in sorghum samples from that case, antidotal therapy was immediately started. However, due to the limited availability of sodium thiosulphate (Na
2S
2O
3), it was decided to treat only the most severely affected individuals (
n = 5), lying in sternal/lateral recumbency with panting and vocalisations. Antidote solution was prepared by dissolving 5 g Na
2S
2O
3 in 4 L of Ringer’s lactate, which was slowly administered i.v. (
Figure 4).
Furthermore, 15 g of Na2S2O3 was dissolved in 10 L of cold water and then given orally through drench guns. At 10–15 min after antidote administration, breathing started to improve, and vocalisations almost ceased; the cows were again able to stand in about one hour.
2.5.3. Case C
As mentioned above, poisoning symptoms were noticed during the night, and this resulted in difficulties in obtaining Na2S2O3 in sufficient amounts to treat all the affected animals (n = 30). It was therefore decided to administer methylene blue i.v. (10 g dissolved in 4 L of Ringer’s lactate) first; however, this treatment was only partially effective in reducing the severity of the clinical signs. As soon as Na2S2O3 was fully available (late in the morning), it was promptly administered i.v. (5 g dissolved in 4 L rehydrating solution) to all previously treated cows. This led to a rapid improvement of the clinical picture as described for case B. Twenty-eight cows survived, while two died few days later.
2.5.4. Case D
No treatment was performed.
2.5.5. Case E
Due to the alert system set up for the purpose of tackling the cyanogenic glycoside outbreaks, the antidote Na2S2O3 was made readily available to veterinarians. Accordingly, all poisoned animals were treated with the antidote as soon as 1 h after the onset of clinical signs, and a rapid recovery ensued within 2 h from therapeutic intervention. The treatment schedule was the one detailed for case B.
4. Discussion
The rapid onset of clinical signs in cows shortly after the ingestion of Sorghum, followed sometimes by sudden death, had immediately suggested cyanide poisoning. Respiratory distress, stupor, sternal or lateral recumbency, convulsions, muscle tremors and sialorrhoea are typically reported in cyanide poisoning in cattle [
6,
29]. In addition, the recorded intense sweet odour of “bitter almonds”, the bright cherry-red colour of venous blood and the presence of lung congestion and emphysema as well as the presence of froth in the trachea are consistently recorded in bovines with cyanogenic glycoside poisoning [
30]. The detection of abomasitis that features oedematous–haemorrhagic and neutrophilic granulocyte infiltrations has been also associated with cyanide poisoning [
6]. Finally, myocardial haemorrhages further point to cyanide poisoning [
31].
The gold-standard therapy for cyanide toxicosis [
6,
32] consists of supplying a chemical agent able to induce the formation of methaemoglobin (MetHb), i.e., oxidised (Fe
+++) haemoglobin, which is unable to bind O
2, and making it available to tissues. However, cyanide shows a higher affinity toward the Fe
+++ central haem iron of MetHb than the Fe
+++ of cytochrome oxidase. This causes the release of cyanide from the enzyme, the formation of cyanoMetHb and the reactivation of cell respiration. MetHb formation in large animals may be primarily accomplished by administering sodium nitrite i.v. (10 to 20 mg/kg bw); this treatment should be repeated with great care because of the danger of producing nitrite toxicosis, with further impairment of cellular respiration and severe hypotension [
30]. Methylene blue at high dosages (1 to 3 g/~250 kg bw) has been recommended as an alternative to nitrites [
31]. This treatment must be coupled with the sulphur donor Na
2S
2O
3, which, in the presence of rhodanese, reacts with HCN, yielding thiocyanate (SCN
−); this metabolite lacks any detrimental effects on cellular respiration and is rapidly excreted via the kidneys. In the reported cases herein, coupling methylene blue and Na
2S
2O
3 administration did not seem to result in a visible improvement in therapeutic efficacy; a significant and rapid relief of the clinical signs was indeed obtained only after Na
2S
2O
3 treatment, which was successfully used alone in cases B and E with 100% efficacy. It has actually been reported that, in cattle, there is no benefit of administering i.v. a MetHb-inducing agent over Na
2S
2O
3 alone [
32]. In addition, prompt oral dosing with Na
2S
2O
3 may help in detoxifying HCN released in the rumen even before the onset of clinical signs [
33]. The overall good success of the antidotal treatment further confirmed the diagnosis of cyanide poisoning. It should be noted that treated cows from case A had a relatively high survival rate (87%) even though they did not receive specific antidotes, but only a palliative fluid therapy with a multivitamin complex. The prompt removal of the animals from the contaminated pasture, i.e., after the first sudden deaths, was likely the cause of the high recovery rate.
According to the European Directive 2002/32/EC [
34], a threshold of 50 mg/kg cyanide has been established for animal feed and raw materials. Under field conditions, concentrations over 200 mg/kg are considered sufficient to induce overt toxicosis [
6,
28,
31].
It is generally assumed that crop plants are less resistant to parasites and herbivores than their wild counterparts due to artificial genetic selection aiming at reducing the content of specific defence compounds (e.g., cyanogenic glycosides) that may prove harmful for humans and livestock [
35]. However, this assumption cannot be generalised to Sorghum. Unexpectedly, broomcorn cultivars such as Suzy (a
S. bicolor ×
S. sudanense variety, Sommariva del Bosco, case A) and the mixture of Piper and Sudal (Montechiaro d’Asti), revealed very high HCN concentrations in August 2022. Both cultivars are specifically marketed for animal feeding purposes; however, guidelines for use reported on seeds’ envelopes do recommend not to feed the crop to animals when plants are below 70/80 cm (70 cm for the mixture of Piper and Sudal, and 80 cm for Suzy), but they lack any information on the potential related danger [
36]. In case A, the farmer decided to allow his herd to graze on the field although the sorghum plants were below the recommended height. As was true for many other farmers during that summer, his farm was experiencing a shortage of forage due to its high cost and the scarce availability of green pastures. The increase in forage prices was a direct consequence of a lower supply on the market that, in turn, was caused by a diffuse drought particularly affecting Northwest Italy. A parallel survey was conducted on cultivated hybrids (
S. bicolor ssp
. Drummondii Piper and
S. bicolor ×
S. sudanense Sudal) from different fields surrounding a farm in the Asti province (Montechiaro d’Asti) near poisoning case D; HCN concentrations >200 mg/kg were detected in 50% of specimens collected in August 2022, with peaks of 847–868 mg/kg. Overall, our findings confirm that bovines should not be fed on young plants even of cultivated hybrids, including regrowth after cutting, because of the high risk of cyanide poisoning.
In the outbreak of cyanogenic glycoside poisoning in cows described herein,
S. halepense was implicated in 4 out 5 cases. Johnson grass is considered among the most invasive and dangerous weeds in Europe and extra-European countries; aside from the potential accumulation of toxic amounts of cyanogenic glycosides, several potentially adverse effects have been reported, including displacement of natural flora; competition with other crops; synthesis of allelochemicals interfering with crop growth; and hosting of plant pathogens (for a review, see Peerzada et al., 2017 [
37], and the numerous literature references therein). Despite that, the free growth of Johnson grass is rarely counteracted; in fact, as reported in four cases (B to E), farmers traditionally employ Johnson grass as a fodder plant (hay or pasture) during periods of droughts. As with other Sorghum species, several factors, including soil chemical composition, plant age, use of nitrogen fertilisers, weather conditions and damage to plant tissues, are reported to affect the dhurrin content and hence the potential HCN release of Johnson grass [
34]. There is scant information on the dhurrin and HCN content of
S. halepense, particularly from European countries. In a study performed in India, calculated HCN concentrations (based on the colorimetric method) of uncultivated Johnson grass from farm bunds averaged around 900 mg/kg at 30 days after weeding but fell to 120 mg/kg at the 25% flowering stage [
38]. Therefore, as with cultivated Sorghum species, cattle should not be fed with Johnson grass at the early stage of the crop. In the outbreaks reported here, three poisoning cases concerning
S. halepense revealed HCN concentrations in the range 419–690 mg/kg (cases B, C, D). The relatively low amount of HCN (below 50 mg/kg) detected in plant specimens from case E is probably attributable to uncorrected sampling procedures. For comparison, samples of
S. halepense were collected in a more scattered way during August and September 2022 in fields from farms located in different areas of Piedmont, even near poisoning cases (Sanfrè, Faule, Montiglio Monferrato); of note, only in one case were HCN amounts >200 mg/kg detected in plant specimens, likely pointing to the occurrence of different pedo-climatic conditions not resulting in remarkable accumulation of dhurrin as was reported for the areas of the outbreak.
As a matter of fact, in summer 2022, unfavourable weather conditions were registered all across Europe, and Northern Italy, particularly certain areas of Piedmont, resulted one of the driest regions [
39]. According to the Piedmont Regional Agency for Environmental Protection (ARPA), summer 2022 was one of the hottest and driest of the last 30 years in Piedmont [
23]. Indeed, during that summer, unprecedented temperatures were registered, occasionally reaching all-time highs (
Figure S5). Additionally, the numbers of tropical nights (T > 20 °C) and days (T > 30 °C) were higher than in previous years (
Table S2). Moreover, rainfalls were irregular in terms of both quantity and regional distribution, with a decrease of 50–60% with respect to previous years, especially in areas where cyanide poisoning outbreaks occurred (
Figures S6 and S7). Finally, the hydric balance had been in deficit since the previous winter (
Figure S8), also due to limited snow reserves. These conditions are reasonably believed to be responsible for the excessive accumulation of dhurrin observed in most
Sorghum specimens collected in the outbreak area and surrounding areas.
