Article

Shorter Door-to-ECG Time Is Associated with Improved Mortality in STEMI Patients

1
Department of Emergency Medicine, Stanford University, 900 Welch Road, Ste 350, Palo Alto, CA 94304, USA
2
Department of Biostatistics, Vanderbilt University Medical Center, 2525 West End Avenue, Suite 1100, Nashville, TN 37203, USA
3
Tulane University School of Medicine, 1430 Tulane Ave., New Orleans, LA 70112, USA
4
Division of Cardiovascular Medicine, Department of Medicine, Stanford University, 6453 Quarry Rd., Palo Alto, CA 94304, USA
5
Department of Emergency Medicine, Brigham and Women’s Hospital, Harvard University, 75 Francis Street, Boston, MA 02115, USA
6
Department of Emergency Medicine, Columbia University College of Physicians and Surgeons, 622 W 168th St., New York, NY 10032, USA
7
Department of Emergency Medicine, Icahn School of Medicine at Mount Sinai, 1468 Madison Ave., New York, NY 10029, USA
8
Department of Dean Administration, Oregon Health & Sciences University, 3181 SW Sam Jackson Park Rd., Portland, OR 97239, USA
9
Department of Emergency Medicine Parkland Hospital, University of Texas Southwestern Medical Center—Dallas, 5323 Harry Hines Boulevard E4.300, Dallas, TX 75390, USA
10
Department of Emergency Medicine, University of Wisconsin—Madison, 800 University Bay Dr Suite 310, Madison, WI 53705, USA
11
Department of Emergency Medicine, University of California at Davis, 2245 45th St., Sacramento, CA 95817, USA
12
Department of Emergency Medicine, Oregon Health & Science University, 3181 SW Sam Jackson Park Rd., Portland, OR 97239, USA
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2024, 13(9), 2650; https://doi.org/10.3390/jcm13092650
Submission received: 19 March 2024 / Revised: 9 April 2024 / Accepted: 16 April 2024 / Published: 30 April 2024

Abstract

:
Background: Delayed intervention for ST-segment elevation myocardial infarction (STEMI) is associated with higher mortality. The association of door-to-ECG (D2E) with clinical outcomes has not been directly explored in a contemporary US-based population. Methods: This was a three-year, 10-center, retrospective cohort study of ED-diagnosed patients with STEMI comparing mortality between those who received timely (<10 min) vs. untimely (>10 min) diagnostic ECG. Among survivors, we explored left ventricular ejection fraction (LVEF) dysfunction during the STEMI encounter and recovery upon post-discharge follow-up. Results: Mortality was lower among those who received a timely ECG where one-week mortality was 5% (21/420) vs. 10.2% (26/256) among those with untimely ECGs (p = 0.016), and in-hospital mortality was 6.0% (25/420) vs. 10.9% (28/256) (p = 0.028). Data to compare change in LVEF metrics were available in only 24% of patients during the STEMI encounter and 46.5% on discharge follow-up. Conclusions: D2E within 10 min may be associated with a 50% reduction in mortality among ED STEMI patients. LVEF dysfunction is the primary resultant morbidity among STEMI survivors but was infrequently assessed despite low LVEF being an indication for survival-improving therapy. It will be difficult to assess the impact of STEMI care interventions without more consistent LVEF assessment.

1. Introduction

ST-elevation myocardial infarction (STEMI) occurs due to the occlusion of one or more coronary arteries, resulting in transmural myocardial ischemia [1]. Without prompt diagnosis, STEMI is associated with high mortality and increased heart failure incidence [1,2,3,4,5,6,7]. Specifically, after treating STEMI with the preferred therapy of percutaneous coronary intervention (PCI), in-hospital mortality has been reported to be reduced from 30–40% to approximately 6–7% [3,4,5,6,7]. Early intervention is also associated with less heart failure from reduced ischemia time in survivors [8,9,10]. Left ventricular ejection fraction (LVEF) in STEMI patients is an important measure used to identify patients with heart failure with reduced ejection fractions (HFrEF). Those with LVEF below 50% have worse prognoses [10,11,12,13].
Achieving best STEMI outcomes for those receiving PCI requires timely care along the continuum from prompt diagnosis to coronary revascularization [14,15]. As a result, clinical practice guidelines from the American Heart Association (AHA), American College of Cardiology (ACC), and the European Society of Cardiology recommend prompt recognition and diagnosis of STEMI through regional STEMI care processes [2,13,14]. This begins with early diagnosis upon first medical contact [16,17]. Our prior work has shown that STEMI patients with a delayed acquisition of a diagnostic electrocardiogram (ECG) have a longer door-to-balloon (D2B) time [18,19,20]. We have also observed how the individuals and care teams making the diagnosis vary depending on the location of diagnosis with emergency department (ED) diagnosed patients being the least studied [21].
The associations between diagnostic delay and subsequent mortality and morbidity (e.g., heart failure) have not been directly quantified. Here, we explored a subgroup of ED-diagnosed STEMI patients [21] to better understand whether ED-based interventions to reduce door-to-electrocardiogram (D2E) time may improve mortality and reduce new onset heart failure in survivors. In this descriptive investigation, we compare the mortality rate among STEMI patients who did and those who did not receive a timely ECG, while exploring differences in LVEF. We hypothesized that STEMI patients with timely ECG would have improved clinical outcomes as a result of more timely treatment. To our knowledge this is the only exploration of this kind within a contemporary US-based population.

2. Methods

We used data included in the Emergency STEMI Care Registry (ESC) from 10 PCI-center associated EDs [18,19,20,21]. The 10 EDs included Brigham and Women’s Hospital in Boston, Massachusetts; NYU—Langone and New York-Presbyterian Columbia University in New York, New York; University of Pennsylvania in Philadelphia, Pennsylvania; Vanderbilt University in Nashville, Tennessee; University of Wisconsin in Madison, Wisconsin; The Cleveland Clinic Foundation Main Campus in Cleveland, Ohio; University of Texas Southwestern affiliated Parkland Hospital in Dallas, Texas; Oregon Health & Science University in Portland, Oregon; and University of California, Davis Medical Center in Sacramento, California.
These facilities contributed patient data for all patients with STEMI seen from 1 January 2014–31 December 2016 to the ESC Registry, described below and in prior publications [18,19,20,21,22]. Our description here partly reproduces their wording. The diagnosis of STEMI was based on final hospital international classification of disease (ICD) diagnosis codes. To capture the ED-diagnosed cohort [21], we excluded patients with a STEMI diagnosis or screening ECG completed prior to ED arrival, a non-diagnostic initial ECG, and in-hospital STEMI. In-hospital STEMI was defined as instances when a diagnostic ECG was acquired after hospital admission for an alternative diagnosis and when an ED ECG was present and without evidence of STEMI. We then excluded patients whose catheterization lab findings were not consistent with STEMI (e.g., no culprit/coronary artery lesion found at time of invasive angiography) and when there was an alternative diagnosis for which care was more consistent.

2.1. Comparison Cohorts and Outcomes

Our analyses compared differences between those achieving timely diagnosis and those who did not. Timely diagnosis was defined as a D2E ≤ 10 min per international STEMI management guidelines, and untimely diagnosis was a D2E > 10 min [1,2,18,19,20,21].

2.2. Outcomes

Our primary focus was one-week and in-hospital mortality, which was compared between those who did and did not receive a timely ECG in adherence with international diagnosis guidelines [2,13,14]. We also examined these outcomes in the subgroup of ED STEMI patients who received PCI.
When examining LVEF, we considered that the longer a STEMI persists before intervention, the greater the loss of viable myocardial tissue. During recovery, the myocardium remodels to heal [15,23]. This remodeling can lead to ventricular chamber scarring and dilation that often reduces the proportion of blood volume ejected with each cardiac contraction [8,10]. As a result, we conducted an exploratory analysis evaluating three ventricular function metrics, each of which quantified a change in LVEF (Figure 1). Consistent with guidelines for STEMI care measures, the ESC registry data collection included LVEF assessment made using echocardiography, catheterization laboratory coronary angiography, or coronary CT angiography [3,4,14]. STEMI LVEF dysfunction was defined as the difference in lowest LVEF assessment documented prior to the STEMI compared to the lowest assessed during the STEMI. This represents a reduction in pump function while the myocardium is ischemic. Post-STEMI LVEF dysfunction was defined as the difference in LVEF documented prior to the STEMI compared to the first documented after hospital discharge upon follow-up. Post-STEMI LVEF recovery was defined as the difference in the lowest LVEF assessed during the STEMI episode while the myocardium is ischemic to the first documented after hospital discharge upon follow-up.

2.3. Data Collection

The ESC Registry is an emergency care delivery-focused data registry [19,20,21,22]. We acquired the cohort of potentially eligible patients using electronic health record (EHR) data abstraction of ED STEMI patients seen during the study period using ICD-coded final hospital diagnoses consistent with acute STEMI. Individual patient care details were obtained with manual chart review by data abstractors. Each abstractor received two hours of standardized training including a 90-min training module with practice data collection and data accuracy verification by the data coordinating center. The process and details of their training and multi-centered data collection have been previously published [18]. Cases were screened and flagged for potential exclusion during chart review using the pre-specified criteria noted above. The study principal investigator and specific site-principal investigators reviewed flagged cases to verify exclusion.
All study data were maintained in a customized REDCap database (REDCap; https://www.project-redcap.org, accessed on 18 March 2023) [24]. The protocol for data collection was approved by the Institutional Review Board at each site. Informed consent was waived due to the retrospective nature of the study.

2.4. Statistical Analysis

Group comparisons were conducted using Wilcoxon rank sum test for continuous variables and Chi-square test for categorical variables. Fisher’s exact test was used for categorical variables with any cell count less than 5. We used a complete case cohort for each outcome variable and reported available data in all tables, using an 0.05 alpha-level of significance for all comparisons without adjustments. All analyses were performed using the R statistical software, Version 3.4.2.

2.5. Data Availability Statement

Study data can be shared upon request with scientific review by the Emergency STEMI Care Registry and ethics review by the ESC’s affiliated institution and that of the requestor and establishment of a data use agreement for sharing.

3. Results

There were 676 ED-diagnosed patients across the 10 sites who experienced STEMI, of which 85.2% (576) received PCI. As previously reported for this ED-diagnosed cohort, 62.1% (420) received a timely ECG [19,23]. Among those who received PCI, 65.8% (379) received a timely ECG. Further, the median D2E among patients who received a timely ECG was 5 min (IQR: 3.7); the value for those who received an untimely ECG was 18 min (IQR: 14.40) (p < 0.001). Demographic differences between those receiving timely ECG vs. untimely ECG have been previously reported [19,23]. We saw no significant differences in baseline comorbidities or hospital length of stay (LOS) (Table 1 and Table 2).

3.1. Mortality

Among all ED-diagnosed patients, overall one-week mortality was 7.0% (47/676), and in-hospital mortality was 7.8% (53/676). Deaths were fewer among those who received a timely ECG, where one-week mortality was 5% (21/420) versus 10.2% (26/256) among those with untimely ECGs (p = 0.016), and in-hospital mortality was 6.0% (25/420) versus 10.9% (28/256) (p = 0.028). This supports the practice assumption that an earlier ECG enables earlier treatment, resulting in lower mortality (Table 2). Further, we observed that 43% (20/47) of deaths within one week and 39.6% (21/53) of those occurring in-hospital were among the 14.7% (100/676) who did not receive PCI. In this group, one-week and in-hospital mortality were 20% (20/100) and 21% (21/100), respectively (Table 2).
PCI within 90 min of initial hospital presentation has been associated with up to a 50% reduction in mortality among cardiac arrest STEMI patients and general STEMI patients in Europe and Australia [3,25,26]. We therefore examined mortality in the 576 patients who received PCI in our US-based cohort. We observed similar trends in our study, including a reduction from 6.6% (13/197) to 3.7% (14/379) for 1-week mortality and a reduction from 7.6% (15/197) to 4.5% (17/379) for in-hospital mortality; however, the p-values (0.175 and 0.173, respectively) are above the significance level of 0.05 (Table 3).

3.2. STEMI Left Ventricular Ejection Fraction Dysfunction and Recovery

3.2.1. Dysfunction during the Acute STEMI Episode

We observed notably greater LVEF dysfunction during the STEMI encounter among those with untimely ECG at 10% vs. 7.5% (p = 0.057) for those with a timely diagnosis (Table 2). This finding was not statistically significant, but a notable magnitude difference was noted. We observed that there were more patients who did not receive PCI among those with an untimely ECG. In the subset of patients receiving PCI, there was no statistically significant difference in LVEF dysfunction between those with a timely or untimely ECG (6.5% vs. 9%, p = 0.408) (Table 4).

3.2.2. Post-STEMI LVEF Recovery

We saw no difference in post-STEMI LVEF recovery between those who did and did not receive timely ECG in the dataset overall (Table 2). However, we observed an improvement among those receiving PCI who had a timely ECG compared to those who did not (5% vs. 0%, p = 0.024, Table 3).

3.2.3. LVEF Assessment Compliance

With heart failure being the greatest morbidity factor after a STEMI, we expected LVEF dysfunction associated with the acute STEMI to be routinely documented in the hospital. However, we found that 25.1% of all patients had an LVEF assessment prior to their STEMI, 24.7% had an assessment during their STEMI hospitalization, and 45.5% had an assessment after discharge. Similarly, amongst patients who had a STEMI and underwent PCI treatment, 24% had an echo prior to their STEMI, 24.5% had an echo during their hospitalization, and 46.5% had an echo after discharge (Table 5). The rates of LVEF ascertainment were evenly distributed among groups, so there was no one characteristic that skewed the low amount of LVEF documentation.

4. Discussion

In our multi-centered geographically diverse, US cohort of ED-diagnosed STEMI patients, we observed over 50% lower in-hospital and 1-week mortality among those who received timely diagnostic testing compared to those who did not. Among those who received PCI we similarly observed an almost 50% reduction in mortality. Analogous observations among patients receiving PCI did not achieve statistical significance. However, our mortality findings are consistent, albeit slightly higher than, the one-week mortality of 3.4% observed in an Australian national cohort3 and the in-hospital mortality of 4.6% in a comparable US-based cohort including all STEMI patients (Table 3) [27,28]. This suggests potential clinical significance worthy of further investigation.
The limited LVEF that we observed in real-world documentation during STEMI hospitalization is concerning because prior work has noted LVEF assessment is associated with the initiation of evidence-based goal-directed medical therapy (GDMT) medications prior to discharge. Specifically, the early introduction of GDMT to these patients, which involves the initiation and titration of pharmacological agents, including angiotensin converting enzyme-inhibitors, angiotensin II receptor blockers, angiotensin receptor neprilysin inhibitors, beta-blockers, mineralocorticoid receptor antagonists, and sodium-glucose co-transporter-2 inhibitors, has been shown to reduce mortality and heart failure related hospitalizations [10,11,12]. Thus, determination of LVEF prior to discharge provides the opportunity to initiate GDMT in a timely manner and help to improve 30-day and one-year survival for patients with HFrEF [27,28,29,30,31].
Consequently, the paucity of LVEF documentation is very concerning considering that the 2017 AHA/ACC STEMI Care Quality Measures include an evaluation of LVEF [10]. This is not new guidance as the 2013 ACCF/AHA Guidelines for the Management of Patients with STEMI recommended the same [2]. There are three reasons why improving LVEF assessment compliance as a metric is important. First, LVEF < 50% may benefit from targeted medical therapies as noted above. Second, LVEF is one of the strongest predictors of long-term survival following acute myocardial infarction [28]. Lastly, it provides a baseline for reassessment after the acute episode to guide the potential need for device therapy, including left ventricular assist devices.
All the LVEF modalities included in our assessment are considered acceptable per guidelines with the most common, trans-thoracic echocardiography, being inexpensive and non-invasive. However, our findings suggest there is a practice barrier for obtaining LVEF assessment. This represents an opportunity for improvement that may potentially impact survival in HFrEF patients post STEMI. Compliance monitoring may close the gap and enhance patient outcomes.
STEMI mortality is highly associated with the quality of care received and events occurring within the first 30 days [8,9]. Earlier PCI also improves survival and LVEF [10,11,26]. The initiation of PCI is dependent on a timely diagnosis during the emergency care phase, and time to PCI has been found to be the strongest predictor of clinical outcomes, more so than risk factors and other patient characteristics, across multiple STEMI patient cohorts. Our previous studies emphasized that the time to the diagnostic ECG influences timely access to PCI and is a modifiable factor in care delivery [16,21]. Thus, efforts towards earlier diagnostic ECG for all STEMI patients may improve survival to hospital discharge. However, there are differentiating factors that should be considered when interpreting the results presented here related to our focus on the screening and diagnostic phase of care.
First, our patient cohort includes those diagnosed with the first ECG performed at a PCI-center ED. This inclusion criterion does not consider the 15% of ED STEMI patients who are not diagnosed with the first performed ED ECGs [17] or those who are diagnosed in an ambulance or in a referring ED. Despite these exclusions, the study cohort is likely to be representative of, and generalizable, to the ED STEMI population as whole. Although subsequent care may vary, diagnostic processes associated with D2E at these locations have marked similarities to all EDs across the US [2,3,4,14,20]. In addition, patients with prehospital diagnosis of STEMI and activation of the cardiac catheterization laboratory team have lower mortality [31].
Second, we use a pragmatic assessment of mortality and LVEF by using the information documented in each patient’s EHR. Our assessment of one-week and in-hospital mortality and presence of LVEF documentation was followed out to one year to permit potential lags in documentation. All sites used the same EHR vendor that includes a health-information exchange capability providing access to records of over 50% of hospitals in the US [32]. In addition, all data abstractors received training to ensure standard data collection. This increases our confidence that we collected outcome data as they were available to practicing providers. One possible limitation is that LVEF assessed informally using point of care ultrasound (POCUS) would not have been captured. However, POCUS is not recognized by the AHA as a modality meeting their metrics for LVEF measurement. Thus, our pragmatic data collection more closely resembles the data visible to contemporary providers involved in the in-hospital and post-hospital discharge care for STEMI patients.
Third, assessment of LVEF in our ED-diagnosed cohort was lower than that reported in a major ACTION Registry-Get with the Guidelines (GWTG) STEMI study from 10 years prior. That study included 50,863 patients from 379 hospital facilities and reported >90% in-hospital LVEF assessment compliance [26], which is markedly different than our observed value of 24.7%. This difference may be due to the ACTION-GWTG registry (1) excluding many STEMI patients due to “non-system delays” that are included in our cohort, (2) applying exclusions based on care outcomes despite this not affecting care delivery for screening and diagnosis, and (3) reflecting data collected during a period (2007–2009) when EHR systems were not routinely used. These factors likely contributed to the high variability in exclusion rate among ACTION-GWTG registry reporting facilities, which has been reported to be as high as 68% [33]. Many of those excluded were patients at risk for low LVEF, the very patients who may benefit from remodeling supportive therapy, and an additional 12.4% of patients were excluded after a STEMI diagnosis was made based on distal care events, including missing LVEF assessment. The ACTION-GWTG cohort’s orientation to study typical system activity by excluding these patients reduces generalizability to the more complete population of STEMI patients and increases the likelihood of over reporting LVEF assessment. Thus, the low LVEF assessment level in our cohort may represent a real-world practice pattern that would benefit from additional study.
Lastly, we looked for LVEF assessment measures before, during, and after hospitalization in order to determine change in LVEF. Since our exploratory analysis involved the comparison of two LVEF measurements, missing data for one of the measurements left us unable to calculate an outcome in a large proportion of patients. We present our findings here as a report of what was observed from a pragmatic clinical practice lens, with a more inclusive population of STEMI patients, diagnosed in a common care environment that offers focused intervention opportunities. Our findings raise concerns that the clinical impact of STEMI care delivery improvement efforts will be difficult to assess without more consistent LVEF assessment as part of acute and recovery STEMI care.

5. Conclusions

Achieving D2E within 10 min may be associated with a 50% reduction in mortality among ED STEMI patients. These findings further suggest that early diagnosis and early PCI have a significant impact on survival to hospital discharge and are consistent with observations seen in non-US based cohorts.
Heart failure is the primary resultant morbidity among STEMI survivors, often evidenced by a decrease in LVEF. We observed low rates of LVEF measurements in our nationally representative US-based cohort, despite international guidelines highlighting the prognostic importance of LVEF. It is difficult to assess the impact of acute and recovery STEMI care interventions without more consistent LVEF assessment and documentation. With LVEF measures guiding indications for GDMT therapy, increased LVEF documentation may improve survival and functional outcomes among STEMI patients with resultant HFrEF.

Author Contributions

M.Y.A.B.Y. designed the study and data analysis with D.L. and W.G. completed the analysis. S.M.B., G.B. and F.R. contributed to interpretation of the analysis and manuscript content. C.W.B., A.M.M., N.G., S.R.P., B.P., G.A.S., B.E.M. and M.E.T. managed the study data registry’s data collection and data cleaning for their site. M.Y.A.B.Y., G.B., R.K. and S.M.B. drafted and revised the manuscript with scientific input and edits from all authors. M.A.P. and M.Y.A.B.Y. coordinated scientific project management. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Institutes of Health’s (NIH) National Center for Advancing Translational Sciences (NCATS, award numbers UL1TR000445 and UL1TR002243, which include the Vanderbilt Institute for Clinical and Translational Research Learning Healthcare System Platform), the National Heart Lung and Blood Institute (NHLBI, award numbers 5K12HL109019 and 1K23HL133477), and the Stanford Department of Emergency Medicine.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of Vanderbilt University IRB #161044 on 8 July 2016. We subsequently moved the data set to Stanford University for data analysis where it was reviewed as IRB #60187 and approved on 11 March 2021. Study data was converted to a registry which was approved by the Stanford, IRB #64817, and approved on 19 April 2022.

Informed Consent Statement

Patient consent was waived due to the minimal risk nature of the study and data registry.

Data Availability Statement

The data presented in this study are available on request from the corresponding author with an expressed intention for data use, evidence of ethics review approval, and review of request by the Emergency Care HSR-DCC.

Acknowledgments

We extend thanks to the staff who supported this Emergency Care Health Services Research Data Coordinating Center (HSR-DCC) research study. We also thank Vandana Sundaram, Anna Graber, and Kate Miller from the Stanford Quantitative Sciences Unit for their helpful scientific comments on the manuscript. We want to finally thank Kim Korwek for her helpful suggestion in structuring the manuscript.

Conflicts of Interest

The authors declare that there are no conflicts of interest regarding the publication of this article.

References

  1. Alpert, J.S.; Thygesen, K.; Antman, E.; Bassand, J.P. Myocardial infarction redefined—A consensus document of the Joint European Society of Cardiology/American College of Cardiology Committee for the redefinition of myocardial infarction. J. Am. Coll. Cardiol. 2000, 36, 959–969. [Google Scholar] [PubMed]
  2. O’Gara, P.T.; Kushner, F.G.; Ascheim, D.D.; Casey, D.E., Jr.; Chung, M.K.; de Lemos, J.A.; Ettinger, S.M.; Fang, J.C.; Fesmire, F.M.; Franklin, B.A.; et al. 2013 ACCF/AHA guideline for the management of ST-elevation myocardial infarction: A report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines. Circulation 2013, 127, e362–e425. [Google Scholar] [CrossRef] [PubMed]
  3. Doost Hosseiny, A.; Moloi, S.; Chandrasekhar, J.; Farshid, A. Mortality pattern and cause of death in a long-term follow-up of patients with STEMI treated with primary PCI. Open Heart 2016, 3, e000405. [Google Scholar] [CrossRef] [PubMed]
  4. Vasiljević, Z.; Stojanović, B.; Kocev, N.; Stefanović, B.; Mrdović, I.; Ostojić, M.; Krotin, M.; Putniković, B.; Dimković, S.; Despotović, N. Hospital mortality trend analysis of patients with ST elevation myocardial infarction in the Belgrade area coronary care units. Srp. Arh. Celok. Lek. 2008, 136 (Suppl. S2), 84–96. (In Serbian) [Google Scholar] [CrossRef]
  5. Lambert, L.J.; Brophy, J.M.; Racine, N.; Rinfret, S.; L’Allier, P.L.; Brown, K.A.; Boothroyd, L.J.; Ross, D.; Segal, E.; Kouz, S.; et al. Outcomes of patients with ST-elevation myocardial infarction receiving and not receiving reperfusion therapy: The importance of examining all patients. Can. J. Cardiol. 2016, 32, 1325.e11–1325.e18. [Google Scholar] [CrossRef] [PubMed]
  6. Cenko, E.; Yoon, J.; Kedev, S.; Stankovic, G.; Vasiljevic, Z.; Krljanac, G.; Kalpak, O.; Ricci, B.; Miličić, D.; Manfrini, O.; et al. Sex Differences in Outcomes after STEMI: Effect Modification by Treatment Strategy and Age. JAMA Intern. Med. 2018, 178, 632–639. [Google Scholar] [CrossRef] [PubMed]
  7. McNamara, R.L.; Wang, Y.; Herrin, J.; Curtis, J.P.; Bradley, E.H.; Magid, D.J.; Peterson, E.D.; Blaney, B.; Frederick, P.D.; Krumholz, H.M. Effect of door-to-balloon time on mortality in patients with ST-segment elevation myocardial infarction. J. Am. Coll. Cardiol. 2006, 47, 2180–2186. [Google Scholar] [CrossRef] [PubMed]
  8. Hendrickson, M.J.; Arora, S.; Vaduganathan, M.; Fonarow, G.C.; Mp, G.; Bansal, A.; Batra, V.; Kunal, S.; Bhatt, D.L.; Gupta, M.; et al. Prevalence and prognostic implications of reduced left ventricular ejection fraction among patients with STEMI in India. ESC Heart Fail. 2022, 9, 3836–3845. [Google Scholar] [CrossRef] [PubMed]
  9. Fabris, E.; Arrigoni, P.; Falco, L.; Barbati, G.; Stolfo, D.; Peratoner, A.; Vitrella, G.; Rakar, S.; Perkan, A.; Sinagra, G. Impact of patient delay in a modern real world STEMI network. Am. J. Emerg. Med. 2020, 38, 1195–1198. [Google Scholar] [CrossRef] [PubMed]
  10. Miller, A.L.; Dib, C.; Li, L.; Chen, A.Y.; Amsterdam, E.; Funk, M.; Saucedo, J.F.; Wang, T.Y. Left ventricular ejection fraction assessment among patients with acute myocardial infarction and its association with hospital quality of care and evidence-based therapy use. Circ. Cardiovasc. Qual. Outcomes 2012, 5, 662–671. [Google Scholar] [CrossRef]
  11. Scholz, K.H.; Maier, S.K.; Maier, L.S.; Lengenfelder, B.; Jacobshagen, C.; Jung, J.; Fleischmann, C.; Werner, G.S.; Olbrich, H.G.; Ott, R.; et al. Impact of treatment delay on mortality in ST-segment elevation myocardial infarction (STEMI) patients presenting with and without haemodynamic instability: Results from the German prospective, multicentre FITT-STEMI trial. Eur. Heart J. 2018, 39, 1065–1074. [Google Scholar] [CrossRef]
  12. Heidenreich, P.A.; Bozkurt, B.; Aguilar, D.; Allen, L.A.; Byun, J.J.; Colvin, M.M.; Deswal, A.; Drazner, M.H.; Dunlay, S.M.; Evers, L.R.; et al. 2022 AHA/ACC/HFSA Guideline for the Management of Heart Failure: A Report of the American College of Cardiology/American Heart Association Joint Committee on Clinical Practice Guidelines. Circulation 2022, 145, e895–e1032. [Google Scholar] [CrossRef]
  13. Ibanez, B.; James, S. The 2017 ESC STEMI Guidelines. Eur. Heart J. 2018, 39, 79–82. [Google Scholar] [CrossRef]
  14. Task Force Members; Steg, P.G.; James, S.K.; Atar, D.; Badano, L.P.; Blomstrom-Lundqvist, C.; Borger, M.A.; Di Mario, C.; Dickstein, K.; Ducrocq, G.; et al. ESC Guidelines for the management of acute myocardial infarction in patients presenting with ST-segment elevation: For the Task Force on the management of ST-segment elevation acute myocardial infarction of the European Society of Cardiology (ESC). Eur. Heart J. 2012, 33, 2569–2619. [Google Scholar]
  15. Kwak, M.J.; Kim, K.; Rhee, J.E.; Shin, J.H.; Suh, G.J.; Jo, Y.S.; Youn, T.J.; Chung, W.Y.; Chae, I.H.; Choi, D.J.; et al. The effect of direct communication between emergency physicians and interventional cardiologists on door to balloon times in STEMI. J. Korean Med. Sci. 2008, 23, 706–710. [Google Scholar] [CrossRef] [PubMed]
  16. Bagai, A.; Al-Khalidi, H.R.; Sherwood, M.W.; Muñoz, D.; Roettig, M.L.; Jollis, J.G.; Granger, C.B. Regional systems of care demonstration project: Mission: Lifeline STEMI Systems Accelerator: Design and methodology. Am. Heart J. 2014, 167, 15–21. [Google Scholar] [CrossRef]
  17. Thylén, I.; Ericsson, M.; Hellström Ängerud, K.; Isaksson, R.M.; Sederholm Lawesson, S.; SymTime Study Group. First medical contact in patients with STEMI and its impact on time to diagnosis: An explorative cross-sectional study. BMJ Open 2015, 5, e007059. [Google Scholar] [CrossRef] [PubMed]
  18. Bloos, S.M.; Kaur, K.; Lang, K.; Gavin, N.; Mills, A.M.; Baugh, C.W.; Patterson, B.W.; Podolsky, S.R.; Salazar, G.; Mumma, B.E.; et al. Comparing the Timeliness of Treatment in Younger vs. Older Patients with ST-Segment Elevation Myocardial Infarction: A Multi-Center Cohort Study. J. Emerg. Med. 2021, 60, 716–728. [Google Scholar] [CrossRef]
  19. Yiadom, M.Y.; Gong, W.; Patterson, B.W.; Baugh, C.W.; Mills, A.M.; Gavin, N.; Podolsky, S.R.; Salazar, G.; Mumma, B.E.; Tanski, M.; et al. Fallacy of Median Door-to-ECG Time: Hidden Opportunities for STEMI Screening Improvement. J. Am. Heart Assoc. 2022, 11, e024067. [Google Scholar] [CrossRef]
  20. Yiadom, M.Y.; Baugh, C.W.; Jenkins, C.A.; Tanski, M.; Mumma, B.E.; Vogus, T.J.; Miller, K.F.; Jackson, B.E.; Lehmann, C.U.; Dorner, S.C.; et al. Outcome Differences Associated with STEMI Diagnostic Delay: Disparities on the Frontlines of STEMI Care. Circ. Cardiovasc. Qual. Outcomes 2018, 11 (Suppl. S1), A185. [Google Scholar] [CrossRef]
  21. Yiadom, M.Y.; Olubowale, O.O.; Jenkins, C.A.; Miller, K.F.; West, J.L.; Vogus, T.J.; Lehmann, C.U.; Antonello, V.D.; Bernard, G.R.; Storrow, A.B.; et al. Understanding timely STEMI treatment performance: A 3-year retrospective cohort study using diagnosis-to-balloon-time and care subintervals. J. Am. Coll. Emerg. Physicians Open 2021, 2, e12379. [Google Scholar] [CrossRef]
  22. Yiadom, M.Y.; Gong, W.; Bloos, S.; Liu, D. 287 Influence of Time to Diagnosis on Time to Percutaneous Coronary Intervention for Emergency Department ST Elevation Myocardial Infarction (STEMI) Patients: Door to ECG Matters. Ann. Emerg. Med. 2022, 80, S125. [Google Scholar] [CrossRef]
  23. Kim, S.H.; Cho, J.H.; Lee, Y.H.; Lee, J.H.; Kim, S.S.; Kim, M.Y.; Lee, M.G.; Kang, W.Y.; Lee, K.S.; Ahn, Y.K.; et al. Improvement in Left Ventricular Function with Intracoronary Mesenchymal Stem Cell Therapy in a Patient with Anterior Wall ST-Segment Elevation Myocardial Infarction. Cardiovasc. Drugs Ther. 2018, 32, 329–338. [Google Scholar] [CrossRef]
  24. Harris, P.A.; Taylor, R.; Thielke, R.; Payne, J.; Gonzalez, N.; Conde, J.G. Research electronic data capture (REDCap)—A metadata-driven methodology and workflow process for providing translational research informatics support. J. Biomed. Inform. 2009, 42, 377–381. [Google Scholar] [CrossRef] [PubMed]
  25. Karam, N.; Bataille, S.; Marijon, E.; Tafflet, M.; Benamer, H.; Caussin, C.; Garot, P.; Juliard, J.M.; Pires, V.; Boche, T.; et al. Incidence, mortality, and outcome-predictors of sudden cardiac arrest complicating myocardial infarction prior to hospital admission. Circ. Cardiovasc. Interv. 2019, 12, e007081. [Google Scholar] [CrossRef] [PubMed]
  26. Rathore, S.S.; Curtis, J.P.; Chen, J.; Wang, Y.; Nallamothu, B.K.; Epstein, A.J.; Krumholz, H.M. National Cardiovascular Data Registry. Association of door-to-balloon time and mortality in patients admitted to hospital with ST elevation myocardial infarction: National cohort study. BMJ 2009, 338, b180719454739. [Google Scholar] [CrossRef] [PubMed]
  27. Figtree, G.A.; Vernon, S.T.; Hadziosmanovic, N.; Sundström, J.; Alfredsson, J.; Arnott, C.; Delatour, V.; Leósdóttir, M.; Hagström, E. Mortality in STEMI patients without standard modifiable risk factors: A sex-disaggregated analysis of SWEDEHEART registry data. Lancet 2021, 397, 1085–1094. [Google Scholar] [CrossRef] [PubMed]
  28. Jneid, H.; Addison, D.; Bhatt, D.L.; Fonarow, G.C.; Gokak, S.; Grady, K.L.; Green, L.A.; Heidenreich, P.A.; Ho, P.M.; Jurgens, C.Y.; et al. 2017 AHA/ACC clinical performance and quality measures for adults with ST-elevation and non–ST-elevation myocardial infarction: A report of the American College of Cardiology/American Heart Association Task Force on Performance Measures. J. Am. Coll. Cardiol. 2017, 70, 2048–2090. [Google Scholar] [CrossRef] [PubMed]
  29. 2009 Writing Group to Review New Evidence and Update the 2005 Guideline for the Management of Patients with Chronic Heart Failure Writing on Behalf of the 2005 Heart Failure Writing Committee; Jessup, M.; Abraham, W.T.; Casey, D.E.; Feldman, A.M.; Francis, G.S.; Ganiats, T.G.; Konstam, M.A.; Mancini, D.M.; Rahko, P.S.; et al. 2009 focused update: ACCF/AHA guidelines for the diagnosis and management of heart failure in adults: A report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines: Developed in collaboration with the International Society for Heart and Lung Transplantation. Circulation 2009, 119, 1977–2016. [Google Scholar]
  30. Park, C.S.; Yang, H.M.; Ki, Y.J.; Kang, J.; Han, J.K.; Park, K.W.; Kang, H.J.; Koo, B.K.; Kim, C.J.; Cho, M.C.; et al. Left Ventricular Ejection Fraction 1 Year after Acute Myocardial Infarction Identifies the Benefits of the Long-Term Use of β-Blockers: Analysis of Data from the KAMIR-NIH Registry. Circ. Cardiovasc. Interv. 2021, 14, e010159. [Google Scholar] [CrossRef]
  31. Studnek, J.R.; Infinger, A.; Wilson, H.; Niess, G.; Jackson, P.; Swanson, D. Decreased Time from 9-1-1 Call to PCI among Patients Experiencing STEMI Results in a Decreased One Year Mortality. Prehospital Emerg. Care 2018, 22, 669–675. [Google Scholar] [CrossRef]
  32. Winden, T.J.; Boland, L.L.; Frey, N.G.; Satterlee, P.A.; Hokanson, J.S. Care everywhere, a point-to-point HIE tool. Appl. Clin. Inform. 2014, 5, 388–401. [Google Scholar] [PubMed]
  33. Cotoni, D.A.; Roe, M.T.; Li, S.; Kontos, M.C. Frequency of non-system delays in ST-elevation myocardial infarction patients undergoing primary percutaneous coronary intervention and implications for door-to-balloon time reporting (from the American Heart Association Mission: Lifeline program). Am. J. Cardiol. 2014, 114, 24–28. [Google Scholar] [CrossRef] [PubMed]

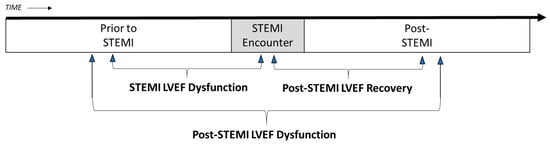

Figure 1. STEMI Associated LVEF Dysfunction and Recovery Metrics. Left ventricular ejection fraction (LVEF) disfunction before and after time intervals of interest as a metric for heart failure. STEMI LVEF Dysfunction is the lowest LVEF assessment during the emergency department to hospital stay associated with the acute STEMI encounter subtracted from the lowest assessment in the patient’s electronic health record prior to the STEMI encounter. Post-STEMI LVEF Recovery is the lowest LVEF assessment documented during the acute STEMI encounter subtracted from the lowest assessment documented within 1 year after hospital discharge. Post-STEMI LVEF Dysfunction is the lowest LVEF assessment documented within one year after hospital discharge subtracted from the lowest LVEF assessment in the patient’s electronic health record prior to the STEMI encounter.
Figure 1. STEMI Associated LVEF Dysfunction and Recovery Metrics. Left ventricular ejection fraction (LVEF) disfunction before and after time intervals of interest as a metric for heart failure. STEMI LVEF Dysfunction is the lowest LVEF assessment during the emergency department to hospital stay associated with the acute STEMI encounter subtracted from the lowest assessment in the patient’s electronic health record prior to the STEMI encounter. Post-STEMI LVEF Recovery is the lowest LVEF assessment documented during the acute STEMI encounter subtracted from the lowest assessment documented within 1 year after hospital discharge. Post-STEMI LVEF Dysfunction is the lowest LVEF assessment documented within one year after hospital discharge subtracted from the lowest LVEF assessment in the patient’s electronic health record prior to the STEMI encounter.
Jcm 13 02650 g001
Table 1. ED-Diagnosed STEMI Patients Receiving Timely (<10 min) vs. Untimely ECG (≥10 min) from the ESC Registry.
Table 1. ED-Diagnosed STEMI Patients Receiving Timely (<10 min) vs. Untimely ECG (≥10 min) from the ESC Registry.
All Patients
n = 676
Timely
Door-to-ECG
(≤10 min)
n = 420
Untimely
Door-to-ECG
(>10 min)
n = 256
p-Value
Age (years) *53 61 6953 61 6853 61 710.6176
Door-to-ECG (D2E) *4.0 7.0 16.03.0 5.0 7.014.0 20.5 44.2<0.001
Gender (Female)26.5% (179)22.6% (95)32.8% (84)0.005
Race 0.005
White63% (427)65.7% (276)59% (151)
Black or African American16.6% (112)12.4% (52)23.4% (60)
Non-white Latino1.3% (9)1.2% (5)1.4% (4)
Asian or Native American6.5% (44)6.9% (29)5.9% (15)
Unknown12.4% (84)13.8% (58)10.2% (26)
Ethnicity 0.027
Non-Hispanic75.3% (509)76.7% (322)73% (187)
Hispanic14.2% (96)15.2% (64)12.5% (32)
Unknown10.5% (71)8.1% (34)14.5% (37)
Primary Language 0.090
English78.6% (531)80.5% (338)75.4% (193)
Spanish11.7% (79)11.9% (50)11.3% (29)
Arabic0.7% (5)0.5% (2)1.2% (3)
Other4.3% (29)4.0% (17)4.7% (12)
Comorbidities
Hypertension66.6% (450)65.2% (274)68.8% (176)0.393
Diabetes34% (230)30.2% (127)40.2% (103)0.010
Hyperlipidemia56.2% (380)59% (248)51.6% (132)0.068
Heart Failure10.2% (69)9.3% (39)11.7% (30)0.377
Prior MI21.2% (143)21.9% (92)19.9% (51)0.606
Prior PCI19.1% (129)19.5% (82)18.4% (47)0.785
Prior CABG4% (27)3.1% (13)5.5% (14)0.185
Smoking24.3% (164)22.1% (93)27.7% (71)0.121
Abbreviations: CABG = coronary artery bypass graft; ECG = electrocardiogram; ED = emergency department; ESC = Emergency STEMI Care Registry; MI = myocardial infarction; PCI = percutaneous coronary intervention. * a b c where a represents the lower quartile, b the median, and c the upper quartile for continuous variables. Numbers after proportions are frequencies.
Table 2. Outcomes for All ED-Diagnosed STEMI Patients Regardless of Treatment Modality.
Table 2. Outcomes for All ED-Diagnosed STEMI Patients Regardless of Treatment Modality.
Available Data
n = 676
OverallTimely ECG
n = 420 (62.1%)
Untimely ECG
n = 256 (37.9%)
p-Value
Hospital LOS in days (median [IQR])100% (676)4 [3–6]4 [3–6]4 [3–6]0.481
STEMI LVEF Dysfunction19.5% (132)−10% [−25 to 0%]−7.5% [−20 to 0%]−10% [−25.5 to −4.5%]0.057
Post STEMI LVEF Dysfunction14.2% (96)−5% [−16.2 to 0%]−5% [−15 to 0]−0.5 [−9.5 to −5]0.121
Post STEMI LVEF Recovery14.6% (99)5 [−10 to 1%]5 [−10 to 0%]5 [−9.5 to 5.0]0.153
One-week Mortality 100% (676)7% (47) 5% (21)10.2% (26)0.016 *
In-hospital Mortality100% (676)7.8% (53)6.0% (25)10.9% (28)0.028 *
Received PCI100% (676)85% (576)65% (379)34% (197)<0.001 *
Abbreviations: ECG = electrocardiogram; LOS = length of stay; LVEF = Left ventricular ejection fraction. STEMI LVEF = difference in left ventricular dysfunction documented prior to the STEMI compared to that during the STEMI. Post STEMI LVEF = difference in left ventricular dysfunction documented during prior to the STEMI compared to that documented after hospital discharge upon follow-up. Post STEMI LVEF Recovery = difference in left ventricular dysfunction from during the STEMI episode to that documented after hospital discharge upon follow-up. * Default test for categorical variables is chi-squared test with Yates correction for continuity. Default test for continuous variables is one-way ANOVA using means and assuming equal variance. Kruskal–Wallis rank sum test has been applied for the variables where median and interquartile range [IQR] are shown in the table.
Table 3. ED-Diagnosed STEMI Patients Who Received PCI with Timely (≥10 min) vs. Untimely (>10 min) Door-to-ECG.
Table 3. ED-Diagnosed STEMI Patients Who Received PCI with Timely (≥10 min) vs. Untimely (>10 min) Door-to-ECG.
All Patients
n = 576
Timely
Door-to-ECG
(≤10 min)
n = 379
Untimely
Door-to-ECG
(>10 min)
n = 197
p-Value
Age (years) *53 60 6853 60 6753 60 700.681
Door-to-ECG (D2E)4.0 7.0 14.03.0 5.0 7.014.0 18.0 41.0<0.001
Gender (Female)24.3% (10)21.9% (83)28.9% (57)0.078
Race 0.009
White63% (365)65.7% (249)58.9% (116)
Black or African American15% (91)11.9% (45)23.4% (46)
Non-white Latino1.4% (8)1.3% (5)1.5% (3)
Asian or Native American6.8% (39)7.7% (29)5.1% (10)
Unknown12.7% (73)13.5% (51)11.2% (22)
Ethnicity 0.021
Non-Hispanic73.6% (424)76% (288)69% (136)
Hispanic15.6% (90)15.8% (60)15.2% (30)
Unknown10.8% (62)8.2% (31)15.7% (31)
Primary Language 0.047
English78% (449)80.2% (304)73.6% (145)
Spanish12.8% (74)12.7% (48)13.2% (26)
Arabic0.9% (5)0.5% (2)1.5% (3)
Other4.0% (23)4.0% (15)4.1% (8)
Comorbidities
Hypertension67% (386)65.7% (249)69.5% (137)0.402
Diabetes33.5% (193)30.1% (114)40.1% (79)0.020
Hyperlipidemia57.3% (330)58.8% (223)54.3% (107)0.341
Heart Failure9.4% (54)8.4% (32)11.2% (22)0.361
Prior MI20.8% (120)20.8% (79)20.8% (41)1.000
Prior PCI19.1% (110)18.5% (70)20.3% (40)0.675
Prior CABG4.2% (24)3.2% (12)6.1% (12)0.148
Smoking25% (144)22.7% (86)29.4% (58)0.094
Abbreviations: CABG = coronary artery bypass graft; ECG = electrocardiogram; ED = emergency department; MI = myocardial infarction; PCI = percutaneous coronary intervention. * a b c where a represents the lower quartile, b the median, and c the upper quartile for continuous variables. Numbers after proportions are frequencies.
Table 4. STEMI Patients who Received PCI.
Table 4. STEMI Patients who Received PCI.
Available Data
n = 576
OverallTimely ECG
n = 379
Untimely ECG
n = 197
p-Value *
Hospital LOS in days (median [IQR])100% (576)4 [3–5]4 [3–5]4 [3–5]0.495
STEMI LVEF Dysfunction18.9% (109)−10 [−25 to 0]−10 [−20 to 0]−10 [−25 to 0]0.309
Post STEMI LVEF Dysfunction13.7% (79)−8 [−16.5 to 0]−6.5 [−15 to 0]−9.0 [−25 to 0]0.408
Post STEMI LVEF Recovery14.4% (83)5 [−10 to 2]5 [−10.0]0 [−5 to 5]0.024
One-week
Mortality
100% (576)4.7% (27)3.7% (14)6.6% (13)0.175
In-hospital Mortality100% (576)5.6% (32)4.5% (17)7.6% (15)0.173
Abbreviations: ECG = electrocardiogram; LOS = length of stay; LVEF = Left ventricular ejection fraction. STEMI LVEF Dysfunction = difference in left ventricular dysfunction documented prior to the STEMI compared to that during the STEMI. Post STEMI LVEF Dysfunction = the difference in left ventricular dysfunction documented during prior to the STEMI compared to that documented after hospital discharge upon follow-up. Post STEMI LVEF Recovery = difference in left ventricular dysfunction from during the STEMI episode to that documented after hospital discharge upon follow-up. * Default test for categorical variables is chi-squared test with Yates correction for continuity. Default test for continuous variables is one-way ANOVA using means and assuming equal variance. Kruskal–Wallis rank sum test was applied for the variables where median and interquartile range [IQR] are shown in the table.
Table 5. Rates of Left Ventricular Ejection Fraction Assessment.
Table 5. Rates of Left Ventricular Ejection Fraction Assessment.
All STEMI
(n = 673)
PCI STEMI Only
(n = 576)
Prior to STEMI25.1% (169)24% (138)
During STEMI Encounter24.7% (166)24.5% (141)
Post-STEMI Discharge45.5% (306)46.5% (268)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yiadom, M.Y.A.B.; Gong, W.; Bloos, S.M.; Bunney, G.; Kabeer, R.; Pasao, M.A.; Rodriguez, F.; Baugh, C.W.; Mills, A.M.; Gavin, N.; et al. Shorter Door-to-ECG Time Is Associated with Improved Mortality in STEMI Patients. J. Clin. Med. 2024, 13, 2650. https://doi.org/10.3390/jcm13092650

AMA Style

Yiadom MYAB, Gong W, Bloos SM, Bunney G, Kabeer R, Pasao MA, Rodriguez F, Baugh CW, Mills AM, Gavin N, et al. Shorter Door-to-ECG Time Is Associated with Improved Mortality in STEMI Patients. Journal of Clinical Medicine. 2024; 13(9):2650. https://doi.org/10.3390/jcm13092650

Chicago/Turabian Style

Yiadom, Maame Yaa A. B., Wu Gong, Sean M. Bloos, Gabrielle Bunney, Rana Kabeer, Melissa A. Pasao, Fatima Rodriguez, Christopher W. Baugh, Angela M. Mills, Nicholas Gavin, and et al. 2024. "Shorter Door-to-ECG Time Is Associated with Improved Mortality in STEMI Patients" Journal of Clinical Medicine 13, no. 9: 2650. https://doi.org/10.3390/jcm13092650

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
