FIWARE-Compatible Smart Data Models for Satellite Imagery and Flood Risk Assessment to Enhance Data Management

Abstract

The increasing rate of adoption of innovative technological achievements along with the penetration of the Next Generation Internet (NGI) technologies and Artificial Intelligence (AI) in the water sector are leading to a shift to a Water-Smart Society. New challenges have emerged in terms of data interoperability, sharing, and trustworthiness due to the rapidly increasing volume of heterogeneous data generated by multiple technologies. Hence, there is a need for efficient harmonization and smart modeling of the data to foster advanced AI analytical processes, which will lead to efficient water data management. The main objective of this work is to propose two Smart Data Models focusing on the modeling of the satellite imagery data and the flood risk assessment processes. The utilization of those models reinforces the fusion and homogenization of diverse information and data, facilitating the adoption of AI technologies for flood mapping and monitoring. Furthermore, a holistic framework is developed and evaluated via qualitative and quantitative performance indicators revealing the efficacy of the proposed models concerning the usage of the models in real cases. The framework is based on the well-known and compatible technologies on NGSI-LD standards which are customized and applicable easily to support the water data management processes effectively.

1. Introduction

The water sector is undergoing the so-called fourth revolution, which encounters the Industry 4.0 digital revolution. Hence, the water utilities have started to establish water conservation strategies and transition toward digital transformation [1]. The digital advancements, driven by the Next Generation Internet (NGI) technologies (e.g., Internet of Things (IoT) and blockchain), Artificial Intelligence (AI), remote sensing (RS), data modeling and semantic representation and reasoning approaches, etc., are being adopted, causing the movement from Hydraulic Modeling 1.0 to 2.0 [2]. Recent advances in data management and analysis have adopted several state-of-the-art technologies such as efficient and modular Context Brokers, data integration, and the creation of appropriate data models. Context Brokers allow managing the entire lifecycle of context information including updates, queries, registrations, and subscriptions [3,4].

The intertwining of AI with affordable sensors, high-resolution remote sensing, and communication technologies has contributed to the proliferation of big data in the water sector, driving the need for effective data-driven discovery, management, and processing [1,5]. Efficient and reliable water management decisions are obtained after the harmonization and analysis of the massive volumes of data by utilizing innovative prescriptive analytics and AI techniques [5]. Hence, long-term resilience against unexpected disruptive events such as floods, droughts, etc., can be achieved.

Specifically, satellite remote sensing provides significant information for the monitoring of natural disasters [6]. Flood hazards are a constant threat to local communities and infrastructures. The recent increase in the number of natural disasters has become a global issue because of the damages to the hydrological and ecological environment and human-made infrastructure, and the threat to human lives. Satellite remote-sensing techniques provide valuable support for monitoring these disasters and for post-event crisis management [7]. Due to flood hazards’ negative consequences on societies and economic aspects, it is critical to monitor and map those flood risks [8,9]. Improvements in satellite technology along with an increasingly long historical period of Earth Observation (EO) data available are resulting in the extended use of EO for flood risk assessment and monitoring [10].

In 2017, the UN Office for Disaster Risk Reduction (UNISDR) proposed an updated definition of disaster risk, incorporating the Sendai Framework for Disaster Risk Reduction 2015–2030 [11,12]. Therefore, disaster risk indicates the potential loss of life, injury, or damage to assets that could affect a system, society, or community in a specific temporal period. To calculate the disaster risk, we must take into account the factors of hazard, exposure, vulnerability, and capacity. Regarding natural hazards, disaster risk can be calculated and overall assessed by utilizing hazard, vulnerability, and exposure. Hazard refers to the adverse event responsible for losses. It indicates the probability and intensity within a specific area and time interval of a physical event. Hazard is estimated considering the characteristics of the risk source, the corresponding location, and the intensity of the physical process [11,12,13]. Exposure encompasses the condition of individuals, livelihoods, housing, infrastructure, production capacities, economic, social, cultural assets, and other substantial human assets that are located in hazard-prone areas and are vulnerable to potential adverse impacts [11,12,14]. Vulnerability refers to the susceptibility of individuals, communities, assets, or systems when confronted with hazardous physical events. It encompasses the qualities of a person or group and their situation, which influence their ability to anticipate, cope with, resist, respond to, and recover from the impacts of a physical event [11,12,14].

Despite the progress made, the digitalization of the water sector is yet characterized by certain gaps and challenges including technological, socioeconomic, environmental, and regulatory aspects [15]. The lack of industry-wide standardization and regulatory policies due to the fragmented, tailor-made solutions in the water sector, along with the issues of interoperability, data sharing and trustworthiness, are considered the main barriers to the digital transition of the sector [15]. Particularly, data integration is one of the core responsibilities of data management and interoperability [16]. One challenge is the incompatibility of data models, i.e., different software systems use specific or proprietary terminology, data structures, data formats, and semantics. Data need to be interchanged between software systems, and often, complex data conversions or transformations are necessary. Data integration involves combining data from several disparate/heterogeneous sources, which are stored using various technologies and it provides a unified view of the data [16,17]. The complexity of data integration depends on various factors, such as data models, data formats, and data precision; however, in most cases, it is non-trivial, so a systematic and well-defined approach is necessary [16,17].

According to our knowledge, there are no data models relevant to satellite imagery to support flood risk assessment analysis. Thus, in this work, two data models, namely, the Satellite Imagery (https://github.com/smart-data-models/dataModel.SatelliteImagery accessed on 2 April 2024) data model and the Risk Management (https://github.com/smart-data-models/dataModel.RiskManagement accessed on 2 April 2024) data model, are designed and implemented adopting the FIWARE NGSI-LD standard. The aim is to empower data sharing and interoperability by harmonizing heterogeneous data from multiple sources (i.e., EO data, GIS-based data). The proposed data models facilitate the data exchange, data-sharing trustworthiness and transparency among various legacy systems, and different groups of stakeholders in the water sector. Also, they adopt a coherent terminology and common semantic representation of data combining terms of the fields of remote sensing and Risk Management. With these models, advanced Machine Learning and AI technologies can be applied, easily focusing on various EO and crisis management applications. In particular, in [18], a methodological framework is proposed that enables flood monitoring and mapping by assessing the flood hazard and risk, dynamically fusing optical remote sensing (Sentinel-1) and GIS-based data. The aforementioned data models are utilized to populate the necessary data into the Machine Learning models and also to store the results of the analysis.

Beyond these data models, a second aim of this work is to propose a general framework that those models can be applied to and with which they can interoperably interact with other components. Hence, a multi-layered architecture is proposed, which consists of layers for data collection, data harmonization, interoperability, and storage as well as a layer for advanced analytical processing of the data to visualize the results at the business layer. The proposed framework is applied and evaluated in real case scenarios in the context of the H2020 aqua3S (https://aqua3s.eu/ accessed on 2 April 2024) project.

The core contributions of this work can be summarized as follows:

• Establish two Smart Data Models, Satellite Imagery and Risk Management, based on the FIWARE NGSI-LD standard to foster data management processes.
• Assist in the set-up of a unified terminology and semantic representation of data generated by remote sensing and flood risk assessment processes to facilitate interoperability and data sharing.
• Propose and evaluate in real case scenarios a broader framework for seamless interaction with other components, featuring a multi-layered architecture.
• Relying on the proposed SDMs, the integration of advanced Machine Learning and AI technologies for a wide range of EO and flood crisis management applications can be adopted.

2. Background

In [19], a systematic review of data models for the big data problem is presented, concluding, among others, that a data model is required to define the data structure and storage as a way to meet the challenges of big data. Also, the article depicts the significance of data models even in databases that lack static data models and flexible schemas. Although there are a variety of data models with various purposes, there must be a logical structure or format for data storage even at the program level. This is evidence of the need for more focus and research on this issue [19]. In [20] the authors cover the evaluation of six open-source and eleven proprietary database modeling tools using a new and tailored approach. Based on [21], a data model is aimed to make data meaningful and data communication possible for information needs while in [22], the data model includes three concepts:

• A data model is a set of data structures that mainly describes data types, properties, and relationships. The data structure is the basic part on which operations and constraints are structured.
• A data model is a set of operators and inference rules that mainly describe types and methods of operation in a particular data structure.
• A data model is a set of comprehensive constraints that can be used to describe syntax, dependencies, and constraints of data to ensure its accuracy, validity, and compatibility.

On the other hand, due to the growing awareness of the Internet of Things (IoT), IoT platforms were raised, such as FIWARE (https://www.fiware.org/ accessed on 2 April 2024), which is a standard platform for developing Smart applications. It was launched by the European Commission and aims to develop the core future technologies in the IoT paradigm [23,24]. However, its use seems to be successfully adopted by a variety of other applications. In [25], a data integration, harmonization and provision toolkit for water resource management and prediction support is designed to adopt the FIWARE NGSI-LD standard [26]. The NGSI-LD standard [26,27] is a well-established standard (the first version was created in 2017) and provides a general-purpose API specification. The specification, and some implementations, are open licensed. It is evolved by ETSI, a technical standardization body (https://www.etsi.org/ accessed on 2 April 2024). Some features of NGSI-LD, like the time series and geo-querying of the information retrieved from heterogeneous sources, make it particularly suitable for the aim of this research. Besides this, it also allows the federation between different instances of the servers using the standard (brokers), which empowers the users to use very different configurations and allows horizontal scalability. From the semantic point of view, this standard manages any type of data model structure, which helps to use very different types of data, geographical, environmental, or simply any other type of indicator. In [28], a novel air quality monitoring unit is implemented using clouding and FIWARE technologies, while in [29], an industrial data space architecture implementation using FIWARE is carried out. The authors of [30] describe a reference implementation for providing data analytic capabilities to context-aware smart environments. Their implementation relies on FIWARE Generic Enablers (GEs) and commonly uses open source technologies, a combination that has proven useful for building other types of smart solutions such as digital twins [31], data usage [32,33] controlled sharing environments, and enhanced authentication systems [34].

Smart Data Models by FIWARE

The Smart Data Models (https://smartdatamodels.org accessed on 2 April 2024) is a collaborative initiative to compile and curate data models in very different domains. The data models have two major sources: on the one hand, directly from actual use cases, and on the other hand, from open and adopted standards or regulations. Four non-profit organizations are the board members, and more than one hundred organizations are currently collaborating. Although the FIWARE Foundation is one of the board members, the data models compiled are independent of the FIWARE platform (which uses NGSI-LD standard) and can be used elsewhere. The models are open-licensed, allowing the free use, free modification, or customization to local needs, and the free sharing of the modifications only with the credit to the authors. One single source of truth for every data model allows the automatic generation of the documentation (seven languages) and export in several technical formats. The structure is also available in YAML and SQL, and the examples are available in json json-ld, csv, geojson features, and DTDL. This initiative pioneered the use of the agile standardization paradigm to compile data models (see the Manifesto for agile standardization (https://github.com/smart-data-models/data-models/blob/master/MANIFESTO.md accessed on 2 April 2024)). There are more than 1000 data models publicly available in github (https://github.com/smart-data-models accessed on 2 April 2024) and include domains for environmental information (https://github.com/smart-data-models/dataModel.Environment accessed on 2 April 2024) and for geographic imaging (https://github.com/smart-data-models/dataModel, https://github.com/smart-data-models/dataModel.SatelliteImagery accessed on 2 April 2024) among others.

3. Methodology

3.1. General Considerations

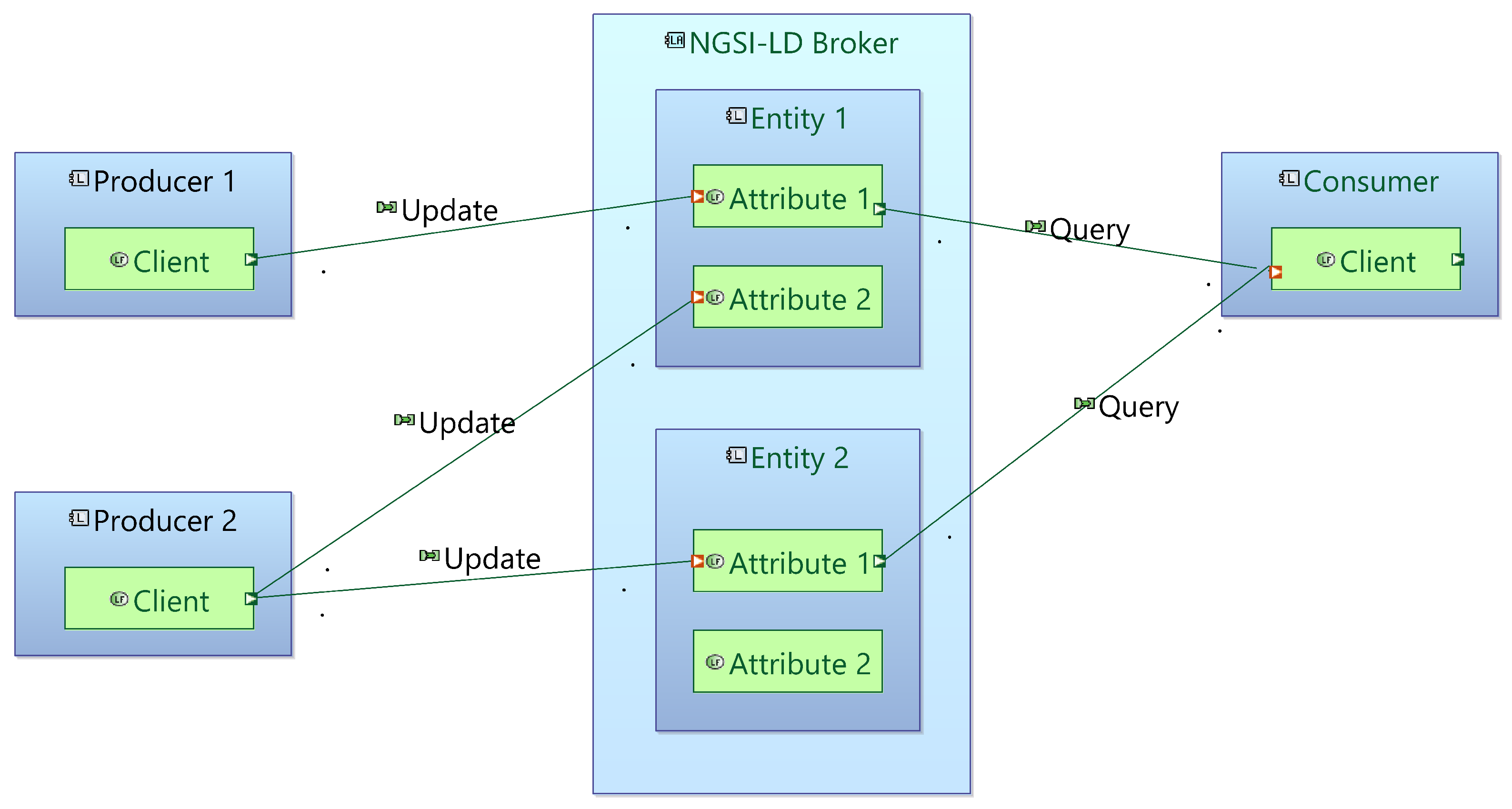

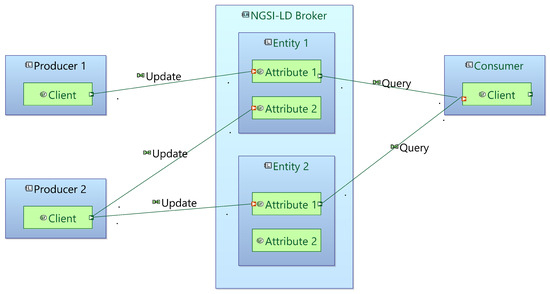

The backbone of a FIWARE-compatible architecture is the NGSI-compatible Broker. An NGSI compatible broker, unlike a messaging broker like RabbitMQ (https://www.rabbitmq.com/ accessed on 2 April 2024) or a stateless event streaming service like Apache Kafka (https://kafka.apache.org/ accessed on 2 April 2024), is meant to hold the current state of a physical system in the form of digital twins. Instead of handling messages or message streams of information in the publication/subscriber context, the NGSI-compatible broker holds an entity corresponding to the physical component, which comprises several values. Values can be updated by a client, and other clients can actively query the current state of the entity. Clients can also subscribe to notifications generated when specific attributes of one or more entities change.

An entity in this context is an expanded data model, including static (e.g., an entity’s id), dynamic (e.g., an entity’s status), or even timestamped attributes that can be used to generate time series (e.g., measurements produced by a sensor).

In our case of Earth Observations in the form of satellite imagery, the usual situation is that the observations are available, along with the corresponding metadata in a data hub (e.g., the Sentinel Hub), and they can be ingested, analyzed and combined with other data to produce certain analysis results. This process requires the combination and often harmonization to certain requirements of several heterogeneous types of data for their ingestion by AI models, including static, dynamic, and time variable attributes.

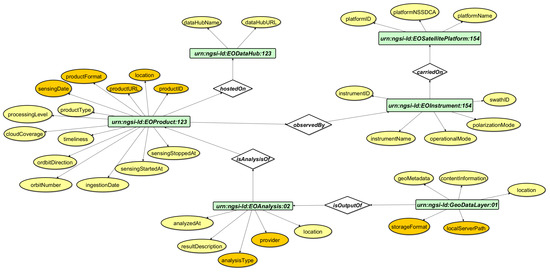

These requirements led us to the selection of a digital twin approach, where an Earth Observation and the accompanying metadata can be modeled as NGSI entities including the Earth Observation, the instrument involved along with its configuration, the satellite platform that carries it, the corresponding data hub, etc. This allows for the easier integration of this information with other types of data (sensor measurements, citizen data, OGS data, etc.) that have been modeled within the same context. Any resulting processing as well as the final analysis results are also represented as entities in the same data model.

In our implementation, we opted for a linked data approach, using entities encoded in JSON-LD format. In the context of linked data, every entity has a unique ID in the form of a URI. Linked entities have relationship attributes that take the URI ID of other entities as values. This allows for the conceptualization of higher-level interlinked structures. In this way, the entire process is easily integrable, transparent, and intuitive as well as easily expandable to new data types.

3.2. Framework

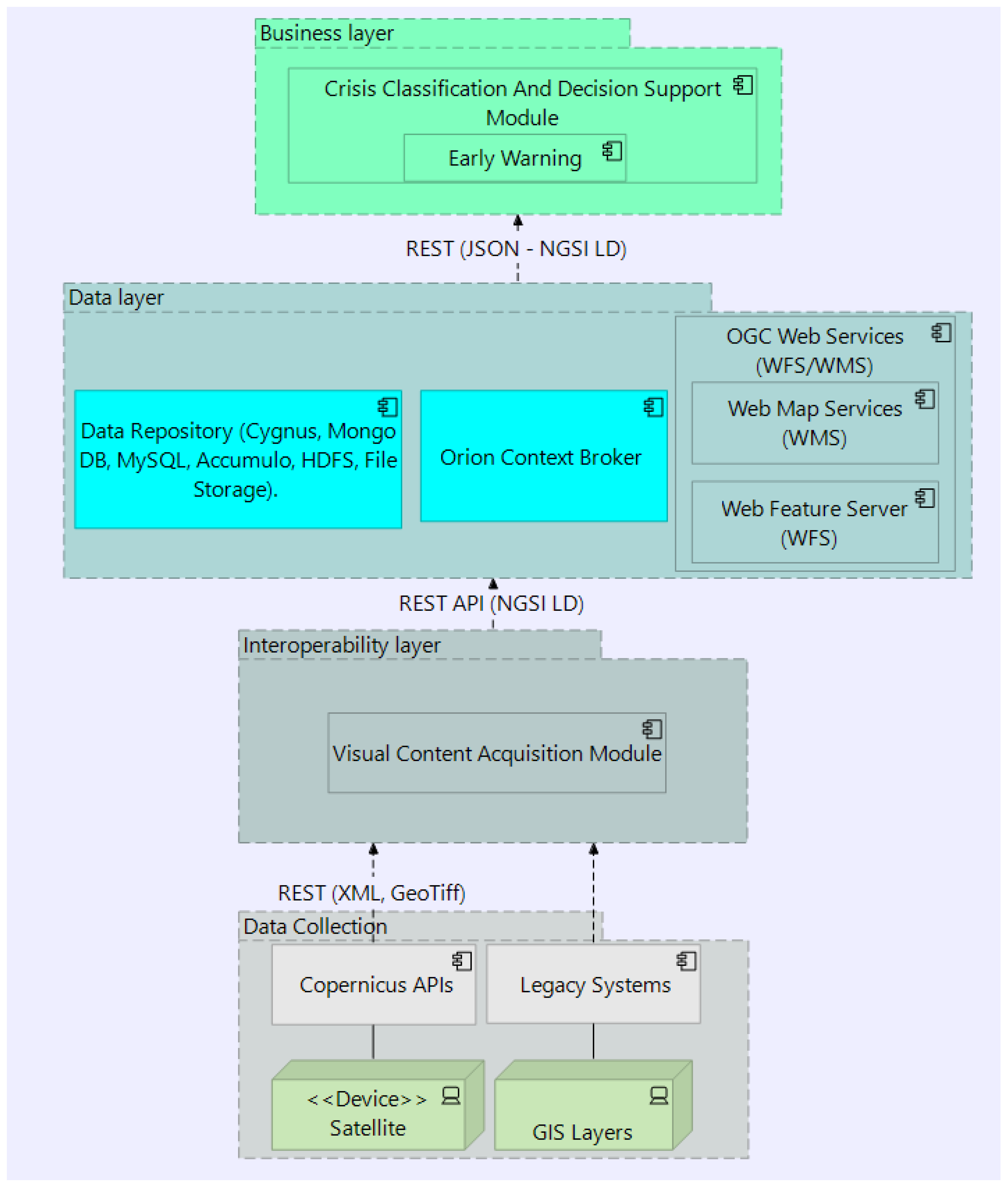

In the figure below (Figure 1), the logical multi-layered architecture of the proposed framework is illustrated. It consists of layers that allow acquiring data and information from various external data sources (Data Collection layer), the transformation of those data into the harmonized FIWARE-compatible data models (Interoperability layer), and the storage, processing, and forwarding the data (Data layer) into the business layer. The latter is responsible for the further advanced analytical processing of the data as well as the visualization of the results to the operators.

Specifically, in this work, the data collection layer refers to the process of gathering EO (Sentinel) data from the Copernicus API as well as the geospatial data through legacy systems (GIS layers). The latter can be considered an external resource, and it is mentioned as the GIS data model (Appendix A.3). The interoperability layer utilizes the Visual Content Acquisition module to process the Sentinel and GIS data. The data collection and interoperability layer is part of the Satellite Imagery data model described in Appendix A.2 below.

Subsequently, in the data layer, data processed from the Visual Content Acquisition module are stored using technologies such as OGC Web Services–Geoserver, Orion Context Broker, and widespread techniques of Data Repositories. GeoServer is the reference implementation of the Open Geospatial Consortium (OGC) Web Feature Service (WFS) and Web Coverage Service (WCS) standards, as well as a high-performance certified compliant Web Map Service (WMS). GeoServer forms a core component of the Geospatial Web. Orion Context Broker (https://aws.amazon.com/blogs/publicsector/how-to-build-smart-cities-with-fiware-orion-context-broker-and-cygnus-on-aws/ accessed on 2 April 2024), which is an NGSI-LD compatible broker, gathers context information from diverse sources and manages the lifecycle of this context information, from registrations, updates, queries, and subscriptions (Appendix A.1).

Finally, in the business layer, the Crisis Classification and Decision Support Module is developed and evaluated relying on the analysis of information obtained in the previous layers by employing AI algorithms. The outcome of this process is the assessment of the risk in a potential crisis or extremely hazardous event caused by natural or human-made reasons. This module is based on the deployment of the Risk Management data model as will be described in Appendix A.4.

4. Validation of the Smart Data Models

The proposed framework (Figure 1) that integrates those data models in a multi-layered approach for the assessment of the flood risk is evaluated. The assessment of the presented data models is carried out in a user-centered indirect manner, through the verification of user satisfaction with the aqua3S modules that rely on these particular models. It focuses on the user’s needs and revolves around the concept of establishing a practical scenario for the user, referred to as a simulated work task situation. The proposed data models are evaluated in terms of their ability to adequately represent the necessary information and populate data in a compatible NGSI-LD Context Broker. Unfortunately, since these models were developed recently, there is no other similar system using them, and thus we cannot directly compare our results with another platform. In the following subsections, the descriptions of the real case scenarios that took place in the context of the aqua3S project as well as the qualitative results are illustrated.

4.1. Scenaria Description

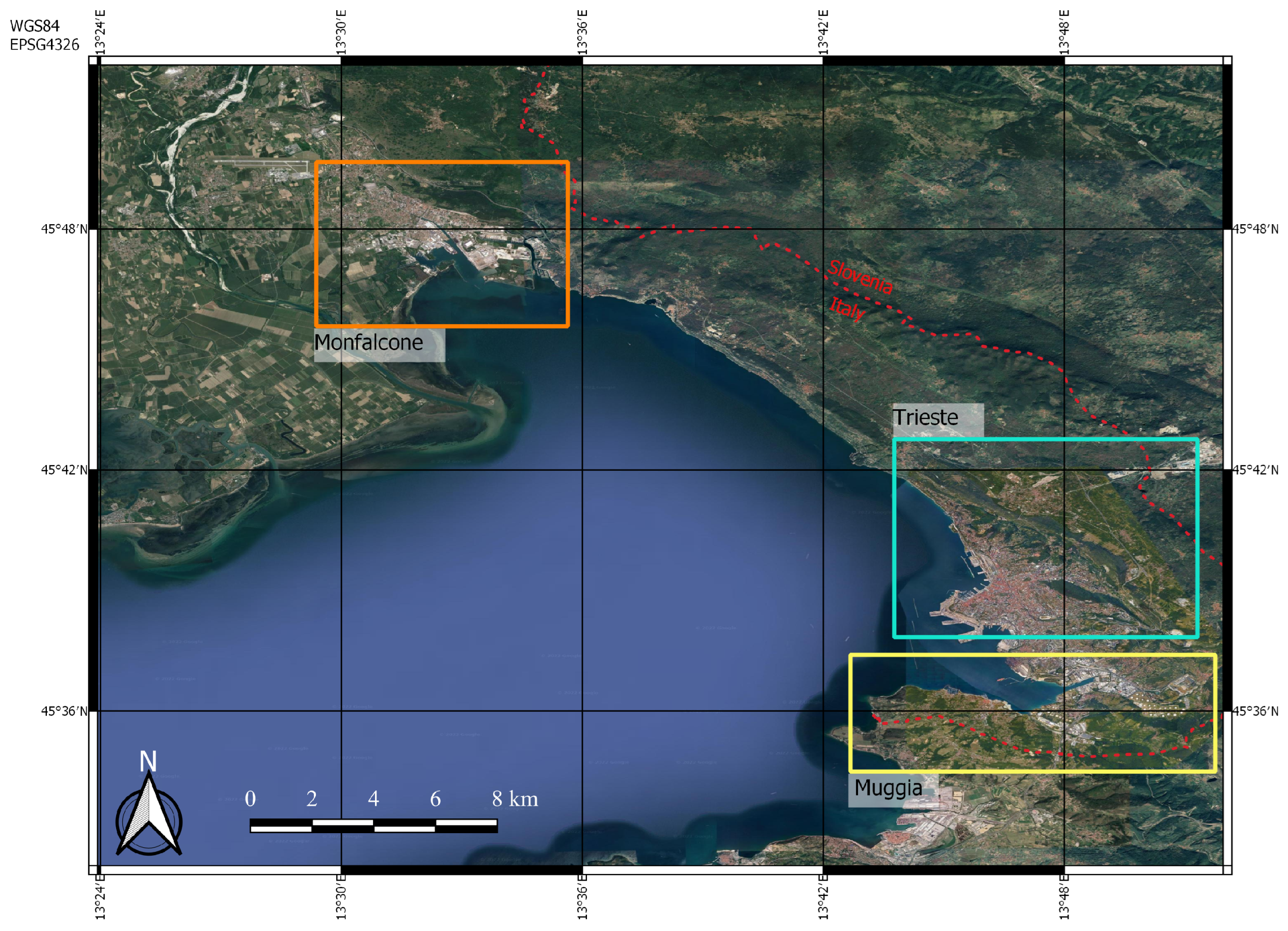

The scenario takes place in the city of Trieste (Figure 2), including the area nearby (the city of Muggia and part of the Isonzo River Plain). In the region of Friuli Venezia Giulia, the city of Trieste is the most populated one with approximately 410,000 inhabitants in the metropolitan area, and it is located near the borders between Italy and Slovenia. The city’s water supply system has always been unique since it presents some critical challenges. Since Karst topography does not include any water sources close to the city, the system relies on groundwater near the Isonzo River in San Pier d’Isonzo. To overcome this limitation and connect the water distribution network to the main sources in the Isonzo River Plain, two water mains are established. The first one runs along the coastline for approximately 23 km, and the second one extends 18km under the sea. Water is then pumped through a series of plants all over the city, up to the Karst area.

The study area covers numerous flood risk areas identified with the Flood Risk Management Plan (FRMP) of the Eastern Alps River Basin District (Decree of the Italian President of Ministry on 1 December 2023), redacted by the Water Authority of the Oriental Alps River District (AAWA) under Directive 2007/60/EU. Due to their low ground elevation above sea level, certain investigated locations such as Muggia and the harbor area of Trieste are vulnerable to flooding from high tides in the Adriatic Sea. These tides can be exacerbated by meteorological factors such as rainfall and southern winds. Additionally, the Isonzo River Plain, including San Pier d’Isonzo, where the main wells of the water supply system are located, is at risk of flood caused by the Isonzo River, a significant transboundary water body for the Eastern Alps River Basin District. Considering the flood risk in Trieste’s water distribution and supply system, one specific operational scenario was simulated using satellite data coming from a storm that affected the area in November 2019. This scenario is divided into two sub-scenarios: the first one affects the supply network of Trieste, particularly the wells in the Isonzo River Plain, and the other affects the city’s distribution network in the harbor area. This scenario involves the use of Risk Management, GIS, and Satellite Imagery data models.

Scenario A—Blackout in the wells due to the high level of the Isonzo river: The intense rainfall in the region has led to a significant rise in the water level of the Isonzo River in San Pier D’Isonzo. The result is a blackout and disruption in the electrical equipment of the wells responsible for supplying water to the city of Trieste, given their proximity to the river.

Scenario A unfolds as follows: All operators log in to the platform according to their designated roles. Initially, the Water Utility operator receives a warning from the aqua3S platform, and then he/she calls from the call center, confirming the issue. With the collaboration of the Water Authority and Water Utility operators, they explore the possibility of the problem being linked to the flood of Isonzo River because the area falls within the flood risk area as per the FRMP and displayed in the GIS interface of the system. The Water Authority Operator checks the platform for available satellite images of the area. Later on, the operator examines the platform analysis output and particularly focuses on the water body mask and the water depth and velocity maps, generated through the GIS and Satellite Imagery data models. Additionally, the operator checks out the flood hazard and flood risk maps produced by the Risk Management data model. From these maps, the operator understands that the level of the Isonzo River is notably high, particularly in the area near the wells. Subsequently, the responsible staff at the Water Utility takes action by utilizing the internal threat management procedure, evaluating potential threat levels, and characterizing the location and possible response measures. The operator also checks the Risk Management tool for crisis scenarios related to the current situation. As the crisis is de-escalated, the issue is resolved, and the color of the sensor on the map reverts to green.

Scenario B—Damage to the pipes in Trieste due to high tide: during the same storm event responsible for the high water level of the Isonzo River and supply network issues in San Pier d’Isonzo, the weather conditions also cause an exceptional tide in the Adriatic Sea. The high tide results in flooding the city area near the harbor and causing damage to the pipes of the water distribution network in that area.

Scenario B unfolds as follows: Following the resolution of the previous malfunction, the operators continue to monitor the platform for potential anomalies triggered by the meteorological situation. The Water Supply operator identifies the damaged pipe(s) in the static GIS layer of the water distribution network. This situation forces the operator to understand that there is an unavailability issue, as the broken pipe does not allow water supply to a specific area of the city, affecting a part of the citizens. The Water Authority Operator examines the satellite data from the last few days to detect any possible flood areas that could be causing the anomaly, and the Satellite Imagery data model generates a flood mask for the Trieste and Muggia region. The Water Authority Operator observes that the Risk Management data model algorithm has identified flooded areas in Trieste and Muggia due to the tide. By comparing the generated FRMP maps of hazard, risk, water velocity, and water depth with the static GIS Layer of the Trieste network on the map, the operator confirms that the damaged section of the network matches with the detected hazard and risk map.

An overview of the above scenarios, including information concerning the processes and the data models that were involved as well as the inputs, outcomes, actors (operators), and actions to be taken by them from the decision-making perspective, is illustrated in

Table A1. Overview of Scenario A.

Available Information and Inputs for the Models	Model and Process	Actor(s) Involved	Result of the Process	Action/Informed Decision Taken by the Actors
Sensor abruptly stopped	Sensor detection: Anomaly detection from sensor data Displaying anomaly status on a GIS map Sending warning due to anomaly	Water Supply Operator (WSO) who is monitoring the sensors’ status.	GIS map interface: Receive a warning Observe anomaly via checking the status of the sensor	WSO: Calls the company call center to confirm the issue; Discusses with the Water Authority Operator (WAO) about potential connection with the current bad weather situation.
Anomaly status of the sensor Flood risk maps	GIS interface: Showing and comparing layers of sensors Visualizing FRMP maps	Water Authority Operator (WAO)	GIS analysis highlights wells in flood risk area mapped by FRMP	WAO understands that the issue may be linked to the flood of the Isonzo river WAO decides to check for satellite data to confirm the result
Satellite data	Flood detection	WAO	Production of the following layers: Water body mask Water depth Water velocity maps	WAO: Receives confirmation that the ongoing storm event is impacting the well area Communicates the information to the Water Utility Operator (WUO).
Satellite data	Flood Risk Management Data Model	WAO	Production of the following layers: Flood hazard map Floor Risk map
Ongoing crisis	Flood Risk Management Data Model	WAO	Crisis scenarios: Potential threat level Threat assessment Response measures	WUO takes action following the internal company procedure to fix the issue.
Sensors measures return to normal	Sensor’s status	WSO, WAO	All the sensors on the map show green color.	The issue is resolved and the crisis de-escalated.

and

Table A2. Overview of Scenario B.

Available Information and Inputs for the Models	Model and Process	Actor(s) Involved	Result of the Process	Action/informed Decision Taken by the Actors
Receiving information of: Real-time sensor measurements Monitoring the distribution network	Hydraulic model	WUO	Visualization of: Hydraulic model output Pressure sensor anomalies	WUO: By studying the results of the model, WUO realizes that there is an unavailability problem. There is a broken pipe near the harbor which permits the water distribution to the citizens. Discussion with the WAO about the potential cascading effect of the current storm event.
Satellite data	Satellite Imagery data model	WAO	Production of the following layers: Water body mask Water depth maps Water velocity maps	WAO after the estimation of: The extension of the impacted areas The spatial value of the main hydraulic variables Flood hazard and risk levels Understands that there are flooding areas in Trieste due to the high tide of the Adriatic Sea.
Satellite Imagery data model output	Flood Risk Management data model	WAO	Production of the following layers: Flood hazard maps Flood risk maps
Social media posts (Tweets)	Social media posts (TSocial media analysis toolkitweets)	WAO	Social media report on the map regarding the flood in Trieste near the harbor.
GIS static topography layers of the water distribution network.	Layers comparison	WAO	Pipes in the flood report	WAO communicates the information to the WUO to allow the water supply company to take suitable action to repair the pipe

respectively in the Appendix A.6.

4.2. Quantitative Results

Following the paradigm of [35], who introduced the term “usability” encompassing the concept of user-centered evaluation, this work adopts usability for assessing user satisfaction. The term usability encompasses the examination of user engagement and interaction. Furthermore, as per the ISO 9241-11 standard [36] usability is defined as the product’s capacity to enable specified users to achieve defined goals with effectiveness (to which level the user can achieve his/her goals), efficiency (to which level of effort the user has to invest over the achieved accuracy), and satisfaction within a specific context of use. Thus, effectiveness, efficiency, and satisfaction define usability (the level of comfort and acceptability of use).

The participants involved in the evaluation were 29 professionals with diverse backgrounds and significant work experience (i.e., over 5 years). Specifically, as depicted in Figure 3, the majority of participants (41%) were technical partners from several companies, while a significant proportion of the attendees held positions associated with water quality and served as First Responders (24%).

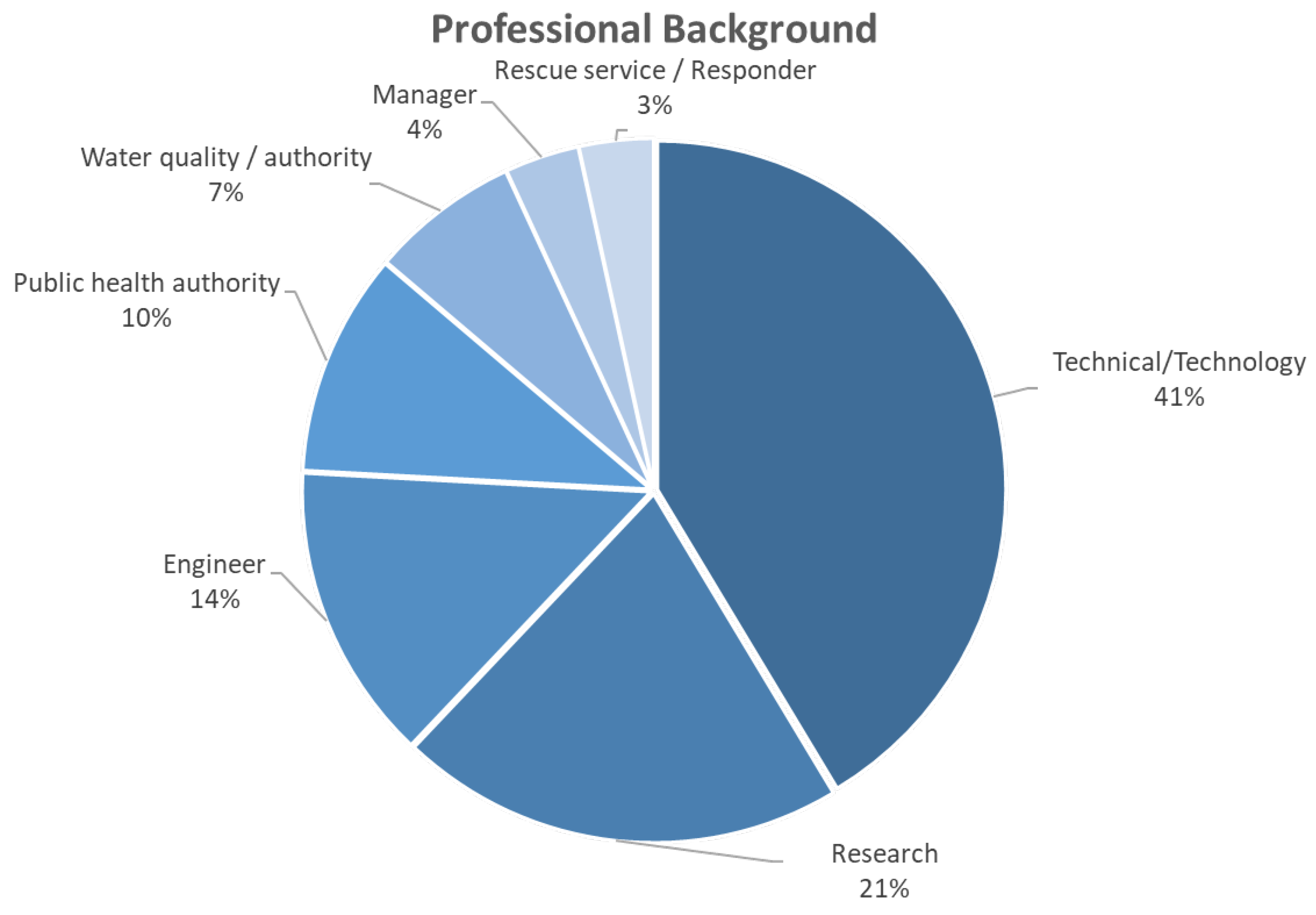

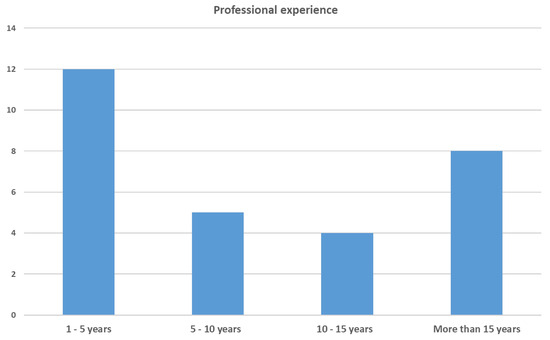

Regarding the participants’ professional backgrounds, the majority (59%) possessed substantial experience, defined as over 5 years of experience as depicted in Figure 4. It is worth mentioning that there was a good gender balance among the participants, with 59% being male and 41% female.

Concerning the development and the usability of the platform, a questionnaire was carefully designed that involves a series of questions including questions concerning the modules related to satellite data usage and risk assessment. Hence, the participants were tasked with assessing their level of usability along the following criteria Effectiveness, Efficiency, and Satisfaction of each module. The responses were assigned weighted values (ranging from 5 to 1, indicating strong agreement to strong disagreement) based on the three aforementioned criteria. It is important to highlight that the questionnaire underwent validation and approval from every consortium member. Furthermore, particular care was taken to address any ethical concerns associated with the questionnaire’s formulation.

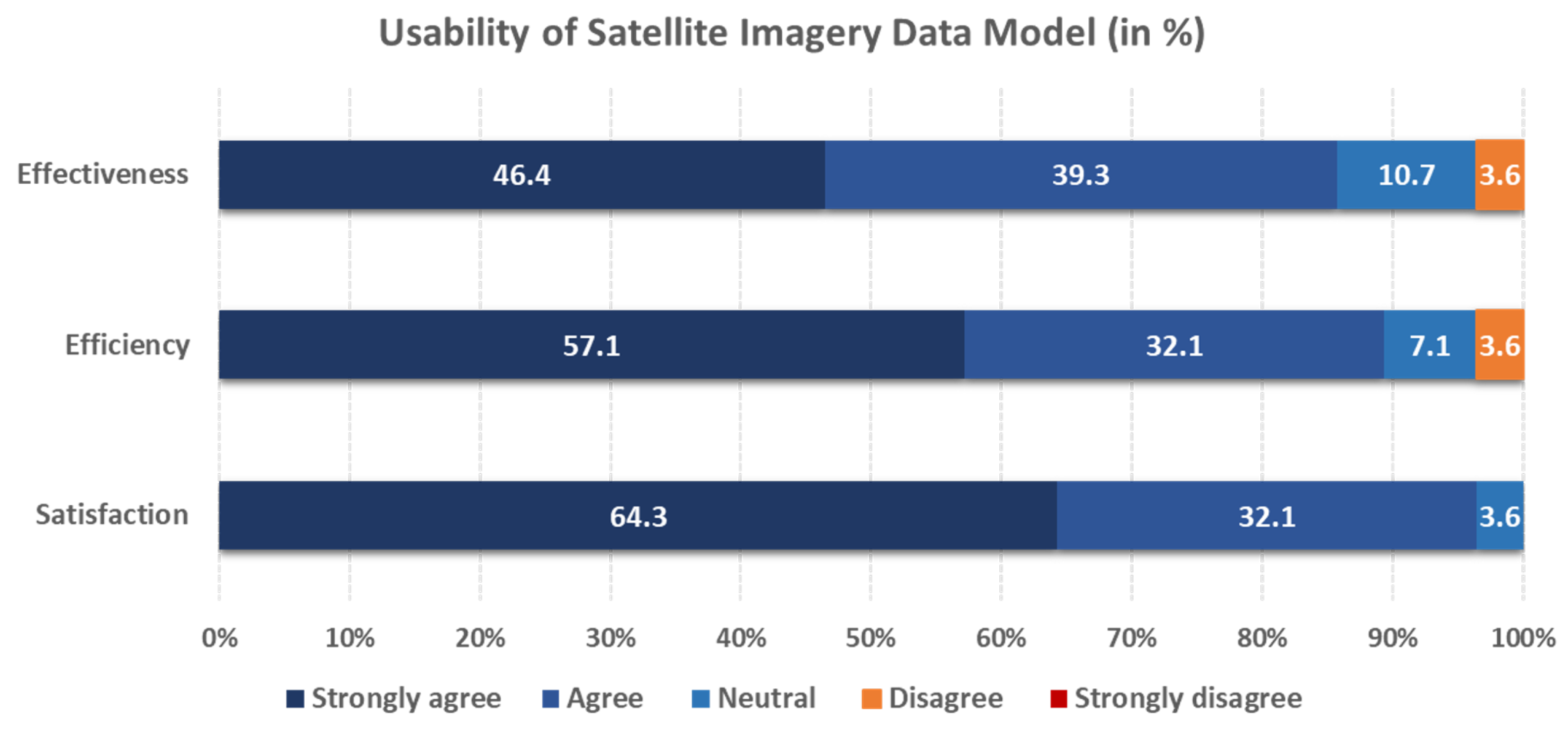

The findings of the research exhibit a positive level of responders’ satisfaction after the usage of both data models. Particularly, approximately 96.4% of participants are satisfied (strongly agree or agree) with the easy use of the Satellite Imagery data model. Moreover, they believe that it is useful for storing and exchanging information generated from the analysis of satellite imagery (Figure 5). Similarly, 89.3% of the responders consider that the Satellite Imagery data model is an efficient tool (agree or strongly agree) concerning performance and time needed for completing their tasks with adequate accuracy. Significantly higher is the percentage of responders who consider that the particular data model can assist them in completing their task accurately compared with those who are neutral or disagree (85.7% against 14.3%).

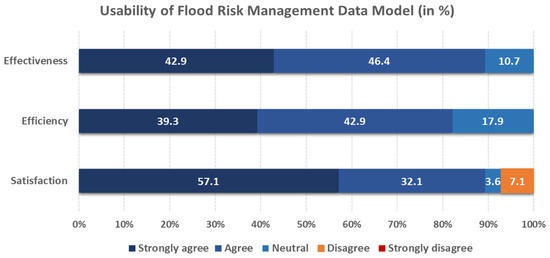

Similar findings can be drawn concerning the usability of the Flood Risk Management data model (Figure 6). In total, 89.3% of responders are satisfied after the usage of the particular model (strongly agree or agree). Additionally, they believe that it can effectively aid them in completing their tasks reliably (level of effectiveness is around 89.3%). Slightly different are the results in terms of the efficiency of the Flood Risk Management data model, where the percentage of participants who agree that this DM is efficient reaches 82.1% against those who are neutral (17.9%). One potential reason is that the creation of Flood Risk Maps depends on data models (i.e., Satellite Imagery) and other processes that may insert a slight delay in the visualization of the flood hazard and risk maps. This can be translated as an inefficiency of the DM by a few responders.

It’s worth noting that none of the responders expressed strong disagreement regarding the usability of both Smart Data Models. As a result, the category indicating strong disagreement (represented by red color) does not appear in the above figures (Figure 5 and Figure 6).

5. Conclusions

Water is the lifeblood of many other sectors, such as energy, agriculture, industry, etc., by supporting their processes. Hence, the digitalization of the water sector through the deployment of digital solutions fosters the Twin Transition (digital and green transition) as well as water security, sustainability, and resilience. The emerging technologies for water data acquisition, smart processing, and sharing provide positive reinforcement for the processes of data management in the water sector. Facilitating a faster adoption of the data representations by defining common standard-wise Smart Data Models enhances the data-sharing trustworthiness and promotes interoperability.

In this context, this work proposes two Smart Data Models which are FIWARE compatible and facilitate the modeling processes of the satellite imagery as well as the flood risk assessment. Additionally, a general multi-layered architecture has been described to adequately incorporate those data models in a workflow, exhibiting their efficiency and applicability. Through the real-case scenarios, the proposed approach has been evaluated using qualitative and quantitative key performance indicators.

In process-oriented organizations, the evaluation of the data models in real-case flooding events can be challenging. The early-stage achievements and progress achieved can be assessed through early-stage validation via pilots and proof-of-concept efforts. Since the assessment of the data models is indirect, there is no direct connection between end users and SDMs. Thus, the proposed models are part of the general process that has been applied in real scenarios. The end users evaluate them through surveys using a meticulous questionnaire that was designed and approved by the consortium members, taking into account the ethical considerations and matters. To this extent, comparisons among similar platforms are impossible to occur due to the limitation of data and lack of interoperability of the modules of different systems.

The conclusions from the qualitative research that took place in the content of the aqua3S framework reveal a high level of participants’ satisfaction regarding the usability of the Satellite Imagery data model and the Flood Risk Management data model. Users find the Satellite Imagery data model easy to use and valuable for storing and exchanging information coming from the satellite imagery analysis. Similarly, the Flood Risk Management data model has received positive feedback in terms of satisfaction and effectiveness in completing tasks. However, some respondents note possible weaknesses in the Flood Risk Management data model due to dependencies on processes like satellite imagery, which could lead to slight delays in visualizing flood hazard and risk maps.
