Effect of ZnO on Luminescence Performance of Terbium-Activated Zinc Borosilicate Glasses

by
Sena Dayioglugil
and
Nuri Solak
*
Faculty of Chemical-Metallurgical Engineering, Istanbul Technical University, Istanbul 34469, Turkey
*
Author to whom correspondence should be addressed.
Materials 2024, 17(9), 2154; https://doi.org/10.3390/ma17092154
Submission received: 3 April 2024 / Revised: 30 April 2024 / Accepted: 2 May 2024 / Published: 4 May 2024
(This article belongs to the Special Issue Structural and Luminescence Properties of Glass)
Browse Figures
Versions Notes

Abstract

:
In this study, terbium-doped ZnO-SiO2-B2O3-Na2O glasses were fabricated with the conventional melt-quenching method. The effect of altering the concentration of the host matrix on luminescence performance was investigated in terms of different ZnO/B2O3 and ZnO/SiO2 ratios. FT-IR results indicate that bridging oxygens (Bos) were converted to non-bridging oxygens (NBOs) with increments of ZnO. Furthermore, the emission intensity and luminescence lifetime of samples were influenced by the amount of ZnO; this was proven with photoluminescence spectra results. The maximum emission intensity was observed at a 1.1 ZnO/B2O3 ratio and a 0.8 ZnO/SiO2 ratio; however, the highest luminescence lifetime was observed at a 1.1 ZnO/SiO2 ratio. The emission intensity and luminescence lifetime of glass samples were improved by heat treatment as a result of the formation of willemite and zinc oxide phases. An increase in the ZnO/SiO2 ratio facilitated the formation of willemite and zinc oxide phases; therefore, crystallinity was directly related to the luminescence behavior of glass samples.

1. Introduction

Borosilicate glasses activated with rare earth ions have gained prominence in a wide range of luminescent applications, including solid-state lighting, laser technology, display panels, and optical devices, owing to their good optical transmission, thermal stability, chemical resistance, low manufacturing cost, and ease of fabrication into various forms. The high transmittance of borosilicate glasses allows the emission of light without creating a barrier in phosphorescence applications. B2O3 and SiO2 are excellent network formers that create bridging oxygen structures. However, the high phonon energies of these network formers lead to reduced luminescence efficiency as a result of non-radiative losses in the glass [1,2,3,4,5]. In order to prevent non-radiative energy losses and improve the luminescence performance of the glass system, modifier oxides can be added to borosilicate glasses. In particular, modifier oxides facilitate the formation of coordinated defects by disrupting Si-O-Si and B-O-B bonds. Zinc oxide is a promising modifier oxide that has low phonon energies and good rare earth ion solubility. ZnO has a wide band gap (eV); furthermore, the presence of ZnO in borosilicate glasses enhances light emission in the ultra-violet region [6,7,8]. ZnO acts as a modifier oxide by occupying the interstitial position in the glass network. This leads to a disruption of network connectivity, an alteration in bond formation, and the creation of non-bridging oxygens [4,9,10]. Moreover, the crystallization behavior of a glass matrix depends on the amount of ZnO. The formation of zinc oxide (ZnO) and willemite (Zn2SiO4) phases affects the optical properties of glass. Zn2SiO4 is recognized as a good candidate for hosting phosphors and optical materials thanks to its wide band gap, which allows for efficient light emission, chemical stability, and transparency in the UV-visible region [11,12,13]. The addition of an alkaline metal such as Na2O to the glass composition contributes to stabilization during melting by increasing its stiffness [14].
Prior works indicated that various rare earth (Tb3+, Sm3+, Pr3+, and Ce3+)- and transition metals (Mn2+, Cu2+, and Co2+)-activated zinc borosilicate glasses have been studied to investigate luminescence properties [15,16,17,18,19,20,21,22]. Furthermore, the effect of adding transition metals (Nb, Mn, V, and Co) on the crystallization behavior of zinc borosilicate glasses has been examined [18,22,23,24]. However, in those studies, the effect of substituting zinc oxide with silicon dioxide and boron oxide on the luminescence behavior of zinc borosilicate glasses was not investigated in detail.
For these reasons, ZnO-B2O3-SiO2-Na2O glasses appear to be an attractive host matrix for doped-with-rare-earth ions. The electron shell structure of all trivalent lanthanide ions is unfilled and consists of 4fN electrons, where N ranges from 1 to 14. Optical transitions are related to 4f electrons [25]. Terbium ions are preferred as an activator material, as Tb3+ ions, which exhibit green emission even at low concentrations, have a high luminescence behavior in the visible band. The transition of Tb3+ ions arises from the Laporte-forbidden metastable state 5D4 to the lower states 7F6 (487 nm), 7F5 (542 nm), 7F4 (585 nm), and 7F3 (620 nm). Even small quantities of Tb3+ ions can be added to the host matrix; a strong green emission at 542 nm has been observed with the naked eye [26,27].
In this study, the dependence of phosphorescence properties on the composition of the glass matrix was investigated. The role of ZnO, B2O3, and SiO2 on luminescence phenomenon was explored via a ternary phase diagram of ZnO-B2O3-SiO2 glass systems with constant Na2O and Tb2O3. In addition, the effects of different heat treatment temperatures on crystallization behavior and of crystallization on luminescence behavior of glass systems were analyzed.

2. Materials and Methods

Terbium-activated ZnO-B2O3-SiO2-10Na2O wt% glass samples were synthesized by the conventional melt-quenching technique (Table 1). Five terbium-activated glass samples were selected from the ternary phase diagram shown in Figure 1. In the first group of samples, the ratio of ZnO/B2O3 was varied, with a constant amount of SiO2. In the second group of samples, the ratio of ZnO/ SiO2 was varied, with a constant amount of B2O3. In all glass samples, the weight percentages of Tb2O3 and Na2O were constant.
Zinc oxide (ZnO), 99.5% (Merck, Darmstadt, Germany), boric acid (H3BO3), 99.5% (Merck, Darmstadt, Germany), sodium carbonate monohydrate (Na2CO3), 99.95% (Merck, Darmstadt, Germany), silicon (IV) oxide (SiO2), 99.9% (Alfa Aesar, Massachusetts, MA, USA) and terbium (III, IV) oxide (Tb4O7), 99.99% (Jiaton, Shanghai, China) were used as raw materials. Tb2O3 (0.35% mol) was added without disturbing the chemical composition of the host material. Raw materials were weighed in stoichiometric proportions and mixed in an agate mortar to provide homogeneity. Mixed batches were melted in platinum crucibles at a 1500 °C ambient atmosphere for 30 min. Melts were quenched to room temperature and poured into a stainless-steel plate. After obtaining transparent glass samples, heat treatment was applied at 650 °C, 750 °C, and 800 °C to investigate crystal structures; 650 °C and 750 °C were chosen for examination of phosphorescence properties of glass samples.
Glass structures were investigated using an X-ray diffractometer (XRD, Panalytical Aeris, Malvern, UK) using Co-Kα radiation. Powder and bulk forms of samples were used in XRD analysis. In order to determine glass transition and crystallization temperatures, differential scanning calorimeter (DSC; Netzsch STA 449F3 Jupiter, Selb, Germany) analysis was performed by heating the samples from room temperature to 1000 °C at a rate of 5 K/min under an argon atmosphere. A Fourier transform infrared spectrometer (FT-IR; Bruker Alpha-II, Billerica, MA, USA) was used in the spectral range of 400–4000 cm−1 at room temperature to investigate the presence of network structural and functional groups. Powder forms of glass samples were used in DSC and FT-IR analysis. The UV-visible absorption spectra analysis of glass samples was performed by an UV-VIS-NIR spectrometer (Agilent Cary 5000, Santa Clara, CA, USA) in ABS mode in the spectral range of 300–500 nm. The emission intensity and afterglow time of obtained glasses were determined using an Ocean Optics Flame spectrophotometer (Ocean Insight, Orlando, FL, USA) equipped with a 363 nm wavelength UV light lamp as an excitation source at room temperature.

3. Results and Discussion

3.1. XRD and DSC Analysis

XRD patterns of glass samples are given in Figure S1. As-cast transparent glass samples exhibited an amorphous structure without any peak formation.
The characteristic glass temperatures of the samples were investigated by DSC analysis. Glass characteristic temperatures, detected as weak signals, were recorded at a heating rate of 5 K/min, and are shown in Figure 2. According to these DSC curves, endothermic peaks indicate glass transition temperatures (Tg), while the first exothermic peaks correspond to the onset crystallization temperatures (Tx) of glass samples. ZnSi glass samples exhibited two exothermic peaks that were related to crystallization temperatures (Tp); however, crystallization peaks were not observed in ZnB2036 and ZnB2630 glass samples.
Characteristic glass temperatures (Tg, Tx, Tp1, and Tp2) are summarized in Table 2. DSC data results indicate that glass characteristic temperatures changed with the compositions of the glasses. The maximum amount of ZnO content was in the ZnSi3825 sample, which had the lowest Tg value. The decrease in the glass transition temperature may be explained by the strength of chemical bonds. The incorporation of ZnO into a host matrix facilitates the formation of non-bridging oxygens by breaking the bonds between oxygen ions and glass-forming ions [28,29,30,31].
A heat treatment process was applied to ZnB2927, ZnSi3231, and ZnSi3825 glass samples at 650 °C, 750 °C, and 800 °C to determine structural changes. Figure 3 shows XRD patterns of both powder and bulk forms of samples at 650 °C for 1 h. Crystallization peaks for ZnO, Zn2SiO4, and B2O3 phases were detected in the ZnSi3825 bulk forms of samples; however, the powder forms of samples had amorphous structures. No crystallization peaks were revealed for ZnB2927 and ZnSi3231 samples, indicating the presence of amorphous structures. These two samples preserved the transparent appearance.
Figure 4 illustrates XRD patterns of both bulk and powder forms of samples at 750 °C for 1 h. As a result of heat treatment, ZnSi3825 bulk samples exhibited mainly opaque appearances, and ZnB2927 and ZnSi3231 bulk samples were opaque only on the surface. ZnO (zinc oxide) and Zn2SiO4 (willemite) phases were identified in the XRD patterns of powder and bulk forms of ZnSi3825. Although powder ZnB2927 and ZnSi3231 samples showed amorphous structures, surface crystallization was observed in these samples. ZnO and willemite phase peaks were present in the XRD pattern. When comparing XRD results at 750 °C, the formation of the willemite phase was more intense in the ZnSi3825 sample, which had the maximum amount of ZnO.
The transparency of the samples was lost as a result of heat treatment at 800 °C for 1 h. According to the XRD patterns of the samples, only the willemite phase was present, as shown in Figure 5. The conversion of ZnO phases to willemite phases occurred by heating samples to 800 °C.
Consequently, the degree of crystallization increased with the increments of the ZnO/SiO2 ratio. Crystallization behavior was related to the amount of ZnO (modifier oxide) in the host matrix. A higher amount of ZnO facilitated the formation of the willemite phase at lower temperatures [29,30,31,32,33].

3.2. FT-IR Analysis

FT-IR spectra were used to investigate network structural units present in ZnO-SiO2-B2O3-Na2O glasses. Figure 6 shows absorption results of glass samples in the 400–1800 cm−1 wavenumber region. Two regions exist in the FT-IR spectrum. One consists of the main characteristic absorption bands between 400 and 1500 cm−1, while the other region is weak absorption peaks between 1500 to 4000 cm−1. It can be seen in Figure 6 that all glass samples exhibited six absorption bands, and band positions of the samples are shown in Table 3. Bands that appeared at ~470 cm−1 and ~505 cm−1 were assigned to weak absorption peaks of O-B-O bending vibrations and symmetric stretching vibrations of ZnO4, respectively [34,35,36,37,38]. Bending vibrations of bridging oxygens between B-O-B bonds in BO3 units or Si-O-Si symmetric stretching of bridging oxygen between SiO4 tetrahedral units can be induced to absorption peaks at ~699 cm−1 [34,39]. Vibrational modes of tetrahedral BO4 groups may be observed in the spectral range of 952–975 cm−1 [36]. A weak shoulder at 1235–1270 cm−1 can be attributed to B–O stretching vibrations of (BO3) units with non-bridging oxygen atoms [40,41,42]. The broad band observed in the spectral range at 1356–1387 cm−1 may be assigned to the asymmetrical stretching vibration of B-O-B in BO3 [39,40,42]. The asymmetrical stretching vibration of B-O-B in the BO3 band shifted towards a lower wavenumber with an increase in the ZnO content in the host matrix.
In order to calculate the amount of non-bridging and bridging oxygen in the host matrix, deconvoluted FT-IR spectra of the samples were analyzed. FT-IR curves were deconvoluted to separate overlapping peaks to identify precise peak positions (PC) and area under the curve (A). Deconvoluted FT-IR spectra of the samples were obtained by the nonlinear curve fit module using the Gaussian function. The bands at ~699 cm−1, ~1270 cm−1, and 1370 cm−1 were related to bending vibrations of B-O-B bonds in BO3 units, B–O bond stretching vibrations of BO3 units, and asymmetrical stretching vibration of B-O-B in BO3 units, respectively. Furthermore, these vibrational modes assisted the formation of NBOs in the host matrix. Additionally, the band in the range of 900–1000 cm−1 was related to B–O bond stretching vibrations of BO4 units, which assisted the formation of BOs in the host matrix. These values were estimated from the area under the defined peaks and calculated using the following formulas [38,43,44,45].
B O 3   ( N 3 ) = A 3 A 3 + A 4
B O 4   ( N 4 ) = A 4 A 3 + A 4
In Equations (1) and (2), A3 and A4 are defined by the area under the peaks, which are related to BO3 and BO4 units, respectively. Deconvoluted FT-IR spectra of the ZnB2927 sample are given in Figure 7, and deconvolution peak center (cm−1) and area under the peaks are given in Table 4. According to Table 4, the N3 value increased with the addition of ZnO to the host matrix, which indicates that [BO4] units transformed into [BO3] units. The maximum amount of NBOs was obtained using the ZnSi2927 sample.

3.3. Photoluminescence Analysis

UV–vis room temperature absorption spectra for Tb3+-doped zinc borosilicate glass samples are given in Figure S2 [46,47,48,49]. Phosphorescence properties of 0.35 mol% of Tb2O3-doped glasses were measured after samples were irradiated by a 363 nm wavelength UV light source for 5 min, as given in Figure 8. According to phosphorescence spectrophotometer results, four distinct emission peaks existed at 487 nm, 542 nm, 585 nm, and 620 nm, which arose from the 5D4→7F6, 5D4→7F5, 5D4→7F4, and 5D4→7F3 transitions of Tb3+ ions, respectively [15,46,50].
Emission spectra can be described from a schematic energy level diagram of Tb3+ ions, as illustrated in Figure 9. Tb3+ ions were excited from the ground state 7F6 to the upper excited state 5D3 as a result of excitation with a 363 nm UV light. After stopping excitation, a non-radiative (NR) energy transition could occur due to cross relaxation caused by the interaction between Tb3+ ions in the glass matrix. Relaxation of Tb3+ ions to a metastable 5D4 state does not involve the emission of light. Consequently, radiative transition from the 5D4 state to a different 7Fj (j = 6,5,4,3) lower energy states leads to the emission of light. Glass samples had the highest intense peak centered at 542 nm, corresponding to the 5D4→7F5 transition [51,52,53].
Compositional changes could not influence the position of the emission peaks; however, they could affect the emission intensity of the peaks. The emission intensity of the first group of samples (with fixed SiO2 content) increased with the ZnO/B2O3 ratio. The main reason for the increment was the substitution of ZnO for B2O3 in the host matrix, which enabled the formation of NBOs. Furthermore, the concentration of the trap centers increased with the addition of ZnO, which acted as a UV emission center [54]. Therefore, the optimum amount of B2O3 was chosen at 30 wt%. In the second group of samples (with fixed 30 wt% B2O3), ZnO was replaced by SiO2. The emission intensity of the second group of samples was higher compared to that of the first group of samples. This behavior is explained by the non-bridging oxygens phenomenon. The higher amount of NBOs made it easier to excite samples due to weakened bonds [27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55]. Nevertheless, the emission intensity of samples decreased with an increase in ZnO/SiO2. The ZnSi3825 sample had the maximum amount of ZnO; however, its emission intensity was lowest due to zinc abnormality. As a result, the maximum emission intensity was observed in the ZnB2927 sample, which corresponded to the intersection of the two groups in the ternary phase diagram. The optimum ZnO/B2O3 and ZnO/SiO2 ratios were determined to be 1.1 and 0.8, respectively.
Figure 10 shows decay spectra analysis of glasses recorded for 542 nm emission under 363 nm excitation. The lifetimes of the samples were calculated by fitting experimental data to a non-exponential decay model. The non-exponential decay model is expressed as [56]
I t = A e − t τ
In Equation (3), the intensity of samples at t = 0 is defined by A, t is time, and τ is the luminescence lifetime of samples. In Table 5, the luminescence lifetimes of samples are shown as a result of fitting of decay curves.
According to the decay curves, firstly, the luminescence lifetime increased from 51.7 to 139.9 ms with the increment in ZnO content; however, the lifetime of the ZnSi3825 sample decreased to 110.3 ms due to zinc abnormality. Consequently, the ZnSi3231 sample exhibited the maximum luminescence lifetime.
After heat treatment at 650 and 750 °C for 1 h, photoluminescence spectra measurements were taken to investigate the effect of willemite and zinc oxide phases on luminescence behavior. Figure 11 illustrates phosphorescence spectra results for ZnSi3825 glass and heat-treated glass samples. Wavelength position did not change with the heat treatment, while the emission intensity of the samples increased. According to XRD patterns of the samples, the increase in concentration of ZnO content facilitated the formation of willemite and zinc oxide phases. Willemite and zinc oxide phases act as a UV emission center; therefore, the emission intensity of heat-treated samples was higher compared with that of the as-cast transparent samples [17,57].
Decay spectra analysis of glasses and heat-treated glasses samples were recorded at 542 nm emission under 363 nm excitation. Decay curves and luminescence lifetimes of glass samples are given in Figure 12 and Table 6, respectively. Luminescence lifetimes of heat-treated samples at 650 and 750 °C indicate that the presence of willemite and zinc oxide phases provided an increase in the afterglow time of samples. As a result, both emission intensity and lifetime of the samples improved with the crystallinity of willemite and zinc oxide phases.

4. Conclusions

Different compositions of ZnO-SiO2-B2O3-Na2O glasses with Tb3+ ions were prepared by the melt-quenching method to understand the influence of composition on luminescence behavior. Glass transition temperatures and crystallization temperatures decreased with an increase in the ZnO/B2O3 and ZnO/SiO2 ratio. Glass characteristic temperatures depend on the formation of non-bridging oxygens, which increase with the incorporation of ZnO into the glass matrix. FT-IR results confirm that the amount of NBOs increased with an increment of ZnO. Willemite and zinc oxide phases were observed in the heat-treated glass samples by XRD analysis. These phases were formed at lower temperatures in the ZnSi3825 sample, which had a 1.5 ZnO/SiO2 ratio.
Photoluminescence spectra results show the characteristic emission transition of Tb+3 ions under 363 nm excitation. The maximum emission intensity arose from the 5D4→7F5 transition at a 542 nm wavelength. The highest emission intensity was observed at 0.8 ZnO/SiO2 and 1.1 ZnO/B2O3 ratios; however, the highest luminescence lifetime was observed at a 1.1 ZnO/SiO2 ratio.
The increase in the ZnO/SiO2 ratio facilitated the formation of a willemite phase at lower temperatures. The presence of willemite and zinc oxide phases directly improved the phosphorescence properties of glass samples by creating a UV emission center; therefore, the emission intensity and lifetime of glass samples increased with heat treatment at higher temperatures.

Supplementary Materials

The following supporting information can be download at: https://www.mdpi.com/article/10.3390/ma17092154/s1, Figure S1. XRD patterns of as-cast transparent glass samples. Figure S2. Absorption spectra of Tb3+-doped glass samples in the UV-Vis region.

Author Contributions

Conceptualization, S.D.; methodology, S.D. and N.S.; validation, S.D. and N.S.; formal analysis, S.D. and N.S.; investigation, S.D.; resources, N.S.; data curation, S.D.; writing—original draft preparation, S.D.; writing—review and editing, S.D. and N.S.; visualization, S.D.; supervision, N.S. All authors have read and agreed to the published version of this manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to express our sincere gratitude to Büşra Dogru, Melisa Konar, and Sinan Bosna for their invaluable contributions to this study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kumar, M.; Rao, A.S. Concentration-dependent reddish-orange photoluminescence studies of Sm3+ ions in borosilicate glasses. Opt. Mater. 2020, 109, 110356. [Google Scholar] [CrossRef]
  2. Deopa, N.; Kumar, B.; Sahub, M.K.; Ranic, P.R.; Rao, A.S. Effect of Sm3+ ions concentration on borosilicate glasses for reddish orange luminescent device applications. J. Non-Cryst. Solid 2019, 513, 152–158. [Google Scholar] [CrossRef]
  3. Monisha, M.; Murari, M.S.; Sayyed, M.I.; Al-Ghamdi, H.; Almuqrin, A.E.; Lakshminarayana, G.; Kamath, S.D. Thermal, structural and optical behaviour of Eu3+ ions in Zinc Alumino Boro-Silicate glasses for bright red emissions. Mater. Chem. Phys. 2021, 270, 124787. [Google Scholar] [CrossRef]
  4. Wanga, M.; Fanga, L.; Lia, M.; Lia, A.; Zhanga, X.; Hua, Y.; Liua, Z.; Dongol, R. Glass transition and crystallization of ZnO-B2O3-SiO2 glass doped with Y2O3. Ceram. Int. 2019, 45, 4351–4359. [Google Scholar] [CrossRef]
  5. Jamalaiah, B.C.; Rama Gopal, K.; Vijaya Kumar, M.V.; Lokeswara Reddy, G.V. Optical properties of Yb3+-doped NBSAZB glasses for IR lasers. J. Lumin. 2017, 17, 378–382. [Google Scholar] [CrossRef]
  6. Tayal, Y.; Rao, A.S. Orange color emitting Sm3+ ions doped borosilicate glasses for optoelectronic device applications. Opt. Mater. 2020, 107, 110070. [Google Scholar] [CrossRef]
  7. Qazvini, S.S.A.; Hamnabard, Z.; Khalkhali, Z.; Baghshahi, S.; Maghsoudipour, A. Photoluminescence and microstructural properties of SiO2–ZnO–B2O3 system containing TiO2 and V2O5. Ceram. Int. 2012, 38, 1663–1670. [Google Scholar] [CrossRef]
  8. Spectral properties of Eu3+: ZnO–B2O3–SiO2 glasses. J. Mol. Struct. 2005, 741, 53–60. [CrossRef]
  9. Shofria, M.F.S.M.; Zaida, M.H.M.; Wahaba, R.A.A.; Matoria, K.A.; Ab Aziz, S.H.; Fen, Y.W. The effect of boron substitution on the glass-forming ability, phase transformation and optical performance of zinc-boro-soda-lime-silicate glasses. J. Mater. Res. Technol. 2020, 9, 6987–6993. [Google Scholar] [CrossRef]
  10. Farouk, S.; Abdel-Wahab, F.; Abdelmaksoud, H.; Abdel-Baki, M.; El-Faramawy, N. Thermoluminescence properties study of double dopants borosilicate glasses: Transition metal (Cr2O3, ZnO) and alkaline metal (Na2O). Opt. Mater. 2024, 149, 115–145. [Google Scholar] [CrossRef]
  11. Vincent, M.; Afsal, P.M.; Vasanthakumari, K.G.; Susanth, S.; Radhika, T.; Raghu, N. Influence of fillers on the re-crystallization and dielectric properties of 60ZnO-30B2O3-10SiO2 glass. J. Electroceramics 2018, 40, 219–224. [Google Scholar] [CrossRef]
  12. Wu, J.M.; Huang, H.L. Microwave properties of zinc, barium and lead borosilicate glasses. J. Non-Cryst. Solids 1999, 260, 116–124. [Google Scholar] [CrossRef]
  13. Tarafder, A.; Molla, A.R.; Dey, C.; Karmakar, B. Thermal, Structural, and Enhanced Photoluminescence Properties of Eu3+-doped Transparent Willemite Glass–Ceramic Nanocomposites. J. Am. Ceram. Soc. 2013, 96, 1–8. [Google Scholar] [CrossRef]
  14. Hemalatha, S.; Nagaraja, M.; Madhu, A.; Srinatha, N. Rare earth (Dy3+-ion) induced near white light emission in sodium-zinc-borate glasses. Results Opt. 2022, 9, 100275. [Google Scholar] [CrossRef]
  15. Yamazaki, M.; Yamamoto, Y.; Nagahama, S.; Sawanobori, N.; Mizuguchi, M.; Hosono, H. Long luminescent glass: Tb3+-activated ZnO-B2O3-SiO2 glass. J. Non-Cryst. Solids 1998, 241, 71–73. [Google Scholar] [CrossRef]
  16. Annapurna, K.; Dwivedi, R.N.; Kundu, P.; Buddhudu, S. Blue emission spectrum of Ce3+: ZnO-B2O3-SiO2 optical glass. Mater. Lett. 2004, 58, 787–789. [Google Scholar] [CrossRef]
  17. Annapurna, K.; Kumar, A.; Dwivedi, R.N.; Hussain, N.S.; Buddhudu, S. Fluorescence spectra of Cu+: ZnO-B2O3-SiO2 glass. Mater. Lett. 2000, 45, 23–26. [Google Scholar] [CrossRef]
  18. Li, C.; Su, Q.; Wang, S. Multi-color long-lasting phosphorescence in Mn2+-doped ZnO-B2O3-SiO2 glass ceramics. Mater. Res. Bull. 2002, 37, 1443–1449. [Google Scholar] [CrossRef]
  19. Li, C.; Su, Q. Action of co-dopant in electron trapping materials: The case of Sm3+ in Mn2+- activated zinc borosilicate glasses. Appl. Phys. Lett. 2004, 85, 2190. [Google Scholar] [CrossRef]
  20. Xiong-Wei, J.; Jian-Rong, Q.; Hui-Dan, Z.; Cong-Shan, Z. Femtosecond laser-induced long-lasting phosphorescence in Pr3+-doped ZnO-B2O3-SiO2 glass. Chin. Phys. 2003, 12, 1386–1389. [Google Scholar] [CrossRef]
  21. Li, C.; Yu, Y.; Wang, S.; Su, Q. Photo-stimulated long-lasting phosphorescence in Mn2+-doped zinc borosilicate glasses. J. Non-Cryst. Solids 2003, 321, 191–196. [Google Scholar] [CrossRef]
  22. Krol, I.; Avetisov, R.; Zykova, M.; Kazmina, K.; Barinova, O. Zinc borosilicate glasses doped with Co2+ ions: Synthesis and optical properties. Opt. Mater. 2022, 132, 112768. [Google Scholar] [CrossRef]
  23. Monteiro, R.C.C.; Lopes, A.A.S.; Lima, M.M.R.A.; Veiga, J.P.B. Thermal characteristics and crystallization behavior of zinc borosilicate glasses containing Nb2O5. J. Non-Cryst. Solids 2018, 491, 124–132. [Google Scholar] [CrossRef]
  24. Hamnabard, Z.; Khalkhali, Z.; Qazvini, S.S.A.; Baghshahi, S.; Maghsoudipour, A. Preparation, heat treatment and photoluminescence properties of V-doped ZnO–SiO2–B2O3 glasses. J. Lumin. 2012, 132, 1126–1132. [Google Scholar] [CrossRef]
  25. Hazlin, M.N.A.; Halimah, M.K.; Muhammad, F.D.; Faznny, M.F. Optical properties of zinc borotellurite glass doped with trivalent dysprosium ion. Phys. B Condens. Matter 2017, 510, 38–42. [Google Scholar] [CrossRef]
  26. Hussain, N.S.; Reddy, Y.P.; Buddhudu, S. Emission properties of Tb3+-doped zinc boro-silicate glasses. Mater. Lett. 2001, 48, 303–308. [Google Scholar] [CrossRef]
  27. Vijayasri, D.; Rudramamba, K.S.; Srikantha, T.; Mahendra Reddya, N.; Nakkac, M.; Pratyushac, S.; Reddy, M.R. Spectroscopic features of Tb3+ doped strontium zinc borate glasses for green laser applications. J. Mol. Struct. 2023, 1274, 134514. [Google Scholar] [CrossRef]
  28. Sidek, H.A.A.; Rosmawati, S.; Azmi, B.Z.; Shaari, A.H. Effect of ZnO on the Thermal Properties of Tellurite Glass. Adv. Condens. Matter Phys. 2013, 2013, 783207. [Google Scholar] [CrossRef]
  29. Kullberg, A.T.G.; Lopes, A.A.S.; Veiga, J.P.B.; Lima, M.M.R.A.; Monteiro, R.C.C. Formation and crystallization of zinc borosilicate glasses: Influence of the ZnO/B2O3 ratio. J. Non-Cryst. Solids 2019, 45, 4351–4359. [Google Scholar] [CrossRef]
  30. Mitang, W.; Long, F.; Mei, L.; Ming, W.; Zhaogang, L.; Yanhong, H.; Xiaowei, Z. Investigation on Phase Evolution of the ZnO-B2O3-SiO2 Glass Ceramics. Adv. Mater. 2016, 31, 830–834. [Google Scholar]
  31. Pal, M.; Roy, B.; Pal, M. Structural Characterization of Borate Glasses Containing Zinc and Manganese Oxides. J. Mod. Phys. 2011, 2, 1062–1066. [Google Scholar] [CrossRef]
  32. Kullberg, A.T.G.; Lopes, A.A.S.; Veiga, J.P.B.; Monteiro, R.C.C. Crystal growth in zinc borosilicate glasses. J. Cryst. Growth 2017, 457, 239–243. [Google Scholar] [CrossRef]
  33. Abdel-Hameed, S.A.M.; Hamdy, Y.M.; Sadek, H.E.H. Characterization and Luminescence Properties of Mn-Doped Zinc Borosilicate Glasses and Glass-Ceramics. Silicon 2019, 11, 1185–1192. [Google Scholar] [CrossRef]
  34. Ravina; Naveen; Sheetal; Kumar, V.; Dahiya, S.; Deopa, N.; Punia, R.; Rao, A.S. Judd-Ofelt itemization and influence of energy transfer on Sm3+ ions activated B2O3–ZnF2–SrO–SiO2 glasses for orange-red emitting devices. J. Lumin. 2021, 229, 117651. [Google Scholar] [CrossRef]
  35. Nanda, K.; Kundu, R.S.; Sharma, S.; Mohan, D.; Punia, R.; Kishore, N. Study of vibrational spectroscopy, linear and non-linear optical properties of Sm3+ ions doped BaO-ZnO- B2O3 glasses. Solid State Sci. 2015, 45, 15–22. [Google Scholar] [CrossRef]
  36. Marzouk, M.A.; Mohamed Ali, R.; Hussein, D.H.; Omar, H. Reddish orange phosphorescence of some types of zinc borosilicate glasses activated with Mn2+ and/or Sm3+. J. Mater. Sci. Mater. Electron. 2019, 30, 18234–18245. [Google Scholar] [CrossRef]
  37. Salama, E.; Soliman, H.A.; Youssef, G.M.; Hamad, S. Thermoluminescence properties of borosilicate glass doped with ZnO. J. Lumin. 2017, 186, 164–169. [Google Scholar] [CrossRef]
  38. Cheong, W.M.; Zaid, M.H.M.; Fen, Y.W.; Tee, T.S.; Matori, K.A.; Loh, Z.W.; Mayzan, M.Z.H. Enhancing orange-reddish emission of the Sm3+-doped ZnO-B2O3-SLS glasses for the potential glass phosphor material. Opt. Laser Technol. 2023, 158, 108937. [Google Scholar] [CrossRef]
  39. Kaur, A.; Khan, S.; Kumar, D.; Bhatia, V.; Rao, S.M.; Kaur, N.; Singh, K.; Kumar, A.; Singh, S.P. Effect of MnO on structural, optical and thermoluminescence properties of lithium borosilicate glasses. J. Lumin. 2020, 219, 116872. [Google Scholar] [CrossRef]
  40. Balachandera, L.; Ramadevudub, G.; Shareefuddin, M.; Sayanna, R.; Venudhar, Y.C. IR analysis of borate glasses containing three alkali oxides. ScienceAsia 2013, 39, 278–283. [Google Scholar] [CrossRef]
  41. Al-Nidawi, A.J.A.; Matori, K.A.; Za, M.H.M.; Liew, J.Y.C.; Khushaini, M.A.A.; Zain, A.R.M.; Mutage, W.R.M.; Abuallan, M.A.M.; Efa, A.M.E. Enhancement of elastic properties and surface plasmon resonance with the addition of boron oxide to the ZnO− SiO2 glass system. J. Non-Cryst. Solids 2023, 605, 122175. [Google Scholar] [CrossRef]
  42. Ceniceros-Orozco, V.E.; Escorcia-García, J.; Guti’errez-Chavarría, C.A.; Agarwal, V.; Uriel Lopez-Herrera, H. Orange-reddish photoluminescence enhancement and wollastonite nanocrystals formation induced by CaO in Sm3+-doped calcium sodium borosilicate glasses. Ceram. Int. 2022, 48, 14537–14549. [Google Scholar] [CrossRef]
  43. Bala, M.; Agrohiya, S.; Dahiya, S.; Ohlan, A.; Punia, R.; Maan, A.S. Effect of replacement of Bi2O3 by Li2O on structural, thermal, optical and other physical properties of zinc borate glasses. J. Mol. Struct. 2020, 1219, 128589. [Google Scholar] [CrossRef]
  44. Ahmed, S.A.; Rajiya, S.; Samee, M.A.; Ahmmad, S.K.; Jaleeli, K.A. Density of Bismuth Boro Zinc Glasses Using Machine Learning Techniques. J. Inorg. Organomet. Polym. Mater. 2022, 32, 941–953. [Google Scholar] [CrossRef] [PubMed]
  45. Farouk, M.; Samir, A.; Metawe, F.; Elokr, M. Optical absorption and structural studies of bismuth borate glasses containing Er3+ ions. J. Non-Cryst. Solids 2013, 371–372, 14–21. [Google Scholar] [CrossRef]
  46. Santos, J.F.M.; Zanuto, V.S.; Soares, A.C.C.; Savi, E.; Nunes, V.; Baesso, M.L.; Catunda, V. Evaluating the link between blue-green luminescence and cross-relaxation processes in Tb3+-doped glasses. J. Lumin. 2021, 240, 118430. [Google Scholar] [CrossRef]
  47. Kumar, M.; Rao, A.S. Influence of Tb3+ ions concentration and temperature on lithium bismuth alumino borosilicate glasses for green photonic device applications. Optical Materials 2021, 120, 111439. [Google Scholar] [CrossRef]
  48. He, D.B.; Yu, C.L.; Cheng, J.M.; Li, S.G.; Hu, L.L. A Novel Ce3+/Tb3+ Codoped Phosphate Glass as Down-Shifting Materials for Enhancing Efficiency of Solar Cells. Chinese Physics Letter 2010, 27, 114208. [Google Scholar]
  49. Juarez-Batalla, J.; Meza-Rocha, A.N.; Munoz H., G.; Camarillo, I.; Caldino, U. Luminescence properties of Tb3+-doped zinc phosphate glasses for green laser application. Optical Materials 2016, 58, 406–411. [Google Scholar] [CrossRef]
  50. Blanc, W.; Choi, Y.G.; Zhang, X.; Nalin, M.; Richardson, K.A.; Righini, G.C.; Ferrari, M.; Jha, A.; Massera, J.; Jiang, S.; et al. The past, present and future of photonic glasses: A review in homage to the United Nations International Year of glass 2022. Prog. Mater. Sci. 2023, 134, 101084. [Google Scholar] [CrossRef]
  51. Salesa, T.O.; Amjad, R.J.; Jacintoa, C.; Doustia, M.R. Concentration dependent luminescence and cross-relaxation energy transfers in Tb3+ doped fluoroborate glasses. J. Lumin. 2019, 205, 282–286. [Google Scholar] [CrossRef]
  52. Kam, C.H.; Buddhudu, S. Photoluminescence properties of Eu3+: ZrF4–BaF2–LaF3–YF3–AlF3–NaF glasses. Phys. B 2004, 344, 182–189. [Google Scholar] [CrossRef]
  53. Kaur, S.; Rao, A.S.; Jayasimhadri, M.; Jaiswal, V.V.; Haranath, D. Tb3+ ion induced colour tunability in calcium aluminozincate phosphor for lighting and display devices. J. Alloys Compd. 2020, 826, 154212. [Google Scholar] [CrossRef]
  54. Zhao, Y.G.; Shi, D.M.; Wang, X.F.; Liu, J. Role of B2O3 Substitution by SiO2 on luminescence properties of Tb3+-doped SiO2-B2O3-Na2O-BaO glass. Phys. Procedia 2013, 48, 165–171. [Google Scholar] [CrossRef]
  55. Khalkhali, Z.; Hamnabard, Z.; Qazvini, S.S.A.; Baghshahi, S.; Maghsoudipour, A. Preparation, phase formation and photoluminescence properties of ZnO–SiO2–B2O3 glasses with different ZnO/B2O3 ratios. Opt. Mater. 2012, 34, 850–855. [Google Scholar] [CrossRef]
  56. Fernández-Rodríguez, L.; Durán, A.; Pascual, M.J. Silicate-based persistent phosphors. Open Ceram. 2017, 7, 100150. [Google Scholar] [CrossRef]
  57. Stouw, G.J.V.; Sundaram, S.K. Thermal stability of crystalline phases in MnO-doped zinc borosilicate glasses. Appl. Phys. A 2020, 126, 578. [Google Scholar] [CrossRef]
Materials 17 02154 g001

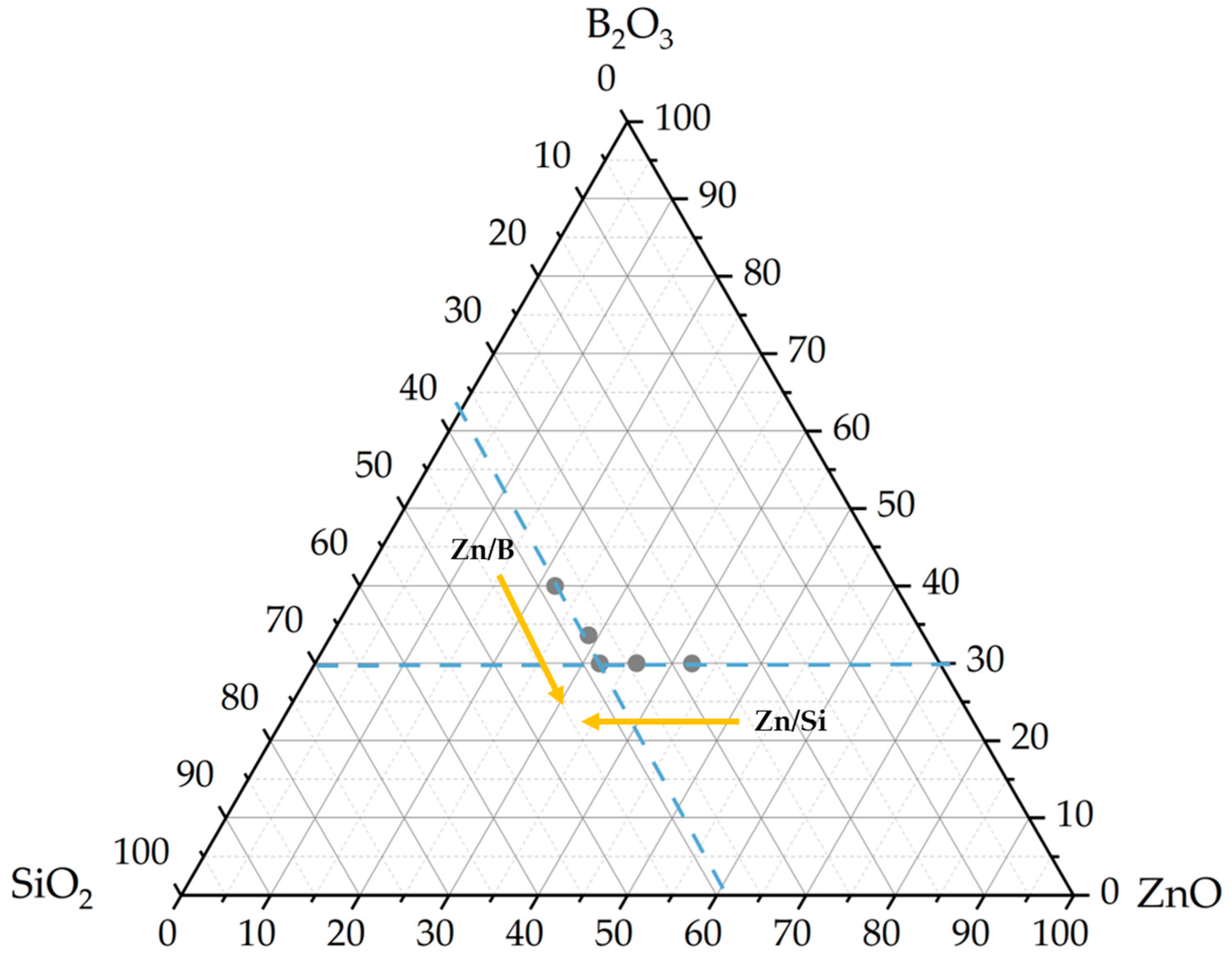

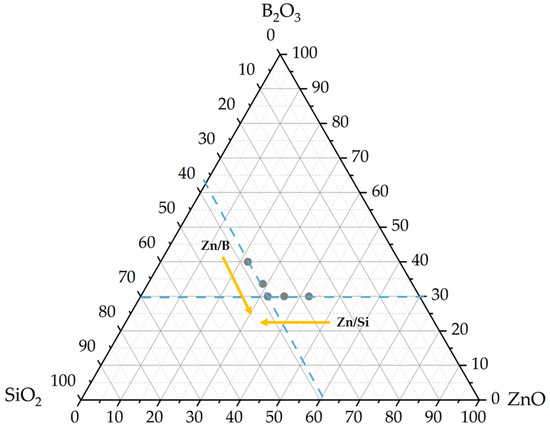

Figure 1. Phase diagram of glass samples.
Figure 1. Phase diagram of glass samples.
Materials 17 02154 g001
Materials 17 02154 g002

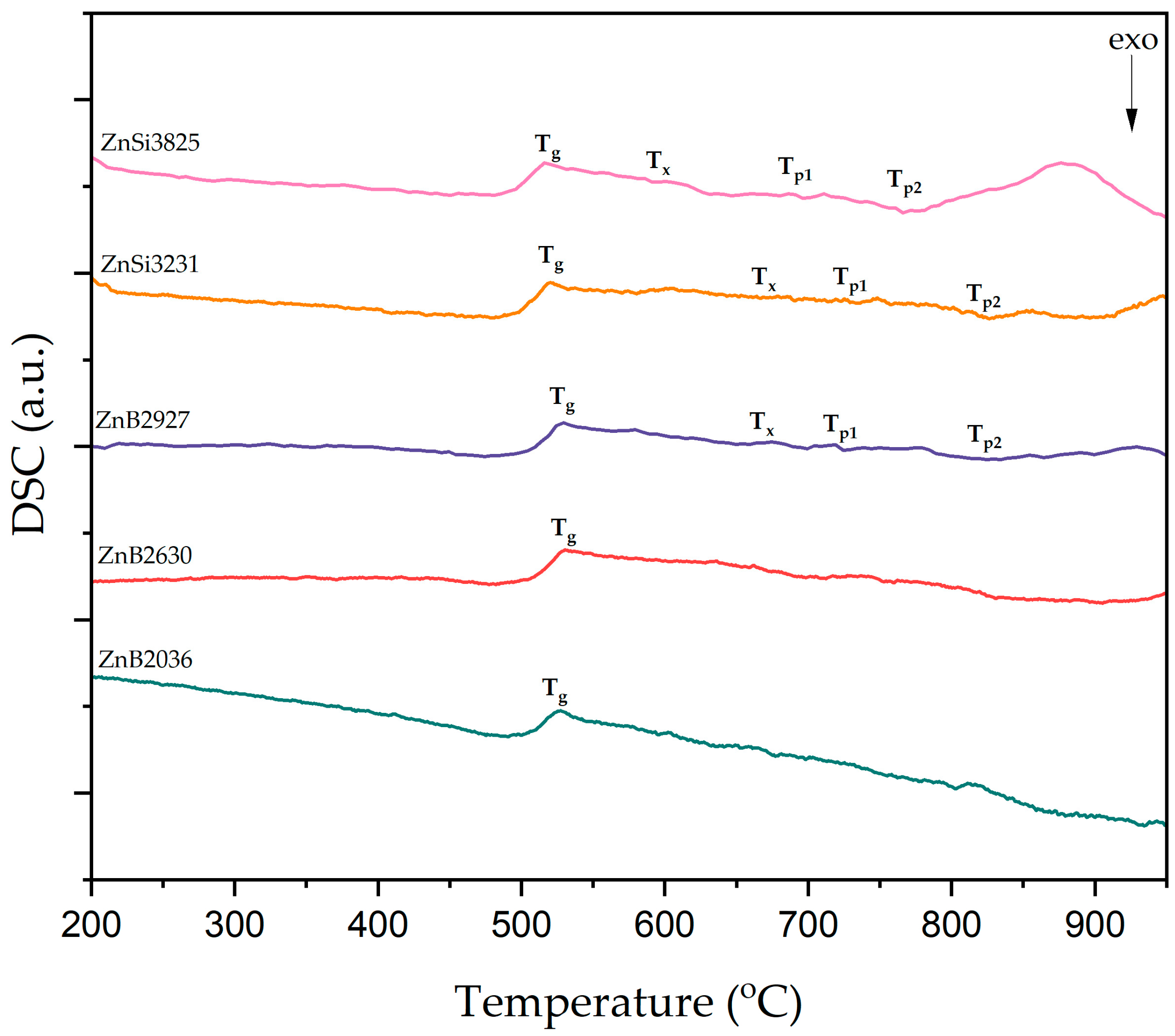

Figure 2. DSC curves of glass samples.
Figure 2. DSC curves of glass samples.
Materials 17 02154 g002
Materials 17 02154 g003

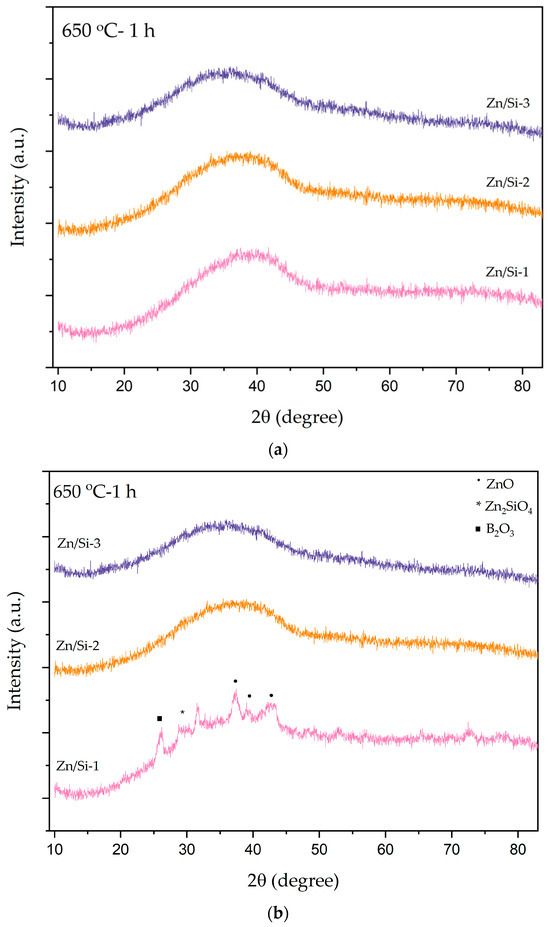

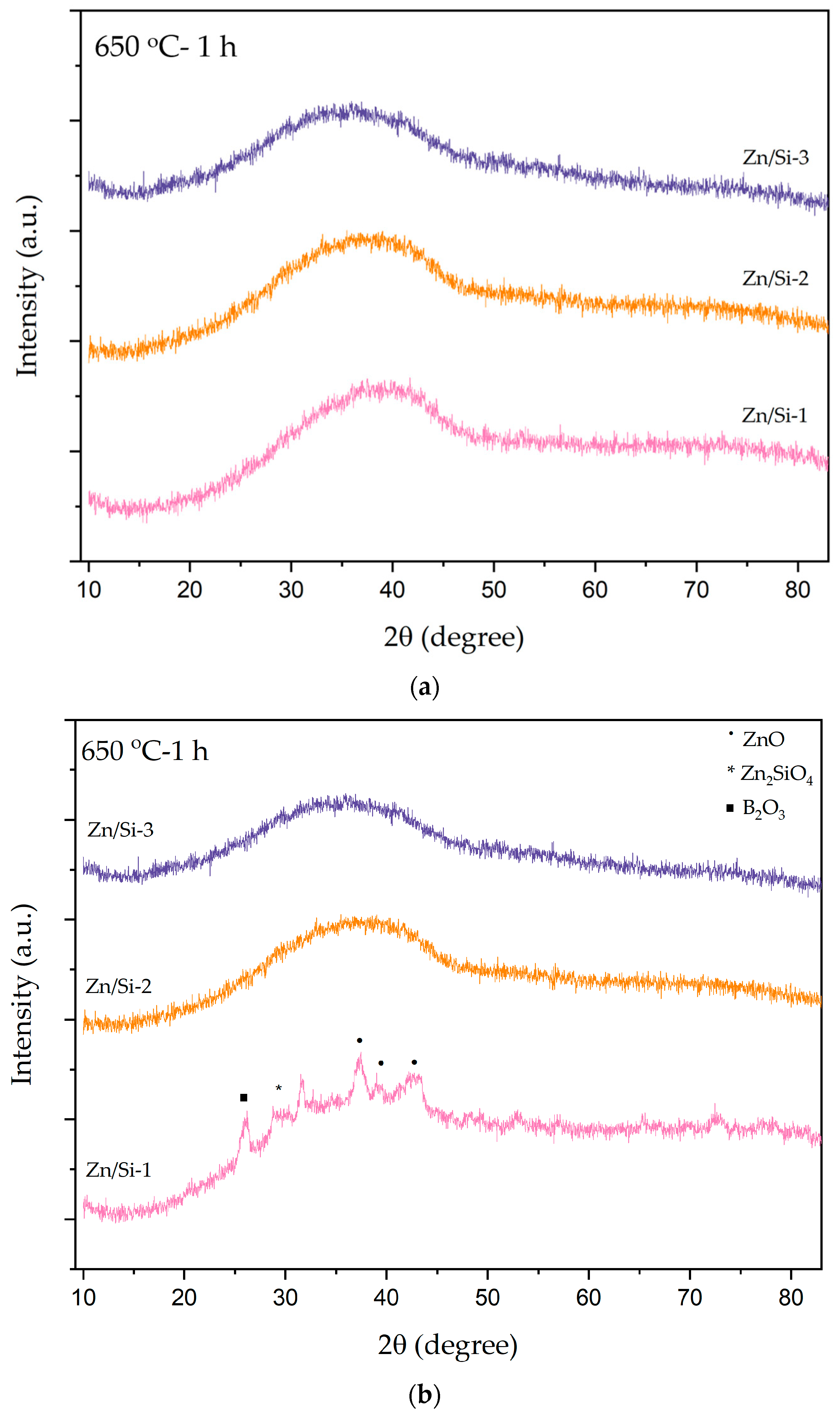

Figure 3. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass samples after heat treatment at 650 °C for 1 h. (a) Powder samples and (b) bulk samples.
Figure 3. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass samples after heat treatment at 650 °C for 1 h. (a) Powder samples and (b) bulk samples.
Materials 17 02154 g003
Materials 17 02154 g004aMaterials 17 02154 g004b

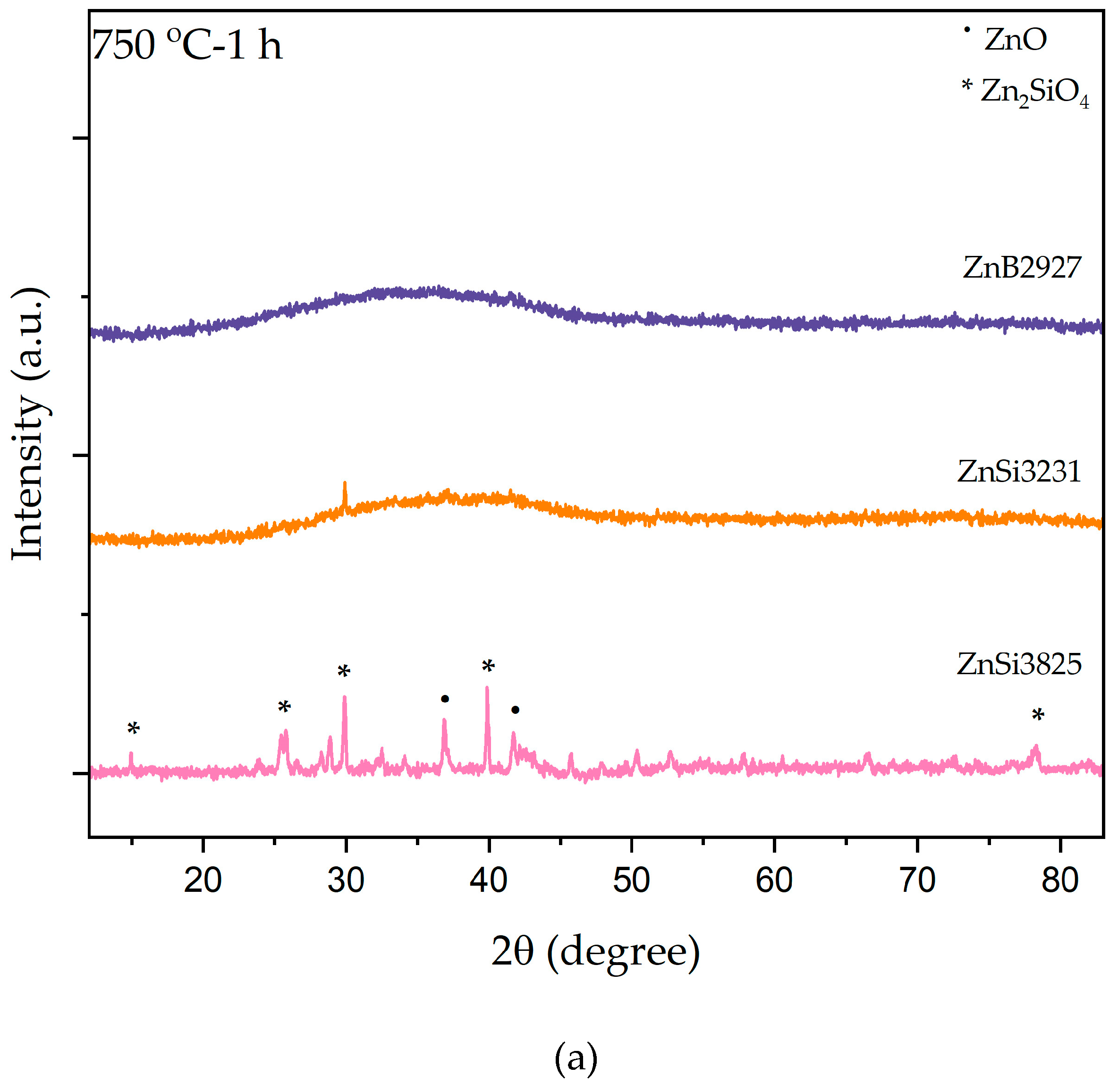

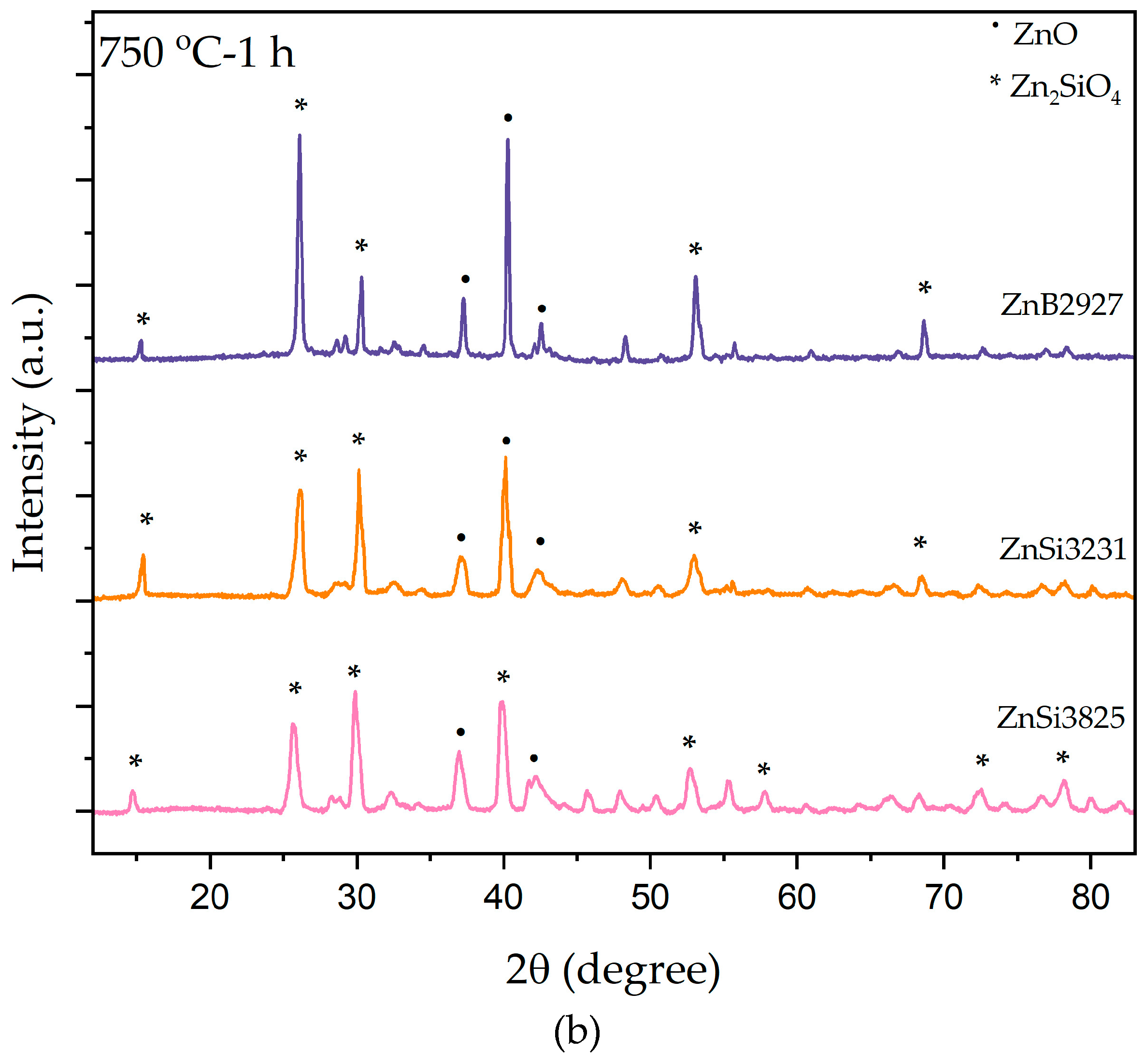

Figure 4. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass samples after heat treatment at 750 °C for 1 h. (a) Powder samples and (b) bulk samples.
Figure 4. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass samples after heat treatment at 750 °C for 1 h. (a) Powder samples and (b) bulk samples.
Materials 17 02154 g004aMaterials 17 02154 g004b
Materials 17 02154 g005

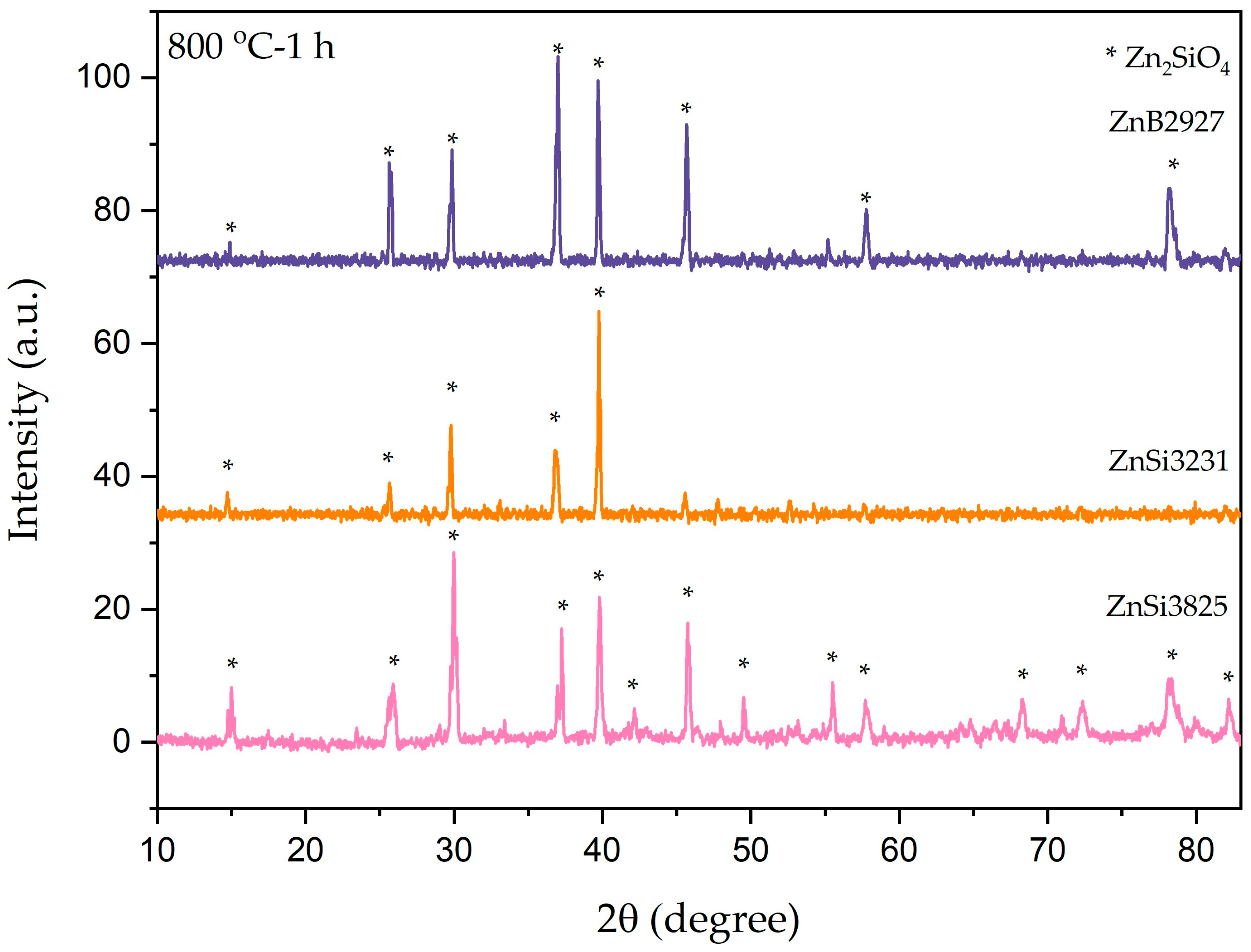

Figure 5. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass powder samples after heat treatment at 800 °C for 1 h.
Figure 5. XRD patterns of ZnB2927, ZnSi3231, and ZnSi3825 glass powder samples after heat treatment at 800 °C for 1 h.
Materials 17 02154 g005
Materials 17 02154 g006

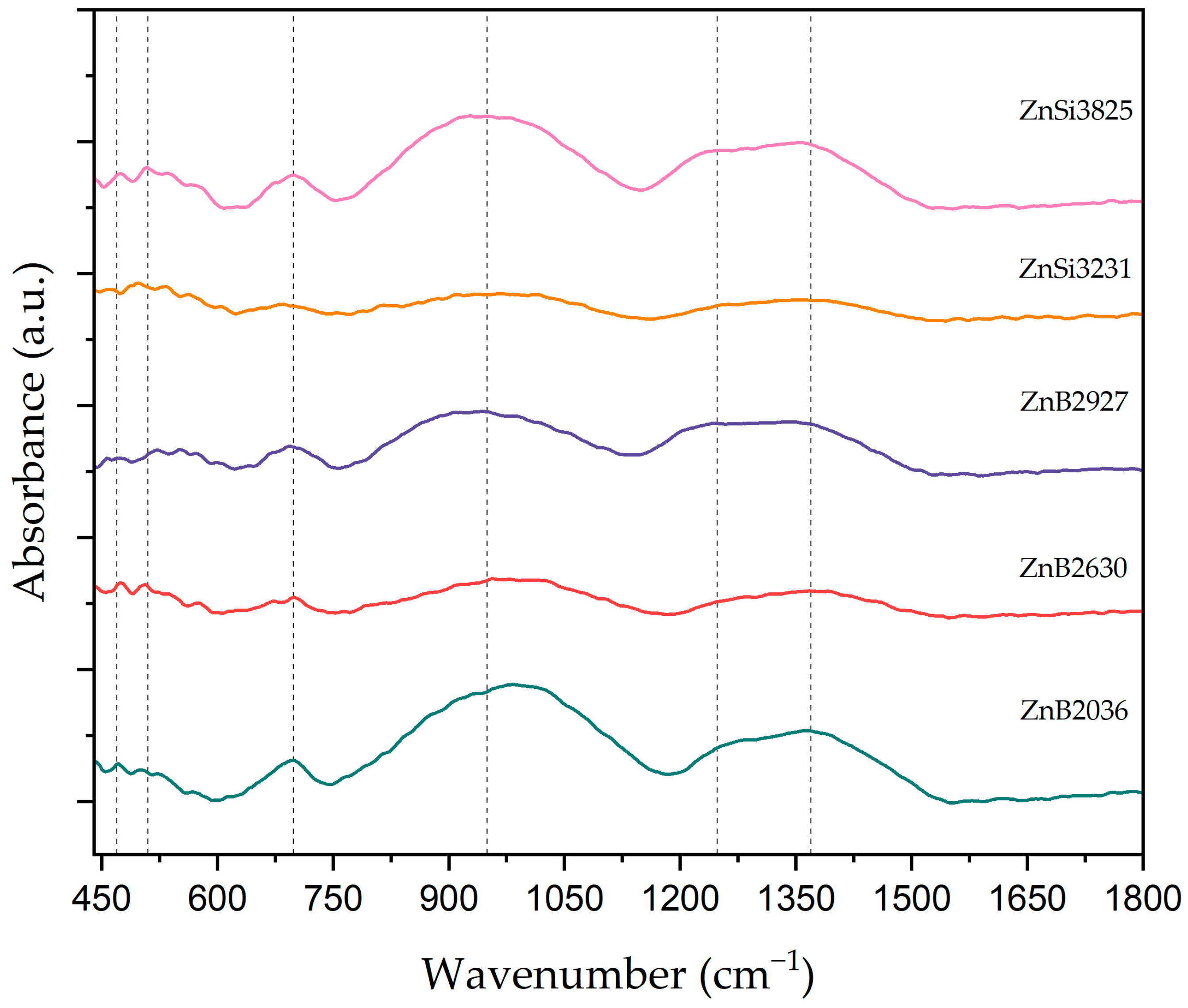

Figure 6. FT-IR spectra of glass samples.
Figure 6. FT-IR spectra of glass samples.
Materials 17 02154 g006
Materials 17 02154 g007

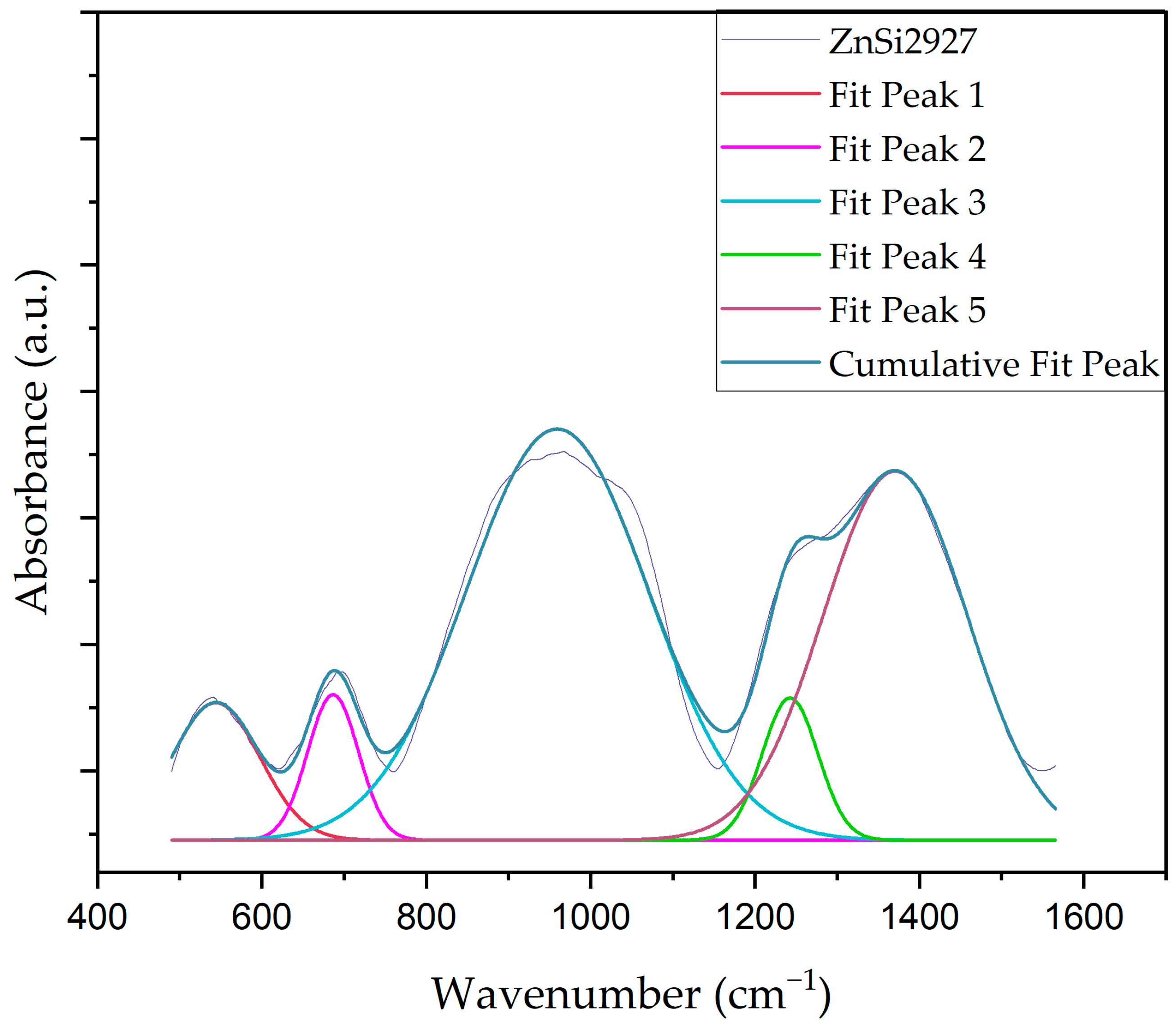

Figure 7. Deconvoluted FT-IR spectra of ZnB2927 glass sample.
Figure 7. Deconvoluted FT-IR spectra of ZnB2927 glass sample.
Materials 17 02154 g007
Materials 17 02154 g008

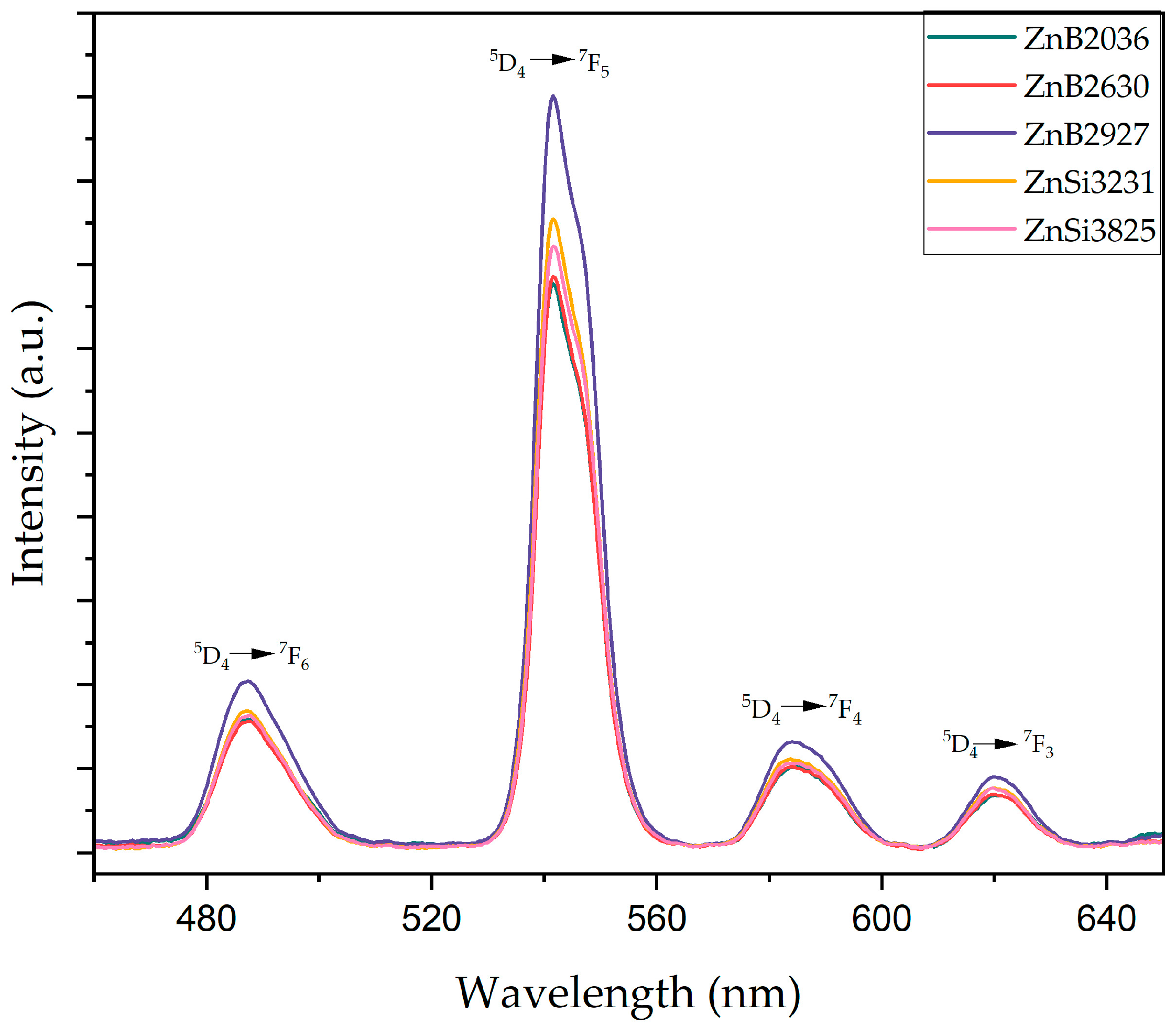

Figure 8. Phosphorescence spectra of glass samples after excitation with the 363 nm UV lamp.
Figure 8. Phosphorescence spectra of glass samples after excitation with the 363 nm UV lamp.
Materials 17 02154 g008
Materials 17 02154 g009

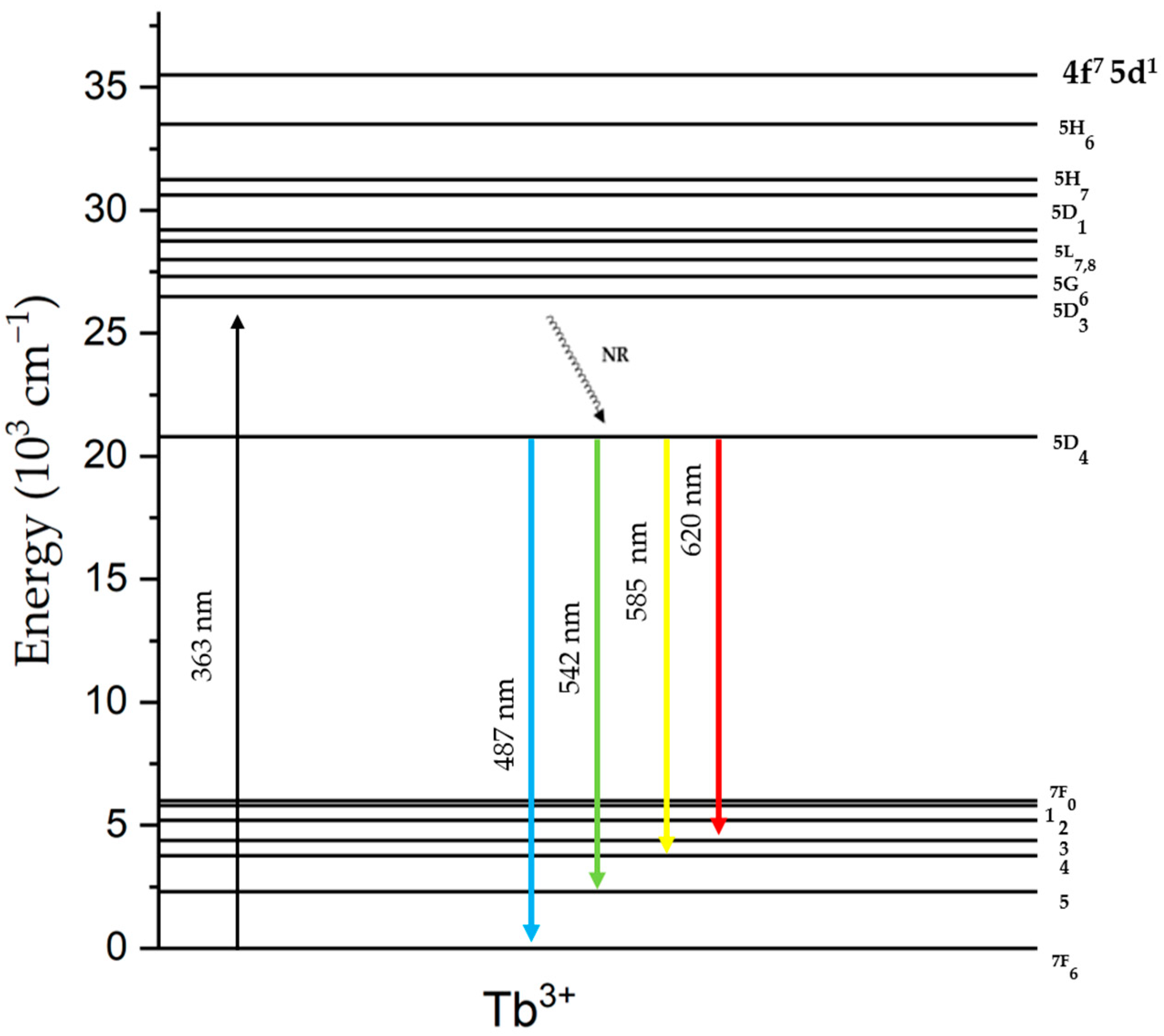

Figure 9. Energy level diagram of Tb3+-activated ZnO-B2O3-SiO2-Na2O glass samples.
Figure 9. Energy level diagram of Tb3+-activated ZnO-B2O3-SiO2-Na2O glass samples.
Materials 17 02154 g009
Materials 17 02154 g010

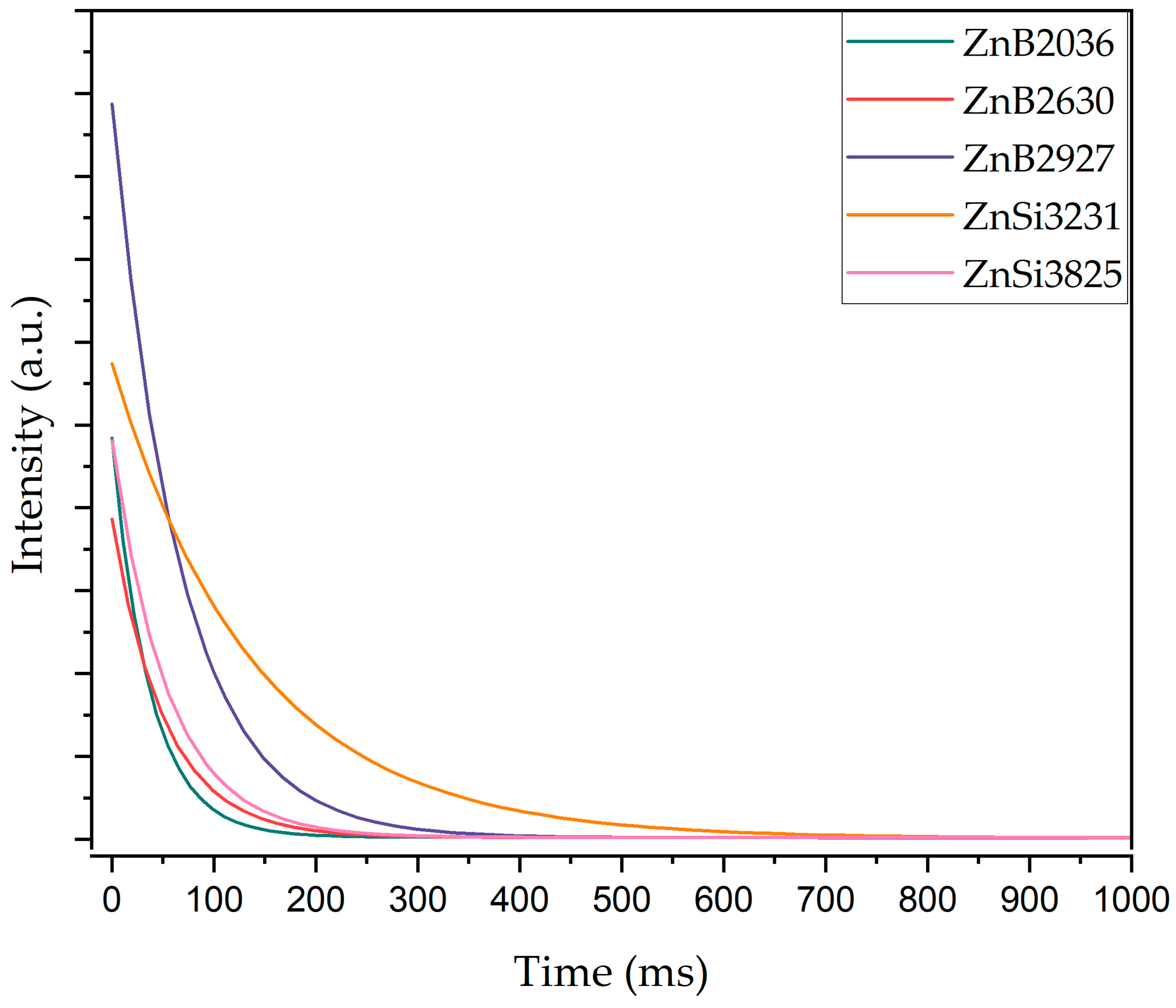

Figure 10. Decay curves of Tb3+-doped glass samples after excitation with the 363 nm UV lamp.
Figure 10. Decay curves of Tb3+-doped glass samples after excitation with the 363 nm UV lamp.
Materials 17 02154 g010
Materials 17 02154 g011

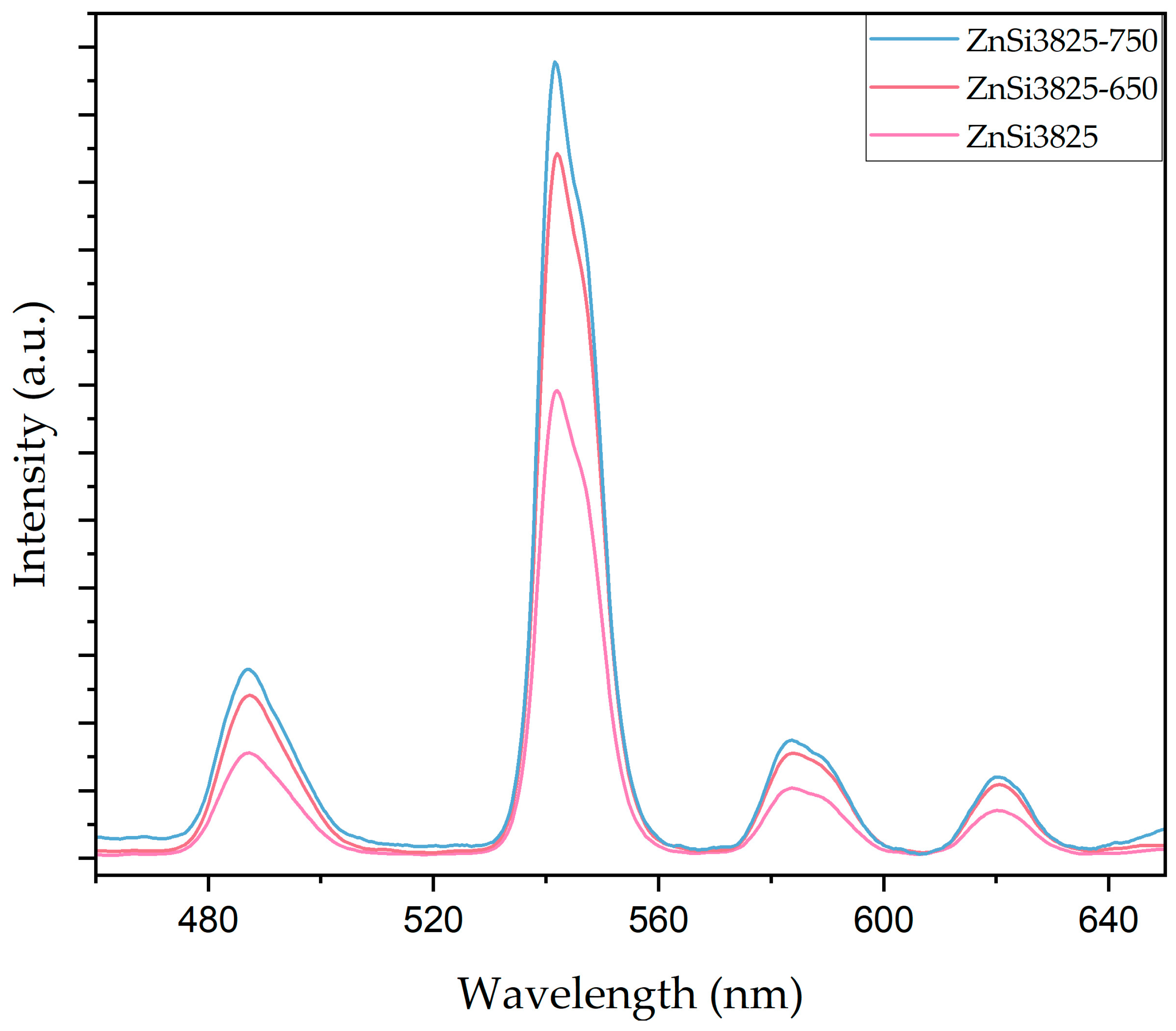

Figure 11. Phosphorescence spectra of untreated and heat-treated (at 650 °C and at 750 °C/1 h) ZnSi3825 glass samples after excitation with the 363 nm UV lamp.
Figure 11. Phosphorescence spectra of untreated and heat-treated (at 650 °C and at 750 °C/1 h) ZnSi3825 glass samples after excitation with the 363 nm UV lamp.
Materials 17 02154 g011
Materials 17 02154 g012

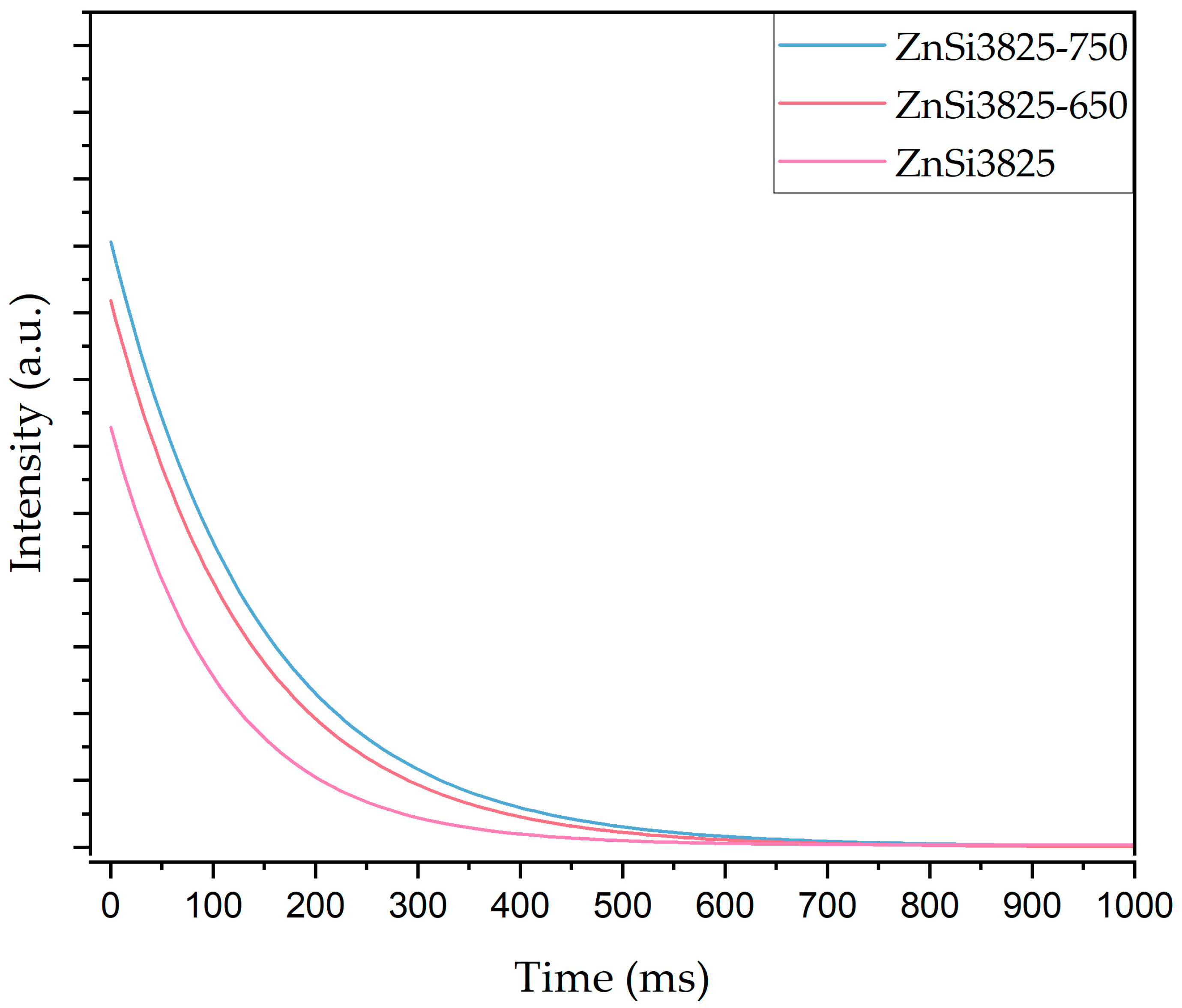

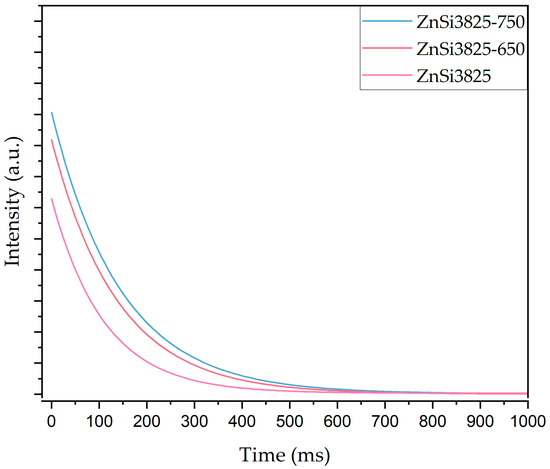

Figure 12. Decay curves of untreated and heat-treated (at 650 °C and 750 °C /1 h) ZnSi3825 glass samples after excitation with the 363 nm UV lamp.
Figure 12. Decay curves of untreated and heat-treated (at 650 °C and 750 °C /1 h) ZnSi3825 glass samples after excitation with the 363 nm UV lamp.
Materials 17 02154 g012
Table 1. Composition of glass samples doped with Tb3+.
Table 1. Composition of glass samples doped with Tb3+.
ID Batch Composition wt%
ZnOB2O3SiO2Na2OTb2O3ZnO/B2O3ZnO/SiO2
ZnB2036203634100.350.5
ZnB2630263034100.350.9
ZnB2927292734100.351.10.8
ZnSi3231322731100.35 1.1
ZnSi3825382725100.35 1.5
Table 2. Characteristic glass temperatures (Tg, Tx, Tp1 and Tp2) of samples calculated from DSC data.
Table 2. Characteristic glass temperatures (Tg, Tx, Tp1 and Tp2) of samples calculated from DSC data.
Tg (°C)Tx (°C)Tp1 (°C)Tp2 (°C)
ZnB2036526---
ZnB2630529---
ZnB2927527674724824
ZnSi3231519685733826
ZnSi3825517601696766
Table 3. FT-IR band positions and assignments of vibrational mode.
Table 3. FT-IR band positions and assignments of vibrational mode.
Band Position (cm−1)Assignment of Vibrational ModeRef.
~470O-B-O bending vibrations/Silicate
network Si–O–Si and O–Si–O bending mode		[34,35,36,37,38]
482–544Symmetric stretching vibrations of ZnO4[38]
~699Bending vibrations of B-O-B bonds in BO3 units/
Si-O-Si symmetric stretching of SiO4 units		[34,39]
952–975B–O bond stretching vibrations of BO4 units[36,39]
1235–1270B–O bond stretching vibrations of BO3 units[40,41,42]
1356–1387Asymmetrical stretching vibration of B-O-B in BO3 units[39,40,42]
Table 4. Deconvolution peak center, area, BO3, BO4, N3, and N4 values of glass samples.
Table 4. Deconvolution peak center, area, BO3, BO4, N3, and N4 values of glass samples.
SamplePeak Center (PC, cm−1), Area (A)BO3BO4N3N4
ZnB2036PC48268297512701387
A2.735880.9888912.153830.663425.677837.3301412.153830.380.62
ZnB2630PC53867497012561381
A0.346550.280862.539340.186761.470031.937652.539340.430.57
ZnB2927PC54468795912431371
A0.728370.447484.520.480033.217314.144824.520140.490.52
ZnSi3231PC54168595712511367
A0.643720.458814.883230.369632.768853.597294.883230.420.58
ZnSi3825PC54469395212351356
A1.800441.1573912.738961.024647.434279.616312.738960.430.57
Table 5. Luminescence lifetimes (ms) of glass samples.
Table 5. Luminescence lifetimes (ms) of glass samples.
SampleLifetime of Glass (ms)
ZnB203637.3
ZnB263051.7
ZnB292767.0
ZnSi3231139.9
ZnSi3825110.3
Table 6. Luminescence lifetimes (ms) of glass and heat-treated samples.
Table 6. Luminescence lifetimes (ms) of glass and heat-treated samples.
Lifetime (ms)
SampleGlassHeat-Treated Samples
at 650 °C/1 h		Heat-Treated Samples
at 750 °C/1 h
ZnSi3825110.3138.0145.6
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dayioglugil, S.; Solak, N. Effect of ZnO on Luminescence Performance of Terbium-Activated Zinc Borosilicate Glasses. Materials 2024, 17, 2154. https://doi.org/10.3390/ma17092154

AMA Style

Dayioglugil S, Solak N. Effect of ZnO on Luminescence Performance of Terbium-Activated Zinc Borosilicate Glasses. Materials. 2024; 17(9):2154. https://doi.org/10.3390/ma17092154

Chicago/Turabian Style

Dayioglugil, Sena, and Nuri Solak. 2024. "Effect of ZnO on Luminescence Performance of Terbium-Activated Zinc Borosilicate Glasses" Materials 17, no. 9: 2154. https://doi.org/10.3390/ma17092154

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
