The Effects of Si Substitution with C on the Amorphous Forming Ability, Thermal Stability, and Magnetic Properties of an FeSiBPC Amorphous Alloy

Abstract

The industrialization of Fe-based amorphous alloys with high a saturation magnetic flux density (B_s) has been limited so far due to their inadequate amorphous forming ability (AFA). In this study, the effects of substituting Si with C on the AFA, thermal stability, and magnetic properties of Fe₈₂Si_6−xB₉P₃C_x (x = 0–6) alloys were systematically investigated. The experimental results demonstrate that the AFA, thermal stability, and soft magnetic properties can be significantly enhanced by the addition of C. Specifically, at a copper wheel velocity of 40 m/s, the Fe₈₂Si_6−xB₉P₃C_x (x = 2, 3, 4, 5 and 6) alloy ribbons exhibit a fully amorphous structure in the as-spun state. The activation energy required for the α-Fe phase crystallization process in Fe₈₂Si_6−xB₉P₃C_x (x = 0, 2, 4, and 6) alloys is determined to be 326.74, 390.69, 441.06, and 183.87 kJ/mol, respectively. Among all of the compositions studied, the Fe₈₂Si₄B₉P₃C₂ alloy exhibits optimized soft magnetic properties, including a low coercivity (H_c) of 1.7 A/m, a high effective permeability (μ_e) of 10608 (f = 1 kHz), and a relatively high Bs of 1.61 T. These improvements may be attributed to a more homogeneous and optimized magnetic domain structure being achieved through proper C addition. This work holds significant implications for the advancement of Fe-based soft magnetic amorphous alloys with high B_s.

1. Introduction

The urgent need to address escalating environmental concerns and the energy crisis necessitates a reduction in the inefficient dissipation of energy. In order to power various applications, there is a growing interest in developing high-efficiency and high-performance devices like transformers and electric motors for electric vehicles. The efficiency of these devices greatly depends on the soft magnetic materials used within them [1,2,3]. Soft magnetic materials with desirable characteristics such as a high B_s, low H_c, and low core loss (P) can significantly enhance their efficiency. Consequently, extensive research has been conducted in recent years on Fe-based amorphous alloys, which exhibit low H_c and p values [4,5,6]. However, the currently widely used Metglas 2605SA1 (i.e., FeSiB series) has a lower B_s of 1.56 T compared to the 1.9–2.0 T of a silicon steel alloy, which hinders the miniaturization of soft magnetic devices [7]. Therefore, recent studies have primarily focused on enhancing the B_s properties of Fe-based amorphous alloys. For Fe-based amorphous alloys, the B_s value is primarily determined by the alloy’s composition, indicating the magnetic moment per unit volume. Consequently, a higher percentage of Fe (wt.%) generally corresponds to a higher B_s [8]. Therefore, in recent years there has been an emphasis on increasing the Fe content (wt.%) in the design of high-B_s Fe-based amorphous alloys by considering metalloids with a lower relative atomic mass (B, C, Si and P) as the primary alloying elements [9,10]. However, this conceptual approach results in a decrease in the AFA. When AFA approaches the glass formation limit, there is typically a tendency for partial hierarchical crystallization to occur on the surfaces of the as-cast ribbons during the melt-spinning process, while the majority of the ribbons still maintain an amorphous structure [11].

In 2006, Hitachi Metal successfully developed the FeSiBC series amorphous soft magnetic alloy [12], known as 2605HB1, and filed a patent application. This alloy exhibits a B_s greater than 1.6 T and an even lower H_c compared to the previously developed 2605SA1. However, due to its high iron content of approximately 80 at. %, the amorphous forming ability of alloy 2605HB1 is compromised. Chang [13] discovered that by combining Fe, B, P, C, and Si in the composition design process, a high B_s and AFA can be achieved. The addition of C optimizes the soft magnetic properties resulting in excellent characteristics for the Fe₈₃B₁₀C₃Si₃P₁ amorphous alloy with a high B_s value of 1.71 T and a low H_c value of 1.5 A/m [14]. It has been reported that adding small amounts of C into NANOMET alloys can enhance their AFA without compromising their soft magnetic properties [15,16]. The experimental results from Hui indicate that substituting C for Si significantly improves the AFA, B_s, and H_c of Fe_83.3Si_4−xB₉P₃Cu_0.7C_x amorphous and nanocrystalline alloys [17]. However, it remains unclear how the C/Si ratio affects the structure and properties of Fe-based amorphous alloys or whether it can be further adjusted to enhance both their amorphous forming ability and soft magnetic properties.

In our current study, we have developed a novel Fe₈₂Si_6−xB₉P₃C_x (x = 0–6) soft magnetic amorphous alloy system with a high iron content by substituting silicon with carbon. Systematic investigations on the AFA, magnetic properties, and magnetic domain structure were conducted. The underlying mechanism responsible for the enhanced AFA and optimized soft magnetic properties is thoroughly analyzed and discussed. These findings bear significant implications for the advancement of Fe-based soft magnetic amorphous alloys with high saturation magnetization.

2. Materials and Methods

The master alloy ingots were prepared by induction melting mixtures of high purity Fe (99.95 wt.%), Si (99.999 wt.%), C (99.99 wt.%), pre-alloyed Fe-B (B: 20 wt.%), and Fe-P (P: 18 wt.%) in a high-purity argon atmosphere with nominal compositions of Fe₈₂Si_6−xB₉P₃C_x (x = 0, 1, 2, 3, 4, 5, and 6 in atomic percent). These alloys are denoted as C-0, C-1, C-2, C-3, C-4, C-5, and C-6 hereafter. These ingots were melted for over 5 min to ensure compositional homogeneity after complete melting. Ribbon specimens with a width of approximately 1 mm were prepared using a commonly employed single roller spinning machine under a high-purity argon atmosphere. The amorphous structure and thermal properties of the as-cast ribbons were investigated via X-ray diffraction (XRD) using Cu Kα radiation and differential scanning calorimetry (DSC, NETZSCH 404, Selb, Germany) at a heating rate of 20 °C/min under Ar gas protection. For the isothermal annealing treatment, ribbon specimens were cut to approximately 70 mm in length, wrapped with aluminum foil, and then sealed in quartz tubes under vacuum conditions. Once the annealing furnace reached the desired temperature, the vacuum quartz tubes containing the ribbon specimens were placed into it and held for 10 min, followed by water quenching. The B_s were measured using a vibrating sample magnetometer (VSM, Lake Shore 7410, Columbus, OH, USA) under an applied field of 800 kA/m. The H_c and μ_e at 1 kHz were tested using a DC B-H hysteresis loop tracer (Linkjoin, MATS-2010SD, Loudi, Hunan, China) and an impedance analyzer (Agilent E4990 A, Santa Clara, CA, USA), respectively. The structure of the magnetic domain under different magnetic fields was characterized via magneto-optical Kerr microscopy.

3. Results and Discussion

3.1. Glass Forming Ability

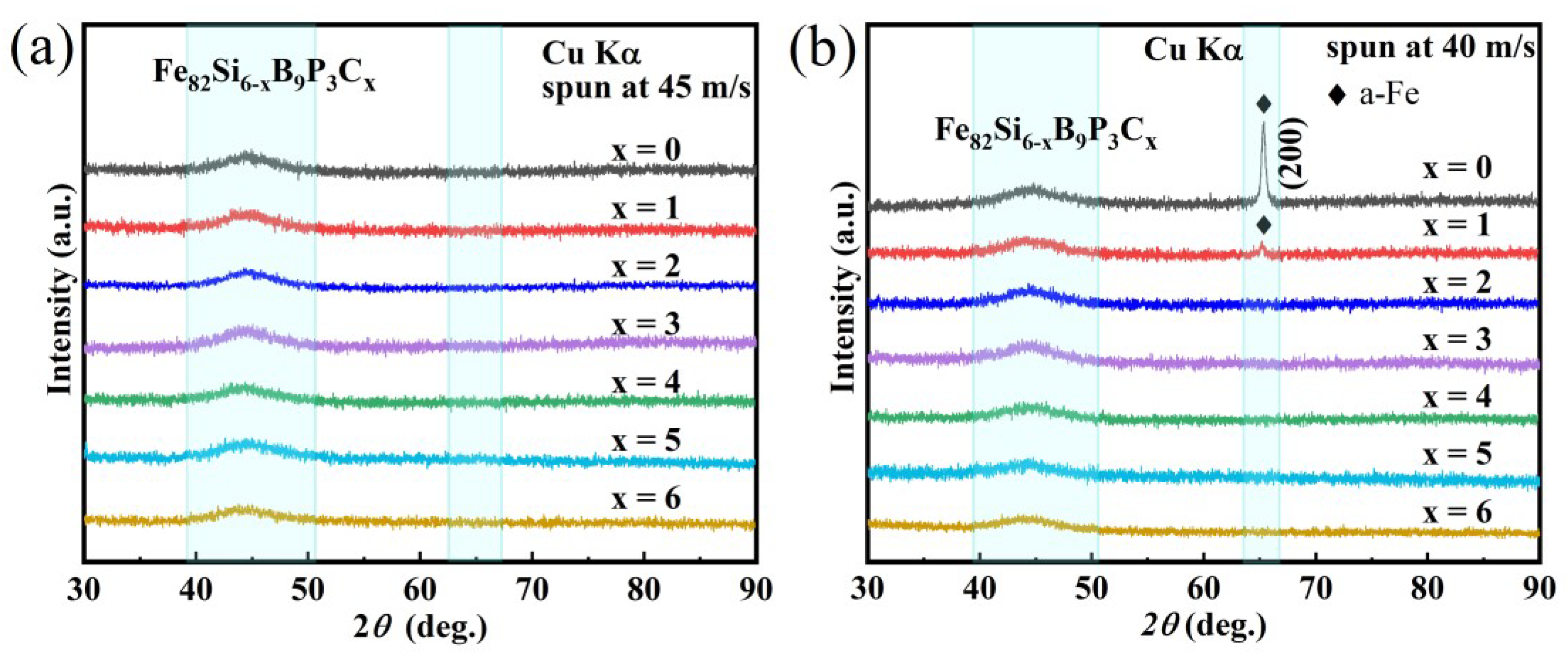

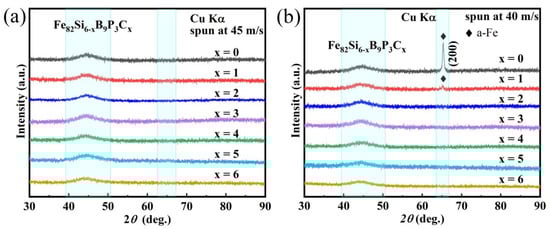

To investigate the amorphous forming ability of the Fe₈₂Si_6−xB₉P₃C_x (x = 0, 1, 2, 3, 4, 5, and 6) alloy system, alloy ribbons were prepared using single roll spinning technology with copper wheel line velocities of 45 m/s and 40 m/s, respectively. The XRD patterns of the as-spun alloy ribbons are present in Figure 1. It can be observed from Figure 1a that at a velocity of 45 m/s, only a broad diffuse scattering peak around 44.5° is visible in the patterns, indicating the formation of an amorphous structure in the alloy ribbons. When the copper wheel velocity decreased to 40 m/s, in addition to the broad diffuse scattering peak at 44.5°, a sharp crystallization peak corresponding to the (200) plane of the α-Fe phase was observed in the region of 2θ~65° for the C-0 alloy. For the C-1 alloy, there was a noticeable decrease in the intensity of this crystallization peak at 65° which suggests that partial crystallization occurred for both the C-0 and C-1 alloys in the as-spun state. However, for the C-2, C-3, C-4, C5, and C-6 alloys, only a broad diffuse scattering peak appears in their respective XRD patterns, indicating that complete amorphous structures are achieved successfully within these five alloy ribbons.

Based on the XRD results presented above, it is suggested that the AFA of the Fe₈₂Si_6−xB₉P₃C_x alloy can be enhanced efficiently through the substitution of Si with C. The improved AFA, resulting from the addition of the C element, can be attributed to factors such as atomic packing, thermodynamics principles, and empirical rules [18]. From a topological perspective, the atomic radii of iron, silicon, and carbon are 1.27 Å, 1.34 Å, and 0.86 Å, respectively. Substituting Si with C in the FeSiBPC alloy system leads to an increased difference in atomic sizes which becomes larger and more complex. This aligns with Inoue’s rules which state that the difference between constituent elements’ atomic sizes should exceed 12% for the formation of bulk metallic glasses. Additionally, the significant size difference among multiple components may result in highly packed atomic configurations within these alloys. Moreover, the presence of large negative mixing enthalpies among constituent elements contributes to high AFA levels. The substitution of Si with C increases the amount of negative mixing enthalpy due to a higher the Fe-C pairs having a higher value (−50 kJ/mol) compared to Fe-Si pairs (−35 kJ/mol) [19]. This enhancement positively impacts the AFA of these alloys.

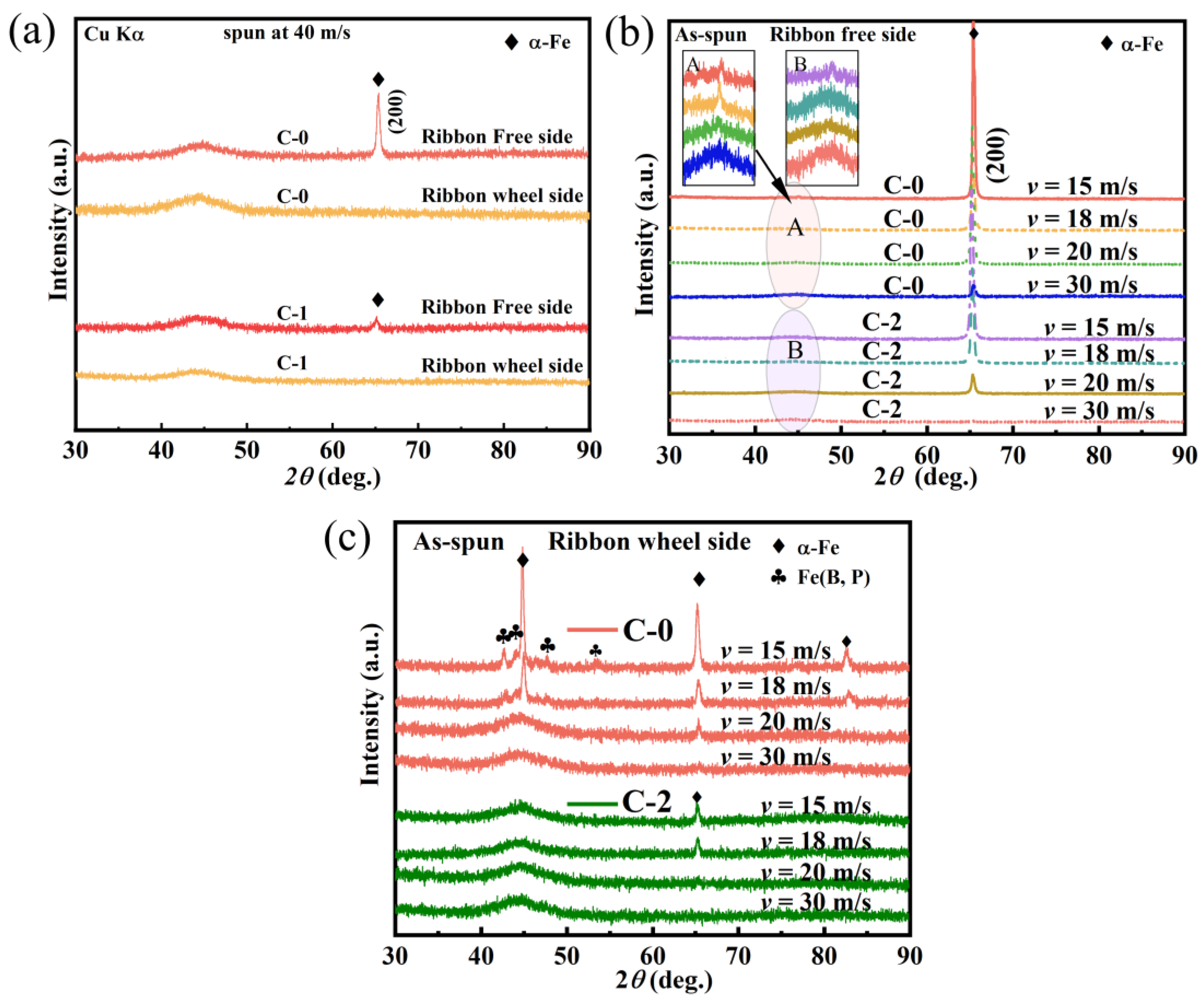

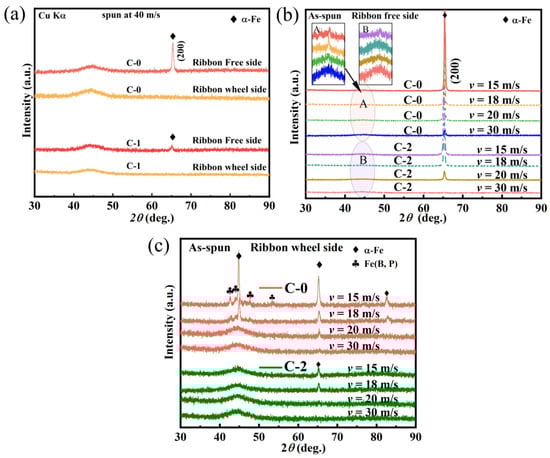

Generally, the partial crystallization of an amorphous alloy primarily occurs on the free surface of alloy ribbons [20]. To further analyze the partial crystallization behavior of the C-0 and C-1 alloys under a velocity of 40 m/s, XRD tests were conducted on both the free surfaces and roller surfaces of the as-spun alloy ribbons. The results are presented in Figure 2a. The crystallization peak of (200) is exclusively observed on the free surface of the as-spun ribbons, while it is absent on the roller surface, indicating that crystallization only occurs at the free surface due to its lower cooling rate. To further investigate the influences of cooling rate on the phase formation in the as-spun Fe₈₂Si_6−xB₉P₃C_x alloy, C-0 and C-2 alloy ribbons were prepared with different cooling rates by adjusting the line velocity of the copper wheel. XRD analysis was conducted and the results are presented in Figure 2b,c. At a velocity of 30 m/s, a crystalline peak at 65° can still be observed on the free side of the C-0 alloy ribbon. For the C-2 alloy, despite a decrease in the velocity of the copper wheel from 40 m/s to 30 m/s, a fully amorphous structure is achieved in the as-spun ribbon, indicating the excellent AFA of the C-2 alloy. At lower speeds such as 20 m/s, 18 m/s, and 15 m/s, distinct differences are observed between the XRD patterns of the C-0 and C-2 alloys. On the free side, all ribbons exhibit prominent crystallization peaks at approximately 65° corresponding to the (200) plane of the α-Fe phase. On the roller side, a crystallization peak at 65° is observed for the C-2 alloy ribbons prepared at 15 m/s and 18 m/s, while no significant crystallization peak is observed at 20 m/s. For the C-0 alloy, only a small crystallization peak appears at around 65° in the XRD pattern of the ribbon prepared at 20 m/s. However, at both speeds of 15 m/s and 18 m/s, the C-0 alloy ribbons show multiple crystallization peaks near 44.5°, 65°, and 82.3°, corresponding to the (110), (200), and (211) planes of the α-Fe phase, respectively. Additionally, weak crystallization peaks related to the Fe(B, P) compound phase are also found at the left and right sides of 44.5°, indicating that the C-0 alloy ribbons prepared at 15 m/s and 18 m/s were highly crystallized. In summary, the higher the copper wheel velocity, the lower the intensity of the crystallization peak, and the more pronounced the amorphous broad diffuse scattering peak. Compared with the C-0 alloy, the C-2 alloy exhibits a lower degree of crystallization under the same fabrication conditions, which also suggests that the substitution of C for Si can improve the amorphous forming ability of the alloy system.

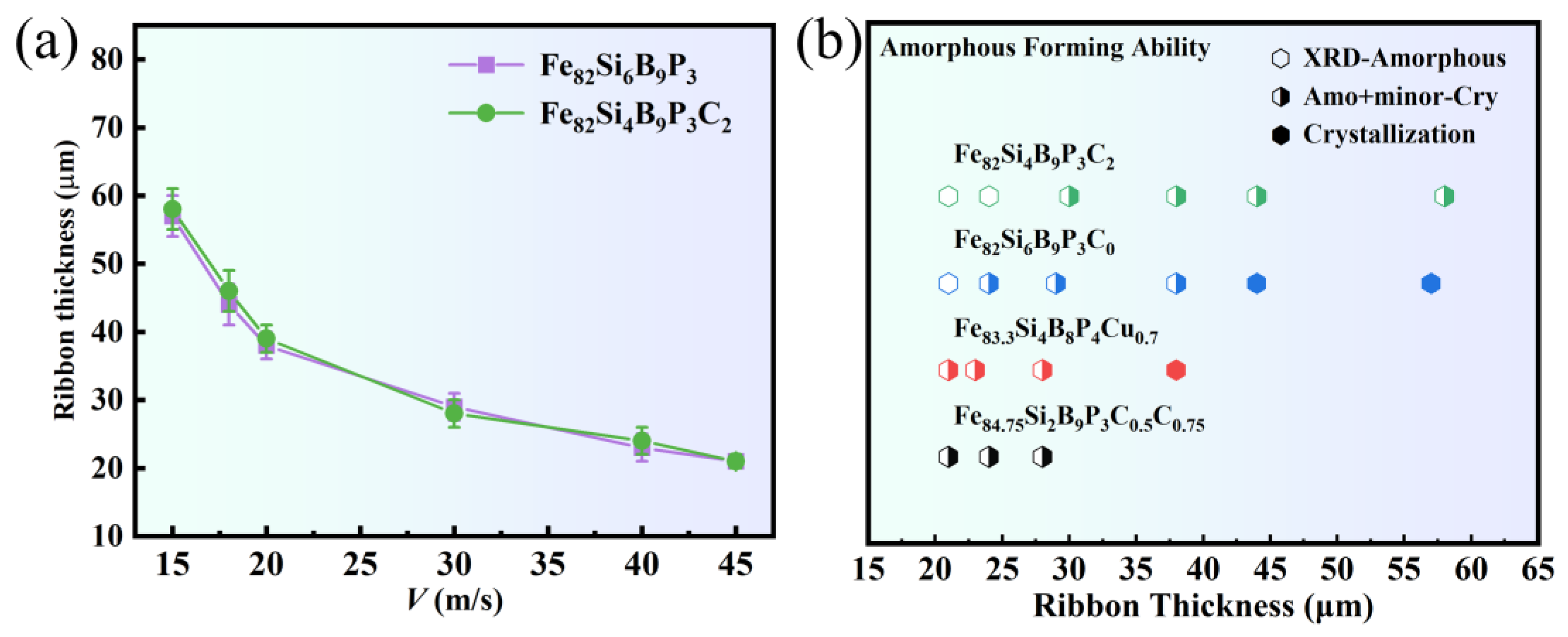

The change in the thicknesses of the C-0 and C-2 alloy ribbons with the velocity of copper wheel is illustrated in Figure 3a. As depicted, an increase in velocity results in a decrease in ribbon thickness. Moreover, there is minimal variation observed between the thicknesses of the C-0 and C-2 alloy ribbons prepared under identical conditions. When considering a constant thermal conductivity for the copper wheel, a thinner alloy ribbon indicates a higher cooling rate, facilitating the formation of a fully amorphous structure. Notably, at a speed of 20 m/s, the thickness of the alloy ribbon is approximately twice that at 40 m/s; this discrepancy also accounts for the significant differences present in the XRD patterns at varying speeds. Additionally, as the alloy ribbon becomes thicker, there is an increased disparity in the cooling rates between the roller surface and the free surface, particularly evident at lower speeds, which further contributes to variations between their respective structures. Figure 3b summarizes the phase formation for both the C-0 and C-2 alloys across different cooling rates while comparing them to the Fe_83.3Si₄B₈P₄Cu_0.7 and Fe_84.75Si₂B₉P₃C_0.5Cu_0.75 alloys. The findings demonstrate that the C-2 alloy exhibits superior amorphous forming ability, which is conducive to its industrial production.

3.2. Thermal Stability

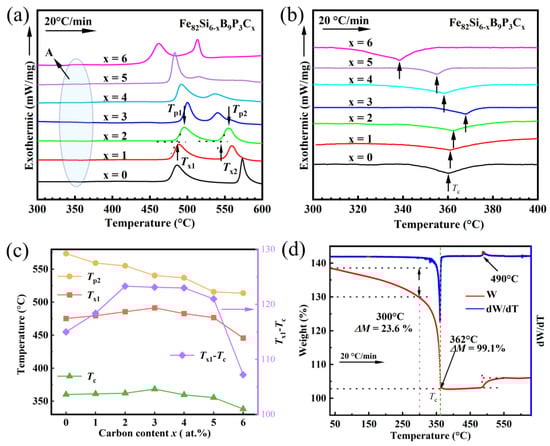

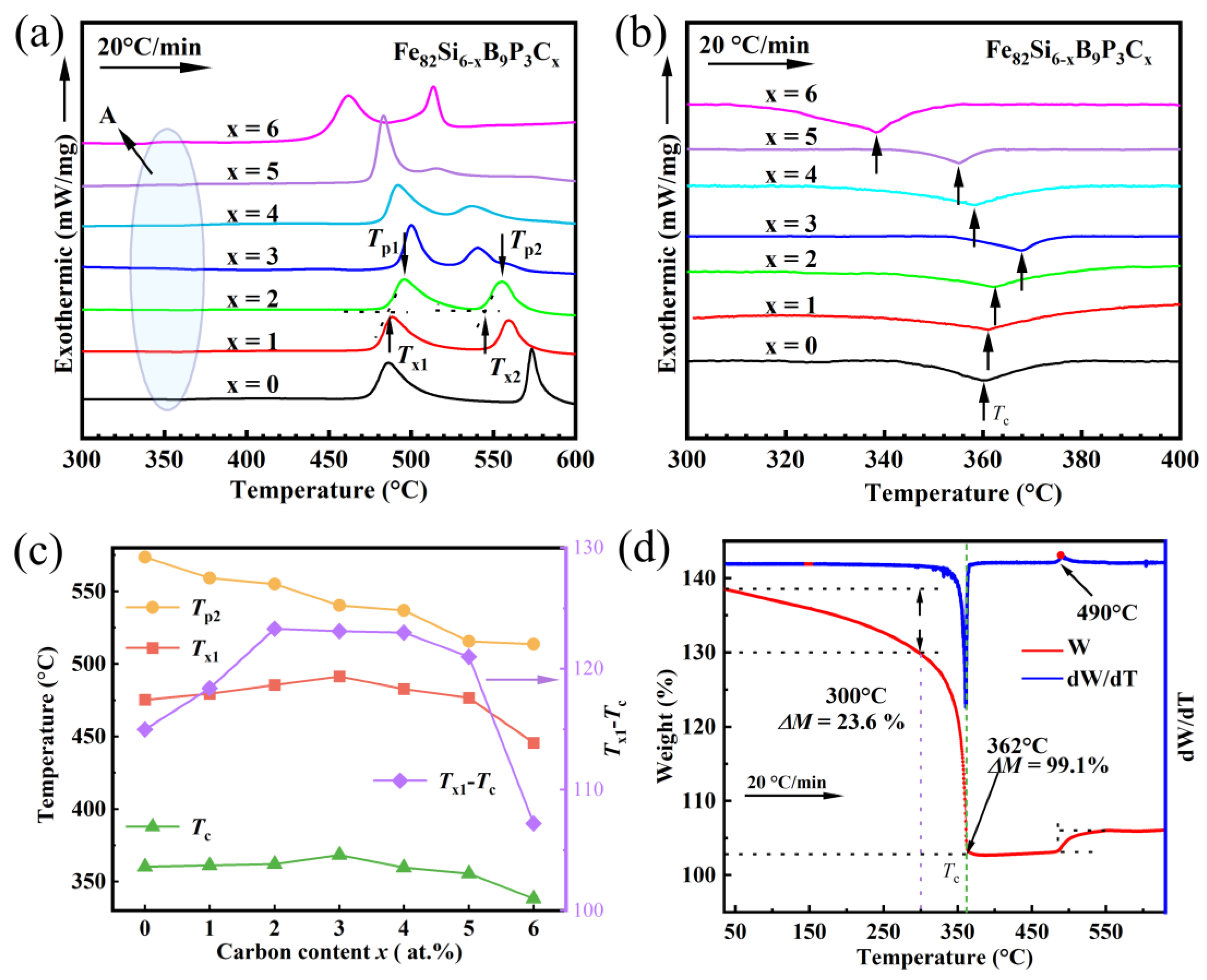

The thermal stability of the as-spun Fe₈₂Si_6−xB₉P₃C_x amorphous alloy ribbons was characterized through DSC analysis. To ensure a uniform comparison, all experimental samples were prepared as amorphous ribbons at a copper wheel velocity of 45 m/s. The DSC results are presented in Figure 4. All DSC curves exhibit two crystallization exothermic peaks, corresponding to the formation of a soft magnetic α-Fe phase and the precipitation of the Fe(B,P) compound phase, respectively. The results indicate that an increase in C content initially leads to an increase and then a decrease in the initial crystallization temperature (T_x1) of the α-Fe phase. Among these alloys, C-3 exhibits the highest T_x1 value (491.4 °C). A higher T_x1 suggests a greater difficulty in crystallization during the heating process, indicating an enhanced thermal stability. On the other hand, both the initial crystallization temperature (T_x2) and the peak temperature (T_p2) of the Fe(B,P) compound phase decrease with increasing C content; however, when the C content exceeds 2 at.% it becomes difficult to distinguish T_x2 due to the presence of overlapping crystallization peaks. As shown in Figure 4b, all of the DSC curves display an endothermic peak corresponding to Curie temperature transition of amorphous alloys, with its peak representing the T_c point. It is observed that T_c initially increases and then decreases with increasing C content; among them, the C-3 alloy achieves the highest T_c value (368.3 °C). The TG analysis was conducted on the C-2 alloy ribbons to validate the accuracy of the T_c readings obtained from DSC.

The excellent soft magnetic properties of most Fe-based amorphous alloys without Cu are attributed to the uniformity of their structure, and it is not anticipated that clusters or crystallization will occur during stress relief annealing [21]. T_x1-T_c is commonly employed as a quantitative measure for characterizing the ability of amorphous alloys to achieve favorable soft magnetic properties. A higher value indicates that the alloy can actuate stress-pinned magnetic domains more easily without undergoing crystallization during conventional annealing [22]. As shown in Figure 4c, the appropriate substitution of Si with C not only enhances the T_x1 and T_c values of the alloy ribbon but also increases T_x1-T_c. The C-2, C-3, C-4, and C-5 alloys exhibit higher T_x1-T_c values, exceeding 120 °C, while the C-0, C-1, and C-6 alloys demonstrate lower T_x1-T_c values. When Si is replaced with C, both T_x1 and T_c initially increase before decreasing. This phenomenon can be explained from two aspects: Firstly, taking into consideration the example of the C-0 alloy and C-2 alloy; after replacing Si with an appropriate amount of carbon (C) in a four-component Fe-Si-B-P-C system, it transforms into a five-component Fe-Si-B-P-C system which may have a microalloying effect resulting in a more complex configuration of the amorphous structure. Additionally, this atomic size difference enhances the thermal stability within the amorphous structure, resulting in a significant increase in T_x1 from 475.3 °C to 485.5 °C, while T_c shows only marginal improvement due to short-range order effects within amorphous alloys (from 360.3 °C to 362.2 °C). Consequently, there is an overall increase in the value of T_x1-T_c. Secondly, taking into account examples such as the C-4 and C-6 alloys and following the excessive substitution of Si with C, the system transitions from a five-component Fe-Si-B-P-C system back to a four-component Fe-C-B-P system where any microalloying effects disappear potentially improving order degree within amorphous structures. Moreover, due to their larger size compared to C atoms, Si atoms have an increased propensity for impeding atomic diffusion motion. Consequently, a scarcity of Si atoms and an elevated level of order in the amorphous structure result to a pronounced decrease in its thermal stability. Specifically, T_x1 is significantly reduced from 482.7 °C to 445.8 °C, while T_c also experiences a reduction albeit within a narrower range than T_x1 (from 123.0 °C to 107.4 °C). Therefore, T_x1-T_c is also reduced.

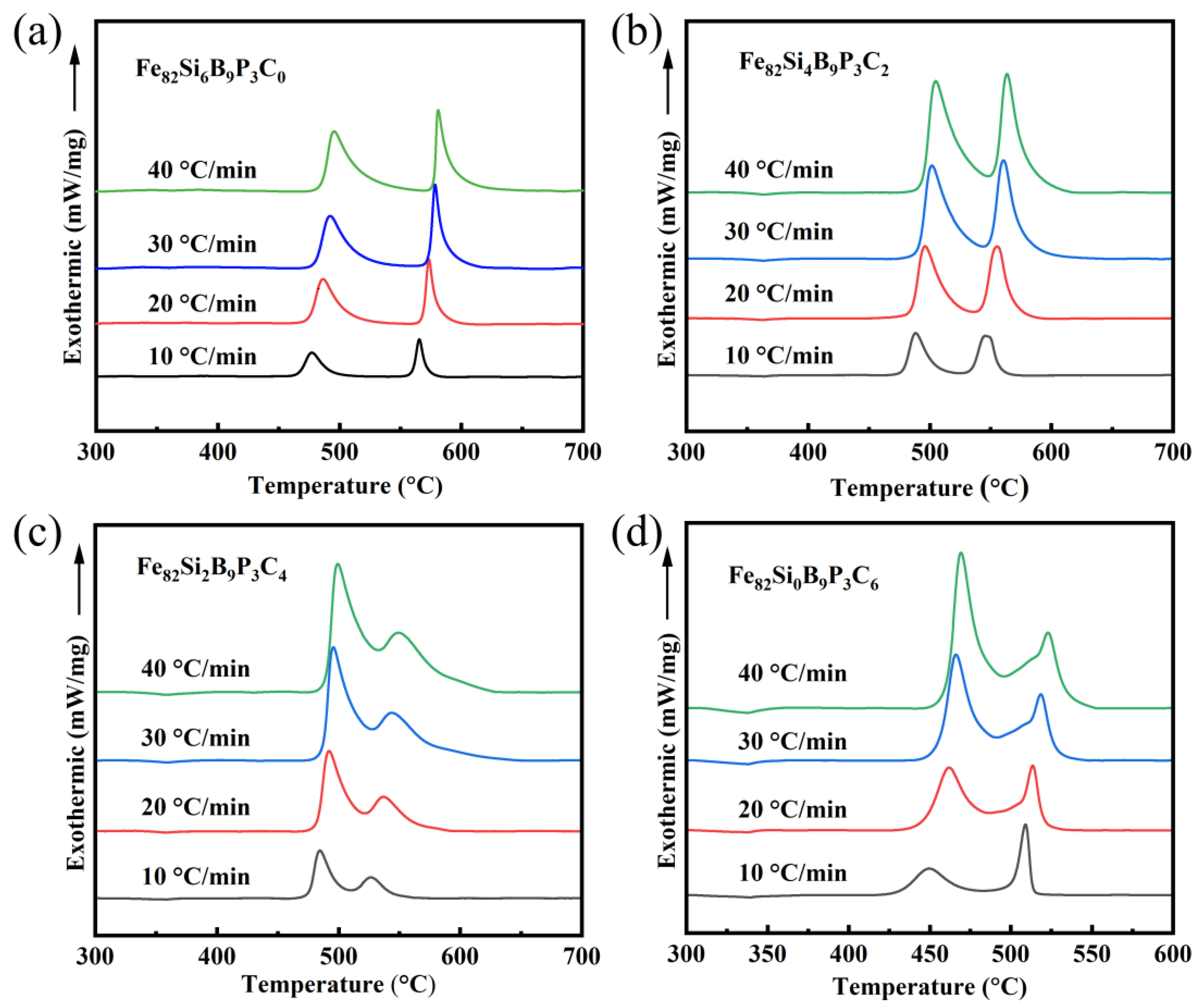

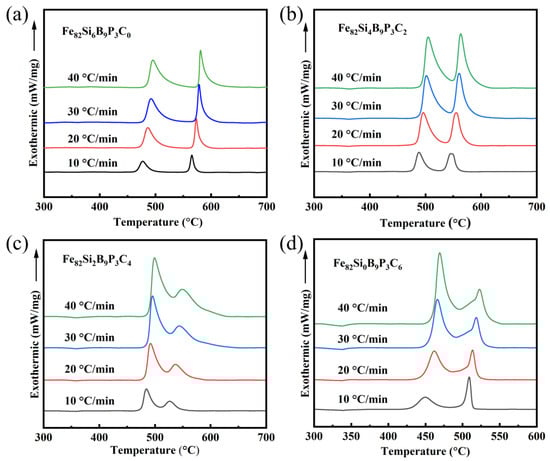

The thermal stability and non-isothermal crystallization behavior of Fe₈₂Si_6−xB₉P₃C_x amorphous alloy ribbons were further investigated by conducting DSC tests at different heating rates (10, 20, 30, and 40 K/min) for C-0, C-2, C-4, and C-6 alloys. The resulting DSC curves are presented in Figure 5. It is evident that as the heating rate increases from 10 °C/min to 40 °C/min, the crystallization peaks shift towards higher temperatures, indicating pronounced kinetic characteristics. This phenomenon can be attributed to the fact that at lower heating rates, atoms within the amorphous structure have sufficient time to absorb energy for motion and diffusion rearrangement leading to crystallization at lower temperatures. Conversely, higher heating rates result in shorter atomic diffusion and rearrangement times within the amorphous phase, thereby pushing the crystallization process towards higher temperatures [23,24].

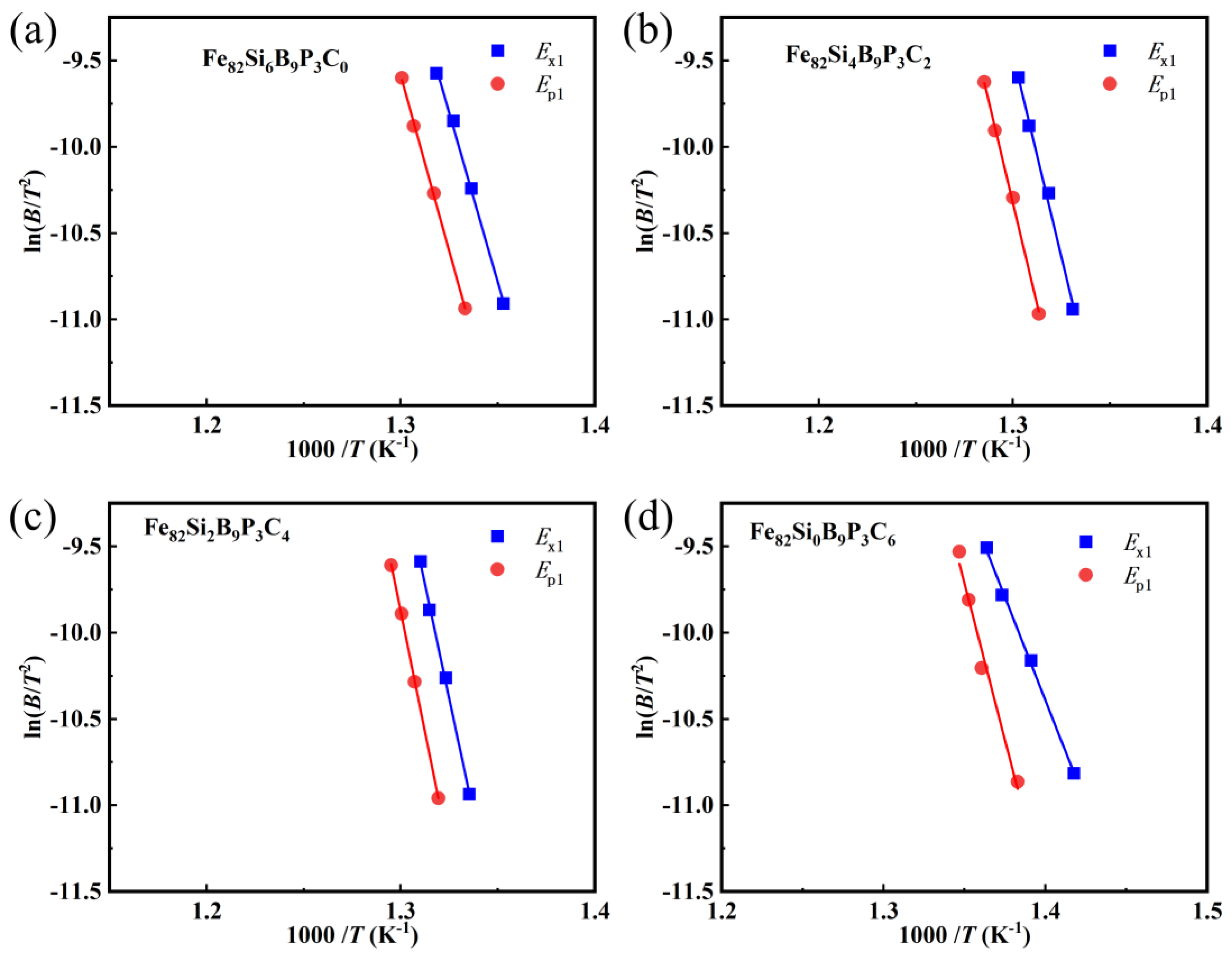

In the process of crystallization, the amorphous structure must absorb sufficient energy to overcome a specific energy barrier known as the activation energy (E_a). A higher E_a indicates greater stability of the amorphous structure. Based on the characteristic temperature values obtained from DSC curves, the activation energies for α-Fe phase crystallization process in Fe₈₂Si_6−xB₉P₃C_x amorphous alloys were determined using the Kissinger equation, as shown in Figure 6. The activation energies derived for the α-Fe phase crystallization process are presented in

Table 1. The activation energies for the α-Fe phase crystallization process derived from the Kissinger curves.

Composition	Ex1 (kJ/mol)	Ep1 (kJ/mol)
Fe82Si6B9P3	326.74	338.88
Fe82Si4B9P3C2	390.69	393.71
Fe82Si2B9P3C4	441.06	465.09
Fe82B9P3C6	183.87	301.88

. It is observed that as the C content increases, E_p1 and E_p1 initially increase before decreasing again in the Fe₈₂Si_6−xB₉P₃C_x alloy system. Among all four of the alloys, the C-4 alloy exhibits the highest E_x1 of 441.06 kJ/mol and E_p1 of 465.09 kJ/mol, indicating that an appropriate substitution of C for Si element enhances thermal stability of the Fe₈₂Si_6−xB₉P₃C_x amorphous alloys. However, when the carbon content continues to rise in the C-6 alloy, Ex1 and Ep1 decreases significantly. Notably, the E_p1 values are slightly higher than the E_p1 values for the C-0, C-2, C-4, and C-6 alloys, suggesting that grain growth in the α-Fe(Si) phase is more difficult than nucleation in this alloy system [25].

3.3. Magnetic Properties

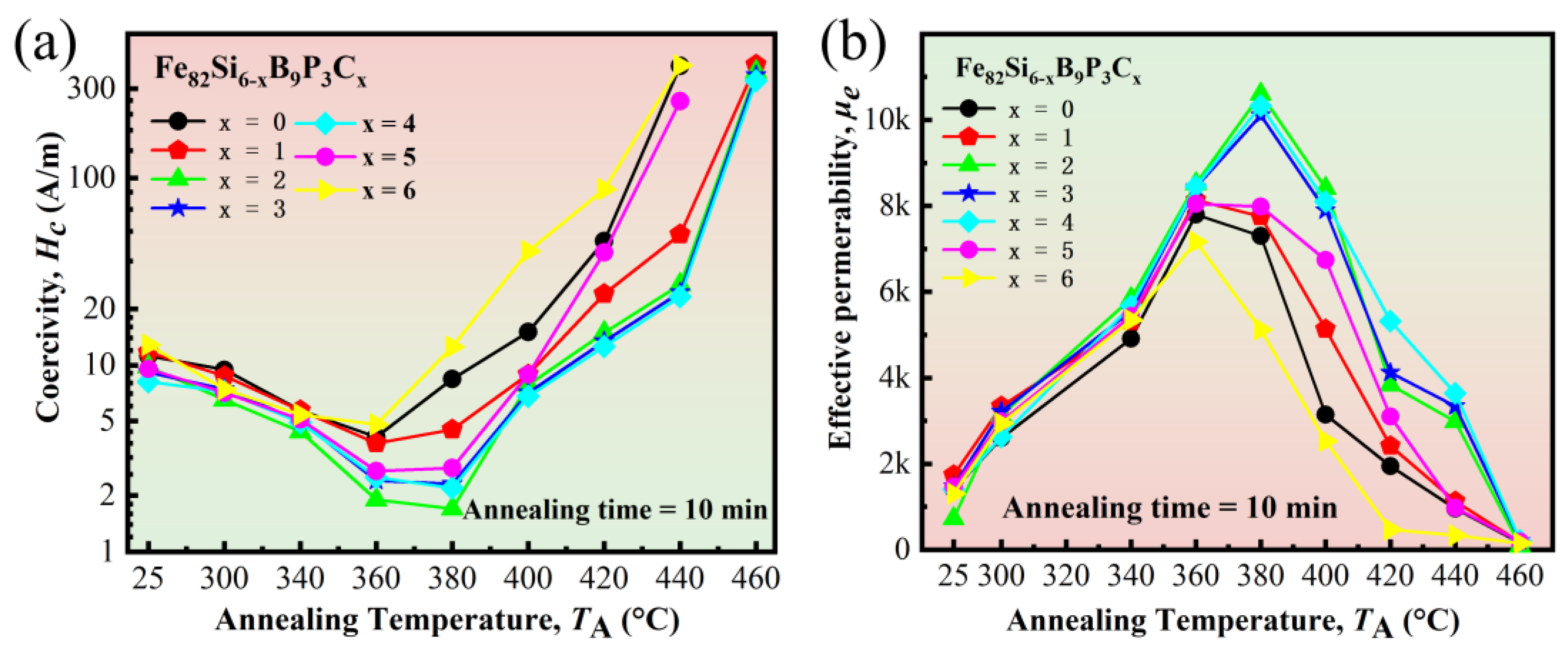

For soft magnetic alloys, the values of H_c and µ_e are influenced by the structure, making the annealing treatment crucial in modulating these parameters. The H_c and µ_e of samples annealed at different temperatures are presented in Figure 7. As the annealing temperature increases, the H_c of all alloy ribbons initially decreases and then increases. From Figure 7a, it can be observed that the H_c of the alloy system decreases and reaches its minimum value when the annealing temperature rises to approximately 360–380 °C. Subsequently, as the temperature further increases towards T_x1, H_c starts to rise again. With an increase in C content, the H_c (i.e., lowest point on the curve) at the optimum annealing temperature first decreases and then increases. For the C-0, C-1, and C-6 alloys, the lowest point of H_c occurs at 360 °C, with corresponding values of 4.1, 3.8, and 4.8 A/m, respectively. On the other hand, for the C-2, C-3, C-4, and C-5 alloys, the lowest point of H_c occurs at 380 °C. Among these alloys, the C-2 alloy exhibits the lowest H_c (1.7 A/m), the while C-3, C-4, and C-5 alloys have similar lowest H_c values (2.3, 2.2, and 2.8 A/m, respectively). The change in H_c with annealing temperature for these alloy ribbons can be understood based on the structural evolution that occurs during annealing. Currently, Fe-based amorphous ribbons are primarily produced using single roll melt spinning technology, which results in a high cooling rate and consequently generates significant internal stress within the as-spun ribbon [26]. Annealing prior to T_x1 allows for the release of this internal stress induced by single roll melt spinning technology, leading to alterations in the microscopic stress field of atoms [27]. In this context, we propose that the decrease in H_c at 360–380 °C can be attributed to relaxation of the amorphous structure. Furthermore, as T_a approaches T_x1, the increase in H_c is associated with magnetoelastic anisotropy [28] coupled with magneto-crystalline anisotropy caused by the precipitation of α-Fe grains within the amorphous matrix. As shown in Figure 7b, μ_e shows an inverse relationship with annealing temperature compared to H_c. For the C-0, C-1, and C-6 alloys, the highest point of μ_e appears at 360 °C with corresponding values of 7800, 8134, and 7163, respectively. The C-2 alloy exhibits the highest μ_e value of 10,608, followed by 10,108 for C-3, 10,333 for C-4, and 7984 for the C-5 alloy. The magnetic susceptibility is determined at a low applied magnetic field by measuring the displacement of the domain walls, which can vary in width depending on the magnetic anisotropy. The enhancement of μ_e that occurred When the ribbons were annealed at the optimal temperature can be attributed to the decrease in magnetoelastic anisotropy caused by the release of internal stress. In summary, for Fe₈₂Si_6−xB₉P₃C_x amorphous alloy ribbons, the substitution of Si elements with an appropriate C element can optimize the soft magnetic performance; however, the excessive replacement of the Si element with the C element may deteriorate the soft magnetic performance.

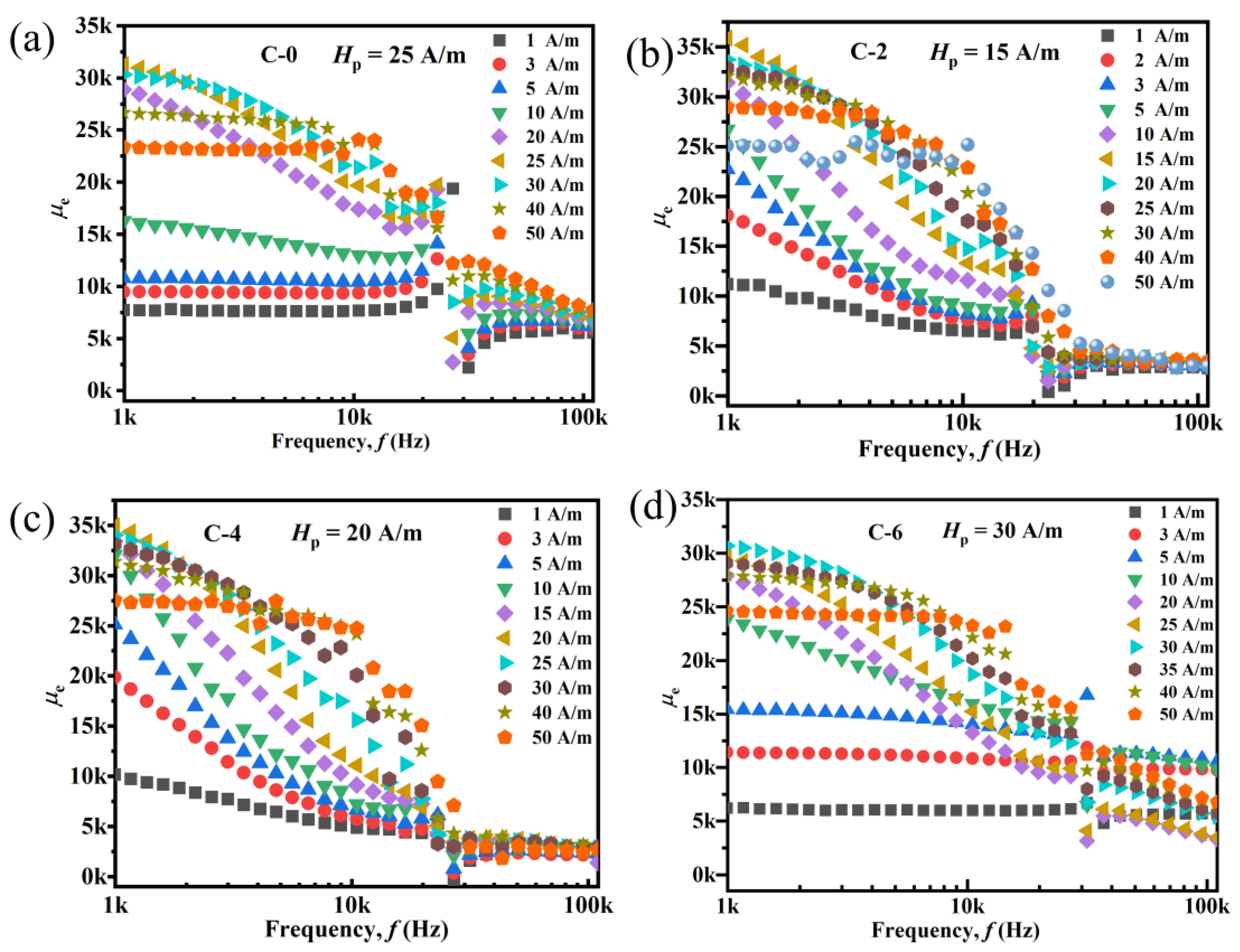

The variation in µ_e with frequency under different applied magnetic fields for C-0, C-2, C-4, and C-6 alloy ribbons annealed at the optimum temperature is shown in Figure 8, respectively. It can be observed that when the amplitude of the applied magnetic field remains constant, the µ_e of all alloy ribbons decreases as the frequency increases, which is a characteristic inherent to soft magnetic materials. As the frequency increases, the movement and rotation of magnetic moments within the domain walls and domains respond to the applied magnetic field. However, when they reach a certain frequency limit, their mobility becomes restricted and their contribution to magnetization rotation diminishes significantly, resulting in a sharp decline in µ_e [29]. Furthermore, it can be observed that, for frequencies below 20 kHz, µ_e gradually increases with increasing AC field amplitudes (H_m) for the C-0, C-2, C-4, and C-6 alloys until it reaches a specific value where further increase in H_m leads to a decrease in µ_e. The AC field amplitude required for achieving maximum permeability can be considered as a pinning field (H_p) for these ribbons [30]. Figure 8 shows that the H_p values were determined as follows: 25 A/m for the C-0 alloy; 15 A/m for the C-2 alloy; 20 A/m for the C-4 alloy; and 30A/m for the C-6 alloy, respectively. A lower H_p indicates fewer pinned sites, fewer defects, and better magnetic softness.

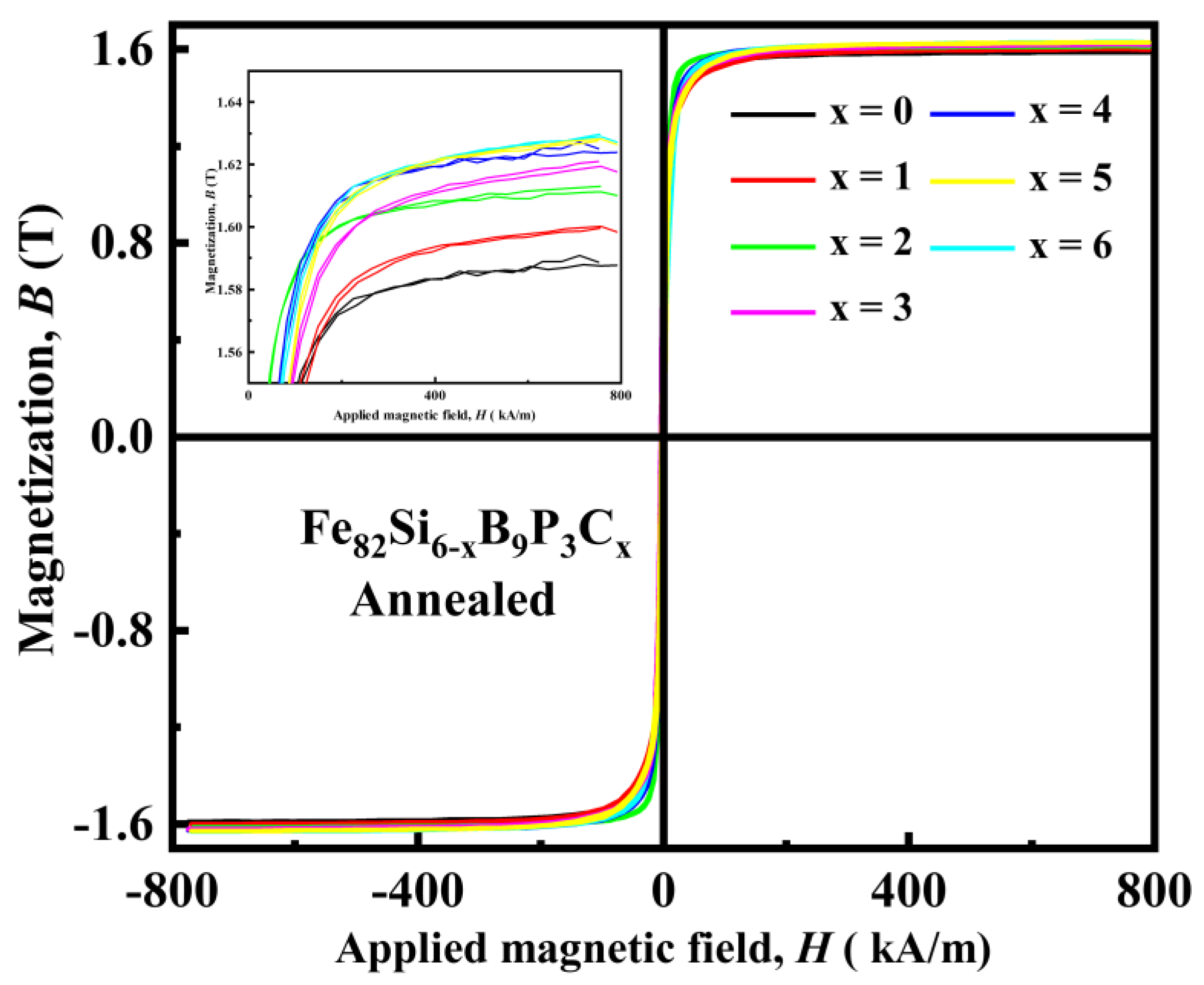

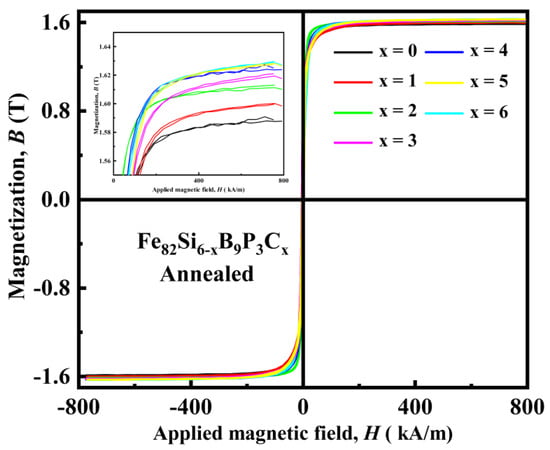

The B_s parameter of the alloy is a crucial magnetic property, and VSM tests were conducted on the ribbons annealed at the optimal annealing temperature. The resulting Hysteresis loops are presented in Figure 9. To further investigate the influence of C addition on the soft magnetic properties of Fe₈₂Si_6−xB₉P₃C_x, the relationship between H_c, µ_e, and B_s with varying C content is summarized in

Table 2. The relationship between B_s, H_c, and µ_e with varying C content.

Composition	Bs (T)	Hc (A/m)	μe (@1 kHz)
Fe82Si6B9P3	1.59	4.1	7800
Fe82Si5B9P3C1	1.6	3.8	8134
Fe82Si4B9P3C2	1.61	1.7	10608
Fe82Si3B9P3C3	1.62	2.3	10108
Fe82Si2B9P3C4	1.62	2.2	10333
Fe82Si1B9P3C5	1.63	2.7	8046
Fe82B9P3C6	1.63	4.8	7163

. As depicted in Figure 9, all of the amorphous alloy samples exhibit rapid saturation magnetization under a small applied magnetic field, indicating the presence of typical soft magnetic characteristics within this alloy system. With the inclusion of C, it becomes evident from Table 2 that the values of B_s significantly increase from 1.59 T for the C-0 alloy to 1.63 T for the C-6 alloy. The enhancement in B_s can be explained from two perspectives: Firstly, since C has a smaller relative atomic mass than Si, replacing Si with C in Fe₈₂Si_6−xB₉P₃C_x promotes an increase in the Fe element mass fraction from 92.94 wt.% for the C-0 alloy to 94.58 wt.% for the C-6 alloy, thereby elevating B_s. Secondly, the local environment plays a significant role in determining the ferromagnetic behavior within metallic glasses. Previous studies have reported that metalloid-sp/metal-d bonding leads to moment reduction in 3d-based amorphous alloys around 0 K, consequently causing a decrease in B_s. In terms of topology considerations, metalloids with smaller atomic radii possess lower theoretical coordination numbers [31], which diminishes metalloid-sp/metal-d bonding and subsequently increases the B_s value within amorphous alloys. Therefore, substituting Si with smaller atomic radius counterpart such as C tends to enhance the B_s value within an Fe₈₂Si_6−xB₉P₃C_x alloy system. Combined with the observed variations in H_c and μ_e upon C addition, as depicted in Table 2, it can be inferred that the soft magnetic properties can be effectively optimized through carbon incorporation. Notably, the C-2 alloy demonstrates exceptional comprehensive soft magnetic properties, characterized by a high B_s of 1.61 T, a low H_c of 1.7 A/m, and a significantly elevated μ_e reaching 10,608.

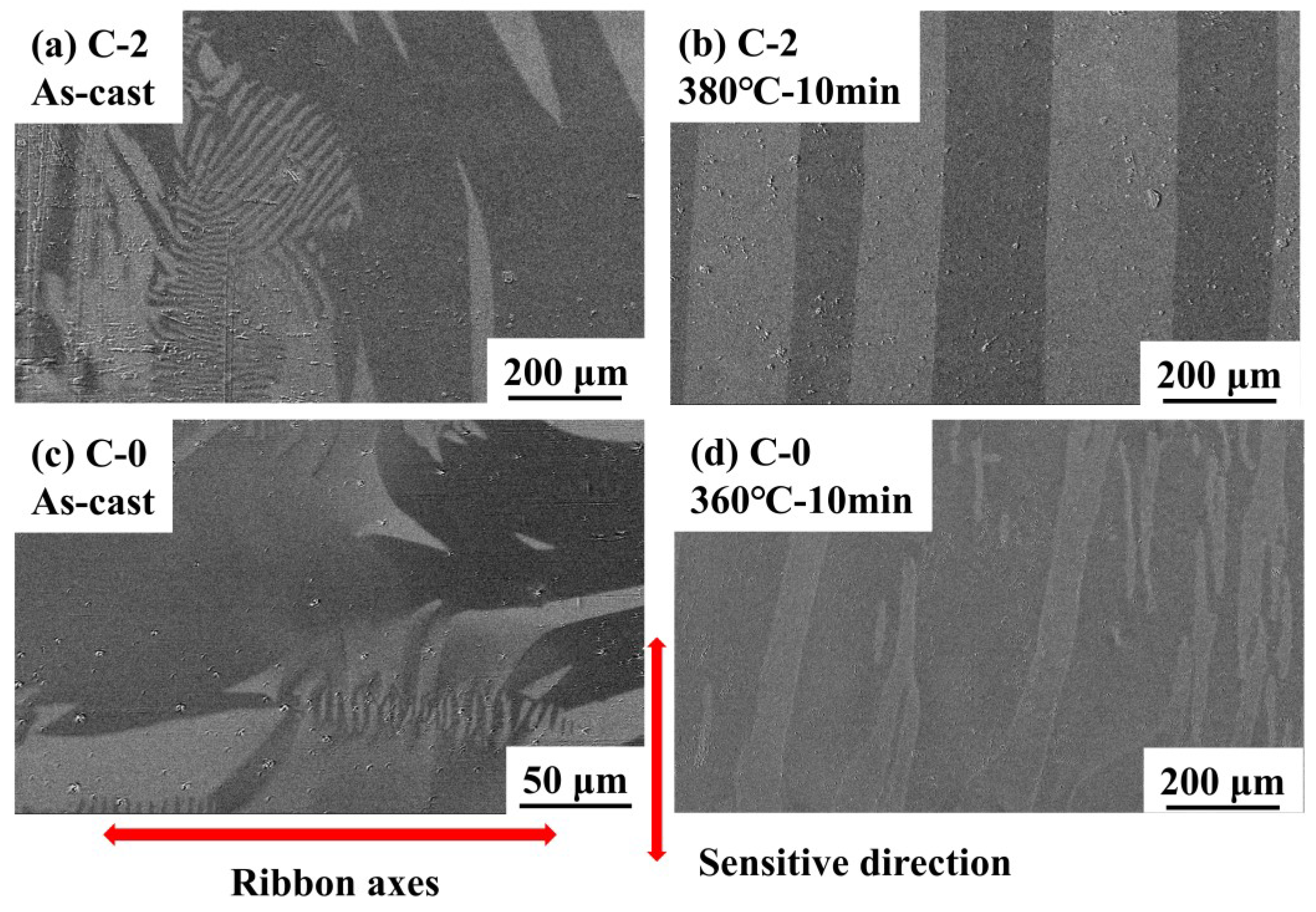

To further investigate the reasons behind the changes in soft magnetic properties between C-0 and C-2 alloy ribbons in both as-spun and optimally annealed states, their magnetic domain patterns under zero field can be examined using a magneto-optical Kerr microscope, as depicted in Figure 10. It is evident from the figure that the magnetic structure of both alloys in the as-spun state exhibits irregularity, characterized by wide magnetic domains and numerous narrow domains. The rapid quenching process during fabrication induces significant internal stress in the as-spun ribbons, resulting in vertical magnetic anisotropy and a chaotic and irregular magnetic domain structure [32,33]. Internal stress, if present, can interact with the positive magnetostriction in the amorphous ribbons to induce a magnetic anisotropy perpendicular or parallel to the stress direction, depending on whether it is tensile or compressive in nature [34]. According to Tejedor et al.’s research [35], both surfaces of the as-spun amorphous ribbon experience compressive stress that gradually transitions into tensile stress at its center. Tsukahara et al. [36] observed that the magnitude of the anisotropy perpendicular to the stress determines the domain structure and width. Conversely, after annealing treatment, there is a transition in the easy magnetization direction accompanied by an increase in the domain width due to stress release [34,35]. As shown in Figure 10b,d, both C-0 and C-2 alloys exhibit wider magnetic domain structures with relatively flat walls compared to their as-spun state counterparts. This uniformity facilitates the movement of the magnetic domains and the rotation of the magnetic moments during alloy magnetization process. Blázquez et al. [37] propose that, in Fe-based amorphous ribbons, there exists an inverse relationship between the coercivity and the width of magnetic domains, indicating that wider magnetic domains result in lower H_c values. Moreover, in comparison to the C-2 alloy, the C-0 alloy exhibits a certain degree of bifurcation in its magnetic domains with increased irregularity. This observation may be attributed to the fact that the C-2 alloy undergoes annealing at a temperature that is 20 °C higher than that of C-0 alloy; higher annealing temperatures are known to facilitate the unpinning process of magnetic domains. The analysis of domain patterns provides valuable insights into understanding the variations in H_c values for both C-0 and C-2 alloys under different conditions.

4. Conclusions

The effects of carbon addition on the amorphous FeSiBPC alloy systems were systematically investigated in this study, focusing on the AFA, thermal stability, and magnetic properties. The underlying mechanism responsible for the enhanced AFA and optimized soft magnetic properties was thoroughly analyzed and discussed. For as-spun Fe₈₂Si_6−xB₉P₃C_x (x = 0, 1, 2, 3, 4, 5, and 6) alloy ribbons prepared at a copper wheel velocity of 40 m/s, it was observed that alloys containing more than 1 atomic percent of carbon exhibited a fully amorphous structure. This suggests that incorporating an appropriate amount of carbon element can effectively enhance the AFA in this specific alloy system. The introduction of carbon to the C-2 and C-4 alloys resulted in higher E_x1 and E_p1 values compared to those observed in the C-0 alloy. This indicates that the proper incorporation of carbon enhances the thermal stability of these amorphous ribbons. Furthermore, the soft magnetic properties can be effectively optimized through the addition of C. By adding precisely 2 at. % C, the Fe₈₂Si₄B₉P₃C₂ alloy demonstrated optimized soft magnetic properties including a low H_c of 1.7 A/m, a high μ_e of 10608 (f = 1 kHz), and a relatively high B_s of 1.61 T. These improvements may be attributed to achieving a more homogeneous and optimized magnetic domain structure through proper carbon addition. In conclusion, this work holds significant implications for the advancement of Fe-based soft magnetic amorphous alloys with high saturation magnetization.
