Article

The Transcription Factors AcuK and AcuM Influence Siderophore Biosynthesis of Aspergillus fumigatus

by
Patricia Caballero
1,
Annie Yap
1,
Michael J. Bromley
2 and
Hubertus Haas
1,*
1
Institute of Molecular Biology, Medical University of Innsbruck, Innrain 80-82, 6020 Innsbruck, Austria
2
Manchester Fungal Infection Group, Division of Infection, Immunity, and Respiratory Medicine, The University of Manchester, Manchester M13 9PL, UK
*
Author to whom correspondence should be addressed.
J. Fungi 2024, 10(5), 327; https://doi.org/10.3390/jof10050327
Submission received: 18 March 2024 / Revised: 25 April 2024 / Accepted: 26 April 2024 / Published: 30 April 2024
(This article belongs to the Special Issue Fungal Metabolism in Filamentous Fungi: 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
The mold Aspergillus fumigatus employs two high-affinity uptake systems, reductive iron assimilation (RIA) and siderophore-mediated iron acquisition (SIA), for the acquisition of the essential trace element iron. SIA has previously been shown to be crucial for virulence in mammalian hosts. Here, we show that a lack of AcuK or AcuM, transcription factors required for the activation of gluconeogenesis, decreases the production of both extra- and intracellular siderophores in A. fumigatus. The lack of AcuM or AcuK did not affect the expression of genes involved in RIA and SIA, suggesting that these regulators do not directly regulate iron homeostasis genes, but indirectly affect siderophore production through their influence on metabolism. Consistent with this, acetate supplementation reversed the intracellular siderophore production defect of ΔacuM and ΔacuK. Moreover, ΔacuM and ΔacuK displayed a similar growth defect under iron limitation and iron sufficiency, which suggests they have a general role in carbon metabolism apart from gluconeogenesis. In agreement with a potential role of the glyoxylate cycle in adaptation to iron starvation, transcript levels of the malate synthase-encoding acuE were found to be upregulated by iron limitation that is partially dependent on AcuK and AcuM. Together, these data demonstrate the influence of iron availability on carbon metabolism.

1. Introduction

The saprobic fungus Aspergillus fumigatus is the most common causative agent in a series of infectious diseases known as aspergillosis, which particularly impact immunocompromised patients [1,2]. Iron homeostasis has been shown to be key to the virulence of A. fumigatus in murine infection models [3]. Aspergillus fumigatus employs two high affinity iron uptake systems, reductive iron assimilation (RIA) and siderophore-mediated iron acquisition (SIA) [3]. RIA starts with the extracellular reduction in ferric iron to ferrous iron by the plasma membrane-localized metalloreductases such as FreB [4], followed by the re-oxidation and uptake of ferric iron employing the iron oxidase FetC and the ferric iron permease FtrA [5]. Siderophores are low molecular mass, ferric iron-specific chelators [6]. A. fumigatus produces two fusarinine-type siderophores termed triacetylfusarinine C (TAFC) and fusarinine C and two ferrichrome-type siderophores, termed ferricrocin (FC) and hydroxyferricrocin [3]. TAFC, fusarinine C, and ferricrocin are secreted to capture environmental iron; FC is also employed for intracellular iron handling within hyphae, and hydroxyferricrocin is employed for conidial iron storage [7,8,9,10]. The first committed step in siderophore biosynthesis is the formation of N5-hydroxyornithine from ornithine catalyzed by the monooxygenase SidA [5]. Subsequently, the pathways for the biosynthesis of fusarinine- and ferrichrome-type siderophores split due to the incorporation of different acyl-groups. The biosynthesis of fusarinine-type siderophores involves the mevalonyl-coenzyme A (CoA) ligase SidI, the mevalonyl-CoA hydratase SidH, the transacylase SidF, the nonribosomal peptide synthetases SidD and the transacetylase SidG [11,12]. The biosynthesis of ferrichrome-type siderophores involves the transacetylase SidL and the nonribosomal peptide synthetases SidC [12,13]. After the chelation of extracellular siderophores, ferric siderophores are taken up by specific siderophore-iron transporters: Sit1 and Sit2 for ferrichrome-type siderophores, MirD for fusarinine C, and MirB for TAFC [14,15,16]. The intracellular utilization of iron chelated by TAFC and fusarinine C involves siderophore hydrolysis mediated by SidJ and EstB [17,18,19].
The maintenance of iron homeostasis in A. fumigatus involves two iron-sensing transcription factors, termed as SreA and HapX, which act in cooperation with the CCAAT-binding complex [20,21,22]. During iron sufficiency, SreA represses SIA and RIA to avoid the toxicity caused by excessive iron uptake [23]. During iron starvation, HapX represses iron-consuming pathways such as the tricarboxylic acid (TCA) cycle, respiration, and heme biosynthesis as well as vacuolar iron deposition to spare iron and activates SIA and RIA [23]. Iron excess converts HapX into an activator of iron-dependent pathways and vacuolar iron deposition-mediated iron detoxification [3,24,25,26,27]. In invertebrate and murine aspergillosis models, the lack of siderophore biosynthesis (SidA) was shown to cause avirulence, while a lack of either fusarinine- (SidI, SidH, SidF, SidD) or ferrichrome-type (SidC) siderophores, a lack of TAFC uptake (MirB), and a lack of HapX-mediated iron regulation have been shown to attenuate virulence [3,28,29,30]. Moreover, the regulation of SIA and RIA involves A. fumigatus as well as transcription factors that do not directly sense the cellular iron state, such as LeuB, AtrR, and SrbA, which link iron regulation with leucine and sterol metabolism, and consequently to hypoxia adaptation [3,31,32]. Furthermore, the Zn2Cys6 transcription factors AcuM and AcuK, which are essential for the activation of gluconeogenesis in both A. nidulans and A. fumigatus, have been implicated in the regulation of RIA and SIA in A. fumigatus strain Af293 but not in A. nidulans [33,34,35]. However, AcuM and AcuK, which are both crucial for the full virulence of A. fumigatus, most likely function as a heterodimeric complex, they also appear to function independently of each other [33,34,35]. Essential gluconeogenic genes regulated by AcuM and AcuK include phosphoenolpyruvate carboxykinase-encoding acuF, fructose-1,6-bisphosphatase-encoding acuG, and enolase-encoding acuN [34,36]. In addition, AcuM and AcuK appear to regulate other carbon metabolic genes including TCA cycle enzymes.
To further characterize the underlying rational, we here aimed to analyze the role of AcuM and AcuK in the iron homeostasis of A. fumigatus strain A1160+. In agreement with previous reports [33,36], we found that the lack of AcuM or AcuK decreases the siderophore production. However, our data indicated that AcuM or AcuK impact siderophore biosynthesis indirectly rather than by the direct transcriptional control of genes involved in SIA. Possible explanations for the discrepancies are discussed.

2. Materials and Methods

2.1. Growth Conditions

For spore production, A. fumigatus strains were grown in Aspergillus complex media containing 20 mg/L Glucose (Glc) (Carl Roth, Karlsruhe, Germany), 1 g/L yeast extract (Lab M Limited, Rochdale, UK), 2 g/L peptone (Carl Roth GmbH, Karlsruhe, Germany), 1 g/L casamino acids (Sigma-Aldrich Inc., St. Louis, MO, USA), salt solution, and iron-free trace elements [37], at 37 °C for 5 days. For all other experiments, Aspergillus minimal medium containing either 1% (w/v) glucose or 1% (w/v) fructose as carbon source and either 20 mM glutamine (Gln) or 20 mM ammonium chloride (NH4+) as nitrogen source [37] was used; the trace element solution was prepared without iron salts and iron supplementation was performed as described. FeSO4 was added as indicated. Acetate supplemented cultures contained 5 mM acetate. For plate growth essays, 104 spores of each strain was point-inoculated onto plates, which were incubated for 48 h at 37 °C. For liquid shake flask cultures, 100 mL were inoculated with 106 spores per mL and incubated with 200 rpm at 37 °C for 18 h.

2.2. A. fumigatus Strains Used

The mutant strains lacking AcuM or AcuK, ΔacuM and ΔacuK, were from the validated transcription factor deletion library [38] generated in A. fumigatus strain A1160+ (termed wt here), a derivative from the clinical strain A. fumigatus CEA10 lacking non-homologous recombination (ΔakuBku80::pyrG−zeo, pyrG−::pyrGAf; MAT1-1) to facilitate genetic manipulation [39,40,41]. The acuE gene (AFUA_6g03540) was deleted by the replacement with the hygromycin resistance cassette (hph). Therefore, acuE flanking 5′- and 3′-non-coding regions were amplified from wt gDNA using the primers PC48/PC49 and PC50/51, respectively. The hph resistance cassette was amplified from plasmid pAN7-1 [42] using the primers hph_RC_fwd/hph_rev. The fragments were then assembled using fusion PCR with the primers PC52/PC53. The transformation of A. fumigatus was performed as described previously [43,44]. Transformants were isolated using minimal medium plates containing 0.1 mg/mL hygromycin B, resulting in the ΔacuE mutant, which was confirmed by Southern blot analysis (Supplementary Figure S1). All strains used in this study are listed in Supplementary Table S1; primers and plasmids used for generation of the strains are listed in Supplementary Table S2.

2.3. RNA Isolation and Northern Blot Analysis

RNA was isolated from the mycelium using TRI Reagent (Sigma-Aldrich Inc., St. Louis, MO, USA) as per manufacturer’s protocol. Ten micrograms of total RNA were separated using a 1.2% agarose gel with 1.85% (w/v) formaldehyde. The gel was blotted onto a HybondTM-N+ membrane (Amersham Biosciences, Slough, UK). The detection by hybridization was performed using digoxigenin-labelled probes amplified by PCR. Primers used for the amplification of the Northern blot hybridization probes are listed in Supplementary Table S3.

2.4. Siderophore Analysis

Extraction and measurement of intracellular ferricrocin and extracellular TAFC was performed as previously described [21].

2.5. Statistical Analysis

Descriptive statistical analysis was performed with GraphPad Prism version 8.3.0 for Windows, GraphPad Software, San Diego, CA, USA, www.graphpad.com (31 January 2020).

3. Results

3.1. Lack of Either AcuM or AcuK Causes a Growth Defect under Both Iron Limitation and Sufficiency

To investigate a potential role of AcuM and AcuK in iron homeostasis, the growth of respective gene deletion mutants (ΔacuM and ΔacuK) was analyzed in comparison to the genetic background strain A1160+, a derivative of the clinical isolate CEA10 [40] and herein termed wt, with plate cultures reflecting different iron availability (Figure 1). In agreement with AcuM and AcuK being essential for gluconeogenesis [33,35,36], ΔacuM and ΔacuK mutant strains lacked growth when acetate and ammonium (NH4+) were used as carbon and nitrogen sources. In contrast, when glutamine (Gln) was used as the nitrogen source, the growth of the mutant strains was partially rescued as Gln can be used as an alternative, although not preferred, carbon source (Supplementary Figure S2).
With glucose (Glc) as a carbon source and Gln or NH4+ as a nitrogen source, both ΔacuK and ΔacuM mutant strains showed decreased growth under both iron starvation (−Fe), iron starvation in the presence of the ferrous iron-specific chelator bathophenathroline disulfonate (BPS), and iron sufficiency (+Fe) (Figure 1). BPS inhibits RIA and thereby emphasizes defects in SIA [5]. Supplementary Figure S3 shows that a siderophore-lacking ΔsidA mutant displays a growth defect under iron starvation in both the absence and the presence of BPS, which underlines the suitability of the used conditions to detect defects in the adaptation to iron starvation. Similarly, both ΔacuM and ΔacuK mutant strains displayed decreased biomass formation in liquid shake flask cultures under both iron starvation (−Fe) and iron sufficiency (+Fe) using either Gln or NH4+ as a nitrogen source (Figure 2A). Notably, when Gln was used as a nitrogen source, biomass formation was more severely impacted under iron sufficiency than iron depletion. The same was not observed when NH4+ was used as a nitrogen source, where decreases in biomass in strains lacking AcuM and AcuK were consistent under iron limitation and sufficiency. The biomass production of the wt strain during iron limitation was about 25% of that produced under iron sufficiency (Figure 2B), which clearly indicates iron starvation-mediated growth reduction. Notably, both ΔacuM and ΔacuK showed an about 10% increased −Fe/+Fe biomass ratio compared to wt with Gln as nitrogen source and a similar ratio with NH4+ as nitrogen source (Figure 2B). These data are in agreement with a general growth defect of the mutants rather than a defect in adaptation to iron starvation.

3.2. Lack of Either AcuM or AcuK Decreases the Production of Both Extracellular and Intracellular Siderophores

As a next step, the production of extracellular and intracellular siderophores was analyzed; i.e., the TAFC content of the supernatants and the ferricrocin content of the aforementioned harvested biomass from the liquid shake flask cultures was compared (Figure 2C). Lack of AcuM decreased relative levels of TAFC to 46% and 48%, when accounting for biomass differences, as well as that of ferricrocin to 72% and 73%, with Gln and NH4+ as nitrogen source, respectively. The lack of AcuK decreased the production of TAFC to 64% and 48% as well as that of ferricrocin to 70% and 70% in these two nitrogen sources. Taken together, these data demonstrate that AcuM and AcuK are involved in siderophore production.

3.3. Transcriptional Iron Regulation of RIA and SIA Is Largely Unaffected by Lack of AcuK or AcuM

Our data revealed an influence of AcuM and AcuK on siderophore production. Therefore, the potential implications of AcuM and AcuK in the transcriptional control of iron homeostasis was investigated by comparing the transcript levels of genes involved in iron acquisition in wt and mutants lacking AcuM or AcuK (Figure 3). Northern blot analyses indicated that the transcript levels of genes involved in RIA (iron permease-encoding ftrA), siderophore uptake (siderophore transporter-encoding mirB, mirD, and sit1) and siderophore biosynthesis (ornithine hydroxylase-encoding sidA and acyltransferase-encoding sidF) are largely unaffected by the lack of AcuM or AcuK: all investigated genes were similarly induced during iron limitation and downregulated during iron sufficiency in wt, ΔacuM, and ΔacuK strains. These data indicate that AcuK and AcuM are not involved in the transcriptional regulation of iron uptake systems in A. fumigatus A1160+, but rather indirectly impact siderophore production via metabolic effects.

3.4. Acetate Supplementation Cures the Defect in Ferricrocin Production Caused by Lack of AcuM or AcuK

Acetyl-CoA is a substrate for siderophore biosynthesis in A. fumigatus. It is directly used in ferricrocin biosynthesis and indirectly for the synthesis of anhydromevalonyl-CoA, which is required for the production of fusarinine-type siderophores such as TAFC [3]. Due to the inability of the ΔacuM and ΔacuK mutants to utilize acetate as a carbon source and their potential general role in carbon metabolism indicated by the growth defect with Glc as carbon source described above, we hypothesized that AcuM and AcuK might be involved in acetyl-CoA supply for growth and/or siderophore biosynthesis. Therefore, we analyzed the effect of acetate supplementation to a final concentration of 5 mM on growth and siderophore production using either Glc or fructose (Fru) as the main carbon source. Fru was used as a main carbon source to decrease the possible carbon catabolite repression effects mediated by Glc [45]. The ΔacuM and ΔacuK mutants were able to grow with Fru as the sole carbon source on solid media, displaying slightly decreased growth compared to wt similarly to using Glc as a carbon source (Figure 4). Moreover, ΔacuM and ΔacuK mutants showed defects in biomass formation, TAFC production and ferricrocin production with Fru as the sole carbon source similar to Glc as the sole carbon source in liquid shake flask cultures with NH4+ as the nitrogen source (Figure 5). The ΔacuM and ΔacuK mutants showed wt-like −Fe/+Fe biomass ratios with Fru similar to Glc as carbon source with and without acetate supplementation (Figure 5B). However, acetate supplementation cured the defect in the production of ferricrocin, but not TAFC, of ΔacuM and ΔacuK mutants irrespective of carbon source. Remarkably, acetate supplementation increased ferricrocin production by about 2.5-fold and 2-fold with Glc and Fru as the main carbon source, even in the wt (Figure 5). These data are in agreement with AcuK and AcuM, influencing at least ferricrocin production via metabolic control.

3.5. Transcriptional Regulation of Carbon Metabolism Is Affected by Iron Starvation but Is Only Partly Reliant on AcuM and AcuK

In a next step, the impact of AcuM and AcuK on the transcriptional regulation of selected carbon metabolic genes was investigated under iron limitation and sufficiency with Glc as a carbon source, and either Gln or NH4+ as a nitrogen source (Figure 6). The metabolic links of the enzymes encoded by these genes are shown in Supplementary Figure S4. A scheme for the incorporation of acetyl-CoA and acetyl-CoA-derived anhydromevalonyl-CoA in the biosynthesis of TAFC and ferricrocin has been published previously [3].
The carboxykinase-encoding acuF and fructose-1,6-bisphosphatase-encoding acuG are essential gluconeogenic genes that have previously been shown to be directly regulated by AcuM and AcuK [34,36]. In agreement, the transcription of acuF was found to be strictly dependent on AcuM and AcuK during both iron sufficiency and iron limitation, as shown in Figure 6. The transcription of acuG was also strictly dependent on AcuM and AcuK during iron sufficiency; however, it appeared less reliant on both transcription factors during iron limitation. In contrast, the expression of gluconeogenetic enolase-encoding acuN was dependent on AcuM and AcuK mainly during iron limitation, but not sufficiency. The expression of isocitrate lyase-encoding acuD, which is essential for the glyoxylate cycle [46,47], was largely unaffected by iron availability in wt, but strictly dependent on AcuM and AcuK. The expression of another glyoxylate cycle gene, malate synthase-encoding acuE, showed upregulation during iron starvation in wt, and was partly dependent on AcuM and AcuK. Acetyl-CoA synthetase-encoding facA, which mediates the cytosolic acetyl-CoA production [48], and displayed upregulation during iron starvation independent of AcuM and AcuK, which is in agreement with increased acetyl-CoA requirement for siderophore production. The TCA cycle-involved aconitase-encoding acoA was downregulated during iron starvation and the expression was independent of AcuM and AcuK; this regulation was previously demonstrated to be mediated by the iron-sensing regulator HapX [25]. Taken together, these results demonstrate that iron limitation modulates the transcriptional regulation of carbon metabolism dependently and independently of AcuM and AcuK. Notably, the transcript levels of acuM and acuK were previously found to be similar during iron limitation, and insufficiency in a transcriptomic study [49], and acuM transcript levels were found to be similar during iron limitation and sufficiency even in the presence of an iron chelator [36].

3.6. Lack of AcuE Does Not Affect Growth Nor Siderophore Production

The iron limitation-induced upregulation of acuE in wt combined with a decreased expression in ΔacuM and ΔacuK (Figure 6) indicated a potential role of malate synthase in adaptation to iron starvation including siderophore biosynthesis. As expected [46,50], the inactivation of malate synthase by the deletion of the encoding gene (mutant strain ΔacuE) blocked the utilization of acetate as a carbon source (Figure 7). However, ΔacuE displayed wt-like growth on solid media with both Glc and Fru as carbon sources using either Gln or NH4+ as a nitrogen source under iron-limitation and sufficiency. When tested in a liquid shake flask culture, ΔacuE showed wt-like biomass formation during both iron limitation and sufficiency as well as the wt-like production of TAFC and ferricrocin with either Glc or Fru as the carbon source and NH4+ as the nitrogen source (Figure 8).

4. Discussion

Here, we show that the lack of AcuM or AcuK in A. fumigatus strain A1160+ decreases the production of both extracellular TAFC and intracellular ferricrocin. Notably, the maximum decrease, dependent on the nitrogen source and the siderophore-type, did not exceed 48%, which indicates a modulation of siderophore production by these transcription factors. The transcript levels of genes involved in RIA, siderophore uptake, and siderophore biosynthesis, were largely unaffected by the lack of AcuM or AcuK, indicating that AcuK and AcuM are not involved in the transcriptional regulation of iron uptake systems in A. fumigatus A1160+, but rather indirectly impact the siderophore production via metabolic control. In agreement, acetate supplementation cured the intracellular siderophore production of ΔacuM and ΔacuK. However, acetate supplementation did not cure the TAFC production defect of ΔacuM and ΔacuK. In this respect, it is important to note that ferricrocin biosynthesis is based on the cytosolic use of acetyl-CoA for SidL-mediated acetylation of hydroxyornithine [13], while TAFC biosynthesis utilizes anhydromevalonyl-CoA, which is derived from acetyl-CoA via mevalonate synthesis, for the SidF-mediated acylation of hydroxyornithine within peroxisomes [51]. Consequently, the results indicate that AcuM and AcuK are involved in a cytosolic acetyl-CoA supply for ferricrocin production, which can be cured by acetate supplementation in contrast to TAFC biosynthesis taking place in peroxisomes. The ΔacuM and ΔacuK mutant strains displayed with Glc as a carbon source a similar growth defect under iron limitation and sufficiency, which suggests a general role in carbon metabolism apart from gluconeogenesis, rather than a direct role in direct iron regulation. In agreement, the chromatin-immunoprecipitation analysis showed the inter-dependent DNA binding of AcuM and AcuK to promoters of gluconeogenic genes in vivo independently of the carbon source in A. nidulans [8]. The impact of the metabolic flow of substrates from primary metabolism on secondary metabolites is a widely observed phenomenon in fungal metabolism [52,53]).
AcuM and AcuK are assumed to function mainly as part of the same complex [7,8]. Accordingly, phenotypes, siderophore production, and transcriptomic pattern were found to be highly similar between ΔacuM and ΔacuK. However, a study conducted in A. fumigatus Af293 indicated that AcuM and AcuK have partially independent functions of each other [7].
Previous reports using the A. fumigatus strain Af293 suggested the direct transcriptional regulation of iron homeostatic genes by AcuK or AcuM [33,36], which contrasts with the gene expression data presented herein. The differences might be explained by strain-specific effects. In this respect, it is interesting to note that Af293 shows a growth defect in liquid minimal medium shake flask cultures [54]. The studies with Af293 have been conducted with a complex medium, Sabouraud dextrose, employing the cell permeable iron chelator 1,10-phenanthroline, which is consequently able to chelate metals intracellularly [34,36]. In contrast, the studies described herein used to investigate siderophore production and the transcriptional control of iron homeostatic genes were performed without iron chelators to mimic natural iron limitation. Moreover, the chelator used here for some plate assays, BPS, is cell-impermeable to limit extracellular iron availability. Notably, both 1,10-phenanthroline and BPS are capable of chelating other metals, despite their preference for iron [55,56]. Consequently, chelators might affect metabolism in an iron-independent manner. Interestingly, AcuM has been reported to play no role in siderophore-mediated iron acquisition in A. nidulans [34,36]. In comparison, the transcriptional control of iron homeostasis by SreA and HapX is phylogenetically highly conserved [3].
The analysis of the transcript levels of selected carbon metabolic genes revealed that iron limitation impacts the regulation of carbon metabolism dependently and independently of AcuM and AcuK. As expected from previous studies identifying the targets of AcuM and AcuK [34,36], the transcription of gluconeogenetic carboxykinase-encoding acuF was found to be strictly dependent on AcuM and AcuK during iron sufficiency and iron limitation. However, the transcription of another previously identified target gene, gluconeogenetic fructose-1,6-bisphosphatase-encoding acuG, was dependent on AcuM and AcuK only during iron sufficiency, but was upregulated during iron limitation partly independently of AcuM and AcuK. In contrast, the expression of gluconeogenetic enolase-encoding acuN was dependent on AcuM and AcuK mainly during iron limitation but not sufficiency. The glyoxylate cycle essential gene acuD, which encodes isocitrate lyase [46,47], was largely unaffected by iron availability but strictly dependent on AcuM and AcuK. Another glyoxylate cycle gene, malate synthase-encoding acuE, showed upregulation during iron starvation in wt, which is partly dependent on AcuM and AcuK. Acetyl-CoA synthetase-encoding facA, which mediates cytosolic acetyl-CoA production [48], displayed upregulation during iron starvation independently of AcuM and AcuK, which is in agreement with the increased acetyl-CoA requirement for siderophore production. The TCA cycle-involved aconitase-encoding acoA showed downregulation during iron starvation independently of AcuM and AcuK; the iron regulation of acoA was previously demonstrated to be mediated by the iron-sensing regulator HapX [25]. The iron limitation-induced upregulation of acuE, partially dependently on AcuK and AcuM, indicated a possible role of the encoding enzyme in iron homeostasis and/or siderophore biosynthesis. As expected from previous studies [46,50], the inactivation of AcuE blocked the utilization of acetate as a carbon source but did not impact either growth under iron limitation and sufficiency nor siderophore production. These data suggest that AcuE is either not involved in iron starvation adaptation or that its absence is compensated by other metabolic pathways, such as fumarase-mediated malate synthesis in the TCA cycle. Nevertheless, these results demonstrated the influence of iron as well as AcuM and AcuK on carbon metabolism with Glc as carbon source.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof10050327/s1, Table S1: Strains used in this study [7,38,39,41]; Table S2: Primers used in this study; Table S3: Primers used for the amplification of the digoxigenin-labeled probes for Northern- and Southern blot analysis; Table S4: Absolute values of experiments presented in Figure 2; Table S5: Absolute values of experiments presented in Figure 5; Table S6: Absolute values of experiments presented in Figure 8; Figure S1: Scheme for deletion of acuE in A. fumigatus; Figure S2: Plate test of mutants lacking either AcuM or AcuK with Gln as the sole carbon source; Figure S3: Plate test of siderophore-lacking ΔsidA; Figure S4: Scheme for metabolic links of the enzymes encoded by genes presented in Figure 6.

Author Contributions

Conceptualization, H.H.; Methodology, P.C. and A.Y.; Validation, P.C., A.Y., H.H. and M.J.B.; Formal Analysis, P.C., A.Y. and H.H.; Investigation, P.C. and A.Y.; Resources, H.H.; Data Curation, P.C., A.Y. and H.H.; Writing—Original Draft Preparation, P.C. and H.H.; Writing—Review and Editing, P.C., A.Y., H.H. and M.J.B.; Visualization, P.C. and H.H.; Supervision, H.H.; Project Administration, H.H. and M.J.B.; Funding Acquisition, H.H. and M.J.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Austrian Science Fund (FWF) [10.55776/W1253]. For open access purposes, the author has applied a CC BY public copyright license to any author accepted manuscript version arising from this submission. M. J. Bromley was supported by Wellcome Trust (grants: 219551/Z/19/Z and 208396/Z/17/Z).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Arastehfar, A.; Carvalho, A.; Houbraken, J.; Lombardi, L.; Garcia-Rubio, R.; Jenks, J.D.; Rivero-Menendez, O.; Aljohani, R.; Jacobsen, I.D.; Berman, J.; et al. Aspergillus fumigatus and aspergillosis: From basics to clinics. Stud. Mycol. 2021, 100, 100115. [Google Scholar] [CrossRef]
  2. Brown, G.D.; Denning, D.W.; Gow, N.A.R.; Levitz, S.M.; Netea, M.G.; White, T.C. Hidden killers: Human fungal infections. Sci. Transl. Med. 2012, 4, 165rv13. [Google Scholar] [CrossRef]
  3. Misslinger, M.; Hortschansky, P.; Brakhage, A.A.; Haas, H. Fungal iron homeostasis with a focus on Aspergillus fumigatus. Biochim. Biophys. Acta BBA—Mol. Cell Res. 2021, 1868, 118885. [Google Scholar] [CrossRef]
  4. Blatzer, M.; Binder, U.; Haas, H. The Metalloreductase FreB Is Involved in adaptation of Aspergillus fumigatus to iron starvation. Fungal Genet. Biol. 2011, 48, 1027–1033. [Google Scholar] [CrossRef]
  5. Schrettl, M.; Bignell, E.; Kragl, C.; Joechl, C.; Rogers, T.; Arst, H.N.; Haynes, K.; Haas, H. Siderophore biosynthesis but not reductive iron assimilation is essential for Aspergillus fumigatus virulence. J. Exp. Med. 2004, 200, 1213–1219. [Google Scholar] [CrossRef]
  6. Hider, R.C.; Kong, X. Chemistry and biology of siderophores. Nat. Prod. Rep. 2010, 27, 637–657. [Google Scholar] [CrossRef]
  7. Happacher, I.; Aguiar, M.; Alilou, M.; Abt, B.; Baltussen, T.J.H.; Decristoforo, C.; Melchers, W.J.G.; Haas, H. The siderophore ferricrocin mediates iron acquisition in Aspergillus fumigatus. Microbiol. Spectr. 2023, 11, e00496-23. [Google Scholar] [CrossRef]
  8. Schrettl, M.; Bignell, E.; Kragl, C.; Sabiha, Y.; Loss, O.; Eisendle, M.; Wallner, A.; Arst, H.N., Jr.; Haynes, K.; Haas, H. Distinct roles for intra- and extracellular siderophores during Aspergillus fumigatus infection. PLoS Pathog. 2007, 3, e128. [Google Scholar] [CrossRef]
  9. Wallner, A.; Blatzer, M.; Schrettl, M.; Sarg, B.; Lindner, H.; Haas, H. Ferricrocin, a siderophore involved in intra- and transcellular iron distribution in Aspergillus fumigatus. Appl. Environ. Microbiol. 2009, 75, 4194–4196. [Google Scholar] [CrossRef]
  10. Eisendle, M.; Schrettl, M.; Kragl, C.; Müller, D.; Illmer, P.; Haas, H. The intracellular siderophore ferricrocin is involved in iron storage, oxidative-stress resistance, germination, and sexual development in Aspergillus nidulans. Eukaryot. Cell 2006, 5, 1596–1603. [Google Scholar] [CrossRef]
  11. Yasmin, S.; Alcazar-Fuoli, L.; Gründlinger, M.; Puempel, T.; Cairns, T.; Blatzer, M.; Lopez, J.F.; Grimalt, J.O.; Bignell, E.; Haas, H. Mevalonate governs interdependency of ergosterol and siderophore biosyntheses in the fungal pathogen Aspergillus fumigatus. Proc. Natl. Acad. Sci. USA 2012, 109, E497–E504. [Google Scholar] [CrossRef]
  12. Happacher, I.; Aguiar, M.; Yap, A.; Decristoforo, C.; Haas, H. Fungal Siderophore metabolism with a focus on Aspergillus fumigatus: Impact on biotic interactions and potential translational applications. Essays Biochem. 2023, 67, 829–842. [Google Scholar] [CrossRef]
  13. Blatzer, M.; Schrettl, M.; Sarg, B.; Lindner, H.H.; Pfaller, K.; Haas, H. SidL, an Aspergillus fumigatus transacetylase involved in biosynthesis of the siderophores ferricrocin and hydroxyferricrocin. Appl. Environ. Microbiol. 2011, 77, 4959–4966. [Google Scholar] [CrossRef]
  14. Aguiar, M.; Orasch, T.; Shadkchan, Y.; Caballero, P.; Pfister, J.; Sastré-Velásquez, L.E.; Gsaller, F.; Decristoforo, C.; Osherov, N.; Haas, H. Uptake of the siderophore triacetylfusarinine C, but not fusarinine C, is crucial for virulence of Aspergillus fumigatus. mBio 2022, 13, e02192-22. [Google Scholar] [CrossRef]
  15. Aguiar, M.; Orasch, T.; Misslinger, M.; Dietl, A.-M.; Gsaller, F.; Haas, H. The siderophore transporters Sit1 and Sit2 are essential for utilization of ferrichrome-, ferrioxamine- and coprogen-type siderophores in Aspergillus fumigatus. J. Fungi 2021, 7, 768. [Google Scholar] [CrossRef]
  16. Dietl, A.-M.; Misslinger, M.; Aguiar, M.M.; Ivashov, V.; Teis, D.; Pfister, J.; Decristoforo, C.; Hermann, M.; Sullivan, S.M.; Smith, L.R.; et al. The siderophore transporter Sit1 determines susceptibility to the antifungal VL-2397. Antimicrob. Agents Chemother. 2019, 63, e00807-19. [Google Scholar] [CrossRef]
  17. Kragl, C.; Schrettl, M.; Abt, B.; Sarg, B.; Lindner, H.H.; Haas, H. EstB-mediated hydrolysis of the siderophore triacetylfusarinine c optimizes iron uptake of Aspergillus fumigatus. Eukaryot. Cell 2007, 6, 1278–1285. [Google Scholar] [CrossRef]
  18. Gründlinger, M.; Gsaller, F.; Schrettl, M.; Lindner, H.; Haas, H. Aspergillus fumigatus SidJ mediates intracellular siderophore hydrolysis. Appl. Environ. Microbiol. 2013, 79, 7534–7536. [Google Scholar] [CrossRef]
  19. Ecker, F.; Haas, H.; Groll, M.; Huber, E.M. Iron scavenging in Aspergillus Species: Structural and biochemical insights into fungal siderophore esterases. Angew. Chem. Int. Ed. 2018, 57, 14624–14629. [Google Scholar] [CrossRef]
  20. Misslinger, M.; Scheven, M.T.; Hortschansky, P.; López-Berges, M.S.; Heiss, K.; Beckmann, N.; Heigl, T.; Hermann, M.; Krüger, T.; Kniemeyer, O.; et al. The monothiol glutaredoxin GrxD is essential for sensing iron starvation in Aspergillus fumigatus. PLoS Genet. 2019, 15, e1008379. [Google Scholar] [CrossRef]
  21. Misslinger, M.; Lechner, B.E.; Bacher, K.; Haas, H. Iron-sensing is governed by mitochondrial, not by cytosolic iron–sulfur cluster biogenesis in Aspergillus fumigatus. Metallomics 2018, 10, 1687–1700. [Google Scholar] [CrossRef] [PubMed]
  22. Hortschansky, P.; Haas, H.; Huber, E.M.; Groll, M.; Brakhage, A.A. The CCAAT-binding complex (CBC) in Aspergillus species. Biochim. Biophys. Acta Gene Regul. Mech. 2017, 1860, 560–570. [Google Scholar] [CrossRef] [PubMed]
  23. Schrettl, M.; Beckmann, N.; Varga, J.; Heinekamp, T.; Jacobsen, I.D.; Jöchl, C.; Moussa, T.A.; Wang, S.; Gsaller, F.; Blatzer, M.; et al. HapX-mediated adaption to iron starvation is crucial for virulence of Aspergillus fumigatus. PLoS Pathog. 2010, 6, e1001124. [Google Scholar] [CrossRef] [PubMed]
  24. Gsaller, F.; Hortschansky, P.; Beattie, S.R.; Klammer, V.; Tuppatsch, K.; Lechner, B.E.; Rietzschel, N.; Werner, E.R.; Vogan, A.A.; Chung, D.; et al. the Janus transcription factor HapX controls fungal adaptation to both iron starvation and iron excess. EMBO J. 2014, 33, 2261–2276. [Google Scholar] [CrossRef] [PubMed]
  25. Furukawa, T.; Scheven, M.T.; Misslinger, M.; Zhao, C.; Hoefgen, S.; Gsaller, F.; Lau, J.; Jöchl, C.; Donaldson, I.; Valiante, V.; et al. The fungal CCAAT-Binding complex and HapX display highly variable but evolutionary conserved synergetic promoter-specific DNA recognition. Nucleic Acids Res. 2020, 48, 3567–3590. [Google Scholar] [CrossRef] [PubMed]
  26. López-Berges, M.S.; Scheven, M.T.; Hortschansky, P.; Misslinger, M.; Baldin, C.; Gsaller, F.; Werner, E.R.; Krüger, T.; Kniemeyer, O.; Weber, J.; et al. The bZIP transcription factor HapX is post-translationally regulated to control iron homeostasis in Aspergillus fumigatus. Int. J. Mol. Sci. 2021, 22, 7739. [Google Scholar] [CrossRef] [PubMed]
  27. Gsaller, F.; Eisendle, M.; Lechner, B.E.; Schrettl, M.; Lindner, H.; Müller, D.; Geley, S.; Haas, H. The interplay between vacuolar and siderophore-mediated iron storage in Aspergillus fumigatus. Metallomics 2012, 4, 1262–1270. [Google Scholar] [CrossRef] [PubMed]
  28. Schrettl, M.; Ibrahim-Granet, O.; Droin, S.; Huerre, M.; Latgé, J.-P.; Haas, H. The crucial role of the Aspergillus fumigatus siderophore system in interaction with alveolar macrophages. Microbes Infect. Inst. Pasteur 2010, 12, 1035–1041. [Google Scholar] [CrossRef] [PubMed]
  29. Chamilos, G.; Bignell, E.M.; Schrettl, M.; Lewis, R.E.; Leventakos, K.; May, G.S.; Haas, H.; Kontoyiannis, D.P. Exploring the concordance of Aspergillus fumigatus pathogenicity in mice and Toll-deficient flies. Med. Mycol. 2010, 48, 506–510. [Google Scholar] [CrossRef] [PubMed]
  30. Slater, J.L.; Gregson, L.; Denning, D.W.; Warn, P.A. Pathogenicity of Aspergillus fumigatus mutants assessed in Galleria mellonella matches that in mice. Med. Mycol. 2011, 49, S107–S113. [Google Scholar] [CrossRef]
  31. Long, N.; Orasch, T.; Zhang, S.; Gao, L.; Xu, X.; Hortschansky, P.; Ye, J.; Zhang, F.; Xu, K.; Gsaller, F.; et al. The Zn2Cys6-type transcription factor LeuB cross-links regulation of leucine biosynthesis and iron acquisition in Aspergillus fumigatus. PLoS Genet. 2018, 14, e1007762. [Google Scholar] [CrossRef] [PubMed]
  32. Yap, A.; Volz, R.; Paul, S.; Moye-Rowley, W.S.; Haas, H. Regulation of high-affinity iron acquisition, including acquisition mediated by the iron permease FtrA, is coordinated by AtrR, SrbA, and SreA in Aspergillus fumigatus. mBio 2023, 14, e00757-23. [Google Scholar] [CrossRef]
  33. Pongpom, M.; Liu, H.; Xu, W.; Snarr, B.D.; Sheppard, D.C.; Mitchell, A.P.; Filler, S.G. Divergent targets of Aspergillus fumigatus AcuK and AcuM transcription factors during growth in vitro versus invasive disease. Infect. Immun. 2015, 83, 923–933. [Google Scholar] [CrossRef] [PubMed]
  34. Suzuki, Y.; Murray, S.L.; Wong, K.H.; Davis, M.A.; Hynes, M.J. Reprogramming of carbon metabolism by the transcriptional activators AcuK and AcuM in Aspergillus nidulans. Mol. Microbiol. 2012, 84, 942–964. [Google Scholar] [CrossRef] [PubMed]
  35. Hynes, M.J.; Szewczyk, E.; Murray, S.L.; Suzuki, Y.; Davis, M.A.; Sealy-Lewis, H.M. Transcriptional control of gluconeogenesis in Aspergillus nidulans. Genetics 2007, 176, 139–150. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, H.; Gravelat, F.N.; Chiang, L.Y.; Chen, D.; Vanier, G.; Ejzykowicz, D.E.; Ibrahim, A.S.; Nierman, W.C.; Sheppard, D.C.; Filler, S.G. Aspergillus fumigatus AcuM regulates both iron acquisition and gluconeogenesis. Mol. Microbiol. 2010, 78, 1038–1054. [Google Scholar] [CrossRef] [PubMed]
  37. Pontecorvo, G.; Roper, J.A.; Hemmons, L.M.; Macdonald, K.D.; Bufton, A.W.J. The genetics of Aspergillus nidulans. Adv. Genet. 1953, 5, 141–238. [Google Scholar] [CrossRef] [PubMed]
  38. Furukawa, T.; van Rhijn, N.; Fraczek, M.; Gsaller, F.; Davies, E.; Carr, P.; Gago, S.; Fortune-Grant, R.; Rahman, S.; Gilsenan, J.M.; et al. The Negative Cofactor 2 complex is a key regulator of drug resistance in Aspergillus fumigatus. Nat. Commun. 2020, 11, 427. [Google Scholar] [CrossRef] [PubMed]
  39. Fraczek, M.G.; Bromley, M.; Buied, A.; Moore, C.B.; Rajendran, R.; Rautemaa, R.; Ramage, G.; Denning, D.W.; Bowyer, P. The Cdr1B efflux transporter is associated with non-Cyp51a-mediated itraconazole resistance in Aspergillus fumigatus. J. Antimicrob. Chemother. 2013, 68, 1486–1496. [Google Scholar] [CrossRef]
  40. Bertuzzi, M.; van Rhijn, N.; Krappmann, S.; Bowyer, P.; Bromley, M.J.; Bignell, E.M. On the lineage of Aspergillus fumigatus isolates in common laboratory use. Med. Mycol. 2020, 59, 7–13. [Google Scholar] [CrossRef] [PubMed]
  41. da Silva Ferreira, M.E.; Kress, M.R.V.Z.; Savoldi, M.; Goldman, M.H.S.; Härtl, A.; Heinekamp, T.; Brakhage, A.A.; Goldman, G.H. The AkuBKU80 mutant deficient for nonhomologous end joining is a powerful tool for analyzing pathogenicity in Aspergillus fumigatus. Eukaryot. Cell 2006, 5, 207–211. [Google Scholar] [CrossRef]
  42. Punt, P.J.; Oliver, R.P.; Dingemanse, M.A.; Pouwels, P.H.; van den Hondel, C.A.M.J.J. Transformation of Aspergillus based on the hygromycin B resistance marker from Escherichia coli. Gene 1987, 56, 117–124. [Google Scholar] [CrossRef]
  43. Tilburn, J.; Scazzocchio, C.; Taylor, G.G.; Zabicky-Zissman, J.H.; Lockington, R.A.; Davies, R.W. Transformation by integration in Aspergillus nidulans. Gene 1983, 26, 205–221. [Google Scholar] [CrossRef] [PubMed]
  44. Szewczyk, E.; Nayak, T.; Oakley, C.E.; Edgerton, H.; Xiong, Y.; Taheri-Talesh, N.; Osmani, S.A.; Oakley, B.R. Fusion PCR and gene targeting in Aspergillus nidulans. Nat. Protoc. 2006, 1, 3111–3120. [Google Scholar] [CrossRef] [PubMed]
  45. Adnan, M.; Zheng, W.; Islam, W.; Arif, M.; Abubakar, Y.S.; Wang, Z.; Lu, G. Carbon catabolite repression in filamentous fungi. Int. J. Mol. Sci. 2017, 19, 48. [Google Scholar] [CrossRef] [PubMed]
  46. Olivas, I.; Royuela, M.; Romero, B.; Monteiro, M.C.; Mínguez, J.M.; Laborda, F.; De Lucas, J.R. Ability to grow on lipids accounts for the fully virulent phenotype in neutropenic mice of Aspergillus fumigatus null mutants in the key glyoxylate cycle enzymes. Fungal Genet. Biol. FG B 2008, 45, 45–60. [Google Scholar] [CrossRef] [PubMed]
  47. Todd, R.B.; Andrianopoulos, A.; Davis, M.A.; Hynes, M.J. FacB, the Aspergillus nidulans activator of acetate utilization genes, binds dissimilar DNA sequences. EMBO J. 1998, 17, 2042–2054. [Google Scholar] [CrossRef] [PubMed]
  48. Hynes, M.J.; Murray, S.L. ATP-citrate lyase is required for production of cytosolic acetyl coenzyme a and development in Aspergillus nidulans. Eukaryot. Cell 2010, 9, 1039–1048. [Google Scholar] [CrossRef] [PubMed]
  49. Schrettl, M.; Kim, H.S.; Eisendle, M.; Kragl, C.; Nierman, W.C.; Heinekamp, T.; Werner, E.R.; Jacobsen, I.; Illmer, P.; Yi, H.; et al. SreA-Mediated Iron Regulation in Aspergillus Fumigatus. Mol. Microbiol. 2008, 70, 27–43. [Google Scholar] [CrossRef] [PubMed]
  50. Sandeman, R.A.; Hynes, M.J. Isolation of the FacA (acetyl-coenzyme a synthetase) and AcuE (malate synthase) genes of Aspergillus nidulans. Mol. Gen. Genet. MGG 1989, 218, 87–92. [Google Scholar] [CrossRef] [PubMed]
  51. Gründlinger, M.; Yasmin, S.; Lechner, B.E.; Geley, S.; Schrettl, M.; Hynes, M.; Haas, H. Fungal siderophore biosynthesis is partially localized in peroxisomes. Mol. Microbiol. 2013, 88, 862–875. [Google Scholar] [CrossRef]
  52. Iacovelli, R.; Bovenberg, R.A.L.; Driessen, A.J.M. Nonribosomal Peptide Synthetases and Their Biotechnological Potential in Penicillium rubens. J. Ind. Microbiol. Biotechnol. 2021, 48, kuab045. [Google Scholar] [CrossRef] [PubMed]
  53. Kishi-Kaboshi, M.; Okada, K.; Kurimoto, L.; Murakami, S.; Umezawa, T.; Shibuya, N.; Yamane, H.; Miyao, A.; Takatsuji, H.; Takahashi, A.; et al. A Rice Fungal MAMP-Responsive MAPK Cascade Regulates Metabolic Flow to Antimicrobial Metabolite Synthesis. Plant J. 2010, 63, 599–612. [Google Scholar] [CrossRef]
  54. Bauer, I.; Abt, B.; Yap, A.; Leuchtle, B.; Haas, H. Online biomass monitoring enables characterization of the growth pattern of Aspergillus fumigatus in liquid shake conditions. J. Fungi 2022, 8, 1013. [Google Scholar] [CrossRef] [PubMed]
  55. Sigman, D.S.; Landgraf, R.; Perrin, D.M.; Pearson, L. Nucleic acid chemistry of the cuprous complexes of 1,10-phenanthroline and derivatives. Met. Ions Biol. Syst. 1996, 33, 485–513. [Google Scholar]
  56. Nam, K.H. Structural analysis of metal chelation of the metalloproteinase thermolysin by 1,10-phenanthroline. J. Inorg. Biochem. 2021, 215, 111319. [Google Scholar] [CrossRef] [PubMed]
Jof 10 00327 g001
Figure 1. Lack of either AcuM or AcuK blocks growth on acetate and decreases growth with Glc as the carbon source on solid media. Aspergillus fumigatus wt and ΔacuM and ΔacuK mutant strains were point-inoculated using 104 spores on minimal medium using either Glc or acetate as carbon sources and Gln or NH4+ as nitrogen sources. Media reflected iron limitation (−Fe), iron limitation in the presence of the iron-specific chelator BPS (1 µM FeSO4 plus 0.2 mM BPS) (BPS), and iron sufficiency (30 µM FeSO4). Plates were incubated at 37 °C for 48 h.
Figure 1. Lack of either AcuM or AcuK blocks growth on acetate and decreases growth with Glc as the carbon source on solid media. Aspergillus fumigatus wt and ΔacuM and ΔacuK mutant strains were point-inoculated using 104 spores on minimal medium using either Glc or acetate as carbon sources and Gln or NH4+ as nitrogen sources. Media reflected iron limitation (−Fe), iron limitation in the presence of the iron-specific chelator BPS (1 µM FeSO4 plus 0.2 mM BPS) (BPS), and iron sufficiency (30 µM FeSO4). Plates were incubated at 37 °C for 48 h.
Jof 10 00327 g001
Jof 10 00327 g002

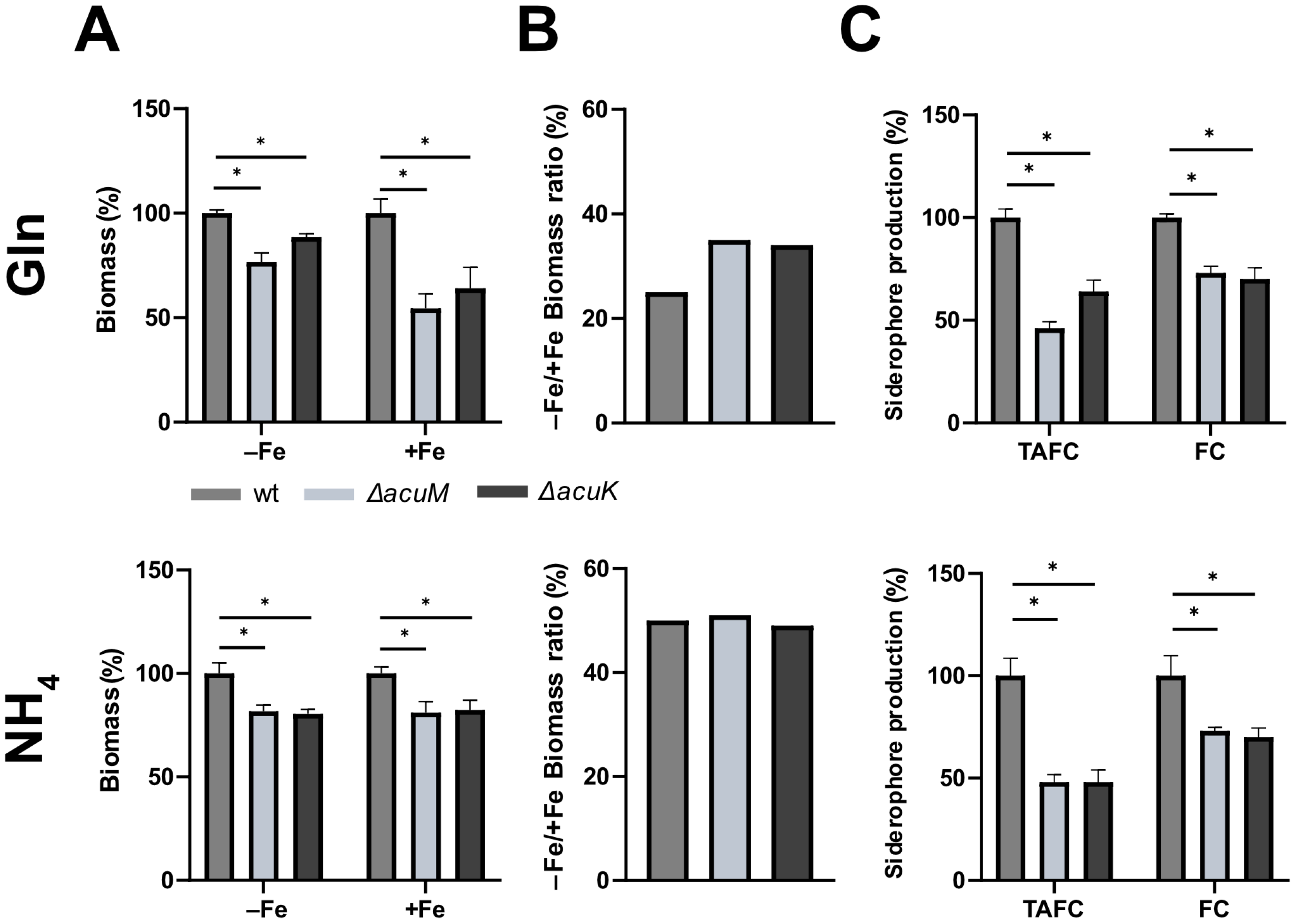

Figure 2. Lack of either AcuM or AcuK decreases liquid growth under both iron starvation and sufficiency, and reduces siderophore production. The 100 mL shake flask cultures were inoculated with 1 × 108 conidia of respective fungal strains. The used minimal medium contained Glc as a carbon source and either Gln or NH4+ as the nitrogen source. The media were either supplemented with 30 µM FeSO4 (+Fe) or lacked the addition of iron (−Fe). After incubation at 37 °C for 18 h, the biomass and supernatant of each culture was collected; biomass was measured after freeze-drying and normalized to that of wt grown under the same conditions (A). The −Fe/+Fe ratio of the biomass of each strain is shown in (B). TAFC was extracted from the collected supernatants and ferricrocin (FC) from the freeze-dried biomasses from iron limited cultures; values were normalized to that of wt grown under the same conditions. (C) Siderophore production under iron limitation normalized to biomass and wt. Siderophore production was not detected under iron sufficiency. The mean values ± SD of biological triplicates are shown and statistically significant differences by t-Student test are indicated by * (p ≤ 0.005). Absolute values are given in Supplementary Table S4.
Figure 2. Lack of either AcuM or AcuK decreases liquid growth under both iron starvation and sufficiency, and reduces siderophore production. The 100 mL shake flask cultures were inoculated with 1 × 108 conidia of respective fungal strains. The used minimal medium contained Glc as a carbon source and either Gln or NH4+ as the nitrogen source. The media were either supplemented with 30 µM FeSO4 (+Fe) or lacked the addition of iron (−Fe). After incubation at 37 °C for 18 h, the biomass and supernatant of each culture was collected; biomass was measured after freeze-drying and normalized to that of wt grown under the same conditions (A). The −Fe/+Fe ratio of the biomass of each strain is shown in (B). TAFC was extracted from the collected supernatants and ferricrocin (FC) from the freeze-dried biomasses from iron limited cultures; values were normalized to that of wt grown under the same conditions. (C) Siderophore production under iron limitation normalized to biomass and wt. Siderophore production was not detected under iron sufficiency. The mean values ± SD of biological triplicates are shown and statistically significant differences by t-Student test are indicated by * (p ≤ 0.005). Absolute values are given in Supplementary Table S4.
Jof 10 00327 g002
Jof 10 00327 g003

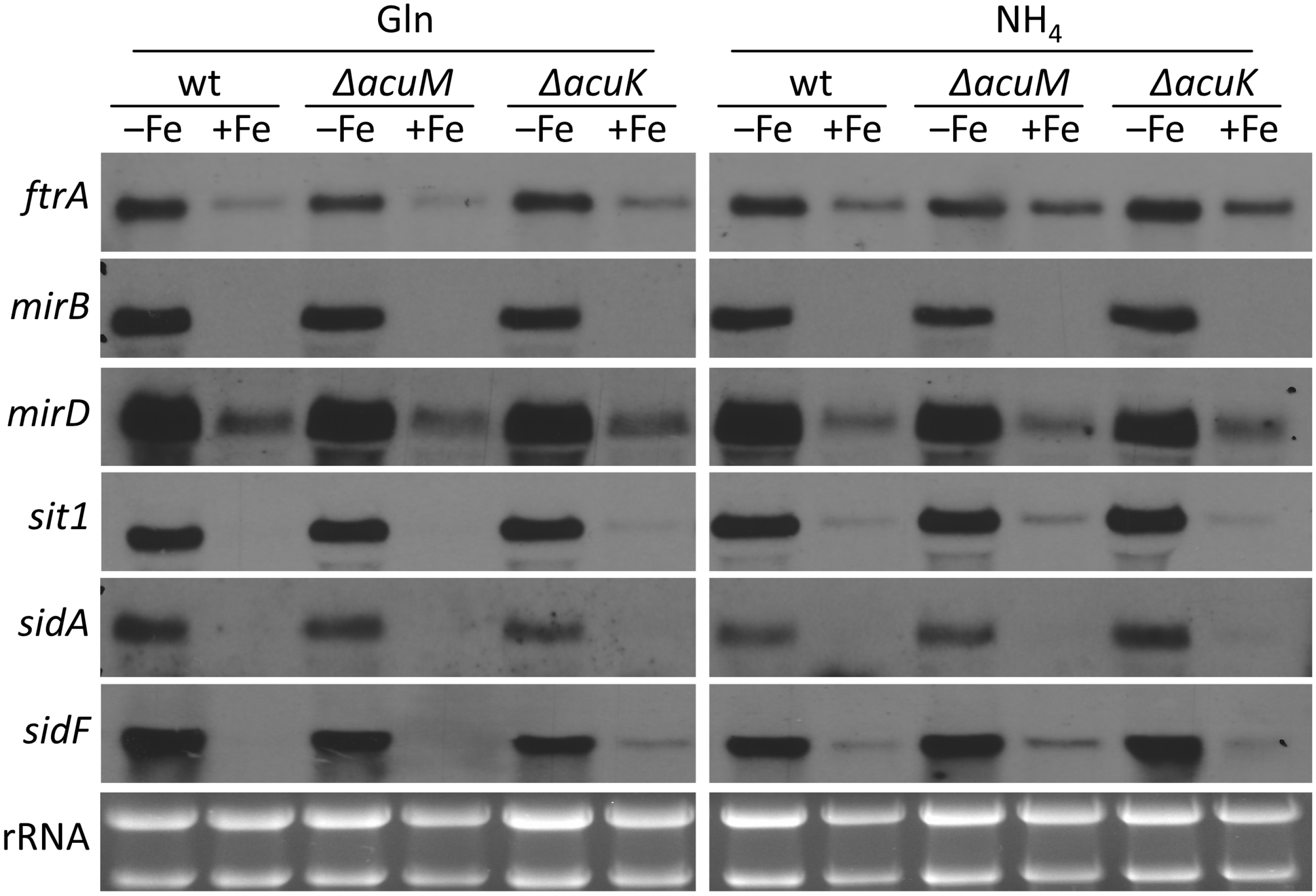

Figure 3. Transcriptional regulation of RIA and SIA is largely independent of AcuM and AcuK. Shake flask cultures were performed as described in Figure 2. Northern blot analysis was performed with isolated total RNA. rRNA served as a control for quality and loading of the RNA samples.
Figure 3. Transcriptional regulation of RIA and SIA is largely independent of AcuM and AcuK. Shake flask cultures were performed as described in Figure 2. Northern blot analysis was performed with isolated total RNA. rRNA served as a control for quality and loading of the RNA samples.
Jof 10 00327 g003
Jof 10 00327 g004
Figure 4. Lack of AcuM or AcuK causes a similar growth defect with Glc and Fru as the sole carbon source. Experimental details are described in Figure 1.
Figure 4. Lack of AcuM or AcuK causes a similar growth defect with Glc and Fru as the sole carbon source. Experimental details are described in Figure 1.
Jof 10 00327 g004
Jof 10 00327 g005

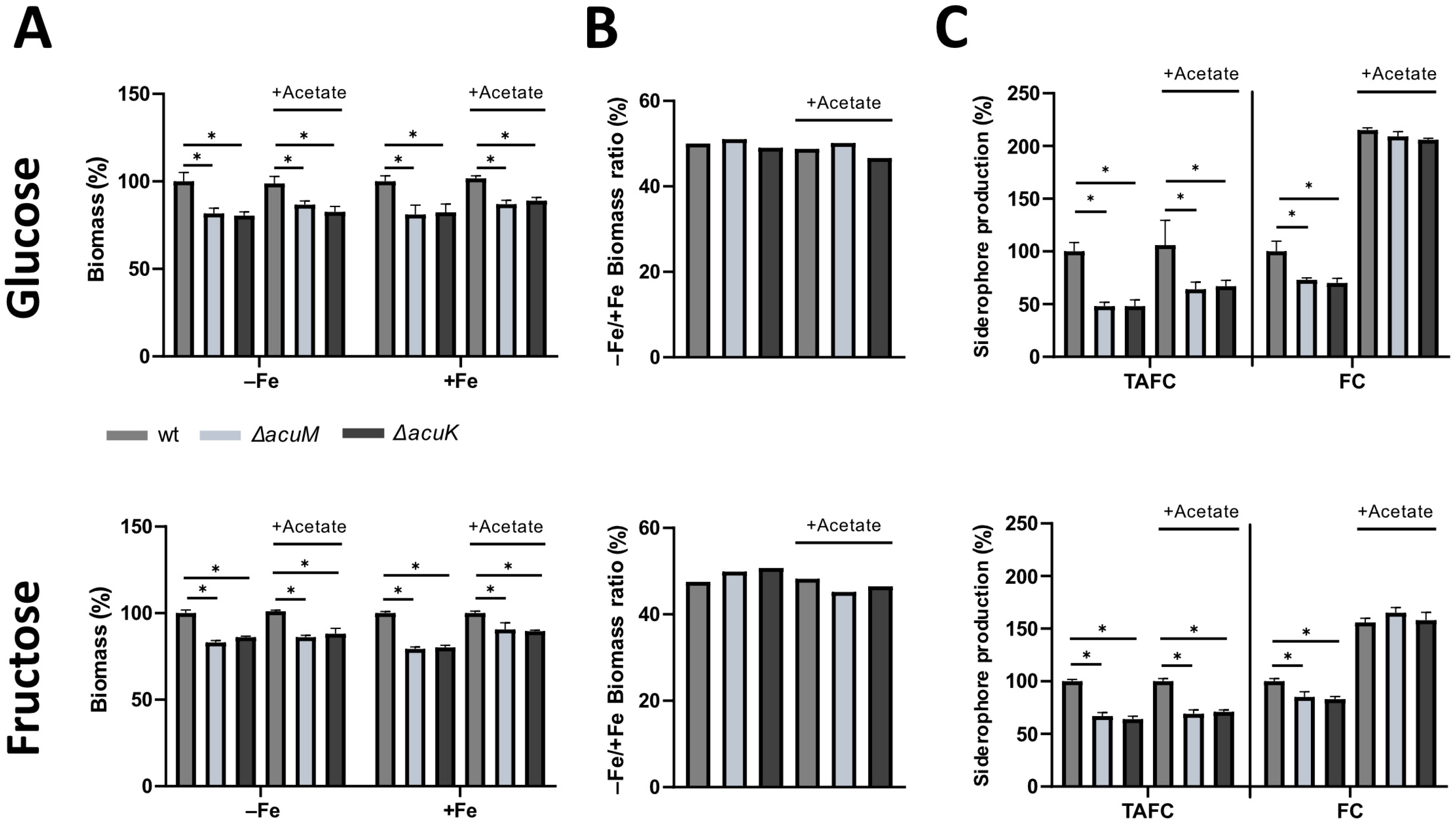

Figure 5. Acetate supplementation cures the ferricrocin production defect caused by lack of AcuM or AcuK but does not affect the defects in growth or TAFC production. Cultures contained NH4+ as the sole nitrogen source and either Glc or Fru as the sole carbon source. Cultures supplemented with 5 mM acetate are labeled with “+Acetate”. Experimental details are described in Figure 2. For a better comparison, the Glc culture results without acetate supplementation from Figure 2 are included. The biomass and siderophore values of acetate-supplemented cultures were normalized to the wt grown under the same conditions without acetate supplementation. Absolute values are given in Supplementary Table S5. (A) Biomass (%) measured after freeze-drying and normalized to that of wt grown under the same conditions; (B) −Fe/+Fe ratio of the biomass of each strain; (C) Siderophore production under iron limitation normalized to biomass and wt. The mean values ± SD of biological triplicates are shown and statistically significant differences by t-Student test are indicated by * (p ≤ 0.005).
Figure 5. Acetate supplementation cures the ferricrocin production defect caused by lack of AcuM or AcuK but does not affect the defects in growth or TAFC production. Cultures contained NH4+ as the sole nitrogen source and either Glc or Fru as the sole carbon source. Cultures supplemented with 5 mM acetate are labeled with “+Acetate”. Experimental details are described in Figure 2. For a better comparison, the Glc culture results without acetate supplementation from Figure 2 are included. The biomass and siderophore values of acetate-supplemented cultures were normalized to the wt grown under the same conditions without acetate supplementation. Absolute values are given in Supplementary Table S5. (A) Biomass (%) measured after freeze-drying and normalized to that of wt grown under the same conditions; (B) −Fe/+Fe ratio of the biomass of each strain; (C) Siderophore production under iron limitation normalized to biomass and wt. The mean values ± SD of biological triplicates are shown and statistically significant differences by t-Student test are indicated by * (p ≤ 0.005).
Jof 10 00327 g005
Jof 10 00327 g006

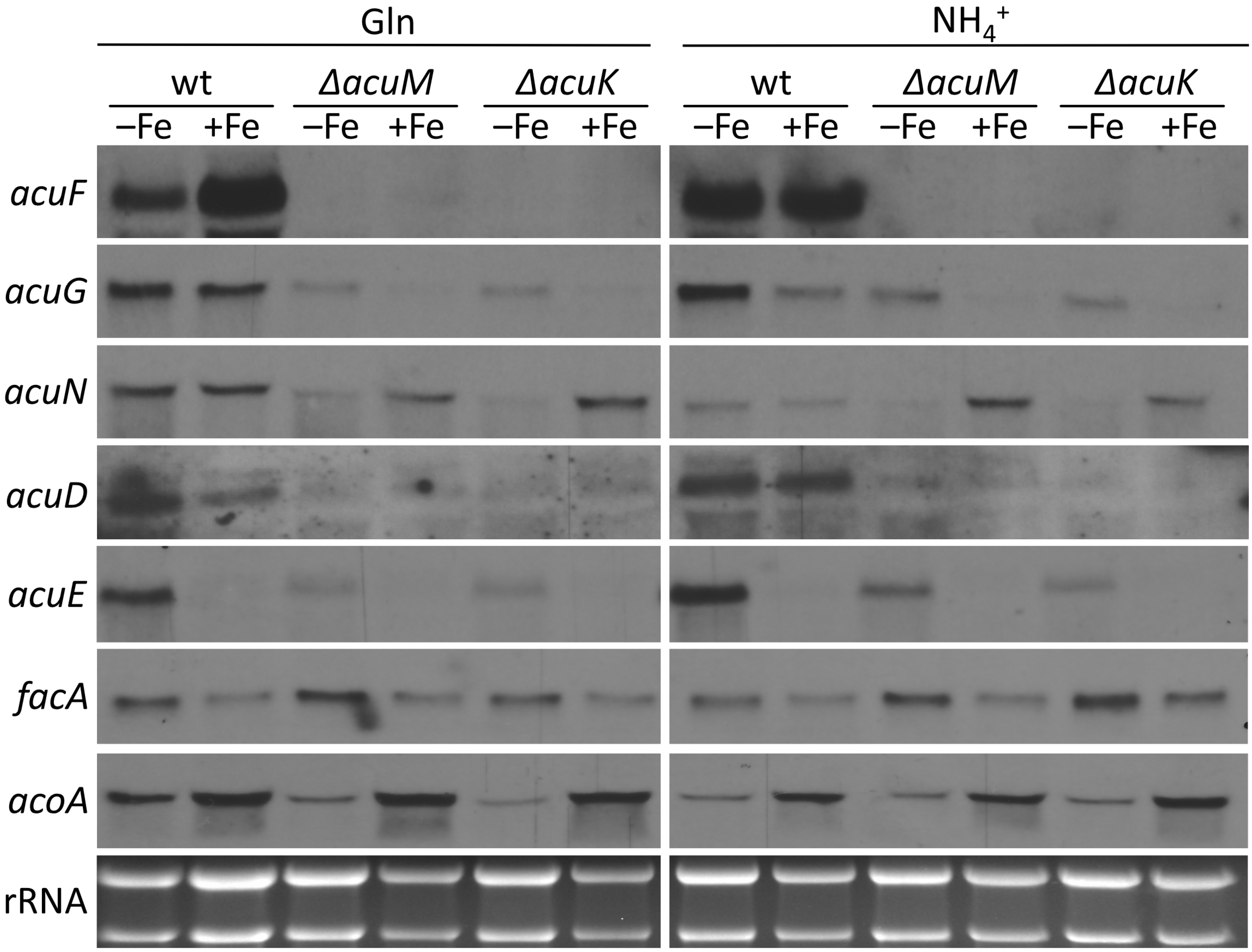

Figure 6. Transcriptional regulation of carbon metabolism is affected by iron starvation dependently and independently of AcuM and AcuK. Shake flask cultures were performed as described in Figure 2 with Glc as the carbon source and either Gln or NH4+ as the nitrogen source. Northern blot analysis was performed with isolated total RNA. rRNA served as a control for quality and loading of the RNA samples.
Figure 6. Transcriptional regulation of carbon metabolism is affected by iron starvation dependently and independently of AcuM and AcuK. Shake flask cultures were performed as described in Figure 2 with Glc as the carbon source and either Gln or NH4+ as the nitrogen source. Northern blot analysis was performed with isolated total RNA. rRNA served as a control for quality and loading of the RNA samples.
Jof 10 00327 g006
Jof 10 00327 g007
Figure 7. Lack of AcuE blocks the utilization of acetate as a carbon source. Experimental details are described in Figure 1 using either Glc or acetate as the carbon source and either Gln or NH4+ as the nitrogen source.
Figure 7. Lack of AcuE blocks the utilization of acetate as a carbon source. Experimental details are described in Figure 1 using either Glc or acetate as the carbon source and either Gln or NH4+ as the nitrogen source.
Jof 10 00327 g007
Jof 10 00327 g008

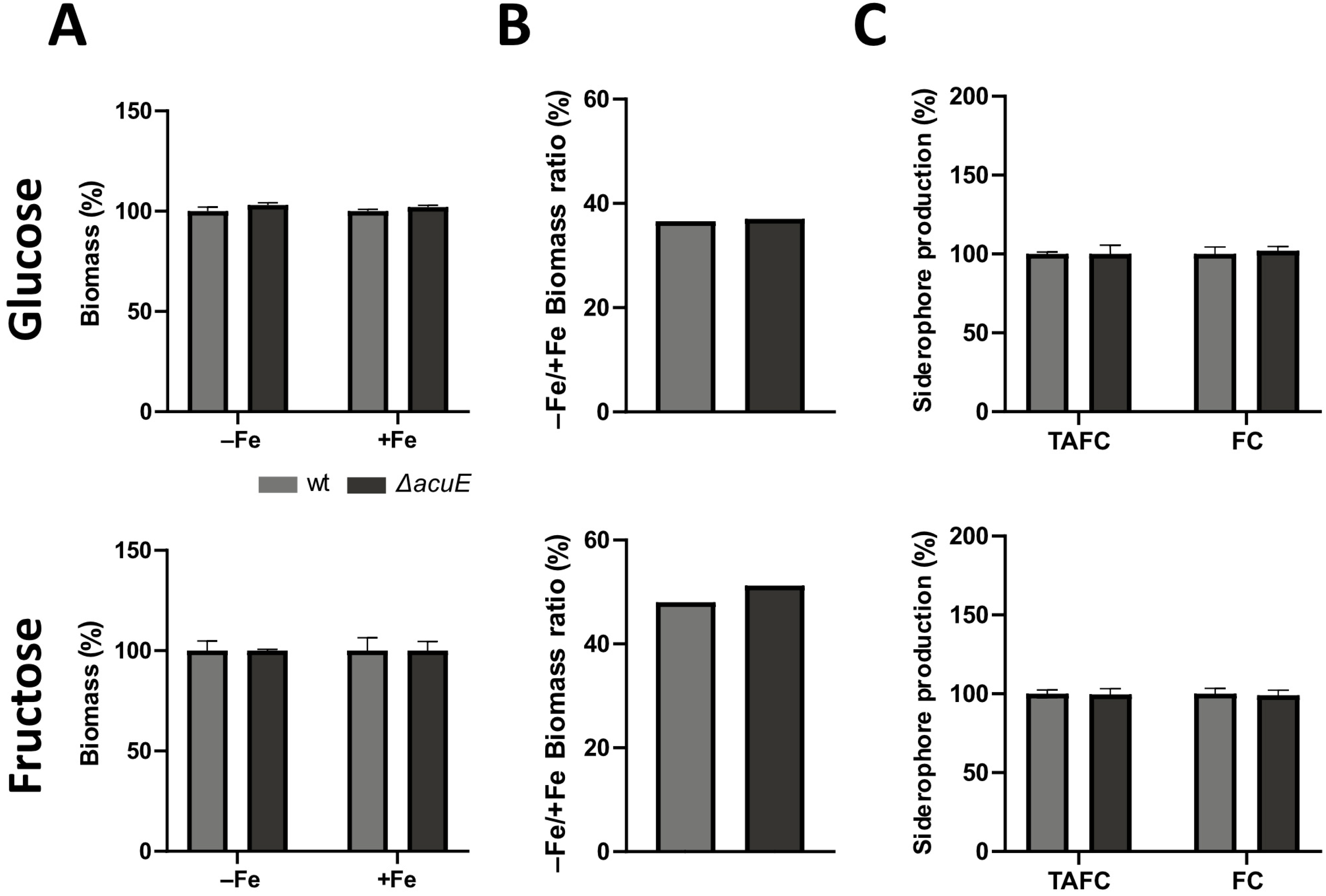

Figure 8. Lack of AcuE affects neither growth under iron limitation and sufficiency nor production of TAFC or ferricrocin. Cultures contained either Glc or Fru as the sole carbon source and NH4+ as the sole nitrogen source. Experimental details are described in Figure 2. Absolute values are given in Supplementary Table S6. (A) Biomass (%) measured after freeze-drying and normalized to that of wt grown under the same conditions (B) −Fe/+Fe ratio of the biomass of each strain; (C) Siderophore production under iron limitation normalized to biomass and wt.
Figure 8. Lack of AcuE affects neither growth under iron limitation and sufficiency nor production of TAFC or ferricrocin. Cultures contained either Glc or Fru as the sole carbon source and NH4+ as the sole nitrogen source. Experimental details are described in Figure 2. Absolute values are given in Supplementary Table S6. (A) Biomass (%) measured after freeze-drying and normalized to that of wt grown under the same conditions (B) −Fe/+Fe ratio of the biomass of each strain; (C) Siderophore production under iron limitation normalized to biomass and wt.
Jof 10 00327 g008
