Aging Resistance Evaluation of an Asphalt Mixture Modified with Zinc Oxide

by
Hugo Alexander Rondón-Quintana
1,*,
Carlos Alfonso Zafra-Mejía
1 and
Carlos Felipe Urazán-Bonells
2
1
Grupo de Investigación en Ingeniería Ambiental-GIIAUD, Facultad del Medio Ambiente y Recursos Naturales, Universidad Distrital Francisco José de Caldas, Bogotá 110321, Colombia
2
Programa de Ingeniería Civil, Facultad de Ingeniería, Campus Cajicá, Universidad Militar Nueva Granada, Cajicá 250247, Colombia
*
Author to whom correspondence should be addressed.
Infrastructures 2024, 9(5), 81; https://doi.org/10.3390/infrastructures9050081
Submission received: 1 April 2024 / Revised: 29 April 2024 / Accepted: 2 May 2024 / Published: 4 May 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
The phenomenon of the oxidation and aging of asphalt binders affects the strength and durability of asphalt mixtures in pavements. Several studies are trying to improve the resistance to this phenomenon by modifying the properties of the binders with nano-particles. One material that shows promise in this field is zinc oxide (ZnO), especially in improving ultraviolet (UV) aging resistance. Few studies have evaluated the effect of these nano-particles on the thermo-oxidative resistance of asphalt binders, and, on hot-mix asphalt (HMA), studies are even more scarce and limited. Therefore, in the present study, the resistance to thermo-oxidative aging of an HMA manufactured with an asphalt binder modified with ZnO was evaluated. An asphalt cement (AC 60–70) was initially modified with 0, 1, 3, 5, 7.5, and 10% ZnO (percentage by weight of asphalt binder; ZnO/AC in wt%), and then exposed to aging in Rolling Thin-Film Oven tests (RTFOT) and a Pressure Aging Vessel (PAV). Penetration, viscosity, and softening point tests were performed on these binders, and aging indices were calculated and evaluated. Samples of HMAs were then manufactured using these binders and designed by the Marshall method, determining the optimum asphalt binder content (OAC) and the optimum ZnO/AC ratio. Control (unmodified) and modified HMA were subjected to short-term oven aging (STOA) and long-term oven aging (LTOA) procedures. Marshall, Indirect Tensile Strength (ITS), and resilient modulus (RM) tests were performed on these mixtures. LTOA/STOA results of the parameters measured in these tests were used as aging indices. In this study, ZnO was shown to increase the thermo-oxidative aging resistance of the asphalt binder and HMA. It also contributed to an increase in the resistance under monotonic loading in the Marshall and ITS tests, and under repeated loading in RM test. Likewise, it contributed to a slightly increasing resistance to moisture damage. The best performance is achieved using ZnO/AC = 5 wt%.

1. Introduction

When an asphalt binder oxidizes and ages, it changes its physicochemical properties [1,2,3]. These changes directly affect the mechanical properties and durability of asphalt pavements. During oxidation, the asphalt binder increases its stiffness, hardness, and brittleness, and loses cohesion and adhesion with aggregates, increasing the probability of different pavement distress occurrences such as moisture damage, fatigue cracking, pothole, stripping, raveling, surface weathering or erosion, and top-down cracking, among others [4,5,6,7,8,9]. To decrease the effects of aging in asphalt binders, some researchers recommend modifying them with polymers [10], resins [11], and additives used in warm-mix asphalts—WMA [12], among others. Researchers also recommend the use of rejuvenators [3] and properly balancing the binder–aggregate composition in the design of asphalt mixtures [13]. Several techniques are used to simulate the short-term thermo-oxidative aging of asphalt binders. The most commonly used technique consists of combining heat (163 °C) and air (4000 mL/min) on a thin asphalt film (approximately 3.2 mm) for 85 min in a Rolling Thin-Film Oven (RTFO), following the guidelines established by ASTM D 2872 or ASHTO T 240. In the case of asphalt mixtures, the most commonly used method is short-term oven aging (STOA), which consists of subjecting the mixture in its loose state to a temperature of 135 °C (using a conventional oven) for two hours, and then compacting it (AASHTO R 30). The simulation of long-term aging of asphalt binders is usually performed using Pressure Aging Vessel (PAV) equipment. Samples previously aged in RTFO are introduced into the PAV to be subjected to 90, 100, or 110 °C (cold, moderate, or hot climate, respectively) and 2.07 MPa for 20 h (AASHTO R 28). On asphalt mixtures, the most commonly used method to simulate long-term oven aging is long-term oven aging (LTOA). In this method, the STOA-aged mixture is subjected to a conventional oven at a temperature of 85 °C for 5 days (AASHTO R 30). In theory, this procedure simulates the aging that the mixture undergoes between 7 to 10 years of pavement service life [1,14].
Likewise, a material that has been showing a high chance of success in improving aging resistance is zinc oxide—ZnO [15,16,17,18,19]. ZnO is a colorless material with low toxicity [20], showing a high compatibility with asphalt binders [21,22,23], high conductivity, heat capacity, and chemical–thermal stability [24]. It also exhibits a low ultraviolet—UV optical absorption and expansion coefficient [25]. Its nanometer size and piezoelectric properties promote its study as a modifier of asphalt binders that help improve UV aging resistance [26,27,28,29,30]. Ref. [31] modified two asphalt cement—AC (AC 73 and AC 92 dmm) with nano-ZnO (2 wt% to binder mass) and evaluated the morphology and UV aging resistance of both binders. According to them, the aging resistance of ACs improved and the influence of ZnO depends on the AC type. Ref. [32] also modified an AC (3 wt% nano-ZnO), but the nano-particle surface was modified with 3- aminopropyltriethoxysilane, γ—methacryloyloxypropyltrimethoxysilane and γ-(2,3- epoxypropoxy) propyltrimethoxysilane. The UV aging resistance improves with nano-ZnO but changes depending on the surface modifier type. A similar study was reported by [26] but modified with 2 wt% and using c-(2,3-epoxypropoxy) propyltrimethoxysilane. The UV aging resistance is improved, and it is higher when ZnO is surface-modified with c-(2,3- epoxypropoxy) propyltrimethoxoxysilane. [33] reported a study with similar conclusions (AC shows a better UV aging resistance), but comparing the results with two other nano-particles (nano-TiO2 and nano-SiO2). Another similar study reporting an increased UV aging resistance is stated by [34], modifying an AC with ZnO and organically expanded vermiculite—OEVMT (3 wt%). [35] improved an AC (1 wt% of OEVMT) and 1, 2, 3, and 4 wt% (ZnO-modified with two surface modifiers). The optimum content of both materials was 3% ZnO + 1% OEVMT. Researchers found that ZnO negatively influences the physical properties of AC when it exceeds 4 wt%. Similar studies reporting increased UV resistance employing ZnO can be found in Zhu et al. [36,37]. [38] was modified with nano-ZnO (1, 2, 3, 4, and 5 wt%). ZnO improved its rheological properties and stiffness of the AC, and its UV aging resistance. The optimum ZnO content was reported to be 3 wt%. [39] reported similar conclusions and an equal optimum percentage (3 wt%) modifying an AC with rodlike ZnO (0.5, 1, 2, 3, and 4 wt%). [8] modified an AC with vermiculite-EV and ZnO (2, 3, 4, 5, and 6 wt%). ZnO/EV improved binder properties at high temperatures but compromised them at low temperatures. It also improved the performance of asphalt mixtures when ZnO/EV = 5% was used. [15] modified an AC with nano-TiO2/ZnO = 2, 4, 6, and 8 wt%. Researchers also used basalt fiber—BF (6 wt). All three modifiers increase the rutting, fatigue (intermediate temperature), and aging resistance of the binder. The optimum nano-TiO2/ZnO content was 4 wt%. [40] evaluated the influence of ZnO nanometer size (10–30 nm, 50–70 nm, 100–200 nm) on the morphology, rheological, physical properties, and aging resistance of an AC (PG 64–22) modified with ZnO concentrations of 1, 3, and 5 wt%. ZnO improved the binder elastic performance and rutting resistance. It also increased the short-term (RTFO) and long-term (PAV) aging resistance of the AC. A content of 3–5 wt% of ZnO with a particle size ranging between 10 to 30 nm was recommended.
The use of nano-ZnO as an asphalt binder modifier is a relatively new technique. Few studies have evaluated the influence of ZnO on the aging resistance of binders, and most have focused on analyzing the performance against UV radiation. As asphalt binder modifiers for hot-mix asphalt (HMA), studies are scarcer and more limited [19]. From the literature consulted, only one study evaluated the performance of an asphalt mixture against the effects of thermo-oxidative aging [8], but, in this study, before modifying the binder, the ZnO was previously synthesized with EV to deagglomerate the nano-particles. In contrast to the studies reported in the reference literature, in the present research, the influence that a ZnO (without modifying its surface) has on the thermo-oxidative resistance of an HMA when used as an AC modifier was evaluated. To this end, the AC was modified with 0, 1, 3, 5, 7.5, and 10% ZnO (percentage by weight of asphalt binder; ZnO/AC in wt%), and exposed to aging procedures in RTFO Tests (RTFOT) and PAV. Penetration (ASTM D5), viscosity (ASTM D4402), and softening point (ASTM D36) tests were performed on the residues of these aged binders, and aging indices were calculated and evaluated. HMAs manufactured with these binders were designed by the Marshall method (the optimum asphalt binder content—OAC and the optimum ZnO/AC ratio were determined). Control (unmodified) and modified HMA were subjected to STOA and LTOA thermo-oxidative aging procedures. Marshall (AASHTO T 245), Indirect Tensile Strength (AASHTO T 283), and resilient modulus—RM tests (UNE-EN 12697-26) were performed on these mixtures. The LTOA/STOA ratio of the parameters measured in these tests was used as an indicator of resistance to thermo-oxidative aging.

2. Materials and Methods

2.1. Materials

An AC 60–70 (penetration range in dmm, according to ASTM D5 procedure) was used as an asphalt binder. This AC complies with the quality requirements of Colombian INVIAS standard [41] (see Table 1). To manufacture the HMA mix, an aggregate was used that also met the quality requirements demanded by INVIAS [41] (see Table 2).
The ZnO used is commercial and over-the-counter (Figure 1). To date, it is a material whose approximate cost is US$ 7.5/kg. At room temperature (20 °C), the coloration of ZnO is white. Its particles (size less than 0.075 mm) were visualized (between 500 and 40,000 magnification) in a scanning electron microscope—SEM (JEOL JSM-6700F) with an accelerating voltage of 4 to 20 kV and a working distance of approximately 4 to 9 mm (Figure 2). ZnO particles and their elemental chemical composition were measured. Based on the observations, ZnO is agglomerated in sizes below 20 µm (Figure 2a–d), and each nano-particle in the agglomeration is tubular with extremely small dimensions (nanometer scale; approximately 200 to 600 nm; e.g., Figure 2d). To disperse these nano-particles, one could use a dispersing agent or mechanism, or modify the ZnO surface as has been recommended in the reference literature [8,19,33,42,43]. However, in the present study, the effect of ZnO without modification was evaluated. The elemental chemical composition shows a high-purity modifier (ZnO). On average, each particle showed Zn and O contents of 80 and 20%, respectively. These values agree with those provided by the supplier: 99.0% ZnO (80.28% Zn, and low bacterial and trace organic content). On the other hand, the specific gravity of ZnO is 5.6 g/cm3 and it is an alkaline material (pH higher than 7).

2.2. Asphalt Binder Modification and Aging Assessmen

AC was modified using addition percentages of 1, 3, 5, 7.5, and 10% (respect to mass of AC; ZnO/AC = 1, 3, 5, 7.5, and 10 wt%). Mixing was performed in high shear equipment at 155 ± 5 °C and 4000 rpm. These addition percentages, temperature, and mixing speed were chosen based on the literature review [19]. Technical and environmental criteria were also taken into account (not to use very high temperatures to avoid aging of the binder, as well as increased pollutant emissions and production costs; [44]). The mixing time (MT) varied between 30, 60, and 90 min. This time range was chosen, taking into account experiences from previous studies reported on the subject [19]. The modified asphalt binders were exposed to short-term aging in RTFOT (163 °C for 85 min; AASHTO T 240). These samples were also conditioned for long-term aging (AASHTO R 28) in a PAV equipment (the residue obtained from RTFOT was subjected to 2.07 MPa at 100 °C for 20 h). Penetration (ASTM D 5), softening point (ASTM D 36), and viscosity at 135 °C (ASTM D 4402) tests were performed on samples of unaged, RTFOT-aged, and RTFOT + PAV-aged modified asphalt. The results obtained from these tests were used to calculate aging indices (Penetration Decrease Index—PDI, Softening Point Increment—SPI, and Viscosity Aging Index—VAI), calculated according to Equations (1)–(3). AP and UP are aged and unaged penetration, respectively, in dmm. ASP and USP are aged and unaged softening points, respectively, at °C. AV and UV are aged and unaged viscosity at 135 °C, respectively, in cP. Based on these tests and evaluation indices, the MT was chosen and the effect of ZnO on the resistance to thermo-oxidative aging of the binder was evaluated.
P D I = A P U P
S P I = A S P − U S P
V A I = A V U V

2.3. Asphalt Mixture Design and Choice of ZnO/AC Ratio

Once the AC 60–70 was modified with ZnO (ZnO/AC = 1, 3, 5, 7.5 and 10 wt%) at 150 °C, 4000 rpm, and MT chosen from the previous phase, the performance of the HMA mixtures was evaluated using the Marshall method (AASHTO T 245). A total of six types of mixes were analyzed: the Control HMA with ZnO/AC = 0 wt% and five modified mixes (ZnO/AC = 1, 3, 5, 7.5, and 10 wt%). The aggregate particle size distribution is shown in Table 3. This gradation is for HMA-19 according to INVIAS [41]. The mixes were manufactured using four binder contents (4.5, 5.0, 5.5, and 6.0%). The mixing and compaction temperatures were 155 and 145 °C, respectively (viscosity of 170 ± 20 cP and 280 ± 30 cP, respectively). Three Marshall samples for each mixture type and asphalt content were manufactured. The samples were compacted by applying 75 blows per face. Voids filled with asphalt—VFA, air void content—Va, flow—F, stability—S, and S/F ratio were determined for each sample. S and F were determined at 60 °C, applying in a Marshall compression machine, a monotonic loading rate of 50.8 mm/minute. With the results obtained from the Marshall test, the OAC and the ZnO/AC ratio were chosen. These parameters were used to manufacture the samples in the subsequent experimental phases. The design criteria for choosing the OAC are those established by INVIAS [41].

2.4. Mechanical Strength and Aging Analysis

Indirect Tensile Strength—ITS, Marshall, and resilient modulus—RM tests were performed to evaluate the mechanical strength and measure aging rates of the control (unmodified; ZnO/AC = 0 wt%) and modified (ZnO/AC = 5%, chosen from the previous phase) HMA mixes. These tests were performed on samples subjected to STOA and LTOA aging protocols. Following the recommendations of AASHTO R30, to simulate the STOA condition, the samples were initially heated during 4 h at 135 °C in a loose state in a conventional laboratory oven, and then compacted at 75 blows (per face). LTOA condition was simulated after the STOA process; the samples were kept for five days in an oven at 85 °C. The LTOA/STOA ratios of each of the strength parameters measured for each test were measured as an index of aging.
The Marshall test was performed on three samples per type of mixture (ZnO/AC = 0 wt% subjected to STOA and LTOA, and ZnO/AC = 5 wt% subjected to STOA and LTOA) following the process described in the previous experimental phase (Section 2.3) and the guidelines of AASHTO T 245. The strength parameter evaluated was the S/F ratio (also known as Marshall Quotient), which is an indirect indicator of stiffness under monotonic loading. ITS tests were performed on three dry samples (ITSD) and three conditioned samples (immersed in water for one day in a water bath at 60 °C; ITSC) per type of mix, following the guidelines of AASHTO T 283. The Va of the mixes in the ITS test varied between 7 ± 0.5%. ITSD and ITSC were measured at 25 °C applying a loading rate of 50 mm per minute in the Marshall compression machine. The ITSC/ITSD ratio was used to calculate the Tensile Strength Ratio (TSR) to evaluate the resistance to moisture damage. The RM was measured per type of mixture at 10, 20, and 30 °C, and frequencies of 2.5, 5, and 10 Hz, using a Nottingham Asphalt Tester (NAT), following the guidelines of UNE-EN 12697-26.

2.5. ANOVA—Analysis of Variance

To evaluate whether the changes observed in the measured properties due to the use of ZnO were statistically significant, an ANOVA—analysis of variance (F-test) with 95% confidence was performed. In the F-test, an F > F0.05 means that the measured change in the evaluated property is statistically significant.

3. Results

3.1. Modified Asphalt Properties and Aging Assessment

The penetration, softening point, and viscosity test results performed on unmodified (ZnO/AC = 0 wt%) and modified (ZnO/AC = 1, 3, 5, 7.5, and 10 wt%) AC 60–70 are shown in Figure 3a–c, respectively. This figure also shows the effect of MT during the modification process (30, 60, and 90 min). As the MT and ZnO/AC content increases, the binder stiffens (the penetration decreases and the softening point and viscosity increase). At ZnO/AC = 1 wt%, the changes are not significant. Figure 3a,b shows that the highest rate of decrease in the penetration and increase in the softening point is achieved when ZnO/AC = 5 wt%. From this value onwards, these rates decrease. Viscosity, on the other hand, increases with ZnO/AC content. The above is mainly because ZnO nano-particles increase the internal friction forces in the binder during the test [1]. Additionally, ZnO presents a high specific surface area, facilitating the adsorption of light components on the binder [45]. The gain in binder stiffness due to ZnO is also explained by the high mechanical strength and structural stability of the nano-particles, which have been shown in rheology tests to increase rutting resistance [18,42].
As AC 60–70 ages, the penetration decreases, and softening points and viscosity increase. The above has been widely reported in the reference literature (e.g., [46,47,48]). The asphalt binder is a colloidal dispersion composed of asphaltenes (A) within an oily matrix (maltenes—M) composed of aromatic naphthenes (Ar), saturated agents (S), and resins (R) [1,49]. The oily component of the binder tends to be lost during oxidation, restructuring its molecular composition (the fraction of asphaltenes increases and maltenes decrease, stiffening and causing the brittleness of the binder; [50,51]). Additionally, oxidation increases the molecular weight and large molecular size (LMS), generating increases in viscosity [52,53,54]. On the short (RTFOT)- and long (PAV)-term aged samples, PDI, SPI, and VAI indices were measured (Figure 4, Figure 5 and Figure 6, respectively). It is observed that the aging resistance improves when ZnO is used since PDI increases and the SPI and VAI indices decrease. The best performance is observed with ZnO/AC = 5 wt%. Di et al. [16], based on liquid-state nuclear magnetic resonance (NMR) spectroscopy tests, report an increase in the percentage of aromatic carbon in an asphalt binder when ZnO is used as a modifier to explain the increase in thermo-oxidative resistance. According to Zhu et al. [40], performing Fourier-Transform Infrared Spectroscopy (FTIR) tests, nano-ZnO modified binders show lower carbonyl and sulfoxide ratios after the aging of RTFO and PAV relative to the unmodified binder. On the other hand, an increase in MT generates the greater oxidation and aging of the samples due to the longer exposure time to which the binders are subjected to high temperatures [55], which could promote the increase in the asphaltenes fraction and the asphaltenes/resins ratio, as well as the decrease in the aromatics content [56,57]. Taking into account the literature consulted and to avoid excessive oxidation of the binder, an MT = 60 min was chosen. Additionally, it is observed in Figure 3a–c that the modified binders undergo similar values of penetration, softening point, and viscosity when using MT = 60 or 90 min.

3.2. Mixture Design and Choice of ZnO/AC Ratio

The Marshall test results for choosing the OAC and the ZnO/AC ratio are shown in Figure 7. As the ZnO/AC ratio increases, the mixtures tend to be more porous (Figure 7a,b). This is because the ZnO particles increase the viscosity of the binder, making the workability of the mixture and its compaction more difficult. The modified mixture with ZnO/AC = 1 wt% performs similarly in the Marshall test to the Control mix. For the case of the S/F ratio, for example, the ANOVA analysis reports no significant change (F = 0.87 < F0.05 = 7.71). The changes in strength under monotonic loading (S, S/F) are statistically significant concerning the Control mixture from a ZnO/AC ≥ 3%. The maximum S/F ratio is obtained when using ZnO/AC = 5 wt% and an AC content of 5.5% (Figure 7c,d). With this ZnO/AC and AC content, HMA undergoes a 17.7% increase in this parameter concerning the Control mixture, and this increase is statistically significant (F = 64.2 > F0.05 =7.71). The nano-oxides tend to form with the binder a structure that increases the yield stress [38]. Additionally, the volumetric design criteria (Va between 3 to 5% and VFA between 60 to 75%; Figure 7a,b) recommended by the INVIAS [41] standard are met at this ZnO/AC and AC content. A higher ZnO/AC content could be used; however, the changes in the S/F ratio are smaller, and a higher AC (increasing manufacturing costs) is required to meet the volumetric criteria. Therefore, OAC = 5.5% and ZnO/AC = 5 wt% were chosen. Although it is not an objective of this study, an approximate increase of 30% in the cost of m3 of HMA is estimated (without taking into account the cost of the binder modification process).

3.3. Mechanical Strength and Aging Analysis

3.3.1. Marshall Test

The S/F ratios obtained from the Control sample and the one modified with ZnO/AC = 5 wt% (ZnO) in the STOA and LTOA condition are shown in Figure 8. When the LTOA/STOA ratio is calculated, the value of the Control mixture (LTOA/STOA = 1.19) is higher for the one modified with ZnO (LTOA/STOA = 1.11). In other words, the ZnO mixture tends to stiffen less and is, therefore, more resistant to thermo-oxidative aging. In this test, it is also possible to relate the S/F values obtained from the unaged—U (Figure 7d) and aged (Figure 8) mixtures. The STOA/U ratio = 1.26 for the Control mixture, while, for the ZnO mixture, the STOA/U parameter = 1.11. This ratio also indicates that ZnO is a material that helps to decrease the oxidation and aging processes in the analyzed mixture. These results are consistent with previously reported PDI, SPI, and VAI values, which show that the ZnO-modified asphalt binder undergo smaller growths in stiffness when exposed to short-term (RTFOT) and long-term (PAV) aging processes.

3.3.2. Indirect Tensile Strength (ITS) Test

The ITS test results are shown in Figure 9. The ITSD and ITSC parameters of the ZnO blend are higher than the Control mixture, and the changes are statistically significant. In the STOA condition, the ITSD of the ZnO mixture is 21.7% higher than the Control mixture (F = 163.4 > F0.05 = 7.71), and the increase in ITSC is 23% (F = 140.0 > F0.05 = 7.71). In the LTOA condition, the increase in ITSD of the ZnO mixture concerning the Control mixture is 8.1% (F = 10.5 > F0.05 = 7.71), while, in ITSC, it is 8.7% (F = 9.5 > F0.05 = 7.71). On the other hand, in the STOA and LTOA conditions, the Control mixture presents TSR = 86.5 and 82.7%, respectively, while these values are 87.4 and 83.1% in the ZnO mixture. In other words, ZnO contributes to significantly increasing the indirect tensile strength and slightly increasing the resistance to moisture damage. The above is possible because ZnO reduces the acidic component and increases the basic component, increasing the Surface Free Energy (SFE) and improving the binder–aggregate adhesion [58,59,60]. An increase in binder stiffness by the presence of ZnO (Figure 3) could contribute to increasing ITSD and ITSC [61,62,63]. Additionally, ZnO has been shown to increase the peak stress in shear stress–strain curves obtained from linear amplitude sweep (LAS) tests [16], and enhance the bitumen/aggregate adhesion since it generates a network within the structure of the binder, generating a strong connection between the functional groups of the binder and the nano-particles [64]. On the other hand, the ITSD LTOA/STOA ratio is 1.29 and 1.15 for the Control and ZnO mixture, respectively. These values change to 1.24 and 1.09, respectively for the case of ITSC. In other words, ZnO tends to decrease the stiffness and hardening of the binder during aging processes, which is consistent with the PDI, SPI, and VAI indices calculated on the asphalt binders analyzed (AC 60–70 modified and unmodified).

3.3.3. Resilient Modulus Test

The RM test results are presented in Figure 10. In the STOA condition, ZnO contributed to an increase in the stiffness under the cyclic loading of HMA at temperatures of 20 and 30 °C for any loading frequency (Fr), and these increases were statistically significant (Table 4; F > F0.05 = 7.71). The increase in stiffness is consistent with the decrease in penetration and the increase in viscosity and softening point that AC undergoes when modified with ZnO. Moreover, based on the rheological characterization, the reference literature shows that ZnO helps to increase rutting resistance [16,28,36,37,38,42,60,65]. The high surface-to-volume ratio of ZnO nano-particles to the asphalt binder can increase the viscosity and adhesion, and improve the functional performance of bitumen, increasing stiffness and decreasing its sensitivity to rutting [64]. At 20 °C, the ZnO mixture in the STOA condition (ZnO-S) underwent an increase in stiffness (between 3.3 and 9.3%) for the Control mixture (Control-S). This increase ranged from 25.2 to 46% at 30 °C. At 10 °C, the ZnO-S mixture decreased stiffness by approximately 2% concerning the Control-S mix, which could be beneficial in reducing cracking in low-temperature climates. In the LTOA condition, the behavior changes because the LTOA/STOA ratio of the RM values is lower in the ZnO-L mixture than in the Control-L mixture (Table 5). When changing from the STOA to LTOA condition, the increase in RM in the Control mixture varies between 12.7 and 24.1% (depending on the test temperature), while this increase in the ZnO mixture is about 5%. In other words, ZnO helps to decrease stiffness during thermo-oxidative aging processes, which is an indicator of increased aging resistance. As in the Marshall test, the lower LTOA/STOA ratio of the ZnO mixture can be explained based on the higher PDI values and the decrease in SPI and VAI undergone by the modified asphalt binder for the unmodified AC 60–70.

4. Conclusions

This study evaluated the influence of ZnO as a modifier of an asphalt binder and its effect on the thermo-oxidative resistance of an HMA mixture. Based on the results obtained, the following is concluded:
  • The PDI, SPI, and VAI parameters show that ZnO increased the resistance to thermo-oxidative aging of the asphalt binder. The best performance was achieved with ZnO/AC = 5 wt%. Considering the LTOA/STOA ratio calculated from the S/F, ITSD, ITSC and RM parameters, ZnO (ZnO/AC = 5 wt%) contributes to increasing the resistance to thermo-oxidative aging of the HMA mixture.
  • The stiffness and viscosity of the binder increase with increasing ZnO content. This is mainly when the ZnO/AC ratio ≥ 3 wt%. Additionally, the resistance under monotonic loading in the Marshall test (S/F) and the resilient modulus at 20 °C and 30 °C of the HMA increase when ZnO (ZnO/AC = 5 wt%) is used as a binder modifier. That is, ZnO could help to increase the rutting resistance.
  • The ITSD, ITSC, and TSR parameters increase when the HMA uses the ZnO/AC = 5 wt% modified binder. This is an indicator of increased indirect tensile strength and moisture damage resistance.
  • ZnO is shown to be a promising nano-material for improving the performance of binders and asphalt mixtures in pavements. Some recommendations for future studies are as follows: (i) evaluate the effect of ZnO on other properties such as fatigue resistance and low service temperatures; (ii) perform direct rutting resistance tests; (iii) use different types of binders, aggregates, and asphalt mixtures; (iv) perform environmental assessment, Life Cycle Cost Analysis (LCCA), and Life Cycle Assessment (LCA); (v) perform storage stability tests on the modified asphalt binder; and (vi) evaluate aging indices obtained from parameters measured at low and intermediate temperatures on asphalt binders (e.g., rheological characterization) and HMAs modified with ZnO.

Author Contributions

Conceptualization, H.A.R.-Q.; methodology, H.A.R.-Q., C.A.Z.-M. and C.F.U.-B.; validation, H.A.R.-Q., C.F.U.-B. and C.A.Z.-M.; formal analysis, H.A.R.-Q., C.F.U.-B. and C.A.Z.-M.; investigation, H.A.R.-Q., C.A.Z.-M. and C.F.U.-B.; resources, H.A.R.-Q., C.A.Z.-M. and C.F.U.-B.; data curation, C.A.Z.-M., C.F.U.-B. and H.A.R.-Q.; writing—original draft H.A.R.-Q. and C.A.Z.-M.; writing—review and editing, H.A.R.-Q., C.A.Z.-M. and C.F.U.-B.; visualization, H.A.R.-Q. and C.A.Z.-M.; supervision, H.A.R.-Q.; project administration, H.A.R.-Q.; funding acquisition, H.A.R.-Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Further inquiries can be directed to the corresponding authors.

Acknowledgments

We thank the participating institutions (Universidad Distrital Francisco José de Caldas and Universidad Militar Nueva Granada) for the support granted to researchers. In the case of the author Carlos Felipe Urazán-Bonells, it is mentioned that it is a product of his academic work as a professor at the Universidad Militar Nueva Granada.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Tauste, R.; Moreno-Navarro, F.; Sol-Sánchez, M.; Rubio-Gámez, M.C. Understanding the bitumen ageing phenomenon: A review. Constr. Build. Mater. 2018, 192, 593–609. [Google Scholar] [CrossRef]
  2. Li, Y.; Feng, J.; Wu, S.; Chen, A.; Kuang, D.; Bai, T.; Gao, Y.; Zhang, J.; Li, L.; Wan, L.; et al. Review of ultraviolet ageing mechanisms and anti-ageing methods for asphalt binders. J. Road Eng. 2022, 2, 137–155. [Google Scholar] [CrossRef]
  3. Yi, J.; Wang, Y.; Pei, Z.; Xu, M.; Feng, D. Mechanisms and research progress on biological rejuvenators for regenerating aged asphalt: Review and discussion. J. Clean. Prod. 2023, 422, 138622. [Google Scholar] [CrossRef]
  4. Fernández-Gómez, W.D.; Rondón-Quintana, H.A.; Reyes-Lizcano, F.A. A review of asphalt and asphalt mixture aging. Ing. Investig. 2013, 33, 5–12. [Google Scholar] [CrossRef]
  5. Zhang, H.; Chen, Z.; Xu, G.; Shi, C. Evaluation of aging behaviors of asphalt binders through different rheological indices. Fuel 2018, 221, 78–88. [Google Scholar] [CrossRef]
  6. Ling, M.; Luo, X.; Chen, Y.; Hud, S.; Lytton, R.L. A calibrated mechanics-based model for top-down cracking of asphalt pavements. Constr. Build. Mater. 2019, 208, 102–112. [Google Scholar] [CrossRef]
  7. Wang, F.; Xiao, Y.; Cui, P.; Lin, J.; Li, M.; Chen, Z. Correlation of asphalt performance indicators and aging degrees: A review. Constr. Build. Mater. 2020, 250, 118824. [Google Scholar] [CrossRef]
  8. Du, P.; Long, J.; Duan, H.; Luo, H.; Zhang, H. Laboratory performance and aging resistance evaluation of zinc oxide/expanded vermiculite composite modified asphalt binder and mixture. Constr. Build. Mater. 2022, 358, 129385. [Google Scholar] [CrossRef]
  9. Abouelsaad, A.; White, G.; Jamshidi, A. State of the art review of ageing of bituminous binders and asphalt mixtures: Ageing simulation techniques, ageing inhibitors and the relationship between simulated ageing and field ageing. Infrastructures 2024, 9, 8. [Google Scholar] [CrossRef]
  10. Cong, P.; Liu, C.; Han, Z.; Zhao, Y. A comprehensive review on polyurethane modified asphalt: Mechanism, characterization and prospect. J. Road Eng. 2023, 3, 315–335. [Google Scholar] [CrossRef]
  11. Zhang, Z.; Liu, H.; Ban, X.; Liu, X.; Guo, Y.; Sun, J.; Liu, Y.; Zhang, S.; Lei, J. Thermosetting resin modified asphalt: A comprehensive review. J. Traffic Transp. Eng. (Engl. Ed.) 2023, 10, 1001–1036. [Google Scholar] [CrossRef]
  12. Behnood, A. A review of the warm mix asphalt (WMA) technologies: Effects on thermo-mechanical and rheological properties. J. Clean. Prod. 2020, 259, 120817. [Google Scholar] [CrossRef]
  13. Li, N.; Hao, P.; Yao, Y.; Zhang, C. The implementation of balanced mix design in asphalt materials: A review. Constr. Build. Mater. 2023, 402, 132919. [Google Scholar] [CrossRef]
  14. Bell, C.; Wieder, A.; Fellin, M. Laboratory Aging of Asphalt-Aggregate Mixtures: Field Validation; Strategic Highway Research Program Report No. SHRP-A-390; National Research Council: Washington, DC, USA, 1994. [Google Scholar]
  15. Fu, Z.; Tang, Y.; Ma, F.; Wang, Y.; Dai, S.J.; Hou, Y.; Li, J. Rheological properties of asphalt binder modified by nano-TiO2/ZnO and basalt fiber. Constr. Build. Mater. 2022, 320, 126323. [Google Scholar] [CrossRef]
  16. Di, H.; Zhang, H.; Yang, E.; Ding, H.; Liu, H.; Huang, B.; Qiu, Y. Usage of Nano-TiO2 or Nano-ZnO in asphalt to resist aging by NMR spectroscopy and rheology technology. J. Mater. Civ. Eng. 2023, 35, 04022391. [Google Scholar] [CrossRef]
  17. Han, D.; Hu, G.; Zhang, J. Study on anti-aging performance enhancement of polymer modified asphalt with high linear SBS content. Polymers 2023, 15, 256. [Google Scholar] [CrossRef]
  18. Staub de Melo, J.V.; Manfro, A.L.; Barra, B.S.; Dell’Antonio Cadorin, N.; Borba Broering, W. Evaluation of the rheological behavior and the development of performance equations of asphalt composites produced with titanium dioxide and zinc oxide nanoparticles. Nanomaterials 2023, 13, 288. [Google Scholar] [CrossRef]
  19. Rondón-Quintana, H.A.; Ruge-Cárdenas, J.C.; Zafra-Mejía, C.A. The use of zinc oxide in asphalts: Review. Sustainability 2023, 15, 11070. [Google Scholar] [CrossRef]
  20. Mueller, N.C.; Nowack, B. Exposure modeling of engineered nanoparticles in the environment. Environ. Sci. Technol. 2008, 42, 4447–4453. [Google Scholar] [CrossRef]
  21. Li, R.; Pei, J.; Sun, C. Effect of nano-ZnO with modified surface on properties of bitumen. Constr. Build. Mater. 2015, 98, 656–661. [Google Scholar] [CrossRef]
  22. Ashish, P.K.; Singh, D. High-and intermediate-temperature performance of asphalt binder containing carbon nanotube using different rheological approaches. J. Mater. Civ. Eng. 2018, 30, 04017254. [Google Scholar] [CrossRef]
  23. Feng, L.; Zhao, P.; Chen, T.; Jing, M. Comparative study of Octavinyl Oligomeric Sesquisiloxane nanomaterial-modified asphalt using Molecular Dynamics Method. Polymers 2022, 14, 4577. [Google Scholar] [CrossRef] [PubMed]
  24. Porter, F. Zinc Handbook: Properties, Processing, and Use in Design; Marcel Dekker: New York, NY, USA, 1991. [Google Scholar]
  25. Moezzi, A.; McDonagh, A.M.; Cortie, M.B. Zinc oxide particles: Synthesis, properties and applications. Chem. Eng. J. 2012, 185–186, 1–22. [Google Scholar] [CrossRef]
  26. Zhang, H.; Zhu, C.; Yu, J.; Tan, B.; Shi, C. Effect of nano-zinc oxide on ultraviolet aging properties of bitumen with 60/80 penetration grade. Mater. Struct. 2015, 48, 3249–3257. [Google Scholar] [CrossRef]
  27. Nazari, H.; Naderi, K.; Nejad, F.M. Improving aging resistance and fatigue performance of asphalt binders using inorganic nanoparticles. Constr. Build. Mater. 2018, 170, 591–602. [Google Scholar] [CrossRef]
  28. Zhang, H.; Gao, Y.; Guo, G.; Zhao, B.; Yu, J. Effects of ZnO particle size on properties of asphalt and asphalt mixture. Constr. Build. Mater. 2018, 159, 578–586. [Google Scholar] [CrossRef]
  29. Debbarma, K.; Debnath, B.; Sarkar, P.P. A comprehensive review on the usage of nanomaterials in asphalt mixes. Constr. Build. Mater. 2022, 361, 129634. [Google Scholar] [CrossRef]
  30. Duan, H.; Long, J.; Zhang, H.; Luo, H.; Cao, J. Effects of different carriers for zinc oxide (ZnO) particles on microstructure of ZnO/layered silicate composite and aging resistance of composite modified asphalt. Constr. Build. Mater. 2022, 349, 128773. [Google Scholar] [CrossRef]
  31. Du, P.F.; Ke, N.X.; Zhang, H.L. Effect of nano-zinc oxide on the morphology and ultraviolet aging properties of various bitumens. Pet. Sci. Technol. 2015, 33, 1110–1117. [Google Scholar] [CrossRef]
  32. Liu, H.Y.; Zhang, H.L.; Hao, P.W.; Zhu, C.Z. The effect of surface modifiers on ultraviolet aging properties of nano-zinc oxide modified bitumen. Pet. Sci. Technol. 2015, 33, 72–78. [Google Scholar] [CrossRef]
  33. Zhang, H.; Zhu, C.; Yu, J.; Shi, C.; Zhang, D. Influence of surface modification on physical and ultraviolet aging resistance of bitumen containing inorganic nanoparticles. Constr. Build. Mater. 2015, 98, 735–740. [Google Scholar] [CrossRef]
  34. Zhang, H.B.; Zhang, H.L.; Ke, N.X.; Huang, J.H.; Zhu, C.Z. The effect of different nanomaterials on the long-term aging properties of bitumen. Pet. Sci. Technol. 2015, 33, 388–396. [Google Scholar] [CrossRef]
  35. Zhang, H.; Zhu, C.; Kuang, D. Physical, rheological, and aging properties of bitumen containing organic expanded vermiculite and nano-zinc oxide. J. Mater. Civ. Eng. 2016, 28, 04015203. [Google Scholar] [CrossRef]
  36. Zhu, C.; Zhang, H.; Shi, C.; Li, S. Effect of nano-zinc oxide and organic expanded vermiculite on rheological properties of different bitumens before and after aging. Constr. Build. Mater. 2017, 146, 30–37. [Google Scholar] [CrossRef]
  37. Zhu, C.; Zhang, H.; Xu, G.; Wu, C. Investigation of the aging behaviors of multi-dimensional nanomaterials modified different bitumens by Fourier transform infrared spectroscopy. Constr. Build. Mater. 2018, 167, 536–542. [Google Scholar] [CrossRef]
  38. Xu, X.; Guo, H.; Wang, X.; Zhang, M.; Wang, Z.; Yang, B. Physical properties and anti-aging characteristics of asphalt modified with nano-zinc oxide powder. Constr. Build. Mater. 2019, 224, 732–742. [Google Scholar] [CrossRef]
  39. He, Z.; Xie, T.; Li, Q.; Wang, P. Physical and antiaging properties of rodlike Nano-ZnO–modified asphalt. J. Mater. Civ. Eng. 2021, 33, 04021316. [Google Scholar] [CrossRef]
  40. Zhu, Q.; He, Z.; Wang, J.; Wang, S. Morphology, rheology and physical properties investigations of multi-scale nano-zinc oxide modified asphalt binder. Alex. Eng. J. 2024, 89, 31–38. [Google Scholar] [CrossRef]
  41. INVIAS–Instituto Nacional de Vías. Especificaciones Generales de Construcción de Carreteras; INVIAS–Instituto Nacional de Vías: Bogotá, Colombia, 2020. [Google Scholar]
  42. Guo, G.; Zhang, H. The effect of morphology of ZnO particle on properties of asphalt binder and mixture. Int. J. Transp. Sci. Technol. 2022, 11, 437–454. [Google Scholar] [CrossRef]
  43. Zhu, C.; Li, D.; Zhang, H.; Wang, Z.; Li, J. Synergistic effect of surface modified nano-zinc oxide and organic vermiculite on long-term ultraviolet and thermal-oxidative aging resistance of different asphalt binders. Constr. Build. Mater. 2023, 409, 133832. [Google Scholar] [CrossRef]
  44. Rincón, J.A.; González, E.V.; Rondón-Quintana, H.A.; Reyes-Lizcano, F.A.; Bastidas-Martínez, J.G. Mechanical behavior of low-density polyethylene waste modified hot mix asphalt. Sustainability 2022, 14, 4229. [Google Scholar] [CrossRef]
  45. Hesami, E.; Jelagin, D.; Kringos, N.; Birgisson, B. An empirical framework for determining asphalt mastic viscosity as a function of mineral filler concentration. Constr. Build. Mater. 2012, 35, 23–29. [Google Scholar] [CrossRef]
  46. Gómez-Meijide, B.; Ajam, H.; Lastra-González, P.; Garcia, A. Effect of ageing and RAP content on the induction healing properties of asphalt mixtures. Constr. Build. Mater. 2018, 179, 468–476. [Google Scholar] [CrossRef]
  47. Jiang, H.; Zhang, J.; Sun, C.; Liu, S.; Liang, M.; Yao, Z. Experimental assessment on engineering properties of aged bitumen incorporating a developed rejuvenator. Constr. Build. Mater. 2018, 179, 1–10. [Google Scholar] [CrossRef]
  48. Qu, X.; Liu, Q.; Guo, M.; Wang, D.; Oeser, M. Study on the effect of aging on physical properties of asphalt binder from a microscale perspective. Constr. Build. Mater. 2018, 187, 718–729. [Google Scholar] [CrossRef]
  49. Moraes, R.; Bahia, H.U. Effect of mineral filler on changes in molecular size distribution of asphalts during oxidative ageing. Road Mater. Pavement Des. 2015, 16, 55–72. [Google Scholar] [CrossRef]
  50. Shiau, J.M.; Tia, M.; Ruth, B.E.; Page, G.C. Characterization of age-hardening potential of asphalt by using Corbett-Swarbrick asphalt fractionation test. Transp. Res. Rec. 1991, 1323, 53–60. [Google Scholar]
  51. Hou, X.; Xiao, F.; Wang, J.; Amirkhanian, S. Identification of asphalt aging characterization by spectrophotometry technique. Fuel 2018, 226, 230–239. [Google Scholar] [CrossRef]
  52. Lu, X.; Isacsson, U. Effect of ageing on bitumen chemistry and rheology. Constr. Build. Mater. 2002, 16, 15–22. [Google Scholar] [CrossRef]
  53. Smith, B.T.; Howard, I.L. Comparing laboratory conditioning protocols to long-term aging of asphalt mixtures in the Southeast United States. J. Mater. Civ. Eng. 2019, 31, 04018346. [Google Scholar] [CrossRef]
  54. Zadshir, M.; Hosseinnezhad, S.; Fini, E.H. Deagglomeration of oxidized asphaltenes as a measure of true rejuvenation for severely aged asphalt binder. Constr. Build. Mater. 2019, 209, 416–424. [Google Scholar] [CrossRef]
  55. Mousavi, M.; Pahlavan, F.; Oldham, D.; Hosseinnezhad, S.; Fini, E.H. Multiscale investigation of oxidative aging in biomodified asphalt binder. J. Phys. Chem. C 2016, 120, 17224–17233. [Google Scholar] [CrossRef]
  56. Dehouche, N.; Kaci, M.; Mokhtar, K.A. Influence of thermo-oxidative aging on chemical composition and physical properties of polymer modified bitumens. Constr. Build. Mater. 2012, 26, 350–356. [Google Scholar] [CrossRef]
  57. Kumbargeri, Y.S.; Biligiri, K.P. A novel approach to understanding asphalt binder aging behavior using asphaltene proportion as a performance indicator. J. Test. Eval. 2016, 44, 439–449. [Google Scholar] [CrossRef]
  58. Hamedi, G.H.; Nejad, F.M.; Oveisi, K. Estimating the moisture damage of asphalt mixture modified with nano zinc oxide. Mater. Struct. 2016, 49, 1165–1174. [Google Scholar] [CrossRef]
  59. Hamedi, G.H.; Nejad, F.M. The employment of thermodynamic and mechanical methods to evaluate the impact of nanomaterials on moisture damage of HMA. Mater. Struct. 2016, 49, 4483–4495. [Google Scholar] [CrossRef]
  60. Al-Mistarehi, B.; Al-Omari, A.; Taamneh, M.; Imam, R.; Khafaja, D.A. The effects of adding Nano Clay and Nano Zinc Oxide on asphalt cement rheology. J. King Saud Univ. Eng. Sci. 2023, 35, 260–269. [Google Scholar] [CrossRef]
  61. Molenaar, A.A.A.; Li, N. Prediction of compressive and tensile strength of asphalt concrete. Int. J. Pavement Res. Technol. 2014, 7, 324–331. [Google Scholar] [CrossRef]
  62. Teltayev, B.; Radovskiy, B. Predicting thermal cracking of asphalt pavements from bitumen and mix properties. Road Mater. Pavement Des. 2018, 19, 1832. [Google Scholar] [CrossRef]
  63. Li, X.L.; Zhou, Z.H.; Ye, J.H.; Zhang, X.A.; Wang, S.Y.; Diab, A. High-temperature creep and low-temperature relaxation of recycled asphalt mixtures: Evaluation and balanced mix design. Constr. Build. Mater. 2021, 310, 125222. [Google Scholar] [CrossRef]
  64. Kamboozia, N.; Rad, S.M.; Saed, S.A. Laboratory investigation of the effect of Nano-ZnO on the fracture and rutting resistance of porous asphalt mixture under the aging condition and freeze–thaw cycle. J. Mater. Civ. Eng. 2022, 34, 04022052. [Google Scholar] [CrossRef]
  65. Saltan, M.; Terzi, S.; Karahancer, S. Mechanical behavior of bitumen and hot-mix asphalt modified with zinc oxide nanoparticle. J. Mater. Civ. Eng. 2019, 31, 04018399. [Google Scholar] [CrossRef]
Infrastructures 09 00081 g001

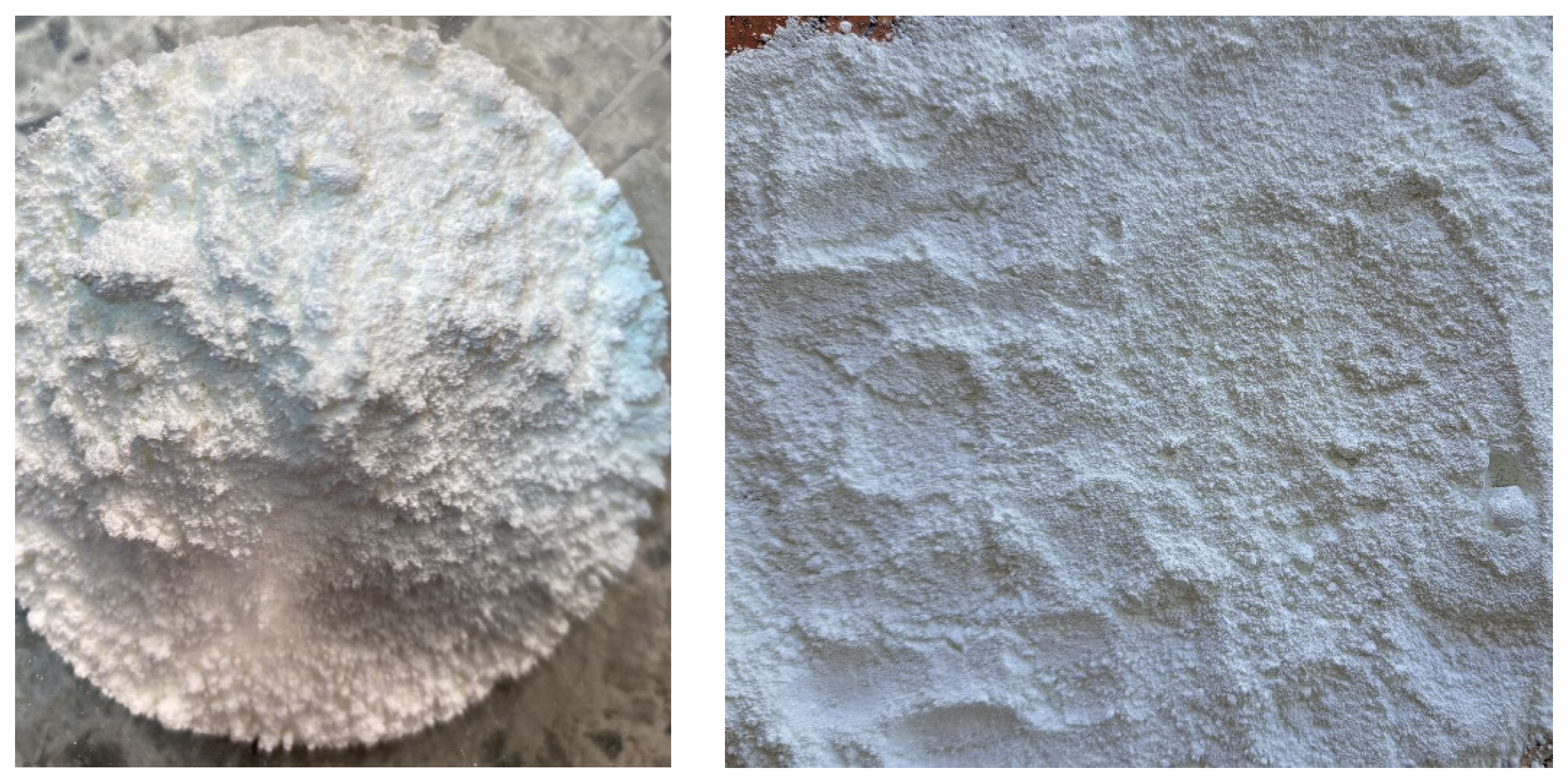

Figure 1. Zinc oxide—ZnO.
Figure 1. Zinc oxide—ZnO.
Infrastructures 09 00081 g001
Infrastructures 09 00081 g002aInfrastructures 09 00081 g002b

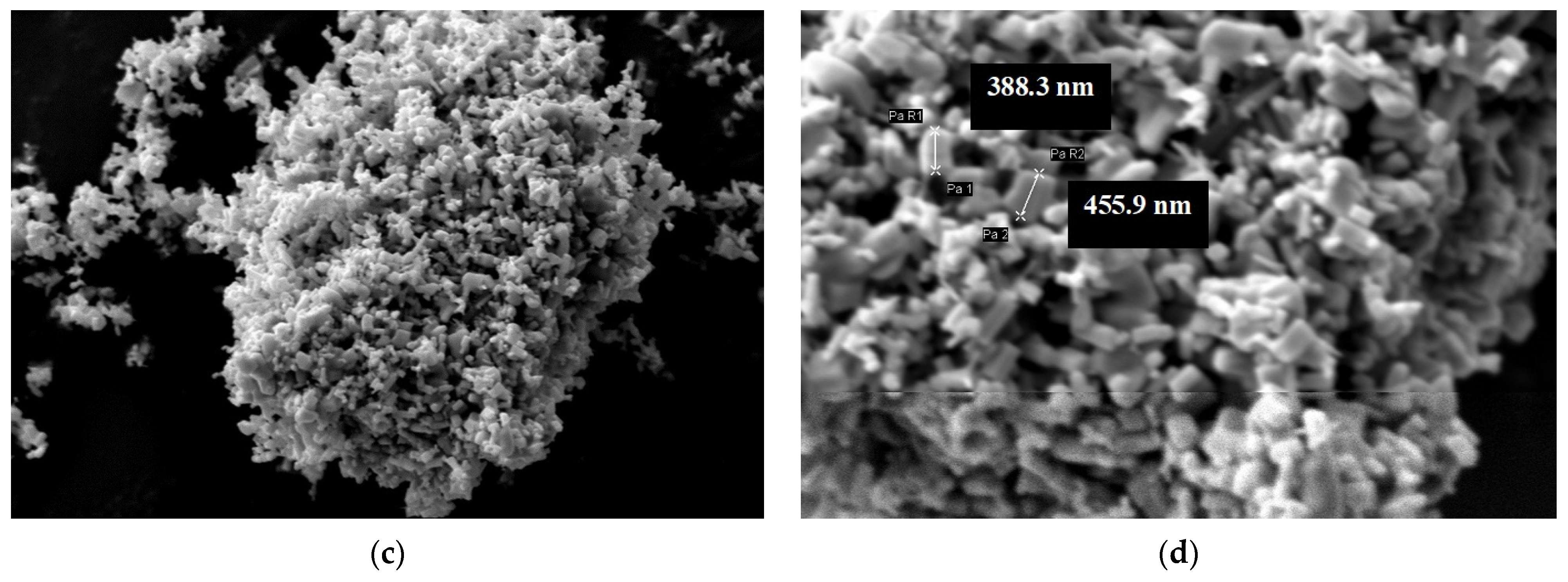

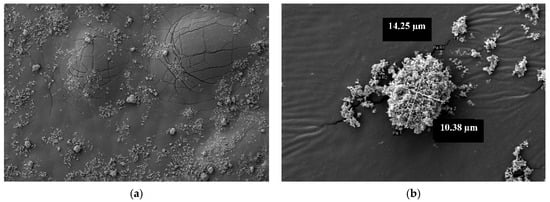

Figure 2. (a) ZnO at 500 X.; (b) ZnO at 6000 X; (c) ZnO at 15,000 X; and (d) ZnO at 40,000 X.
Figure 2. (a) ZnO at 500 X.; (b) ZnO at 6000 X; (c) ZnO at 15,000 X; and (d) ZnO at 40,000 X.
Infrastructures 09 00081 g002aInfrastructures 09 00081 g002b
Infrastructures 09 00081 g003

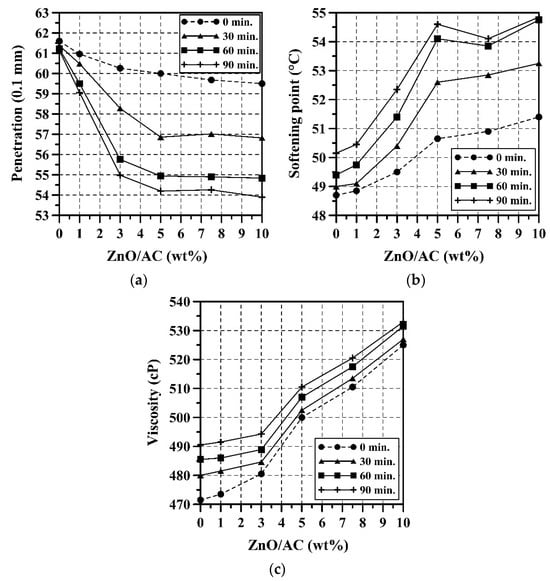

Figure 3. Evolution of (a) penetration, (b) softening point, and (c) viscosity with ZnO/AC content and MT.
Figure 3. Evolution of (a) penetration, (b) softening point, and (c) viscosity with ZnO/AC content and MT.
Infrastructures 09 00081 g003
Infrastructures 09 00081 g004

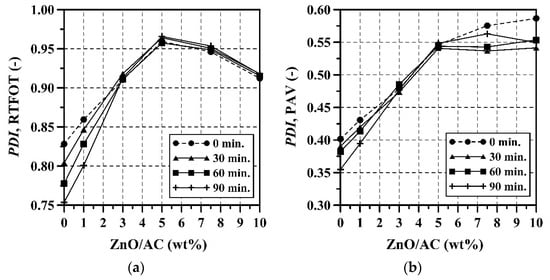

Figure 4. Evolution of PDI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Figure 4. Evolution of PDI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Infrastructures 09 00081 g004
Infrastructures 09 00081 g005
Figure 5. Evolution of SPI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Figure 5. Evolution of SPI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Infrastructures 09 00081 g005
Infrastructures 09 00081 g006

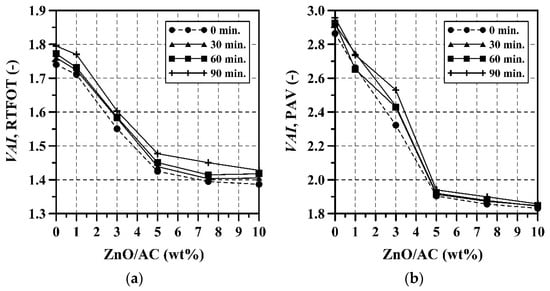

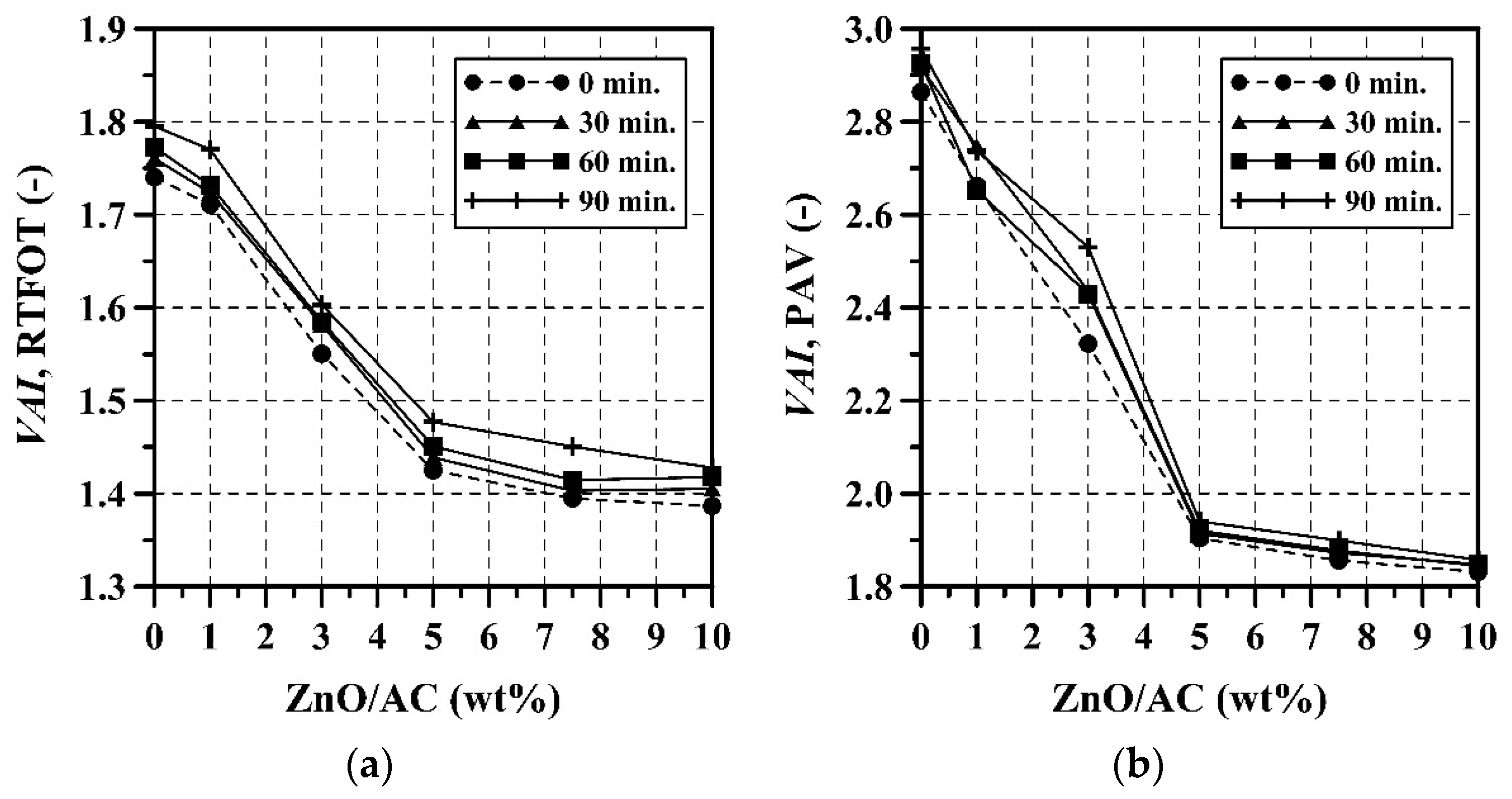

Figure 6. Evolution of VAI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Figure 6. Evolution of VAI with ZnO/AC content and MT. (a) RTFOT, and (b) PAV.
Infrastructures 09 00081 g006
Infrastructures 09 00081 g007aInfrastructures 09 00081 g007b

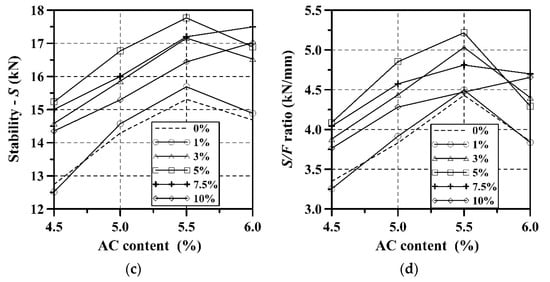

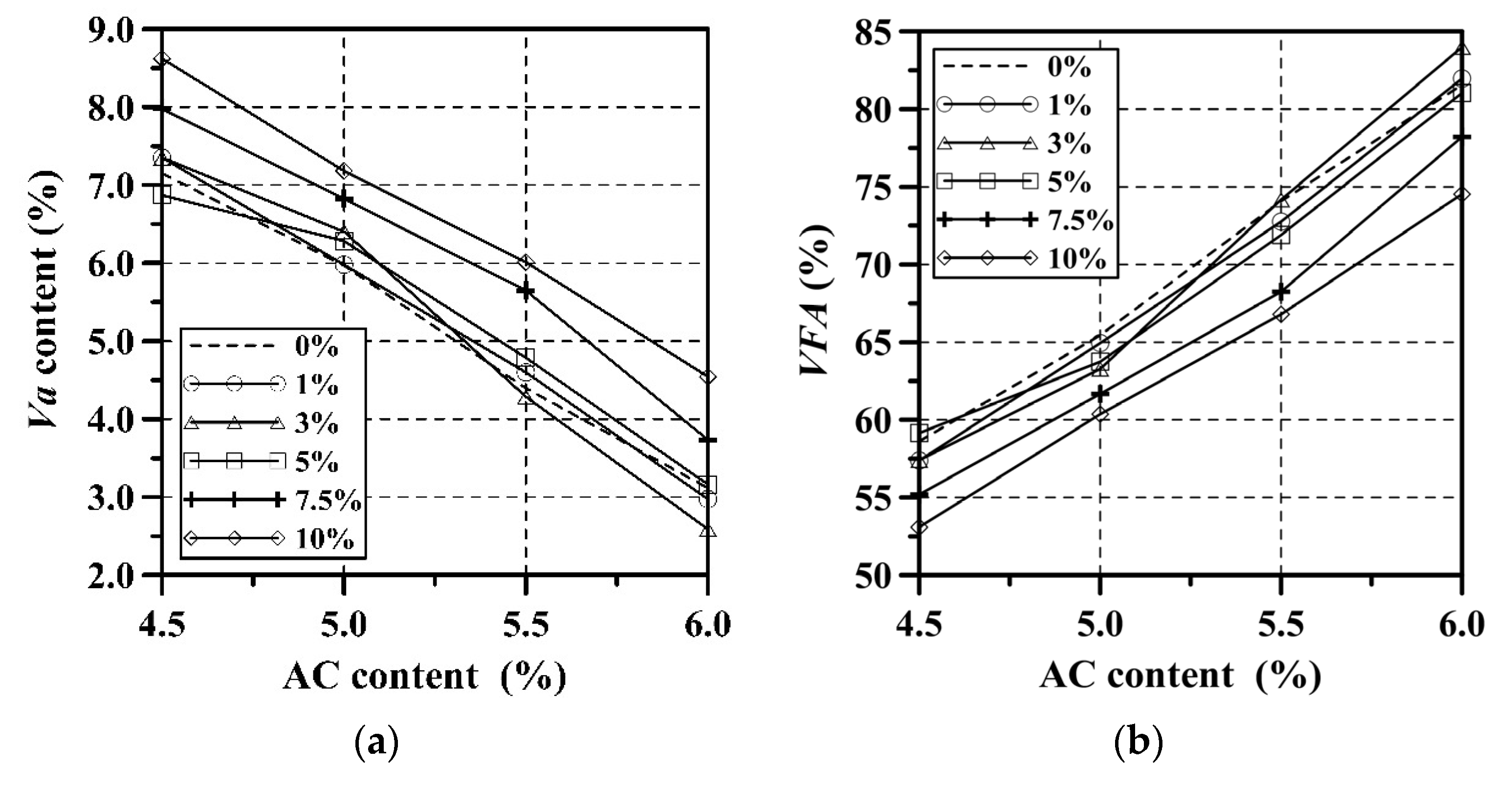

Figure 7. Marshall test results. (a) Stability, (b) S/F ratio, (c) Va, and (d) VFA.
Figure 7. Marshall test results. (a) Stability, (b) S/F ratio, (c) Va, and (d) VFA.
Infrastructures 09 00081 g007aInfrastructures 09 00081 g007b
Infrastructures 09 00081 g008

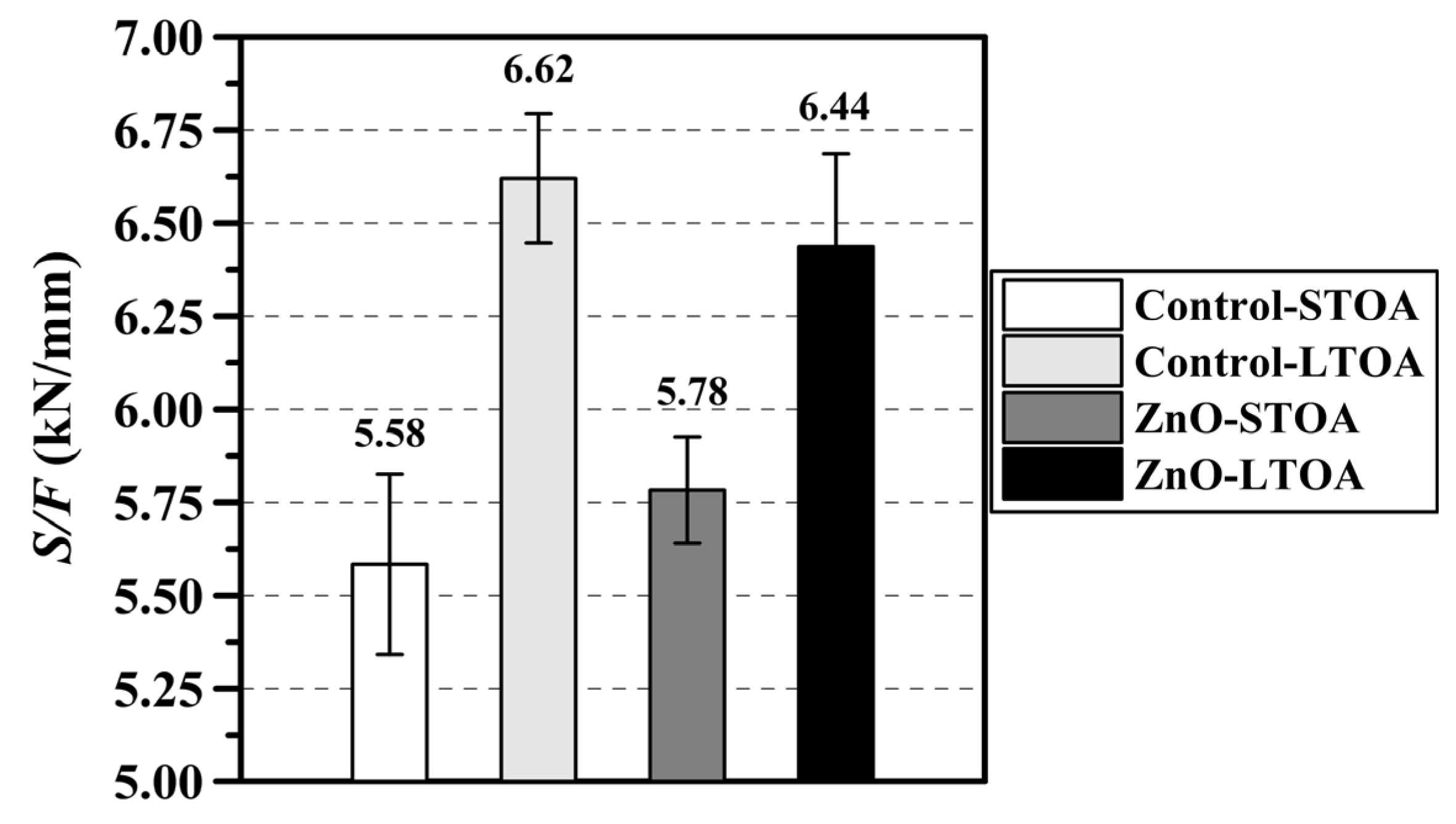

Figure 8. S/F ratio—Control and modified samples under STOA and LTOA condition.
Figure 8. S/F ratio—Control and modified samples under STOA and LTOA condition.
Infrastructures 09 00081 g008
Infrastructures 09 00081 g009

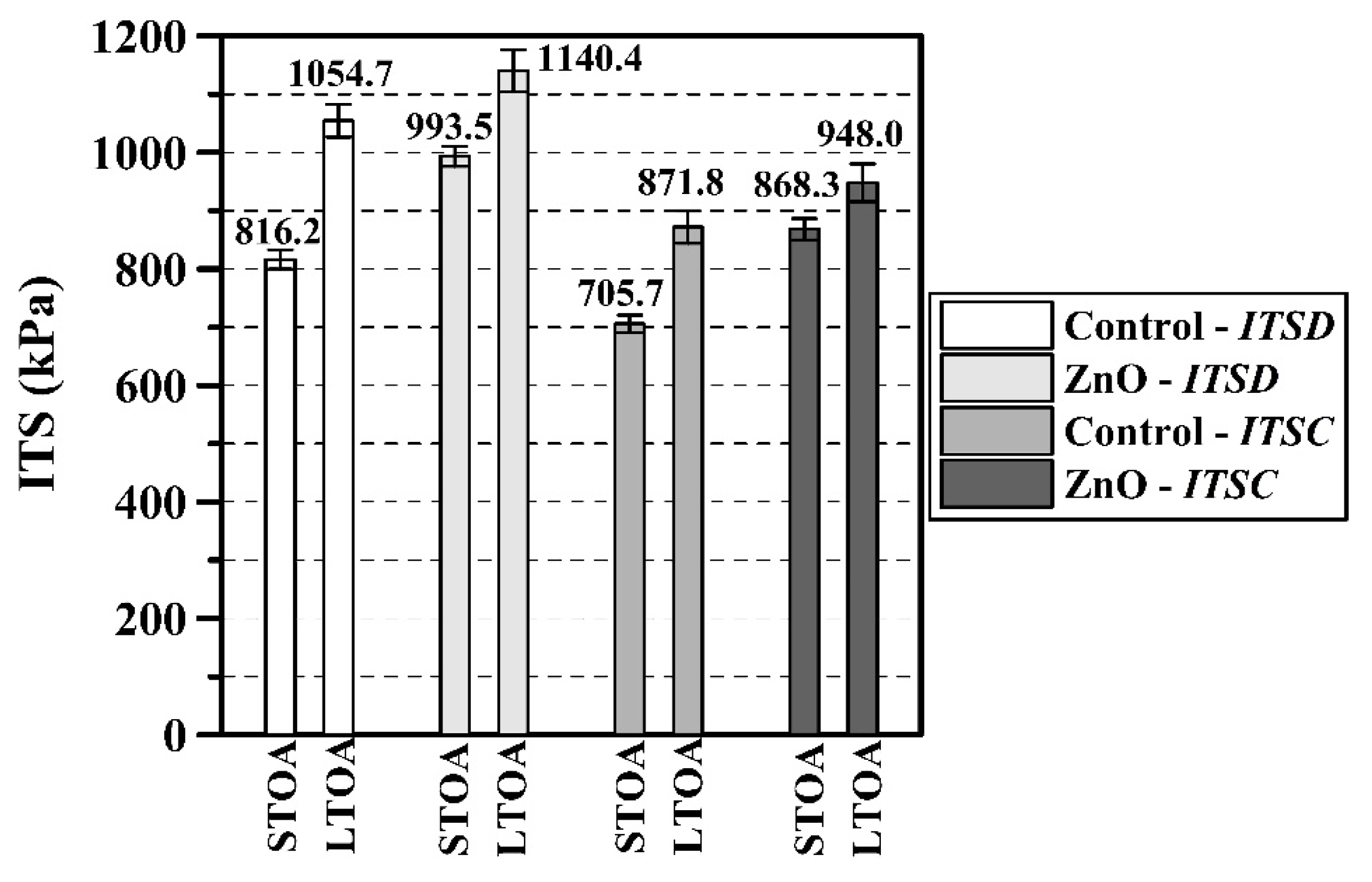

Figure 9. ITS test results.
Figure 9. ITS test results.
Infrastructures 09 00081 g009
Infrastructures 09 00081 g010

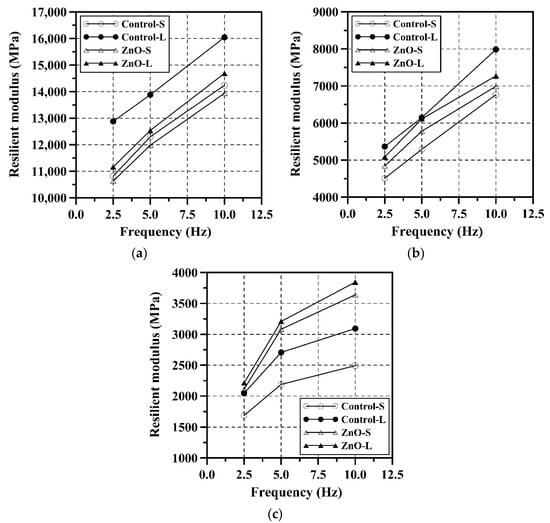

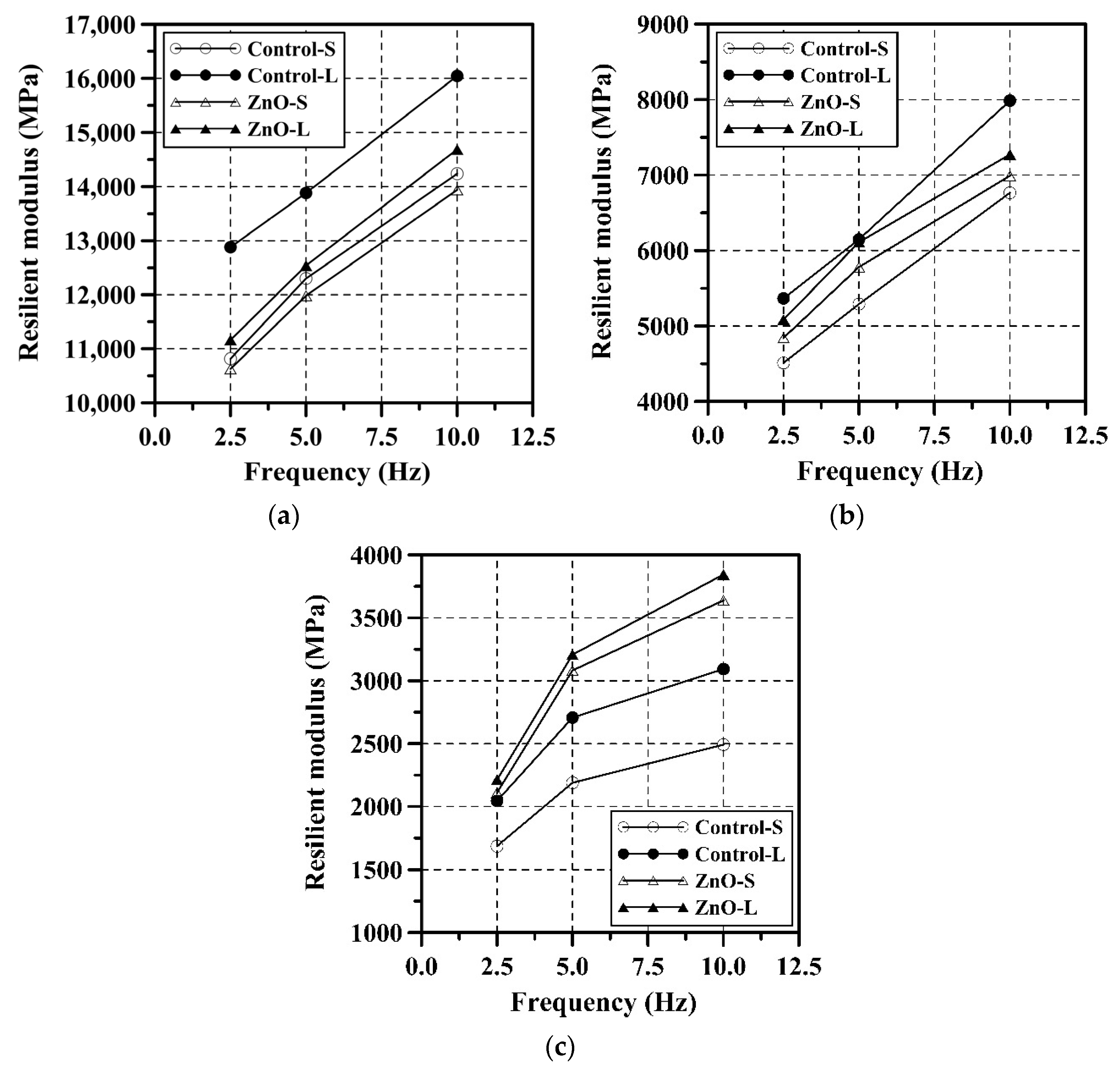

Figure 10. RM test results. (a) 10 °C, (b) 20 °C, and (c) 30 °C.
Figure 10. RM test results. (a) 10 °C, (b) 20 °C, and (c) 30 °C.
Infrastructures 09 00081 g010
Table 1. AC 60–70 properties.
Table 1. AC 60–70 properties.
TestUnitMethodResultRecommended
Neat asphalt binder
Softening point°CASTM D 3648.748–54
PenetrationdmmASTM D 561.660–70
Penetration index-NLT 181−1.05−1.2 to +0.6
Specific gravity-AASHTO T 2281.024-
Viscosity (135 °C)PASTM D 44024.724 minimum
DuctilitycmASTM D113128100 minimum
Flash and fire points°CASTM D8254288230 minimum
After RTFOT
Mass loss%ASTM D28720.220.8 maximum
Percent penetration retained %ASTM D 582.850 minimum
Increase in softening point°CASTM D 362.39 maximum
Table 2. Aggregate properties.
Table 2. Aggregate properties.
TestMethodRecommendedResult
Absorption (fine aggregate)AASHTO T 84, 85-1.65%
Absorption (coarse aggregate)-1.88%
Specific gravity (fine)-2.652
Specific gravity (coarse)-2.671
Soundness using magnesium sulphateAASHTO T 10418.0% maximum5.3%
Fractured particles (1 side)ASTM D582185% minimum92.7%
Abrasion in Los Angeles machineAASHTO T 9625% maximum22.7%
10% of fines (dry resistance)DNER-ME 096110 kN minimum122.5 kN
10% of fines (wet resistance)DNER-ME 09682.5 kN minimum108.9 kN
Micro-DevalAASHTO T 32720% maximum18.6%
Table 3. HMA-19—Particle size distribution.
Table 3. HMA-19—Particle size distribution.
Sieve, mm19.012.59.54.752.00.430.180.075
Sieve¾″½″3/8″#4#10#40#80#200
Passing, %10087.579.057.037.019.512.56.0
Table 4. F-test ANOVA for RM tests.
Table 4. F-test ANOVA for RM tests.
Fr (Hz)Control-S
ZnO-S		Control-L
ZnO-L		Control-S
ZnO-S		Control-L
ZnO-L		Control-S
ZnO-S		Control-L
ZnO-L
10 °C20 °C30 °C
F
2.52.8906.28.328.99.71.37
5.011.2127.715.10.261.023.2
10.013.2134.512.7119.065.228.9
Table 5. LTOA/STOA ratio of RM values.
Table 5. LTOA/STOA ratio of RM values.
Fr (Hz)LTOA/STOA—ControlLTOA/STOA—ZnO
10 °C20 °C30 °C10 °C20 °C30 °C
2.51.1911.1891.2131.0501.0501.048
5.01.1291.1621.2371.0461.0571.041
10.01.1271.1801.2411.0541.0401.056
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rondón-Quintana, H.A.; Zafra-Mejía, C.A.; Urazán-Bonells, C.F. Aging Resistance Evaluation of an Asphalt Mixture Modified with Zinc Oxide. Infrastructures 2024, 9, 81. https://doi.org/10.3390/infrastructures9050081

AMA Style

Rondón-Quintana HA, Zafra-Mejía CA, Urazán-Bonells CF. Aging Resistance Evaluation of an Asphalt Mixture Modified with Zinc Oxide. Infrastructures. 2024; 9(5):81. https://doi.org/10.3390/infrastructures9050081

Chicago/Turabian Style

Rondón-Quintana, Hugo Alexander, Carlos Alfonso Zafra-Mejía, and Carlos Felipe Urazán-Bonells. 2024. "Aging Resistance Evaluation of an Asphalt Mixture Modified with Zinc Oxide" Infrastructures 9, no. 5: 81. https://doi.org/10.3390/infrastructures9050081

Article Metrics

Back to TopTop
