Article

Using In Silico Molecular Docking to Explain Differences in Receptor Binding Behavior of HHC and THCV Isomers: Revealing New Binding Modes

by
Mehdi Haghdoost
1,
Yossef López de los Santos
2,
Megan Brunstetter
3,
Morgan L. Ferretti
4,
Matthew Roberts
1 and
Marcel O. Bonn-Miller
3,*
1
Nalu Bio Inc., 38 Keyes Avenue, Suite 117, San Francisco, CA 94129, USA
2
Biological and Environmental Science and Engineering Division, King Abdullah University of Science and Technology (KAUST), Thuwal 23955-6900, Saudi Arabia
3
Charlotte’s Web, 700 Tech Court, Louisville, CO 80027, USA
4
Department of Psychological Science, University of Arkansas, 216 MEMH, Fayetteville, AR 72701, USA
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2024, 17(5), 637; https://doi.org/10.3390/ph17050637
Submission received: 10 April 2024 / Revised: 10 May 2024 / Accepted: 11 May 2024 / Published: 15 May 2024
(This article belongs to the Special Issue Medical Cannabis and Its Derivatives)
Browse Figures
Versions Notes

Abstract

:
Even slight structural differences between phytocannabinoid isomers are usually enough to cause a change in their biological properties. In this study, we used in vitro CB1 agonism/antagonism assays to compare the receptor binding functionality of THCV (tetrahydrocannabivarin) and HHC (hexahydrocannabinol) isomers and applied molecular docking to provide an explanation for the difference in the activities. No CB1 agonism was observed for ∆9- and ∆8-THCV. Instead, both isomers antagonized CP 55940, with ∆9-THCV being approximately two times more potent than the ∆8 counterpart (IC50 = 52.4 nM and 119.6 nM for ∆9- and ∆8-THCV, respectively). Docking simulations found two binding poses for THCV isomers, one very similar to ∆9-THC and one newly discovered pose involving the occupation of side pocket 1 of the CB1 receptor by the alkyl chain of the ligand. We suggested the latter as a potential antagonist pose. In addition, our results established 9R-HHC and 9S-HHC among partial agonists of the CB1 receptor. The 9R-HHC (EC50 = 53.4 nM) isomer was a significantly more potent agonist than 9S (EC50 = 624.3 nM). ∆9-THC and 9R-HHC showed comparable binding poses inside the receptor pocket, whereas 9S-HHC adopted a new and different binding posture that can explain its weak agonist activity.

1. Introduction

Many structural factors affect the biological properties of cannabinoids. Early structure–activity studies proved the importance of the alkyl side chain on the CB1 binding affinity of tetrahydrocannabinol (THC) molecules [1]. The findings can be used to explain the difference in psychoactivity of THC, tetrahydrocannabiphorol (THCP), tetrahydrocannabivarin (THCV), and tetrahydrocannabiorcol (THCO; Figure 1); however, most phytocannabinoids possess natural and synthetic isomers with very similar structural backbones. THC, for example, has seven distinguished isomers only depending on the position of the double bond of the cyclohexene ring: ∆10, ∆9, ∆8, ∆7, ∆6a(10a), ∆6a(7), and ∆9(11). To add another layer of complexity, each isomer can have multiple diastereomers and enantiomers by changing chirality at carbons 10a, 9, and 6a (for carbon numbering, see Figure 1). For example, ∆7-THC has three stereogenic carbon atoms, and eight stereoisomers can be present.
Information regarding the impact of minor structural changes, such as the position of double bonds and stereochemistry of chiral centers, on the receptor binding and biological properties of cannabinoids is scarce. In a rare study by Reggio and colleagues, the orientation of the C9 substituent is suggested as the main reason for the difference in cannabinoid activity of some cannabinoids with close structures [2]. Despite this knowledge gap, the literature review suggests that even small changes in the structure can entirely change the biological properties of phytocannabinoids. For instance, we have recently shown that in contrast to ∆9-THC, the ∆10-THC isomer is incapable of agonizing the CB1 cannabinoid receptor and instead acts as a potent antagonist of CB1 [3]. In addition, Ki for displacing CP 55940 at CB1 by (−)-CBD, the natural enantiomer of CBD, is fivefold higher than the synthetic enantiomer (+)-CBD [4].
The lack of solid understanding of differences in the biological activity of cannabinoid isomers has become a point of concern recently as various synthetic and natural isomers of phytocannabinoids have entered the North American recreational market. Tetrahydrocannabivarin (THCV) and hexahydrocannabinol (HHC) are two prominent examples [5]. THCV, which has become popular due to its reported capability to reduce blood sugar and appetite in animal models [6,7], possesses two main isomers depending on the position of the double bond: ∆9-THCV and ∆8-THCV (Figure 2). The ∆9-THCV isomer is a phytocannabinoid first discovered in Cannabis sativa by Merkus in 1971 [2]. Surprisingly, no report mentions the presence of ∆8-THCV in cannabis plants. Instead, ∆8-THCV is made by simple acid isomerization of CBDV, an approach commonly taken where cannabis cultivation is considered illegal. It has been recently shown that both Δ9-THCV and Δ8-THCV are CB1 receptor antagonists, but with a twofold difference in IC50 [8], suggesting an expected difference in biological potency and human effect of isomers.
Both isomers may prove to have therapeutic utility. However, their difference in potency suggests that they should be separately considered in patient and consumer applications. At a minimum, both health care providers and consumers need to have transparency about which isomers are present in products. Currently, most, if not all, commercial products containing THCV in the North American market fail to mention which isomer(s) of THCV are included.
HHC follows a similar story. It is a phytocannabinoid [9], but due to the trace quantity in the plant, HHC is typically synthesized by THC hydrogenation. HHC has two isomers depending on the stereochemistry of the newly formed chiral center during the hydrogenation (C9): 9R-HHC and 9S-HHC (Figure 2). HHC is popular as a psychoactive alternative to THC. Products containing 25–500 mg HHC are present in the US market to provide a similar “high” effect to THC. It is known from early studies of psychoactivity in rhesus monkeys that the 9R isomer is significantly more potent than the 9S counterpart [10]. This observation has been recently supported by in vitro cAMP assays showing that 9R-HHC is a more potent CB1 agonist than the 9S counterpart [11]; however, the reason behind any variation in activity between 9R-HHC and 9S-HHC has yet to be explored. As with THCV, most, if not all, commercial HHC products also do not provide any information about the HHC isomer used in the production stage, although it is clear that the human effect of these products depends strongly on the ratio of isomers.
To shed more light on the difference in the biological activity of THCV and HHC isomers, we studied their CB1 receptor binding functionality and used in silico molecular docking to explain the obtained data.

2. Results and Discussion

2.1. THCV

The agonist property of ∆9-THCV and ∆8-THCV was assessed using the β-arrestin recruitment assay in CB1 expressing CHO-K1 cell line, in which both isomers failed to show any significant agonist property up to 5 µM (Figure 3a). An insignificant increase from baseline was observed for ∆9-THCV (Emax of 1.19%), suggesting that this isomer may show a weak agonist property at higher concentrations; however, higher concentrations were not tested, as most cannabinoids are known to exert some in vitro cell cytotoxicity at a dose higher than 5 µM [12]. Instead, both isomers were capable of antagonizing the agonist effect of CP 55940, a synthetic cannabinoid and full agonist of CB1, with surprisingly similar maximum relative efficiency to AM-281 and rimonabant, two synthetic antagonists/inverse agonists of human CB1 receptor (Figure 3b, Table 1). The obtained antagonist values for ∆9-THCV and ∆8-THCV fitted greatly (R2 > 0.98) into a four-parameter log-logistic model (antagonist concentration) vs. response curve, allowing calculation of IC50 and Hill slope values. The ∆9 isomer was found to be approximately two times stronger an antagonist than the ∆8 counterpart, realizing an IC50 of 52.4 nM (119.6 nM for ∆8-THCV). This difference in antagonist activity has also been highlighted recently by Walsh and colleagues, reporting that, compared to ∆8-THCV, ∆9-THCV is more potent in antagonizing WIN 55212-2 (another full agonist of CB1) [8]. The ∆9 isomer was, however, a ~3× and ~45× less potent antagonist than AM-281 and rimonabant, respectively.
Another aspect of the data that caught our attention was the antagonist Hill slope value of THCV isomers, which realized values significantly higher than unity (Table 2). These values suggest a complex binding profile for ∆9-THCV and ∆8-THCV, proposing the possibility of more than one binding site [13]; however, considering the limitation of the Hill equation [14], further study is required to confirm this hypothesis.
Although the IC50 for THCV isomers is higher than that of AM-281 and rimonabant, their nanomolar range suggests that both isomers can be considered potent antagonists; however, the CB1 antagonist effect of THCV has always been the subject of debate in the scientific community. In a review of ∆9-THC and ∆9-THCV functionality at cannabinoid receptors, Pertwee concluded that ∆9-THCV can act as a CB1 antagonist at low doses but shows agonist-like CB1 activation at high concentrations [15], an utterly distinguished functionality compared to ∆9-THC. THCV is reported to have a weaker affinity toward CB2 than THC [15]. However, similar to CB1, some studies have reported THCV as a potent agonist of CB2 [16] and some as an antagonist [17]. The dose-dependent dual agonist/antagonist property, which to some extent has been overlooked by other studies, reveals the potential of two binding modes for ∆9-THCV. Raïch and colleagues suggest that the difference in the functionality of THC and THCV at the CB1 receptor originated from variation in binding modes that results in qualitatively different effects depending on the signaling pathway engaged upon receptor activation [18]. We applied in silico molecular docking simulations to shed more light on the difference between the interaction of THCV isomers and THC with the CB1 receptor. The in silico molecular docking method was first optimized and validated using a practical guide outlined by Bender and colleagues [19]. As shown in Figure 4, the model was capable of predicting the binding site and binding posture of crystallized ligands in both agonist and antagonist states with good accuracy, producing ligand root mean square deviation (RMSD, crystal structure against predicted docking pose, calculated with Chimera) of 0.580 and 0.616 Å for agonist (AM841) and antagonist (AM638) ligands, respectively.
The orthosteric binding pocket analysis of the CB1 receptor using CASTp 3.0 [20] shows a binding core and three main binding side channels (Figure 5a). After validation of our in silico model, we studied the interaction of THCV isomers and THC with the binding pocket of the CB1 receptor in both agonist (5XRA) and antagonist (5TGZ) states. In the agonist mode, ∆9- and ∆8-THCV show very similar poses inside the orthosteric site of the CB1 receptor to that of ∆9-THC (Figure 5b,c). This pose, which involves hydrogen binding between the phenol OH group and Ser3837.39, as well as π−π interaction of the benzene ring with phenylalanines, Phe1702.57, and Phe3797.35 (Figure 5c), has been discussed previously by other research groups [21]. In this binding pose (hereby called agonist pose), the alkyl chain of the cannabinoids occupies the narrow side pocket 3; however, a new energetically favorable pose was discovered when we studied the interaction of THCVs with the antagonist state of the CB1 receptor. In this new pose (hereby called antagonist pose), demonstrating the highest docking score, the alkyl chain is not pointed to the center of the receptor but instead occupies the side pocket 1 (Figure 5d). On the one hand, this led to interaction with new lipophilic groups, in particular, strong interactions with Phe268ECL2 (1.993 Å, closest distance between ligand and residue), Met103 (2.475 Å), and Ile105 (2.658 Å). Among these residues, Met103 and Ile105 belong to the N-terminus of the receptor. On the other hand, the THCV is deprived of interacting with Phe3797.35, which, according to mutagenesis studies, is essential in demonstrating agonist properties [22]. In addition, occupation of side pocket 1 and interactions with ECL2/N-terminus residues have been previously reported in the CB1 docking simulation of synthetic antagonists from the AM family [23], prompting us to suggest that this pose is responsible for the observed antagonist property of THCV isomers. The presence of two binding modes can be used to explain the dual CB1 agonist/antagonist functionality of ∆9-THCV in some in vitro assays [15].
CASTp 3.0 analysis shows a binding pocket area of 1465.3 Å for antagonist-bound CB1 (5TGZ) and 1201 Å for agonist-bound CB1 (5XRA). In the analysis of the crystal structure of CB1 receptors, Hua et al. also noted a 53% increase in the volume of the ligand binding pocket in the antagonist/rest state relative to the agonist-bound state [24]. We believe the antagonist pose discovered in this study is likely possible due to the bigger pocket size of the receptor in the antagonist state.
Interestingly, when we conducted docking simulations between ∆9-THC-based molecules bearing different alkyl chain lengths (1 to 7, Figure 1) and 5TGZ (CB1 receptor in antagonist state), for all ligands, the antagonist pose also appeared among the top three poses. To investigate further, we compared the docking score of agonist and antagonist poses across this series of cannabinoids (Figure 6). We discovered the docking scores do not follow a linear trend while providing a very good prediction of in vitro experimental data. In the antagonist pose, ∆9-THCV has the best docking score in the series while showing a poor docking score in the agonist mode, consistent with its antagonist properties in vitro. The difference between the binding score of agonist and antagonist poses also suggests that ∆9-THCB (Δ9-tetrahydrocannabutol) and ∆9-THCP should be stronger agonists than ∆9-THC, with ∆9-THCP being the strongest agonist in the series, again in agreement with the experimental data [21,25].
It is noteworthy that the docking score for the antagonist pose of ∆8-THCV (−11.542 kcal/mol) is slightly worse than that of ∆9-THCV (−11.605 kcal/mol), supporting slightly higher IC50 of ∆8-THCV in the in vitro antagonist assay.

2.2. HHC

Both 9R-HHC and 9S-HHC isomers demonstrated agonist activity at the CB1 receptor in the β-arrestin recruitment assay. The obtained antagonist values for 9R-HHC and 9S-HHC fitted greatly (R2 > 0.98) into four-parameter log-logistic model (agonist concentration) vs. response curve, allowing calculation of EC50 and Hill slope values (Figure 7). The 9R isomer was significantly more potent, showing ~12× lower EC50 (53.4 nM) than the 9S counterpart (624.30 nM). Relative to the full agonist CP 55940, the R isomer also led to higher maximum receptor activation than 9S-HHC (41.51% vs. 20.58% for S; Table 2), presenting a surprisingly similar CB1 activation profile and potency to ∆9-THC [26]; however, both isomers were significantly less potent than CP 55940 and can be classified as moderate (9R) and weak (9S) partial agonists of the CB1 cannabinoid receptor. In a recent study, Nasrallah and Garg reported smaller agonist EC50 values for 9R-HHC (3.4 nM) and 9S-HHC (57 nM) using a cAMP assay, but their data also similarly suggest approximately 16-fold higher agonist potency for 9R-HHC [11].
Differences in EC50, maximum RE percentage, and Hill slope values of 9R- and 9S-HHC encouraged us to study their interaction with the agonist mode of the CB1 receptor (5XRA) using a molecular docking approach. We discovered that 9R-HHC and ∆9-THC adopt very similar poses inside the orthosteric ligand binding site of the CB1 receptor (Figure 5b and Figure 8a), explaining their similar in vitro receptor binding properties. In this pose, the aromatic group of the phenolic ring is almost sandwiched between two phenylalanine amino acids, Phe1702.57 and Phe3797.35 (Figure 8a). Other lipophilic phenylalanine residues (Phe1742.61, Phe1772.64, Phe1893.25, and Phe268ECL2), are involved in stabilizing methyl groups C11, C12, and C13 (for atom numbering, see Figure 1). An important polar interaction in this pose is the strong binding of the OH group with the amino acid Ser3837.39. The first three carbons of the pentyl chain (C1′, C2, and C3′) have close contact with Val1963.32; however, we noticed that for both 9R-HHC and ∆9-THC structures, two terminal carbons (C4′ and C5′) could easily rotate to produce slightly different poses with similar docking scores inside the receptor pocket (Figure 8c). A previous docking study by Linciano and coworkers suggested a very similar variation in the position of the aliphatic side chain as the main reason for the difference in CB1 affinity of Δ9-THC and Δ9-THCB [21].
Surprisingly, the docking study revealed an entirely different binding pose for 9S-HHC (score: −10.23 kcal/mol), in which the ligand seems to be rotated inside the pocket (Figure 8b). This pose also shows a lower docking score than 9R-HHC (score −11.10 kcal/mol) and Δ9-THC poses (score: −11.04 kcal/mol), predicting a weaker affinity of 9S-HHC. In this unique pose, the aromatic resorcinol ring is again involved in an edge-to-face π−π interaction with Phe3797.35. Interestingly, although a somewhat similar array of amino acids is involved in the structure stabilization of 9R-HHC and 9S-HHC, these amino acids interact with different parts of these molecules. For example, Phe1893.25 interacts with C12 and C13 of 9R-HHC, but it is in proximity to C11 in the 9S-HHC pose. However, the significant difference in the 9S-HHC pose is the lack of an H-bond between the phenolic OH of 9S-HHC and Ser3837.39. In fact, the rotation of the molecule inside the receptor has deprived the OH group from making any meaningful polar interaction with the CB1 receptor. As the previous structure–activity relationship has shown that the phenolic OH group plays a vital role in the affinity of THC-like molecules toward the CB1 receptor, we believe that the lack of polar interaction with Ser3837.39 is the main reason behind the weak agonist property of 9S-HHC and its low affinity toward the CB1 receptor [27]. In addition, it has been shown that removing the OH group from Δ9-THC does not affect the affinity toward the CB2 receptor. Our molecular docking, as a result, predicts higher CB2 selectivity for 9S-HHC than for 9R-HHC. This prediction has been recently confirmed by in vitro studies showing 1.7 times CB2 selectivity for 9S-HHC and 1.2 for 9R-HHC [11].

3. Materials and Methods

3.1. PathHunter® Agonist and Antagonist Assay

For agonist and antagonist assays, PathHunter® CHO-K1 CNR1 (Eurofins DiscoverX, Fremont, CA, USA, Catalog number: 93-0959C2) β-Arrestin cells were expanded from freezer stocks according to standard procedures provided by Eurofins. The cell line manual was followed for cell growth (including cell culture media and supplementation, the handling and preparation of cells, etc.), test procedure, and signal detection [28]. Cells were seeded in a total volume of 20 µL (5000 cells) into white-walled, 384-well microplates and incubated at 37 °C overnight prior to testing. After preparing stock acetonitrile solution at 1 mg/mL concentration of ligand, compound intermediate concentrations were achieved by a 10-point series of 3-fold compound serial dilutions in a compound dilution buffer in a separate dilution plate.
For the agonist assay, the concentration of each dilution was prepared at 5X of the final screening concentration. An amount of 5 µL of samples was added to cells (highest final concentration = 5 µM, maximum acetonitrile = 0.2 v/v%) and incubated at 37 °C for 90 min (5% CO2). To generate the assay signal, 12.5 µL of working detection solution was added to the cells, which were then left to incubate for an hour at room temperature in the dark. The signal detection was carried out using a PerkinElmer Envision instrument to measure chemiluminescence.
For antagonist determination, cells were pre-incubated with THCV isomers, followed by agonist challenge at the EC80 concentration. Each THCV dilution was prepared at a 10X concentration relative to the intended final concentrations for screening. An amount of 2.5 µL of these samples were introduced into the cells, achieving a maximum final concentration of 5 µM for THCV and ~0.2 v/v% for acetonitrile. The assay plate was incubated at 37 °C for 30 min in an atmosphere containing 5% CO2. An amount of 2.5 µL of CP 55940 stock solution (10× final concentration) was added to the cells to produce a final concentration equal to EC80 (5.04 nM, previously calculated using agonist assay). Cells were incubated for 90 min at 37 °C and 5% CO2. To generate the assay signal, 12.5 µL of working detection solution was added to the cells, which were then left to incubate for an hour at room temperature in the dark. The signal detection was carried out using a PerkinElmer Envision (Waltham, MA, USA) instrument to measure chemiluminescence.
The pure ∆8-THCV, ∆9-THCV, and HHC isomers were purchased as analytical standards (in acetonitrile) from Cayman Chemicals (Ann Arbor, MI, USA) [29]. CP 55940 and AM281 were provided by Eurofins (Fremont, CA, USA).

3.2. CB1 Cannabinoid Receptor Refinement and Molecular Analysis with THCV and HHC Isomers

The cannabinoid CB1 receptor structural templates were obtained from the Protein Data Bank. The antagonist-bound CB1 protein (5TGZ) [23] was used for antagonist state studies. For agonist mode, four agonist-bound CB1 proteins (5XR8 [24], 5XRA [24], 7V3Z [30], and 8GHV [31]) were investigated, and 5XRA was selected because it produced the best results in the validation process. Some protein structures had a low resolution of 2.8 Å and a medium quality according to the vwPDB validation protocol (according to PDB percentile ranks). Parameters such as side chain outliers and clashcores needed to be refined prior to molecular docking analysis to obtain the most reliable results. The Chimera (RBVI, University of California, San Francisco, CA, USA) Dock Prep function was used to prepare receptors for the docking simulations. Solvent and water molecules were removed. The incomplete side chain was replaced with the Dunbrack 2010 rotamer library [32]. Hydrogen atoms were added considering steric factors and H-bonds. Charges were assigned using the AMBER ff99bsc0 force field [33]. For molecular refinement, we applied molecular dynamic simulation (MD) to refine the overall final model. For MD refinement, we applied the YASARA2 force field and the WHAT-IF protein quality check package [34]. The Yasara2 force field has been optimized to increase the atomic accuracy of protein structures based on multidimensional potentials based on the enormous knowledge curated and deposited in the PDB. Once the CB1 cannabinoid receptor protein model was refined, we performed energy minimization as a prerequisite for molecular docking analysis. The minimization process was performed using the same force field used in the refinement stage with the YASARA Structure molecular suite (YASARA Biosciences GmbH, Wien, Austria). Autodock Vina [35] was used for the molecular docking analysis. The performance of three different scoring functions (vina, vinardo [36], and a recently reported custom empirical set [37]) was assessed during the docking method validation, and the scoring function that performed the best in the validation process was selected for docking analysis. For the costume empirical set, the gauss1, gauss2, repulsion, hydrophobic, hydrogen bond, and rotation values were set at −0.049811, −0.007218, 0.756221, −0.031562, −0.469951, and 0.025722, respectively.
For validation of the docking method, molecular docking was first conducted on a series of agonist/antagonist active and decoy ligands (250–300 ligands, active-to-decoy ratio of 1:10), and area under the curves (AUCs) in receiving operating characteristic (ROC) graphs were used to analyze the success of each model and scoring function [19]. Decoy ligands were obtained from the DUD.E database [38]. AUC data and ROC graphs are presented in Table 3 and Figure 9, respectively. To prepare for docking simulations, the 3D structure of ligands was built from SMILES strings using Open Babel 3.1.1 [39], and Gasteiger charges were assigned to each molecule.
Before performing the in silico study, the ligand molecules, as well as the template structure, were prepared. During this phase, parameters such as protonation state, length and angle of atomic bonds were corrected, and flexible atomic bonds were assigned to allow conformational sampling of the ligand molecule chains during molecular docking analysis. A cavity prediction algorithm was used to identify the protein cavity as the binding target in the CB1 protein receptor [40]. Grid box size of 30 × 30 × 30 and exhaustiveness of 50 were used for all molecular docking calculations. No meaningful improvement in docking scores was observed using larger exhaustiveness values. The most favorable (energetically) and best-scoring poses were selected, analyzed, and compared between the different ligands tested.

4. Conclusions

In conclusion, a minimal structural modification can significantly change the CB1 receptor binding behavior of cannabinoids. A slight shift in the position of the double bond that converts ∆9-THCV to ∆8-THCV also reduces the CB1 antagonist potency by twofold. The only structural difference between 9R-HHC and 9S-HHC is the Chirality of one carbon atom; however, this difference is significant enough to make the 9R-HHC isomer a ~10× more potent CB1 agonist than 9S. We showed that these variations in activity are directly related to the binding pose ligands taken inside the binding site of the CB1 receptor. In this study, we introduce two new possible binding poses for THCV isomers and 9S-HHC, which can explain their unusual CB1 functionality. A lack of strong polar interaction was suggested as the main reason for the drop in CB1 potency of 9S-HHC. We also proposed a new antagonist binding pose for THC-based molecules. As the market of minor cannabinoids (cannabinoids that are found in small quantities in Cannabis sativa) is rapidly expanding, this study highlights the importance of studying structure–activity relations in the cannabinoid field. To broaden our understanding of the isomeric differences and their pharmacological implications, future studies could explore other cannabinoid receptors, such as CB2, as well as non-cannabinoid receptors that cannabinoids interact with (e.g., serotonin, dopamine, and opioid receptors). Considering that the activity of CYP enzymes can convert cannabinoids to other biologically active compounds, the differences in receptor binding of THCV and HHC metabolites (particularly 11-OH and 11-COOH metabolites) should also be investigated in future studies.

Author Contributions

Conceptualization: M.H. and M.O.B.-M.; methodology: M.H.; formal analysis: M.H.; data curation: M.H.; writing—original draft preparation: M.H., Y.L.d.l.S., M.B., M.R. and M.O.B.-M.; writing—review and editing: M.L.F. and M.O.B.-M.; visualization: M.H.; project administration: M.H.; funding acquisition: M.O.B.-M. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this study was provided by Charlotte’s Web.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors would like to thank Carbon for supporting the first author.

Conflicts of Interest

M.B. and M.O.B.-M. are past employees of Canopy Growth Corporation. M.B. and M.O.B.-M. are presently employed by Charlotte’s Web. M.H. and M.R. are employees of Nalu Bio. M.H. is a consultant for Charlotte’s Web and a former employee at Canopy Growth Corporation and Organigram.

References

  1. Compton, D.R.; Rice, K.C.; De Costa, B.R.; Razdan, R.K.; Melvin, L.S.; Johnson, M.R.; Martin, B.R. Cannabinoid Structure-Activity Relationships: Correlation of Receptor Binding and in Vivo Activities. J. Pharmacol. Exp. Ther. 1993, 265, 218–226. [Google Scholar] [PubMed]
  2. Reggio, P.H.; Greer, K.V.; Cox, S.M. The Importance of the Orientation of the C9 Substituent to Cannabinoid Activity. J. Med. Chem. 1989, 32, 1630–1635. [Google Scholar] [CrossRef] [PubMed]
  3. Haghdoost, M.; Brumar, D.; Geiling, B.; Brunstetter, M.; Bonn-Miller, M.O. Chemistry, Crystal Structure, and In Vitro Receptor Binding of Δ10-THC Isomers. Cannabis Cannabinoid Res. 2023, 8, S1–S10. [Google Scholar] [CrossRef] [PubMed]
  4. Bosquez-Berger, T.; Wilson, S.; Iliopoulos-Tsoutsouvas, C.; Jiang, S.; Wager-Miller, J.; Nikas, S.P.; Mackie, K.P.; Makriyannis, A.; Straiker, A. Differential Enantiomer-Specific Signaling of Cannabidiol at CB1 Receptors. Mol. Pharmacol. 2022, 102, 259–268. [Google Scholar] [CrossRef] [PubMed]
  5. Ferretti, M.L.; Gournay, L.R.; Bingaman, M.G.; Leen-Feldner, E.W. A Survey Study of Individuals Using Hexahydrocannabinol Cannabis Products: Use Patterns and Perceived Effects. Cannabis Cannabinoid Res. 2023. [Google Scholar] [CrossRef] [PubMed]
  6. Wargent, E.T.; Zaibi, M.S.; Silvestri, C.; Hislop, D.C.; Stocker, C.J.; Stott, C.G.; Guy, G.W.; Duncan, M.; Di Marzo, V.; Cawthorne, M.A. The Cannabinoid Δ9-Tetrahydrocannabivarin (THCV) Ameliorates Insulin Sensitivity in Two Mouse Models of Obesity. Nutr. Diabetes 2013, 3, e68. [Google Scholar] [CrossRef] [PubMed]
  7. Riedel, G.; Fadda, P.; McKillop-Smith, S.; Pertwee, R.G.; Platt, B.; Robinson, L. Synthetic and Plant-derived Cannabinoid Receptor Antagonists Show Hypophagic Properties in Fasted and Non-fasted Mice. Br. J. Pharmacol. 2009, 156, 1154–1166. [Google Scholar] [CrossRef] [PubMed]
  8. Walsh, K.B.; Holmes, A.E. Pharmacology of Minor Cannabinoids at the Cannabinoid CB1 Receptor: Isomer- and Ligand-Dependent Antagonism by Tetrahydrocannabivarin. Receptors 2022, 1, 3–12. [Google Scholar] [CrossRef]
  9. Hanuš, L.O.; Meyer, S.M.; Muñoz, E.; Taglialatela-Scafati, O.; Appendino, G. Phytocannabinoids: A Unified Critical Inventory. Nat. Prod. Rep. 2016, 33, 1357–1392. [Google Scholar] [CrossRef]
  10. Mechoulam, R.; Lander, N.; Varkony, T.H.; Kimmel, I.; Becker, O.; Ben-Zvi, Z.; Edery, H.; Porath, G. Stereochemical Requirements for Cannabinoid Activity. J. Med. Chem. 1980, 23, 1068–1072. [Google Scholar] [CrossRef]
  11. Nasrallah, D.J.; Garg, N.K. Studies Pertaining to the Emerging Cannabinoid Hexahydrocannabinol (HHC). ACS Chem. Biol. 2023, 18, 2023–2029. [Google Scholar] [CrossRef] [PubMed]
  12. Cerretani, D.; Collodel, G.; Brizzi, A.; Fiaschi, A.I.; Menchiari, A.; Moretti, E.; Moltoni, L.; Micheli, L. Cytotoxic Effects of Cannabinoids on Human HT-29 Colorectal Adenocarcinoma Cells: Different Mechanisms of THC, CBD, and CB83. Int. J. Mol. Sci. 2020, 21, 5533. [Google Scholar] [CrossRef] [PubMed]
  13. Prinz, H. Hill Coefficients, Dose–Response Curves and Allosteric Mechanisms. J. Chem. Biol. 2010, 3, 37–44. [Google Scholar] [CrossRef] [PubMed]
  14. Endrenyi, L.; Kwong, F.H.F.; Fajszi, C. Evaluation of Hill Slopes and Hill Coefficients When the Saturation Binding or Velocity Is Not Known. Eur. J. Biochem. 1975, 51, 317–328. [Google Scholar] [CrossRef] [PubMed]
  15. Pertwee, R.G. The Diverse CB1 and CB2 Receptor Pharmacology of Three Plant Cannabinoids: Δ9-tetrahydrocannabinol, Cannabidiol and Δ9-tetrahydrocannabivarin. Br. J. Pharmacol. 2008, 153, 199–215. [Google Scholar] [CrossRef]
  16. Bátkai, S.; Mukhopadhyay, P.; Horváth, B.; Rajesh, M.; Gao, R.Y.; Mahadevan, A.; Amere, M.; Battista, N.; Lichtman, A.H.; Gauson, L.A.; et al. Δ8-Tetrahydrocannabivarin Prevents Hepatic Ischaemia/Reperfusion Injury by Decreasing Oxidative Stress and Inflammatory Responses through Cannabinoid CB2 Receptors. Br. J. Pharmacol. 2012, 165, 2450–2461. [Google Scholar] [CrossRef] [PubMed]
  17. Thomas, A.; Stevenson, L.A.; Wease, K.N.; Price, M.R.; Baillie, G.; Ross, R.A.; Pertwee, R.G. Evidence That the Plant Cannabinoid Δ9-tetrahydrocannabivarin Is a Cannabinoid CB1 and CB2 Receptor Antagonist. Br. J. Pharmacol. 2005, 146, 917–926. [Google Scholar] [CrossRef] [PubMed]
  18. Raïch, I.; Rivas-Santisteban, R.; Lillo, A.; Lillo, J.; Reyes-Resina, I.; Nadal, X.; Ferreiro-Vera, C.; De Medina, V.S.; Majellaro, M.; Sotelo, E.; et al. Similarities and Differences upon Binding of Naturally Occurring Δ9-Tetrahydrocannabinol-Derivatives to Cannabinoid CB1 and CB2 Receptors. Pharmacol. Res. 2021, 174, 105970. [Google Scholar] [CrossRef]
  19. Bender, B.J.; Gahbauer, S.; Luttens, A.; Lyu, J.; Webb, C.M.; Stein, R.M.; Fink, E.A.; Balius, T.E.; Carlsson, J.; Irwin, J.J.; et al. A Practical Guide to Large-Scale Docking. Nat. Protoc. 2021, 16, 4799–4832. [Google Scholar] [CrossRef]
  20. Tian, W.; Chen, C.; Lei, X.; Zhao, J.; Liang, J. CASTp 3.0: Computed Atlas of Surface Topography of Proteins. Nucleic Acids Res. 2018, 46, W363–W367. [Google Scholar] [CrossRef]
  21. Linciano, P.; Citti, C.; Luongo, L.; Belardo, C.; Maione, S.; Vandelli, M.A.; Forni, F.; Gigli, G.; Laganà, A.; Montone, C.M.; et al. Isolation of a High-Affinity Cannabinoid for the Human CB1 Receptor from a Medicinal Cannabis sativa Variety: Δ9-Tetrahydrocannabutol, the Butyl Homologue of Δ9-Tetrahydrocannabinol. J. Nat. Prod. 2020, 83, 88–98. [Google Scholar] [CrossRef] [PubMed]
  22. Ahn, K.H.; Bertalovitz, A.C.; Mierke, D.F.; Kendall, D.A. Dual Role of the Second Extracellular Loop of the Cannabinoid Receptor 1: Ligand Binding and Receptor Localization. Mol. Pharmacol. 2009, 76, 833–842. [Google Scholar] [CrossRef] [PubMed]
  23. Hua, T.; Vemuri, K.; Pu, M.; Qu, L.; Han, G.W.; Wu, Y.; Zhao, S.; Shui, W.; Li, S.; Korde, A.; et al. Crystal Structure of the Human Cannabinoid Receptor CB1. Cell 2016, 167, 750–762.e14. [Google Scholar] [CrossRef] [PubMed]
  24. Hua, T.; Vemuri, K.; Nikas, S.P.; Laprairie, R.B.; Wu, Y.; Qu, L.; Pu, M.; Korde, A.; Jiang, S.; Ho, J.-H.; et al. Crystal Structures of Agonist-Bound Human Cannabinoid Receptor CB1. Nature 2017, 547, 468–471. [Google Scholar] [CrossRef] [PubMed]
  25. Citti, C.; Linciano, P.; Russo, F.; Luongo, L.; Iannotta, M.; Maione, S.; Laganà, A.; Capriotti, A.L.; Forni, F.; Vandelli, M.A.; et al. A Novel Phytocannabinoid Isolated from Cannabis sativa L. with an in Vivo Cannabimimetic Activity Higher than Δ9-Tetrahydrocannabinol: Δ9-Tetrahydrocannabiphorol. Sci. Rep. 2019, 9, 20335. [Google Scholar] [CrossRef] [PubMed]
  26. Bayewitch, M.; Rhee, M.-H.; Avidor-Reiss, T.; Breuer, A.; Mechoulam, R.; Vogel, Z. (—)-Δ9-Tetrahydrocannabinol Antagonizes the Peripheral Cannabinoid Receptor-Mediated Inhibition of Adenylyl Cyclase. J. Biol. Chem. 1996, 271, 9902–9905. [Google Scholar] [CrossRef] [PubMed]
  27. Prandi, C.; Blangetti, M.; Namdar, D.; Koltai, H. Structure-Activity Relationship of Cannabis Derived Compounds for the Treatment of Neuronal Activity-Related Diseases. Molecules 2018, 23, 1526. [Google Scholar] [CrossRef] [PubMed]
  28. Eurofins. User Manual PathHunter® b-Arrestin Assay for GPCR Cell Lines. Available online: https://www.discoverx.com/content/uploads/2023/07/70-247-PathHunter-Beta-Arrestin-Assay-for-GPCR-Cell-Lines_REV5-1.pdf (accessed on 8 October 2023).
  29. Cayman Chemicals. Available online: https://www.caymanchem.com (accessed on 9 October 2023).
  30. Wang, X.; Liu, D.; Shen, L.; Li, F.; Li, Y.; Yang, L.; Xu, T.; Tao, H.; Yao, D.; Wu, L.; et al. A Genetically Encoded F-19 NMR Probe Reveals the Allosteric Modulation Mechanism of Cannabinoid Receptor 1. J. Am. Chem. Soc. 2021, 143, 16320–16325. [Google Scholar] [CrossRef] [PubMed]
  31. Krishna Kumar, K.; Robertson, M.J.; Thadhani, E.; Wang, H.; Suomivuori, C.-M.; Powers, A.S.; Ji, L.; Nikas, S.P.; Dror, R.O.; Inoue, A.; et al. Structural Basis for Activation of CB1 by an Endocannabinoid Analog. Nat. Commun. 2023, 14, 2672. [Google Scholar] [CrossRef]
  32. Shapovalov, M.V.; Dunbrack, R.L. A Smoothed Backbone-Dependent Rotamer Library for Proteins Derived from Adaptive Kernel Density Estimates and Regressions. Structure 2011, 19, 844–858. [Google Scholar] [CrossRef]
  33. Banáš, P.; Hollas, D.; Zgarbová, M.; Jurečka, P.; Orozco, M.; Cheatham, T.E.; Šponer, J.; Otyepka, M. Performance of Molecular Mechanics Force Fields for RNA Simulations: Stability of UUCG and GNRA Hairpins. J. Chem. Theory Comput. 2010, 6, 3836–3849. [Google Scholar] [CrossRef] [PubMed]
  34. Krieger, E.; Joo, K.; Lee, J.; Lee, J.; Raman, S.; Thompson, J.; Tyka, M.; Baker, D.; Karplus, K. Improving Physical Realism, Stereochemistry, and Side-Chain Accuracy in Homology Modeling: Four Approaches That Performed Well in CASP8. Proteins 2009, 77 (Suppl. 9), 114–122. [Google Scholar] [CrossRef] [PubMed]
  35. Trott, O.; Olson, A.J. AutoDock Vina: Improving the Speed and Accuracy of Docking with a New Scoring Function, Efficient Optimization, and Multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed]
  36. Quiroga, R.; Villarreal, M.A. Vinardo: A Scoring Function Based on Autodock Vina Improves Scoring, Docking, and Virtual Screening. PLoS ONE 2016, 11, e0155183. [Google Scholar] [CrossRef] [PubMed]
  37. Pham, T.N.H.; Nguyen, T.H.; Tam, N.M.; Y. Vu, T.; Pham, N.T.; Huy, N.T.; Mai, B.K.; Tung, N.T.; Pham, M.Q.; V. Vu, V.; et al. Improving ligand-ranking of AutoDock Vina by Changing the Empirical Parameters. J. Comput. Chem. 2022, 43, 160–169. [Google Scholar] [CrossRef]
  38. Mysinger, M.M.; Carchia, M.; Irwin, J.J.; Shoichet, B.K. Directory of Useful Decoys, Enhanced (DUD-E): Better Ligands and Decoys for Better Benchmarking. J. Med. Chem. 2012, 55, 6582–6594. [Google Scholar] [CrossRef]
  39. O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An Open Chemical Toolbox. J. Cheminformatics 2011, 3, 33. [Google Scholar] [CrossRef]
  40. Capra, J.A.; Laskowski, R.A.; Thornton, J.M.; Singh, M.; Funkhouser, T.A. Predicting Protein Ligand Binding Sites by Combining Evolutionary Sequence Conservation and 3D Structure. PLoS Comput. Biol. 2009, 5, e1000585. [Google Scholar] [CrossRef]
Pharmaceuticals 17 00637 g001

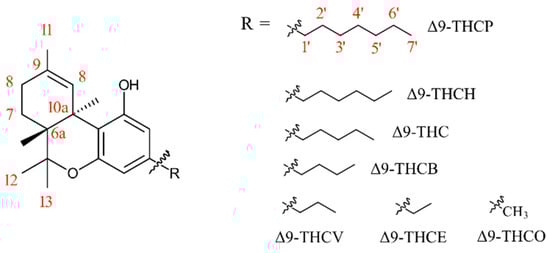

Figure 1. Structure of ∆9 isomers of THC-based molecules with various alkyl chain lengths, including some atom numberings in red.
Figure 1. Structure of ∆9 isomers of THC-based molecules with various alkyl chain lengths, including some atom numberings in red.
Pharmaceuticals 17 00637 g001
Pharmaceuticals 17 00637 g002

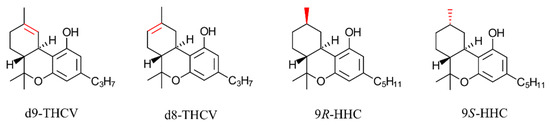

Figure 2. Structure of common THCV and HHC isomers. Structural differences are highlighted in red.
Figure 2. Structure of common THCV and HHC isomers. Structural differences are highlighted in red.
Pharmaceuticals 17 00637 g002
Pharmaceuticals 17 00637 g003

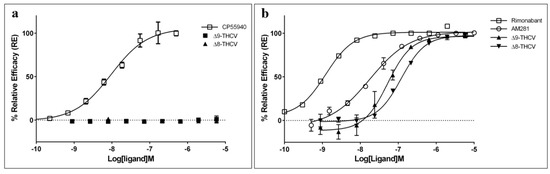

Figure 3. (a) Agonist mode CB1 β-arrestin assay for CP 55940 and THCV isomers after 90 min incubation time using PathHunter® assay; 100% relative activity was normalized to the maximum (±)-CP 55,940 stimulation and 0% relative activity to compound vehicle control. (b) Antagonist mode CB1 β-arrestin assay for synthetic antagonists (rimonabant and AM-281) and THCV isomers after 30 min incubation time followed by 90 min (±)-CP 55,940 challenge (5.04 nM) using PathHunter® assay; 100% relative activity was normalized to the maximum AM-281, and 0% relative activity was normalized to compound vehicle control. Error bars represent the standard deviation of three independent measurements.
Figure 3. (a) Agonist mode CB1 β-arrestin assay for CP 55940 and THCV isomers after 90 min incubation time using PathHunter® assay; 100% relative activity was normalized to the maximum (±)-CP 55,940 stimulation and 0% relative activity to compound vehicle control. (b) Antagonist mode CB1 β-arrestin assay for synthetic antagonists (rimonabant and AM-281) and THCV isomers after 30 min incubation time followed by 90 min (±)-CP 55,940 challenge (5.04 nM) using PathHunter® assay; 100% relative activity was normalized to the maximum AM-281, and 0% relative activity was normalized to compound vehicle control. Error bars represent the standard deviation of three independent measurements.
Pharmaceuticals 17 00637 g003
Pharmaceuticals 17 00637 g004

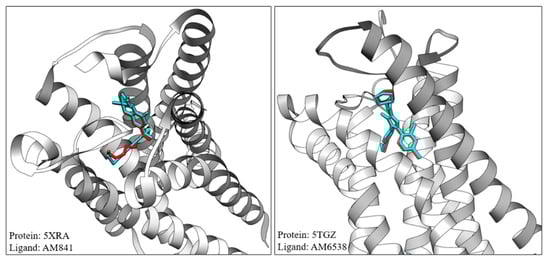

Figure 4. Reproduction of crystalized ligand binding mode using validated molecular docking simulations. Cyan: crystallized ligand extracted from PDB file; red: model prediction of ligand posture. Some residues were omitted for clarity.
Figure 4. Reproduction of crystalized ligand binding mode using validated molecular docking simulations. Cyan: crystallized ligand extracted from PDB file; red: model prediction of ligand posture. Some residues were omitted for clarity.
Pharmaceuticals 17 00637 g004
Pharmaceuticals 17 00637 g005

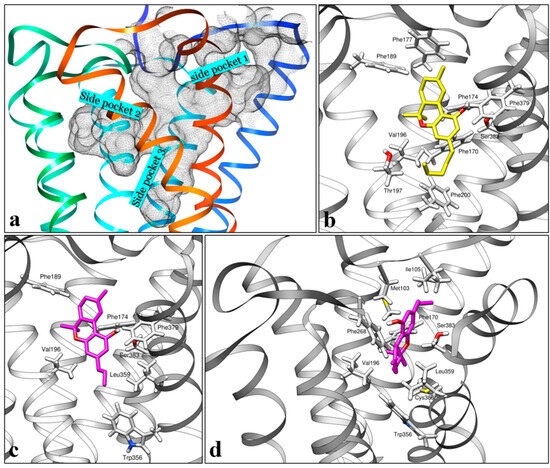

Figure 5. (a) Binding pocket analysis of CB1 receptor (agonist state, 5XRA) with side pocket numbering. (b) Binding poses of ∆9-THC and (c) ∆9-THCV inside the orthosteric ligand binding site of the CB1 receptor in the agonist state (5XRA). (d) Binding poses of ∆9-THCV inside the orthosteric ligand binding site of the CB1 receptor in the antagonist state (5TGZ). Some parts of the helices were removed for clarity.
Figure 5. (a) Binding pocket analysis of CB1 receptor (agonist state, 5XRA) with side pocket numbering. (b) Binding poses of ∆9-THC and (c) ∆9-THCV inside the orthosteric ligand binding site of the CB1 receptor in the agonist state (5XRA). (d) Binding poses of ∆9-THCV inside the orthosteric ligand binding site of the CB1 receptor in the antagonist state (5TGZ). Some parts of the helices were removed for clarity.
Pharmaceuticals 17 00637 g005
Pharmaceuticals 17 00637 g006

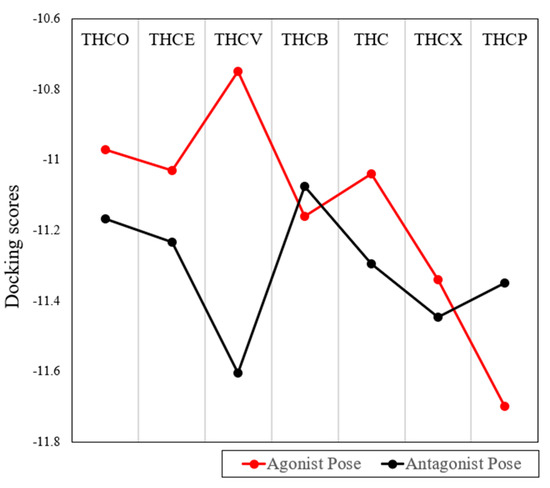

Figure 6. Changes in docking scores of agonist and antagonist pose in a series of THC-based molecules with various alkyl chain lengths. Docking scores are presented in kcal/mol.
Figure 6. Changes in docking scores of agonist and antagonist pose in a series of THC-based molecules with various alkyl chain lengths. Docking scores are presented in kcal/mol.
Pharmaceuticals 17 00637 g006
Pharmaceuticals 17 00637 g007

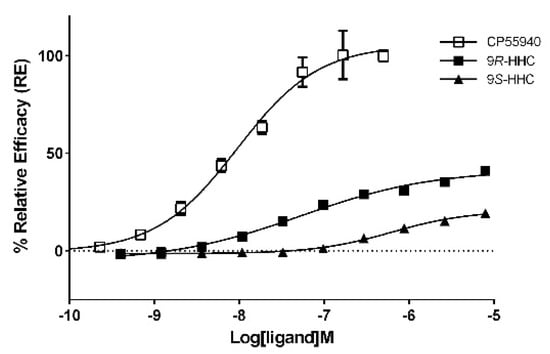

Figure 7. Agonist mode CB1 β-arrestin assay for CP 55940 and HHC isomers after 90 min incubation time using PathHunter® assay; 100% relative activity was normalized to the maximum (±)-CP 55,940 stimulation and 0% relative activity to compound vehicle control. Error bars represent the standard deviation of three independent measurements.
Figure 7. Agonist mode CB1 β-arrestin assay for CP 55940 and HHC isomers after 90 min incubation time using PathHunter® assay; 100% relative activity was normalized to the maximum (±)-CP 55,940 stimulation and 0% relative activity to compound vehicle control. Error bars represent the standard deviation of three independent measurements.
Pharmaceuticals 17 00637 g007
Pharmaceuticals 17 00637 g008

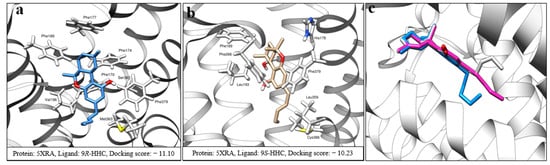

Figure 8. 3D binding poses of (a) 9R-HHC and (b) 9S-HHC inside the CB1 receptor pocket. (c) Three different possible orientations of Δ9-THC alkyl chain inside the CB1 pocket with close docking scores. Some parts of the helices were removed for clarity. Docking scores are presented in kcal/mol.
Figure 8. 3D binding poses of (a) 9R-HHC and (b) 9S-HHC inside the CB1 receptor pocket. (c) Three different possible orientations of Δ9-THC alkyl chain inside the CB1 pocket with close docking scores. Some parts of the helices were removed for clarity. Docking scores are presented in kcal/mol.
Pharmaceuticals 17 00637 g008
Pharmaceuticals 17 00637 g009

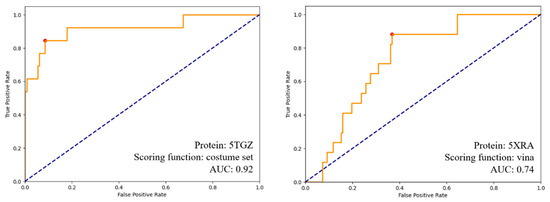

Figure 9. ROC curves for two models used for molecular docking plotting the rate of true positives found against decoys found. The orange line shows model performance, while the dashed blue line represents the random classifier.
Figure 9. ROC curves for two models used for molecular docking plotting the rate of true positives found against decoys found. The orange line shows model performance, while the dashed blue line represents the random classifier.
Pharmaceuticals 17 00637 g009
Table 1. IC50 values for antagonist effects of THCV isomers, AM281, and rimonabant at CB1 receptor.
Table 1. IC50 values for antagonist effects of THCV isomers, AM281, and rimonabant at CB1 receptor.
IC50 (nM)Hill SlopeMaximum RE (%)R Square
∆9-THCV52.42 (1.11)1.38 (0.18)96.46 (2.20)0.9805
∆8-THCV119.60 (1.05)1.37 (0.09)97.40 (1.16)0.9950
AM-28117.71 (1.12)0.81 (0.07)101.90 (1.63)0.9913
Rimonabant1.22 (1.08)1.19 (0.09)101.20 (0.77)0.9929
Note: Values in parentheses are standard deviations of three independent measurements.
Table 2. EC50 values for agonist effects of HHC isomers and CP 55940 at CB1 receptor.
Table 2. EC50 values for agonist effects of HHC isomers and CP 55940 at CB1 receptor.
EC50 (nM)Hill SlopeMaximum RE (%)R Square
9R-HHC53.45 (1.19)0.56 (0.07)41.51 (1.70)0.9887
9S-HHC624.30 (1.12)0.95 (0.08)20.58 (0.80)0.9926
CP 559409.48 (1.13)0.90 (0.10)105.50 (3.34)0.9862
Note: Values in parentheses are standard deviations of three independent measurements.
Table 3. The area under curve (AUC) values obtained during the docking method validation process. The best values for agonist and antagonist modes are highlighted in green.
Table 3. The area under curve (AUC) values obtained during the docking method validation process. The best values for agonist and antagonist modes are highlighted in green.
Scoring Function
PDB StructureVinaVinardoCostume Set
5TGZ (antagonist bound)0.870.680.92
8GHV (agonist bound)0.600.710.54
5XRA (agonist bound)0.740.720.65
5XR8 (agonist bound)0.660.730.59
7Z3V (agonist bound)0.700.650.61
