1. Introduction
In recent years, in Europe, more emphasis has been placed on maintaining and retrofitting its built inventory. With most European buildings built after the Second World War using industrial methods, most studies are addressing the structural and thermal performance of these mass-constructed, often concentrated districts [
1]. The seismic behaviour of masonry buildings is a critical aspect of structural engineering, especially in regions prone to earthquakes. Masonry structures, such as piers and walls, exhibit unique characteristics that influence their ability to withstand seismic events. These materials are complex and behave differently under different types of load, making the analysis of their performance during seismic activity challenging. One of the key aspects of understanding the seismic behaviour of masonry is recognising the various failure modes that can occur. For example, flexural failure, also known as toe crushing or rocking, occurs when the compressive strength of the masonry is exceeded, resulting in vertical and horizontal cracks [
2,
3]. Diagonal shear failure is another common failure mode, which occurs when the tensile strength of the masonry is exceeded along the main tensile direction, leading to diagonal cracks through units or mortar joints. Sliding shear failure is less common but can occur under certain conditions, such as low compressive stress and high horizontal force, causing damage along a horizontal mortar joint [
4]. Non-reversible structural interventions for seismic retrofitting [
5,
6,
7] of reinforced concrete [
8,
9,
10,
11,
12] are extensively investigated without considering the carbon footprint of these interventions [
4,
13]. The importance of this topic goes beyond academic study; it has direct implications for building safety and resilience in earthquake-prone areas, with risk assessment methods proposed by different researchers [
14,
15].
The retrofitting of masonry structures and the reduction of their carbon footprint involve various strategies, including the use of sustainable materials and methods that improve the energy efficiency and structural integrity of the building while preserving its heritage value [
14]. By conserving existing masonry structures, the need for new construction is reduced, which saves resources and minimises the transport demand associated with moving materials for new buildings. Retrofitting interventions must be carefully planned to avoid damaging the heritage and architectural character of historic buildings and to respect the recommendations of ICOMOS and the Venice Charter [
16,
17,
18]. This requires a multidisciplinary approach that involves structural and material engineers, architects, draughting specialists, sociologists, conservators, historians, and others.
The use of sustainable materials, such as wood, natural fibres, and recycled materials, can contribute to a lower carbon footprint. For example, the use of geopolymers in the form of a new fabric-reinforced cementitious matrix (FRCM) system combined with fly ash binder and expanded glass aggregate resulted in a 125% increase in shear strength and a 25% reduction in heat transfer. Fibre-reinforced mortar (FRM) systems, such as the FRCM technique, incorporate fibre-based meshes embedded in a cement or lime mortar coating, which can provide improved structural stability and energy efficiency [
19]. Seismic activity can significantly affect historic buildings because they are not designed to withstand seismic events and can cause significant structural damage, including cracks, displacements, and even complete collapse [
20,
21,
22,
23]. In urban areas, seismic activity can exacerbate existing environmental issues, such as soil liquefaction, which can make post-earthquake recovery more difficult. Assessing the seismic vulnerability of historic urban centres is challenging, and several researchers have developed simplified methods [
24,
25].
In Romania, there are numerous Orthodox churches, many of which are historical monuments of great cultural value that have suffered over time from multiple deterioration for various reasons [
26,
27]. The most significant structural deteriorations are due to settlements and seismic actions [
28,
29]. In the current, increasingly important context of environmental protection, our aim is to analyse the carbon footprint in the specific case of an Orthodox church experiencing structural deteriorations (and more), comparing various consolidation proposals. In summary, the carbon footprint of a masonry structure retrofit can be significantly reduced by applying sustainable practices, including the use of efficient materials and designs that improve energy efficiency and structural resilience while preserving the historic and cultural value of the building.
2. Church Description
The Orthodox Church “Sfintii Voievozi”, the subject of the analysis, is located in the city of Tg. Jiu, Gorj County. The construction has been documented to the period between the years 1748 and 1764 and is a historical monument listed in the LMI GJ-II-m-A-09189; in
Figure 1 the church is presented in the oldest photo available and in the current state. It was built on the old site of a wooden church dating back to 1523. The interior was painted in 1779 and suffered damage in the years 1793 and 1813.
Over time, the church underwent a series of interventions, starting in 1855 when the towers were heightened. Later in 1902 the ledges were covered with plaster, and between 1933 and 1940 the exterior painting dating from 1855 and the original dimensions of the towers were restored.

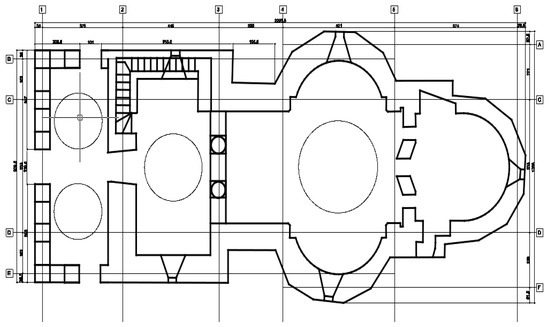

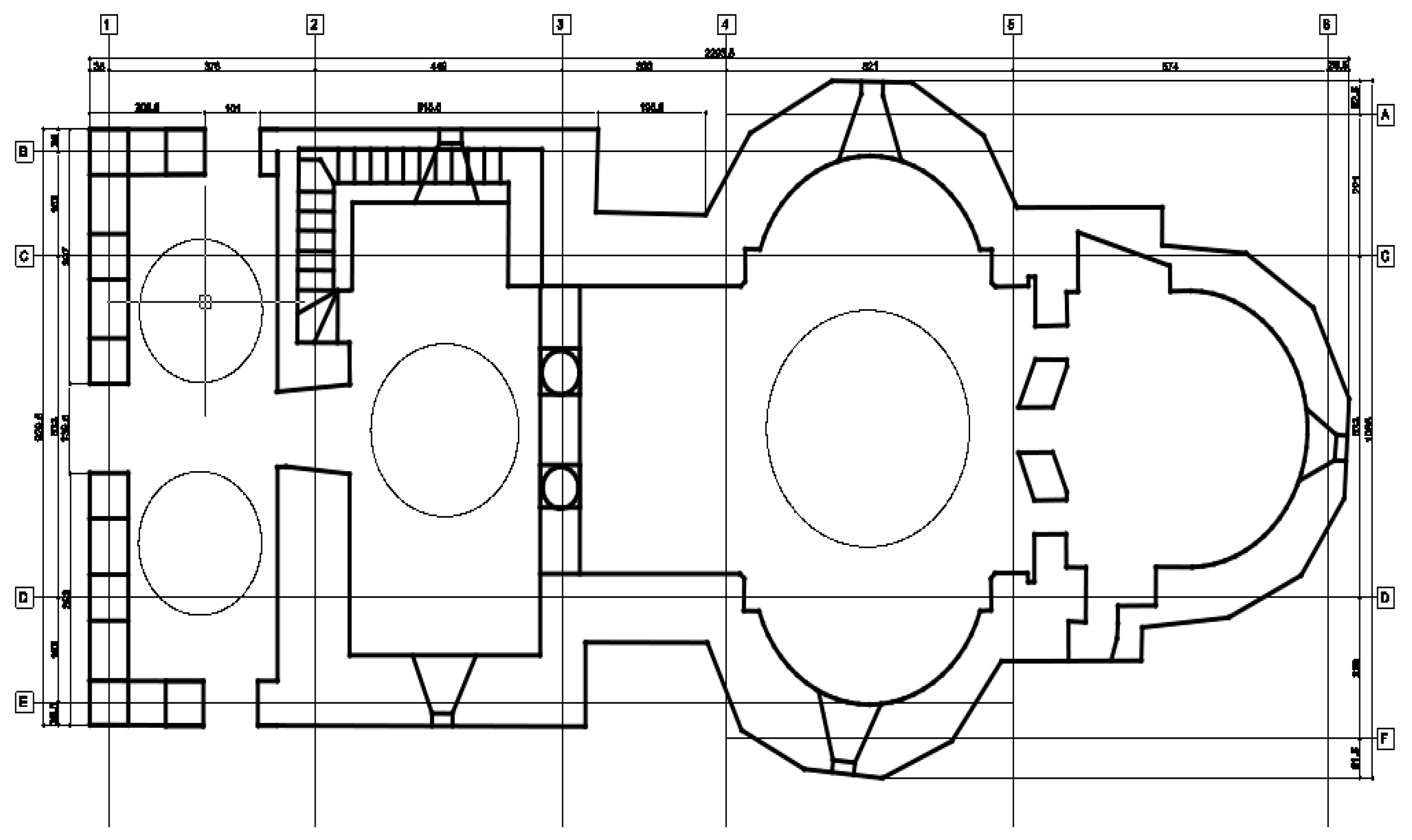

The church has a cross-shaped plan, characteristic of the old Greek style. Although it has undergone several instances of damage and interventions over time, the church has maintained its initial floor plan, as presented in
Figure 2.
The church has two high levels with two towers and is irregular in shape with the structural walls, leading to an important dissymmetry in stiffness and load capacity in relation to the main directions of the building. It has a cross-shaped plan with apses at the altar; the nave has the maximum dimensions in the plan of 22.95 m in length and 10.90 m in width, and the maximum height is +20.80 m. The structural walls are arranged longitudinally and transversely and are made of solid brick masonry with lime, clay, and sand mortar. The wall thickness varies between 85 cm and 130 cm. The nave is separated from the narthex by two brick pillars. The narthex pillars are made of brick masonry and are connected by wooden ties and brick arches. The floors are made of brick vaults and domes, lacking rigidity in their planar actions. The towers transmit loads on arches supported by pillars and the perimeter load-bearing walls. The iconostasis is made of brick walls that bind as a bracing. The foundations are made of river stone masonry with lime sand mortar, with a width approximately equal to the width of the walls. The access staircase to the attic is within the thickness of the wall and is made of brick masonry.
3. Description of Degradations

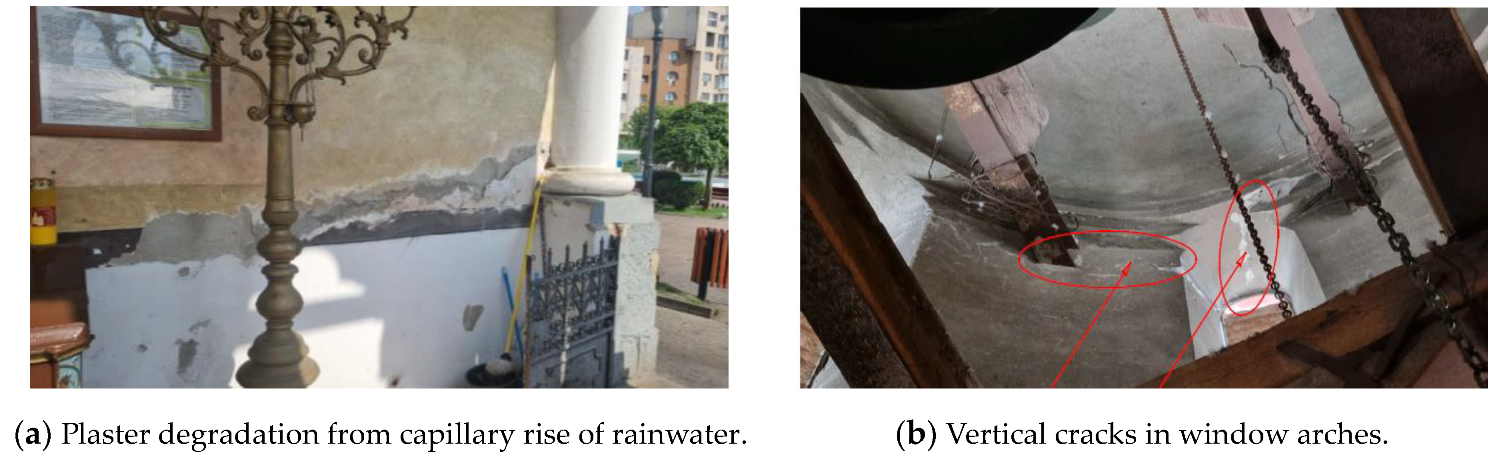

The plaster is degraded due to the capillary rise of the rainwater shown in
Figure 3. Several cracks from non-seismic structural damage have been identified, in the form of vertical cracks in the flanking walls caused by settlement of the foundation soil, in the area of the altar apse and narthex. There are cracks near the stone framing of the church entrance door, generated by settlements, shown in
Figure 4. Cracks have been identified to the load-bearing structure due to seismic actions, in the form of horizontal sliding cracks in mortar joints between masonry panels. There are also horizontal cracks caused by torsion in the mortar joints between the masonry panels and vertical cracks in the window arches caused by vertical seismic forces (
Figure 3). In the transverse arches and vault of the nave, there are cracks caused by the oscillation of the central tower (
Figure 5). In the domes of the lateral apses, there are cracks parallel to the church’s axis, caused by seismic oscillation (
Figure 5). In the longitudinal arches of the narthex, there are cracks in the key areas of the arches caused by the tower’s oscillations (
Figure 6), and in the domes of the narthex there are cracks arranged at a 45-degree angle caused by the tower’s oscillations (
Figure 7).
Cracks parallel to the church’s axis caused by seismic actions are present in the dome of the altar (
Figure 4). There are also vertical cracks in the intersection area between the iconostasis wall and the perimeter walls that support the load, caused by seismic actions. The wood in the roof structure does not show significant deterioration. Local attacks by woodboring insects have been identified, along with some areas where roof elements have decayed.
No specific cracks generated by horizontal components of seismic forces, diagonal cracks in X, horizontal sliding cracks in mortar joints or bricks, or cracks generated by eccentric compression have been identified in the walls that hold the load at the ground level. All recorded degradations are taken from in situ investigations and from the available technical expertise of the church.
4. Consolidation Solutions
The consolidation methods were determined on the basis of static and dynamic spatial analysis. Following the proposed reversible consolidations, the load-bearing structure’s load-bearing capacity will increase without modifying its rigidity. Consolidation measures reduce the seismic vulnerability of the church, classifying it as seismic risk class III. Two consolidation options are proposed:
4.1. Minimal Intervention—Alternative I
To secure and consolidate the existing building, the following works are proposed:
Removal of debris from the attic.
Implementation of temporary wooden supports inside the church for walls, vaults, and arches.
Construction of a reinforced concrete perimeter beam at the foundation level.
Installation of a scaffolding system outside the church for consolidation works.
Removal of plaster, sandblasting of brick walls, vaults, attics, and towers, and reining with hydraulic lime mortar.
Restoration of the continuity of the brick wall in the area of the altar apse by inserting stainless steel helical bars into the mortar joints on the exterior surface of the wall (

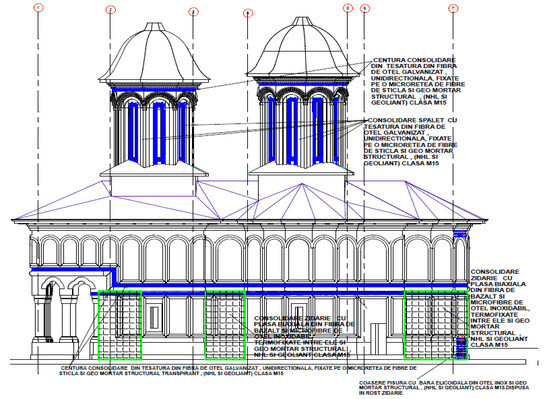

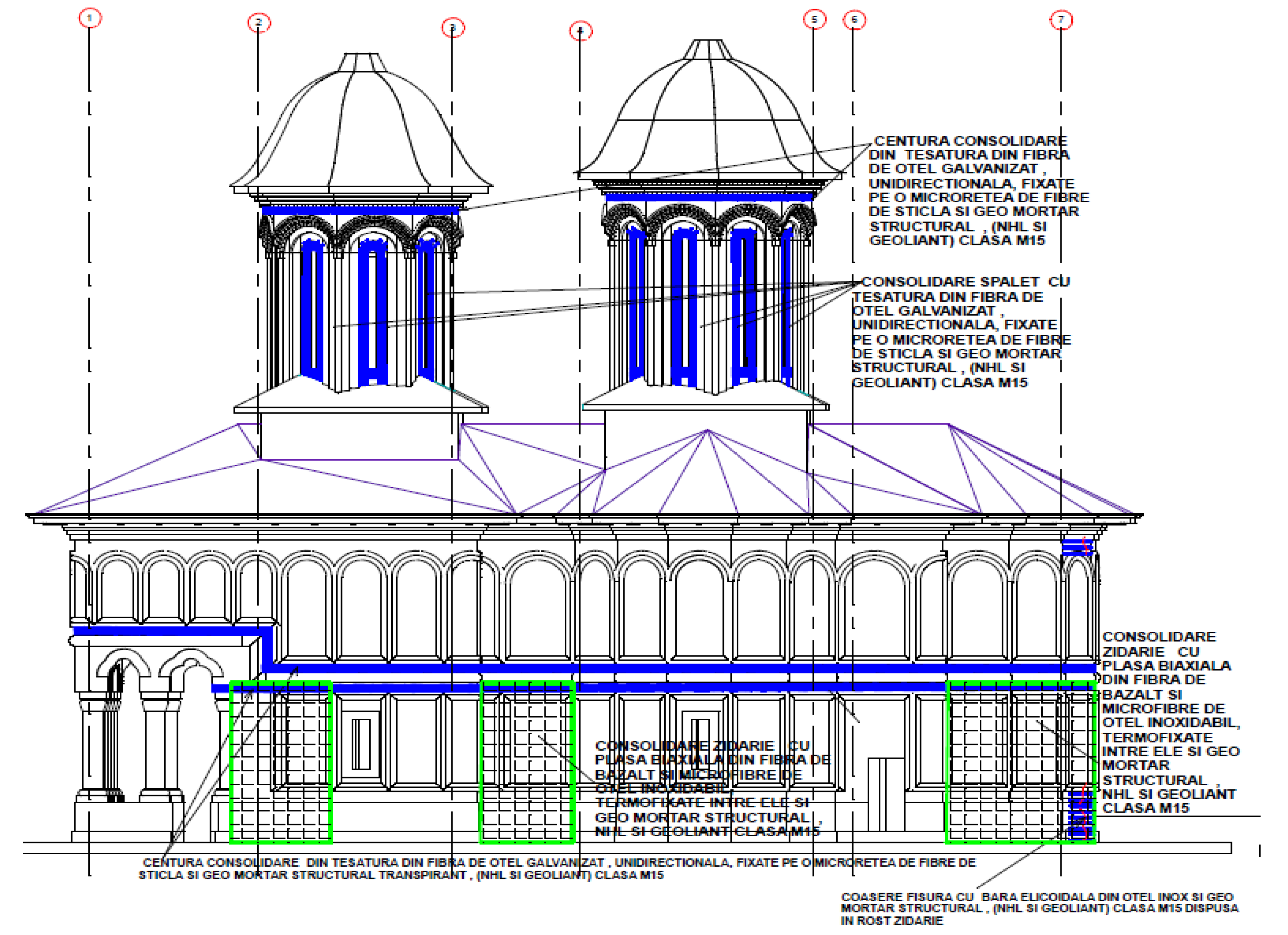

Figure 8). Biaxial basalt fibre meshes and microfibre stainless steel meshes will be installed on the exterior face of the apse wall, from elevation 0.00 up to the level of the galvanised unidirectional fabric belt.
Restoration of the continuity of masonry in the contact area between the narthex and the porch, affected by differential settling of the foundations and seismic actions. The area will be reinforced with inclined stainless steel helical bars (
Figure 8). Biaxial basalt fibre meshes and microfibre stainless steel meshes will be installed on the exterior face of the wall, from elevation 0.00 up to the level of the galvanised unidirectional fabric belt.
Consolidation of the perimeter masonry in the contact area between the narthex and the nave, between axes 3 and 4. Biaxial basalt fibre meshes and microfibre stainless steel meshes will be installed on the exterior face of the wall, from elevation 0.00 up to the level of the galvanised unidirectional fabric belt.
Construction of two external perimeter belts made of unidirectional galvanised fabric with a width of 15 cm each, with the aim of ensuring spatial collaboration of all load-bearing walls during seismic actions (
Figure 8) and avoiding the appearance of localised failure blocks.

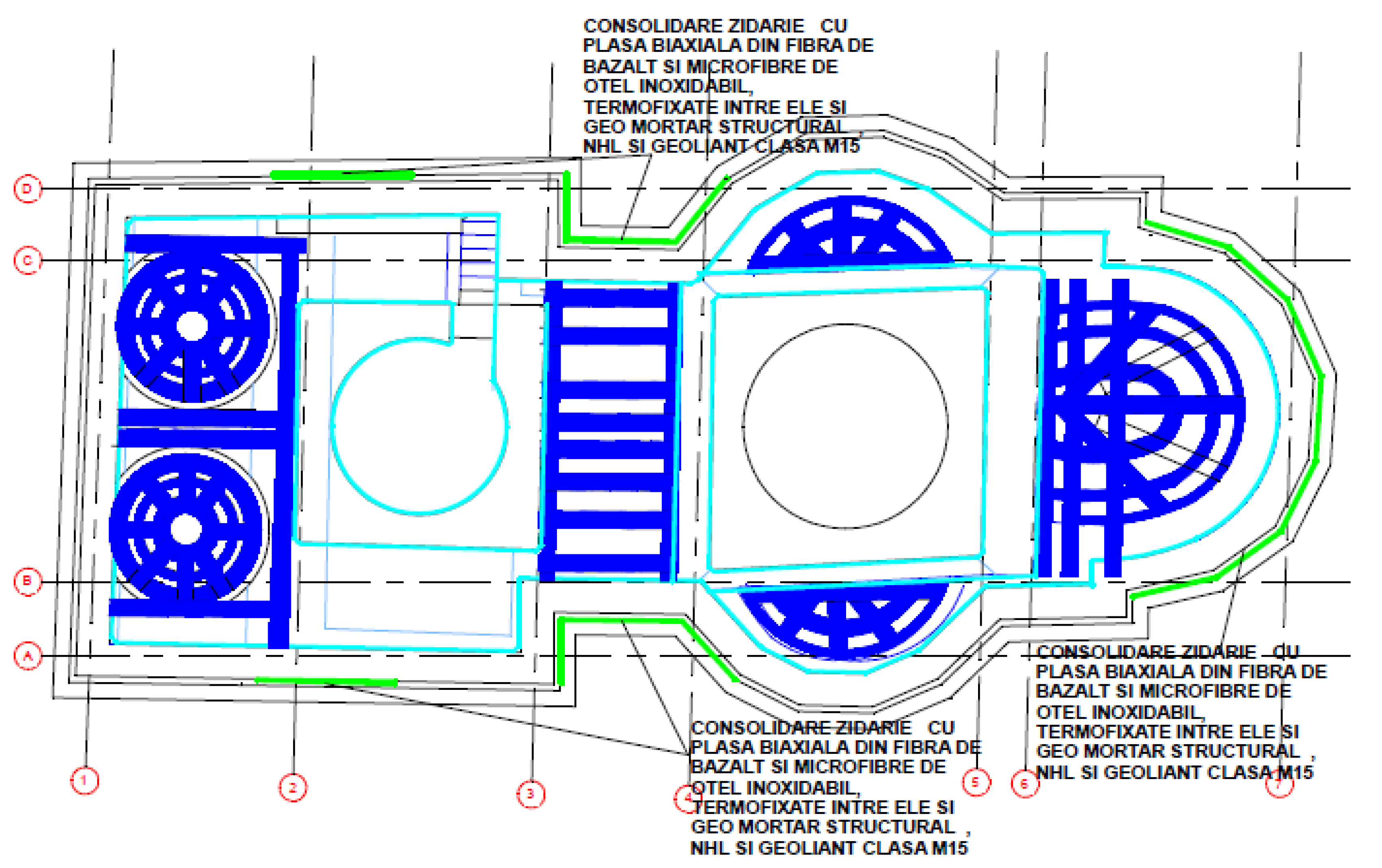

Consolidation of vaults with fabrics made of galvanised steel fibres and hydraulic lime mortar. Consolidation will be carried out on the extrados of the vaults (
Figure 9).
Consolidation of the attics on the attic face, by placing stainless steel helical bars in the joints and a mesh made of basalt fibres and microfibre stainless steel. The mesh will be anchored to existing masonry with galvanised fabric connectors and hydraulic lime mortar.
The masonry of the tower in the nave will be consolidated as follows.
- (a)
Up to roof level, the masonry will be reinforced by introducing helical stainless steel bars into the horizontal joints on the exterior faces. Subsequently, the masonry will be strengthened with biaxial meshes with basalt fibres and stainless steel microfibres.
- (b)
Above the roof level, the masonry piers delimited by windows will be reinforced with vertically arranged strips made of galvanised steel fibre fabric. The arches in the tower windows will be consolidated with inclined helical stainless steel bars (
Figure 8).
- (c)
In the upper part of the tower, on the exterior face, a band made of galvanised steel fibre fabric will be installed to serve as a belt (
Figure 8).
The masonry of the tower in the narthex area will be consolidated as follows.
- (a)
Up to roof level, the masonry will be reinforced by introducing helical stainless steel bars into the horizontal joints on the exterior faces. Subsequently, the masonry will be strengthened with biaxial meshes with basalt fibres and stainless steel microfibres.
- (b)
Above the roof level, the masonry piers delimited by windows will be reinforced with vertically arranged strips made of galvanised steel fibre fabric. The arches in the tower windows will be consolidated with inclined helical stainless steel bars (
Figure 8).
- (c)
In the upper part of the tower, on the exterior face, a band made of galvanised steel fibre fabric will be installed to serve as a belt (
Figure 8).
- (d)
On the interior faces of the tower walls, biaxial meshes with basalt fibres and stainless steel microfibres will be applied.
- (e)
The tower dome will be strengthened by applying galvanised steel fibre fabric strips to the entrances of the masonry (
Figure 9).
Strengthening of the arches in the nave and narthex will be achieved by attaching strips made of high-strength galvanised steel fibre fabric to their reaches. These strips will not affect the cultural value of the surfaces as there is no painting on the eaves of the arches. Before the strips are applied to the intrados of the arches, inclined helical stainless steel bars will be inserted.
Restoration of the connection between the altar brick wall (iconostasis) and the perimeter walls will be carried out by introducing zinc-coated bars with a diameter of 20 cm. The drilling will be done horizontally and will proceed from the altar towards the nave.
Hydraulic lime-based mortars, specific for brick masonry, will be injected into all fissures.
Rehabilitation of the access stairs to the attic by removing degraded bricks and replacing them with similar bricks.
Roof elements will be consolidated or partially/fully replaced based on the level of degradation. Nodes and joints without contact between load-bearing elements will be strengthened.
4.2. Maximal Intervention—Alternative II
To secure and consolidate the existing building, the following works are proposed:
Removal of debris from the attic.
Installation of temporary wooden supports inside the church on walls, vaults, and arches.
Construction of a reinforced concrete perimeter beam at the base level of the foundation, up to the sidewalk level.
Construction of a working scaffolding structure outside the church for the implementation of reinforcements.
Stripping of plaster, sandblasting of brick walls, arches, attics, and towers, and restoration of masonry joints with hydraulic lime.
Restoration of the continuity of the brick wall in the area of the altar apse by introducing galvanised metal shims.
Restoration of the continuity of the masonry in the contact zone between the narthex and the porch, affected by differential foundation settlement and seismic actions. The area will be reinforced with drilled metal rods on the walls.
Construction of two exterior perimeter belts with metal profiles, 15 cm wide, to ensure spatial collaboration of all load-bearing elements during seismic actions.
Strengthening of vaults with galvanised welded mesh and hydraulic lime mortar. The consolidation will be carried out in the attic on their extrados.
Consolidation of the interior of the attics with welded meshes and hydraulic lime mortar. A 20 cm reinforced concrete belt will be created in the attics.
Consolidation of the tower:
- (a)
The masonry of the tower in the nave will be consolidated by cladding with galvanised welded meshes and hydraulic lime mortar up to the roof level. On the cornice, a belt made of flat metal bars will be installed.
- (b)
The masonry of the tower in the narthex area will be consolidated by cladding with galvanised welded meshes and hydraulic lime mortar, mounted on the interior face of the tower. At the top of the tower, on the cornice, a metal belt made of flat bars will be installed on the exterior face.
- (c)
A metal structure with a bracing function will be constructed in the attic of the church between the two towers. The metal structure will consist of horizontal metal beams fixed to the perimeter walls to ensure a rigid plate and transmission of horizontal forces between the exterior load-bearing walls. Two vertical bracing beams will be mounted on this metal structure, fixed at the ends to the masonry of the towers. These vertical beams aim to reduce the horizontal displacements of the towers and stiffen them.
Strengthening of the arches in the nave and narthex will be achieved by fixing metal flat bars or profiles to their indices. Metal tie rods will be inserted into the birthplaces of the brick arch. The collaboration between metal flat bars or profiles and arches will be achieved through threaded metal rods inserted into the arch masonry and fixed with epoxy resins.
Restoration of the connection between the altar brick wall (iconostasis) and the perimeter walls will be carried out by introducing zinc-coated bars with a diameter of 20 cm. The drilling will be done horizontally and will proceed from the altar towards the nave.
Hydraulic lime-based mortars, specific to brick masonry, will be injected into all fissures.
Rehabilitation of the access stairs to the attic by removing degraded bricks and replacing them with similar bricks.
Roof elements will be consolidated or partially/fully replaced based on the level of degradation. Nodes and joints without contact between load-bearing elements will be strengthened.
5. Comparative Calculation of Carbon Emissions
In the case studied, according to technical expertise, two consolidation options are proposed: a minimal intervention option and a maximal intervention option. The carbon footprint resulting from each option was determined. For the complexity of the comparison, calculations were also be performed for the option of a new construction.
Thus, quantities of materials and the volume of activities were calculated for all three options. The determination was made by calculating the surface area, volume, and weight, considering the general characteristics of the materials. The densities are as follows: rubble 1500 kg/m3; soil 1500 kg/m3; timber 500 kg/m3; concrete 2200 kg/m3; mortar 1800 kg/m3; biaxial mesh with basalt fibres 200 g/m2; unidirectional mesh 2 kg/m2. Consumption estimates were made using execution experience.
In
Table 1, the materials, quantities, and respective weights are presented for the first alternative of consolidation, which is the minimal intervention method proposed.
In
Table 2, the materials, quantities, and respective weights are presented for the second alternative of consolidation, which is the maximal intervention method proposed.
In
Table 3 the summary of the two consolidation methods is presented; it can be observed that in case of the maximal alternative the use of concrete, reinforcement, and mortar is much higher, while in the minimal alternative their attributes are taken by the biaxial and uniaxial mesh.
In case of a new construction built at today’s standards and using regular materials, the total quantities and weights are presented in
Table 4; the calculation was done in order to determine the CO
2 emissions of constructing a new building as the authors are aware that demolition and reconstruction of an existing historical monument is not a real option.
For the calculation of the carbon footprint [CO
2 emissions], the unit values of construction materials were used from the database downloaded from [
30].
Table 5 presents the total CO
2 emissions for the two alternatives and it can be seen that Alternative I has lower emissions by 40% compared to Alternative II. This is mainly due to the use of sustainable materials, such as basal-based uniaxial and biaxial mesh. In case of the emissions for a new construction presented in
Table 6, these are seven times higher than those for Alternative II and 17 times higher compared to Alternative I.
6. Conclusions
From the calculations carried out, it is observed that in Alternative I of consolidation, we have 15.2 tons of CO2, compared to Alternative II, where CO emissions are much higher, that is, 37.8 tons of CO2. The higher values in Alternative II are mainly due to significantly larger quantities of concrete and steel (reinforcement, welded meshes, metal structure). The simple calculations of CO2 emissions for these alternatives presented in the paper should open the discussion of sustainable retrofitting of the existing heritage of Romanian orthodox churches.
The amount of CO2 emissions in the case of new construction will reach 271 tons of CO2. Therefore, in Alternative I, the CO2 emission value will be 5.6% compared to the new construction, while in Alternative II, the CO2 emission value will be 13.9% compared to the new construction. In the present day in Romania, many new churches are being built next to the old existing ones that are left unattended or demolished. The approach is not sustainable and further research should be done to properly assess the complete image of sustainability when retrofitting or building new orthodox churches. Today, the only discussion is whether or not there is a budget to make the interventions or build a new one, with complete disregard in terms of the carbon footprint or the sustainability of the decisions.
Through consolidation methods with a minimal degree of intervention, a culturally valuable church can be preserved, allowing its use for a long time to come while ensuring the restoration of the construction’s safety.
In conclusion, considering carbon emissions, the minimalist Alternative I is recommended as the “most environmentally friendly” with minimal CO2 emissions and minimal non-reversible structural interventions. However, the authors understand the limitations of the simple approach for calculating the CO2 emissions used in the paper, which is why we recommend and intend to carry out further, more detailed and comprehensive studies regarding all modules of sustainability and include multiple churches for the studies.
