Effect of Micro-Cracks on Chloride Ion Diffusion in Concrete Based on Stochastic Aggregate Approach

Abstract

For concrete structures in offshore areas, chloride ion erosion is one of the main factors affecting durability. It is crucial to evaluate the chloride ion permeability resistance of concrete structures. In this paper, a finite element simulation of the chloride ion diffusion process in concrete is conducted. A mass diffusion finite element model based on a random aggregate approach is established to investigate the influences of an aggregate, the interface transition zone, and micro-cracks on the chloride ion diffusion coefficients in concrete. The results show that the mass diffusion finite element analysis based on the exponential function model and the power function model can effectively simulate the chloride ion diffusion process in concrete. In addition, the data reveal that volume fraction and distribution aggregates considerably affect chloride ion diffusivity in concrete. Also, the interface transition zone significantly accelerates chloride ion diffusion in concrete. Moreover, this acceleration effect exceeds the barrier effect of an aggregate.

1. Introduction

The factors that affect the permeability of concrete materials are diverse, and the related factors can be mainly divided into two aspects. On one hand, there are the material factors of concrete itself, such as the composition of cementing materials, the selection of aggregates, and the amount of the water-reducing agent added. On the other hand, there are external environmental factors, such as exposure conditions, temperature, and humidity.

The research on the influence of concrete materials on chloride ion permeability is related to the development technology of concrete materials. In the early stage of concrete development, durability was not the main consideration, and the focus was mainly on strength. The material composition of concrete was also mainly composed of four basic components. Considering energy and resource consumption as well as environmental protection needs, modern structural engineering has increasingly paid attention to durability issues. In order to meet the strategic and engineering requirements of sustainable development, modern concrete has adopted a variety of organic and inorganic additives in addition to traditional water, cement, sand, and aggregates. These additives have become essential components in practical engineering applications [1].

Scholars at home and abroad have studied the influence of various additives on chloride ion permeability from both chemical mechanisms and microcosmic perspectives based on actual experiments. For example, Da et al. [2] found that compared to ordinary Portland cement concrete, concrete containing fly ash or slag has a much faster rate of diffusion performance reduction. Using fly ash or slag as additives can significantly extend the service life of structures exposed to chloride environments. If sufficient protection is provided for the steel bar, this extended effect may exceed an order of magnitude. Maes and De Belie [3] conducted natural diffusion tests on different concretes with three different calculation methods to show that the water–cement ratio affects the resistance of concrete to chloride ion penetration and diffusion, and that this ability to resist chloride ion penetration and diffusion decreases as the water–cement ratio increases. Additionally, fly ash and slag can improve the resistance of concrete to chloride ion penetration and diffusion. Yang et al. [4] studied the influence of fly ash and slag on the apparent chloride ion diffusion coefficient using natural diffusion methods. Their results showed that using fly ash or slag as additives can significantly reduce the apparent chloride ion diffusion coefficient of concrete. The relationship between the apparent chloride ion diffusion coefficient of fly ash or slag concrete and its content follows a quadratic polynomial relationship.

The development of high-performance concrete cannot be separated from efficient water-reducing agents. The purpose of adding water-reducing agents is to reduce the amount of water in concrete while maintaining its slump. Zhao et al. [5] showed that adding a poly (PCA) carboxylic acid water-reducing agent can significantly reduce the chloride ion penetration and diffusion in concrete due to a smaller void fraction when maintaining the same cement content and water–cement ratio. Mohammed et al. [6] also showed that different types of high-performance water-reducing agents have a certain effect on resisting chloride ion diffusion.

The distribution and selection of aggregates, especially recycled aggregates in recycled concrete, have a significant impact on the chloride ion diffusion coefficients of concrete materials [7]. Wu et al. [8] investigated the influence of random aggregate distribution on the regularity and variability of steel corrosion morphology based on a numerical simulation results probability analysis.

Concrete materials are prone to cracks under chemical shrinkage, drying shrinkage, self-shrinkage, and mechanical loads. Chloride ions penetrate into concrete through these cracks and pore networks, accelerating the deterioration of concrete performance and the rusting of steel bars. Peng et al. [9] discussed the influence of crack damage areas on the chloride ion diffusion coefficients in concrete by considering concrete as a five-phase mixed material. Wu and Xiao [10] used random numerical methods to investigate the influence of micro-cracks on the chloride ion diffusion coefficients in recycled aggregate concrete.

Concrete durability is also related to the curing method used. Generally speaking, sufficient moist curing helps ensure that the maximum strength and durability are developed for concrete. It is particularly important to maintain humidity during early curing stages because cement hydration reactions proceed fastest during this phase. Therefore, appropriate moist curing can increase concrete strength, durability, and overall performance, ensuring its good performance during use and throughout its service life. It is necessary to ensure that concrete is moist cured for at least 7 days [11]. Curing methods also have important impacts on the microstructure of concrete. Surface chloride ion permeability is highly sensitive to the curing time, and shortening the curing time can reduce chloride ion resistance [12].

For concrete structures in coastal areas, their durability degradation exhibits obvious regional characteristics that are influenced by factors such as the environment, geography, and climate. Different regions are often dominated by specific degradation mechanisms and show varying degrees of impact. In a marine chloride corrosion environment, early research did not classify the chloride ion concentration on concrete surfaces into environmental grades, but instead uniformly adopted the surface chloride ion concentration of different environmental regions. However, through the statistical analysis of actual data from ocean engineering, it was found that there are significant differences in the surface chloride ion concentrations between different regions. Offshore areas are generally divided into an atmospheric zone, splash zone, tidal zone, and an underwater zone.

Research has shown that the permeability of chloride ions strongly depends on the quality of the concrete and the exposure conditions [13]. The concentration of chloride ions in the environment varies under different environmental conditions, so there are differences in the surface chloride ion concentration of concrete in different environments. Considering its coupled effect with curing conditions, it ultimately leads to different chloride ion permeation results [14].

Temperature has an impact on the penetration speed of chloride ions. Generally speaking, an increase in temperature will increase the permeability of concrete, accelerate water evaporation, and thus accelerate chloride ion penetration, leading to chloride ions more easily diffusing through concrete structures. Research has shown that increases in temperature cause changes in the macroscopic crack network and pore size distribution. The transport effect of chloride ions changes, mainly due to an increase in capillary porosity [15]. Also, temperature increases can also change the chloride ion diffusion coefficient of concrete structures, especially when considering the coupled effects of temperature changes with other conditions, and the impact of temperature changes is more complex [16].

The finite element method is a numerical technique for solving approximate solutions of boundary value problems for partial differential equations [17]. The concept of the finite element method was first proposed in the 1940s. With the rapid development of computer technology, the computation of large amounts of data is no longer a bottleneck, and finite element technology has rapidly developed since the 1970s. Currently, in the field of civil engineering, a large number of structural analyses and calculations are completed using finite element software. In addition, the finite element method has good simulation effects for mechanical properties such as material fracture [18,19,20,21,22,23,24]. Considering the characteristics of concrete materials and the randomness of environmental conditions, the process of chloride ions’ diffusion and accumulation in concrete is a stochastic process. Therefore, simulating the stochastic diffusion process is very important.

The stochastic multi-scale finite element method combines the finite element method with the stochastic analysis method by modeling the randomness of materials and structures as random fields. Using the idea of multi-scale analysis, materials and structures are divided into macroscopic and microscopic scales. At the macroscopic scale, a macroscopic model is established using the finite element method to consider the average behavior at the macroscopic scale. At the microscopic scale, stochastic analysis methods are used to simulate the randomness of materials and structures, and to transfer the behavior at the microscopic scale to the macroscopic scale. Through multi-scale coupling, the influence of the randomness of materials and structures on the overall behavior can be taken into account. Wu and Xiao proposed a multi-scale finite element method to solve a coupled random elliptic PDE problem at two linear scales [25], and applied the multi-scale stochastic finite element method to chloride ion diffusion in a recycled aggregate concrete [26,27,28].

In addition, machine learning techniques have revolutionized various industries, and now they are being applied to predict and evaluate the chloride ingress in concrete structures [29]. By utilizing machine learning algorithms, engineers can analyze vast amounts of data to identify patterns and trends that can help predict the rate of chloride’s penetration in concrete. This can lead to more accurate and efficient maintenance and repair strategies, ultimately increasing the durability and lifespan of concrete structures. By leveraging the power of machine learning, engineers can make informed decisions to prevent costly damage and ensure the long-term integrity of concrete infrastructure. Also, the study of chloride diffusion in concrete with carbonated recycled coarse aggregates under biaxial compression is crucial for understanding the durability and performance of sustainable construction materials [30]. By investigating the behavior of concrete under biaxial compression, researchers can gain insights into how chloride ions penetrate the material and interact with carbonated recycled aggregates. This knowledge is essential for developing effective strategies to mitigate the effects of chloride ingress and ensure the long-term durability of concrete structures. By exploring the complex relationship between chloride diffusion, carbonation, and biaxial compression, researchers can advance the development of more sustainable and resilient concrete materials for future construction projects.

This paper relies on the Python API interface of ABAQUS 2022 software and uses Python language to write a three-dimensional random aggregate model generation algorithm. a finite element simulation of the chloride ion diffusion process in concrete is conducted. A mass diffusion finite element model based on the random aggregate approach is established to investigate the influence of an aggregate, the interface transition zone, and micro-cracks on chloride ion diffusion coefficients in concrete.

2. Materials and Methods

2.1. Stochastic Aggregate Placement

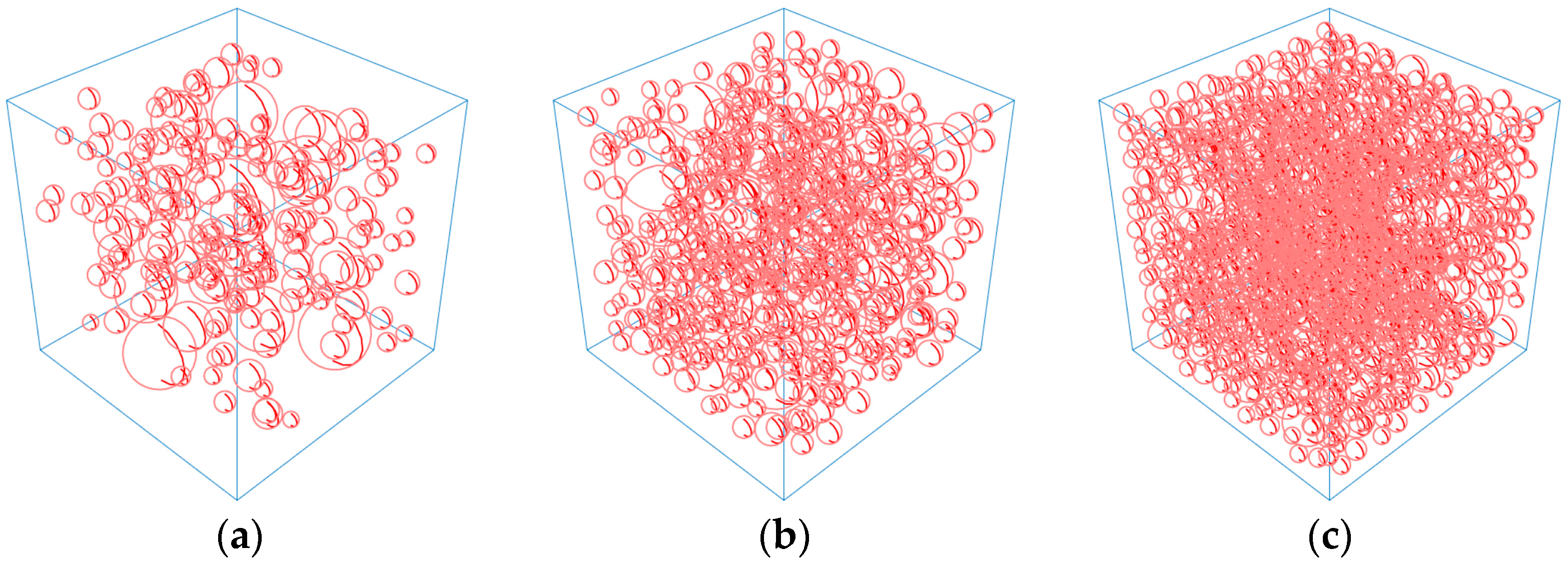

The key to establishing a random aggregate model is to avoid the overlap of generated aggregate particles. This algorithm is achieved by writing an overlap detection code. First, define the gradation. In a random aggregate model, gradation is reflected as the area (2D model) or volume (3D model) occupied by aggregates in concrete blocks. Then, enter the loop. Set the particle size and position of the random aggregate particles, so as to complete the random filling. If it is the first aggregate particle during the filling process, it will be filled immediately. Otherwise, an overlap judgment is needed. For all filled aggregate particles, judge whether there is an overlap. If there is an overlap, then re-randomize the particle size and position of the aggregate particles. Otherwise, complete the filling and record the position information of the aggregate particles. Continue to loop through the filling process until the filled aggregate volume reaches the preset volume limit to complete the current gradation’s aggregate filling. Considering the need for the modeling of micro-cracks, this article uses spheres to simulate concrete aggregates to facilitate the algorithm’s implementation in the micro-crack modeling process.

The advantage of the model generation process is that in each cycle, a random particle size within the set range is first generated. If all the aggregate particles are generated before the delivery operation, they may enter a dead loop if proper insertions can not be found when the aggregate volume percentage reaches a certain value. This program can achieve separate generations of coarse and fine aggregate particles through two randomizations. By repeating the procedure with different particle size ranges, grading generation can be achieved, thereby improving the volume ratio. There are various theories about the gradation of aggregates. The most classic one is the ideal gradation curve proposed in the early 20th century. It is generally believed that concrete materials following the ideal gradation curve have the maximum working strength and density [31].

2.2. Randomly Distributed Micro-Cracks

How to randomly generate correct micro-cracks is an important issue. The model should be able to correctly simulate the actual location of cracks in concrete. Research has shown that cement matrix shrinkage during concrete drying is the main cause of micro-crack formation [32]. There are mainly two types of drying shrinkage micro-cracks. The first type is the micro-cracks perpendicular to the drying surface resulting from rapid changes in humidity gradients and self-constraint during the drying process. The second type is the micro-cracks between aggregate particles resulting from the stiffness difference between the aggregates and the matrix and the constraint of the aggregates. The higher the stiffness of the aggregates or the larger the size of the aggregate particles, the more micro-cracks will be generated during the drying process. Both types of cracks are considered in this article.

2.2.1. Edge Cracks

Edge cracks occur between the aggregate particles and the concrete boundary near the edge of the concrete material. Parametric modeling is used to generate edge cracks. First, the depth of the edge crack is defined, which determines which aggregate particles near the edge of the concrete material will crack. Then, the number of edge cracks is defined. We assume that the cracks always split along the shortest distance, i.e., the direction of the crack is always perpendicular to the boundary of the concrete material. By using the depth of the previously defined edge crack, we can find all the aggregate particles that may produce cracks near the edge of the concrete material. We retrieve their location information from a previously saved list containing the positions and size information of all filled aggregate particles, and save them into a new list. We shuffle the list of eligible edge aggregate particles, randomly select one aggregate particle, and write a function to generate edge cracks based on this aggregate. Then, we record the location information of the edge cracks. By using the above algorithm, the generation of edge cracks can be completed. After each crack is generated, delete the information of the current aggregate in the list to ensure that no duplicate edge cracks are generated.

2.2.2. Internal Cracks

Internal cracks can form between all particles of a concrete aggregate. For internal cracks, it is still assumed that the cracks always develop along the shortest path. For a randomly selected particle that generates a bond crack, the nearest particle to it needs to be found, and the crack will form between these two particles. For internal cracks, the algorithm’s loop boundary condition only defines the number of cracks. First, a particle is randomly selected. The details of all particle positions need to be recorded and checked except for those of the current one. This step is the focus of the internal crack generation procedure. Assuming that the crack develops based on bond cracks and only develops in cementitious materials. the actual coordinates of the crack at the beginning and end need to be along the direction of the line connecting the centers of the two particles, with each coordinate subtracted by the radius of the two particles.

It should be noted that an additional step of duplicate detection is required before obtaining the endpoint coordinates of internal cracks and storing the crack information. During the generation of edge cracks, it is assumed that each aggregate particle that meets the conditions for generating an edge crack will only generate one edge crack, ensuring that edge cracks are not generated repeatedly. For internal cracks, before storing the crack information, it is necessary to check all the already stored internal crack data to compare whether there is already saved internal crack information that is the same as that of the current result. If it is the same, break the loop and restart the randomization process. Through the above algorithm, the target number of random internal cracks can be generated.

2.2.3. Creation of the Stochastic Model

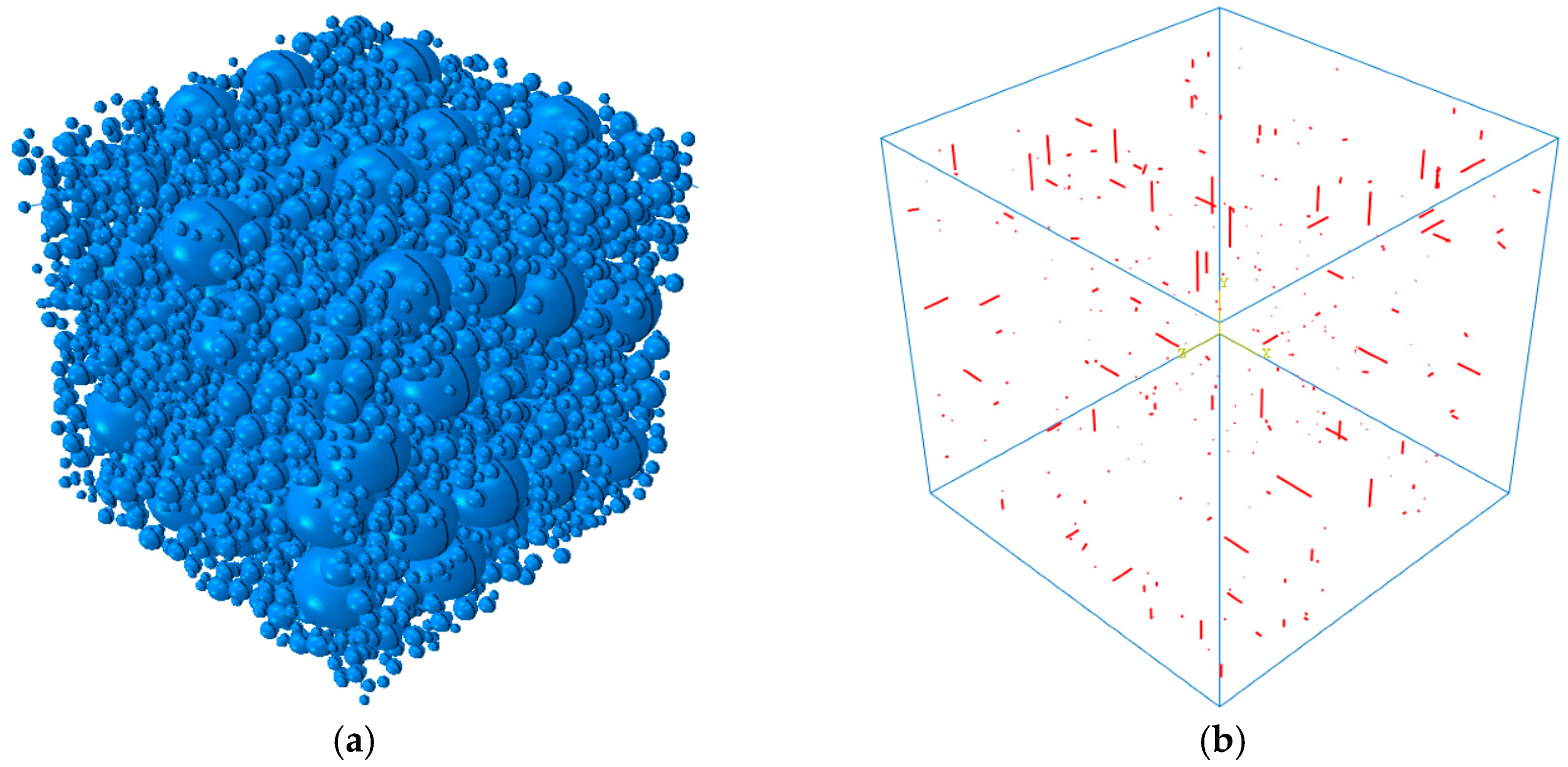

Through the process of the previous two sections, the location information of random edge cracks and internal cracks has been obtained. To facilitate subsequent analysis, we choose to model the cracks as solid objects. During chloride ion diffusion, cracks accelerate the chloride ion diffusion between aggregates and between aggregates and the surface. In this article, cylinders are selected as the solid model for cracks. The material parameters are defined to consider their role in accelerating diffusion. After obtaining the start and endpoints of the crack, it is not possible to directly build a model in three-dimensional space based on the coordinates of the two points. This method is not easy to process in a structured way. Difficulties arise in defining cross-section properties and considering diffusion calculations. Therefore, the most convenient way is still to establish a solid model.

2.3. Mesh Generation

After completing the placing of aggregates and the generation of cracks, they need to be combined with cement mortar to complete the construction of the model. Relevant studies have shown that the internal ion diffusion coefficient of aggregates is much smaller than that in mortar. For the convenience of calculating and analyzing the model, it is assumed that chloride ions will not penetrate into the aggregates. That is, chloride ion diffusion only occurs in the cement mortar and cracks. Therefore, it is necessary to establish a separate model for the cement mortar part to complete mesh generation. The basic logic is to use Boolean operations to remove the aggregates and cracks from the concrete block, and the remaining part is the mortar. After completing the mesh generation for the mortar and crack parts, they are then combined to obtain the final random aggregate model. The distribution of aggregates is shown in Figure 1a, and the distribution of cracks is shown in Figure 1b.

To accurately simulate the diffusion transfer between different material models, it is necessary to define the contact surface between different materials. For complex contact surfaces, an accurate selection of the contact position is required. This model considers the contact surface between each crack entity and the cement mortar. It is necessary to set the primary plane and the secondary plane separately for the selection of contact surfaces. In this article, the mortar part of a concrete material is selected as the primary plane, and the crack surface is selected as the secondary plane. Considering the interface transition zone, it is also necessary to set the contact surface between it and the cement mortar. For mass diffusion problems, the contact type is selected as a bonded constraint.

Mesh generation is crucial for finite element calculations. This article completes the automation of modeling and analysis for complex but regular models. Priority is given to methods that are easy to implement and adjust in code selection. For random aggregate models, consideration should be given to the contact surfaces of different materials. The actual model is complex and cannot use structured mesh technology. Therefore, unstructured mesh is selected for mesh generation. The mesh shape selects tetrahedral mesh to adapt to the more complex spherical structure. Element types need to meet the requirements of mass diffusion analysis to ensure the sufficient accuracy of the integration. After completing the mesh generation, a mesh check should be performed. In the example, the mesh is a complex unstructured tetrahedral mesh, which may have a small grid volume leading to the failure of finite element analysis. Therefore, a mesh check is necessary. Adjust mesh parameters to avoid unfavorable mesh generation.

In addition, this article also considers the influence of the interface transition zone. In the actual modeling process, the interface transition zone is represented by a thin shell with a very small thickness outside the aggregate particle model. It is necessary to establish a thin shell model with actual volume. The logic of modeling is to establish a sphere collection with a radius slightly larger than the aggregate particles, and then subtract the aggregate model from it through a Boolean cutting calculation. Then, we can get the model of the interface transition zone, which appears to be a thin shell with a very small thickness. Directly using tetrahedral mesh for free partitioning is very prone to produce adverse mesh. Therefore, it is necessary to perform a segmentation operation on the solid model. The cutting method selected in this article is the use of three planes to cut the solid element under the local coordinate system with the model itself as the origin. After cutting, the sphere shell can be divided into high-quality mesh through structured mesh or sweeping mesh.

3. Verification

For the chloride ion diffusion coefficient in mortar and ITZ, we adopt the formula based on experimental results provided in the literature [33]. The chloride ion diffusion coefficient in mortar can be calculated using Equation (1).

$$D_a(t,V,S)=D_{ref}\cdot f_1(t)\cdot f_2(V)\cdot f_3(S),$$

(1)

where D_ref is set as 5.259 × 10⁻¹² m²/s, V denotes the volume fraction of the aggregates, S is the maximum size of the aggregates with the dimension meter, t represents the ion diffusion time, and f₁, f₂, and f₃ are correction factors considering the diffusion time, the volume fraction of the aggregates, and the maximum size of the aggregates, respectively.

The influence of cracks on chloride ion diffusion characteristics in concrete can be divided into three stages. The first stage is when the crack width is less than the threshold value. At this point, the influence of cracks on chloride ion diffusion behavior can be neglected. The chloride ion diffusion capacity inside the crack is equivalent to that of the surrounding uncracked concrete. That is to say, the chloride ion diffusion inside the crack is equivalent to that of the uncracked concrete. The second stage occurs as the crack width increases to the upper limit of the crack width. The chloride ion diffusion capacity inside the crack gradually increases. This means that the chloride ion diffusion capacity inside the crack is greater than that of the surrounding uncracked concrete. The third stage is when the crack width in the concrete exceeds the upper limit of the crack width. The chloride ion diffusion capacity inside the crack is equivalent to the diffusion capacity in a free solution. This indicates that the accumulation of chloride ions on the surface of cracks is equivalent to the erosion surface. As a result, the lateral diffusion of chloride ions occurs at the crack.

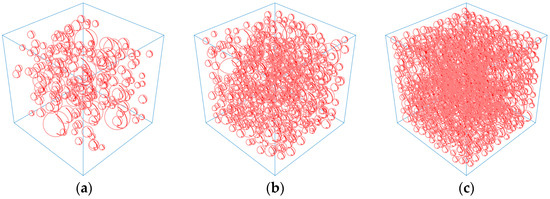

Wang et al. [33] prepared concrete samples with aggregates having volume fractions of 10%, 20%, and 30%. The volume of the concrete samples was 100 mm × 100 mm × 100 mm. The coarse aggregate size ranged from 4.75 mm to 31.5 mm. The samples were subjected to chloride ion diffusion experiments for 180 days. This article established a numerical model similar to those of the experiments in the literature to verify the numerical simulation results of the model.

When considering the time-dependent effect of chloride ion diffusion coefficients in material parameters, the calculated results of Equation (1) were given. The surface chloride ion concentration used the fitted expression from the literature, and a three-dimensional random aggregate model was established, as shown in Figure 2. The diffusion simulation results after 180 days are shown in Figure 3. For the random aggregate model, the randomly distributed aggregates block the diffusion of chloride ions. Therefore, the chloride ion concentration at a certain depth cross-section is uneven, as shown in Figure 4. The apparent chloride ion diffusion coefficient of the numerical model simulation results was calculated based on the principle of fitting the natural diffusion experiment to calculate the concrete chloride ion diffusion coefficient.

In this article, finite element nodes at different depth cross-sections were selected, and the simulation results of all nodes were read and averaged to obtain the diffusion concentration of chloride ions at that depth.

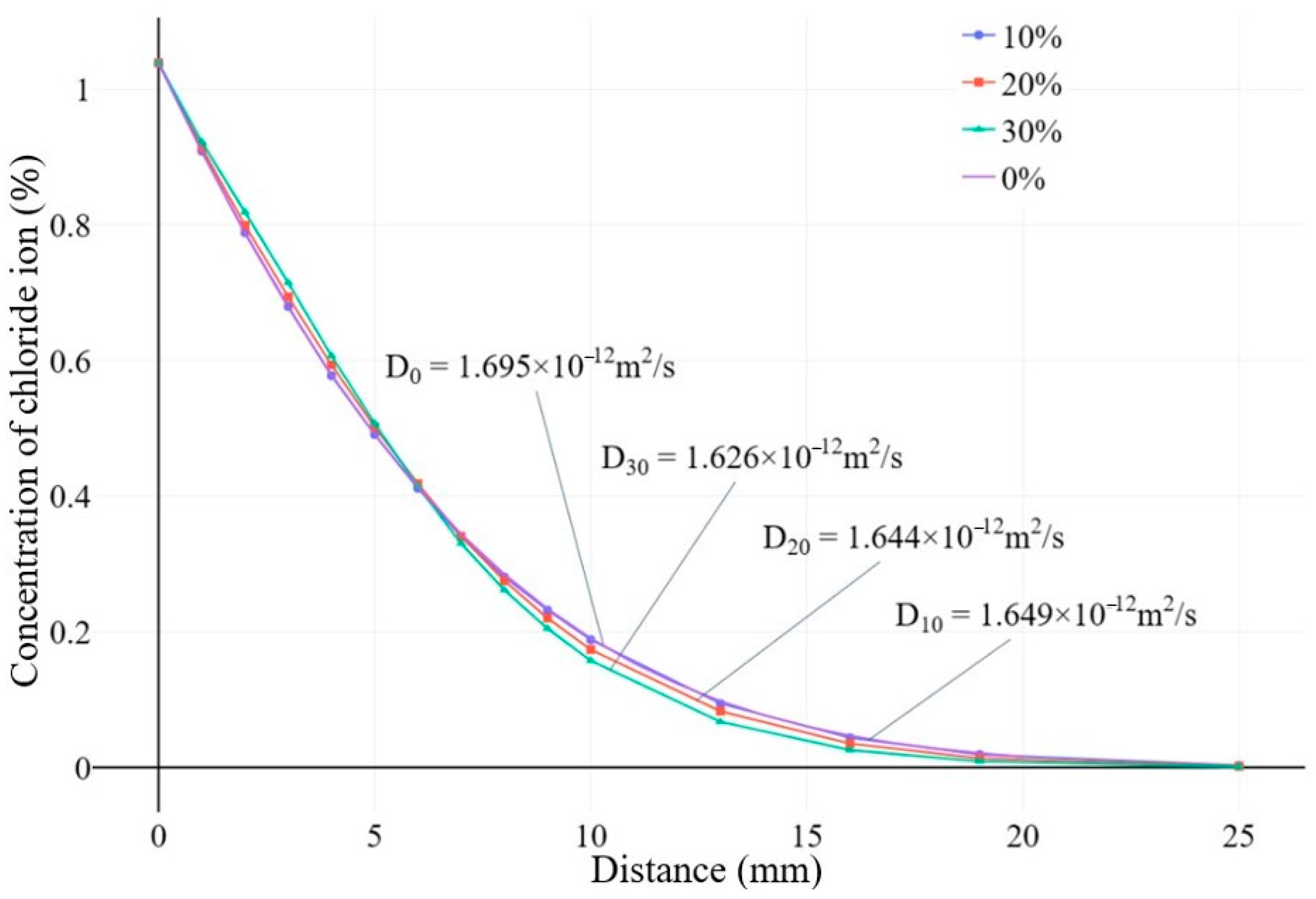

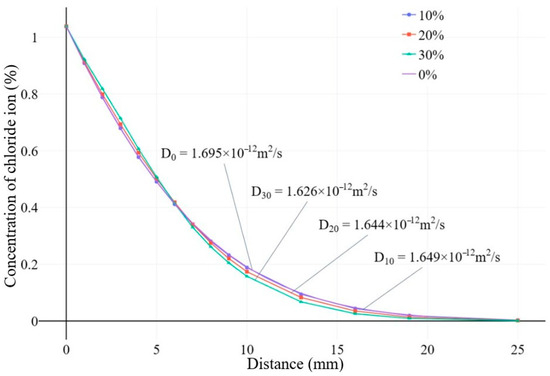

The concentration curve of chloride ions at different depths is shown in Figure 4. By statistically analyzing the data of the model cross-section element nodes at different depths and taking the average value, the chloride ion concentration inside the specimen at that depth can be obtained. Based on Fick’s second law, the fitting of this result can be used to obtain the apparent chloride ion diffusion coefficient of concrete. The simulation results of the model agree with the experimental results in the literature [33].

4. Discussion

4.1. Influence of the Aggregate Volume Fraction

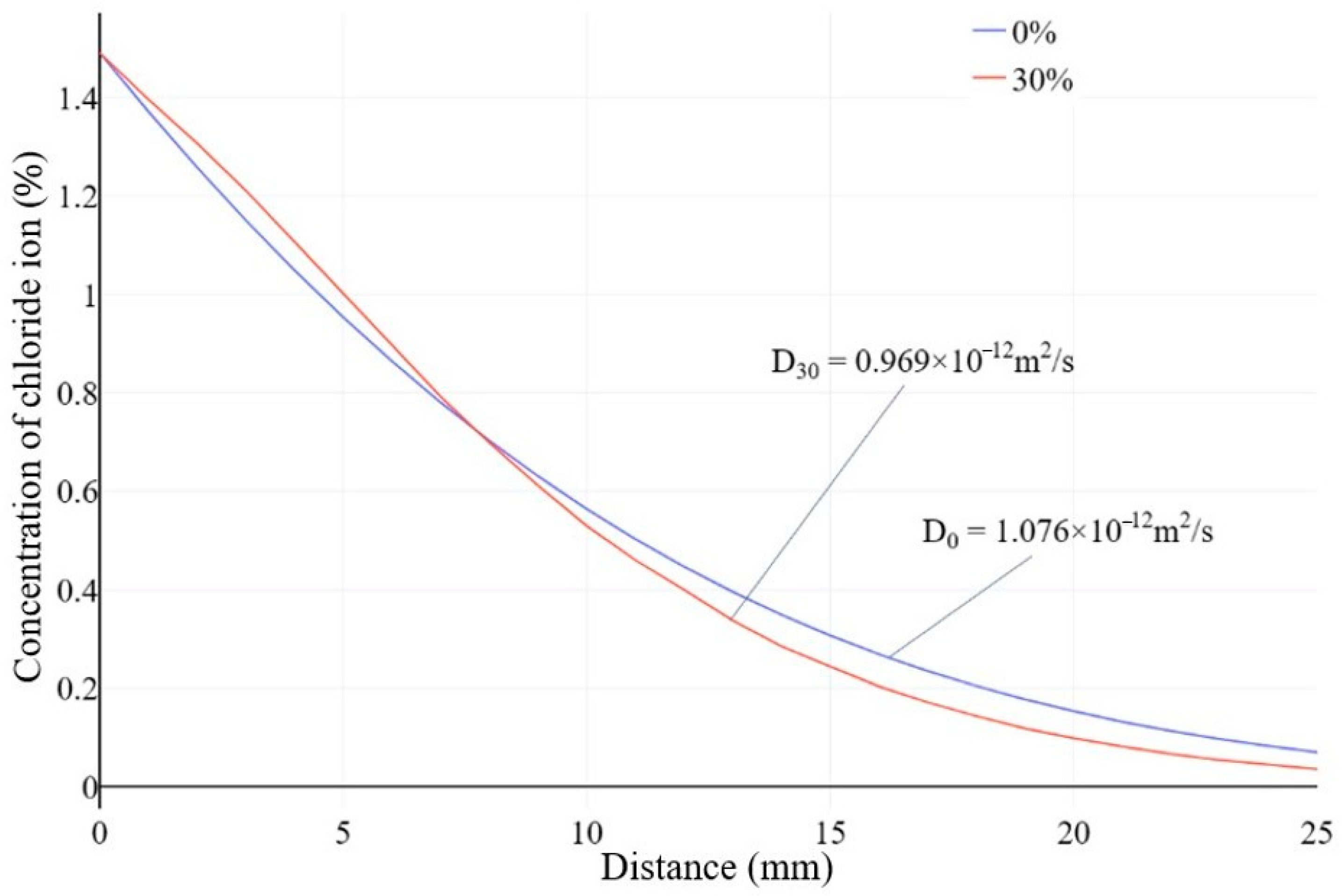

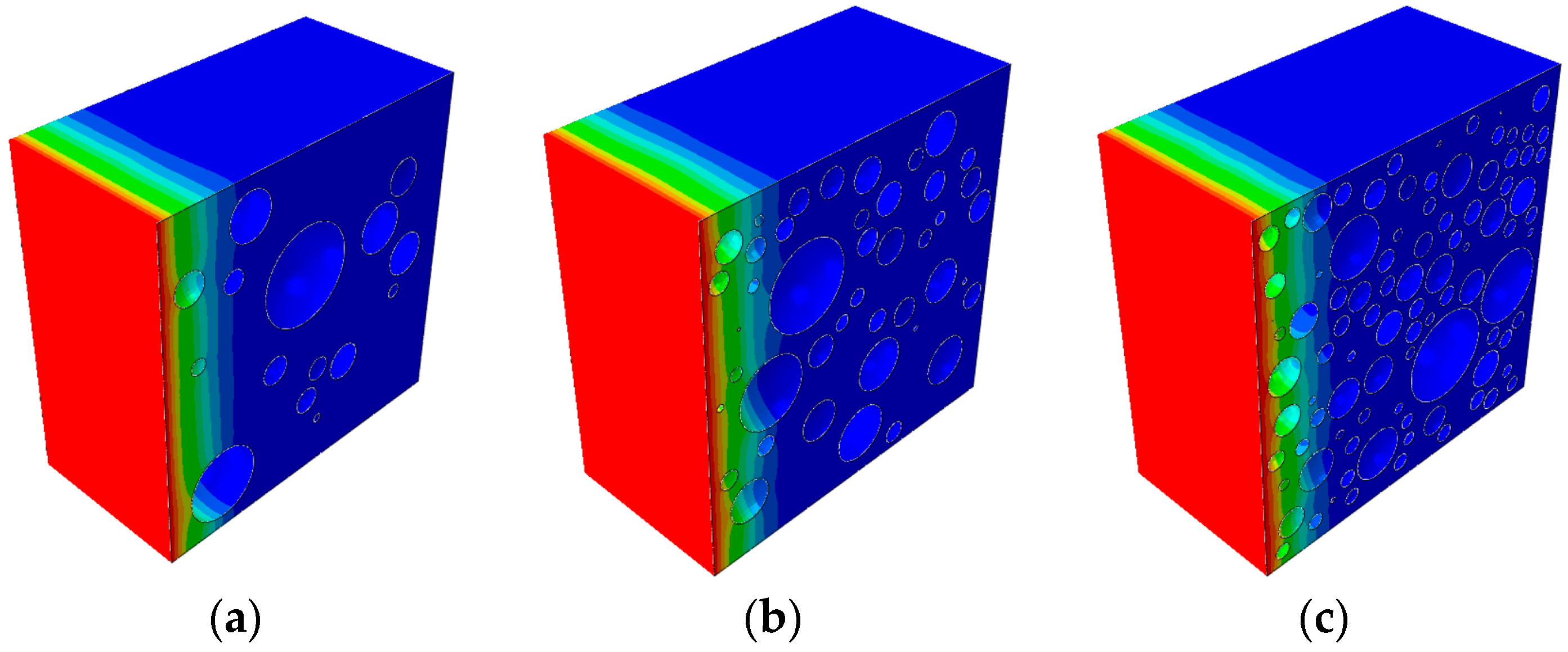

In practical engineering, the long-term diffusion results are more important. In this article, the diffusion time is set to 720 days, and diffusion simulations are carried out on concrete specimens with a volume fraction of 30% and cement specimens without aggregates. Figure 5 shows the chloride ion concentration curve. The influence of aggregates on the chloride ion diffusion coefficient of concrete mainly manifests in two aspects. Firstly, the relative diffusion coefficient of aggregates to cement mortar is low, which means that chloride ions are blocked by aggregates when they penetrate through the mortar. The higher the density of the aggregates, the more obvious this blocking effect will be. Secondly, the presence of aggregates fills in the free diffusion path of chloride ions, making it more complex and tortuous. Therefore, the concentration of chloride ions in concrete filled with aggregates at the same depth is lower than that without aggregates.

It should be noted that when assuming the concrete is in a saturated state, the surface chloride ion concentration continues to increase. Assuming the diffusion mechanism occurs throughout the concrete block, chloride ions that are blocked by aggregates cannot continue to diffuse and will accumulate near the aggregates. This results in an increase in the local chloride ion concentration in the shallow layer, which is higher than the concentration during free diffusion without aggregates. As shown in Figure 4 and Figure 5, within the range of about 0 to 6 mm, the chloride ion concentration with aggregates is higher than that in the case without aggregates. This phenomenon becomes more evident as the volume fraction of aggregates increases. This phenomenon is also reflected in the actual experimental results in the literature [33]. As the diffusion depth increases, the hindrance of aggregates further delays the diffusion rate of chloride ions. Therefore, the internal chloride ion concentration is lower than that without aggregates. Comparing the fitted diffusion coefficients in Figure 6a–c, we find that for short diffusion times and small volume fractions of aggregates, the hindrance effect of aggregates is not significant. As the diffusion time increases, local areas with high concentrations will spread towards the interior, making the difference in internal chloride ion concentration between specimens with and without aggregates more obvious. This is because the hindrance effect of aggregates accumulates in the overall diffusion direction. The longer the diffusion time and the larger the volume fraction of aggregates, the more pronounced this difference becomes.

4.2. The Influence of an Uneven Distribution of Aggregates

During the actual construction process, operations such as mixing, pouring, and vibrating may lead to an uneven distribution of aggregates. Aggregates will gather in certain areas, while other areas may have fewer aggregates. This is due to differences in the particle size and density of the aggregates. These differences may result in an uneven distribution of aggregates in concrete. Some larger or heavier aggregate particles may be more prone to sedimentation or concentration at the bottom or sides. The vibrating operation during concrete construction may cause larger aggregates to concentrate at the bottom. While pouring concrete, due to the fluidity and self-weight of concrete, smaller particles are more likely to rise. This results in the layering of aggregates in the concrete section.

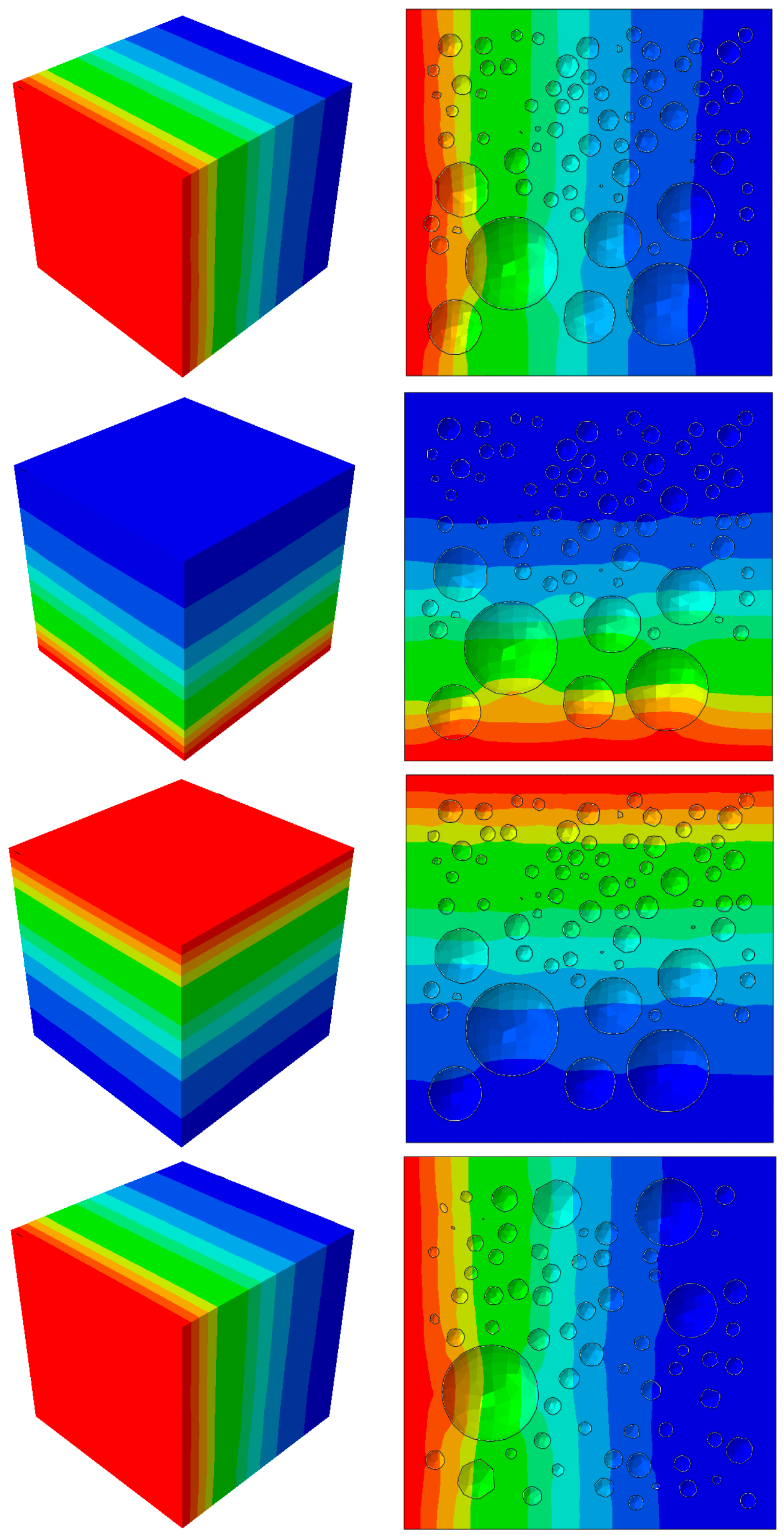

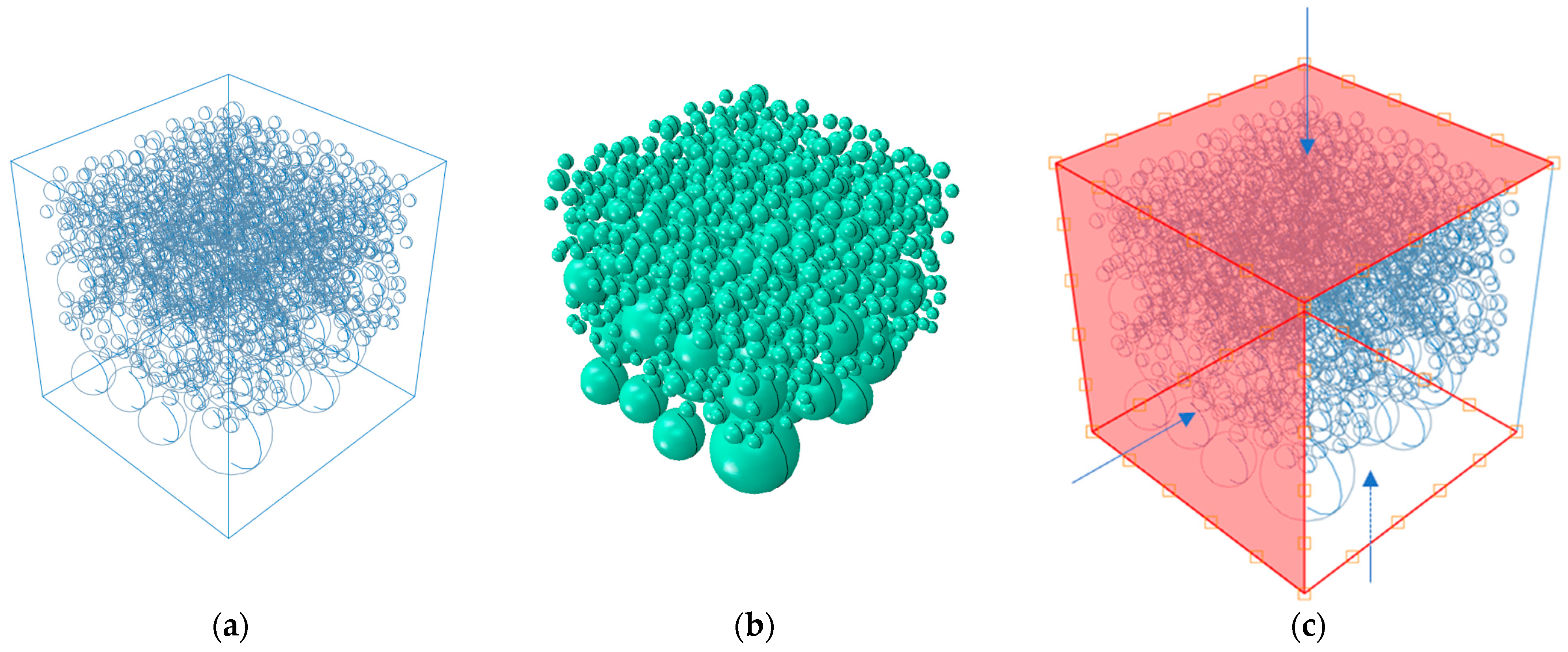

This article establishes a random aggregate model with an uneven distribution of aggregates. Larger aggregates are concentrated in the lower 2/3 of the model, while smaller aggregates are distributed in the upper 2/3 of the model. To reduce the computational burden, the model boundary is reduced to 25 mm. The aggregate volume fraction is 20%. Larger aggregates are selected with a particle size range of 4 to 8 mm, accounting for 1/2 of the total aggregate volume. Smaller aggregates are selected with a particle size range of 1 to 2 mm, accounting for 1/2 of the total aggregate volume. The resulting random aggregate model is shown in Figure 6a,b. The diffusion time is set to 720 days. The diffusion source is placed on the side, bottom, and top surfaces. The boundary conditions are shown in Figure 6c. In addition, a similarly graded and uniformly distributed random aggregate model is established for comparison. The numerical simulation results are shown in Figure 7. The chloride ion concentration curve of the numerical simulation is shown in Figure 8.

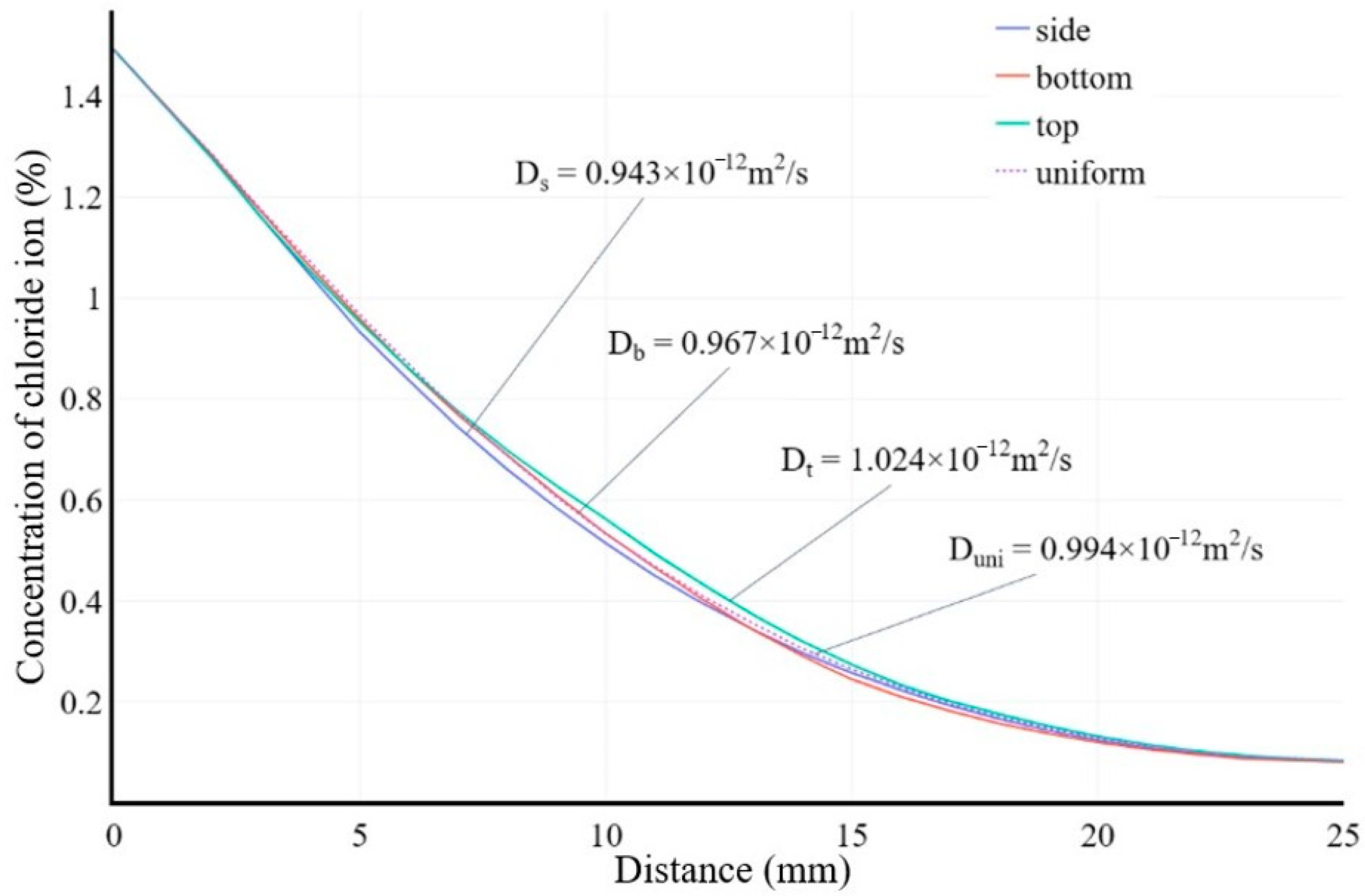

Diffusion starts with a higher chloride ion concentration distribution on the upper side than on the lower side. The fitted diffusion coefficient is larger. In this example, the volume of larger aggregates is the same as that of smaller aggregates. The larger the aggregate size, the more significant the blocking effect on the chloride ions. In observing the diffusion profile on the side, the result of chloride ion concentration distribution confirms this point.

The fitted diffusion coefficient for diffusion starting on the side is the smallest. This is because the larger aggregates concentrated in the lower part of the model blocked the diffusion process more significantly than the smaller aggregates in the upper part. The chloride ion concentration in the lower part is less obvious than that in the upper part under the same diffusion depth. For the uneven distribution of aggregates, the apparent chloride ion diffusion coefficient under the average result is smaller, but there are significant local differences in diffusion. The average result cannot reflect local conditions. A concrete with unevenly distributed aggregates due to construction reasons may have weak spots in its resistance to chloride ion penetration. Therefore, for concrete structures that require a resistance to chloride salt erosion, attention should be paid to ensuring, as much as possible, an even distribution of aggregates during construction to ensure a consistent resistance to chloride ion penetration in the structure.

4.3. The Influence of the Interface Transition Zone

In concrete, the interface transition zone (ITZ) refers to the region between the cement paste and the aggregate particles. Specifically, when the cement paste comes into contact with the aggregate particles, an interface transition zone is formed. The cementitious reaction products in the cement paste interact and bond with the cementitious materials on the surface of the aggregate particles. The ITZ may have a different pore structure from that of the concrete matrix, which can affect the permeability and chloride ion diffusion performance of the concrete.

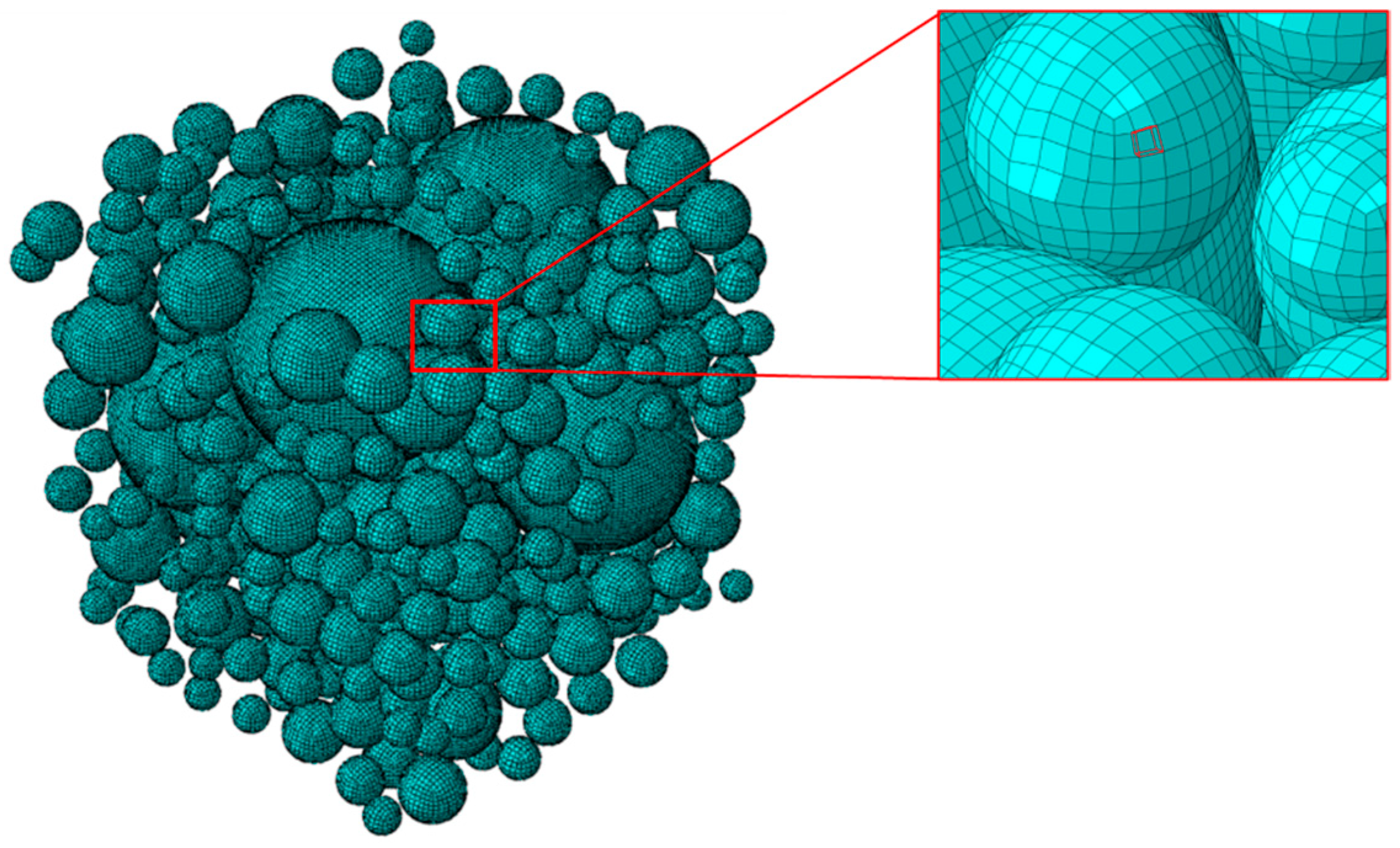

This article uses the grid division method proposed earlier to model the ITZ part. At the micrometer scale, the ITZ thickness is selected to be 0.1 mm, 0.2 mm, and 0.3 mm. The minimum aggregate size is 5 mm. The volume fraction of aggregates is 20%. The maximum aggregate size is 10 mm. The average aggregate size is 8 mm. Considering time-dependent effects, the chloride ion diffusion coefficient in the ITZ is calculated using Equation (2).

$$D_{ref}(\delta /d_a,V)=D_{ref}(V_0)\cdot (0.0931-0.044V)\cdot {(\delta /d_a)}^{-(0.9727-0.050V)},$$

(2)

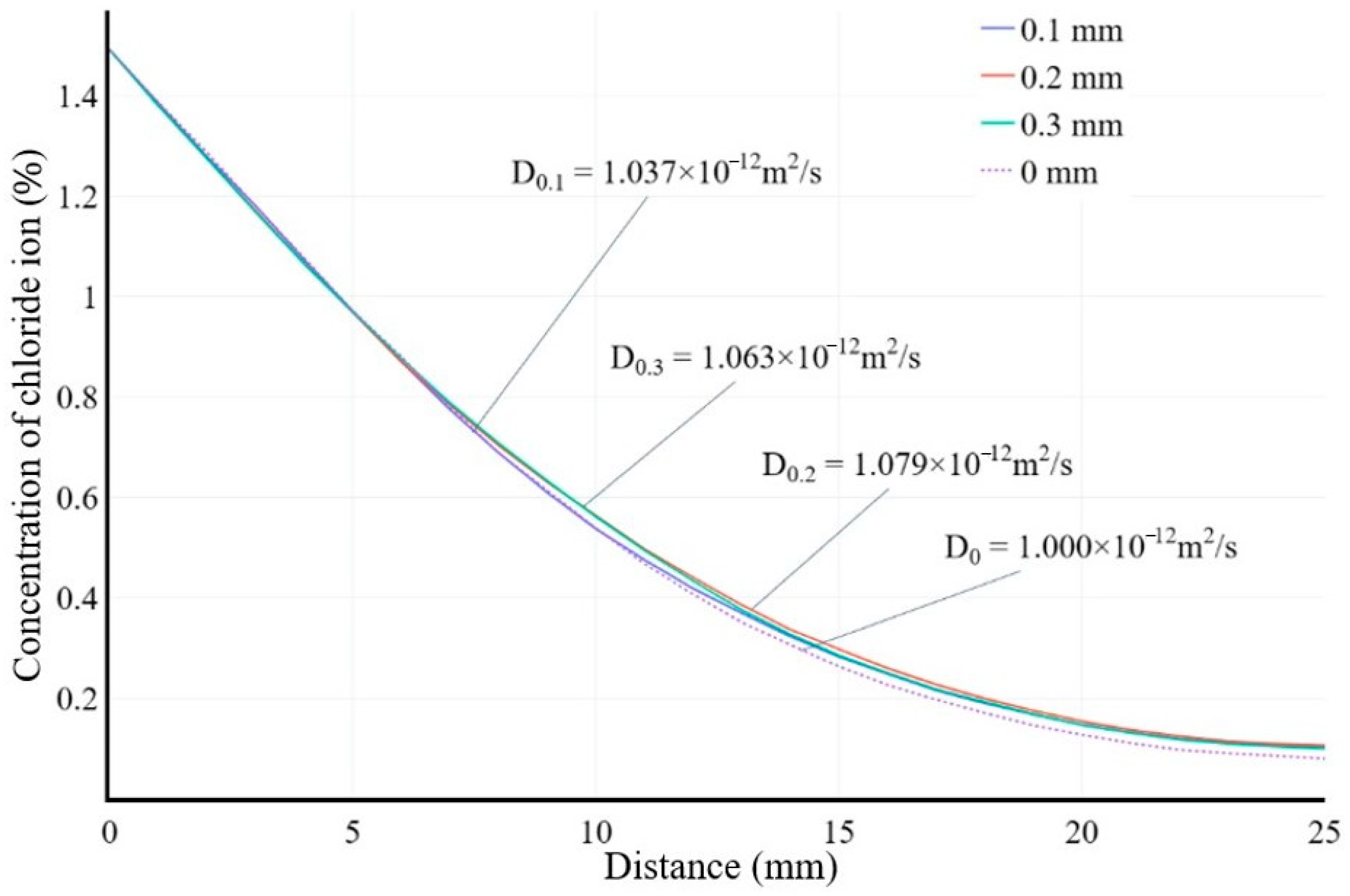

As shown in Figure 9, with consistent aggregate volume fraction, the apparent chloride ion diffusion coefficient of concrete increases first and then decreases as the thickness of the ITZ increases. This is because as the thickness of the ITZ increases, the calculated diffusion coefficient of the ITZ decreases. Under other parameters that remain unchanged, when the thickness of the ITZ is 0.6 mm, the diffusion coefficient of the ITZ is basically consistent with that of the mortar. At this point, the diffusion process of chloride ions in the ITZ and mortar is also basically consistent. This is consistent with the conclusion of the two-dimensional diffusion model established by Wu et al. [34], which proves that the ITZ has a significant impact on the chloride ion diffusion coefficient.

4.4. The Influence of Micro-Cracks

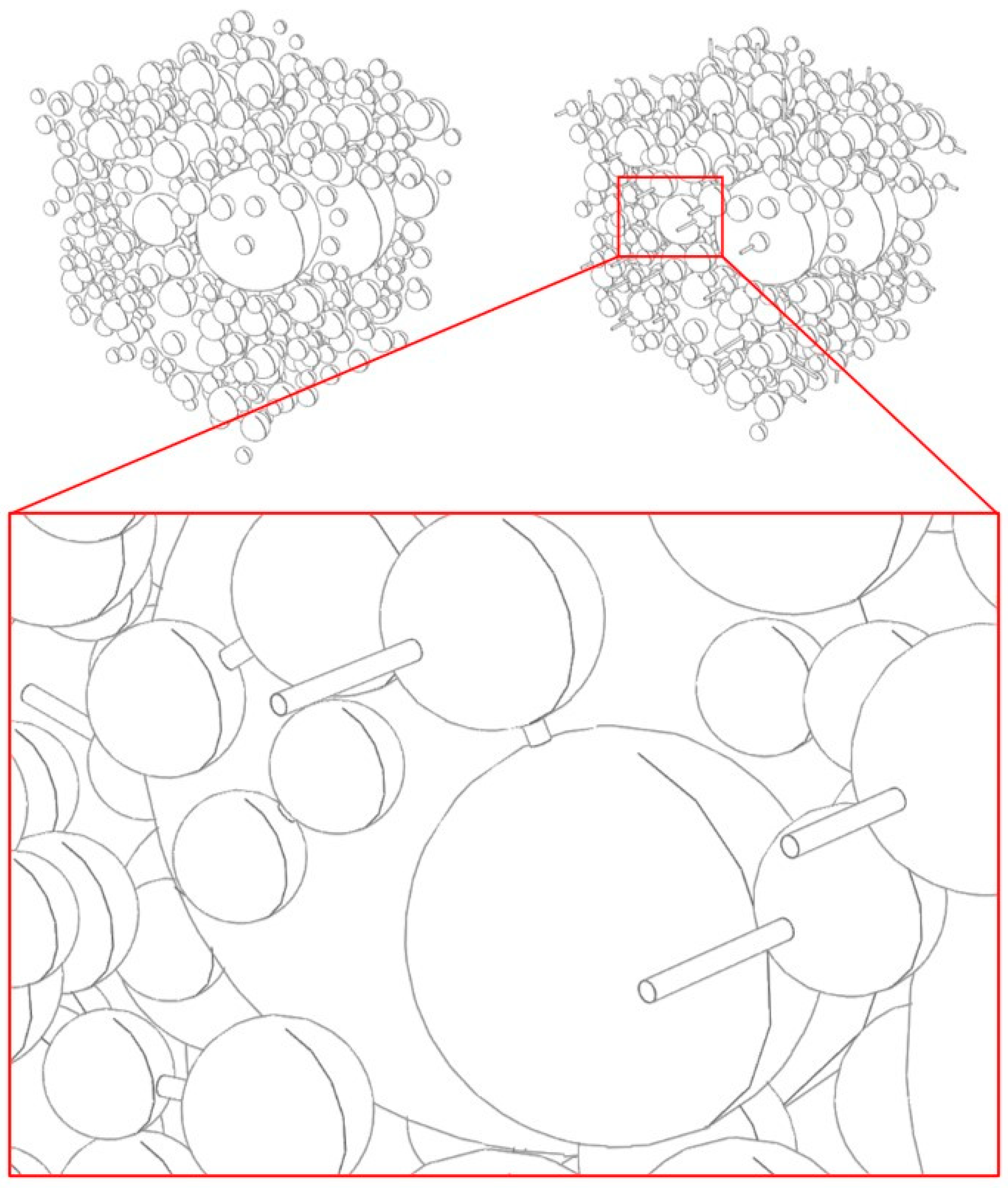

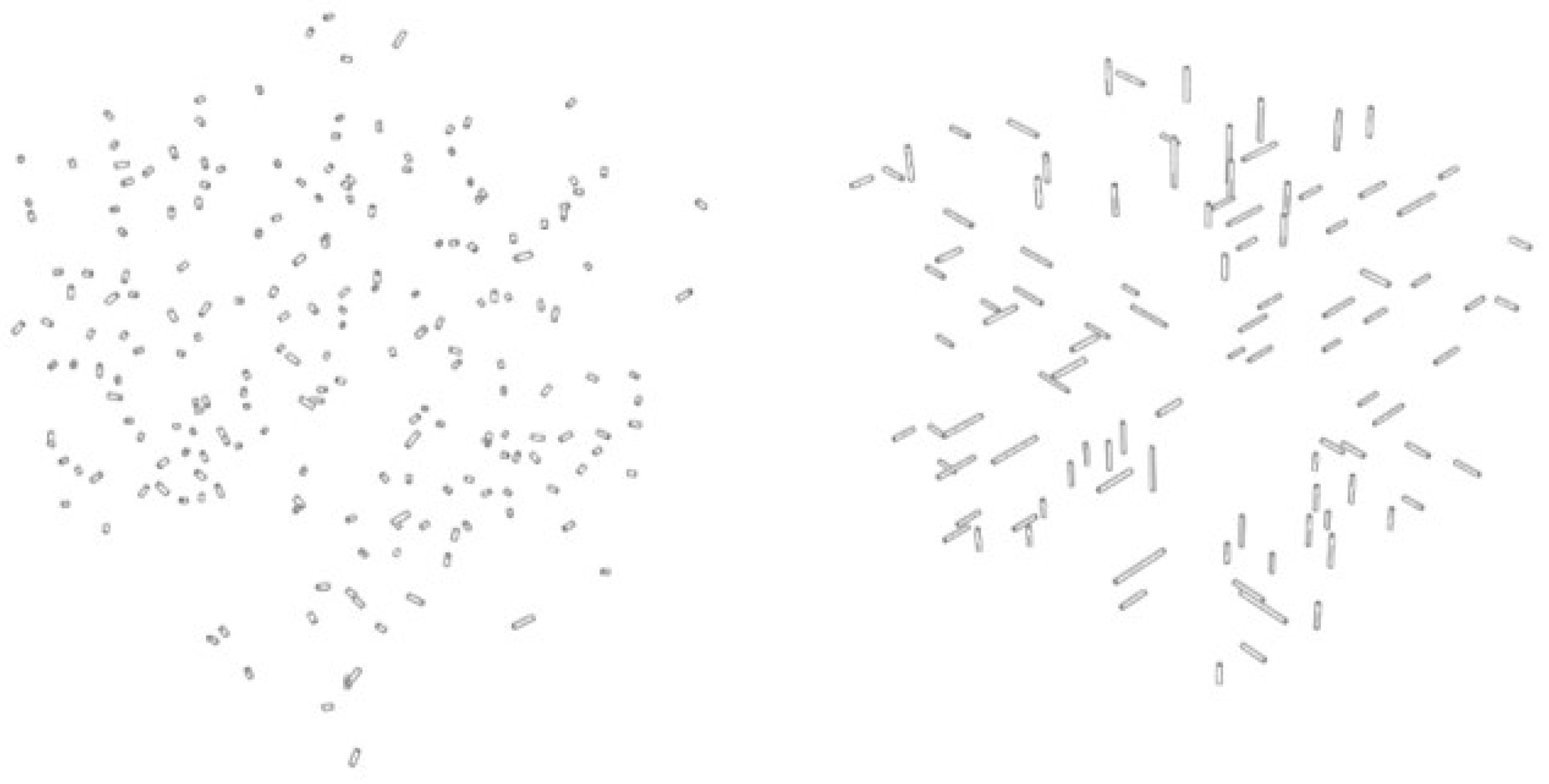

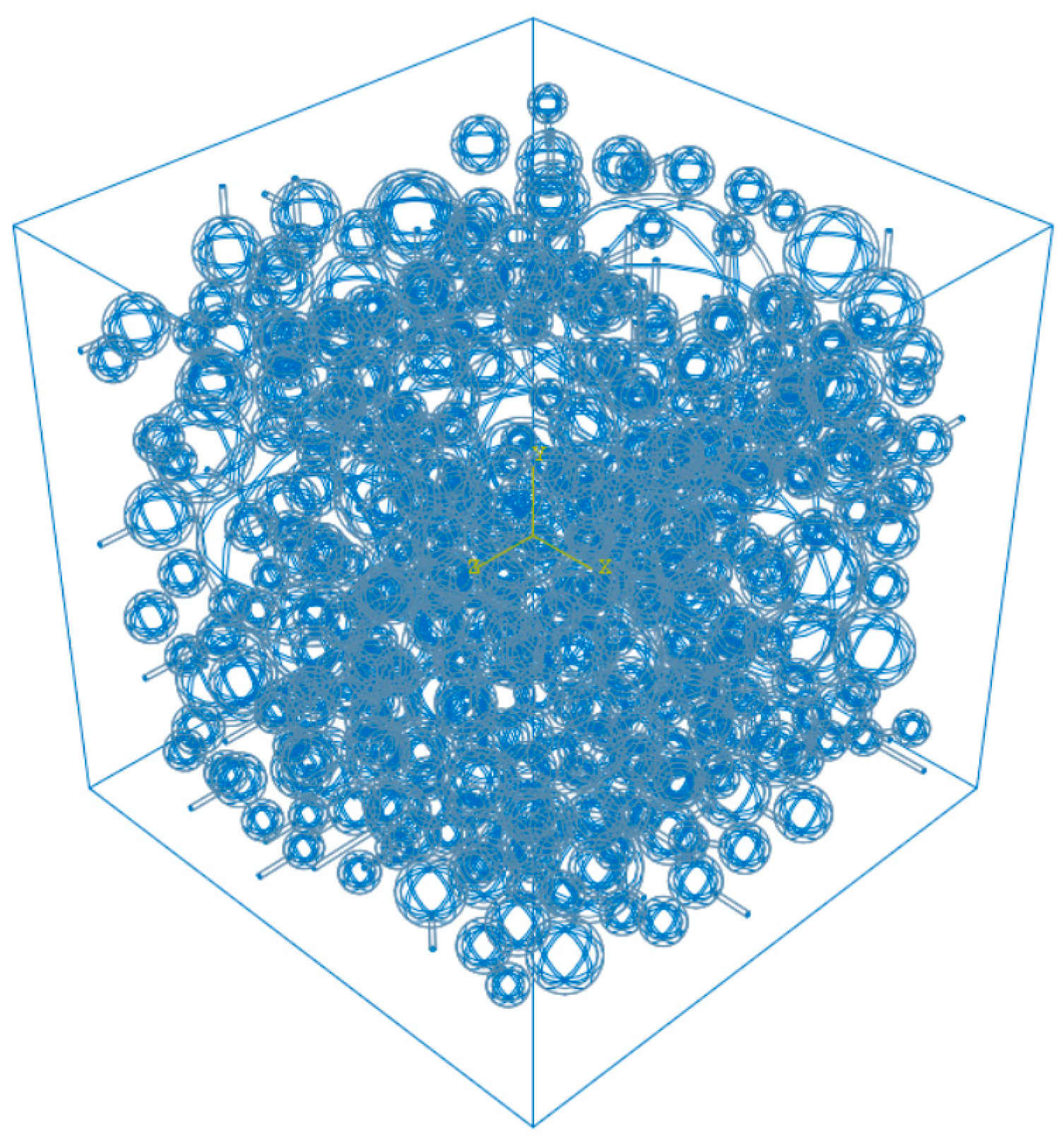

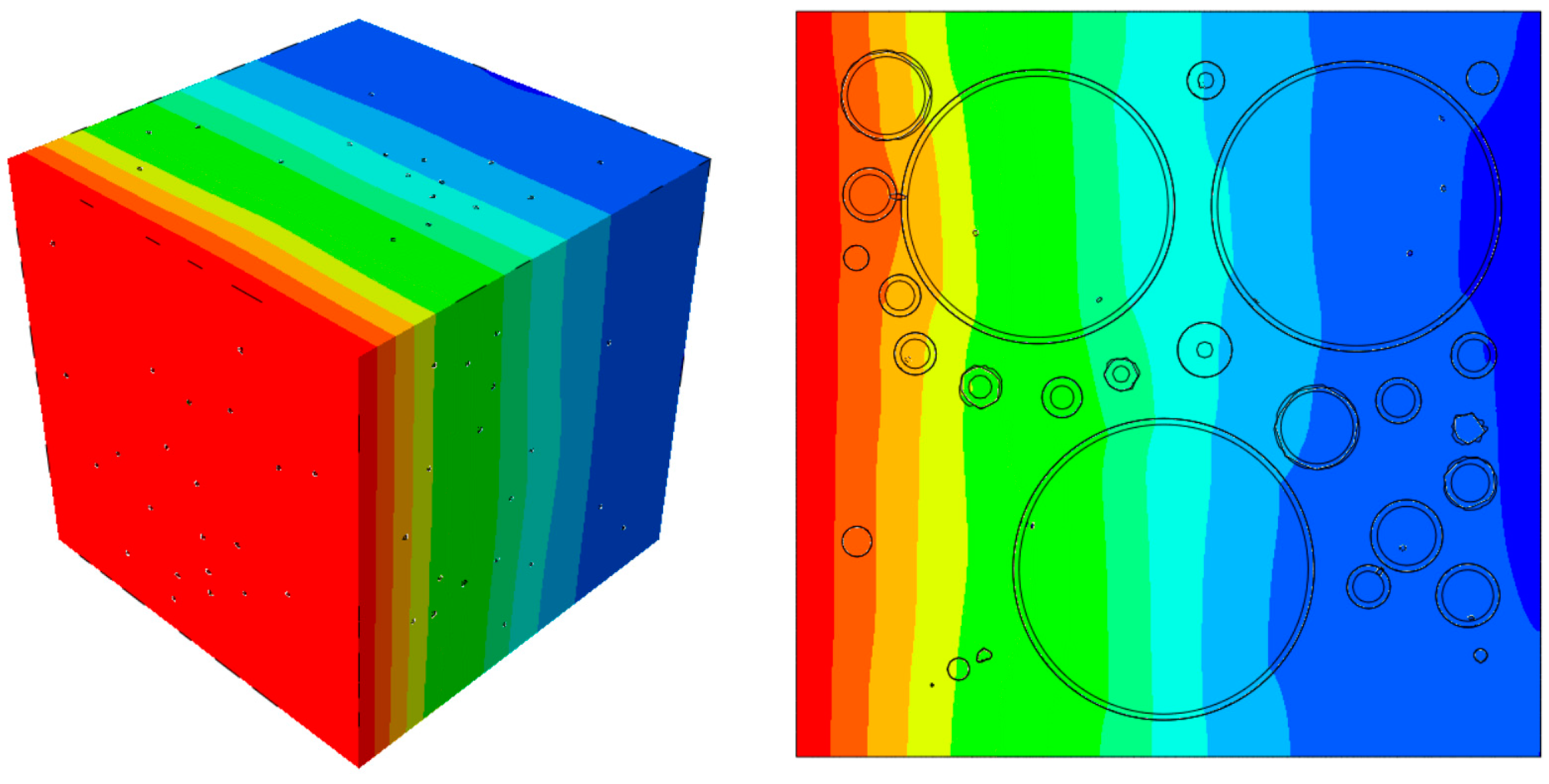

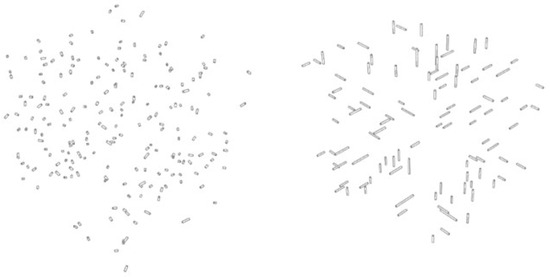

For a concrete block of 25 mm × 25 mm × 25 mm, with an aggregate volume fraction of 20%, 200 internal cracks and 100 edge cracks were randomly generated. The maximum depth of the edge cracks is 3 mm. The crack widths are 0.2 mm, 0.3 mm, and 0.4 mm. The model of cracks and aggregates is shown in Figure 10. The numerical simulation of chloride ion concentration curves is shown in Figure 11.

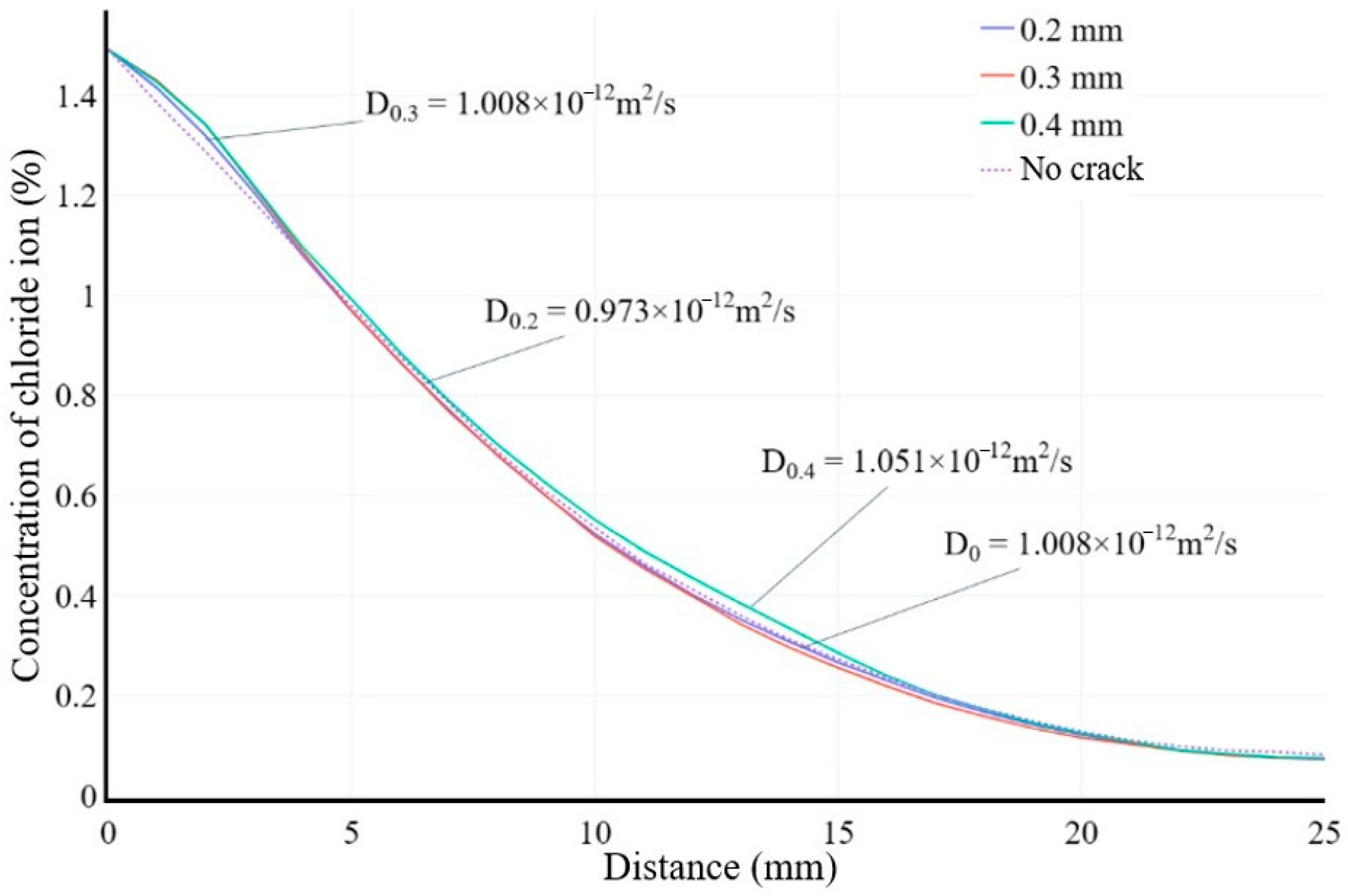

When considering only non-perforated crack networks, under unidirectional diffusion conditions, the fitted result of the apparent chloride ion diffusion coefficient of concrete decreases as the crack width becomes smaller. This is because in unidirectional diffusion, the complex crack network formed by non-perforated cracks inside actually extends the propagation path of chloride ions in concrete. The influence of cracks is significant when the mass concentration is concentrated at the starting point of the cracks. Therefore, the concentration of chloride ions in the random aggregate model with cracks between 0 and 3 mm is much higher than that in the model without cracks. This mainly comes from the influence of edge cracks. This is also why through-cracks or deep cracks extending to the surface of the concrete have a great influence on the chloride ion diffusion coefficient of concrete.

4.5. The Combined Influence of the Interface Transition Zone and Micro-Cracks

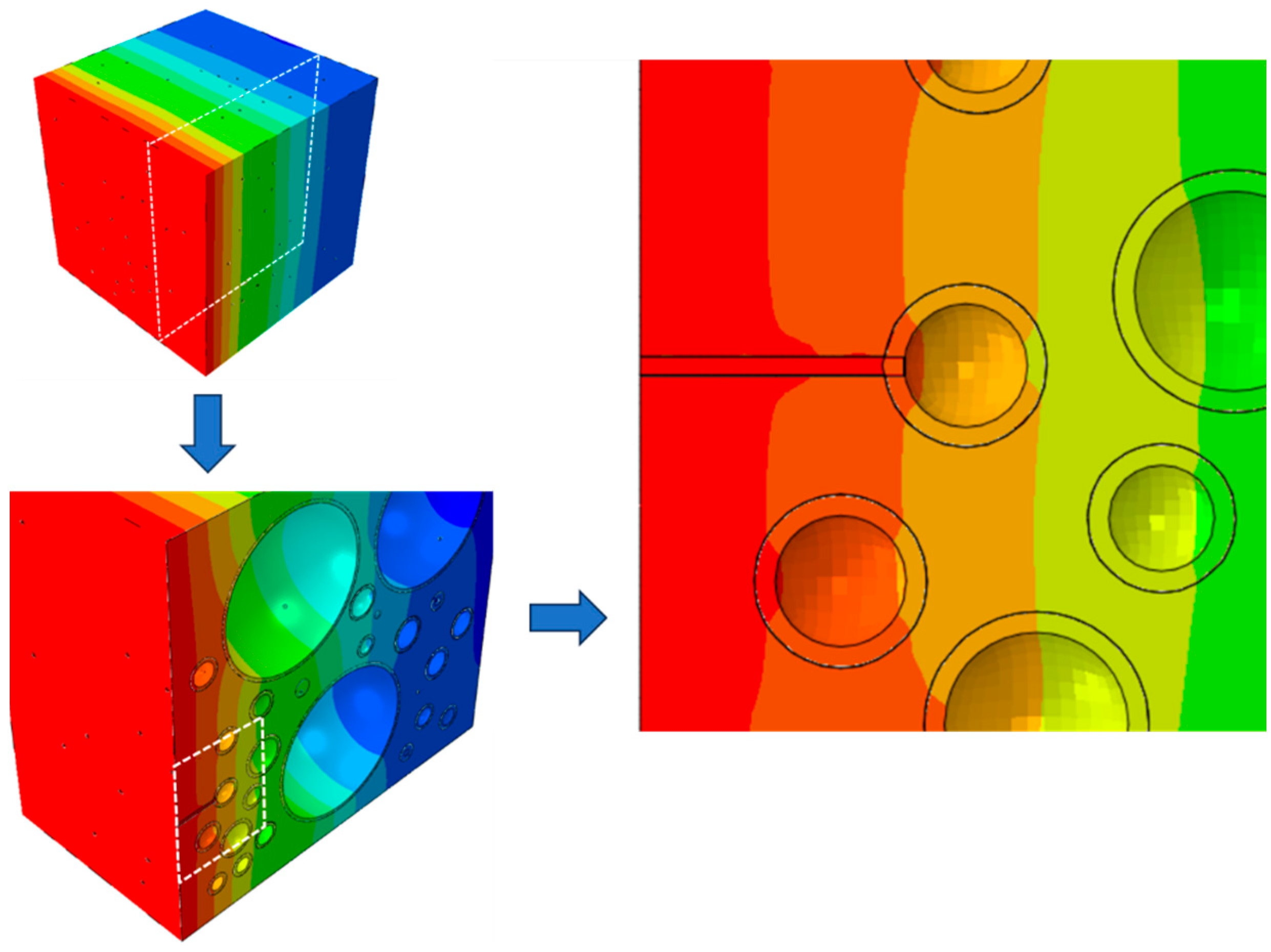

This section takes into account the influences of both the ITZ and micro-cracks, and establishes a new mass diffusion model. The parameters related to the aggregates and boundary conditions remain the same as those in the previous section. The crack width is set to 0.2 mm, and the thickness of the ITZ is set to 0.2 mm. The thickness of the ITZ in this model is small, and the range of aggregate particle sizes is large. Therefore, a more dense mesh is applied to the ITZ. Hexahedron grids with a maximum side length of 0.2 and a minimum of 0.1 are used to mesh the ITZ, as shown in Figure 12 and Figure 13. The numerical simulation results and the chloride ion concentration curves are shown in Figure 14 and Figure 15.

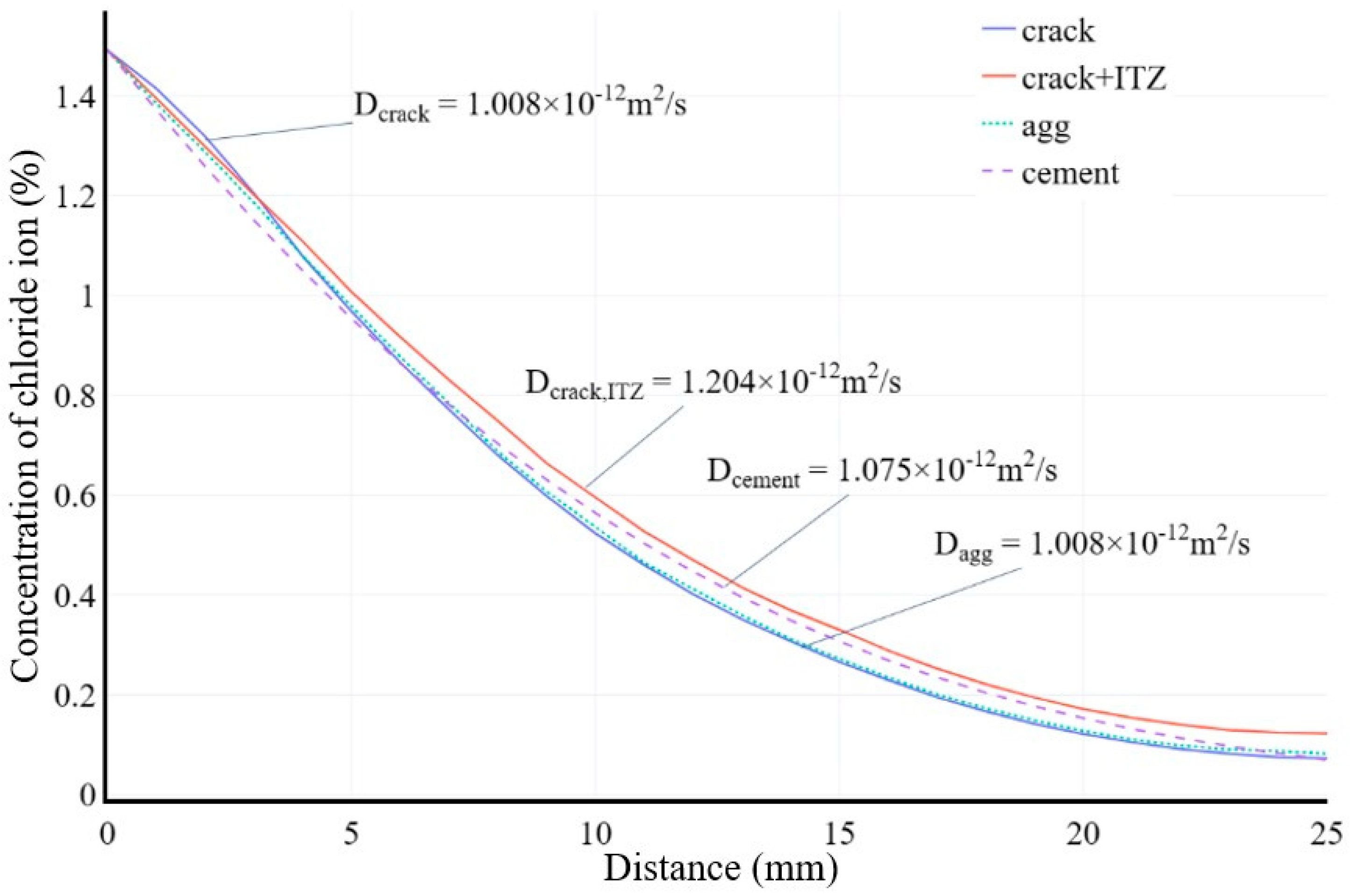

As shown in Figure 15, when only considering micro-cracks, the chloride ion concentration curve inside the concrete is almost the same as that when not considering micro-cracks. However, when considering both micro-cracks and the ITZ portion, the apparent chloride ion diffusion coefficient increased by 19.44%. It is even higher than that of the mortar without aggregates. The chloride ion concentration inside the concrete is also higher than that when only considering aggregates. This is because the higher diffusion coefficient of the ITZ portion can quickly transmit the chloride ions accumulated near the aggregates to that depth. From Figure 16, we can observe the details of the diffusion results. It is indicated that the chloride ion aggregation phenomenon near the aggregates almost disappears. This microstructure composed of micro-cracks and the ITZ actually provides a fast diffusion path for chloride ions. Its ability to accelerate diffusion is greater than the hindrance effect of the aggregates.

5. Conclusions

This study investigates the influence of aggregates on the diffusion of chloride ions in concrete, as well as the influence of micro-cracks and the interface transition zones associated with the aggregates. The innovative highlights can be summarized as follows.

5.1. The Influence of Aggregates on Chloride Ion Diffusion

• A numerical simulation using a random aggregate model is used to study the impact of aggregates on chloride ion diffusion in concrete.
• A higher bulk ratio of aggregates leads to a smaller apparent chloride ion diffusion coefficient due to the hindrance effect of aggregates on diffusion.
• Aggregate filling lengthens the diffusion path of chloride ions, with larger particle sizes having a more significant hindrance effect.

5.2. The Influence of Micro-Cracks and Interface Transition Zones (ITZs)

• The presence of micro-cracks and ITZs associated with aggregates were considered in the numerical simulation.
• An uneven distribution of aggregates affects the rate of chloride ion diffusion, with faster diffusion occurring in areas with fewer aggregates and slower diffusion occurring in areas with a high density of aggregates.
• The ITZ portion has a significant impact on the chloride ion diffusion coefficient of the concrete, accelerating the diffusion process.

By considering the combined action of aggregates, ITZs, and micro-cracks, the study highlights the innovative understanding of how these factors influence chloride ion diffusion in concrete. The findings provide valuable insights for optimizing concrete mix designs and enhancing the durability of concrete structures.
