Article

Identifying the Quantitative Trait Locus and Candidate Genes of Traits Related to Milling Quality in Rice via a Genome-Wide Association Study

by
Changmin Hu
1,2,
Xinru Li
1,2,
Mengyuan Zhang
1,2,
Chunyu Jing
1,2,
Mei Hai
1,2,
Jiaming Shen
1,2,
Qing Xu
2,
Xiaojing Dang
2,
Yingyao Shi
1,
Erbao Liu
1,* and
Jianhua Jiang
2,*
1
College of Agronomy, Anhui Agricultural University, Hefei 230036, China
2
Institute of Rice Research, Anhui Academy of Agricultural Sciences, Hefei 230031, China
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(10), 1324; https://doi.org/10.3390/plants13101324
Submission received: 17 March 2024 / Revised: 8 May 2024 / Accepted: 9 May 2024 / Published: 11 May 2024
(This article belongs to the Special Issue Genetic Diversity, Germplasm Resources, and Biotechnological Applications for Sustained Crop Improvement)
Browse Figures
Versions Notes

Abstract

:
Milling quality directly affects production efficiency in rice, which is closely related to the brown rice recovery (BRR), the milled rice recovery (MRR) and the head milled rice recovery (HMRR). The present study investigated these three traits in 173 germplasms in two environments, finding abundant phenotypic variation. Three QTLs for BRR, two for MRR, and three for HMRR were identified in a genome-wide association study, five of these were identified in previously reported QTLs and three were newly identified. By combining the linkage disequilibrium (LD) analyses, the candidate gene LOC_Os05g08350 was identified. It had two haplotypes with significant differences and Hap 2 increased the BRR by 4.40%. The results of the qRT-PCR showed that the expression of LOC_Os05g08350 in small-BRR accessions was significantly higher than that in large-BRR accessions at Stages 4–5 of young panicle development, reaching the maximum value at Stage 5. The increase in thickness of the spikelet hulls of the accession carrying LOC_Os05g08350TT occurred due to an increase in the cell width and the cell numbers in cross-sections of spikelet hulls. These results help to further clarify the molecular genetic mechanism of milling-quality-related traits and provide genetic germplasm materials for high-quality breeding in rice.

1. Introduction

As a major cereal crop, rice (Oryza sativa L.) is crucial to the food security of more than half of the world’s population. With the improvement in people’s living standards, the demand for rice quality is increasing. Improving rice quality while maintaining the current high yields, is one of the main goals of rice breeding [1,2]. As an important indicator of rice quality, the milling quality directly determines the final yield and the broken kernel recovery of the milled rice. Usually, the brown rice recovery (BRR), milled rice recovery (MRR), and head milled rice recovery (HMRR) are used to measure the milling quality. Among them, the HMRR is an important index of milling quality, which directly determines the appearance and commodity value of rice [2]. Therefore, mining the major quantitative trait loci (QTLs) for milling quality will help to elucidate the molecular regulation mechanism of rice quality and provide valuable genetic resources for the breeding of high-quality rice.
Studies have shown that BRR, MRR, and HMRR are quantitative traits controlled by multiple genes and are susceptible to environmental influences [3,4,5]. Many researchers have conducted extensive genetic mapping studies on processing quality. To date, 74 QTLs for BRR, 62 for MRR, and 57 for HMRR have been identified; these QTLs are distributed on all 12 chromosomes (Table S1) [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25]. The phenotypic variation explained (PVE) ranged from 7.30% to 42.5% for BRR, 11.3% to 44.8% for MRR, and 4.60% to 45.4% for HMRR. Among these QTLs, only a few major ones were finely mapped. Ren et al. [21] mapped a major QTL qBRR-10 on chromosome 10, which was finely mapped to a 39.5 kb region containing six candidate genes. Most of these QTLs were detected in F2 backcross inbred-line populations; doubled-haploid, recombinant-inbred-line populations; and chromosome-segment-substitution-line populations, and only a few were identified in natural populations. The elite alleles detected in the former populations are limited, and it is difficult to utilize them in rice breeding. Therefore, to improve the milling quality of rice, it was necessary to identify germplasm resources and discover more QTLs/genes for milling quality by conducting a genome-wide association study (GWAS) in a natural population.
In the present study, the phenotype values of BRR, MRR, and HMRR in 173 rice germplasms were investigated and a GWAS was carried out to detect QTLs. Then, the candidate genes were predicted. These results can provide a material foundation for improving the milling quality of rice and a molecular foundation for elucidating the genetic mechanism of milling quality.

2. Results

2.1. Phenotypic Evaluation

For the BRR trait, the maximum value was 85.23% in E1 and 87.03% in E2 (Figure 1). The minimum value was 70.42% across the two environments. The heritability in a broad sense (H2B) was more than 80% across the two environments. Figure 2A shows the un-hulled rice, brown rice, and milled rice parts of rice materials with different BRR values. The material Malaihong had the minimum BRR (70.52%) and the material Yanjing 9hao had the maximum BRR (86.13%).
For the MRR trait, the mean value was 71.20% in E1 and 71.34% in E2 (Figure 1); the coefficient of variation (CV) ranged from 4.09% to 4.12%. The H2B was 81.28% in E1 and 83.56% in E2. Figure 2B shows the un-hulled rice, brown rice, and milled rice parts of the rice materials with different MRR values. The material Minghui 63 had the minimum MRR (59.42%) and the material Zhongguo 91 had the maximum MRR (77.42%).
For the HMRR trait, the mean value was 64.79% in E1 and 63.50% in E2 (Figure 1). The minimum value was 29.00% in E1 and 23.50% in E2, and the CV was 12.06% across the two environments. The H2B was 85.12% in E1 and 83.64% in E2. Figure 2C shows the un-hulled rice, brown rice, and milled rice parts of the rice materials with different HMRR values. The material Gendjah Gempol had the minimum HMRR (27.35%) and the material Huaidao 9hao had the maximum HMRR (76.36%). The results of two-way analysis of variance (ANOVA) showed that there were significant differences among the genotypes for the BRR, MRR, and HMRR, and no significant differences between the two environments for BRR and HMRR (Table S2). These results suggest that the traits of BRR, MRR, and HMRR are mainly controlled by genotypes, which can be stably inherited in the two environments.

2.2. Identification of QTLs for Traits Related to Rice Milling Quality via a GWAS

The GWAS was conducted to identify the possible natural variation in traits related to rice milling quality. Manhattan plots were constructed to display the significant SNPs related to rice milling quality. For the BRR trait, a total of three QTLs were identified, which were located on chromosomes 5 and 6 (Figure 3A,B). There were 35 significant SNPs in the qBRR5.2 region. The PVE ranged from 11.04% to 23.72%. For the MRR trait, we identified two QTLs located on chromosomes 5 and 11 (Figure 3C,D), with PVEs of 12.59% and 9.70%, respectively. For HMRR, three QTLs were identified, which were located on chromosomes 2, 5, and 11 (Figure 3E,F). The PVE ranged from 10.69% to 13.15%. Among them, the largest number of significant SNPs (16) existed in the qHMRR2 region on chromosome 2. The QTL region of qBRR5.2 was the same as that of qMRR5. Meanwhile, the QTL qBRR5.2 possessed the largest number of significant SNPs (35), and the greatest PVE (23.72%) and −log10(p) (6.45), so it was considered the major QTL. As such, we focused our further investigations on qBRR5.2.

2.3. Identification of Candidate Genes

The candidate genes containing qBRR5.2 on chromosome 5 were analyzed (Figure 4A). In total, 36 positional candidate genes were identified for qBRR5.2 (Figure 4B). Based on the LD analysis, the LD block region was determined to be the 4,430,827–4,571,761 bp region, which contained 13 candidate genes. Based on SNP information, 10 of the 13 genes contained nonsynonymous SNPs (Tables S3 and S4). However, only one nonsynonymous SNP was significantly associated with BRR according to the GWAS (Table S3); it was located within the gene locus LOC_Os05g08350. The full length of LOC_Os05g08350 was 5810 bp, and included two exons and one intron (Figure 4C). The gene LOC_Os05g08350 encoded an F-box domain containing proteins with 554 amino acids. The SNP polymorphisms occurred in the downstream, intron, and coding sequences of the gene. This resulted in two haplotypes being identified (Figure 4C). The haplotype Hap 1 was associated with a smaller BRR, while the haplotype Hap 2 was associated with a larger BRR (Figure 4D). The SNP site (4,556,193) caused a change from base A to base T at nt 1357 in the cDNA sequence, resulting in an amino acid change from cysteine (C) to stop-gained at amino acid 272. The average BRR values of the 63 accessions carrying the TT allele was 76.50 ± 8.60%, while those with the AA allele had an BRR of 80.90 ± 4.20%. There were highly significant differences between the TT allele and the AA allele at p < 0.01 (Figure 4E).
The relative expression levels of LOC_Os05g08350 in the spikelet between three accessions, each with a high or low BRR, were analyzed at different young panicle development stages via qRT-PCR. The expression of the TT allele in each of the three accessions (Malaihong, Fengyouwan 8hao, and Xiangwanxian 17) with a small BRR was significantly higher than that of the AA allele in each of the three accessions (Yanjing 9hao, Xudao 2hao, and Shendao 808) with a large BRR (Figure 4F). The expression of LOC_Os05g08350 in small-BRR accessions was significantly higher (p < 0.01) than that in large-BRR accessions at Stages 4 and 5 of young panicle development, reaching a maximum value at Stage 5 (Figure 4F). Moreover, there was no significant difference between small-BRR accessions and large-BRR accessions from Stage 6 to Stage 8 of young panicle development (Figure 4F). These results suggest that the reduced expression of the AA allele may increase the BRR.

2.4. Evolutionary Analysis of LOC_Os05g08350 in Gramineous Species

In the protein sequence encoded by LOC_Os05g08350, there is an F-box domain at the N-terminal. The SCF complex is an important E3 ubiquitin ligase. The F-box domain can interact with the subunit SKP1 of the SCF complex to achieve the specific degradation of different substrates [26]. In order to clarify the evolution of the F-box gene family in gramineous plants, the homologous proteins of the F-box gene family in five representative gramineous plants were further researched. The five representative gramineous plants were Oryza sativa, Zea mays, Sorghum bicolor, Setaria italica, and Brachypodium distachyon. The locus, chromosome, protein length, and protein-position information are listed in Table S5. The phylogenetic tree was constructed from 37 members of the gene families (Figure 5). The F-box gene family can be divided into three independent types in gramineous plants. Here, we refer to these three types as Type I, Type II, and Type III. There are 17 members in the Type I group, 15 in Type II, and 5 in Type III. In rice, there are four members in Type I, three in Type II, and one in Type III. The LOC_Os05g08350 protein in this study was a Type III protein.

2.5. Protein Structure Analysis of LOC_Os05g08350

In order to further clarify the differences in the three types of F-box domains from the tertiary structure of the proteins, we carried out a modeling analysis on the Type I-LOC_Os12g03740, the Type II-LOC_Os03g02550, and the Type III-LOC_Os05g08350. The tertiary structures of the three types of F-box proteins are shown in Figure 6A. The Type I-LOC_Os12g03740 and Type II-LOC_Os03g02550 have not only F-box domains, but also PP2 domains (Figure 6A). The Type III-LOC_Os05g08350 contains only the F-box domain, and the protein structure is approximately divided into two parts, with a large space in the middle (Figure 6A). Meanwhile, there are significant difference in the α-helices and extended strands, but there are no differences in the β-turns and random coils among the three types (Figure 6B). These results provide an additional basis for the classification of F-box proteins in different types in rice.

2.6. LOC_Os05g08350TT Increased the Cell Numbers and Cell Widths in Cross-Sections in Spikelet Glumes

To determine whether the thickness of spikelet hulls affects BRR, we compared the cell numbers and cell widths in spikelet-hull cross sections of Yanjing 9hao with a high BRR value and Fengyouwan 8hao with a low BRR value. There were significant differences in the cell numbers and cell widths from the inner to outer parenchymal cell layers of the spikelet hulls between Yanjing 9hao and Fengyouwan 8hao (Figure 7). These findings suggest that the increase in the thickness of the spikelet hulls in Fengyouwan 8hao is due to an increase in the widths and numbers of cells in a cross-section in spikelet hulls.

3. Discussion

The milling quality of rice is a quantitative trait controlled by multi-genes, it is influenced by the environment, water content, and processing methods. Among these factors, genetic factors are the most important. There were significant differences in the milling quality among different germplasm resources. The ranges of the BRR and MRR were 70.28–87.03% and 58.99–77.82%, respectively (Figure 1). The minimum value of the HMRR was 23.50%, the maximum value was 74.08%, and the CV of HMRR was 11.64–12.48% (Figure 1). These results indicate that the population examined in this study exhibited abundant phenotypic variation, providing a material basis for the discovery of favorable alleles for traits related to milling quality. Materials with high BRR, MRR, and HMRR values may exist in different grain sizes (Figure 2), which is consistent with the viewpoint reported by Fang et al. [23]. Therefore, it is possible to select long-grain individuals with high BRR, MRR, and HMRR values in the progeny population by selecting suitable parents.
Three QTLs for BRR, two for MRR, and three for HMRR were detected in this study (Figure 3). Based on the Gramene website (http://www.gramene.org/markers/, accessed on 14 March 2021), BLAST (http://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 20 May 2022), and the China Rice Data Center database (http://www.ricedata.cn/gene/list/1499.htm, accessed on 15 August 2022), these QTLs were compared with those reported previously. The position range of QTL qBRR5.1 for BRR overlapped with the flanking region (264,087–1,861,366 bp) reported by Weng et al. [12] (Table S6). The QTL qMRR11 was in the same region as the QTL qMR-11 reported by Weng et al. [12] (Table S6). The QTL qHMRR2 overlapped with the flanking region (32,774,365–35,272,373 bp) reported by Hu et al. [14] (Table S6). The QTL qHMRR5 was located in the chromosomal regions where the QTLs for the HMRR were identified by Tan et al. [6], Aluko et al. [9], and Weng et al. [12] (Table S6). The QTL qHMRR11 overlapped with the flanking region (19,840,132–28,281,693 bp) reported by Yao et al. [25] (Table S6). The remaining QTLs qBRR5.2, qBRR6, and qMRR5 were newly identified in this study.
The major QTLs for milling-quality-related traits were detected in the same chromosome intervals as those previously reported in different populations and environments, indicating that these QTLs exist independently of genetic background and environment. Some studies have reported that there are different degrees of correlation between the appearance quality and milling quality of rice [23]. However, the genes reported to be associated with appearance quality, such as GW2 [27,28], GW5 [29,30], GL6 [31], GW6 [32], chalk5 [33], and OsGIF1 [34], were not detected in this study. This result may be related to the genetic susceptibility of quantitative traits to environmental influences or to the different experimental materials used in other studies.
The QTL qBRR5.2, which is co-located with qMRR5, had the largest PVE (23.72%) and the largest number of significant SNP loci (35). In the LD block region of 4,430,827–4,571,761 bp of chromosome 5, gene LOC_Os05g08350 is a newly identified candidate gene (Figure 4). The full length of LOC_Os05g08350 is 5810 bp, including two exons and one intron. Gene LOC_Os05g08350 encodes a protein of 554 amino acids. The base T-to-A nonsynonymous mutation in the cDNA sequence of LOC_Os05g08350 caused the high BRR phenotype (Figure 4). Based on the haplotype classification, the average BRR of Hap 1 and Hap 2 was 76.5% and 80.9%, respectively. Hap 2 can increase the brown rice recovery by 4.4%. These results suggest that the gene LOC_Os05g08350 has potential application value in improving the BRR via molecular breeding.
The qRT-PCR results showed that the relative expression levels in the accessions with large-BRR-carrying AA alleles were significantly lower than those in the accessions with small-BRR-carrying TT alleles (Figure 4F). The gene LOC_Os05g08350 encodes a OsFBX162-F-box domain containing protein. Baute et al. [35] found that the F-box protein FBX92 affects cell division leading to different cell numbers that ultimately affect leaf size. Thus, we speculated that in the process of spikelet hull formation, the low expression of gene LOC_Os05g08350 reduced the cell division of spikelet hulls and caused the spikelet hulls to become thinner, resulting in a large BRR. On the contrary, the high expression of the gene LOC_Os05g08350 increased the cell division of the spikelet hull, which caused the spikelet hull to become thicker, resulting in a small BRR. The histological analysis revealed that LOC_Os05g08350 regulated the cell width and the number of cross-sections in the spikelet glumes, which confirmed this hypothesis.
The results of the evolutionary analysis showed that LOC_Os05g08350 and other rice F-box genes were divided into different classes. The protein structure of LOC_Os05g08350 is different from that of other rice genes, which may be the main reason why they are classified into different classes and perform different functions. Before now, some functions of F-box genes had been identified, such as the antioxidant TAFBA1 gene in wheat [36,37,38], the drought-stress negative regulator AtPP2-B11 gene in Arabidopsis thaliana [39], and the OsFBX76 gene in rice [40], but the mechanism of the F-box gene is still unclear. At present, what we know about the F-box gene is only the tip of the iceberg for the entire plant F-box gene family. Therefore, further research on the F-box gene family is needed.

4. Material and Methods

4.1. Plant Materials

A total of 173 rice accessions comprising 63 indica rice varieties and 110 japonica rice varieties were grown at the Experimental Station of the Anhui Academy of Agricultural Sciences (31°52′ N, 117°17′ E) in 2021 and 2022, respectively. The corresponding material names, origins, and sequence IDs of the 173 accessions are listed in Table S7. When the rice seedlings had grown to four leaves with one heart, the seedlings of each piece of material were transplanted. Each material was planted in 4 rows with 9 plants per row. The distance between individual plants was 20 cm × 20 cm. Each accession was repeated twice in the field with a routine field management. The meteorological data from sowing to harvest of 173 rice materials in two environments are listed in Table S8. Table S9 lists the flowering date and maturity date and corresponding part meteorological data of 173 rice materials in two environments.

4.2. Phenotypic Investigation

The harvested seeds were air-dried for three months and then used in the follow-up experiments. For each repetition, 100 g of seeds of each variety was selected and milled into brown rice using a machine (JLGJ4.5, Topp Yunnong Technology Co., Ltd., Hangzhou, China). Next, the brown rice was milled into the milled rice using a mini-type rice machine (JNMJ3, Topp Yunnong Technology Co., Ltd., Hangzhou, China). Then, the weights of the brown rice and milled rice of each variety were determined using an electronic balance. The head milled rice was selected from the milled rice and weighted using the electronic balance. We considered the rice to be the head milled rice when the rice length was more than 4/5 of the average length of all the rice. The BRR, MRR, and HMRR were calculated according to the following formulas: BRR (%) = the weight of brown rice (g)/the weight of rough rice (g) × 100, MRR (%) = the weight of milled rice (g)/the weight of rough rice (g) × 100, and HMRR (%) = the weight of head milled rice (g)/the weight of rough rice (g) × 100. Two repetitions were conducted for each trait’s measurement. The mean value of the two repetitions was calculated as the BRR, MRR, and HMRR percentages of each variety.

4.3. Genotypic Data

The re-sequenced data of the 173 varieties were reported by Dang et al. [41] and deposited in the NCBI Sequence Read Archive with the accession number PRJNA554986. The paired-end sequence reads were aligned using the Nipponbare sequence (IRGSP 1.0) as the reference, with Bowtie 2 software [42]. More than 95% of reads had a mapping score >60, which could be mapped to the Nipponbare reference genome. The SNP calling was carried out using the HaplotypeCaller of GATK 3.8-0 (University of South Florida, Tampa, FL, USA). The missing data in the genotype data were imputed using the Beagle v4.1 software [43]. The SNPs with a minor allele frequency (MAF) >5% and a missing rate <20% were selected, and the total number of SNPs was 1,322,884.

4.4. Genome-Wide Association Analysis

The GWAS was carried out based on the mixed linear model in eXpedited [44]. The TASSEL 5.2.1 software was used to calculate the kinship matrix [45]. According to the method reported by Yang et al. [46], when more than five significantly associated SNPs were detected and there was a peak signal around the leading SNP in the 200 kb region, we considered it to be a QTL region. The 200 kb region contained 100 kb downstream and 100 kb upstream of the leading SNP. The R package “LDheatmap” was used to construct the linkage disequilibrium (LD) heatmap surrounding the peaks [47]. The Manhattan and quantile–quantile plots were drawn using the R package qqman [48]. The genome-wide significant thresholds of the GWAS were determined as 1.0 × 10−4 at a nominal level of 0.05 based on the correction method reported by Benjamini and Hochberg [49].

4.5. Candidate Gene Analysis

The candidate genes within a 200 kb genomic region were predicted according to the Rice Genome Annotation Project MSU7 database (http://rice.plantbiology.Msu.edu, accessed on 10 February 2024). The LD blocks surrounding significant SNPs were determined using Haploview 4.2 software [50]. The causal gene for each locus was determined according to the gene annotation and expression analysis.

4.6. Haplotype Analysis

The haplotypes of the candidate genes were identified using the RiceVarMap database (http://ricevarmap.ncpgr.cn/) and the China Rice Data Center (https://www.ricedata.cn/). Each haplotype should be carried in more than 20 varieties.

4.7. Quantitative Real Time PCR Analysis of Candidate Genes

The spikelets of young panicles at developmental stages 4, 5, 6, 7, and 8 were sampled from the three samples with high BRR values and three samples with low BRR values. The total RNA was extracted using a TianGen Pure Plant Plus Kit (TianGen Biotech Co., Ltd., Beijing, China). The first-strand cDNA was synthesized using a HisScript II Reverse Transcriptase system (Vazyme Biotech Co., Ltd., Nanjing, China). The UBQ rRNA gene was used as the internal control. Real-time quantitative PCR (qRT-PCR) was performed using SYBR Green (Vazyme Biotech Co., Ltd., Nanjing, China) based on the 96-well thermocycler (Roche Applied Science LightCycler 480, https://lifescience.roche.com/). We performed the PCR following the procedure reported by Hu et al. [51]. For each sample, three biological repetitions were conducted. The primers used for the qRT-PCR are listed in Table S10. The transcript levels of gene expression were calculated following the method reported by Livak and Schmittgen [52].

4.8. Phylogenetic Tree Construction

The homologous protein sequences of F-box genes in gramineous species were obtained from NCBI (https://www.ncbi.nlm.nih.gov/). DNAMAN 7.0 was used to compare the sequence of homologous proteins. The phylogenetic tree was constructed using the maximum likelihood method in MEGA 5.0 [53].

4.9. Protein Structure and Modeling

The secondary structure of the protein was analyzed using SOPMA (https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa_sopma.html, accessed on 18 January 2022). The model was constructed using Alphafold 2 [54] and the model analysis and drawing were performed using PyMOL 3.0 [55].

4.10. Histological Analysis

Spikelet hulls were fixed in FAA solution (60% (v/v) ethanol, 5% (v/v) glacial acetic acid, and 5% (v/v) formaldehyde). Then, they were put into the plant-softening solution to soften, dehydrated in an ethanol series (30%, 50%, 75%, 85%, 90%, 95%, and 100% (v/v) ethanol), destained with xylene, and embedded in paraffin. Tissue sections were cut with a Leica microtome (RM2016, Shanghai Leica Instrument Co., Ltd., Shanghai, China). Then the slices were dewaxed, safranin O-fast stained, decolored, fixed-green stained, made transparent, sealed, and observed under a microscope (Nikon Eclipse E100, Nikon Instruments (Shanghai) Co., Ltd., Shanghai, China).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13101324/s1, Table S1: A list of previously published QTLs controlling the BRR, MRR, and HMRR, Table S2: The results of the two-way analysis of variance for traits related to rice milling quality, Table S3: The SNP information in the 4.43–4.57 Mb candidate region for BRR, Table S4: Candidate gene annotation in the region 4.43–4.57 Mb associated with the brown rice recovery, Table S5: The base information of F-box genes from five Gramineae plants, Table S6: The QTLs detected in this study overlapped with the QTLs/genes reported previously, Table S7: The information related to the 173 rice accessions used in this study and the mean phenotype value of milling-quality-related traits in the E1 and E2 environments, Table S8: Meteorological data, from sowing to harvest, of 173 rice materials in two environments, Table S9: The flowering date and maturity date and corresponding part meteorological data of 173 rice materials in two environments. Table S10: The sequences of primers used for the qRT-PCR.

Author Contributions

C.H., E.L. and J.J. designed the experiments and managed the project. X.L., M.Z., C.J., M.H., J.S. and Q.X. conducted field planting and phenotypic identification. Y.S. and X.D. prepared RNA samples and conducted qRT-PCR and transformation analysis. C.H., E.L. and J.J. performed the data analysis. C.H. and J.J. wrote the manuscript draft and reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Talent Program of Anhui Academy of Agricultural Sciences (QNYC-201903, QNYC-202103).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Relevant data are included in this paper and its associated Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, C.Q.; Zhao, D.S.; Li, Q.F.; Gu, M.H.; Liu, Q.Q. Progresses in research on cloning and functional analysis of key genes involving in rice grain quality. Sci. Agric. Sin. 2016, 49, 4267–4283. [Google Scholar] [CrossRef]
  2. Cheng, S.H. One-hundred years’ development and prospect of rice breeding in China. China Rice 2021, 27, 1–6. [Google Scholar] [CrossRef]
  3. Ao, Y.; Xu, C.W.; Mo, H.D. Quantitative analysis for inheritance of quality characters in indica hybrid rice. Acta Genet. Sin. 2000, 27, 706–712. [Google Scholar]
  4. Gao, F.Y.; Zeng, L.H.; Qiu, L.; Lu, X.L.; Ren, J.S.; Wu, X.T.; Su, X.W.; Guo, Y.M.; Ren, G.J. QTL mapping of grain appearance quality traits and grain weight using a recombinant inbred population in rice (Oryza sativa L.). J. Integr. Agric. 2016, 15, 1693–1702. [Google Scholar] [CrossRef]
  5. Lu, J.; Wang, D.Y.; Liu, K.; Chu, G.; Huang, L.Y.; Tian, X.H.; Zhang, Y.B. Inbred varieties outperformed hybrid rice varieties under dense planting with reducing nitrogen. Sci. Rep. 2020, 10, 8769. [Google Scholar] [CrossRef]
  6. Tan, Y.F.; Sun, M.; Xing, Y.Z.; Hua, J.P.; Sun, X.L.; Zhang, Q.F.; Corke, H. Mapping quantitative trait loci for milling quality, protein content and color characteristics of rice using a recombinant inbred line population derived from an elite rice hybrid. Theor. Appl. Genet. 2001, 103, 1037–1045. [Google Scholar] [CrossRef]
  7. Mei, H.W.; Luo, L.J.; Guo, L.B.; Wang, Y.P.; Yu, X.Q.; Ying, C.S.; Li, Z.K. Molecular mapping of QTLs for rice milling yield traits. Acta Genet. Sin. 2002, 29, 791–797. [Google Scholar]
  8. Septiningsih, E.M.; Trijatmiko, K.R.; Moeljopawiro, S.; McCouch, S.R. Identification of quantitative trait loci for grain quality in an advanced backcross population derived from Oryza sativa Variety IR64 and the wild relative O. rufipogon. Theor. Appl. Genet. 2003, 107, 1433–1441. [Google Scholar] [CrossRef]
  9. Aluko, G.; Martinez, C.; Tohme, J.; Castano, C.; Bergman, C.; Oard, J.H. QTL mapping of grain quality traits from the interspecific cross Oryza sativa × O. glaberrima. Theor. Appl. Genet. 2004, 109, 630–639. [Google Scholar] [CrossRef]
  10. Li, Z.F.; Wan, J.M.; Xia, J.F.; Zhai, H.Q.; Ikehashi, H. Identification of quantitative trait loci underlying milling quality of rice (Oryza sativa L.) grains. Plant Breed. 2004, 123, 229–234. [Google Scholar] [CrossRef]
  11. Liu, J.F.; Kui, L.M.; Zhu, Z.F.; Tan, L.B.; Wang, G.J.; Li, Q.W.; Shu, J.H.; Sun, C.Q. Identification of QTLs associated with processing quality and appearance quality of common wild rice (Oryza rufipogon Griff.). J. Agric. Biotechn. 2007, 15, 90–96. [Google Scholar]
  12. Weng, J.F.; Wan, X.Y.; Guo, T.; Jiang, L.; Zhai, H.Q.; Wan, J.M. Stability analysis of QTL for milling quality of rice (Oryza sativa L.) using CSSL population. Sci. Agric. Sin. 2007, 40, 2128–2135. [Google Scholar]
  13. Kepiro, J.L.; McClung, A.M.; Chen, M.H.; Yeater, K.M.; Fjellstrom, R.G. Mapping QTL for milling yield and grain characteristics in a tropical japonica long grain cross. J. Cereal Sci. 2008, 48, 477–485. [Google Scholar] [CrossRef]
  14. Hu, X.; Shi, Y.M.; Jia, Q.; Xu, Q.; Wang, Y.; Chen, K.; Sun, Y.; Zhu, L.H.; Xu, J.L.; Li, Z.K. Analyses of QTLs for rice panicle and milling quality traits and their interaction with environment. Acta Agron. Sin. 2011, 37, 1175–1185. [Google Scholar] [CrossRef]
  15. Mei, D.Y.; Zhu, Y.J.; Fan, Y.Y. Mapping QTL for rice milling and appearance quality traits in indica rice. Hereditas 2012, 34, 1591–1598. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, Y.; Gao, Y.; Zhu, S.S.; Zhu, J.Y.; Wang, J.; Yi, C.D.; Zhong, W.G.; Liang, G.H. QTL mapping of brown rice rate using chromosome single segment substituted lines in rice. Acta Agric. Bor. 2013, 28, 1–5. [Google Scholar]
  17. Zhang, D.S.; Huang, P.Y.; Peng, Q.; Zhang, S.D.; Wang, J.F.; Wang, C.Z.; Zhu, S.S. Detection of QTLs responsible for grinding quality of rice with RIL population. Mod. Agric. Sci. Technol. 2013, 18, 30–32. [Google Scholar] [CrossRef]
  18. Qiu, X.; Pang, Y.; Yuan, Z.; Xing, D.; Xu, J.; Dingkuhn, M.; Li, Z.; Ye, G. Genome-wide association study of grain appearance and milling quality in a worldwide collection of indica rice germplasm. PLoS ONE 2015, 10, e0145577. [Google Scholar] [CrossRef] [PubMed]
  19. Li, C.X.; Wang, J.G.; Liu, H.L.; Sun, J.; Wang, J.X.; Zhao, H.W.; Zou, D.T. QTL mapping and QTL × environment interaction analysis of grain quality-related traits in rice (Oryza sativa) under water-and dry-cultivation conditions. J. Agric. Biotechn. 2016, 24, 1491–1499. [Google Scholar]
  20. Zhang, S.D.; Peng, Q.; Zhang, D.S.; Wu, J.Q.; Yang, L.; Zhu, S.S. QTL analysis for milling quality of rice by using RIL population. Guizhou Agric. Sci. 2016, 44, 8–10. [Google Scholar]
  21. Ren, D.Y.; Rao, Y.C.; Huang, L.C.; Leng, Y.J.; Hu, J.; Lu, M.; Zhang, G.H.; Zhu, L.; Gao, Z.Y.; Dong, G.J.; et al. Fine mapping identifies a new QTL for brown rice rate in rice (Oryza sativa L.). Rice 2016, 9, 4. [Google Scholar] [CrossRef]
  22. Wang, X.Q.; Pang, Y.L.; Wang, C.C.; Chen, K.; Zhu, Y.J.; Shen, C.C.; Ali, J.; Xu, J.L.; Li, Z.K. New candidate genes affecting rice grain appearance and milling quality detected by genome-wide and gene-based association analysis. Front. Plant Sci. 2017, 7, 1998. [Google Scholar] [CrossRef]
  23. Fang, Y.J.; Zhu, Y.J.; Wu, Z.C.; Chen, K.; Shen, C.C.; Shi, Y.Y.; Xu, J.L. Genome-wide association study of grain appearance and milling quality in a worldwide collection of indica rice germplasm. Acta Agron. Sin. 2018, 44, 32–42. [Google Scholar] [CrossRef]
  24. Chen, X.N.; Yuan, Z.K.; Hu, Z.Z.; Zhao, Q.Z.; Sun, H.Z. QTL-Seq mapping of head rice rate QTLs in japonica rice. Chin. J. Rice Sci. 2021, 35, 449–454. [Google Scholar] [CrossRef]
  25. Yao, X.Y.; Chen, C.L.; Xiong, Y.H.; Huang, Y.P.; Peng, Z.Q.; Liu, J.; Yin, J.H. Identification of QTL for milling and appearance quality traits in rice (Oryza sativa L.). Chin. J. Rice Sci. 2023, 37, 507–517. [Google Scholar] [CrossRef]
  26. Duplan, V.; Rivas, S. E3 ubiquitin-ligases and their target proteins during the regulation of plant innate immunity. Front. Plant Sci. 2014, 5, 00042. [Google Scholar] [CrossRef]
  27. Hao, J.Q.; Wang, D.K.; Wu, Y.B.; Huang, K.; Duan, P.G.; Li, N.; Xu, R.; Zeng, D.L.; Dong, G.J.; Zhang, B.L.; et al. The GW2-WG1-OsbZIP47 pathway controls grain size and weight in rice. Mol. Plant 2021, 14, 1266–1280. [Google Scholar] [CrossRef]
  28. Huang, J.P.; Chen, Z.M.; Lin, J.J.; Guan, B.B.; Chen, J.W.; Zhang, Z.S.; Chen, F.Y.; Jiang, L.R.; Zheng, J.S.; Wang, T.S.; et al. gw2.1, a new allele of GW2, improves grain weight and grain yield in rice. Plant Sci 2022, 325, 111495. [Google Scholar] [CrossRef]
  29. Tian, P.; Liu, J.F.; Mou, C.L.; Shi, C.L.; Zhang, H.; Zhao, Z.C.; Liu, Q.B.; Wang, J.; Wang, J.L.; Zhang, X.; et al. GW5-Like, a homolog of GW5, negatively regulates grain width, weight and salt resistance in rice. J. Integr. Plant Biol. 2019, 61, 1171–1185. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, X.F.; Yang, C.Y.; Lin, H.X.; Wang, J.W.; Xue, H.W. Rice SPL12 coevolved with GW5 to determine grain shape. Sci. Bull. 2021, 66, 2355–2357. [Google Scholar] [CrossRef] [PubMed]
  31. Zhu, S.R.; Xue, H.W. The rice PLATZ protein SHORT GRAIN6 determines grain size by regulating spikelet hull cell division. J. Integr. Plant Biol. 2020, 62, 847–864. [Google Scholar] [CrossRef]
  32. Shi, C.L.; Dong, N.Q.; Guo, T.; Ye, W.W.; Shan, J.X.; Lin, H.X. A quantitative trait locus GW6 controls rice grain size and yield through the gibberellin pathway. Plant J. 2020, 103, 1174–1188. [Google Scholar] [CrossRef]
  33. Li, Y.B.; Fan, C.C.; Xing, Y.Z.; Yun, P.; Luo, L.J.; Yan, B.; Peng, B.; Xie, W.B.; Wang, G.W.; Li, X.H.; et al. Chalk5 encodes a vacuolar H+-translocating pyrophosphatase influencing grain chalkiness in rice. Nat. Genet. 2014, 46, 398–404. [Google Scholar] [CrossRef]
  34. Duan, P.G.; Ni, S.; Wang, J.M.; Zhang, B.L.; Xu, R.; Wang, Y.X.; Chen, H.Q.; Zhu, X.D.; Li, Y.H. Regulation of OsGRF4 by OsmiR396 controls grain size and yield in rice. Nat. Plants 2015, 2, 15203. [Google Scholar] [CrossRef]
  35. Baute, J.; Polyn, S.; De, B.J.; Blomme, J.; Lijsebettens, M.V.; Inzé, D. F-box protein FBX92 affects leaf size in Arabidopsis thaliana. Plant Cell Physiol. 2017, 58, 962–975. [Google Scholar] [CrossRef]
  36. Zhou, S.; Sun, X.; Yin, S.; Kong, X.Z.; Zhou, S.; Xu, Y.; Luo, Y.; Wang, W. The role of the F-box gene TaFBA1 from wheat (Triticum aestivum L.) in drought tolerance. Plant Physiol. Biochem. 2014, 84, 213–223. [Google Scholar] [CrossRef]
  37. Zhou, S.M.; Kong, X.Z.; Kang, H.H.; Sun, X.D.; Wang, W. The involvement of wheat F-box protein gene TaFBA1 in the oxidative stress tolerance of plants. PLoS ONE 2015, 10, e0122117. [Google Scholar] [CrossRef]
  38. Kong, X.; Zhou, S.; Yin, S.; Zhao, Z.X.; Han, Y.Y.; Wang, W. Stress-inducible expression of an F-box gene TaFBA1 from wheat enhanced the drought tolerance in transgenic tobacco plants without impacting growth and development. Front. Plant Sci. 2016, 7, 01295. [Google Scholar] [CrossRef]
  39. Li, Y.Z.; Jia, F.J.; Yu, Y.L.; Luo, L.; Huang, J.G.; Yang, G.D.; Wu, C.G.; Zheng, C.C. The SCF E3 ligase AtPP2-B11 plays a negative role in response to drought stress in Arabidopsis. Plant Mol. Biol. Rep. 2014, 32, 943–956. [Google Scholar] [CrossRef]
  40. Yao, R. Functional Analysis and Breeding Potential of Rice F-Box Gene OsFBX76. Master’s Thesis, Yangzhou University, Yangzhou, China, 2017. Available online: https://kns.cnki.net/kcms2/article/abstract?v=o5eMcsLgsI51WP93yLyX_AhAu4UNNUT6_C46yR_U2srcCMnwHCYjwOv6nEJNTBgHqs1qgnKpKPRWJVWZSp6BsfP3LgG_-kEX7tw7N5VpBjss8u0kBAn9dFYukbWKG47RmRPu-ZNbSWg=&uniplatform=NZKPT&language=CHS (accessed on 5 March 2021).
  41. Dang, X.; Yang, Y.; Zhang, Y.; Chen, X.G.; Fan, Z.L.; Liu, Q.M.; Ji, J.; Li, D.L.; Li, Y.H.; Fang, B.J.; et al. OsSYL2AA, an allele identified by gene-based association, increases style length in rice (Oryza sativa L.). Plant J. 2020, 104, 1491–1503. [Google Scholar] [CrossRef] [PubMed]
  42. Li, H.; Durbin, R. Fast and accurate long-read alignment with Burrows-Wheeler transform. Bioinformatics 2010, 26, 589–595. [Google Scholar] [CrossRef] [PubMed]
  43. Browning, B.L.; Browning, S.R. A unified approach to genotype imputation and haplotype-phase inference for large data sets of trios and unrelated individuals. Am. J. Hum. Genet. 2009, 84, 210–223. [Google Scholar] [CrossRef] [PubMed]
  44. Crowell, S.; Korniliev, P.; Falcão, A.; Ismail, A.; Gregorio, G.; Mezey, J.; McCouch, S. Genome-wide association and high-resolution phenotyping link Oryza sativa panicle traits to numberous trait-specific QTL clusters. Nat. Commun. 2016, 7, 10527. [Google Scholar] [CrossRef]
  45. Bradbury, P.J.; Zhang, Z.; Kroon, D.E.; Casstevens, T.M.; Ramdoss, Y.; Buckler, E.S. TASSEL: Software for association mapping of complex traits in diverse samples. Bioinformatics 2007, 23, 2633–2635. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, W.; Guo, Z.; Huang, C.; Duan, L.F.; Chen, G.X.; Jiang, N.; Fang, W.; Feng, H.; Xie, W.B.; Lian, X.M.; et al. Combining high-throughput phenotyping and genome-wide association studies to reveal natural genetic variation in rice. Nat. Commun. 2014, 5, 5087. [Google Scholar] [CrossRef] [PubMed]
  47. Shin, J.H.; Blay, S.; McNeney, B.; Graham, J. LDheatmap: An R function for graphical display of pairwise linkage disequilibria between single nucleotide polymorphisms. J. Stat. Softw. 2006, 16, 1–10. [Google Scholar] [CrossRef]
  48. Turner, S.D. qqman: An R package for visualizing GWAS results using QQ and Manhattan plots. BioRxiv 2014. [Google Scholar] [CrossRef]
  49. Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Stat. Soc. B 1995, 57, 289–300. [Google Scholar] [CrossRef]
  50. Barrett, J.C.; Fry, B.; Maller, J.; Daly, M.J. Haploview: Analysis and visualization of LD and haplotype maps. Bioinformatics 2005, 21, 263–265. [Google Scholar] [CrossRef] [PubMed]
  51. Hu, C.M.; Jiang, J.H.; Li, Y.L.; Song, S.J.; Zou, Y.; Jing, C.Y.; Zhang, Y.; Wang, D.Z.; He, Q.; Dang, X.J. QTL mapping and identification of candidate genes using a genome-wide association study for heat tolerance at anthesis in rice (Oryza sativa L.). Front. Genet. 2022, 13, 983525. [Google Scholar] [CrossRef]
  52. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  53. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef]
  54. Senior, A.W.; Evans, R.; Jumper, J.; Kirkpatrick, J.; Sifre, L.; Green, T.; Qin, C.L.; ŽÍdek, A.; Nelson, A.W.R.; Bridgland, A.; et al. Improved protein structure prediction using potentials from deep learning. Nature 2020, 577, 706–710. [Google Scholar] [CrossRef]
  55. Wallner, B. Improved multimer prediction using massive sampling with AlphaFold in CASP15. Proteins 2023, 91, 1734–1746. [Google Scholar] [CrossRef]
Plants 13 01324 g001

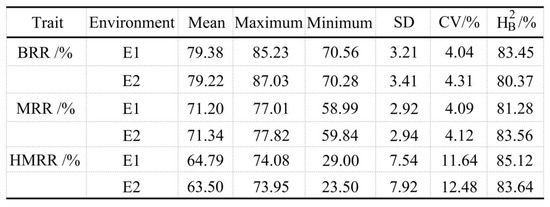

Figure 1. Phenotypic statistics of milling-quality-related traits in E1 and E2. H2B, broad-sense heritability; BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery.
Figure 1. Phenotypic statistics of milling-quality-related traits in E1 and E2. H2B, broad-sense heritability; BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery.
Plants 13 01324 g001
Plants 13 01324 g002

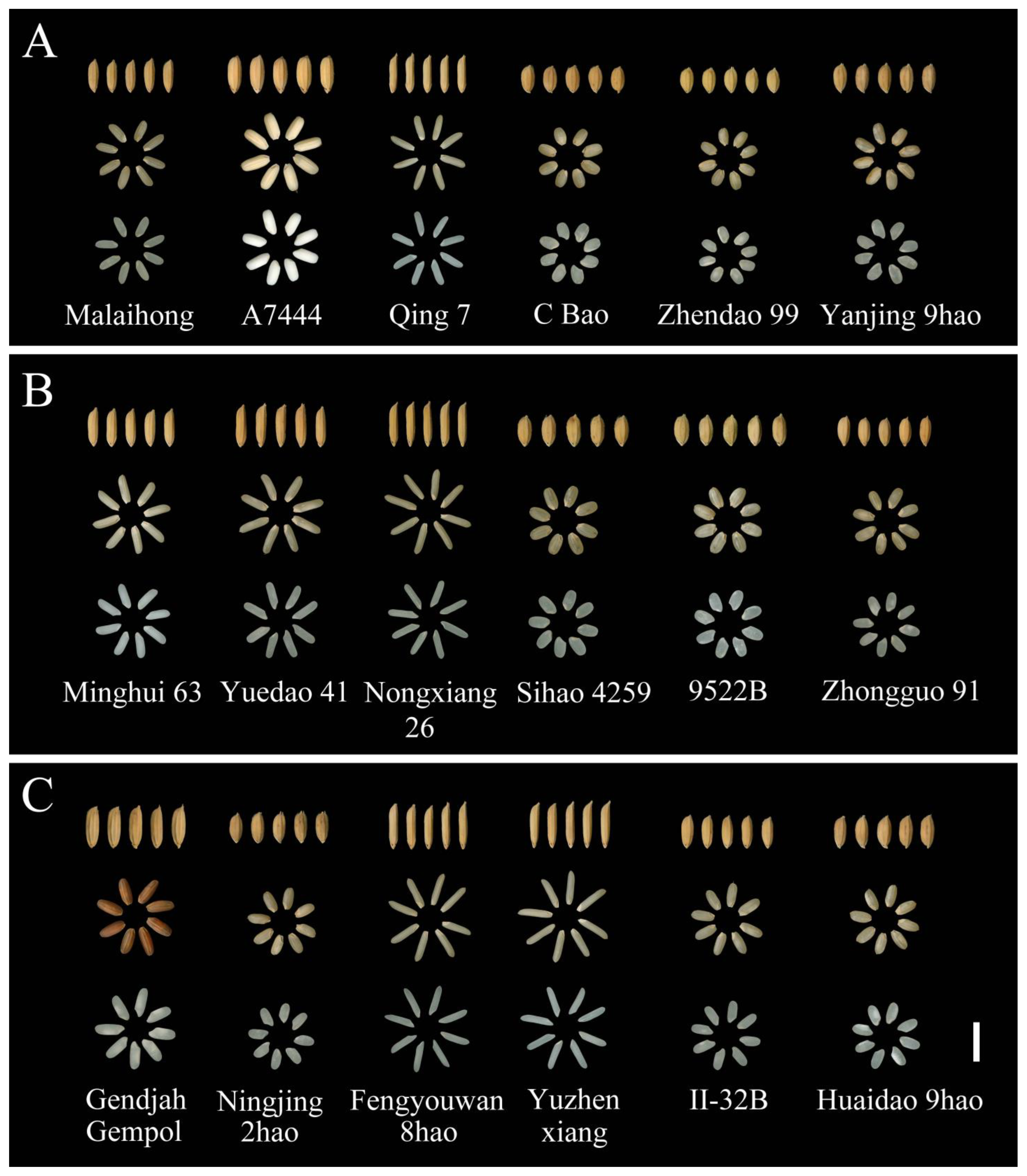

Figure 2. The performance of rough rice, brown rice, and milled rice in different materials. (A) The performance of rough rice, brown rice, and milled rice in part-rice materials with different BRRs. (B) The performance of rough rice, brown rice, and milled rice in part-rice materials with different MRRs. (C) The performance of rough rice, brown rice, and milled rice in part-rice materials with different HMRRs. BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery.
Figure 2. The performance of rough rice, brown rice, and milled rice in different materials. (A) The performance of rough rice, brown rice, and milled rice in part-rice materials with different BRRs. (B) The performance of rough rice, brown rice, and milled rice in part-rice materials with different MRRs. (C) The performance of rough rice, brown rice, and milled rice in part-rice materials with different HMRRs. BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery.
Plants 13 01324 g002
Plants 13 01324 g003

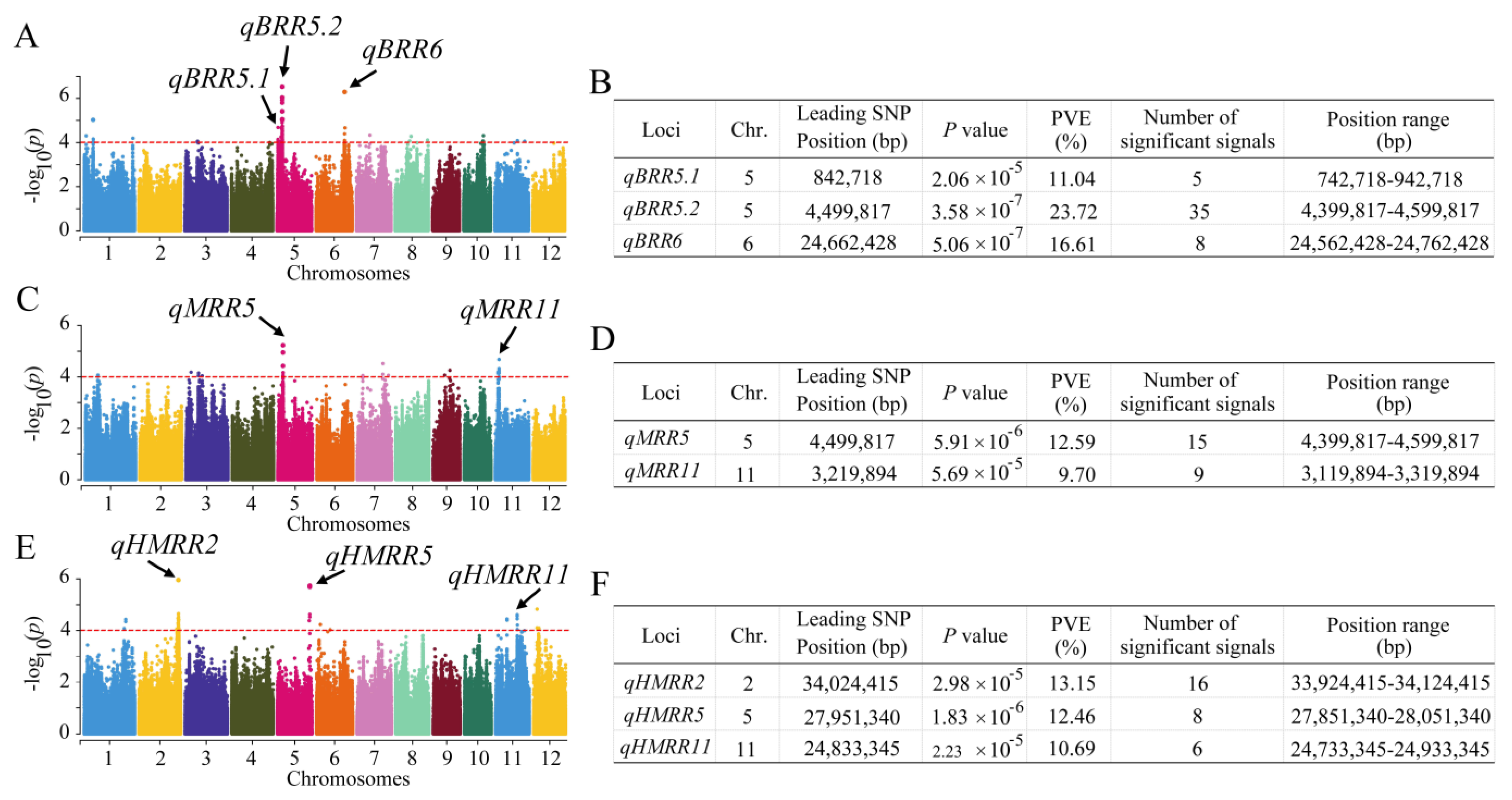

Figure 3. Identification of QTLs in rice via GWAS. (A) Manhattan plots for BRR in the whole population of rice accessions. (B) Information related to the identified QTLs for BRR. (C) Manhattan plots for MRR in the whole population of rice accessions. (D) Information related to the identified QTLs for MRR. (E) Manhattan plots for HMRR in the whole population of rice accessions. (F) Information related to the identified QTLs for HMRR. The Y axis shows negative log10-transformed p-values, and dots above the red line show the significant SNPs in the QTL region. The black arrows indicate the identified QTL. BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery; PVE, phenotypic variation explained.
Figure 3. Identification of QTLs in rice via GWAS. (A) Manhattan plots for BRR in the whole population of rice accessions. (B) Information related to the identified QTLs for BRR. (C) Manhattan plots for MRR in the whole population of rice accessions. (D) Information related to the identified QTLs for MRR. (E) Manhattan plots for HMRR in the whole population of rice accessions. (F) Information related to the identified QTLs for HMRR. The Y axis shows negative log10-transformed p-values, and dots above the red line show the significant SNPs in the QTL region. The black arrows indicate the identified QTL. BRR, brown rice recovery; MRR, milled rice recovery; HMRR, head milled rice recovery; PVE, phenotypic variation explained.
Plants 13 01324 g003
Plants 13 01324 g004

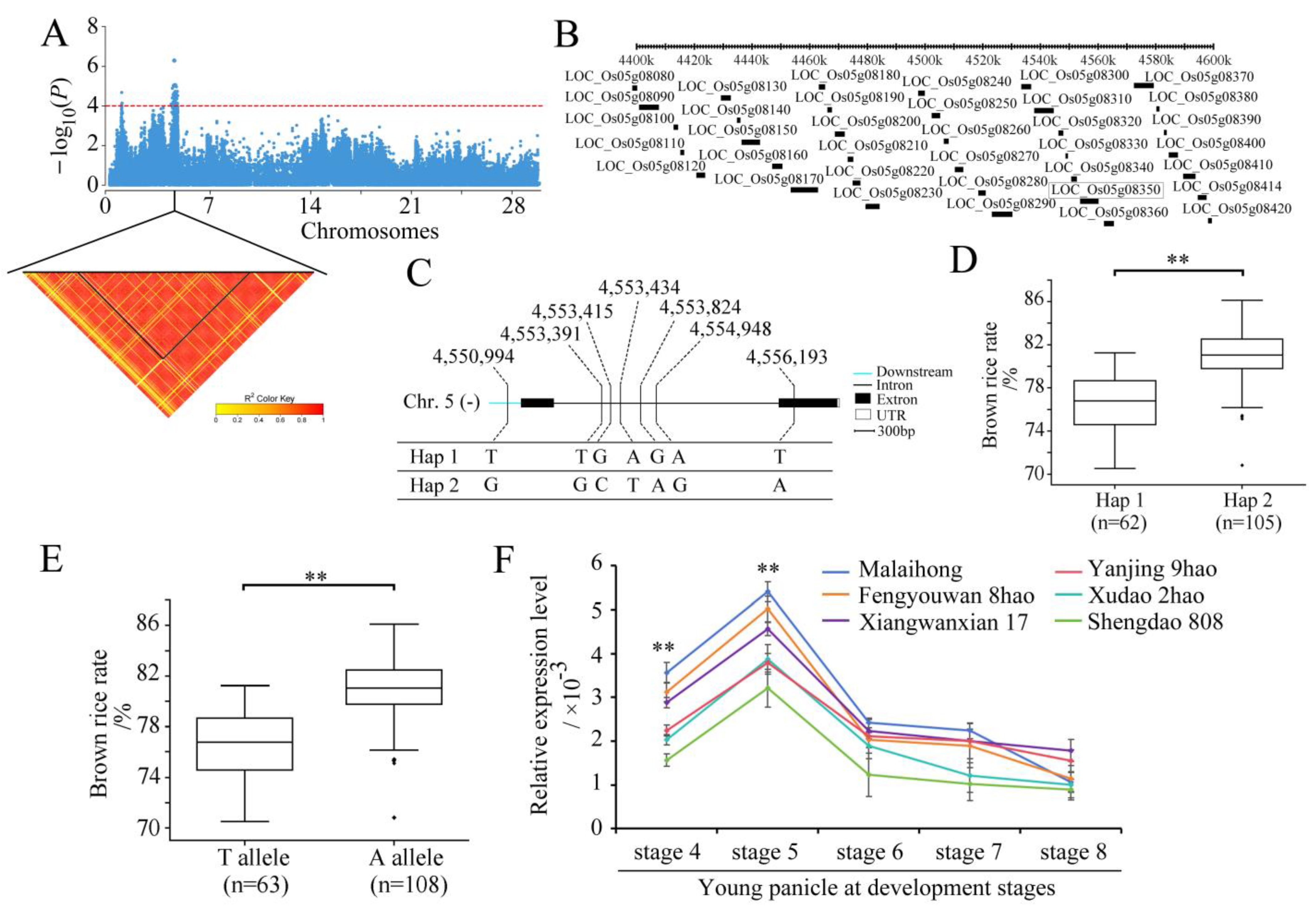

Figure 4. Identification of the candidate genes for the QTL qBRR5.2 of BRR. (A) Manhattan plots for BRR on the chromosome 5 and the identification of the haplotype block of qBRR5.2. The Y axis shows negative log10-transformed p-values, and the dots above the red line show the significant SNPs in the QTL region. Pairwise LD was determined via the calculation of r2 (the square of the correlation coefficient between SNP states). (B) Identification of candidate genes in the region of qBRR5.2. (C) Haplotypes of LOC_Os05g08350 associated with BRR in rice. (D,E) Boxplots of BRR in accessions containing the different haplotypes (D) and elite alleles (E). (F) Expression analysis of the candidate gene LOC_Os05g08350 in different materials at different stages in young panicles. The relative expression values were normalized to the rice UBQ gene. Error bars indicate the standard deviation, and asterisks indicate significant differences determined using Student’s t-test (** p < 0.01).
Figure 4. Identification of the candidate genes for the QTL qBRR5.2 of BRR. (A) Manhattan plots for BRR on the chromosome 5 and the identification of the haplotype block of qBRR5.2. The Y axis shows negative log10-transformed p-values, and the dots above the red line show the significant SNPs in the QTL region. Pairwise LD was determined via the calculation of r2 (the square of the correlation coefficient between SNP states). (B) Identification of candidate genes in the region of qBRR5.2. (C) Haplotypes of LOC_Os05g08350 associated with BRR in rice. (D,E) Boxplots of BRR in accessions containing the different haplotypes (D) and elite alleles (E). (F) Expression analysis of the candidate gene LOC_Os05g08350 in different materials at different stages in young panicles. The relative expression values were normalized to the rice UBQ gene. Error bars indicate the standard deviation, and asterisks indicate significant differences determined using Student’s t-test (** p < 0.01).
Plants 13 01324 g004
Plants 13 01324 g005

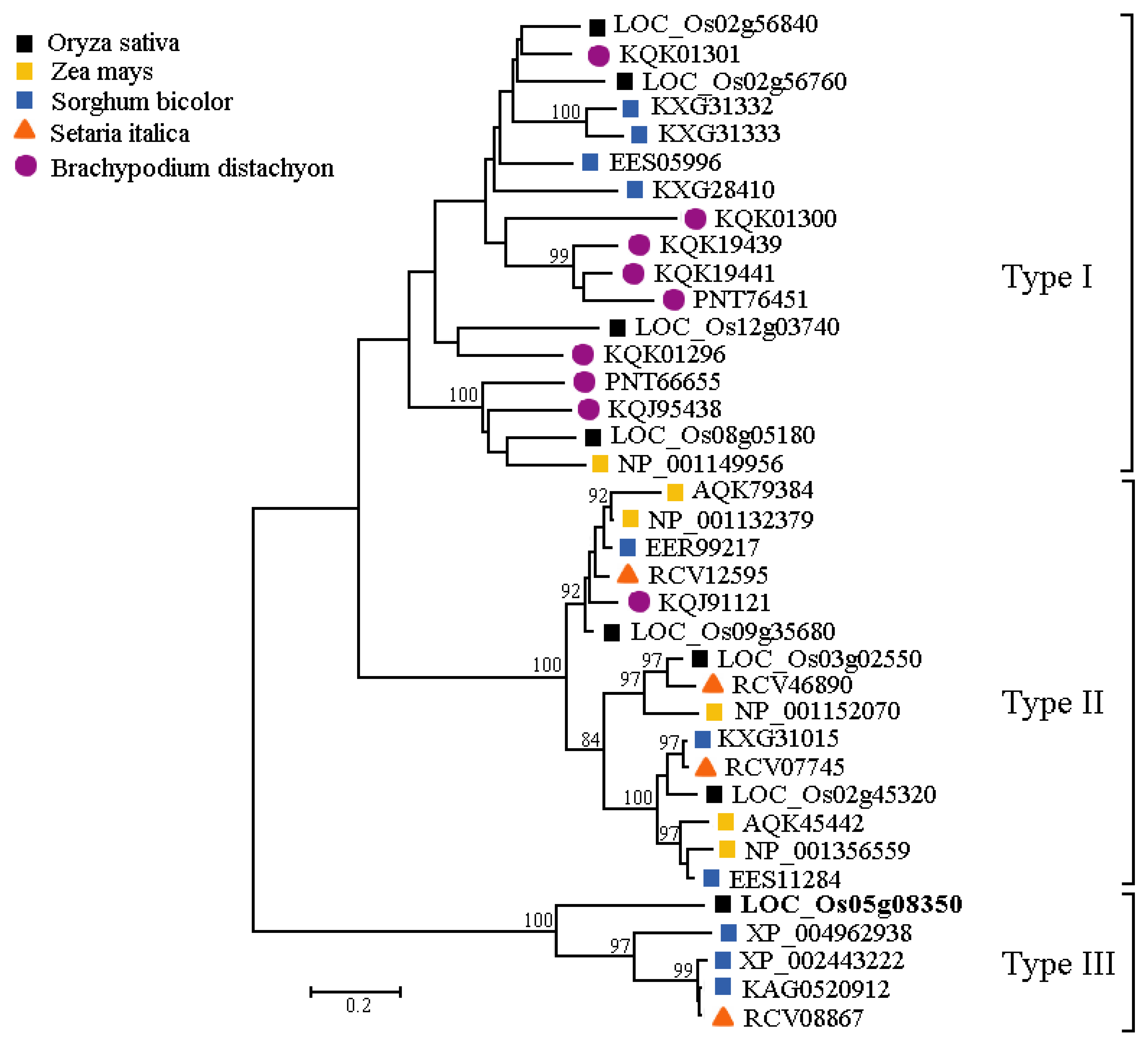

Figure 5. Phylogenetic analysis of the LOC_Os05g08350 protein. Phylogenetic tree of the complete amino acid sequence from different gramineous plants (Oryza sativa, Zea mays, Sorghum bicolor, Setaria italica, and Brachypodium distachyon).
Figure 5. Phylogenetic analysis of the LOC_Os05g08350 protein. Phylogenetic tree of the complete amino acid sequence from different gramineous plants (Oryza sativa, Zea mays, Sorghum bicolor, Setaria italica, and Brachypodium distachyon).
Plants 13 01324 g005
Plants 13 01324 g006

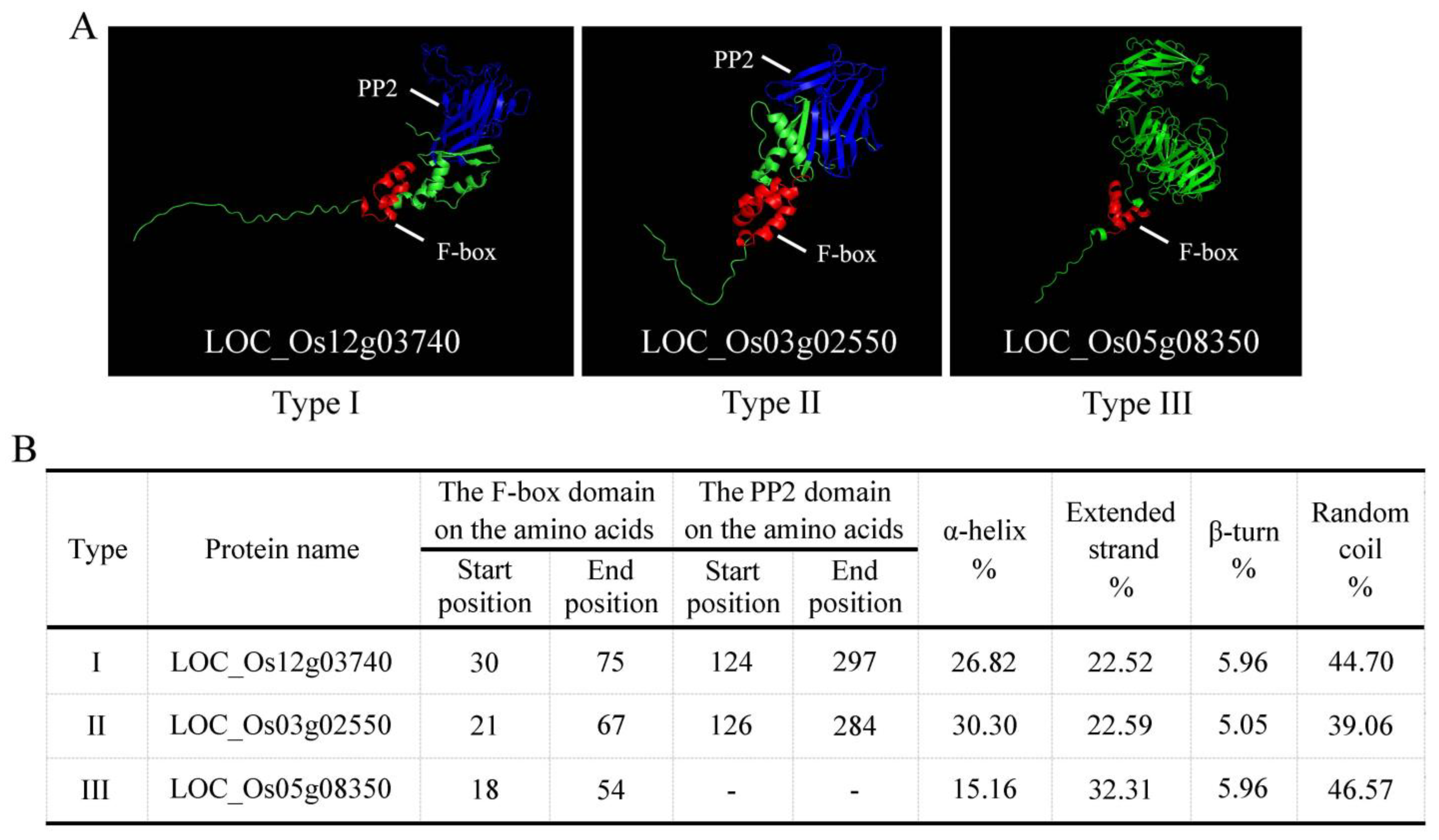

Figure 6. The three types of protein tertiary structure and basic information statistics. (A) The three types of protein tertiary structure. The shape of the tertiary structure of proteins and the location of the key domains can be observed. (B) Basic statistics related to the protein’s secondary structure. PP2, phloem protein 2.
Figure 6. The three types of protein tertiary structure and basic information statistics. (A) The three types of protein tertiary structure. The shape of the tertiary structure of proteins and the location of the key domains can be observed. (B) Basic statistics related to the protein’s secondary structure. PP2, phloem protein 2.
Plants 13 01324 g006
Plants 13 01324 g007

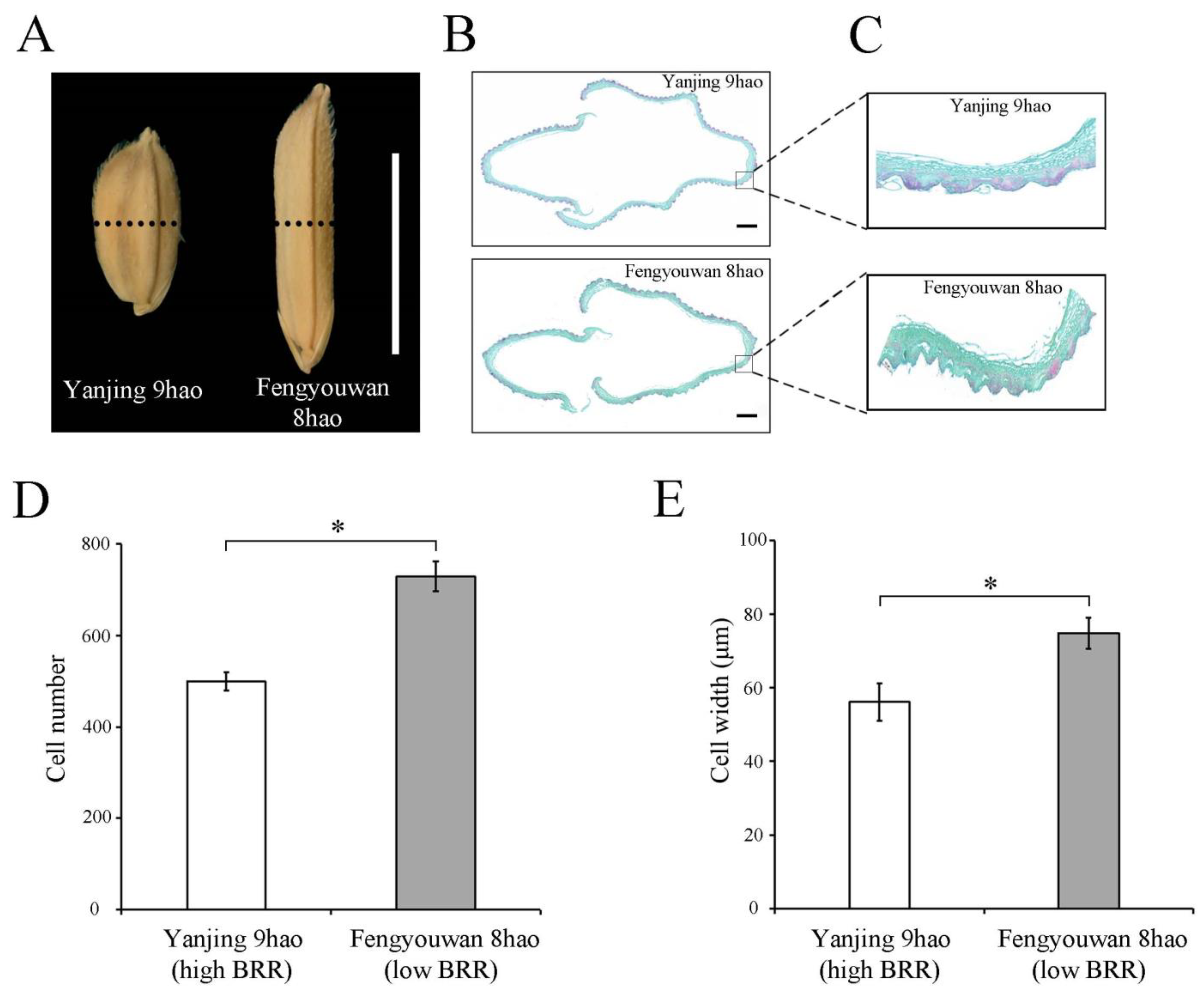

Figure 7. Histological analyses of spikelet hulls. (A) Spikelets at maturity. Scale bar, 1 cm. (B) Cross-section of spikelet hulls. Scale bar, 200 μm. A Leica microtome was used to cut the spikelet hulls. (C) Magnified view of the spikelet hull cross-sections boxed in B. (D) Total cell numbers from the inside to the outside of parenchymal cell layers of spikelet hulls. (E) Cell widths from the inside to the outside of parenchymal cell layers of the spikelet hulls. The values shown are the mean ± SD. Student’s t-test was used for comparisons (n = 10 spikelets, * p < 0.05).
Figure 7. Histological analyses of spikelet hulls. (A) Spikelets at maturity. Scale bar, 1 cm. (B) Cross-section of spikelet hulls. Scale bar, 200 μm. A Leica microtome was used to cut the spikelet hulls. (C) Magnified view of the spikelet hull cross-sections boxed in B. (D) Total cell numbers from the inside to the outside of parenchymal cell layers of spikelet hulls. (E) Cell widths from the inside to the outside of parenchymal cell layers of the spikelet hulls. The values shown are the mean ± SD. Student’s t-test was used for comparisons (n = 10 spikelets, * p < 0.05).
Plants 13 01324 g007
