Resilience Optimization of Post-Quantum Cryptography Key Encapsulation Algorithms

,
,
,
,
,
and
1
Department of Computer Science, University of Engineering & Technology (UET), Lahore 54890, Pakistan
2
Higher Polytechnic School, Universidad Europea del Atlántico, Isabel Torres 21, 39011 Santander, Spain
3
Department of Project Management, Universidad Internacional Iberoamericana, Campeche 24560, Mexico
4
Project Management, Universidad Internacional Iberoamericana, Arecibo, PR 00613, USA
Sensors2023, 23(12), 5379;https://doi.org/10.3390/s23125379
This article belongs to the Special Issue Security, Cryptography and Privacy-Preserving Computation Architectures for Wireless Sensors Networks and Communications
Version Notes
Order Reprints

Abstract

Recent developments in quantum computing have shed light on the shortcomings of the conventional public cryptosystem. Even while Shor’s algorithm cannot yet be implemented on quantum computers, it indicates that asymmetric key encryption will not be practicable or secure in the near future. The National Institute of Standards and Technology (NIST) has started looking for a post-quantum encryption algorithm that is resistant to the development of future quantum computers as a response to this security concern. The current focus is on standardizing asymmetric cryptography that should be impenetrable by a quantum computer. This has become increasingly important in recent years. Currently, the process of standardizing asymmetric cryptography is coming very close to being finished. This study evaluated the performance of two post-quantum cryptography (PQC) algorithms, both of which were selected as NIST fourth-round finalists. The research assessed the key generation, encapsulation, and decapsulation operations, providing insights into their efficiency and suitability for real-world applications. Further research and standardization efforts are required to enable secure and efficient post-quantum encryption. When selecting appropriate post-quantum encryption algorithms for specific applications, factors such as security levels, performance requirements, key sizes, and platform compatibility should be taken into account. This paper provides helpful insight for post-quantum cryptography researchers and practitioners, assisting in the decision-making process for selecting appropriate algorithms to protect confidential data in the age of quantum computing.

1. Introduction

Cryptography is a method of protecting data in the presence of unauthorized users by establishing a secure communication channel between two parties. This technique was developed by the Institute of Electrical and Electronics Engineers (IEEE). Encryption and decryption are the two processes that are carried out in cryptography by both the sender and the receiver. The process of converting unencoded data into an encoded format referred to as a “Cipher” using a safe data source is what we mean when we talk about encryption (key). Decryption is the process of converting encrypted data back into its original plain form using either the same secure data source (key) or a different secure data source [1]. This process is the inverse of encryption.
There are two distinct categories of cryptographic methods: symmetric and asymmetric. The process of the encryption and decryption of data in symmetric cryptography only requires the use of a single key. A private key is utilized to carry out this method. This refers to the requirement that a private key must be guarded in secrecy and given out to a sender and recipient who are authorized to do so. The process of symmetric cryptography is illustrated in Figure 1a. For encryption and decryption, asymmetric cryptography, also known as public key cryptography, employs a key pair. One of the keys in the key pair is a publicly accessible key. The sender will use a public key for encryption, while the recipient will use the private key, which is only known to them [2]. Figure 1b depicts the operation of an asymmetrical cryptography system.

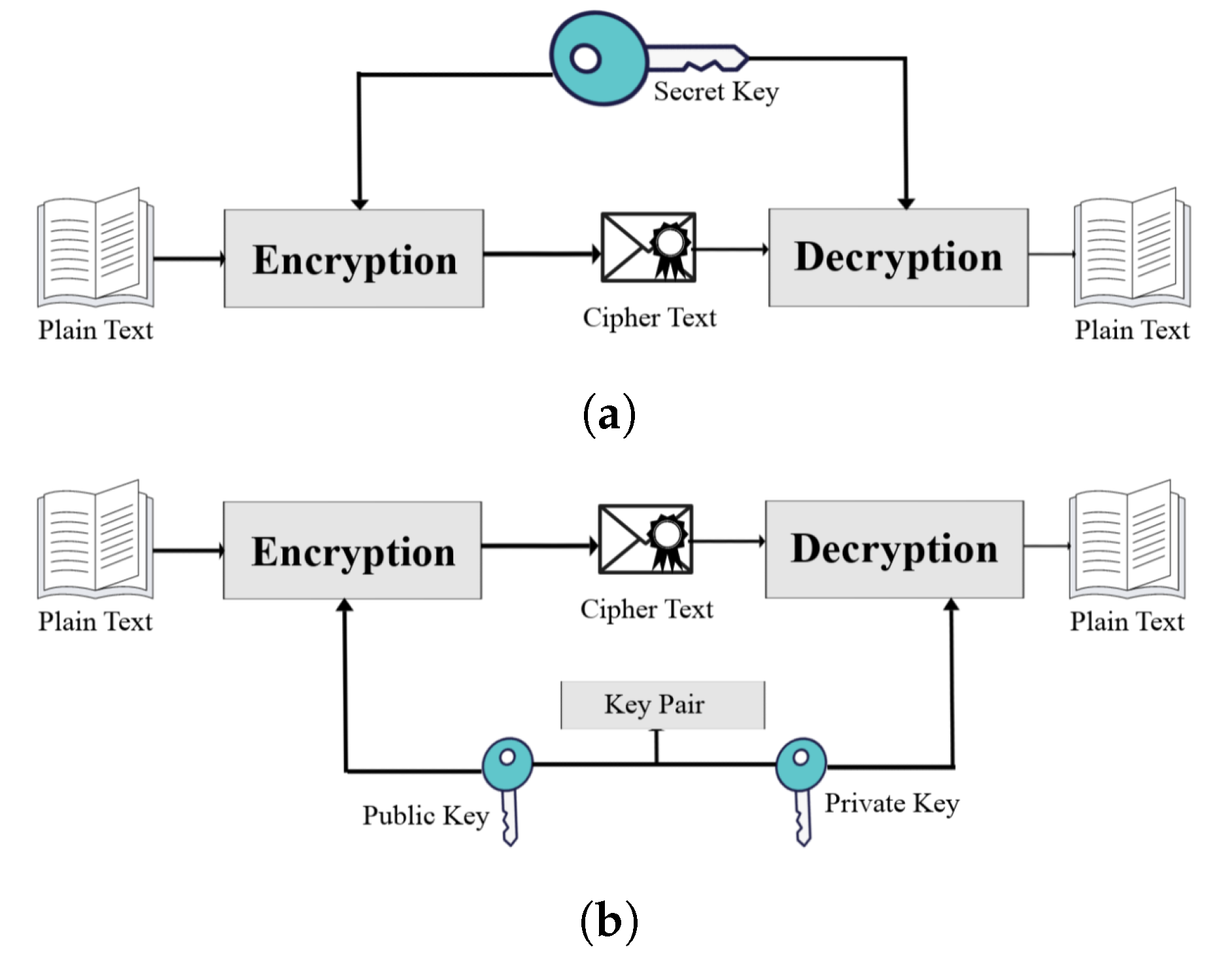

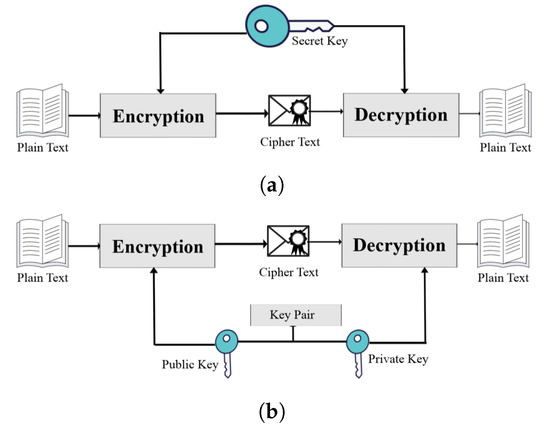

Figure 1. Types of cryptography, (a) symmetric cryptography, and (b) asymmetric cryptography.
The use of quantum computers, with their unfathomable computing power, is rapidly approaching reality [3]; it is no longer a dream. A computer based on the peculiar properties of quantum mechanics can perform calculations exponentially faster than a computer made of classical bits. In October 2019, Google announced the development of a quantum computer that samples the output of a pseudo-random quantum circuit ten-times faster than the fastest supercomputers available today [4]. Recent developments in quantum computing pose a threat to public key primitives [5] due to quantum computers’ ability to solve complex cryptographic problems in polynomial time. post-quantum cryptography (PQC) refers to asymmetric cryptographic algorithms that can withstand attacks from a quantum computer.
The National Institute of Standards and Technology (NIST) is currently developing a new generation of quantum-resistant key encapsulation and authentication schemes [6] to combat this threat to essential Internet security protocols such as transport layer security (TLS). TLS [7] is the most-popularly employed secure communication protocol for online page transfers, encrypted email server access, and mobile applications. The majority of hypertext transfer protocol (HTTPS) service connections utilize TLS [8]. TLS uses Rivest–Shamir–Adleman (RSA) or elliptic curve (EC) signatures and Diffie–Hellman (DH) with EC for key exchange. It is crucial to plan the transition to quantum-resistant schemes, such as Secure Hashing Algorithm-2 (SHA-2) and elliptic curve digital signature algorithm (EC), which were not adopted until a decade after their standardization [9,10], given that the adoption of cryptographic techniques could take years. It is important to note that increasing the hash size of SHA-2 does not give essential protection against quantum assaults. Larger hash sizes can provide temporary mitigation against some attacks, but they are not an adequate remedy [11]. Quantum computers can still potentially break cryptographic schemes based on hash functions by using algorithms specifically designed for quantum computing. It is necessary to adopt algorithms and protocols that are designed explicitly to survive the assaults of quantum computers. These methods typically rely on mathematical problems that both classical and quantum computers both find hard to solve. We may already be investigating the impact of PQC on real-world performance, whereas NIST takes performance, security, and other factors into account when selecting algorithms for standardization. Therefore, the performance of the TLS handshake is of great importance [12,13].
Digital signatures and key exchange algorithms are required for two parties to generate a shared key and verify its authenticity. Signature algorithms (SIG) are utilized for sender authentication, while key encapsulation algorithms (KEM) are utilized for key exchange. In contrast to previous research, which typically only examined NIST third-round finalist PQC algorithms or a limited selection of methods, we tested the performance advantages of various combinations of NIST fourth-round finalist PQC algorithms for the two widely used operating system (OS)s Windows and Linux. This allowed us to not only conclude how PQC will impact day-to-day usage, but also compare the performance of the PQC algorithm to that of the NIST third- and fourth-round finalists [14,15].
The rest of the study is organized as follows. Related work is presented in Section 2 along with the motivation behind PQC, highlighting the limitations of classical cryptographic algorithms and the need for PQC. Section 3 provides a brief overview of the methodology used in this study to evaluate PQC algorithms, including classic McEliece and BIKE. Section 4 discusses the experimental results, which include performance metrics such as encapsulation and encapsulation times. Finally, in Section 5, our conclusions and recommendations for future research are given.

3. Proposed Methodology

KEM is a cryptographic technique used to transmit a secret key over an unsecured communication channel. The secret key is encapsulated in a layer of encryption before being transmitted to the intended recipient, as displayed in Figure 2 and Figure 3. After receiving the encapsulated key, the recipient can use a separate key, known as a “key-decapsulation key”, to decrypt and recover the original secret key. This allows for secure key exchange without the need for a shared secret key to be established beforehand. Key generation and encapsulation/decapsulation are the two main steps of a KEM process.

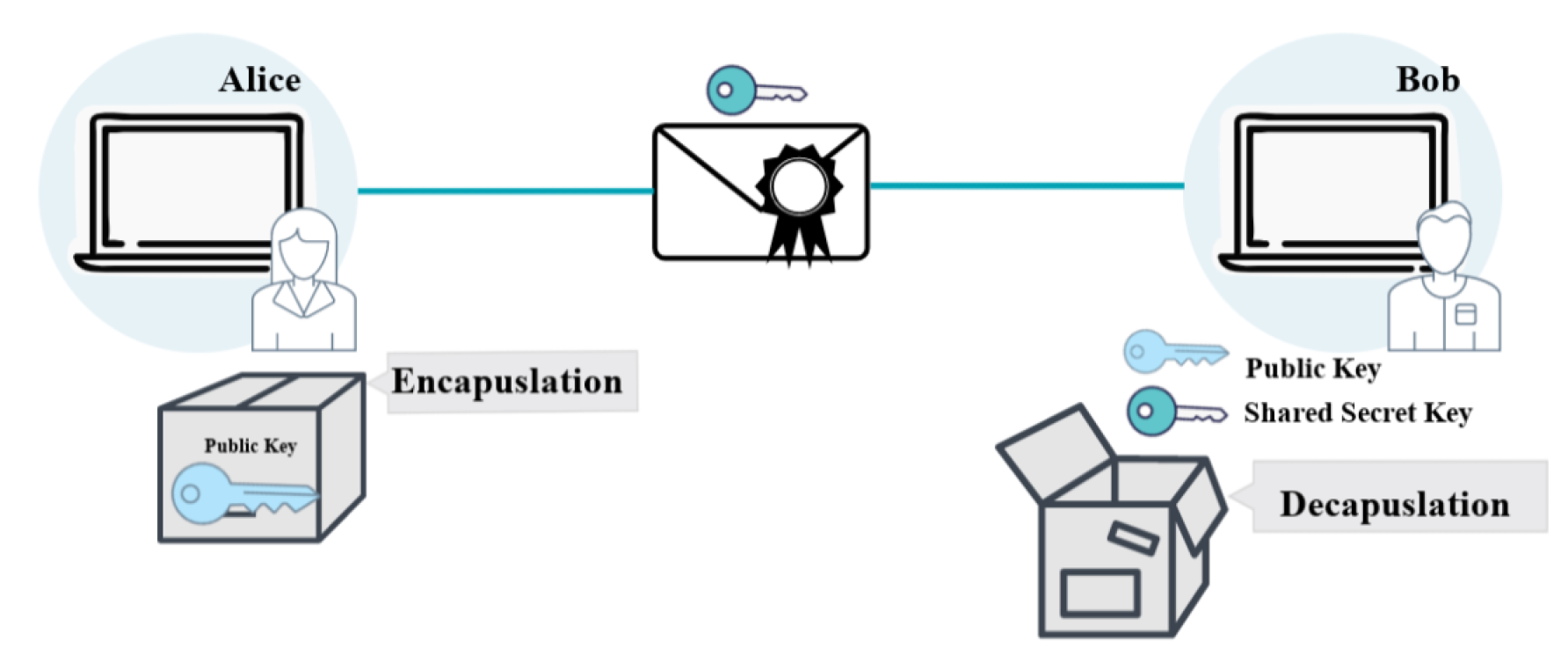

Figure 2. Key encapsulation mechanism overview.

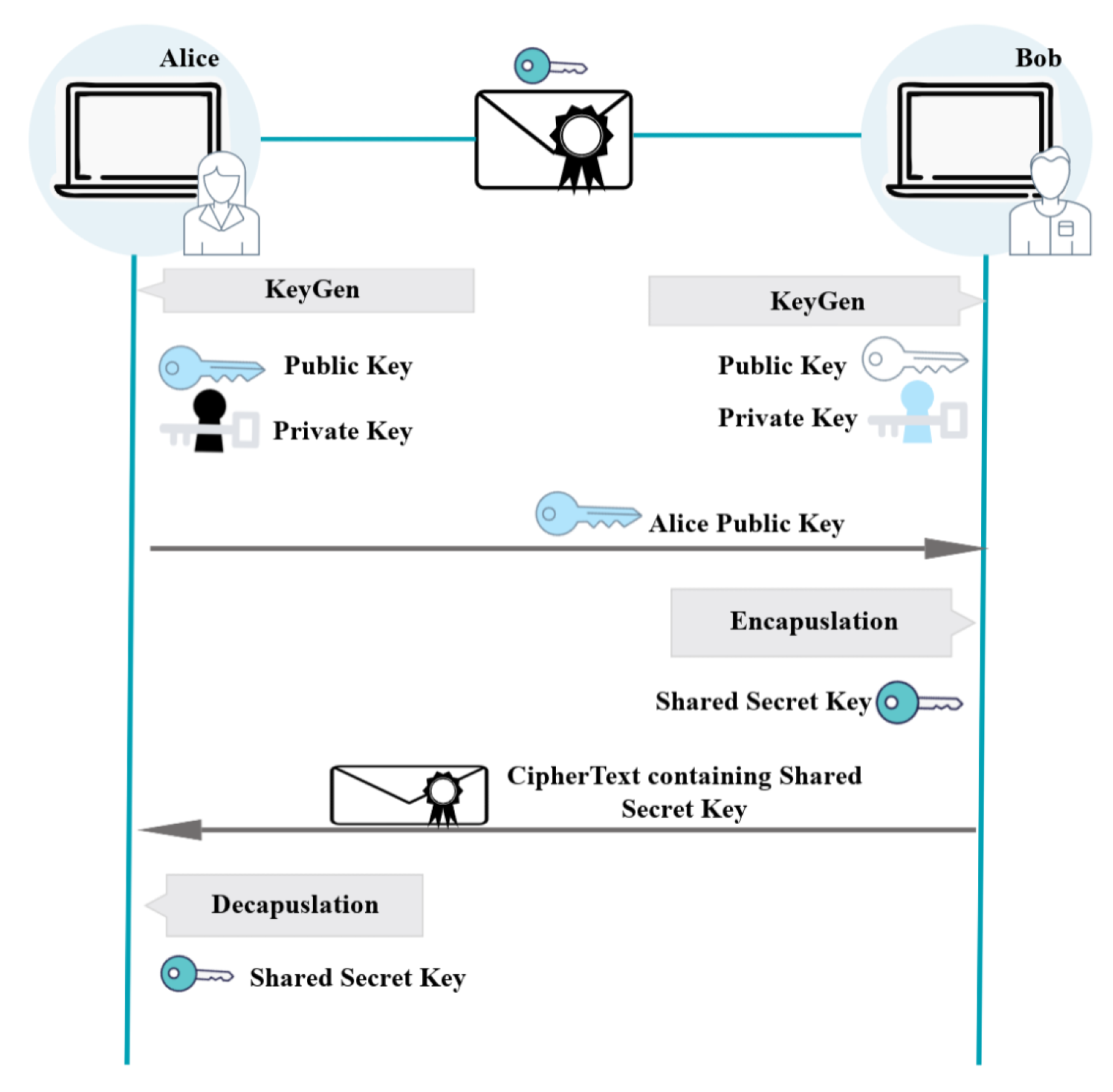

Figure 3. Key encapsulation mechanism detail.
In the key-generation step, one of the entities generates a shared secret key. The secret key is then encapsulated, or surrounded, by a collection of public parameters. The encapsulated key is then transmitted to the other entity, typically referred to as the “user” or “receiver”. The recipient decapsulates the key using its own private key, thereby revealing the shared secret key. Encapsulation and decapsulation typically involve the use of mathematical algorithms. KEMs are widely used in a variety of cryptographic systems to exchange keys securely. Typical applications of KEMs include:
  • Secure communication:KEMs can be utilized to generate a shared secret key between two parties, which can then be used to encrypt and decrypt communications.
  • Key exchange: KEMs can be utilized to securely exchange a secret key between two entities, thereby enabling the establishment of a secure communication channel.
  • Key agreement: Multiple entities can establish a secure communication channel by using KEMs to establish a shared secret key.
  • Key derivation: KEMs can be used to generate a secret key from a master key, which can then be used for cryptographic operations such as encryption and signing.
  • Authentication: A client and a server can use KEMs as part of an authentication scheme to establish a shared secret key, which can then be used to authenticate the client [36]. This shared secret key can then be used to authenticate the client.
  • Hybrid encryption: KEMs can be utilized to encrypt a symmetric key. A large amount of data can be encrypted using the symmetric encryption key, while the KEM key can be used to encrypt the symmetric encryption key.
  • Post-quantum cryptography: KEMs are also utilized in post-quantum cryptography, which aims to protect against possible quantum computing attacks.
Several metrics can be used to evaluate the performance of a KEM, such as:
  • Key size: the size of the KEM-generated shared secret key. In general, a smaller key size is considered to be more secure and efficient.
  • Computational cost: Key generation, encapsulation, and decapsulation demand a certain amount of computational resources. In general, a lower computational cost is regarded as more efficient.
  • Communication cost: The quantity of information that must be transmitted during encapsulation and decapsulation. In general, a lower communication cost is considered more efficient.
  • Security: The level of security provided by the KEM is typically measured in terms of the number of required operations to compromise the system. In general, a higher level of security is considered to be more secure.
  • Error rate: the frequency of errors that occur during key generation or encryption/decryption. A lower error rate is generally regarded as more trustworthy.
  • Time expense: time required for the key generation, encapsulation, and decapsulation operations. In general, a lower time cost is considered more efficient.
In this paper, we present our proposed methodology for measuring and comparing the performance of different KEMs using the liboqs [37]. Our methodology aims to provide a comprehensive evaluation of KEM algorithms, considering metrics such as security level, computational cost, and time cost. The motivation behind developing our proposed methodology resulted from a necessity for a standardized and reliable approach to evaluate KEM algorithms. The evaluation based on a comprehensive set of evaluation metrics considered real-world performance scenarios on the two most-widely used operating systems. Our methodology aimed to provide an adequate foundation for evaluating the effectiveness of KEMs and making appropriate decisions.
Our proposed methodology offers several unique features. These include:
  • Comprehensive evaluation metrics: We considered a range of evaluation metrics, including key size, computational cost, security level, error rate, and time expense. This comprehensive set of metrics allows for a holistic assessment of KEM algorithms and enables researchers to understand their performance characteristics from multiple perspectives.
  • Improved measurement accuracy: We incorporated optimizations in the measurement process to enhance accuracy and consistency. By leveraging the liboqs [37] library, we ensured a standardized implementation and reliable measurement results across different KEM algorithms.
The following methodology was used to measure the performance of a KEM using the liboqs [37]:
  • Initialization and configuration: The OQS library was initialized, and the parameters for the KEM algorithm were set. This included specifying the security level, which determined the key size and strength of security guarantees.
  • Setting up the loop: A loop was set up to perform multiple iterations of the KEM algorithm, in order to obtain the average time for the performance.
  • Key generation: Inside the loop, a random private key and corresponding public key were generated for the KEM algorithm being tested.
  • Timing key pair generation: The time taken to generate the key pair was measured using the CPU clock. The method was run using the previously generated keys, and the resulting shared secret was discarded.
  • Calculating average time for key pair generation: After the method was run for the desired number of iterations, the average time taken for the key pair generation was calculated.
  • Timing KEM encapsulation: The time taken to perform the KEM encapsulation was measured using the CPU clock. The method was run using the previously generated public key and a secret message.
  • Calculating average time for KEM encapsulation: After the method was run for the desired number of iterations, the average time taken for the KEM encapsulation was calculated.
  • Timing KEM decapsulation: The time taken to perform the KEM decapsulation was measured using the CPU clock. The method was run using the previously generated private key and the ciphered secret message.
  • Calculating average time for KEM decapsulation: After the method was run for the desired number of iterations, the average time taken for the KEM decapsulation was calculated.
  • Printing relevant information: The name of the key exchange method, the security level, the average time, and the CPU clock speed were printed to the console for analysis.
The above steps provide a high-level overview of our methodology. These steps ensured that our proposed methodology captured the essential performance characteristics of KEM algorithms accurately and efficiently. We intended to investigate additional evaluation metrics in future work. We also wanted to include more diverse and realistic performance scenarios in order to properly analyze the practical usability of KEM algorithms with TLS.
Overall, the methodology represented in Figure 4 was used for the measurement and comparison of the performance of different KEM algorithms using the liboqs. Algorithm 1 shows the pseudocode for the implementation of the proposed approach.

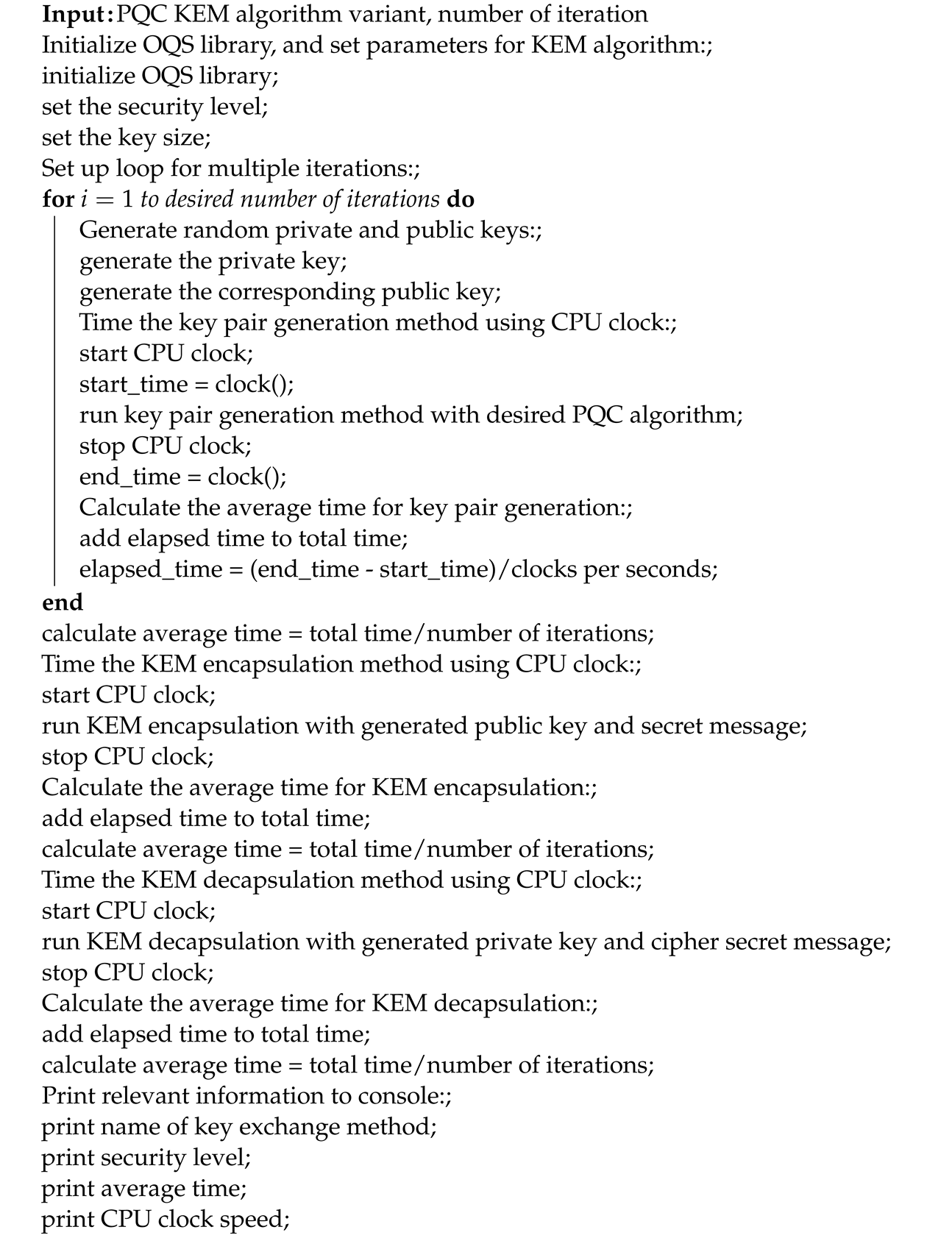

Algorithm 1: Evaluation of PQC algorithms for Windows and Linux.
Sensors 23 05379 i001
Sensors 23 05379 g004

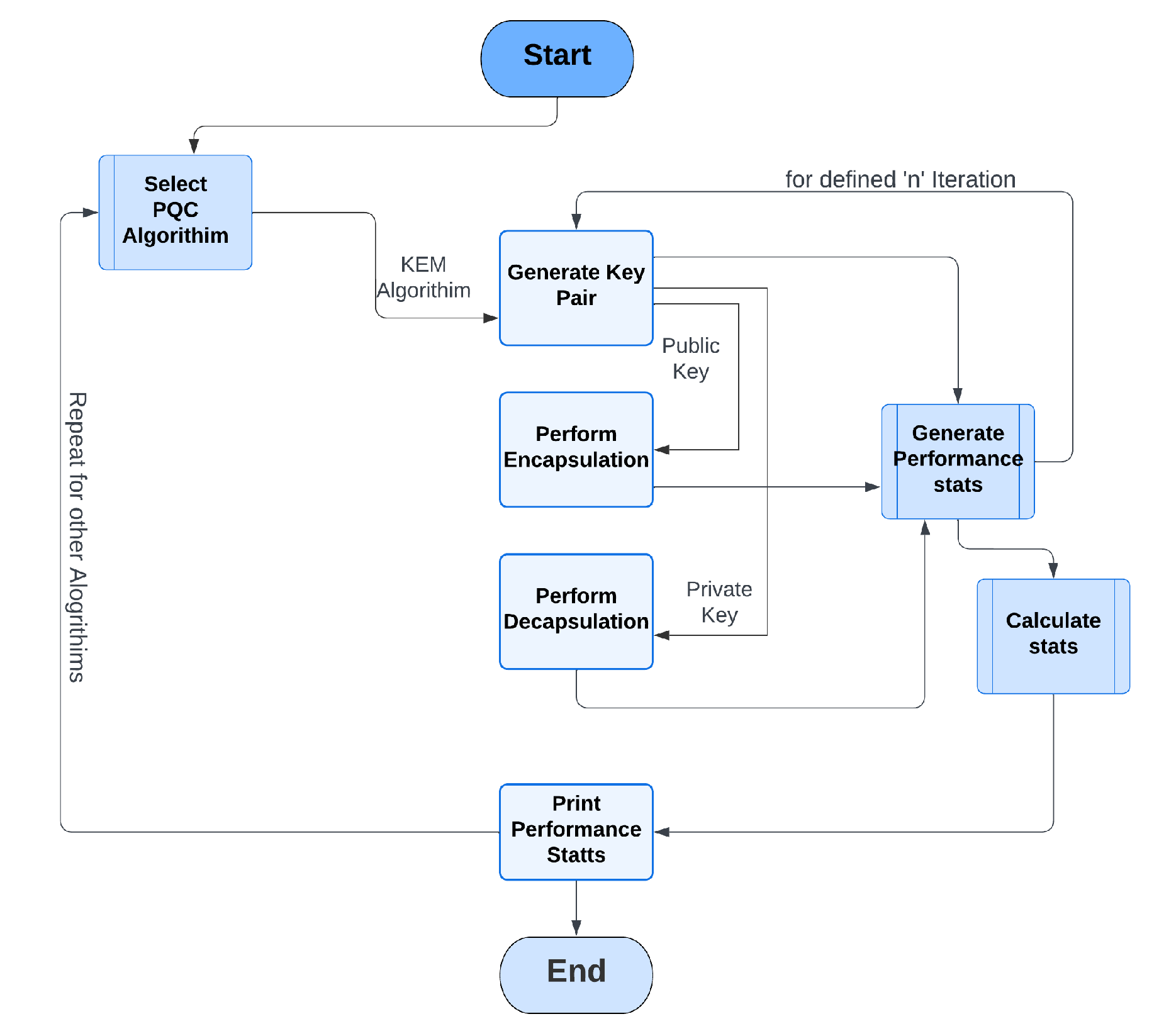

Figure 4. Workflow of the methodology for performance evaluation.
Figure 4. Workflow of the methodology for performance evaluation.
Sensors 23 05379 g004

4. Results

4.1. Classic McEliece

Classic McEliece is a KEM based on the binary Goppa code. Due to the utilization of Goppa codes, the algorithm has impeccable precision. Every cipher text created with the encapsulation/encryption function can be successfully decrypted with the decapsulation/decryption function in a completely correct KEM or PKE.
In situations where a public key is frequently reused and does not need to be retransmitted for each new communication, the classic McEliece’s performance profile may be advantageous. Classic McEliece has the smallest cipher text sizes of all NIST PQC candidates. The liboqs [37] is utilized for evaluating the Classic McEliece OQS parameter. The parameters and variants of the classic McEliece algorithm are displayed in Table 7.
Table 7. Parameters of the classic McEliece algorithm.

4.2. Bit-Flipping Key Encapsulation

BIKE is a code-based KEM designed to be secure against both classical and quantum computers. BIKE’s security is based on the difficulty of locating isogenies between elliptic curves, which is believed to be challenging for both classical and quantum computers. It is intended to be both efficient and secure, with low communication overhead and robust security proof. BIKE is also intended to be adaptable, with the capacity to support a wide variety of key sizes and security levels.
BIKE is one of several post-quantum key exchange algorithms proposed to secure communication against the threat posed by quantum computers. It is undergoing standardization by NIST as part of the selection process for a new suite of post-quantum cryptographic algorithms for widespread use. The BIKE algorithm’s parameters are utilized using the OQS liboqs [37]. The BIKE algorithm’s parameters and variants are displayed in Table 8.
Table 8. Parameters of BIKE algorithm.

4.3. Speed Test of KEMs

For benchmarking the PQC algorithm speed on two widely used operating systems, Linux and Windows, this study utilized OQS OpenSSL [38], which implements the new post-quantum (PQ) schemes with AVX2-optimized versions via the OQS liboqs library [37]. Table 9 displays the benchmark speed results for the Linux and Windows operating systems.
Table 9. Performance evaluation results of KEM PQC algorithm.
Figure 5 depicts the outcome of the KEM algorithms concerning the number of CPU cycles required for key generation. On Linux, BIKE algorithm variant BIKE-L1 claiming NIST Security Level 1 requires few CPU cycles, whereas the classic McEliece variant classic-McEliece-8192128 claiming NIST Security Level 5 requires many CPU cycles.

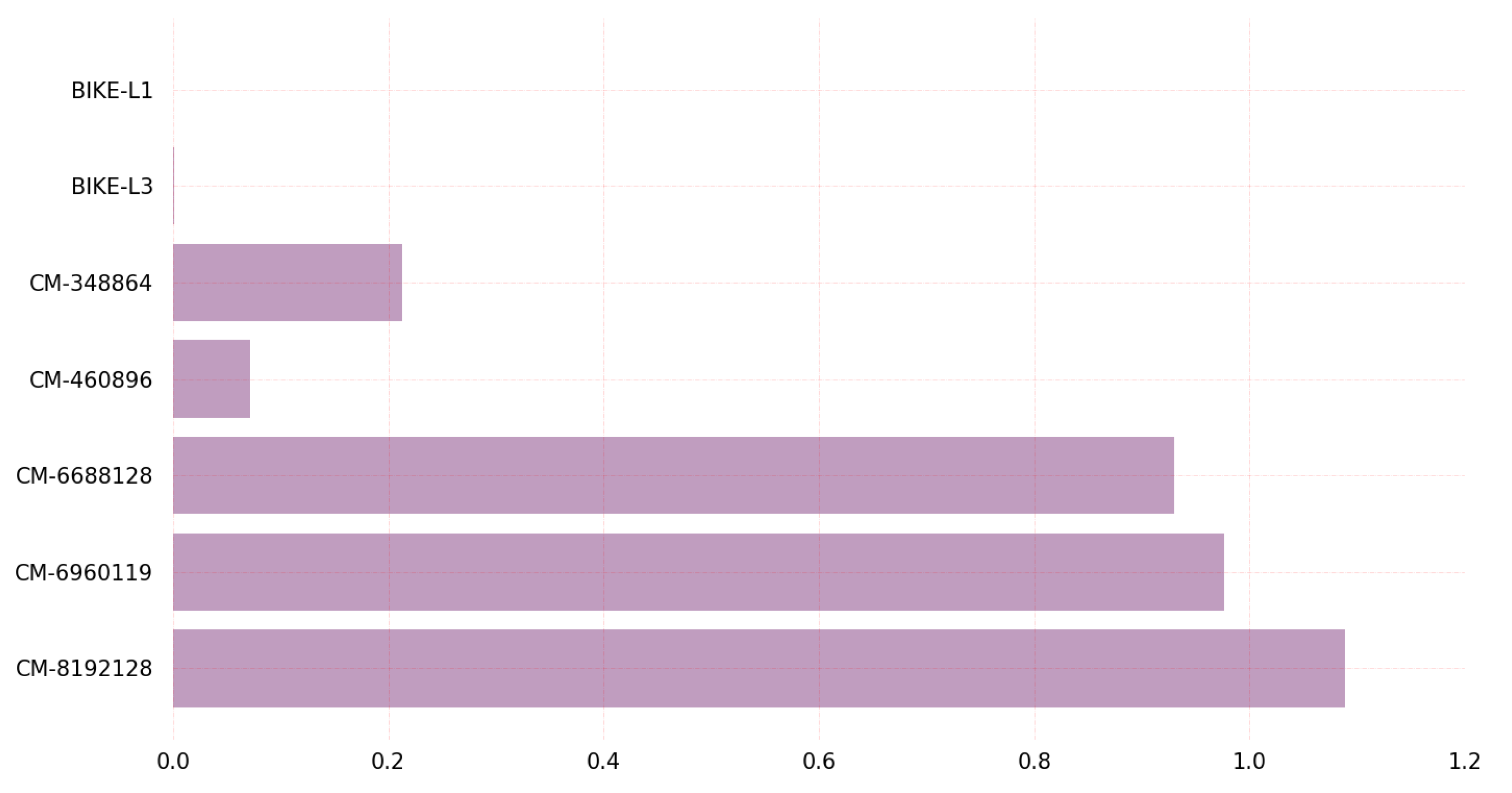

Figure 5. Key generation CPU clocks on Linux.
The graph in Figure 5 demonstrates that, among all BIKE and classic McEliece algorithm variants, the BIKE-L1 variant requires the least amount of CPU clocks for key generation on the Linux platform. This study raised the possibility that BIKE-L1 is the most-effective BIKE algorithm version for key generation, especially in scenarios where key generation performance is a critical factor. Figure 6 depicts a comparison of KEM algorithms in terms of the CPU cycles required for encapsulation.

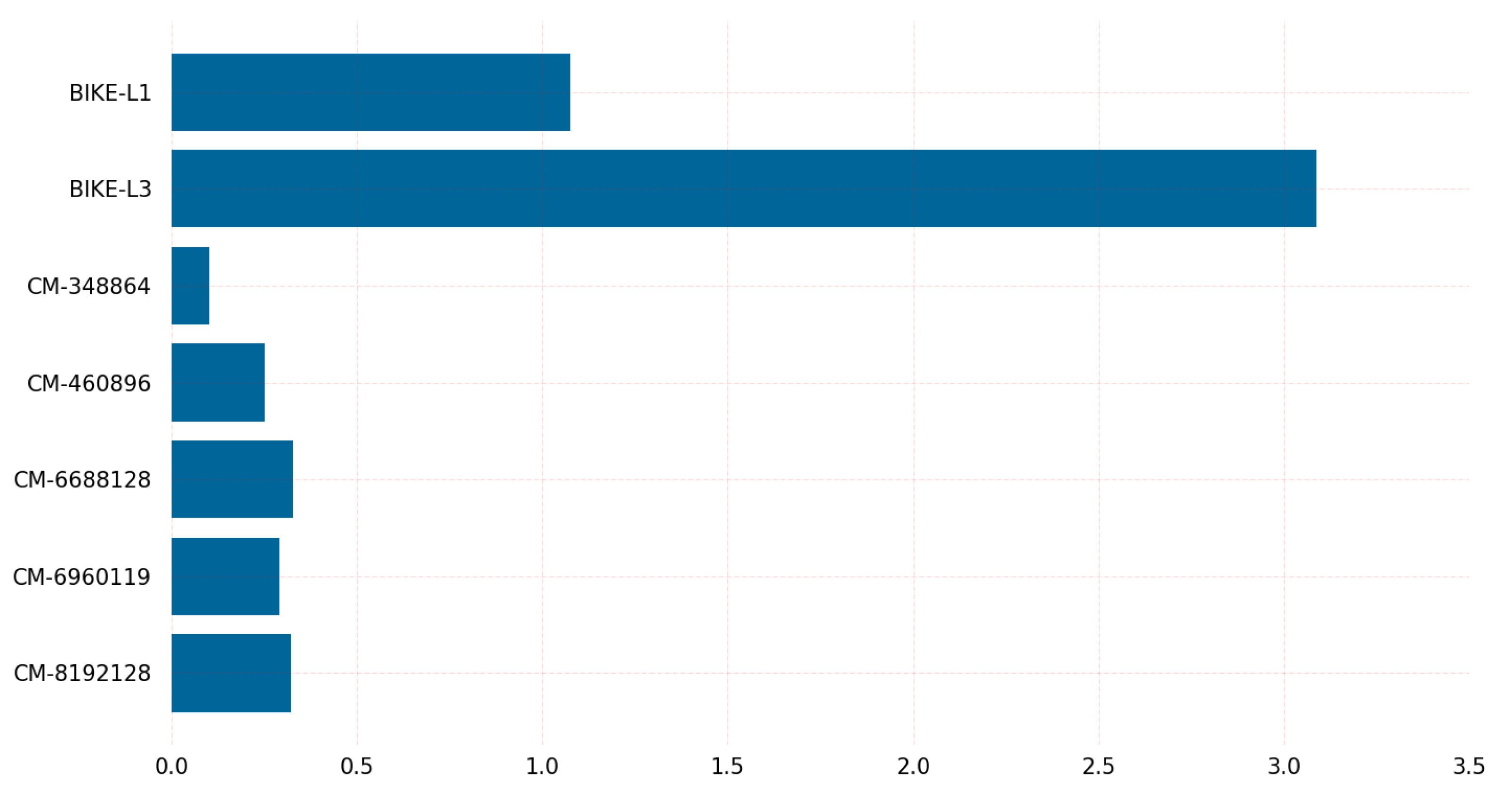

Figure 6. Key encapsulation CPU clocks on Linux.
The graph in Figure 6 provides insights into the CPU clock requirements for key encapsulation of post-quantum cryptographic algorithms on Linux. The graph shows that the BIKE-L3 variant requires the highest number of CPU clocks for key encapsulation, while the classic McEliece variant with 128-bit security requires the least. It is worth noting that the classic McEliece and BIKE variants represent two different classes of post-quantum cryptographic algorithms. The classic McEliece is based on the McEliece cryptosystem, which relies on the hardness of decoding random linear codes. On the other hand, BIKE is a code-based PQC algorithm that is designed to provide a high level of security with relatively low key sizes.
The graph also includes key encapsulation data for other variants of the classic McEliece and BIKE algorithms. These variants offer varying levels of security and performance. For example, the classic McEliece-6960119 variant requires significantly fewer CPU clocks for key encapsulation than the BIKE-L3 variant, but provides a higher level of security. Similarly, the BIKE-L1 variant requires fewer CPU clocks for key encapsulation than the BIKE-L3 variant, but provides a lower level of security. The classic McEliece variant classic-McEliece-348864 with claimed NIST Security Level 1 requires the fewest CPU cycles for encapsulation on the Linux operating system, whereas BIKE-L3 with claimed NIST Security Level 3 requires the most CPU cycles.
Figure 7 depicts the CPU cycles required by KEM algorithms during the decapsulation procedure. Classic-McEliece-348864 required the fewest CPU cycles during the Linux decapsulation procedure, while BIKE-L3 required the most.

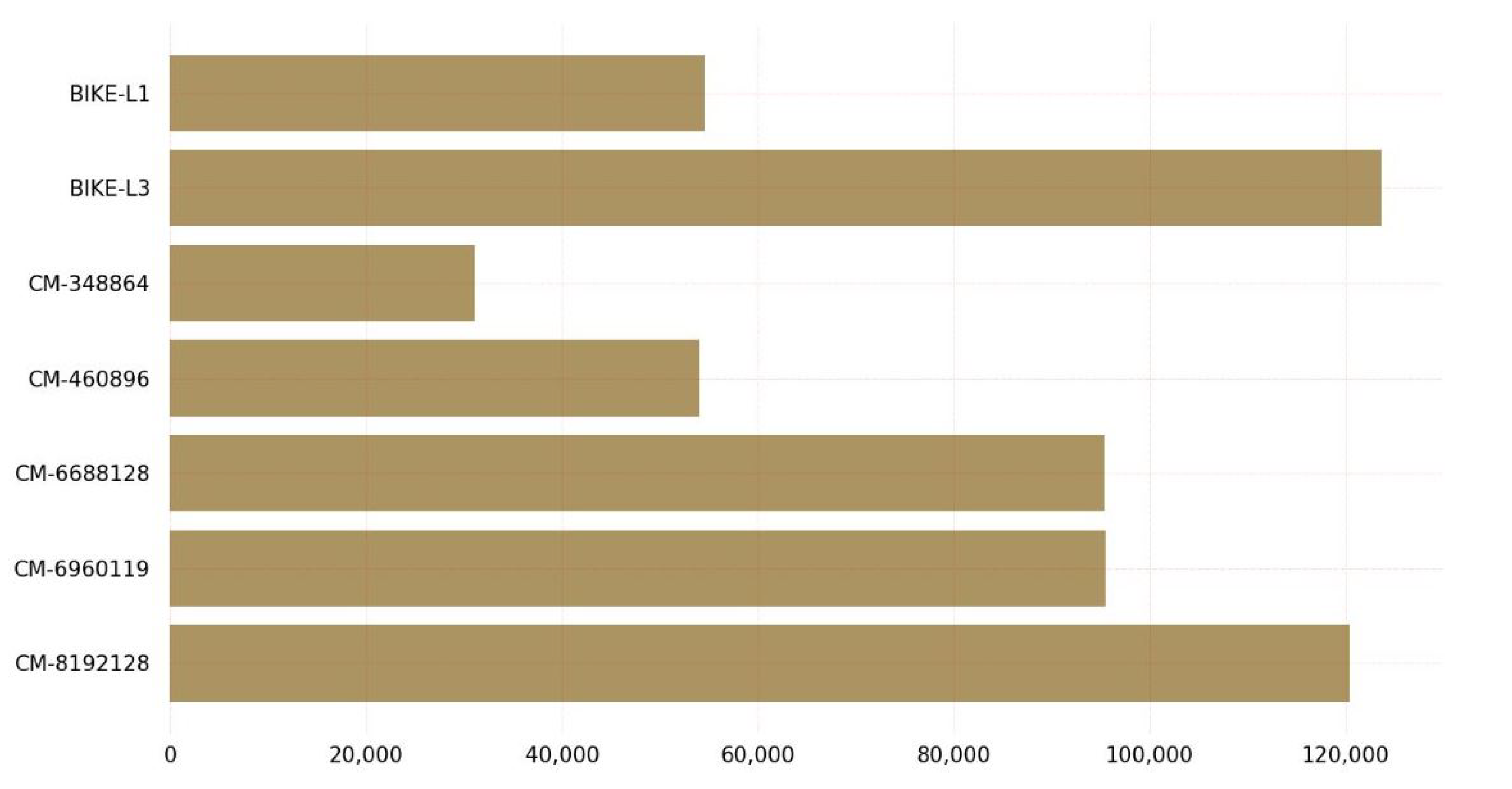

Figure 7. Key decapsulation CPU clocks on Linux.
The graph in Figure 7 displays various variants of the PQC algorithms, including the BIKE variants and classic McEliece, and their corresponding CPU clock requirements for key decapsulation on Linux. Each variant offers a different level of security and performance and suggests that the classic McEliece variant with 128-bit security may be the most-efficient option for key decapsulation in cases where low CPU clock requirements are desirable. It provides valuable information for those seeking to select a post-quantum cryptographic algorithm for key decapsulation on Linux. The classic McEliece variant with 128-bit security may be a favorable choice for those seeking a balance between security and efficiency.
Figure 8 depicts the time required to generate public and private keys on Linux using the KEM algorithms. Classic-McEliece-8192128 has the largest key size in terms of bytes, as the graph clearly demonstrates. The graph in Figure 8 provides a comparison of the time required for the key generation of various variants of the BIKE and classic McEliece post-quantum cryptographic algorithms on Linux. The graph shows that the BIKE-L1 variant from the BIKE algorithm family and the classic-McEliece-348864 variant of classic McEliece require the lowest time for key generation, while the other variants require a higher amount of time. This information can be helpful for those seeking to select a post-quantum cryptographic algorithm for key generation on Linux. The BIKE-L1 and classic McEliece-348864 variants may be a favorable choice for those seeking faster key generation times, while the other variants may be suitable for those requiring higher levels of security. It is important to consider both the security and performance aspects when selecting a post-quantum cryptographic algorithm, and this graph can provide valuable insights for making an informed decision.

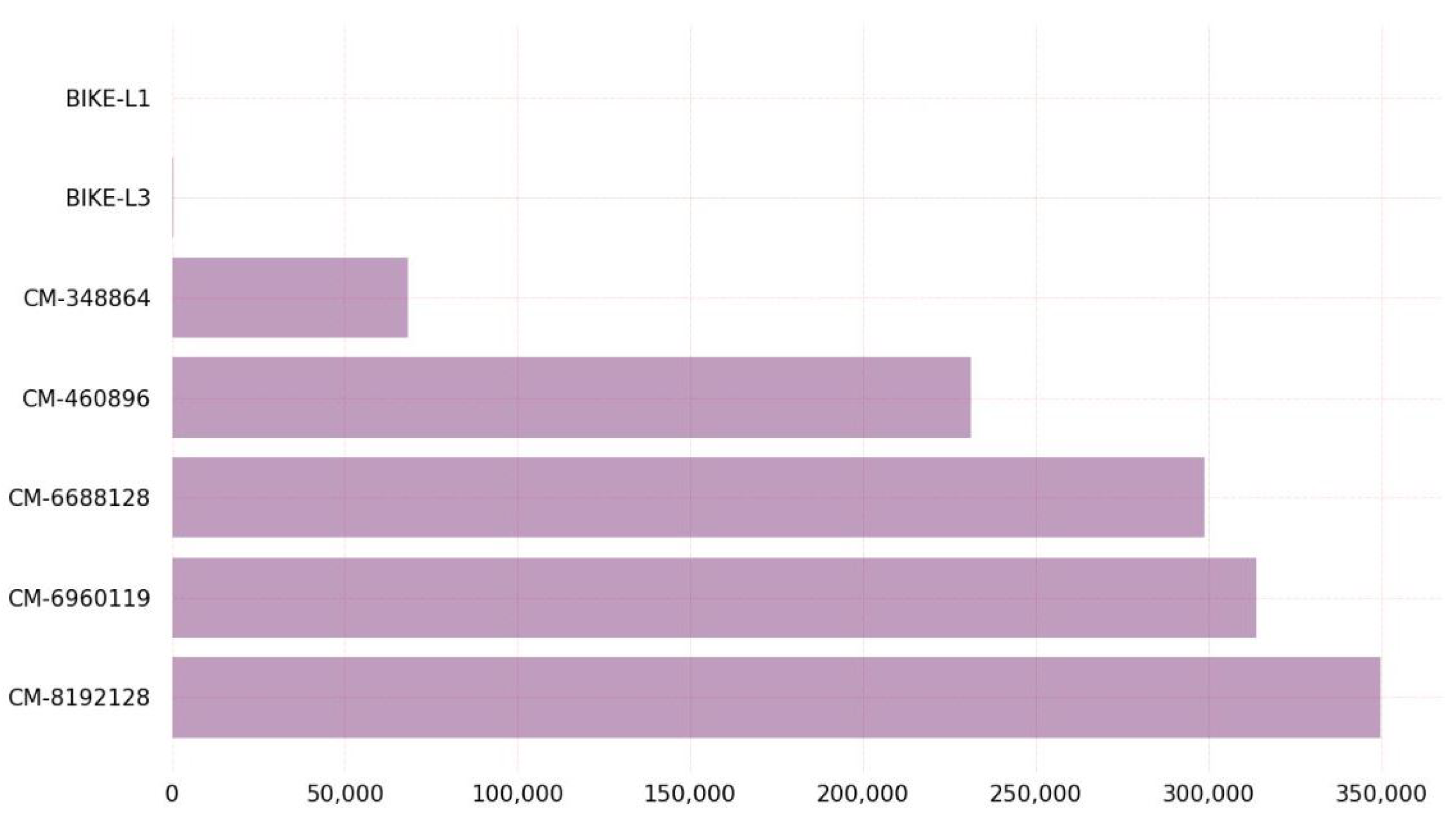

Figure 8. Key generation time (us) on Linux.
The time cost required on Linux for encapsulation and decapsulation using PQC KEM algorithms are represented in Figure 9 and Figure 10, respectively. The graph in Figure 9 provides insights into the time required for key encapsulation of PQC algorithms on Linux. The graph shows a comparison of all variants of the BIKE and classic McEliece algorithms with respect to their time requirements for key encapsulation. The classic-McEliece-348864 variant has the lowest time requirements for key encapsulation among all variants, while the BIKE-L3 variant requires the highest amount of time. According to these results, the classic-McEliece-348864 variant may be the most-effective for key encapsulation, especially where speed is a significant consideration.

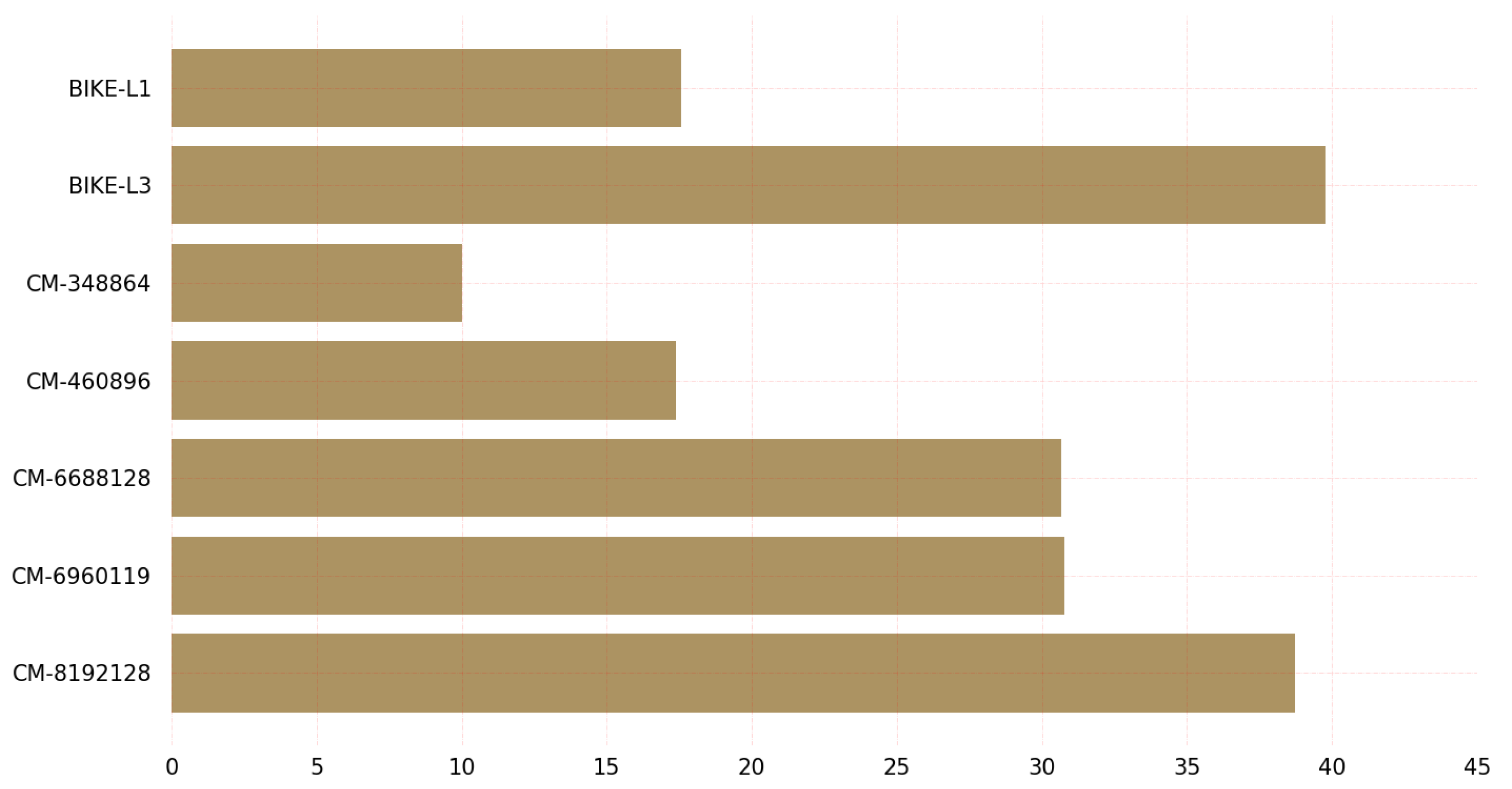

Figure 9. Key encapsulation time (us) on Linux.

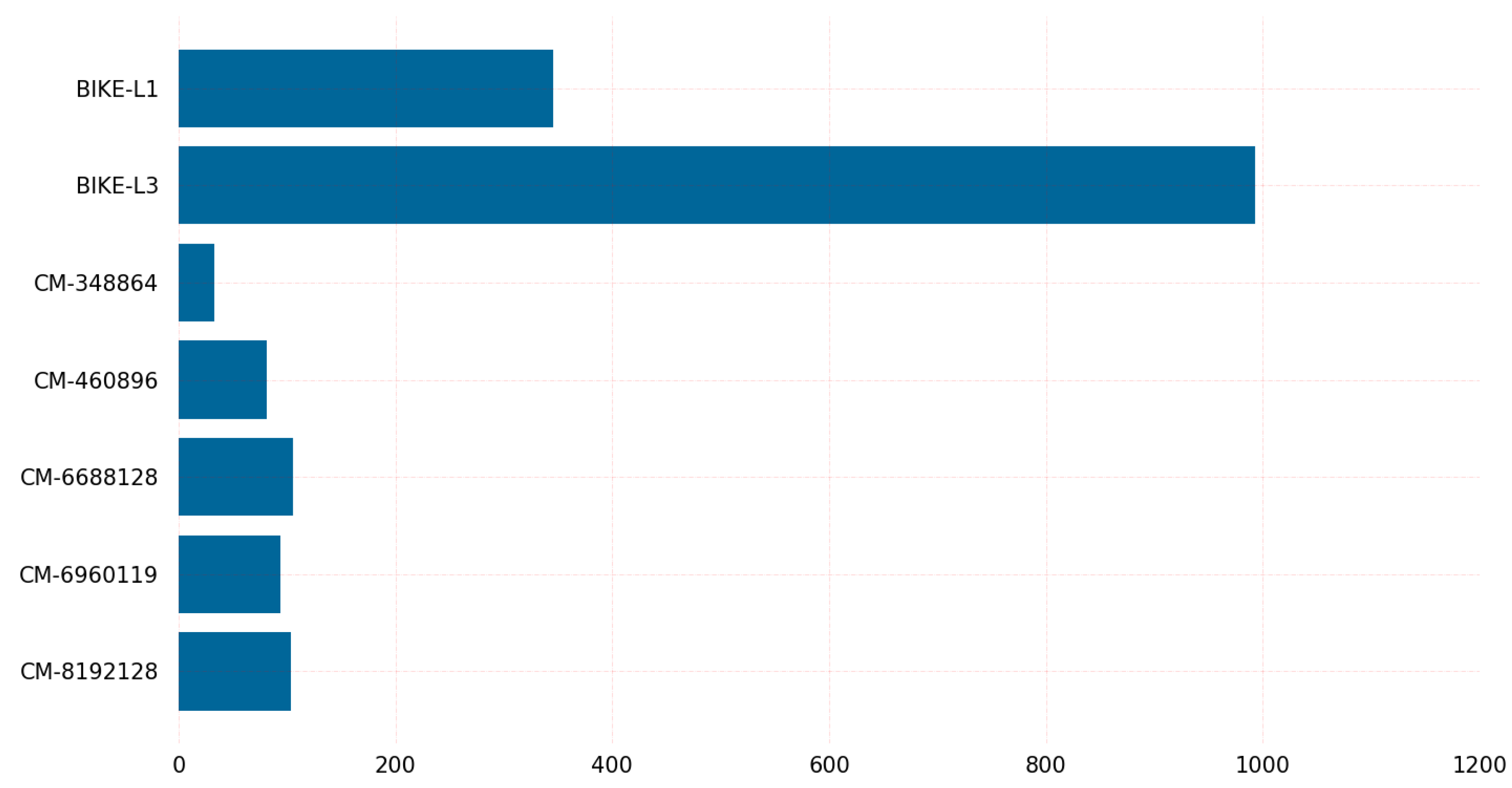

Figure 10. Key decapsulation time (us) on Linux.
The results in Figure 10 shed light on the time required for key decapsulation of post-quantum cryptographic algorithms on Linux. The graph shows that the classic-McEliece-348864 variant has the lowest time requirements for key decapsulation among all variants of the classic McEliece algorithm, while the BIKE-L1 variant has the lowest time requirements among all variants of the BIKE algorithm. It is worth noting that the classic-McEliece-348864 variant also provides a low security level. BIKE-L3 takes more time in both the encapsulation and decapsulation processes.
Figure 11 depicts the result of classic McEliece variants in terms of the time required for the key generation process on Windows. The key generation for the variant classic-McEliece-6688128 with claimed NIST Security Level 5 takes longer on Windows. The graph in Figure 11 provides insights into the time required for the key generation of classic McEliece algorithms on Windows, except for the BIKE algorithm, which is not available by default in the liboqs on Windows. The results show that the classic-McEliece-348864 variant has the lowest time requirement for key generation, followed by the classic-McEliece-6960119 variant. It is worth noting that, while the other variants have higher time requirements for key generation, they also provide higher security levels. For instance, the classic-McEliece-4608960, classic-McEliece-6688128, and classic-McEliece-8192128 variants have high security levels, but they also require higher CPU clock cycles for key generation. On the other hand, the classic-McEliece-128 and classic-McEliece-192 variants have low time requirements for key generation, but provide lower security levels.

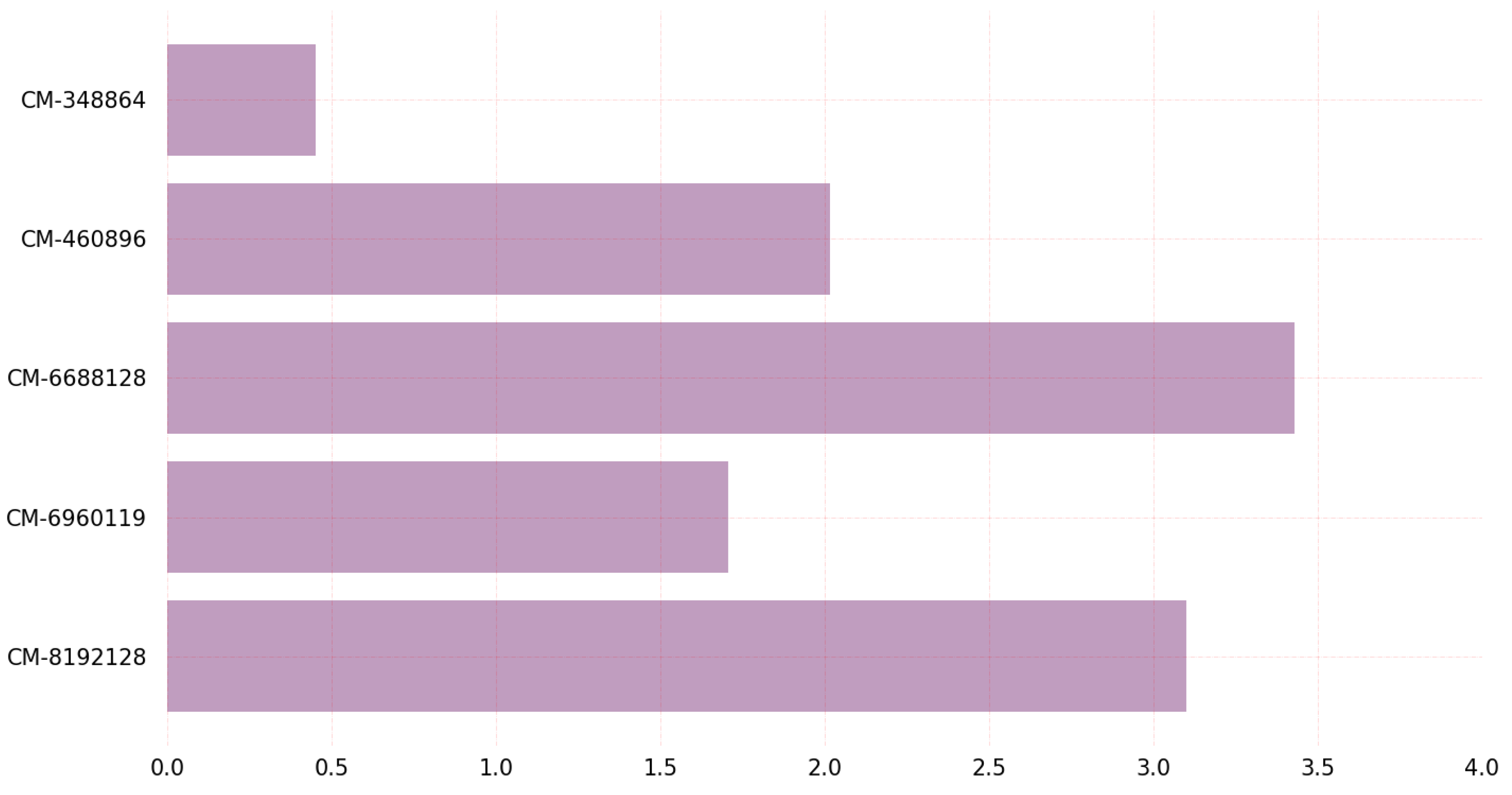

Figure 11. Key generation time (us) on Windows.
Figure 12 and Figure 13 depict the time required on Windows for the encapsulation and decapsulation processes utilizing the PQC KEM algorithms. The classic-McEliece-8192128 algorithm requires significantly more time for both encapsulation and decapsulation. The graph in Figure 12 shows the comparison of the time required for key encapsulation on Windows between different variants of the classic McEliece PQC algorithms. The classic-McEliece-348864 variant has the lowest time requirements for key encapsulation among all variants of the classic McEliece algorithm. However, it is important to note that this variant has the lowest security level. On the other hand, the classic McEliece-8192128 variant has the highest time requirements for key encapsulation, but offers the highest level of security. Other variants such as classic McEliece-4608960, classic McEliece-6688128, and classic McEliece-6960119 have intermediate time requirements for key encapsulation and provide varying levels of security. This graph shows how important it is to carefully analyze the trade-off between efficiency and security when choosing a specific variation of a cryptographic algorithm for a specific application in the real world.

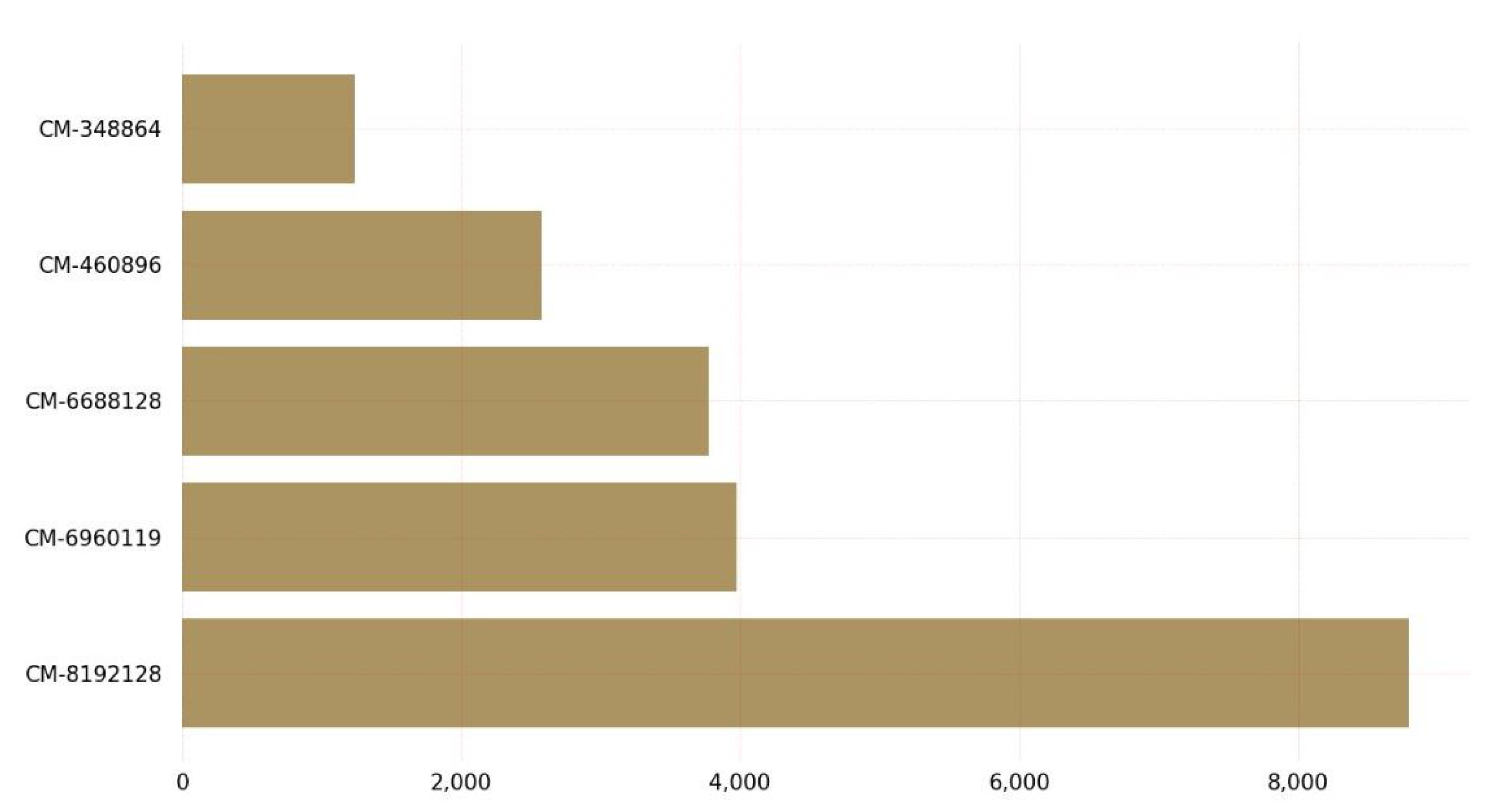

Figure 12. Keyencapsulation time (us) on Windows.

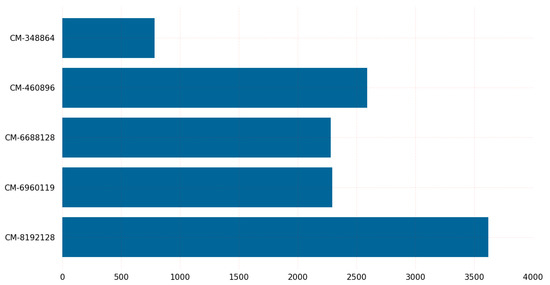

Figure 13. Key decapsulation time (us) on Windows.
The graph in Figure 13 shows the comparison of the time required for key decapsulation on Windows between different variants of classic McEliece post-quantum cryptographic algorithms. Classic-McEliece-348864 has the least time required for key decapsulation while providing adequate security. However, the classic-McEliece-6688128 and classic-McEliece-6960119 variants showed the same time required for key decapsulation, but had different security levels. In particular, the classic-McEliece-6960119 had a higher security level than the classic-McEliece-6688128. Overall, these findings suggest that, while the classic-McEliece 348864 variant may be the most-efficient in terms of key decapsulation time, it may not provide the highest level of security. Therefore, the choice of which variant to use should depend on the specific security requirements of the system in question.
Figure 14 compares all variants of the classic McEliece PQC KEM algorithm in terms of the required CPU clocks on Windows. The KEM algorithm classic-McEliece-8192128 requires the maximum CPU cycles for encapsulation and decapsulation on Windows. The graph in Figure 14 indicates that there is a trade-off between security levels and CPU clocks required for key generation, as some classic McEliece variants with higher security levels require significantly fewer CPU clocks for key generation on Windows. This highlights the importance of choosing the appropriate post-quantum cryptographic algorithm based on specific security and performance requirements. Furthermore, it is interesting to note that the classic McEliece variants generally outperform other post-quantum cryptographic algorithms in terms of key generation efficiency, despite the potential for higher CPU clock requirements at higher security levels. This suggests that classic McEliece may be a strong candidate for practical implementation in a post-quantum secure communication system.

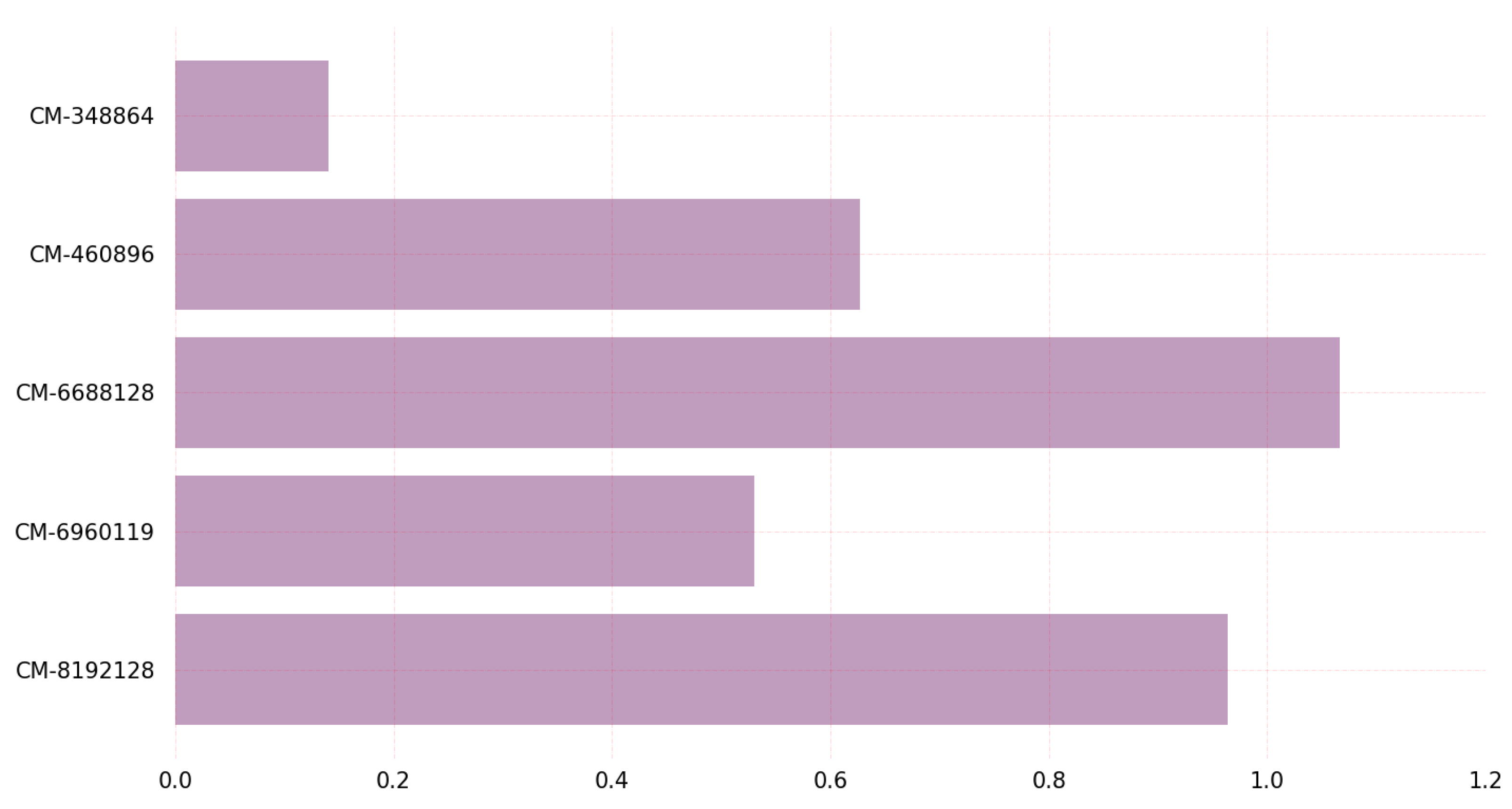

Figure 14. Key generation CPU clocks on Windows.
The graph in Figure 15 depicts the performance of different variants of the classic McEliece PQC algorithm in terms of key encapsulation statistics with respect to CPU clocks on Windows and provides valuable insights into the practical efficiency and security of post-quantum cryptographic algorithms. Among the classic McEliece variants, the most-efficient variant for key encapsulation is the classic-McEliece-348864, which offers a 128-bit security level. Meanwhile, the classic-McEliece-6688128 requires the highest number of CPU clocks for key encapsulation. However, it is also important to note that this variant provides a very high level of security, offering a 256-bit security level, which is even higher than that of classic-McEliece-348864. By considering both the performance and security characteristics of different variants of the classic McEliece algorithm, developers and practitioners can make informed decisions about the most-appropriate post-quantum cryptographic algorithm for their needs, taking into account both speed and security requirements.

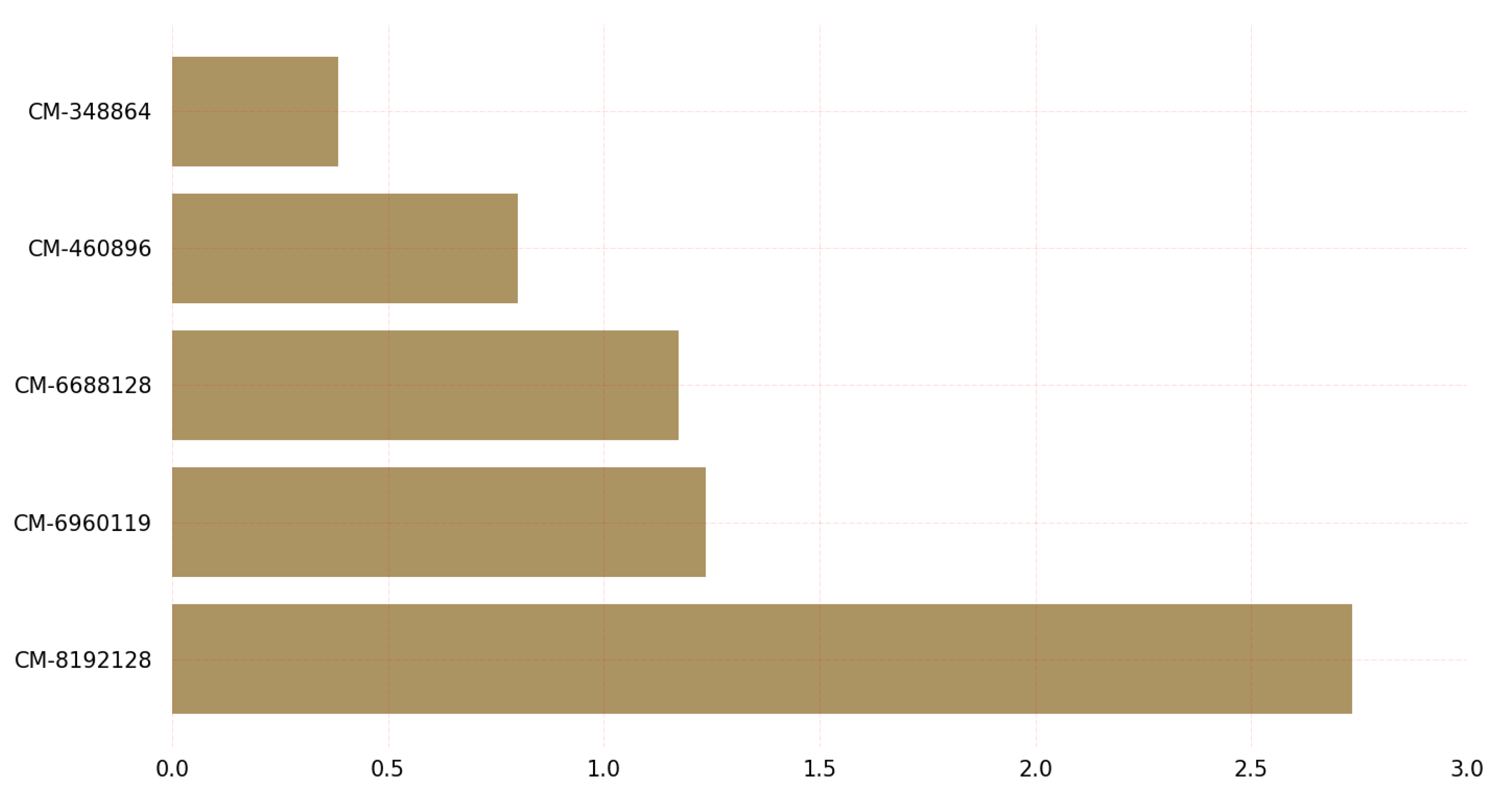

Figure 15. Key encapsulation CPU clocks on Windows.

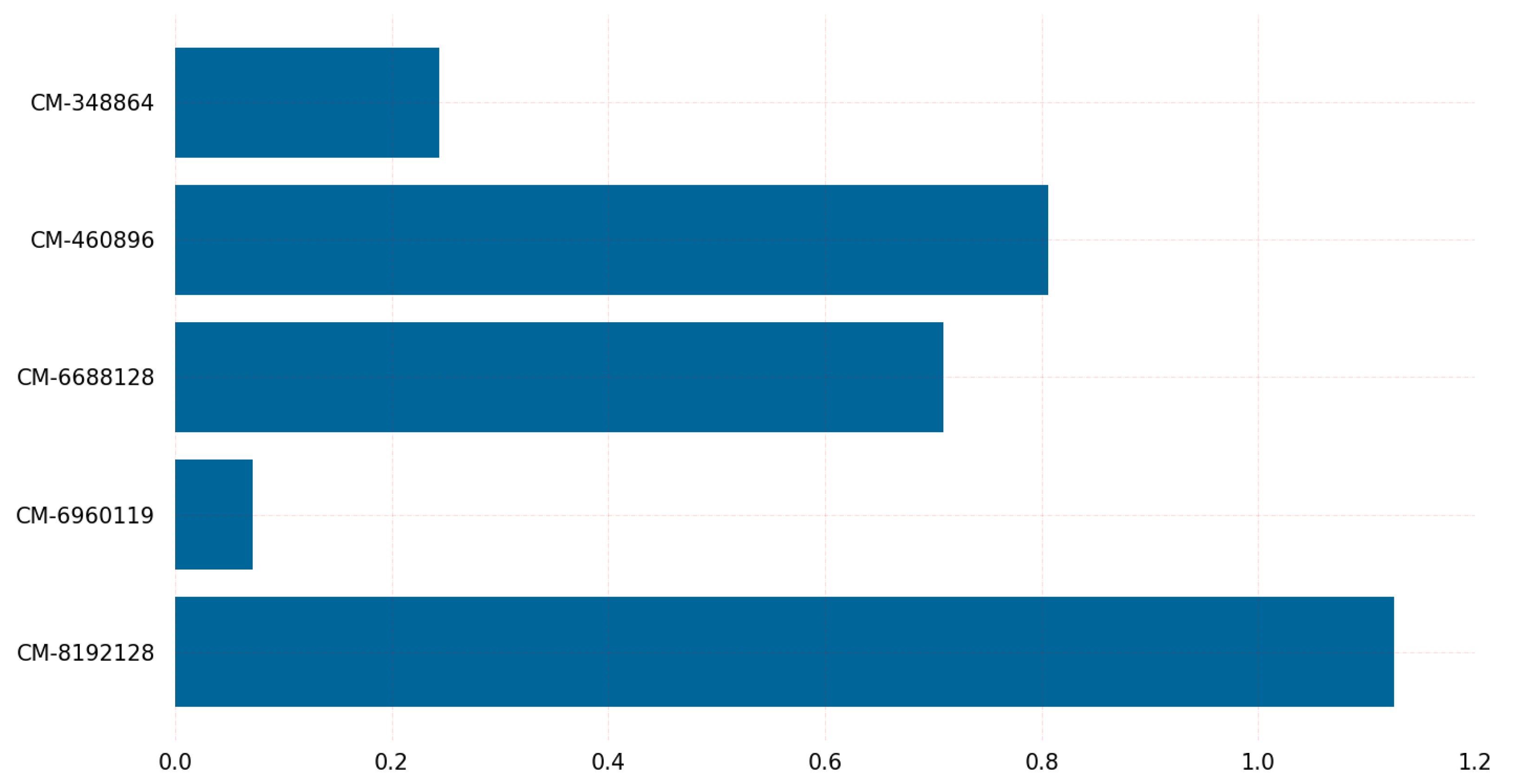

The graph in Figure 16 shows the performance of different variants of the classic McEliece PQC algorithm in terms of key decapsulation statistics with respect to CPU clocks on Windows and provides valuable insights into the practical efficiency and security of post-quantum cryptographic algorithms. The data indicate that the classic McEliece-348864 is the most-efficient variant for key decapsulation on Windows, with the lowest number of CPU clocks required for this operation. The 128-bit Level 1 security provided by classic-McEliece-348864 should be noted. These results have significant consequences for the choice and use of post-quantum cryptography algorithms in real-world applications, especially when key decapsulation speed and security are major considerations. Figure 15 and Figure 16 display identical results for encapsulation and decapsulation, respectively.
Figure 16. Key decapsulation CPU clocks on Windows.

4.4. Result Comparison

In this study, we evaluated the performance of several variants of the BIKE and classic McEliece PQC algorithms for KEM in terms of key generation, encapsulation, and decapsulation operations on both Linux and Windows OSs. Table 9 shows the outcomes of the current study. Table 10 gives a condensed and collective comparison of the entire study’s findings. The evaluated algorithms variants include BIKE-L1 and BIKE-L3 and five variants of the classic McEliece scheme with different security levels, namely classic-McEliece-348864, classic-McEliece-460896, classic-McEliece-6688128, classic-McEliece-6960119, and classic-McEliece-8192128.
Table 10. Result comparison of KEM PQC algorithm.

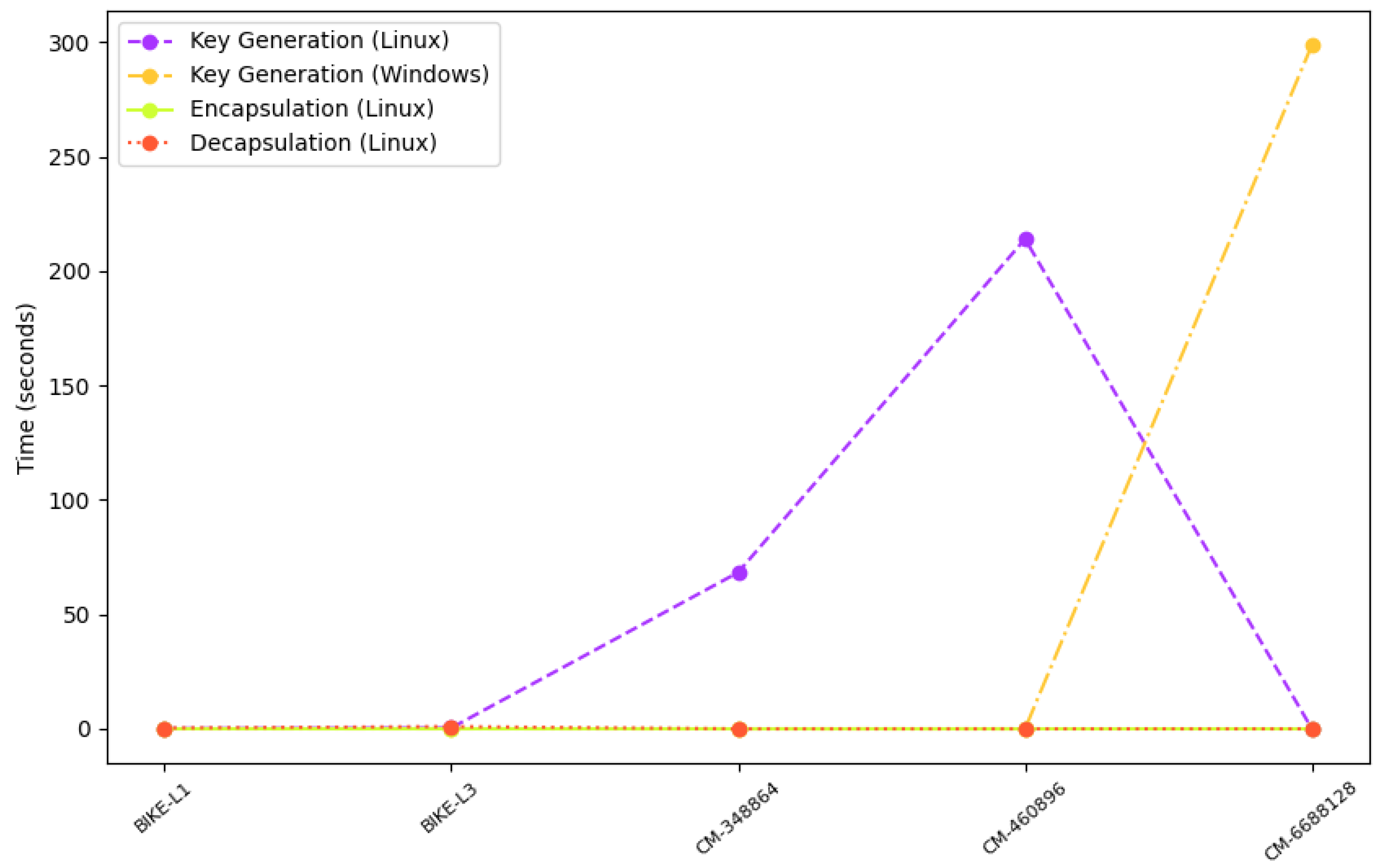

Figure 17 shows the experimental results indicating that classic-McEliece-348864 and classic-McEliece-460896 are the slowest algorithms in terms of key generation, taking 68.3 s and 214 s, respectively, on the Linux operating system. However, classic-McEliece-6688128 is the slowest algorithm on the Windows operating system, taking 298.8 s to generate a key. The BIKE-L1 and BIKE-L3 algorithms are significantly faster, taking 126.95 and 376.07 microseconds to generate a key, respectively, on the Linux operating system. The difference in the time required for key generation between the two BIKE algorithms is less than 0.25% on Linux.

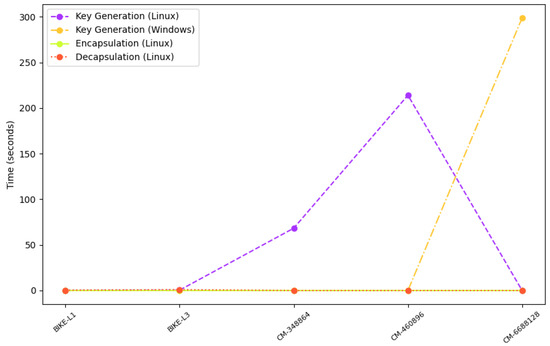

Figure 17. Comparison of results.
Regarding encapsulation and decapsulation, BIKE-L1 is the fastest algorithm, taking 17.55 microseconds to encapsulate a message and 345.81 microseconds to decapsulate it, while BIKE-L3 is the slowest, taking 39.77 microseconds to encapsulate a message and 993.16 microseconds to decapsulate it. Classic-McEliece-348864 and classic-McEliece-460896 are faster than classic-McEliece-6688128 in terms of encapsulation and decapsulation on Linux, but on Windows, the performance of classic-McEliece-348864 and classic-McEliece-460896 is comparable to that of classic-McEliece-6688128. The graph results shown in Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15 and Figure 16 demonstrate the comparison of the algorithms variants based on their performance in terms of key generation, encapsulation, and decapsulation operations.
In conclusion, the results obtained from applying the proposed methodology to different PQC algorithms demonstrated its effectiveness in capturing their performance characteristics. The results showed that the performance of the PQC algorithms evaluated in this study vary significantly, depending on the type of operation, the security level, and the operating system used. Overall, BIKE-L1 and BIKE-L3 are the fastest algorithms, while classic-McEliece-348864 and classic-McEliece-460896 are the slowest algorithms, particularly in terms of key generation. Therefore, the choice of a PQC algorithm for KEM should be based on the specific requirements of the application, such as the desired level of security, the type of operation, and the platform.
Unlike the previous research, the results for the current study were obtained using the latest version of the liboqs v0.7.2. These results are based on all variants of two NIST forth-round finalists PQC algorithms, which belong to the same family. The experiments were performed on a standard laptop; specifically, we used a Lenovo IdeaPad 5i Pro 16AMD with an Intel® Core™ i5-11300H @ 3.11 GHz, NVIDIA® GeForce RTX™ 3050/3050 Ti Laptop GPU, and 16 GB RAM. We used Ubuntu 22.04.1 LTS and Windows 11 21H2 as the operating systems for the evaluation. We ensured that the experiments were conducted under controlled conditions to minimize external factors’ influence on the results.

5. Conclusions

With recent developments in quantum computing, conventional public cryptosystem become vulnerable, so post-quantum encryption algorithms should be investigated in the future. NIST has shortlisted several candidates, such as classic McEliece and BIKE, in this regard, which is yet to be standardized. This study presented the performance comparison of these two algorithms in terms of key generation, encapsulation, decapsulation, etc. The evaluation operation revealed valuable insights into the efficiency and practicality of these algorithms. The classic McEliece algorithm has an extremely large size for the public key, so it is possible that, in the future, it will not be a viable option. However, it functions at its highest level of efficiency when it is not required to frequently re-transmit the public key. In many implementations of the classic McEliece algorithm, the amount of memory required to store the extremely large key sizes is significantly higher. On Linux, the BIKE algorithm generates results that are noticeably superior. On Windows, however, the OQS liboqs does not support it by default. Both classic McEliece and BIKE will be supported by future TLS handshakes, and their respective levels of performance can be compared. The results of this research contribute to the ongoing efforts in standardizing post-quantum encryption algorithms and give vital recommendations for practitioners and researchers alike. When choosing an algorithm for secure communication, variables such as key size, performance requirements, and platform compatibility must be considered. As quantum computing advances, it is critical to monitor and adjust cryptographic systems to ensure the secrecy and integrity of sensitive data. differential power analysis (DPA) and differential fault analysis (DFA) attacks are a serious threat to the security of post-quantum cryptographic algorithms. By combining DPA and DFA attacks, attackers can extract secret information from cryptographic devices with greater ease. Further studies could focus on developing new countermeasures for side-channel attacks, including DPA and DFA attacks, by using techniques such as error detection and correction, fault-tolerant design, and side-channel masking. Future research might build on this work by investigating additional post-quantum encryption methods, evaluating their performance on various operating systems, and addressing real-world deployment circumstances. Ultimately, the effective development and implementation of post-quantum encryption algorithms will assure the long-term security of communications in the age of quantum computing, protecting sensitive data from new threats.

Author Contributions

Conceptualization, S.F. and A.A.; data curation, A.A. and F.I.; formal analysis, S.F. and F.I.; funding acquisition, I.d.l.T.D.; investigation, E.B.T.; methodology, F.I. and D.L.R.V.; project administration, E.B.T., D.L.R.V. and I.d.l.T.D.; resources, I.d.l.T.D.; supervision, I.A.; validation, I.A.; visualization, E.B.T. and D.L.R.V.; writing—original draft, S.F. and A.A.; writing—review and editing, I.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research is funded by the European University of Atlantics.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

AESAdvanced Encryption Standard
BIKEBit-flipping Key Encapsulation
CCAChosen Ciphertext Attack
DFADifferential Fault Analysis
DHDiffie–Hellman
DPADifferential Power Analysis
ECElliptic Curve
ECCElliptic Curve Cryptography
ECDHElliptic Curve Discrete Logarithm
ECDSAElliptic Curve Digital Signature Algorithm
IEEEInstitute of Electrical and Electronics Engineers
IoTInternet of Things
ISDInformation Set Decoding
KEMKey Encapsulation Mechanism
LWC-SPLightweight Cryptography Standardization Process
NISTNational Institute of Standards and Technology
OQSOpen Quantum Safe
OSOperating System
PQPost-Quantum
PQCPost-Quantum Cryptography
RSARivest–Shamir–Adleman
SCAsSide-Channel Attacks
SHA-2Secure Hashing Algorithm-2
SIGSignatures
TLSTransport Layer Security
