Smart-Autonomous Wireless Volatile Organic Compounds Sensor Node for Indoor Air Quality Monitoring Application
Abstract
:1. Introduction
2. Materials and Methods
2.1. Volatile Organic Compounds (VOCs)
2.2. Low-Power Strategy
2.3. Energy Storage

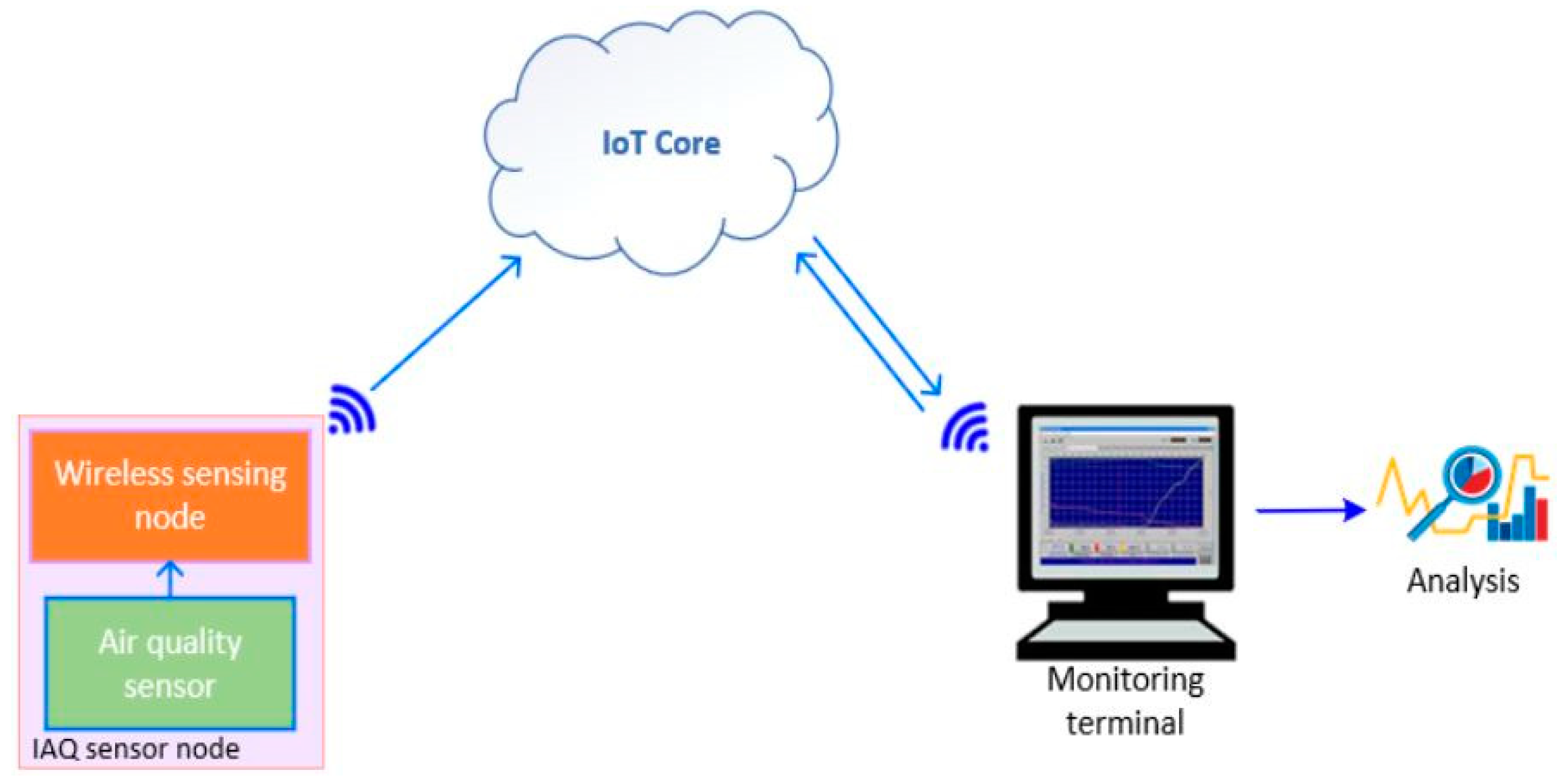

2.4. Design Overview

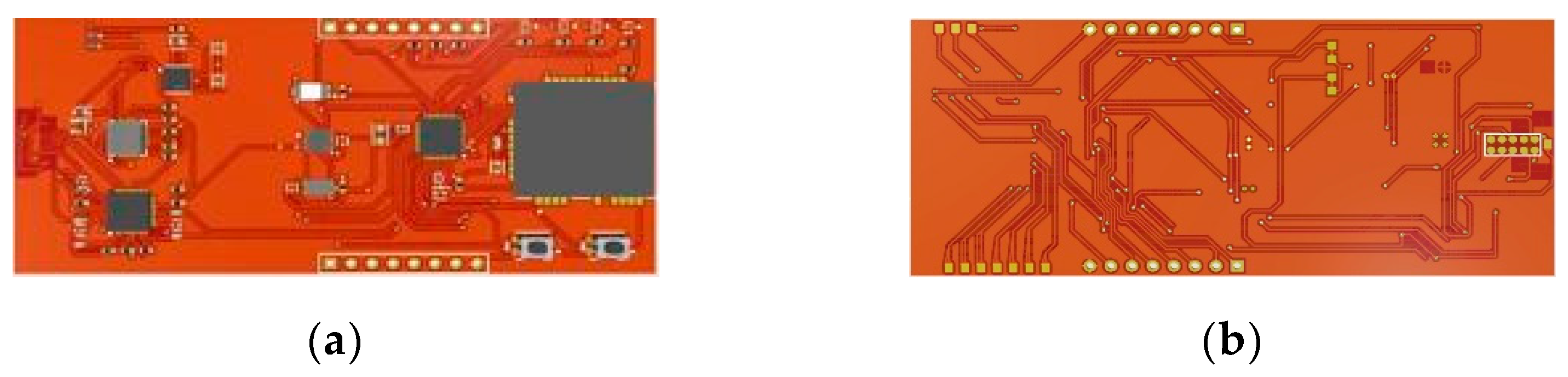

2.4.1. Mainboard

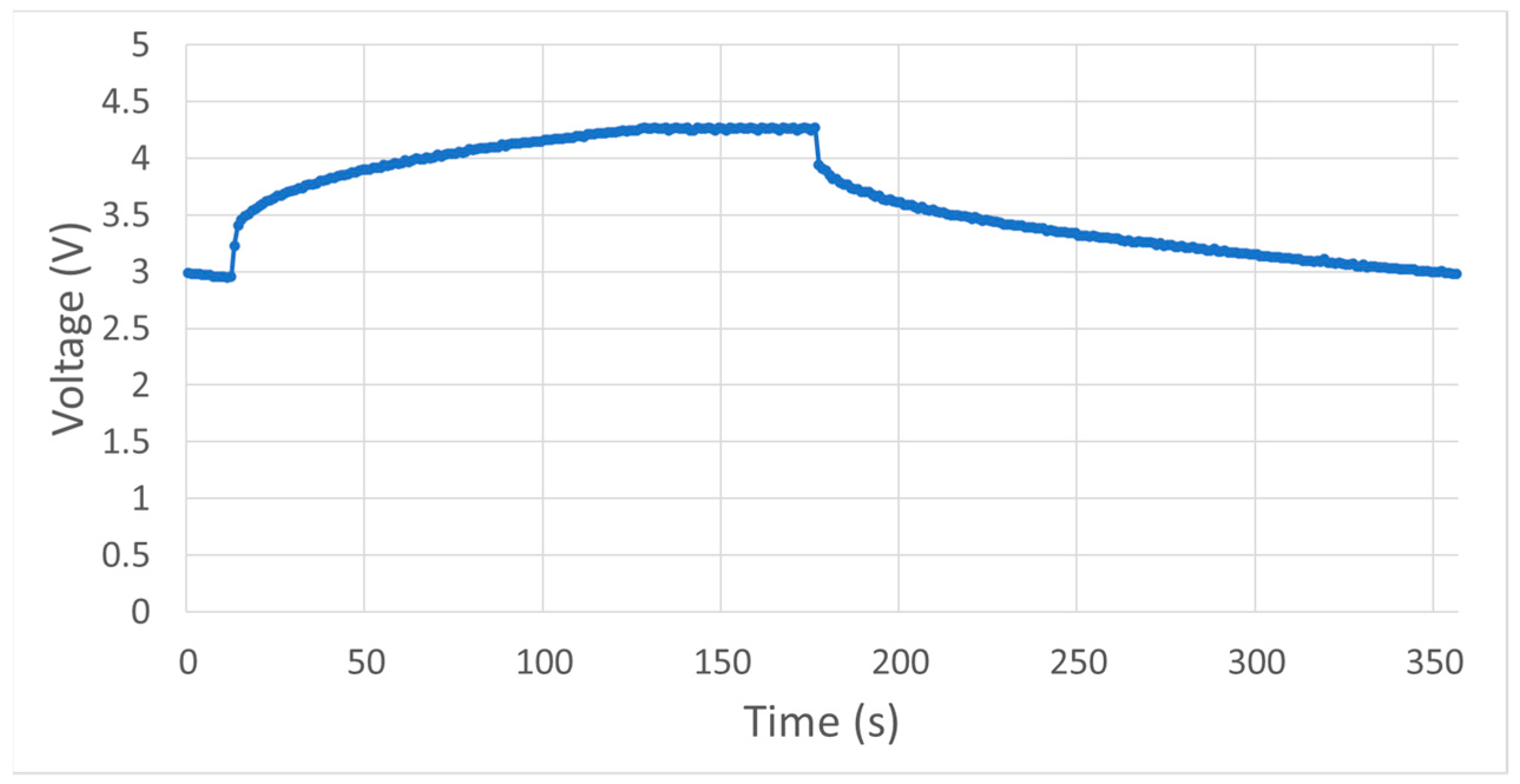

2.4.2. Supercapacitor
- Qsp = supercapacitor charging capacity in Amper.hour (Ah).
- C = capacitance in Farad (F = A.s/V).
- Vc = capacitor charged voltage in Volt (V).
- Vd = capacitor discharged voltage in Volt (V).

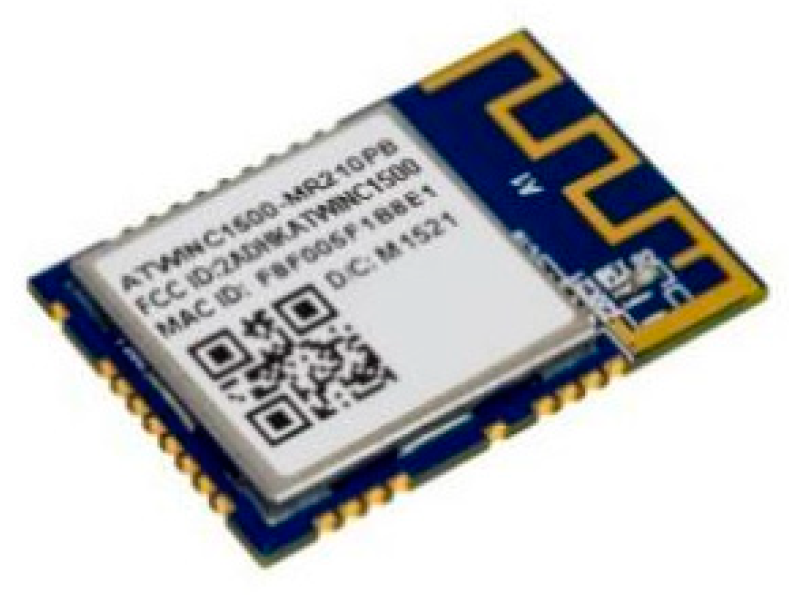

2.4.3. Wireless Module

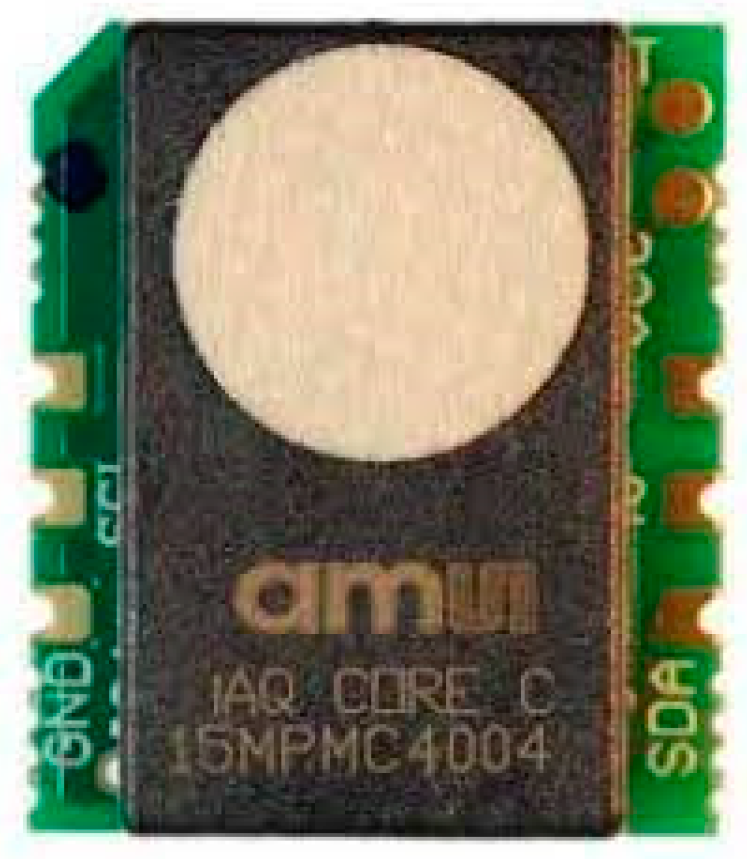

2.4.4. Indoor Air Quality (IAQ) Sensor
2.4.5. Software
Algorithm 1 The logical flow of VOCs sensor node sensing process |
Start program while sensor node is powered Initialize Wi-Fi connection. If Wi-Fi connected to internet: Call function to measure air quality. Send CO2 and TVOCs data. Display CO2 and TVOCs data to IoT dashboard Or Else: Retry connection to the internet Wi-Fi. Call function to low power mode. Enable alarm and interval start counting. If interval reached: Call function to system wake-up. Disable alarm and reset the interval. Return to measure air quality and repeat. Or Else: Interval counting. End program while sensor node power is low. |
3. Results and Discussion

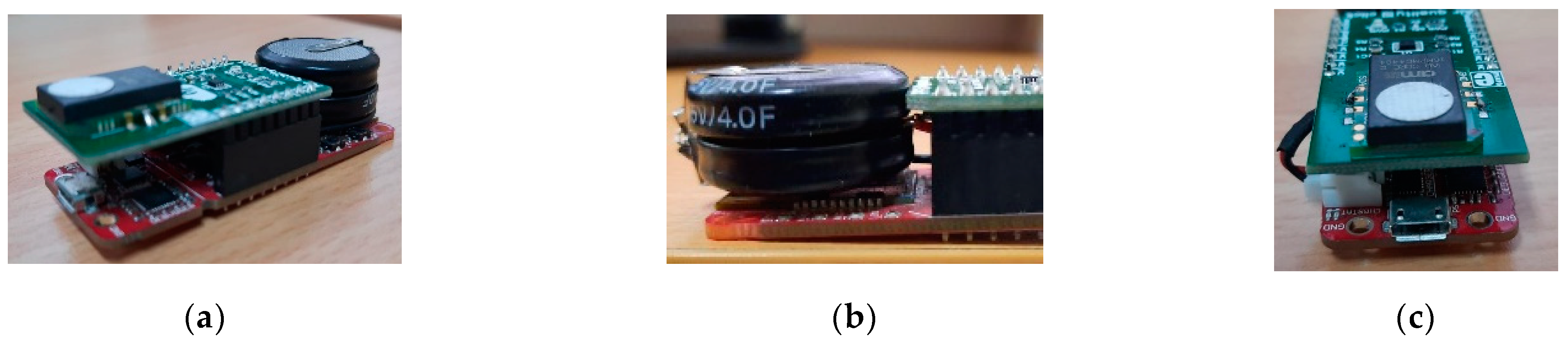

3.1. Device Implementation

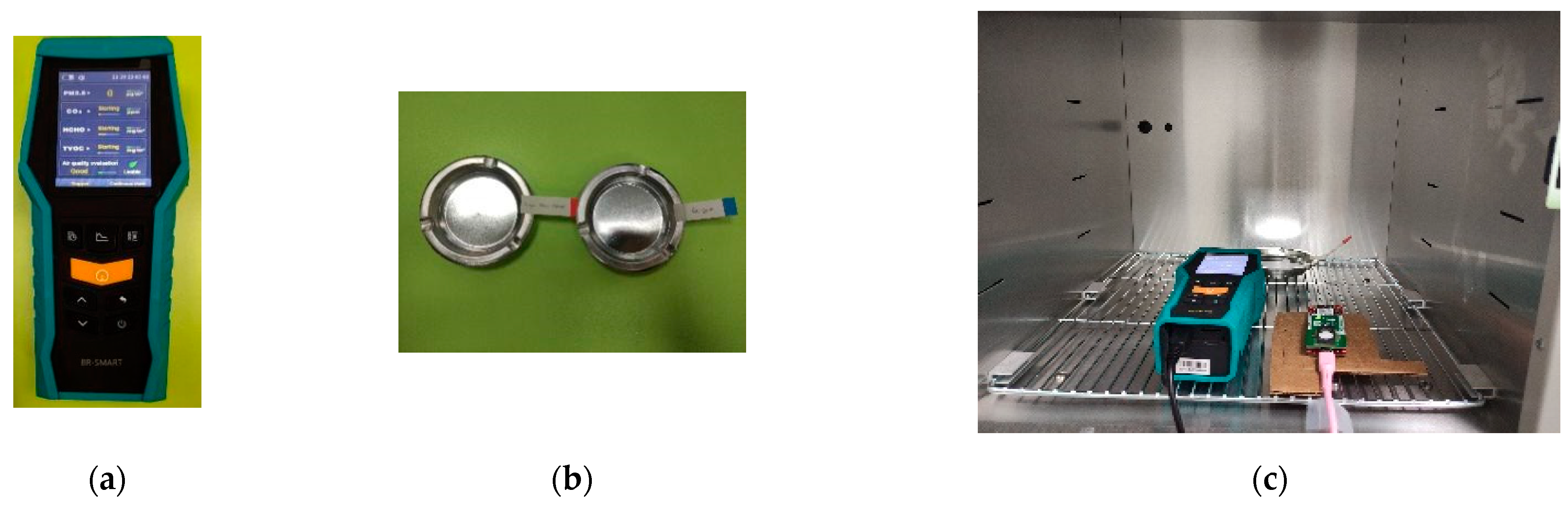

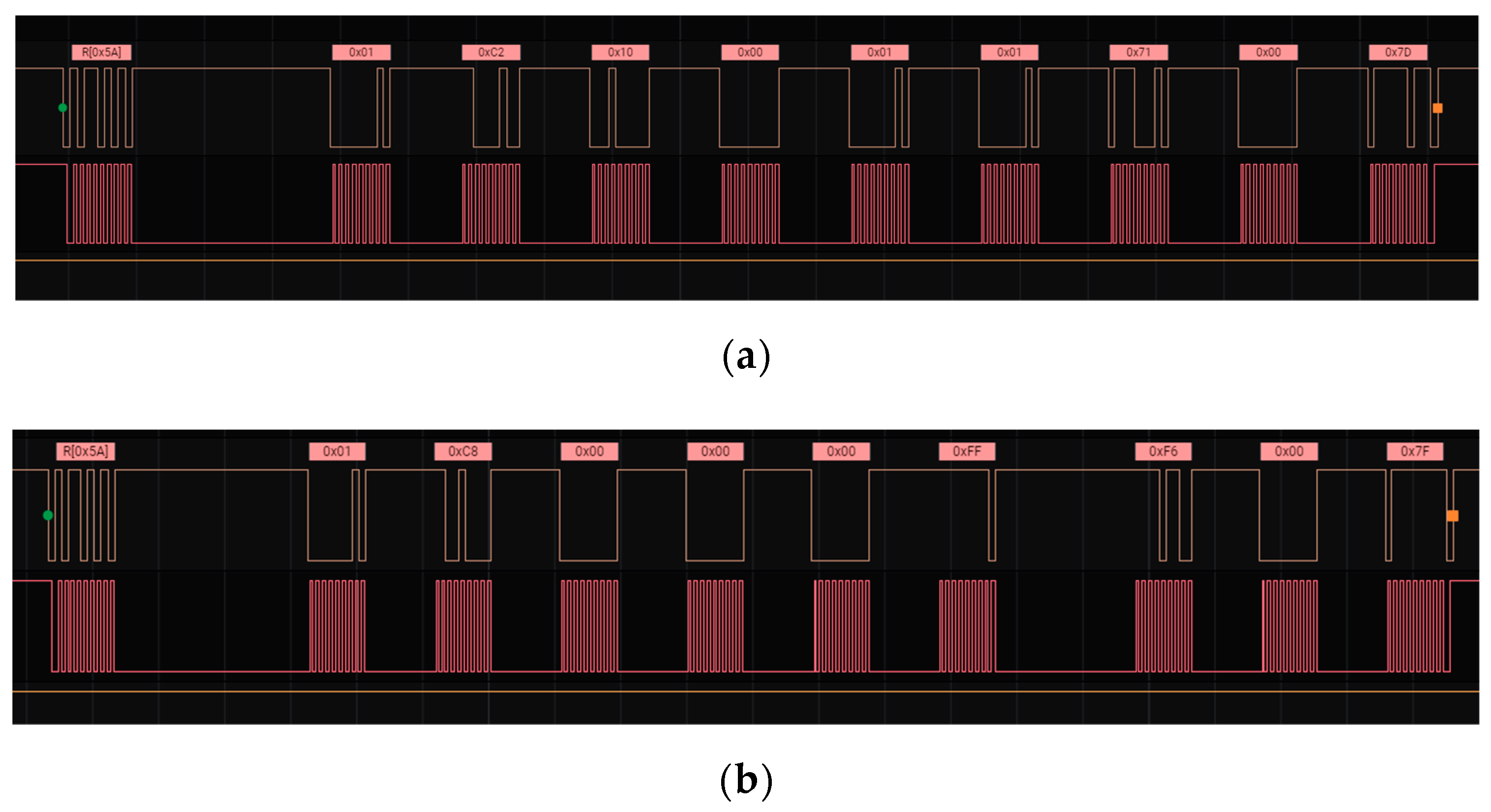

3.2. Functionality Test
3.3. Power Requirement Test
3.3.1. Power Sensor Test
3.3.2. Power Measurement

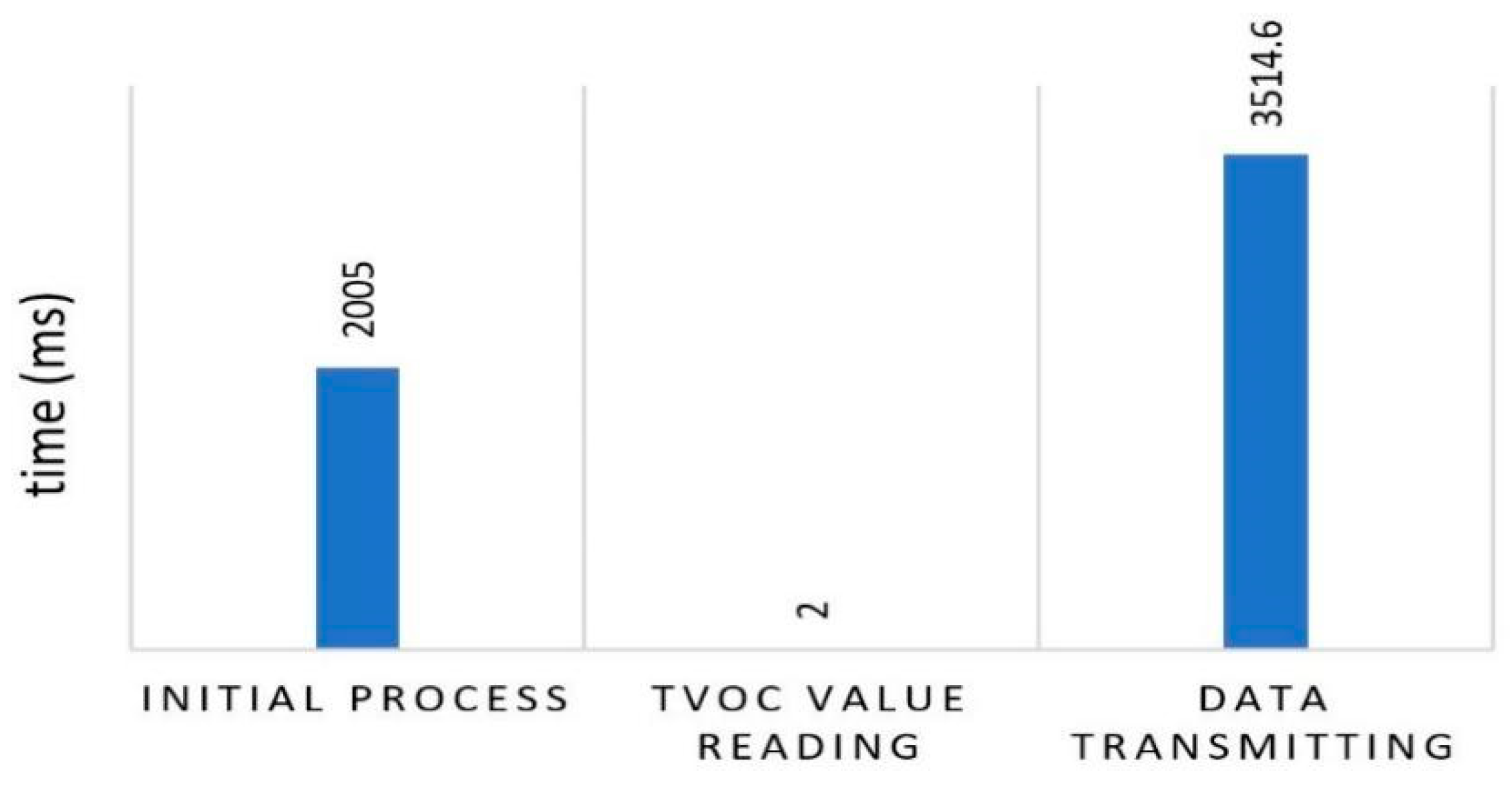

3.3.3. Processing Time Consumption
3.3.4. Power Source Capacity

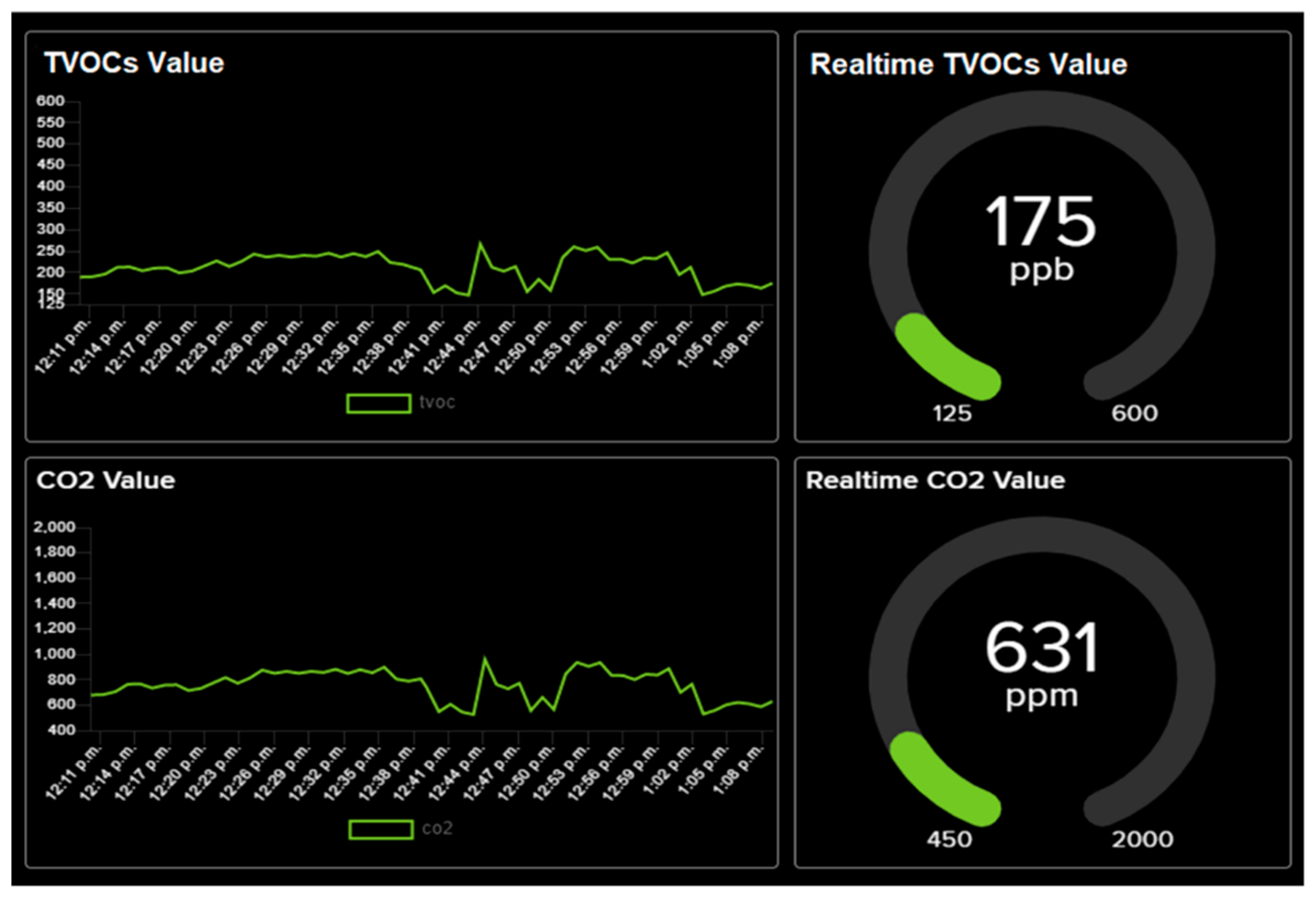

3.4. User Interface
3.5. VOCs Field Experiment
3.5.1. Configuration

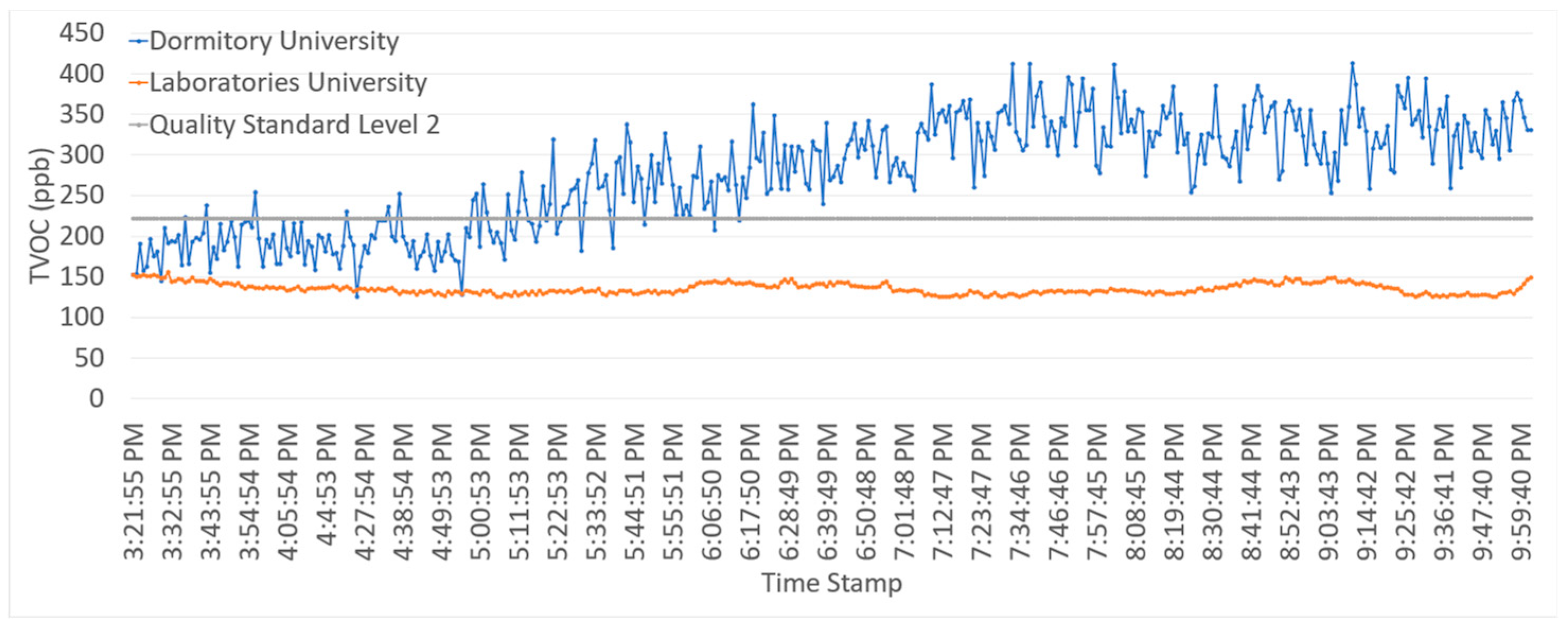

3.5.2. Result
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- The 17 Goals|Department of Economic and Social Affairs. Available online: https://sdgs.un.org/goals (accessed on 20 January 2021).
- Daniel Lawrence, I.; Thiruneelakandan, G.; Jayabal, S.; Thirumal, P. Analysis of Indoor Air Quality and PMV-PPD Model in Dynamic Conditioned Car Cabin. Int. J. Innov. Res. Sci. Eng. Technol. 2014, 3, 15581–15591. [Google Scholar] [CrossRef]
- Saini, J.; Dutta, M.; Marques, G. A comprehensive review on indoor air quality monitoring systems for enhanced public health. Sustain. Env. Res. 2020, 30, 6. [Google Scholar] [CrossRef] [Green Version]
- Marques, G.; Pires, I.M.; Miranda, N.; Pitarma, R. Air Quality Monitoring Using Assistive Robots for Ambient Assisted Living and Enhanced Living Environments through Internet of Things. Electronics 2019, 8, 1375. [Google Scholar] [CrossRef] [Green Version]
- Zhang, Y.; Zhao, Y. Design & implementation of an Air Quality Monitoring System for Indoor Environment based on Microcontroller. Int. J. Smart Home 2015, 9, 301–312. [Google Scholar] [CrossRef]
- Klepeis, N.E.; Nelson, W.C.; Ott, W.R.; Robinson, J.P.; Tsang, A.M.; Switzer, P.; Behar, J.V.; Hern, S.C.; Engelmann, W.H. The National Human Activity Pattern Survey (NHAPS): A resource for assessing exposure to environmental pollutants. J. Expo. Sci. Env. Epidemiol. 2001, 11, 231–252. [Google Scholar] [CrossRef] [Green Version]
- Jo, J.; Jo, B.; Kim, J.; Kim, S.; Han, W. Development of an IoT-Based Indoor Air Quality Monitoring Platform. J. Sens. 2020, 2020, 1–14. [Google Scholar] [CrossRef]
- Meyer, C. Overview of TVOC and Indoor Air Quality. Renesas Electronics. 2021. Available online: https://www.renesas.com/us/en/document/whp/overview-tvoc-and-indoor-air-quality (accessed on 17 February 2022).
- Molhave, L.; Clausen, G.; Berglund, B.; De Ceaurriz, J.; Kettrup, A.; Lindvall, T.; Maroni, M.; Pickering, A.C.; Risse, U.; Rothweiler, H.; et al. Total Volatile Organic Compounds (TVOC) in Indoor Air Quality Investigations. Indoor Air 1997, 7, 225–240. [Google Scholar] [CrossRef]
- Adgate, J.L.; Church, T.R.; Ryan, A.D.; Ramachandran, G.; Fredrickson, A.L.; Stock, T.H.; Morandi, M.T.; Sexton, K. Outdoor, Indoor, and Personal Exposure to VOCs in Children. Environ. Health Perspect. 2004, 112, 1386–1392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- World Health Organization (Ed.) Air Quality Guidelines for Europe, 2nd ed.; Regional Office for Europe, World Health Organization: Copenhagen, Denmark, 2000. [Google Scholar]
- US EPA. Indoor Air Quality [IAQ]. 3 July 2014. Available online: https://www.epa.gov/indoor-air-quality-iaq (accessed on 23 January 2022).
- Umweltbundesamt. Beurteilung von Innenraumluftkontaminationen mittels Referenz- und Richtwerten: Handreichung der Ad-hoc-Arbeitsgruppe der Innenraumlufthygiene-Kommission des Umweltbundesamtes und der Obersten Landesgesundheitsbehörden. Bundesgesundheitsbl-Gesundh.-Gesundh. 2007, 50, 990–1005. [Google Scholar] [CrossRef] [PubMed]
- Saad, S.; Andrew, A.; Shakaff, A.; Saad, A.; Kamarudin, A.; Zakaria, A. Classifying Sources Influencing Indoor Air Quality (IAQ) Using Artificial Neural Network (ANN). Sensors 2015, 15, 11665–11684. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zampolli, S.; Elmi, I.; Ahmed, F.; Passini, M.; Cardinali, G.; Nicoletti, S.; Dori, L. An electronic nose based on solid state sensor arrays for low-cost indoor air quality monitoring applications. Sens. Actuators B Chem. 2004, 101, 39–46. [Google Scholar] [CrossRef]
- Hemant, K.; Cyril, R.A.J. Indoor Air Quality Monitoring with Arduino—Based Embedded System for Terrariums. J. Crit. Rev. 2020, 7, 1391–1399. [Google Scholar] [CrossRef]
- Zhao, Y.-L.; Tang, J.; Huang, H.-P.; Wang, Z.; Chen, T.-L.; Chiang, C.-W.; Chiang, P.-C. Development of IoT Technologies for Air Pollution Prevention and Improvement. Aerosol Air Qual. Res. 2020, 20, 2874–2888. [Google Scholar] [CrossRef]
- De Gennaro, G.; Farella, G.; Marzocca, A.; Mazzone, A.; Tutino, M. Indoor and Outdoor Monitoring of Volatile Organic Compounds in School Buildings: Indicators Based on Health Risk Assessment to Single out Critical Issues. Int. J. Environ. Res. Public Health 2013, 10, 6273–6291. [Google Scholar] [CrossRef] [PubMed]
- Tiele, A.; Esfahani, S.; Covington, J. Design and Development of a Low-Cost, Portable Monitoring Device for Indoor Environment Quality. J. Sens. 2018, 2018, 1–14. [Google Scholar] [CrossRef]
- Shuheng, S.; Jie, S. Design an Indoor Air Quality Controller Based on LPC2478. Sens. Transducers 2014, 174, 7. [Google Scholar]
- Arroyo, P.; Lozano, J.; Suárez, J.I. Evolution of Wireless Sensor Network for Air Quality Measurements. Electronics 2018, 7, 342. [Google Scholar] [CrossRef] [Green Version]
- Saini, J.; Dutta, M.; Marques, G. Indoor Air Quality Monitoring Systems Based on Internet of Things: A Systematic Review. Int. J. Environ. Res. Public Health 2020, 17, 4942. [Google Scholar] [CrossRef] [PubMed]
- Honeycutt, W.T.; Ley, M.T.; Materer, N.F. Precision and Limits of Detection for Selected Commercially Available, Low-Cost Carbon Dioxide and Methane Gas Sensors. Sensors 2019, 19, 3157. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pandey, P.; Yadav, R. A Review on Volatile Organic Compounds (VOCs) as Environmental Pollutants: Fate and Distribution. Int. J. Plant Environ. 2018, 4, 14–26. [Google Scholar] [CrossRef]
- US EPA. Volatile Organic Compounds’ Impact on Indoor Air Quality. 18 August 2014. Available online: https://www.epa.gov/indoor-air-quality-iaq/volatile-organic-compounds-impact-indoor-air-quality (accessed on 14 December 2021).
- Total Volatile Organic Compounds (TVOC) and Indoor Air Quality (IAQ). 11 November 2019. Available online: https://www.catsensors.com/media/pdf/Sensor_Sensirion_IAM.pdf (accessed on 12 February 2022).
- Khanchuea, K.; Rawat, S. An IoT-enabled Platform for Power Consumption Measurement of Low-Power Wireless Sensor Devices. In Proceedings of the 2018 2nd International Conference on Engineering Innovation (ICEI), Bangkok, Thailand, 5–6 July 2018; Available online: http://ieeexplore.ieee.org/servlet/opac?punumber=8430214 (accessed on 14 December 2021).
- Mishra, R.; Saxena, R. Comprehensive review of control schemes for battery and supercapacitor energy storage system. In Proceedings of the 2017 7th International Conference on Power Systems (ICPS), Pune, India, 21–23 December 2017; pp. 702–707. [Google Scholar] [CrossRef]
- Hou, S.-Y.; Huang, T.-C.; Chang, Y.-C.; Huang, K.-C. A self powered feed forward boost converter charging scheme for low cost super capacitor applications. In Proceedings of the 2011 International Conference on System Science and Engineering, Macau, China, 8–10 June 2011; pp. 578–581. [Google Scholar] [CrossRef]
- Colomer-Farrarons, J.; Miribel-Catala, P.; Saiz-Vela, A.; Samitier, J. A 60 µW low-power low-voltage power management unit for a self-powered system based on low-cost piezoelectric powering generators. In Proceedings of the 2019 Proceedings of ESSCIRC, Athens, Greece, 14–18 September 2009; pp. 280–283. [Google Scholar] [CrossRef]
- iAQ-Core Indoor Air Quality Sensor Module. 30 April 2015. Available online: https://www.sciosense.com/products/environmental-sensors/iaq-core-c/ (accessed on 19 February 2021).
- Simple Energy Storage Capacitor Formulae. 14 December 2021. Available online: https://sparks.gogo.co.nz/capacitor-formulae.html (accessed on 14 December 2021).
TVOCs Level μg⁄m3 | TVOCs Level (ppb) | Level of Concentration | Air Quality |
---|---|---|---|
<300 | <67 | Level 1 | Excellent |
300–1000 | 67–222 | Level 2 | Good |
1000–3000 | 222–665 | Level 3 | Moderate |
3000–10,000 | 665–2218 | Level 4 | Poor |
10,000–25,000 | 2218–5545 | Level 5 | Unhealthy |
Parameters | Value | Remarks |
---|---|---|
Power | 3.3–5.5 V | Supercapacitor |
Interface | I2C, Wi-Fi | |
Sensing range [31] | 450–2000 ppm | CO2 equivalents |
125–600 ppb | TVOCs equivalents |
Block | Testing Parameter | Result |
---|---|---|
Power source | Charging and discharging process | Good |
Supercapacitor | Good | |
Processor | Reading the sensor and wireless connection | Good |
Wireless | Scanning and connection ability | Good |
Test Objects | TVOCs Value (ppb) | ||
---|---|---|---|
VOCs Sensor Node | Validator | Error | |
Indoor air condition | 211 | 254 | −43 |
Detergent | 278 | 325 | −47 |
Floor Cleaner | 305 | 342 | −37 |
Perfume | 354 | 374 | −20 |

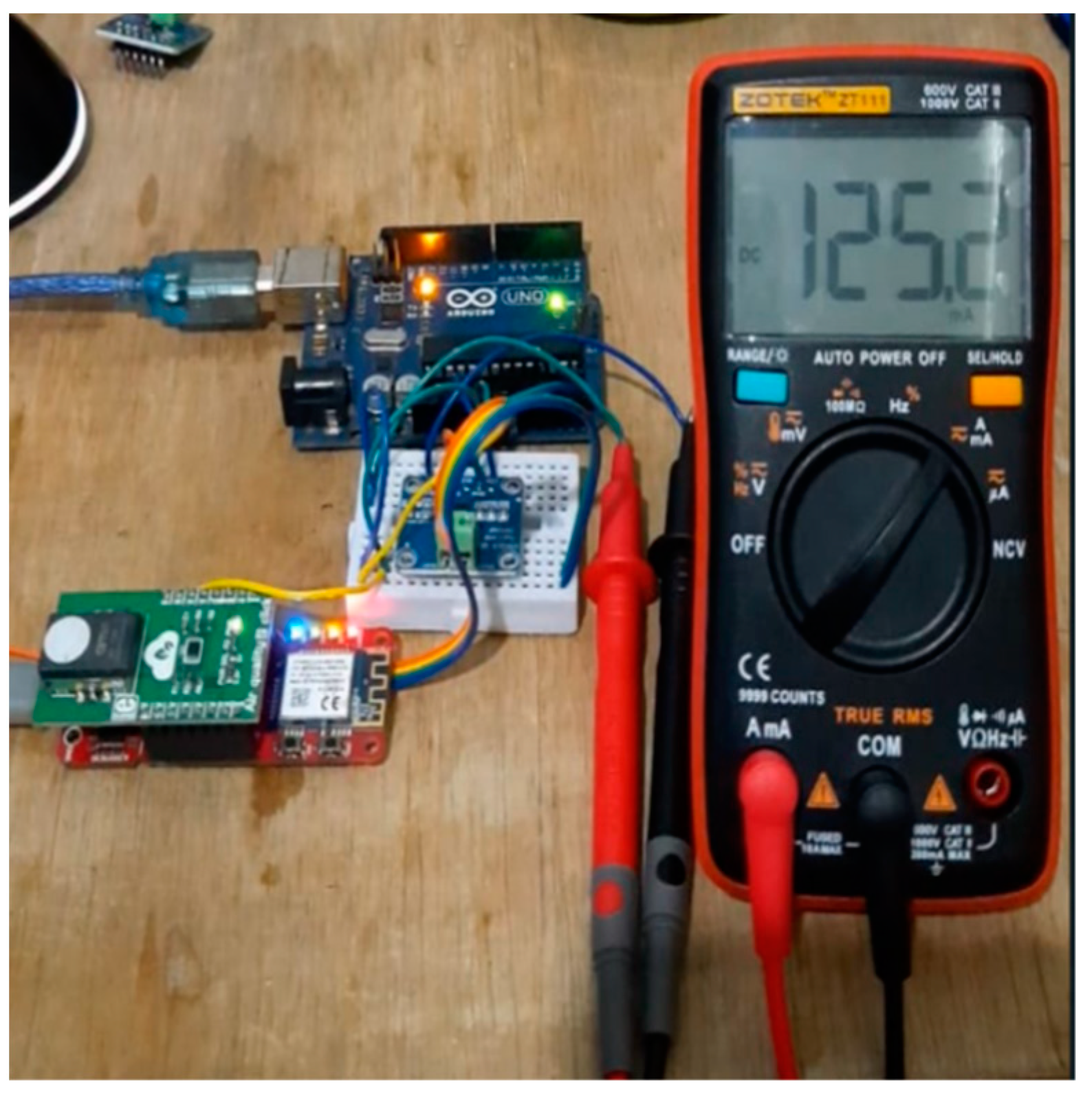

Load Test | Current Value (mA) | ||
---|---|---|---|
1NA219 | Multimeter | Accuracy (%) | |
VOCs node sensor | 119.90 | 120.02 | 0.10 |
VOCs node sensor with activated 4 LED | 125.90 | 125.20 | 0.56 |
VOCs node sensor with transmitting data to the cloud | 121.50 | 120.50 | 0.83 |
Load Test | Voltage Value (V) | ||
---|---|---|---|
1NA219 | Multimeter | Accuracy (%) | |
VOCs node sensor (VCC) | 3.27 | 3.3 | 0.33 |

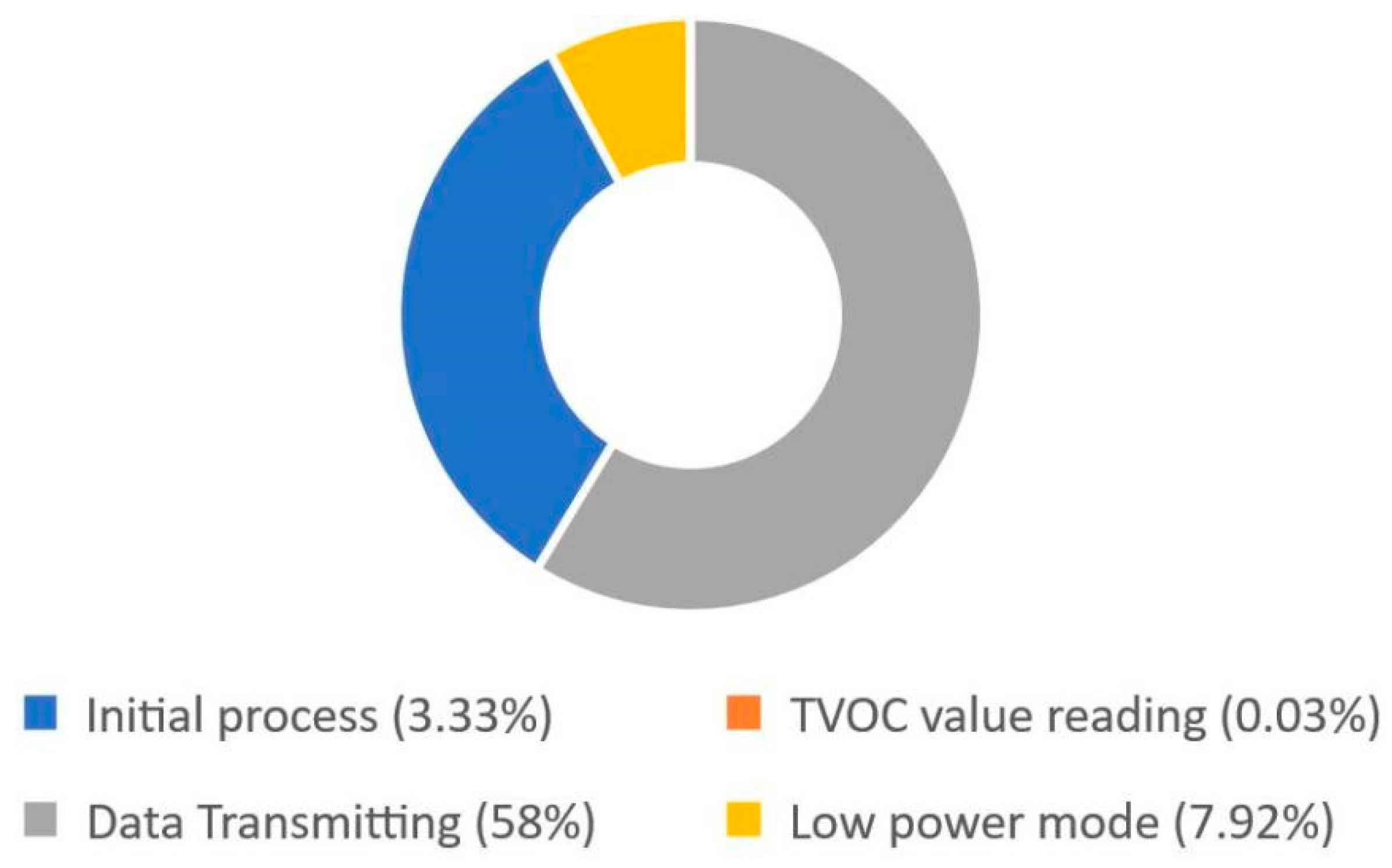

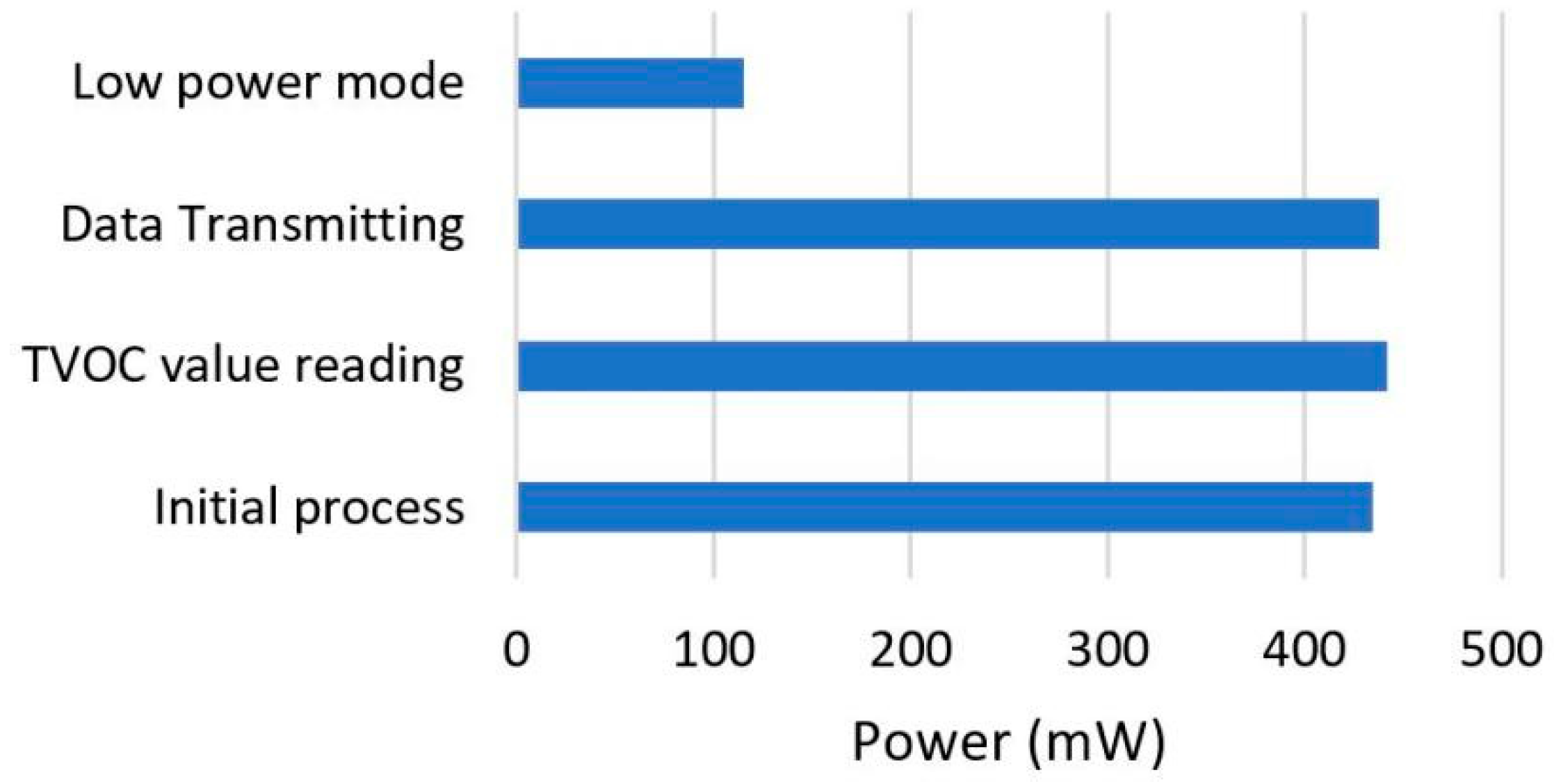

Process | Power (mA) | Time (ms) | Power Source Capacity (mAh) |
---|---|---|---|
Initial process | 132.90 | 2005.00 | 0.07 |
TVOCs value reading | 135.20 | 2.00 | 0.01 |
Data transmitting | 134.00 | 3514.60 | 0.13 |
Low power mode | 35.30 | 1800.00 | 0.02 |
Total power consumption | 0.22 |
Measurement Area | Location | Room Description |
---|---|---|
University | Laboratories of University |
|
University | Dormitory of University |
|
