1. Introduction
As a common porous building material, engineering concrete is widely subjected to complex and uncertain conditions including large temperature variations and high frequency periodicity in cold regions, which make frost damage a very common difficulty in dams, locks and other hydraulic concrete structures. Over the past century, the research on the performance degradation caused by the freeze-thaw process on concrete has made great progress [
1]. It has been proved that the frost damage caused by pressure involves the transfer of inside liquid water, which is attributed to the expansion process of ice crystals. Similar attributions also include hydrostatic pressure, osmotic pressure, fatigue stress, bond spalling, etc. According to these above attributions, the main reasons for mortar performance deterioration can be classified into boundary conditions, thermodynamic parameters, water saturation, characteristics and distribution of pore structure [
2,
3,
4]. However, the existing theories show that it is still difficult to avoid all frost damage in concrete [
5,
6]. The stress caused by the temperature cycle and humidity fluctuation will lead to cracks inside the concrete structure. The integrity, stability and durability of the system will decrease with the loss of strength and stiffness, and the stress can even induce foundation penetration cracks in the structure [
7].
As a heterogeneous material, cement paste is composed of irregular admixtures, various hydration products and residual pores [
8,
9]. The size distribution of concrete pores may span seven orders of magnitude (1~10
7 nm) [
10]. The heterogeneity is enhanced by the presence of aggregate, which is significantly different from the pore structure of the surrounding hydrated cement paste, and affects the pore distribution in the interface transition zone. In order to obtain the pore characteristics and thermodynamic properties of materials, the systematic experimental techniques, such as nuclear magnetic resonance (NMR), scanning electron microscope (SEM), computerized tomography (CT), thermal-mechanical analysis, ultrasonic and dielectric measurements are applied to form many frost damage theories, which is widely used to elaborate the damage mechanism of saturated mortar to explain all phenomena with sub-freezing [
11,
12,
13]. The CT technology adopted in this paper can effectively realize the dual identification of pore structure and the moisture condition. Both local macro damage and micro damage can be deduced by analyzing the characteristics and evolution law of microstructure damage during the frost process. At the same time, CT technology can provide a three-dimensional reconstruction model for numerical simulation [
14].
Numerical analysis is a more suitable approach for the calculation of three-dimensional structures under the action of coupling fields in complex working conditions [
15]. Olsen [
16] designed a two-dimensional finite element model considering the influence of humidity, temperature, pore pressure and other factors to simulate the freeze-thaw process of concrete under the condition of water saturation. With the stress-strain relationship of multiple pore systems as a foundation, Bazant [
17] conducted tests and measured the relative humidity and temperature at the center and surface of specimens. Although the relationship between pore pressure and strain and equivalent stress was introduced to establish a mathematical model for predicting the frost durability of concrete, the model has not been widely adopted in practical engineering due to the difficulty in calibrating parameters of the model and the great difference from the actual measured values to the model results. In addition, the thermodynamics viewpoint is introduced into the elastic pore theory, and the expression of the relation between pore pressure, stress strain and temperature is put forward by Coussy [
18].
From the view of the micro level, the simulation of the freeze-thaw process of fully saturated mortar has been extensively discussed in the two-dimensional model by Zuber [
19]. On the basis above, we expanded a set of 2D control equations of freezing process to a 3D model, which consists of differential equations involving matrix deformation, the transform pressure between water and ice formation along with the temperature field distribution in pores. These equations are applied for the numerical rule of the volume strain distribution in porous materials with the freezing temperature field [
20]. The complexity of the equations lies in the coupling relationship between the liquid transfer and ice formation within the pore structure, and the pore structure stress response exposed to the temperature boundary during the cooling process.
Practical experience shows that the finite element method can integrate the temperature, structure and seepage fields into a unified program for calculation, and can adapt to complex irregular boundary conditions. Nevertheless, the THM coupling problem during frost has received less attention so far. The coupling effect can be decomposed into the following three main contents: the seepage control equation can be used to study the water immersion path and water storage state; the thermal conduction equation tends to simulate the physical effect of heat on pore water suffered with the rapid drop of temperature; the stress-strain relationship in the two-phase pore structure was solved by a physical mechanics equation. In this work, a new three-field coupled model, which was used as an extension and recalculation method of the two-dimensional model, was proposed to obtain a more reasonable simulation of the physical phenomena during frost [
21].
In the first part of this paper, the relationship between the freezing point of pore water and the critical radius of frozen pores is briefly reviewed and extended by deducing the loads borne on the pore structure of porous mortar under freeze-thaw conditions, so as to accurately reproduce the influence of the freezing process on the mechanical properties of material. Then, by using extensive derivations in the literature, from general physical formulae through to parameter’s definition, a coupled THM model for calculating pore water pressure under freezing conditions is proposed. In particular, the local thermodynamic equilibrium equation, which takes into account the effect of the latent heat of phase transition on the temperature field is considered to show the applicability of the model in reproducing the main effects of freezing damage on concrete properties. Finally, a 3D model of a 50 mm × 50 mm × 50 mm concrete member was reconstructed with CT technology, and the finite element numerical simulation was carried out to verify the ability of the model to capture the experimental behavior of the member.
By studying the existing damage mechanism of freeze-thaw and the feedback of the pore structure to the thermodynamic boundary, the mix proportion design of concrete composition under different working conditions can be optimized through exploring the huge difference of water transport under different pore structures, which is conducive to finding feasible measures to reduce freezing damage, such as the research and development of air entrained concrete [
22,
23]. The establishment of reasonable numerical simulation of freeze-thaw damage mortar needs to be considered comprehensively from the micro-mechanics to overall behavior, which is still in the exploration stage for more attention.
3. Mass Conservation and Phase Equilibria during Ice Formation
The critical phase transition temperature of pore water scales down with the decrease of pore size. In the freezing process in fully saturated pores, according to mass conservation, the variable quantity of liquid water is the sum of consumption due to the Darcy-flow and freezing. Assuming that the specimen is a water storage model with no internal flow, the increase mass of ice is equal to the consume mass of liquid [
37], and
, then the relation between the consume volume of liquid and the increase volume of ice can be written as:
where
is the porosity,
is the time increment,
is the volumetric fraction of liquid and crystal, respectively.
Assuming that the concrete remains fully saturated with water in ideal spheres, and ice fills the remaining pores at any given freezing temperature, the pore volume content of the adsorption layer is
, and the total volume of the pore adsorption layer above the critical radius can be expressed as
, where
, and
,
are respectively the proportions of ice and water in pores, n is the total porosity,
is the variable volume from water to ice in the pores when the freezing point is
, notice that
is also the difference between the accumulated volume of frozen pores and the volume of the adsorption layer, and can be expressed as:
In the formula, the pore data of the mortar specimen with a water-cement ratio of 0.6 was collected by the mercury injection method (MIP), and calculated and analyzed for the fitting curve of the pore diameter distribution which was obtained as
[
38]. As the temperature reaches below freezing point, the freezing amount for each 1 °C reduction, freezing rate
leads into a rapid growth stage.
where
is the freezing mass of water, and
is the density of water.
The consume volume of liquid can be obtained as follows:
The increase volume of ice can be obtained as follows:
where
are the compressibility modulus of water, mortar and ice given by Zuber and Machand [
19],
is the pressure from water and crystal respectively,
are the coefficients of linear expansion,
is the temperature decrease rate,
is the change of the volumetric strain,
is the Biot’s coefficient, usually taken as
,
is the compressibility modulus of the drained porous material,
is the change rate of solid mass,
is the volumetric flow of liquid solution, as a fluid flux to the pressure gradient with a transfer coefficient
,
,
is the material permeability coefficient,
is the dynamic viscosity of water.
According to Equation (8), substituting Equation (11) and Equation (12), it can be given as follows:
In order to simplify Equation (13) for the physical significance, the source term
, is composed of four parts. The freezing rate can be taken as
as mentioned in Equation (10), the compound linear expansion coefficient of the system can be noted as
, the difference between the hydrostatic pressure and average pore pressure can be noted as
, and the pressure difference generated by capillary action from the water coupled with ice in pores can be expressed by
[
39].
According to the laws of mass conservation and Darcy’s law, water migration in the concrete system could be represented with the seepage control equation as follows [
15]:
where
is the suggested effects result from the compressibility modulus and the pore structure distribution,
is the change of the volumetric strain,
is the volume expansion coefficient of water, ice and the matrix, and
is the density of ice and water, respectively.
According to the material parameters and pore structure distribution derived in
Section 2, pore water pressure is mainly affected by
before freezing, and affected by freezing rate
during freezing. In conclusion, the formation of ice in a pore structure triggered two effects, namely pore water pressure and structural strain during the freezing process. The pressure source of pore water with the independent temperature decrease rate
.
4. Heat Balance upon the Sub-Freezing Process
The phase transformation and diffusion behavior of water in the mortar specimen is similar to that of a dispersed heat source or radiator. In addition to thermodynamic boundary, the rising and falling variation of the temperature field is mainly influenced by the latent heat of water during freezing-thawing in the pore space [
40]. The fact that the latter two quantities contain the pore adsorption heat and heat transfer through water can be ignored in the heat conduction differential equation.
The latent heat of pore water will be released at the airside during phase transition. However, in the numerical calculation, it can be considered that the latent heat is released gradually when the transformation temperature ranges from
to
,
is a small amount less than 1K near the freezing point. Therefore, the temperature control equation can generally be written as [
41]:
where
is the mortar density,
kJ/kg is the latent heat of water as phase transition,
and
are the thermal conductivity and isobaric heat capacity of mortar,
is the Laplace operator, and
is a transition function.
The introduction of latent heat during phase transformation, which creates a condition for obtaining the temperature distribution of mortar specimen and the coupling relation involved water migration and strain. Because of the gradual release of latent heat, during the slow freezing-thawing process, the heat conduction process is transformed into the basic equation of solid heat conduction as , which is no longer within the coupling research.
According to the temperature control equation, the freezing rate, pore stress and strain at any point inside the specimen can be obtained accordingly on the basis of the instantaneous temperature distribution of the mortar specimen. In this paper, the variation method is adopted to solve the temperature field of the finite element specimen for studying the relationship between the calculated value and the experimental value.
The variation principle is a universally applicable basic conservation law in the physical world, which is also known as the principle of least action. The variation method is a mathematical programming method that takes the variation principle to access the minimum value of function under the physical constraint equation. For the space temperature field [
15], the functional equation can be expressed as:
where
is the volume fraction within the solution domain, and
is the surface integral on the boundary of the solution domain.
is taken as a function of the temperature field
.
is a function of temperature field
and temperature gradient
,
and
. The value of the functional
depends on
. That is to say, finding the most suitable
and
among all the temperature fields satisfies the temperature boundary conditions, so that the net heat inflow into the system is minimized.
For the spatially unstable temperature field in three-dimensional region
, the heat conduction equation can be described as:
where
is the cooling rate due to the latent heat from phase transition,
and
are the thermal conductivity and isobaric heat capacity. The temperature conductivity coefficient is
with the unit
. The initial instantaneous temperature distribution could be considered as a constant which suggests that if
,
.
Assuming that the exothermic coefficient on the surface of the mortar specimen is large enough, the surface temperature
is equal to the air temperature
, which meets the first boundary condition
. Take a function as:
Substitute into Equation (16) and get the functional as follows:
This formula is to obtain the volume integral with the variation principle in the domain . When the temperature is taken as a known temperature on the boundary, this leads the functional represented by to minimum, then the obtained temperature field satisfies the heat conduction Laplace Equation (18) in the region , and the temperature at any point inside the specimen, that is, the unstable temperature field can be obtained.
Divide the solution area into a numerical model with finite elements [
42], then the nodes of one is
, the node temperature
is a function of time
, and the any point temperature in the element can be defined as:
where
and
are the coordinate shape function and temperature column vector of each node in the element, respectively. In the functional within the subdomain, it is assumed that the variation difference
at temperature can be ignored. In order to obtain the minimum value of the functional
, take the derivative of the integral. It should be written as:
where
,
and
are the elements of the conducting matrix.
The conducting matrix is supposed as
. With time points contiguous
and
, substituting the matrixes into Equation (21) for the connection between time and temperature known as
, the temperature field leads into the equation as follows:
With equations above, the only unknown quantity is the temperature on each point in the element, so for the temperature field of the element node at , it is that to solve the linear system of equations with respect to . The formation of ice crystals is controlled by the temperature field and pore structure, and then affected by pore water migration and stress distribution. This is the basic idea to obtain the temperature field of mortar.
5. Numerical Simulation for Saturated Mortar
Equations (9), (17) and (18) derived above are very complicated, and it is almost impossible to obtain theoretical solutions after simultaneous operation. Therefore, numerical solutions are sought by means of finite element programs based on partial differential equations to predict the temperature distribution, strain and frozen water content in specimens. In this paper, the latent heat of phase transition is incorporated into the heat conduction equation in the process of pore water freezing to simulate the coupling calculation with seepage, temperature and stress.
The model specimen adopted was used to simulate the standardized laboratory rapid freezing-thawing test, which is immersed in water for seven days to achieve saturation before rapid freeze-thaw cycles at the age of 28 days. A 50 mm × 50 mm × 50 mm cube of concrete was cut from a 100 mm × 100 mm × 100 mm with a water-cement ratio of 0.6. Based on the CT image scanning technology of the concrete specimen, 1000 slice images of 50 mm × 50 mm were formed. The image signal, which consists of cement paste, hydration products and cement particles was discretized separately and preprocessed by MATLAB. After that, the two-dimensional image was reconstructed into a three-dimensional structure numerical model to calculate the temperature distribution of the specimen in the freezing-thawing process. The two-dimensional scanning image and the reconstructed three-dimensional structure are respectively shown in

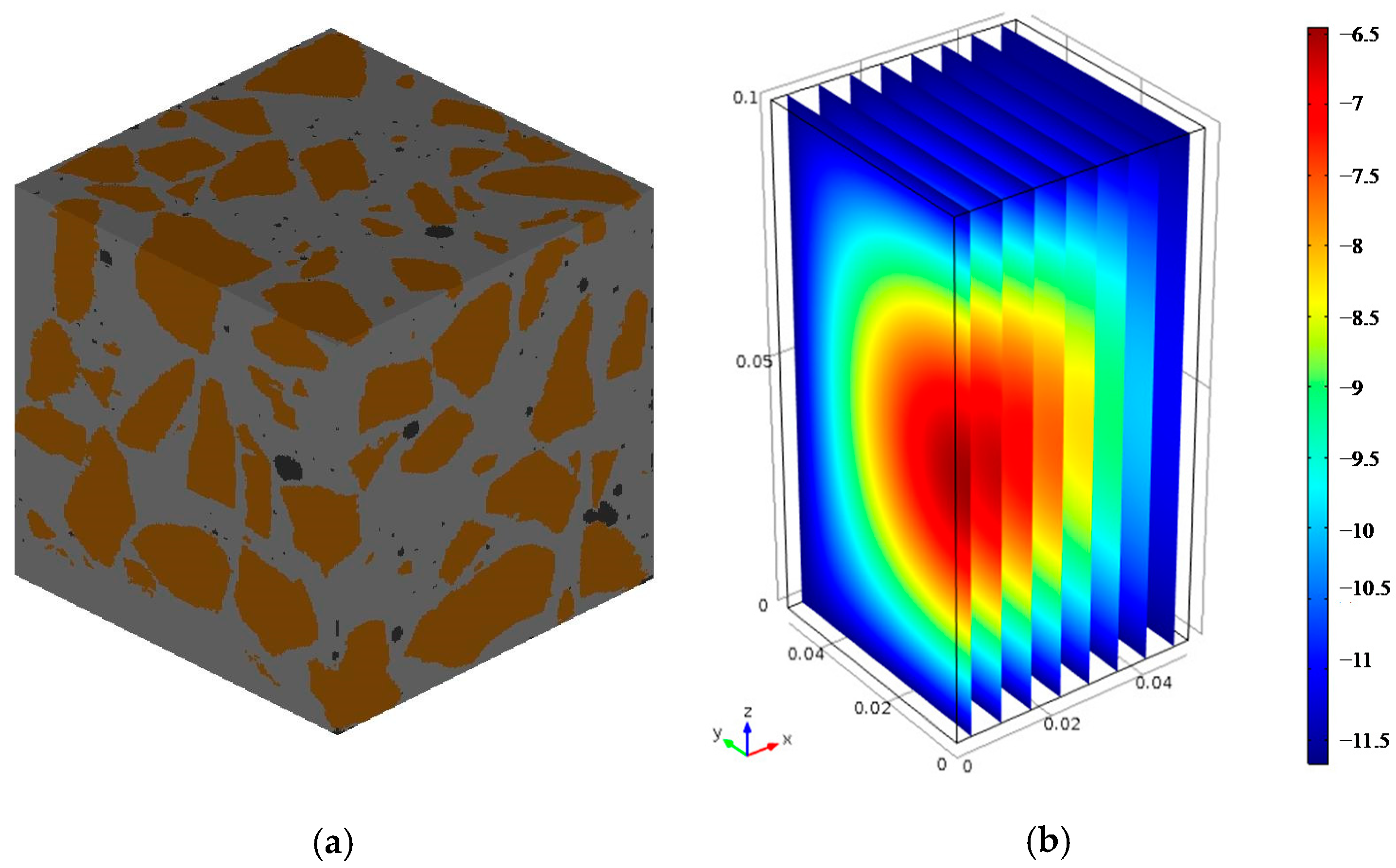

Figure 2b and
Figure 3. Due to the complexity of material composition, the three-dimensional structure was partitioned into one million hexahedral mesh elements in order to make the solver converge and produce solutions with high precision. The time step size was self-adaptive below 1s with the relative tolerance for convergence 0.01.
In the finite element calculation process, the initial temperature of the model was set as 10 °C in a free state without pore water pressure, and the latent heat of water-ice phase transition in the pore structure was applied to the calculation area as a distributed heat source. Furthermore, 1 and 2 are symmetry surfaces of the original specimen, 3~6 are boundary surfaces communicated with external, the temperature of which decreased gradually from initial temperature
°C to the lowest temperature −20 °C within 3 h except the top face, which could be expressed by
with the cooling rate 10 °C/h. The schematic diagram and two-dimensional scanning image are shown in
Figure 2a with the center point C, surface point F and the intermediate point M. The hysteresis decreases with the distance from the center point C.
The relevant parameters for temperature field analysis are shown in
Table 1. The thermal conductivity is extracted from the literature published by Zuber’s study on the volume instability upon freezing [
19], the density, total porosity, and thermal conductivity, and heat capacity for water/ice are from the research on ice physics by Bazant [
17], and the latent heat of water is adopted from G. Fagerlund [
24]. The numerical analysis for the motor not only can be used for the size influence on temperature hysteresis effect intuitively, but also a method to research for the temperature stress sensitivity effected by the physical parameters, such as elastic modulus, Poisson’s ratio, thermal conductivity and specific heat, and linear expansion coefficient. The results of the macro numerical analysis show the importance of rationality input parameters on the frozen damage process. The boundary conditions and pore water pressure are indicated in
Table 2.
The temperature field calculation results of the specimen are shown in
Figure 3.
5.1. Temperature and Freezing Rate
The numerical model was established with the material parameters and boundary conditions, and the temperature changes at the center point C, the half-center point M and the surface point F of the model were derived through the finite element method. As can be seen from the process diagram
Figure 4, the temperature gradually decreased from inside to outside at the same time, and compared with the surface of the specimen, the temperature drop at the center point C lagged significantly.
The difference in the initial stage is mainly caused by the initial temperature, subsequently it is mainly affected by the size and the thermal conductivity coefficient of mortar, which makes the difference between them gradually increase. After the temperature drops to 0 °C, the temperature curve appears to stay in a long platform due to the released heat from freezing. The temperature difference of internal and external reaches the maximum to 10.73 °C as the boundary temperature drops to −10 °C, indicating that latent heat is released at this stage, which remains the temperature in local areas at a high level during the freezing transformation. Along with the completed freezing, due to the large temperature difference and thermal conductivity, the temperature curve will decrease rapidly until it is consistent with the external cooling rate. The stable material parameters and boundary conditions keep the temperature difference at about 8°C between center and surface.

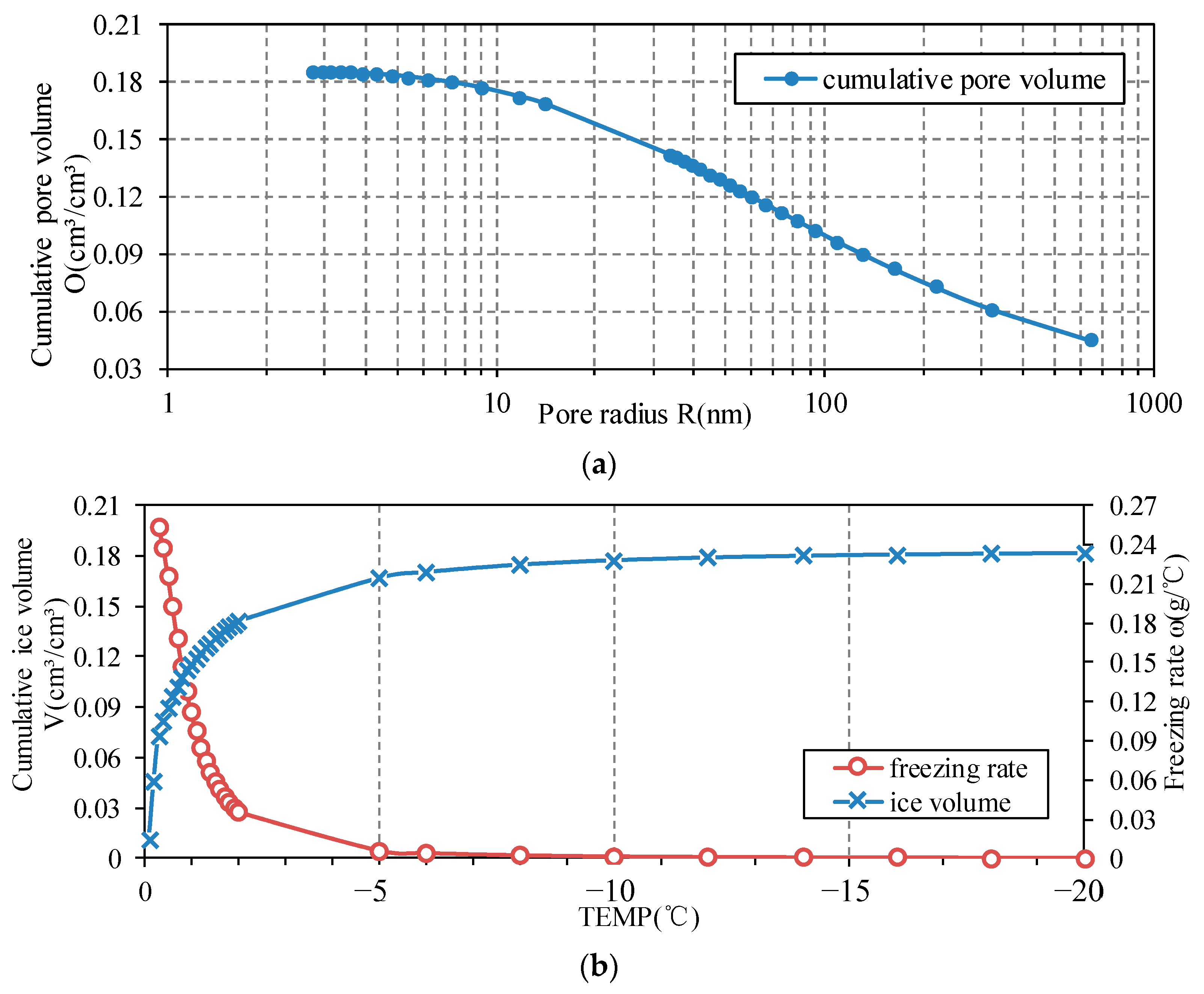

According to the third section, the porosity of the mortar specimen is 0.1861. As the overall temperature decreases, the critical pore radius of phase transition gradually decreases, which indicates that the ice crystal is framed based on the pore structure and forms in the large pores until the tip of the ice body reaches the equilibrium of the curved liquid surface. As a result, the size of the equilibrium ice crystal continues to decrease, it grows into the smaller pores and increases the overall freezing amount. The freezing volume in the specimen is therefore affected by both boundary temperature and pore structure, which is the difference between the accumulated pore volume over the critical radius and the accumulated volume of attached water. The pore structure and freezing rate are shown in
Figure 5. According to the calculated data, when the temperature is −5 °C, the cumulative pore volume of about 15 nm is 0.168, accounting for more than 85% of the total pores in the model, 15 nm is close to the lower limit of the pore radius identification capability of MIP technology.
5.2. The Coupling Strain from Freezing
The thermodynamic equilibrium state is always effective for capillary and closed pores before and after freezing. Although the crystallization of pore water will produce 9% expansion and cause unfrozen water flow, frost heave deformation generated is small enough to be negligible with medium saturation upon most occasions, and most of them would be reversible in the process of heating and melting, at which time, the specimen tends to shrink without expansion. In this study, it was assumed that the specimen was in a saturation state to ensure that all pores were filled with water, so that the deformation occurred during the phase transition exceeded the tensile strength of the material and plastic failure occurred.
Beginning at 10 °C, it is known to all that the temperature was lowered stepwise with a defined cooling amplitude and rate, pore water does not freeze above 0 °C, and the specimen will be in a continuous contraction state resulting in negative pore pressure, which is mainly affected by the linear expansion coefficient of the system, otherwise the temperature drops over 0 °C. The rapidly increasing pressure from the ice formation and the hydrostatic pressure caused by freezing progressively, make it transition to the main source of pressure leading to an obvious expansion. The maximum vertical strain was 4.27 × 10−6 at approximately −10 °C.
As the temperature continues to drop, the freezing rate slows down with the unfrozen water in the pores decreasing, and the pressure gradually releases as discussed in the previous section. The tension of the water-ice and linear expansion coefficient of the system gradually increase. Next, pure thermal contraction occurred as the third part of the pressure dominated. The contribution of water pressure source to the average pore water pressure is shown in
Figure 6.
The temperature distribution was obtained from the control equation in
Section 3, from which the freezing rate and ice volume in pores can be deduced. Among the sources of water pressure, the freezing rate and linear expansion coefficient of the system consist of the main factors affecting the strain. The accumulated temperature strain and accumulated frost heaving strain at the surface point F are shown in
Figure 7.

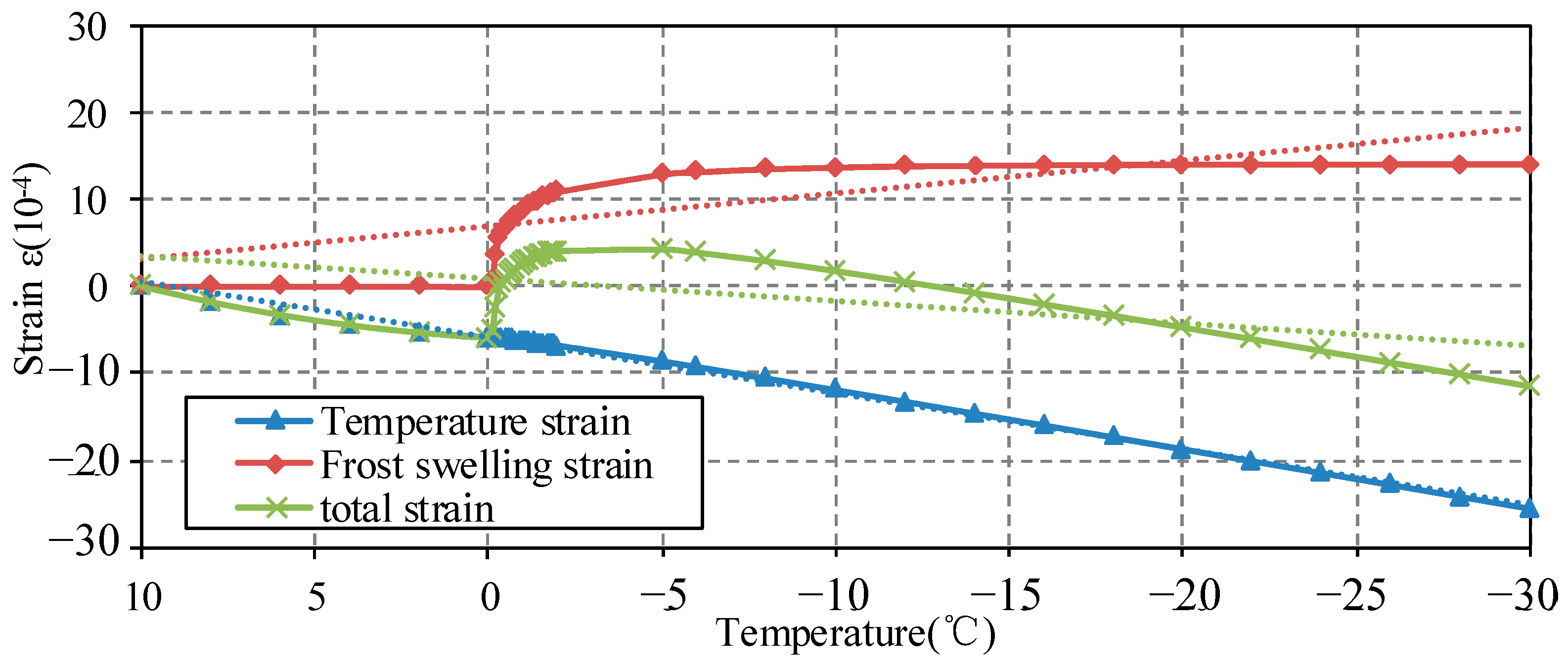

As seen from
Figure 7 in the positive temperature zone from 10 °C to 0 °C, the total strain of surface point F reduces with the decrease of the external temperature. The strain is distinctly affected by the system linear expansion consisting of mortar and pore water. As the linear expansion coefficient of the specimen changes with the water expansion coefficient, the pore pressure is in the state of negative pressure. When the temperature drops to 0 °C, the pore water freezes and expands, resulting in pore pressure acting on the mortar specimen to counteract the cold shrinkage deformation, so that the expansion amount of the specimen increases rapidly. At the same time, due to the expansion coefficient of ice 159 × 10
−6°C
−1, which is much higher than the expansion coefficient of mortar material 30 × 10
−6°C
−1 (−10 °C), the freezing amount continues to increase in the new cold shrinkage space. With the freezing completed in large pores, the freezing rate slows down at the same cooling rate. When the temperature drops to −10 °C, the maximum strain at point F reaches 4.27 × 10
−4. After that, the total strain is again controlled by the linear expansion coefficient, and the strain decreases gradually with the temperature.
6. Further Discussion
Concrete is a quasi-brittle material, and its freezing is a coupling process involving stress, seepage and temperature field. Due to the heterogeneous nature of components, the pores with different sizes, shapes and connectivity will cause tensile stress during the frost process, which leads to the further expansion and extension of micro-cracks virtually. The crack width, density and connectivity of the surrounding concrete will increase with the increased number of freeze-thaw cycles [
43]. However, it is simplified to simulate a single frost of a closed spherical hole without rupture damage in this paper. In the partially saturated pore system without ice formation, the relative water pressure is always less than or equal to zero, so the initial condition of pore water pressure can be assumed to be approximately 0 MPa. The resulting negative pressure compresses the porous material, leading to a slight overestimation of the mortar expansion.
Based on the poromechanics considering the effect of phase change latent heat, the calculation shows that the results obtained from the developed mortar specimen multi-field coupling control equation can be used as a reference to the frost concrete which conforms to the basic physical law.
For conventional concrete, the tensile strength is generally about 1/10 of the compressive strength, and the long-term tensile limit deformation is about 1.2~2.0 × 10
−4. Without considering the difference influence of temperature between laboratory and field, the mortar specimens will face the risk of failure in this paper [
44].
It can be known from the temperature calculation, the frost depth increases with the temperature difference directly, thus, the specimen is affected by freezing at a depth of 0.1 m in the simulation. The temperature stress caused by the temperature difference of 20 ℃ is enough to destroy the concrete specimen calculated on the basis of elastic-plastic. In order to control the damage degree subjected with the changeless environmental temperature and building size, several aspects could be taken into consideration.
Control the size of some high-performance concrete structures within the frost depth to avoid the temperature difference large enough to cause freezing damage.
The main factor affecting frost resistance of hardening cement is the water-cement ratio. The strength or toughness can be enhanced by reducing water cement ratio appropriately.
Update the concrete mix ratio as needed and adopt various air-entraining admixtures to improve the thermodynamic performance.
Sticking the insulation board to reduce the direct influence of large temperature difference on concrete for antifreeze and heat preservation.
7. Conclusions
The bulk instability of concrete is caused by mass transfer between water and ice at temperatures below freezing point. Although the governing equations of the freezing process are known, a comprehensive fully coupled THM model is not yet available. In this paper, based on the principle of equilibrium, continuity and energy, the THM coupling model of concrete multiphase porous media is established considering the interaction between the change of water pressure and ice transformation with the latent heat in concrete.
In order to verify the proposed THM coupling model, a finite element program is used to realize the numerical solution of the three-field coupled equations, and the three-dimensional finite element analysis of the freezing process is carried out for the variation trend and peak value of the frozen strain. The numerical model can be used to evaluate the effects of pore size distribution, cooling rate, permeability, cross-section size and shape on freezing process.
The calculation method proposed in this paper laid a foundation for developing comprehensive tools for numerical simulation of frost damage deterioration in concrete. Because of the differences between the site environment and standard freeze-thaw test, freeze-thaw test data are difficult to apply to the durability evaluation. The future research, on the one hand, should pay attention to the relationship among the numerical simulation, laboratory test and field, on the other hand, the research method should be extended to the micro-scale numerical simulation to obtain the effective feedback of the real pore structure subjected to the subfreezing process, so as to form a theoretical and practical system that can be interpreted from the micro level to the macro level.
Finally, in order to predict the large residual deformation caused by material nonlinearity, the nonlinear constitutive relationship and damage behavior law of concrete should be considered in the future. Simulating crack propagation during concrete freezing can be a challenging task and is beyond the scope of this study. Considering the above phenomena, it is worthwhile to continue to develop the model.
