Analysis of Thermophysical Properties of Electro Slag Remelting and Evaluation of Metallographic Cleanliness of Steel

by
Josef Walek
1,*,
Adéla Odehnalová
2 and
Radim Kocich
1,*
1
Department of Metallurgical Technologies, Faculty of Materials Science and Technology, VŠB—Technical University of Ostrava, 17. Listopadu 2172/15, 708 00 Ostrava, Czech Republic
2
ŽĎAS, a.s., Strojírenská 675/6, 591 01 Žďár nad Sázavou, Czech Republic
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(18), 4613; https://doi.org/10.3390/ma17184613
Submission received: 13 August 2024 / Revised: 14 September 2024 / Accepted: 18 September 2024 / Published: 20 September 2024
(This article belongs to the Special Issue Metallic Materials: Microstructure, Phase Equilibria and Thermodynamics)
Browse Figures
Versions Notes

Abstract

:
Improving the competitiveness of steel companies is linked to sustainable, quality-compliant steel production. Therefore, new steel production technologies contributing to increased cleanliness of steel are continuously being developed and optimized. One way to achieve a high steel quality is to use electro slag remelting (ESR) technology. In this paper, the principle of ESR technology and the importance of fused slags for optimizing the process are outlined. The aim of this work was to analyze the main thermophysical properties of steel and fused slags used in the ESR process. Determination of the properties of steel and slags was performed using the FactSage calculation software, which involved the calculation of the liquid and solid temperature of steel and slags, the calculation and construction of quaternary diagrams, and the calculation of viscosity. The resulting quaternary diagrams revealed the substantial influence of chemical composition on melting temperatures of slags. In order to validate the acquired results, a CrNiMoV-type steel was subjected to investigation of its metallographic cleanliness and evaluation of its mechanical properties; the ESR process was shown to significantly improve the cleanliness of the steel and improve the mechanical properties of the steel compared to its cleanliness and quality when produced via vacuum degassing (VD) technology. During the ESR process, the average size of non-metallic inclusions was reduced from 20 μm to 10 μm, and the maximum size of non-metallic inclusions was reduced from 50 μm to 28 μm. The mechanical properties of the steel produced using ESR technology were impacted as follows: the ductility increased by 10%, contraction increased by 18%, notched toughness at 20 °C increased by 46%, and at −40 °C (respectively −50 °C) it increased by 30%.

Graphical Abstract

1. Introduction

The requirements regarding the quality and durability of contemporary produced parts and components made of both steels and non-ferrous metallic materials [1,2,3,4,5] are ever increasing, which is non-negligibly related to increasing requirements regarding the cleanliness and quality of the input materials. Electro slag remelting (ESR) is a highly valuable process in steel metallurgy due to its numerous advantages over other methods [6,7,8,9,10], such as argon oxygen decarburization (AOD) [11], a ladle furnace (LF) [12], vacuum oxygen decarbonization (VOD) [13], vacuum degassing (VD) [14], and vacuum arc remelting (VAR) [15]. ESR is extensively utilized for producing high-value-added alloys, such as special steels and nickel-based superalloys. One of the key benefits of ESR is the effective elimination of non-metallic inclusions, which is crucial for enhancing the quality of the final product. This process also facilitates effective slag refining, leading to excellent solidification structures in the produced alloy. Moreover, ESR enables chemical refinement and controlled solidification, making it a preferred method for manufacturing high-performance steels [6,7,8,9,10].
The principle of ESR is in the remelting of a formed or cast metal electrode, in the herein presented case represented by a steel ingot. The electrode is gradually melted in a water-cooled crystallizer by the action of molten superheated slag. The main objective of the ESR process is to achieve higher cleanliness and the desired microstructure of the remelted metal blank. The resulting remelted ESR ingot typically features a structure with grains favorably oriented parallel to its longitudinal axis. Segregation effects are advantageously suppressed during solidification. Compared to conventionally produced ingots, an ESR ingot is homogeneous across the entire cross-section. This process enables the production of specialized products with enhanced quality, a high degree of integrity of which is required [16,17,18,19,20].
The process of steel electrode melting uses thermal energy provided by continuous resistive heating of the slag by an electric current. Due to the high electrical resistance of the slag, the passing electric current generates energy, which heats and subsequently melts the slag. The metal electrode is in contact with the liquid slag and the thermal energy of the slag gradually heats the electrode face to a temperature above the melting temperature of the metal. Melting of the metal at the electrode face is accompanied by the formation of metal droplets, which drip through the liquid slag into the metal bath. The formation of metal droplets and their passage through the molten superheated slag of a specific chemical composition is accompanied by a series of chemical reactions occurring between the metal and slag. The remelting process is performed under a protective atmosphere of an inert gas to prevent the dissolution of gases—hydrogen, nitrogen, and oxygen—into the molten slag and metal [21,22,23,24,25,26,27,28].
The slag, which is used during remelting in ESR technology, is of great importance as it is the basic compound used to melt and refine the metal. As a number of chemical and electrochemical reactions occur during the ESR process, the chemical composition and physical and physicochemical properties of the slags have to meet high requirements, including suitable specific resistance, a favorable ability to absorb non-metallic inclusions, and protection of the metal from secondary oxidation and lubrication at the interface between the copper mold and solidifying steel [29,30,31,32,33]. In order to meet the required criteria, slags for ESR must have well-defined properties. The most important parameter for ESR slags is the melting temperature, which should be lower than the melting temperature of the metal. In contrast, the working temperature must be higher than the melting point of the metal, by approximately 200–300 °C. The slags should be easier to melt because the electrode could be melted during the process when using hard-to-melt slag. In addition, relatively easy-to-melt slags facilitate degassing of the metal bath. Other important properties of slags include electrical conductivity, density, viscosity, surface tension, and emissivity [34,35].
ESR slags are mainly composed of CaF2, Al2O3, and MgO. In order to achieve a more homogeneous composition and compact solidification structure, the thorough removal of non-metallic inclusions is important. Inclusions readily initiate microcavities and cracks at inclusion–steel interfaces. These can subsequently act as nucleation sites for fatigue fracture or the development of other defects. The formation of non-metallic inclusions in ESR steel is influenced by many factors, including the furnace atmosphere, the content of inclusions within the melt electrode, the amount of slag and its composition, the input power, the melting rate, the filling ratio, etc. Most of the non-metallic inclusions originate from reactions between oxygen and other elements, such as manganese, silicon, and aluminum [36,37,38]. The chemical composition of the non-metallic inclusions is an important parameter influencing the mechanical properties of ESR steels. There is a marked composition difference between the oxide inclusion compositions found in ESR steels as opposed to those in conventional steels. The mechanical effects of composition differences are widely described in the literature [39,40,41].
Schneider et al. [42] discovered that the composition and type of non-metallic inclusions change significantly during remelting. Slags with a high Al2O3 content result in the presence of Al2O3-type inclusions, while slags with a low Al2O3 content result in the presence of MA spinel-type inclusions. Shi et al. [43] found that the SiO2 content in the CaO-Al2O3-SiO2-MgO inclusions was significantly reduced after the ESR process in parallel with the increase in Al2O3 content. These CaO-Al2O3-SiO2-MgO oxide inclusions served as precipitation sites for (Ca, Mn)S. Schnieder et al. [44] found that as a result of open remelting in the presence of air and based on changes in the activity of slag constituents, the types of non-metallic inclusions after remelting change from high-Al2O3 inclusions for slags with a high CaF2 content to MA spinel-type inclusions for slags with a low or no CaF2 content. Li et al. [45] discovered that the inclusions in the electrode were CaO-MgO-Al2O3, most of which were in the temperature range that allows the presence of non-metallic inclusions, whereas the inclusions in the ESR ingot were predominantly based on pure Al2O3.
The removal of non-metallic inclusions in ESR occurs at the electrode tip, where non-metallic inclusions are absorbed and dissolved in the slag. As the electrode tip is heated to the melting point, the inclusions in the electrode re-dissolve before the metal melts. Any other inclusions, such as larger exogenous inclusions in the electrode, are not dissolved in the solid metal and are exposed to the slag when the electrode tip melts. If the composition of the slag is suitable, the temperature is sufficiently high, and the dwell time is sufficiently long, non-metallic inclusions will dissolve in the slag. However, further reactions may occur at this point due to differences in equilibrium constants. The flotation of large inclusions on the slag surface is also possible. At this point, the metal contains no non-metallic inclusions but can contain elements in solution that form inclusions via reactions during the solidification period. The efficiency of the removal of inclusions increases as the melting rate is reduced [46,47,48,49,50,51,52].
The aim of this study is to analyze and investigate in detail the main thermophysical properties of molten slags in the context of the ESR process. Using the FactSage computational software, the slag properties are investigated and described in detail, i.e., via a quaternary diagram, the liquid and solid temperature, the dynamic viscosity, and other important parameters. Systematic analysis revealing the effect of slag fusion on the metallurgical properties and quality of the resulting steel is performed. This comprehensive study provides a deeper understanding of the interaction between fusion slags and steel properties, and also offers valuable information and recommendations for optimizing ESR processes in industrial practice. As a result, improvements in the efficiency of production processes, as well as in the quality of the final product, can be achieved.

2. Materials and Methods

2.1. Defining the Input Data

The experimental work was focused on determining the properties of slag and steel during the ESR process. Figure 1 shows a scheme of an ESR device. The work was performed with the FactSage software (version 8.2 by GTT-Technologies, Herzogenrath, Germany), which is one of the largest fully integrated database computer systems in chemical thermodynamics. This software is equipped with a wide range of calculation and simulation modules, and the package consists of a number of information, database, and calculation modules that access various databases of pure substances and solutions. With FactSage software, conditions for multiphase and multicomponent equilibria can be calculated with a wide variety of tabular and graphical output modes. The software is typically used, among other things, to determine the properties of steel and non-ferrous materials, such as phase transformation temperatures, austenite decomposition temperatures, liquid and solid temperatures, and others. It is also able to determine important metallurgical parameters based on chemical composition and temperature [53,54,55,56,57,58]. Since all the herein presented chemical reactions occur on the basis of thermodynamic and thermophysical events, the software is unique as it enables to study the processes of interest occurring at the slag–metal interface and to determine properties of the slag based on the acquired results.
The main components of traditional, commercially available ESR slags are usually CaF2, Al2O3, CaO, and MgO. Other components, added either intentionally or present as unwanted accompanying compounds and elements, were not considered in the experimental calculations. For calculations of the slag systems, slags with different ratios of the basic components within the quaternary system of CaF2-Al2O3-CaO-MgO were defined. In order to provide results directly applicable in the industrial practice, the exact chemical composition of the slags used as the input data for the simulations were defined based on commercially available slags by WACKER Chemistry A.G. Germany (ESR 2052, ESR 3002 ELH) and ISOMAG GmbH, Austria (AKF 235)—see Table 1 for the chemical compositions.

2.2. Setting the Simulation and Calculations

At first, the ESR slags’ melting intervals were determined; the chemical composition of each slag, in wt. %, from Table 1 was entered into the Equilib module. For all the slags, the compounds were selected as pure liquids and pure solids. Using the Equilib module of the software, the solid and liquid temperatures of the individual slags and mixed slags formed as mixtures of the ESR 2052 and ESR 3002 ELH slags at ratios of 2:3, 1:1, and 3:2 were calculated. The mixture of the ESR 2052 and ESR 3002 ELH slag at a ratio of 2:3 forms a complex compound consisting of 40 wt. % CaF2, 30 wt. % Al2O3, and 30 wt. % CaO. At a ratio of 1:1, it forms a complex compound with a content of 50 wt. % CaF2, 25 wt. % Al2O3, and 25 wt. % CaO. The mixture at a ratio of 3:2 then forms a complex compound containing 60 wt. % CaF2, 20 wt. % Al2O3, and 20 wt. % CaO. The calculations of slag melting intervals were performed in the temperature range from 1000 °C to 1450 °C, with steps of 100 °C, and the equilibrium was set as normal + transitions.
Subsequently, changes in solid and liquid temperatures of the ESR slags were determined using quaternary diagrams. Quaternary diagrams can advantageously be used to graphically express changes in the temperatures of solid and liquid of slags, depending on the chemical composition. The quaternary diagram enables the evaluation of four component systems. The studied ESR slags are three-component systems of the main compounds, namely CaF2, Al2O3, and CaO, with consideration of the influence of another oxide with a constant content, i.e., magnesium oxide (MgO). In the phase diagram module for plotting the quaternary diagrams, the components of interest (i.e., CaF2, Al2O3, CaO, and MgO) were first entered. The temperatures were selected in the range from 1200 °C to 1800 °C. The individual peaks of the diagram were determined as A—CaF2, B—Al2O3, and C—CaO. These conditions were set to plot all the quaternary diagrams, and the only difference was in the input contents of MgO.
Last but not least, viscosity, being an important property of ESR slags, was calculated using the viscosity module of the FactSage 8.2 software. The viscosity was calculated as temperature-dependent for all the components present in the ESR slags according to Table 1. For the ESR process, the key working temperatures of slags are in the range from 1750 °C to 1800 °C. Therefore, the viscosity calculations were performed in this specified temperature range.
Since the ESR process is very complex and its progress depends not only on the thermophysical properties of the slag but also of the remelted steels, the calculations in the FactSage software also included determination of the melting temperatures of a steel. As an example, a commercially available medium-alloyed CrNiMoV structural steel, which is typically remelted via ESR technology in real industrial conditions, was taken. The typical average chemical composition of the steel, provided by ŽĎAS, a.s. steelworks, Žďár nad Sázavou, Czech Republic, which was used as the input data for the simulations, is shown in Table 2. The individual calculation parameters were set similar to the calculation of the individual slags melting intervals. For the used structural steel, the compounds were selected as pure liquids and pure solids. Calculation of the structural steel melting interval was performed in the temperature range from 1000 °C to 1550 °C, with steps of 100 °C, and the equilibrium was set as normal + transitions.

2.3. Experimental Validation and Analyses

In order to validate the calculated results, this study further involved experimental evaluation, i.e., analyses of samples from CrNiMoV structural steel forgings produced by means of VD and ESR technologies (chemical composition as stated in Table 2, provided by ŽĎAS, a.s.). For the preparation of the experimental material via ESR, the AKF 235 slag with the chemical composition as stated in Table 1 was used during remelting of the steel electrodes. Three samples of different melts from VD forgings and four samples of different melts from ESR forgings were taken for the analyses.
Firstly, the metallographic cleanliness of samples of the structural steel taken from the forgings processed using both VD and ESR technologies, according to DIN 50602 standard [59] using the K method, was evaluated. Subsequently, the samples were subjected to analysis of microstructures via scanning electron microscopy (SEM) using a JEOL device of JEOL, Ltd., Akishima, Tokyo, Japan equipped with energy-dispersive X-ray spectrometry (EDX) and electron backscatter diffraction (EBSD) detectors. Analysis of the inclusions was performed on samples taken from both the VD and ESR forgings. During the analysis, the type, fraction, and size of the present inclusions were primarily examined. Furthermore, the EDX analysis also enabled us to determine the distributions of chemical elements within the inclusions. For each sample (VD and ESR), a minimum of nine maps of distributions of chemical elements and point analyses of the chemical composition of the non-metallic inclusions, documenting their size and shape, were performed. The total of twenty-nine non-metallic inclusions from three samples from VD forgings and fifty-three non-metallic inclusions from four samples from ESR forgings were analyzed.
Last but not least, the mechanical properties of the CrNiMoV steel were evaluated to determine the influence of the production process on the quality of forgings manufactured by means of VD and ESR technologies. For the evaluation of the mechanical properties, six samples from forgings produced via VD technology and six samples from forgings produced via ESR technology were selected. The forgings from VD technology were heat-treated and quenched in oil, while forgings from ESR technology were heat-treated and quenched in water with subsequent tempering. The samples for tensile tests and notched toughness tests according to GOST V5192–78 with a U-notch were produced by means of machining.

3. Results

3.1. ESR Slags Melting Intervals

The values calculated for the examined slags were subsequently compared with the values for the AKF 235 slag given in Table 1. Figure 2 shows a graphical depiction of the comparison of the melting intervals for the investigated ESR slags.
As can be seen from Figure 2, melting of the slags occurs in certain temperature intervals, and the proportions of the liquid phase increase correspondingly. From the viewpoint of the ESR process, the temperature of slag liquid and the temperature interval between the solid and liquid phases are important parameters. The melting temperature intervals are significantly influenced by the chemical compositions of the slags. The slag solid temperatures were calculated to range from 1033 °C to 1208 °C, while the liquid temperatures ranged from 1261 °C to 1419 °C. The difference between the solid and liquid temperatures for the individual slags ranged from 124 °C to 299 °C. The results of the calculations imply that the temperature intervals between the liquid and solid phases are significantly different for the monitored mixtures. This will most probably significantly affect the quality of the ingot, especially during the initial melting phase of the ESR process. The fact that a different chemical composition of a slag, e.g., with additions of TiO2, SiO2 or B2O3, can influence the liquid temperature, too, should be stated [60,61].

3.2. ESR Slags’ Solid and Liquid Temperatures and Quaternary Diagrams

Quaternary diagrams of the CaF2-Al2O3-CaO slag system with constant MgO contents for temperatures from 1200 °C to 1800 °C are shown in Figure 3a–d, where Figure 3a shows a diagram for the CaF2-Al2O3-CaO slag system with 3 wt. % MgO addition, Figure 3b shows a diagram for the identical slag system with 2.5 wt. % MgO addition, Figure 3c shows a diagram for the slag system with 2 wt. % MgO addition, and Figure 3d shows a diagram for the slag without any MgO content. The colors of the curves in the diagrams depict the courses of isothermal curves for the corresponding temperature range in a selected scale. The upper temperature of the scale interval, i.e., of 1800 °C, was chosen according to the working temperatures of ESR slags in real conditions, which range from 1750 °C to 1800 °C. In technical practice, the requirements on ESR slag are mainly related to the liquid temperature of the remelted material. The ESR slag melting temperature is usually required to be about 100 °C lower than the liquid temperature of the steel. Further investigations of the slags were therefore focused on the temperature range from 1100 °C to 1450 °C.
From Figure 3a–d, we can clearly see that the concentration of MgO in a given slag system has a significant effect on both the shift and range of the melting temperature below 1400 °C. At higher melting temperatures, the effect of MgO is no longer significant. Since all the operationally used slags are fully liquid above the temperature of 1450 °C, further calculations of the quaternary diagrams and studies of the displacement of solid and liquid curves, when including the influence of MgO, were focused on the temperature range from 1100 °C to 1450 °C, with steps of 50 °C.
Figure 4a–c presents the quaternary diagrams of the CaF2-Al2O3-CaO slag system with varying MgO contents. Figure 4a shows a CaF2-Al2O3-CaO diagram for the slag ratio WACKER 2:3 and AKF 235 with 3 wt. % of MgO, Figure 4b shows a diagram for the slag ratio WACKER 1:1 with 2.5 wt. % of MgO, and Figure 4c shows a diagram for the slag ratio WACKER 3:2 with 2 wt. % of MgO. The quaternary diagrams again show the melting temperature of the examined slags, the concentration of the individual slag components is mentioned in the legend.
From a detailed study of the quaternary diagrams of the CaF2-Al2O3-CaO slag system with varying MgO contents, we can see that the isothermal region for the temperature range from 1200 °C to 1250 °C opens and widens with decreasing MgO content. The change in MgO concentration affects the course of the isothermal boundaries of the areas, especially in the upper part of the quaternary diagram featuring higher portions of the CaF2 component with the lowest melting temperature of the three main components of the slag system. Above a temperature of 1400 °C, the change in MgO concentration has a negligible effect on a shift of the isothermal boundary of a melting temperature range. In Figure 4a, the points show the chemical composition of a mixture of two WACKER slags at a ratio of 2:3 and AKF 235 slag with the identical content of MgO of 3 wt. %. The point in Figure 4b shows the chemical composition of a mixture of two WACKER slags at a ratio of 1:1 with MgO content of 2.5 wt. %, and the point in Figure 4c represents the chemical composition of a mixture of two WACKER slags at a ratio of 3:2 with MgO content of 2 wt. %.
In the quaternary CaF2-Al2O3-CaO slag systems with varying MgO contents, all the studied slag mixtures are located in areas that are chemically suitable for usage in ESR process conditions. Significant changes in the chemical composition of the studied slag mixtures with an impact on an increase in the temperature of the liquid above 1450 °C would have a negative effect on the course of the ESR process [62].

3.3. Viscosity of Slags

Table 3 shows different values of dynamic viscosity of the ESR slags calculated depending on temperature. The dependence of change in the dynamic viscosity on the chemical composition of ESR slags is obvious. The given values show that the dynamic viscosity decreases as the temperature increases; a comparable effect on the dynamic viscosity change can be observed with increasing calcium fluoride content in the slag.

3.4. Determination of Steel Melting Temperature

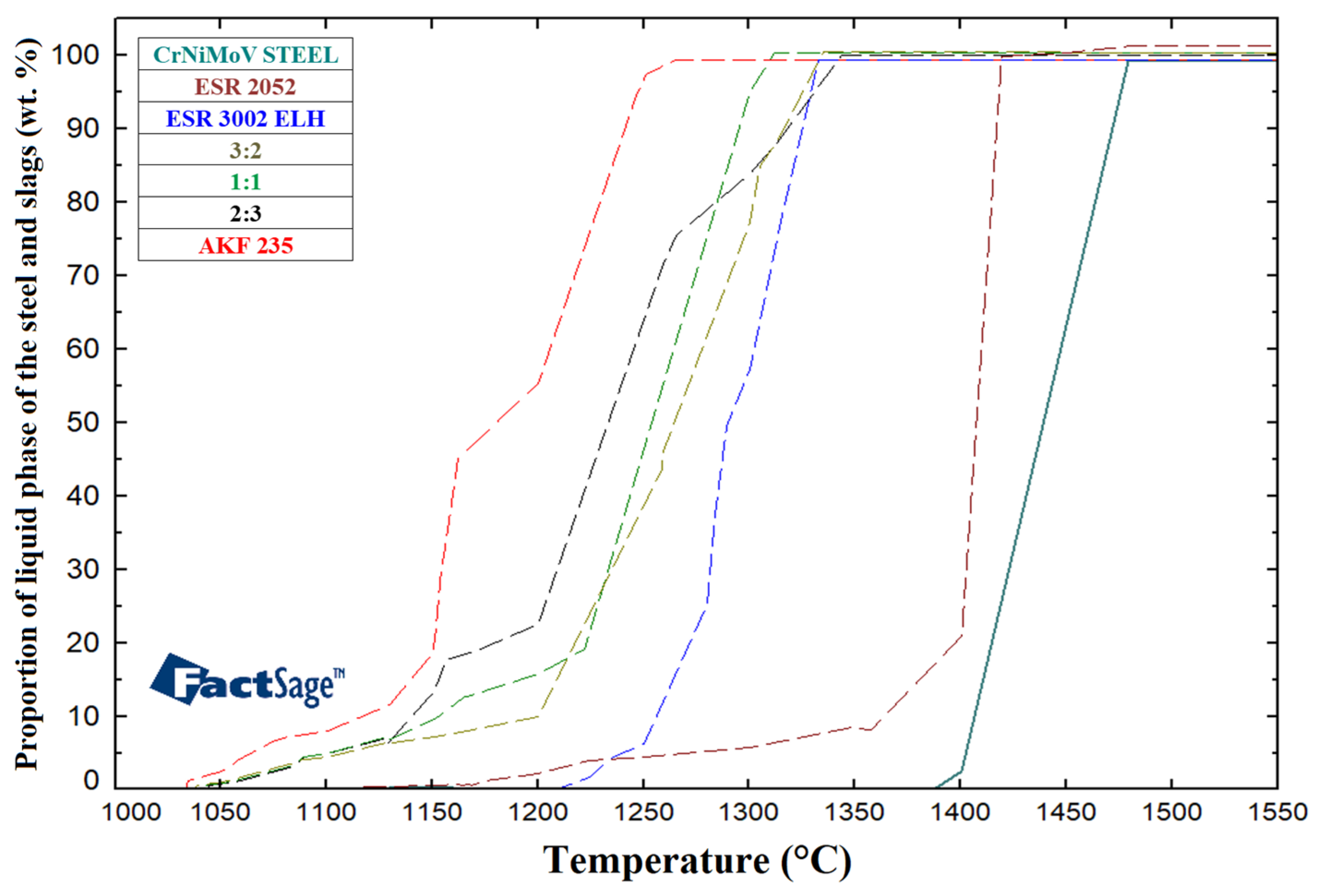

Assessment of mutual relations between the slag and steel using the Equilib module was carried out from the point of view of solid and liquid temperatures and melting intervals of the individual components represented in the ESR process. The results are presented in Figure 5. Obviously, the steel liquid temperature of 1486 °C is significantly higher than the temperature at which the studied ESR slags consist of a 100% liquid phase. The differences between the steel liquid temperature and slag liquid temperatures are defined by the difference between the steel liquid temperature (1486 °C) and the highest slag liquid temperature (1419 °C), which is 67 °C, and the difference between the steel liquid temperature and the lowest slag liquid temperature (1261 °C), which is 225 °C.
The high melting temperatures of ESR slags (almost reaching the solid temperature of remelted steel), and therefore small differences between the steel liquid temperature and liquid temperatures of the slags, can result in deterioration of both the surface and internal quality of final ESR produced ingots. In technical practice, however, the resulting quality of an ingot is also influenced by a number of other process parameters, e.g., the rate of melting and subsequent heating of the slag in the initial phase of the ESR process.

3.5. Metallographic Cleanliness of Steel

Table 4 summarizes the minimum, average, and maximum values of metallographic cleanliness according to the DIN 50602 standard for forgings acquired via the VD and ESR technologies. The K method characterizes the distribution of non-metallic inclusions into a scale from K4 to K0, where K4 means the greatest contamination of steel with the largest inclusions, and K0 represents the least contamination of steel with the smallest non-metallic inclusions. After the application of ESR technology, the metallographic cleanliness of the steel is significantly improved compared to after the application of VD. Non-metallic inclusions were only classified as K2 and higher, with the maximum value of K0 = 14.1 and average value of K0 = 4.5. After the application of VD technology, non-metallic inclusions were not assigned to K3 to K0, as the steel contamination was greater and corresponded to values in the K4 scale (the highest steel contamination).

3.6. Evaluation of Non-Metallic Inclusions

For the examined CrNiMoV structural steel, the average size of non-metallic inclusions was calculated, and their size range was determined from all samples from forgings produced by means of VD and ESR technology. The acquired results are summarized in Table 5. The average size of the inclusions in samples from the structural steel forgings processed using VD technology was 19.8 μm, and the largest non-metallic inclusions in the respective samples from VD forgings reached a size of 50 μm. On the other hand, the average size of non-metallic inclusions for samples from the given structural steel produced by means of ESR technology was calculated to be 9.5 μm, and the maximum size of the non-metallic inclusions within the structural steel samples produced via ESR was 28 μm. In addition to the observed change in the size of the non-metallic inclusions, their morphology was also changed after the ESR technology processing. The vast majority were globular inclusions (90%), although elongated or sharp-edged inclusions were also present (10%).
Together with electron microscopy images of the non-metallic inclusions, the presence of individual elements in the analyzed locations, marked in the images as EDS Spot 1 and EDS Spot 2, was graphically depicted. Figure 6a,b depict a large non-metallic inclusion present within a sample from the structural steel forgings produced by means of VD technology. According to the analyses performed in two individual points, as documented in the figures, this inclusion was evidently of an Al2O3 type. With its size of about 33 μm, this elongated non-metallic inclusion is among the largest found within the samples from forgings of the structural steel ingots processed by means of VD technology.

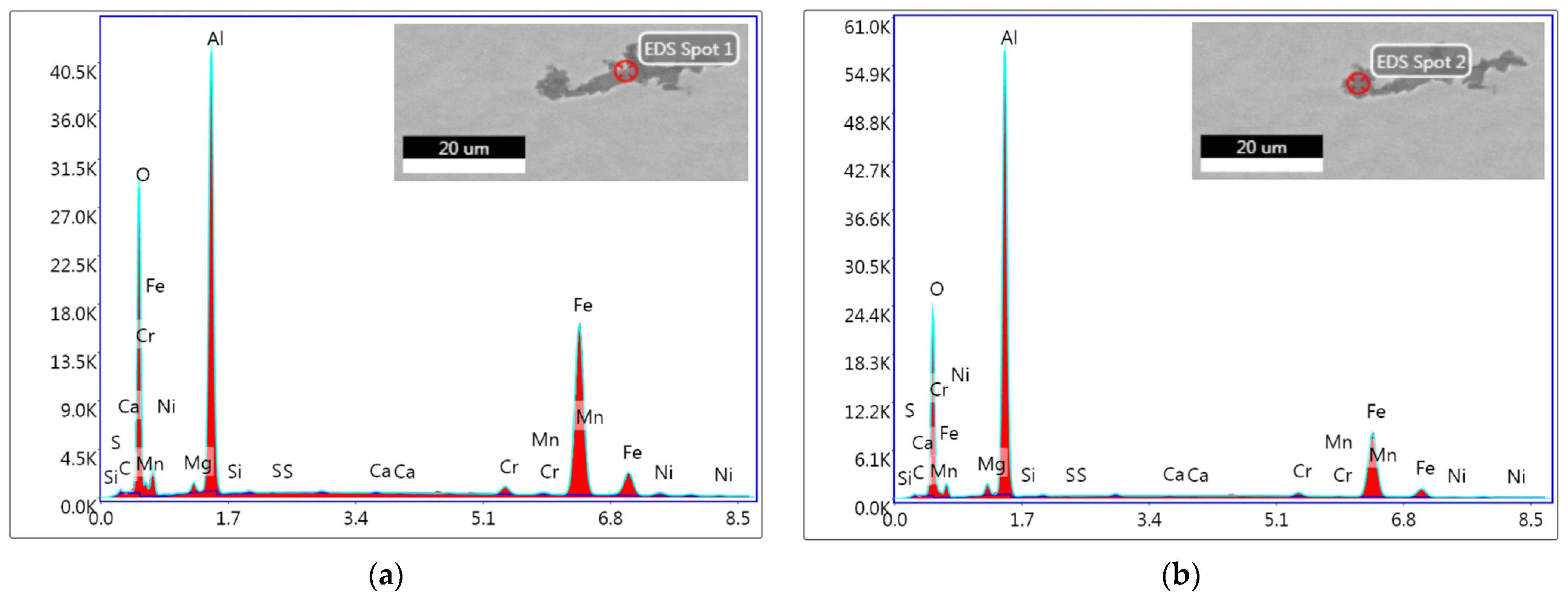

Figure 7a,b show point analyses of the chemical composition of non-metallic inclusions present within the structural steel forgings produced via ESR technology. In all the samples of the structural steel (various batches), numerous non-metallic inclusions of the Al2O3-MgO type were found (see Figure 7a,b). The size, i.e., the largest dimension, of the analyzed non-metallic Al2O3-MgO inclusion shown in Figure 7a was 8 μm, and in the case of the inclusion shown in Figure 7b, its size was 5 μm. Both the non-metallic inclusions with irregular angular shapes and comparable chemical compositions were found in the same area of analysis.

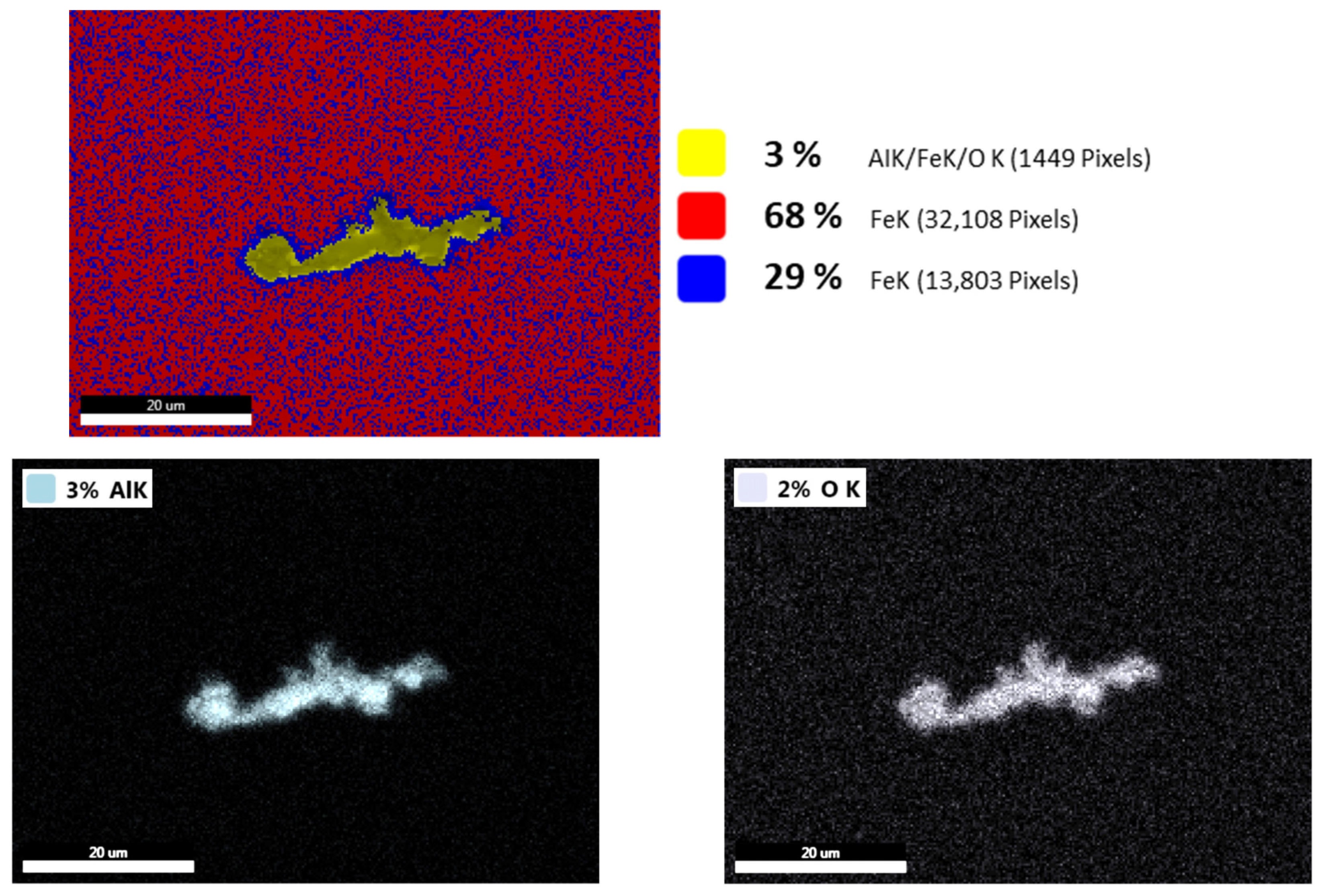

Rectangular areas comprising the examined inclusions and their surroundings were further selected for the thorough mapping of chemical composition. A total of four maps showing the distributions of the most prominent chemical elements were created for the structural steels processed by means of both the VD and ESR technologies.

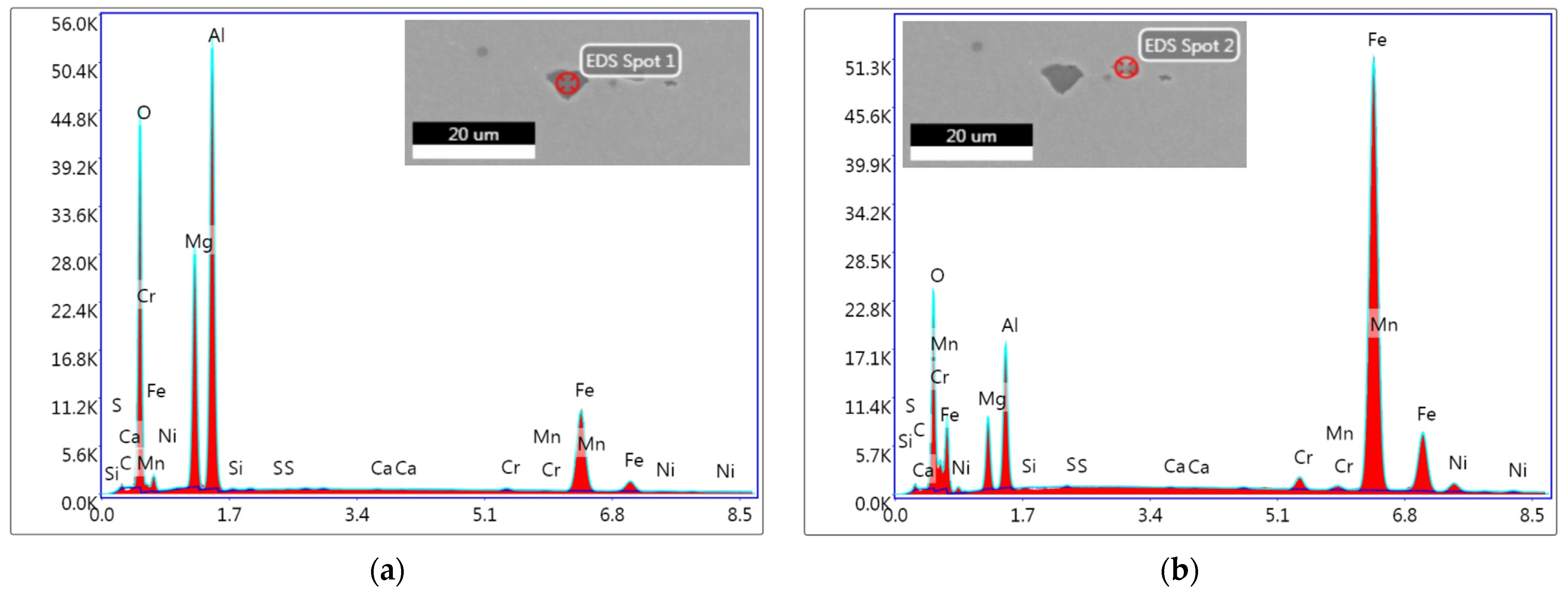

For the structural steel processed by means of VD technology, one of the largest non-metallic inclusions was selected for the analysis. The highest contents were detected for aluminum and oxygen, as shown in Figure 8. Based on the mutual presence of these elements, this non-metallic inclusion was most probably of an Al2O3 type. Other elements, such as calcium, manganese, chromium, or magnesium, were not detected in the inclusion.
Figure 9 shows a non-metallic inclusion that was present in the structural steel produced by means of ESR technology. As can be seen, high amounts of aluminum, magnesium, and oxygen were detected in the analyzed non-metallic inclusion, while no substantial amount of any other element was noted. According to the detected elements, it is a complex Al2O3-MgO inclusion. Non-metallic inclusions of comparable types are typically present in structural steels processed by means of ESR technology, as also confirmed by others, e.g., [63].

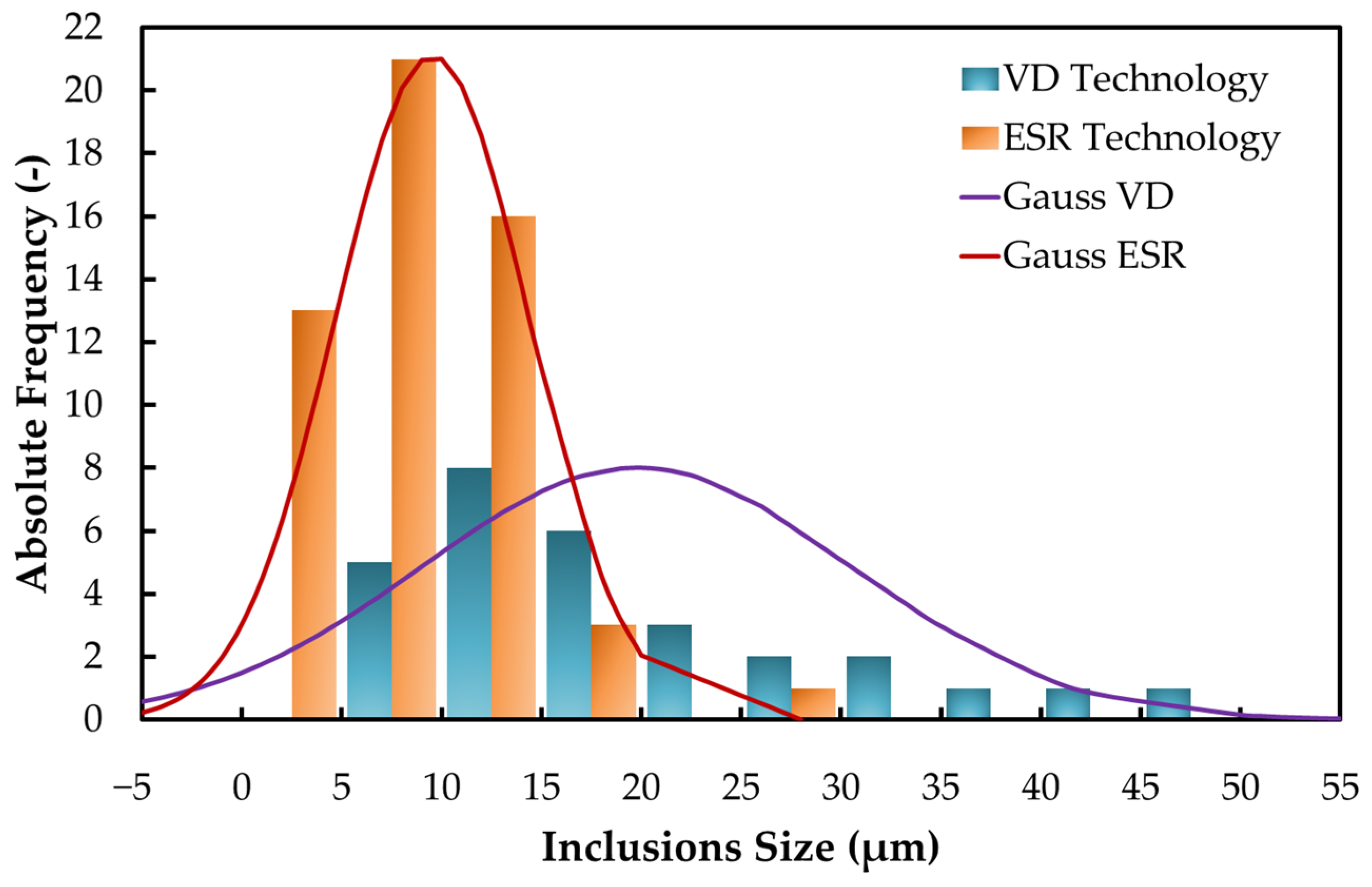

A frequency histogram was also constructed using the datasets of individual non-metallic inclusions’ size to illustrate the change in non-metallic inclusion size and the qualitative shift due to different processing technologies (VD and ESR). A histogram showing the absolute frequency per inclusions size is shown in Figure 10.
Table 6 summarizes the chemical compositions of the non-metallic inclusions detected by the analysis, and the presence of these non-metallic inclusions within the structural steel produced by means of VD and ESR technologies is compared. The occurrence of the individual non-metallic inclusions listed in this table is expressed as a representative proportion. In the structural steel processed via ESR technology, the presence of non-metallic inclusions of the Al2O3 type was not reduced when compared to the steel produced by means of VD technology. However, the occurrence of non-metallic inclusions of the SiO2 type was detected in the ESR steel. The occurrence of complex non-metallic inclusions of Al2O3-MgO increased significantly, but, at the same time, the fraction of complex non-metallic inclusions of Al2O3-CaO decreased.

3.7. Mechanical Properties

In order to evaluate the influence of the used technology on the mechanical properties of the structural steel in depth, statistical analysis was further performed. The level of significance α was chosen as the standard 0.05, i.e., 5% unreliability of results (or 95% confidence). The statistical significance of the change in the individual mechanical properties, the p-value, takes on lower values in the significance level of the test than the chosen significance level α; therefore, the results are all statistically significant.
Samples for the determination of the mechanical properties of the structural steel were taken from both the head and foot of the ingots, to increase the reliability of characterization of the average mechanical properties. Six samples were taken from the head and six from the foot of the ingot, so a total of twelve tests were performed for each examined parameter. Such a high number of mechanical tests ensures the accurate determination of the average value of the mechanical properties for an ingot produced by means of VD and ESR technology.
Table 7 summarizes the results of tensile tests and notched toughness tests. Due to the higher applied rate of quenching in water, generally higher values of mechanical properties, especially strength, can be achieved (compared to conventionally produced comparable steels). Because the VD forgings exhibited larger non-metallic inclusions than the ESR forgings, the tendency of the steel produced by the VD to crack when quenched in water is relatively high. Therefore, the VD forgings were quenched in oil. The ESR forgings, on the other hand, were quenched in water as the occurring non-metallic inclusions were smaller, which finally provided the steel produced by means of ESR technology with more favorable mechanical properties.
Table 7 shows that, for the structural steel produced by means of ESR technology, the values of all the measured mechanical properties were higher than those acquired for the steel produced by means of VD technology. The tensile strength increased by up to 4.2%, ductility increased by 9.8%, contraction increased by 17.7%, notched toughness at 20 °C increased by 45.5%, and notched toughness at −40 °C (respectively −50 °C) increased by up to 29.7%. Although the strength of the ESR steel increased, most probably due to the use of a different quenching medium, no evident decrease in the plastic properties was observed. This demonstrates the positive effect of ESR technology on the mechanical and utility properties of the produced steel. In order to further enhance the performance of the produced steels, as well as to fabricate required workpieces or final products, processing via modern methods of plastic deformation can advantageously be applied [64,65,66,67,68].

3.8. Fractography

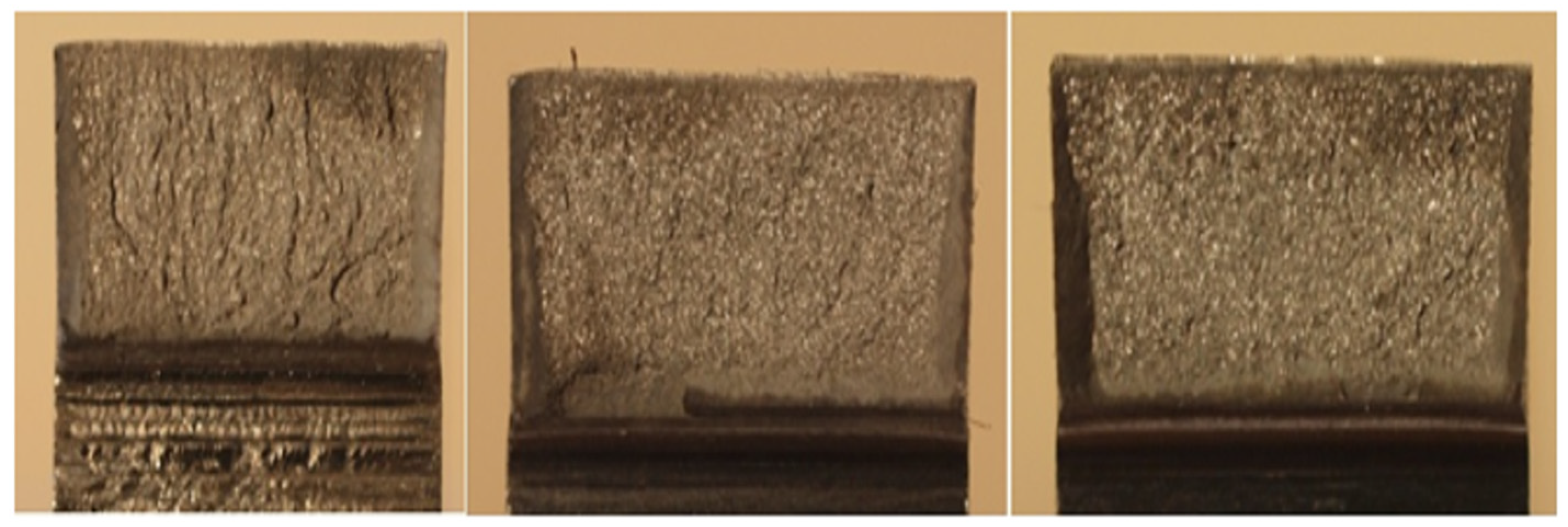

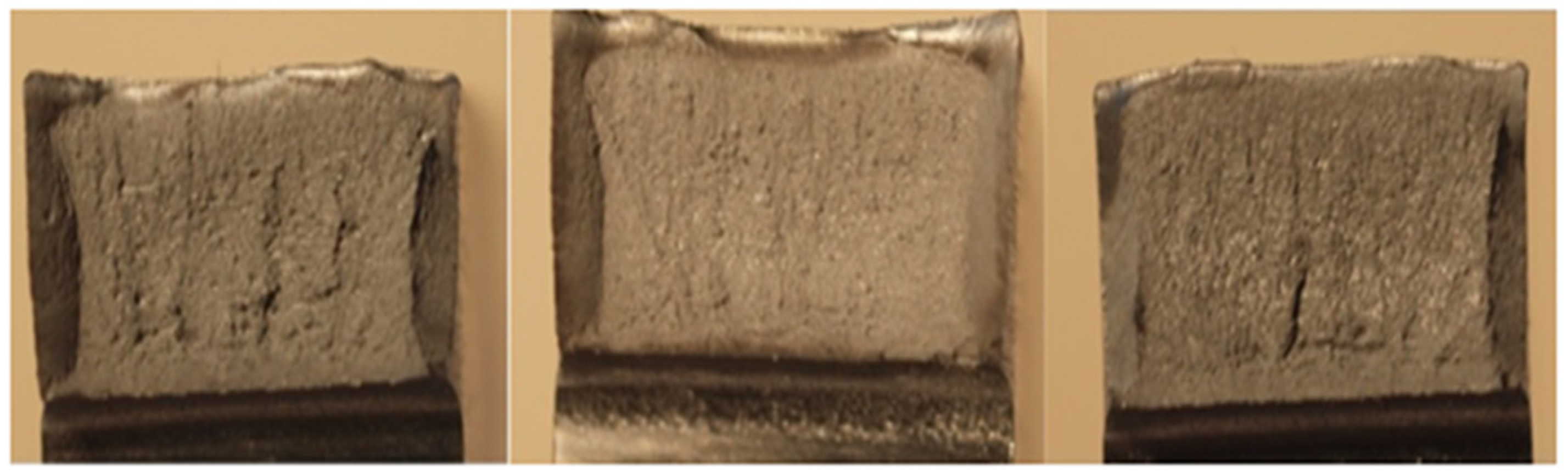

Last but not least, the fracture surfaces of the samples after the notched toughness test according to GOST V5192–78 were evaluated. Typical examples of fracture surfaces of the examined steel samples of produced by means of VD and ESR technologies are shown in Figure 11 and Figure 12, where Figure 11 shows the fractures for the VD steel and Figure 12 shows the fractures for the ESR steel. The fracture surfaces of the 10 × 10 mm samples were evaluated. The samples taken from forgings produced by means of ESR technology exhibited in 95% of cases the occurrence of fractures of the first grade, i.e., 100% ductile fracture of a gray color, with evident plastic deformation resulting in destruction of the sample. The fractured samples taken from forgings produced by means of VD technology were classified as grade four—fractures with crystalline shiny sections occupying more than 50% of the fractured surface. These results are consistent with the evaluations of strength and plastic properties of the steel.

3.9. Discussion of Results

In the production of structural components from high cleanliness steels, the metallographic cleanliness of the steel must match the quality of the tertiary metallurgy. The performance analyses and comparison of materials produced by secondary metallurgy (EAF-LF-VD) and materials subsequently processed by via tertiary ESR technology (EAF-LF-VD-ESR) revealed differences between the individual materials in terms of metallographic cleanliness and mechanical properties achieved.
Basic analyses of standard slag systems have shown differences in the chemical composition of the slags. The chemical composition of the slag has a significant effect on the physical properties of the melting slag in the ESR process. In the ESR process, the slags contribute significantly to the progress of the melting process. In addition to the basic process parameters of melting rate and power consumption, slags influence the chemical composition of the remelted steel and the original non-metallic inclusions. The consequences of the interaction between the molten metal and the slag must be considered in a wider context. Based on a detailed knowledge of slag and steel properties, it is possible to study and define the causes of changes in the morphology of non-metallic inclusions with a direct continuity to the parameters of the utility properties of the steel.
The results of the metallographic cleanliness measurements of the steel confirmed the assumption of a significant improvement in the micro-cleanliness of the steel evaluated according to DIN 50602. In the steel processed via ESR technology, the value of the average inclusions size was reduced. In terms of chemical composition and the occurrence of non-metallic inclusions, the number of Al2O3-CaO based inclusions was reduced by the ESR technology remelting, and new Al2O3-based MgO enriched inclusions were now found in the steel. In most cases, non-metallic inclusions have a negative effect on the properties of the steel. The objective is to achieve a quantity, chemical composition, shape, and arrangement of inclusions in the steel that have the least impact on the desired properties. The application of ESR technology resulted in a significant change in the morphology of the inclusions, which had a positive effect on the mechanical properties achieved. In terms of mechanical properties, the steel processed via ESR technology has higher values of ultimate strength, yield strength and simultaneously higher toughness. The fracture surfaces of the notched toughness test samples for the EAF-LF-VD and EAF-LF-VD-ESR steelmaking processes compared showed fractographic differences in fracture initiation and propagation.
The presence of non-metallic inclusions of Al2O3-MgO, according to the knowledge obtained, results from the presence of MgO in commercially available slags intended for ESR processes. From the point of view of the ESR process, the variation of the MgO content in the slags are important parameters of the slag. From the results of simulations of quaternary diagrams of the CaF2-Al2O3-CaO-MgO slag system, it was observed that the change in MgO concentration in the slag in the range of 0 to 3 wt. % MgO leads to a change in the liquid temperature and, therefore, a change in the viscosity of the molten slag can be assumed depending on the temperature and MgO content.

4. Conclusions

The aim of this study was to analyze and investigate in detail the main thermophysical properties of selected molten slags used for the ESR process; the properties of a steel produced by means of ESR technology were also compared to those of a comparable steel produced by means of VD technology. The positive effect of tertiary metallurgy on the performance of the final product was clearly demonstrated. ESR technology contributes significantly to cleanliness of the steel, especially in terms of the size of the occurring non-metallic inclusions. The average size of inclusions was reduced from 20 μm to 10 μm, and the maximum size of inclusions was reduced from 50 μm to 28 μm (when compared to VD technology). In terms of the chemical composition of the inclusions, a significant reduction in the occurrence of Al2O3-CaO and Al2O3-CaS-CaO inclusions was observed. The mechanical properties of the steel produced by means of ESR technology significantly exceeded those acquired for the steel produced using VD technology alone. Even after modifying the heat treatment regime, the achievement of higher values of strength went hand in hand with a significant increase in the plastic properties of the steel produced by means of ESR technology. The ductility increased by 10%, contraction increased by 18%, notched toughness at 20 °C increased by 46%, and that at −40 °C (respectively −50 °C) increased by 30% when compared to VD technology. Although this study is performed in cooperation with the ŽĎAS, a.s., commercial company, the achieved results are versatile and can be applied directly in real industrial environments of similar commercial facilities.

Author Contributions

Project administration, conceptualization and methodology, characterization, visualization, writing—original draft, J.W.; conceptualization and methodology, characterization, visualization, writing—review and editing, A.O.; project administration, writing—review and edition, R.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the project TQ03000386 Optimization of Technological Parameters of Electro Slag Remelting of Steels for Special Applications co-financed by the state budget by the Technology agency of the Czech Republic under the SIGMA Program. This article was also created with the support of the project SP2024/089 of the Specific Research of the VŠB-TUO.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw/processed data required to reproduce these findings cannot be shared at this time due to technical or time limitations.

Acknowledgments

The cooperation of Martin Balcar and Pavel Fila, ŽĎAS, a.s., is greatly appreciated.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Macháčková, A.; Kocich, R.; Bojko, M.; Kunčická, L.; Polko, K. Numerical and experimental investigation of flue gases heat recovery via condensing heat exchanger. Int. J. Heat Mass Trans. 2018, 124, 1321–1333. [Google Scholar] [CrossRef]
  2. Král, P.; Blum, W.; Dvořák, J.; Yurchenko, N.; Stepanov, N.; Zherebtsov, S.; Kunčická, L.; Kvapilová, M.; Sklenička, V. Creep behavior of an AlTiVNbZr0.25 high entropy alloy at 1073 K. Mater. Sci. Eng. A 2020, 783, 139291. [Google Scholar] [CrossRef]
  3. Kunčická, L.; Kocich, R. Comprehensive Characterisation of a Newly Developed Mg-Dy-Al-Zn-Zr Alloy Structure. Metals 2018, 8, 73. [Google Scholar] [CrossRef]
  4. Kocich, R.; Kursa, M.; Szurman, I.; Dlouhý, A. The influence of imposed strain on the development of microstructure and transformation characteristics of Ni-Ti shape memory alloys. J. Alloys Comp. 2011, 509, 2716–2722. [Google Scholar] [CrossRef]
  5. Kocich, R.; Kursa, M.; Macháčková, A. FEA of Plastic Flow in AZ63 Alloy during ECAP Process. Acta Phys. Pol. A 2012, 122, 581–587. [Google Scholar] [CrossRef]
  6. Weber, V.; Jardy, A.; Dussoubs, B.; Ablitzer, D.; Rybéron, S.; Schmitt, V.; Hans, S.; Poisson, H. A Comprehensive Model of the Electroslag Remelting Process: Description and Validation. Metall. Mater. Trans. B. 2009, 40, 271–280. [Google Scholar] [CrossRef]
  7. Shi, C.; Chen, X.; Guo, H.; Zhu, Z.; Ren, H. Assessment of Oxygen Control and Its Effect on Inclusion Characteristics during Electroslag Remelting of Die Steel. Steel Res. Int. 2012, 83, 472–486. [Google Scholar] [CrossRef]
  8. Li, S.; Cheng, G.; Miao, Z.; Chen, L.; Li, C.; Jiang, X. Kinetic Analysis of Aluminum and Oxygen Variation of G20CrNi2Mo Bearing Steel during Industrial Electroslag Remelting Process. ISIJ Int. 2017, 57, 2148–2156. [Google Scholar] [CrossRef]
  9. Wang, Q.; Ye, Q.; Fu, T.; Wang, Z. Superior Through-Thickness Homogeneity of Microstructure and Mechanical Properties of Ultraheavy Steel Plate by Advanced Casting and Quenching Technologies. Steel Res. Int. 2021, 92, 2000698. [Google Scholar] [CrossRef]
  10. Ju, J.; Zhu, Z.; Gu, Y.; Yang, K.; Zhang, Q. Evolution of Inclusions in Incoloy825 during Electroslag Remelting. Metals 2021, 12, 208. [Google Scholar] [CrossRef]
  11. Liu, H.; Liu, J.; Michelic, S.; Wei, F.; Zhuang, C.; Han, Z.; Li, S. Characteristics of AIN inclusions in low carbon Fe-Mn-Si-Al TWIP steel produced by AOD-ESR method. Ironmak. Steelmak. 2016, 43, 171–179. [Google Scholar] [CrossRef]
  12. Guo, X.; Liu, Y.; Jojo-Cunningham, Y.; Silaen, A.; Walla, N.; Zhou, C. Mixing Time Prediction in a Ladle Furnace. Metals 2024, 14, 518. [Google Scholar] [CrossRef]
  13. Artyushov, V.N.; Bochkarev, S.P.; Igolkin, S.V.; Makarevich, A.N.; Fomchenko, S.M. Mastering a Technology for Making Stainless Steel on a VOD Unit at the Chelyabinsk Metallurgical Combine. Metallurgist 2013, 57, 292–294. [Google Scholar] [CrossRef]
  14. Malayeri, K.M. Vacuum degassing impact on non-metallic inclusions during clean steelmaking. Ironmak. Steelmak. 2023, 50, 878–883. [Google Scholar] [CrossRef]
  15. Tridello, A.; Paolino, D.S.; Chiandussi, G.; Rossetto, M. Effect of electroslag remelting on the VHCF response of an AISI H13 steel. Fatique Fract. Eng. Mater. Struct. 2017, 40, 1783–1794. [Google Scholar] [CrossRef]
  16. Hu, J.; Wang, X.; Yang, S.; Ma, J.; Hao, Y.; Zhang, P. Microstructure and mechanical properties investigation of carbon/stainless steel composite rod prepared by a special device. Mater. Lett. 2023, 352, 135195. [Google Scholar] [CrossRef]
  17. Sun, C.; Li, J.; Zhang, J.; Yan, W.; Li, S. Formation and evolution of primary carbides in high-carbon martensitic stainless steel. J. Iron Steel Res. Int. 2023, 30, 2000–2009. [Google Scholar] [CrossRef]
  18. Kang, C.; Liu, F.; Geng, X.; Jiang, Z.; Chen, K.; Gao, J.; An, R. Desulfurization Behavior of Low-sulfur Plastic Die Steel during ESR Process under Different Atmospheres. ISIJ Int. 2021, 61, 219–228. [Google Scholar] [CrossRef]
  19. Huang, X.; Duan, Y.; Liu, Z.; Li, B.; Wang, F. Role of Electrode Rotation on Improvement of Metal Pool Profile in Electroslag Remelting Process. Metals 2021, 11, 1675. [Google Scholar] [CrossRef]
  20. Shi, C.; Huang, Y.; Zhang, J.; Li, J.; Zheng, X. Review on desulfurization in electroslag remelting. Int. J. Miner. Metall. Mater. 2021, 28, 18–29. [Google Scholar] [CrossRef]
  21. Boštajn, A.; Podgornik, B.; Burja, J. Electroslag Remelting: A Process Overview. Mater. Technol. 2016, 50, 971–979. [Google Scholar]
  22. Li, W.; Wang, W.; Hu, Y.; Chen, Y. The Estimation and Control of the Electroslag Remelting Melt Rate by Mechanism-Based Modeling. Metall. Mater. Trans. B 2012, 43, 276–289. [Google Scholar] [CrossRef]
  23. Yan, W.; Zhang, Y.; Chen, W.; Li, J. Characteristics and Formation Tendency of Freckle Segregation in Electroslag Remelted Bearing Steel. Metals 2020, 10, 246. [Google Scholar] [CrossRef]
  24. Shi, C. Deoxidation of Electroslag Remelting (ESR)—A Review. ISIJ Int. 2020, 60, 1083–1096. [Google Scholar] [CrossRef]
  25. Hou, D.; Jiang, Z.; Dong, Y.; Li, Y.; Gong, W.; Liu, F. Mass Transfer Model of Desulfurization in the Electroslag Remelting Process. Metall. Mater. Trans. 2017, 48, 1885–1897. [Google Scholar] [CrossRef]
  26. Wang, Q.; He, Z.; Li, G.; Li, B.; Zhu, C.; Chen, P. Numerical investigation of desulfurization behavior in electroslag remelting process. Int. J. Heat Mass Transf. 2017, 104, 943–951. [Google Scholar] [CrossRef]
  27. Karimi-Sibaki, E.; Khricha, A.; Vakhrushev, A.; Wu, M.; Ludwig, A.; Bohacek, J. Investigation of effect of electrode polarity on electrochemistry and magnetohydrodynamics using tertiary current distribution in electroslag remelting process. J. Iron Steel Res. Int. 2021, 28, 1551–1561. [Google Scholar] [CrossRef]
  28. Wang, Q.; Liu, Y.; Lu, R.; Wang, F.; He, Z.; Li, G. Influence of Electro-Emulsification on Desulfurization of Rejected Electrolytic Manganese Metal in Electroslag Remelting Process. Metall. Mater. Trans. B 2020, 52, 107–122. [Google Scholar] [CrossRef]
  29. Sun, D.; Wang, Y.; Jin, L.; Pang, Z.; Huang, J.; Zhang, J. Controlling oxygen content in electro-slag remelting steel by optimizing slag-steel reaction process. China Foundry 2023, 20, 503–510. [Google Scholar] [CrossRef]
  30. Wang, B.; Wang, Y.; Wang, M.; Zhao, L. Effect of electrical parameters and slag system on macrostructure of electroslag ingot. China Foundry 2024, 21, 44–50. [Google Scholar] [CrossRef]
  31. Huang, Y.; Shi, C.; Wan, X.; Liang, Y.; Li, J.; Liu, S. Viscosity and surface tension of CaF2–CaO–Al2O3-based slag with varying SiO2 and B2O3 contents for ESR of rotor steel. J. Iron Steel Res. Int. 2023, 30, 74–81. [Google Scholar] [CrossRef]
  32. Schneider, R.S.E.; Molnar, M.; Gelder, S.; Reiter, G.; Martinez, C. Effect of the Slag Composition and a Protective Atmosphere on Chemical Reactions and Non-Metallic Inclusions during Electro-Slag Remelting of a Hot-Work Tool Steel. Steel Res. Int. 2018, 89, 1800161. [Google Scholar] [CrossRef]
  33. Jiang, M.; Li, K.; Wang, R.; Yang, E.; Wang, X. Cleanliness and Control of Inclusions in Al-Deoxidized Bearing Steel Refined by Basic Slags during LF-VD-Ar Bubbling. ISIJ Int. 2022, 62, 124–132. [Google Scholar] [CrossRef]
  34. Duan, S.; Shi, X.; Zhang, M.; Li, B.; Yang, W.; Wang, F.; Guo, H.; Guo, J. Effect of Slag Composition on the Deoxidation and Desulfurization of Inconel 718 Superalloy by ESR Type Slag Without Deoxidizer Addition. Metall. Mater. Trans. B. 2020, 51, 353–364. [Google Scholar] [CrossRef]
  35. Zhao, J.; Chen, Y.; Li, X.; Cui, Y.; Lu, X. Mechanism of Slag Composition Change During Electroslag Remelting Process. J. Iron Steel Res. Int. 2011, 18, 24–53. [Google Scholar] [CrossRef]
  36. Du, Y.; Dong, Y.; Jiang, Z.; Stovpchenko, G.; Li, Y.; Huang, J.; Wang, X.; Liu, Y. Dissolution kinetics and reaction mechanism of Al2O3 in molten CaF2–CaO–Al2O3 slag. J. Iron Steel Res. Int. 2024, 31, 861–869. [Google Scholar] [CrossRef]
  37. Li, S.; Li, J.; Zhang, J.; Shi, C. Effect of nitrogen on microstructure and microsegregation of martensitic stainless steel 4Cr13 produced by electroslag remelting. J. Iron Steel Res. Int. 2023, 30, 1854–1861. [Google Scholar] [CrossRef]
  38. Persson, E.S.; Brorson, S.; Mitchell, A.; Jonsson, P.G. Impact of Solidification on Inclusion Morphology in ESR and PESR Remelted Martensitic Stainless Steel Ingots. Metals 2021, 11, 408. [Google Scholar] [CrossRef]
  39. Brooksbank, D.; Andrews, K.W. Stress fields around inclusions and their relation to mechanical properties. JISI 1972, 210, 246–255. [Google Scholar]
  40. Kiessling, R.; Lange, N. Non-Metallic Inclusions in Steel; Metals Society: London, UK, 1976; pp. 74–101. [Google Scholar]
  41. Gladman, T. Sulphide Inclusions in Steel; ASM: New York, NY, USA, 1974; pp. 273–285. [Google Scholar]
  42. Schneider, R.S.E.; Molnar, M.; Klosch, G.; Schuller, C. Effect of the Al2O3 Content in the Slag on the Chemical Reactions and Nonmetallic Inclusions during Electroslag Remelting. Metall. Mater. Trans. B 2020, 51, 1904–1911. [Google Scholar] [CrossRef]
  43. Shi, C.; Wang, H.; Li, J. Effects of Reoxidation of Liquid Steel and Slag Composition on the Chemistry Evolution of Inclusions During Electroslag Remelting. Metall. Mater. Trans. B 2018, 49, 1675–1689. [Google Scholar] [CrossRef]
  44. Schneider, R.; Wiesinger, V.; Gelder, S.; Reiter, G. Effect of the Slag Composition on the Process Behavior, Energy Consumption, and Nonmetallic Inclusions during Electroslag Remelting. Steel Res. Int. 2023, 94, 2200483. [Google Scholar] [CrossRef]
  45. Li, S.; Cheng, G.; Miao, Z.; Chen, L.; Jiang, X. Effect of slag on oxide inclusions in carburized bearing steel during industrial electroslag remelting. Int. J. Miner. Metall. Mater. 2019, 26, 291–300. [Google Scholar] [CrossRef]
  46. Xuan, C.; Persson, E.S.; Sevastopolev, R.; Nzotta, M. Motion and Detachment Behaviors of Liquid Inclusion at Molten Steel-Slag Interfaces. Metall. Mater. Trans. B 2019, 50, 1957–1973. [Google Scholar] [CrossRef]
  47. Franceschini, A.; Ruby-Meyer, F.; Midroit, F.; Diawara, B.; Hans, S.; Poulain, T.; Trempint, C.; Hénault, E.; Roufié, A. An assessment of cleanliness techniques for low alloyed steel grades. Metall. Res. Technol. 2019, 116, 509. [Google Scholar] [CrossRef]
  48. Persson, E.S.; Karasev, A.; Mitchell, A.; Jonsson, P.G. Origin of the Inclusions in Production-Scale Electrodes, ESR Ingots, and PESR Ingots in a Martensitic Stainless Steel. Metals 2020, 10, 1620. [Google Scholar] [CrossRef]
  49. Liu, M.; Bernhard, M.; Kawuloková, M.; Walek, J.; Kern, M.; Zlá, P.; Presoly, P.; Smetana, B.; Tkadlečková, M.; Xu, G.; et al. Decomposition of γ-Fe in 0.4C-1.8Si-2.8Mn-0.5Al steel during a continuous cooling process: A comparative study using in-situ HT-LSCM, DSC and dilatometry. J. Mater. Res. Technol. 2023, 24, 3534–3547. [Google Scholar] [CrossRef]
  50. Ahmadian, P.; Taghizadeh, M. The effect of non-metallic inclusion size and orientation on tensile properties of stainless steel (simulation and experiment). Metall. Mater. Eng. 2020, 26, 43–55. [Google Scholar] [CrossRef]
  51. Řeháčková, L.; Novák, V.; Tokarský, J.; Heger, M.; Zimný, O.; Matýsek, D.; Peikertová, P.; Ritz, M.; Walek, J.; Leinweberová, S. Rheological behaviour of CaO-MgO-SiO2-Al2O3-B2O3 system with varying B2O3 content up to 30 wt% at basicity of 0.4. Ceram. Int. 2024, 50, 1389–1397. [Google Scholar] [CrossRef]
  52. Zhang, G.; Hu, Y.; Hou, D.; Yang, D.; Zhang, Q.; Hu, Y.; Liu, X. Assessment of Porosity Defects in Ingot Using Machine Learning Methods during Electro Slag Remelting Process. Metals 2022, 12, 958. [Google Scholar] [CrossRef]
  53. Wang, J.; Song, S.; Xue, Z. Transient evolution of non-metallic inclusions in molten high aluminum and high manganese steel contacting with slag and crucible: Experimental investigation and FactSage macros modeling. J. Mater. Res. Technol. 2023, 25, 2841–2853. [Google Scholar] [CrossRef]
  54. Singha, P.; Shukla, A. Contribution of Hot-Spot Zone in Decarburization of BOF Steel-Making: Fundamental Analysis Based upon the FactSage-Macro Program. Metals 2022, 12, 638. [Google Scholar] [CrossRef]
  55. Jung, I.; Van Ende, M. Computational Thermodynamic Calculations: FactSage from CALPHAD Thermodynamic Database to Virtual Process Simulation. Metall. Mater. Trans. B 2020, 51, 1851–1874. [Google Scholar] [CrossRef]
  56. Ren, Y.; Zhang, Y.; Zhang, L. A kinetic model for Ca treatment of Al-killed steels using FactSage macro processing. Ironmak. Steelmak. 2017, 44, 497–504. [Google Scholar] [CrossRef]
  57. Vidhyasagar, M.; Kumar, D.; Viswanathan, N. A Static Model for Energy-Optimizing Furnace. Steel Res. Int. 2022, 93, 2200185. [Google Scholar] [CrossRef]
  58. Wang, Z.; Song, T.; Zhao, L.; Bao, Y. Study on Efficient Dephosphorization in Converter Based on Thermodynamic Calculation. Crystals 2023, 13, 1132. [Google Scholar] [CrossRef]
  59. DIN 50 602; Metallographic Examination–Microcopic Examination of Special Steels Using Standard Diagrams to Assess the Content of Non-Metallic Inclusions; UDC 669.14:620.186.14. Deutsches Institut fur Normung (DIN): Berlin, Germany, 1985.
  60. Jiang, Z.; Hou, D.; Dong, Y.; Cao, Y.; Cao, H.; Gong, W. Effect of Slag on Titanium, Silicon, and Aluminium Contents in Superalloy During Electroslag Remelting. Metall. Mater. Trans. B 2016, 47, 1465–1474. [Google Scholar] [CrossRef]
  61. Peng, L.; Jiang, Z.; Geng, X. Design of ESR slag for remelting 9CrMoCoB steel through experiments and thermodynamic calculations. Calphad 2020, 70, 101782. [Google Scholar] [CrossRef]
  62. Hou, D.; Wang, D.; Qu, T.; Tian, J.; Wang, H. Kinetic Study on Alloying Element Transfer During an Electroslag Remelting Process. Metall. Mater. Trans. B 2019, 50, 3088–3102. [Google Scholar] [CrossRef]
  63. Shi, C.; Wang, S.; Li, J.; Cho, J. Non-metallic inclusions in electroslag remelting: A review. J. Iron Steel Res. Int. 2021, 28, 1483–1503. [Google Scholar] [CrossRef]
  64. Kunčická, L.; Kocich, R. Optimizing electric conductivity of innovative Al-Cu laminated composites via thermomechanical treatment. Mater. Des. 2022, 215, 110441. [Google Scholar] [CrossRef]
  65. Kocich, R.; Macháčková, A.; Fojtík, F. Comparison of strain and stress conditions in conventional and ARB rolling process. Int. J. Mech. Sci. 2012, 64, 54–61. [Google Scholar] [CrossRef]
  66. Kocich, R.; Kunčická, L. Develpoment of structure and properties in bimetallic Al/Cu sandwich composite during cumulative severe plastic deformation. J. Sand. Struct. Mater. 2021, 23, 4252–4275. [Google Scholar] [CrossRef]
  67. Kunčická, L.; Kocich, R.; Németh, G.; Dvořák, K.; Pagáč, M. Effect of post process shear straining on structure and mechanical properties of 316L stainless steel manufactured via powder bed fusion. Add. Manuf. 2022, 59, 103128. [Google Scholar]
  68. Wang, Z.; Chen, J.; Kocich, R.; Tardif, S.; Dolbnya, I.P.; Kunčická, L.; Micha, J.-S.; Liogas, K.; Magdysyuk, O.V.; Szurman, I.; et al. Grain Structure Engineering of NiTi Shape Memory Alloys by Intensive Plastic Deformaiton. ACS Appl. Mater. Interfaces 2022, 14, 31396–31410. [Google Scholar] [CrossRef]
Materials 17 04613 g001

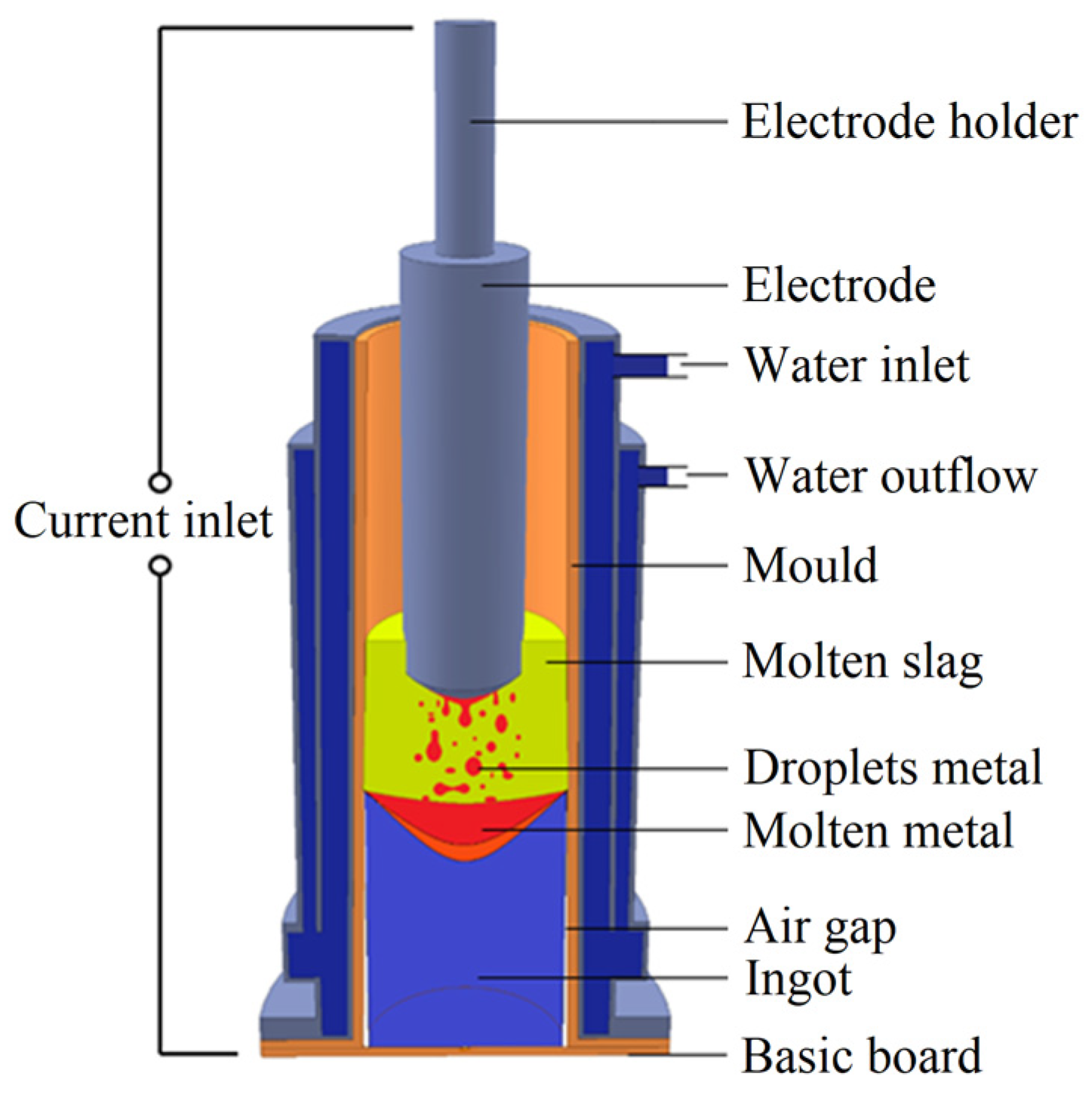

Figure 1. Schematic depiction of ESR device.
Figure 1. Schematic depiction of ESR device.
Materials 17 04613 g001
Materials 17 04613 g002

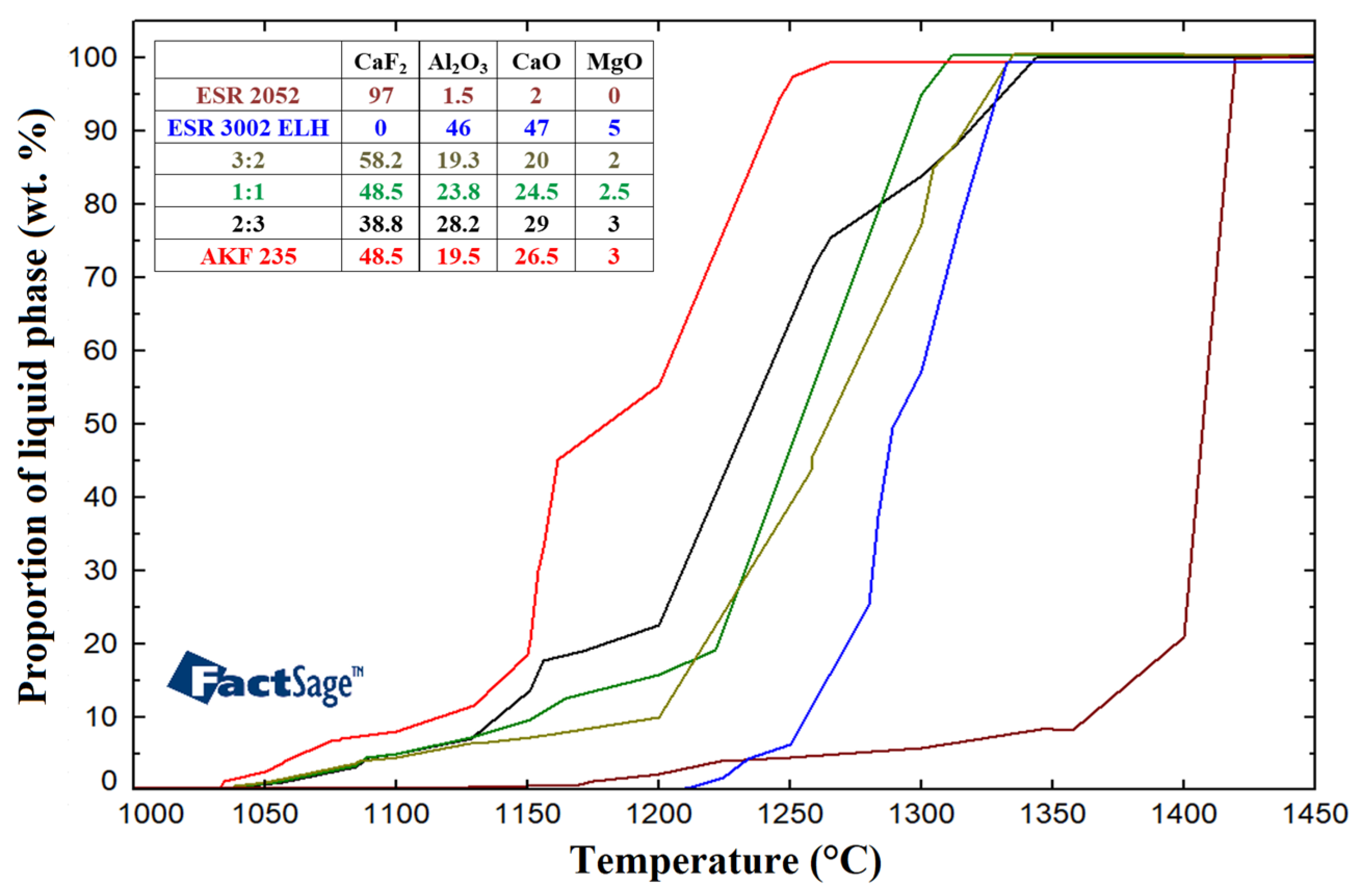

Figure 2. Comparison of melting temperatures for ESR slags.
Figure 2. Comparison of melting temperatures for ESR slags.
Materials 17 04613 g002
Materials 17 04613 g003

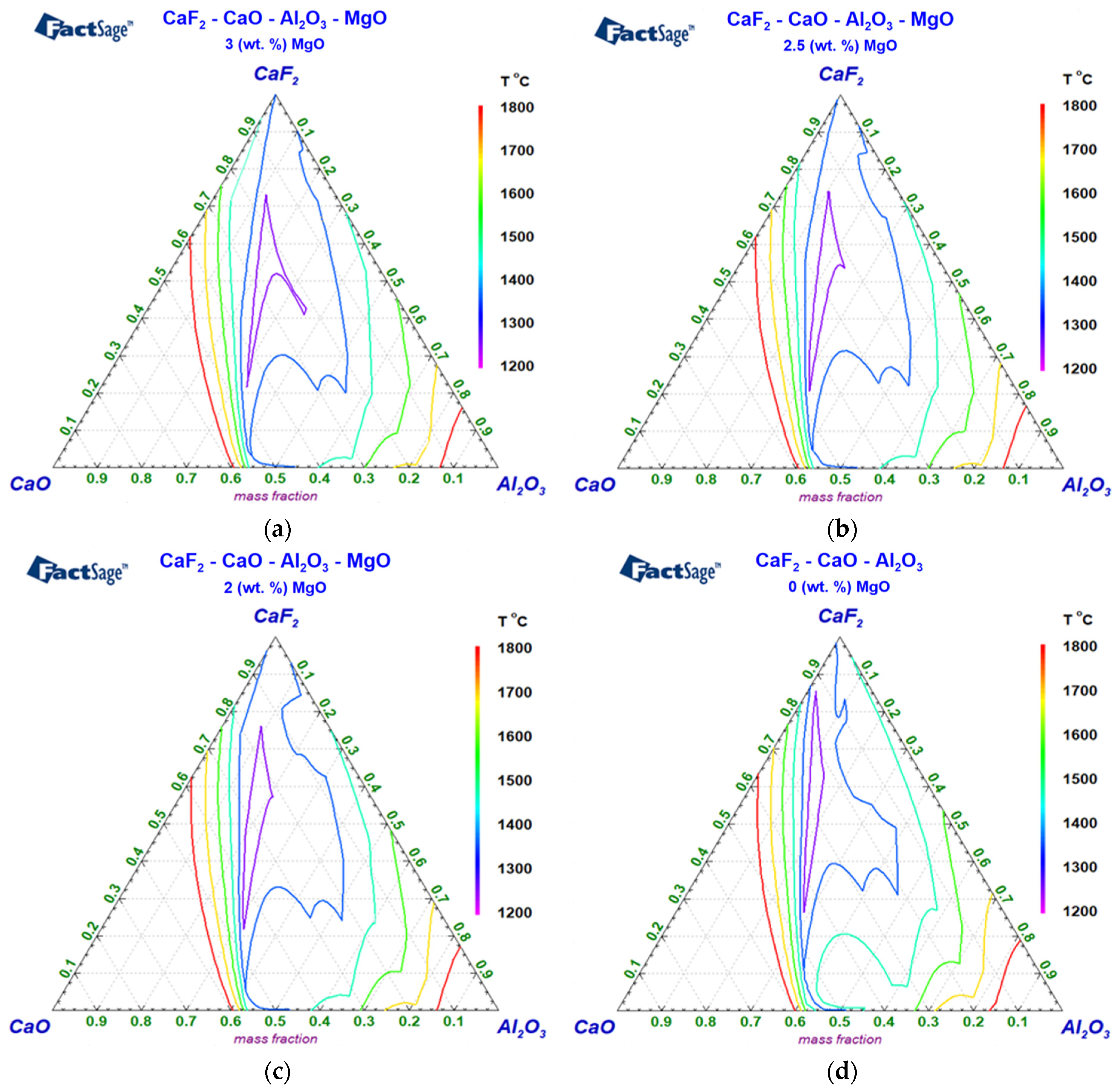

Figure 3. Quaternary diagrams of CaF2-Al2O3-CaO with (a) 3 wt. % MgO; (b) 2.5 wt. % MgO; (c) 2 wt. % MgO. (d) Ternary diagram with 0 wt. % MgO.
Figure 3. Quaternary diagrams of CaF2-Al2O3-CaO with (a) 3 wt. % MgO; (b) 2.5 wt. % MgO; (c) 2 wt. % MgO. (d) Ternary diagram with 0 wt. % MgO.
Materials 17 04613 g003
Materials 17 04613 g004

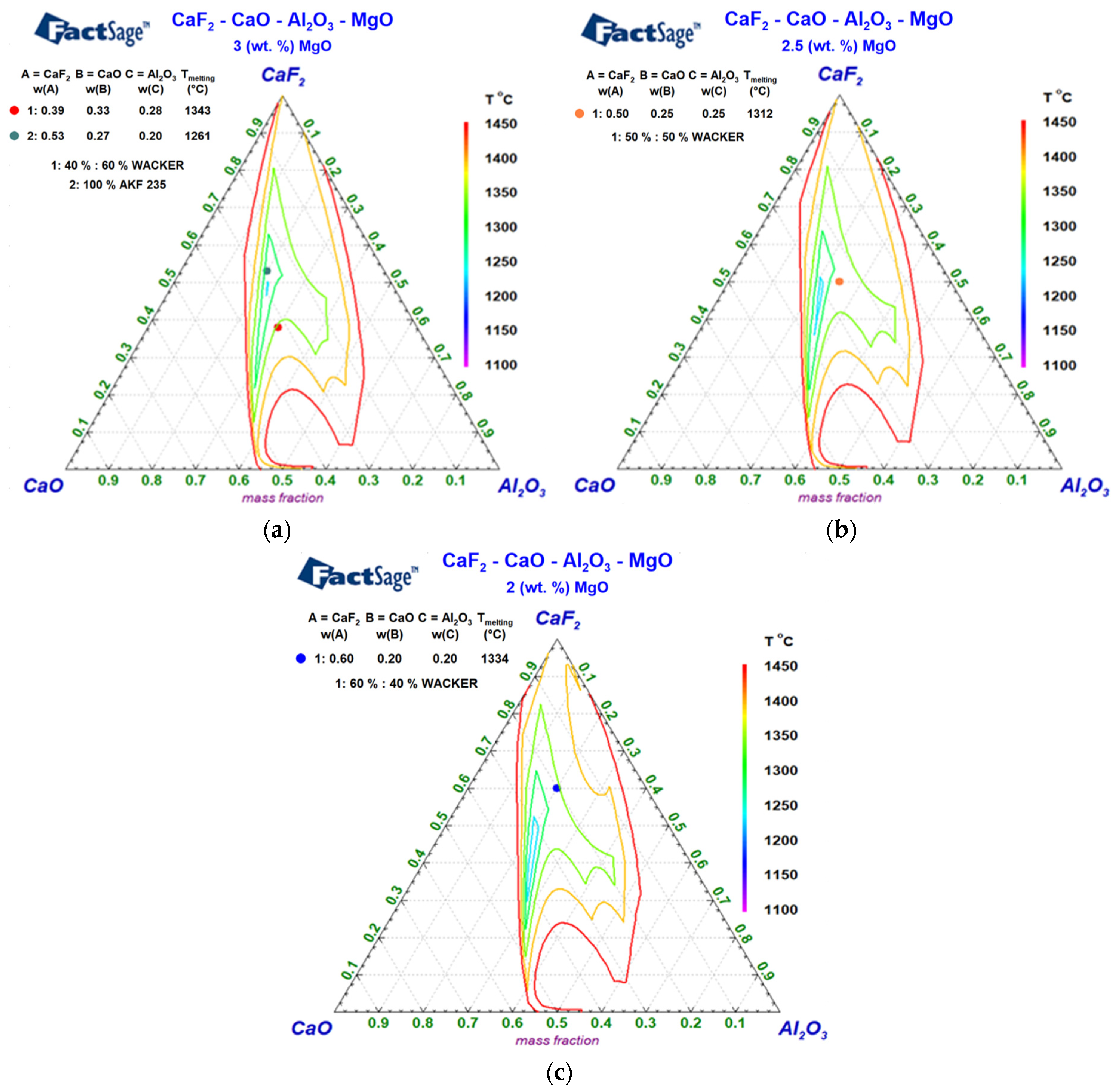

Figure 4. Quaternary diagram of CaF2-Al2O3-CaO for the slag ratios (a) WACKER 2:3 and AKF 235 slag; (b) WACKER 1:1; (c) WACKER 3:2.
Figure 4. Quaternary diagram of CaF2-Al2O3-CaO for the slag ratios (a) WACKER 2:3 and AKF 235 slag; (b) WACKER 1:1; (c) WACKER 3:2.
Materials 17 04613 g004
Materials 17 04613 g005
Figure 5. Solid and liquid temperatures for CrNiMoV structural steel.
Figure 5. Solid and liquid temperatures for CrNiMoV structural steel.
Materials 17 04613 g005
Materials 17 04613 g006
Figure 6. Point chemical analysis taken from structural steel produced by means of VD technology: (a) Al2O3 inclusion, EDS Spot 1; (b) Al2O3 inclusion, EDS Spot 2.
Figure 6. Point chemical analysis taken from structural steel produced by means of VD technology: (a) Al2O3 inclusion, EDS Spot 1; (b) Al2O3 inclusion, EDS Spot 2.
Materials 17 04613 g006
Materials 17 04613 g007
Figure 7. Point chemical analysis taken from structural steel produced by means of ESR technology: (a) Al2O3-MgO inclusion, EDS Spot 1; (b) Al2O3-MgO inclusion, EDS Spot 2.
Figure 7. Point chemical analysis taken from structural steel produced by means of ESR technology: (a) Al2O3-MgO inclusion, EDS Spot 1; (b) Al2O3-MgO inclusion, EDS Spot 2.
Materials 17 04613 g007
Materials 17 04613 g008
Figure 8. Maps of elements present in examined inclusion in structural steel produced by means of VD technology.
Figure 8. Maps of elements present in examined inclusion in structural steel produced by means of VD technology.
Materials 17 04613 g008
Materials 17 04613 g009
Figure 9. Maps of elements present in examined inclusion in structural steel produced via ESR technology.
Figure 9. Maps of elements present in examined inclusion in structural steel produced via ESR technology.
Materials 17 04613 g009
Materials 17 04613 g010
Figure 10. Histogram of inclusions size distribution for VD and ESR technology.
Figure 10. Histogram of inclusions size distribution for VD and ESR technology.
Materials 17 04613 g010
Materials 17 04613 g011
Figure 11. Evaluation of fractured surfaces of notched toughness samples for steel produced by means of VD technology.
Figure 11. Evaluation of fractured surfaces of notched toughness samples for steel produced by means of VD technology.
Materials 17 04613 g011
Materials 17 04613 g012
Figure 12. Evaluation of fractured surfaces of notched toughness samples for steel produced by means of ESR technology.
Figure 12. Evaluation of fractured surfaces of notched toughness samples for steel produced by means of ESR technology.
Materials 17 04613 g012
Table 1. Chemical compositions of commercially available ESR slags used for simulations (wt. %).
Table 1. Chemical compositions of commercially available ESR slags used for simulations (wt. %).
ESR 2052
CaF2Al2O3CaOMgOSiO2TiO2FeOH2OCPSPb
971.5200.500.20.0050.030.0050.030.0002
ESR 3002 ELH
CaF2Al2O3CaOMgOSiO2TiO2FeOH2OCPSPb
0464750.80.20.30.0050.030.0050.050
AKF 235
CaF2Al2O3CaOMgOSiO2TiO2FeOH2OCPSPb
48.519.526.5310.30.50.050.10.050.050.005
Table 2. Chemical composition of the used CrNiMoV structural steel (wt. %).
Table 2. Chemical composition of the used CrNiMoV structural steel (wt. %).
CMnSiPSCrNiCuMoV
0.370.400.270.0070.0041.373.300.140.400.14
Table 3. Results of calculations of dynamic viscosity of ESR slags.
Table 3. Results of calculations of dynamic viscosity of ESR slags.
SlagESR 2052 and ESR 3002 ELHAKF 235
Ratio2:31:13:21
Temperature (°C)17501800175018001750180017501800
Viscosity (Pa·s)0.0170.0150.0140.0120.0110.0090.0130.011
Table 4. Comparison of metallographic cleanliness of the structural steel according to DIN 50602, K method.
Table 4. Comparison of metallographic cleanliness of the structural steel according to DIN 50602, K method.
DIN 50602K0K1K2K3K4
VD
technology		minimum----0
average----6.1
maximum----12.5
ESR
technology		minimum00000
average4.51.60.500
maximum14.16.84.900
Table 5. Size range and average size of non-metallic inclusions in examined structural steel.
Table 5. Size range and average size of non-metallic inclusions in examined structural steel.
Size of the Non-Metallic Inclusions
(μm)VD TechnologyESR Technology
minimum 82
average19.89.5
maximum5028
Table 6. Representative proportion of inclusions of various types in the structural steels.
Table 6. Representative proportion of inclusions of various types in the structural steels.
Composition of the InclusionsVD TechnologyESR Technology
Al2O32121
Al2O3-MgO749
Al2O3-CaO4513
Al2O3-MgO-CaO108
Al2O3-MgO-CaS-CaO32
MgO02
Al2O3-MgO-CaS30
CaS02
Al2O3-CaS-CaO100
SiO202
CaS-CaO02
Table 7. Evaluation of mechanical properties of produced structural steels.
Table 7. Evaluation of mechanical properties of produced structural steels.
VD Technology
CastingRu
(MPa)		Rp0.2
(MPa)		Rm
(MPa)		A5
(%)		Z
(%)		KCU/20 °C
(J·cm2)		KCU/−40 °C
(J·cm2)
111571146130913121436144312.112.142.543.5343434283230
211431146133013371457146111.311.343.838.9343635283032
31178118513481351146814689.810.042.541.7302829302628
411851196134813411479148211.29.045.534.9283029282828
51196118113621341148214619.79.740.237.0302829302628
611501164132613261447145011.211.244.341.2323031323031
Ø11691336146110.741.331.229.2
ESR Technology
CastingRu
(MPa)		Rp0.2
(MPa)		Rm
(MPa)		A5
(%)		Z
(%)		KCU/20 °C
(J·cm2)		KCU/−40 °C
(J·cm2)
112491269135913511488147412.413.050.852.0464847403839
212801255141613981548154112.012.249.551.6464847383637
312661273140614091542154211.410.349.650.9383838363234
41259121814041415150415189.714.041.953.3545454465048
512781292136013801490150211.411.246.746.3444444363435
612681275144614211571155511.911.744.346.7424242343434
Ø12651397152311.848.645.337.8
Difference
(%)		+8.2+4.6+4.2+9.8+17.7+45.5+29.7
p-value03 × 10−135 × 10−125 × 10−41 × 10−1206 × 10−13
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Walek, J.; Odehnalová, A.; Kocich, R. Analysis of Thermophysical Properties of Electro Slag Remelting and Evaluation of Metallographic Cleanliness of Steel. Materials 2024, 17, 4613. https://doi.org/10.3390/ma17184613

AMA Style

Walek J, Odehnalová A, Kocich R. Analysis of Thermophysical Properties of Electro Slag Remelting and Evaluation of Metallographic Cleanliness of Steel. Materials. 2024; 17(18):4613. https://doi.org/10.3390/ma17184613

Chicago/Turabian Style

Walek, Josef, Adéla Odehnalová, and Radim Kocich. 2024. "Analysis of Thermophysical Properties of Electro Slag Remelting and Evaluation of Metallographic Cleanliness of Steel" Materials 17, no. 18: 4613. https://doi.org/10.3390/ma17184613

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
