Article

Wettability and Interfacial Reaction between the K492M Alloy and an Al2O3 Shell

by
Guangyao Chen
1,2,
Houjin Liao
1,
Shaowen Deng
1,
Man Zhang
1,
Zheyu Cai
1,
Hui Xu
3,
Enhui Wang
3,*,
Xinmei Hou
3 and
Chonghe Li
1,2,*
1
State Key Laboratory of Advanced Special Steel & Shanghai Key Laboratory of Advanced Ferrometallurgy & School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
2
Shanghai Special Casting Engineering Technology Research Center, Shanghai 201605, China
3
Institute for Carbon Neutrality, University of Science and Technology Beijing, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(18), 4674; https://doi.org/10.3390/ma17184674
Submission received: 9 August 2024 / Revised: 4 September 2024 / Accepted: 7 September 2024 / Published: 23 September 2024

Abstract

:
In this study, wettability behavior and the interaction between the K492M alloy and an Al2O3 shell were investigated at 1430 °C for 2~5 min. The microstructural characterization of the alloy–shell interface was carried out by optical microscopy (OM) and scanning electron microscopy (SEM). The results indicated that the interaction could cause a sand adhesion phenomenon affecting the alloy, and the attached products were Al2O3 particles. In addition, the wetting angles of the alloys located on the shell were 125.2°, 109.4°, 97.0°, and 95.0°, respectively, as the contact time was increased from 2 to 5 min. Apparently, the wettability of the alloy in relation to the shell had a relationship with the contact time, where a longer contact time was beneficial to the permeation of the alloy into the shell and the interaction between the two components. No significant chemical products could be detected in the interaction layer, indicating that only the occurrence of the physical dissolution of the shell took place in the alloy melt.

1. Introduction

Similar to the IN792 superalloy, the K492M superalloy has been widely used in industrial gas turbines and aero-engine blades because of its medium–high- and high-temperature structural strength and thermal corrosion resistance [1,2,3]. Because of the complex structure of the alloy’s components, investment casting is commonly used to achieve precise control over the dimensions and to prepare the thin wall and lightweight components [4]. In order to obtain a better filling capability for the alloy melt, the alloy melt is brought into contact with a shell in the process of investment casting at a high temperature for a long time [5,6]. However, complex physical and chemical reactions occur between the alloy melt and the shell, leading to surface defects such as sand adhesion. Then, the surface of the alloy requires some machining to eliminate the surface defects, which can influence the dimensional accuracy of the alloy component. Thus, the surface quality and the dimensional stability of alloys have a direct relationship with the interaction in question [7,8,9].
In order to reduce the interaction between the alloy melt and the shell, the selection of a highly stable refractory substrate for the casting shell is very important. To date, Al2O3 has been considered a relatively suitable refractory substrate for shells during investment casting [10]. Because of the presence of some highly active elements in the alloy melt, the occurrence of an interaction between the alloy melt and the shell is inevitable. Additionally, when the liquid melt comes into contact with the solid shell, the concentration difference in the constituent elements of the shell on the melt side can lead to their diffusion into the melt, resulting in the formation of an adhesion layer on the alloy. Consequently, identifying how to control the interaction between them has become a research focus in order to improve the K492M alloy [11,12,13,14,15]. Currently, the interfacial behavior between the refractory and alloy melts is evaluated by investigating the reactions along their contact interface [16,17,18,19,20,21,22,23]. In addition, contact wettability is a common method used to evaluate the interaction. For example, Li et al. [14] investigated wettability and the interaction between a DZ22B nickel-based superalloy melt and various facecoats. Their results showed that by adding h-BN powder to the fused alumina-based facecoats, the wetting angles between the alloy melt and the facecoats were significantly increased, effectively suppressing the sand-burning defects on the surface of the cast blades. Wang et al. [15] studied the interaction between an Al2O3-based shell and Y/Y+La-containing single-crystal Ni-based superalloys. Their results indicate that the addition of Y and La simultaneously had the synergetic effect of retarding reactions between reactive REEs and ceramic shells. Chen et al. [23] found that, with increasing C and Hf in a Ni3Al-based superalloy, the wetting angles of the alloy melt on ceramic molds decreased and the interface reaction became more severe. Wang examined the wettability and interfacial reactions of Ni-based superalloys using refractory substrates composed of Al2O3, SiO2, ZrSiO4, and CoAl2O4, respectively [24]. The stability of the refractory substrates underwent a systematic evaluation. This approach was used to comprehensively evaluate the interfacial behavior between the refractory and K492M alloy melts and to assess the stability of the proposed Al2O3 refractory substrate. Notably, there are no research reports related to the aforementioned study.
In this study, the aim was to investigate the interfacial behavior between Al2O3 shells and the K492M superalloy. The wettability and interaction were studied by measuring the wetting angle and analyzing the interaction product. Based on this, the interaction mechanism between the shell and the alloy melts was also outlined.

2. Experiment

In this study, the preparation method for the Al2O3 shell used a composite approach involving the face layer and back layer. Among the options available, fused Al2O3 with 325-mesh powder was used as the face layer. Mullite sands with 90-mesh and 54-mesh powders were used as the back layer. To ensure better bonding of the powder, silica sol was selected as the binder. The preparation of the face layer controlled the powder-to-liquid ratio, which was 3.5:1. By adding the dispersants, defoamers, and wetting agents, the slurry obtained better liquidity. After coating the wax with the prepared slurry, a layer of Al2O3 powder was sprinkled over the surface. The same method was also used to prepare the mullite back layer. Finally, the de-waxing operation was conducted in a de-waxing stove, and the shell was sintered at 950 °C, being held for 4 h in a muffle furnace. The furnace was of a pit-type design, which facilitated the provision of a relatively uniform temperature field with which to calcine the shell.
In this experiment, the K492M superalloy was the raw material. Its nominal composition (wt.%) is shown in Table 1. The alloy was cut into 5 × 5 × 5 mm cubes using wire electrical discharge machining. Before the contact experiment, the oxide layer on the alloy sample was thoroughly polished.
The contact experiment was conducted using the non-in situ seating-drop method, as mentioned in our previous study [25], and the experimental setup is shown in Figure 1. In this study, the contact temperature was controlled at 1430 °C and the holding time was set at 2 to 5 min, respectively. After the molten alloy was cooled on the shell to form the hemispherical droplets, the alloy and the shell were taken out for further analysis. The macro- and micro-morphologies of the alloys and shells were examined using optical microscopy (OM) and scanning electron microscopy (SEM, Gemini 300, Oberkochen, Germany), coupled with energy-dispersive spectroscopy (EDS).

3. Results and Discussion

3.1. Macro-Morphology of the Alloy in Contact with Al2O3 Shells

Figure 2 exhibits macroscopic pictures of contact between the top of the alloys and the Al2O3 shells. The alloy exhibited a nearly spherical shape after making contact with the shell at 1430 °C for 2 min, as shown in Figure 2a. In addition, the alloy had a significant metallic luster, indicating that no oxidation occurred on the surface of the alloy and that it was not contaminated by the surroundings. From Figure 2b–d, it can be seen that as the contact time was increased from 3 to 5 min, no significant changes occurred in the macroscopic appearance of the alloys.
In order to analyze the sand adhesion of the alloy, the macro-morphology of the bottom of the alloys in Figure 2 is shown in Figure 3. It can be seen that an obvious gray substance (referred to as sand adhesion) was observed at the bottom of the alloy in contact with the shell at 1430 °C for 2 min, as shown in Figure 2a. In addition, some silvery-white areas were exposed at the bottom of the alloy; it can be confirmed that it was the naked alloy. From Figure 3b–d, it can be seen that a similar sand adhesion phenomenon also appeared at the bottom of the alloys in contact with the alloy melts for 3~5 min. However, the exposed area of the naked alloy exhibited a decreasing trend as the contact time increased. Apparently, the appearance of the sand adhesion was caused by the interaction between the alloy and the shell. Chen’s [26] study showed that the extent of the sand adhesion had a direct relationship with the extent of interaction. Thus, it could be concluded that the extent of interaction in this study was further intensified as the contact time increased.
Figure 4 shows macroscopic pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 2~5 min, respectively. In Figure 4a, the contact area of the shell appears nearly circular in shape. This is because the alloy melt tends to form a spherical shape due to the surface tension, resulting in a circular contact surface with the shell. There is a noticeable separating phenomenon on the surface of the shell at the edges in contact with the alloy. In comparison with Figure 4a, a similar phenomenon is observed in Figure 4b; however, the separating area exhibits an increasing trend. In addition, a more serious phenomenon can be observed in Figure 4c,d after 4~5 min of contact. This indicates that the interaction between the alloy and the shell intensified.

3.2. Microscopic Morphology of Al2O3 Shells in Contact with the Alloy

The microstructure of the surface of Al2O3 shells after contact with the alloys at 1430 °C for 2~3 min is shown in Figure 5. In Figure 5a, it can be seen that many small particles are observed on the surface of the shell and they are uniformly distributed. A magnified picture of area A (in Figure 5a) is depicted in Figure 5b. In combination with the analysis of point 1 (in Table 2), it could be confirmed that it was the Al2O3 shell. In addition, point 2 is composed of Al, Ni, Cr and Co elements, indicating that the particles are the residual alloy. The residual alloy only adhered to the surface of the shell without the interpenetration phenomenon. Furthermore, the residual alloy particles exhibited spherical and needle-like shapes, respectively. When the molten alloy shrank on the surface of the shell, the alloy melt remained on the surface of the shell due to its wettability with the shell. Figure 5c shows a phenomenon similar to that in Figure 5a. A magnified picture of area B (in Figure 5c) is shown in Figure 5d. The analysis of point 3 and 4 (shown in Table 2) exhibited that only the Al2O3 matrix and the attached alloy were detected. No other new products were observed. It could be concluded that only physical interactions occurred between the shell and the alloy melt. Additionally, in comparison with the surface of the shell with a contact time of 2 min, the structure of the surface of the shell with a contact time of 3 min was looser, with an increased number of pores and larger pore sizes. During the contact process between the alloy melt and the shell, a certain degree of interaction occurred, leading to mass transfer. The amount of element diffusion was related to the contact time. Additionally, due to varying amounts of sand adhesion to the bottom of the alloy over extended periods, the surface of the shell exhibited noticeable differences at different times.
The microstructure of the surface of the shell after contact with the alloy melt at 1430 °C for 4~5 min is shown in Figure 6. In Figure 6a, the gray particles on the surface of the shell exhibit a lower content than those shown in Figure 5a. A magnified picture of area C (in Figure 6a) is shown in Figure 6b. In Figure 6b, it can be seen that the small spherical particles disappeared and only large-sized spherical particles remained on the shell. The EDS results in Table 3 indicated that points 5 and 6 corresponded to the Al2O3 shell matrix and the residual alloy, respectively. After the alloy melt made contact with the shell for 5 min, the amount of the residual alloy exhibited a further decreasing trend, as shown in Figure 6c. Basically, no large-sized spherical alloy particles appeared on the surface of the shell. The magnified picture of area D in Figure 6c is shown in Figure 6d. In Figure 6d, the Al2O3 shell matrix (point 7) is clearly visible, and only a small number of alloys (point 8) are visible. It is evident that the interaction between the alloy and the shell can affect their wettability. A longer contact time meant that the alloy could have deeper penetration into the shell, leading to a smaller amount of the alloy remaining on the surface of the shell after separation.
The EDS elemental mapping pictures for the surface of the shell after contact with the alloys at 1430 °C for 2~5 min are shown in Figure 7. In Figure 7a–a7,b–b7, it is shown that the surface of Al2O3 shell mainly consisted of Al and O elements, along with Si and Zr elements. The residual alloys were mainly composed of Al, Ni, Cr and other elements, which is consistent with the analysis presented in Figure 5. In Figure 7a–d, it can be seen that the residual Ni elements exhibited a significant downward trend. Thus, the increase in contact time between the alloy and the shell could enhance their wettability. In addition, it can be seen that many Cr elements were distributed across the surface of the shell. Consequently, the surface of the shell might appear somewhat green, which is consistent with the phenomenon shown in Figure 4. Liu et al. show that the relative stability of the oxides, from high to low, was as follows: Al2O3 > TiO2 > Cr2O3 > CoO > NiO [27]. In addition, due to the low oxygen content from diffusion, it was difficult to detect the presence of TiO2 residues. However, the Cr element also had a strong affinity for the O element, and so it tended to remain on the surface of the shell in substantial quantities along with the alloy melt.

3.3. Microstructure of the Cross-Section of the Alloys in Contact with the Shells

The microstructure of the cross-section of the alloy in contact with the Al2O3 shell at 1430 °C for 2~5 min is shown in Figure 8. Figure 8a shows that a 10 μm thick black layer (interaction layer) was attached to the gray-white alloy layer after being in contact with the shell for 2 min. The EDS results of points 9~11 in Table 4 indicate that the interaction layer is a mixture of the Al2O3 shell and the alloy, and that the gray-white is the alloy matrix. Apparently, during the contact experiment, the molten alloy could infiltrate into the shell, and the rapid shrinkage of the alloy melt could cause the generation of a mixture during the rapid cooling process. Figure 8b shows the cross-section of the alloy after contact with the shell for 3 min. A similar phenomenon is observed as Figure 8a. An adhesion layer with a thickness of 15 μm is found along the alloy matrix. The EDS results of points 12~14 in Table 4 indicate that the alloy matrix and adhesion layer were distinguishable, respectively. In addition, the adhesion layer also consisted of Al2O3 and the alloy, as indicated in point 13. From Figure 8c,d, it can be seen that as the contact time was increased from 4~5 min, no significant changes occurred between the interaction layer and the alloy matrix. After 5 min of contact, there were large-sized Al2O3 particles attached to the alloy matrix. This indicates that the extension of the contact time increases the penetration of the alloy melt into the interior of the shell. A study by Long showed that the chemical activity of the Ni-based superalloys was relatively low, indicating that no chemical reaction would occur between the alloy melt and the Al2O3 shell [28]. In addition, no chemical products were observed in Figure 8, indicating that only the physical dissolution of Al2O3 shell occurred in the alloy melt, which is consisted with the analysis in Figure 7.
Figure 9 shows the microstructure of the longitudinal cross-section of the contact layer in the alloy prepared at 1430 °C for 2~5 min. In Figure 9a–a7,b–b7, it is shown that the interior of the alloy mainly consisted of Ni, Cr, and Co elements. In addition, the same phenomenon is shown in Figure 9c,d. The alloy and Al2O3 shells underwent physical dissolution, forming an interaction layer of a certain thickness, in which large amounts of Al and O elements were enriched. In fact, researchers had reported that the interaction between nickel-based superalloys and Al2O3 shells was mainly controlled by physical dissolution diffusion [29]. Alloys that reacted with the shell for different durations formed a reaction layer, which was predominantly composed of Al and O elements. Although small amounts of Ni elements were dispersed in the reaction layer, they did not participate in the interaction to form NiO. It is speculated that the regions where Ni elements were detected corresponded to the areas of the alloy matrix that had not yet reacted with the shell. In addition, some large-sized Al2O3 particles could be observed adhering to the alloy side as the contact time increased. This might be due to longer contact time leading to an increasing trend of sand adhesion, resulting in large particles attaching more easily to the alloy side.

3.4. Wetting Behavior between the Alloy and the Shells

Figure 10 shows the front view of the macro-morphology of the alloy in contact with the shell at 1430 °C. Apparently, all of the alloys had a spherical crown shape after contact with the shell. This occurred because, when the block shape alloy was melted, it initially took a spherical shape due to surface tension. Subsequently, during contact with the shell, the interaction between the alloy and the shell could influence the wetting state of the alloy. In addition, the alloys had a smooth and clean surface, indicating that the alloy was not seriously contaminated by the surroundings in the furnace. As the contact time was increased from 2 to 5 min, the alloy drops’ bottoms became narrower, as shown in Figure 10a–d. The measured angles of the alloys were 125.2° (Figure 10a), 109.4° (Figure 10b), 97° (Figure 10c), and 95° (Figure 10d), respectively. The results show that an increase in contact time leads to a gradual decrease in the wetting angle of the system. In addition, it was confirmed that the wetting angle exhibited a decreasing trend as the interaction extent increased. The K492M alloy is widely used for the blades of industrial gas turbines and aero-engines and in integral turbines in auxiliary power units (APUs). In addition, these components are primarily prepared using investment casting. During this process, the molten alloy entered into the Al2O3 Shell, and the wettability of the alloy melt influenced its filling capability as well as the surface quality of the alloy casting. This study investigated wettability and the interaction between the K492M alloy and the Al2O3 shell, providing theoretical guidance for the investment casting of the alloy in the future.

4. Conclusions

In this study, the interaction behavior between the K492M superalloy and the Al2O3 shells was investigated at 1430 °C for 2~5 min, respectively. The conclusions are summarized as follows:
(1)
After the contact experiment, the interaction between the alloy and the shell caused sand adhesion, and the extent of the sand adhesion increased with a longer contact time.
(2)
With the extension of contact time, significant interactions occurred between the shells and the alloy, resulting in a thicker interaction layer and more pronounced delamination. This interaction layer was a mixture of Al2O3 particles and the alloy.
(3)
After 2~5 min of contact, the wetting angles of the alloys located on the shells were 125.2°, 109.4°, 97° and 95°, respectively. Obviously, the wettability of the alloys on the shells was related to the contact time. Prolonging the contact time was beneficial for the interaction and significantly improved wettability.
(4)
Generally, the wettability of the K492M alloy melt on the shell depended on the contact temperature and time. To improve the surface quality and mold-filling ability of the alloy castings, it was necessary to reduce interactions while controlling wettability to a certain level. Further research was needed to study the changes in wettability at different temperatures and times, and to evaluate and control the actual parameters in combination with the performance of practical castings.

Author Contributions

Conceptualization, H.X. and E.W.; Data curation, H.L. and S.D.; Formal analysis, G.C., H.L., S.D. and M.Z.; Funding acquisition, C.L.; Investigation, S.D., M.Z., Z.C. and H.X.; Methodology, G.C. and X.H.; Project administration, G.C.; Resources, E.W., X.H. and C.L.; Supervision, G.C. and C.L.; Validation, H.L. and Z.C.; Writing—original draft, G.C.; Writing—review & editing, E.W., X.H. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program (2022YFB3404500), National Natural Science Foundation of China (Nos. 52104305, 52374360, 12305374, 52174294 and U2341267). Additionally, we thank the anonymous referee of this paper for their constructive suggestions.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhang, J.; Singer, R.F. Effect of Zr and B on castability of Ni-based superalloy IN792. Metall. Mater. Trans. A 2004, 35, 1337–1342. [Google Scholar] [CrossRef]
  2. Seo, S.M.; Kim, I.S.; Lee, J.H. Microstructural evolution in directionally solidified Ni-base superalloy IN792+Hf. J. Mater. Sci. Technol. 2008, 24, 110–114. [Google Scholar]
  3. Du, B.N.; Sheng, L.Y.; Hu, Z.Y. Investigation on the microstructure and tensile behavior of a Ni-based IN792 superalloy. Adv. Mech. Eng. 2018, 10. [Google Scholar] [CrossRef]
  4. Pollock, T.M.; Tin, S. Nickel-based superalloys for advanced turbine engines: Chemistry, microstructure and properties. J. Propuls Power 2006, 22, 361–374. [Google Scholar] [CrossRef]
  5. Liu, L. The progress of investment casting of nickel-based superalloys. Foundry 2012, 61, 1273–1285. [Google Scholar]
  6. Shi, C.X.; Zhong, Z.Y. Development and innovation of superalloy in China. Acta Metall. Sin. 2010, 46, 1281–1288. [Google Scholar] [CrossRef]
  7. Venkat, Y.; Choudary, K.R.; Chatterjee, D. Development of mullite-alumina ceramic shells for precision investment casting of single-crystal high-pressure turbine blades. Ceram. Int. 2022, 48, 28199–28206. [Google Scholar] [CrossRef]
  8. Li, A.L.; Cao, L.M.; Xue, M. Study on interface behavior between single crystal alloy/Al2O3 mould shell. Met. Hotworking Technol. 2007, 36, 48. [Google Scholar]
  9. Yao, J.S.; Dong, L.P.; Wu, Z.Q. Interfacial Reaction Mechanism between Ceramic Mould and Single Crystal Superalloy for Manufacturing Turbine Blade. Materials 2022, 15, 5514. [Google Scholar] [CrossRef]
  10. Kanyo, J.E.; Schafföner, S.; Uwanyuze, R.S. An overview of ceramic molds for investment casting of nickel superalloys. J. Eur. Ceram. Soc. 2020, 40, 4955–4973. [Google Scholar] [CrossRef]
  11. Li, F.; Ni, H.J.; Yang, L.X. Investigation of fused alumina based-mold facecoats for DZ22B directionally solidified blades. Materials 2019, 12, 606. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, Y.D.; Wang, L.Z.; Chen, C.Y. Effect of a MgO-CaO-ZrO2-based refractory on the cleanliness of a K4169 Ni-based superalloy. Ceram. Int. 2023, 49, 117–125. [Google Scholar] [CrossRef]
  13. Wang, H.; Shang, G.F.; Liao, J.F. Experimental investigations and thermodynamic calculations of the interface reactions between ceramic moulds and Ni-based single-crystal superalloys: Role of solubility of Y in the LaAlO3 phase. Ceram. Int. 2018, 44, 7667–7673. [Google Scholar] [CrossRef]
  14. Zi, Y.; Meng, J.; Zhang, C.W. Effect of Y content on interface reaction and wettability between a nickel-base single crystal superalloy melt and ceramic mould. J. Alloys Compd. 2019, 789, 472–484. [Google Scholar] [CrossRef]
  15. Wang, L.L.; Sheng, Y.J.; Hong, G.G. Interface Reaction between Directional Solidified Superalloy DZ40M and Ceramic Mould. Mater. Sci. Forum 2021, 6114, 235–242. [Google Scholar] [CrossRef]
  16. Chen, Y.X.; Li, F.; Wang, J. Investigations on Interface Reactions and Wettability between Melt Superalloys and Ceramic Materials. Key Eng. Mater. 2016, 4274, 132–137. [Google Scholar] [CrossRef]
  17. Fan, J.X.; Fan, H.N.; Song, Z. Thermal-shock stable Al2O3 crucible for superalloy smelting through slip casting with particle gradation. Ceram. Int. 2023, 49, 8762–8771. [Google Scholar] [CrossRef]
  18. Shi, H.J.; Chai, Y.D.; Li, N. Investigation of interfacial reaction mechanism between SiC and Inconel 625 superalloy using thermodynamic calculation. J. Eur. Ceram. Soc. 2021, 41, 3960–3969. [Google Scholar] [CrossRef]
  19. Chen, Z.A.; Tan, Y.; Li, Y. Effect of oxygen on the wettability and interfacial reaction between the DD5 superalloy and ceramic shell. Vacuum 2023, 215, 112288. [Google Scholar] [CrossRef]
  20. Hong, S.S.; Song, H.Y.; Qian, K. Effect of TiO2 contents on the interface reaction between magnesia alumina spinel crucible with K417G superalloy during vacuum induction melting. J. Eur. Ceram. Soc. 2024, 44, 6708–6720. [Google Scholar] [CrossRef]
  21. Chen, X.Y.; Zhou, Y.Z.; Jin, T. Effect of C and Hf Contents on the Interface Reactions and Wettability between a Ni3Al-Based Superalloy and Ceramic Mould Material. J. Mater. Sci. Technol. 2016, 32, 177–181. [Google Scholar] [CrossRef]
  22. Sun, Y.Y.; Cheng, Y.; Wang, F.W. Interfacial reaction mechanism between Y-containing DD5 alloy and Al2O3 ceramic during directional solidification process. Ceram. Int. 2024, 50, 33270–33282. [Google Scholar] [CrossRef]
  23. Xuan, W.D.; Du, L.F.; Song, G. Some new observations on interface reaction between nickel-based single crystal superalloy CMSX-4 and silicon oxide ceramic core. Corros. Sci. 2020, 177, 108969. [Google Scholar] [CrossRef]
  24. Wang, H.W.; Yang, J.X.; Meng, J. Wettability and interfacial reactions of a low Hf-containing nickel-based superalloy on Al2O3-based, SiO2-based, ZrSiO4, and CoAl2O4 substrates. Ceram. Int. 2020, 46, 22057–22066. [Google Scholar] [CrossRef]
  25. Chen, G.Y.; Cai, Z.Y.; Zhang, M. Effect of Kaolin/TiO2 Additions and Contact Temperature on the Interaction between DD6 Alloys and Al2O3 Shells. Metals 2024, 14, 164. [Google Scholar] [CrossRef]
  26. Chen, X.Y.; Jin, Z.; Bai, X.F. Effect of C on the Interfacial Reaction and Wettability between a Ni-based superalloy and Ceramic Mould. Acta Metall. Sin. 2015, 51, 853–858. [Google Scholar]
  27. Liu, Y.S.; Gao, Y.Y.; Wang, E.H. Interaction between CA6-MA crucible and molten wrought Ni-based superalloys. J. Eur. Ceram. Soc. 2023, 43, 1714–1722. [Google Scholar] [CrossRef]
  28. Long, X.; Liu, L.; Yu, H. Interfacial Reaction between DZ22B Superalloy and Al2O3 Ceramic Mold Shell for Investment Casting. Spec. Cast. Nonferrous Alloys 2018, 38, 525–528. [Google Scholar]
  29. Akmal, M.; Kang, D.S.; Lee, H. Understanding the metal-mold interfacial reactions during directional solidification of superalloys using Al2O3-rich ceramic mold. J. Alloys Compd. 2024, 994, 174735. [Google Scholar] [CrossRef]

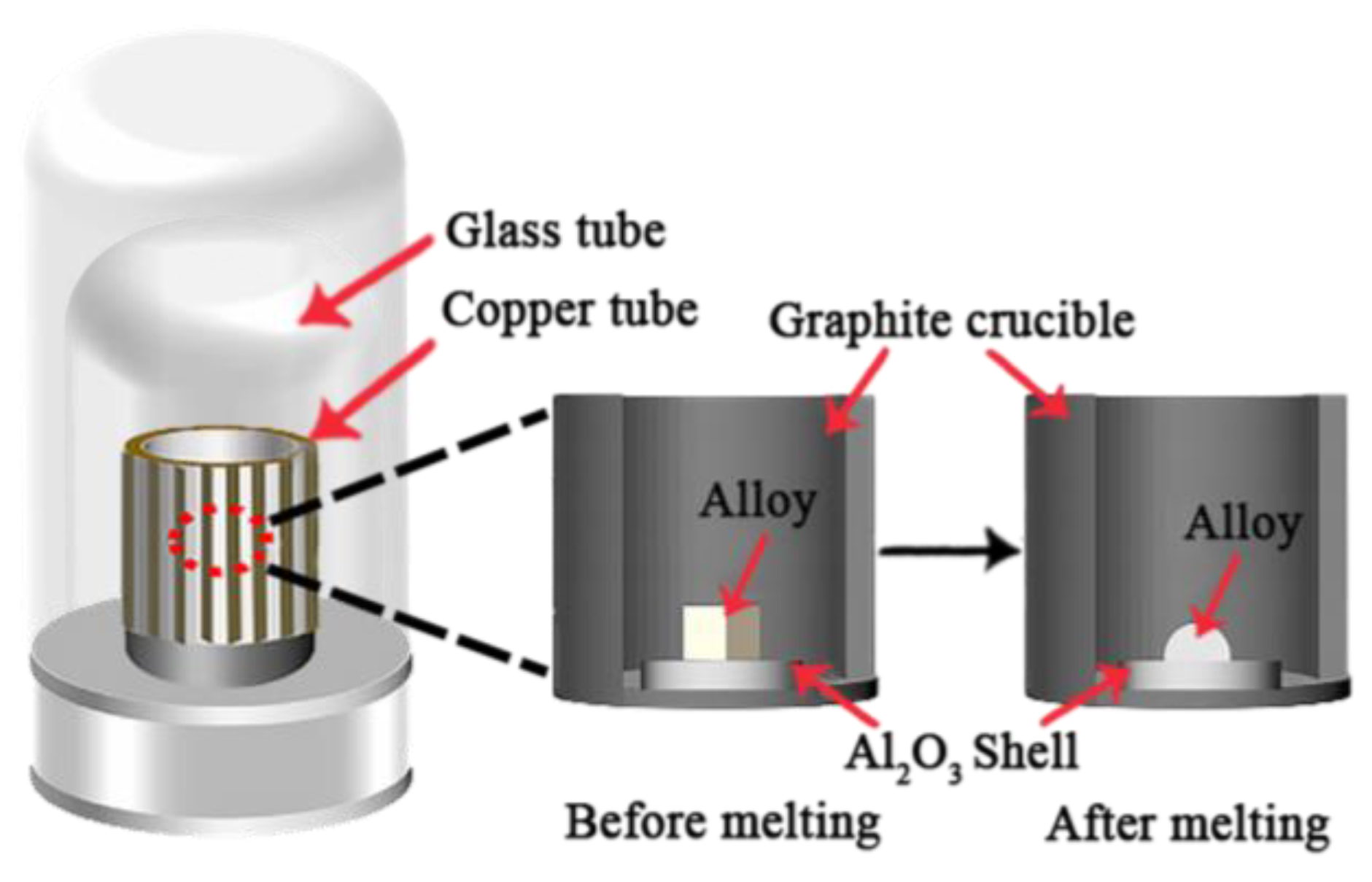

Figure 1. The schematic diagram of the contact experiment apparatus.
Figure 1. The schematic diagram of the contact experiment apparatus.
Materials 17 04674 g001

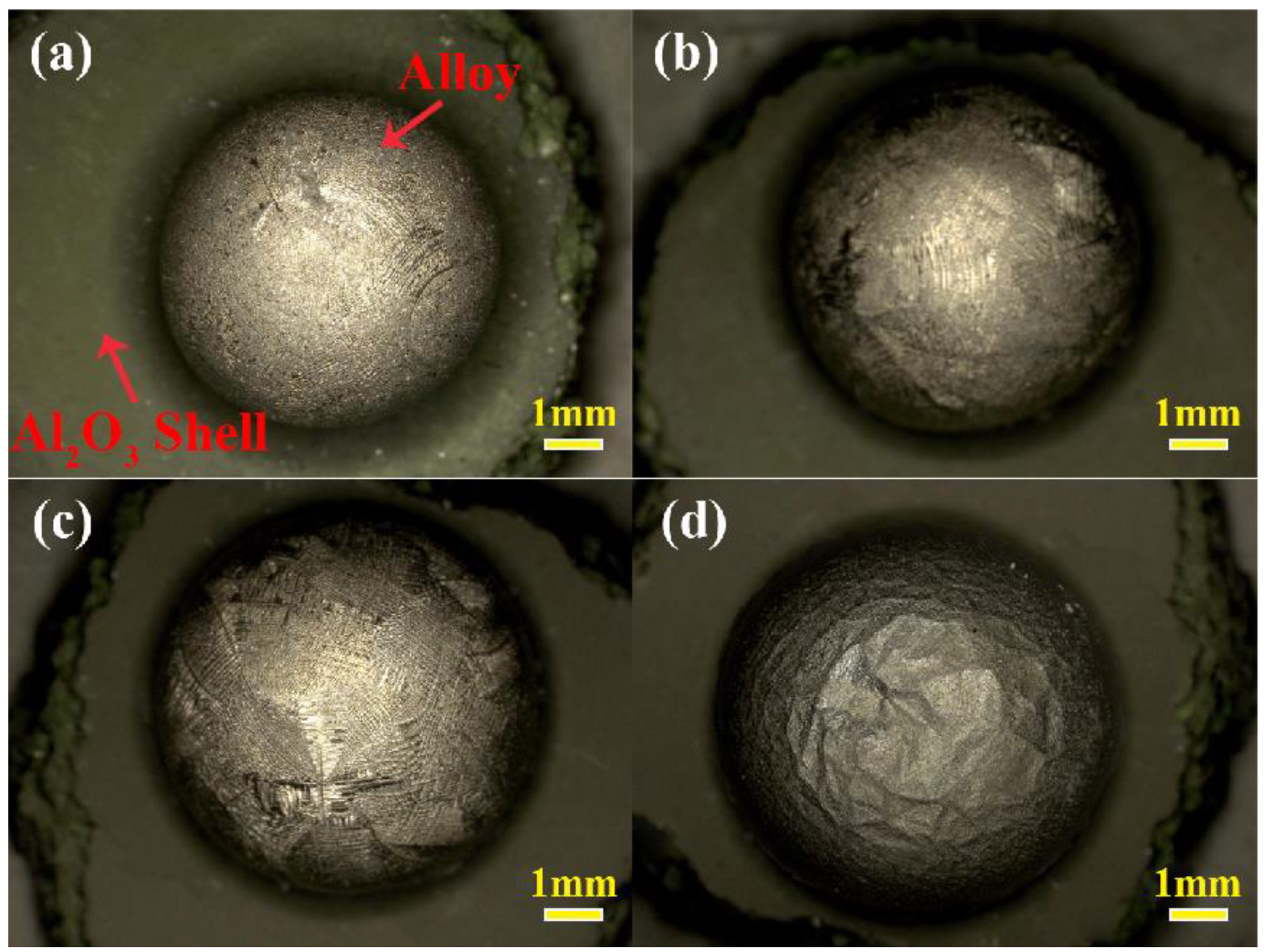

Figure 2. Macroscopic pictures of the top of the alloys located on the Al2O3 shells after making contact at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Figure 2. Macroscopic pictures of the top of the alloys located on the Al2O3 shells after making contact at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Materials 17 04674 g002
Figure 3. Macro-morphology at the bottom of the alloys in contact with the Al2O3 shells at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min. The insets in the upper right corner of Figure 3a–d correspond to enlarged views of the respective dashed-frame areas.
Figure 3. Macro-morphology at the bottom of the alloys in contact with the Al2O3 shells at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min. The insets in the upper right corner of Figure 3a–d correspond to enlarged views of the respective dashed-frame areas.
Materials 17 04674 g003

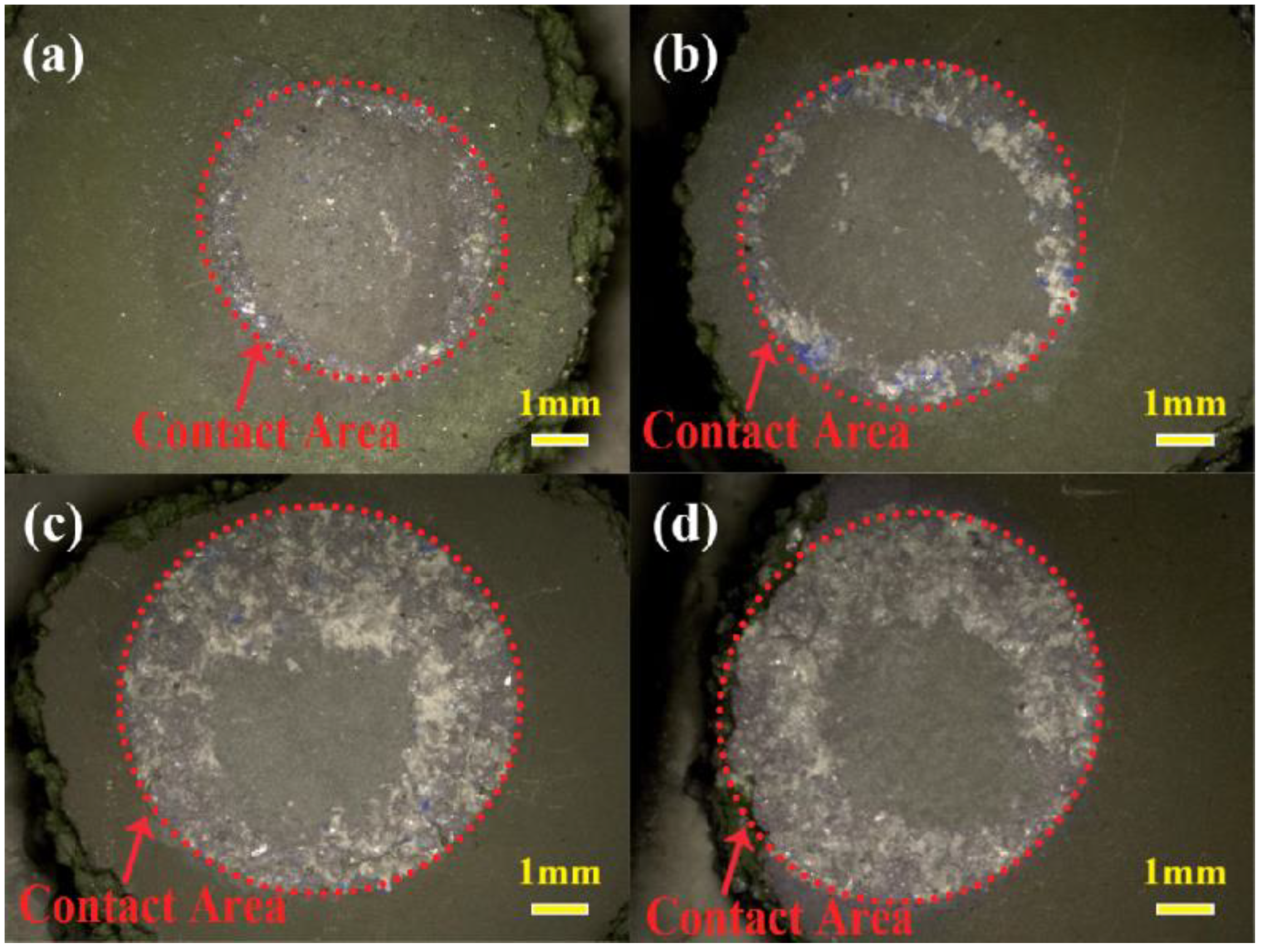

Figure 4. Macro-morphology of the surface of the shells in contact with the alloys at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Figure 4. Macro-morphology of the surface of the shells in contact with the alloys at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Materials 17 04674 g004
Figure 5. SEM pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 2~3 min, respectively: (a) shows the results after 2 min; (b) is a magnified picture of area A in (a); (c) shows the results after 3 min; (d) is a magnified picture of area B in (c).
Figure 5. SEM pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 2~3 min, respectively: (a) shows the results after 2 min; (b) is a magnified picture of area A in (a); (c) shows the results after 3 min; (d) is a magnified picture of area B in (c).
Materials 17 04674 g005

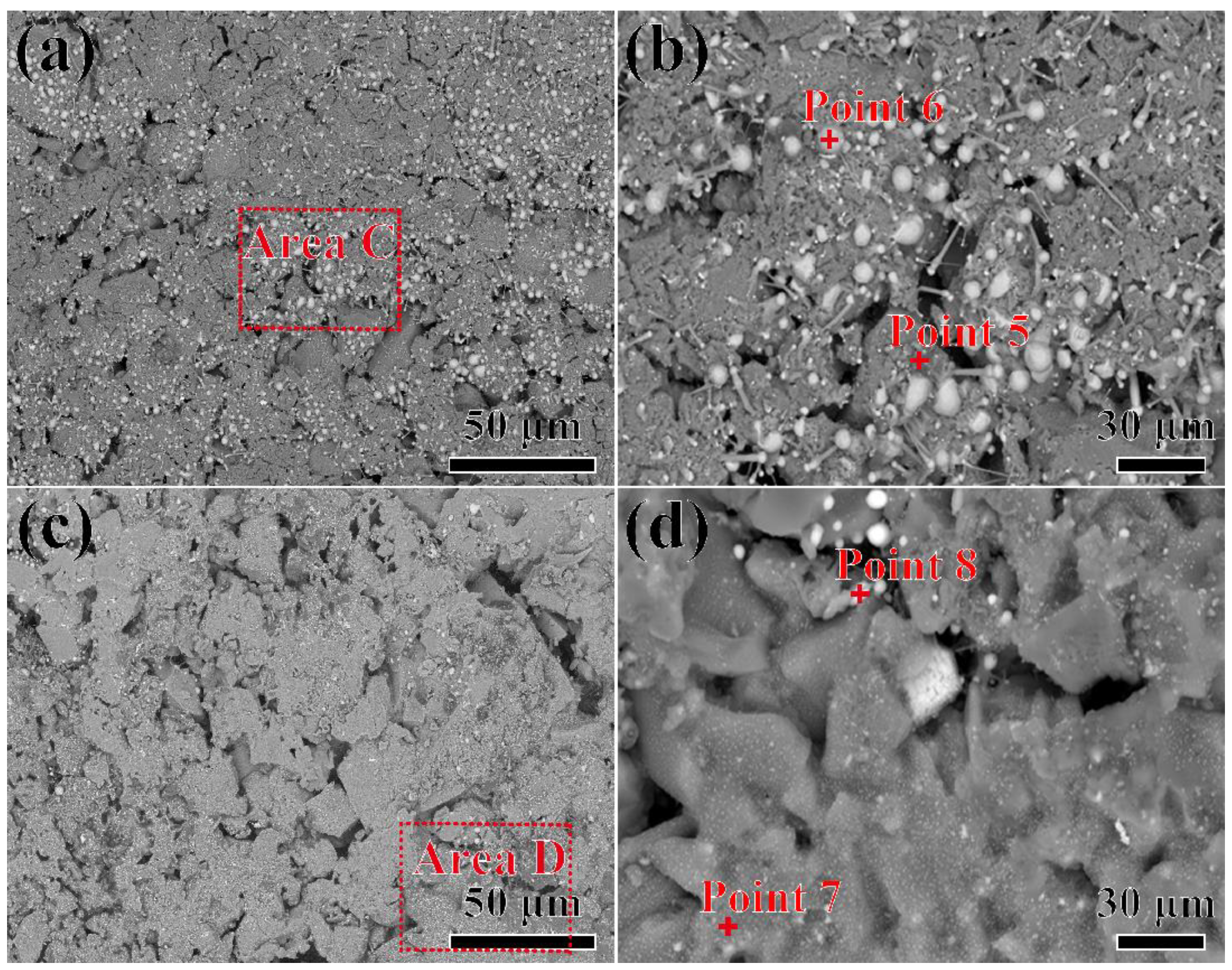

Figure 6. SEM pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 4~5 min, respectively: (a) shows the results after 4 min; (b) is a magnified picture of area C in (a); (c) shows the results after 5 min; (d) is a magnified picture of area D in (c).
Figure 6. SEM pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 4~5 min, respectively: (a) shows the results after 4 min; (b) is a magnified picture of area C in (a); (c) shows the results after 5 min; (d) is a magnified picture of area D in (c).
Materials 17 04674 g006

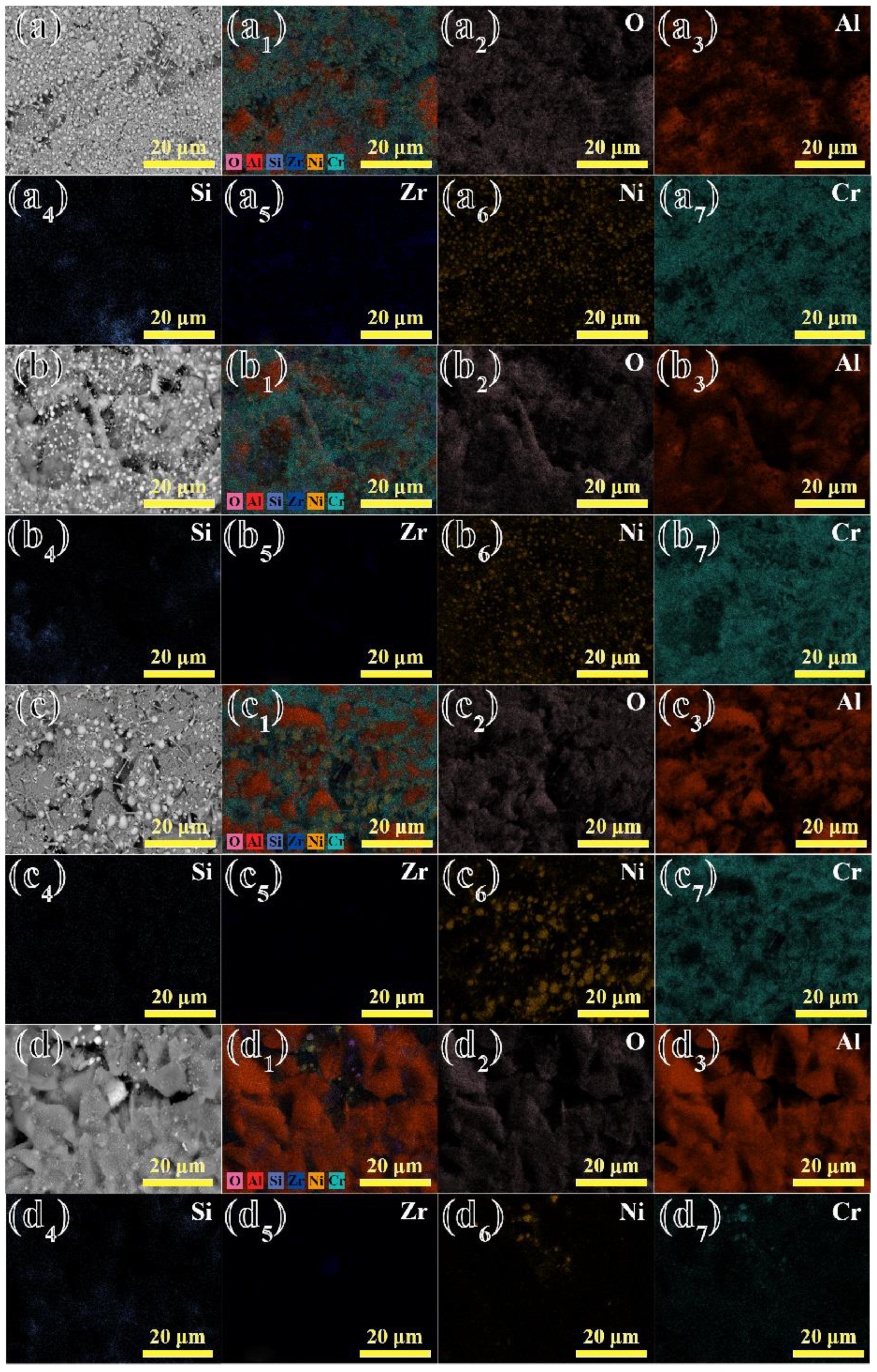

Figure 7. EDS elemental mapping pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 2~5 min, respectively: (aa7) 2 min; (bb7) 3 min; (cc7) 4 min; (dd7) 5 min.
Figure 7. EDS elemental mapping pictures of the surface of Al2O3 shells in contact with the alloys at 1430 °C for 2~5 min, respectively: (aa7) 2 min; (bb7) 3 min; (cc7) 4 min; (dd7) 5 min.
Materials 17 04674 g007
Figure 8. SEM pictures of the cross-section of the alloys in contact with Al2O3 shells at 1430 °C for 2~5 min, respectively: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Figure 8. SEM pictures of the cross-section of the alloys in contact with Al2O3 shells at 1430 °C for 2~5 min, respectively: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Materials 17 04674 g008

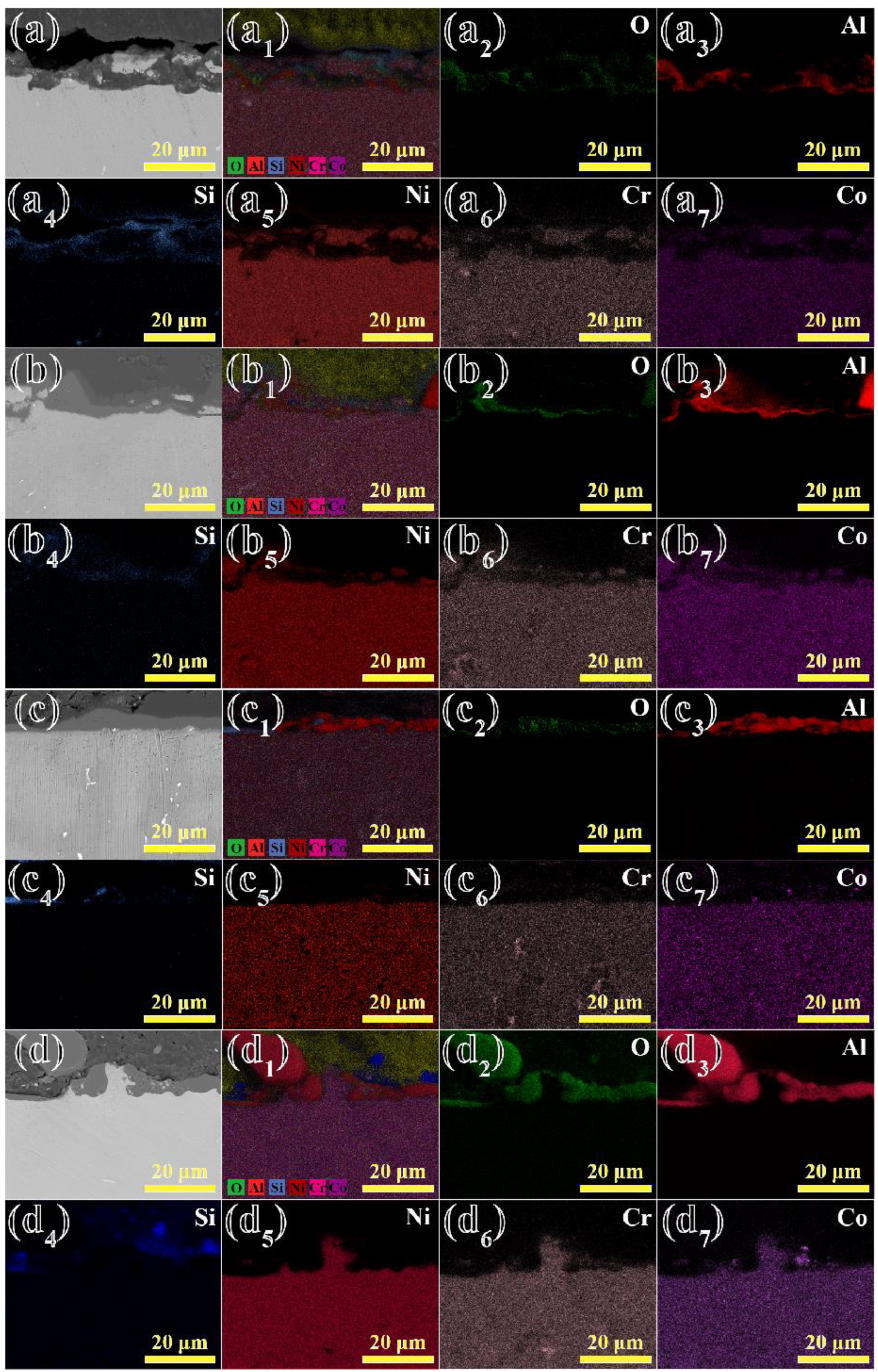

Figure 9. EDS elemental mapping pictures of the cross-section of the alloys in contact with Al2O3 shells at 1430 °C for 2~5 min, respectively: (aa7) 2 min; (bb7) 3 min; (cc7) 4 min; (dd7) 5 min.
Figure 9. EDS elemental mapping pictures of the cross-section of the alloys in contact with Al2O3 shells at 1430 °C for 2~5 min, respectively: (aa7) 2 min; (bb7) 3 min; (cc7) 4 min; (dd7) 5 min.
Materials 17 04674 g009

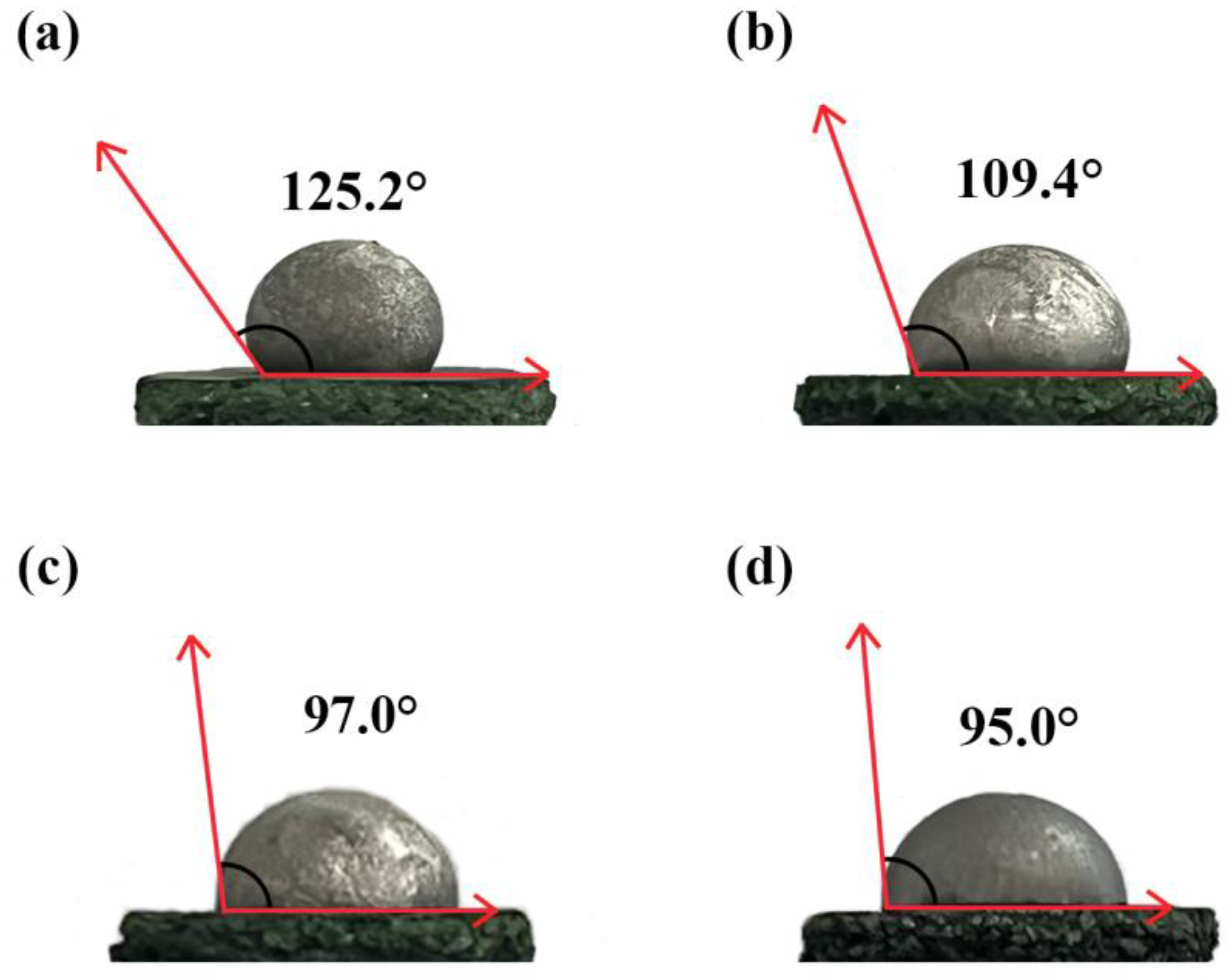

Figure 10. The wettability angle pictures of the alloy located on the Al2O3 shells after contact at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Figure 10. The wettability angle pictures of the alloy located on the Al2O3 shells after contact at 1430 °C: (a) 2 min; (b) 3 min; (c) 4 min; (d) 5 min.
Materials 17 04674 g010
Table 1. The nominal element composition of the K492M superalloy.
Table 1. The nominal element composition of the K492M superalloy.
AlloyElement/wt.%
CoCrWAlTaTiMoCBZrNi
K492M9.012.54.03.44.14.12.00.090.0150.11Bal.
Table 2. EDS results of points 1~4.
Table 2. EDS results of points 1~4.
PointElement/at%
OAlSiZrNiCrCo
157.9822.331.150.846.838.332.54
216.3518.712.05/41.8715.345.68
355.8039.930.430.260.243.170.18
413.2518.711.38/45.2116.245.21
Table 3. EDS results of points 5~8.
Table 3. EDS results of points 5~8.
PointElement/at%
OAlSiZrNiCrCo
564.2930.250.520.300.953.370.31
611.2126.690.460.8251.987.151.69
750.1741.081.590.543.931.211.49
819.3143.170.101.3920.207.318.51
Table 4. EDS results of points 9~20.
Table 4. EDS results of points 9~20.
PointElement/at%
OAlSiNiCrCoW, Ta, Ti, Mo, Zr
9/5.17/24.535.153.32Bal.
1018.486.54/14.723.742.04Bal.
11/1.53/22.916.393.18Bal.
12/3.35/27.836.924.11Bal.
1346.2935.582.5610.302.691.76Bal.
146.493.364.4921.564.132.92Bal.
1515.395.319.3325.184.943.53Bal.
16/4.507.2024.044.953.47Bal.
17/5.75/32.1511.487.06Bal.
188.9311.413.6222.352.602.67Bal.
1948.9937.722.287.192.071.98Bal.
20/3.12/34.8712.616.55Bal.
