Influence of Nanocomposite PVD Coating on Cutting Tool Wear During Milling of 316L Stainless Steel Under Air Cooling Conditions

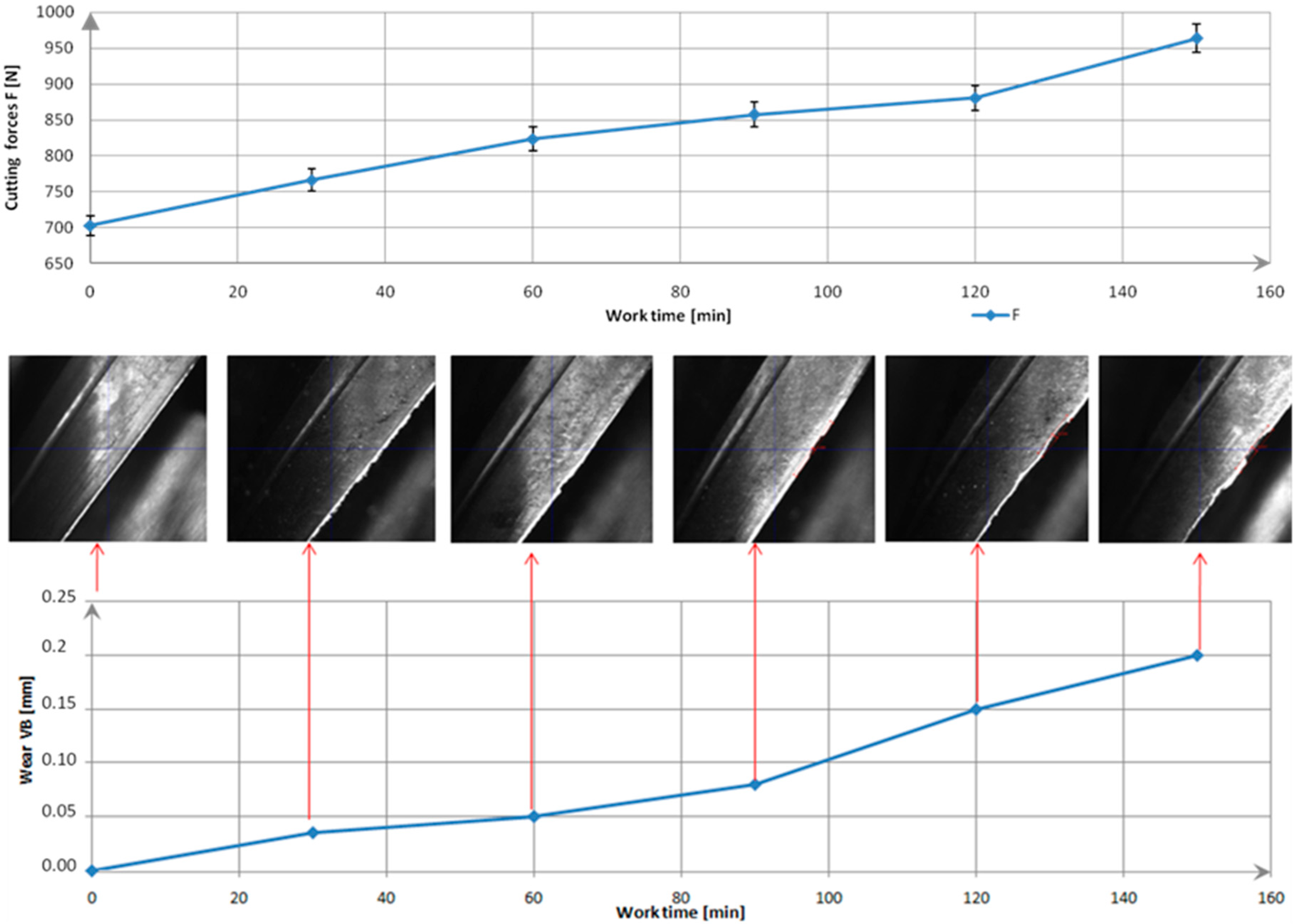

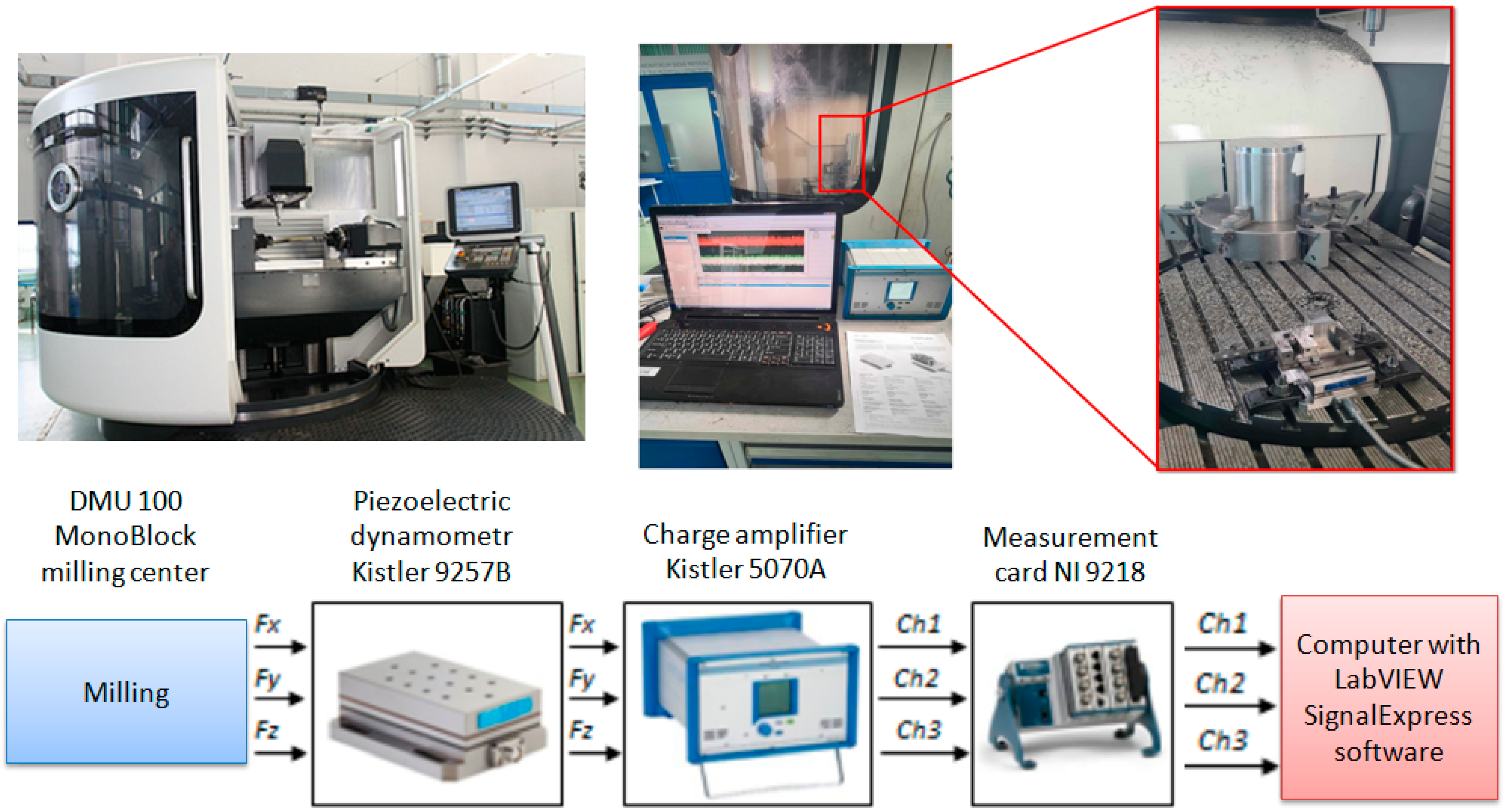

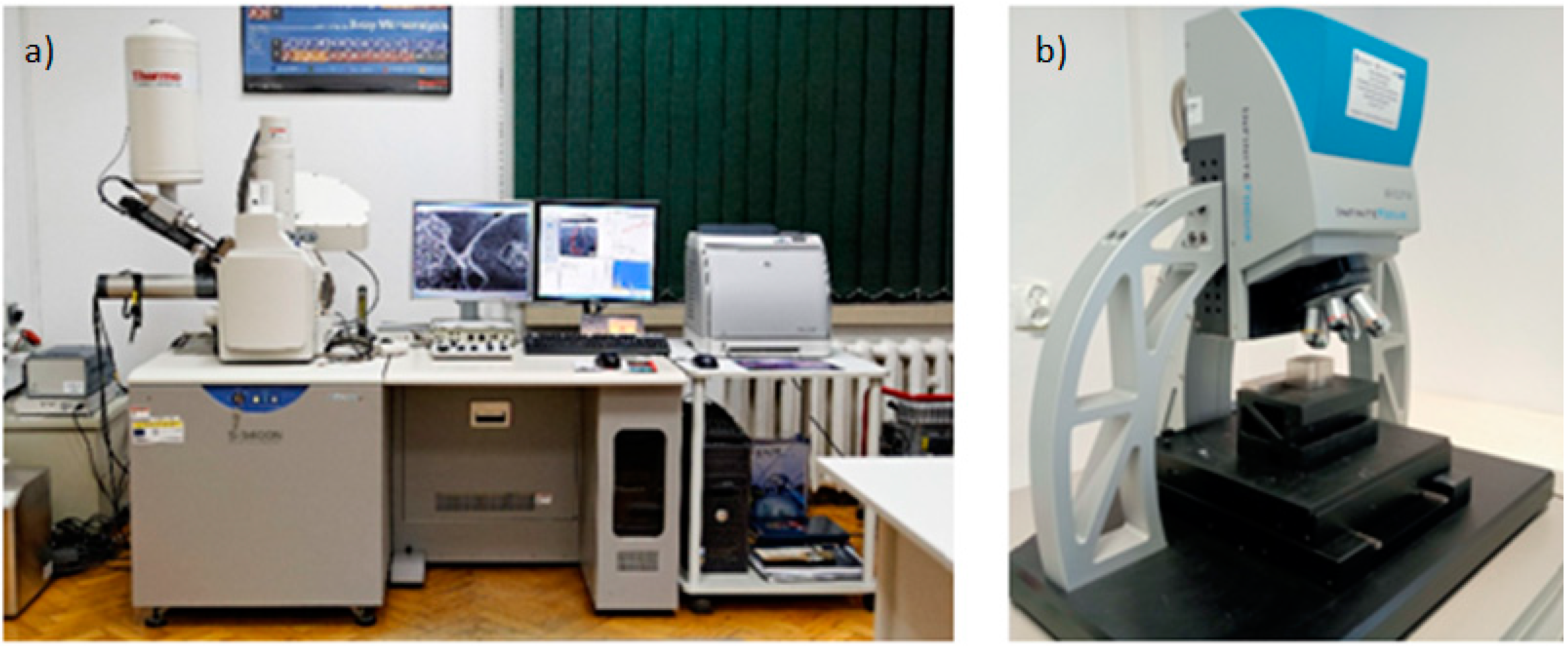

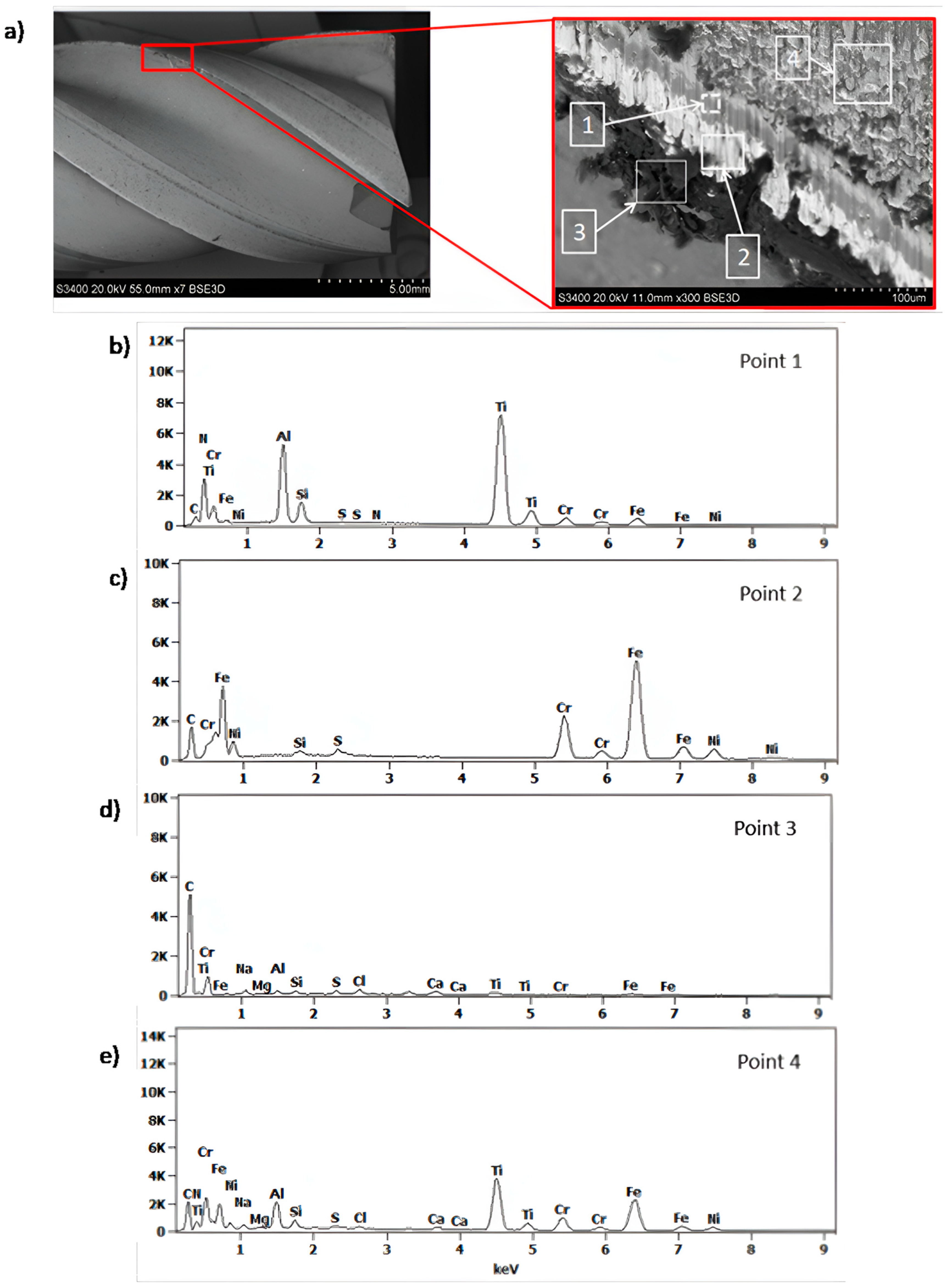

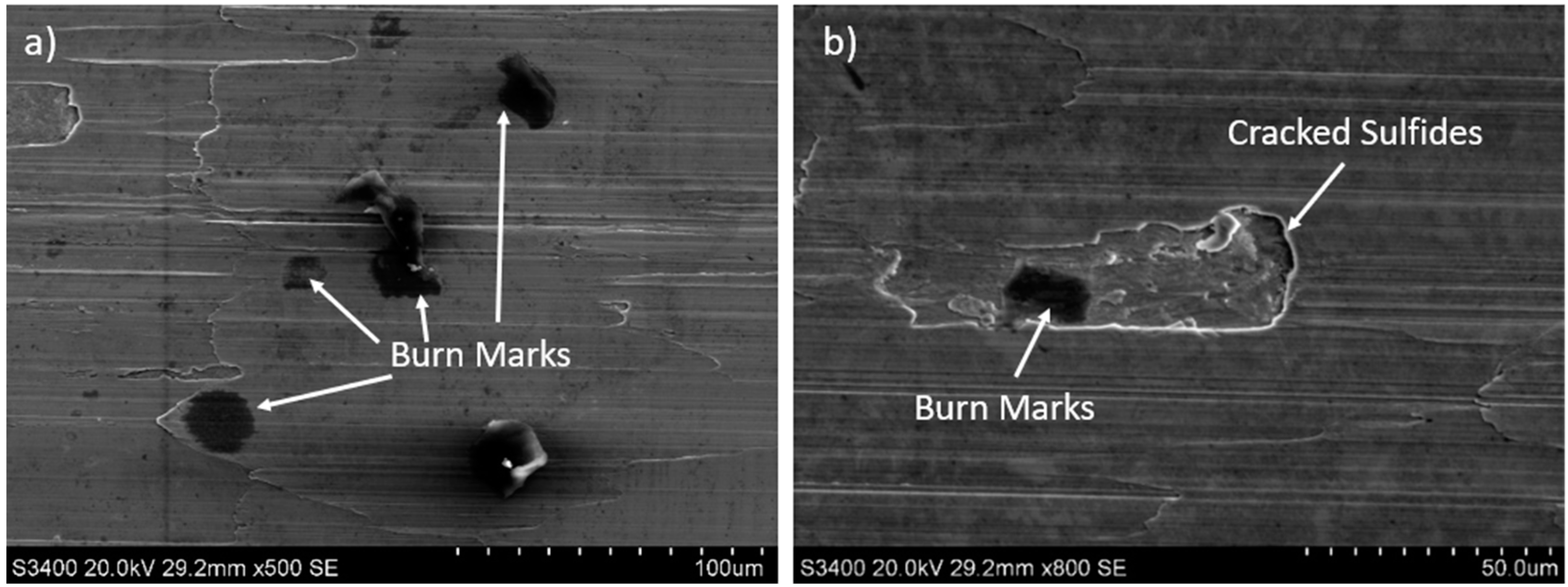

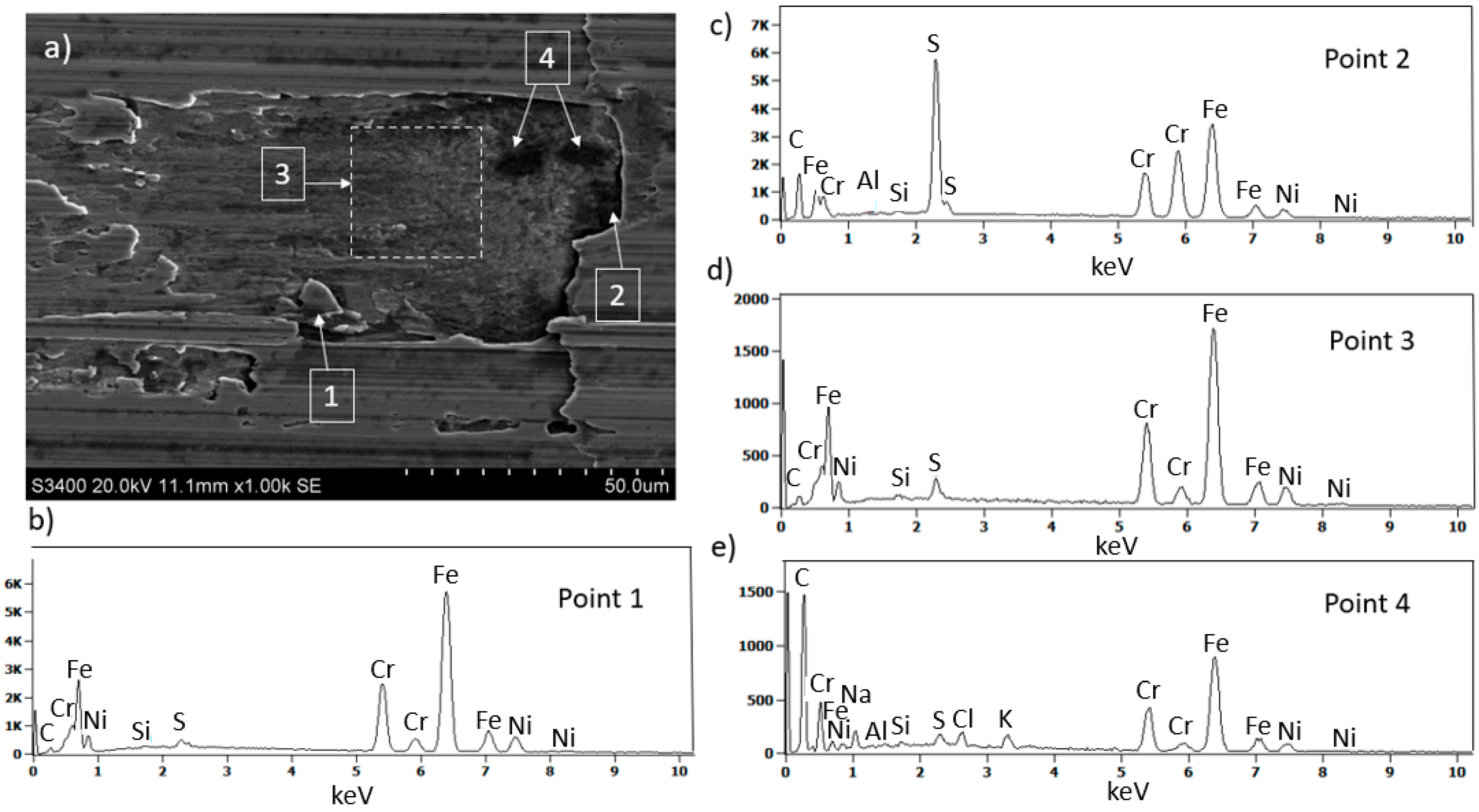

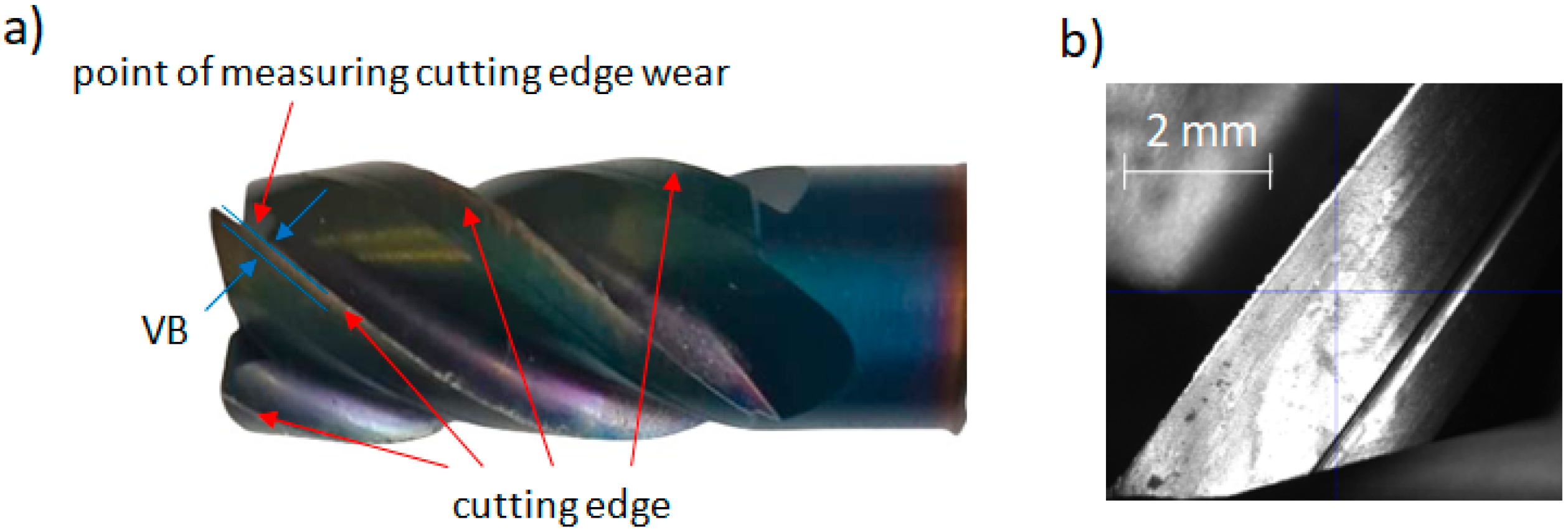

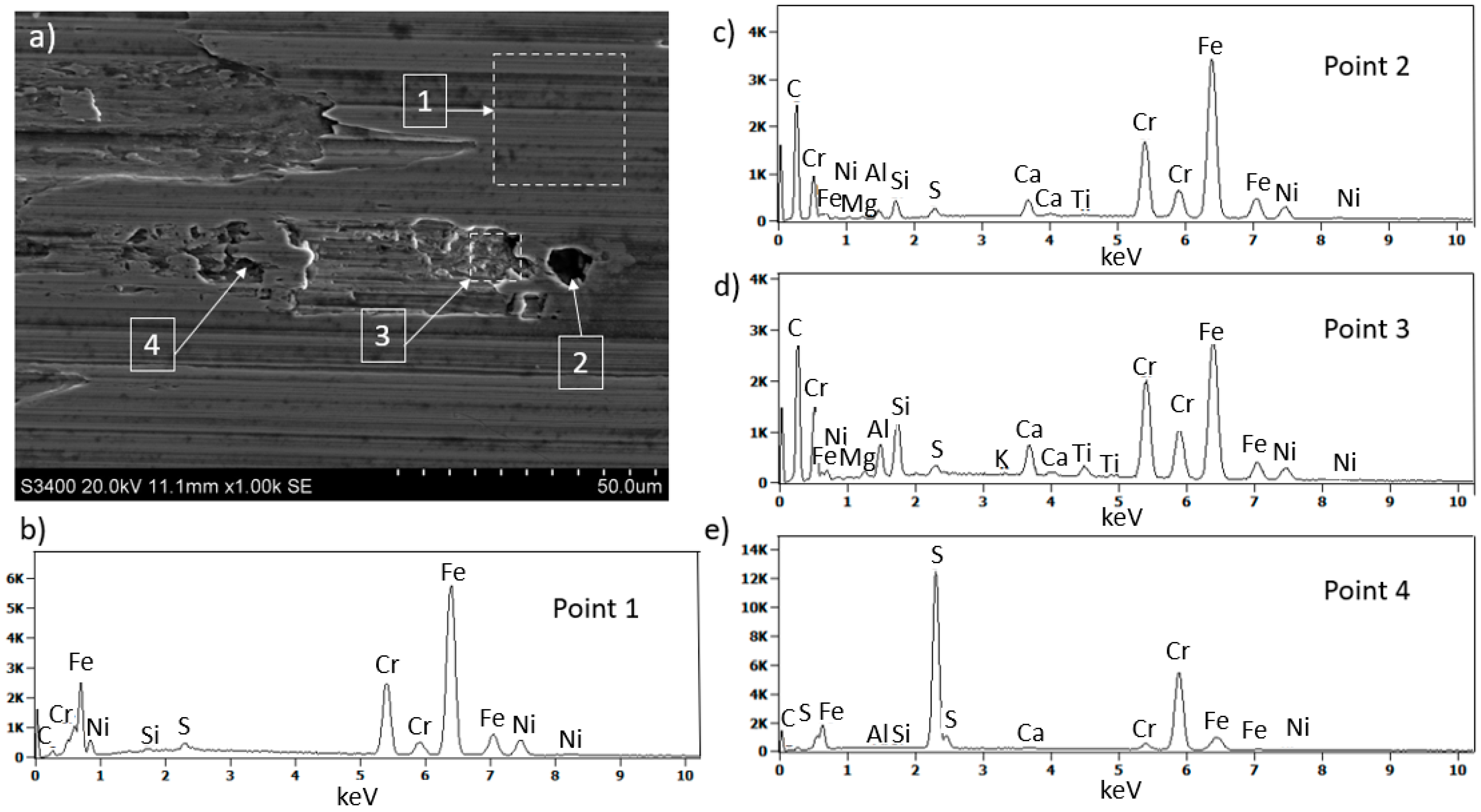

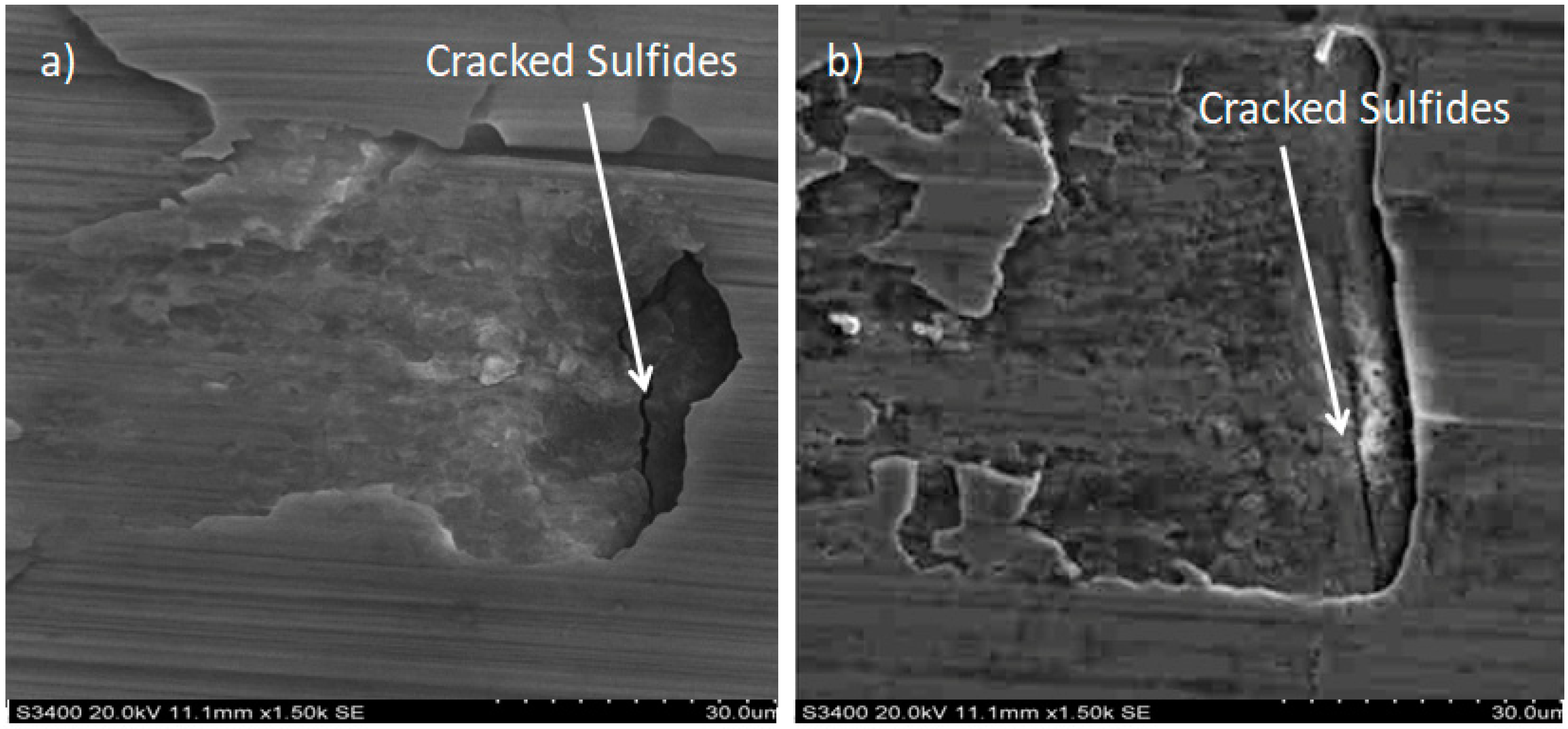

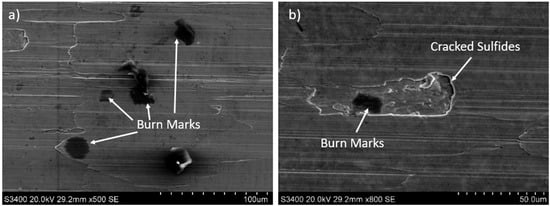

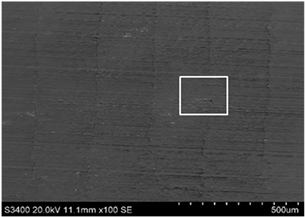

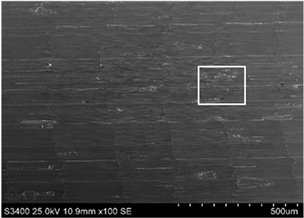

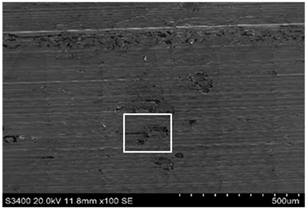

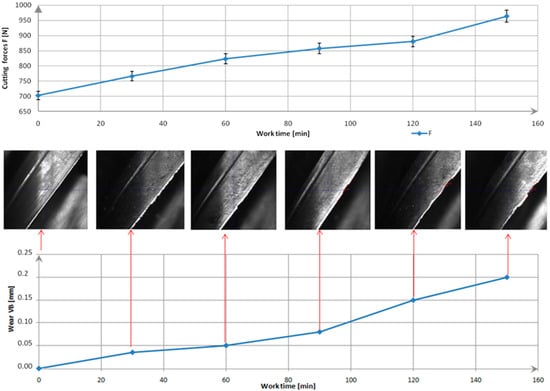

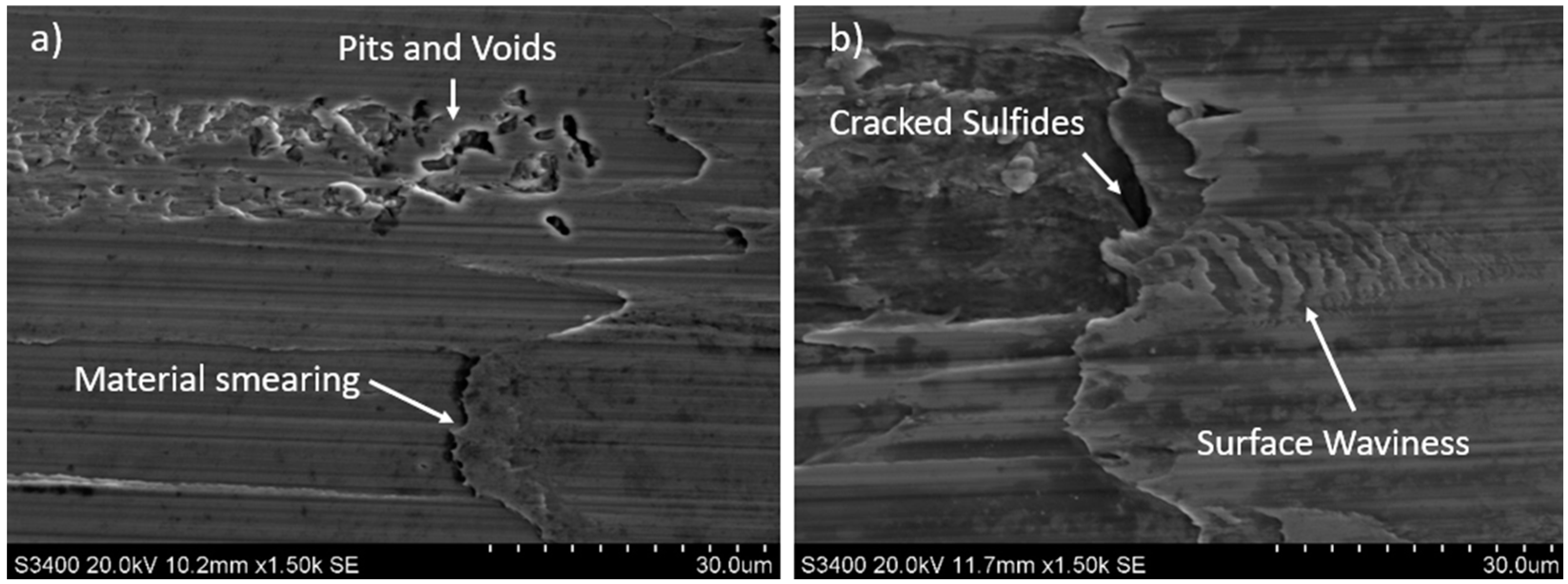

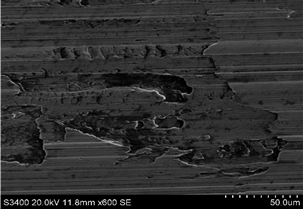

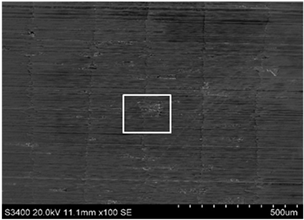

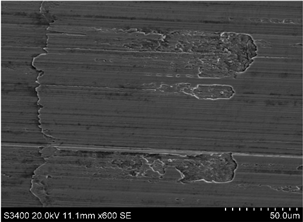

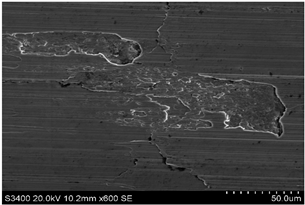

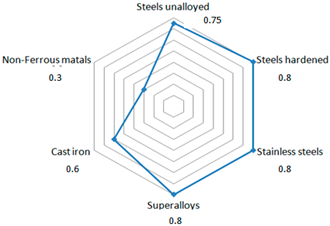

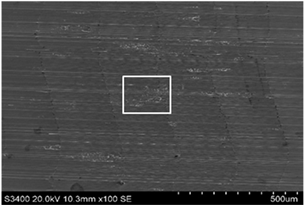

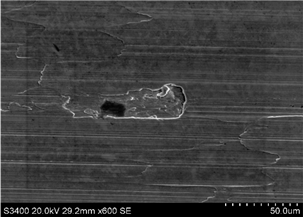

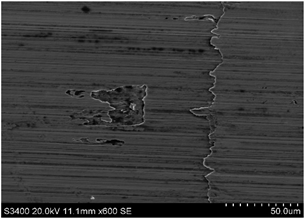

This study examines the impact of PVD coatings on cutting tool wear during the milling of 316L stainless steel under air cooling conditions. In the experiment, a carbide milling cutter coated with a nanocomposite nACo3 (AlTiSiN) coating was used. The coating was deposited using a next-generation device, the PLATIT π411PLUS, which features one central and three lateral rotating cathodes. The nanocomposite nACo3 coating obtained with this method exhibits exceptionally high structural density and excellent mechanical properties. The new generation of the nACo3 coating demonstrates improved surface properties and a lower friction coefficient compared to previous generations. The findings indicate that PVD nACo3 coatings significantly enhance wear resistance, extending tool life while maintaining acceptable surface quality. The optimal cutting time was determined to be approximately 90 min, after which a sharp increase in surface roughness and tool wear was observed. After 120 min of machining, substantial deterioration of surface quality parameters was recorded, suggesting increasing cutting forces and cutting edge degradation. SEM and EDS analyses revealed the presence of adhered material on the tool and sulfide inclusions in the microstructure of 316L stainless steel, which influenced the machining process. The nACo3 coating demonstrated high thermal and wear resistance, making it an effective solution for machining difficult-to-cut materials. This study suggests that selecting appropriate cutting parameters, tool geometry, protective coatings, and cooling strategies can significantly affect tool longevity and machining quality. The novelty of this research lies in the application of innovative nanocomposite PVD coatings during the milling of 316L stainless steel under air cooling conditions. These studies indicate potential future research directions, such as the use of minimum quantity lubrication (MQL) or cryogenic cooling as methods to reduce tool wear and improve post-machining surface quality.
