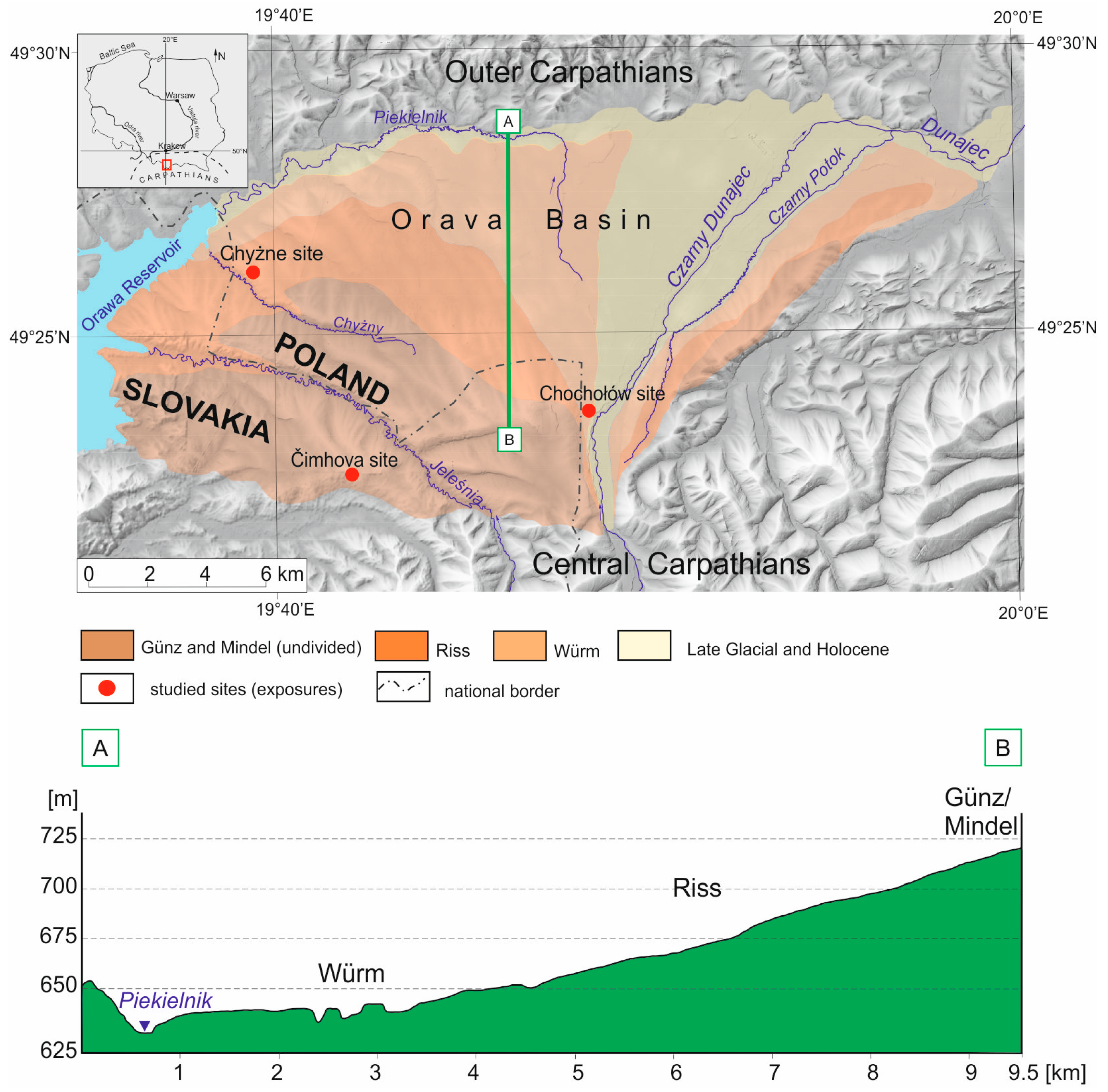

2. Study Area

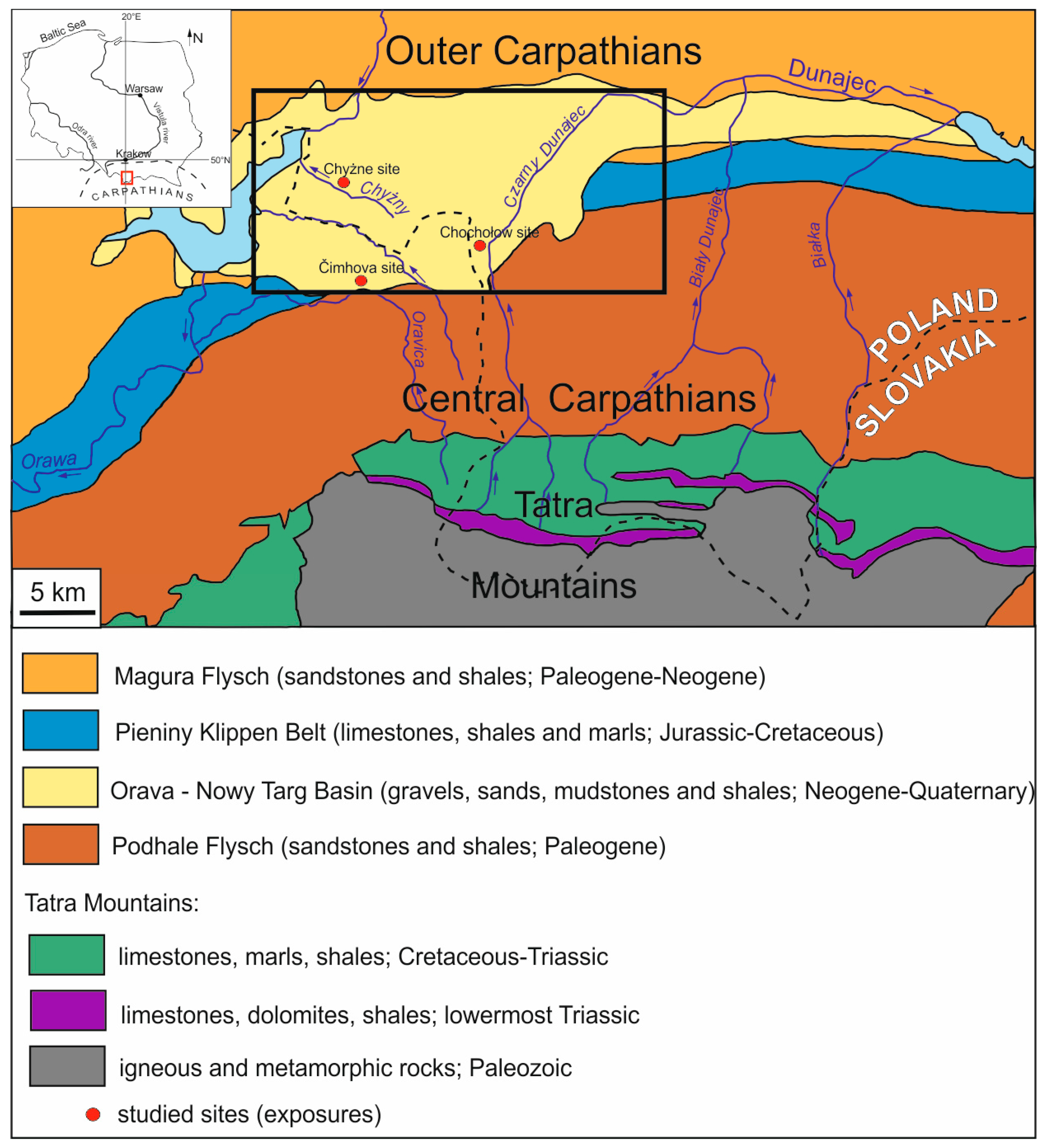

2.1. Geological Structure and Relief
2.2. Source Areas

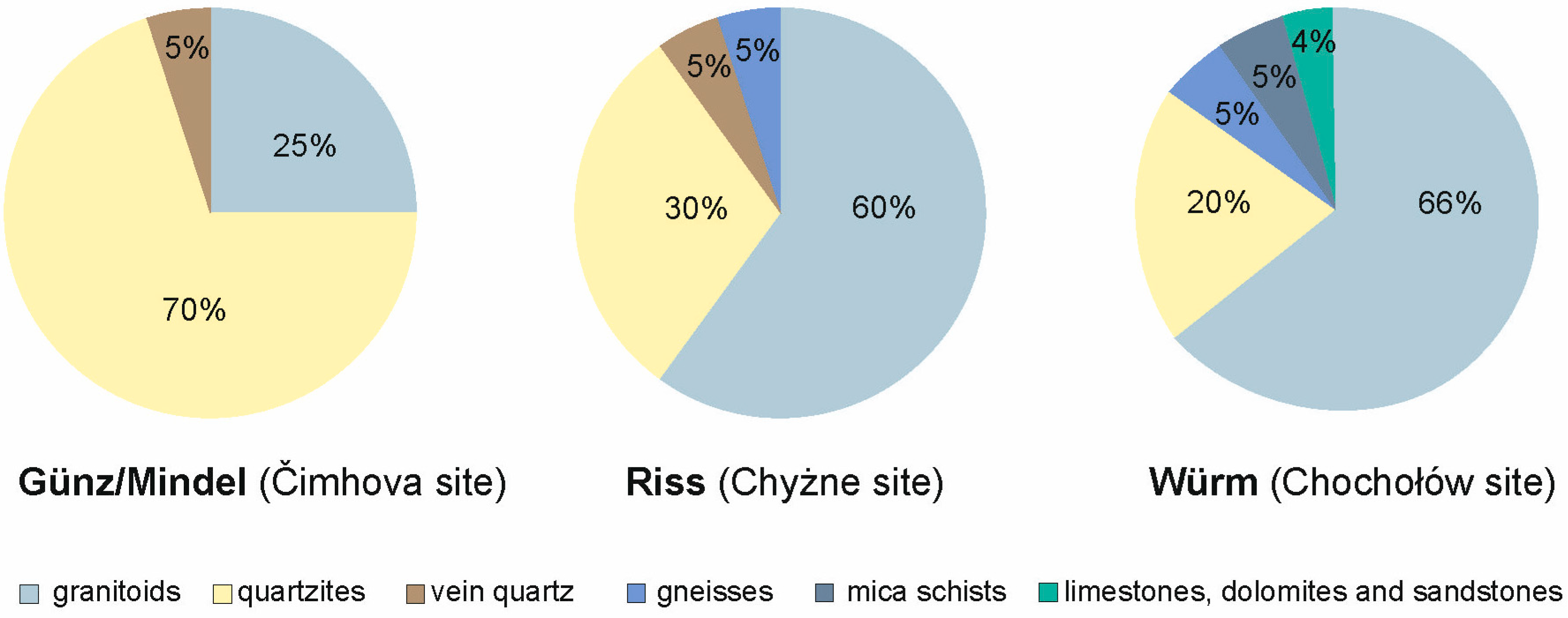

2.3. Composition of Clasts from Glaciofluvial Fans of the Czarny Dunajec River Levels
3. Material and Methods
4. Results
4.1. Grain-Size Distribution
4.2. Heavy Mineral Data
5. Discussion
Provenance Interpretation
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Morton, A.C.; Hallsworth, C.R. Processes controlling the composition of detrital heavy mineral assemblages in sandstones. Sediment. Geol. 1999, 124, 3–29. [Google Scholar] [CrossRef]
- Muhs, D.R.; Cattle, S.R.; Crouvi, O.; Rousseau, D.D.; Sun, J.M.; Zárate, M.A. Loess records. In Mineral Dust: A Key Player in the Earth System; Knippertz, P., Stuut, J.W., Eds.; Springer: Berlin/Heidelberg, Germany, 2014; pp. 411–441. [Google Scholar]
- Peng, W.; Wang, Z.; Song, Y.; Pfaff, K.; Luo, Z.; Nie, J.; Chen, W. A comparison of heavy mineral assemblage between the loess and the Red Clay sequences on the Chinese Loess Plateau. Aeolian Res. 2016, 21, 87–91. [Google Scholar] [CrossRef]
- Li, Y.; Shi, W.; Aydin, A.; Beroya-Eitner, M.A.; Gao, G. Loess genesis and worldwide distribution. Earth-Sci. Rev. 2020, 201, 102947. [Google Scholar] [CrossRef]
- Kukla, G.; An, Z.S. Loess stratigraphy in central China. Palaeogeogr. Palaeoclimatol. Palaeoecol. 1989, 72, 203–225. [Google Scholar] [CrossRef]
- Heller, F.; Evans, M.E. Loess magnetism. Rev. Geophys. 1998, 33, 211–240. [Google Scholar] [CrossRef]
- Vandenberghe, J.; Huijzer, B.; Mucher, H.; Laan, W. Short climatic oscillations in a western European loess sequence (Kesselt, Belgium). J. Quat. Sci. 1998, 13, 471–485. [Google Scholar] [CrossRef]
- Lu, H.Y.; Zhang, F.Q.; Liu, X.D.; Duce, A.R. Periodicities of palaeoclimatic variations recorded by loess-paleosol sequences in China. Quat. Sci. Rev. 2004, 23, 1891–1900. [Google Scholar] [CrossRef]
- Nugteren, G.; Vandenberghe, J.; van Huissteden, J.K.; Zhisheng, A. A quaternary climate record based on grain size analysis from the Luochuan loess section on the Central Loess Plateau, China. Glob. Planet. Chang. 2004, 41, 167–183. [Google Scholar] [CrossRef]
- Antoine, P.; Rousseau, D.D.; Moine, O.; Kunesch, S.; Hatté, C.; Lang, A.; Tissoux, H.; Zöller, L. Rapid and cyclic aeolian deposition during the Last Glacial in European loess: A high-resolution record from Nussloch. Germany. Quat. Sci. Rev. 2009, 30, 2955–2973. [Google Scholar] [CrossRef]
- Li, C.X.; Song, Y.G. The paleoenvironmental significance of magnetic susceptibility in the eolian deposits sequence at the chaona section on the Loess Plateau. J. East China Inst. Technol. 2011, 34, 33–40. [Google Scholar]
- Krawczyk, M.; Ryzner, M.; Skurzyński, J.; Jary, Z. Lithological indicators of loess sedimentation of SW Poland. Contemp. Trends Geosci. 2017, 6, 94–111. [Google Scholar] [CrossRef]
- Johansson, A.E. Single-Grain Zircon U-Pb Dating and Magnetic Susceptibility of Polish Loess to Determine Late Quaternary Dust Provenance and Paleoclimate. Master’s Thesis, Uppsala University, Uppsala, Sweden, 2018; p. 84. [Google Scholar]
- Pye, K. The nature, origin and accumulation of loess. Quat. Sci. Rev. 1995, 14, 653–667. [Google Scholar] [CrossRef]
- Buggle, B.; Glaser, B.; Hambach, U.; Gerasimenk, N.; Markovic, S. An evaluation of geochemical weathering indices in loess-paleosol studies. Quat. Int. 2011, 240, 12–21. [Google Scholar] [CrossRef]
- Liang, L.; Sun, Y.; Beets, C.J.; Prins, M.A.; Wu, F.; Vandenberghe, J. Impacts of grain size sorting and chemical weathering on the geochemistry of Jingyuan loess in the northwestern Chinese Loess Plateau. J. Asian Earth Sci. 2013, 69, 177–184. [Google Scholar] [CrossRef]
- Halicki, B. Dyluwialne zlodowacenie północnych stoków Tatr. Spraw. Państwowego Inst. Geol. 1930, 5, 377–534. [Google Scholar]
- Klimaszewski, M. Karpaty wewnętrzne. In Geomorfologia Polski; Polish Scientific Publishers (PWN): Warszawa, Poland, 1972; Volume 1, pp. 25–52. [Google Scholar]
- Oszast, J.; Stuchlik, L. The Neogene vegetation of the Podhale (West Carpathians, Poland). Acta Palaeobot. 1977, 18, 45–86. [Google Scholar]
- Birkenmajer, K. Neogene to Early Pleistocene subsidence close to the Pieniny Klippen Belt. Polish Carpathians. Studia Geomorphol. Carpato-Balc. Krakow 1978, 12, 17–28. [Google Scholar]
- Watycha, L. Quaternary formations in bore hole Wróblówka, Podhale region. Kwart. Geol. 1973, 17, 335–347, (In Polish with English summary). [Google Scholar]
- Watycha, L. Objaśnienia do szczegółowej mapy geologicznej polski 1:50 000. Arkusz Jabłonka (1047). Inst. Geol. 1997, 1, 30–34. [Google Scholar]
- Watycha, L. Objaśnienia do szczegółowej mapy geologicznej polski 1:50 000. Arkusz Czarny Dunajec (1048). Inst. Geol. 1977, 1, 1–102. [Google Scholar]
- Baumgart-Kotarba, M. Channel and terrace formation due to differentia tectonic movements (with the eastern Podhale Basin as example). Geogr. Stud. IG Pan 1983, 145, 1–133, (In Polish with English summary). [Google Scholar]
- Baumgart-Kotarba, M. The geomorphological evolution of the intramontane Orawa Basin associated with neotectonic movements (Polish Carpathians). Studia Geomorphol. Carpato-Balc. 1991–1992, 25, 3–28, (In Polish with English summary). [Google Scholar]
- Kukulak, J. Weathering of gravels in the Czarny Dunajec alluvial cone in Podhale Polish Carpathians. Quastiones Geogr. 2000, 21, 69–78. [Google Scholar]
- Baumgart-Kotarba, M.; Marcak, H.; Márton, E. Rotation along transverse transforming Orava strike-slip fault: Based on geomorphological, geophysical and paleomagnetic data (Western Carpathians). Geol. Carpath. 2004, 55, 219–226. [Google Scholar]
- Tokarski, A.K.; Márton, E.; Świerczewska, A.; Fheed, A.; Zasadni, J.; Kukulak, J. Neotectonic rotations in the Orava-Nowy Targ Intramontane Basin (Western Carpathians): An integrated palaeomagnetic and fractured clasts study. Tectonophysics 2016, 685, 35–43. [Google Scholar] [CrossRef] [Green Version]
- Lindner, L.; Dzierżek, J.; Marciniak, B.; Nitychoruk, J. Outline of quaternaryglaciations in the tatra mountains: Their development, age and limits. Geol. Q. 2003, 47, 269–280. [Google Scholar]
- Olszak, J.; Kukulak, J.; Alexanderson, H. Revision of river terrace geochronology in the Orawa-Nowy Targ Depression, south Poland: Insights from OSL dating. Proc. Geol. Assoc. 2016, 127, 595–605. [Google Scholar] [CrossRef]
- Olszak, J.; Kukulak, J.; Alexanderson, H. Climate control on alluvial sediment storage in the northern foreland of the Tatra Mountains since the late Pleistocene. Quat. Res. 2019, 91, 520–532. [Google Scholar] [CrossRef]
- Watycha, L. The neogene of the orava-nowy targ basin. Kwart. Geol. 1976, 20, 575–586, (In Polish with English summary). [Google Scholar]
- Chmielowska, D.; Woronko, B. A source of loess-like deposits and their attendant palaeoenvironment–Orava Basin, Western Carpathian Mountains, S Poland. Aeolian Res. 2019, 38, 60–76. [Google Scholar] [CrossRef]
- Książkiewicz, M. Budowa geologiczna Polski. T. IV. Tektonika, cz. 3. Karpaty. Publ. House Wydaw. Geol. 1972, 3, 1–228. [Google Scholar]
- Pomianowski, P. Structure of the Orava Basin in the light of selected geophysical data. Ann. Soc. Geol. Pol. 1995, 64, 67–80, (In Polish, English summary). [Google Scholar]
- Pomianowski, P. Tectonics of the orava-nowy targ basin—Results of the combined analysis of the gravity and geoelectrical data. Przegląd Geol. 2003, 51, 498–506, (In Polish with English summary). [Google Scholar]
- Golonka, J.; Aleksandrowski, P.; Aubrecht, M.; Chowaniec, J.; Chrustek, M.; Cieszkowski, M.; Florek, R.; Gawęda, A.; Jarosiński, M.; Kępińska, B.; et al. Orava deep drilling project and the post paleogene tectonics of the carpathians. Ann. Soc. Geol. Pol. 2005, 75, 211–248. [Google Scholar]
- Łoziński, M.; Ziółkowski, P.; Wysocka, A. Tectono-sedimentary analysis using the anisotropy of magnetic susceptibility: A study of the terrestrial and freshwater Neogene of the Orava Basin. Geol. Carpathica 2017, 68, 479–500. [Google Scholar] [CrossRef] [Green Version]
- Bac-Moszaszwili, M. Structure of the western termination of the Tatra massif. Ann. Soc. Geol. Pol. 1993, 63, 167–193, (In Polish with English summary). [Google Scholar]
- Bac-Moszaszwili, M. Diversity of neogene and quaternary tectonic movements in the tatra mountains. Folia Quat. 1995, 66, 131–144. [Google Scholar]
- Baumgart-Kotarba, M. On origin and age of the Orawa Basin, West Carpathians. Studia Gomorphologica Carpatho-Balc. 1996, 30, 101–116. [Google Scholar]
- Baumgart-Kotarba, M.; Král, J. Young tectonic uplift of the Tatra Mts.(fission track data and geomorphological arguments). Proceedings of XVII. Congress of Carpathian-Balkan Geological Association. Geol. Carpathica, Spec. Issue 2002, 53. [Google Scholar]
- Struska, M. Neogeńsko-czwartorzędowy rozwój strukturalny Kotliny Orawskiej w świetle badań geologicznych, geomorfologicznych oraz teledetekcyjnych. (Ph.D. thesis). Arch. Wydziału Geol. Geofiz. i Ochr. Środowiska AGH 2008, 1–149. [Google Scholar]
- Tokarski, A.; Świerczewska, A.; Zuchiewicz, W.; Starek, D.; Fodor, L. Quaternary exhumation of the Carpathians: A record from the Orava-Nowy Targ Intramontane Basin, Western Carpathians (Poland and Slovakia). Geol. Carpathica 2012, 63, 257–266. [Google Scholar] [CrossRef] [Green Version]
- Lisiecki, L.E.; Raymo, M.E. A Pliocene-Pleistocene stack of 57 globally distributed benthic δ18O records. Paleoceanography 2005, 20. [Google Scholar] [CrossRef] [Green Version]
- Habbe, K.A.; Ellwanger, D.; Becker-Haumann, R. Stratigraphische begriffe für das quartär des süddeutschen alpenvorlandes. EG Quat. Sci. J. 2007, 56, 66–83. [Google Scholar] [CrossRef]
- Doppler, D.; Kroemer, E.; Roegner, K.; Wallner, J.; Jerz, H.; Grottenthaler, W. Quaternary stratigraphy of Southern Bavaria. Quatern. Sci. J. 2011, 60, 329–365. [Google Scholar] [CrossRef]
- Kotański, Z. The position of the tara mountains in the western carpathians. Przegląd Geol. 1979, 27, 359–369, (In Polish with English summary). [Google Scholar]
- Piotrowska, K.; Danel, W.; Iwanow, A.; Gaździcka, E.; Rączkowski, W.; Bezák, V.; Maglay, J.; Polák, M.; Kohút, M.; Gross, P. Budowa geologiczna. Atlas Tatr. Przyr. Nieożywiona 2015, IV.1. [Google Scholar]
- Gołąb, J. On the geology of the Western Podhale flysch area. Biul. Inst. Geol. 1959, 149, 225–240. [Google Scholar]
- Oszczypko, N.; Ślączka, A.; Żytko, K. Regionalizacja tektoniczna Polski: Karpaty zewnętrzne i zapadlisko przedkarpackie. Przegląd Geol. 2008, 56, 927–935. [Google Scholar]
- Świerczewska, A.; Tokarski, A.K. Deformation bands and the history of folding in the Magura nappe, Western Outer Carpathians (Poland). Tectonophysics 1998, 297, 73–90. [Google Scholar] [CrossRef]
- Cieszkowski, M.; Oszczypko, N. Development of sediments of the Magura Nappe in the peri-Klippen zone, Carpathians. Przegląd Geol. 1986, 6, 327–334, (In Polish with English summary). [Google Scholar]
- Oszczypko, N.; Oszczypko-Clowes, M. Geological structure and evolution of the Pieniny Klippen Belt to the east of the Dunajec River—A new approach (Western Outer Carpathians, Poland). Geol. Q. 2014, 58, 737–758. [Google Scholar]
- Wysocka, A.; Łoziński, M.; Śmigielski, M.; Czarniecka, U.; Bojanowski, M. New data on the age of the sedimentary infill of the Orava-Nowy Targ Basin—A case study of the Bystry Stream succession (Middle/Upper Miocene, Western Carpathians). Geol. Q. 2018, 62, 327–343. [Google Scholar] [CrossRef] [Green Version]
- Plewa, K. An analysis of gravel covers in the Domański Wierch Fan. Folia Geogr. Ser. Geogr. Phys. 1969, 3, 101–115, (In Polish, English summary). [Google Scholar]
- Gotkiewicz, M.; Szaflarski, J. Dyluwjalne i predyluwjalne poziomy dolinne na Orawie. Warszawa 1934, 2, 187–226. [Google Scholar]
- Udden, J.A. Mechanical composition of clastic sediments. Bull. Geol. Soc. Am. 1914, 25, 655–744. [Google Scholar] [CrossRef]
- Wentworth, C.K. A scale of grade and class terms for clastic sediments. J. Geol. 1922, 30, 377–392. [Google Scholar] [CrossRef]
- Chmielowska, D. Polygenesis of Loamy Deposits on Glaciofluvial Fans of Czarny Dunajec River in Orava Basin. Ph.D. Thesis, Pedagogical University of Krakow, Krakow, Poland, 2016; p. 206. [Google Scholar]
- Obidowicz, A. The Puścizna Rękowiańska raised bog. In Lateglacial and Holocene Environmental Changes Vistula Basin, Excursion Guide Book-Symposium; Publishing House Wydawnictwa Akademii Górniczo-Hutniczej: Cracow, Poland, 1988; pp. 87–90. [Google Scholar]
- Obidowicz, A. Eine pollenanalytische und moorkundliche studie zur vegetations—Geschichte des podhale gebietes (West-Karpaten). Acta Palaeobot. 1990, 30, 147–219. [Google Scholar]
- Folk, R.L.; Ward, W.C. Brazos River bar [Texas]; a study in the significance of grain size parameters. J. Sediment. Res. 1957, 27, 3–26. [Google Scholar] [CrossRef]
- Blott, S.; Pye, K. Gradistat: a grain size distribution and statistics package for the analysis of unconsolidated sediments. Earth Surf. Process. Landf. 2001, 26, 1237–1248. [Google Scholar] [CrossRef]
- Galehouse, J.S. Point counting. In Procedures in Sedimentary Petrology; Carver, R.E., Ed.; Wiley Interscience: New York, NY, USA, 1971; pp. 385–407. [Google Scholar]
- Powers, M.C. A new roundness scale for sedimentary particles. J. Sediment. Res. 1953, 23, 117–119. [Google Scholar] [CrossRef]
- Henry, D.J.; Guidotti, C.V. Tourmaline as a petrogenetic indicator mineral: An example from the staurolite-grade metapelites of NW Maine. Am. Mineral. 1985, 70, 1–15. [Google Scholar]
- Henry, D.J.; Novák, M.; Hawthorne, F.C.; Ertl, A.; Dutrow, B.L.; Uher, P.; Pezzotta, F. Nomenclature of the tourmaline-supergroup minerals. Am. Mineral. 2011, 96, 895–913. [Google Scholar] [CrossRef]
- Locock, A.J. An Excel spreadsheet to classify chemical analyses of amphiboles following the IMA 2012 recommendations. Comput. & Geosci. 2014, 62, 1–11. [Google Scholar]
- Hawthorne, F.C.; Oberti, R.; Harlow, G.E.; Maresch, W.V.; Martin, R.F.; Schumacher, J.C.; Welch, M.D. IMA report, nomenclature of the amphibole supergroup. Am. Mineral. 2012, 97, 2031–2048. [Google Scholar] [CrossRef]
- Tolosana-Delgado, R; Eynatten, H; Krippner, A; Meinhold, G. A multivariate discrimination scheme of detrital garnet chemistry for use in sedimentary provenance analysis. Sediment. Geol. 2018, 375, 14–26. [CrossRef]
- Morton, A.C.; Hallsworth, C.R. Identifying provenance specific features of detrital heavy mineral assemblages in sandstones. Sediment. Geol. 1994, 90, 241–256. [Google Scholar] [CrossRef]
- Hubert, J.F. A zircon–tourmaline–rutile maturity index and the interdependance of the composition of heavy mineral assemblages with the gross composition and texture of sandstones. J. Sediment. Petrol. 1962, 32, 440–450. [Google Scholar]
- Aubrecht, R.; Meres, Š.; Sykora, M.; Mikuš, T. Provenance of the detrital garnets and spinels from the Albian sediments of the Czorsztyn Unit (Pieniny Klippen Belt, Western Carpathians, Slovakia). Geol. Carpathica 2009, 60, 463–483. [Google Scholar] [CrossRef] [Green Version]
- Méres, Š.; Aubrecht, R.; Gradziński, M.; Sýkora, M. High (ultrahigh) pressure metamorphic terrane rocks as the source of the detrital garnets from the Middle Jurassic sands and sandstones of the Cracow Region (Cracow-Wieluń Upland, Poland). Acta Geol. Pol. 2012, 6, 231–245. [Google Scholar] [CrossRef]
- Gawęda, A.; Winchester, J.A.; Kozłowski, K.; Narębski, W.; Holland, J.G. Geochemistry and palaeotectonic setting of amphibolites from the Western Tatra Mountains, southern Poland. Geol. J. 2000, 35, 69–85. [Google Scholar] [CrossRef]
- Janák, M.; Kahan, S.; Jančula, D. Metamorphism of pelitic rocks and metamorphic zones in SW part of Western Tatra Mts. Crystalline complexes. Geol. Carpathica 1988, 39, 455–488. [Google Scholar]
- Janák, M.; O’Brien, P.J.; Hurai, V.; Reutel, C. Metamorphic evolution and fluid composition of garnet-clinopyroxene amphibolites from the Thatra Mountains, Western Carpathians. Lithos 1996, 39, 57–79. [Google Scholar] [CrossRef]
- Garzanti, E.; Andò, S.; Vezzoli, G. Grain-size dependence of sediment composition and environmental bias in provenance studies. Earth Planet. Sci. Lett. 2009, 277, 422–432. [Google Scholar] [CrossRef]
- Oszczypko, N.; Salata, D. Provenance analyses of the Late Cretaceous—Palaeocene deposits of the Magura Basin (Polish Western Carpathians)-evidence from the heavy minerals study. Acta Geol. Pol. 2005, 55, 237–267. [Google Scholar]
- Kovác, M.; Král, J.; Márton, E.; Plašienka, D.; Uher, P. Alpine uplift history of the Central Western Carpathians: Geochronological, paleomagnetic, sedimentary and structural data. Geol. Carpathica 1994, 45, 83–96. [Google Scholar]
- Kohút, M.; Sherlock, S.C. Laser microprobe 40Ar-39Ar analysis of pseudotachylyte and host rocks from the Tatra Mountains, Slovakia: Evidence for Late Paleogene seismic/tectonic activity. Terra Nova 2003, 15, 417–424. [Google Scholar] [CrossRef]
- Jurewicz, E. Geodynamic evolution of the Tatra Mts. and the Pieniny Klippen Belt (Western Carpathians): Problems and comments. Acta Geol. Pol. 2005, 55, 295–338. [Google Scholar]
- Kohút, M.; Janák, M.; Broska, I.; Majka, J. The Tatra Mts. typical “core mountains” of the Western Carpathians—Their structure and evolution of the crystalline basement. Mineral. Spec. Pap. 2011, 38, 197–210. [Google Scholar]
- Janák, M. Variscan uplift of the crystalline basement Tatra Mts. Central Western Carpathians: Evidence from 40Ar/39Ar laser probe dating of biotite and P-T-t paths. Geol. Carpathica 1994, 45, 293–300. [Google Scholar]
- Gawęda, A.; Kozłowski, K. Pressure-temperature-time evolution of metamorphic complex in the Polish part of the Western Tatra Mts. Pol. Tow. Mineral. Pr. Spec. 1996, 7, 20–22. [Google Scholar]
- Corfu, F.; Hanchar, J.M.; Kinny, P. Atlas of zircon textures. In Zircon. Reviews in Mineralogy and Geochemistry; Hanchar, J.M., Hoskin, P.W.O., Eds.; Mineralogical Society of America, Geochemical Society: Washington, DC, USA, 2003; Volume 53, pp. 468–500. [Google Scholar]
- Smalley, I.; O’Hara-Dhand, K.; Wint, J.; Machalett, B.; Jary, Z.; Jefferson, I. Rivers and loess: The signifcance of long river transportation in the complex eventsequence approach to loess deposit formation. Quat. Int. 2009, 198, 7–18. [Google Scholar] [CrossRef]
- Vandenberghe, J. Grain size of fne-grained windblown sediment: A powerful proxy for process identifcation. Earth-Sci. Rev. 2013, 121, 18–30. [Google Scholar] [CrossRef]
- Kłapyta, P.; Zasadni, J.; Pociask-Karteczka, J.; Gajda, A.; Franczak, P. Late Glacial and Holocene paleoenvironmental records in the Tatra Mountains, East-Central Europe, based on lake, peat bog and colluvial sedimentary data: A summary review. Quat. Int. 2016, 415, 126–144. [Google Scholar] [CrossRef]
Study Sites | Folk&Ward Method [in phi] | Method of Moments [in phi] | Sediment Classification | Sediment Name | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sample/Depth (m) | Mean [Mz] | Sorting [σ1] | Skewness [Sk1] | Kurtosis (KG) | Median [D50] | Mode | Mean | Sorting [σΦ] | Skewness [SkΦ] | Kurtosis (KΦ) | Sample Type | Textural Group | ||||
1 | 2 | 3 | ||||||||||||||
Chochołów/Würm | Choch_1/0.2 | 3.668 | 3.801 | −0.226 | 0.801 | 4.423 | −2.250 | 5.248 | 0.750 | 3.585 | 3.675 | −0.141 | 1.887 | Polymodal, Poorly Sorted | Very Fine Sand | gravelly mud |
Choch_2/0.4 | 3.935 | 4.010 | −0.278 | 0.951 | 4.581 | 5.248 | 0.750 | −0.249 | 3.648 | 3.913 | −0.455 | 2.373 | Polymodal, Very Poorly Sorted | Very Fine Sand | gravelly mud | |
Choch_3/0.6 | 4.674 | 3.435 | −0.235 | 0.839 | 5.279 | −1.249 | 5.751 | 0.750 | 4.683 | 3.257 | −0.332 | 2.110 | Polymodal, Poorly Sorted | Very Coarse Mud | gravelly mud | |
Choch_4/0.8 | 5.242 | 3.234 | −0.279 | 1.031 | 5.885 | 6.249 | −1.249 | 1.249 | 5.380 | 3.011 | −0.566 | 2.542 | Polymodal, Poorly Sorted | Coarse Mud | gravelly sandy mud | |
Choch_5/1.1 | 5.326 | 2.842 | −0.163 | 1.146 | 5.611 | 5.751 | 0.750 | 2.749 | 5.336 | 2.712 | −0.406 | 2.627 | Polymodal, Poorly Sorted | Coarse Mud | gravelly sandy mud | |
Choch_6/1.3 | 5.112 | 3.426 | −0.401 | 0.855 | 6.143 | 6.249 | 0.750 | 2.749 | 5.197 | 3.263 | −0.596 | 2.214 | Polymodal, Poorly Sorted | Coarse Mud | gravelly mud | |
Chyżne/Riss | Chyż_1/0.08 | 4.331 | 2.916 | −0.268 | 1.227 | 4.937 | 4.748 | −1.249 | 2.749 | 4.499 | 2.743 | −0.381 | 2.789 | Polymodal, Poorly Sorted | Very Coarse Mud | gravelly mud |
Chyż_2/0.15 | 3.085 | 3.519 | −0.277 | 0.824 | 4.139 | −1.749 | 4.748 | 2.749 | 3.364 | 3.329 | −0.136 | 2.043 | Polymodal, Poorly Sorted | Very Fine Sand | gravelly mud | |
Chyż_3/0.24 | 4.383 | 3.321 | −0.212 | 0.888 | 4.907 | 5.751 | 2.749 | 1.249 | 4.244 | 3.211 | −0.195 | 2.155 | Polymodal, Poorly Sorted | Very Coarse Mud | gravelly mud | |
Chyż_4/0.35 | 4.277 | 3.041 | −0.174 | 1.146 | 4.689 | 4.748 | 2.749 | −1.249 | 4.303 | 2.893 | −0.154 | 2.495 | Polymodal, Poorly Sorted | Very Coarse Mud | gravelly mud | |
Čimhova/Günz/Mindel | Či_1/0.15 | 5.094 | 2.224 | 0.345 | 1.351 | 4.496 | 4.249 | 2.749 | 5.751 | 5.069 | 2.205 | 0.443 | 3.300 | Trimodal, Poorly Sorted | Coarse Mud | sandy mud |
Či_2/0.2 | 6.116 | 2.428 | −0.107 | 0.879 | 6.325 | 4.249 | 6.749 | 7.753 | 6.031 | 2.446 | −0.301 | 2.801 | Polymodal, Poorly Sorted | Medium Mud | gravelly sandy mud | |
Či_3/0.3 | 5.723 | 2.089 | 0.297 | 0.955 | 5.223 | 4.748 | 7.753 | 3.249 | 5.706 | 2.196 | 0.143 | 2.891 | Polymodal, Poorly Sorted | Coarse Mud | sandy mud | |
Či_4/0.4 | 5.645 | 2.053 | 0.388 | 1.037 | 4.992 | 4.748 | 7.753 | - | 5.686 | 2.147 | 0.241 | 3.059 | Trimodal, Poorly Sorted | Coarse Mud | sandy mud | |
Či_5/0.5 | 5.769 | 1.885 | 0.215 | 1.218 | 5.462 | 4.748 | 7.753 | 2.749 | 5.715 | 1.920 | 0.277 | 3.487 | Bimodal, Moderately Sorted | Coarse Mud | sandy mud | |
Či_6/0.7 | 5.743 | 2.179 | 0.128 | 1.114 | 5.505 | 4.748 | 7.753 | 2.749 | 5.682 | 2.190 | −0.005 | 3.157 | Bimodal, Poorly Sorted | Coarse Mud | sandy mud | |
Či_7/0.9 | 6.364 | 1.727 | 0.327 | 0.858 | 5.994 | 4.748 | 7.753 | - | 6.409 | 1.693 | 0.729 | 2.685 | Bimodal, Moderately Sorted | Medium Mud | mud | |
Či_8/1.1 | 5.637 | 2.218 | 0.091 | 1.024 | 5.507 | 5.248 | 3.249 | 7.753 | 5.666 | 2.138 | 0.205 | 2.726 | Trimodal, Poorly Sorted | Coarse Mud | sandy mud | |
Či_9/1.3 | 5.344 | 2.246 | 0.085 | 0.947 | 5.280 | 5.248 | 3.249 | 2.249 | 5.395 | 2.157 | 0.313 | 2.630 | Polymodal, Poorly Sorted | Coarse Mud | sandy mud |

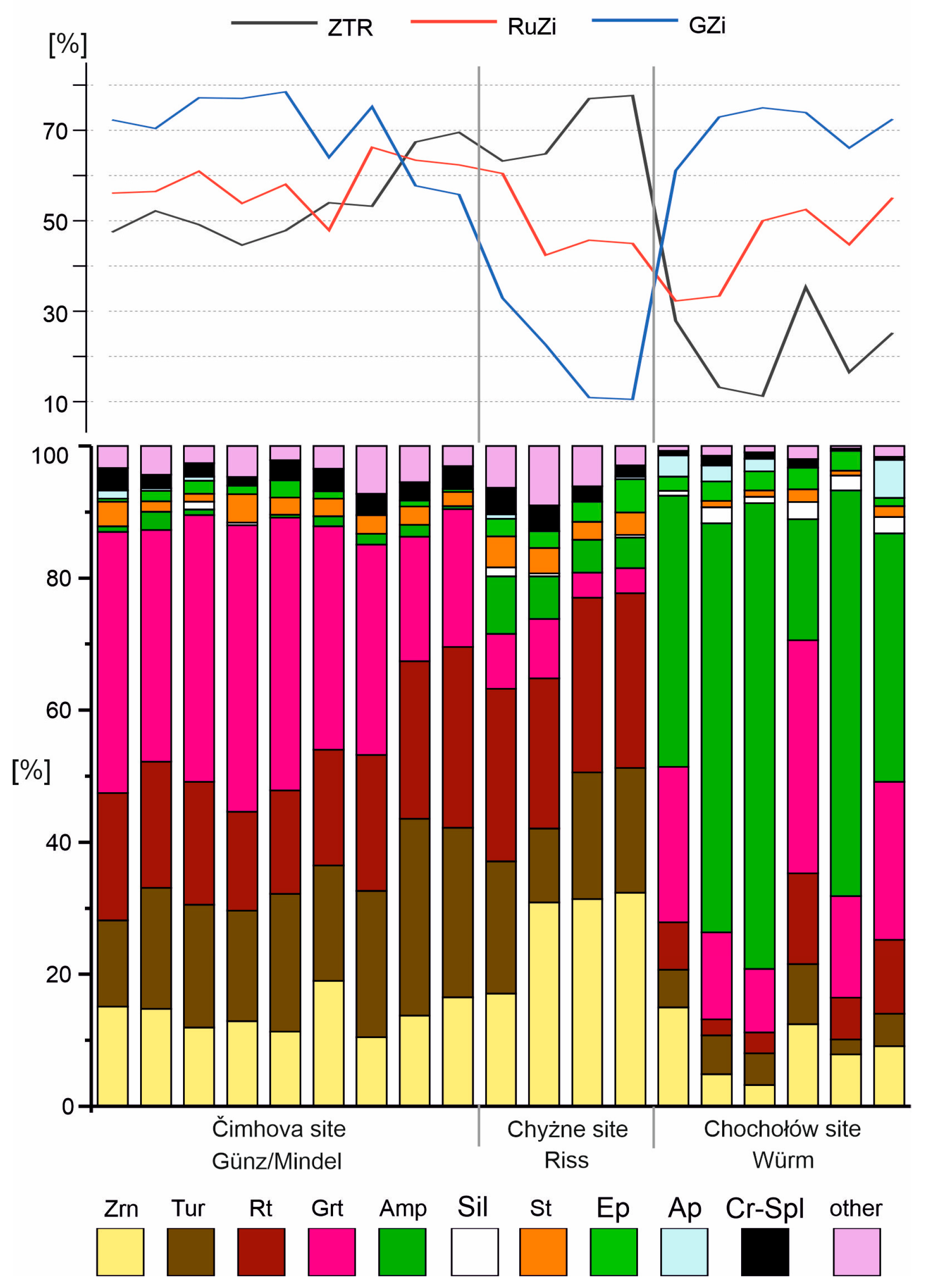

Samples | OP | Zrn | Tur | Rt | Grt | Amp | Sil | St | Ep | Ap | Cr-Spl | Chl | Mnz | Brk | ZTR | RuZi | GZi | counts | HM wt% | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Günz/Mindel | Či_1 | 38.3 | 15.1 | 13.0 | 19.3 | 39.5 | 0.8 | 0.0 | 3.8 | 0.4 | 1.3 | 3.4 | 2.5 | 0.0 | 0.8 | 47 | 56 | 72 | 338 | 0.7 |
Či_2 | 43.1 | 14.7 | 18.3 | 19.1 | 35.1 | 2.8 | 0.0 | 1.6 | 1.6 | 0.4 | 2.0 | 3.6 | 0.0 | 0.8 | 52 | 56 | 70 | 351 | 0.6 | |
Či_3 | 44.2 | 11.9 | 18.6 | 18.6 | 40.4 | 0.9 | 1.2 | 1.2 | 2.0 | 0.6 | 2.0 | 2.0 | 0.0 | 0.6 | 49 | 61 | 77 | 344 | 0.7 | |
Či_4 | 38.0 | 12.9 | 16.7 | 15.0 | 43.3 | 0.0 | 0.4 | 4.3 | 1.3 | 0.0 | 1.3 | 4.3 | 0.0 | 0.4 | 45 | 54 | 77 | 333 | 0.8 | |
Či_5 | 43.9 | 11.3 | 20.9 | 15.7 | 41.3 | 0.4 | 0.0 | 2.6 | 2.6 | 0.0 | 3.0 | 2.2 | 0.0 | 0.0 | 48 | 58 | 79 | 330 | 0.7 | |
Či_6 | 40.4 | 19.0 | 17.5 | 17.5 | 33.8 | 1.5 | 0.0 | 2.7 | 1.1 | 0.0 | 3.4 | 2.7 | 0.0 | 0.8 | 54 | 48 | 64 | 363 | 0.7 | |
Či_7 | 52.4 | 10.5 | 22.2 | 20.6 | 31.9 | 1.6 | 0.0 | 2.8 | 0.0 | 0.0 | 3.2 | 7.3 | 0.0 | 0.0 | 53 | 66 | 75 | 348 | 0.7 | |
Či_8 | 58.7 | 13.8 | 29.8 | 23.9 | 18.8 | 1.8 | 0.0 | 2.8 | 0.9 | 0.0 | 2.8 | 3.7 | 0.0 | 1.8 | 67 | 63 | 58 | 318 | 0.4 | |
Či_9 | 59.2 | 16.5 | 25.7 | 27.4 | 20.9 | 0.4 | 0.0 | 2.2 | 0.4 | 0.0 | 3.5 | 2.6 | 0.0 | 0.4 | 70 | 62 | 56 | 391 | 0.4 | |
Riss | Chyż_1 | 51.9 | 17.1 | 20.1 | 26.1 | 8.4 | 8.7 | 1.3 | 4.7 | 2.7 | 0.7 | 4.0 | 1.7 | 1.3 | 3.3 | 63 | 60 | 33 | 314 | 0.9 |
Chyż_2 | 67.7 | 30.9 | 11.2 | 22.7 | 9.0 | 6.4 | 0.4 | 3.9 | 2.6 | 0.0 | 3.9 | 2.1 | 1.3 | 5.6 | 65 | 42 | 23 | 333 | 1.0 | |
Chyż_3 | 49.1 | 31.4 | 19.2 | 26.4 | 3.8 | 5.0 | 0.0 | 2.7 | 3.1 | 0.0 | 2.3 | 0.4 | 1.1 | 4.6 | 77 | 46 | 11 | 361 | 1.1 | |
Chyż_4 | 58.0 | 32.4 | 18.9 | 26.5 | 3.8 | 4.6 | 0.4 | 3.4 | 5.0 | 0.4 | 1.7 | 0.0 | 0.8 | 2.1 | 78 | 45 | 10 | 338 | 0.8 | |
Würm | Choch_1 | 39.8 | 15.0 | 5.7 | 7.1 | 23.6 | 41.1 | 0.7 | 0.0 | 2.1 | 3.2 | 0.7 | 0.0 | 0.4 | 0.4 | 28 | 32 | 61 | 350 | 1.3 |
Choch_2 | 30.6 | 4.9 | 5.9 | 2.4 | 13.2 | 62.0 | 2.4 | 1.0 | 2.9 | 2.4 | 1.5 | 0.0 | 0.0 | 1.5 | 13 | 33 | 73 | 305 | 1.1 | |
Choch_3 | 36.8 | 3.2 | 4.8 | 3.2 | 9.6 | 70.5 | 1.0 | 1.0 | 2.9 | 1.9 | 1.0 | 0.0 | 0.3 | 0.6 | 11 | 50 | 75 | 314 | 0.4 | |
Choch_4 | 40.0 | 12.4 | 9.2 | 13.7 | 35.3 | 18.3 | 2.6 | 2.0 | 3.3 | 0.0 | 1.3 | 0.0 | 0.0 | 2.0 | 35 | 53 | 74 | 353 | 0.2 | |
Choch_5 | 32.7 | 7.9 | 2.2 | 6.4 | 15.4 | 61.4 | 2.2 | 0.7 | 3.0 | 0.0 | 0.4 | 0.0 | 0.0 | 0.4 | 16 | 45 | 66 | 367 | 0.8 | |
Choch_6 | 31.1 | 9.1 | 5.0 | 11.2 | 24.0 | 37.6 | 2.5 | 1.7 | 1.2 | 5.8 | 0.4 | 0.0 | 0.0 | 1.7 | 25 | 55 | 73 | 342 | 0.6 |
Label | Chochołów | Chyżne | Čimhova | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
[wt%] | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
SiO2 | 36.74 | 37.36 | 36.12 | 37.92 | 37.07 | 38.09 | 38.33 | 37.43 | 37.37 | 37.97 | 38.36 | 38.11 |
Al2O3 | 21.08 | 20.64 | 20.34 | 21.32 | 21.07 | 21.10 | 21.16 | 21.22 | 20.79 | 21.30 | 21.35 | 21.43 |
Cr2O3 | 0.19 | 0.09 | 1.81 | 0.07 | 0.65 | 0.00 | 0.66 | 0.15 | 0.06 | 0.01 | 0.14 | 0.85 |
TiO2 | 0.03 | 0.15 | 0.04 | 0.06 | 0.16 | 0.07 | 0.21 | 0.14 | 0.03 | 0.06 | 0.07 | 0.08 |
MgO | 2.33 | 1.44 | 0.57 | 6.08 | 0.95 | 4.37 | 2.97 | 1.25 | 2.73 | 2.48 | 5.14 | 3.32 |
CaO | 1.27 | 10.73 | 0.21 | 2.00 | 8.01 | 8.88 | 10.64 | 8.22 | 0.91 | 8.17 | 3.29 | 6.98 |
MnO | 2.51 | 0.67 | 16.17 | 0.58 | 5.26 | 0.46 | 5.26 | 0.46 | 0.91 | 0.58 | 0.31 | 7.41 |
FeOtot | 36.23 | 28.46 | 25.98 | 32.05 | 27.06 | 27.56 | 22.02 | 31.61 | 37.91 | 30.54 | 32.13 | 23.74 |
Total | 100.37 | 99.54 | 101.24 | 100.07 | 100.22 | 100.53 | 101.25 | 100.47 | 100.71 | 101.10 | 100.78 | 101.91 |

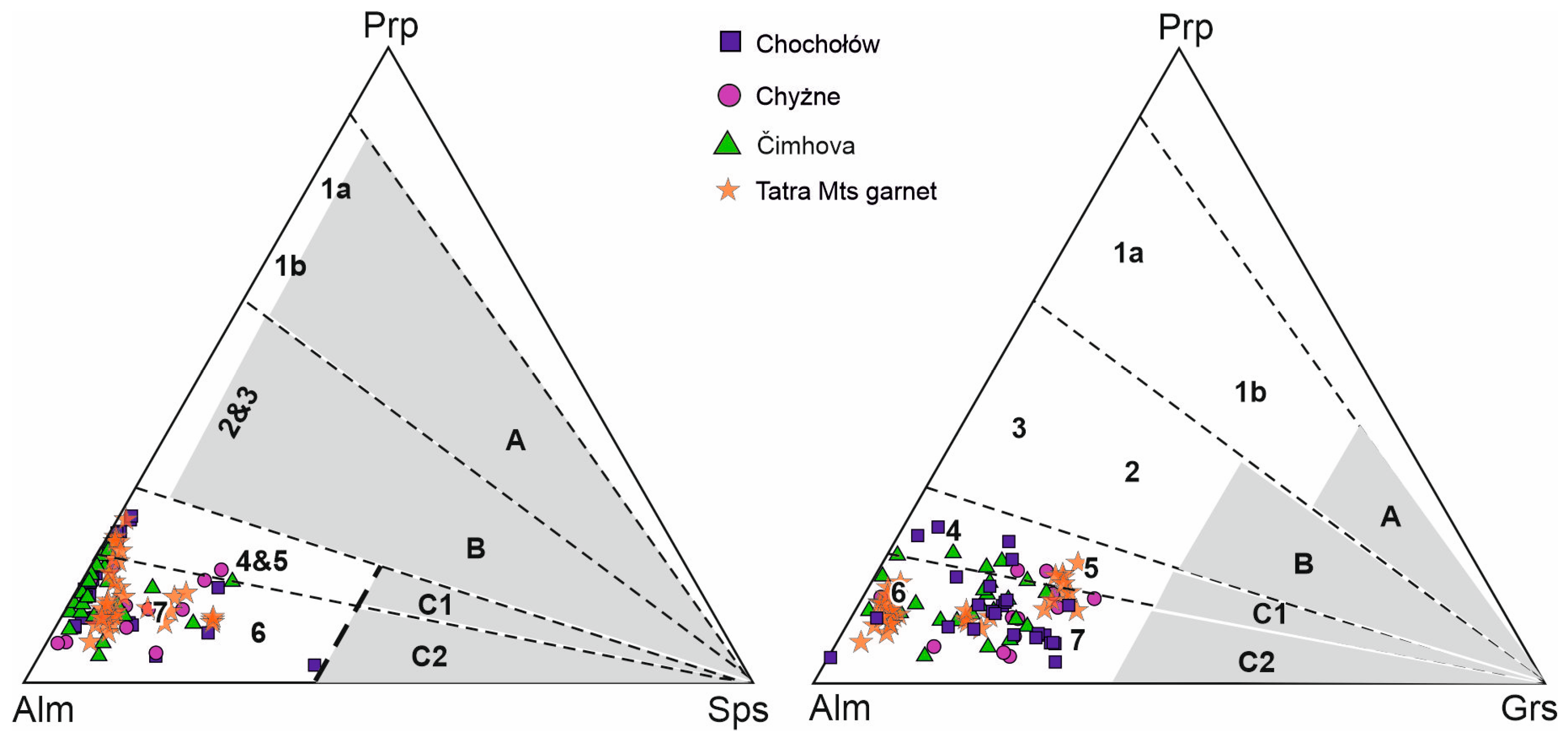

Garnet End-Members [mol%] | ||||||||||||
Almandine | 81 | 62 | 59 | 69 | 61 | 57 | 47 | 70 | 84 | 66 | 70 | 51 |
Andradite | 0 | 2 | 0 | 1 | 0 | 3 | 1 | 0 | 1 | 1 | 0 | 0 |
Grossular | 3 | 29 | 0 | 4 | 21 | 22 | 27 | 23 | 2 | 22 | 8 | 17 |
Pyrope | 9 | 6 | 2 | 24 | 4 | 17 | 12 | 5 | 11 | 10 | 20 | 13 |
Spessartine | 6 | 2 | 38 | 1 | 12 | 1 | 12 | 1 | 2 | 1 | 1 | 16 |
Uvarovite | 1 | 0 | 1 | 0 | 2 | 0 | 2 | 0 | 0 | 0 | 0 | 3 |

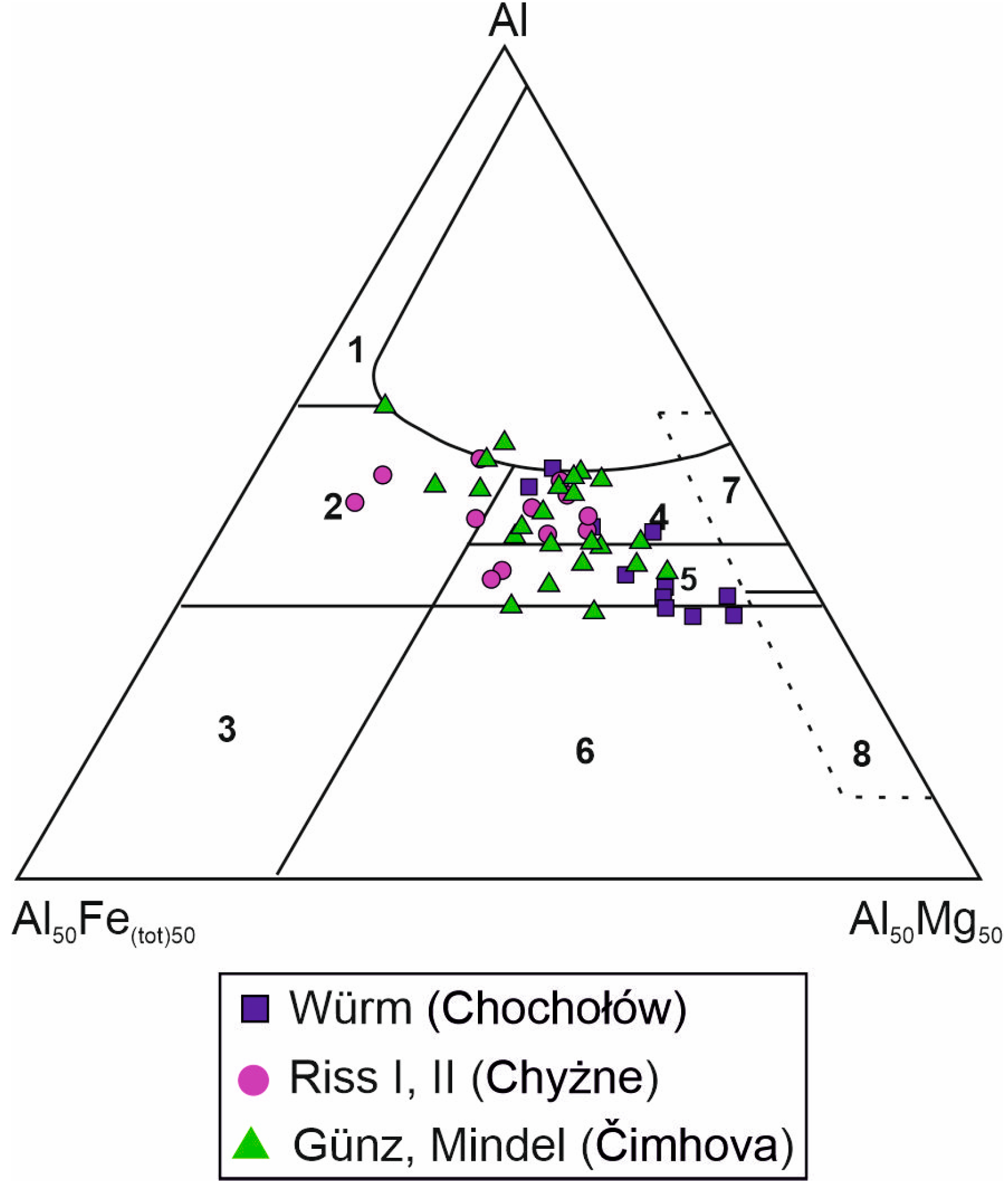

Locality | Chyżne | Chochołów | Čimhova | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
[wt%] | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
SiO2 | 34.70 | 36.18 | 35.31 | 35.94 | 37.26 | 36.86 | 35.56 | 36.65 | 35.85 | 35.92 | 36.69 | 35.79 |
TiO2 | 0.19 | 0.53 | 1.12 | 0.87 | 0.33 | 1.71 | 0.72 | 1.42 | 0.64 | 0.78 | 0.28 | 0.77 |
Al2O3 | 32.48 | 30.92 | 33.29 | 33.97 | 30.65 | 29.65 | 34.75 | 29.99 | 29.49 | 34.13 | 33.51 | 34.54 |
V2O3 | 0.03 | 0.00 | 0.06 | 0.18 | 0.00 | 0.09 | 0.05 | 0.08 | 0.07 | 0.04 | 0.13 | 0.09 |
Cr2O3 | 0.09 | 0.06 | 0.00 | 0.00 | 0.00 | 0.07 | 0.00 | 0.00 | 0.00 | 0.13 | 0.12 | 0.00 |
FeO | 13.43 | 9.97 | 7.92 | 6.54 | 5.04 | 3.27 | 6.66 | 3.08 | 10.43 | 6.91 | 10.87 | 8.75 |
MgO | 2.17 | 5.68 | 5.68 | 6.27 | 8.88 | 10.39 | 5.65 | 10.01 | 6.11 | 5.98 | 3.53 | 4.26 |
CaO | 0.08 | 0.16 | 0.96 | 0.89 | 0.09 | 2.30 | 1.13 | 2.41 | 0.38 | 0.84 | 0.02 | 0.33 |
MnO | 0.29 | 0.03 | 0.03 | 0.00 | 0.00 | 0.02 | 0.00 | 0.00 | 0.03 | 0.05 | 0.03 | 0.08 |
ZnO | 0.13 | 0.10 | 0.00 | 0.00 | 0.00 | 0.04 | 0.00 | 0.00 | 0.01 | 0.20 | 0.00 | 0.16 |
Na2O | 2.35 | 2.66 | 1.70 | 1.76 | 2.94 | 1.63 | 1.58 | 1.53 | 2.46 | 2.06 | 1.44 | 1.92 |
K2O | 0.05 | 0.00 | 0.02 | 0.00 | 0.00 | 0.03 | 0.05 | 0.01 | 0.01 | 0.04 | 0.00 | 0.02 |
F | 0.03 | 0.31 | 0.21 | 0.35 | 0.05 | 0.09 | 0.11 | 0.23 | 0.11 | 0.22 | 0.31 | 0.29 |
H2O * | 3.53 | 3.47 | 3.56 | 3.54 | 3.65 | 3.68 | 3.65 | 3.59 | 3.52 | 3.62 | 3.51 | 3.55 |
B2O3 * | 10.27 | 10.49 | 10.61 | 10.75 | 10.66 | 10.78 | 10.73 | 10.71 | 10.34 | 10.78 | 10.60 | 10.68 |
Li2O * | 0.15 | 0.13 | 0.25 | 0.29 | 0.34 | 0.40 | 0.37 | 0.46 | 0.10 | 0.33 | 0.15 | 0.30 |
O = F | 0.01 | 0.13 | 0.09 | 0.15 | 0.02 | 0.04 | 0.05 | 0.09 | 0.04 | 0.09 | 0.13 | 0.12 |
Total | 99.95 | 100.55 | 100.64 | 101.20 | 99.87 | 100.96 | 100.96 | 100.06 | 99.46 | 101.94 | 101.05 | 101.39 |
structural formula based on 31 anions (O. OH. F) | ||||||||||||
B | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 | 3.000 |
T: Si | 5.874 | 5.998 | 5.785 | 5.811 | 6.074 | 5.940 | 5.761 | 5.945 | 6.028 | 5.788 | 6.016 | 5.823 |
Al | 0.126 | 0.002 | 0.215 | 0.189 | 0.000 | 0.060 | 0.239 | 0.055 | 0.000 | 0.212 | 0.000 | 0.177 |
Z: Al | 6.000 | 6.000 | 6.000 | 6.000 | 5.889 | 5.572 | 6.000 | 5.679 | 5.844 | 6.000 | 6.000 | 6.000 |
Mg | 0.000 | 0.000 | 0.000 | 0.000 | 0.111 | 0.428 | 0.000 | 0.321 | 0.156 | 0.000 | 0.000 | 0.000 |
Y: Al | 0.354 | 0.039 | 0.214 | 0.285 | 0.000 | 0.000 | 0.397 | 0.000 | 0.000 | 0.271 | 0.475 | 0.447 |
Ti | 0.024 | 0.066 | 0.138 | 0.106 | 0.040 | 0.207 | 0.088 | 0.173 | 0.081 | 0.095 | 0.034 | 0.095 |
V | 0.004 | 0.000 | 0.007 | 0.024 | 0.000 | 0.011 | 0.006 | 0.010 | 0.009 | 0.006 | 0.017 | 0.011 |
Cr | 0.012 | 0.008 | 0.000 | 0.000 | 0.000 | 0.009 | 0.000 | 0.000 | 0.000 | 0.016 | 0.015 | 0.000 |
Fe3+ | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 |
Mg | 0.548 | 1.404 | 1.386 | 1.510 | 2.048 | 2.067 | 1.365 | 2.099 | 1.376 | 1.436 | 0.863 | 1.033 |
Mn | 0.042 | 0.004 | 0.004 | 0.000 | 0.000 | 0.003 | 0.000 | 0.000 | 0.004 | 0.007 | 0.005 | 0.010 |
Fe2+ | 1.902 | 1.382 | 1.085 | 0.884 | 0.687 | 0.440 | 0.902 | 0.418 | 1.466 | 0.931 | 1.491 | 1.191 |
Zn | 0.017 | 0.012 | 0.000 | 0.000 | 0.000 | 0.005 | 0.000 | 0.000 | 0.001 | 0.023 | 0.000 | 0.019 |
Li * | 0.100 | 0.087 | 0.166 | 0.190 | 0.225 | 0.257 | 0.242 | 0.300 | 0.064 | 0.215 | 0.100 | 0.194 |
X: Ca | 0.015 | 0.028 | 0.168 | 0.154 | 0.015 | 0.398 | 0.197 | 0.420 | 0.068 | 0.146 | 0.003 | 0.057 |
Na | 0.770 | 0.855 | 0.541 | 0.551 | 0.929 | 0.509 | 0.497 | 0.481 | 0.801 | 0.644 | 0.456 | 0.606 |
K | 0.011 | 0.000 | 0.005 | 0.000 | 0.000 | 0.006 | 0.010 | 0.001 | 0.002 | 0.009 | 0.000 | 0.004 |
cat sum | 18.796 | 18.883 | 18.714 | 18.705 | 19.018 | 18.913 | 18.704 | 18.902 | 18.898 | 18.798 | 18.475 | 18.667 |
Xvac | 0.204 | 0.117 | 0.286 | 0.295 | 0.056 | 0.087 | 0.296 | 0.098 | 0.130 | 0.202 | 0.541 | 0.333 |
OH | 3.986 | 3.839 | 3.889 | 3.821 | 3.972 | 3.957 | 3.944 | 3.885 | 3.944 | 3.890 | 3.837 | 3.849 |
F | 0.014 | 0.161 | 0.111 | 0.179 | 0.028 | 0.043 | 0.056 | 0.115 | 0.056 | 0.110 | 0.163 | 0.151 |
Name | Schorl | Dravite | Dravite | Dravite | Dravite | Dravite | Dravite | Dravite | Schorl | Dravite | Foitite | Schorl |
Studied Locality | Chochołów | Chyżne | Čimhova | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
[wt%] | 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | 1 |
SiO2 | 45.04 | 47.94 | 44.01 | 47.56 | 50.16 | 51.94 | 46.51 | 52.30 | 46.31 | 54.84 | 44.24 |
TiO2 | 0.99 | 0.86 | 1.07 | 1.03 | 0.69 | 0.41 | 0.93 | 0.15 | 1.03 | 0.04 | 0.64 |
Al2O3 | 11.85 | 8.67 | 11.32 | 8.88 | 7.35 | 5.66 | 10.87 | 0.72 | 10.00 | 0.80 | 12.08 |
Cr2O3 | 0.06 | 0.08 | 0.12 | 0.08 | 0.03 | 0.38 | 0.02 | 0.00 | 0.07 | 0.01 | 0.02 |
MnO | 0.25 | 0.28 | 0.27 | 0.28 | 0.24 | 0.25 | 0.28 | 0.77 | 0.30 | 0.57 | 0.44 |
FeO | 12.05 | 12.61 | 16.72 | 13.02 | 10.56 | 5.23 | 11.31 | 17.53 | 13.61 | 22.84 | 13.17 |
Fe2O3 * | 3.75 | 2.45 | 1.88 | 1.33 | 1.57 | 3.13 | 2.72 | 8.47 | 2.34 | 0.00 | 2.13 |
ZnO | 0.00 | 0.00 | 0.07 | 0.06 | 0.06 | 0.00 | 0.17 | 0.00 | 0.01 | 0.04 | 0.00 |
MgO | 10.88 | 11.99 | 8.54 | 11.88 | 14.14 | 17.98 | 12.04 | 19.35 | 10.93 | 17.53 | 10.66 |
CaO | 10.68 | 11.33 | 11.55 | 11.79 | 11.76 | 11.44 | 11.35 | 1.16 | 11.35 | 0.86 | 11.89 |
Na2O | 1.11 | 0.86 | 0.99 | 0.79 | 0.65 | 1.12 | 1.14 | 0.01 | 0.98 | 0.04 | 1.24 |
K2O | 0.33 | 0.30 | 0.57 | 0.40 | 0.30 | 0.09 | 0.25 | 0.00 | 0.45 | 0.00 | 0.62 |
H2O+ | 2.05 | 2.06 | 2.01 | 2.06 | 2.09 | 2.13 | 2.07 | 2.05 | 2.04 | 2.07 | 2.03 |
Total | 99.05 | 99.44 | 99.11 | 99.14 | 99.58 | 99.75 | 99.65 | 102.51 | 99.41 | 99.64 | 99.16 |
Group | OH, F, Cl | ||||||||||
Subgroup | Ca | Ca | Ca | Ca | Ca | Ca | Ca | Mg-Fe-Mn | Ca | Mg-Fe-Mn | Ca |
Species | Mg-Hbl | Mg-Hbl | Fe-Hbl | Mg-Hbl | Mg-Hbl | Mg-Fe-Hbl | Mg-Hbl | Cum | Mg-Hbl | Cum | Mg-Hbl |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Chmielowska, D.; Salata, D. Heavy Minerals as Indicators of the Source and Stratigraphic Position of the Loess-Like Deposits in the Orava Basin (Polish Western Carpathians). Minerals 2020, 10, 445. https://doi.org/10.3390/min10050445
Chmielowska D, Salata D. Heavy Minerals as Indicators of the Source and Stratigraphic Position of the Loess-Like Deposits in the Orava Basin (Polish Western Carpathians). Minerals. 2020; 10(5):445. https://doi.org/10.3390/min10050445
Chicago/Turabian StyleChmielowska, Dorota, and Dorota Salata. 2020. "Heavy Minerals as Indicators of the Source and Stratigraphic Position of the Loess-Like Deposits in the Orava Basin (Polish Western Carpathians)" Minerals 10, no. 5: 445. https://doi.org/10.3390/min10050445
