Full-Waveform Modeling of Complex Media Seismic Waves for Irregular Topography and Its Application in Metal Ore Exploration

Abstract

Seismic exploration has caught widespread attention in metal ore exploration due to its higher resolution. However, the presence of topography and complex underground structures in metal ore exploration complicates seismic records. Therefore, it is essential to apply a numerical simulation method suitable for metal ore exploration to study the propagation law of seismic waves in shallow and ore-forming zones, providing reliable theoretical support for multi-component seismic techniques. In particular, the presence of topography generates strong-amplitude surface waves, scattered waves, and converted waves, which consistently distort seismic records and affect the imaging accuracy of the metallogenic belts. Additionally, the propagation of seismic waves is also affected by the anisotropy and viscoelasticity of the underground medium. This paper proposes an elastic wave finite-difference numerical simulation method suitable for irregularly topographical and complex medium conditions, named the comprehensive parameter correction method, which implements a free-surface boundary condition based on the concept of medium averaging. It is algorithmically simple and implies no additional computational costs. Meanwhile, the results obtained by this method are highly consistent with those of the spectral element method, demonstrating its accuracy. By presenting several numerical simulation cases and illustrating the impact of topography and medium conditions on seismic records, this paper demonstrates the necessity of considering irregularly topographical and complex medium conditions in metal ore exploration. In conclusion, the numerical simulation method we propose provides a solid theoretical foundation for the application of seismic exploration methods in metal ore exploration.

1. Introduction

With the development of industrialization, global demand for metal mineral resources is rising. Traditional metal ore exploration techniques, such as gravitational, magnetic, and electrical exploration, have advantages in shallow prospecting (<500 m), but are limited in deeper exploration areas (0.5 km–1.5 km) [1,2]. Seismic exploration, with its great depth and high resolution, has attracted significant attention in metal ore exploration. However, complex underground structures and topography can distort seismic records. In this context, it is necessary to implement numerical simulations of seismic waves to aid in understanding wave propagation phenomena and geophysical characteristics of ore deposits. Consequently, in recent years, many scholars have conducted seismic numerical simulations on mineral resource exploration [3,4,5,6,7,8].

The spectral element method (SEM) [9,10] and the finite difference method (FDM) [11,12] are two commonly used numerical simulation methods in seismic exploration. SEM faces challenges such as high computational cost and difficulty in designing high-quality unstructured grids. Compared with the SEM, the FDM offers the advantages of higher computational efficiency, lower memory requirements, and easier implementation. Among the FDMs, the staggered-grid FDM has been widely used in seismic exploration [12,13,14]. Therefore, in this study, we will employ the staggered-grid FDM to conduct numerical simulations.

In metal mineral exploration, complex topographical conditions are often encountered, producing a variety of complex seismic wave propagation phenomena such as scattered waves, site effects, and mode conversions between surface and body waves [15]. These phenomena distort seismic records and subsequently affect the imaging accuracy of the metallogenic belt. Therefore, to more accurately simulate the propagation of seismic waves in ore-forming zones, it is essential to consider the influence of complex topography.

In the presence of irregular topography, implementing a free-surface boundary condition (FSBC) is crucial for accurate numerical simulation. Within the framework of the FDM, the previous FSBC was represented by applying a difference approximation of displacement derivatives [11,16,17,18,19,20]. With the development of the staggered-grid FDM, the implementation of an FSBC shifts to the velocity–stress staggered grid. When dealing with complex topography, two common strategies in the FDM are staircase approximation [21,22,23] and specific coordinate transformation techniques [24,25,26,27]. The latter implements an FSBC in a curvilinear coordinate system instead of the traditional Cartesian coordinate system. In contrast, the staircase approximation is easier to implement because it discretizes the irregular topography in a conventional Cartesian coordinate system, making it suitable for any topography. The staircase discretization methods include the improved vacuum formulation [28,29,30], generalized stress-image method [14,31,32], and parameter-modification method [22,33,34]. Compared with the other two methods, the parameter-modification method has higher simulation accuracy and greater convenience, showing promising prospects particularly in near-surface numerical simulation [23,35].

In addition to the impact of complex topography, complex subsurface medium conditions also pose significant challenges in metal ore seismic exploration. Traditional metal ore seismic exploration often assumes isotropy. However, anisotropy and viscoelasticity are more common in geological formations. Considering anisotropy and viscoelasticity allows for a more accurate description of the physical phenomena of seismic waves. Anisotropy causes seismic waves to propagate at different speeds in different directions [36,37]. For viscoelastic media, they cause the attenuation of seismic waves, which is specifically characterized by the decay of their amplitude and phase [38]. To obtain more accurate numerical results, it is necessary to consider the influence of complex medium properties during numerical simulation.

In this paper, we address the challenges in metal ore exploration, including irregular topography and complex media, by proposing a comprehensive parameter correction method (CPCM). The CPCM aims to analyze seismic wave propagation in shallow layers and ore-forming zones, offering theoretical support for subsequent seismic imaging and inversion. Through staircase approximation and the correction of constitutive relations and density at the free surface, the CPCM efficiently deals with the numerical simulation of irregular topography. For scenarios involving anisotropic, viscoelastic, or anisotropic–viscoelastic media, we derived the corresponding mathematical expressions of an FSBC using the CPCM. Subsequently, we will present numerical experiments to demonstrate the feasibility of the CPCM, and compare its simulation results with those of the SEM to validate its accuracy. Additionally, we will show the impact of topography and complex media on the seismic wavefield, confirming the importance of considering complex topography and media in metal ore seismic exploration. Finally, we extended our investigation to the Half Mile Lake deposit model [4], testing the performance of the CPCM in addressing practical problems.

2. Method of Free-Surface Parameter Correction for Different Media

In this section, we will derive the FSBC for various media within the staggered-grid FD scheme. The derivation process primarily focuses on elastic medium conditions, with subsequent derivations for anisotropic, viscoelastic, and anisotropic–viscoelastic media, being essentially similar to elastic media. Therefore, we will only provide corresponding notes and final derivation results.

2.1. Elastic Scenario

First, we modified the constitutive relations for the free surface in elastic media. Here, we only considered a 2D case, but a 3D case can be derived similarly. The constitutive relations for isotropic elastic media in the 2D case are the following:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{ccc}\lambda +2\mu & \lambda & 0\\ \lambda & \lambda +2\mu & 0\\ 0& 0& 2\mu \end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\end{array}\right],$$

(1)

where (σ_xx, σ_xz, σ_zz) represent the stress tensor, and (ε_xx, ε_xz, ε_zz) denote the strain tensor. λ and μ are the Lamé parameters. Then, following the averaged medium approach proposed by Moczo et al. (2002) [39], we assumed two completely elastic isotropic half-spaces separated at z = 0. Based on the traction and displacement continuity conditions at the discontinuous interface z = 0, stress tensor and strain tensor components were divided into two categories.

The first category includes continuous stress and strain tensor components, as the following:

$$\left\{\begin{array}{l}{\sigma }_C={\left[\begin{array}{cc}{\sigma }_{zz},& {\sigma }_{xz}\end{array}\right]}^T,\\ {\epsilon }_C=\left[{\epsilon }_{xx}\right].\end{array}\right.$$

(2)

The second category includes discontinuous stress and strain tensor components, as the following:

$$\left\{\begin{array}{l}{\sigma }_D=\left[{\sigma }_{xx}\right],\\ {\epsilon }_D={\left[\begin{array}{cc}{\epsilon }_{zz},& {\epsilon }_{xz}\end{array}\right]}^T,\end{array}\right.$$

(3)

where the subscript “C” denotes the continuous components, and “D” denotes the discontinuous components. Substituting Equations (2) and (3) into Equation (1), we then obtained the following simplified constitutive relationship:

$$\left[\begin{array}{c}{\sigma }_D\\ {\sigma }_C\end{array}\right]=\left[\begin{array}{cc}K& L\\ L^T& M\end{array}\right]\left[\begin{array}{c}{\epsilon }_C\\ {\epsilon }_D\end{array}\right],$$

(4)

where the superscript “T” denotes the transpose of the matrix. K, L, and M are matrices of elastic parameters, with their detailed components listed as the following:

$$K=\left[\lambda +2\mu \right],L=\left[\begin{array}{cc}\lambda & 0\end{array}\right],M=\left[\begin{array}{cc}\lambda +2\mu & 0\\ 0& 2\mu \end{array}\right].$$

(5)

Then, rewriting Equation (4) and relocating the discontinuous variables of stress and strain tensor components to the left side, we derived the following equation:

$$\left[\begin{array}{c}{\sigma }_D\\ {\epsilon }_D\end{array}\right]=\left[\begin{array}{cc}L{M}^{-1}& K-L{M}^{-1}{L}^T\\ M^{-1}& -M^{-1}{L}^T\end{array}\right]\left[\begin{array}{c}{\sigma }_C\\ {\epsilon }_C\end{array}\right].$$

(6)

We denote the parameters in the upper medium with the superscript “u” and those in the lower medium with the superscript “d”. Applying the constitutive relationship from Equation (6) to the upper and lower half-spaces, we obtained the following formula:

$$\left[\begin{array}{c}{\sigma }_D^i\\ {\epsilon }_D^i\end{array}\right]=\left[\begin{array}{cc}{L}^i{(M^i)}^{-1}& K^i-L^i{(M^i)}^{-1}{(L^i)}^T\\ {(M^i)}^{-1}& -{(M^i)}^{-1}{(L^i)}^T\end{array}\right]\left[\begin{array}{c}{\sigma }_C^i\\ {\epsilon }_C^i\end{array}\right],i\in \left\{u,d\right\}$$

(7)

where

$$K^i=\left[{\lambda }^i+2{\mu }^i\right],L^i=\left[\begin{array}{cc}{\lambda }^i& 0\end{array}\right],M^i=\left[\begin{array}{cc}{\lambda }^i+2{\mu }^i& 0\\ 0& 2{\mu }^i\end{array}\right],i\in \left\{u,d\right\}.$$

(8)

For the continuous stress and strain tensor components, they are continuous at the interface z = 0. Accordingly, the average values of continuous stress and strain tensor components at the interface are

$$\left[\begin{array}{c}{\overline{\sigma }}_C\\ {\overline{\epsilon }}_C\end{array}\right]=\left[\begin{array}{c}{\sigma }_C^{\mathrm{u}}\\ {\epsilon }_C^{\mathrm{u}}\end{array}\right]=\left[\begin{array}{c}{\sigma }_C^{\mathrm{d}}\\ {\epsilon }_C^{\mathrm{d}}\end{array}\right].$$

(9)

Next, we denote Q as the discontinuous variable across the interface, i.e., Q^u ≠ Q^d. We define the averaging function as

$$\overline{Q}=\frac{1}{2}\left(Q^{\mathrm{u}}+Q^{\mathrm{d}}\right),$$

(10)

where the superscript “–” denotes the average value of the medium parameters at the interface. So, according to Equation (10), for the discontinuous stress and strain, the average at the interface can be expressed as

$$\begin{array}{l}\left[\begin{array}{c}{\overline{\sigma }}_D\\ {\overline{\epsilon }}_D\end{array}\right]=\frac{1}{2}\left(\left[\begin{array}{c}{\sigma }_D^{\mathrm{u}}\\ {\epsilon }_D^{\mathrm{u}}\end{array}\right]+\left[\begin{array}{c}{\sigma }_D^{\mathrm{d}}\\ {\epsilon }_D^{\mathrm{d}}\end{array}\right]\right)\\ =\frac{1}{2}\left(\left[\begin{array}{cc}{L}^{\mathrm{u}}{(M^{\mathrm{u}})}^{-1}& K^{\mathrm{u}}-L^{\mathrm{u}}{(M^{\mathrm{u}})}^{-1}{(L^{\mathrm{u}})}^T\\ {(M^{\mathrm{u}})}^{-1}& -{(M^{\mathrm{u}})}^{-1}{(L^{\mathrm{u}})}^T\end{array}\right]+\left[\begin{array}{cc}{L}^{\mathrm{d}}{(M^{\mathrm{d}})}^{-1}& K^{\mathrm{d}}-L^{\mathrm{d}}{(M^{\mathrm{d}})}^{-1}{(L^{\mathrm{d}})}^T\\ {(M^{\mathrm{d}})}^{-1}& -{(M^{\mathrm{d}})}^{-1}{(L^{\mathrm{d}})}^T\end{array}\right]\right)\left[\begin{array}{c}{\overline{\sigma }}_C\\ {\overline{\epsilon }}_C\end{array}\right]\\ =\left[\begin{array}{cc}\overline{(L{M}^{-1})}& \overline{(K-L{M}^{-1}{L}^T)}\\ \overline{(M^{-1})}& \overline{(-M^{-1}{L}^T)}\end{array}\right]\left[\begin{array}{c}{\overline{\sigma }}_C\\ {\overline{\epsilon }}_C\end{array}\right].\end{array}$$

(11)

Then, we rewrote Equation (11) following the format of Equation (4), resulting in the following constitutive relationship for the averaged medium at the interface:

$$\left[\begin{array}{c}{\overline{\sigma }}_D\\ {\overline{\sigma }}_C\end{array}\right]=\left[\begin{array}{cc}{K}^{*}& L^{*}\\ L^{*T}& M^{*}\end{array}\right]\left[\begin{array}{c}{\overline{\epsilon }}_C\\ {\overline{\epsilon }}_D\end{array}\right],$$

(12)

where

$$\begin{array}{l}{K}^{*}=\overline{(K-L{M}^{-1}{L}^T)}+\overline{(L{M}^{-1})}{\left[\overline{(M^{-1})}\right]}^{-1}\overline{(M^{-1}{L}^T)},\\ L^{*}=\overline{(L{M}^{-1})}{\left[\overline{(M^{-1})}\right]}^{-1},\\ M^{*}={\left[\overline{(M^{-1})}\right]}^{-1}.\end{array}$$

(13)

Substituting Equation (8) into Equation (13), we obtained the averaged elastic parameter matrix as

$$\begin{array}{l}{K}^{*}=\left[\frac{2{\mu }^{\mathrm{d}}\left({\lambda }^{\mathrm{d}}+{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}}+\frac{2{\mu }^{\mathrm{u}}\left({\lambda }^{\mathrm{u}}+{\mu }^{\mathrm{u}}\right)}{{\lambda }^{+}+2{\mu }^{+}}+\chi \right],L^{*}=\left[\begin{array}{cc}\frac{{\lambda }^{\mathrm{d}}\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}}& 0\end{array}\right],\\ M^{*}=\left[\begin{array}{cc}\frac{2\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}}& 0\\ 0& \frac{4{\mu }^{\mathrm{d}}{\mu }^{\mathrm{u}}}{{\mu }^{\mathrm{d}}+{\mu }^{\mathrm{u}}}\end{array}\right],\end{array}$$

(14)

where

$$\chi =\frac{{\left[{\lambda }^{\mathrm{d}}\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)\right]}^2}{2\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)}.$$

(15)

Thus, we can express the constitutive relationship for the averaged medium as

$$\left[\begin{array}{c}{\overline{\sigma }}_{xx}\\ {\overline{\sigma }}_{zz}\\ {\overline{\sigma }}_{xz}\end{array}\right]=\left[\begin{array}{ccc}\frac{2{\mu }^{\mathrm{d}}\left({\lambda }^{\mathrm{d}}+{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}}+\frac{2{\mu }^{\mathrm{u}}\left({\lambda }^{\mathrm{u}}+{\mu }^{\mathrm{u}}\right)}{{\lambda }^{+}+2{\mu }^{+}}+\chi & \frac{{\lambda }^{\mathrm{d}}\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}}& 0\\ \frac{{\lambda }^{\mathrm{d}}\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}}& \frac{2\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)\left({\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}+2{\mu }^{\mathrm{u}}}& 0\\ 0& 0& \frac{4{\mu }^{\mathrm{d}}{\mu }^{\mathrm{u}}}{{\mu }^{\mathrm{d}}+{\mu }^{\mathrm{u}}}\end{array}\right]\left[\begin{array}{c}{\overline{\epsilon }}_{xx}\\ {\overline{\epsilon }}_{zz}\\ {\overline{\epsilon }}_{xz}\end{array}\right].$$

(16)

Next, considering the upper medium as air and the lower medium as the Earth, the interface (z = 0) transforms into a free-surface boundary. Setting μ^u = 0 and substituting it into Equations (14)–(16), we then obtained the following corrected interface constitutive relationship:

$$\left[\begin{array}{c}{\overline{\sigma }}_{xx}\\ {\overline{\sigma }}_{zz}\\ {\overline{\sigma }}_{xz}\end{array}\right]=\left[\begin{array}{ccc}\frac{2{\mu }^{\mathrm{d}}\left({\lambda }^{\mathrm{d}}+{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}}+\chi \prime & \frac{{\lambda }^{\mathrm{d}}{\lambda }^{\mathrm{u}}+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}}& 0\\ \frac{{\lambda }^{\mathrm{d}}{\lambda }^{\mathrm{u}}+{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}}& \frac{2{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}+{\lambda }^{\mathrm{u}}}& 0\\ 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\overline{\epsilon }}_{xx}\\ {\overline{\epsilon }}_{zz}\\ {\overline{\epsilon }}_{xz}\end{array}\right],$$

(17)

where

$$\chi \prime =\frac{{\left[{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)+{\lambda }^{\mathrm{d}}{\lambda }^{\mathrm{u}}\right]}^2}{2{\lambda }^{\mathrm{u}}\left({\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)\left({\lambda }^{\mathrm{u}}+{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}\right)}.$$

(18)

If λ^u = 0, Equation (18) becomes meaningless. Therefore, based on the vacuum approximation theory and mathematical limit concept, we let λ^u approach an infinitesimal value but not equal to zero. This approximation implies that the elastic modulus of the atmosphere above the surface is much smaller than that of the Earth below, in terms of the physical properties at the air–Earth interface. Therefore, by substituting λ^u → 0 into Equations (17) and (18), we obtained the following:

$$\left[\begin{array}{c}{\overline{\sigma }}_{xx}\\ {\overline{\sigma }}_{zz}\\ {\overline{\sigma }}_{xz}\end{array}\right]=\left[\begin{array}{ccc}\frac{2{\mu }^{\mathrm{d}}\left({\lambda }^{\mathrm{d}}+{\mu }^{\mathrm{d}}\right)}{{\lambda }^{\mathrm{d}}+2{\mu }^{\mathrm{d}}}& 0& 0\\ 0& 0& 0\\ 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\overline{\epsilon }}_{xx}\\ {\overline{\epsilon }}_{zz}\\ {\overline{\epsilon }}_{xz}\end{array}\right].$$

(19)

Removing all superscripts, we then obtained the following corrected constitutive relationship at the free-surface boundary:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{ccc}\frac{2\mu \left(\lambda +\mu \right)}{\lambda +2\mu }& 0& 0\\ 0& 0& 0\\ 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\end{array}\right].$$

(20)

For the calculation of density ρ at the interface, we used the arithmetic mean of the densities of the upper and lower media. Since the upper half-space is air, the density is 0 based on the vacuum approximation, and the average density at the interface is ρ/2. Combining this with Equation (20), we obtained the modified constitutive relations for the stress tensor and density at the free surface:

$$\left\{\begin{array}{l}{\left.{\sigma }_{xx}\right|}_{z=0}=\frac{2\mu (\lambda +\mu )}{\lambda +2\mu }{\epsilon }_{xx},\\ {\left.{\sigma }_{zz}\right|}_{z=0}=0,\\ {\left.{\sigma }_{xz}\right|}_{z=0}={\left.{\sigma }_{zx}\right|}_{z=0}=0,\\ {\left.\rho \right|}_{z=0}=\frac{\rho }{2}.\end{array}\right.$$

(21)

In practical exploration environments, the Earth’s surface is not perfectly flat and horizontal. Therefore, after addressing numerical simulation issues related to a horizontal free surface, it became essential to further consider the influence of topography.

In the process of simulating the propagation of subsurface elastic waves using the standard staggered-grid FDM, since the discrete grids were all standard rectangular grids, it was necessary to approximate the irregular topography of the surface through staircase approximation. To address this, we adopted the irregular surface parameter-modified method proposed by Cao & Chen (2018) [21] for isotropic media. In the case of isotropic media, during grid partitioning, as illustrated in Figure 1a, we assigned components of the normal stress tensor and medium parameters (λ, μ, and ρ) to integer grid points (i, j). Shear stress components were allocated to non-integer grid points at the center of the grid cells (i + 1/2, j + 1/2). The x-direction velocity component (v_x) and the z-direction velocity component (v_z) were assigned to the remaining horizontal and vertical half-grid points (i, j + 1/2) and (i + 1/2, j). For medium parameters not located at integer grid points, we employed the parameter-averaging method proposed by Moczo et al. (1997) [39] for the calculation:

$$\left\{\begin{array}{l}{\rho }_x=\frac{{\rho }_{i,j}+{\rho }_{i+1,j}}{2},{\rho }_z=\frac{{\rho }_{i,j}+{\rho }_{i,j+1}}{2},\\ <\mu {>}_{xz}={\left(\frac{1}{4}\left(\frac{1}{{\mu }_{i,j}}+\frac{1}{{\mu }_{i+1,j}}+\frac{1}{{\mu }_{i,j+1}}+\frac{1}{{\mu }_{i+1,j+1}}\right)\right)}^{-1}.\end{array}\right.$$

(22)

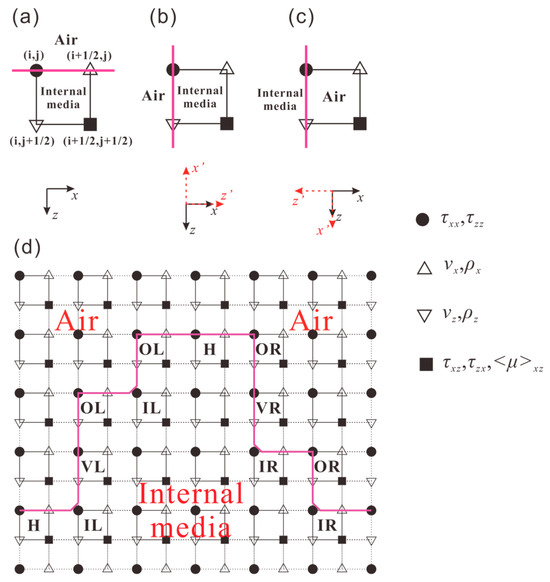

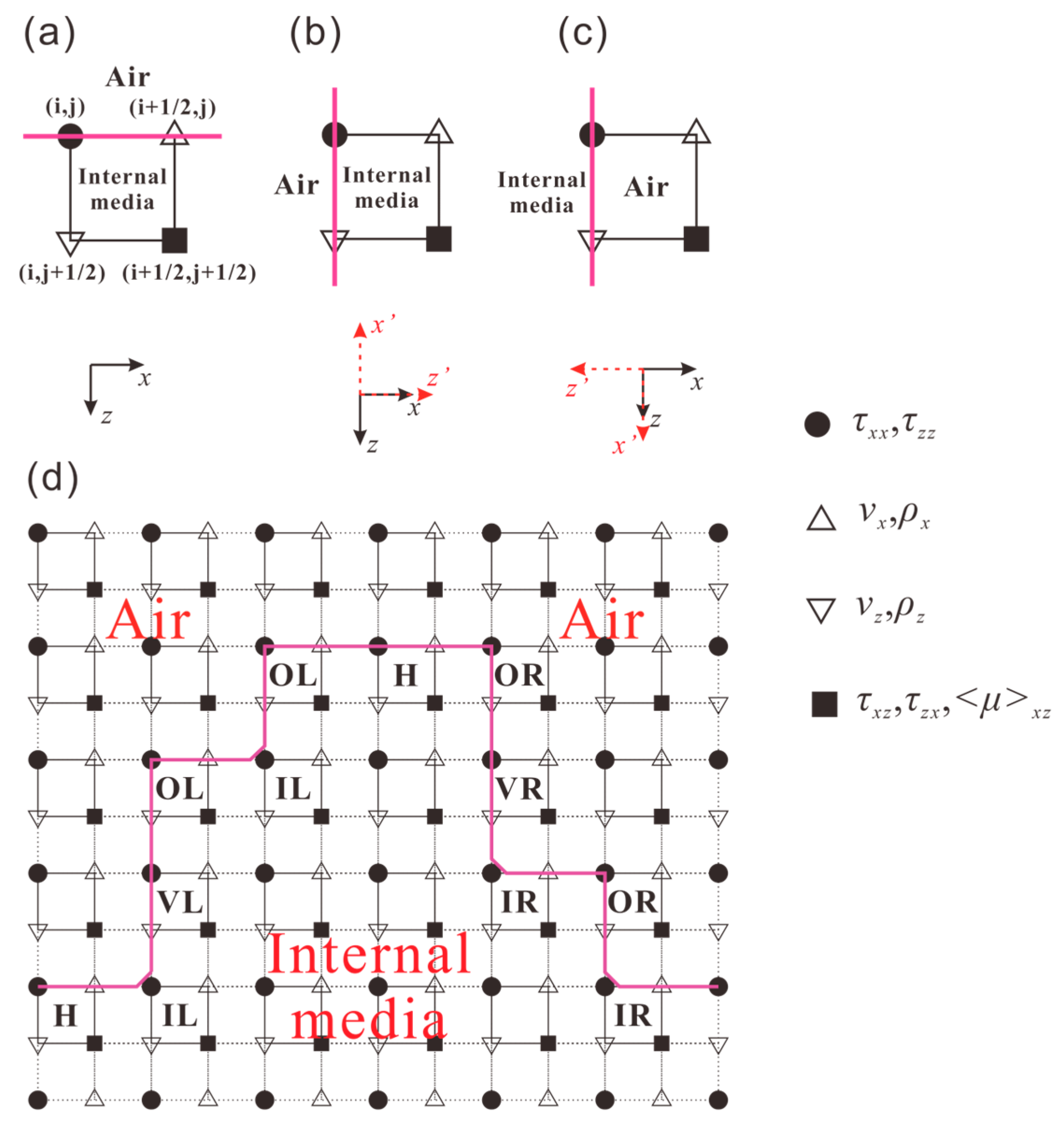

We set up three types of grid cells, labeled as H, VL, and VR, to represent different grid types under three distinct topographical conditions. In the H cell, it is a horizontal boundary grid cell (Figure 1a). The VL cell represents a vertical boundary grid cell with air on the left side (Figure 1b), while the VR cell represents a vertical boundary grid cell with air on the right side (Figure 1c). The constitutive relationships at the free surface for these cells need to be reconstructed through coordinate axis rotations. For the VL grid cell, the free surface is equivalent to rotating the H grid cell counterclockwise by 90°, and for the VR grid cell, it is equivalent to rotating the H grid cell clockwise by 90°. The modified constitutive relationships and density at the free surface for these three types of grids are the following:

$$\mathrm{H}:\left\{\begin{array}{l}{\sigma }_{xx}=\frac{2\mu (\lambda +\mu )}{\lambda +2\mu }{\epsilon }_{xx}\\ {\sigma }_{zz}=0\\ {\sigma }_{xz}=2\mu {\epsilon }_{xz}\\ {\rho }_x=\frac{{\rho }_x}{2}\\ {\rho }_z={\rho }_z\end{array}\right.,\mathrm{VL}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=\frac{2\mu (\lambda +\mu )}{\lambda +2\mu }{\epsilon }_{zz}\\ {\sigma }_{xz}=2\mu {\epsilon }_{xz}\\ {\rho }_x={\rho }_x\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right.,\mathrm{VR}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=\frac{2\mu (\lambda +\mu )}{\lambda +2\mu }{\epsilon }_{zz}\\ {\sigma }_{xz}=0\\ {\rho }_x=0\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right..$$

(23)

Subsequently, in the grid cells within an irregular topography, as illustrated in Figure 1d, we categorized the topography transition cells into inner corner grid cells (IL, IR) and outer corner grid cells (OL, OR), each subject to specific treatment. Both required density averaging. For the constitutive relationships at these grid cells, we simplified the inner corner grid cells by treating them as internal grid points without specific adjustments. Regarding the outer corner grid cells, we set all normal stresses to zero, a method similar to the approach used by Hayashi et al. (2001) [40].

To implement the above method in the staggered-grid FDM program, it was necessary to redefine the medium parameters. We needed to transform the parameter treatment of special grid cells under irregular topography into corrections for these newly defined medium parameters. The FDM format for the staggered grid with the redefined medium parameters is the following:

$$\left\{\begin{array}{l}\frac{\partial v_x}{\partial t}=b_x^{*}({\sigma }_{xx}+{\sigma }_{xz}),\\ \frac{\partial v_z}{\partial t}=b_z^{*}({\sigma }_{zx}+{\sigma }_{zz}),\end{array}\right.$$

(24)

and

$$\left\{\begin{array}{l}\frac{\partial {\sigma }_{xx}}{\partial t}=E_1^{xx}\frac{\partial v_x}{\partial x}+E_2^{xx}\frac{\partial v_z}{\partial z},\\ \frac{\partial {\sigma }_{zz}}{\partial t}=E_1^{zz}\frac{\partial v_x}{\partial x}+E_2^{zz}\frac{\partial v_z}{\partial z},\\ \frac{\partial {\sigma }_{xz}}{\partial t}=<{\mu }^{*}{>}_{xz}\left(\frac{\partial v_x}{\partial z}+\frac{\partial v_z}{\partial x}\right).\end{array}\right.$$

(25)

The redefined medium parameters include the modified reciprocal densities ($b_x^{*}$ and $b_z^{*}$) and parameters ($E_1^{xx}$, $E_2^{xx}$, $E_1^{zz}$, $E_2^{xx}$, $<{\mu }^{*}{>}_{xz}$) associated with the medium’s Lamé parameters, specifically represented as the following:

$$\begin{array}{l}{b}_x=\frac{2b_{i,j}{b}_{i+1,j}}{b_{i,j}+b_{i+1,j}},b_z=\frac{2b_{i,j}{b}_{i,j+1}}{b_{i,j}+b_{i,j+1}},\\ b_x^{*}=b_x,b_z^{*}=b_z,\\ E_1^{xx}=E_2^{zz}=\lambda +2\mu ,\\ E_2^{xx}=E_1^{zz}=\lambda ,\\ <{\mu }^{*}{>}_{xz}=<\mu {>}_{xz},\end{array}$$

(26)

where b_x and b_z are the harmonic mean values of the reciprocal density b in the x- and z- directions for the upper and lower media. For grid points on the complex surface condition, we implemented this by modifying these newly defined medium parameters. For example, the aforementioned VR boundary was achieved through the following parameter correction:

$$\begin{array}{l}{b}_x^{*}=b_x,b_z^{*}=2b_z,\\ E_2^{zz}=\frac{2\mu (\lambda +\mu )}{\lambda +2\mu },\\ E_1^{xx}=E_2^{xx}=E_1^{zz}=0,\\ <{\mu }^{*}{>}_{xz}=<\mu {>}_{xz}.\end{array}$$

(27)

There was no need to deliberately set b_x and <μ>_xz to zero because the adjacent points of this grid cell had parameters with a value of zero. According to the harmonic mean, automatic zeroing could be achieved. Therefore, there was no need to distinguish the relative positional relationship between the grid cells in the air and on the ground during the simulation calculation, simplifying the computational process. Similarly, the treatment at the transition cells of irregular topography was achieved by modifying the medium parameters. For example, external corner points (OL or OR) were implemented through the following parameter correction:

$$\begin{array}{l}{b}_x^{*}=b_x,b_z^{*}=2b_z,\\ E_2^{zz}=E_1^{xx}=E_2^{xx}=E_1^{zz}=0,\\ <{\mu }^{*}{>}_{xz}=\frac{<\mu {>}_{xz}}{2}.\end{array}$$

(28)

Therefore, we achieved a unified computation for the complex free surface and the internal region of the model. This method exhibits its good applicability to different Poisson’s ratios of the medium and is suitable for both frequency and time domains [22]. It can be directly embedded into existing FDM programs without increasing computational costs or memory requirements. Subsequently, this method for handling irregular topography can be further extended to anisotropic media, viscoelastic media, and anisotropic–viscoelastic media based on the same derivation principles.

2.2. Anisotropic Scenario

For anisotropic media, vertically transverse isotropic (VTI) media [41] and horizontally transverse isotropic (HTI) media [42,43] are the most commonly used types. Note that if we did not specify the medium conditions, they were assumed to be isotropic or elastic by default. For example, anisotropic media were considered to be anisotropic elastic media unless otherwise stated. Taking VTI media as an example (with a similar derivation for HTI media), their constitutive relationship is the following:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{ccc}{c}_{11}& c_{13}& 0\\ c_{13}& c_{33}& 0\\ 0& 0& c_{44}\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\end{array}\right].$$

(29)

Adopting the same derivation process as isotropic elastic, we obtained the modified constitutive relationship for VTI media at the free surface as the following:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{ccc}\frac{c_{11}{c}_{33}-c_{13}^2}{2c_{33}}& 0& 0\\ 0& 0& 0\\ 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{zx}\end{array}\right].$$

(30)

For parameter correction in irregular topography, we employed the same approach as outlined in Section 2.1. The constitutive relations and densities at the free surface for the rotated H, VL, and VR grid cells are the following:

$$\mathrm{H}:\left\{\begin{array}{l}{\sigma }_{xx}=\frac{c_{11}{c}_{33}-c_{13}^2}{2c_{33}}{\epsilon }_{xx}\\ {\sigma }_{zz}=0\\ {\sigma }_{xz}=2<c_{44}{>}_{xz}{\epsilon }_{xz}\\ {\rho }_x=\frac{{\rho }_x}{2}\\ {\rho }_z={\rho }_z\end{array}\right.,\mathrm{VL}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=\frac{c_{11}{c}_{33}-c_{13}^2}{2c_{33}}{\epsilon }_{zz}\\ {\sigma }_{xz}=2<c_{44}{>}_{xz}{\epsilon }_{xz}\\ {\rho }_x={\rho }_x\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right.,\mathrm{VR}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=\frac{c_{11}{c}_{33}-c_{13}^2}{2c_{33}}{\epsilon }_{zz}\\ {\sigma }_{xz}=0\\ {\rho }_x=0\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right..$$

(31)

It is important to note here that we used harmonic averaging for the anisotropic elastic coefficients, which can be expressed as

$$<c_{44}{>}_{xz}={\left(\frac{1}{4}\left(\frac{1}{c_{44i,j}}+\frac{1}{c_{44i+1,j}}+\frac{1}{c_{44i,j+1}}+\frac{1}{c_{44i+1,j+1}}\right)\right)}^{-1}.$$

(32)

The handling of the inner and outer corner grid cells was similar to the approach described in Section 2.1 and will not be further elaborated here.

2.3. Viscoelastic Scenario

For viscoelastic media, the derivation of free-surface parameter correction was slightly different. Firstly, based on the research by Carcione et al. (1988) [44], the constitutive relationship for viscoelastic media is presented as the following:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{cccccc}\lambda +2\mu & \lambda & 0& \lambda +\mu & 2\mu & 0\\ \lambda & \lambda +2\mu & 0& \lambda +\mu & -2\mu & 0\\ 0& 0& 2\mu & 0& 0& 2\mu \end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\\ {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\end{array}\right],$$

(33)

and the memory variable equations which govern seismic wave energy attenuation are

$$\left\{\begin{array}{l}\frac{\partial e_{1l}^{(1)}}{\partial t}={\phi }_{1l}({\epsilon }_{xx}+{\epsilon }_{zz})-\frac{1}{{\tau }_{\sigma l}^{(1)}}{e}_{1l}^{(1)},\\ \frac{\partial e_{11l}^{(2)}}{\partial t}=0.5{\phi }_{2l}\left({\epsilon }_{xx}-{\epsilon }_{zz}\right)-\frac{1}{{\tau }_{\sigma l}^{(2)}}{e}_{11l}^{(2)},\\ \frac{\partial e_{13l}^{(2)}}{\partial t}={\phi }_{2l}{\epsilon }_{xz}-\frac{1}{{\tau }_{\sigma l}^{(2)}}{e}_{13l}^{(2)},\end{array}\right.$$

(34)

with

$${\phi }_{\nu l}=\frac{1}{{\tau }_{\sigma l}^{\nu }}\left(1-\frac{{\tau }_{\epsilon l}^{(\nu )}}{{\tau }_{\sigma l}^{(\nu )}}\right){\left({\displaystyle \sum _{l=1}^{L_{\nu }}\frac{{\tau }_{\epsilon l}^{(\nu )}}{{\tau }_{\sigma l}^{(\nu )}}}\right)}^{-1}, \nu =1 \mathrm{or} 2,$$

(35)

where ν = 1 or 2 represents dilatational or shear mode, respectively; L_ν is the relaxation mechanism parameter; ${\tau }_{\epsilon l}^{(\nu )}$ and ${\tau }_{\sigma l}^{(\nu )}$ are the strain and stress relaxation times, respectively; and $e_l^{(\nu )}$, $e_{11l}^{(\nu )}$, and $e_{13l}^{(\nu )}$ are viscoelastic memory variables. Therefore, in the derivation process of free surface parameter correction for viscoelastic media, there was a slight modification compared to the previous derivation. We set the viscoelastic memory variable matrix as

$$\left\{\begin{array}{l}{W}_1=\left[{\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}\right],\\ W_2=\left[\begin{array}{cc}{\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}& {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\end{array}\right].\end{array}\right.$$

(36)

Hence, the constitutive relationship for Equation (25) can be expressed as

$$\left(\begin{array}{c}{\sigma }_D\\ {\sigma }_C\end{array}\right)=\left(\begin{array}{cccc}K& L& S_1& S_2\\ L^T& M& S_3& S_4\end{array}\right)\left(\begin{array}{c}{\epsilon }_C\\ {\epsilon }_D\\ W_1\\ W_2\end{array}\right),$$

(37)

Matrices K, L, and M are the same as in Equation (5), and matrix S can be represented as

$$S_1=\left[\lambda +\mu \right],S_2=\left[\begin{array}{cc}2\mu & 0\end{array}\right],S_3=\left[\begin{array}{c}\lambda +\mu \\ 0\end{array}\right],S_4=\left[\begin{array}{cc}-2\mu & 0\\ 0& 2\mu \end{array}\right].$$

(38)

The subsequent derivation process was similar, and eventually, we obtained the constitutive relationship correction for the free surface in viscoelastic media:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{cccccc}\frac{2\mu (\lambda +\mu )}{\lambda +2\mu }& 0& 0& \frac{\mu (\lambda +\mu )}{\lambda +2\mu }& \frac{2\mu (\lambda +\mu )}{\lambda +2\mu }& 0\\ 0& 0& 0& 0& 0& 0\\ 0& 0& 0& 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\\ {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\end{array}\right].$$

(39)

For viscoelastic parameter correction in irregular terrain, we adopted the same approach as outlined in Section 2.1. The constitutive relations and densities at the free surface for the rotated H, VL, and VR grid cells are the following:

$$\begin{array}{l}\mathrm{H}:\left\{\begin{array}{l}{\sigma }_{xx}=2\gamma {\epsilon }_{xx}+\gamma {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}+2\gamma {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{zz}=0\\ {\sigma }_{xz}=2\mu {\epsilon }_{xz}+2\mu {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\\ {\rho }_x=\frac{{\rho }_x}{2}\\ {\rho }_z={\rho }_z\end{array}\right.,\mathrm{VL}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=2\gamma {\epsilon }_{zz}+\gamma {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}-2\gamma {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{xz}=2\mu {\epsilon }_{xz}+2\mu {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\\ {\rho }_x={\rho }_x\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right.,\\ \mathrm{VR}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=2\gamma {\epsilon }_{zz}+\gamma {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}-2\gamma {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{xz}=0\\ {\rho }_x=0\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right..\end{array}$$

(40)

Here, we defined μ (λ + μ)/(λ + 2μ) as γ, and the treatment of inner and outer corner grid cells was similar to the previous method in Section 2.1.

2.4. Anisotropic–Viscoelastic Scenario

For the correction derivation of the FSBC in anisotropic–viscoelastic media, the process was similar to that of viscoelastic media. First, based on the constitutive model and wave equation proposed by Carcione (1995) [45] for anisotropic–viscoelastic media, the constitutive relationship for anisotropic–viscoelastic media is given by

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{xz}\end{array}\right]=\left[\begin{array}{cccccc}{c}_{11}& c_{13}& 0& \xi & 2c_{44}& 0\\ c_{13}& c_{33}& 0& \xi & -2c_{44}& 0\\ 0& 0& c_{44}& 0& 0& c_{44}\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{xz}\\ {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\end{array}\right],$$

(41)

where

$$\xi =\frac{c_{11}+c_{33}}{2}-c_{44}.$$

(42)

Finally, we obtained the corrected constitutive relationship for the free surface in anisotropic viscoelastic media:

$$\left[\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{zz}\\ {\sigma }_{zx}\end{array}\right]=\left[\begin{array}{cccccc}\frac{c_{11}{c}_{13}-c_{13}^2}{2c_{33}}& 0& 0& \frac{\xi }{2}\left(1-\frac{c_{13}}{c_{33}}\right)& \frac{c_{44}}{2}\left(1+\frac{c_{13}}{c_{33}}\right)& 0\\ 0& 0& 0& 0& 0& 0\\ 0& 0& 0& 0& 0& 0\end{array}\right]\left[\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{zz}\\ {\epsilon }_{zx}\\ {\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\end{array}\right].$$

(43)

In irregular topography, we similarly derived the constitutive relation corrections for the H, VL, and VR points at the free surface as the following:

$$\begin{array}{l}\mathrm{H}:\left\{\begin{array}{l}{\sigma }_{xx}=p{\epsilon }_{xx}+q{\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}+s{\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{zz}=0\\ {\sigma }_{xz}=c_{44}{\epsilon }_{xz}+c_{44}{\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\\ {\rho }_x=\frac{{\rho }_x}{2}\\ {\rho }_z={\rho }_z\end{array}\right.,\mathrm{VL}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=p{\epsilon }_{zz}+q{\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}-s{\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{xz}=c_{44}{\epsilon }_{xz}+c_{44}{\displaystyle \sum _{l=1}^{L_2}{e}_{13l}^{(2)}}\\ {\rho }_x={\rho }_x\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right.,\\ \mathrm{VR}:\left\{\begin{array}{l}{\sigma }_{xx}=0\\ {\sigma }_{zz}=p{\epsilon }_{zz}+q{\displaystyle \sum _{l=1}^{L_1}{e}_{1l}^{(1)}}-s{\displaystyle \sum _{l=1}^{L_2}{e}_{11l}^{(2)}}\\ {\sigma }_{xz}=0\\ {\rho }_x=0\\ {\rho }_z=\frac{{\rho }_z}{2}\end{array}\right.,\end{array}$$

(44)

where

$$p=\frac{c_{11}{c}_{13}-c_{13}^2}{2c_{33}},q=\frac{\xi }{2}\left(1-\frac{c_{13}}{c_{33}}\right),s=c_{44}\left(1+\frac{c_{13}}{c_{33}}\right).$$

(45)

The treatment of inner and outer corner points was similar to that discussed earlier, so we will not elaborate further here.

Thus, we successfully derived the method for optimizing surface media parameters under irregularly topographical and different medium conditions. This method integrates both topographical and medium considerations, which we refer to as the comprehensive parameter correction method. Using this method, it becomes possible to comprehensively simulate seismic wave propagation under various geological conditions, providing a more accurate and reliable tool for complex media metal ore exploration in irregular topography. In the following sections, we will further apply the CPCM to numerical simulations of metal ore based on some case studies.

3. Numerical Experiments of a Simple Model

In this section, we will explore the effects of topographical and medium conditions on numerical simulations of metal ore exploration by applying the CPCM to two simple metal ore models. Simultaneously, we will compare the simulation results with those obtained from the SEM to demonstrate the accuracy of this approach.

3.1. The Influence of Topography

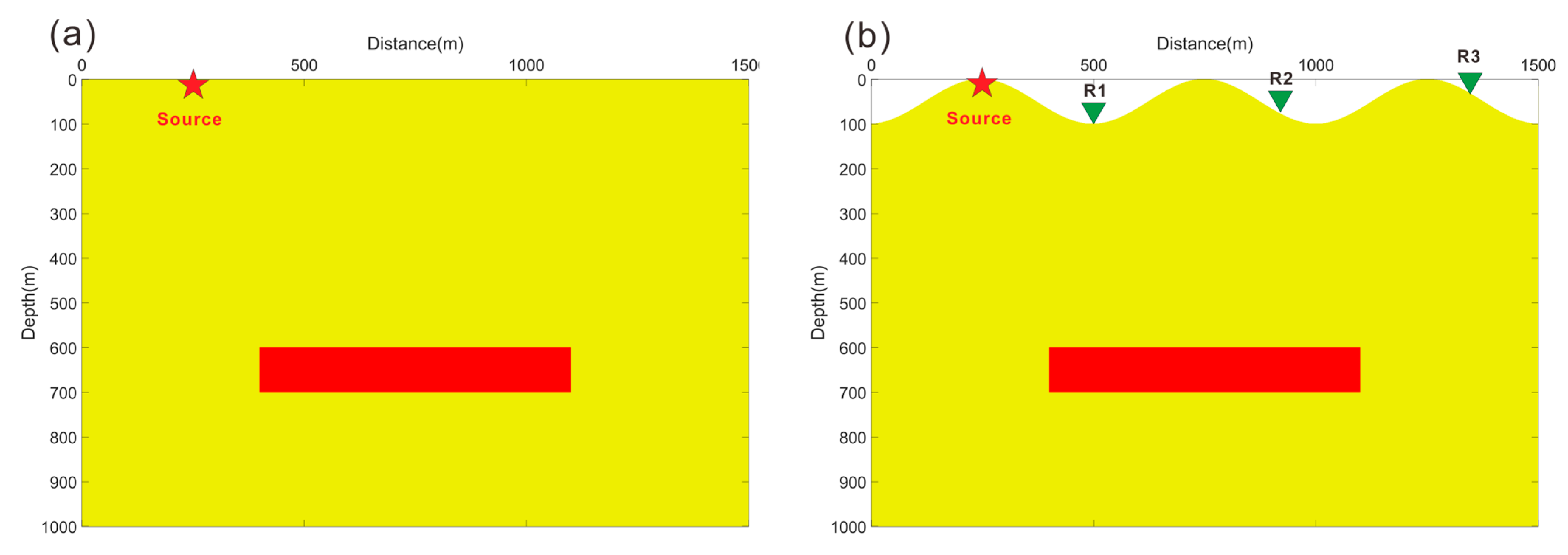

We designed a simple metal ore model, denoted as model A, with a flat surface. The dimensions of the model are 1500 m × 1000 m. Within the depth range of 600 m to 700 m underground, there exists a large rectangular metal ore deposit (depicted by the red anomalous region in Figure 2a). The velocity and density parameters for the metal ore and their wall rock were independently set based on the parameter ranges summarized by Malehmir et al. (2012) [46]. The specific velocity and density parameters are shown in

Table 1. Velocity and density parameters of the simple metal ore models.

Lithology	Vp (m/s)	Vs (m/s)	ρ (kg/m3)
Metal ore	6800	4500	4700
Wall rock	5600	3300	2820

.

Subsequently, to further explore the influence of irregular topography, we applied a sinusoidal undulating surface to model A, forming model B, as illustrated in Figure 2b. The velocity and density parameters remained the same as those of model A. Through this model adjustment, we could more clearly assess the impact of topography on numerical simulations of metal ore exploration.

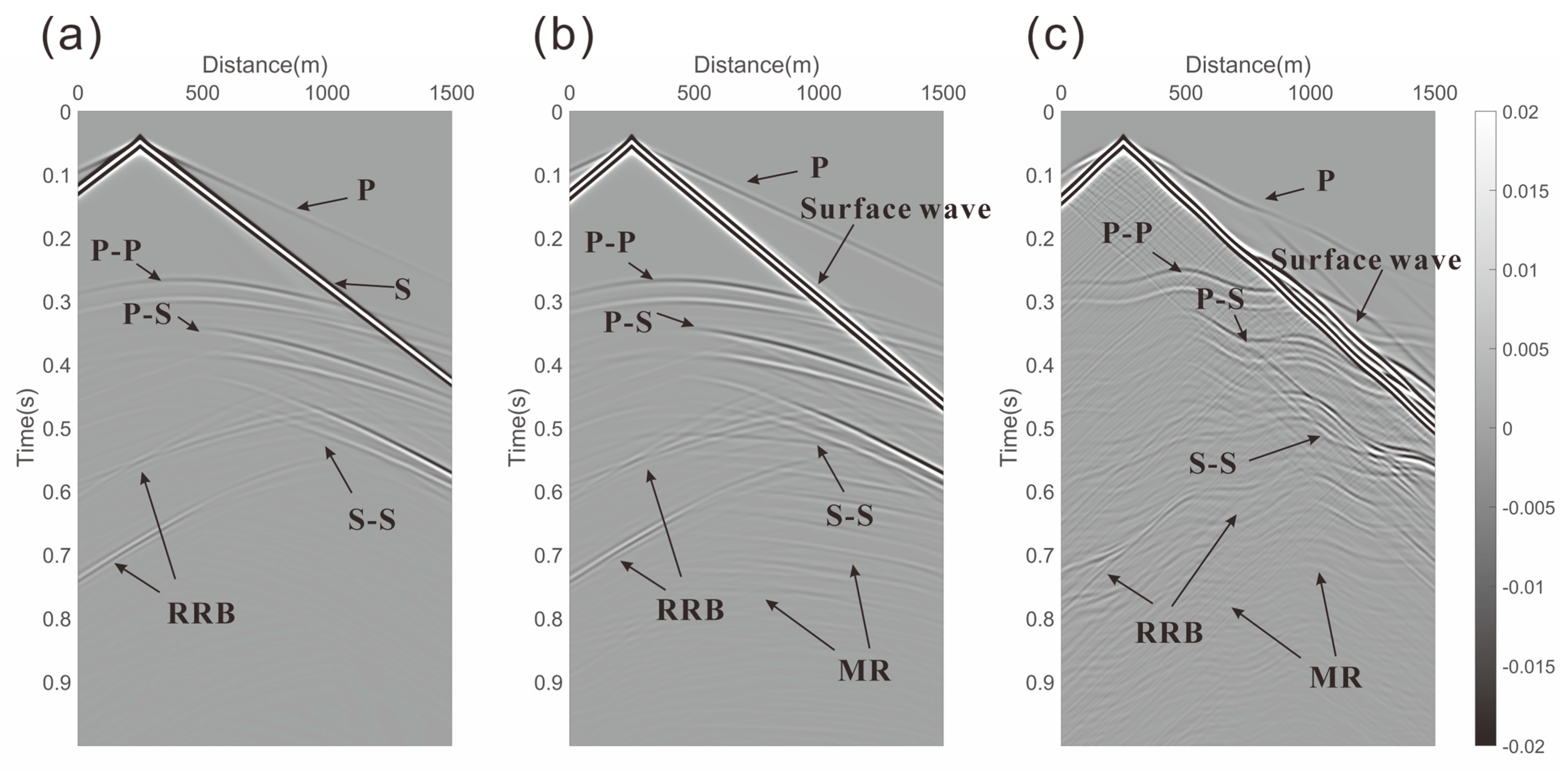

The source was positioned at a distance of 250 m on the model surface (indicated by the red pentagram in Figure 2a), serving as a single vertical force source. The source’s time function adopted a Ricker wavelet with a dominant frequency of 60 Hz, and the grid spacing was set to 1 m. The time sampling interval was 6 × 10^–5 s, and the total simulation time was 1 s. In addition to the free surface, the other three boundaries of the model used Convolutional Perfectly Matched Layer (CPML) [47] to absorb spurious reflected waves. We first set the surface of model A separately as either an absorbing boundary or a free-surface boundary for numerical simulation. A 6th-order staggered-grid FDM was employed for the simulations. Figure 3a,b show the synthetic shot gathers (v_x component) under these two different surface conditions. In the shot gathers of both conditions, a very clear direct P wave can be observed, along with P–P, P–S, and S–S waves generated by reflections from the ore body, which we marked in the figures. Here, the P–P wave represents the reflected P wave generated by the direct P wave in the ore body, the P–S wave indicates the converted S wave generated by the direct P wave in the ore body, and the S–S wave is the reflected S wave by the direct S wave. These three types of reflected waves are prominent, while the S–P wave (P wave reflected from the ore body by the direct S wave) is less observable due to its small amplitude and overlapping with other waveforms. Additionally, reflections from the right boundary (RRB) of the rectangular metal ore model were observed in both scenarios due to the incident angle. However, compared to the absorbing boundary, as shown in Figure 3b, the free surface introduced surface waves and multiple reflections (MRs) from the surface and ore body, which may have potentially interfered with subsequent data interpretation. Similarly, comparable waveform recordings were observed in the shot gathers of the v_z component, as depicted in Figure 4a,b. In the corresponding wavefield snapshots, more pronounced wavefield differences were also observed (Figure 5a,b).

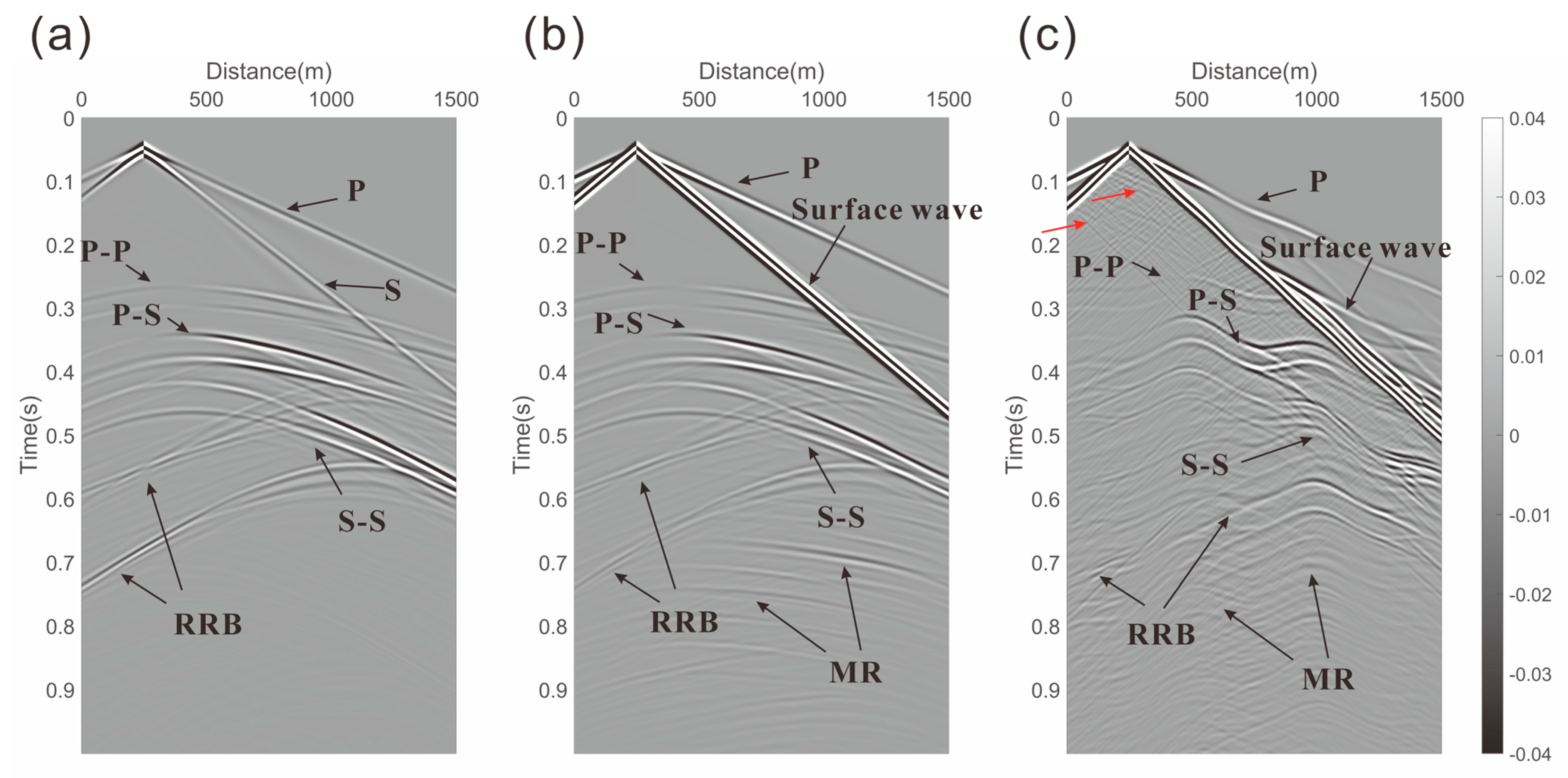

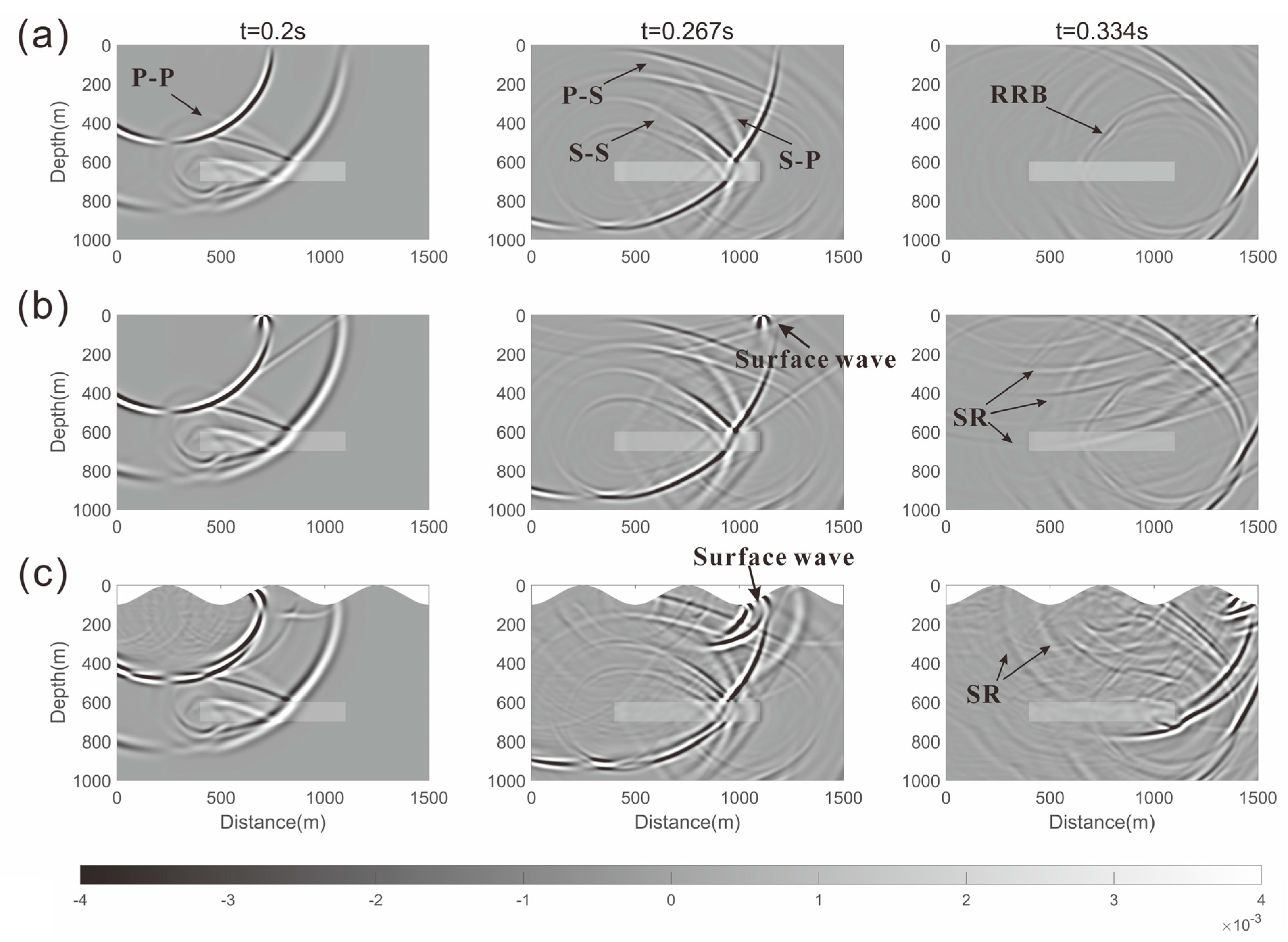

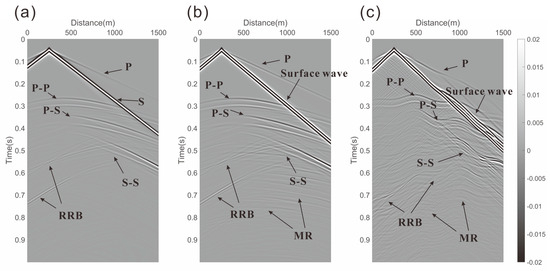

To further explore the influence of topography on numerical simulations of metal ore, we applied model B for numerical simulation. The source was placed at the same location as in model A, and the receivers were positioned along the surface, with all simulation parameters remaining consistent. Synthetic shot gathers of the horizontal and vertical particle velocity components (v_x and v_z) under irregular topography are shown in Figure 3c and Figure 4c, respectively. In these figures, we observed corresponding P–P, P–S, and S–S reflected waves, noting significant differences from the records observed with a horizontal surface. These differences arose from the complex surface reflections and the data acquisition on irregular topography. Figure 5c shows wavefield snapshots of the metal ore model B, indicating that the wavefield became more complex under complex topographical conditions, further distorting the seismic records. Therefore, in numerical simulations of seismic exploration for metal ore, careful consideration of topographical conditions is crucial for enhancing the reliability of the simulation results and the accuracy of geological interpretation.

3.2. The Influence of Complex Medium Conditions

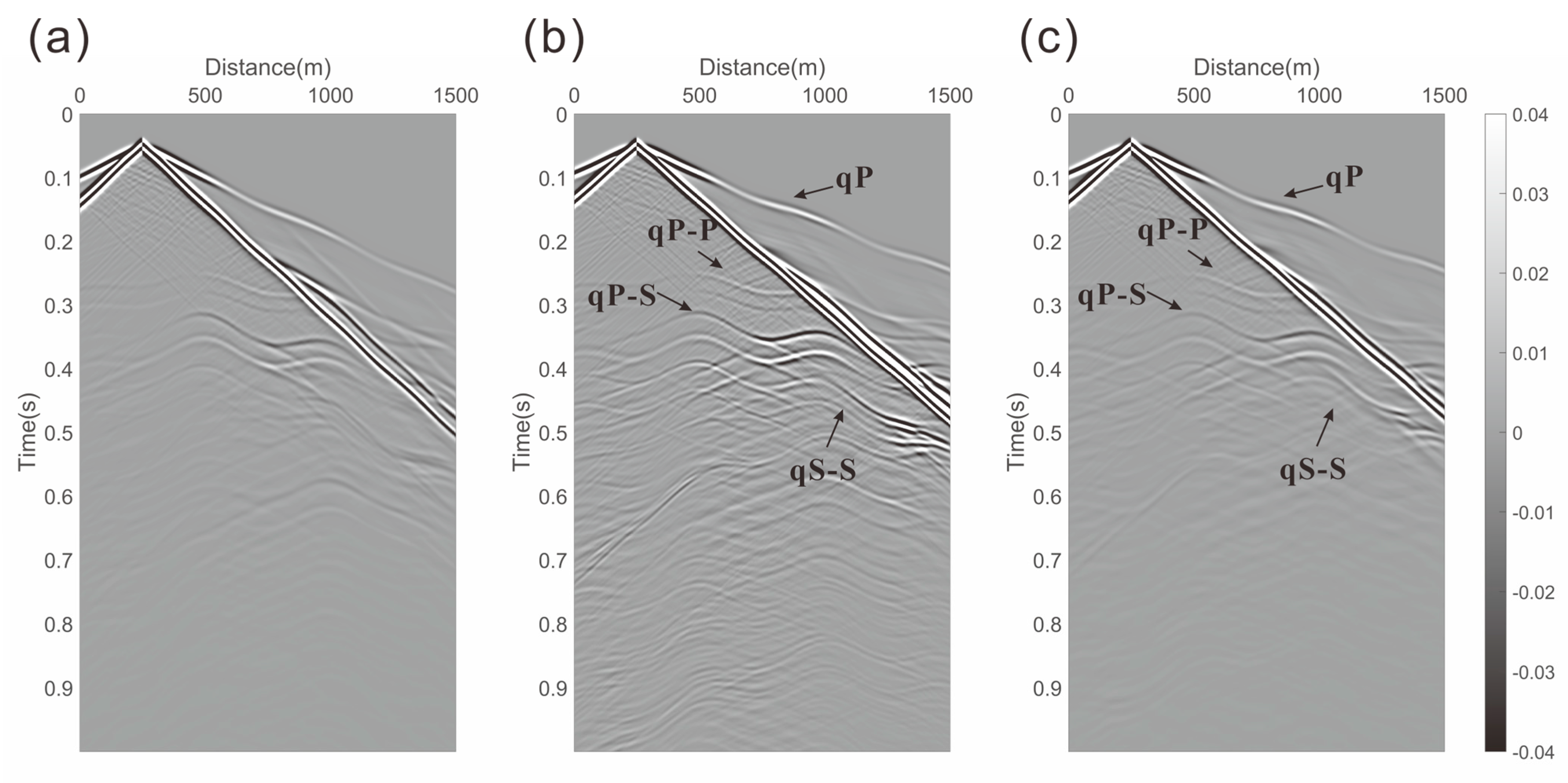

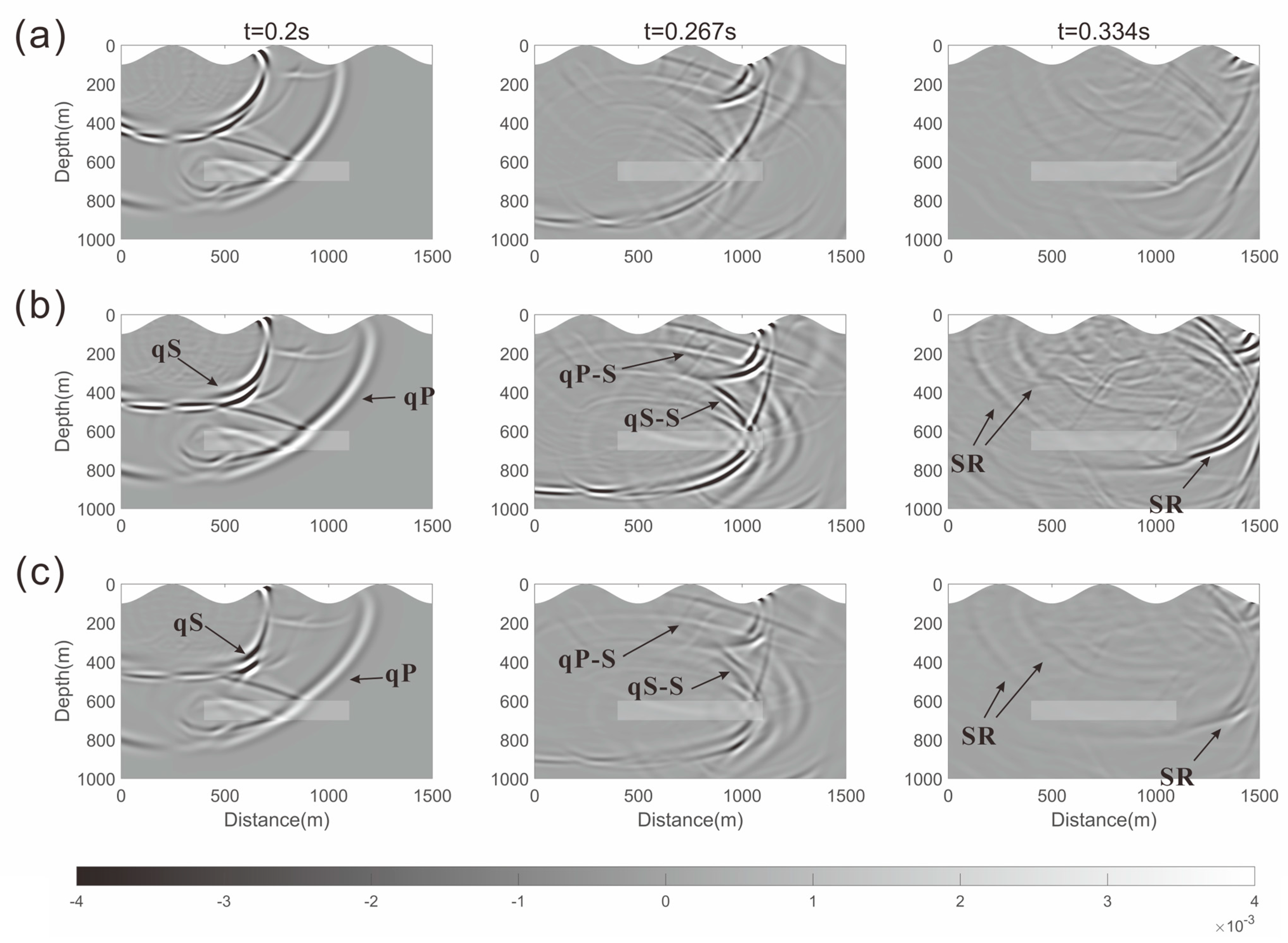

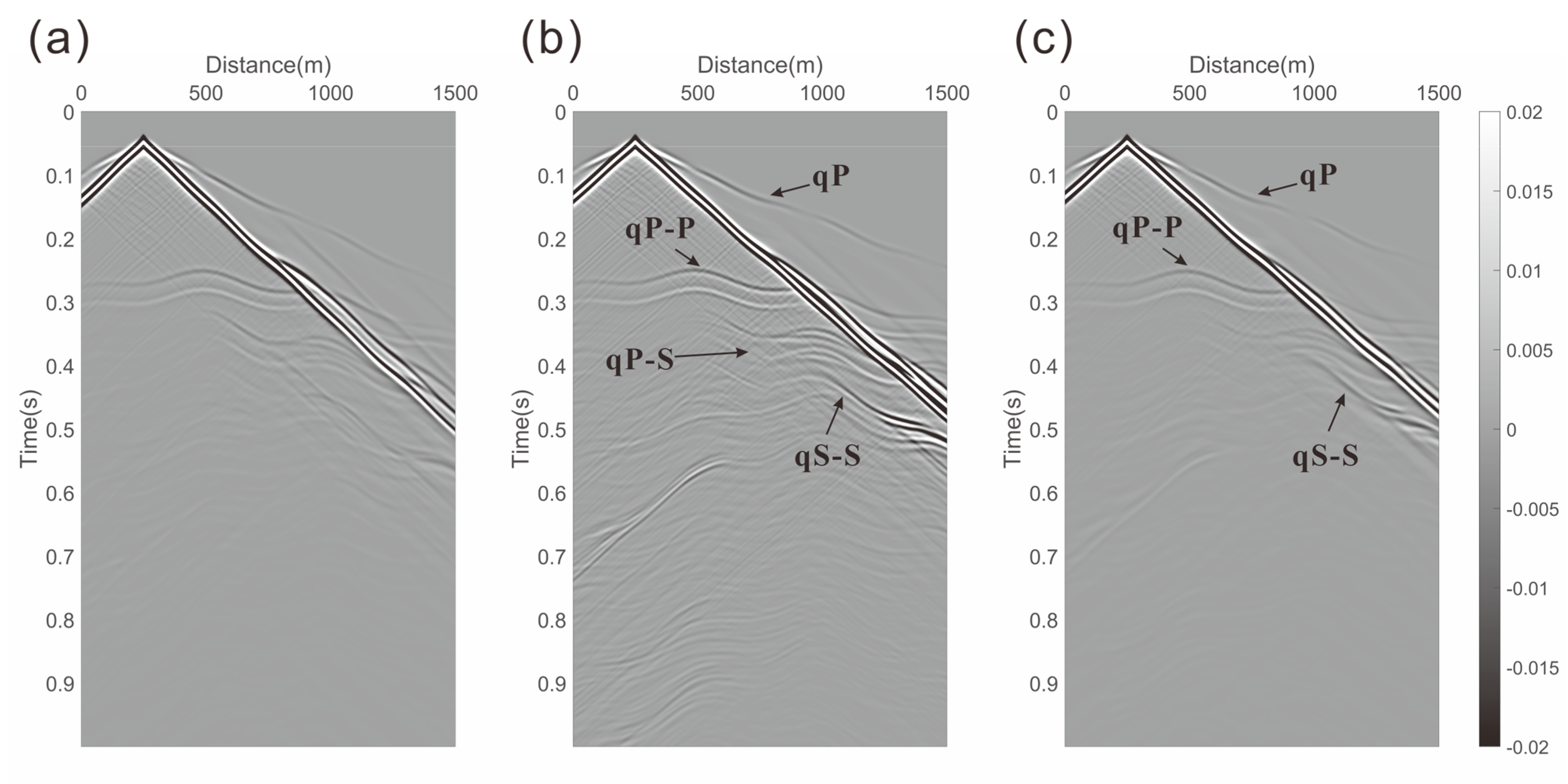

In this section, we will discuss the influence of complex medium conditions on numerical simulations of metal ore exploration. For this purpose, we adjusted the full space medium conditions in model B into three different types, anisotropic media, viscoelastic media, and anisotropic–viscoelastic media, with detailed parameters listed in

Table 2. Parameters of the media under different conditions. “ε” and “δ*” represent Thomsen parameters.

Medium	Thomsen Parameters		Quality Factors
	ε	δ*	QKappa	Qμ
Viscoelastic	–	–	40	20
Anisotropic	0.2	–0.2	–	–
Anisotropic–viscoelastic	0.2	–0.2	40	20

. The parameters Q_Kappa and Q_μ represent the bulk quality factor and the shear quality factor, respectively. Through simulations, we obtain synthetic shot gathers under these three different medium conditions, as shown in Figure 6 and Figure 7. We have marked the waveform characteristics with black arrows, where qP represents the propagation of longitudinal wave under anisotropic conditions, and qS denotes the propagation of shear wave in an anisotropic medium. Therefore, qP–P, qP–S, qS–P, and qS–S represent the reflection waves of the metal ore under anisotropic conditions, respectively. Comparing these records with those under elastic medium conditions in Figure 3c and 4c, we notice a significant amplitude attenuation and energy weakening of metal ore reflection waves in viscoelastic media. Introducing anisotropic media (including anisotropic–viscoelastic media) leads to notable differences in recorded reflection waves compared to elastic media, potentially causing errors in subsequent data processing and interpretation. Figure 8 depicts wavefield snapshots under the three media conditions, where noticeable energy attenuation was observed in viscoelastic media compared to elastic media, while anisotropic media directly altered wavefield propagation compared to isotropic media. Therefore, different medium conditions have a significant impact on seismic wave propagation, potentially leading to inaccuracies in subsequent seismic data processing and interpretation. So, considering complex medium factors is necessary for accurately reflecting the underground wavefield characteristics in seismic exploration for metal ores.

3.3. Accuracy Analysis

To verify the accuracy of the CPCM in numerical simulations, we used the simulation results of model B for single trace analysis. We extracted the single trace waveforms received at the surface at offsets of 250 m, 650 m, and 1050 m, labeled as R1, R2, and R3, respectively (Figure 2b). We used the SPECFEM2D software package [9,48,49,50,51] as a reference for the CPCM. The SPECFEM2D software package employs the SEM for the numerical simulation of elastic waves. Because the SEM naturally satisfies the FSBC, utilizing this software package enables precise numerical simulation results at the Earth’s surface. Comparing our results with those from SPECFEM2D could effectively validate the accuracy and reliability of the CPCM in simulations involving irregular topography.

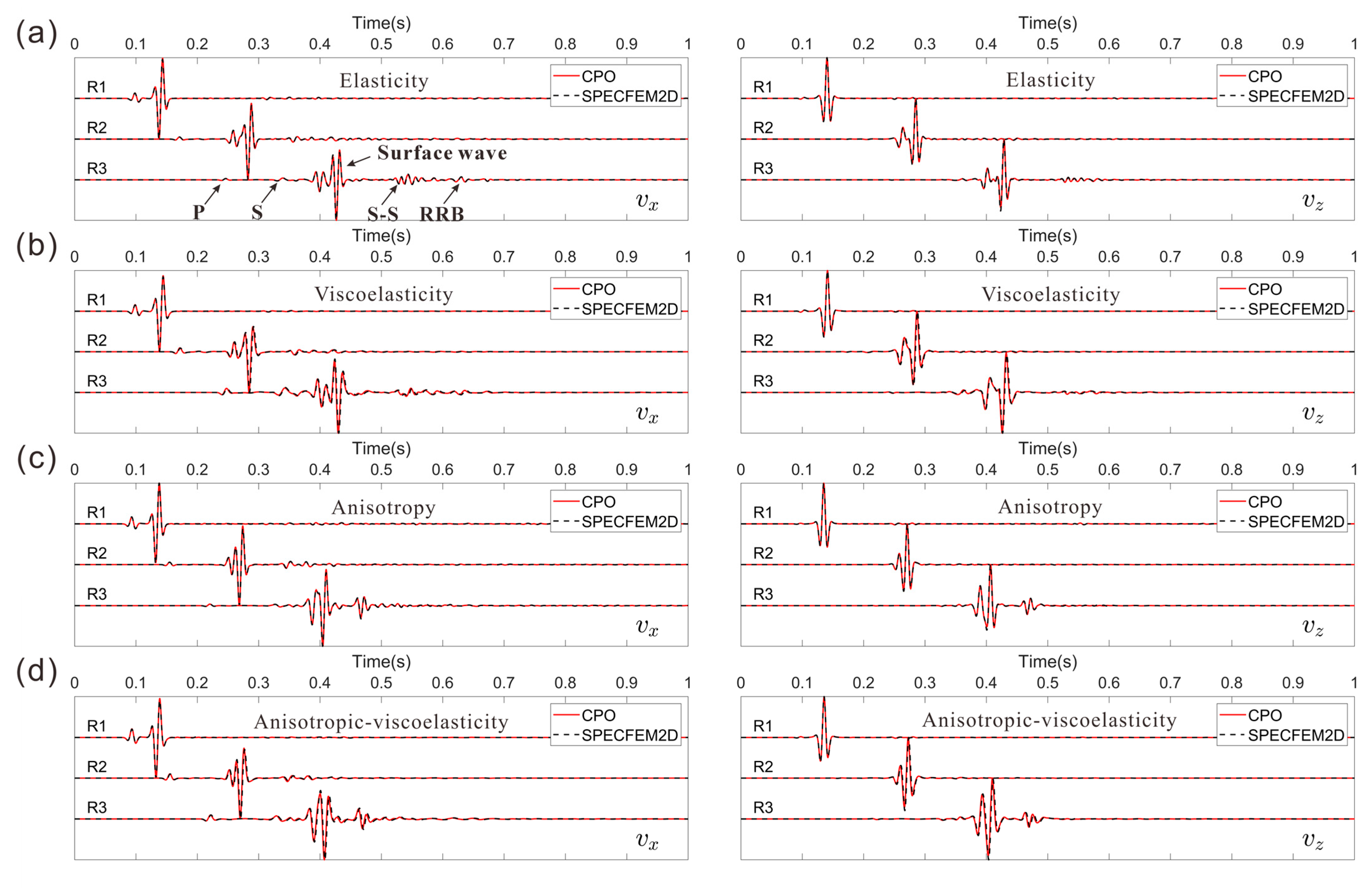

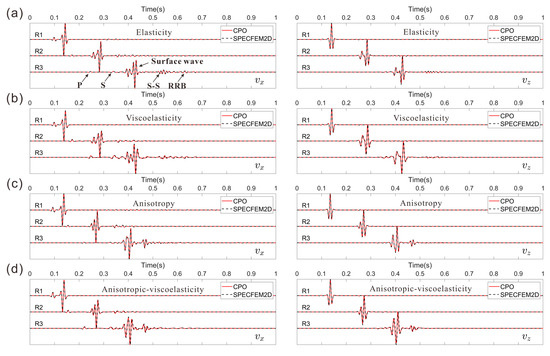

Figure 9 illustrates the waveform records from receivers R1 to R3 under the corresponding four different medium conditions (elastic, viscoelastic, anisotropic, and anisotropic–viscoelastic). By meticulously comparing the waveforms obtained from the CPCM with those from the SPECFEM2D method, we observed a remarkable consistency between the two. We calculated the L₂ misfit norm for the single trace records obtained by the two methods and recorded the error results in

Table 3. The L₂ misfit norms for different receivers under four different medium conditions in Figure 9. The four medium conditions were elastic, viscoelastic, anisotropic, and anisotropic–viscoelastic.

Medium	Receiver	L2 Misfit Norms
		vx (%)	vz (%)
Elasticity	R1	1.19	0.094
	R2	1.279	1.148
	R3	1.408	2.081
Viscoelasticity	R1	0.643	0.151
	R2	0.997	0.508
	R3	2.021	0.893
Anisotropy	R1	1.042	0.085
	R2	1.498	1.065
	R3	1.009	1.393
Anisotropic–viscoelasticity	R1	0.902	0.186
	R2	1.057	0.545
	R3	3.74	1.651

. It is noteworthy that the L₂ misfit norms of the waveforms recorded by each receiver under both methods were less than 2%. This significant result thoroughly demonstrates the high accuracy of the CPCM in numerical simulations under irregularly topographical and complex medium conditions.

4. Numerical Simulation for the Half Mile Lake Deposit

In this section, we will primarily investigate the application effectiveness of the CPCM in the numerical simulations of complex metal ore models. During the model design process, we referred to the model in Bellefleur et al.’s 2012 paper [4] and generated a new complex model with topography. We then applied anisotropic viscoelastic medium conditions to this model and analyzed the theoretical shot gather data.

4.1. Geological Background and 2D Model

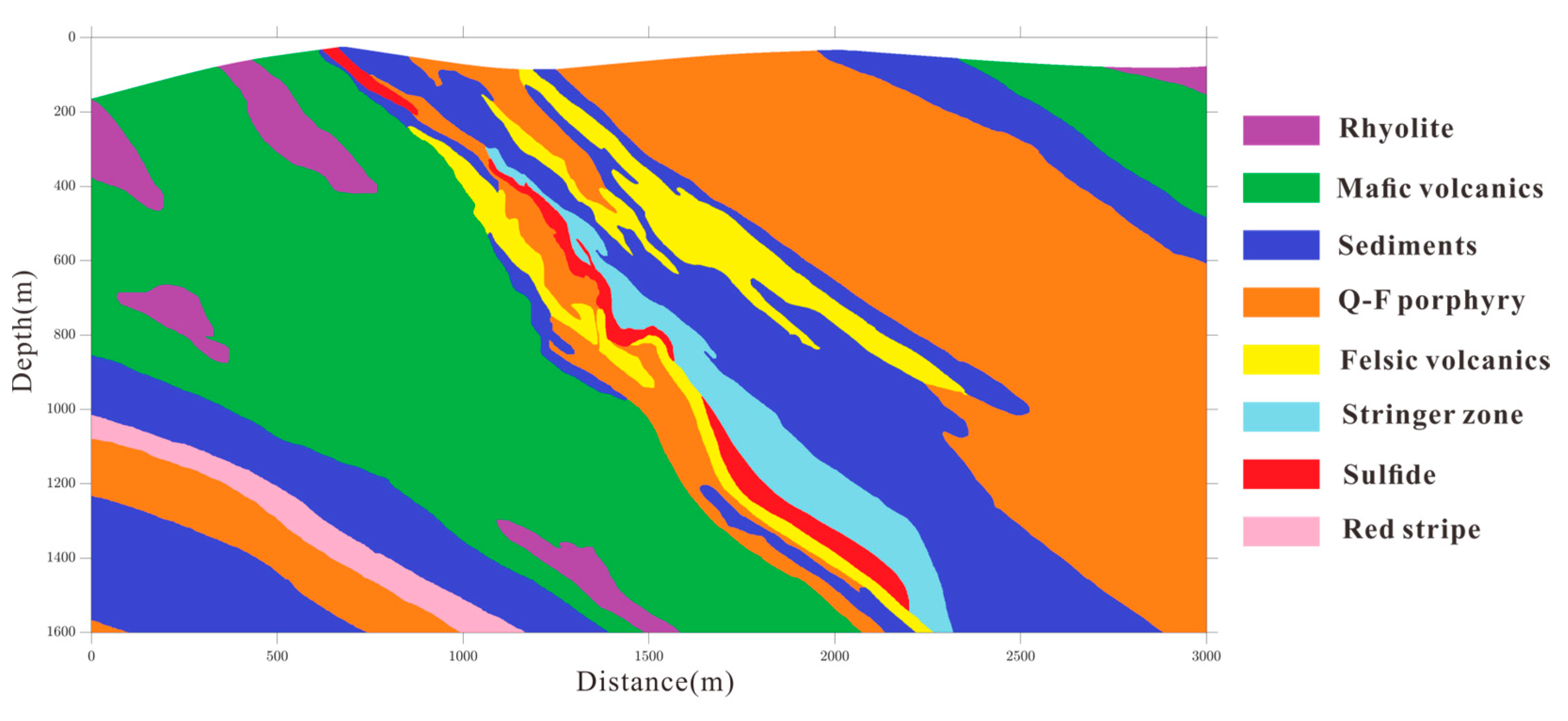

In this study, the reference model we used was the Half Mile Lake deposit model proposed by Bellefleur et al. (2012) [4]. This ore deposit is located in New Brunswick, Canada, and is a volcanic-hosted massive sulfide deposit, primarily composed of a pyrrhotite breccia matrix with laterally continuous layers of pyrite and pyrrhotite [52]. To better illustrate the simulation results for the metal ore area, we selected a portion of the model for analysis. The model spans a length of 3 km and a depth of 1.6 km, as shown in Figure 10. In this model, the strata hosting the ore deposit are inclined approximately 45°, exhibiting three distinct mineralized zones. In the process of modeling surrounding lithologies, we disregarded lithological units with limited thickness or lateral extent, such as minor veins. The model only includes rock types with sufficiently continuous properties to be determined. Based on the summary of lithological units and their physical properties in the article by Bellefleur et al. [4], we labeled the different lithologies in Figure 10 and listed the velocity–density parameters corresponding to each numbered lithology in

Table 4. Lithological units and parameters of velocity and density for Half Mile Lake deposit. These data are referenced from the study by Bellefleur et al. (2012) [4].

Lithology	Vp (m/s)	Vs (m/s)	Density (kg/m3)
Rhyolite	5800	3370	2580
Mafic volcanics	5800	3330	2690
Sediments	5820	3380	2680
Q–F porphyry	5830	3350	2460
Felsic volcanics	5800	3370	2580
Stringer zone	5600	3250	2820
Sulfide	5690	3840	3420
Red stripe	5830	3350	2460

.

During the numerical simulation, a single-point vertical force was located at (x = 2500 m, z = 72 m), and the source time function was a Ricker wavelet with a dominant frequency of 60 Hz. The grid size was set to 1 m, and the simulation time was 1.5 seconds. Initially, we set the surface as an absorbing boundary and conducted finite-difference (FD) modeling under elastic conditions. Subsequently, considering real topographical and complex medium factors, as the original text did not define the anisotropy and viscoelasticity of the subsurface medium, we assumed the Thomsen parameters of anisotropy to be ε = 0.2 and δ* = –0.2, with attenuation quality factors set to Q_Kappa = 80 and Q_μ = 40. By analyzing the differences in numerical simulations between the two scenarios, we demonstrated the feasibility of our proposed method in practical complex model situations.

4.2. FD Modeling Results

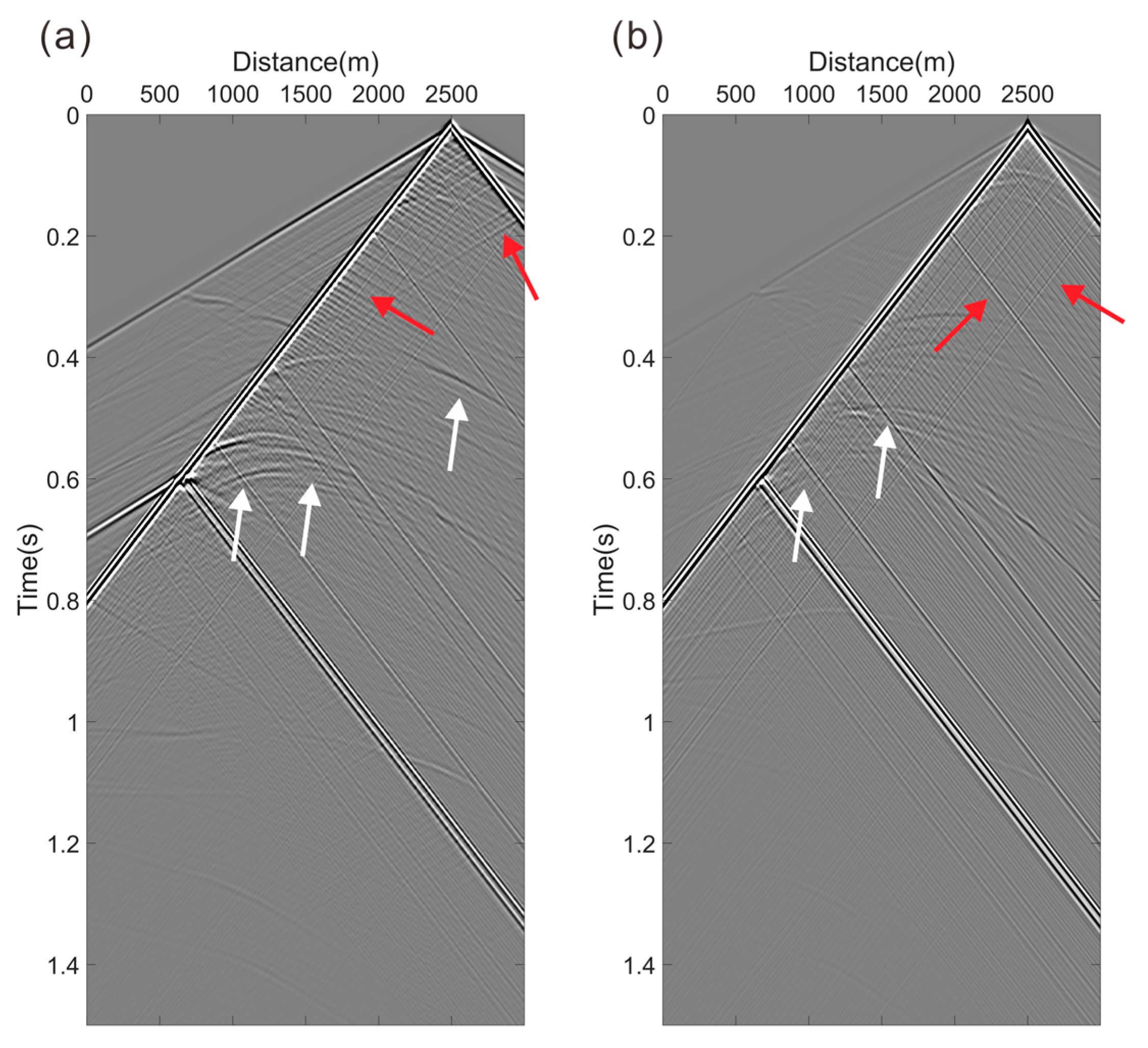

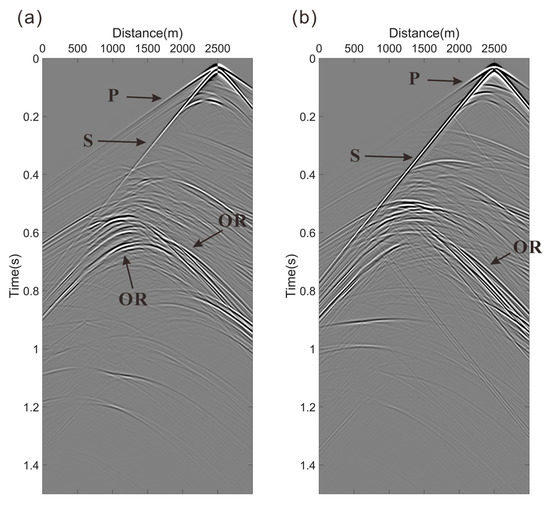

Figure 11 shows the synthetic shot gathers with the surface set as an absorbing boundary. Without the interference of surface waves and complex media, the reflection waves from the ore body are quite clear. Under actual topographical conditions and anisotropic–viscoelastic media conditions, we obtained the synthetic shot gather records shown in Figure 12. From the figure, reflections from the ore body can be observed, as indicated by the white arrows. However, due to the prominent Rayleigh waves, the reflections generated by the underground ore body were further overshadowed, making the reflected wave energy less apparent compared to that obtained under absorbing boundary conditions. Additionally, in numerical simulation results under actual topographical conditions, staircase diffractions were observed, which also attenuated some of the reflected wave energy, as indicated by the red arrows in Figure 12. Staircase diffractions are caused by the staircase discretization algorithm, which does not exist in reality. Therefore, in the numerical simulations, we used smaller grid spacings to discretize or adopt appropriate methods to suppress staircase diffractions. This helped minimize the impact of staircase diffractions on seismic records. Further discussion on this topic will be provided in the Discussion section. In conclusion, the CPCM demonstrates effective application in numerical simulations of complex models, providing more realistic synthetic shot gathers and offering better guidance for subsequent data processing and interpretation.

5. Discussion

In the process of numerical simulation of metal ore models with complex terrain conditions, we adopted the staircase discretization approach to handle terrain issues. However, when we used a stepped discretization strategy to represent free surfaces with large grid spacing, staircase diffractions were inevitably generated, disrupting the wavefield and recordings, as indicated by the red arrows in Figure 3c. When conducting numerical simulation tests on the Half Mile Lake deposit, we found that this staircase diffraction phenomenon was obvious, potentially obscuring some of the layer reflections. This is a common problem in the FD modeling of complex topography. Since these staircase diffractions were algorithmically generated, we reduced their occurrence significantly by densifying the grid, i.e., reducing the grid spacing, albeit at the cost of increased computational burden. Another approach is to employ a superposition concept. For instance, Zhou et al. (2023) [23] proposed a probabilistic superposition-based discrete model design method to optimize the staircase diffraction issue in simulating irregularly topographical surface waves, which could be applied to numerical simulations of metal ore exploration in the future. In the future, we will conduct further research on suppressing staircase diffractions.

6. Conclusions

In studies of numerical simulations for the seismic exploration of metal ores, the complexity of topography and subsurface media often poses challenges to accurately simulating wavefields. To address this issue, this paper proposes a comprehensive parameter correction method (CPCM) based on an averaged medium approach and the limit theorem. The CPCM effectively simulates wave propagation characteristics in complex surface and medium conditions. Regarding its simulation accuracy, the CPCM is comparable to the spectral element method. It achieves simulation of irregular topography under different medium conditions by adjusting the constitutive relationships and density of the surface. Another major advantage of the CPCM is its high compatibility with existing FD programs, requiring no significant increase in computational resources to achieve high-precision simulation.

Through numerical experiments, we found significant differences in the simulation process of seismic exploration for metal ores, depending on whether irregularly topographical and complex medium conditions were considered. These differences can lead to substantial errors during the seismic data inversion and interpretation stage. Therefore, this paper emphasizes the importance of considering complex surface and medium conditions in the exploration process of metal ores. In conclusion, the CPCM demonstrates broad prospects for application in the field of metal ore exploration. It can assist in improving the accuracy of locating metal ore deposits and provides robust technical support for research and practice in related fields.
