Four Different Build Angles in 3D-Printed Complete Denture Bases: A Comparative In Vitro Study

by
Ki Won Kim
1,
Sung Yong Kim
1,
Seong-A Kim
1,
Hee-Won Jang
1,
Keun-Woo Lee
1,2 and
Yong-Sang Lee
1,*
1
Department of Prosthodontics, Veterans Health Service Medical Center, Gangdong-gu, Seoul 05368, Republic of Korea
2
Department of Prosthodontics, College of Dentistry, Yonsei University, Seodaemun-gu, Seoul 03722, Republic of Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2024, 14(18), 8504; https://doi.org/10.3390/app14188504
Submission received: 24 August 2024 / Revised: 14 September 2024 / Accepted: 17 September 2024 / Published: 20 September 2024
(This article belongs to the Section Additive Manufacturing Technologies)

Abstract

:
In this study, we aimed to investigate the differences in tissue surface adaptation and the variations in distances between reference points on the polished surfaces of 3D-printed denture bases produced at different build angles. The build angles were 0°, 30°, 60°, and 90°, with 15 denture bases printed for each angle. Using the Geomagic Control® software, a 3D best-fit alignment was conducted between the denture base tissue surface and the reference shape of the edentulous maxilla model to calculate the root mean square error. The distances between reference points on the polished surface were measured using digital calipers. A one-way analysis of variance was conducted for statistical analysis. The adaptation, as measured by the root mean square error, varied significantly among denture bases with different build angles. The distances between the anterior and posterior reference points of the polished surface were also significantly different. However, within the limitations of this study, the variations in adaptations and dimensional accuracy across different build angles were within clinically acceptable ranges. In clinical practice, the print angle can be adjusted based on factors such as printing time, resin consumption, and the number of denture bases being printed simultaneously.

1. Introduction

Although complete dentures (CDs) have several limitations, they are still used in the treatment of completely edentulous patients because they are non-invasive and cost-effective [1,2]. CD fabrication methods have remained largely unchanged for nearly 90 years [3]. In the conventional compression molding technique, which is still widely used for CD fabrication, residual stresses generated during the packing stage are released when the material is removed from the flask. This release of stress causes resin shrinkage, leading to a poor fit for the denture base and displacement of artificial teeth [3]. Fabricating a denture base with high accuracy by reducing fabricating errors is crucial for successful CD treatment [2].
Recently, the development of dental technology and computer-aided design/computer-aided manufacturing (CAD-CAM) methods has simplified the fabrication process, improved the adaptation of dentures, and enabled the fabrication of identical sets of dentures [1,2,4]. Prosthesis fabrication using CAD-CAM can be divided into subtractive and additive manufacturing techniques [2,5,6]. Using CAD-CAM, CDs can be fabricated by processing polymerized resin blocks using CNC milling or three-dimensional (3D) printing, which involves the incremental filling of resins through light polymerization [1,2,5]. Moreover, 3D printing has multiple benefits, including its ability to fabricate objects with relatively complex shapes with high precision while reducing noise and material waste during fabrication [5,7]. Nevertheless, 3D printing is limited to the use of photo-curable resin materials. The post-processing stage often requires the removal of support structures, which can be labor-intensive. Additionally, the resins used in these processes are difficult to handle, can potentially cause skin irritation, and have a risk of inducing inflammatory responses following direct contact or inhalation. Moreover, these resins have a finite shelf and vat life, and they cannot undergo heat sterilization [8,9].
In dentistry, 3D printing is widely used to produce guides for implant surgery, prosthetic prostheses, and casts [2,10]. The primary 3D printing techniques employed for fabricating denture bases are stereolithography apparatus (SLA) and digital light processing (DLP), both adhering to the incremental method [2,11,12]. These two additive manufacturing techniques involve stacking thin layers of resin in lines and planes, respectively [13]. While several studies have compared the accuracy of these two printing methods for dental applications, no consensus has been reached regarding their superiority. Furthermore, most errors fall within clinically acceptable ranges [14,15]. Meanwhile, Rouzé l’Alzit et al. suggested that the 3D printing method did not significantly impact the accuracy; rather, they found that the size of the 3D-printed object could affect its accuracy. Hence, a large implant surgical guide was less accurate than a small one [16].
In CDs, accurate denture base adaptation and stable occlusion are essential factors that determine the success or failure of treatment and can be achieved by minimizing the deformation of the denture base during the fabrication process [7,17,18,19]. In previous studies, the clinically acceptable range for adaptation of denture bases is <0.3 mm, whereas that for the vertical dimension increases due to resin tooth displacement in CDs is <1 mm [20,21,22,23]. In addition, the linear deformation observed during the fabrication of denture bases using conventional methods reportedly ranges from approximately 0.45% to 0.9% [2,24]. Moreover, 3D-printed CDs have shown higher patient satisfaction compared to those fabricated using conventional methods [17] but showed lower tissue adaptation compared to CDs fabricated using the CNC milling method [7,20]. Yoon et al. compared the tissue adaptation of CD base fabricated using DLP, milling, and pack-and-press methods and reported that there were no significant differences among the three methods [25]. Davda et al. investigated the trueness and precision of copy dentures fabricated using SLA and conventional methods and suggested that the polished surface of copy dentures fabricated with the SLA method exhibited greater precision than those fabricated with either of the conventional methods [26]. However, no clear consensus has been reached [20]. For the successful fabrication of CD, the tissue and polished surfaces of 3D-printed denture bases must have high accuracy; however, evidence regarding the accuracy of current 3D printing methods is limited [2,27].
Factors that can affect the accuracy of 3D-printed objects include the printable material, resolution of the printer, light intensity, direction and angle of printing, number of layers, software program, shrinkage between layers, the amount of supporting structure, and post-processing procedures [18,27]. In addition, resin output may sag as the build platform of the 3D printer moves upwards [28]. Several studies have investigated the effects of build angles on 3D printing accuracy. Unkovskiy et al. compared the accuracy of 3D-printed denture bases created using SLA and DLP methods at build angles of 0°, 45°, and 90°. They reported a significant difference in accuracy based on the build angle when using the SLA method, while no such difference was observed with the DLP method [12]. Rubayo et al. compared the effects of build angles on the accuracy of surgical templates using the SLA method and reported that 0° and 45° build angles produced more accurate surgical templates than a 90° build angle [29]. Tsai et al. compared the effects of 45° and 90° build angles on the accuracy of 3D-printed denture models and examined the effects of incorporating a reference model during the post-polymerization step. The 90° build angle showed higher accuracy in 3D printing than the 45° build angle, and the use of a reference model during the post-polymerization step improved the 3D printing accuracy [18]. Ko et al. evaluated the effects of build angle and layer height on the accuracy of 3D-printed orthodontic models and stated that there was a significant difference in accuracy. However, despite these differences, the errors remained within clinically acceptable limits [30]. In an in vitro study by Jin et al., which compared the tissue adaptation of denture bases printed at build angles of 90°, 100°, 135°, and 150°, there were no significant differences in the adaptation of the build angle [27]. Charoenphol et al. reported that a 90° build angle for 3D printing the upper CD base resulted in the most accurate tissue surface in the peripheral/posterior palatal seal area. Moreover, 45° and 90° build angles produced better adaptation in the primary supporting area than a 0° build angle. However, no significant differences were observed across the total tissue surface [9]. Yoshidome et al. reported that dentures fabricated using the SLA method exhibited better fitting accuracy compared to those fabricated using the DLP method. They also recommended using build angles of 45° and 225° to enhance the fitting accuracy of maxillary 3D-printed dentures [31].
To our knowledge, studies examining differences in denture base accuracy using detailed 3D printing methods are limited. Most existing studies have explored build angles at 45° intervals, specifically at 0°, 45°, and 90°. Conversely, in this study, we aimed to analyze the effects of finer angle differences by examining build angles at 30° intervals, specifically at 0°, 30°, 60°, and 90°. Particularly, no study has simultaneously assessed the accuracy of the tissue and polished surfaces of denture bases according to different build angles. Therefore, we aimed to investigate differences in the adaptation of tissue surfaces among 3D-printed denture bases produced at various build angles, as well as differences in the distances between reference points on the polished surfaces. The null hypothesis was that there would be no differences in the adaptation of the tissue surfaces based on the build angle nor any differences in the distances between reference points on the polished surfaces.

2. Materials and Methods

An impression of a Nissin dental model (EDE1001, Nissin, Kyoto, Japan), an edentulous maxilla model, was taken using a rubber impression material (Exadenture, GC, Tokyo, Japan). A plaster model was fabricated with type IV plaster (Fujirock EP, GC, Tokyo, Japan) using the mixing ratio and vacuum mixer provided by the manufacturer. Subsequently, the plaster model was scanned using a Freedom UHD 3D scanner (DOF Inc, Seoul, Republic of Korea) to obtain the standard tessellation language files representing the digital model of the edentulous maxilla. Exocad DentalCAD 2.3 Matera (Exocad GmbH, Darmstadt, Germany) was used for the one-time CAD of the denture base according to the digital model. This ensured that the tissue surface of the CAD of the denture base was identical to that of the digital model. Then, the denture base was built using a 3D printer. The build angles were 0°, 30°, 60°, and 90°, and 15 denture bases were built for each build angle (Figure 1).

2.1. Fabrication of Denture Bases and Evaluation of Tissue Surface Adaptation

A Dentca denture base II (Dentca Inc., Torrance, CA, USA), a denture base resin, and an SLA 3D printer (Zenith U, Dentis, Daegu, Republic of Korea), which uses a blue laser and operates with proprietary slicing software, were used for 3D printing.
In SLA or DLP 3D printing, the build angle refers to the direction in which the object is thinly sliced during the printing process [32]. In the present study, the build angles were 0°, 30°, 60°, and 90°, with 15 denture bases printed for each angle. The sliced layers were 100 µm thick. To minimize the effects of the build platform position on the printed denture base, two denture bases were printed at the build platform center for 0°, 30°, and 60° each, while three were printed for 90° (Figure 2).
The printed denture bases were carefully removed from the printing platform. After removal of the support, the denture bases were immersed in isopropyl alcohol for 5 min. They were washed under running water and dried; then, they underwent additional photopolymerization in a curing machine (ProCure, SprintRay, Los Angeles, CA, USA).
Subsequently, a 3D scanning spray (Easy Scan, Alphadent, Goyang, Republic of Korea) was applied to the tissue surface of the denture bases, and a Freedom UHD 3D scanner was used to obtain the standard tessellation language file of the denture base tissue surface shape. Using Geomagic Control® V20.0 (3D Systems, Rock Hill, SC, USA) software, a 3D best-fit alignment was conducted between the denture base tissue surface and the digital model of the edentulous maxilla model to calculate the root mean square error (RMSE).

2.2. Setting Polished Surface Reference Points and Distance Measurements

The distances between the disto-palatal gingival papillae of the bilateral canines and those between the disto-palatal gingival papillae of the bilateral first molars were measured. The former was defined as the inter-canine width, and the latter as the inter-molar width. Additionally, two square pyramidal shapes were positioned on the mesio-palatal gingival area of the bilateral central incisors and on the midline of the denture base near the posterior border. The distance between these two pyramidal shapes was defined as the inter-anteroposterior (inter-AP) length (Figure 3).
The distances were measured by three researchers using digital calipers (Absolute Digimatic, Mitutoyo, Japan), and the mean values were used for analysis. SPSS Statistics 18 (SPSS Corp., Chicago, IL, USA) software was used for statistical analysis. A Shapiro–Wilk test was used to assess normality, and a one-way analysis of variance was used to compare groups. The total sample size required was determined to be 48 using G-power 3.1 software (University of Dusseldorf, Dusseldorf, Germany) based on a previous study’s [33] effect size (0.65), significance level (0.05), and detection power (0.95). The Shapiro–Wilk test showed that the measured RMSE and distances between the reference points were normally distributed across all groups. A one-way analysis of variance was conducted to compare the mean values among the denture bases with different build angles.

3. Results

The RMSE, representing the differences in distance between the digital model of the edentulous maxilla model and the tissue surface of 3D-printed denture bases with build angles of 0°, 30°, 60°, and 90°, was significantly different among the four denture bases (p = 0.009). In post-hoc analysis, the RMSE was significantly different between the denture bases with 0° and 90° build angles (p = 0.003) (Figure 4 and Figure 5).
The inter-canine width was not significantly different among the four denture bases with build angles of 0°, 30°, 60°, and 90° (Figure 6).
The inter-molar width was also not significantly different among the four denture bases with build angles of 0°, 30°, 60°, and 90° (Figure 7).
The inter-AP length was significantly different among the four denture bases with build angles of 0°, 30°, 60°, and 90° (p = 0.000). Post-hoc analysis showed significant differences between the denture bases with 0° and 30° build angles compared to those with 60° and 90° build angles (Figure 8).

4. Discussion

Based on our findings, we rejected the null hypothesis that there would be no differences in the adaptation of tissue surfaces according to build angle and that there would be no differences in the distances between reference points on the polished surfaces. Our color difference map revealed a greater anterior–posterior variation than left–right variation across the different build angles. As the build angle increased, there was a tendency for increased displacement between the digital model and the tissue surface, particularly at the posterior margin and anterior rugae region of the denture base. Significant differences were observed in the inter-AP length based on build angle, whereas no significant differences were found in the inter-canine and inter-molar widths. As described in the Introduction, this may be related to the number of layers required for each build angle and variations in total printing time [18,27]. In particular, the SLA 3D printer, which photopolymerizes resin by irradiating light along a straight line, was used in this study. SLA 3D printers require more printing time than DLP 3D printers, which polymerize the resin in layers [34]. In the present study, a 0° build angle required an output of 237 layers and took 2 h and 54 min. At 30°, an output of 431 layers required 3 h and 46 min. At 60°, an output of 600 layers took 4 h and 19 min. At 90°, it took 4 h and 20 min to output 662 layers. This trend suggests that as the build angle increases, both the number of layers and the output time for the CD base tend to increase correspondingly.
After the polymerization of each layer, the printed product is lifted. During this process, the product inside the resin solution might experience tensile forces due to the adhesive force generated between the product and the polyvinyl chloride film or glass plate at the bottom of the resin vat. Lee et al. reported that lower viscosity resins achieve higher trueness in 3D-printed denture bases, which may be attributed to reduced tensile forces during the printing process [33]. Therefore, it is hypothesized that as the number of layers increases, the potential exposure to tensile stress may correspondingly increase. Gravity also has effects on the printed product as the printing time increases [29]. These two factors are thought to be the causes of discrepancies among denture bases with different build angles. In our study, as the build angle increased, both the number of layers and time for printing subsequently increased, leading to a greater risk of error. For denture bases with 30°, 60°, and 90° build angles, the posterior region, which is printed before other parts of the denture base, experienced tensile forces from the increasing number of layers and the effects of gravity during printing. This led to larger negative errors (misfits) compared to denture bases with a 0° build angle [28,34].
Interestingly, the 90° build angle exhibited a significantly lower RMSE compared to the 0° print angle. Despite localized large discrepancies at the 90° build angle, the smaller cross-sectional area of the slices may have contributed to a more uniform distribution of overall errors, resulting in a lower RMSE value. Although the color difference map indicates notable deviations in specific regions, the reduced cross-sectional area at the 90° build angle likely led to less cumulative error across the entire surface.
Consistent with previous studies, the mean RMSE was the smallest in 3D-printed prostheses with a build angle of approximately 90° [12,18,35]. However, based on our color difference map, denture bases with a 90° build angle did not demonstrate clinically better tissue adaptation across the overall surface compared to denture bases with other build angles, similar to the results reported by Tsai et al. [18]. This is primarily because the negative deviation at the posterior palatal seal region decreases the retention of the denture base. In contrast to our study, Jin et al. used a DLP 3D printer and adjusted the build angles by lifting the posterior part of the denture base; they showed clinically better tissue adaption at the posterior region of the denture base [27]. However, across all build angles, the range of error values between the digital model and the denture base tissue surface was as follows: RMSE ranged from 220 to 290 µm, mean positive deviation (impingement) ranged from 130 to 220 µm, and mean negative deviation (misfit in space) ranged from −227 to −133 µm. All these values were within the clinically acceptable range [20].
Unlike previous studies that showed significant differences in the distance between bilateral canines and molars in denture bases with different build angles [18], our results did not show differences in the inter-canine width and inter-molar width
The inter-AP lengths were not significantly different between denture bases with 0° and 30° build angles or between those with 60° and 90° build angles. However, compared to the denture bases with 0° and 30° build angles, those with 60° and 90° build angles exhibited a significantly greater inter-AP length. This observation aligns with the differences in adaptation between the digital model and the denture base tissue surface in the anterior and posterior regions, as illustrated by the color difference map.
As the build angle increases, notable changes in adaptation are observed in both the anterior palatal rugae area and the posterior border seal area of the denture base. The primary reason for this is that the posterior border seal area, which is printed first, is more susceptible to tensile forces and gravity, which increases as the build angle rises. Consequently, this area is more prone to deformation at higher build angles. Additionally, at higher build angles (60° and 90°), tissue adaptation in the anterior palatal rugae region tends to show a positive deviation. This effect may result from the best-fit algorithm used in Geomagic Control®, which aims to minimize overall deviation when significant deformation occurs in the posterior border seal area of the denture.
The average of the error values for all build angles was within clinical limits. However, the error values for the distances between the polished surfaces of the denture bases ranged from −2.14 mm to +2.28 mm, which exceeds the error range typically observed in dentures produced using the conventional heat-curing process [2]. This is thought to be a result of additional errors incurred while modifying the positions of the automatically generated supporters around the reference points of the denture base’s polished surface in the 3D printer slicing program, which may have had an impact on the precision in that area [36]. Additionally, manually identifying and measuring the length between the reference points, which were set in the CAD model for the 3D-printed dentures, could have caused this result. Thus, a method for assessing the accuracy of the polished surface that incorporates a supporter for 3D printing is needed.
In SLA or DLP 3D printing, the build angle refers to the orientation in which the object is sliced during the printing process [32]. However, the exact definition of the build angle can vary, as the orientation of the object relative to the build platform is not standardized across studies. This variation highlights the need for a more precise definition of build angle. In this study, a 0° build angle is defined as the orientation where the plane formed by the major axis and the second major axis of the 3D-printed product is parallel to the build platform. Then, the build angle is defined as the acute angle between the build platform and the major axis–secondary major axis plane when the anterior part of the printed product is elevated. Conversely, if the posterior part of the printed product is elevated, the build angle can be considered as the obtuse angle. For products with both upper and lower surfaces, defining the 0° build angle as the orientation when the lower surface is parallel to the build platform could serve as a universal standard for determining build angles in future studies.
This study had some limitations. The number and position of supports that needed to be removed, which were automatically generated on the reference points on the polished surface, were different for each sample. Moreover, in this study, only four different build angles were evaluated, and the tissue surface of the denture base could have been divided into several parts for RMSE calculation. Additionally, the number of specimens used in the study was small, although it slightly exceeded the calculated sample size. For the sample size calculation in the present study, we based the number of specimens required on studies with relatively larger effect sizes, which may have posed a limitation. Among the studies referenced in this research that investigated the relationship between build angle and the accuracy of denture bases, the absolute values of effect sizes ranged from 0.005 to 3.901. On the contrary, choosing a larger sample size would undoubtedly have increased the statistical power of the analysis and allowed for a more precise evaluation of between-group differences in tissue adaptation and reference point distances. In addition, it would have resulted in more accurate estimates of effect sizes and narrower confidence intervals; thus, it would have enhanced the reliability of the findings and provided a stronger foundation for future studies. Yet, our decision regarding sample size was dictated by practical constraints.
The evolution of materials and printing technologies may play a crucial role in overcoming the observed discrepancies related to build angles in the 3D printing of dentures. As noted, the SLA 3D printer was associated with certain issues, and future research should explore the use of advanced printing technologies or alternative resin materials that could mitigate these issues. This study emphasizes the importance of having a standardized definition of build angles, advocating for the development of an international standard that ensures consistency across various studies. Such standardization would significantly contribute to the more reliable translation of research findings into clinical practice. Moreover, as the results of this study are clinically significant, it is essential to consider how these findings can be implemented in a real-world clinical setting. This necessitates further studies to evaluate additional factors that may influence the clinical application of these findings, such as patient comfort, durability of the dentures, and ease of the fabrication process.

5. Conclusions

Within the limitations of this study, denture bases fabricated at various build angles showed significant differences in tissue adaptation and dimensional accuracy. The results indicate that the build angle notably influences adaptation in both the anterior and posterior regions, with higher build angles (60° and 90°) resulting in greater deviations in certain regions. Therefore, clinicians need to consider the specific adaptation requirements of the denture base when selecting a build angle. For instance, build angles of 0° or 30° may be preferable when aiming for improved adaptation in the posterior palatal seal area, whereas 60° or 90° angles may offer some advantages in material efficiency despite requiring more time and resulting in slightly greater adaptation deviations in the posterior region.
In summary, clinicians need to consider the balance between clinical adaptation requirements, printing time, and resin consumption when adjusting the build angle. Further research is required to explore the long-term clinical performance of denture bases printed at different angles and to develop optimized printing protocols for enhanced accuracy.

Author Contributions

Conceptualization, K.W.K. and Y.-S.L.; methodology Y.-S.L.; software, Y.-S.L.; validation, S.Y.K. and S.-A.K.; formal analysis, S.-A.K.; investigation, K.W.K. and S.-A.K.; resources, S.Y.K.; data curation, S.-A.K.; writing—original draft preparation, K.W.K. and Y.-S.L.; writing—review and editing, Y.-S.L., H.-W.J. and K.-W.L.; funding acquisition, Y.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a VHS Medical Center Research Grant, Republic of Korea, grant number VHSMC 22028. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data of this research can be found at the link of https://drive.google.com/drive/folders/1INr47D3lYpCO93-IlGZdXF7oaqN2XQxx?ths=true (accessed on 3 July 2023).

Acknowledgments

The authors would like to thank manager Kun-Woo Kim of Cozahn Co. for technical support for 3D printing.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bidra, A.S.; Taylor, T.D.; Agar, J.R. Computer-aided technology for fabricating complete dentures: Systematic review of historical background, current status, and future perspectives. J. Prosthet. Dent. 2013, 109, 361–366. [Google Scholar] [CrossRef] [PubMed]
  2. Helal, M.A.; Abdelrahim, R.A.; Zeidan, A.A.E. Comparison of dimensional changes between cad-cam milled complete denture bases and 3D printed complete denture bases: An in vitro study. J. Prosthodont. 2023, 32, 11–19. [Google Scholar] [CrossRef] [PubMed]
  3. Tasaka, A.; Matsunaga, S.; Odaka, K.; Ishizaki, K.; Ueda, T.; Abe, S.; Yoshinari, M.; Yamashita, S.; Sakurai, K. Accuracy and retention of denture base fabricated by heat curing and additive manufacturing. J. Prosthodont. Res. 2019, 63, 85–89. [Google Scholar] [CrossRef]
  4. Kattadiyil, M.T.; AlHelal, A. An update on computer-engineered complete dentures: A systematic review on clinical outcomes. J. Prosthet. Dent. 2017, 117, 478–485. [Google Scholar] [CrossRef]
  5. Kim, S.B.; Kim, N.H.; Kim, J.H.; Moon, H.S. Evaluation of the fit of metal copings fabricated using stereolithography. J. Prosthet. Dent. 2018, 120, 693–698. [Google Scholar] [CrossRef] [PubMed]
  6. Osman, R.B.; Alharbi, N.; Wismeijer, D. Build angle: Does it influence the accuracy of 3D-printed dental restorations using digital light-processing technology? Int. J. Prosthodont. 2017, 30, 182–188. [Google Scholar] [CrossRef]
  7. Kalberer, N.; Mehl, A.; Schimmel, M.; Müller, F.; Srinivasan, M. CAD-CAM milled versus rapidly prototyped (3D-printed) complete dentures: An in vitro evaluation of trueness. J. Prosthet. Dent. 2019, 121, 637–643. [Google Scholar] [CrossRef] [PubMed]
  8. Zaharia, C.; Gabor, A.; Gavrilovici, A.M.; Stan, A.T.; Idorasi, L.; Sinescu, C.; Negruțiu, M.L. Digital dentistry-3D printing applications. J. Interdiscip. Med. 2017, 2, 50–53. [Google Scholar] [CrossRef]
  9. Charoenphol, K.; Peampring, C. An in vitro study of intaglio surface, periphery/palatal seal area, and primary bearing area adaptation of 3D-printed denture base manufactured in various build angles. Int. J. Dent. 2022, 2022, 3824894. [Google Scholar] [CrossRef]
  10. Miyazaki, T.; Hotta, Y.; Kunii, J.; Kuriyama, S.; Tamaki, Y. A review of dental CAD/CAM: Current status and future perspectives from 20 years of experience. Dent. Mater. J. 2009, 28, 44–56. [Google Scholar] [CrossRef]
  11. Li, P.; Fernandez, P.K.; Spintzyk, S.; Schmidt, F.; Beuer, F.; Unkovskiy, A. Effect of additive manufacturing method and build angle on surface characteristics and Candida albicans adhesion to 3D printed denture base polymers. J. Dent. 2022, 116, 103889. [Google Scholar] [CrossRef] [PubMed]
  12. Unkovskiy, A.; Schmidt, F.; Beuer, F.; Li, P.; Spintzyk, S.; Kraemer Fernandez, P. Stereolithography vs. direct light processing for rapid manufacturing of complete denture bases: An in vitro accuracy analysis. J. Clin. Med. 2021, 10, 1070. [Google Scholar] [CrossRef] [PubMed]
  13. Lüchtenborg, J.; Willems, E.; Zhang, F.; Wesemann, C.; Weiss, F.; Nold, J.; Sun, J.; Sandra, F.; Bai, J.; Reveron, H.; et al. Accuracy of additively manufactured zirconia four-unit fixed dental prostheses fabricated by stereolithography, digital light processing and material jetting compared with subtractive manufacturing. Dent. Mater. 2022, 38, 1459–1469. [Google Scholar] [CrossRef]
  14. Grassia, V.; Ronsivalle, V.; Isola, G.; Nucci, L.; Leonardi, R.; Lo Giudice, A. Accuracy (trueness and precision) of 3D printed orthodontic models finalized to clear aligners production, testing crowded and spaced dentition. BMC Oral Health 2023, 23, 352. [Google Scholar] [CrossRef]
  15. Naeem, O.A.; Bencharit, S.; Yang, I.H.; Stilianoudakis, S.C.; Carrico, C.; Tüfekçi, E. Comparison of 3-dimensional printing technologies on the precision, trueness, and accuracy of printed retainers. Am. J. Orthod. Dentofac. Orthop. 2022, 161, 582–591. [Google Scholar] [CrossRef] [PubMed]
  16. Rouzé l’Alzit, F.; Cade, R.; Naveau, A.; Babilotte, J.; Meglioli, M.; Catros, S. Accuracy of commercial 3D printers for the fabrication of surgical guides in dental implantology. J. Dent. 2022, 117, 103909. [Google Scholar] [CrossRef]
  17. Kattadiyil, M.T.; Jekki, R.; Goodacre, C.J.; Baba, N.Z. Comparison of treatment outcomes in digital and conventional complete removable dental prosthesis fabrications in a predoctoral setting. J. Prosthet. Dent. 2015, 114, 818–825. [Google Scholar] [CrossRef]
  18. Tsai, F.C.; Yang, T.C.; Wang, T.M.; Lin, L.D. Dimensional changes of complete dentures fabricated by milled and printed techniques: An in vitro study. J. Prosthet. Dent. 2023, 129, 608–615. [Google Scholar] [CrossRef]
  19. Venus, H.; Boening, K.; Peroz, I. The effect of processing methods and acrylic resins on the accuracy of maxillary dentures and toothless denture bases: An in vitro study. Quintessence Int. 2011, 42, 669–677. [Google Scholar]
  20. Wang, C.; Shi, Y.F.; Xie, P.J.; Wu, J.H. Accuracy of digital complete dentures: A systematic review of in vitro studies. J. Prosthet. Dent. 2021, 125, 249–256. [Google Scholar] [CrossRef]
  21. Yamamoto, S.; Kanazawa, M.; Iwaki, M.; Jokanovic, A.; Minakuchi, S. Effects of offset values for artificial teeth positions in CAD/CAM complete denture. Comput. Biol. Med. 2014, 52, 1–7. [Google Scholar] [CrossRef] [PubMed]
  22. Nelson, M.W.; Kotwal, K.R.; Sevedge, S.R. Changes in vertical dimension of occlusion in conventional and microwave processing of complete dentures. J. Prosthet. Dent. 1991, 65, 306–308. [Google Scholar] [CrossRef]
  23. Goodacre, B.J.; Goodacre, C.J.; Baba, N.Z.; Kattadiyil, M.T. Comparison of denture base adaptation between CAD-CAM and conventional fabrication techniques. J. Prosthet. Dent. 2016, 116, 249–256. [Google Scholar] [CrossRef] [PubMed]
  24. Artopoulos, A.; Juszczyk, A.S.; Rodriguez, J.M.; Clark, R.K.F.; Radford, D.R. Three-dimensional processing deformation of three denture base materials. J. Prosthet. Dent. 2013, 110, 481–487. [Google Scholar] [CrossRef] [PubMed]
  25. Yoon, S.N.; Oh, K.C.; Lee, S.J.; Han, J.S.; Yoon, H.I. Tissue surface adaptation of CAD-CAM maxillary and mandibular complete denture bases manufactured by digital light processing: A clinical study. J. Prosthet. Dent. 2020, 124, 682–689. [Google Scholar] [CrossRef]
  26. Davda, K.; Osnes, C.; Dillon, S.; Wu, J.; Hyde, P.; Keeling, A. An investigation into the trueness and precision of copy denture templates produced by rapid prototyping and conventional means. Eur. J. Prosthodont. Restor. Dent. 2017, 25, 186–192. [Google Scholar] [CrossRef] [PubMed]
  27. Jin, M.C.; Yoon, H.I.; Yeo, I.S.; Kim, S.H.; Han, J.S. The effect of build angle on the tissue surface adaptation of maxillary and mandibular complete denture bases manufactured by digital light processing. J. Prosthet. Dent. 2020, 123, 473–482. [Google Scholar] [CrossRef]
  28. Kulkarni, P.; Marsan, A.; Dutta, D. A review of process planning techniques in layered manufacturing. Rapid Prototyp. J. 2000, 6, 18–35. [Google Scholar] [CrossRef]
  29. Rubayo, D.D.; Phasuk, K.; Vickery, J.M.; Morton, D.; Lin, W.S. Influences of build angle on the accuracy, printing time, and material consumption of additively manufactured surgical templates. J. Prosthet. Dent. 2021, 126, 658–663. [Google Scholar] [CrossRef]
  30. Ko, J.; Bloomstein, R.D.; Briss, D.; Holland, J.N.; Morsy, H.M.; Kasper, F.K.; Huang, W. Effect of build angle and layer height on the accuracy of 3-dimensional printed dental models. Am. J. Orthod. Dentofac. Orthop. 2021, 160, 451–458.e2. [Google Scholar] [CrossRef]
  31. Yoshidome, K.; Torii, M.; Kawamura, N.; Shimpo, H.; Ohkubo, C. Trueness and fitting accuracy of maxillary 3D printed complete dentures. J. Prosthodont. Res. 2021, 65, 559–564. [Google Scholar] [CrossRef] [PubMed]
  32. Alharbi, N.; Osman, R.B. Does build angle have an influence on surface roughness of anterior 3D-printed restorations? An in-vitro study. Int. J. Prosthodont. 2021, 34, 505–510. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, W.J.; Jo, Y.H.; Yilmaz, B.; Yoon, H.I. Effect of layer thickness, build angle, and viscosity on the mechanical properties and manufacturing trueness of denture base resin for digital light processing. J. Dent. 2023, 135, 104598. [Google Scholar] [CrossRef] [PubMed]
  34. Chaiamornsup, P.; Iwasaki, N.; Yasue, T.; Uo, M.; Takahashi, H. Effects of build conditions and angle acuteness on edge reproducibility of casting patterns fabricated using digital light projection. Dent. Mater. J. 2020, 39, 135–140. [Google Scholar] [CrossRef]
  35. Yu, B.Y.; Son, K.; Lee, K.B. Evaluation of intaglio surface trueness and margin quality of interim crowns in accordance with the build angle of stereolithography apparatus 3-dimensional printing. J. Prosthet. Dent. 2021, 126, 231–237. [Google Scholar] [CrossRef]
  36. Yoo, S.Y.; Kim, S.K.; Heo, S.J.; Koak, J.Y.; Kim, J.G. Dimensional accuracy of dental models for three-unit prostheses fabricated by various 3D printing technologies. Materials 2021, 14, 1550. [Google Scholar] [CrossRef]

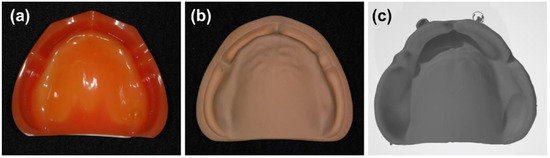

Figure 1. (a) Edentulous maxilla model, (b) plaster model, and (c) tissue surface of CAD of the denture base (replication of the negative form of the digital model). CAD, computer-aided manufacturing.
Figure 1. (a) Edentulous maxilla model, (b) plaster model, and (c) tissue surface of CAD of the denture base (replication of the negative form of the digital model). CAD, computer-aided manufacturing.
Applsci 14 08504 g001

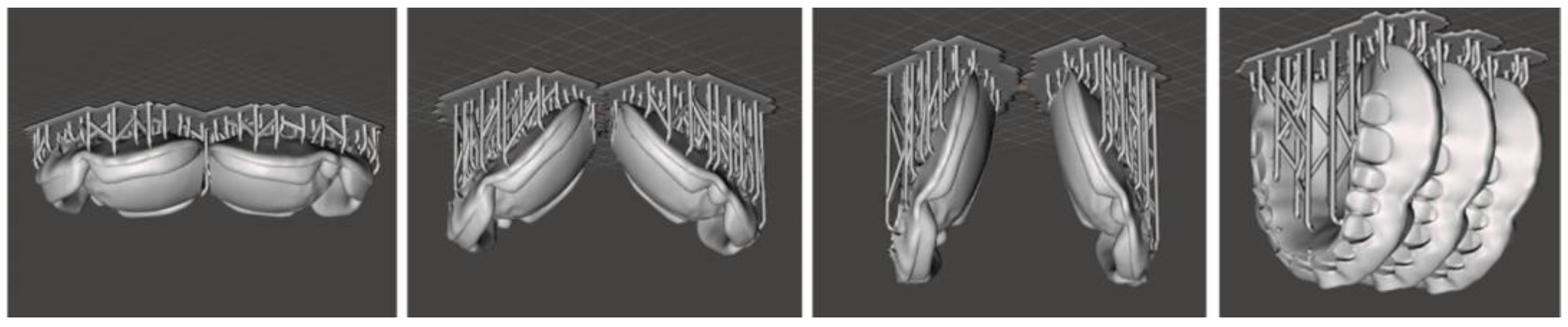

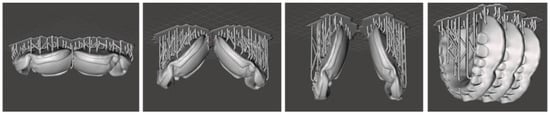

Figure 2. Denture bases with build angles of 0°, 30°, 60°, and 90° (from left to right).
Figure 2. Denture bases with build angles of 0°, 30°, 60°, and 90° (from left to right).
Applsci 14 08504 g002

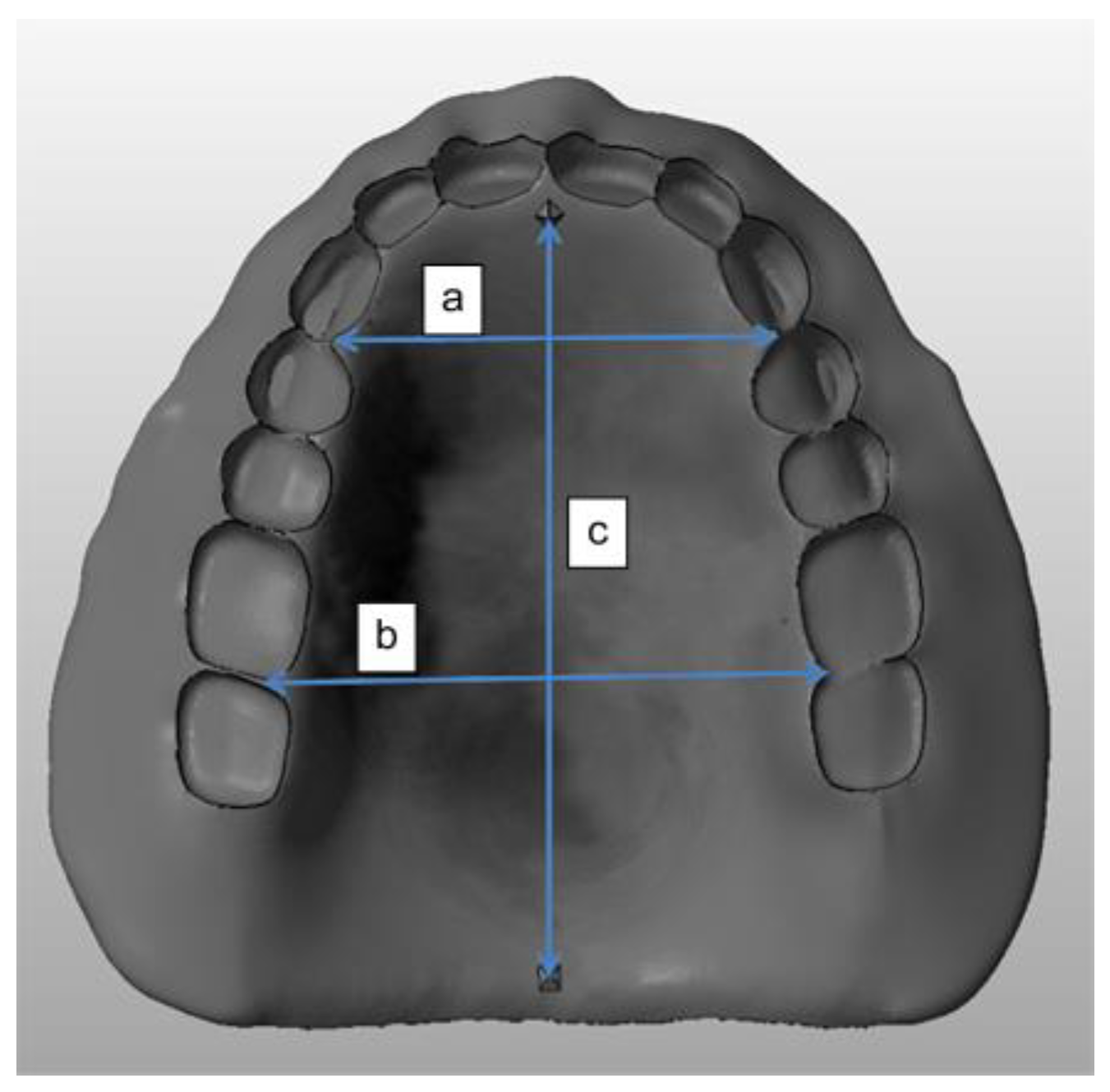

Figure 3. Setting polished surface reference points and distance measurements: (a) inter-canine width, (b) inter-molar width, and (c) inter-AP length. Inter-AP, inter-anteroposterior.
Figure 3. Setting polished surface reference points and distance measurements: (a) inter-canine width, (b) inter-molar width, and (c) inter-AP length. Inter-AP, inter-anteroposterior.
Applsci 14 08504 g003

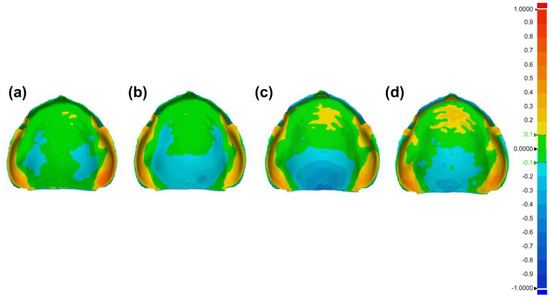

Figure 4. Overlapped color difference map between the digital model and denture base tissue surface: (a) 0°, (b) 30°, (c) 60°, and (d) 90° build angles.
Figure 4. Overlapped color difference map between the digital model and denture base tissue surface: (a) 0°, (b) 30°, (c) 60°, and (d) 90° build angles.
Applsci 14 08504 g004

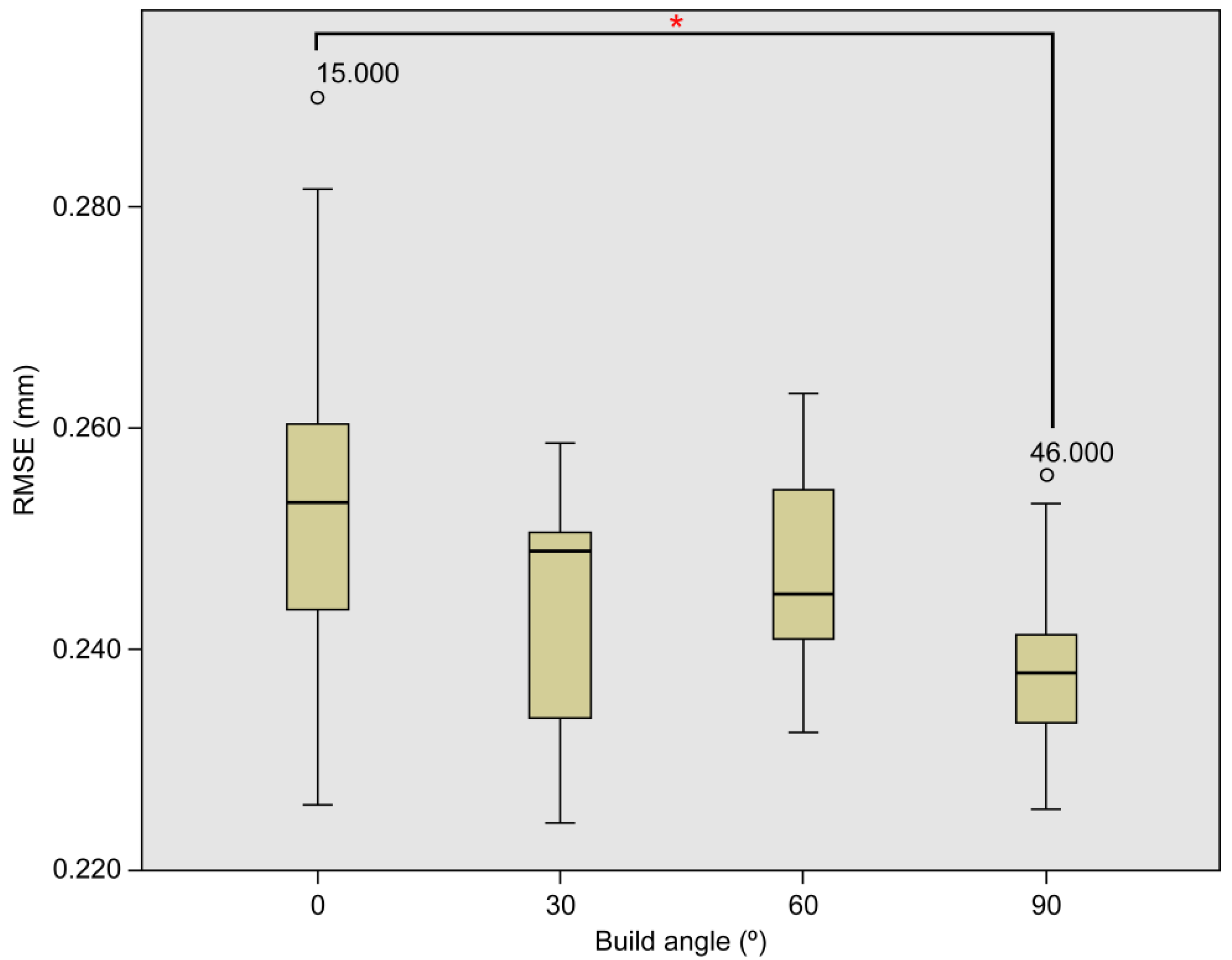

Figure 5. Interquartile boxplot of the RMSE between the digital model and tissue surfaces of denture bases with 0°, 30°, 60°, and 90° build angles. Outliers are denoted by “○”, and significant differences are marked with “*”. RMSE, root mean square error.
Figure 5. Interquartile boxplot of the RMSE between the digital model and tissue surfaces of denture bases with 0°, 30°, 60°, and 90° build angles. Outliers are denoted by “○”, and significant differences are marked with “*”. RMSE, root mean square error.
Applsci 14 08504 g005

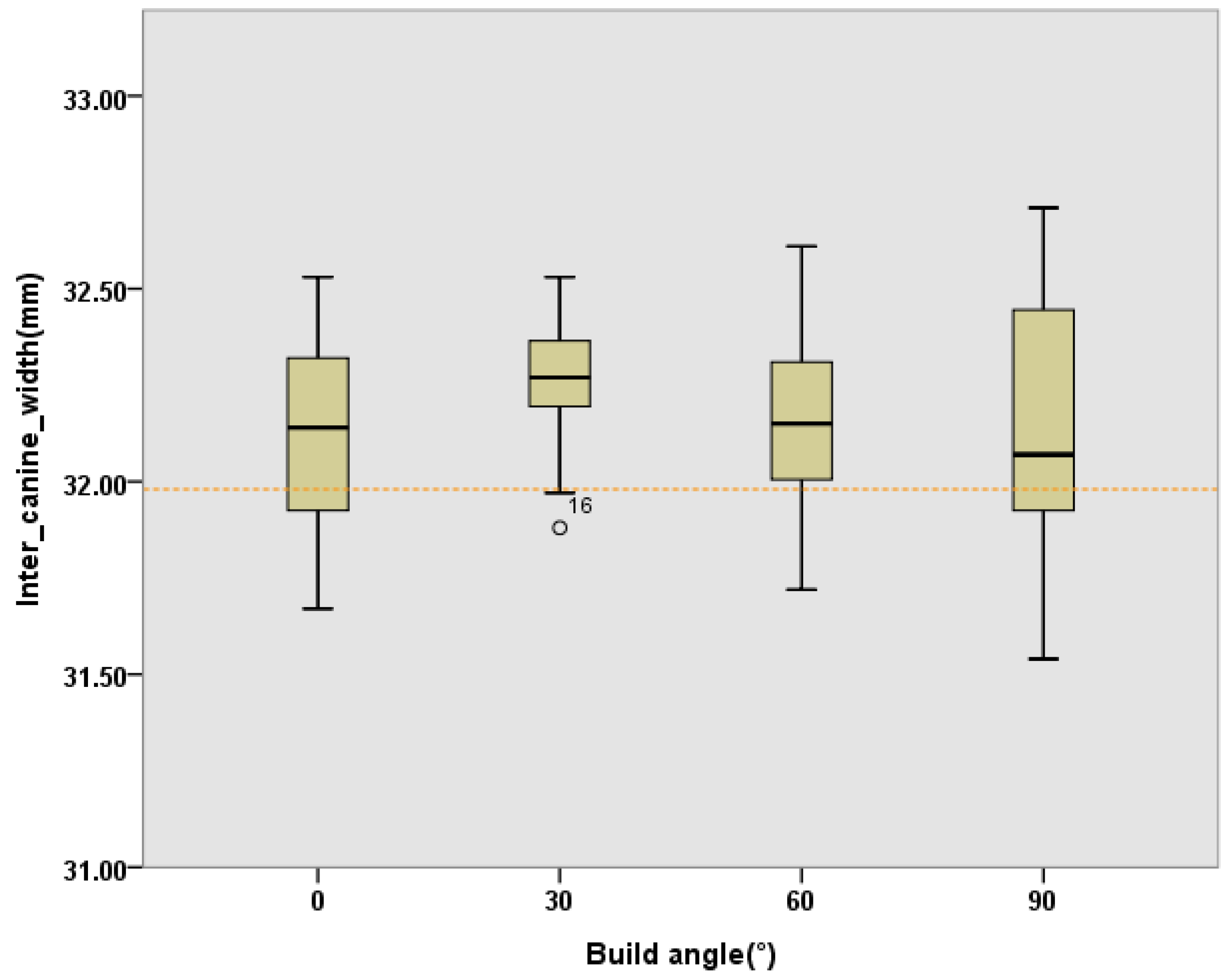

Figure 6. Boxplot of the inter-canine width in denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, as specified in the CAD model, is 31.98 mm (indicated by the orange dashed line). Outliers are marked with “o”. CAD, computer-aided manufacturing.
Figure 6. Boxplot of the inter-canine width in denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, as specified in the CAD model, is 31.98 mm (indicated by the orange dashed line). Outliers are marked with “o”. CAD, computer-aided manufacturing.
Applsci 14 08504 g006

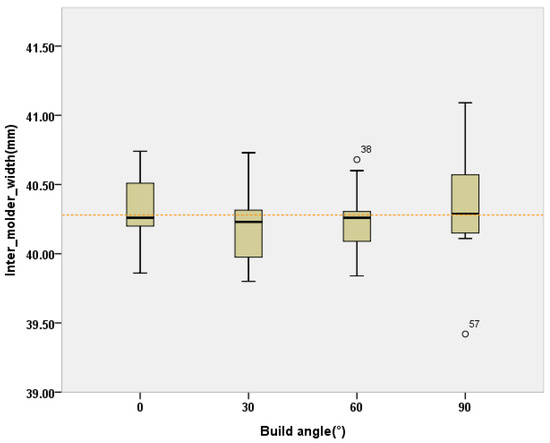

Figure 7. Boxplot of the inter-molar width in denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, as defined in the CAD model, is 40.28 mm (indicated by the orange dashed line). Outliers are marked with “o”. CAD, computer-aided manufacturing.
Figure 7. Boxplot of the inter-molar width in denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, as defined in the CAD model, is 40.28 mm (indicated by the orange dashed line). Outliers are marked with “o”. CAD, computer-aided manufacturing.
Applsci 14 08504 g007

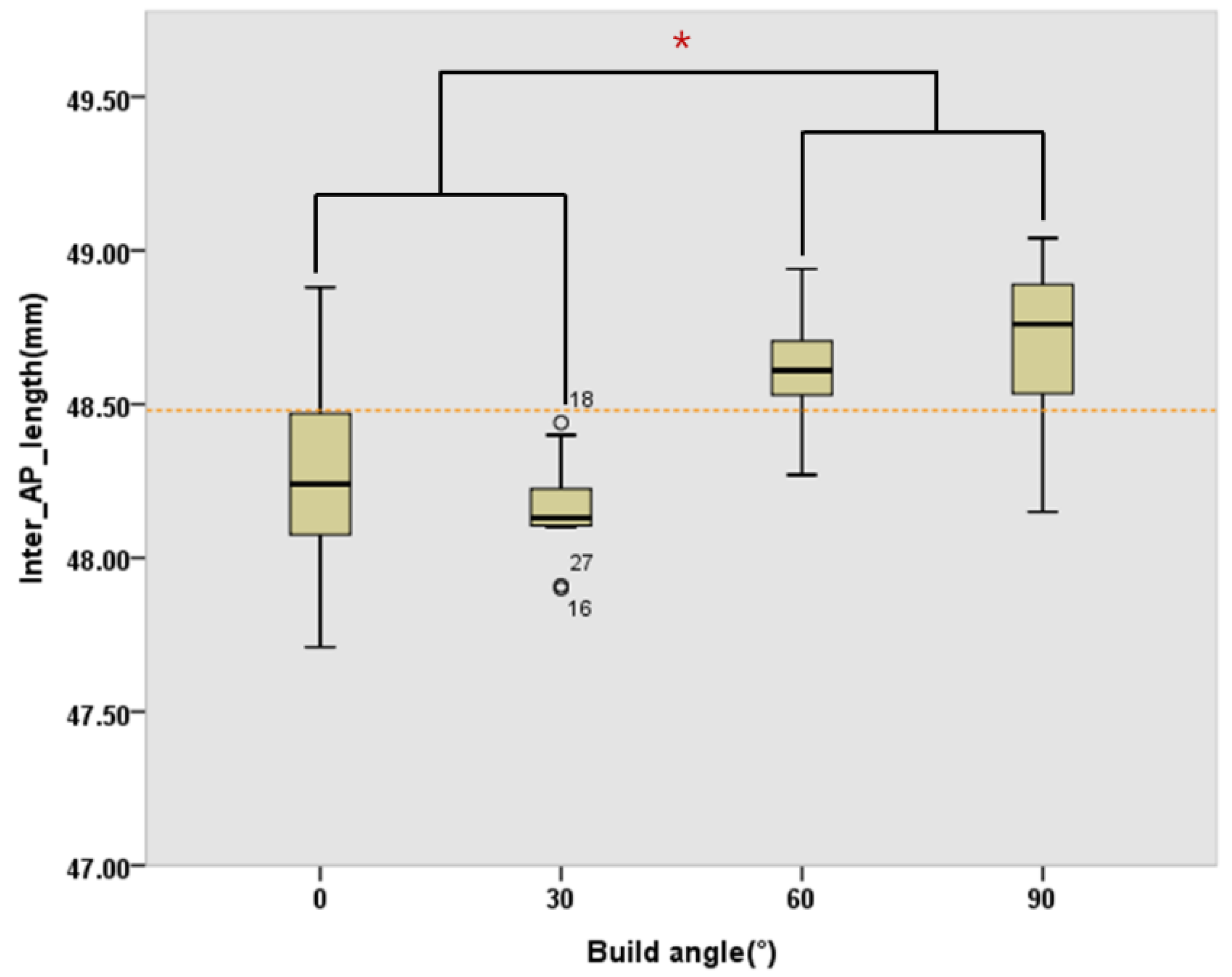

Figure 8. Boxplot of the inter-AP length for denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, according to the CAD model, is 48.48 mm (indicated by the orange dashed line). Outliers are marked with “o”, and significant differences are indicated by “*”. CAD, computer-aided manufacturing.
Figure 8. Boxplot of the inter-AP length for denture bases with 0°, 30°, 60°, and 90° build angles. The true distance, according to the CAD model, is 48.48 mm (indicated by the orange dashed line). Outliers are marked with “o”, and significant differences are indicated by “*”. CAD, computer-aided manufacturing.
Applsci 14 08504 g008
