An Underwater Stereo Matching Method: Exploiting Segment-Based Method Traits without Specific Segment Operations

Abstract

Stereo matching technology, enabling the acquisition of three-dimensional data, holds profound implications for marine engineering. In underwater images, irregular object surfaces and the absence of texture information make it difficult for stereo matching algorithms that rely on discrete disparity values to accurately capture the 3D details of underwater targets. This paper proposes a stereo method based on an energy function of Markov random field (MRF) with 3D labels to fit the inclined plane of underwater objects. Through the integration of a cross-based patch alignment approach with two label optimization stages, the proposed method demonstrates features akin to segment-based stereo matching methods, enabling it to handle images with sparse textures effectively. Through experiments conducted on both simulated UW-Middlebury datasets and real deteriorated underwater images, our method demonstrates superiority compared to classical or state-of-the-art methods by analyzing the acquired disparity maps and observing the three-dimensional reconstruction of the underwater target.

1. Introduction

The ability of stereo vision to capture the three-dimensional shapes of underwater structure presents a multitude of potential applications in marine engineering [1,2,3], including seabed mapping [4], underwater robot navigation [5], marine biology studies [6], the preservation of cultural heritage [7], and maneuvering of marine vehicles [8].

This system, consisting of two horizontally displaced cameras, concurrently captures images of a scene from slightly offset perspectives [9]. Stereo matching methods represent the matching point pairs obtained from images taken from two perspectives, as in the form of the disparity map.

The task of securing sufficient ground-truth disparity maps specifically for training deep learning methods applied to underwater imagery presents a challenge [10,11]. On the contrary, non-deep learning-based stereo methods are not subject to this difficulty. All stereo methods face challenges due to poor underwater images when utilized in marine engineering applications [3].

The scattering caused by a multitude of floating particles [12] results in a subtle displacement of object positions in the image. Artificial illumination introduces an imbalance in lighting [13]. These phenomena raise the loss of intricate details and the color variations of two perspective images [14], resulting in compromised image quality. Stereo methods relying on one-dimensional discrete disparity values are suited to cases where adjacent pixels share identical disparity values. However, these algorithms struggle to describe irregular underwater objects with curved or inclined surfaces effectively. In addition, missing and repetitive textures [2] diminish accessible image information for stereo matching. Thus, the accuracy of stereo methods is compromised by these challenges [15].

The aim of this research is to propose a stereo method designed specifically for marine engineering applications, addressing common issues arising from deteriorated images, irregular underwater objects, and insufficient texture information. The proposed method adapts a coarse-to-fine matching strategy and is an evolution of segment-based approaches. The main contributions are listed as follows:

• To address the irregular surfaces present in typical underwater images, we introduce an energy function grounded in 3D labels.
• Our strategies for harnessing the segment information within cross-based patches diverge for the processes of expansion and propagation.
• To fortify the robustness of the propagation process, we improved the construction scheme of the cross-based patches.
• Our algorithm can be applied to parallel computation, be it in the expansion or the propagation process.

2. Related Work

The cost function measures the similarity between a pair of matching points on both the left and right images [16]. When examining the cost of individual pairs of points, the disparity map exhibits many noisy areas. So, researchers aggregate the cost of neighboring pixels around the point being matched. The area of cost aggregation is referred as a support window. All the pixel information contained within the window is considered as information about the central pixel, thereby enhancing its distinctiveness.

The local methods are based on two types of basic units: fixed square grids [17] and adaptive regions [18]. The disparity of each pixel is obtained in isolation, assuming that all pixels within a unit share identical disparities.

Assigning a uniform disparity value to all pixels within a local support window results in the constraint of fronto-parallel bias, where a constant disparity cannot depict a slanted plane. Given that a constant value fails to describe a plane, PatchMatch [19] opts to express it mathematically instead. Researchers have developed a refined representation of a geometric plane, providing a description of a disparity plane, as shown in Equation (1).

$$d_p=a_p{p}_x+b_p{p}_y+c_p$$

(1)

In Equation (1), the parameters $(a_p,b_p,c_p)$ are assigned as a 3D label to the pixel $p=(p_x,p_y)$. The theoretical basis of the parameters is derived from the normal vector of a surface plane. There is a huge continuous label space ${\mathbb{R}}^3$ for each pixel composed of parameters of labels. PatchMatch updates the 3D label through the label propagation process, where a pixel can generate and propagate a label to its four neighbors. This label is referred to as a candidate label or proposal. Each pixel label is updated after several iterations in a raster-scan order.

The local method’s susceptibility to noise interference arises from its exclusive consideration of similarity between matching points. Compared to local methods, global methods, based on MRF, are robust to noise [20,21]. They integrate the cost function with an embedded smoothness constraint [22]. The constraint serves to penalize disparities that are inconsistent among adjacent pixels to obtain a smooth disparity map. Furthermore, the integration of the cost function and the smoothness term is referred to as the energy function.

The energy function can be solved by optimizers such as graph cut (GC) [8] and belief propagation (BP) [23]. However, BP is a sequential optimizer, which improves each variable while it keeps others in a static condition. Nevertheless, GC improves all variables simultaneously by accounting for interactions across variables and helps optimization avoid local minima. The operation for graph cut estimates the MRF model for an entire image, named as the $\alpha -$ expansion move.

LocalExp, which combines the characteristics of local methods and global methods, can optimize the labels concurrently within a predefined grid with a local expansion move [24]. This move can be regarded as a subset of the $\alpha$-expansion move. The existing algorithms [3,21], based on LocalExp, are applied in marine engineering.

Compared with other methods, segment-based methods demonstrate superior performance in regions with missing textures [25,26]. With the transition of segmentation techniques from traditional methods [27] to deep learning methods [28,29,30], segment-based stereo methods have emerged, such as SD-MVS [31]. These methods allocate the same label to all pixels in a segmented region [25,26,32]. Each label of pixels within the segmented region experiences a reduction in the search range of ${\mathbb{R}}^3$, simplifying the process of obtaining the appropriate label. These methods have been applied on land but have not yet been adapted for underwater engineering applications.

3. Materials and Methods

3.1. Overview

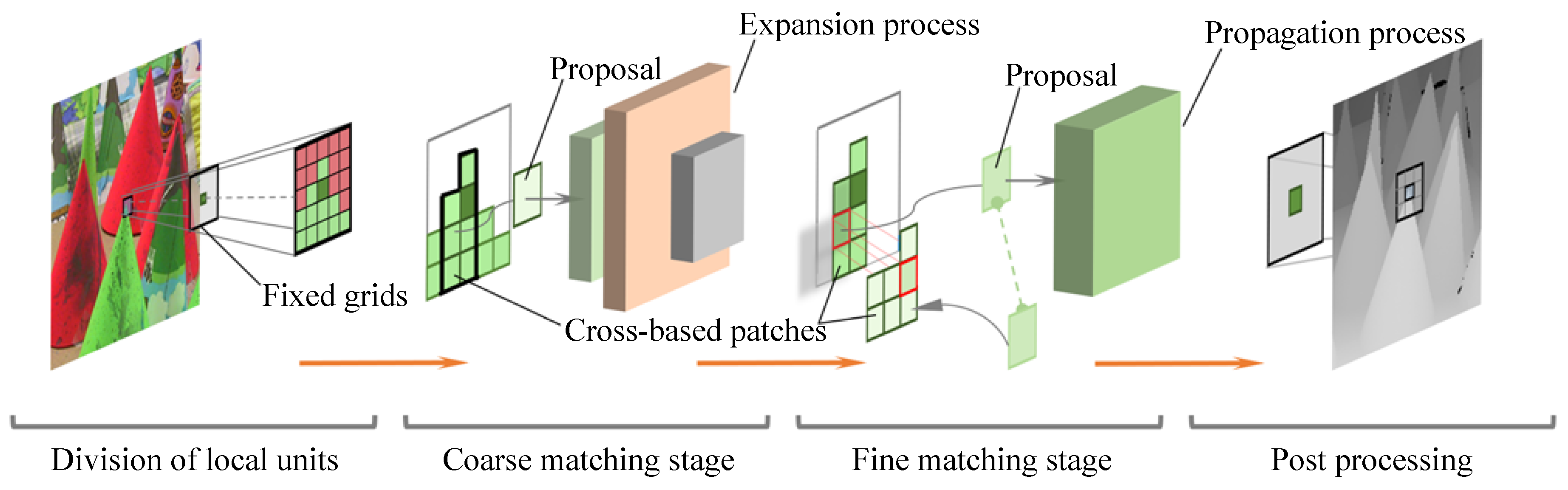

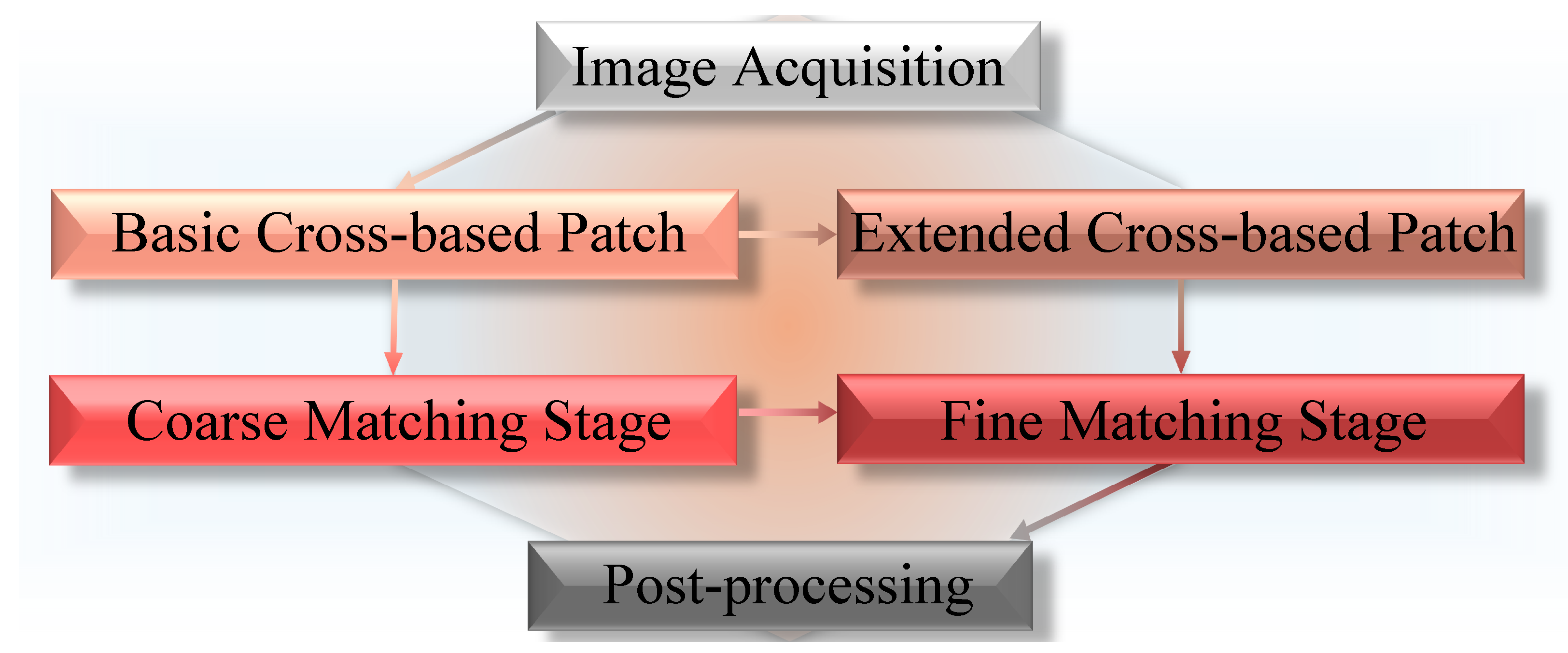

As depicted in Figure 1, the workflow of the framework is presented. Our method can be divided into two label optimization stages: a coarse matching in Section 3.4.1 and a fine matching stage in Section 3.4.2. This method comprises three primary procedures: subdivision of local units, an expansion process, and a propagation process. Our approach divides the provided RGB image areas into two primary components: cross-based patches in Section 3.3.2 and fixed grids in Section 3.3.3. These units, in conjunction with the two processes, constitute the two stages. In the coarse matching stage, our method demands several rounds of expansion process on fixed grids. This is succeeded by the fine matching stage, wherein a single propagation process is carried out within cross-based patches. The expansion process can be further divided into three distinct optimization steps in Section 3.4.1. Both stages of the method optimize the energy function in Section 3.2 by employing local expansion moves to update pixel labels.There are different approaches in the processes of expansion and propagation that use segment information within cross-based patches, limiting the acquisition scope of proposals used in local expansion moves.

3.2. Energy Function

For the minimization of the energy function, the combination of graph cut with local expansion moves has an advantage [33]. By enabling a single min-cut to assign the same 3D label to multiple pixels within a local region [24], it facilitates the discovery of smooth solutions. Furthermore, the ability to simultaneously update multiple variables helps to avoid being trapped in unfavorable local minima.

Building upon previous studies utilizing energy functions derived from 3D labels, we utilize Equation (1) to introduce over-parameterization for the pixel p’s disparity $d_p$. Consequently, we aim to determine labels $l_p=(a_p,b_p,c_p)\in {\mathcal{R}}^3$ for each pixel in an image $\mathcal{L}$. In estimating these labels, we introduce an energy function designed specifically for underwater environments.

$$E\left(l\right)=\sum _{p\in \Omega }{\varphi }_p\left(l_p\right)+\lambda \sum _{(p,q)\in \mathcal{N}}{\psi }_{pq}(l_p,l_q).$$

(2)

With Equation (2), we can obtain an appropriate label $l_p$ by minimizing the energy of the local patch $\Omega (\Omega \in \mathcal{L})$. The parameter $\mathcal{N}$ means the neighbor area of pixel p.

3.2.1. Data Term

The first item of Equation (2) can be called the data item or cost function. This term serves as the the principal criterion for a pixel to find its matching pixel. Given a label $l_p$, the data term is defined in Equation (3).

$${\varphi }_p\left(l_p\right)=\sum _{s\in {\Omega }_p}{W}_{ps}\rho \left(s\mid l_p\right).$$

(3)

In Equation (3), ${\Omega }_p$ is the support window of p. The cost function is composed of the raw cost $\rho (·)$ and the weight of filter $W_{ps}$ [34]. The weight, as defined in Equation (4), is calculated by the guided image-filtering algorithm to achieve the edge-awareness ability at a low complexity.

$$W_{ps}\left(I\right)={\displaystyle \frac{1}{{\left|\omega \right|}^2}}\sum _{k:(p,s)\in {\omega }_k}\left(1+{\displaystyle \frac{\left(I_p-{\mu }_k\right)\left(I_s-{\mu }_k\right)}{{\sigma }_k^2+ϵ}}\right)$$

(4)

The filtering area is ${\left|\omega \right|}^2$ centered on p. The pixels p and s have two normalized color vectors, namely, $I_p$ and $I_s$. In addition, ${\mu }_k$ and ${\sigma }_k^2$ comprise the parameter matrix for $I_p$. The parameter $ϵ$ is a regularization penalty. This filtering can mitigate the noise in disparity maps.

The raw cost function $\rho \left(s\mid l_p\right)$ is inspired by [35], which integrates two components: the zero-mean normalized cross-correlation value (ZNCC) [36] and the Hamming distance of census transformation (CT) [37]. ZNCC measures the similarity between two image windows by computing their correlation score. CT is a local descriptor used to represent the spatial arrangement of pixel values within an image window.

Both ZNCC and CT components are constructed using discrete disparity values. Our method introduces the 3D label into $\rho \left(s\mid l_p\right)$, enhancing the method’s performance in areas that correspond to irregular object surfaces. The cost $\rho \left(s\mid l_p\right)$ for a pixel $s(x,y)$ is delineated as follows:

$$\rho \left(s\mid l_p\right)=\alpha min(H(s\mid l_p),{\tau }_H)+(1-\alpha )min(Z(s\mid l_p),{\tau }_Z).$$

(5)

In Equation (5), $Z(s\mid l_p)$ and $H(s\mid l_p)$ represent the ZNCC value and the Hamming distance, respectively, when the label of pixel s is defined as $l_p$. The truncated parameters ${\tau }_H$ and ${\tau }_Z$ enhance the robustness of the method for occluded regions. For the purpose of evaluating the similarity between two windows in the image pair, we set the window size for both the ZNCC and CT algorithms as $W=(2m+1)(2n+1)$.

By normalizing the pixel values within an image window to have zero mean and unit variance, ZNCC enhances robustness against variations in brightness and contrast. Normalization, which mitigates the influence of illumination changes and enhances the capture of structural and textural features in images [35,38], is defined as

$$Z(s\mid l_p)=1-{\displaystyle \frac{{cov}_{x,y,d}^{*}(s,r)}{\sqrt{{var}_{x-d,y}^{*}\left(r\right)}}}.$$

(6)

The disparity d is obtained by Equation (1). Then, the coordinate of the corresponding pixel $r_{x-d,y}$ is established.

The various parts of the ZNCC can be expressed as follows:

$$\begin{array}{c}\hfill {cov}_{x,y,d}^{*}(s,r)=\sum _{i=-m}^m\sum _{j=-n}^n{s}_{x+i,y+j}·r_{x-d+i,y+j}\\ \hfill -W{\overline{s}}_{x,y}·{\overline{r}}_{x-d,y},\end{array}$$

(7)

$${var}_{x-d,y}^{*}\left(r\right)=\sum _{i=-m}^m\sum _{j=-n}^n{r}_{x-d+i,y+j}^2-W·{\left({\overline{r}}_{x-d,y}\right)}^2.$$

(8)

Here, $s_{x+i,y+j}$ represents the gray value of pixel $(i,j)$ located in the image window. In addition, ${\overline{s}}_{x,y}$ and ${\overline{r}}_{x-d,y}$ represent the gray average of the image window, respectively.

The census transform [37] encodes the relative ordering of pixel values within an image window rather than using the actual pixel values, providing resilience to variations in lighting and noise. The Hamming distance of census transform $H(s\mid l_p)$ can be obtained by performing an exclusive-or operation (XOR operation) between two transformation windows, as in Equation (9).

$$H\left(s\mid l_p\right)=\sum _{i=-m}^m\sum _{j=-n}^n{\displaystyle \frac{CT{\left(s\right)}_{ij}\oplus CT{\left(r\right)}_{ij}}{(2m+1)\times (2n+1)}}.$$

(9)

The variable $CT{\left(s\right)}_{ij}$ is a number of s’s in a census encode array, encoded as

$$CT{\left(s\right)}_{ij}=\left\{\begin{array}{cc}0,\hfill & G\left(s_{x,y}\right)\le G\left(s_{x+i,y+j}\right)\hfill \\ 1,\hfill & G\left(s_{x,y}\right)>G\left(s_{x+i,y+j}\right).\hfill \end{array}\right.$$

(10)

Here, $G\left(s_{x,y}\right)$ is the gray value of pixel s, where $i\in \{-m,\dots ,m\}$ and $j\in \{-n,\dots ,n\}$. The length of the census array is $(2m+1)(2n+1)$. Census transformation is crucial due to its capacity to convey relative information among adjacent pixels.

None the ZNCC or the CT functions incorporate information related to color intensity. These functions remain insensitive to the absence of image color caused by light absorption of artificial illumination. Additionally, they exhibit resilience to noise and remain unaffected by the imbalanced gray value of the underwater image pair. By integrating the features of 3D labels to accommodate complex object surfaces [19], the cost function Equation (3) is capable of adapting to marine engineering environments.

3.2.2. Smoothness Term

The second item of Equation (2), the smoothness term, is proposed to penalize the different labels in a local area [24]. This term is formulated as follows:

$${\psi }_{pq}\left(l_p,l_q\right)=max\left(w_{pq},ϵ\right)min\left({\overline{\psi }}_{pq}\left(l_p,l_q\right),{\tau }_{\mathrm{dis}}\right),$$

(11)

where $ϵ$ is the threshold and ${\omega }_{pq}$ is a contrast-sensitive weight, defined in Equation (12).

$$w_{pq}=e^{-{∥I_L\left(p\right)-I_L\left(q\right)∥}_1/\gamma }$$

(12)

This weight describes the color similarity between two adjacent pixels. The function ${\overline{\psi }}_{pq}(·)$ penalizes the disparity dissimilarity between p and q, which is shown as

$${\overline{\psi }}_{pq}\left(l_p,l_q\right)=\left|d_p\left(l_p\right)-d_p\left(l_q\right)\right|+\left|d_q\left(l_q\right)-d_q\left(l_p\right)\right|.$$

(13)

Here, $d_i\left(l_j\right)$ is the disparity of i, which employs the label $l_j,\mathrm{where}(i,j)\in (p,q)$. The threshold ${\tau }_{\mathrm{dis}}$ ensures the operation of the smoothness term exclusively in regions where disparities remain continuous. The smoothness term can enhance the precision of matching in image areas with low texture and repetitive patterns.

3.3. Subdivision of Local Units

The division of the basic units is the foundation for two matching stages. In this section, we utilize the inherent segment information of cross-based adaptive regions to steer the propagation process of the fine matching stage. The analysis of this process urges us to improve the construction scheme of the cross-based patch. Additionally, our method employs fixed square grids in the expansion process of the coarse matching stage.

3.3.1. Basic Cross-Based Patch Scheme

Relative to fixed-shape local units, the adaptive unit is less affected by noise [27], rendering it as an ideal choice for underwater environments.

The cross-based patch can capture local structures within an image and handle different types of textures efficiently. It is iteratively expanded by examining the similarity between the central pixel and its neighboring pixels within a cross-shaped window. This patch enhances feature extraction and representation by considering the local context around each pixel.

The cross-based patch is extended by a color-sensitive cross skeleton that is composed of orthogonal line segments [37,39]. It exhibits superior efficiency in contrast to pixel-wise methods [19,40] that maintain an independent label space ${\mathbb{R}}^3$. The cross-based patch also has good edge awareness and smaller complexity.

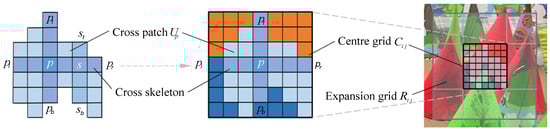

Given an anchor p as an example, which is the center of a grid $C_{ij}$ as depicted in the left section of Figure 2, We build a cross skeleton first, whose left arm is constructed by a set of consecutive pixels $p_l$ in the left side of p, where $p_l$ satisfies the following rules:

$${max}_{i=R,G,B}{∥I\left(p\right)-I\left(p_l\right)∥}_i<\tau ,$$

(14)

$$max\parallel p-p_l\parallel <=L.$$

(15)

Here, ${\parallel ·\parallel }_i$ means the ith color difference between p and $p_l$. The $\parallel ·\parallel$ is the distance between these pixels, whose thresholds are $\tau$ and L. The remaining arms of the cross skeleton in other directions are constructed following a similar process to that of the left arm.

The cross skeleton then gathers all vertical arms whose central pixels are positioned within the horizontal arms of p. The final patch is denoted as a cross-based patch $U_p$.

$$U_p=\left\{T_s\cup B_s\mid s\in (L_p\cup R_p)\right\},$$

(16)

where the pixel s, located in horizontal arms ($L_p$ and $R_p$) of the cross skeleton, is the center of $T_s$ and $B_s$. The region $U_p$ is shown in the middle of Figure 2.

Constrained within specific boundaries, such as the grid $C_{ij}$, the cross-based patch serves as an imperfect segment region.

3.3.2. Extended Cross-Based Patch Scheme

Examining the principle that pixels share a 3D label within a segment region, the cross-based patch’s anchor possesses the capacity to adopt any label from its patch. The propagation process can extend the anchor’s label searching range from its patch to the connectivity domain. Further insights are provided in Section 3.4.2.

However, due to differences in color features, according to Equation (14), the propagation process will be executed separately on the small texture on the surface of the object and on other surface areas. This results in the inability of labels from other areas to propagate to the small texture, leading a poor performance of the propagation process in these textures.

Inspired by [41], we can find all small textures in an image. Based on Equation (14), neighboring pixels with features similar to the center pixel are grouped into a connectivity region in the four directions of the cross skeleton and marked as visited. This iterative process continues until all pixels have been visited.

This method of pixel clustering offers a robust approach for partitioning the connectivity domains across the entire image. Given a connectivity domain whose size is smaller than a specific threshold, pixels within this domain are marked as texture anchors. In this paper, this threshold is harmonized with the max disparity value.

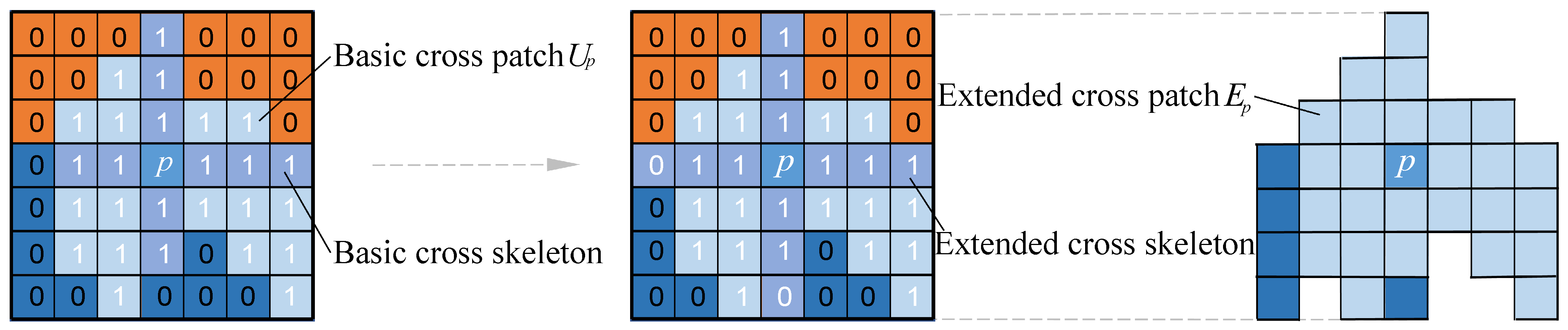

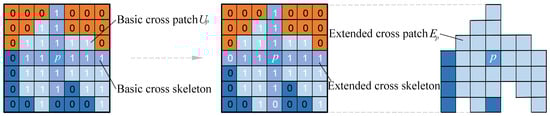

Figure 3 illustrates the utilization of binary marks to annotate whether a pixel is situated in a small texture. If p is a texture anchor, all pixels in its cross-based patch $U_p$ are recognized as constituents of the same texture. This recognition is based on the consistent criteria in Equation (14), used to define the cross-based patch and the division of texture.

We refer to regions in Section 3.3.1 as the basic cross skeleton and the basic cross-based patch, respectively. Given a texture anchor, its cross-based patch must be enhanced to optimize the connectivity between the anchor’s texture area and its neighboring regions. We elongate all arms of p’s basic cross skeleton to their maximum length, defined as follows:

$$max\parallel p-p_i\parallel =L.$$

(17)

Here, $p_i$ represents an endpoint of an arm and L is the threshold in Equation (15). This modified cross skeleton is referred to as the extended cross skeleton. Finally, all vertical arms are consolidated as depicted in Equation (16). These steps form an extended cross-based patch $E_p$, as shown in the right portion of Figure 3.

Some neighbor pixels of a small texture are covered by these extended patches, enabling connectivity between the texture and its surrounding areas. During the propagation process, neighboring areas can propagate their proposals to texture pixels via these covered pixels.

3.3.3. Fixed Grid Scheme

Serving as the basic unit in local expansion moves, the image $\mathcal{L}$ is divided into numerous square grids equally, and each grid is indexed by 2D coordinates $(i,j)$, denoted as the center grid $C_{ij}\in \mathcal{L}$. An expansion grid $R_{ij}$ is composed of $C_{ij}$ and its surrounding eight center grids, as depicted in the right portion of Figure 2.

In the coarse and fine matching stages, labels in the expansion grid can be updated with a proposal generated by local expansion moves. An expansion grid is outlined by

$$R_{ij}=C_{ij}\cup \left\{\bigcup _{(m,n)\in \mathcal{N}(i,j)}{C}_{mn}\right\}.$$

(18)

To capitalize on the adaptability of different grid sizes to suit various image areas [42], our method possesses three size levels of the center grid, denoted as $H=\{h1,h2,h3\}$. Throughout this section, we employ h to represent any level. The cross-based region of the grid’s center p must be confined within the boundaries of $C_{ij}$, as shown in the middle of Figure 2. The dimension of h is defined as follows:

$$h=2L+1.$$

(19)

3.4. Label Optimization Procedure

The label optimization procedure in this study comprises two key processes: expansion in the coarse matching and propagation in the fine matching. Concurrent optimization procedures can be executed across multiple expansion grids within the same grid group, facilitated by the substantial inter-grid spacing.

As the starting step, for each grid within the same group, we initiate labels through parallel computation. We opt for a random pixel $p=(x,y)$ within a center grid. We then assign a normal vector $\overrightarrow{n}=\left(n_x,n_y,n_z\right)$ and introduce a random disparity d to p, where $d\in [0,d_{max}]$ [19]. Equation (20) is applied to transform the pixel coordinate and vector into a label $l_p=(a_p,b_p,c_p)$.

$$a_p=-{\displaystyle \frac{n_x}{n_z}},b_p=-{\displaystyle \frac{n_y}{n_z}}\mathrm{and}{c}_p={\displaystyle \frac{n_{x}x+n_{y}y+n_{z}d}{n_z}}$$

(20)

To estimate the pixel 3D labels, the method employs graph cut optimization of an energy function to enable the model to estimate of Markov random field [33], namely, local expansion moves. We use Equation (21) to derive a local label mapping l, for a expansion grid $R_{ij}$.

$$l=argminE\left(l^{\prime }\mid l_p^{\prime }\in \left\{l_p,{\alpha }_{ij}\right\},p\in R_{ij}\right)$$

(21)

We perform the label optimizations of a pixel p on the current label $l_p$, transforming them into $l_p^{\prime }$. The updated label $l_p^{\prime }$ derived from a selection between two binary variables, namely, $l_p^{\prime }\in \{l_p,{\alpha }_{ij}\}$. When the energy related to incorporating a proposal ${\alpha }_{ij}$ becomes less than that associated with retaining the existing label $l_p$, p will opt for ${\alpha }_{ij}$ as its updated label $l_p^{\prime }$. Employing the graph cut algorithm, the energy function can be resolved, enabling the simultaneous allocation of pixels sharing similar features to the proposal ${\alpha }_{ij}$.

The main computational time-consuming part of our method is composed of local expansion moves, which are accelerated via parallel computation. Proper scheduling is essential, as local expansion moves cannot occur simultaneously due to overlapping expansion grids.

To enable parallel computation, a strategy is implemented to group partitioned grids [24]. The grouping strategy involves selecting center grids at intervals of four vertical and horizontal units, bringing them into the same group. Grids within the same group do not overlap. These grid gaps ensure the independence of local expansion moves within the same group, preventing interference. This design enables simultaneous optimization of labels across multiple central grids within the same group. Consequently, we can perform them simultaneously in a parallel fashion.

3.4.1. Coarse Matching Stage

During the coarse matching phase, we directly utilize segment information derived from the cross-based patch within the central grid. In this stage, the center grid is divided into two parts using a cross-based patch to represent foreground and background in local areas, followed by updating pixel labels for each region. We create a cross-based patch $U_p$ around the grid $C_{ij}$’s center p, as shown in Figure 4. Due to the length constraint in Equation (19), $U_p$ is confined within the grid $C_{ij}$. Consequently, the center grid can be partitioned into $U_p$ and the remaining area $M_p$, where $U_p\cap M_p=\varnothing ,U_p\cup M_p=C_{ij}$.

Three steps for generating proposals are employed in the expansion process. The initial step is the space propagation. This step entails selecting a random pixel from $U_p$ or $M_p$. Due to the similar color features in Equation (14), pixels within $U_p$ should be assigned an identical proposal by Equation (21), concurrently reducing the impact of this label for the pixels in $M_p$. This step is then repeated in $M_p$.

The second step is inspired by [24] and called plane refinement. This step involves introducing a series of perturbations in $U_p$ and $M_p$, yielding proposals.

Let us take the plane refinement in $U_p$ as an example. Within each iteration, we employ random sampling in $U_p$ to obtain a pixel q. The label $l_q=(a_q,b_q,c_q)$ is then converted by the form of a pixel coordinate $q=(x,y,d)$, where d is the current disparity, and a normal vector $\overrightarrow{n}=\left(n_x,n_y,n_z\right)$. The parameter of the vector is defined by Equation (20). We estimate a disparity $d^{\prime }$ by introducing a random perturbation ${\Delta }_d$ to d, where ${\Delta }_d\in [-{\Delta }_d^{max},{\Delta }_d^{max}]$. A new random normal vector ${\overrightarrow{n}}^{\prime }$ can be acquired by ${\overrightarrow{n}}^{\prime }=\overrightarrow{{\Delta }_n}+\overrightarrow{n}$, with three parameters of $\overrightarrow{{\Delta }_n}$ constrained in $[-{\Delta }_n^{max},{\Delta }_n^{max}]$. Finally, the perturbed proposal $l_q^{\prime }$ is derived from the combination of $d^{\prime }$ and ${\overrightarrow{n}}^{\prime }$ by Equation (20).

Repeating the described step $k_r$ times, a searching range of proposals is derived. Notably, with each iteration, the perturbation searching ranges of ${\Delta }_d$ and $\overrightarrow{{\Delta }_n}$ are reduced by half. The labels within the expansion grid $R_{ij}$ are periodically updated with local expansion moves. Similarly, we replicate the plane refinement in area $M_p$. The plane refinement assigns two separate label spaces for $U_p$ and $M_p$.

Lastly, the proposal by RANSAC fitting is employed to the center grid $C_{ij}$, which can estimate the 3D label of a disparity plane from labels within $C_{ij}$ that may contain outliers. These steps collectively constitute the entirety of the coarse matching stage.

We exemplify the expansion process in Algorithm 1. There are four fundamental steps: groundwork (lines 1–3), space propagation (lines 5, 6), plane refinement (lines 7–12), and RANSAC fitting (lines 13, 14). In groundwork, a cross-based region $E_p$ is established with the grid center point as the anchor p. The unoccupied region $M_p$ is what remains after removing $E_p$ from the grid $C_{ij}$. In space propagation, we obtain a random label $l_q$ and utilize ${\alpha }_{ij}$-expansion in $R_{ij}$. In plane refinement, the ${\alpha }_{ij}$-expansion is applied by random labels in $A_p$ coupled with a series of perturbations. In RANSAC fitting, ${\alpha }_{ij}$ is obtained after the mentioned steps have been executed. These steps are performed in every center grid.

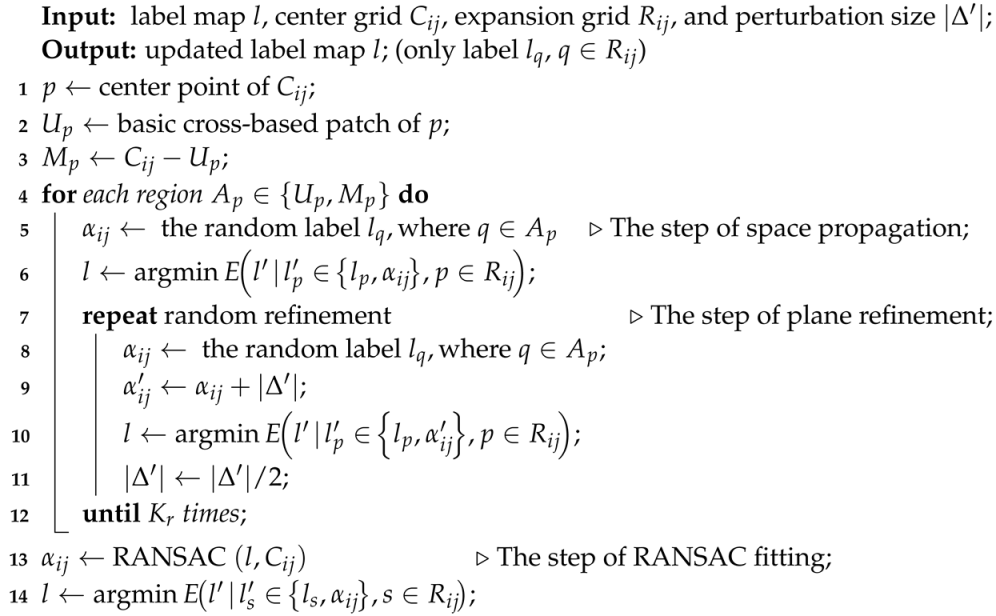

Algorithm 1: Iterative expansion processes.

3.4.2. Fine Matching Stage

In the fine matching stage, we integrate multiple segments of incomplete information contained within cross-based patches. This integration is accomplished during the propagation process. The fine matching stage enables adjacent cross-based patches with similar features to exchange candidate labels through the propagation process. This allows anchors of cross-based patches to access a broader range of candidate labels beyond their individual patches and into their connected domain.

During the propagation process, all pixels within a center grid $C_{ij}$ are sequentially chosen as points to be updated. Starting from the top-left point o of the grid, this process proceeds from left to right and top to bottom, as shown in Figure 4.

Following the implementation of the extended cross-based patch in Section 3.3.2, small texture regions exhibit connectivity with their adjacent areas, allowing the propagation process to seamlessly operate between them. When the propagation process arrives at pixel p, this process initially undergoes the following steps. A basic cross-based patch or an extended one, $E_p$, is established, depending on whether p lies within a small texture. Then, all pixels within the patch $E_p$ are recorded as visited, and we also build a temporary expansion grid $R_t$ centered around p. The size of $R_t$ is defined by Equation (18) for local expansion moves. Using local expansion moves to update labels in grid $R_t$, the algorithm iterates over unvisited pixels until the entire image area is covered.

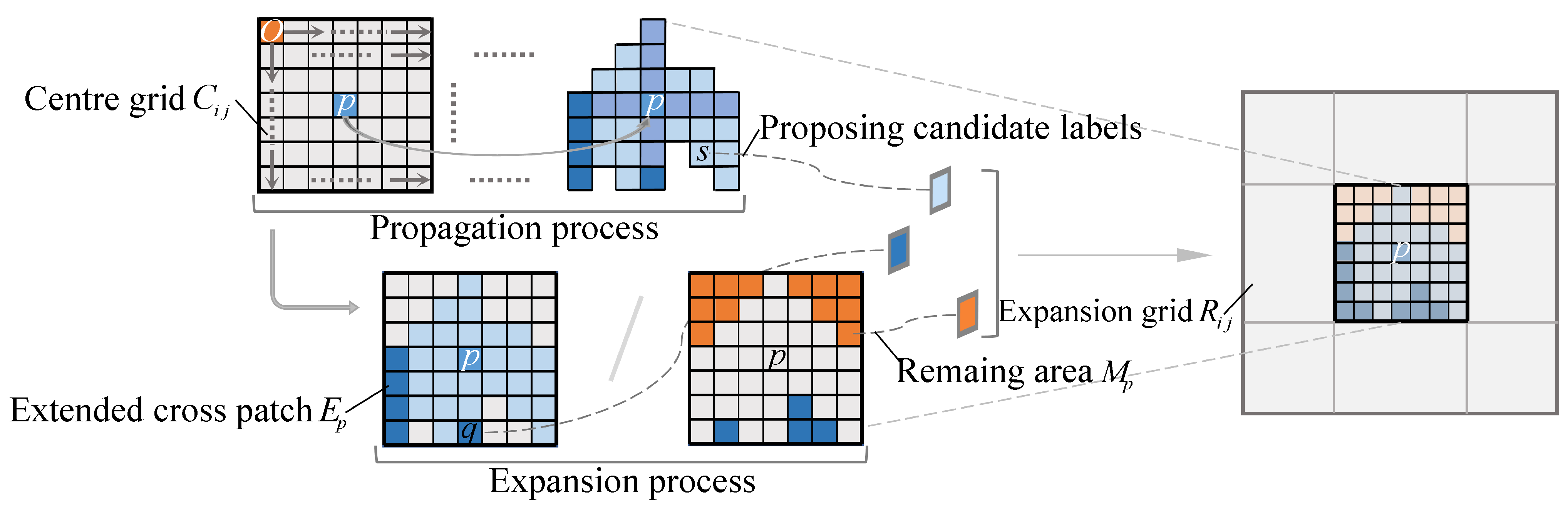

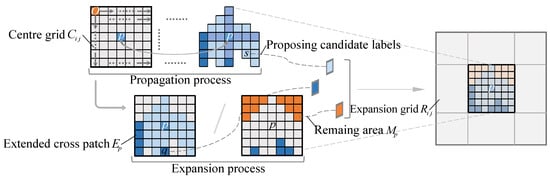

Inspired by PatchMatch [19], the propagation process involves a random selection of pixel s in $E_p$. The label of s is designated as a proposal ${\alpha }_{ij}$ for the grid $R_t$, as shown in Figure 4. Likewise, s acquires proposals stemming from s’s cross-based patch. If s has already undergone label updates, receiving s’s labels by $E_p$ signifies that $E_p$ employs a proposal from the s’s patch.

The aggregation of pixels into connectivity domain S is based on shared texture characteristics in this study. Given that the patch $E_p$ and the connectivity domain S adhere to the partitioning rule in Equation (14) and under the further constraint of Equation (15), which is exclusively applicable to building the cross-based patch, $E_p$ can be considered a subset of S, where $E_p\subseteq S$.

To sum up, the label searching range for p extends from $E_p$ to S. Thus, during the fine matching stage, the propagation process exhibits attributes similar to segment-based methods, where pixels within a connectivity domain are assigned a unified label space ${\mathbb{R}}^3$.

3.4.3. Summary of Optimization Stages

This section provides a summary of two matching stages. Common segment-based stereo methods rely on the pre-segmentation of image regions using diverse image features [28,29,30]. Within these regions, candidate labels are identified and used in conjunction with the graph cut to finalize the disparity estimation process, such as PMSC [25].

In Section 3.3.1, we discussed how the cross-based patch constrained by the distance rule becomes an imperfect segmenting region. Previous algorithms [27,37] construct cross-based patches for each pixel, allowing the acquisition of candidate labels within their respective regions. Their methods, however, rely solely on the incomplete segmentation information provided by these patches. Our method simplifies their method by focusing on cross-based patches centered on the center grid pixel in the coarse matching stage. During the fine matching stage, neighboring cross-based patches with similar features can exchange candidate labels through the propagation process, thus broadening the scope of proposal sources beyond the confines of their respective cross-based patches to segment regions based on color features.

As discussed in Section 3.3.3, by subdividing fixed center grids and expansion grids, parallel computation can be accomplished within grids of the same group. Within each group, we incorporated a gap of one center grid width between adjacent expansion grids. This gap is critical for maintaining the independence of local expansion moves.

We summarize the label optimization procedure. Our method commences by defining grid sizes, which are confined by the length of the cross skeleton. Then, we mark the pixels in small textures and initialize the label mappings. Coupled with texture anchors and local expansion moves, we perform iterative expansion processes and the propagation process at two matching stages in parallel.

Following the execution of both matching stages, our method engages in a post-processing stage. This step is designed to enhance the results further, incorporating left-right consistency checks and median filtering of the disparity maps, as described in [24]. The main phases of our methodology are shown in Figure 5.

The framework of our method is shown in Algorithm 2, which commences by defining grid sizes. Then, we mark the pixels in small speckles and initialize the label maps with the smallest grid size. The main loop of our method is shown in lines from 4 to 13. Coupled with speckle anchors, we perform the iterative expansion process of Algorithm 1 and the iterative propagation process in parallel.

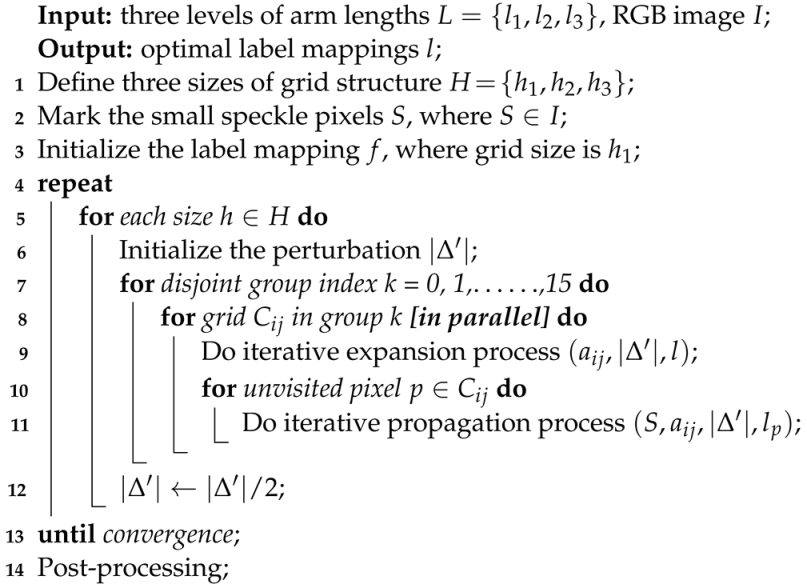

Algorithm 2: Overview of optimization stages.

4. Results

Extensive experiments were conducted employing imagery from diverse sources to evaluate the efficacy of the proposed method for acquiring 3D information of underwater targets within the field of marine engineering. This section commences with an introduction to the algorithm’s operating environment, followed by an elucidation of primary parameter configurations in this study in Section 4.1. The experiments in this section involved the utilization of the UW-Middlebury dataset, which is a customized variant of the Middlebury benchmark dataset tailored specifically for underwater environments, in Section 4.2. We also conducted experiments on real underwater binocular image pairs spanning different scenes in Section 4.3.

4.1. Settings

In our experimental setup, we employed a personal computer equipped with a Xeon E5-1620 CPU (Intel, Santa Clara, CA, USA) (clocked at 3.50 GHz with four physical cores). Parallel acceleration was achieved through the deployment of eight threads and a memory allocation of 36 GB. Our method was implemented using C++ in conjunction with OpenCV.

The configuration of our energy function is defined as follows. In Equation (5), we adapt $\{{\tau }_H,{\tau }_Z\}=\{0.5,0.4\}$ to regulate the cost value scope, following [3,36]. To harmonize the impact of ZNCC and CT on the data term, $\alpha$ is adjusted to 0.5. The image window parameters for ZNCC and CT are set as $m=4,n=3$, which accommodates precisely 63 pixels, enabling the generation of a 63-bit binary code using census transformation. This encoding, nearly equivalent to 64 bits, allows for convenient bitwise operations to acquire the Hamming distance. The kernel area of the filter, ${\omega }_k$, is set to 41 × 41 in Equation (4), following [43].

The parameters governing the smoothness term are outlined as follows. In Equation (2), we set $\lambda =1$ to equalize the data term and the smoothness term. The values of $\{ϵ,{\tau }_{dis}\}$ and $\gamma$ in Equations (11) and (12) are according to LocalExp [24], with $\{ϵ,{\tau }_{dis}\}$ fixed at $\{0.01,2.5\}$ and $\gamma$ set to 25. In addition, we have a color threshold $\tau =60$ in Equation (14), following [37]. Our method has three distance thresholds $L=\{l_1,l_2,l_3\}$ in Equation (15). Each of these thresholds is directly proportional to the image’s width, aiming to take advantage of grids of various sizes to adapt to different textural regions. The number of iterations for plane refinement is set at $k_r=8$, following [24].

4.2. Experiments on UW-Middlebury Dataset

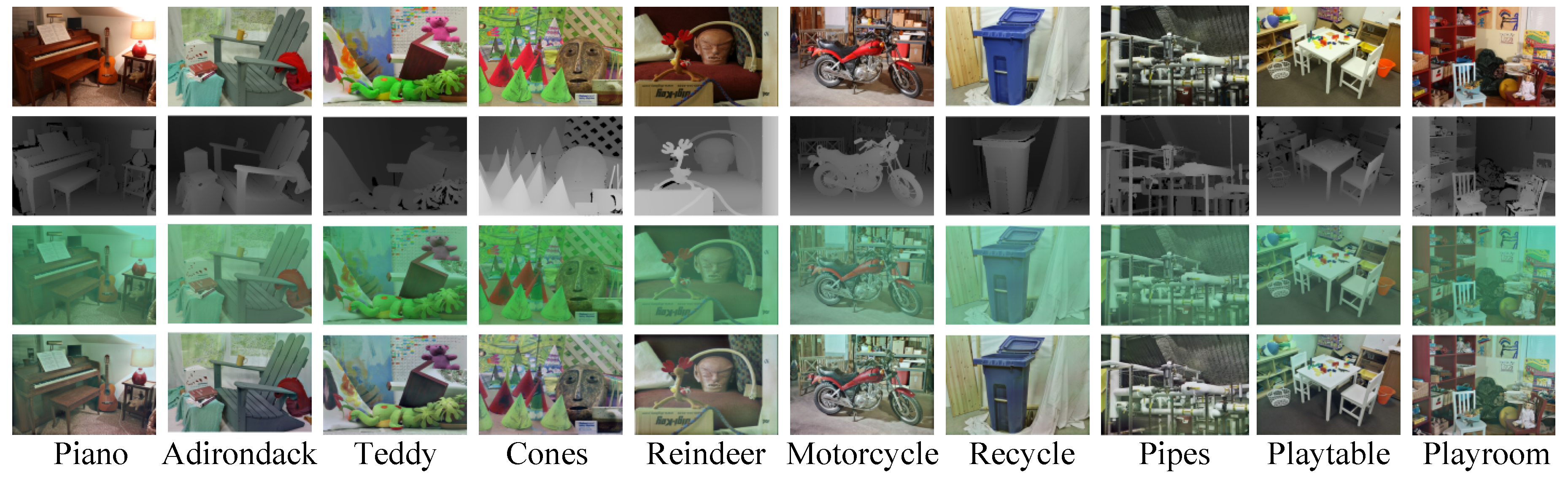

The findings in [44] establish a correlation between the underwater image degradation and the accuracy of disparity estimation. We introduce a deep learning rendering method [45], which converts the Middlebury dataset [46] into the underwater UW-Middlebury dataset, as shown in Figure 6. The generated dataset utilizes natural light fields to emulate the features of underwater scenes, transforming ordinary images into underwater-style portrayals. This method capitalizes on the properties of natural light, effectively replicating the visual characteristics unique to submerged environments.

The images in the UW-Middlebury dataset exhibit significant color deviations from the original images. Alongside the color transfer, the depth-based turbidity simulator is utilized to generate the degradation characteristic of actual underwater imagery. We conduct the algorithm in [47], a probabilistic network that offers freedom from the absence of ground-truth images, to enhance images within the UW-Middlebury dataset. This algorithm can adjust the contrast of the simulated images, thereby mitigating color distortion. In Figure 6, ten sets of experimentally relevant images are depicted. The image pairs of “Piano” and “Motorcycle” in the dataset exhibit imbalanced illumination, simulating the challenges posed by artificial underwater lighting. Each set comprises the left image from matched pairs within the Middlebury dataset, the ground-truth disparity map, their counterpart in UW-Middlebury dataset, and the result after enhancement processing of the UW-Middlebury image.

4.2.1. Ablation Study

There are two optimization stages: the coarse matching stage and the fine matching stage. We can constrain the iterations for each stage to compare the impact of them. We designed multiple sets of quantitative experiments and employed three groups of images—Reindeer, Teddy, and Cones—sourced from the UW-Middlebury dataset. These images are, respectively, denoted by the abbreviations r, t, and c in Figure 7.

Our approach is geared towards minimizing the data term in favor of the smoothness term without delving into the intricacies of energy function computation. The cost function in Equation (3) can also derive a label mapping l for a propagation grid $R_{ij}$ by Equation (22).

$$l=argmin{E}_{data}\left(l^{\prime }\mid l_p^{\prime }\in \left\{l_p,{\alpha }_{ij}\right\},p\in R_{ij}\right)$$

(22)

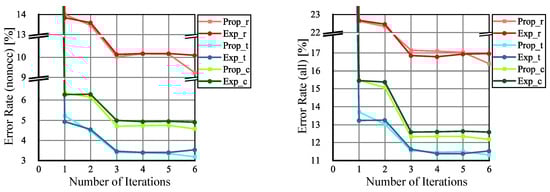

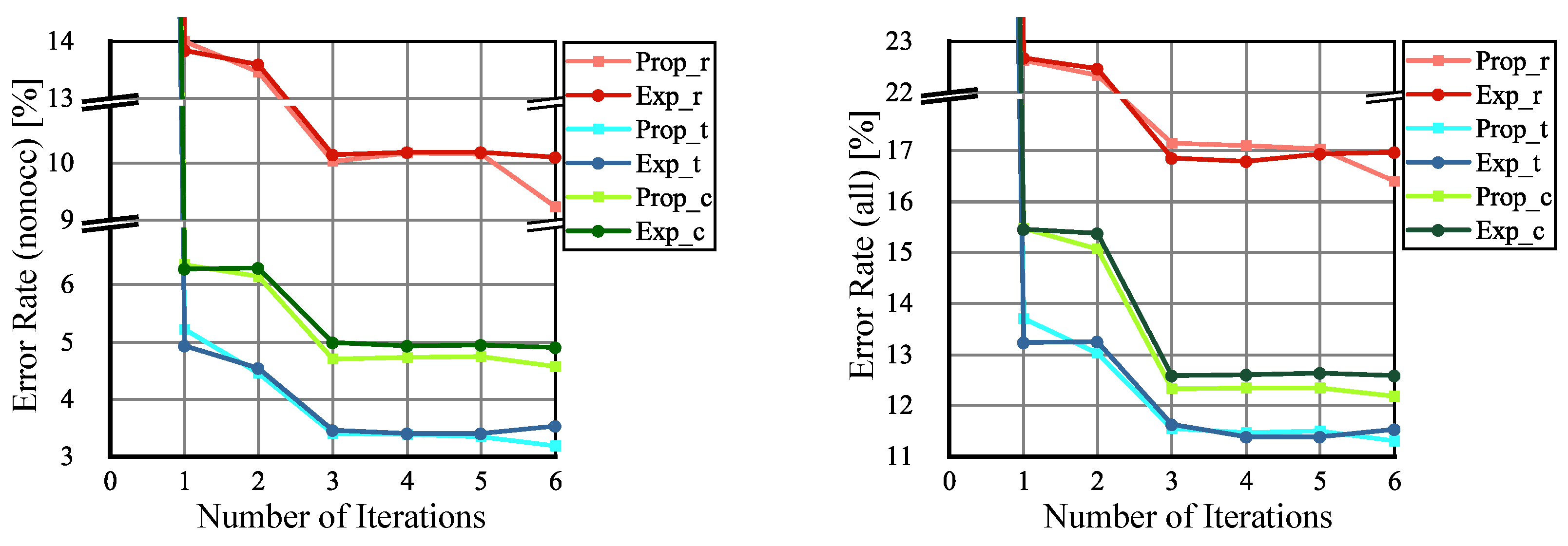

There are the same variables in Equations (21) and (22). In Figure 7, in the first two iterations, label updates are steered by the cost function in Equation (22), followed by the adoption of local expansion moves in Equation (21) for updates in the subsequent iterations.

Due to the absence of the plane refinement, the propagation process in the fine stage fails to generate sufficient candidate labels. In contrast to the continuous and infinite label space ${\mathbb{R}}^3$, algorithms involved in the fine stage can only engage with a very limited number of candidate labels. Therefore, it is more appropriate to view this process as a redistribution of preexisting pixel labels. Assigning appropriate candidate labels for pixels becomes highly challenging, thus preventing this stage from being executed independently. Therefore, increasing the iteration count in this stage exerts minimal influence on optimizing results. Substituting a cost function with an energy function for local expansion moves enhances algorithmic accuracy, though altering the optimization stages leads to less pronounced improvements in accuracy while notably extending runtime, as shown in Figure 8.

Following the methods that employ a coarse-to-fine matching strategy, such as [26], which comprise multiple coarse matching stages followed by one fine matching stage, our method undergoes a total of six iterations. The choice of iteration rounds represents a trade-off between accuracy and computational efficiency.

In Figure 7, the legend “Prop” represents one coarse stage and one fine stage in the first two iterations and three coarse stages and one fine stage in the subsequent iterations. “Prop_r” signifies the use of these hybrid processes for conducting disparity estimation for Reindeer. Meanwhile, the legend “Exp” encompasses only coarse stages, regardless of whether the label-updating criteria account for the smoothness term. In ablation experiments to assess the roles of two matching stages, the coarse stage can be evaluated separately through multiple executions with “Exp” curves. Drawing from the abundant candidate labels yielded by the step of plane refinement in this stage, the fine stage can iteratively refine these labels, thereby shedding light on the function of the fine stage with “Prop” curves.

The results of our experiments on three groups of images indicate that our method readily converges when only the coarse stage is applied. The application of the fine stage can optimize the results of the coarse stage, resulting in a further improvement in accuracy in both of the two label-updating criteria.

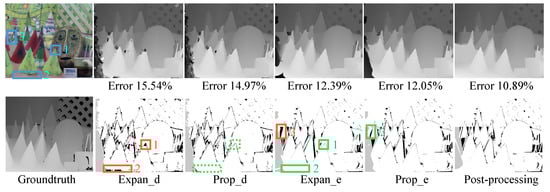

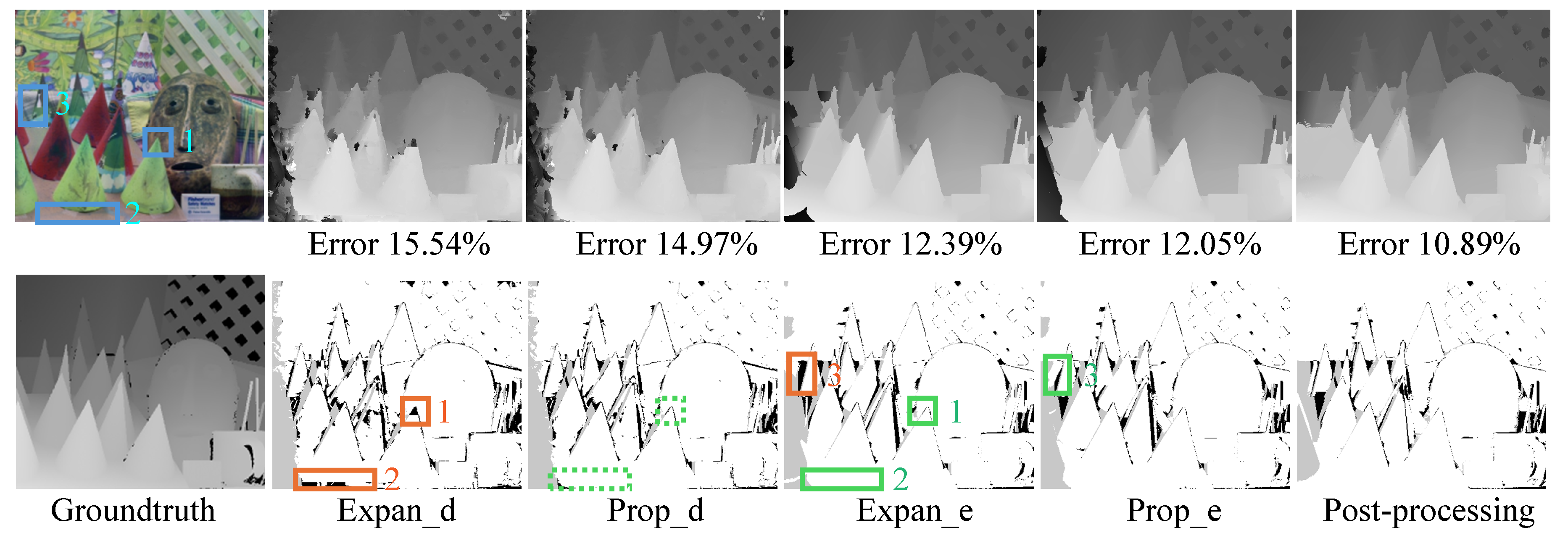

In Figure 9, we compared the visualization outcomes of the disparity maps for different matching stages with Cones. Within the framework of local expansion moves utilizing the data item and the energy function, the disparity maps resulting from the method using only the coarse stage and the method combining the coarse and fine stages are referred to as “Expan_d”, “Expan_e”, “Prop_d”, and “Prop_e”, respectively. Following the post-processing of “Prop_e”, the final disparity map is referred to as “Post_processing”, whose error rates are documented in

Table 1. UW-Middlebury benchmark dataset for 1.0-pixel accuracy. Error percents for all pixels (all) are shown. The shaded areas indicate the cost functions employed by each algorithm across three images. Best results are highlighted in bold.

Label	Average (All)	Cones	Teddy	Reind	Adiro	Motor	Piano	Pipes	Playr	Playt	Recyc
Our method	11.58	10.89	14.06	14.06	5.0	8.41	11.06	15.43	17.96	9.99	8.96
LocalExp [24]	13.5	14.01	17.3	19.3	4.9	8.37	12.26	16.85	17.16	11.07	9.84
Zhuang’s method [21]	12.45	14.73	15.61	14.72	4.71	8.07	12.72	17.19	18.53	11.59	9.84
Lv’s method [3]	14.01	12.25	19.78	22.15	4.41	8.28	14.77	16.38	20.15	11.22	10.73
PaLPaBEL [35]	31.08	16.34	25.92	30.05	33.01	25.65	34.77	34.02	45.05	36.14	29.8
SGBM [41]	35.85	26.53	33.9	36.33	39.59	26.81	34.77	32.92	45.56	54.79	31.23
PatchMatch [19]	32.46	20.33	38.04	24.27	35.34	26.51	33.34	36.06	49.06	32.9	28.77

. In the right panel of Figure 7, the second and sixth iterations of the “Exp_c” line correspond to the maps “Expan_d” and “Expan_e”. Similarly, the “Prop_c” line corresponds to the maps “Prop_d” and “Prop_e”.

Observations within Frame 2 revealed instances of error matching using the coarse stage. While introducing an energy function improved this issue, the algorithm still exhibited misalignment in the repetitive texture region. In the regions outlined in Frames 1 and 3, the algorithm exhibited mismatches near the boundaries of the target when utilizing the coarse stage alone. However, the introduction of a supplementary fine stage significantly improved algorithm performance in these regions, as shown in the disparity map “Prop_e”.

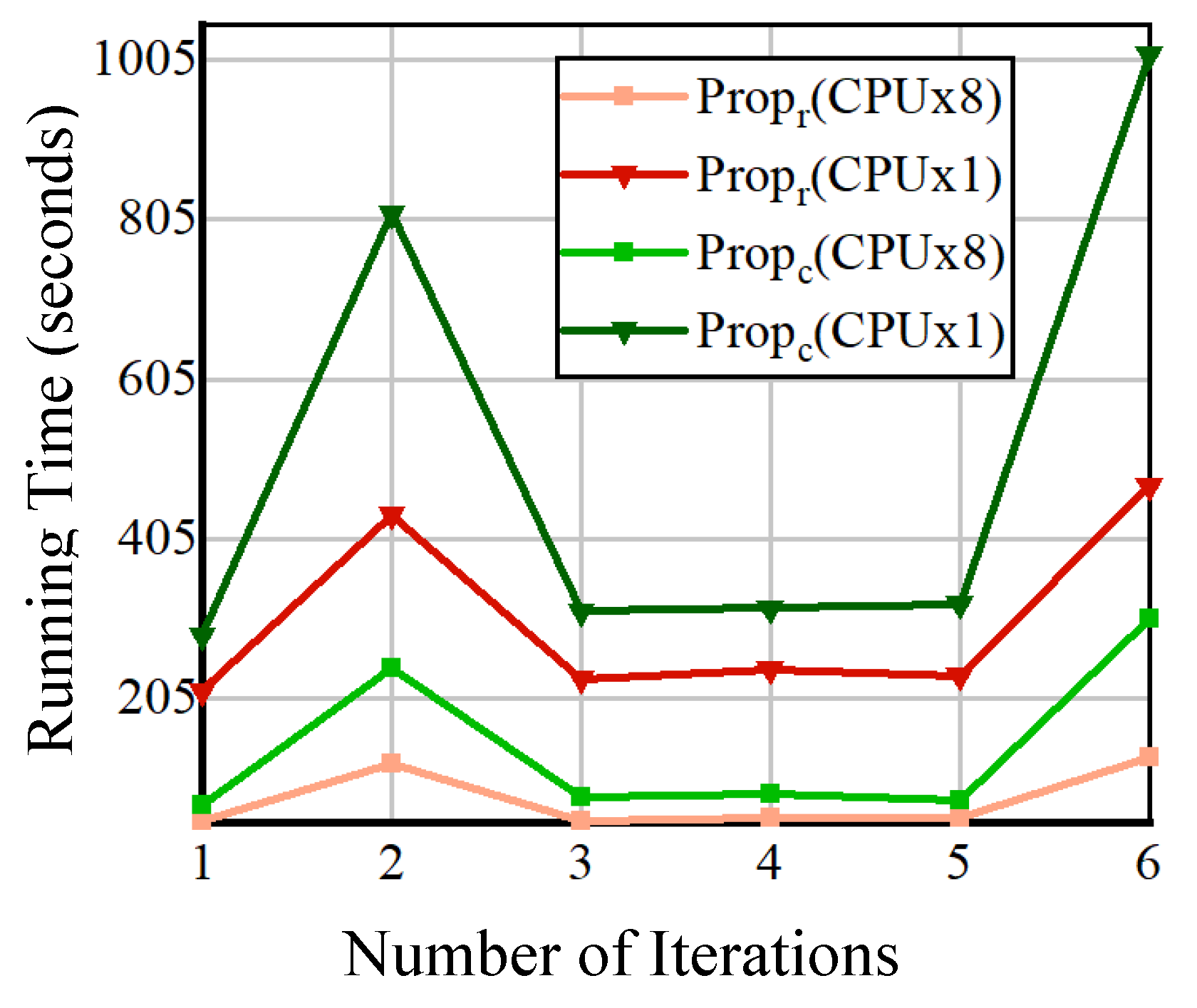

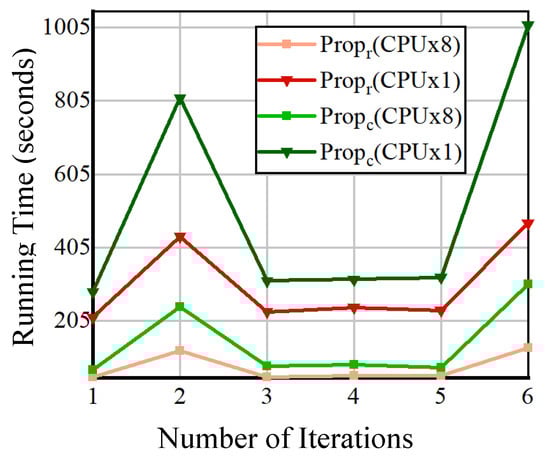

Parallelization of two optimization stages: When updating labels using Equation (22), comparing CPU×8 and CPU×1, we observe a speed-up of about 3.5×. When updating labels using Equation (21), comparing CPU×8 and CPU×1, parallel computation increases operational speed by roughly a factor of 4. Our algorithm does not outperform others in terms of running speed. The coarse matching stage of our algorithm consumes roughly twice the runtime of LocalExp, detailed in [24], an algorithm with a similar framework to our coarse stage. This is primarily due to LocalExp’s simple cost functions, which are based on pixel color features, and the lack of division in the adaptive regions. Despite using an energy function rather than a cost function to update candidate labels in both matching stages, the modest increase in runtime suggests that the method’s computational complexity is primarily influenced by the cost function. The extended runtime of the fine matching stage should stem from the propagation process requiring more iterations within a center grid.

4.2.2. Results on the UW-Middlebury Dataset

We compared our method with LocalExp [24], Zhuang’s [21], and Lv’s [3] methods. The Cones, Reindeer, and Teddy in the UW-Middlebury dataset were subjected to the cost function described in Equation (3), while the remaining images were evaluated using a deep learning-based cost volume [48]. We substituted the raw cost function $\rho (·)$ of Equation (5) with the following function:

$$C(s,d)=min(C_{CNN}(s,d),{\tau }_{CNN}),$$

(23)

where ${\tau }_{CNN}=0.5$ is a truncation coefficient to limit the range of cost values. Given a discrete disparity d, the function $C_{CNN}(s,d)$ indicates an aggregation of matching costs for all pixels within an $11\times 11$ square window centered on the point s following [24].

However, PaLPaBEL [35], PatchMatch [19], and SGBM [41] are limited to applying their individual cost functions only for the whole dataset, influenced by their algorithm framework.

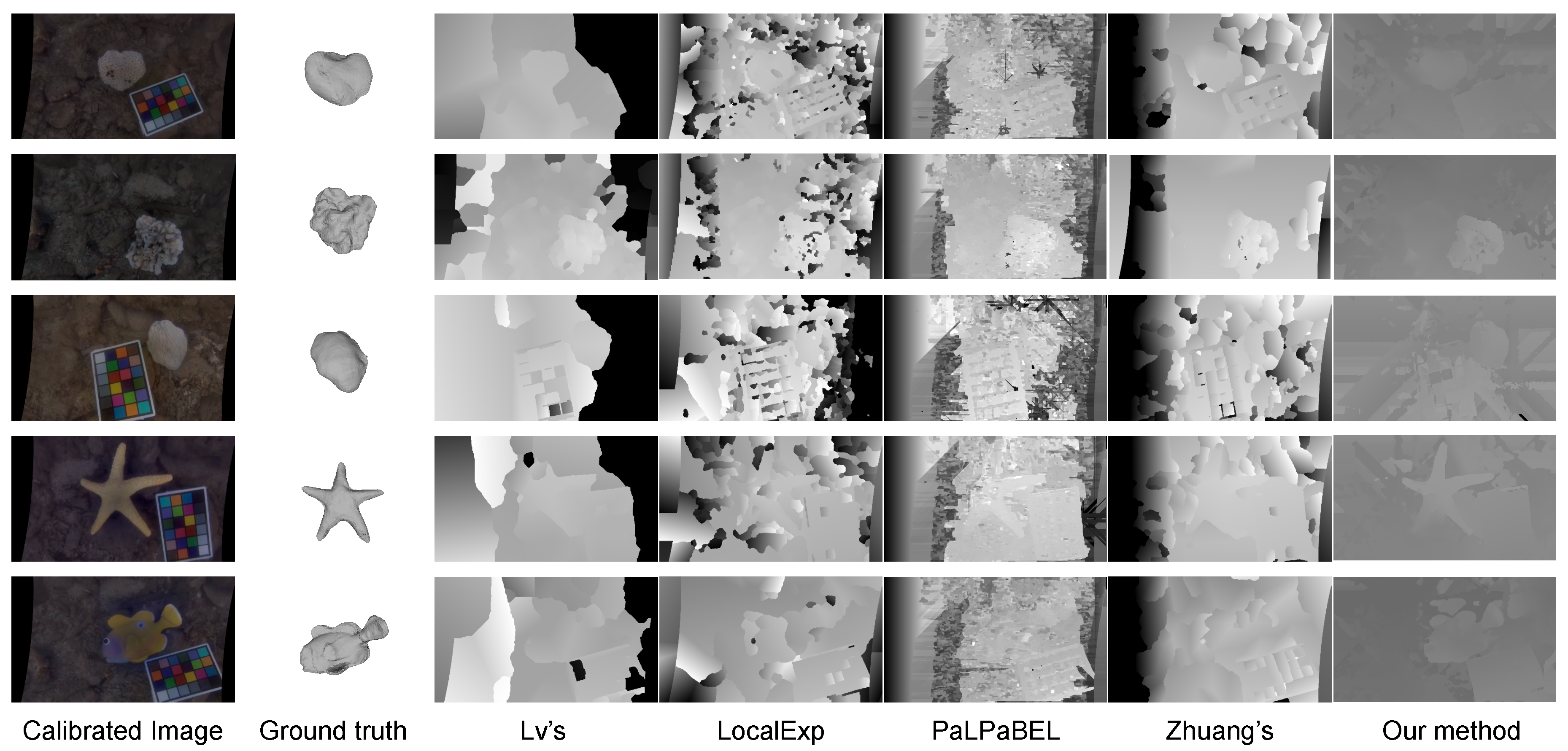

The error rates of different methods for disparity estimation on the UW-Middlebury dataset are illustrated. In

Table 2. UW-Middlebury benchmark dataset for 1.0-pixel accuracy. Error percents for non-occluded regions (nonocc) are shown. The shaded areas indicate the cost functions employed by each algorithm across three images. Best results are highlighted in bold.

Label	Avg (nonocc)	Cones	Teddy	Reind	Adiro	Motor	Piano	Pipes	Playr	Playt	Recyc
Our method	6.57	4.94	11.47	9.03	1.46	3.65	7.33	4.97	9.71	6.86	6.28
LocalExp [24]	8.51	7.5	13.17	13.67	2.14	4.85	8.69	6.93	9.74	7.73	6.84
Zhuang’s method [21]	7.64	7.73	11.99	12.16	1.98	4.47	9.33	7.5	10.38	8.38	7.17
Lv’s method [3]	7.73	5.01	14.53	13.47	1.43	3.75	10.04	5.66	9.84	6.49	7.09
PaLPaBEL [35]	24.77	8.12	18.18	24.81	30.03	18.68	30.64	22.84	37.33	30.47	26.6
SGBM [41]	28.28	17.08	25.88	31.74	34.22	17.8	29.92	18.83	36.75	49.29	25.7
PatchMatch [19]	25.69	12.57	31.43	17.62	30.77	19.4	28.65	24.86	41.65	26.03	23.9

, we display the rankings for the bad 1.0 metric, which measures the percentage of faulty pixels based on an error threshold of 1.0 pixels, using non-occluded regions as the metric. Table 1 adapts the same metrics for the entire image area. Both tables show the best result in bold for each image.

Our method exhibits a clear advantage over the other algorithms used for comparison. Through the application of distinct matching costs to different image groups in our experiment, we conducted a comparative analysis of the disparity estimation results for Cones, Teddy, and Reindeer. The results show the advantages of our cost function in Equation (3) while also illustrating the superiority of our label optimization process when compared to the matching errors for Adirondack and the six remaining images.

4.3. Experiments on Real Underwater Images

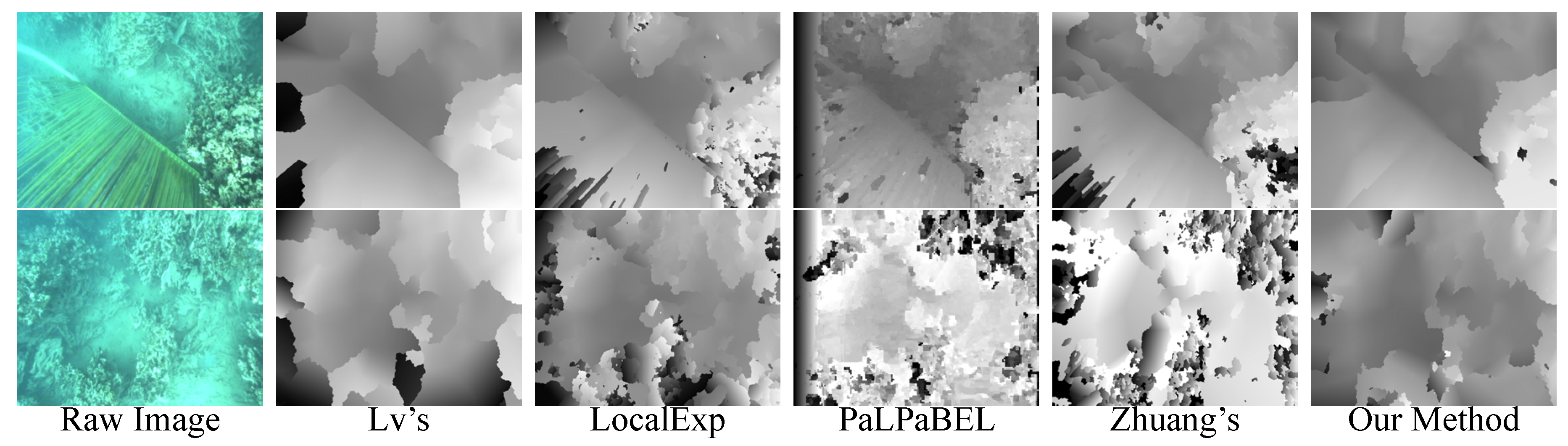

Two authentic datasets, sourced from deep-sea and nearshore environments, respectively, were utilized in this section’s experiments. We employed a real underwater dataset acquired by the Hawaii Institute of Marine Biology [10]. The images have the sizes of $512\times 512$ and $645\times 515$ pixels.

The dataset is accessed on 20 February 2024 at: https://github.com/kskin/UWStereo. In this scene, we directly used the raw underwater image pairs as input for the experiment. The images in this dataset were pre-processed by prior researchers. Consequently, our method directly employs them for analysis. In Figure 10, the left column shows underwater images. From top to bottom are left images of Leaf and Seabed. The remaining columns depict the disparity maps generated by different algorithms. We compared our method with all algorithms employed in Section 4.2, except for PatchMatch and SGBM, given their poor performance in Section 4.2.2.

We also utilized another dataset previously captured by our research institute [3], which is a color correction method designed for non-uniform lighting conditions. This dataset comprises five underwater scenes, which capture the feature of underwater images, showcasing color deviations resulting from underwater light absorption and scattering, as well as image quality degradation due to the uneven lighting condition. The dataset provides calibration data for the images and ground-truth meshes for the target objects obtained from a Kinect.

The dataset from our institute features a resolution of 4 K, processed using an enhancement algorithm [49]. Following this, stereo rectification was conducted based on the calibration data obtained from the “MATLAB Stereo Camera Calibrator” [50]. This dataset is accessed on 26 February 2024 at: https://github.com/uwstereo/underwater-datasets. We conducted a comparative experiment on multiple stereo matching methods using calibrated images, as shown in the left column of Figure 11. These underwater images are labeled Coralstone1, Coralstone2, Shell, Starfish, and Fish from top to bottom. The second column depicts the ground-truth 3D mesh of underwater targets. The remaining columns depict the disparity maps generated by different algorithms.

To elucidate the significance of each component of the algorithms, we subdivided the compared algorithms into their constituent elements, disparity representation, energy function, and optimization strategy, as detailed in

Table 3. An overview of comparative algorithm frameworks. The main framework of a method is composed of three components, with the configurations of them documented in checkmarks.

Method	Disparity Representation		Energy Function		Optimization Strategy
	Discrete Value	3D Label	Color-Based	Non-Color	Expansion	Propagation
PaLPaBEL [35]	✓			✓		✓
LocalExp [24]		✓	✓		✓
Zhuang’s method [21]		✓		✓	✓
Lv’s method [3]		✓		✓	✓
Our method		✓		✓	✓	✓

, irrespective of the specific details of the comparison algorithms.

PaLPaBEL [35], a stereo matching algorithm based on a propagation optimization strategy, is not suitable for parallel computing. It is the only method that employs discrete disparity values for disparity estimation in Table 3. On irregular surfaces, its resultant disparity maps exhibited block artifacts, with noise regions akin to those illustrated in Coralstone2 of Figure 11, evident upon map scaling. The performance of other methods in irregular object surfaces does not present this problem, emphasizing the significance of utilizing 3D labels for disparity representation.

LocalExp [24], which puts forward the local expansion moves, utilizes the same optimizer as our method. Furthermore, its algorithmic framework is akin to the approaches developed by Lv [3] and Zhuang [21]. Notably, it is the sole method in the table that employs an energy function based on color features, which comprise pixel color and color change in gradient. The results indicate that LocalExp yielded disparity maps characterized by significant noise and mismatched points when evaluated on two underwater datasets. Conversely, other stereo matching methods that employ relative pixel value information as the cost function exhibit superior performance. These comparative experiments demonstrate the benefits of our color-intensity-independent energy function when handling degraded quality in underwater images.

The coarse matching stage in our approach shares algorithmic structural similarities with the methods of Lv [3] and Zhuang [21]. The key difference lies in how these methods rely on random sampling within a central grid area to extract candidate labels, whereas our coarse matching stage utilizes segment information of cross-based patches across a grid to determine the range for extracting candidate labels. Experimental results on two sets of underwater images show that Lv’s method excels in deep-sea environments, as shown in Figure 10, while Zhuang’s method performs better in nearshore environments, as shown in Figure 11. The robustness of these methods across different underwater datasets is limited. In contrast, by incorporating segment-level information derived from cross-based patches into the extraction of candidate labels for both the expansion and propagation processes, our approach demonstrates superior performance across both datasets. With a smoother disparity map, the visual evidence confirms the reduced noise levels in disparity maps resulting from our method. Our results have fewer error regions (completely black areas in disparity maps), where the disparity value is 0 and equivalent to infinite depth.

To assess the accuracy of different methods, we performed triangulation of the objects to obtain point clouds, which are segmented in the disparity maps [51]. A comparison of these point clouds with their corresponding ground-truth mesh involved an initial manual coarse registration, followed by fine registration using the iterative closest point (ICP) algorithm [52]. The mean and standard deviation of the Hausdorff distance between the clouds and the meshes are used as evaluation metrics. The statistical findings for each method are summarized in

Table 4. The distances between ground-truth meshes and point clouds obtained by algorithms, measured in meters (mm). Best results are highlighted in bold.

Datasets	Average		Coralstone1		Coralstone2		Shell		Starfish		Fish
Method	avr	stdev	avr	stdev	avr	stdev	avr	stdev	avr	stdev	avr	stdev
Our method	0.42	8.29	0.14	2.68	0.05	4.48	0.12	3.57	0.51	6.98	1.26	23.72
Lv’s method [3]	6.21	16.83	0.27	3.94	12.66	9.56	1.77	9.26	8.90	25.18	7.43	36.20
LocalExp [24]	19.18	62.02	0.94	4.60	38.71	166.60	24.94	45.68	7.73	17.69	23.58	75.49
Zhuang’s method [21]	8.70	41.60	6.73	41.35	6.87	46.78	9.61	61.71	0.10	6.02	20.18	52.15
PaLPaBEL [35]	15.32	86.75	4.77	17.11	31.28	85.05	9.46	80.23	4.66	18.58	26.42	78.76

.

The superiority of our method in accurately reconstructing 3D underwater targets is highlighted in Table 4. Compared to Lv’s method, the most accurate currently available method, our method has shown a significant enhancement in the average precision of target reconstruction. Furthermore, notable improvements have been achieved in the accuracy of deviations for each reconstructed point. These experiment results show that our method delivers favorable outcomes by generating dense disparity maps in demanding underwater conditions characterized by light absorption and scattering.

5. Discussion

Results from the ablation study in Section 4.2.1 reveal that the introduction of an energy function for label optimization can enhance the algorithm’s performance in areas featuring repetitive textures. Combining the coarse and fine matching stages further strengthens the algorithm’s robustness in both textured repetitive regions and target boundary areas.

In Section 4.2.2 and Section 4.3, we evaluated the accuracy of various algorithms using disparity maps and reconstructed point clouds. Our method demonstrated superior performance in accuracy compared to both classical algorithms and current state-of-the-art approaches.

The impact of the working environment is generally more pronounced in classical methods [3]. Underwater environments often contain complex geometry, which can lead to significant occlusions. SGBM and PatchMatch, as classic local stereo methods, may struggle to accurately handle these occlusions, resulting in errors in disparity maps. In addition, color distortion in underwater images poses a challenge, as identical objects project with differing color characteristics across left and right images. This inconsistency in color features hinders the accurate depiction of the consistency of matching points through cost functions for PatchMatch and SGBM. Consequently, they often yield sparse disparity maps. State-of-the-art methods optimize energy functions using optimizers such as local expansion moves. In contrast to classic algorithms that focus on the similarity of matching points, optimizers can improve algorithm performance in occlusions and obtain dense disparity maps by considering the smoothness of the disparity map.

Given the real underwater datasets in Section 4.3, we conducted a visualization analysis using disparity maps to evaluate how our method performs relative to state-of-the-art methods. Relative to PaLPaBEL, our 3D label-based method exhibited adaptability to intricate surfaces. Compared to LocalExp, our non-color-feature-based energy function yielded disparity maps with lower noise levels. Additionally, the propagation process employed in our method demonstrated improved robustness across diverse underwater datasets, outperforming the methods of Lv and Zhuang.

6. Conclusions

This paper presents a stereo matching method designed for obtaining 3D information of underwater targets in marine engineering. The proposed method pioneers the integration of the cross-based patch into a propagation process in order to capitalize on the advantages of segment-based methods. To address the limitation in the propagation process imposed by the small texture, improvements are made to the cross-based patch approach.

Experimental results illustrate the superiority of our method over existing algorithms, highlighting the adaptability of the energy function to handle irregular underwater objects with the incorporation of 3D labels. In underwater simulation and real datasets, our method outperforms others in the level of detail present in the obtained disparity maps. As a variant of segment-based methods, our method has a better performance on poor textured surfaces. Furthermore, it demonstrates greater accuracy than other existing methods in obtaining three-dimensional information for marine engineering tasks.

Our current method exhibits an undesirable running speed. The forthcoming focus of our efforts will be on optimizing the division speed of the adaptive region. One potential strategy involves transitioning from processing RGB images to utilizing alternative image formats for adaptive region division, as described in [53].
