Investigation of the Bonding Mechanism of Al Powder Particles through Pulse Current Sintering Technology
Abstract
:1. Introduction
2. Experimental Procedure
3. Results and Discussion
3.1. The Ansys Finite Element Simulation
3.1.1. Finite Element Model
3.1.2. Structure Model
3.1.3. Thermoelectric Coupling Model
3.1.4. Boundary Conditions and Initial Conditions
- (1)
- Structural Boundary Conditions
- (2)
- Temperature Boundary Condition
3.1.5. Simulation Results
3.2. Interfacial Micro-Structure Feature
3.3. Nano-Indentation Property
3.4. Development of an Innovative Powder Sintering Technology
4. Conclusions
- (1)

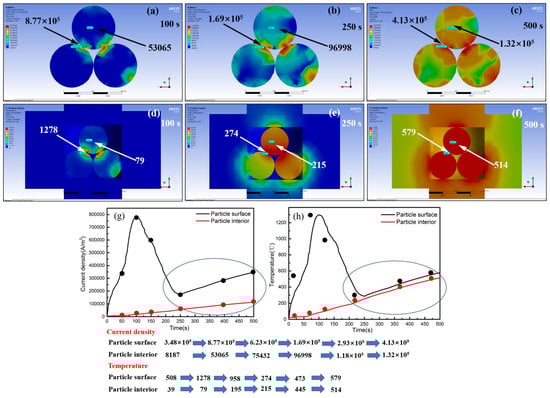

- The current distribution in pulse current sintering demonstrates that the pulse current flows preferentially through the particle surface. The pulse current density of the particle surface reaches 3.48 × 105 A/m2 instantly, while the current density of the particle center is only 8187 A/m2 at the initial stage, which is the main difference between pulse current sintering and traditional powder metallurgy sintering.
- (2)

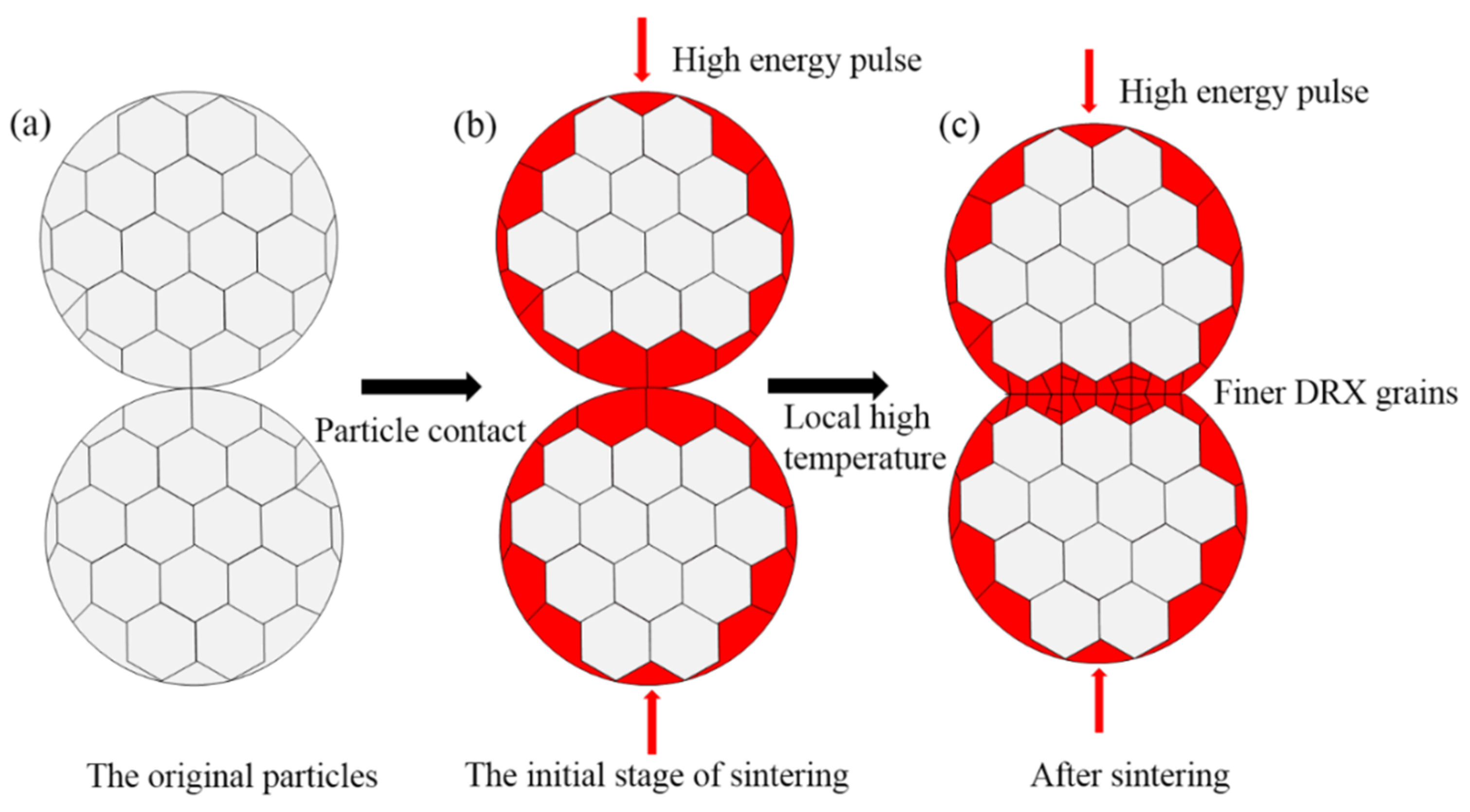

- Under the action of pulse current sintering, the gap arc, heat generation, melting, and connection processes occurred in sequence, which can be attributed to the change in the contact mode between Al particles. The micro-structure characteristics of EBSD and TEM also confirm the densification mechanism of the pulse current sintering technology.
- (3)
- An innovative powder sintering technology, the high-frequency pulse current sintering technique, is proposed based on the development of high-frequency welding.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Cheng, Y.L.; Cui, Z.Q.; Cheng, L.X.; Gong, D.Q.; Wang, W.X. Effect of particle size on densification of pure magnesium during spark plasma sintering. Adv. Power. Technol. 2017, 28, 1129–1135. [Google Scholar] [CrossRef]
- Liu, Z.F.; Zhang, Z.H.; Lu, J.F.; Korznikov, A.V.; Korznikova, E.; Wang, F.C. Effect of sintering temperature on microstructures and mechanical properties of spark plasma sintered nanocrystalline aluminum. Mater. Des. 2014, 64, 625–630. [Google Scholar] [CrossRef]
- Chen, H.S.; Wang, W.X.; Nie, H.H.; Zhou, J.; Li, Y.L.; Zhang, P. Microstructure and mechanical properties of B4C/6061Al laminar composites fabricated by power metallurgy. Vacuum 2017, 143, 363–370. [Google Scholar] [CrossRef]
- Dong, P.; Wang, Z.; Wang, W.X.; Chen, S.P.; Zhou, J. Understanding the spark plasma sintering from the view of materials joining. Scr. Mater. 2015, 99, 85–88. [Google Scholar] [CrossRef]
- Huang, K.L.; Yang, Y.; Qin, Y.; Yang, G.; Yin, D.Q. A new densification mechanism of copper powder sintered under an electrical field. Scr. Mater. 2016, 123, 118–121. [Google Scholar] [CrossRef]
- Zhang, Z.H.; Liu, Z.F.; Lu, J.F.; Shen, X.-B. The sintering mechanism in spark plasma sintering-Proof of the occurrence of spark discharge. Scr. Mater. 2014, 81, 56–59. [Google Scholar] [CrossRef]
- Tokita, M. Development of large-size ceramic/metal bulk FGM fabricated by spark plasma sintering. Mater. Sci. Forum 1999, 308–311, 83–88. [Google Scholar] [CrossRef]
- Wang, C.; Cheng, L.F.; Zhao, Z. FEM analysis of the temperature and stress distribution in spark plasma sintering: Modelling and experimental validation. Comp. Mater. Sci. 2010, 49, 351–362. [Google Scholar] [CrossRef]
- Vanmeensel, K.; Laptev, A.; Hennicke, J.; Vleugels, J.; Van der Biest, O. Modelling of the temperature distribution during field assisted sintering. Acta. Mater. 2005, 53, 4379–4388. [Google Scholar] [CrossRef]
- Pavia, A.; Durand, L.; Ajustron, F.; Bley, V.; Chevallier, G.; Peigney, A.; Estournès, C. Electro-thermal measurements and finite element method simulations of a spark plasma sintering device. J. Mater. Process. Tech. 2013, 213, 1327–1336. [Google Scholar] [CrossRef]
- Achenani, Y.; Malika, S.; Cheddadi, A.; Guillaume, B.; Gilbert, F. Finite element modeling of spark plasma sintering: Application to the reduction of temperature inhomogeneities, case of alumina. Mater. Des. 2016, 116, 504–514. [Google Scholar] [CrossRef]
- Liu, Y.-W.; Wang, X.-X.; Lu, Y.-X.; Tian, H.; Zhu, H.; Meng, M.-F.; Zhao, L.; Gu, B. Study on evaporation from alloys used in microwave vacuum electron devices. Acta Phys. Sin. 2016, 65, 068502. [Google Scholar]
- Yanagisawa, O.; Kuramoto, H.; Matsugi, K.; Komatsu, M. Observation of particle behavior in copper powder compact during pulsed electric discharge. Mater. Sci. Eng. A 2003, 350, 184–189. [Google Scholar] [CrossRef]
- Nix, W.D.; Gao, H.J. Indentation size effects in crystalline materials: A law for strain gradient plasticity. J. Mech. Phys. Solids 1998, 46, 411–425. [Google Scholar] [CrossRef]
- Choi, I.C.; Kim, Y.J.; Wang, Y.M.; Ramamurty, U.; Jang, J.I. Nanoindentation behavior of nanotwinned Cu: Influence of indenter angle on hardness, strain rate sensitivity and activation volume. Acta Mater. 2013, 61, 7313–7323. [Google Scholar] [CrossRef]
- Xu, Z.B.; Zhang, T.T.; Wang, Y.; Bian, G.B.; Wang, T.; Wang, W.W. Interfacial Bonding Mechanism of AZ31B Magnesium Alloy Composite Plates Rolling-welding Assisted by High Frequency Pulse Current. Rare Met. Metal. Mat. Eng. 2024, 53, 169–177. [Google Scholar]
Element | Al | Zn | Mg | Cu | Cr | Fe | Si | Mn |
---|---|---|---|---|---|---|---|---|
Content | 89.25 | 5.53 | 2.67 | 1.75 | 0.26 | 0.19 | 0.17 | 0.082 |

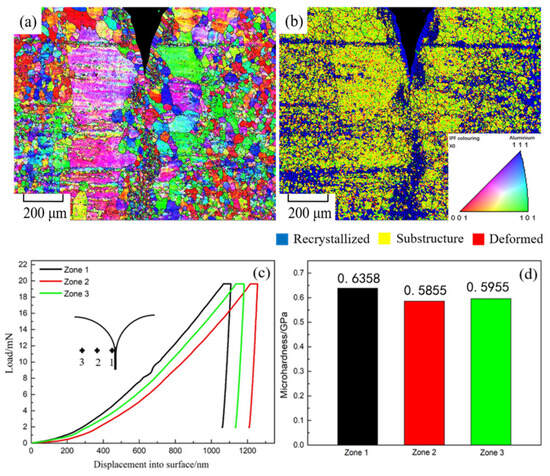

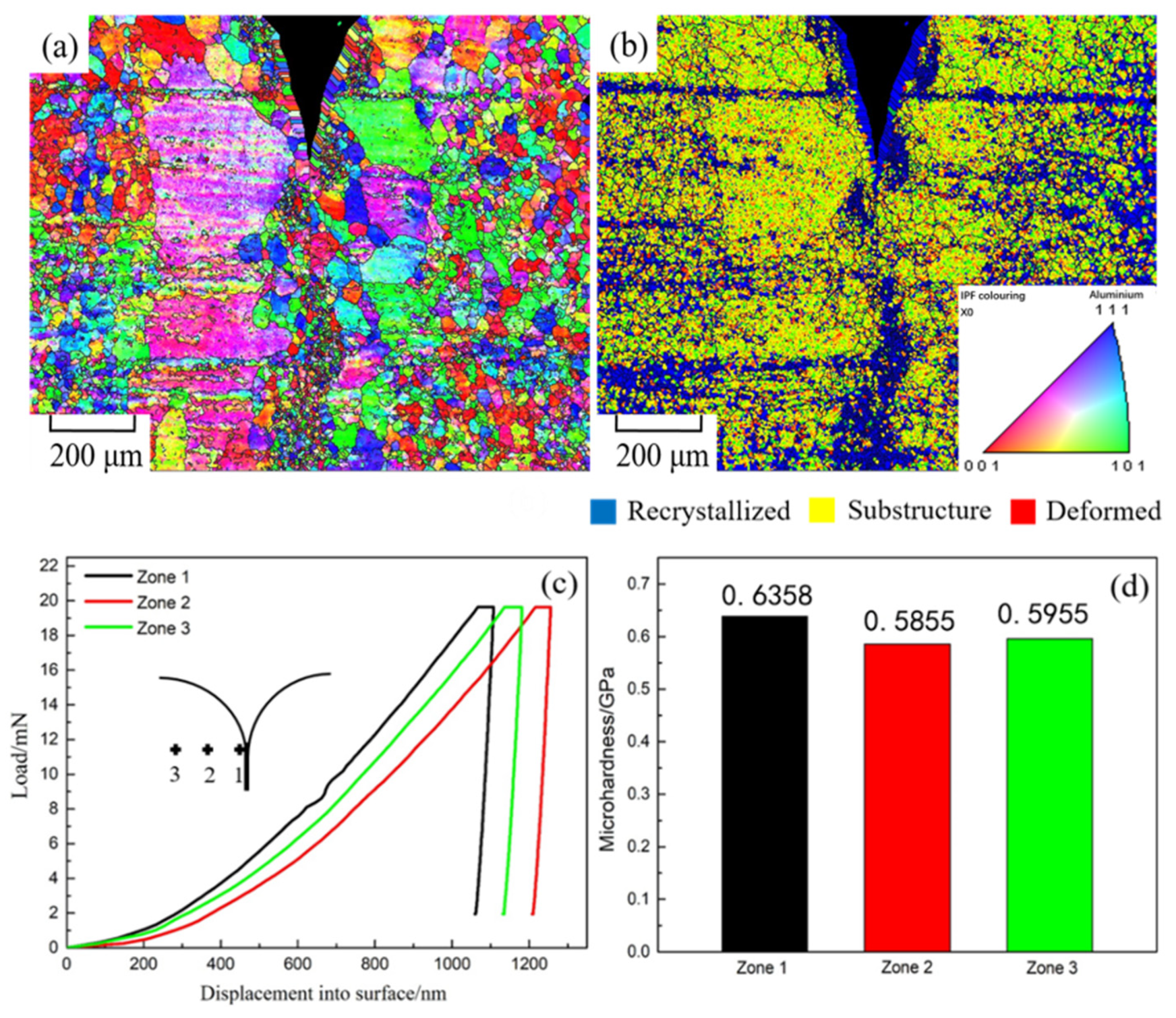

Zone 1 | /GPa | /μm | R2 | Yield Strength/MPa |
---|---|---|---|---|
1 | 0.630 | 0.511 | 0.984 | 210.00 |
2 | 0.532 | 0.954 | 0.976 | 177.33 |
3 | 0.682 | 0.426 | 0.985 | 227.33 |
4 | 0.583 | 0.653 | 0.988 | 194.33 |
5 | 0.675 | 0.546 | 0.936 | 225.00 |
6 | 0.666 | 0.311 | 0.959 | 222.00 |
Average | 0.6385 | 212.83 | ||
Zone 2 | /GPa | /μm | R2 | Yield Strength/MPa |
1 | 0.519 | 0.747 | 0.999 | 173.00 |
3 | 0.652 | 0.433 | 0.942 | 217.33 |
5 | 0.643 | 0.419 | 0.952 | 214.33 |
6 | 0.535 | 0.766 | 0.954 | 178.33 |
7 | 0.616 | 0.512 | 0.964 | 205.33 |
8 | 0.548 | 0.853 | 0.995 | 182.67 |
Average | 0.5855 | 195.17 | ||
Zone 3 | /GPa | /μm | R2 | Yield Strength/MPa |
1 | 0.617 | 0.711 | 0.992 | 205.67 |
2 | 0.536 | 0.927 | 0.980 | 178.67 |
3 | 0.576 | 0.729 | 0.992 | 192.00 |
4 | 0.653 | 0.437 | 0.976 | 217.67 |
5 | 0.590 | 0.615 | 0.991 | 196.67 |
6 | 0.599 | 0.727 | 0.981 | 199.67 |
Average | 0.5955 | 198.50 |
