Communication

The Morphological and Molecular Characterization of the Avian Trematodes Harrahium obscurum and Morishitium dollfusi (Digenea: Cyclocoelidae) from the Middle Volga Region (European Russia)

by
Alexander A. Kirillov
1,*,
Nadezhda Yu. Kirillova
1,
Sergei V. Shchenkov
2,
Alexei E. Knyazev
1 and
Victoria A. Vekhnik
1
1
Laboratory for Zoology and Parasitology, Institute of Ecology of Volga River Basin RAS, Samara Federal Research Scientific Center RAS, Togliatti 445003, Russia
2
Department of Invertebrate Zoology, Saint Petersburg State University, St. Petersburg 199034, Russia
*
Author to whom correspondence should be addressed.
Biology 2024, 13(8), 621; https://doi.org/10.3390/biology13080621
Submission received: 12 July 2024 / Revised: 8 August 2024 / Accepted: 14 August 2024 / Published: 15 August 2024
(This article belongs to the Section Zoology)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Parasitic flatworms of the family Cyclocoelidae parasitize various inner organs of birds, mainly in their respiratory and digestive systems. The taxonomic position of many cyclocoelid species remains controversial. In our study, we studied two species of trematodes from the family Cyclocoelidae (Harrahium obscurum and Morishitium dollfusi) using classical morphological and molecular phylogenetic approaches. We provided original drawings, morphological descriptions, and the results of a molecular phylogenetic analysis of these species of helminths from birds in Russia for the first time. Our work shows the morphological variability in individuals of both flatworm species. Since the variability of individual cyclocoelids may be rather high, morphological features alone are insufficient for their identification, and confirmation with the use of molecular data is required.

Abstract

The taxonomic status of many species of the family Cyclocoelidae is still unclear. Two species of cyclocoelids, Harrahium obscurum and Morishitium dollfusi, were collected from the air sacs of birds (Turdus merula and Tringa ochropus) inhabiting the Middle Volga region (European Russia). Here, we provide the first detailed morphological description of these cyclocoelids and combine it with the first molecular phylogenetic analysis of Cyclocoelidae from birds in Russia based on partial sequences of their 28s rDNA and coI mtDNA genes. Specimens of both flatworm species from different host individuals differ slightly in body shape and size, which probably reflects host-induced intraspecific variability. For the first time, we have shown that a stable morphological character such as the length of the vitelline fields in the studied digeneans is variable at the species level and cannot be used in their morphological diagnosis.

1. Introduction

The family Cyclocoelidae was erected more than 120 years ago. Despite this, the taxonomic status of many cyclocoelid species is still unclear [1]. The morphological differences between some genera of the family Cyclocoelidae are insignificant, which complicates their species identification [2]. There are also very limited molecular data on cyclocoelids of the world’s fauna [1,3,4,5,6,7].
Trematodes of the family Cyclocoelidae are represented in Russia by 11 genera and 29 species. Of these, 18 species from 9 genera are known parasites of birds in European Russia [2,8,9,10,11]. However, there are no molecular genetic data on cyclocoelids in Russia.
The cosmopolitan species Harrahium obscurum (Leidy, 1887) (formerly Cyclocoelum obscurum) parasitizes the air sacs of various birds of the order Charadriiformes [1]. In Russia, this cyclocoelid species was identified only from Gallinago gallinago (Linnaeus, 1758), Numenius arquata (Linnaeus, 1758), Limosa limosa (Linnaeus, 1758), and Tringa totanus (Linnaeus, 1758) in the territory of Dagestan [9].
According to Sitko et al. [1], Harrahium spp. usually parasitizes waders of the family Scolopacidae, while Cyclocoelum mutabile (Zeder, 1800) usually parasitizes Rallidae birds. Therefore, we believe that H. obscurum could previously have been identified as C. mutabile or Cyclocoelum pseudomicrostomum Harrah, 1922 in Russian waders. Additionally, we know of similar are known for shorebirds of the Komi Republic, Leningrad, and Rostov regions, the White Sea, the Middle Volga region, the Volga delta, the Urals, Western and Eastern Siberia, and Primorsky Kraj [8,11,12,13,14,15,16,17,18]. In the Middle Volga region, Cyclocoelum trematodes (as C. mutabile) were found in G. gallinago, L. limosa, and Vanellus vanellus (Linnaeus, 1758) in Bashkortostan, as well as in Tringa ochropus Linnaeus, 1758 in the Nizhny Novgorod region [13,17]. Unfortunately, these works do not present the morphological and morphometric characteristics of the studied cyclocoelids, nor any molecular data.
Morishitium polonicum (Machalska, 1980) was previously considered to be a specific parasite of the air sacs of thrushes in Europe [1,6,19,20] and was first recorded by us in Russia in the common blackbird Turdus merula Linnaeus, 1758 and in the hawfinch Coccothraustes coccothraustes (Linnaeus, 1758) [10]. According to a recent study by Heneberg and Sitko [6], M. polonicum is a junior synonym of Morishitium dollfusi (Timon-David, 1950), a common parasite of European corvids and thrushes.
In this study, we collected and analyzed the morphological and morphometric characteristics of two cyclocoelid species and for the first time presented molecular phylogenetic data on cyclocoelids from Russia.

2. Materials and Methods

2.1. Trematodes’ Collection and Morphological Examination

During a comprehensive parasitological survey of birds in the Middle Volga region (European Russia), the helminth fauna of 8 individuals of Tringa ochropus and 11 individuals of Turdus merula was studied in April and August–September of 2022 and 2023. Adult specimens of cyclocoelids were collected from birds in two locations in the Middle Volga region: the Samara region and the Republic of Mordovia.
Cyclocoelid trematodes were recovered from the air sacs of three T. ochropus and two T. merula and preliminarily identified as H. obscurum and M. dollfusi, respectively. In total, 14 specimens of H. obscurum and 136 specimens of M. dollfusi were collected. Only alive motile digeneans were selected for the study. For morphological examination, 20 specimens of M. dollfusi and 12 specimens of H. obscurum were immobilized by heating in saline. The parasites were then stained with acetic carmine, dehydrated, cleared with clove oil, and mounted in Canada balsam. Specimens of cyclocoelids from each host species were fixed in 96% ethanol and stored at +4 °C for molecular phylogenetic analysis. The drawings were made using an MBI-9 light microscope (Lomo, Saint Petersburg, Russia) with a Levenhuk M500 BASE Digital Camera (Levenhuk, Inc., Tampa, FL, USA) and a RA-7 drawing tube. All measurements are given in millimeters. Morphological identification was carried out using the keys of Bashkirova [21], Dronen and Tkach [22], and Dronen and Blend [2]. Voucher specimens were deposited at the Institute of Ecology of the Volga River Basin of the Russian Academy of Sciences (Togliatti).

2.2. Molecular Data and Phylogenetic Analysis

Total DNA was isolated from small tissue sections of individual specimens using Chelex-100 (Bio-Rad, Hercules, USA) with a Proteinase-K solution (diaGene, Moscow, Russia). The primers ‘28sy/28sz’ [23] and ‘JB3/JB4.5’ [24] were used to amplify partial 28S rDNA and coI mtDNA, respectively. PCR parameters were set according to Kirillova et al. [25]. Amplicons were sequenced at “Evrogen” (Moscow, Russia).
To assess the phylogenetic position of the species, the 28S rDNA gene dataset (Table 1) was analyzed according to a pipeline implemented in the “R” programming language [26]. The code (including the Bayes block) is available at the following GitHub repository: ‘https://github.com/Shchenkov/dirty_seqs’ (accessed on 22 May 2024). A Bayesian Inference analysis was performed with Mr. Bayes 3.2.7a on a local workstation. The quality of the chains was estimated using the built-in MrBayes tools. Based on estimates, the first 25,000 generations were discarded for burn-in. The final length of the alignment was 1043 bp. We included Himasthla elongata (Mehlis, 1831) as an outgroup in our analysis following the results of Perez-Ponce de Leon and Hernandez-Mena [27]. Pairwise distances were calculated from coI mtDNA sequences in MEGA 11 software using standard parameters [28]. A heatmap based on pairwise distances was made using the “ComplexHeatmap” library [29] in the “R” programming language.

3. Results

3.1. Systematic and Morphological Characteristics of the Studied Cyclocoelids

Family Cyclocoelidae Stossich, 1902
Genus Harrahium Witenberg, 1926
Harrahium obscurum (Leidy, 1887) (Figure 1)
Host: the green sandpiper Tringa ochropus Linnaeus, 1758 (Scolopacidae).
Site of infection: air sacs of lungs.
Locality: Mordovia Nature Reserve (Republic of Mordovia, 54.932270° N, 43.421529° E; 54.726151° N, 43.148885° E; 54.744993° N, 43.116004° E).
Prevalence: 37.5% (3 of 8 birds).
Intensity: 2–9 per infected wader.
Mean intensity: 1.75.
Accession numbers in collection of IEVB RAS: No 2301–2306.
Availability (Representative DNA sequence): GenBank No 28S rDNA—PP935228, coI mtDNA—PP934665).
General description of Harrahium obscurum (based on 12 mature specimens): Body lanceolate, elongated, tapered anteriorly and rounded posteriorly. Mouth subterminal. Oral sucker vestigial. Ventral sucker absent. Pharynx small, oval. Esophagus thin, more or less S-shaped. Ceca extend to body end, united behind the posterior testis and forming cyclocoel. Testes, oval, entire, lie in posterior body part. Posterior testis located medially and lies directly in cyclocoel. Anterior testis lies at some distance from posterior one and adjacent to cecal branch. Cirrus sac pear-shaped, located at level of esophagus, and does not reach level of cecal bifurcation. Genital pore medial, located at approximately midlevel of pharynx. Ovary round, intertesticular, much smaller than testes, forms a triangle with testes and lies on side opposite anterior testis. Ovary separated from posterior testis by Mehlis’ gland. Mehlis’ gland (complex) round, located dorsally posterior to ovary, approximately the same size as ovary. Uterine seminal receptacle small, pear-shaped. Laurer’s canal not observed. Vitellarium consists of small follicles of irregular shape. Vitelline fields extend along ceca laterally from level of ceca bifurcation (or slightly above) to posterior extremity, not confluent posteriorly. Transverse vitelline ducts run along anterior margin of posterior testis. They unite behind the Mehlis’ complex and form the vitelline reservoir. Uterus intercecal, fills entire space between ceca branches and uterus loops does not extend beyond them. Metraterm well developed.
Remarks: All specimens of H. obscurum from different individuals of T. ochropus were morphologically similar. At the same time, variability in body and organ sizes was observed among different individual trematodes. The morphometric characteristics of the studied specimens of H. obscurum are presented in Table 2.
Genus Morishitium Witenberg, 1928
Morishitium dollfusi (Timon-David, 1950) (Figure 2)
Syn.: Morishitium polonicum (Machalska, 1980)
Host: the common blackbird Turdus merula Linnaeus, 1758 (Turdidae).
Site of infection: air sacs of lungs.
Locality: vicinity of Kashpir village (Samara region, 53.004919°N, 48.554057°E).
Prevalence: 18.2% (2 of 11 birds).
Intensity: 56–70 per infected bird.
Mean intensity: 12.4.
Accession numbers in collection of IEVB RAS: No 2307–2316.
Availability (Representative DNA sequence): GenBank No 28S rDNA—PP935227, coI mtDNA—PP934664.
General description of Morishitium dollfusi (based on 20 mature specimens): Body lanceolate, elongated, tapered anteriorly and rounded posteriorly. Oral sucker vestigial. Ventral sucker absent. Pharynx round. Prepharynx short. Esophagus thin. Ceca extend along the body to posterior end, united behind posterior testis and forming cyclocoel. Testes oval, entire, located in the posterior body part. Posterior testis always larger than anterior one, located along the body midline and lies directly in cyclocoel. Anterior testis displaced from the midline to cecal wall, located at some distance from the posterior one. Cirrus sac pear-shaped, located at esophagus level. Cirrus sac base reaches cecal bifurcation, but does not extend below it. Genital pore postpharyngeal, medial or slightly submedial. Ovary round and lies between testes, approximately in line with them. Mehlis’ gland approximately the same size as ovary and located dorsally, at posterolateral margin of ovary. Uterine seminal receptacle small, pear-shaped. Laurer’s canal not observed. Vitellarium consists of small follicles of irregular shapes, begins approximately at the level of the posterior margin of cecal bifurcation and does not extend beyond bifurcation. Vitelline fields extend laterally to posterior body end, not confluent posteriorly. Transverse vitelline ducts lie at level of anterior margin of posterior testis, unite behind Mehlis’ gland, and form vitelline reservoir. Uterus intercecal, occupies entire space between ceca branches and does not extend beyond them. Metraterm well developed.
Remarks: All specimens of M. dollfusi from both infected individuals of T. merula were morphologically similar (Figure 2A–C). At the same time, in different specimens of trematodes, variability was observed in the size of the body and inner organs, as well as in the position of the vitelline fields (Figure 2, Table 3).

3.2. Molecular Phylogenetic Analysis

Newly obtained sequences of the 28S rRNA gene of M. dollfusi were clustered with previously obtained sequences of the same species (Figure 3). Morishitium polonicum was found to be the sister clade of M. dollfusi, with full Bayesian support. Circumvitellatrema nomota was the sister clade of M. dollfusi and M. polonicum. The sequence of H. obscurum obtained in this study clustered with the sequence of H. obscurum previously described as Cyclocoelum mutabile (AY222249). Together, these sequences clustered with Neohaematotrephus arayae and then with Anativermis normdroneni. The sequences of Tracheophilus cymbius and Typhlocoelum sp. were clustered, with full Bayesian support, and together occupied the basal position among all cyclocoelids.
The pairwise distances between the newly obtained partial coI mtDNA sequence of M. dollfusi and the previously obtained ones are equal to 0.01 (Figure 4). At the same time, previously published sequences are identical to each other. The coI mtDNA sequence of H. obscurum we obtained is identical to one previously published and is at a small phylogenetic distance (0.01) from other available sequences. Harrahium obscurum is at intergeneric phylogenetic distance from M. dollfusi specimen. The phylogenetic distances between other specimens studied correspond to the levels of their phylogenetic positions, i.e., they are predictably consistent with intraspecific, interspecific, and intrageneric levels.

4. Discussion

In this study, we analyzed the morphological features and morphometric characteristics of two cyclocoelid species—H. obscurum and M. dollfusi—from two bird species of the Middle Volga region (European Russia) and obtained new molecular phylogenetic data on these parasites. The combined use of morphological and molecular phylogenetic methods made it possible to reliably identify the two cyclocoelid species we studied.
In general, the results of a molecular phylogenetic analysis based on the currently available and newly obtained sequences of cyclocoelids are partially consistent with previously published data. According to the results of the p-distance estimation, the species identification was correct in both cases, although it is quite difficult to identify cyclocoelid species using only morphological criteria (see below). Our phylogenetic analysis of partial 28S rRNA gene sequences revealed that Hyptiasminae and Cyclocoelinae are polyphyletic subfamilies, whereas Haematotrephinae is paraphyletic clade.
The morphology of all specimens of H. obscurum and M. dollfusi is consistent with their previous descriptions [1,7,10,19,20,30,37,38,39]. The specimens of two cyclocoelid species in our study generally corresponded to their previously presented morphometric characteristics (Table 2 and Table 3). Some differences were revealed in the morphometric characteristics of the studied specimens of both cyclocoelid species. Thus, the body length and width and the size of the reproductive organs varied in individuals of both of the species examined. In addition, M. dollfusi specimens showed variability in their body shape, the length of their vitelline fields, and the position of their genital pore. Among Morishitium specimens with a normal body shape (Figure 2A,C), there were individuals with a narrower, elongated body (Figure 2B). The anterior margin of the vitelline fields on the left and right can be either at the same level or at different levels (Figure 2). There was also variability in the position of the genital pore, which was located both medially and submedially in different Morishitium specimens.
We have provided the first complete morphological description of H. obscurum from T. ochropus, including morphometric data. The H. obscurum specimens we studied differed from those previously described in the length of their esophagus and post-testicular space (Table 2). Our specimens of Harrahium had a shorter esophagus and their post-testicular distance was greater than in previously described H. obscurum specimens [37,38,39].
The location of the genital pore is used in the identification of the genera of Cyclocoelidae [2,41]. In all studied specimens of H. obscurum, the genital pore was located approximately at the midlevel of the pharynx or somewhat posteriorly. Sitko et al. [1] describe a prepharyngeal location of the genital pore in their H. obscurum ex T. erythropus specimens. At the same time, Lopez-Jimenez et al. [30] noted that a contraction of the body can lead to changes in the position of the genital pore. Their work revealed the variability in the location of the genital pore from the anterior margin of the pharynx to its midlevel. In addition, the vitelline fields in the trematode specimens we studied always began at the level of the cecal bifurcation or slightly higher. On the other hand, in specimens from the works of other authors, the vitellarium began at the level of the pharynx [1,37]. Therefore, we believe that these two morphological features cannot be used in the morphological diagnosis of H. obscurum.
Our specimens of M. dollfusi had a shorter esophagus than specimens from previous descriptions (Table 3). In all studied specimens of M. dollfusi, the vitelline fields did not extend anteriorly to the intestinal bifurcation (Figure 2). In contrast, in the previously described M. dollfusi, the vitelline fields, at least on one side, reached the level of the oral sucker [1,2]. Therefore, as in the case of H. obscurum, the extent of the vitelline fields cannot be used in the diagnosis of M. dollfusi. A number of studies have also questioned the usefulness of the anterior and/or posterior distribution/extent of the vitelline fields in cyclocoelids as a diagnostic characteristic [42,43,44,45,46].
Different species of Cyclocoelidae are often morphologically similar and exhibit intraspecific variability [2,7,42,43,44,45,46]. This similarity can lead to confusion during species identification. Our study showed that a relatively constant morphological feature in the studied specimens of both cyclocoelid species is the position of the gonads. Thus, in H. obscurum, the ovary forms a triangle with the testes, and the ovary is always separated from the posterior testis by Mehlis’ gland. In M. polonicum, the ovary lies approximately on the same line as the testes, and Mehlis’ gland is located on the posterolateral edge of the ovary. Therefore, we believe that this morphological characteristic (the position of the gonads relative to each other) retains its significance as a generic status feature in the morphological diagnosis of cyclocoelids. However, some studies note variability in the position of the ovary and testes in cyclocoelids [2,46,47]. Dronen and Blend [2] attribute this to the procedure used for sample preparation.
Of the 11 examined individuals of T. merula from the Samara region, only two adult thrushes were infected with M. dollfusi. The parasite was not detected in 9 young birds. Our previous studies also showed the absence of an infection of young thrushes with Morishitium trematodes in Mordovia [10,48]. This may indicate that the infection of birds with M. dollfusi occurs in the Mediterranean region, where the wintering grounds of thrushes are located [49]. In addition, the life cycle of M. dollfusi includes terrestrial snails (mainly of the genus Helicella Ferussac, 1821) as intermediate hosts [19,20,50,51]. Gastropods of this genus do not live in the Middle Volga region. In spring (mid-April), we also found H. obscurum trematodes in three adult waders of T. ochropus. Five young waders were not infected with trematodes, which also indicates that birds become infected with this parasite in their wintering areas (Southern Europe, Africa, and South Asia) [52].

5. Conclusions

We have provided the first detailed morphological and morphometric description of two cyclocoelid species, Harrahium obscurum and Morishitium dollfusi, and presented the first molecular data on these cyclocoelids from birds in Russia. Specimens of H. obscurum and M. dollfusi from different individuals of both host species differ slightly in their body shape and the size of their internal organs, which probably reflects host-induced intraspecific variability. Overall, our data complement and expand our knowledge on the distribution of these two cyclocoelids.

Author Contributions

Conceptualization, A.A.K., A.E.K. and N.Y.K.; methodology, N.Y.K., S.V.S. and A.E.K.; software, A.A.K. and V.A.V.; validation, A.A.K. and N.Y.K.; formal analysis, N.Y.K., S.V.S. and A.A.K.; investigation, N.Y.K., S.V.S., A.E.K. and A.A.K.; resources, A.A.K., V.A.V. and S.V.S.; data curation, A.A.K., N.Y.K. and S.V.S.; writing—original draft preparation, A.A.K., N.Y.K. and S.V.S.; writing—review and editing, N.Y.K., A.A.K. and V.A.V.; visualization, A.A.K., N.Y.K. and S.V.S.; supervision, A.A.K. and N.Y.K.; project administration, N.Y.K. and A.A.K.; funding acquisition, A.A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 23-24-10021, https://rscf.ru/en/project/23-24-10021/ (accessed on 15 July 2024).

Institutional Review Board Statement

The study was approved by the Bioethics Committee of the Institute of Ecology of the Volga River Basin of RAS (No 3/24; 31 July 2024). This study on bird helminths was authorized by permits No. 083 and No. 084 for the use of flora and fauna objects by the Federal Service for Supervision of Natural Resources (2 August 2022) and permits No. 1–7 by the Ministry of Forestry, Environmental Protection and Nature Management of the Samara Region (21 April 2023). Our research was conducted in compliance with ethical standards for the humane treatment of animals and in accordance with the recommended standards described by the Directive of the European Parliament and of the Council of the European Union of 22 September 2010 “On the protection of animals used for scientific purposes” (EU Directive 2010/63/EU).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sitko, J.; Bizos, J.; Heneberg, P. Central European parasitic flatworms of the Cyclocoelidae Stossich, 1902 (Trematoda: Plagiorchiida): Molecular and comparative morphological analysis suggests the reclassification of Cyclocoelum obscurum (Leidy, 1887) into the Harrahium Witenberg, 1926. Parasitology 2017, 144, 368–383. [Google Scholar] [CrossRef]
  2. Dronen, N.O.; Blend, C.K. Updated keys to the genera in the subfamilies of Cyclocoelidae Stossich, 1902, including a reconsideration of species assignments, species keys and the proposal of a new genus in Szidatitreminae Dronen, 2007. Zootaxa 2015, 4053, 1–100. [Google Scholar] [CrossRef]
  3. Littlewood, D.T.J.; Bray, R.A. Interrelationships of the Platyhelminthes; Taylor & Francis: London, UK, 2001; pp. 3–376. [Google Scholar]
  4. Libert, C.; Jouet, D.; Ferte, H.; Lemberger, K.; Keck, N. Air sac fluke Circumvitellatrema momota in a captive blue-crowned motmot (Momotus momota) in France. J. Zoo. Wildl. Med. 2012, 43, 689–692. [Google Scholar] [CrossRef] [PubMed]
  5. Tkach, V.V.; Kudlai, O.; Kostadinova, A. Molecular phylogeny and systematics of the Echinostomatoidea Looss, 1899 (Platyhelminthes: Digenea). Int. J. Parasitol. 2016, 46, 171–185. [Google Scholar] [CrossRef] [PubMed]
  6. Galosi, L.; Heneberg, P.; Rossi, G.; Sitko, J.; Magi, G.E.; Perrucci, S. Air sac trematodes: Morishitium polonicum as a newly identified cause of death in the common blackbird (Turdus merula). Int. J. Parasitol. Parasites Wildl. 2019, 30, 74–79. [Google Scholar] [CrossRef]
  7. Heneberg, P.; Sitko, J. Morishitium polonicum (Machalska, 1980) is a junior synonym of Morishitium dollfusi (Timon-David, 1950) (Trematoda: Cyclocoeliidae). Parasitol. Res. 2023, 122, 3159–3168. [Google Scholar] [CrossRef]
  8. Bykhovskaya-Pavlovskaya, I.E. Trematodes of Birds of the Fauna of the USSR; Academy of Sciences of the USSR: Moscow-Leningrad, Russia, 1962; pp. 3–407. [Google Scholar]
  9. Aliev, S.K. Ecological Faunistic and Epizootological Characteristics of Gamebirds of the North Caucasus. Ph.D. Thesis, K.I. Skrjabin All-Russian Scientific-Research Institute of Helminthology, Moscow, Russia, 2006; 438p. [Google Scholar]
  10. Kirillova, N.Y.; Kirillov, A.A.; Spiridonov, S.N.; Grishutkin, G.F. First finding of Morishitium polonicum (Trematoda, Cyclocoelidae) in Turdus merula and Coccothraustes coccothraustes in Russia. Nat. Conserv. Res. 2019, 4, 117–119. [Google Scholar] [CrossRef]
  11. Dorzhiev, T.Z.; Badmaeva, E.N.; Dugarov, Z.N. Helminths of wetland birds from the Baikal Siberia: Taxonomic diversity and host distribution. Nat. Inn. Asia 2021, 1, 23–65. [Google Scholar]
  12. Witenberg, G.G. The trematodes of the family Cyclocoelidae and a new principle of their systematics. Proc. St. Inst. Exp. Vet. 1923, 1, 84–141. [Google Scholar]
  13. Sobolev, A.A. Parasitic Worms in Marsh Gamebirds of Order Limicolae from Gorky Oblast. Ph.D. Thesis, Nizhny Novgorod State Pedagogical Institute, Nizhny Novgorod, Russia, 1940. [Google Scholar]
  14. Ginetsinskaya, T.A.; Naumov, D.V. Helminth fauna of some species of shorebirds from the White Sea. In Works on Helminthology; Shikhobalova, N.P., Ed.; Academy of Sciences of the USSR: Moscow, Russia, 1958; pp. 99–108. [Google Scholar]
  15. Oshmarin, P.G. Parasitic Worms of Mammals and Birds in the Primorskij Krai; Academy of Sciences of the USSR: Moscow, Russia, 1963; pp. 3–332. [Google Scholar]
  16. Ivanov, V.M.; Semenova, N.N.; Kalmykov, A.P. Helminths in the Volga Delta Ecosystem. Vol. 1. Trematodes; IPK Volga: Astrakhan, Russia, 2012; pp. 3–255. [Google Scholar]
  17. Bayanov, M.G.; Kniss, V.A.; Khabibullin, V.F. Catalog of Animals of Bashkortostan; Bashkiria State University: Ufa, Russia, 2015; pp. 3–350. [Google Scholar]
  18. Shaldybin, L.S.; Anikin, V.I.; Budkin, R.D.; Suslova, M.M. Materials on the helminth fauna of animals in the conservation zone of the Pechoro-Ilych Nature Reserve (Communication 1). In Fauna, Systematics, Biology and Ecology of Helminths and Their Intermediate Hosts; Shaldybin, L.S., Ed.; Gorky State Pedagogical Institute: Gorky, Russia, 1977; pp. 3–27. [Google Scholar]
  19. Machalska, J. Cyclocoelum polonicum sp.n. (Trematoda, Cyclocoelidae) from the thrushes Turdus philomelos Br. and T. merula L. Act. Parasitol. Pol. 1980, 26, 129–136. [Google Scholar]
  20. Jaume-Ramis, S.; Pinya, S. First record of Morishitium polonicum (Machalska, 1980) (Trematoda, Cyclocoelidae) parasitizing Turdus philomelos Brehm, 1831 in Mallorca (Balearic Islands, Spain). Bolleti Soc. d’Historia Nat. Balear. 2018, 61, 9–15. [Google Scholar]
  21. Bashkirova, E.I. Family Cyclocoelidae Kossack, 1911. In Trematodes of Animals and Man. Essentials of Trematodology; Skrjabin, K.I., Ed.; Academy of Sciences of the USSR: Moscow, Russia, 1950; Volume 4, pp. 329–493. [Google Scholar]
  22. Dronen, N.O.; Tkach, V.V. Key to the species of Morishitium Witenberg, 1928 (Cyclocoelidae), with the description of a new species from the red-billed blue magpie, Urocissa erythrorhynchus (Boddaert) (Corvidae) from Guizhou Province, People’s Republic of China. Zootaxa 2014, 3835, 273–282. [Google Scholar] [CrossRef]
  23. Hillis, D.M.; Dixon, M.T. Ribosomal DNA: Molecular evolution and phylogenetic inference. Quart. Rev. Biol. 1991, 66, 411–453. [Google Scholar] [CrossRef]
  24. Bowles, J.; Blair, D.; McManus, D.P. Genetic variants within the genus Echinococcus identified by mitochondrial DNA sequencing. Mol. Biochem. Parasitol. 1992, 54, 165–173. [Google Scholar] [CrossRef] [PubMed]
  25. Kirillova, N.Y.; Kirillov, A.A.; Shchenkov, S.V.; Knyazev, A.E.; Vekhnik, V.A. Morphological and molecular characterization of plagiorchiid trematodes (Plagiorchis: Plagiorchiidae, Digenea) from bats with redescription of Plagiorchis mordovii Shaldybin, 1958. J. Helminthol. 2024, 98, e2. [Google Scholar] [CrossRef] [PubMed]
  26. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022; Available online: http://www.r-project.org/index.html (accessed on 22 April 2024).
  27. Perez-Ponce de Leon, G.; Hernandez-Mena, D.I. Testing the higherlevel phylogenetic classification of Digenea (Platyhelminthes, Trematoda) based on nuclear rDNA sequences before entering the age of the ‘nextgeneration’ Tree of Life. J. Helminthol. 2019, 93, 260–276. [Google Scholar] [CrossRef] [PubMed]
  28. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis. Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  29. Gu, Z. Complex heatmap visualization. Imeta 2022, 1, e43. [Google Scholar] [CrossRef] [PubMed]
  30. Dutton, H.R.; Bullard, S.A.; Kelly, A.M. New genus and species of Cyclocoelidae Stossich, 1902 (Platyhelminthes: Digenea) infecting the nasopharyngeal cavity of Canada Goose, Branta canadensis (Anseriformes: Anatidae) from Western Alabama. J. Parasitol. 2023, 190, 349–356. [Google Scholar] [CrossRef]
  31. Olson, P.D.; Cribb, T.H.; Tkach, V.V.; Bray, R.A.; Littlewood, D.T. Phylogeny and classification of the Digenea (Platyhelminthes: Trematoda). Int. J. Parasitol. 2003, 33, 735–755. [Google Scholar] [CrossRef]
  32. Gomez-Puerta, L.A.; Salas, M.Y.; Lopez-Urbina, M.T.; Gonzalez, A.E. Morphological and molecular diagnosis of Cyclocoelum mutabile (Trematoda: Cyclocoelidae) in Peru. Rev. Per. Biol. 2018, 25, 315–320. [Google Scholar] [CrossRef]
  33. Urabe, M.; Nor Hashim, N.E.; Uni, S.; Iwaki, T.; Abdullah Halim, M.R.; Marzuki, M.E.; Mat Udin, A.S.; Zainuri, N.A.; Omar, H.; Agatsuma, T.; et al. Description and molecular characteristics of Morishitium polonicum malayense Urabe, Nor Hashim & Uni, n. subsp. (Trematoda: Cyclocoelidae) from the Asian glossy starling, Aplonis panayensis strigata (Passeriformes: Sturnidae) in Peninsular Malaysia. Parasitol Int. 2020, 76, 102074. [Google Scholar] [CrossRef] [PubMed]
  34. Lopez-Jimenez, A.; Garcia-Varela, M.; Hernandez-Orts, J.S. Review of five species of cyclocoelids (Digenea: Cyclocoelidae) from aquatic birds in Mexico with notes on their interspecific variation. Syst. Parasitol. 2018, 95, 921–942. [Google Scholar] [CrossRef] [PubMed]
  35. Assis, J.C.A.; Lopez-Hernandez, D.; Favoretto, S.; Medeiros, L.B.; Melo, A.L.; Martins, N.R.S.; Pinto, H.A. Identification of the avian tracheal trematode Typhlocoelum cucumerinum (Trematoda: Cyclocoelidae) in a host-parasite-environment system: Diagnosis, life cycle and molecular phylogeny. Parasitology 2021, 148, 1–9. [Google Scholar] [CrossRef] [PubMed]
  36. Galaktionov, K.V.; Solovyeva, A.I.; Miroliubov, A. Elucidation of Himasthla leptosoma (Creplin, 1829) Dietz, 1909 (Digenea, Himasthlidae) life cycle with insights into species composition of the north Atlantic Himasthla associated with periwinkles Littorina spp. Parasitol. Res. 2021, 120, 1649–1668. [Google Scholar] [CrossRef] [PubMed]
  37. Harrah, E.C. North American monostomes primarily from freshwater hosts. Illinois Biol. Monograph. 1922, 7, 225–324. [Google Scholar]
  38. Dubois, G. Revision des Cyclocoelidae Kossack 1911 (Trematoda). Rev. Suis. Zool. 1959, 66, 67–147. [Google Scholar] [CrossRef]
  39. Lamothe-Argumedo, R.; Orozco-Flores, A. Nota sobre Cyclocoelum obscurum (Trematoda: Cyclocoelidae) registrado por primera vez en Baja California Sur, Mexico. Anal. Inst. Biol. 2000, 71, 89–92. [Google Scholar]
  40. Timon-David, J. Un cyclocoelide nouveau dans les sacs aeriens de la pie, Cyclocoelum (Pseudhyptiasmus) dollfusi nov. sp. Extr. Bull. Soc. Zool. Fr. 1950, 75, 243–246. [Google Scholar]
  41. Dronen, N.O. Revision of the family Cyclocoelidae Stossich, 1902 with the proposal of two new subfamilies and the description of a new species of Morishitium Witenberg, 1928 from the common snipe, Gallinago gallinago, from Texas, U.S.A. Zootaxa 2007, 1563, 55–68. [Google Scholar] [CrossRef]
  42. Macko, J.K.; Feige, R. Revision einiger Cyclocoelindengattungen und arten auf grund der variabilitat von Haematotrephus lanceolatum (Wild. 1958). Helminthologia 1960, 2, 21–34. [Google Scholar]
  43. Macko, J.K. Cyclocoelum mutabile. Biologia 1964, 19, 626–627. [Google Scholar] [PubMed]
  44. Dubois, G. Notes sur les Cyclocoelidae Kossack, 1911 (Trematoda). Rev. Suiss. Zool. 1965, 72, 413–427. [Google Scholar] [CrossRef]
  45. Macko, J.K. Further knowledge on the variability of Cyclocoelum obscurum (Leidy, 1887) Trematoda. Biologia 1969, 24, 606–616. [Google Scholar]
  46. Macko, J.K.; Spakulova, M.; Vasilkova, Z.; Oros, M. Description of new morphological forms of Skrjabinocoelum petrowi F. pannoniensis (Trematoda, Cyclocoelidae), a parasite of jack snipe (Lymnocryptes minimus, Charadriiformes) in Slovakia. Fol. Faun. Slov. 2011, 16, 73–76. [Google Scholar]
  47. Stunkard, H.W. Cyclocoelum (Haematotrephus) lanceolatum (Wedl, 1858), a digenetic trematode from the abdominal air sacs of the avocet, Recurvirostra americana Gmelin, 1788. Trans. Am. Microsc. Soc. 1966, 85, 209–214. [Google Scholar] [CrossRef]
  48. Kirillov, A.A.; Kirillova, N.Y.; Spiridonov, S.N. Trematodes of land birds from the Republic of Mordovia with a checklist of avian trematodes of the Middle Volga region (European Russia). Diversity 2023, 15, 330. [Google Scholar] [CrossRef]
  49. Collar, N.; Christie, D.A. Eurasian Blackbird (Turdus merula). In Handbook of the Birds of the World Alive; del Hoyo, J., Elliott, A., Sargatal, J., Christie, D.A., de Juana, E., Eds.; Lynx Edicions: Barcelona, Spain, 2019; Available online: https://www.hbw.com/node/58261 (accessed on 26 May 2024).
  50. Timon-David, J. Cycle evolutif d’un Trematode Cyclocoelidae: Pseudohyptiasmus dollfusi Timon-David 1950. Recherches experimentales. Ann. Parasitol. 1955, 30, 43–61. [Google Scholar] [CrossRef]
  51. Timon-David, J. Nouvelles recherches experimentales dur le cycle evolutif du trematode Pseudohyptiasmus dollfusi Timon-David (Digenea: Cyclocoeliidae). Comp. Rend. Soc. Biol. 1957, 151, 592–594. [Google Scholar]
  52. Van Gils, J.; Wiersma, P.; Kirwan, G.M. Green Sandpiper (Tringa ochropus), version 1.0. In Birds of the World; del Hoyo, J., Elliott, A., Sargatal, J., Christie, D.A., de Juana, E., Eds.; Cornell Lab of Ornithology: Ithaca, NY, USA, 2020. [Google Scholar] [CrossRef]
Biology 13 00621 g001

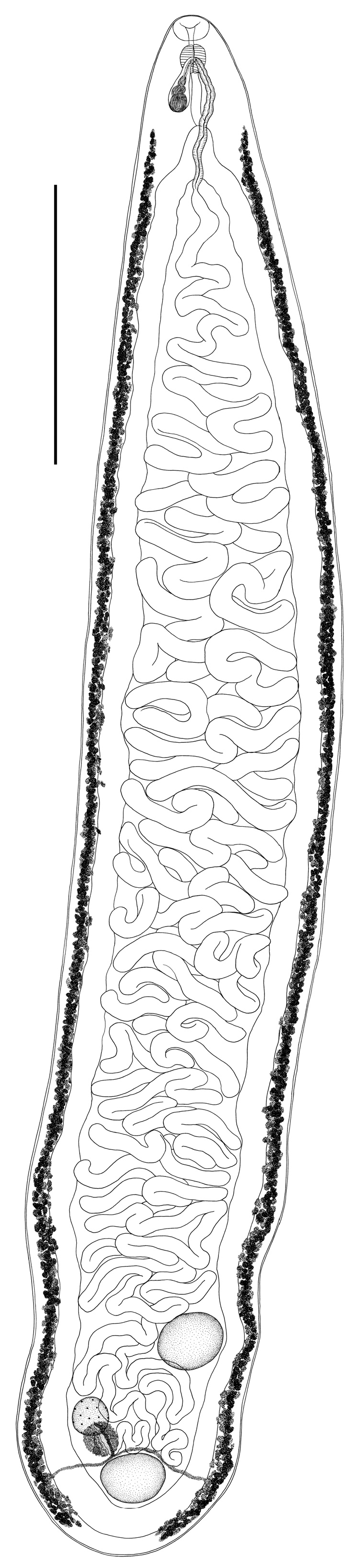

Figure 1. General morphology of Harrahium obscurum ex Tringa ochropus, ventral view; scale bar = 2.0 mm.
Figure 1. General morphology of Harrahium obscurum ex Tringa ochropus, ventral view; scale bar = 2.0 mm.
Biology 13 00621 g001
Biology 13 00621 g002

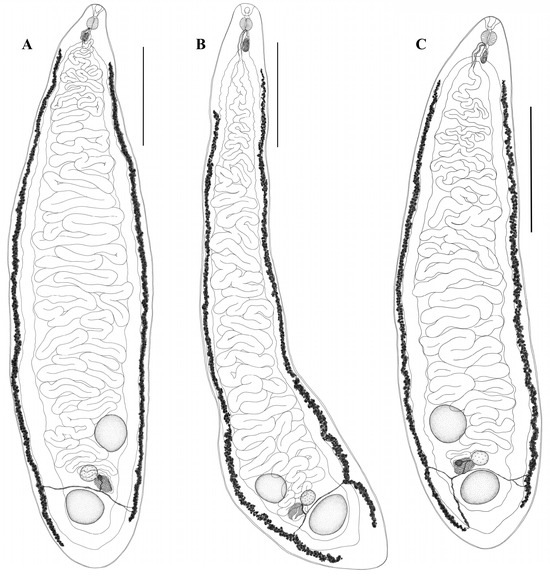

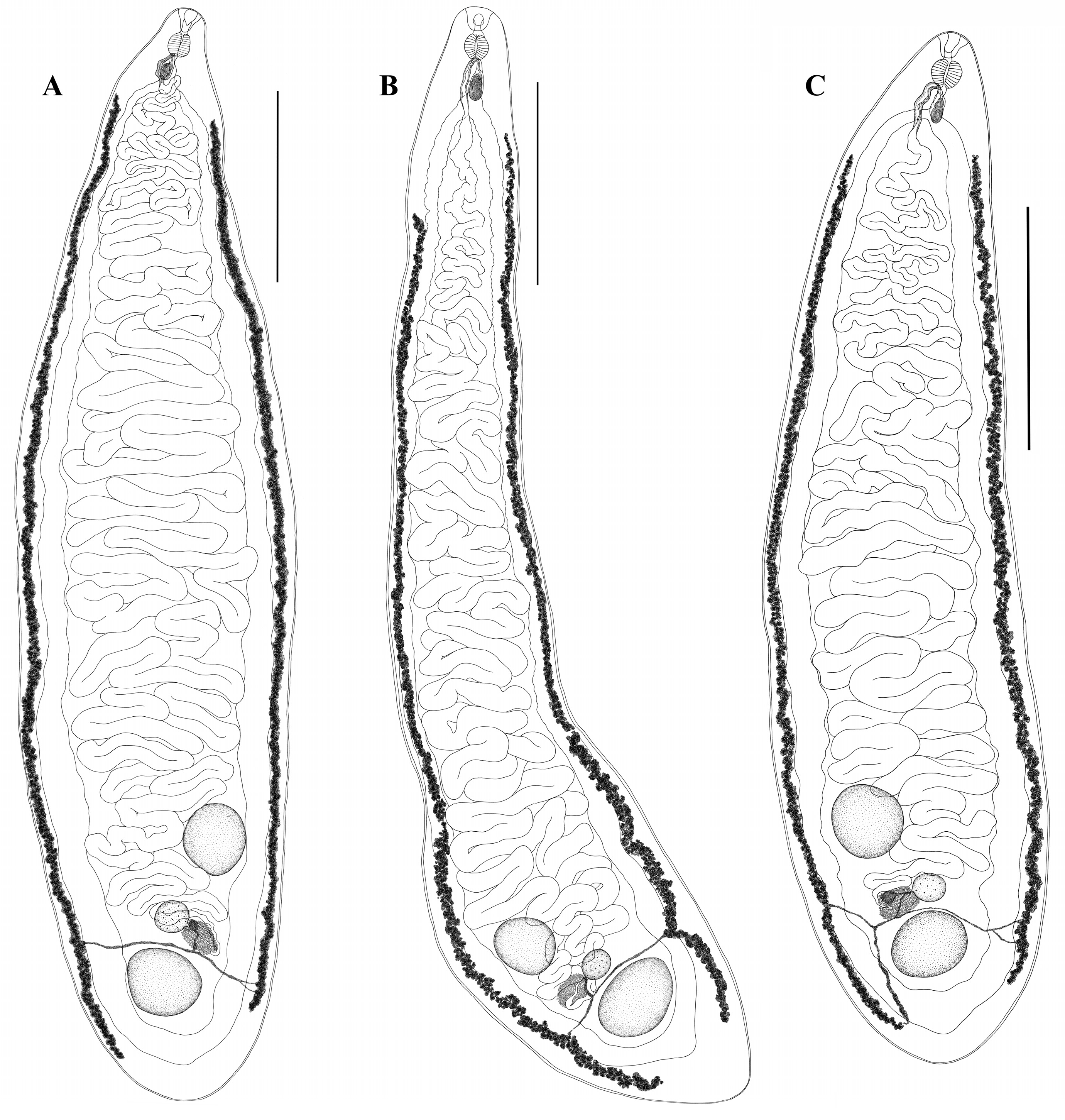

Figure 2. General morphology of Morishitium dollfusi ex Turdus merula, ventral view. (A–C)—morphological variations; scale bars = 2.0 mm.
Figure 2. General morphology of Morishitium dollfusi ex Turdus merula, ventral view. (A–C)—morphological variations; scale bars = 2.0 mm.
Biology 13 00621 g002
Biology 13 00621 g003

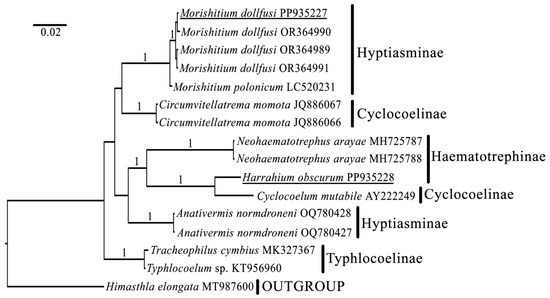

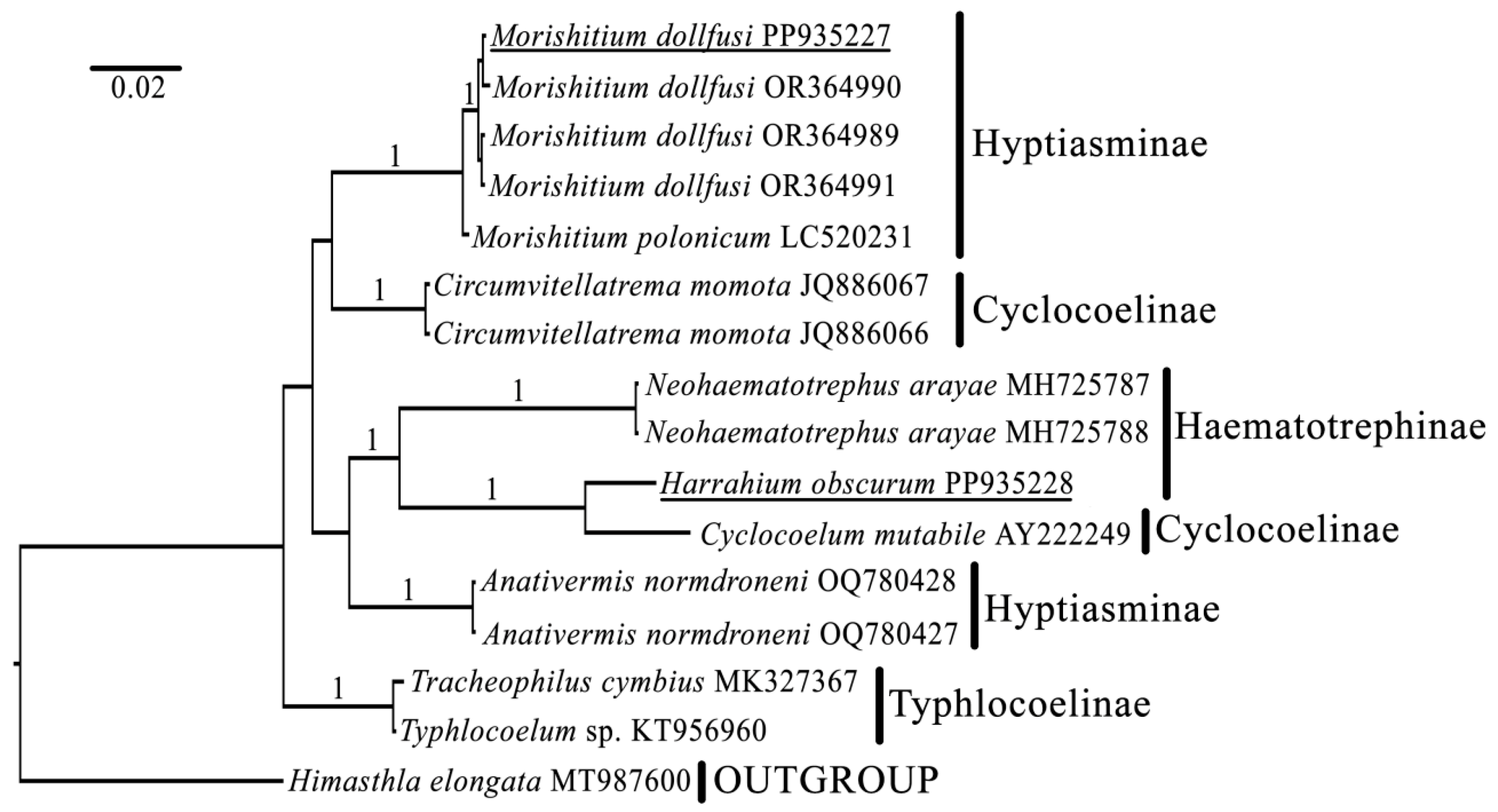

Figure 3. Phylogenetic position of Harrahium obscurum and Morishitium dollfusi based on partial 28S rRNA gene sequences. Only nodes with supports greater than 0.97 (BI) are shown. Newly obtained sequences are underlined.
Figure 3. Phylogenetic position of Harrahium obscurum and Morishitium dollfusi based on partial 28S rRNA gene sequences. Only nodes with supports greater than 0.97 (BI) are shown. Newly obtained sequences are underlined.
Biology 13 00621 g003
Biology 13 00621 g004

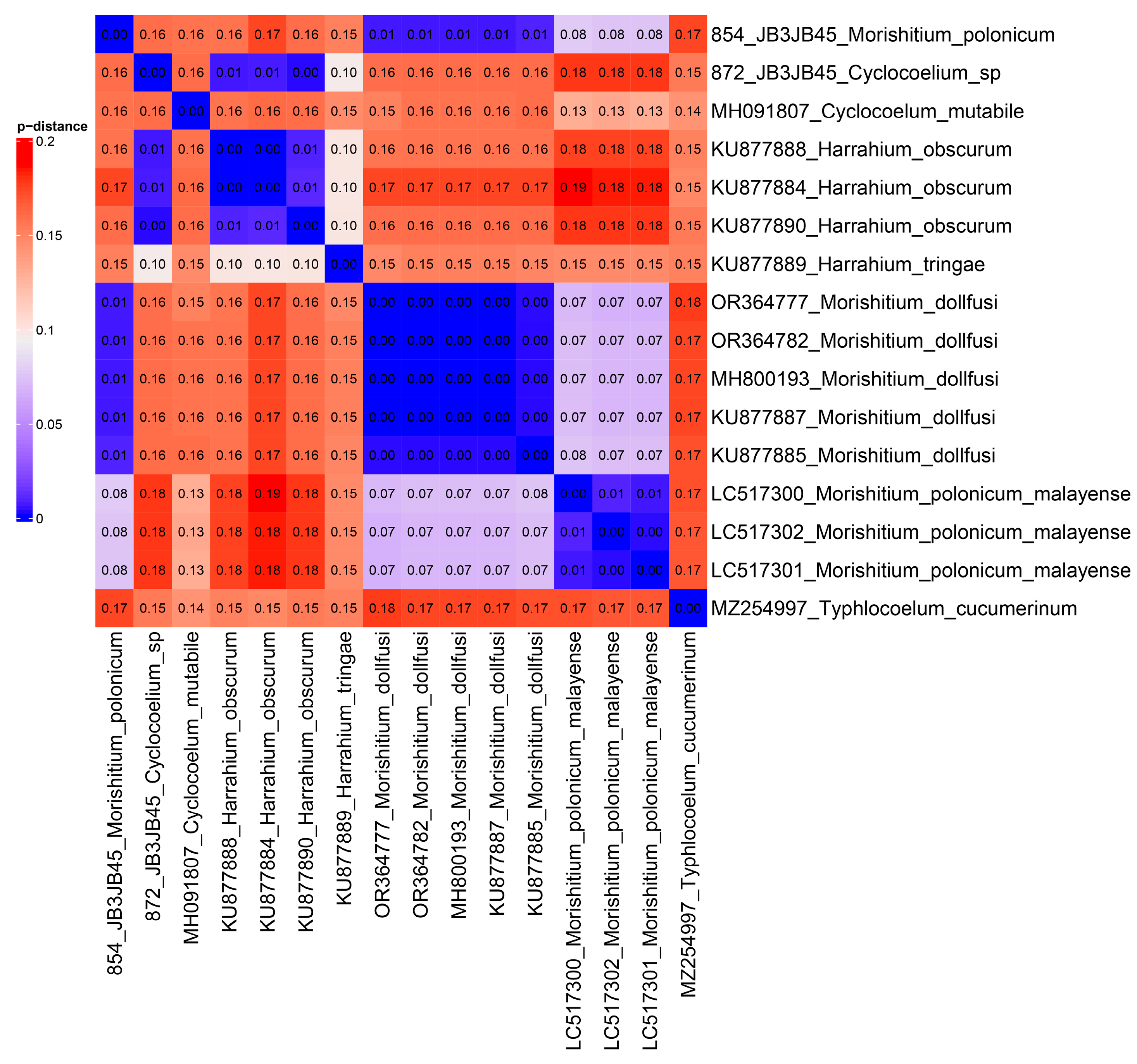

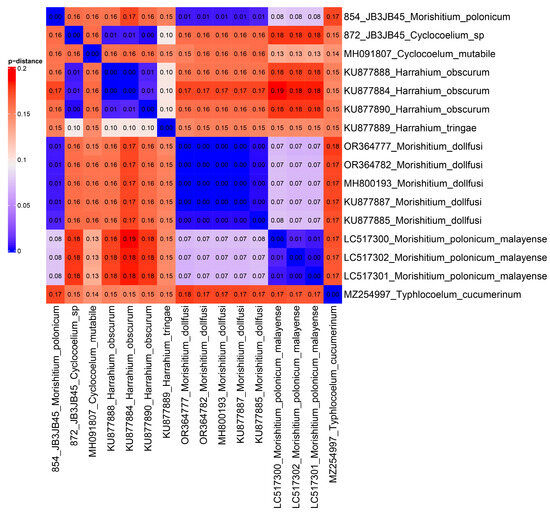

Figure 4. Heatmap based on the p-distances between partial coI mtDNA sequences. The values are shown in the corresponding cells. Pairwise distances are encoded into the color.
Figure 4. Heatmap based on the p-distances between partial coI mtDNA sequences. The values are shown in the corresponding cells. Pairwise distances are encoded into the color.
Biology 13 00621 g004
Table 1. List of trematode specimens, with GenBank accession numbers, according to their geographic origin.
Table 1. List of trematode specimens, with GenBank accession numbers, according to their geographic origin.
FamilySpecies Host Locality GenBank NumberReferences
28S rDNAcox1 mtDNA
CyclocoelidaeAnativermis normdroneniBranta canadensis (Anatidae)USAOQ780427–[30]
Anativermis normdroneniBranta canadensis (Anatidae)USAOQ780428–[30]
Circumvitellatrema momotaMomotus momota
(Momotidae)		France (captive-born in zoo)JQ886067–[4]
Circumvitellatrema momotaMomotus momota
(Momotidae)		France (captive-born in zoo)JQ886066–[4]
Cyclocoelum mutabileCalidris canutus (Scolopacidae), Gallinula chloropus (Rallidae)PeruAY222249MH091807[31,32]
Harrahium obscurumTringa ochropus
(Scolopacidae)		RussiaPP935228PP934665This study
Harrahium obscurumTringa nebularia,
Tringa erythropus
(Scolopacidae)		Czech Republic–KU877888
KU877884
KU877890		[1]
Harrahium tringaeTringa erythropus
(Scolopacidae)		Czech Republic–KU877889[1]
Morishitium dollfusiPica pica (Corvidae),
Turdus merula (Turdidae)		Czech Republic, ItalyOR364989
OR364990
OR364991		OR364777
OR364782
MH800193
KU877887
KU877885		[1,6,7]
Morishitium dollfusiTurdus merula (Turdidae)RussiaPP935227PP934664This study
Morishitium polonicumAplonis panayensis strigata (Sturnidae)MalaysiaLC520231–[33]
Morishitium polonicum malayenseAplonis panayensis strigata (Sturnidae)Malaysia–LC517300
LC517302
LC517301		[33]
Neohaematotrephus arayaeJacana spinosa (Jacanidae)MexicoMH725787–[34]
Tracheophilus cymbiusCairina moschata (Anatidae)ChinaMK327367–Not published
Typhlocoelum sp.Anas platyrhynchos (Anatidae)USAKT956960–[5]
Typhlocoelum cucumerinumCairina moschata (Anatidae)Brazil–MZ254997[35]
EchinostomatidaeHimasthla elongataLittorina littorea (Littorinidae)RussiaMT987600–[36]
Table 2. Measurements of Harrahium obscurum from the original material and redescriptions.
Table 2. Measurements of Harrahium obscurum from the original material and redescriptions.
This StudyHarrah [37], Dubois [38] on Original MaterialSitko et al. [1]Lamothe-Argumedo,
Orozco-Flores [39]
HostTringa ochropus?Tringa erythropusTringa semipalmata
LocalityMordovia NRUSACzech RepublicMexico
Body length10.00–15.00 (11.96)6.0–13.0013.00–28.00 (20.71)18.90–21.70
Body width1.750–3.100 (2.392)1.50–3.003.00–6.50 (4.80)3.50–4.30
Pharynx width0.183–0.362 (0.258)0.115–0.2640.183–0.350 (0.254)0.270–0.372
Esophagus length 0.308–0.462 (0.374)0.500–0.750–0.888 2
Cirrus sac length0.385–0.539 (0.442)0.248–0.579–0.777 2
Anterior testis length0.323–0.492 (0.422)0.462–0.8270.486–1.143 (0.828)1.110–2.180
Anterior testis width 0.400–0.539 (0.476)0.380–0.8270.457–1.222 (0.923)1.440–2.500
Posterior testis length0.354–0.585 (0.424)0.480–1.0000.514–1.457 (0.940)1.010–1.819
Posterior testis width0.385–0.662 (0.501)0.300–0.8770.514–1.341 (0.986)1.300–1.980
Ovary length0.262–0.339 (0.300)0.275–0.463 10.343–0.571 (0.482)0.410–0.480
Ovary width0.246–0.354 (0.286)0.343–0.596 (0.483)0.430–0.560
Intertesticular space length0.658–1.785 (1.122)0.830–1.888 2
Post-testicular space length0.400–0.754 (0.565)0.415–0.444 2
Egg length0.109–0.139 (0.127)0.138–0.1620.133–0.157 (0.142)0.144–0.161
Egg width0.044–0.077 (0.069)0.070–0.0940.070–0.087 (0.082)0.090
Note: Mean values are given in parentheses. 1—diameter. 2—estimated by Lopez-Jimenez et al. [30] from a published figure.
Table 3. Measurements of Morishitium dollfusi from its original description and redescriptions.
Table 3. Measurements of Morishitium dollfusi from its original description and redescriptions.
This StudyTimon-David [40]Kirillova et al. [10]Machalska [19]Heneberg, Sitko [7]Jaume-Ramis, Pinya [20]
HostTurdus merulaPica picaTurdus merula, Coccothraustes coccothraustesTurdus philomelosTurdus merula,
Turdus philomelos		Turdus philomelos
LocalityZhiguli NR (Russia)FranceSmolny NP (Russia)PolandCzech RepublicSpain
Body length8.00–11.75 (9.78)15.50–20.00 (17.00)6.250–8.2547.138–13.1096.850–21.500 (10.580)12.00
Body width1.90–2.75 (2.34)–1.815–2.650–2.000–4.100 (2.513)2.50
Oral sucker width0.169–0.285 (0.219)0.3500.169–0.2660.208–0.323184–368 (264) × 184–322 (246) 20.230
Pharynx width0.221–0.277 (0.251)0.2500.193–0.2660.208–0.323193–285 (246) × 202–359 (261) 20.235
Esophagus length 0.185–0.339 (0.248)0.250–0.425––0.230–0.644 (0.453)–
Cirrus sac length0.231–0.400 (0.299)0.2550.193–0.3240.219–0.4740.203–0.644 (0.368) × 116–0.230 (0.166) 20.365
Anterior testis length0.385–0.769 (0.619)0.910 0.370–1.0000.498 10.402–0.984 (0.687) 0.715
Anterior testis width 0.462–0.739 (0.589)1.3500.373–0.984 (0.592)–
Posterior testis length0.492–0.862 (0.679)0.910 0.373–1.222 (0.820)–
Posterior testis width0.554–0.923 (0.695)1.3500.447–1.043 (0.701)–
Ovary length0.200–0.308 (0.263)0.320–0.4000.222–0.3480.265 10.184–0.507 (0.307) 0.280
Ovary width0.262–0.354 (0.301) 0.230–0.745 (0.311)–
Intertesticular space length0.446–1.092 (0.759)1.9200.533–0.9631.4300.343–1.143 (0.773)–
Post-testicular space length0.677–1.062 (0.842)1.5900.444–0.9541.2600.571–1.714 (0.946)–
Egg length0.123–0.154 (0.135)0.120–0.1300.079–0.1340.081–0.1390.128–0.139 (0.137) 0.120
Egg width0.064–0.079 (0.070)0.043–0.0710.046–0.0690.070–0.081 (0.078)0.060
Note: Mean values are given in parentheses. 1—diameter, 2—length and width are given.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kirillov, A.A.; Kirillova, N.Y.; Shchenkov, S.V.; Knyazev, A.E.; Vekhnik, V.A. The Morphological and Molecular Characterization of the Avian Trematodes Harrahium obscurum and Morishitium dollfusi (Digenea: Cyclocoelidae) from the Middle Volga Region (European Russia). Biology 2024, 13, 621. https://doi.org/10.3390/biology13080621

AMA Style

Kirillov AA, Kirillova NY, Shchenkov SV, Knyazev AE, Vekhnik VA. The Morphological and Molecular Characterization of the Avian Trematodes Harrahium obscurum and Morishitium dollfusi (Digenea: Cyclocoelidae) from the Middle Volga Region (European Russia). Biology. 2024; 13(8):621. https://doi.org/10.3390/biology13080621

Chicago/Turabian Style

Kirillov, Alexander A., Nadezhda Yu. Kirillova, Sergei V. Shchenkov, Alexei E. Knyazev, and Victoria A. Vekhnik. 2024. "The Morphological and Molecular Characterization of the Avian Trematodes Harrahium obscurum and Morishitium dollfusi (Digenea: Cyclocoelidae) from the Middle Volga Region (European Russia)" Biology 13, no. 8: 621. https://doi.org/10.3390/biology13080621

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
