Modeling of Washing Effectiveness in a High-Pressure Washing Device Obtained for Crushed-Stone and Gravel Aggregates

Abstract

This article concerns research on washing effectiveness of a high-pressure washing device. Three types of investigations were carried out: Laboratory tests on washing of crushed-stone and gravel aggregate, as well as pilot-scale tests on crushed-stone aggregate. Laboratory tests were conducted for four changeable parameters and pilot-scale investigations for three parameters. All tests were performed based on factorial experiment procedure. For each type of material there was built a model based on multiple regression method. Results of investigations showed that operating pressure in the washer has the highest effect on obtained washing effectiveness, measured as a degree of dust impurities’ removal from feed. The second parameter with the highest impact on washing process effectiveness was the maximum particle of feed, and its relationship to the obtained washing effectiveness appeared inversely proportional. For the crushed-stone aggregate the susceptibility of washing also appeared significant in models.

1. Introduction

Annual production of natural aggregates in Poland in 2018 exceeded 320 million tonnes. About 100 million tonnes constituted crushed-stone aggregates and 220 million tonnes were gravels and sands [1]. The rising trend in mining and production of aggregates can be generally observed since the beginning of this century, especially for its first decade [1,2] However, an unavailability of appropriate quality aggregated in some areas of the country is among the constant concern of aggregate product recipients and builders [3]. The problem is more complex and concerns many aggregate products’ manufacturers all over the world. The changeable quality of individual deposits is significant, even within a relatively small region of a given country, not to mention diversification in specific countries. The problem is even more significant due to the high amount of aggregate produced worldwide. It is very hard to obtain accurate data, but experts assess this volume for 20 to even 40 billion tons. Quality of raw materials constitute a significant problem, especially in terms of impurities’ content. Natural aggregates often contain clay and dust impurities that need to be removed prior to their industrial utilization. These impurities also affect the crushing and screening operations and, thus, an overall processing effectiveness of crushed-stone aggregates. Industrial practice shows that it is quite often not economical to treat the finer fractions of aggregate without the application of suitably efficient washing technology and, as a result, such a material is stored in heaps. However, the most common clay contaminations can be removed from the material in washing operations [4] that are present in purification of many types of both natural and artificial aggregates [5]. It also appears that removing fine impurities reduces prior aggregate processing and reduces dust pollution in mineral processing plant, which has also a positive environmental impact [6,7]. Many investigations on aggregate washing also show that the washing sludge can be utilized in brick production [8,9,10], building ceramics [11], and artificial aggregates [12,13]. However, despite the above issues, the technologies effective in removal of impurities from aggregates are of a key significance in their processing circuits [14,15,16,17].

Washing operations can be realized through application of screens with spray nozzles. Sword and drum washers can be also used due to an intensive mixing of the raw material in the working chamber of a device and elimination of the clay lumps and other unnecessary impurities [18,19]. The high-pressure washing technology has found its applications in sand and gravel washing as well as in removal of contaminations from aggregates from recycling with particle size up to 120 mm [4,20]. Working principles of such a washer are based on the high-pressure water stream that penetrates particle pores, flushes and breaks agglomerates, and at the same time introduces motion of feed material particles. This results in obtaining an effect of mechanical friction, which has a very positive impact on the final result of the washing process. The feed is fed to the hopper by means of a belt conveyor, from where it goes into the washing chamber. In the upper part of the chamber rotates a rotor, equipped with spray nozzles supplying water under a high pressure, 40–200 bar (40–200 MPa).

Despite a relatively long time of existence of this technology in the mineral processing practice, the number of published investigations on the issue is not high. Capacity of the device ranges from 50 to even 400 Mg/h and feed material feeding intensity varies and depends on the level of its contamination [21,22]. Investigations over water and energy consumption during washing operations show that high-pressure washing technology is more beneficial in unit consumption of both energy and water, comparing to other washing devices [23]. For example, popular sword washers utilize, on average, from 0.4 to 0.75 kWh per tonne of feed material while in a high-pressure washer analogous consumption is within the range of 0.3–0.5 kWh/Mg. In terms of water consumption, respective data is as follow: Sword washer, 0.5–1.0 m³/Mg; high-pressure washer, 0.12–0.2 m³/Mg [23,24].

From the scope of further utilization of carbonate aggregate in a concrete mix, it is important that the material is clean. If there is too much clay in the mix, it tends to create a swelling effect that can lead to potential cracking in the future. The contact layer between aggregate and cement slurry is one of the most vulnerable areas in concrete. Many of the properties of concrete, both mechanical and durability, are determined by the properties of the components used, as well as the connections between the individual components of the concrete composite. [25,26]

The main purpose of the paper was to investigate a work effectiveness of the high-pressure washing device on an example of gravel and limestone crushed-stone aggregates washed in laboratory scale. The other object of research was to build a model of a washer operation that is helpful in optimization of device effectiveness through adjustment of selected operational parameters of washer and feed material characteristics. The obtained results were verified in pilot-scale conditions.

2. Materials and Methods

The research program was carried out in two stages. Primary tests were performed in laboratory scale, and further verification tests, with a limited number and variability of operating parameters, were carried out in a pilot-plant scale. In addition, control samples of concrete were made using washed and unwashed limestone aggregate, and then they were exposed to computer tomography in order to assess the quality of the binder-aggregate bond.

The research program was based on the methodology of the factorial experiment [27]. The primary variable parameter of the device was an operating pressure (P) in the washer. The variable parameters characterizing the material were a percentage content of impurities in the feed (Imp_f), particle size composition (Dmax), and susceptibility of impurities to their removal (Ws) from the washed material. For the set of factors (independent variables) adopted in this manner, the dependent variable was defined as the efficiency of removing impurities from feed. The measure of this effectiveness was the percentage of the removed dust fraction with particle size below 0.063 mm, constituting impurities, described by Equation (1).

$$\mathrm{Y}=\frac{\mathrm{impurities}\mathrm{in}\mathrm{feed}\left[\%\right]-\mathrm{impurities}\mathrm{in}\mathrm{product}\left[\%\right]}{\mathrm{impurities}\mathrm{in}\mathrm{feed}\left[\%\right]}*100\%$$

(1)

A laboratory-scale investigative program included 72 single tests in total. This number resulted from the number of independent variables adopted for investigations and the number of variability levels for a particular parameter:

• Operating pressure in the washer P (three levels of variability);
• Maximum particle of feed Dmax (three levels of variability);
• Percentage content of impurities in feed Imp_f (three levels of variability);
• Susceptibility of impurities for washing Ws, (three levels of variability); and
• Type of washed material Mat (limestone and gravel aggregate).

For each configuration of independent variables, the washing efficiency (Ef) was calculated and such data were an input material for the model calculations. The general model of effectiveness determined on the basis of the research can be written with using Equation (2).

Ef = f (P, Imp_f, Dmax, Ws, Mat)

(2)

where:

• Ef—effectiveness of impurities’ washing from feed, (%);
• P—operating pressure in the washer, (bar);
• Imp_f—percentage content of dust fraction below 63 μm in feed material, (%);
• Dmax—maximum particle of feed, (mm);
• Ws—susceptibility of impurities for washing/washing resistance, (no unit);
• Mat—type of material.

The washing susceptibility index was estimated on the bases of instruction issued by the Canadian Ministry of Land and Natural Resource Operations [28]. The document describes methodology and procedures of qualitative description of impurities. The rank from 1 to 3 is assigned for an individual sample. However, the assessment is subjective and is based on the experience of the person conducting the procedure. The obtained value is a specific feature of the tested sample and is constant for the individual material/sample.

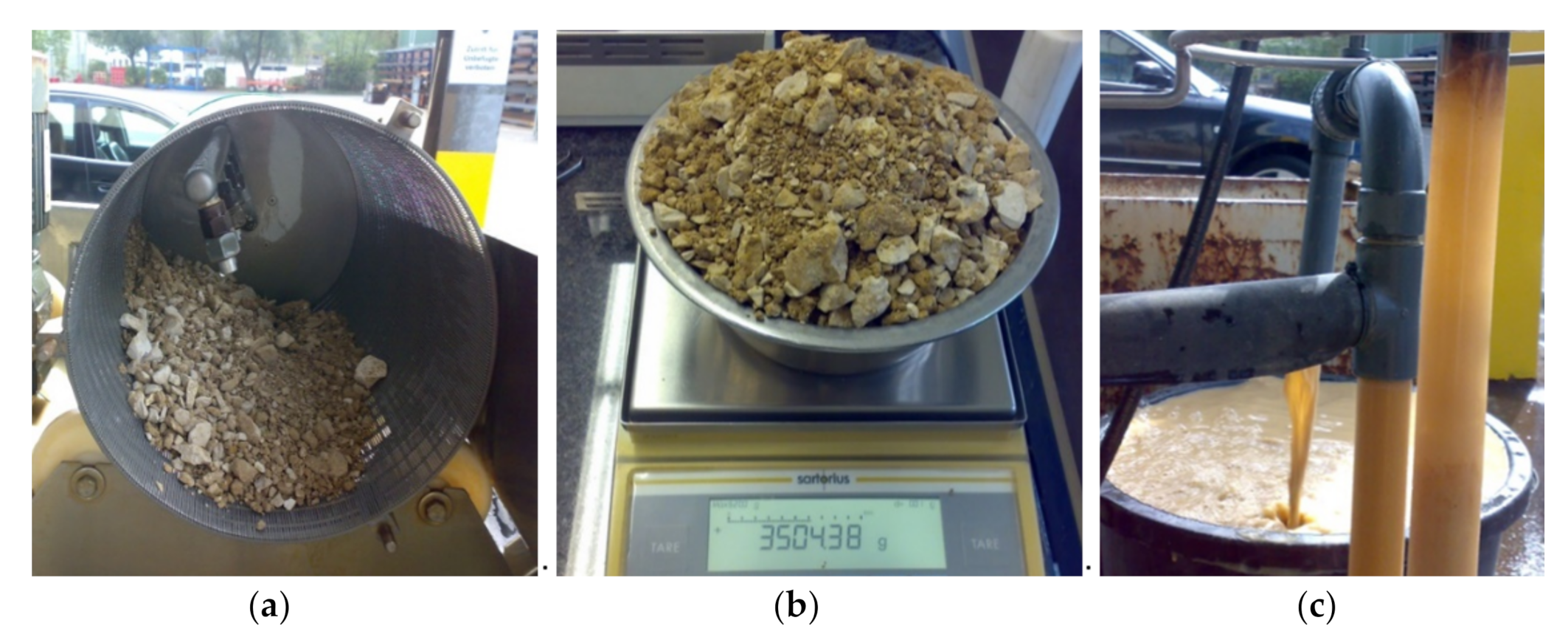

Laboratory-scale tests were carried out in a 300-mm-diameter, high-pressure washing drum made of a slotted sieve with a 1- × 35-mm mesh (Figure 1). The installation was equipped with a rotary drive with a gear and a set of spray nozzles delivering washing water under a given pressure, the working range of which was 0–200 bar. Under the drum there was a tank draining water with washed impurities with an optical sensor counting the solid fraction particles in the washed water. The sample for a single test was representatively separated from the raw material in the amount of about 3500 g. Prior to the washing tests, the feed moisture was measured and particle size analysis was performed. Core test was carried out three times on each sample at the accepted setting of pressure value. The obtained results for individual pressures were averaged.

The water used during the washing tests was a technological water accessible on site. The pH was not determined. However, due to application of high-pressure pumps in the circuit, there was a demand of limitation in the content of particles below 0.1 mm, which could not be higher than 100 mg/dm³.

The material for laboratory investigations was a gravel and crushed-stone carbonate aggregate (limestone). The gravel aggregate was a raw material from domestic deposits. The material had a particle size composition from 0 to 40 mm, and the dusty impurities’ content in feed ranged from 1.21% to 23% by weight (

Table 1. Set of gravel aggregate samples for laboratory washing tests.

Sample Number	Maximum Particle (mm)	Feed Impurities (%)	Washing Resistance
1	40	4.74	3
2	40	5.48	2
3	40	3.43	1
4	40	17.37	3
5	40	23.94	2
6	40	10.3	1
7	32	1.21	3
8	32	6.03	2
9	32	2.43	1
10	32	16.21	3
11	32	19.03	2
12	32	13.45	1

). In mineral aggregate production, of more importance is the particle size of impurities than their mineral composition. More detailed investigations on composition of impurities were not carried out; however, clay constituted more than 40%. Apart from the clay, also silt and sand could be identified.

The second type of material was the limestone, with particle size from 0 to 40 mm, and impurities’ content ranging from 2.09% to 29.96% (

Table 2. Set of limestone aggregate samples for laboratory washing tests.

Sample Number	Maximum Particle (mm)	Feed Impurities (%)	Washing Resistance
1	40	14.70	3
2	40	6.69	2
3	40	2.09	1
4	40	20.30	3
5	40	27.1	2
6	40	21.31	1
7	32	9.93	3
8	32	8.61	2
9	32	6.72	1
10	32	29.96	3
11	32	25.9	2
12	32	20.67	1

). The structure of impurities was varied, from the dispersed feed covering the particle surface through inclusions in the gaps and pores to compact, plastic lumps.

The feed material in pilot-scale tests constituted a limestone with particle size 0–40. The samples were characterized by an average and high content of impurities, ranging from 3.6% to 31%, which took both an easily removable dispersed form and the compact, plastic lumps with high resistance to disintegration and removal (

Table 3. Set of limestone samples subjected to pilot-scale tests.

Maximum Particle (mm)	Feed Impurities (%)	Washing Resistance
40	22.0	1
40	31.0	2
40	3.6	1
40	9.5	2
32	21.5	1
32	26.7	2
32	9.9	1
32	10.3	2

).

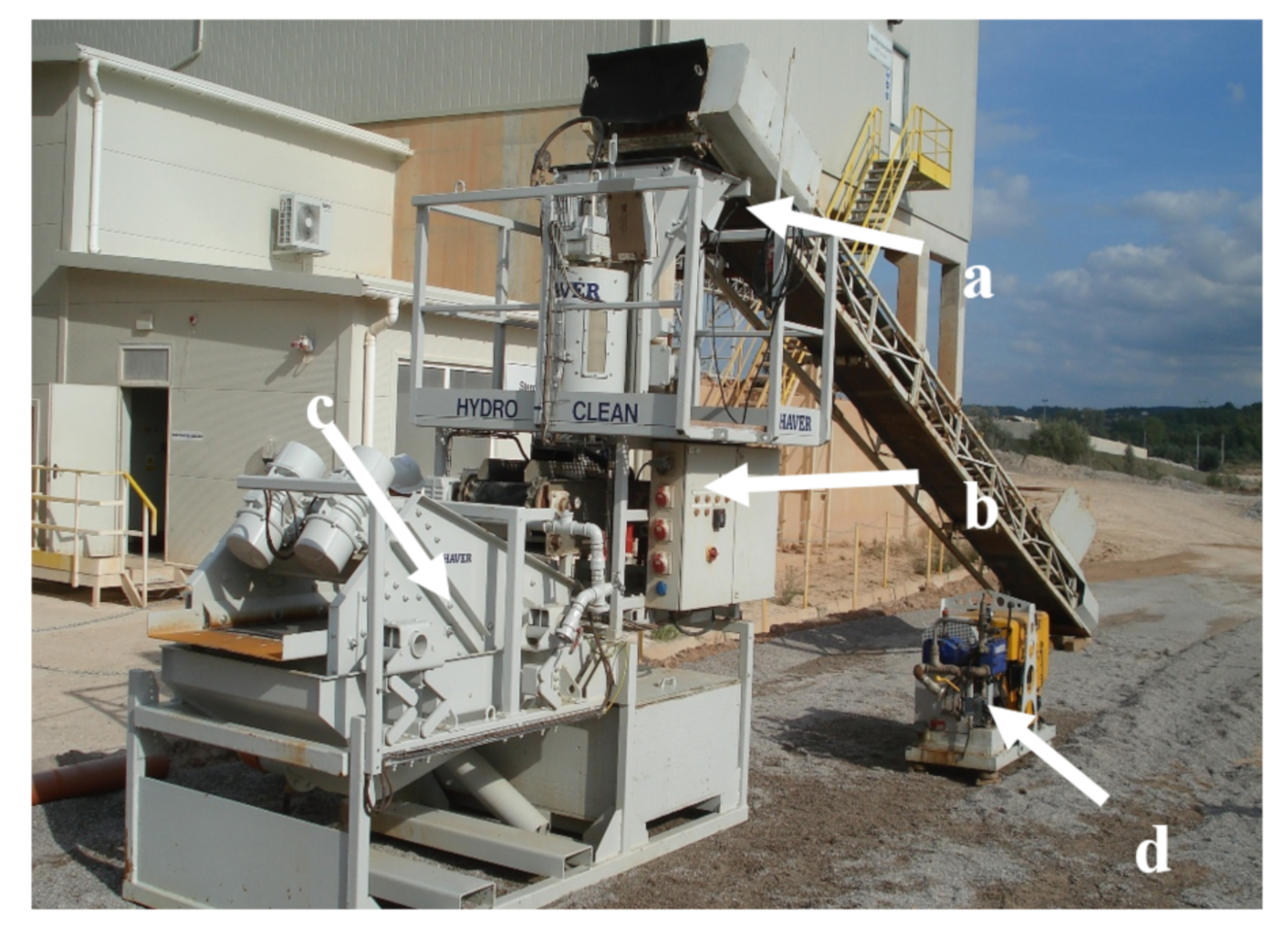

Pilot plant-scale investigations were carried out in the Hydro-Clean HC 350 washer (Figure 2) equipped with a feeding hopper, a drainage screen with a spraying installation, and supporting elements in the form of a pipeline system supplying and discharging the washed water and the control system. Eight tests in total were carried out and the washing effectiveness, measured by degree of impurities’ removal from the feed material, calculated according to Equation (1), was calculated for each single test.

3. Results

3.1. Washing Intensity vs. Washing Time

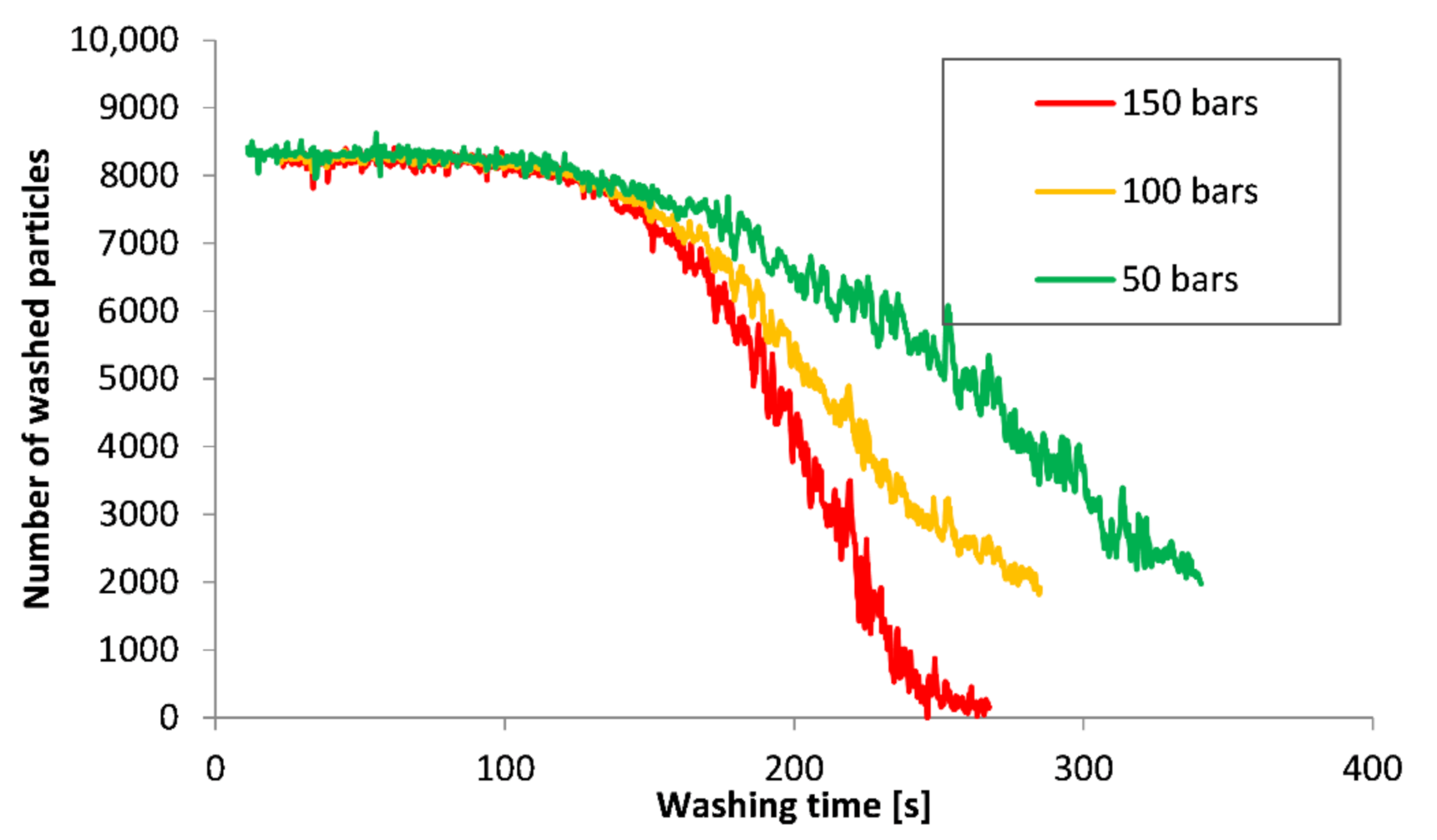

Figure 3 shows an average intensity of impurities’ washing out, determined on the basis of the tests, in relationship to the pressure in the washer. The analysis of the picture shows that the impurities from the feed were removed the most quickly at the highest operating pressure value. The maximum particle size of washed particles was 0.5 mm, which was determined by the output gap of the washing drum. It can be also noticed that the relationship between the operating pressure in the washer and the duration of the process was hyperbolic, which confirmed the results of previous studies in this field [29].

3.2. Laboratory Washing of Gravel Aggregate

Results of washing effectiveness in individual tests carried out for the gravel aggregate are presented in

Table 4. Results of gravel washing tests in laboratory scale. Values of impurities are given by weight.

Sample Number	Pressure (bar)	Feed Impurities (%)	Product Impurities (%)	Y (%)
1	50	4.74	2.3	51.48
	100		1.1	76.79
	150		0.4	91.56
2	50	5.48	1.9	65.33
	100		1.1	79.93
	150		0.5	90.88
3	50	3.43	0.9	73.76
	100		0.7	79.59
	150		0.3	91.25
4	50	17.37	5.5	68.34
	100		2.9	83.30
	150		1.8	89.64
5	50	23.94	2.4	89.97
	100		1.1	95.41
	150		0.4	98.33
6	50	10.3	5.1	50.49
	100		2.9	71.84
	150		1.5	85.44
7	50	1.21	0.4	66.94
	100		0.2	83.47
	150		0.1	91.74
8	50	6.03	1.7	71.81
	100		0.9	85.07
	150		0.3	95.02
9	50	2.43	0.9	62.96
	100		0.3	87.65
	150		0.1	95.88
10	50	16.21	1.9	88.28
	100		1.4	91.36
	150		1	93.83
11	50	19.03	1.9	90.02
	100		0.9	95.27
	150		0.5	97.37
12	50	13.45	0.6	95.54
	100		0.2	98.51
	150		0.1	99.26

.

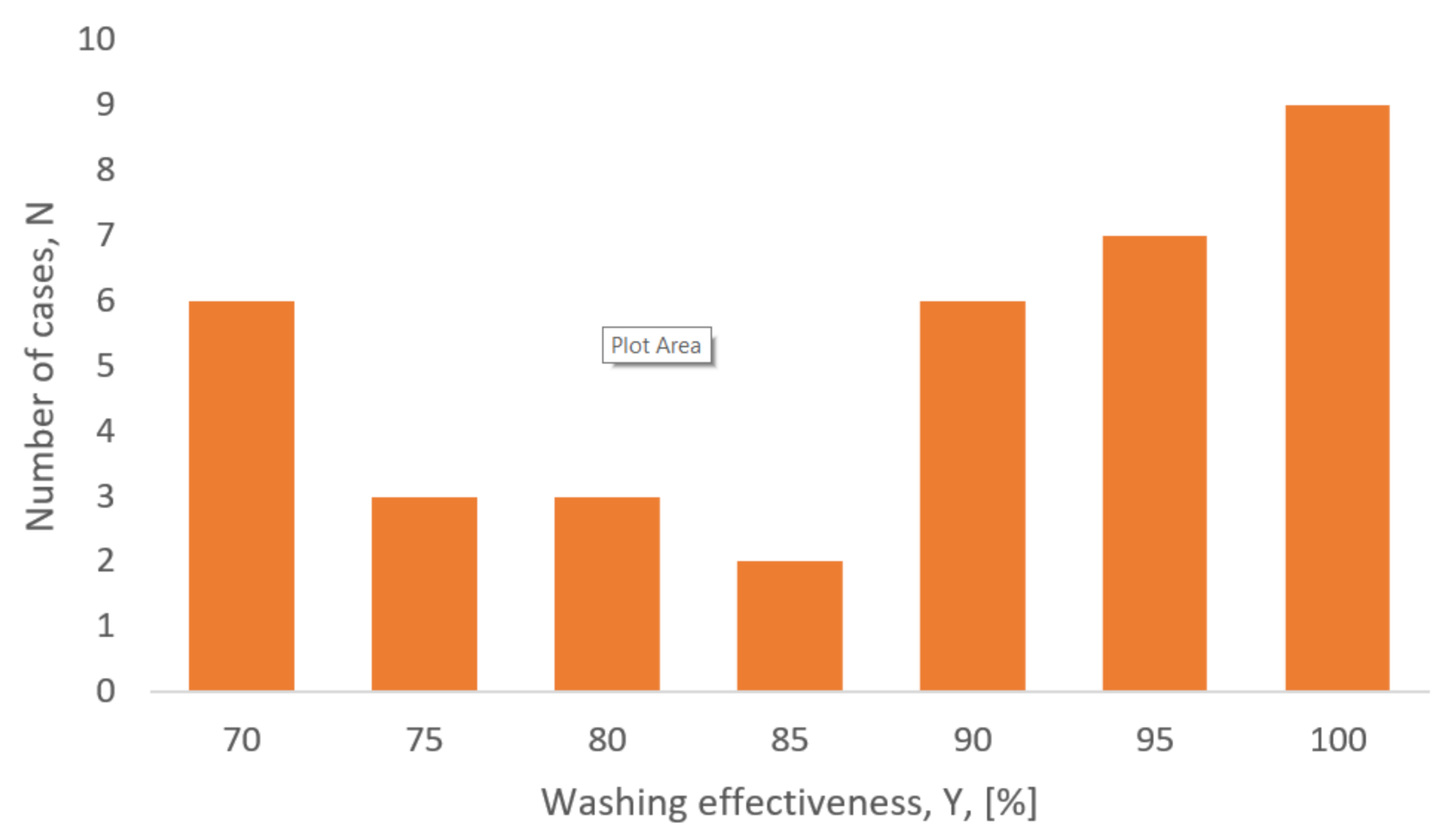

When assessing the efficiency of the washing process for the gravel aggregate, it can be seen that the obtained results were either low or very high in terms of efficiency. The relatively fewest number of results were obtained with average effectiveness, i.e., with values between 75% and 85%. Very high effectiveness refers to the tests with the washer pressure of 100 and 150 bars. Hence, it can be seen that this type of aggregate is relatively easy in removal of dust impurities, provided that the appropriate (i.e., not too low) pressure is applied. The results in the form of a histogram are presented in Figure 4.

On the bases of obtained results, a regression model of gravel aggregate washing effectiveness was calculated. A general form of the model is given in Equation (3) and detailed results of regression analysis are presented in

Table 5. Results of multiple regression calculations—gravel aggregate, first step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	99.085	11.173	8.868	>0.0001
a1	0.205	0.030	6.843	>0.0001
a2	0.788	0.172	4.587	>0.0001
a3	−1.131	0.288	−3.928	0.0004
a4	−1.621	1.509	−1.074	0.291

.

Y = a0 + a1*P + a2*Imp_f + a3*Dmax + a4* Ws

(3)

The value of an individual coefficient, i.e., a0, a1, a2, a3, and a4, (second column, Table 5) is statistically significant in the model when the probability (last column of Table 5) does not exceed an accepted level of significance (α). For the purposes of calculations presented in the paper, a confidence level value (1 − α) equals 0.95. Therefore, when the value in the last column of Table 5 is greater than 0.05, the coefficient is considered as statistically insignificant and removed from the model. Insignificance of individual coefficient statistically means that it does not contribute an important impact on dependent value Y (washing effectiveness). Inspecting the modeling results presented in Table 5, it can be seen that coefficient a4 is statistically insignificant because its probability error equals 0.291 and is higher than 0.05.

Insignificant coefficient a4 is connected with the variable characterizing the resistance of impurities’ particles for washing. In the next step of regression procedure, the variable is removed and re-calculation of the model is carried out. Results of regression with an updated set of independent variables are presented in

Table 6. Results of multiple regression calculations—gravel aggregate, second (and final) step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	95.986	10.82	8.868	>0.0001
a1	0.204	0.030	6.82	>0.0001
a2	0.761	0.170	4.470	>0.0001
a3	−1.130	0.288	−3.91	0.0004

. Inspecting the results, it is clear that now all variables are statistically significant because their values of statistical error do not exceed 0.05.

The R squared (R²) value equals 0.844, which means that variables accepted in the model characterize reality in 84.4%, on average. There are some other factors, not incorporated in the model, that describe the reality in further at 15.6%. The value of standard error (SE) equals 0.073, which means that the modeling results can vary from real conditions by 7.3%, on average. The final form of the model is given by Equation (3).

Y = 95.986 + 0.204*P + 0.761*Imp_f − 1.130*Dmax

(4)

Equation (4) shows that the parameter connected with the maximum size of feed, Dmax, has the highest unit impact of operational washing effectiveness of the device. The relationship between Y and Dmax is inversely proportional, which means that the finer particle, the higher the effectiveness of the washing process. For example, decreasing of maximum feed particle by 1 mm theoretically increases the process effectiveness by 1.13%. However, if we consider the fact that a unit change of operational pressure in the washer is 50 bars, then the pressure P is of the greatest impact on the process effectiveness in the model (3). For example, an increase in pressure value from 50 to 100 bars theoretically increases the washing efficiency by 10%, approximately.

3.3. Laboratory Washing of Crushed-Stone Aggregate

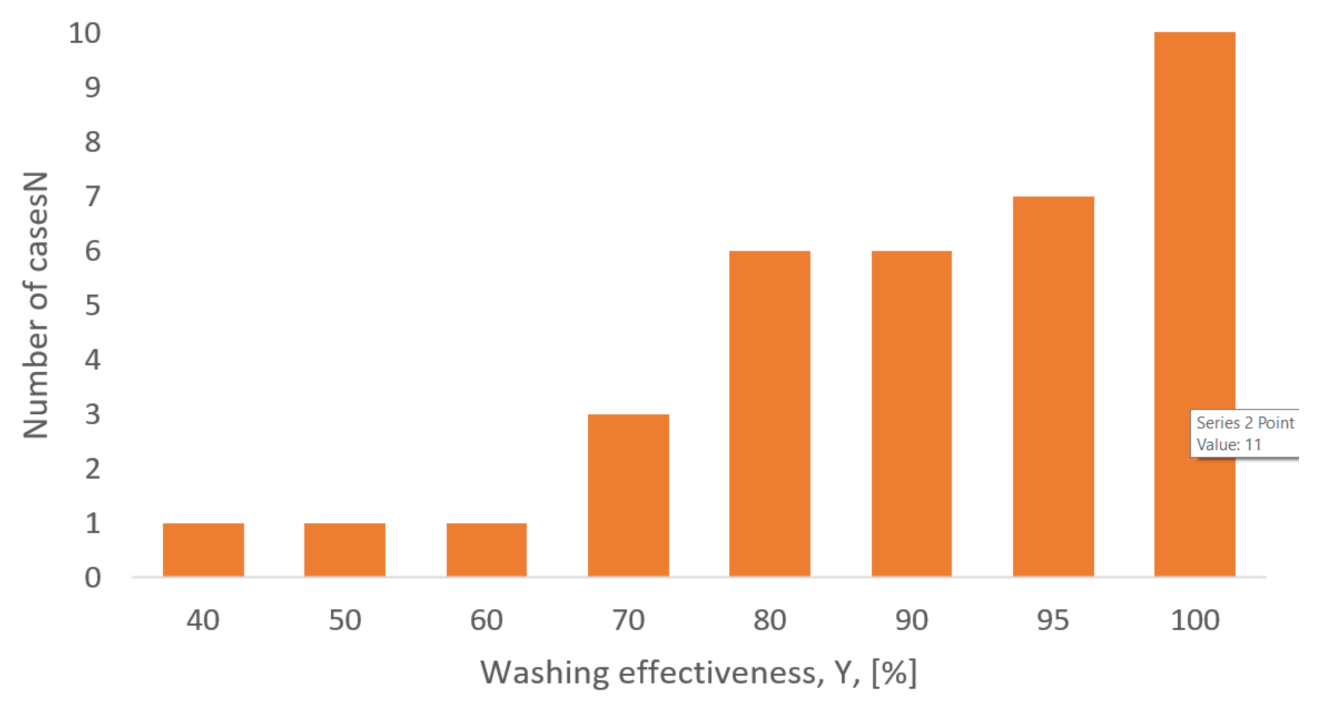

The results obtained for limestone are characterized by a rather high or very high washing efficiency. The fewest number of results were obtained with washing effectiveness lower than 70%, with average with values between 75 and 85%. Only in three cases was the obtained washing efficiency lower than 70%. A histogram of results is presented in Figure 5.

Complete results of limestone crushing aggregate washing tests in laboratory scale are presented in

Table 7. Results of limestone feed washing in laboratory scale. Values of impurities are given by weight.

Sample Number	Pressure (bar)	Feed Impurities (%)	Product Impurities (%)	Y (%)
1	50	14.7	5.4	63.27
	100		3.1	78.91
	150		1.9	87.07
2	50	6.69	1.1	83.56
	100		0.5	92.53
	150		0.2	97.01
3	50	2.09	0.5	76.08
	100		0.2	90.43
	150		0.1	95.22
4	50	20.3	10.6	47.78
	100		7.9	61.08
	150		4.2	79.31
5	50	27.1	11	59.41
	100		5	81.55
	150		3	88.93
6	50	21.31	4.5	78.88
	100		2.7	87.33
	150		1.9	91.08
7	50	9.93	6.1	38.57
	100		3.9	60.73
	150		2.7	72.81
8	50	8.61	1.9	77.93
	100		1	88.39
	150		0.3	96.52
9	50	6.72	0.5	92.56
	100		0.2	97.02
	150		0.1	98.51
10	50	29.96	2.2	92.66
	100		1.2	95.99
	150		0.5	98.33
11	50	25.9	1.9	92.66
	100		0.9	96.53
	150		0.3	98.84
12	50	20.67	1.3	93.71
	100		0.9	95.65
	150		0.2	99.03

and results of modeling are shown in

Table 8. Results of multiple regression calculations—crushed limestone aggregate, first step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	114.092	16.868	6.764	>0.0001
a1	0.171	0.044	3.88	0.0005
a2	0.322	0.212	1.511	0.14
a3	−0.900	0.426	−2.111	0.043
a4	−10.913	2.297	−4.394	0.0001

. The values marked in red font indicate variables statistically insignificant at the accepted level of confidence.

As can be seen, the coefficient a2, standing for the variable “Imp_f”, is statistically insignificant as the value in the last column of the table is higher than 0.05. Thus, in the next stage of modeling, the variable “Imp_f” was withdrawn from the model. The new modeling results are presented in

Table 9. Results of multiple regression calculations—crushed limestone aggregate, second (and final) step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	119.517	16.813	7.108	>0.0001
a1	0.171	0.045	3.81	0.0006
a3	−0.961	0.432	−2.222	0.033
a4	−9.124	2.250	−4.055	0.0003

.

The R² value equals 0.727 and standard error SE = 0.110. The final form of the model is given in Equation (5).

Y = 119.517 + 0.171*P − 0.961*Dmax − 9.124*Ws

(5)

The variable with the greatest unit significance is the washing resistance Ws, but if, as for gravel aggregate, it is assumed that the pressure changes not by 1 but by 50, then the weight of two independent variables, i.e., operating pressure and washing resistance, is almost the same.

3.4. Results of Pilot-Scale Tests

Three independent variables were present in the pilot-scale model: Percentage content of impurities in feed, maximum particle size of feed, and washing susceptibility of impurities. Thus, a general form of regression model will be as given by Equation (6). Results of modeling are given in

Table 10. Results of multiple regression calculations—crushed limestone aggregate, first step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	137.9036	11.68744	11.7993	>0.0001
a1	−0.74567	0.408131	−1.82703	0.14
a2	−0.26124	0.103177	−2.53196	0.06
a3	−11.9691	2.720575	−4.39946	0.01

and regression model is presented in Equation (7).

Y = a0 + a1*Imp_f + a2*Dmax + a3*Ws

(6)

Y = 137.9 − 0.75*Imp_f − 0.26*Dmax − 11.97*Ws

(7)

Model determination index, R² = 0.88, and standard error SE = 0.066. Only one variable, content of impurities in feed, appeared insignificant in the model. The corrected model is presented in Equation (8) and detailed results are given in

Table 11. Results of multiple regression calculations—crushed limestone aggregate, second (and final) step.

Coefficient	Coefficient Value	Estimation Error of Coefficient	t-Stud Value	Probability Error
a0	121.5716	9.121208	13.32846	>0.0001
a2	−0.27044	0.124844	−2.16623	0.08
a3	−11.4844	3.28013	−3.50119	0.017

.

Y = 121.57 − 0.27*Dmax − 11.48*Ws

(8)

3.5. Analysis of Concrete Quality

Aggregate dusts can be considered as a full-value component of the concrete mix in the form of a filler, improving rheological properties and even creating new concrete phases. On the other hand, it is different in the case of the presence of dust in the aggregate as contamination. By sticking to the particle surface, the aggregate is isolated from the cement grout and the contact zone is weakened. The harmfulness of dusts largely depends on their composition. Crystallites of clay minerals are particularly disadvantageous in this respect, as they are characterized by a large specific surface and layered structure, which favors swelling and adsorption of various chemical compounds (e.g., carboxylates) that are part of the cement modifiers. These properties destroy the bond between the cement matrix and the aggregate. Therefore, it is extremely important to use washed aggregate in the production of concrete mixtures [30]. Washing of aggregates is of particular importance in the case of carbonate aggregates because, due to the mechanism of their formation, clay layers may occur in the structure of the deposit. In order to confirm the practical significance of the results of aggregate washing, two samples of concrete mixes were made: The one based on aggregate not subjected to the high-pressure washing process and the second. The analysis of sample by means of computer tomography was then made (Figure 6).

Imaging tests were performed with the use of tomograph model vtomex m300 GE. The test consists of directing a beam of X-ray onto a sample and registering its intensity on the detector. Creating an image involves measuring the absorption of radiation that passes through the sample. The concrete samples were placed on a rotating table and kept relatively stationary: The radiation cannon and detector, after the 360° full rotation of the sample, obtained a complete picture of the structure. The reconstruction was made using Volume Graphic’s VGStudio Max program (version 2.2).

Inspecting Figure 6a, there can be seen particles of unwashed aggregate with debonding porosity, i.e., pores formed at the border between aggregate and cement can be observed. Such porosity is a very unfavorable phenomenon. The pores present in the contact layer affect the greater permeability of concrete in this zone, causing lowering of the strength, frost resistance, and other functional parameters [31].

Aspects of quality and durability of bonds between an aggregate and binder were not considered because the main focus concerned the washing technology. However, investigations on effects of geometrical properties of particles on the quality of the contact zone binder-aggregate were initially carried out. Based on some very preliminary results, it is possible to say that particle shape does not affect the porosity. In case the material contains clayish impurities, small pores appear in the contact layer and they isolate aggregate from the cement.

The porosity of the concrete, resulting from absorbing air while making a mixture, looks different. Flat particles introduce turbulent movement into the mortar and large contact pores are formed at the particle boundaries (Figure 6c), and, in case of cubic particles, this process is limited. Computer tomography allows distinguishing different types of pores observed in hardened concrete. Figure 6c shows washed aggregates with flat particles. An absence of fine pores at the surface of the particles (on the contact layer) and the presence of large ones, especially in the corners of the irregular aggregate, can be observed. An impact of mineralogical composition on the washing process and the subsequent quality of concrete mixes is under testing.

4. Discussion of Results

Summary of regression models obtained for all type of conducted tests (lab-scale gravel, lab-scale limestone, pilot-scale limestone) are presented in

Table 12. Summary results of modeling.

Type of Test	Pressure P	Feed Impurities Imp_f	Max. Particle Dmax	Washing Resistance Ws
Gravel, lab	0.204	0.706	−1.13	Not significant
Limestone, lab	0.171	Not significant	−0.961	−9.124
Limestone, pilot	Not tested	Not significant	−0.27	−11.48

.

The obtained modeling results for individual samples were similar and confirmed the practical observations of the authors. The operating pressure in the washer turned out to be the parameter with the most significant impact on the washing process efficiency. The relationship between pressure, P, and washing effectiveness, Y, was directly proportional, i.e., for higher operating pressure values, higher washing efficiency was observed. However, with further increasing of the pressure, relatively lower increases in washing efficiency were observed, which is also confirmed in literature [29]. Investigations on the effectiveness of various high-pressure devices also indicated that this relationship can be well described by the hyperbolic or logarithmic function [32].

For the limestone samples, the content of dust impurities in feed was not significant for the washing efficiency Y. The same conclusions were obtained for both laboratory tests and the verifying pilot-scale processes. This may result from the type of impurities accompanying the limestone aggregates and their different washing susceptibility, where the content of the contaminants is not that important but the possible difficulty in their removal is. The relationship between the washing efficiency and the resistance of impurities to washing, Ws, was inversely proportional and the coefficient for this parameter had the highest value. This parameter determined the effectiveness of the process, measured by the degree of dust impurities’ removal from the limestone at the given value of pressure in the washer device. The modeling results were consistent for both laboratory and pilot-scale tests.

The results of all the washing tests carried out showed an inversely proportional relationship between the particle size distribution of feed and the effectiveness of aggregate washing in the high-pressure washer. This means that a relatively higher efficiency was obtained for a finer material, but the effect of the particle size distribution here was low. Additionally, there may be an important factor of feed particle uniformity, i.e., for narrow particle size fractions the washing efficiency may be higher, but this aspect was not examined in this article.

The fitting of the obtained models to reality, measured by the value of the coefficients of model determination, R², was high and ranged from R² = 0.727, obtained for limestone in laboratory conditions, to R² = 0.88, obtained for washed limestone in pilot-scale tests. Model accuracy for gravel was R² = 0.84.

Particles after washing in the high-pressure washer were characterized by lower contamination on the surface and, thus, allowed for a significant reduction in the unfavorable phenomenon of debonding porosity in concrete mixes (Figure 6b). If washed carbonate aggregates are used in concrete, a hydrated calcium-carbonate-aluminate-phase is formed in the contact layer (C₃A·CaCO₃·11H₂O) [26]. The amount of this phase formed in the cement-aggregate contact layer decreases with moving away from the aggregate grain surface. As a result of this reaction, a contact layer with a more compact microstructure, lower porosity, and permeability is formed in the concrete, which results in greater strength and adhesion to the carbonate aggregate and increased resistance to sulphate corrosion.

5. Conclusions

Results of investigations presented in the paper show that washing process effectiveness depends on the washing device operational parameters, feed characteristics, and type of impurities. Results of laboratory tests show that effectiveness of washing for crushed and gravel aggregates were almost identical. Average effectiveness for crushed limestone aggregate achieved in the testing program was 84.05%, while the same value for the gravel aggregate was 83.98%. For the reason that also standard deviations for both types of aggregates were similar (15.35 and 13.08, respectively), it can be stated that the type of aggregate can be regarded as a parameter with relatively lower impact of effectiveness of a high-pressure washing process.

Both series of laboratory tests confirmed that operating pressure in the washing device has the greatest impact on the obtained effectiveness. The feed characteristics measured through maximum particle size were inversely proportional to process effectiveness, as well as the resistance of impurities for their removal from the material.

From a practical point of view, especially in the concrete industry, the process of aggregate washing is of a fundamental importance. The contact layer between the unwashed aggregate and the binder is characterized by the highest porosity in the entire volume of the cement grout, the obvious effect of which is lower strength compared to the matrix and, thus, faster deterioration of the material.

The obtained results also showed convergence of model achieved in pilot scale with laboratory experiments. These models make it possibly to optimize and control the washing process effectiveness through adjusting of certain process parameters. The models can be developed and extended through application of a larger number of operational parameters. However, it needs to be taken into consideration that too many variables in the model may decrease its determination level. Thus, the process of selection of potential variables to the model should be carried out carefully. The other practical aspect of the issue can be the shape of the functional relationship between independent and dependent variables. More advanced techniques can be applied and nonlinear regression method may be used, but this was out of the scope of the presented investigations. The authors will consider analysis of this problem in future works.
